API Nightmares - Designing the Worst API Possible…So You Don't Have To

APIs have become ubiquitous in the modern day and age. From web services to clocks everything gets connected through APIs. This growth in interest for APIs has led to an increased focus on designing APIs in such a way that they are easy to consume, easy to maintain, and offer a pleasant developer experience. But what if you don't want your API to be easy and pleasant? This talk is a humorous take at designing a "nightmare API" that offers the worst possible developer experience. Take what you see in this talk - do the opposite - and your developers will thank you for it.

Transcript

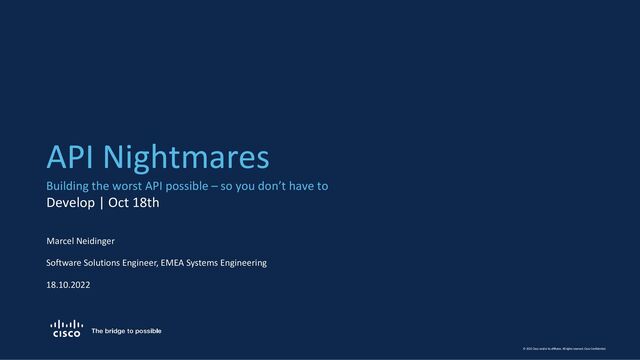

1. © 2022Cisco and/or its affiliates. All rightsreserved. Cisco Confidential.
   Marcel Neidinger
   Software Solutions Engineer, EMEA Systems Engineering
   18.10.2022
   Develop | Oct 18th
   API Nightmares
   Building the worst API possible – so you don’t have to


   View Slide

2. @squ4rks


   View Slide

3. Let’s make those endpoints
   hurt.


   View Slide

4. A reasonable request and response
   GET /api/v1/users?country=Germany
   {
   "id": 1,
   "firstName": "Max",
   "lastName": "Musterman",
   "username": "c1sc0f4n",
   "address": {
   "street": "Mainstreet 42C"
   "city": "Berlin",
   "country": "Germany"
   },
   "phone": {
   "mobile": "+49 102 093920",
   "home": None
   }
   }


   View Slide

5. A reasonable request and response
   {
   "id": 1,
   "firstName": "Max",
   "lastName": "Musterman",
   "username": "c1sc0f4n",
   "address": {
   "street": "Mainstreet 42C"
   "city": "Berlin",
   "country": "Germany"
   },
   "phone": {
   "mobile": "+49 102 093920",
   "home": None
   }
   }
   GET /api/v1/users?country=Germany


   View Slide

6. Searching is listing and
   iterating. And it’s best
   done on the client.
   Lesson learned


   View Slide

7. Your database (maybe)
   User
   id: INTEGER NOT NULL
   firstName: VARCHAR
   lastName: VARCHAR
   username: VARCHAR
   address: INTEGER[FK]
   phone: INTEGER[FK]
   Address
   id: INTEGER NOT NULL
   street: VARCHAR
   city: VARCHAR
   country: VARCHAR
   Phone
   id: INTEGER NOT NULL
   home: VARCHAR
   mobile: VARCHAR


   View Slide

8. Less reasonable
   {
   "id": 1,
   "firstName": "Max",
   "lastName": "Musterman",
   "username": "c1sc0f4n",
   "address": 2,
   "phone": 3
   }
   GET /api/v1/phones
   GET /api/v1/addresses
   GET /api/v1/users


   View Slide

9. Don’t give the interface
   what it needs. Give it your
   database layout.
   Lesson learned


   View Slide

10. Less reasonable
    {
    "id": 1,
    "firstName": "Max",
    "LastName": "Musterman",
    "user_name": "c1sc0f4n",
    "address": 2,
    "phone": 3
    }
    GET /api/v1/phones
    GET /api/v1/addresses
    GET /api/v1/users


    View Slide

11. Less reasonable
    {
    "id": 1,
    "firstName": "Max",
    "LastName": "Musterman",
    "user_name": "c1sc0f4n",
    "address": 2,
    "phone": 3,
    "enableUser": true,
    "enabledCalling": false
    }
    GET /api/v1/phones
    GET /api/v1/addresses
    GET /api/v1/users


    View Slide

12. Less reasonable
    {
    "id": 1,
    "firstName": "Max",
    "LastName": "Musterman",
    "user_name": "c1sc0f4n",
    "address": 2,
    "phone": 3,
    "enableUser": true,
    "enabledCalling": false
    }
    GET /api/v1/phone_number
    GET /api/v1/addresses
    GET /api/v1/userProfile


    View Slide

13. Inconsistency is the key
    to bad API design. Apply
    it to attributes, endpoints
    and everything inbetween.
    Lesson learned


    View Slide

14. Less reasonable
    {
    "id": 1,
    […]
    "address": 2,
    "phone": 3,
    "links": [{
    "href": "/addresses/2",
    "rel": "address",
    "type": "GET"
    }]
    }
    GET /api/v1/phone_number
    GET /api/v1/addresses
    GET /api/v1/userProfile


    View Slide

15. Less reasonable
    {
    "id": 1,
    […]
    "address": 2,
    "phone": 3,
    "links": [{
    "href": "/addresses/2",
    "rel": "address",
    "type": "GET"
    }]
    }
    GET /api/v1/phone_number
    GET /api/v1/addresses
    GET /api/v1/userProfile


    View Slide

16. Less reasonable
    {
    "id": 1,
    […]
    "address": 2,
    "phone": 3,
    "links": [{
    "path": "/addresses/2",
    "rel": "address"
    }]
    }
    GET /api/v1/phone_number
    GET /api/v1/addresses
    GET /api/v1/userProfile


    View Slide

17. HATEOAS is for people
    who build usable APIs.
    Don’t do it.
    Lesson learned


    View Slide

18. Keywords matter
    POST /api/v1/userProfile
    GET /api/v1/userProfile/1
    GET /api/v1/userProfile
    PATCH /api/v1/userProfile/1
    DELETE /api/v1/userProfile/1
    POST /api/v1/userProfile/1/promote


    View Slide

19. Keywords don’t matter
    POST /api/v1/userProfile


    View Slide

20. Keywords don’t matter
    POST /api/v1/userProfile?id=1


    View Slide

21. Keywords don’t matter
    POST /api/v1/userProfile?id=1&action=delete


    View Slide

22. If we really want it -
    Everything can be a POST.
    Lesson learned


    View Slide

23. Who needs errors anyways.


    View Slide

24. A succesfull response
    HTTP/1.1 200 OK
    {
    "id": 2,
    "firstName": "Max",
    "LastName": "Musterman",
    [.. ]
    }
    POST /api/v1/userProfiles?action=create


    View Slide

25. A succesfull response
    HTTP/1.1 400 BAD REQUEST
    {
    "error": {
    "code": 1000,
    "message": "Field ‘username’ is required",
    "tracking": "ROUTER_ Pp8q5d"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

26. Also a succesfull response
    HTTP/1.1 200 OK
    {
    "error": {
    "code": 1000,
    "message": "Field ‘username’ is required",
    "tracking": "ROUTER_ Pp8q5d"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

27. Status codes are bad.
    Always fail succesfully.
    Lesson learned


    View Slide

28. Also a succesfull response
    HTTP/1.1 200 OK
    {
    "error": {
    "code": 1000,
    "message": "Field ‘username’ is required",
    "tracking": "ROUTER_ Pp8q5d"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

29. Error codes are bad.
    Always fail without a way
    to identify the cause.
    Lesson learned


    View Slide

30. Also a succesfull response
    HTTP/1.1 200 OK
    {
    "error": {
    "message": "Wrong request",
    "tracking": "ROUTER_ Pp8q5d"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

31. Keeping your errors as
    generic as possible saves
    you time in development.
    Lesson learned


    View Slide

32. Also a succesfull response
    HTTP/1.1 200 OK
    {
    "error": {
    "message": "Wrong request",
    "tracking": "ROUTER_ Pp8q5d"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

33. Tracking codes make it
    easy to find logs.
    What’s the fun in easy?
    Lesson learned


    View Slide

34. I know a limit that you don’t.


    View Slide

35. On your API docs
    Rate Limiting
    Rate Limiting is required to maintain proper service levels
    for all users of our platform.
    Handling rate-limited requests
    If you hit a rate limit a 429 Too Many Requests status will
    be send. The response also has a Retry-After header
    with your wait time in seconds.


    View Slide

36. A succesfull response
    HTTP/1.1 429 TOO MANY REQUESTS
    Retry-After: 20
    {
    }
    POST /api/v1/userProfiles?action=create


    View Slide

37. A succesfull response
    HTTP/1.1 200 OK
    Retry-After: 20
    {
    "error": {
    "message": "Too much"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

38. A succesfull response
    HTTP/1.1 200 OK
    Retry-After: 20
    {
    "error": {
    "message": "Too much"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

39. On your API docs
    Rate Limiting
    Rate Limiting is required to maintain proper service levels
    for all users of our platform.
    Handling rate-limited requests
    If you hit a rate limit a 429 Too Many Requests status will
    be send. The response also has a Retry-After header
    with your wait time in seconds.


    View Slide

40. There is beauty in opaque
    numbers. Why tell the user
    how long to wait for?
    Lesson learned


    View Slide

41. On your API docs
    Rate Limiting
    […]
    Upper Limits
    You can expect the following upper limits (with some
    leway to burst requests):
    - Maximum of 100 requests per minute
    - Maximum of 60 requests for POST /userProfiles


    View Slide

42. On your API docs
    Rate Limiting
    […]
    Upper Limits
    You can expect the following upper limits (with some
    leway to burst requests):
    - Maximum of 100 requests per minute
    - Maximum of 60 requests for POST /userProfiles


    View Slide

43. Consistently inconsistent
    is the way to go for our
    rate limit.
    Lesson learned


    View Slide

44. A succesfull response
    HTTP/1.1 200 OK
    {
    "error": {
    "message": "Bad user"
    }
    }
    POST /api/v1/userProfiles?action=create


    View Slide

45. Be draconic. It’s driving up
    your
    bill afterall.
    Lesson learned


    View Slide

46. In terms of docs, we have
    no docs.


    View Slide

47. The best doc is no doc.
    Lesson learned


    View Slide

48. On your API docs
    User Profiles
    POST userProfiles?action=details&id=
    Response Properties:
    - username: The username
    - firstName: The first name


    View Slide

49. Standards are there to be
    broken. Run your own!
    What’s a "swagger"
    anyway?
    Lesson learned


    View Slide

50. On your API docs
    User Profiles
    POST userProfiles?action=details&id=
    Response Properties:
    - username: The username
    - firstName: The first name


    View Slide

51. Don’t generate your docs
    from code (or vice versa).
    That would make them
    consistent.
    Lesson learned


    View Slide

52. On your API docs
    Changelog
    August 22, 2022
    • The userProfile endpoint now returns the username
    field as user_name.
    • The API now offers a promote action on user profiles.
    Breaking Change
    New
    Subscribe via RSS Subscribe via e-mail


    View Slide

53. On your companies social media feed
    Marcel Neidinger @squ4rks
    @ACMEInc did you change the username attribute
    for a user profile to user_name?!?
    Today at 03:42am


    View Slide

54. Use error-driven changelogs
    for your API.
    Lesson learned


    View Slide

55. Sanity.


    View Slide

56. Consistency


    View Slide

57. Predictability


    View Slide

58. View Slide

59. View Slide
