Decoder-only architecture or How the f*ck does ChatGPT work?

As part of my learning journey in generative AI—specifically the attention mechanism—I gave this presentation at work.
It was mainly a way for me to reinforce my own understanding.

Transcript

1. Decoder-only architecture or How the f*ck does ChatGPT work?
2. The bird’s eye view
3. Overview IOKI loves AI

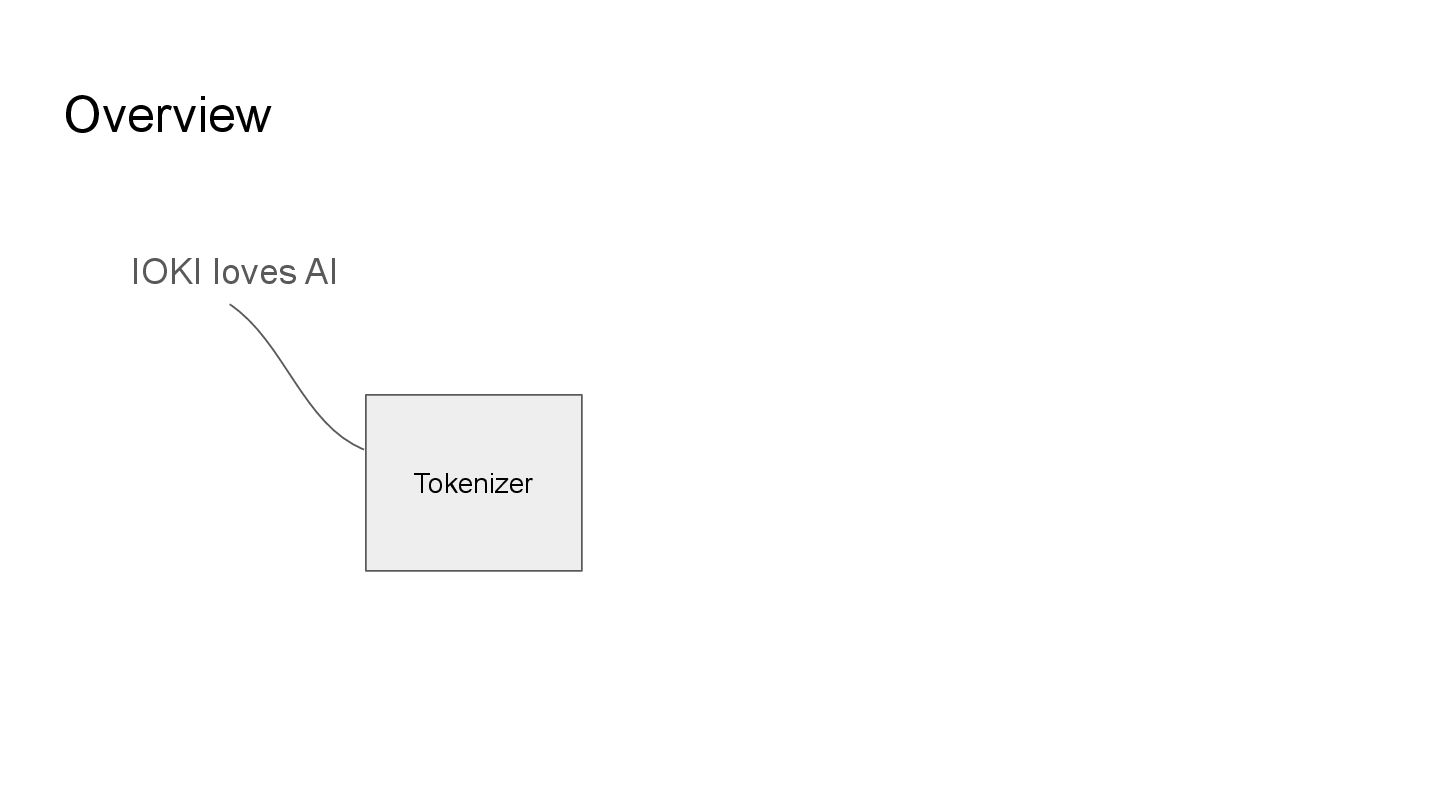

4. Overview IOKI loves AI Tokenizer

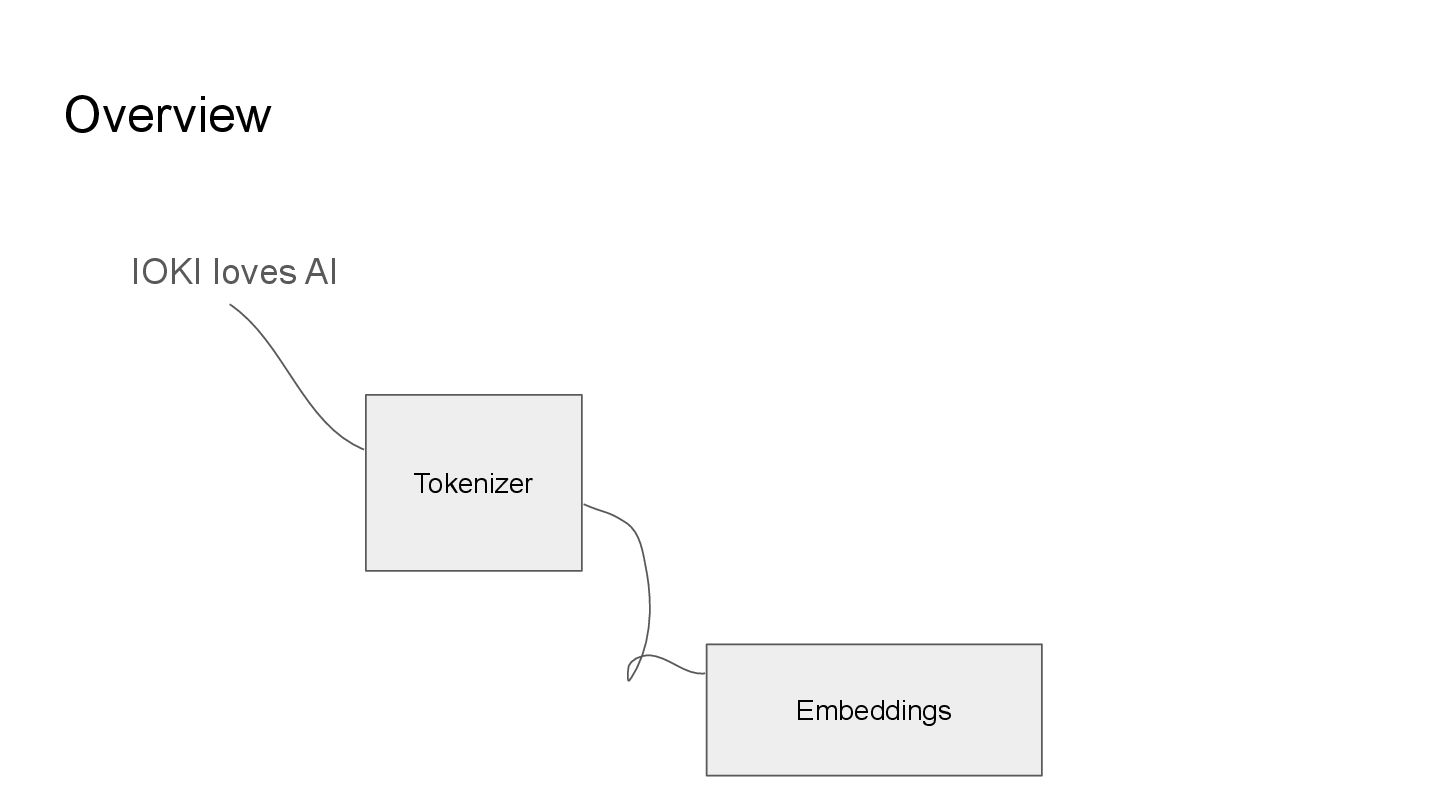

5. Overview IOKI loves AI Tokenizer Embeddings

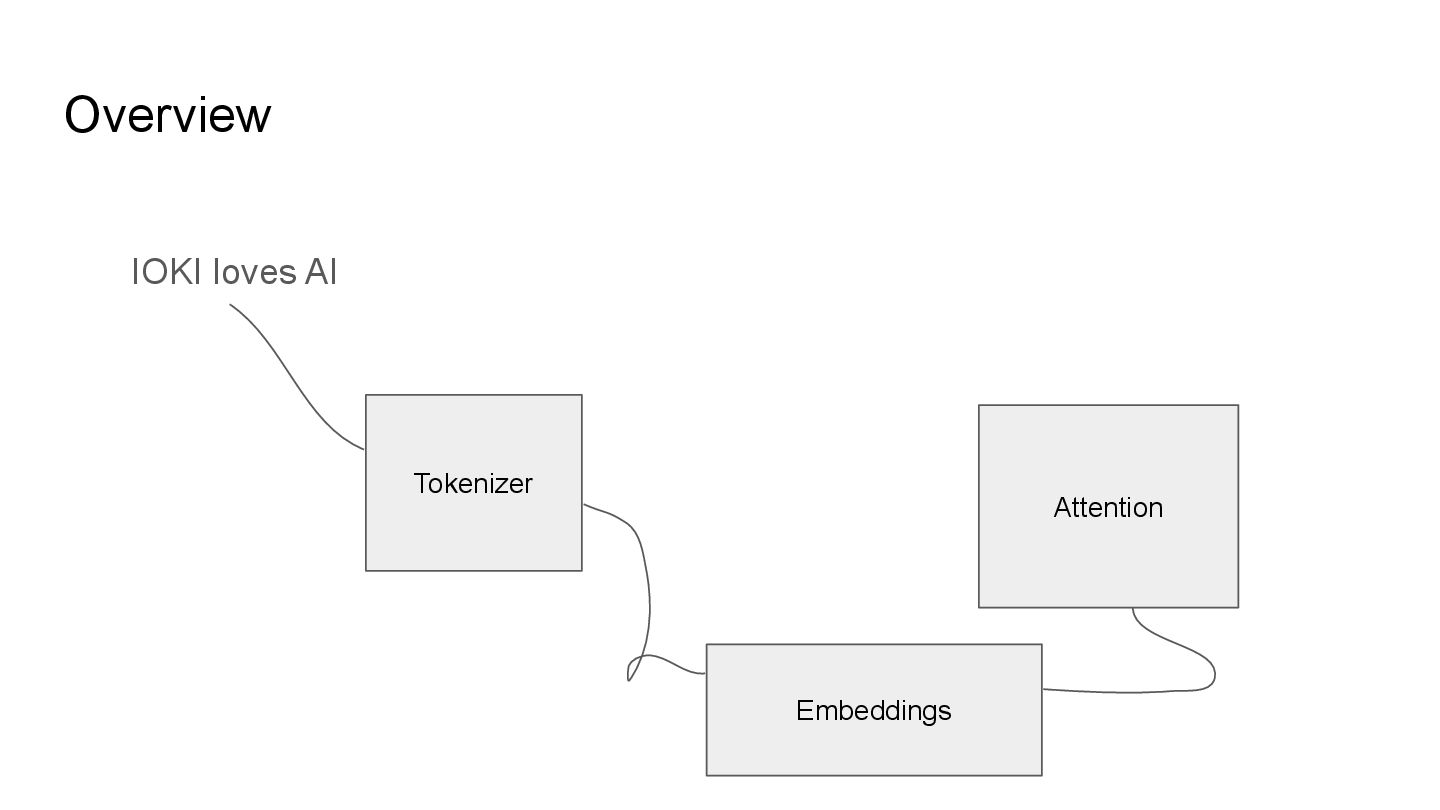

6. Overview IOKI loves AI Tokenizer Embeddings Attention

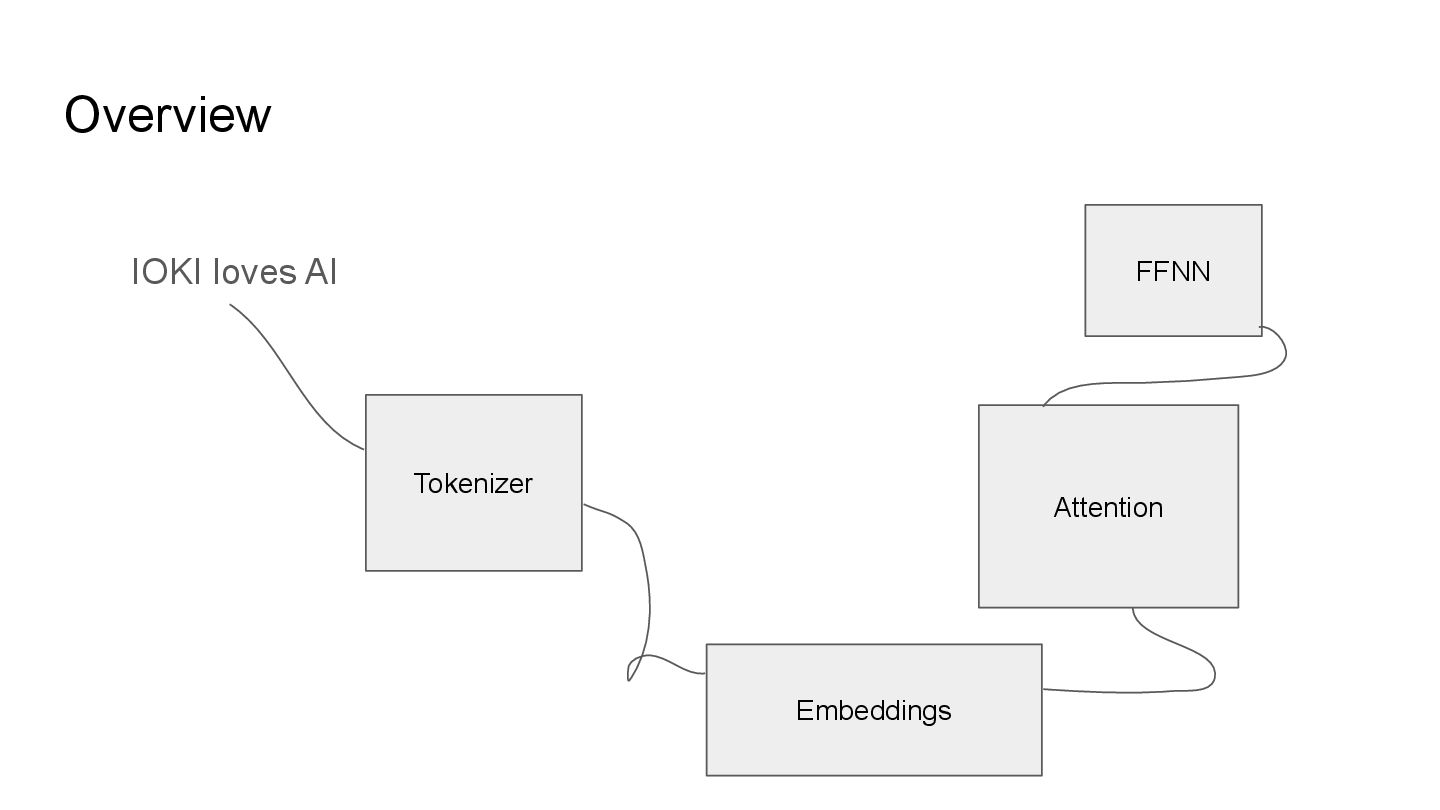

7. Overview IOKI loves AI Tokenizer Embeddings Attention FFNN

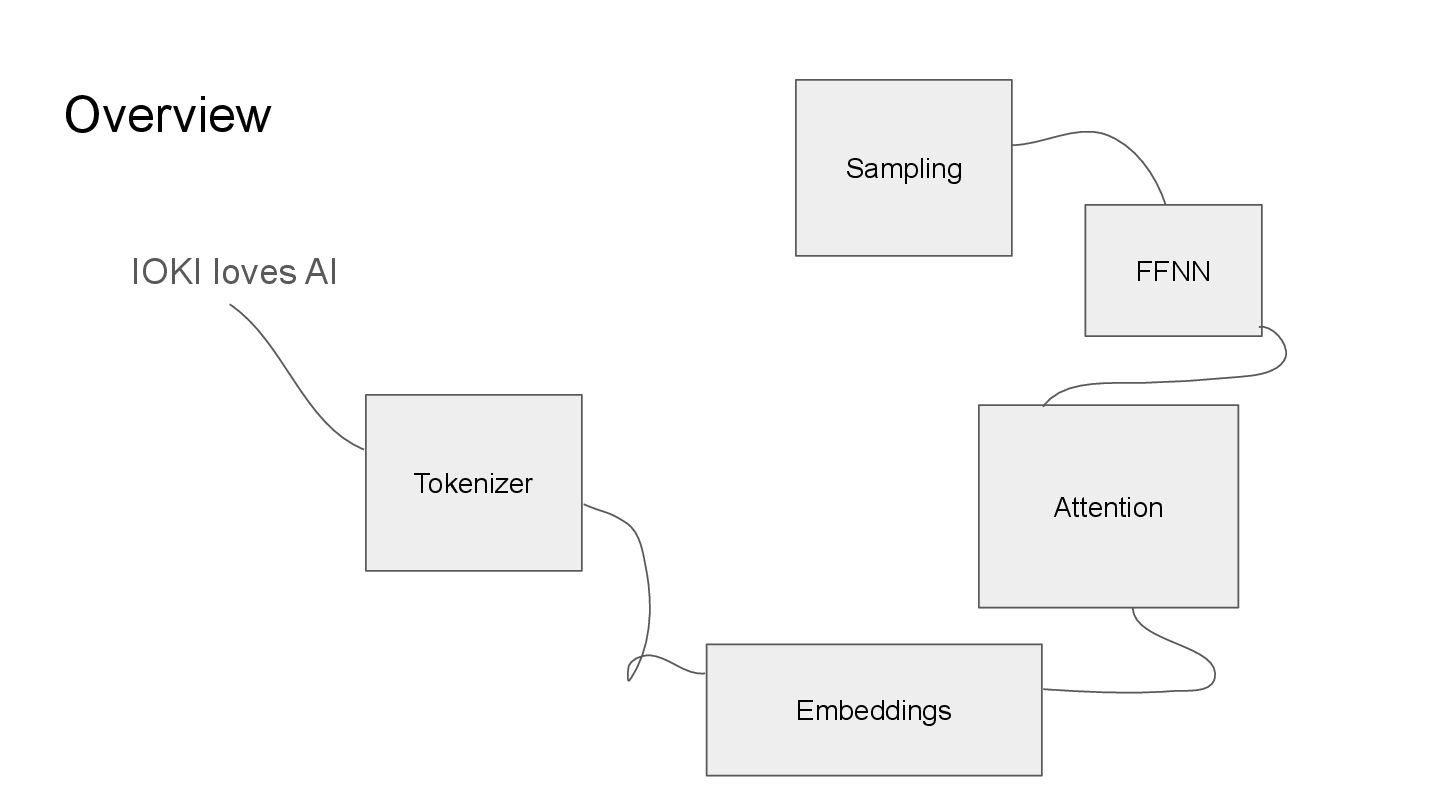

8. Overview IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling

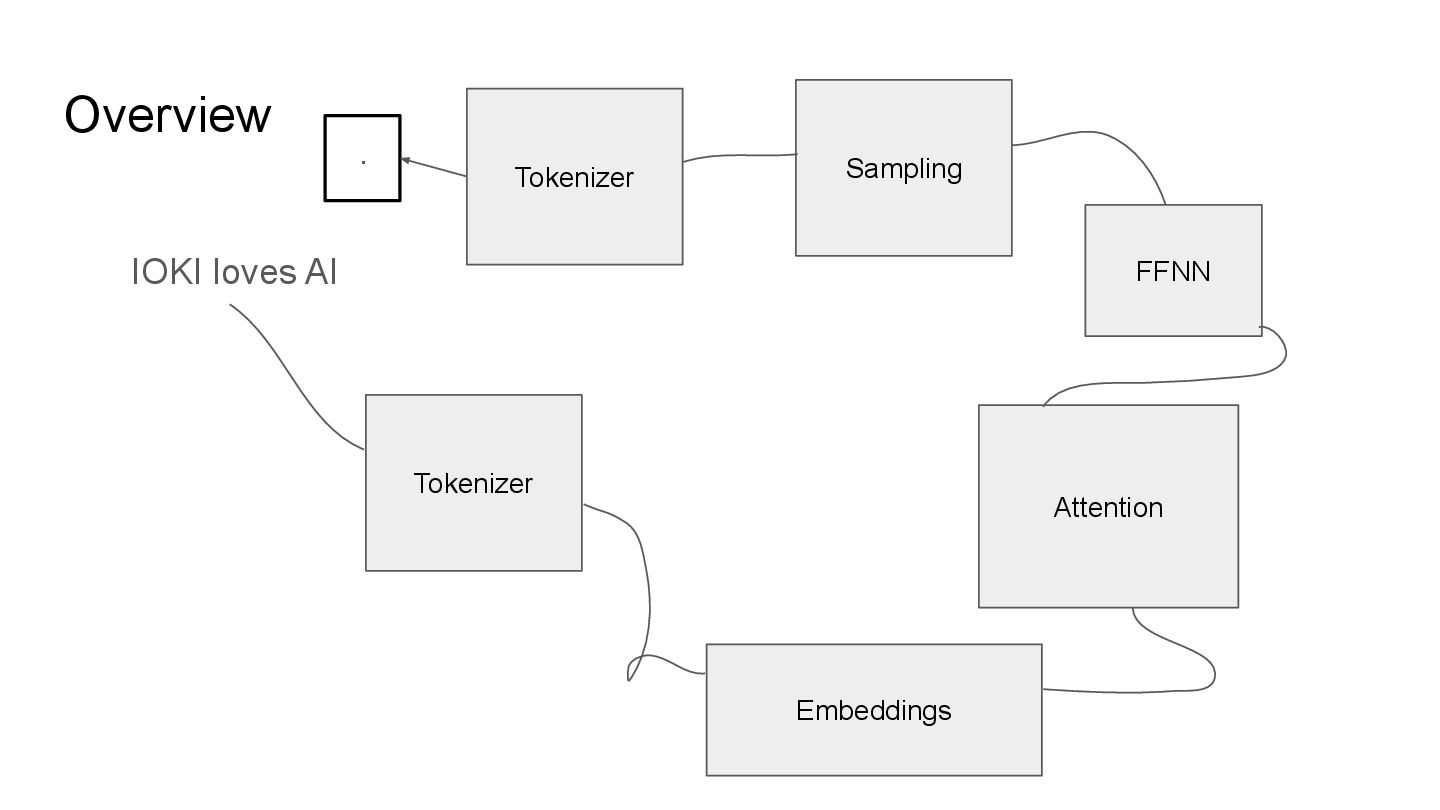

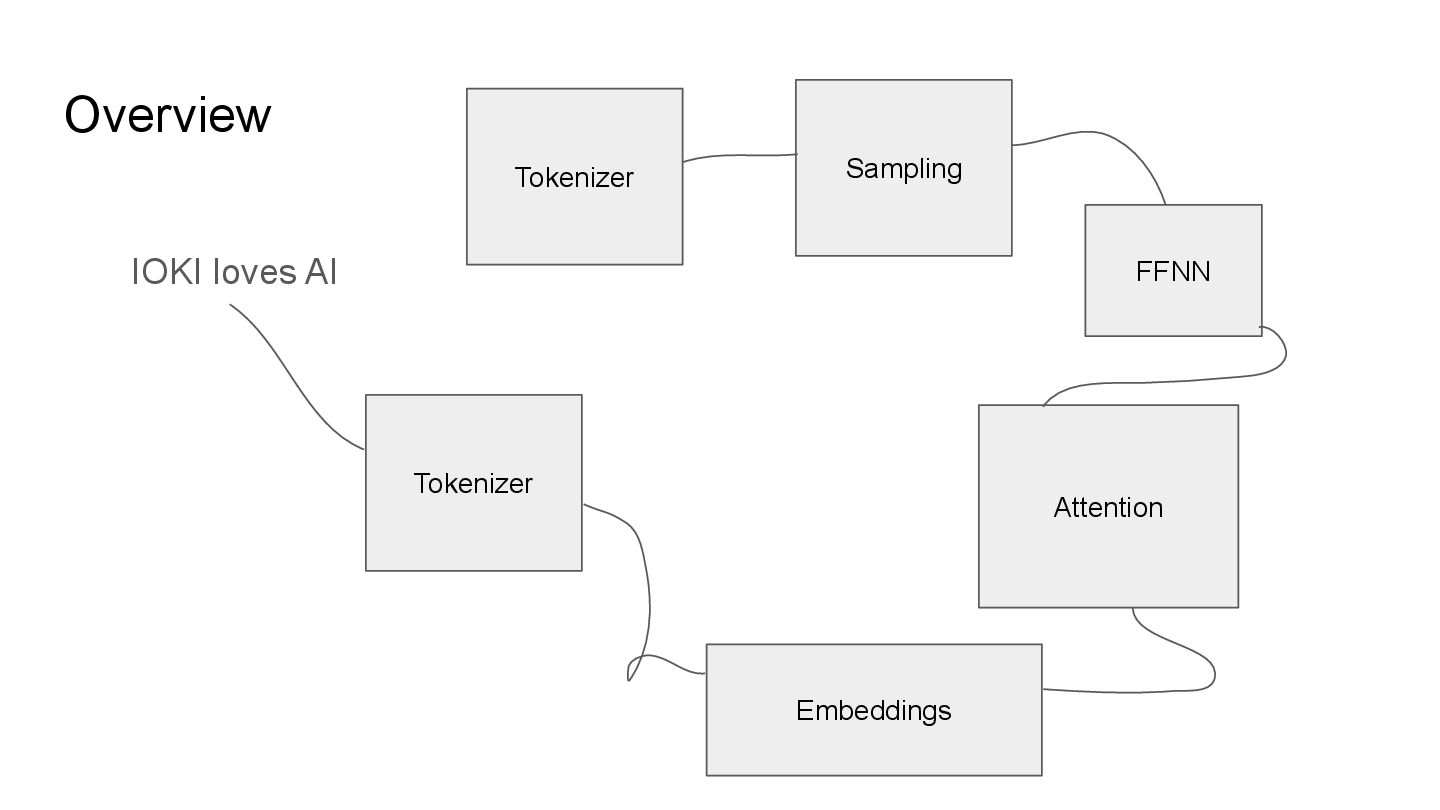

9. Overview IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Tokenizer
10. Overview IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Tokenizer .

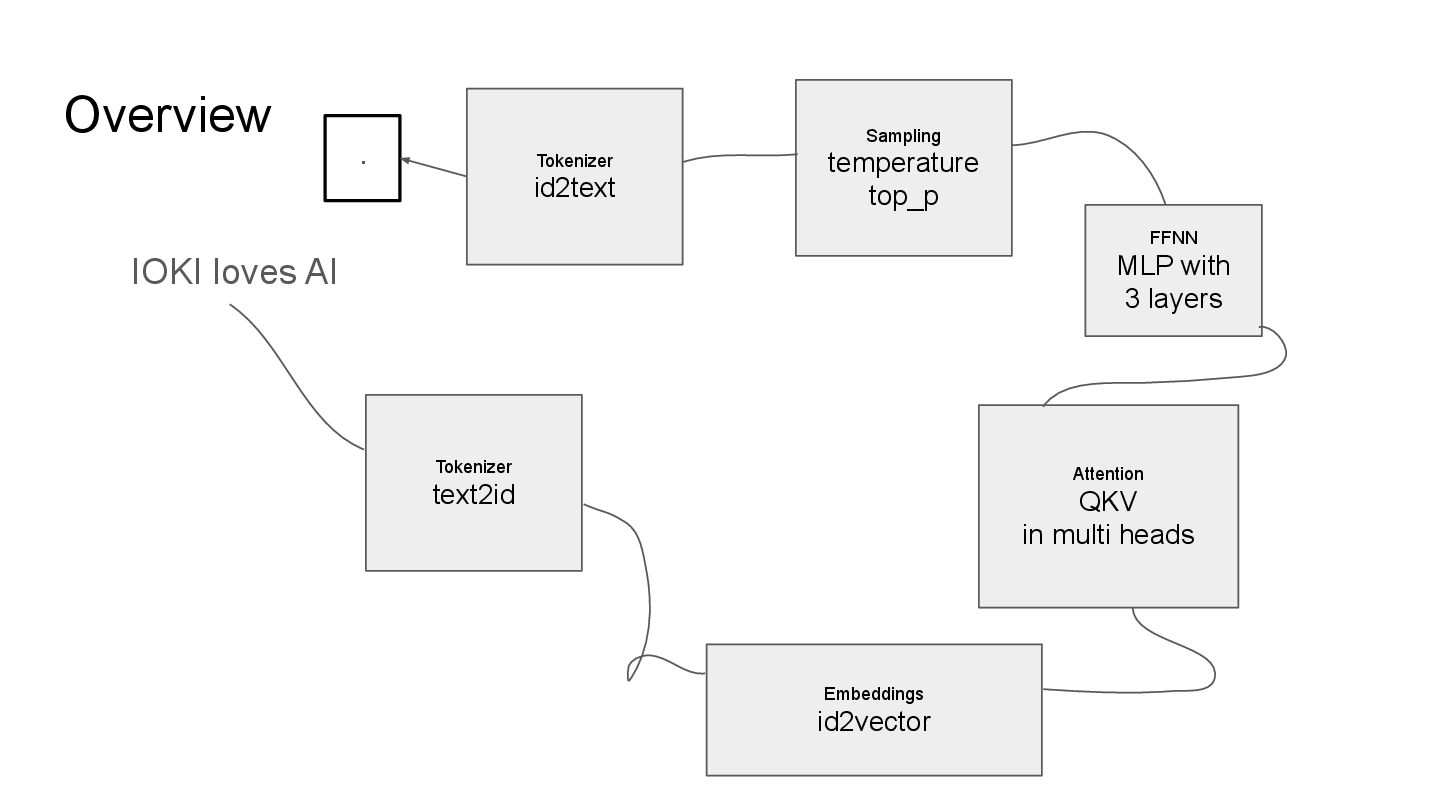

11. Overview IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text .

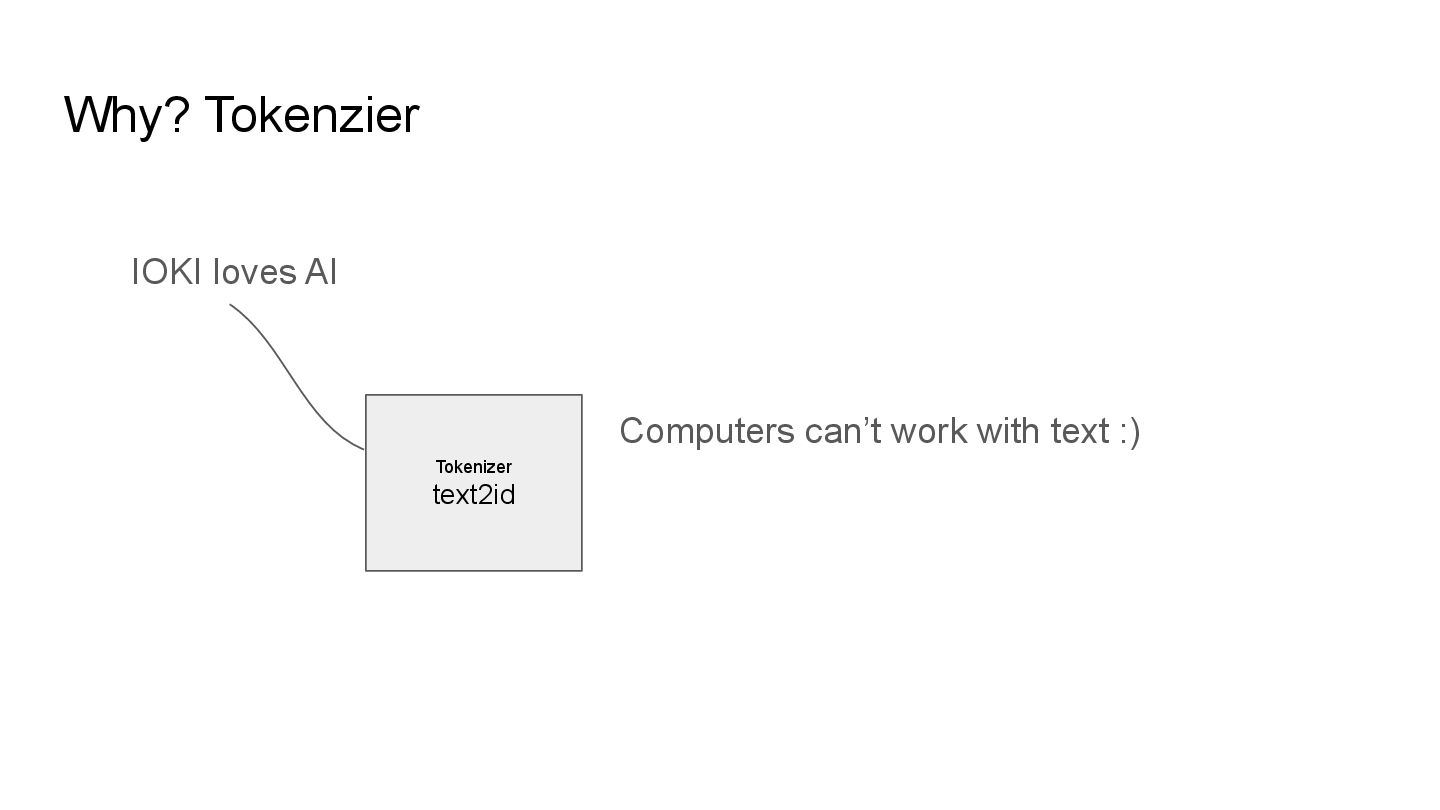

12. Why? Tokenzier IOKI loves AI Tokenizer text2id Computers can’t work with text :)

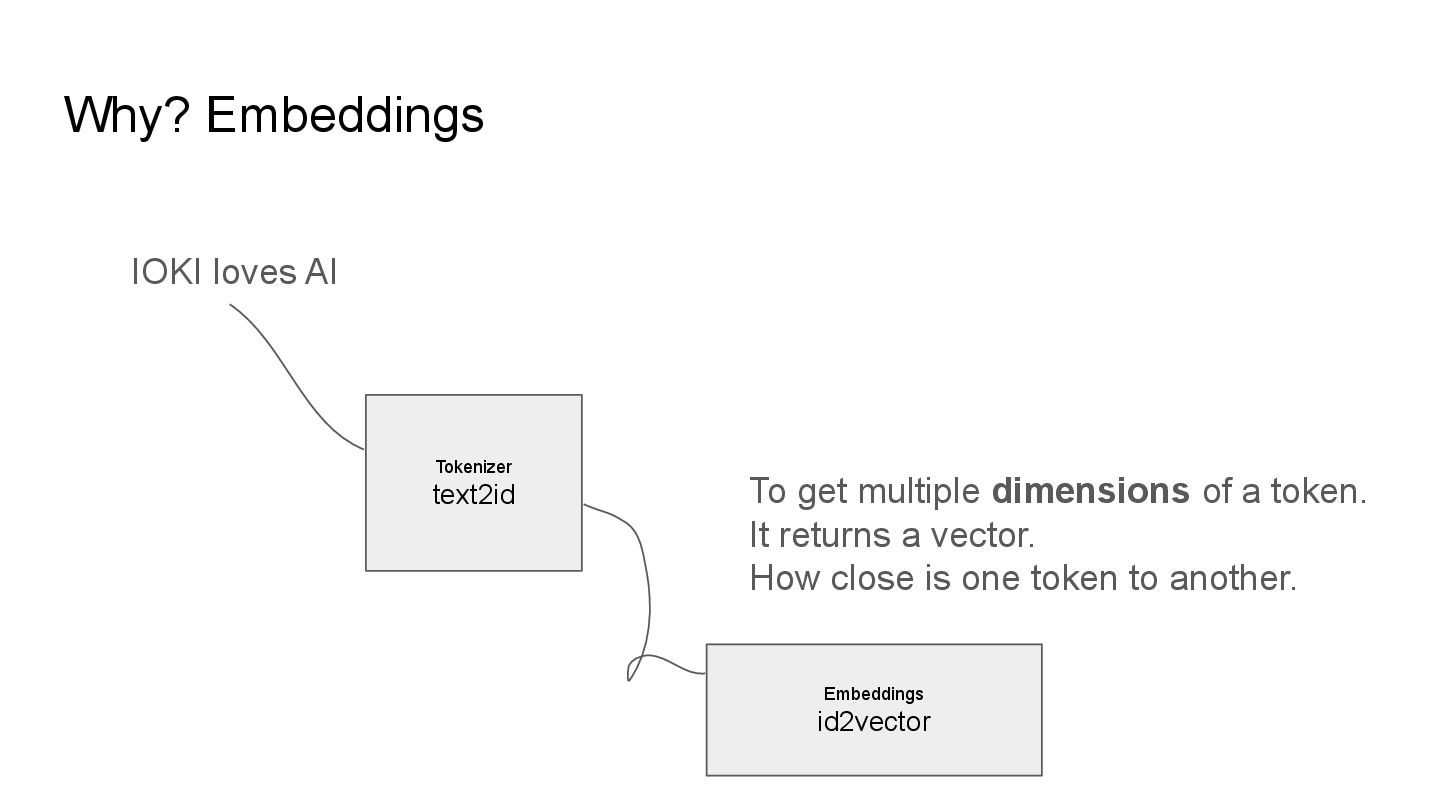

13. Why? Embeddings IOKI loves AI Tokenizer text2id Embeddings id2vector To get multiple dimensions of a token. It returns a vector. How close is one token to another.

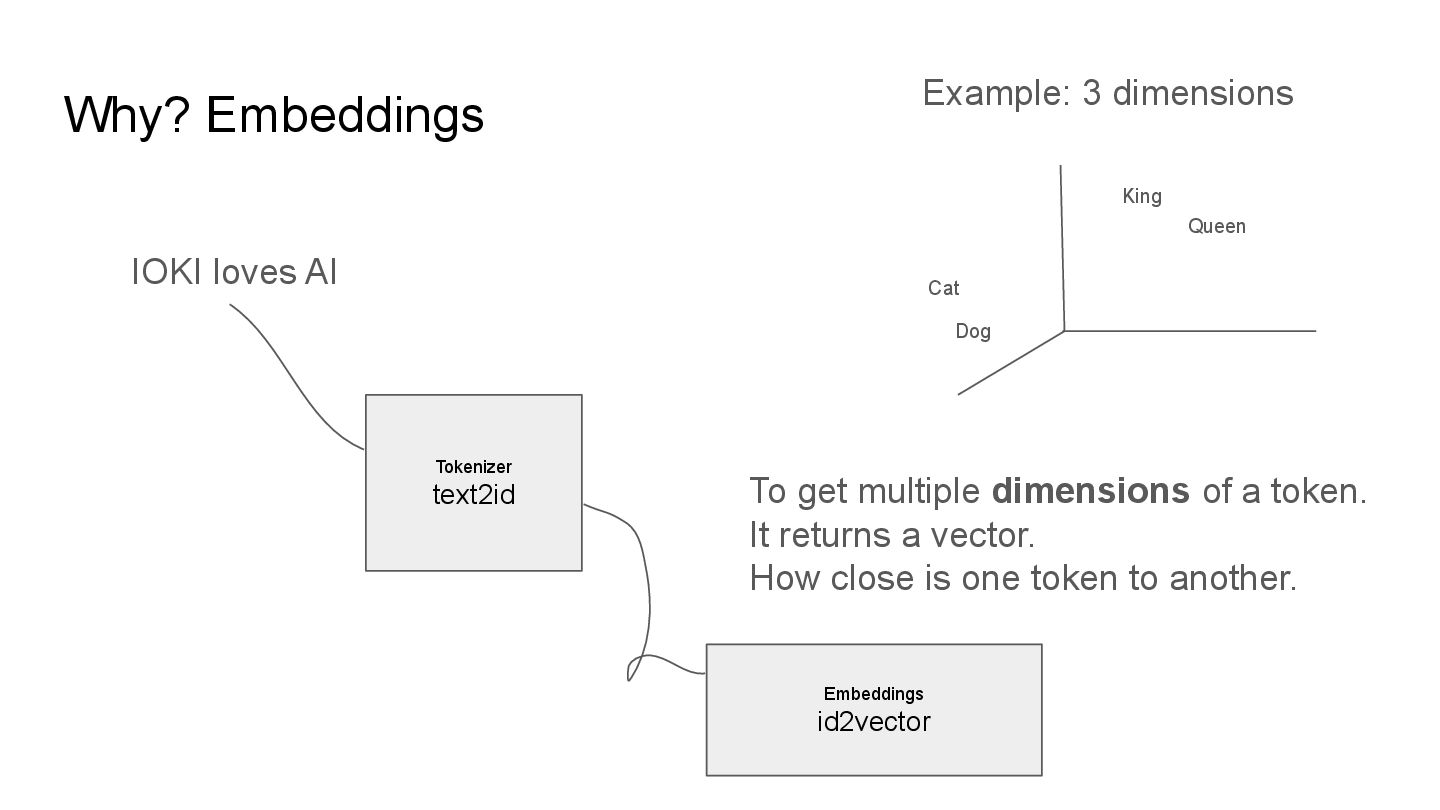

14. Why? Embeddings IOKI loves AI Tokenizer text2id Embeddings id2vector To get multiple dimensions of a token. It returns a vector. How close is one token to another. King Queen Cat Dog Example: 3 dimensions

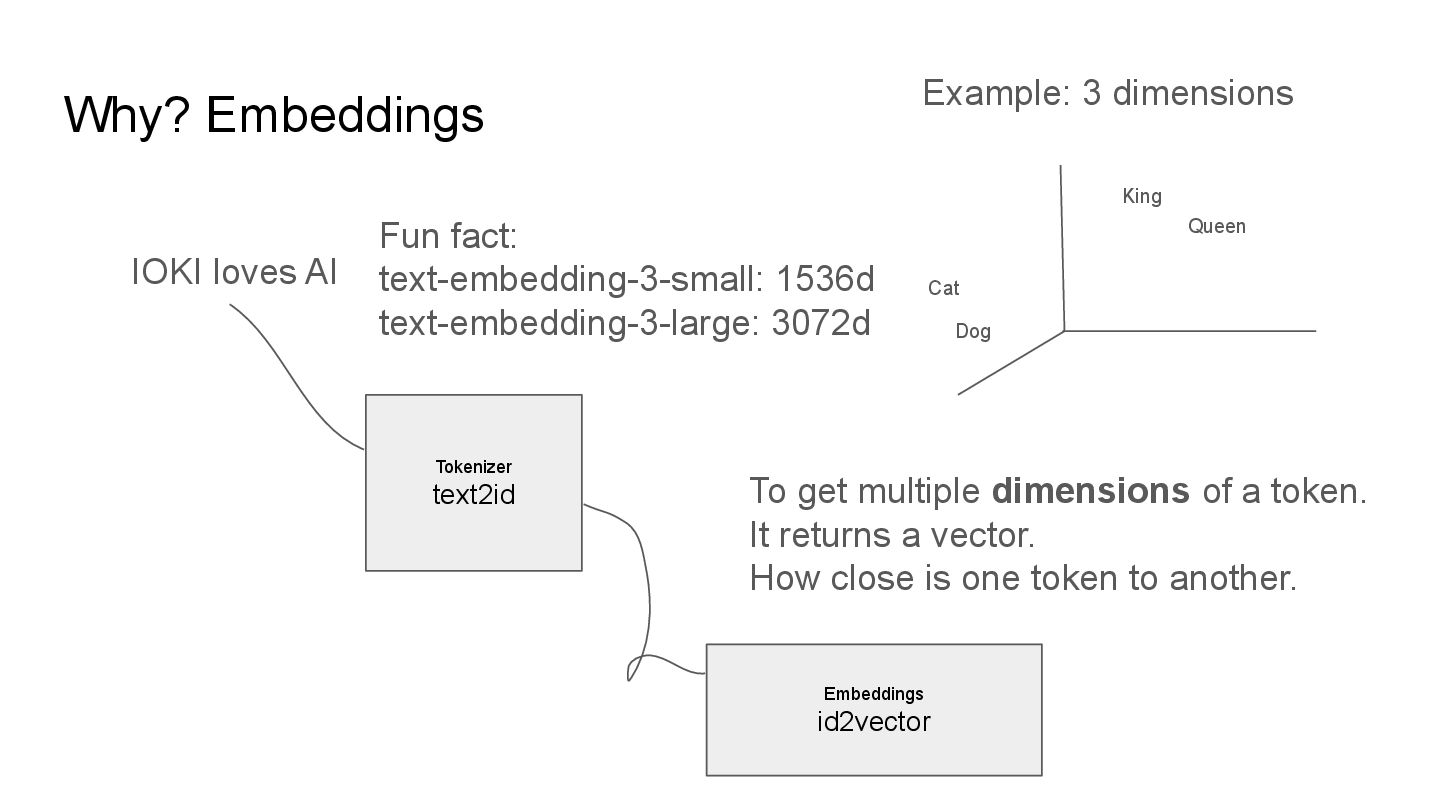

15. Why? Embeddings IOKI loves AI Tokenizer text2id Embeddings id2vector To get multiple dimensions of a token. It returns a vector. How close is one token to another. Fun fact: text-embedding-3-small: 1536d text-embedding-3-large: 3072d King Queen Cat Dog Example: 3 dimensions

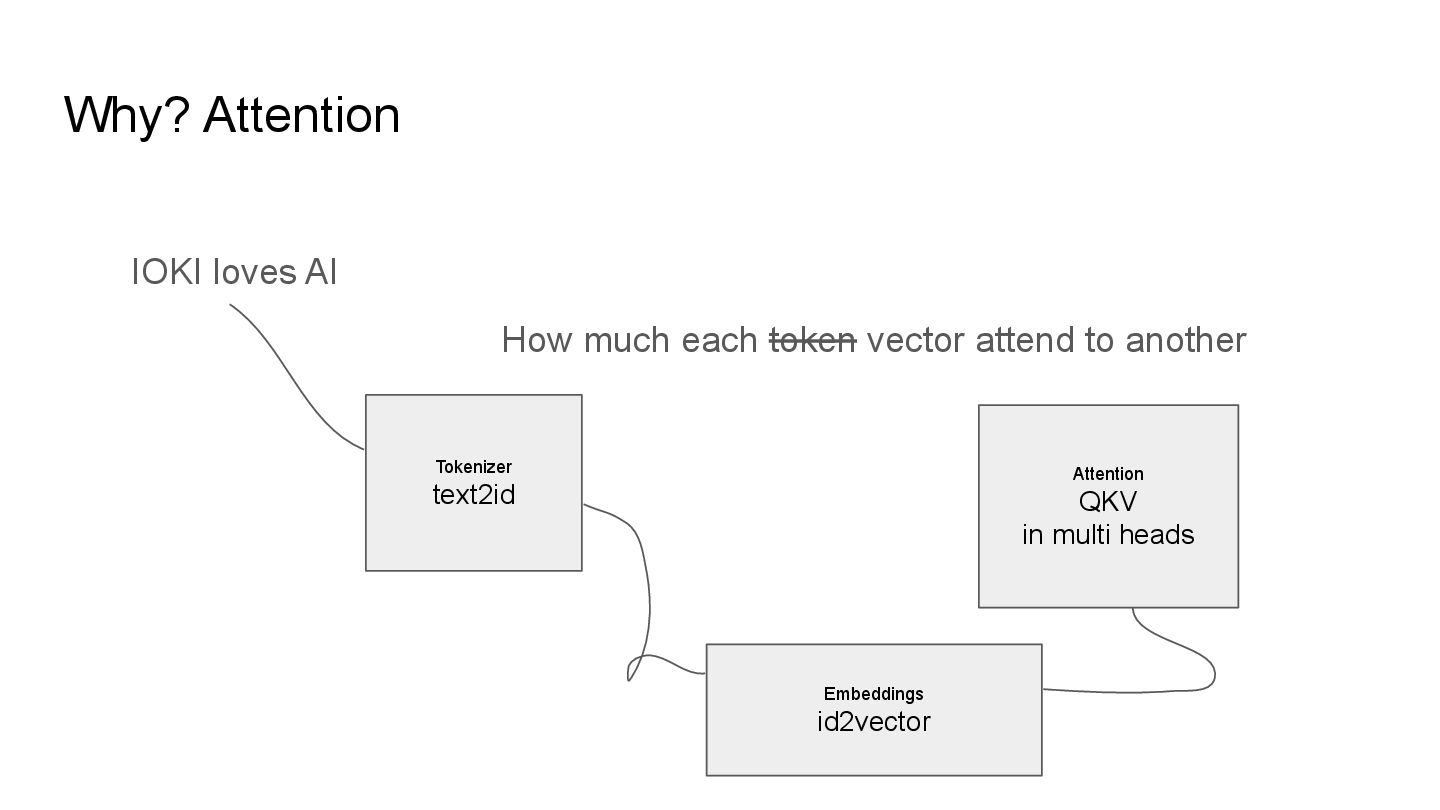

16. Why? Attention IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads How much each token vector attend to another

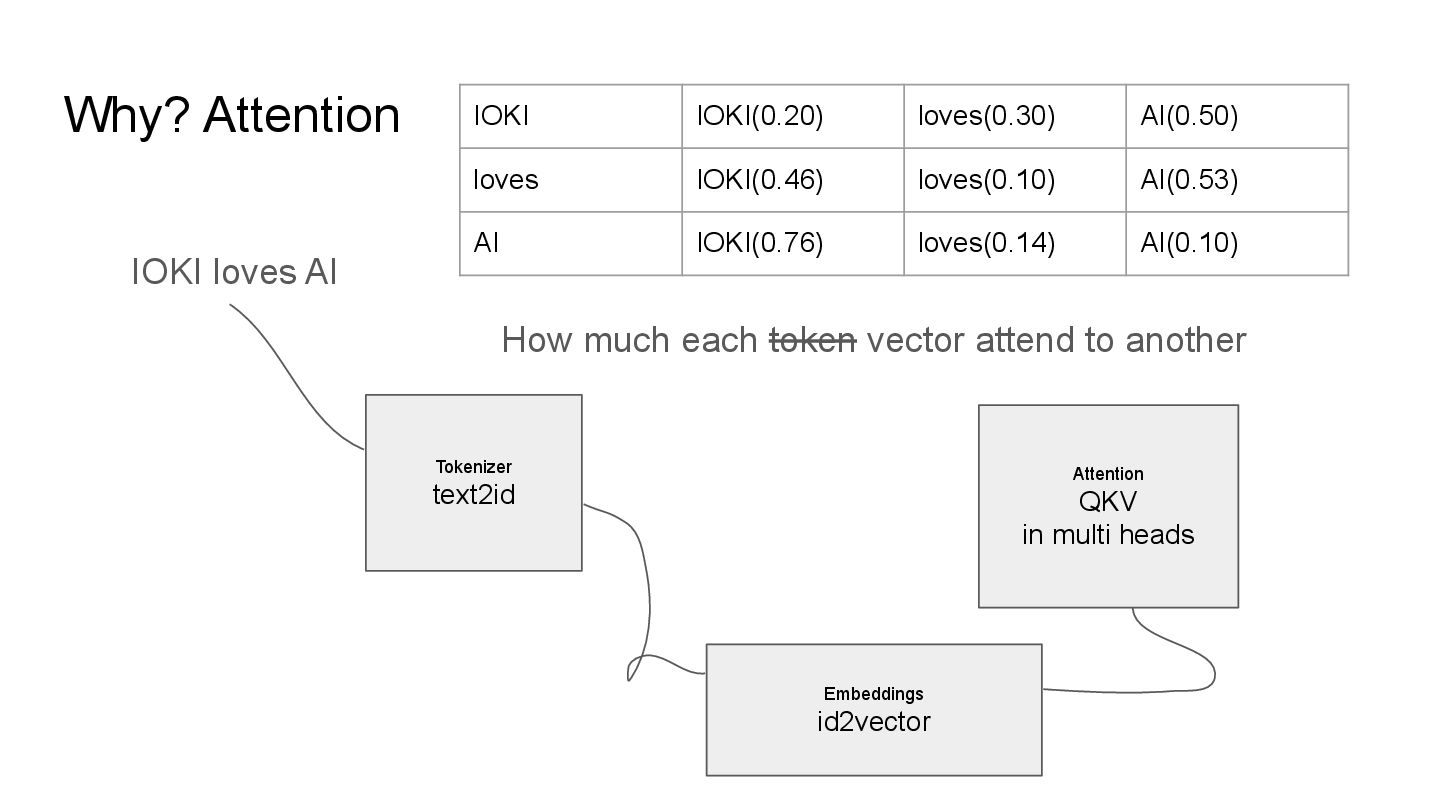

17. Why? Attention IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads IOKI IOKI(0.20) loves(0.30) AI(0.50) loves IOKI(0.46) loves(0.10) AI(0.53) AI IOKI(0.76) loves(0.14) AI(0.10) How much each token vector attend to another

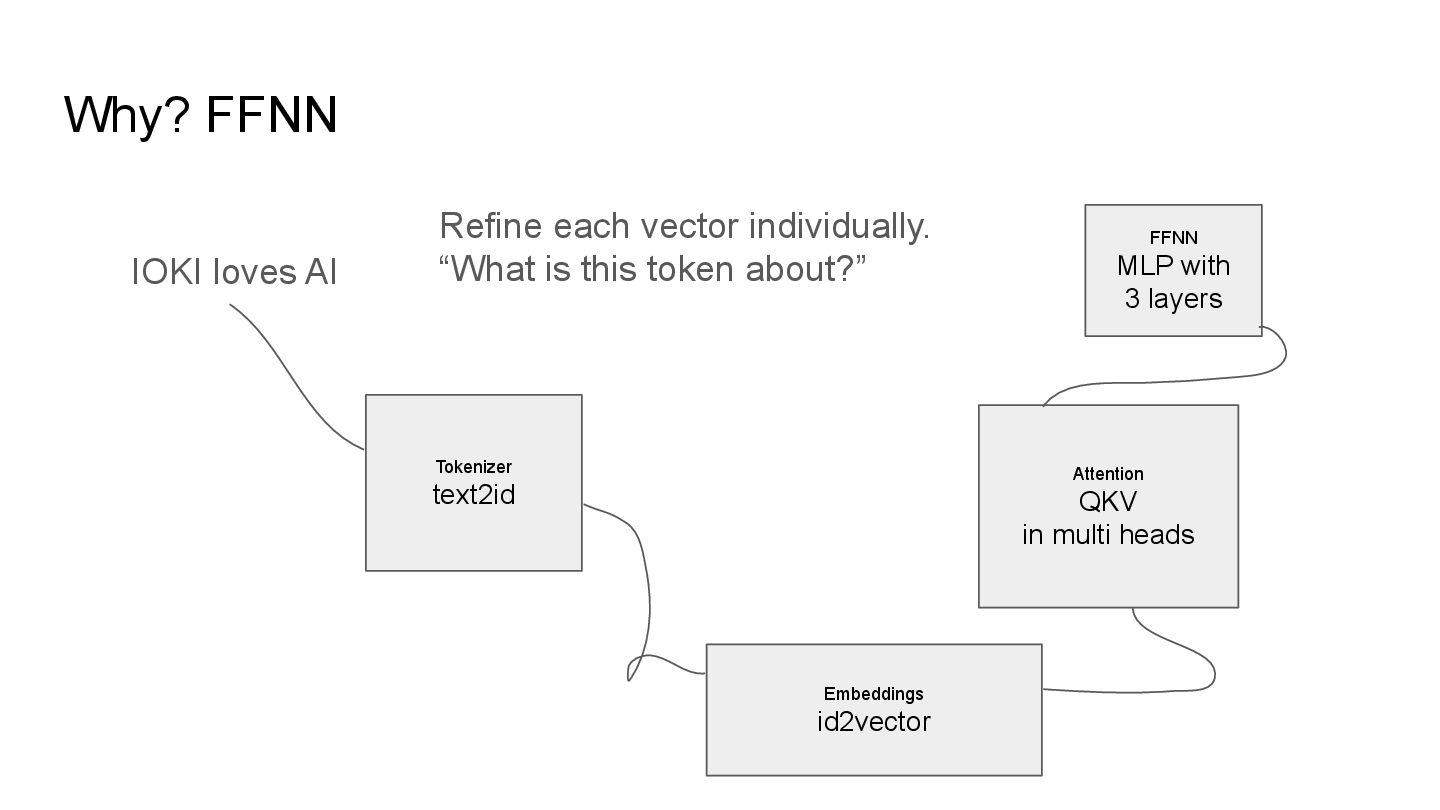

18. Why? FFNN IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Refine each vector individually. “What is this token about?”

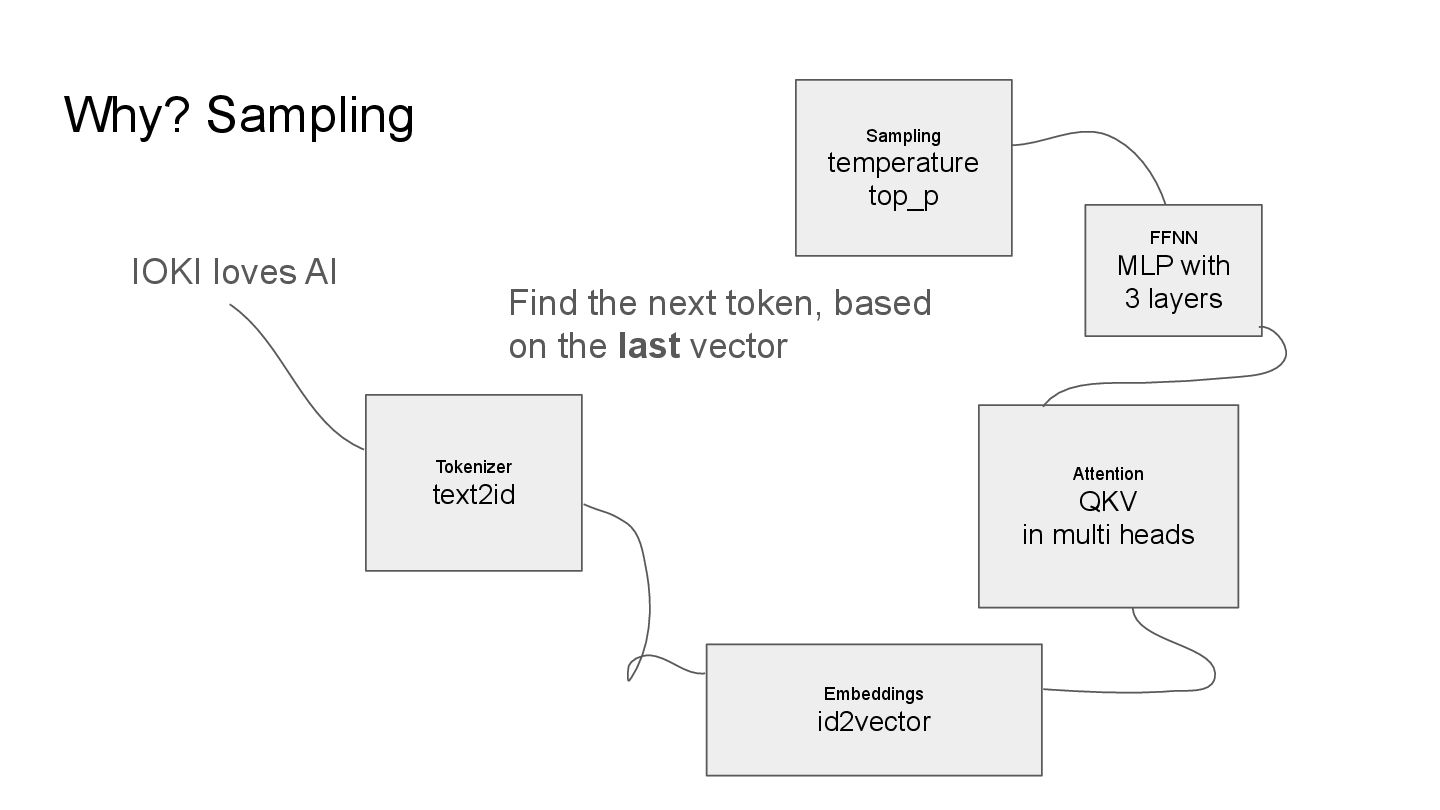

19. Why? Sampling IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Find the next token, based on the last vector

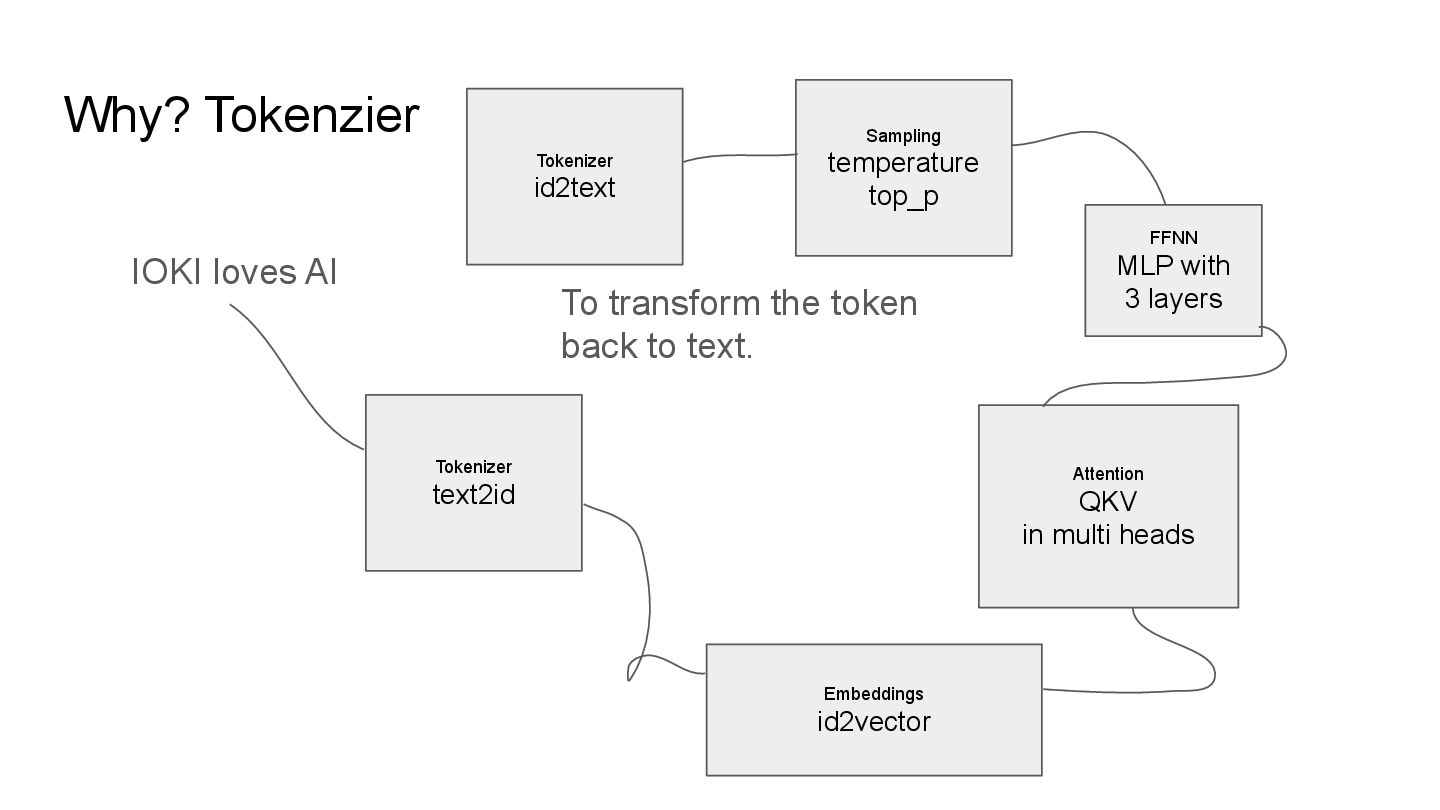

20. Why? Tokenzier IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text To transform the token back to text.

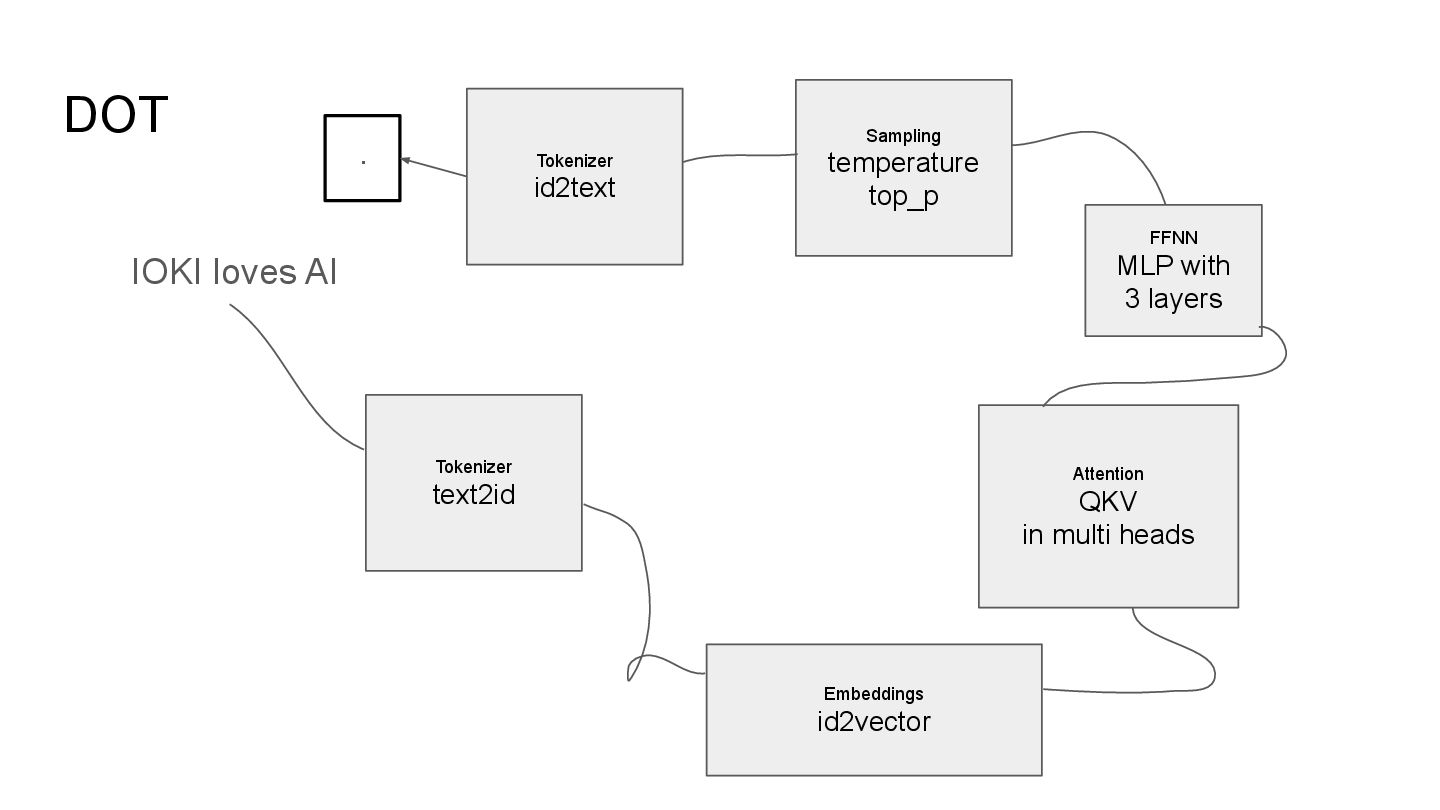

21. DOT IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text .

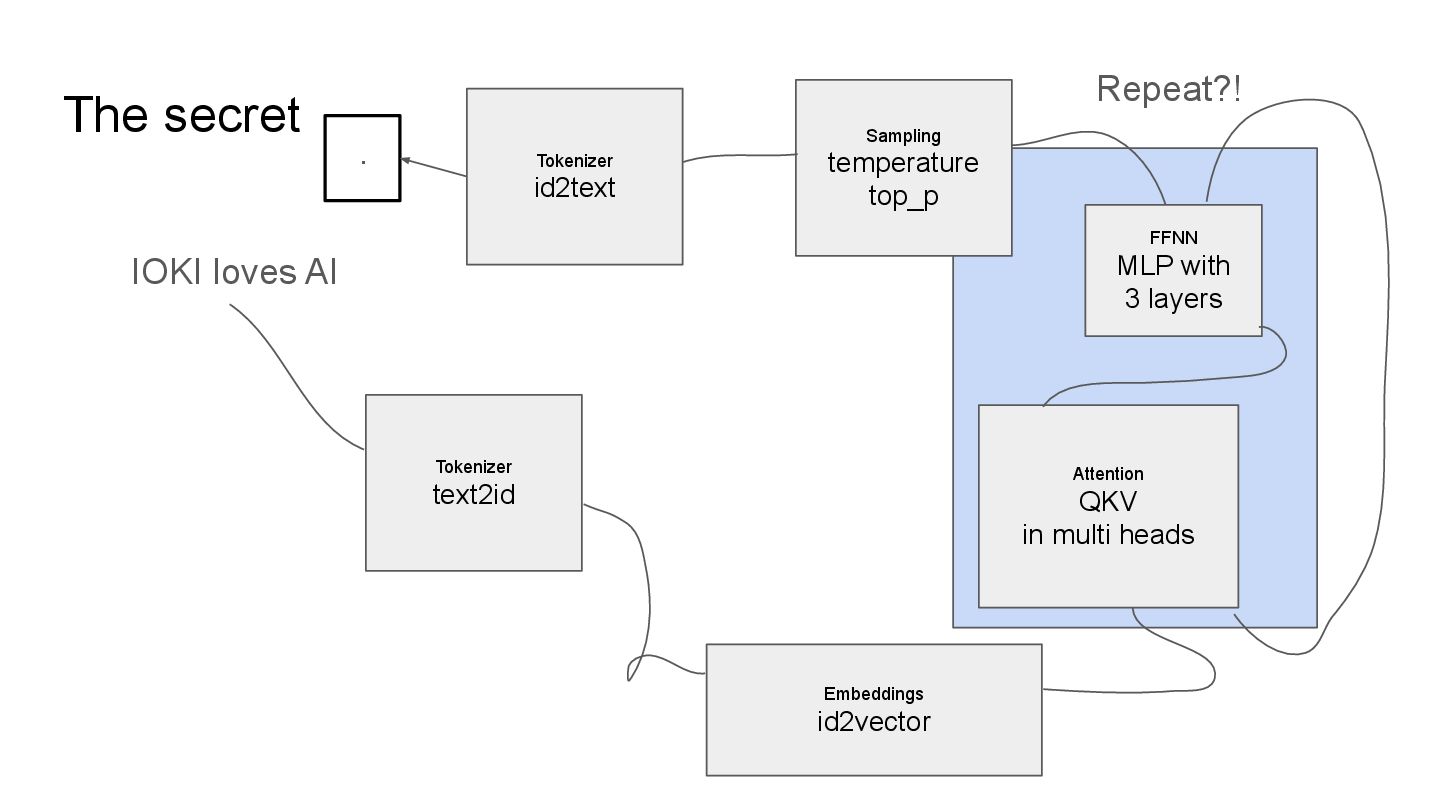

22. The secret IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text . Repeat?!

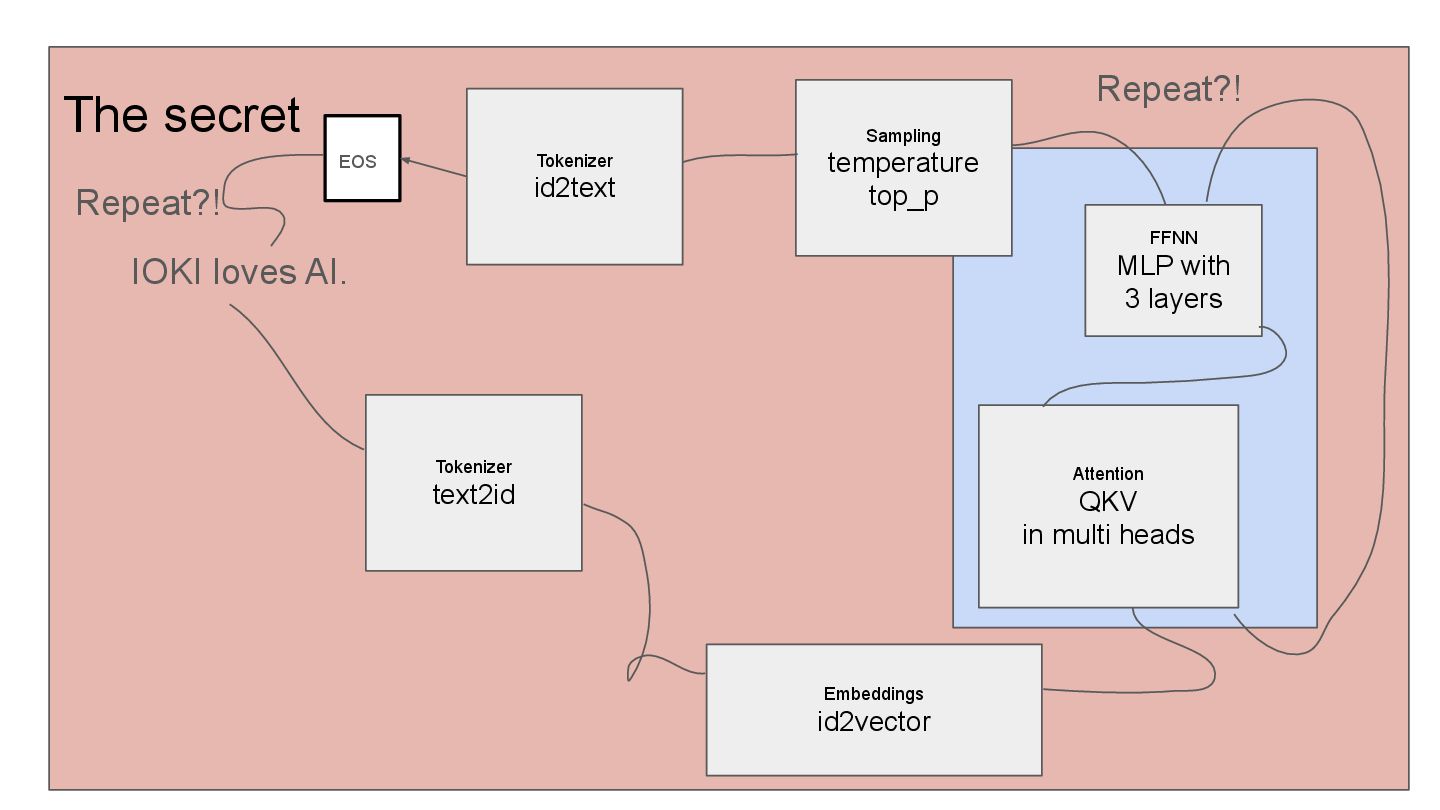

23. The secret IOKI loves AI. Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text EOS Repeat?! Repeat?!
24. Let’s go technical

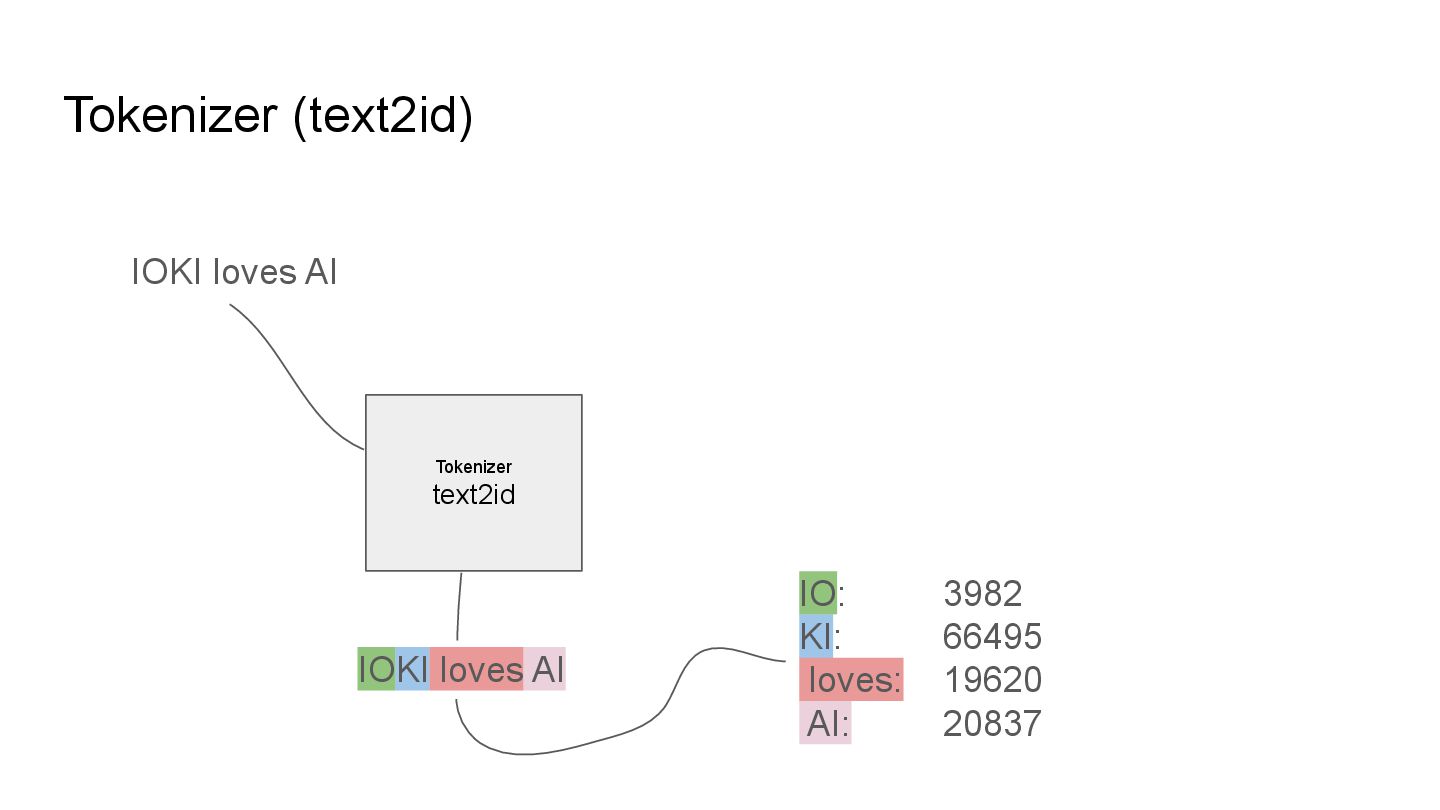

25. Tokenizer (text2id) IOKI loves AI Tokenizer text2id IOKI loves AI IO: 3982 KI: 66495 loves: 19620 AI: 20837

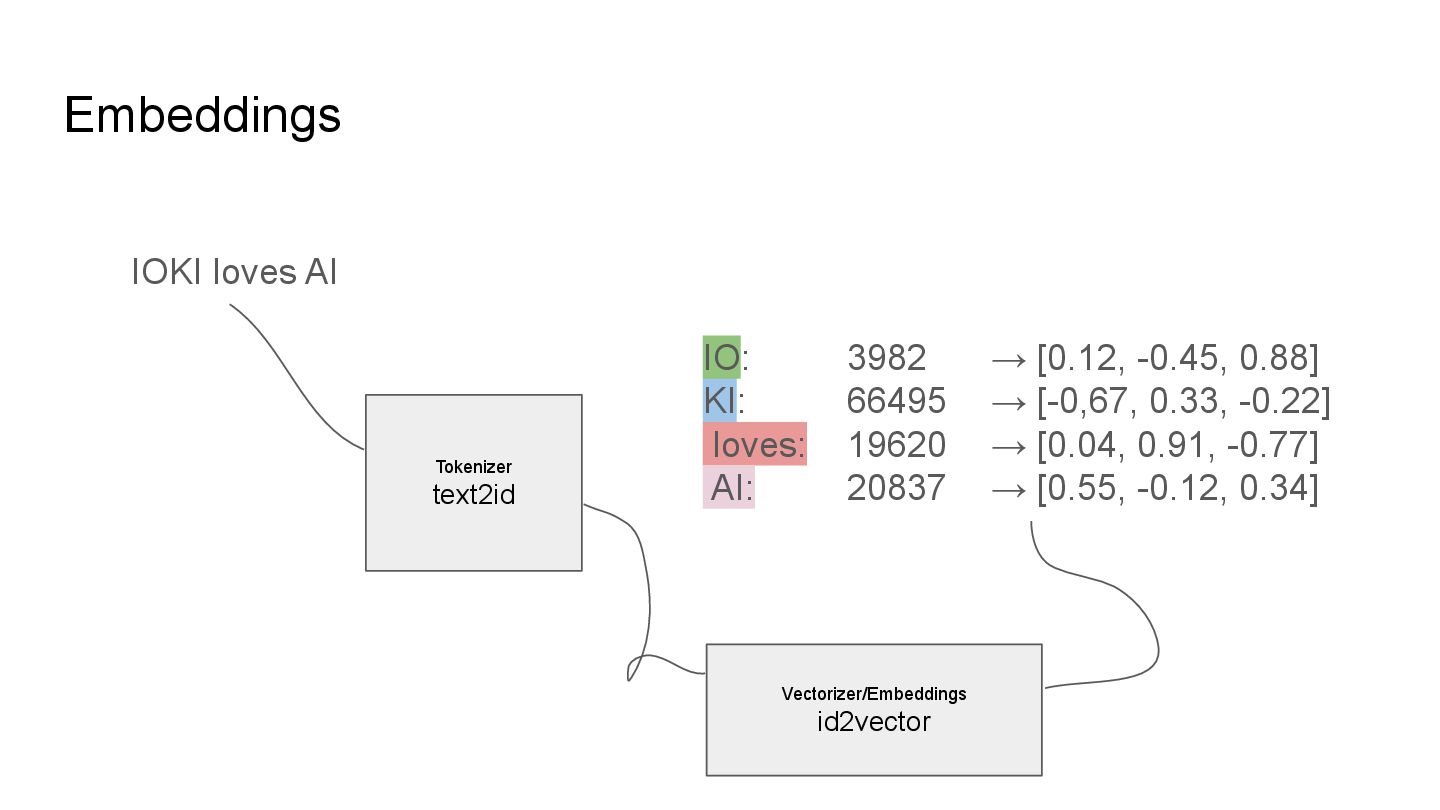

26. Embeddings IOKI loves AI Tokenizer text2id Vectorizer/Embeddings id2vector IO: 3982 → [0.12, -0.45, 0.88] KI: 66495 → [-0,67, 0.33, -0.22] loves: 19620 → [0.04, 0.91, -0.77] AI: 20837 → [0.55, -0.12, 0.34]

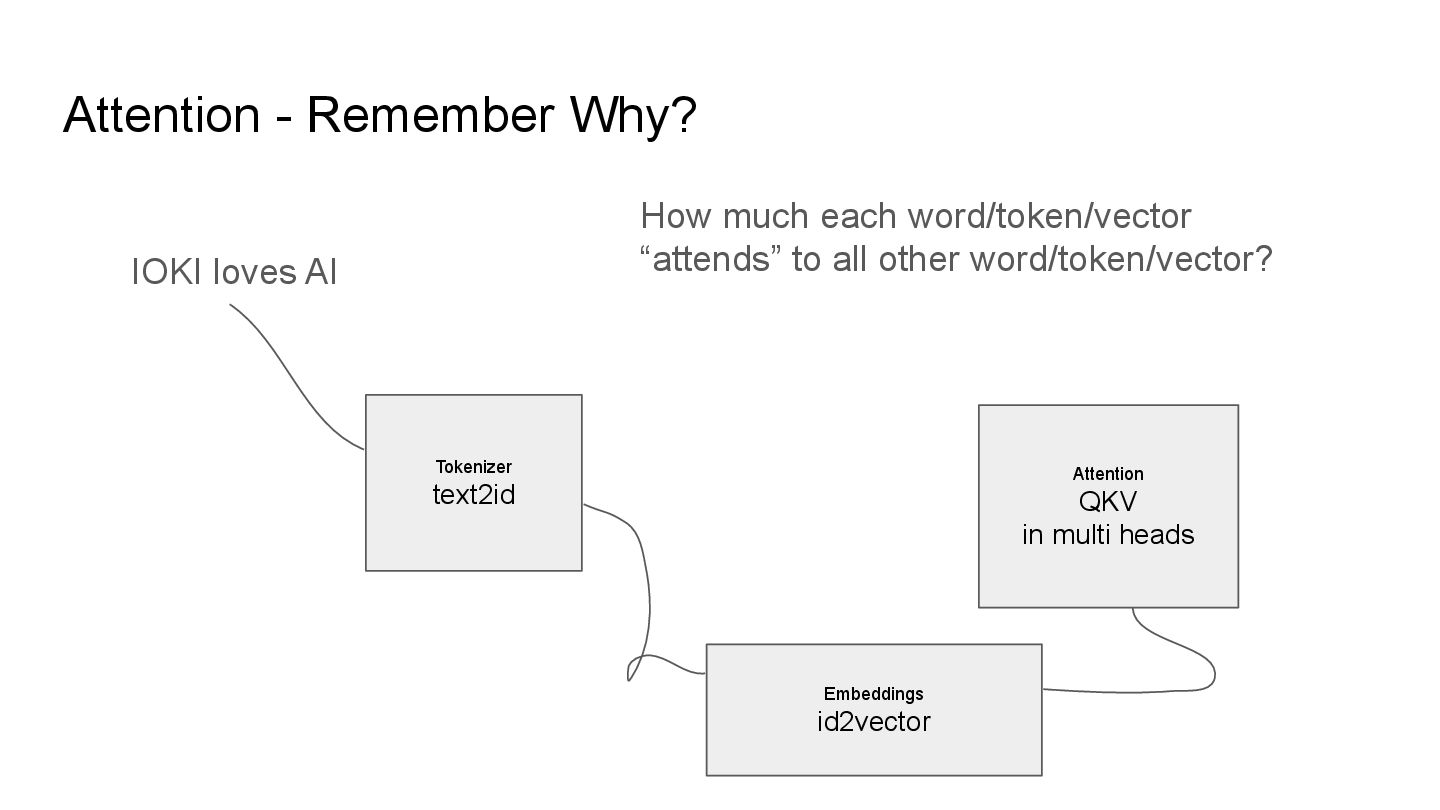

27. Attention - Remember Why? IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads How much each word/token/vector “attends” to all other word/token/vector?

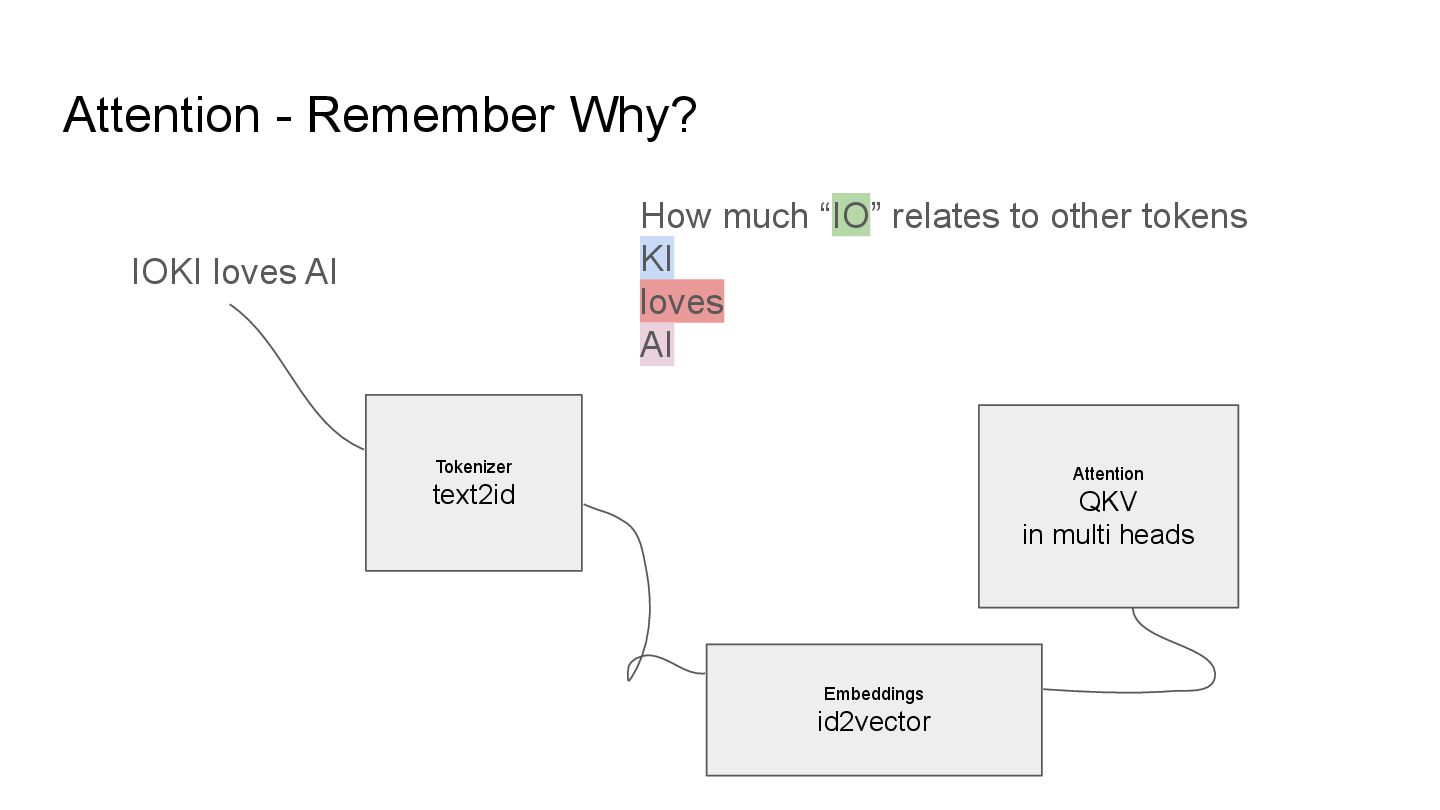

28. Attention - Remember Why? IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads How much “IO” relates to other tokens KI loves AI

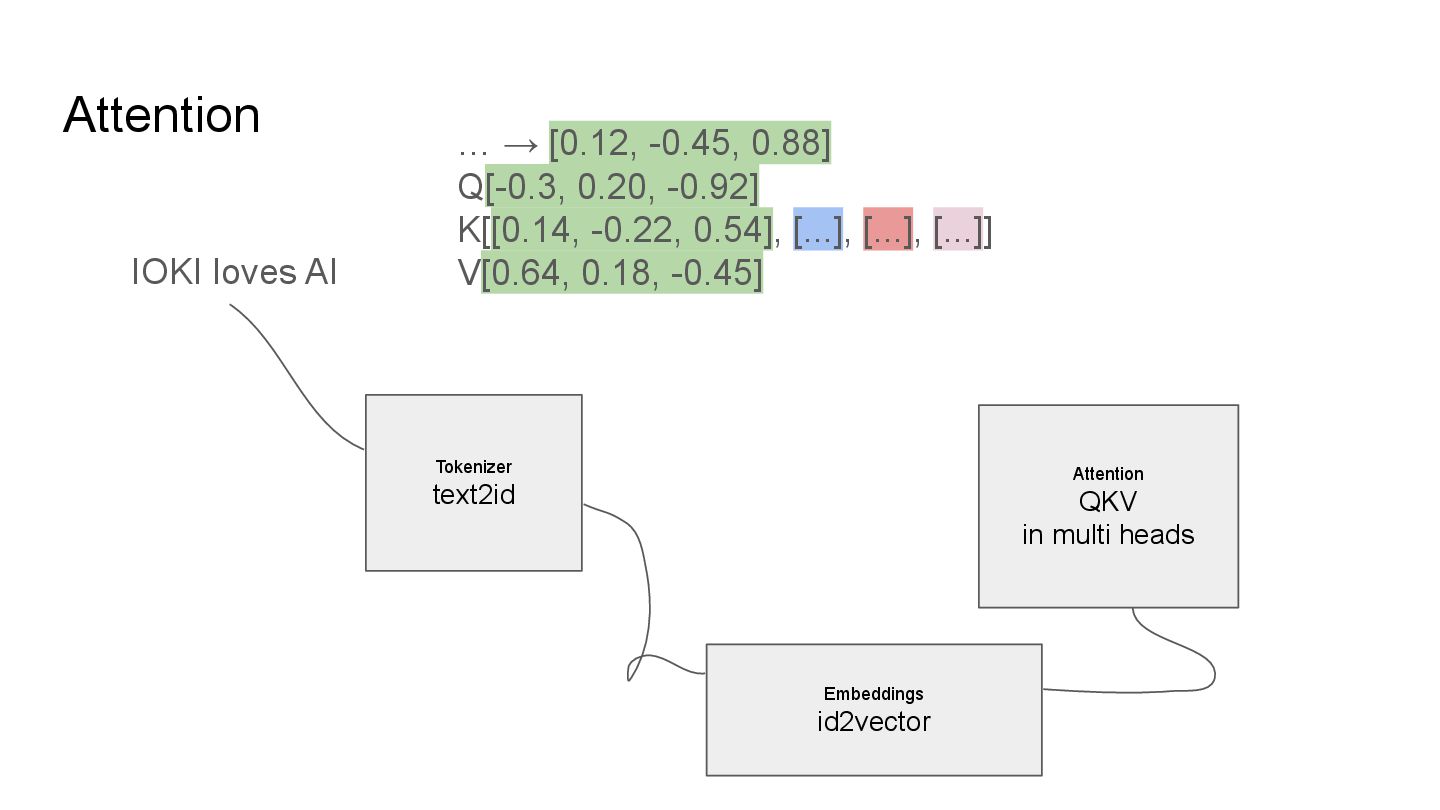

29. Attention IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45]

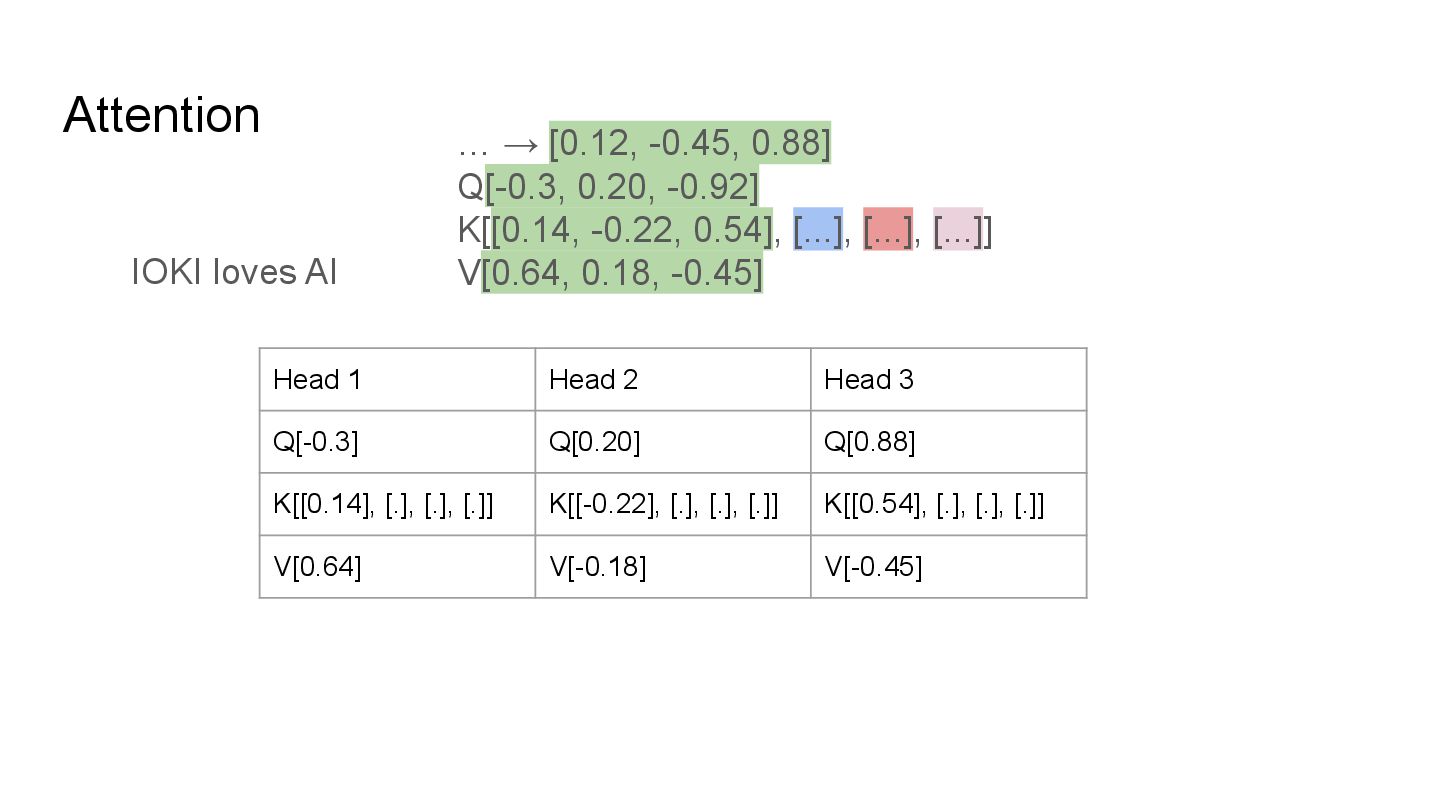

30. Attention IOKI loves AI … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45] Head 1 Head 2 Head 3 Q[-0.3] Q[0.20] Q[0.88] K[[0.14], [.], [.], [.]] K[[-0.22], [.], [.], [.]] K[[0.54], [.], [.], [.]] V[0.64] V[-0.18] V[-0.45]

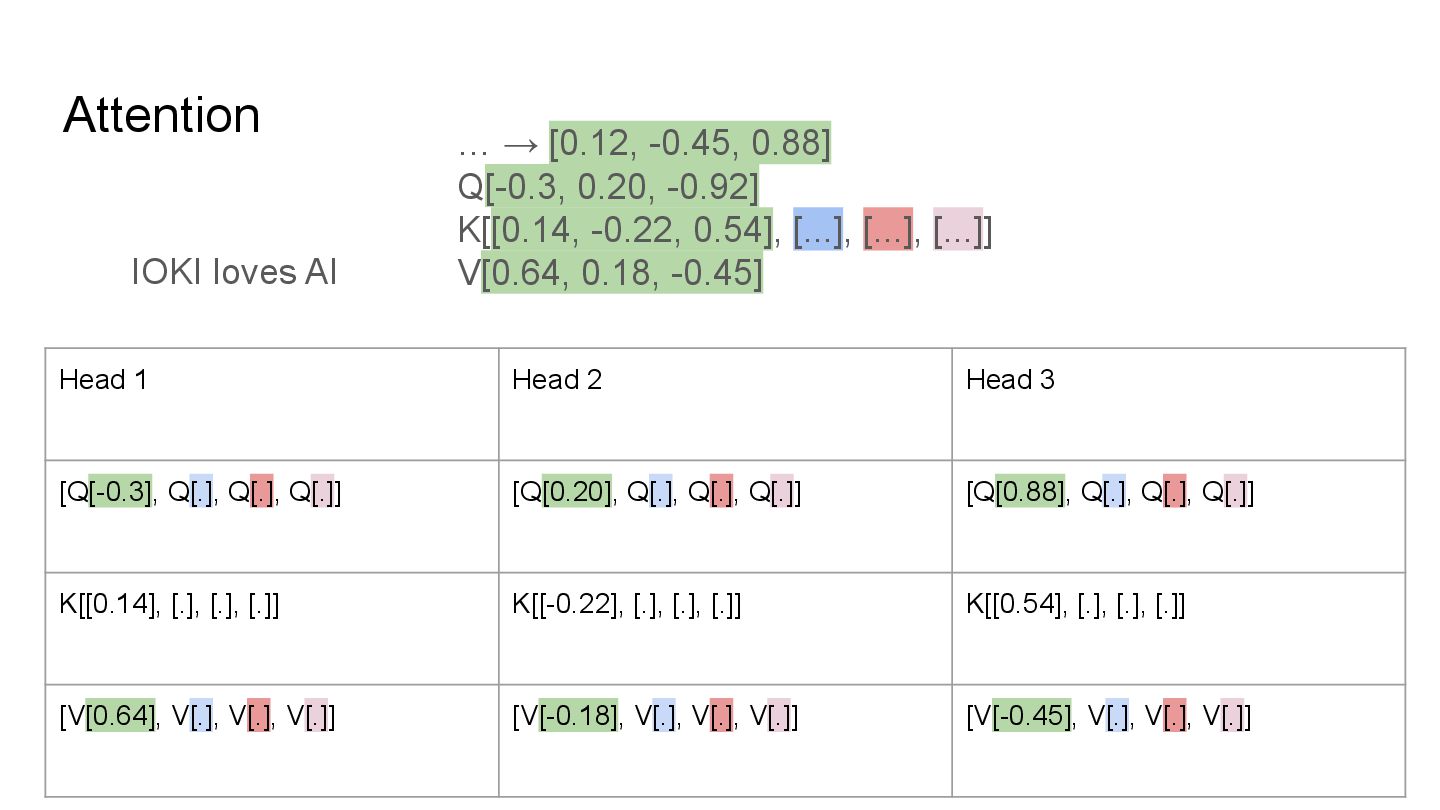

31. Attention IOKI loves AI … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45] Head 1 Head 2 Head 3 [Q[-0.3], Q[.], Q[.], Q[.]] [Q[0.20], Q[.], Q[.], Q[.]] [Q[0.88], Q[.], Q[.], Q[.]] K[[0.14], [.], [.], [.]] K[[-0.22], [.], [.], [.]] K[[0.54], [.], [.], [.]] [V[0.64], V[.], V[.], V[.]] [V[-0.18], V[.], V[.], V[.]] [V[-0.45], V[.], V[.], V[.]]

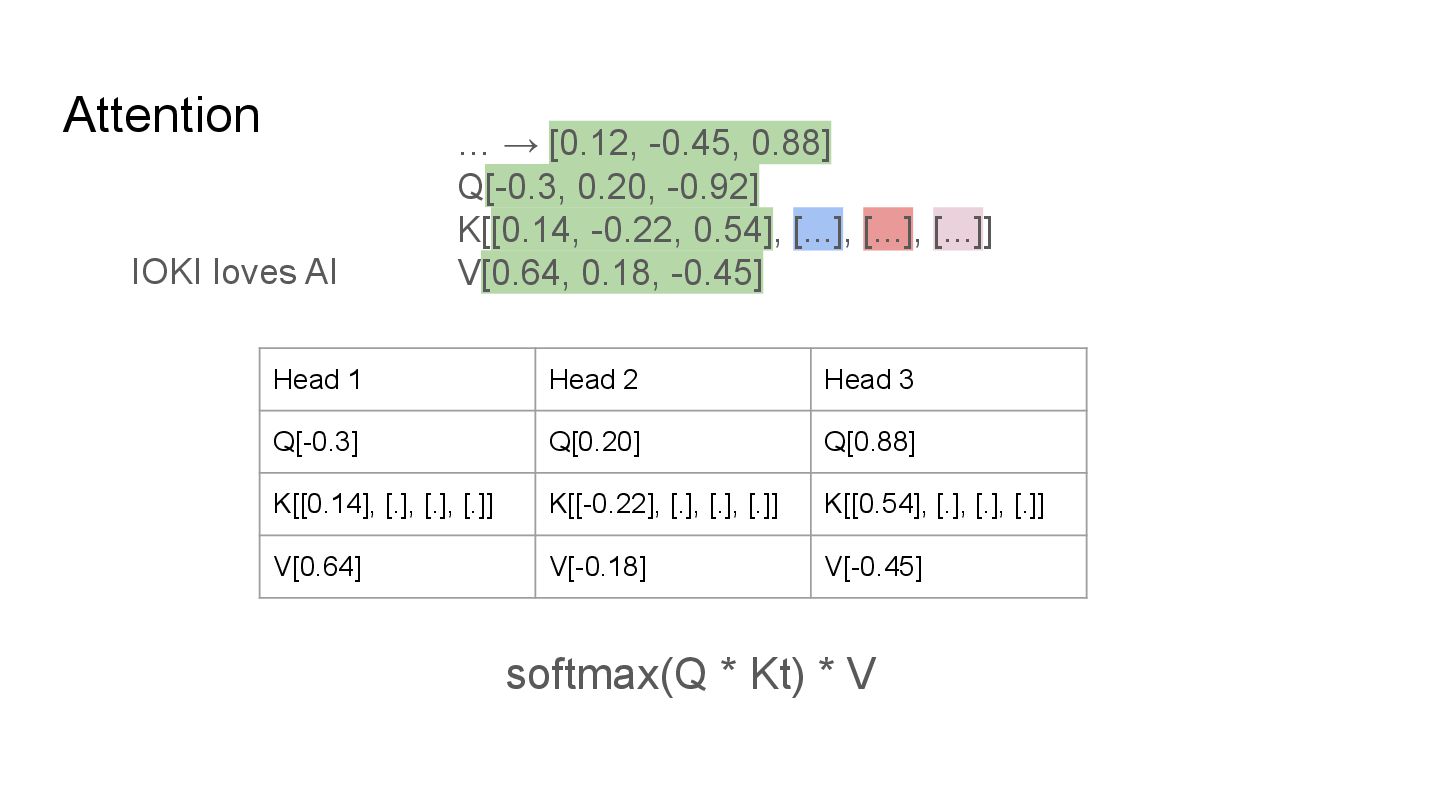

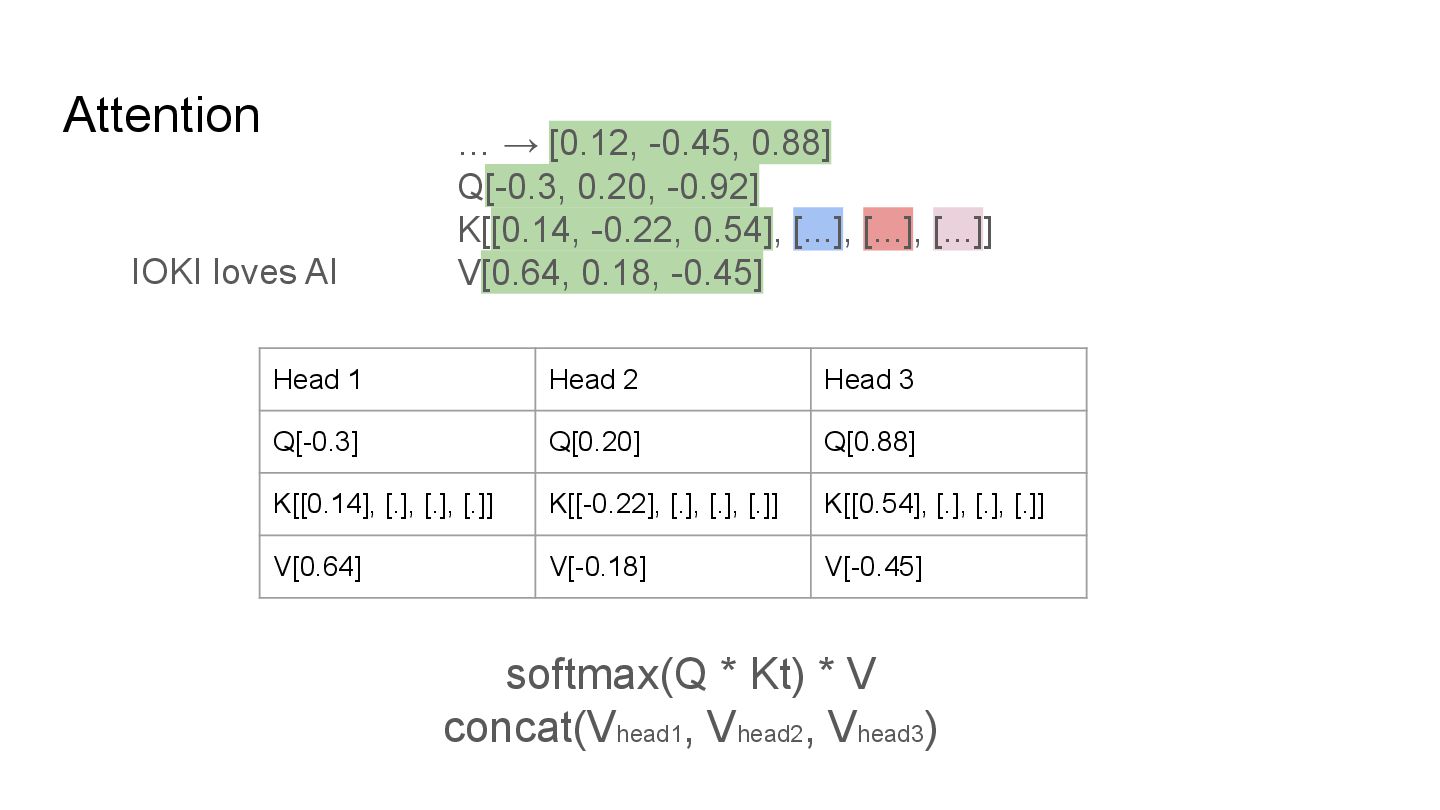

32. Attention IOKI loves AI … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45] Head 1 Head 2 Head 3 Q[-0.3] Q[0.20] Q[0.88] K[[0.14], [.], [.], [.]] K[[-0.22], [.], [.], [.]] K[[0.54], [.], [.], [.]] V[0.64] V[-0.18] V[-0.45] softmax(Q * Kt) * V
33. Attention IOKI loves AI … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45] Head 1 Head 2 Head 3 Q[-0.3] Q[0.20] Q[0.88] K[[0.14], [.], [.], [.]] K[[-0.22], [.], [.], [.]] K[[0.54], [.], [.], [.]] V[0.64] V[-0.18] V[-0.45] softmax(Q * Kt) * V concat(Vhead1 , Vhead2 , Vhead3 )
34. New_IO[0.22, -0.22, 0.99]

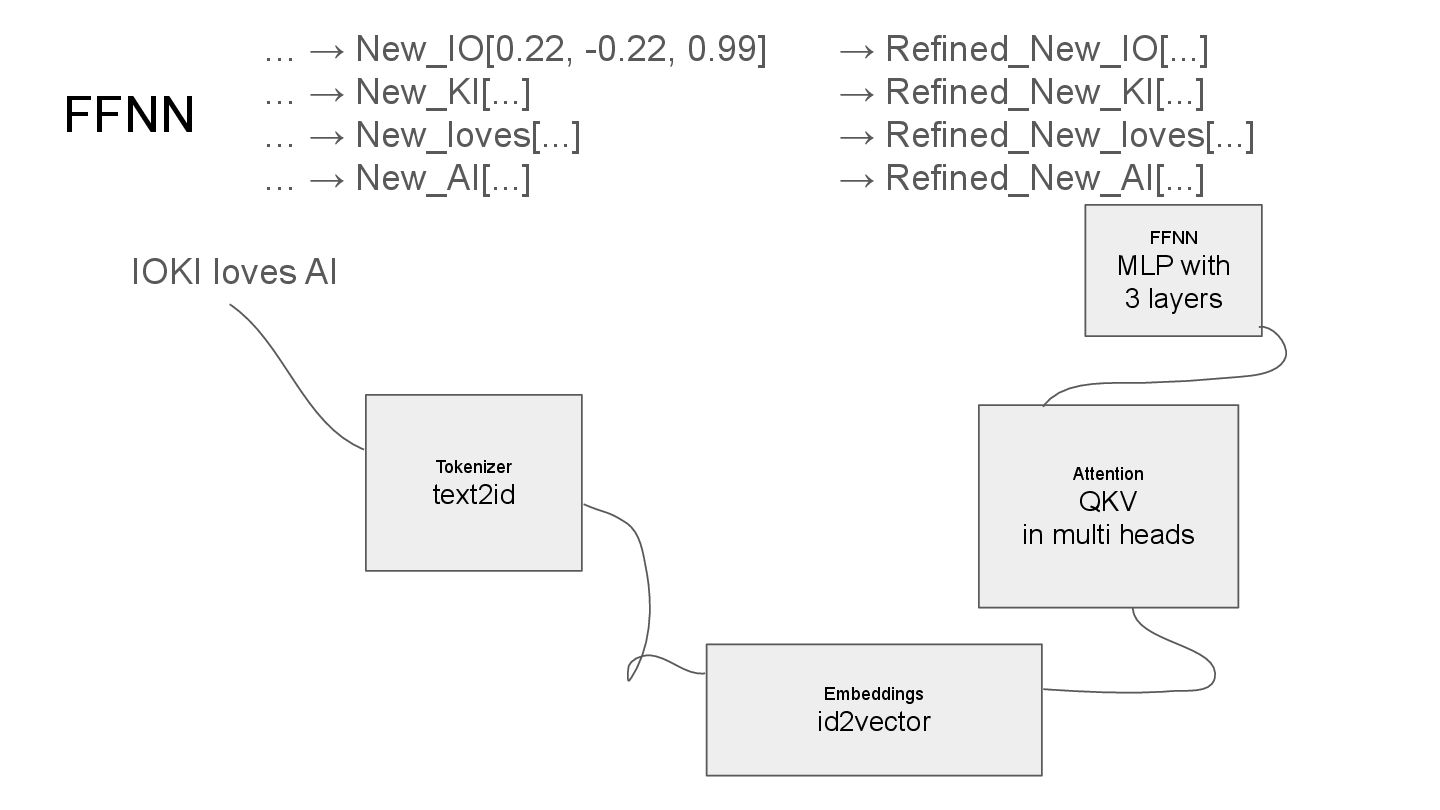

35. FFNN IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers … → New_IO[0.22, -0.22, 0.99] → Refined_New_IO[...] … → New_KI[...] → Refined_New_KI[...] … → New_loves[...] → Refined_New_loves[...] … → New_AI[...] → Refined_New_AI[...]

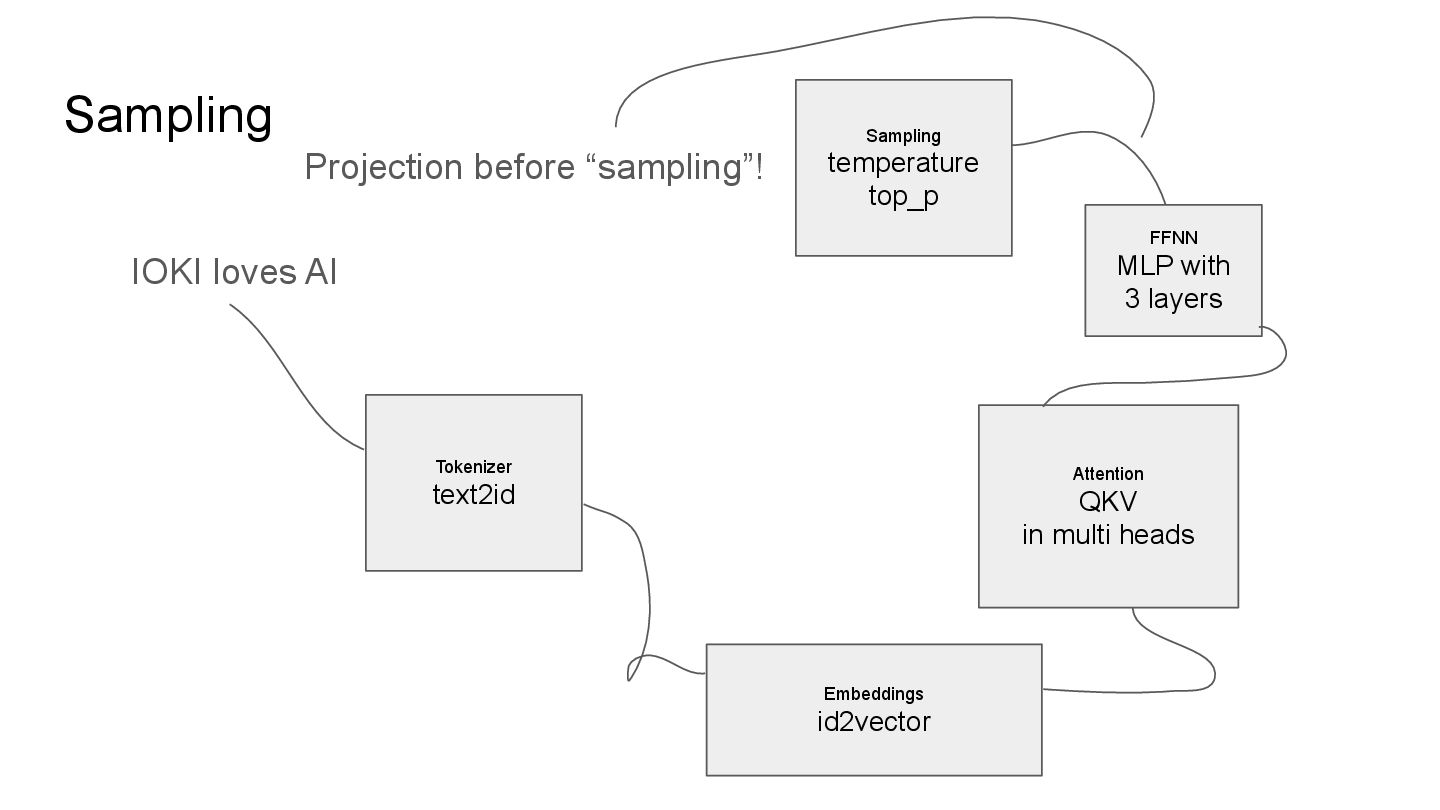

36. Sampling IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Projection before “sampling”!

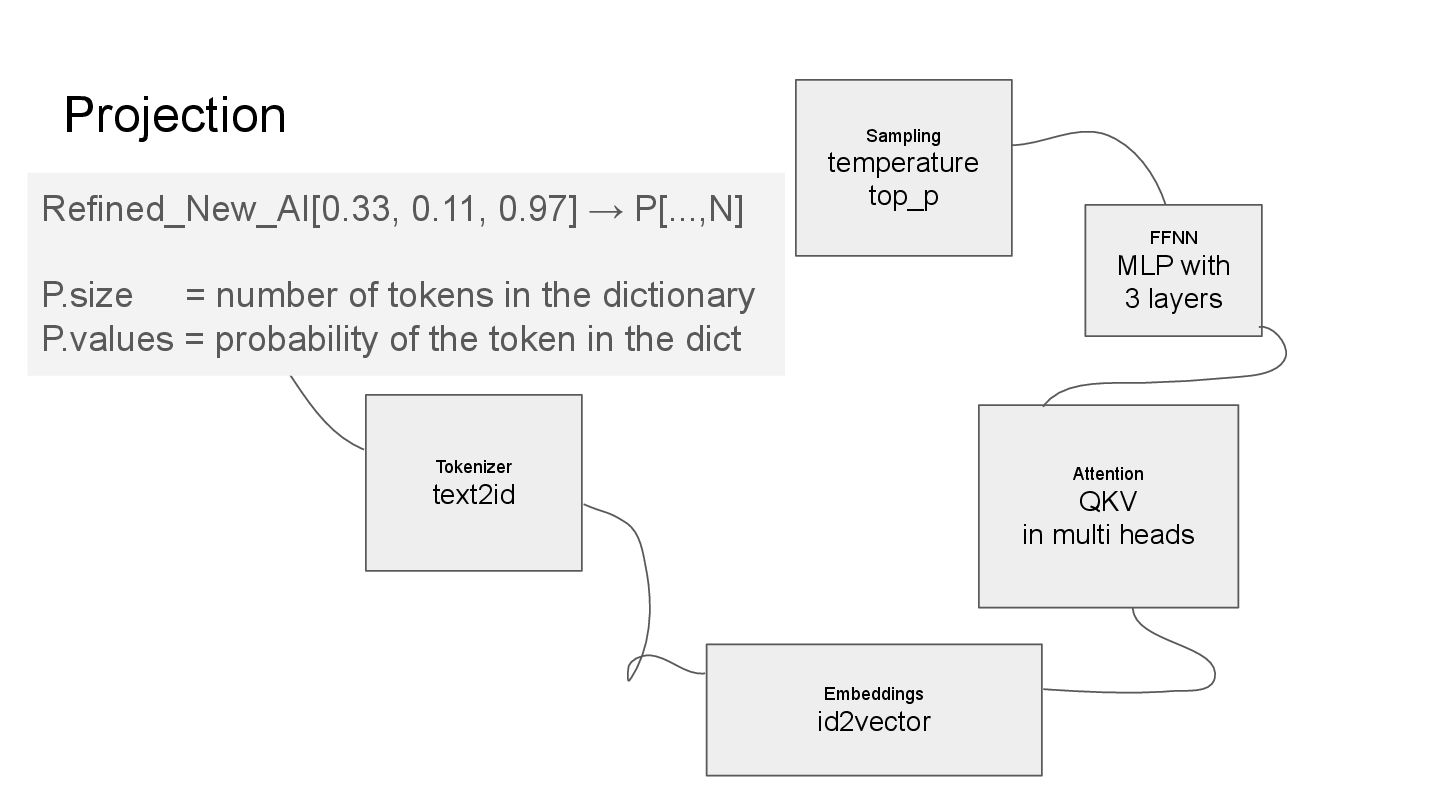

37. Projection IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Refined_New_AI[0.33, 0.11, 0.97] → P[...,N] P.size = number of tokens in the dictionary P.values = probability of the token in the dict

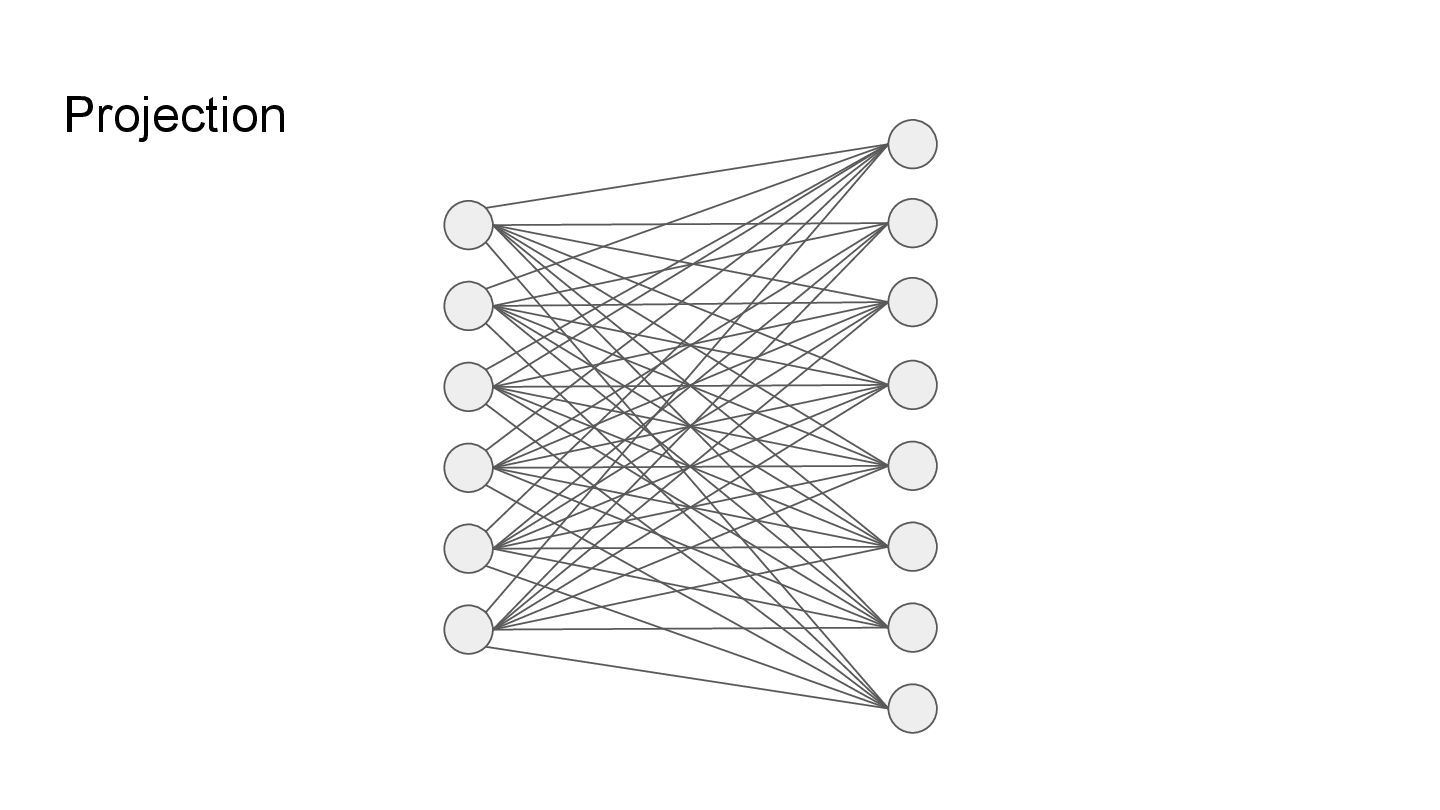

38. Projection

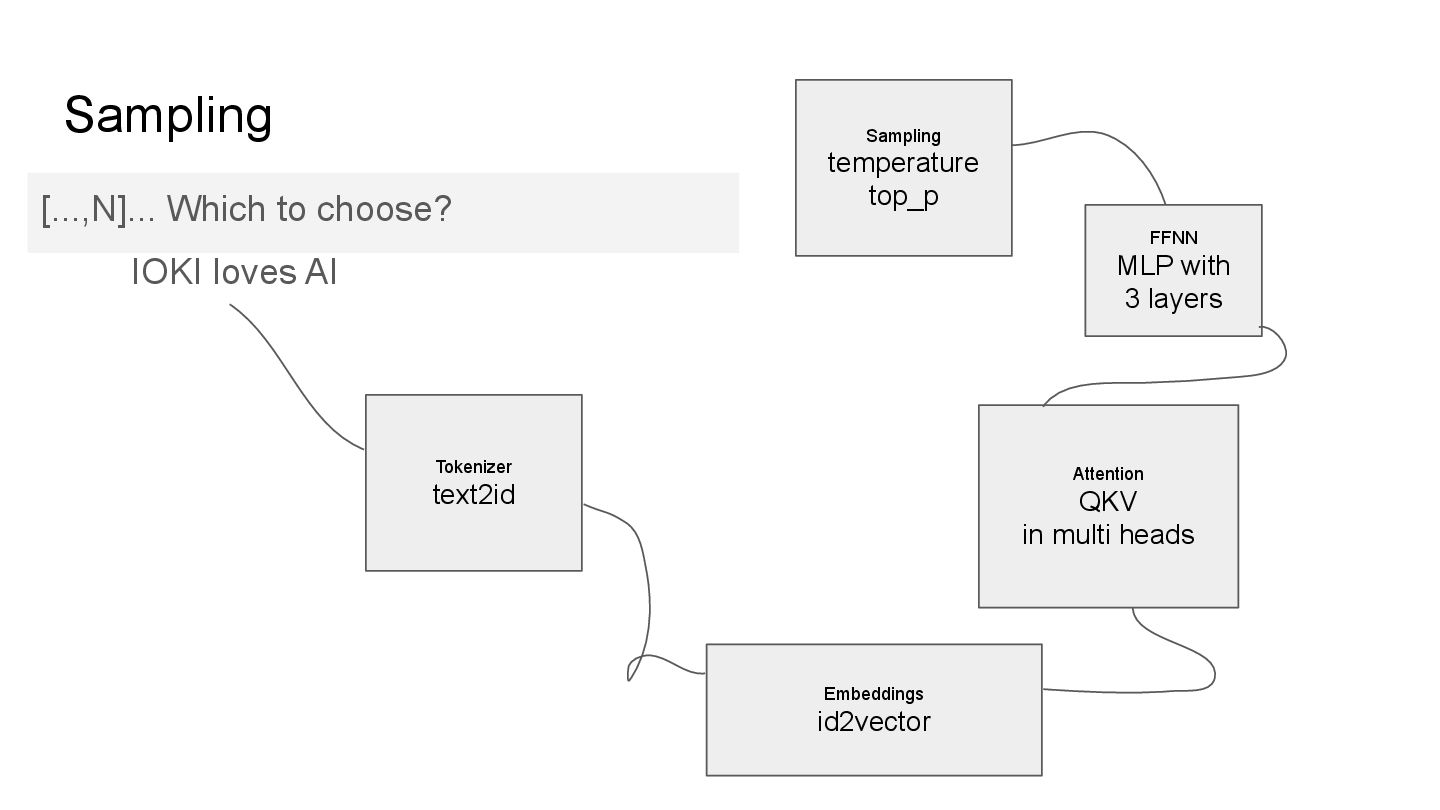

39. Sampling IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p [...,N]... Which to choose?

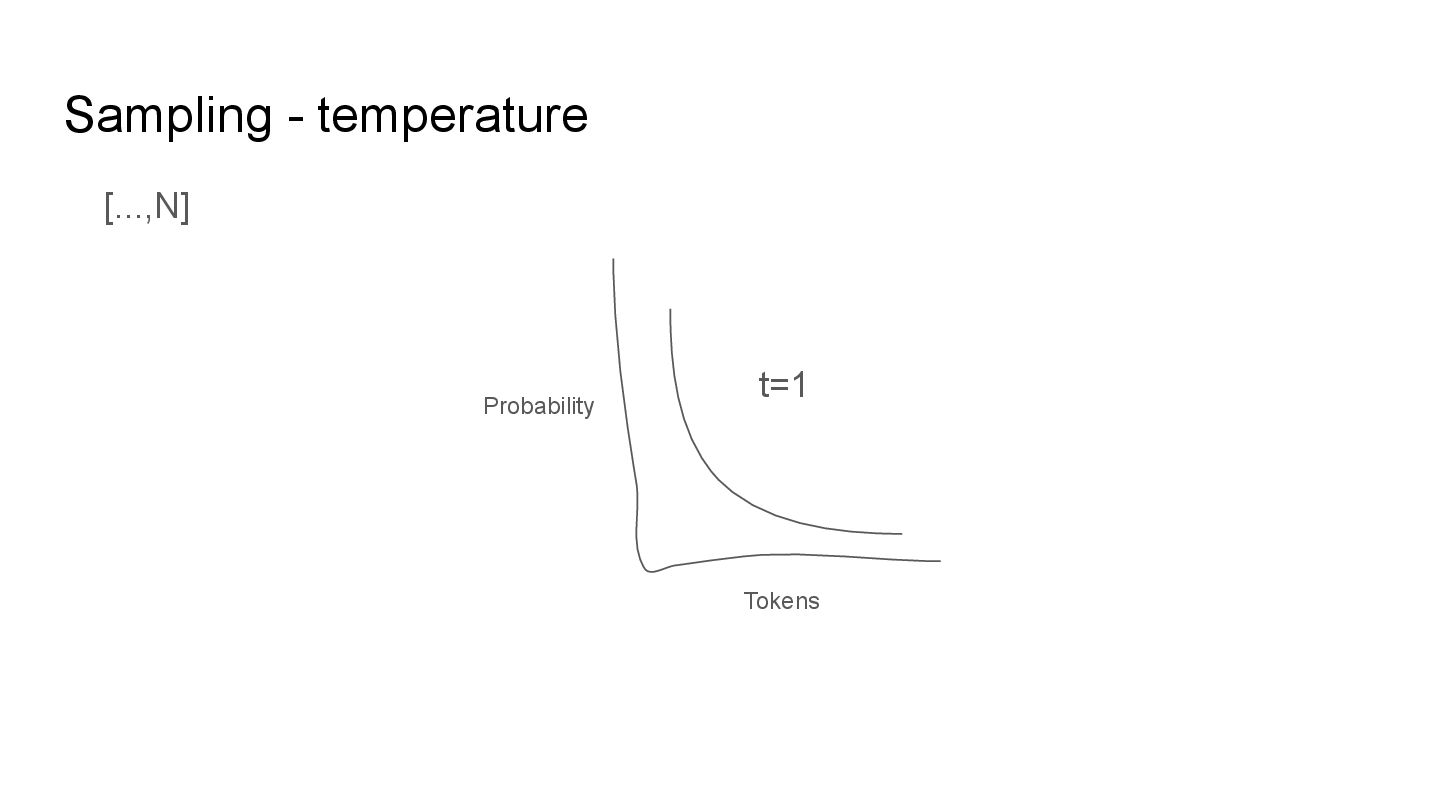

40. Sampling - temperature [...,N] Tokens Probability t=1

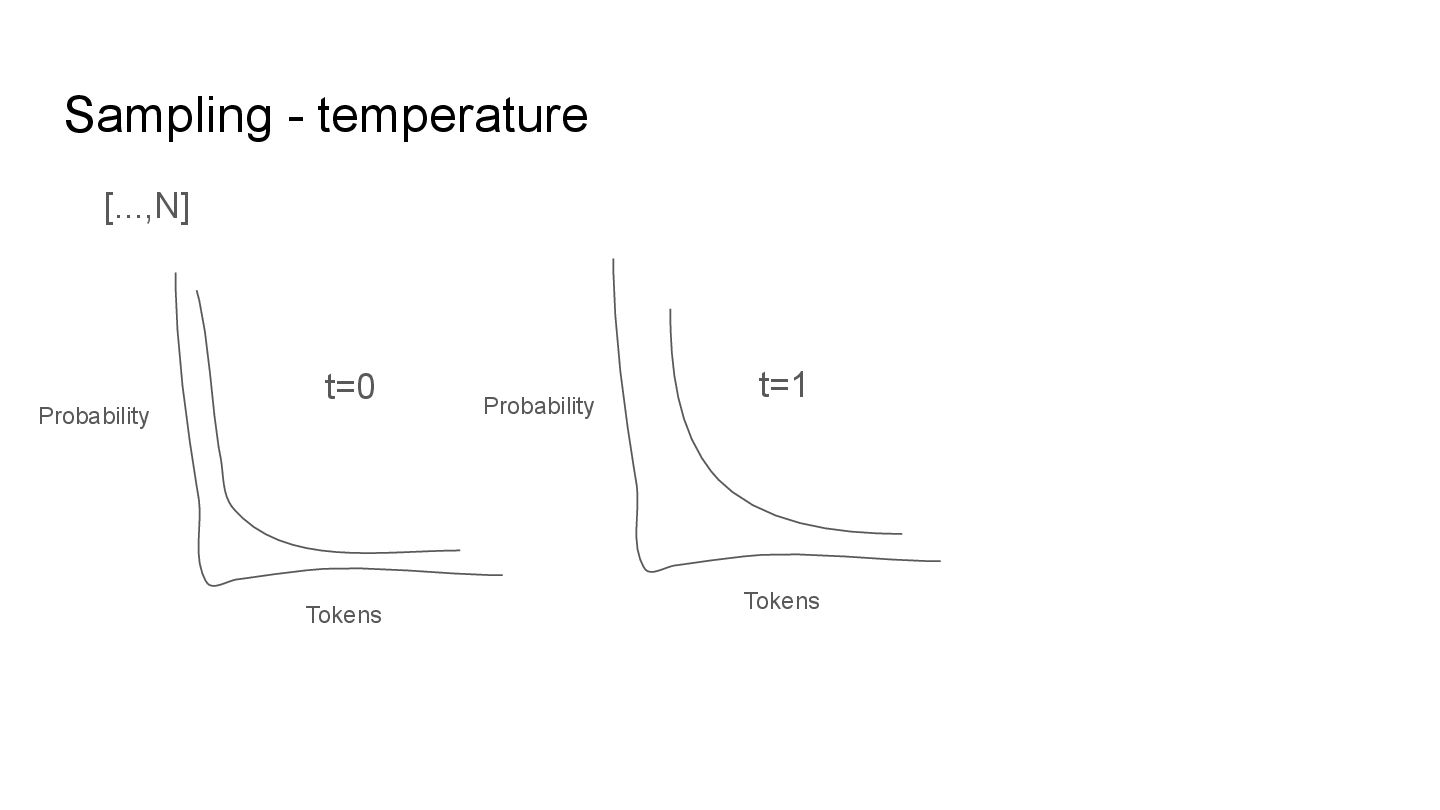

41. Sampling - temperature [...,N] Tokens Probability Tokens Probability t=1 t=0

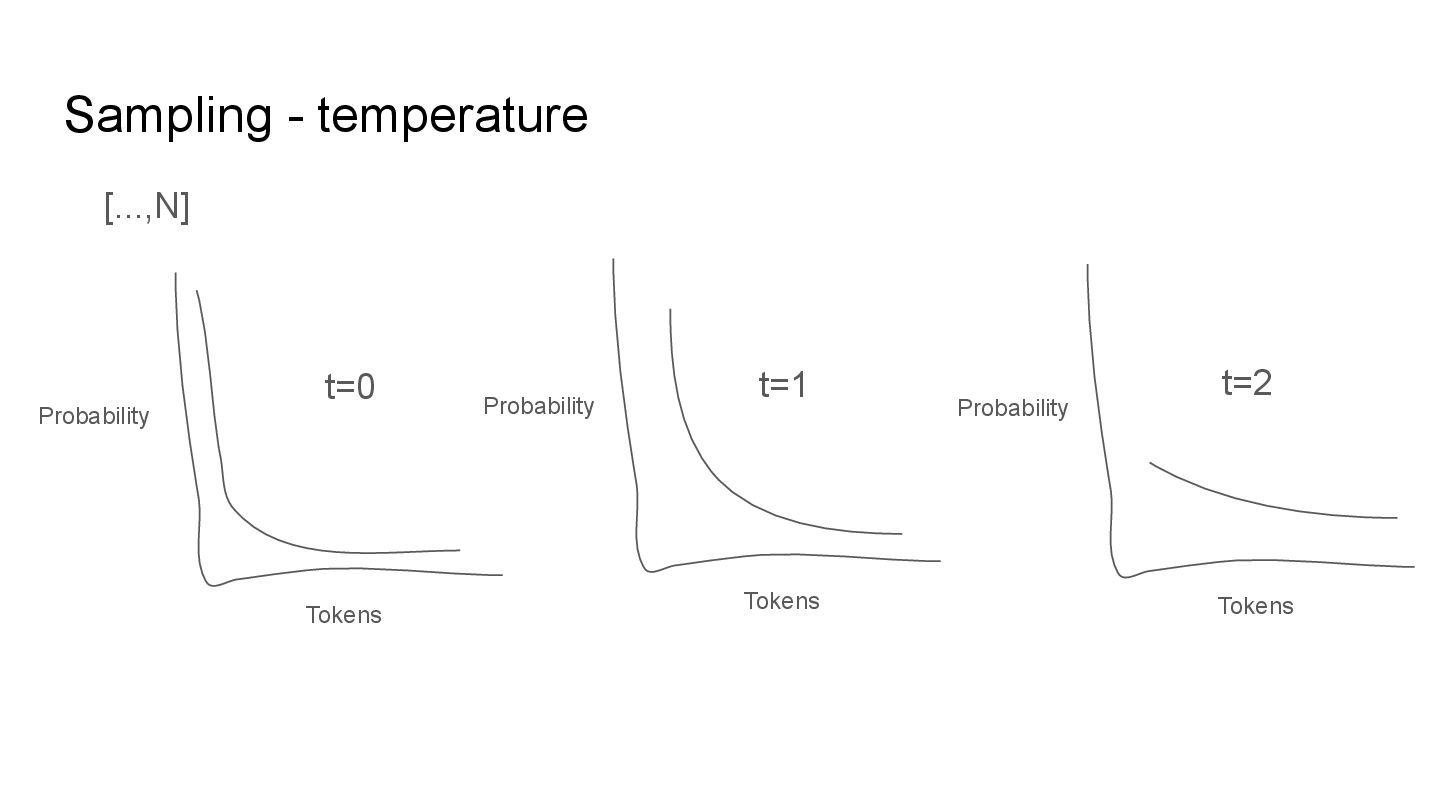

42. Sampling - temperature [...,N] Tokens Probability Tokens Probability t=1 t=2 Tokens Probability t=0

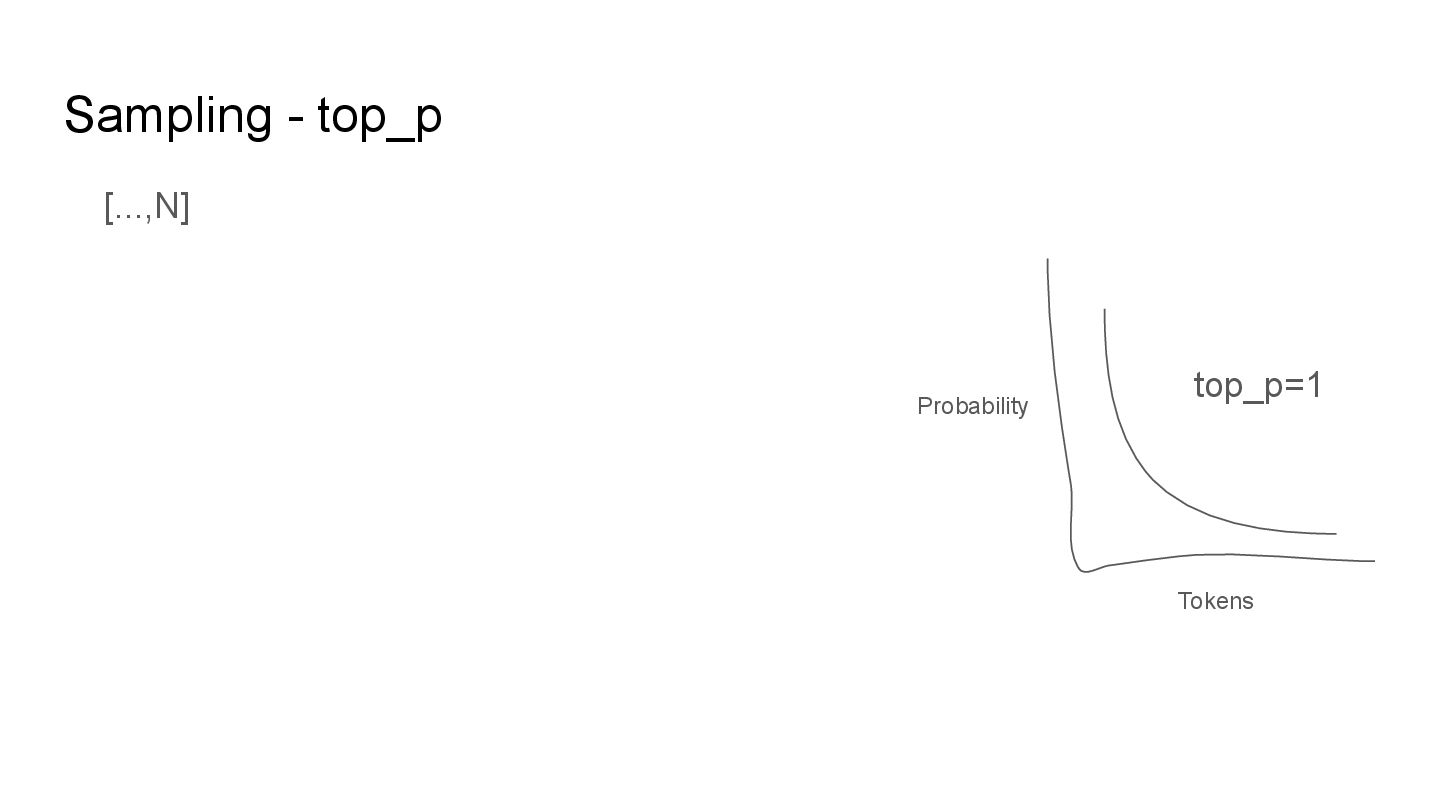

43. Sampling - top_p [...,N] Tokens Probability top_p=1

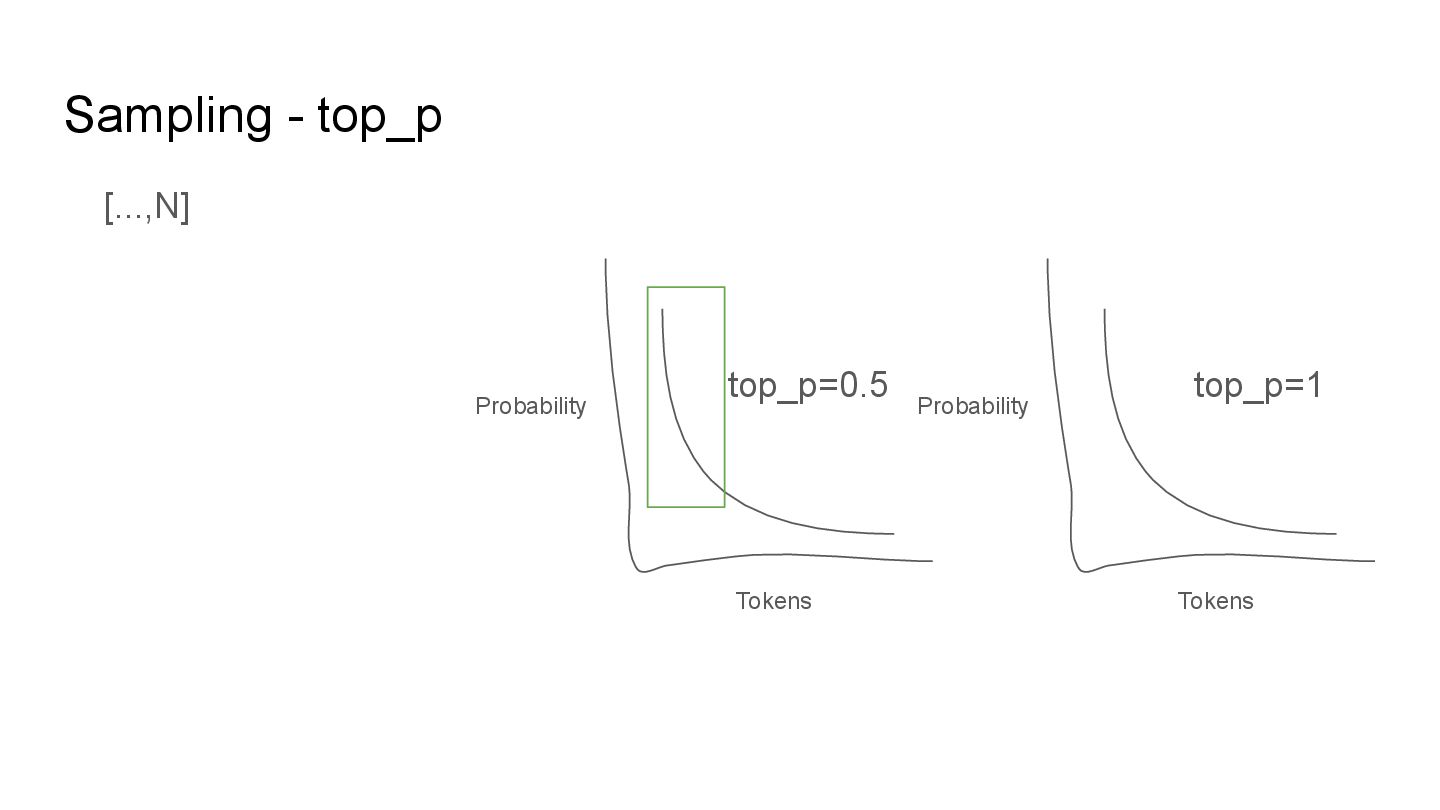

44. Sampling - top_p [...,N] Tokens Probability top_p=1 Tokens Probability top_p=0.5
45. Sampling - top_p [...,N] Tokens Probability top_p=1 Tokens Probability top_p=0.5 Tokens Probability top_p=0.1

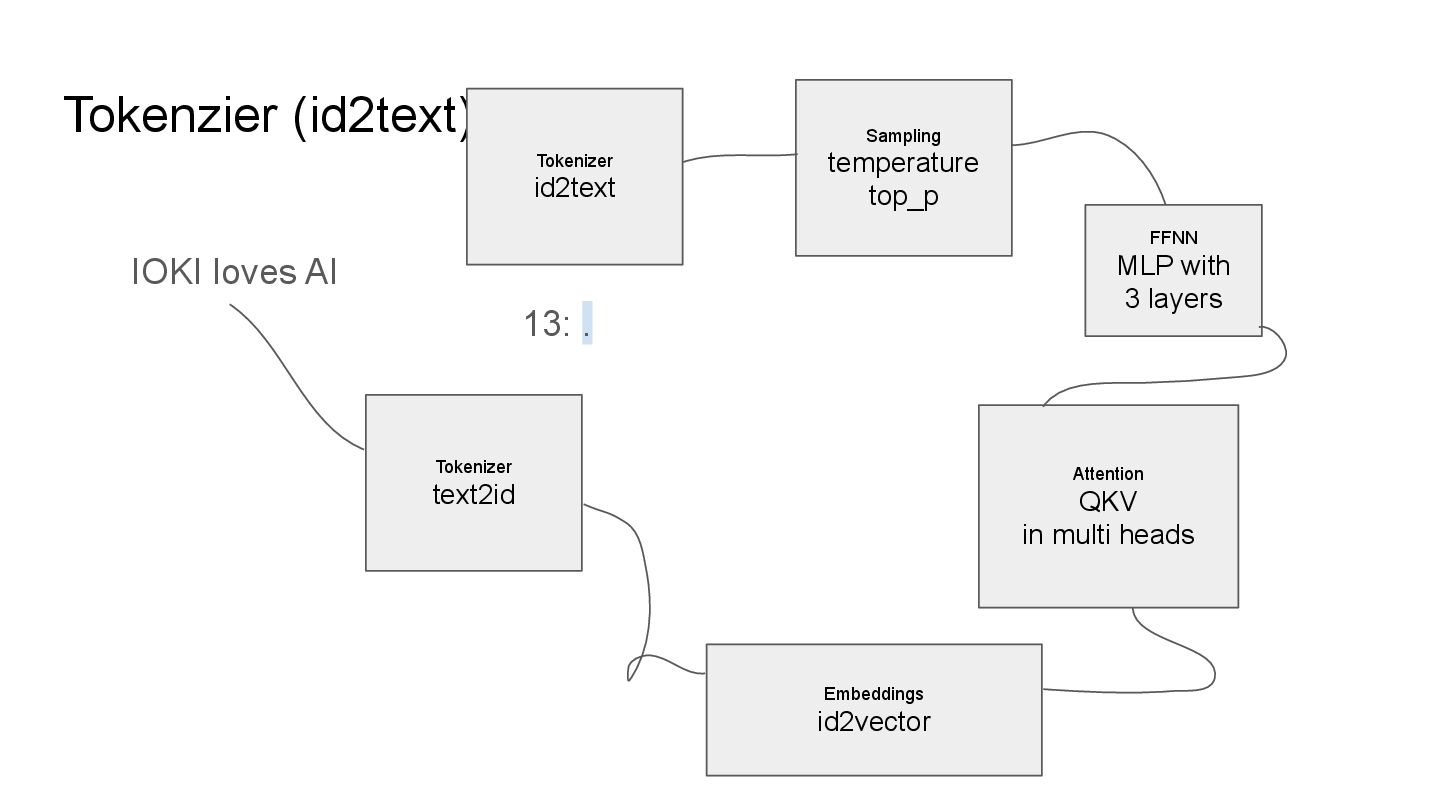

46. Tokenzier (id2text) IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text 13: .
47. Overview IOKI loves AI Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text .
48. Overview IOKI loves AI. Tokenizer text2id Embeddings id2vector Attention QKV in multi heads FFNN MLP with 3 layers Sampling temperature top_p Tokenizer id2text EOS Repeat?!
49. Weights? Parameter? Training data?

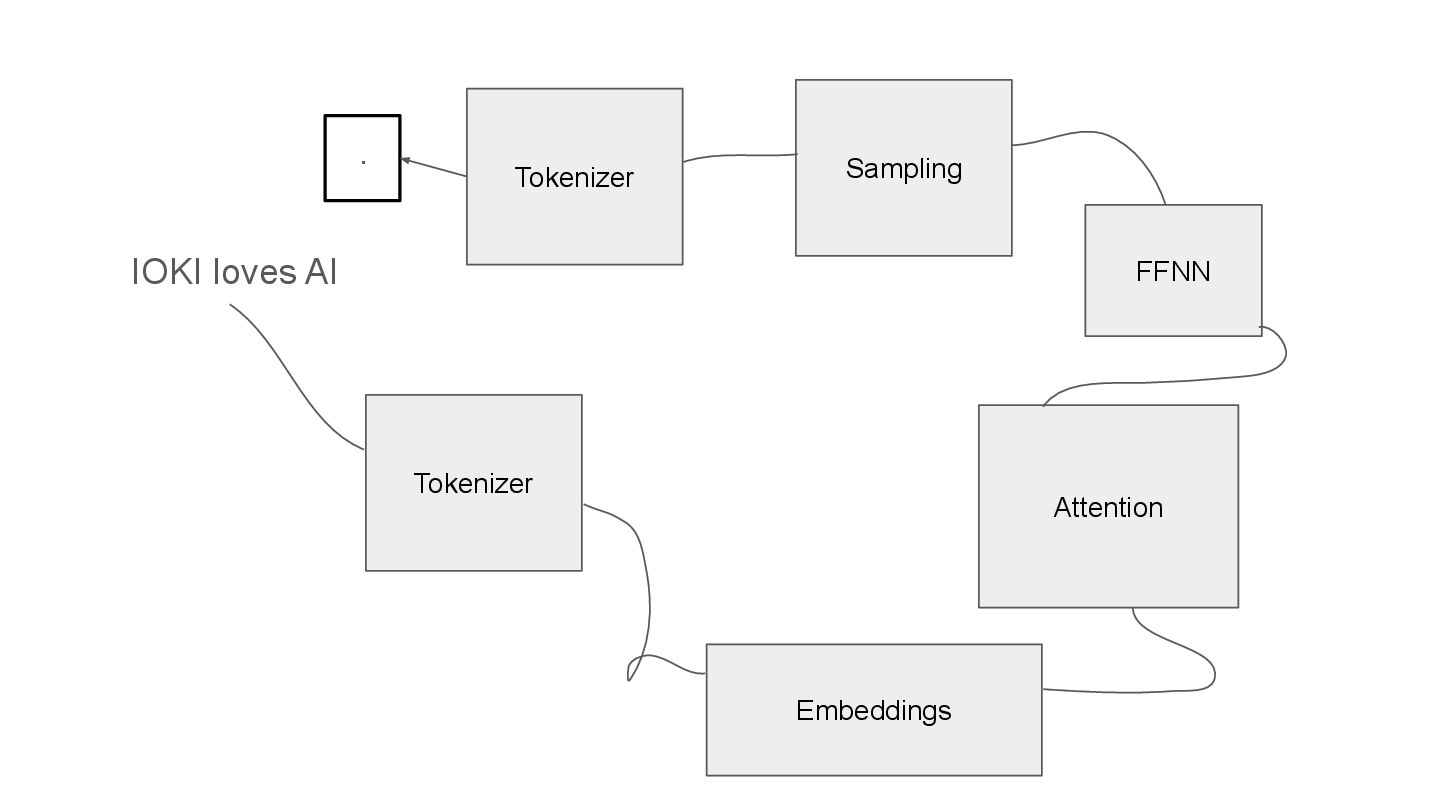

50. IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Tokenizer .

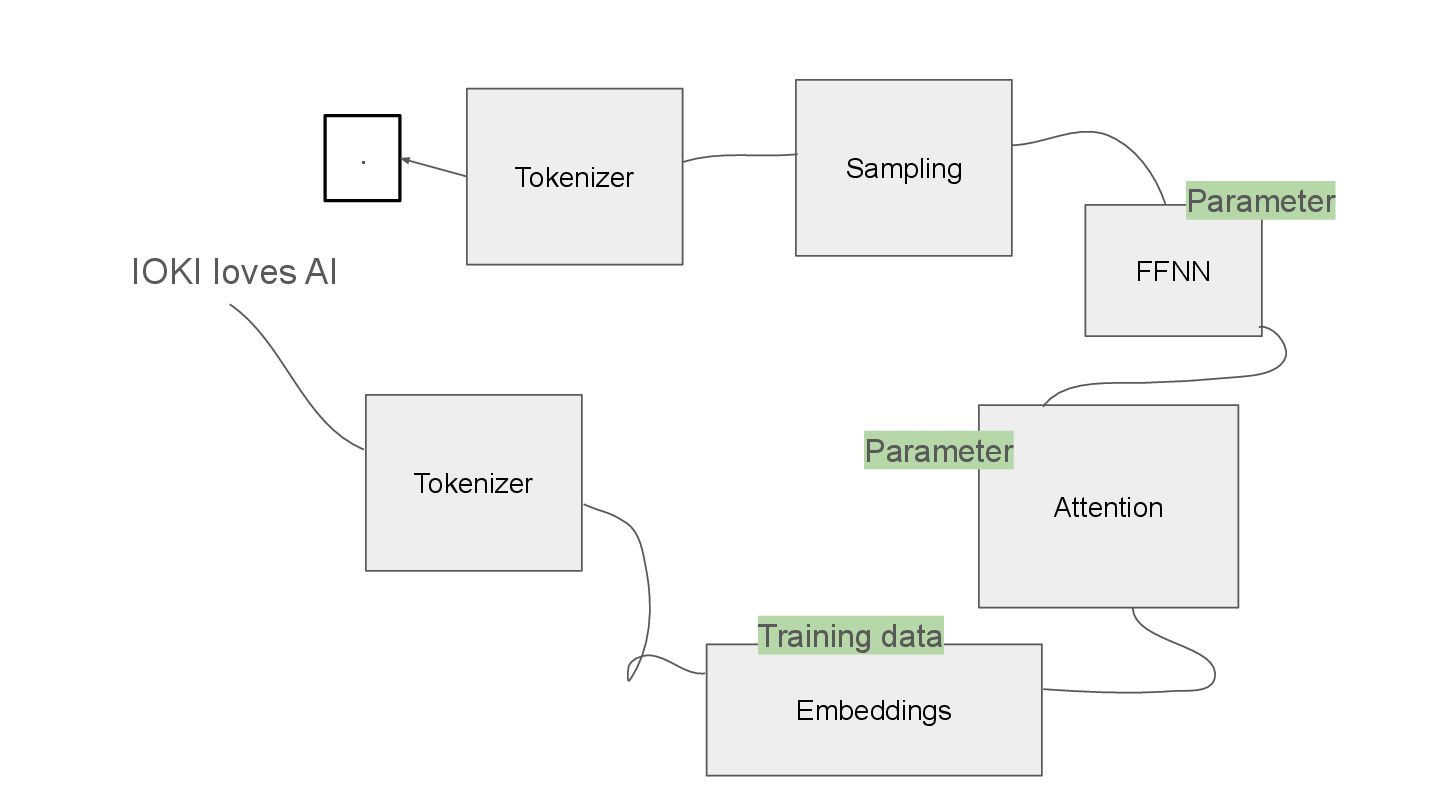

51. IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Tokenizer . Training data Parameter Parameter

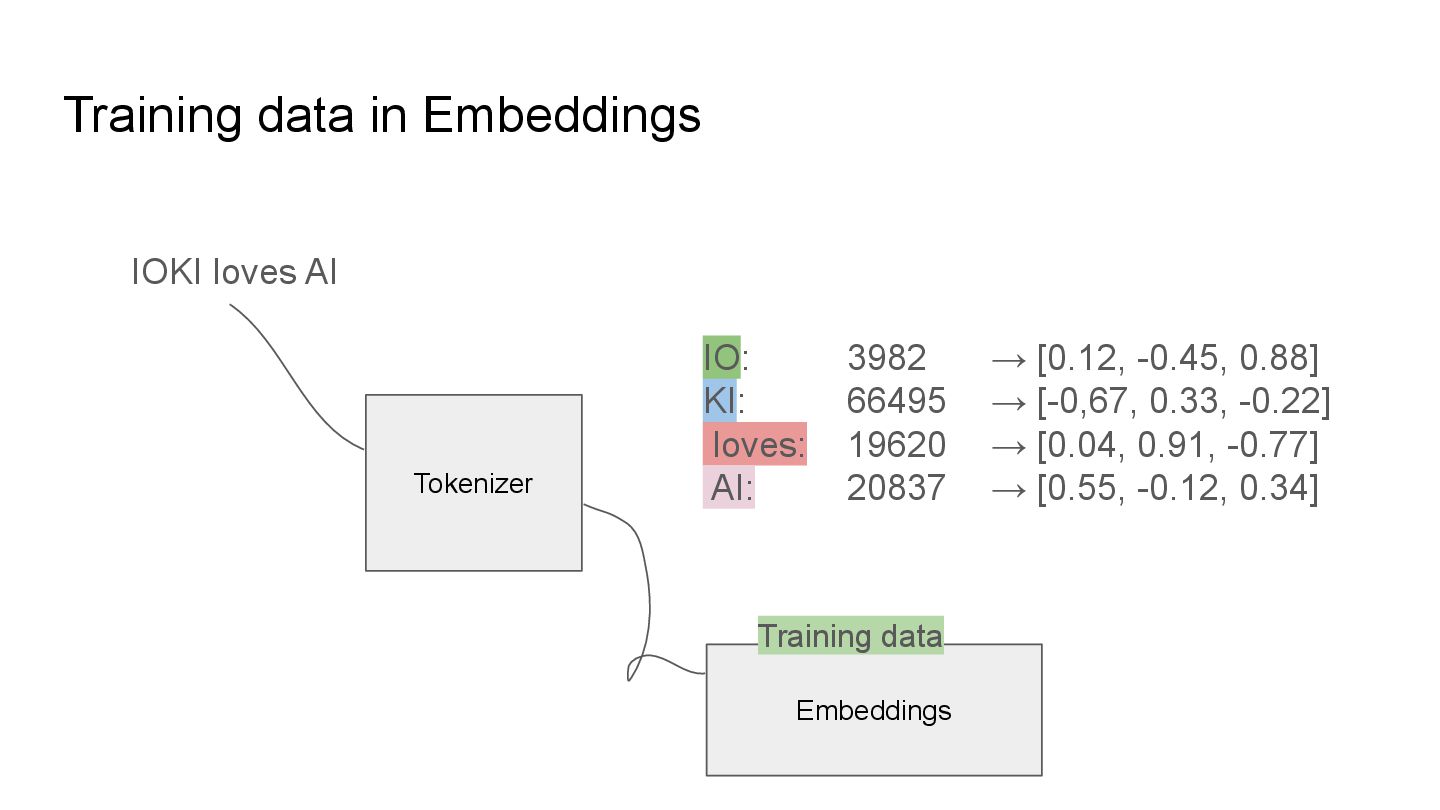

52. Training data in Embeddings IOKI loves AI Tokenizer Embeddings Training data IO: 3982 → [0.12, -0.45, 0.88] KI: 66495 → [-0,67, 0.33, -0.22] loves: 19620 → [0.04, 0.91, -0.77] AI: 20837 → [0.55, -0.12, 0.34]

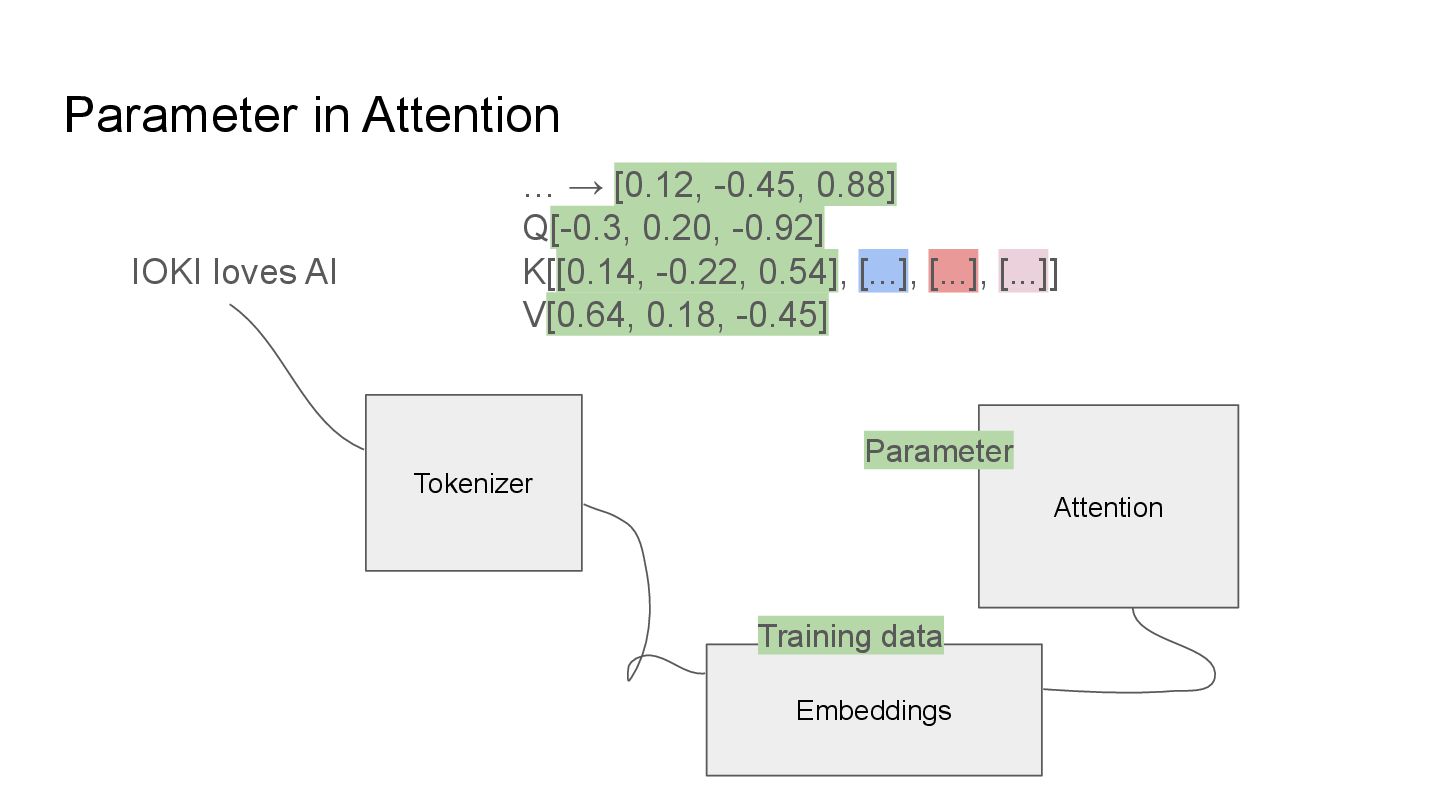

53. Parameter in Attention IOKI loves AI Tokenizer Embeddings Attention Training data Parameter … → [0.12, -0.45, 0.88] Q[-0.3, 0.20, -0.92] K[[0.14, -0.22, 0.54], [...], [...], [...]] V[0.64, 0.18, -0.45]

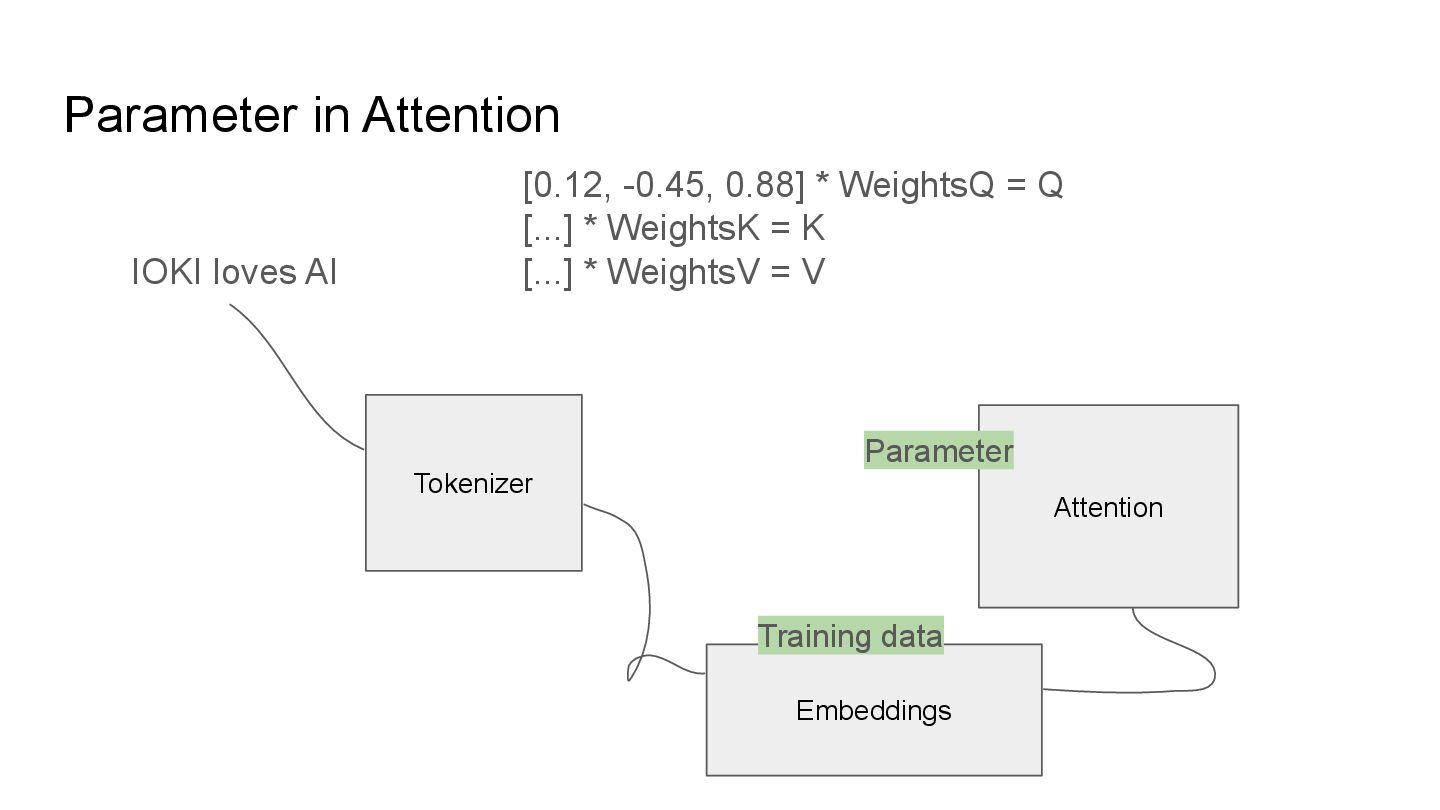

54. Parameter in Attention IOKI loves AI Tokenizer Embeddings Attention Training data Parameter [0.12, -0.45, 0.88] * WeightsQ = Q [...] * WeightsK = K [...] * WeightsV = V

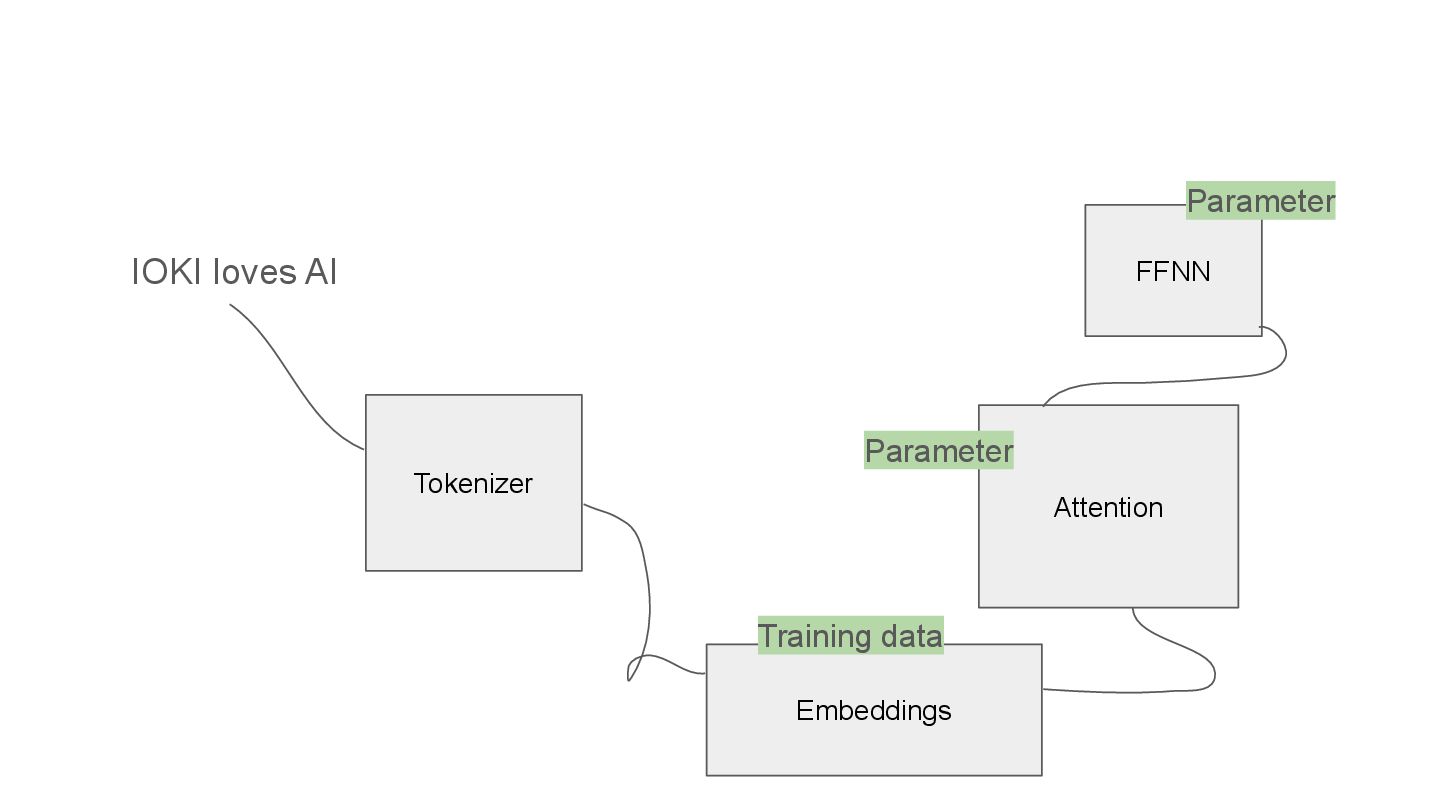

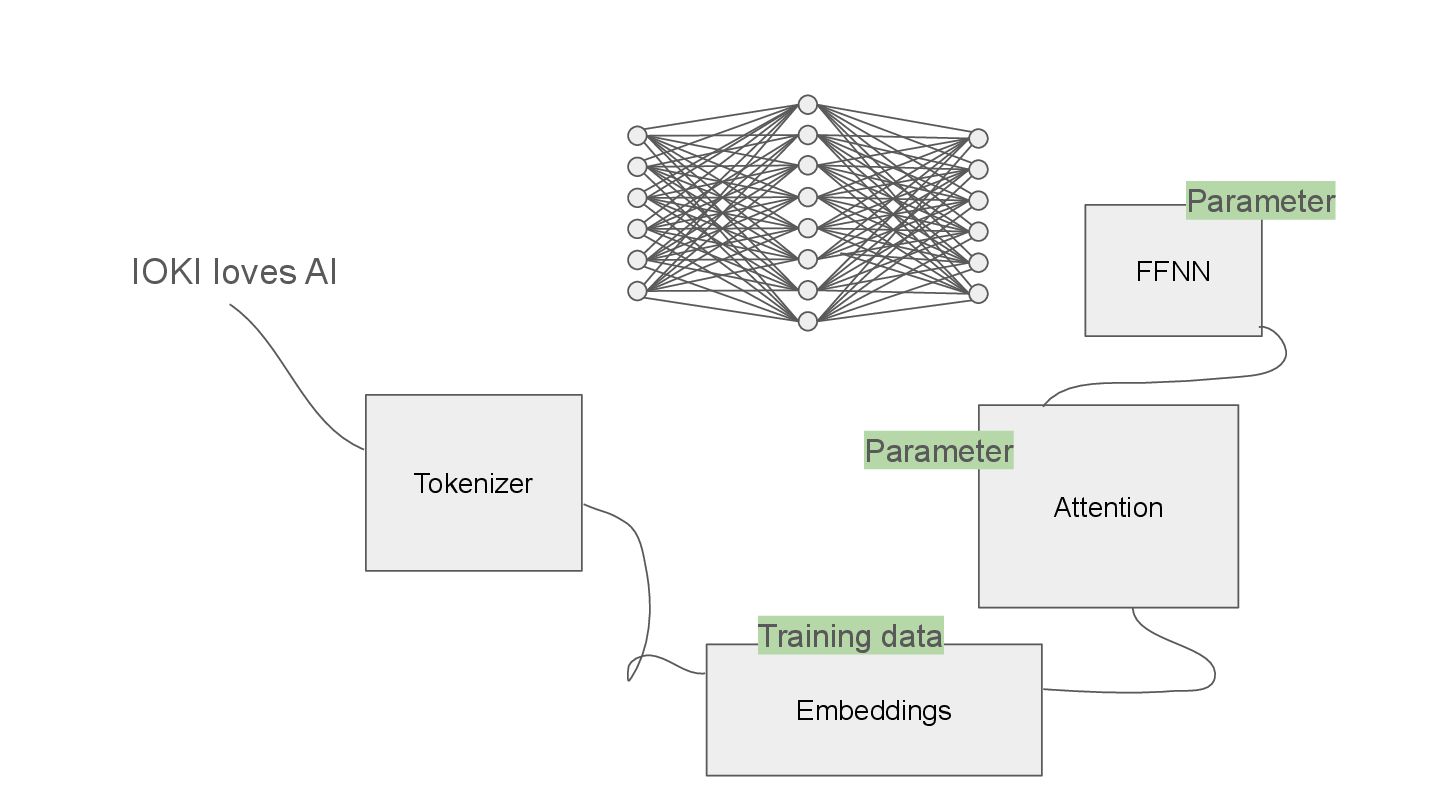

55. IOKI loves AI Tokenizer Embeddings Attention FFNN Training data Parameter Parameter

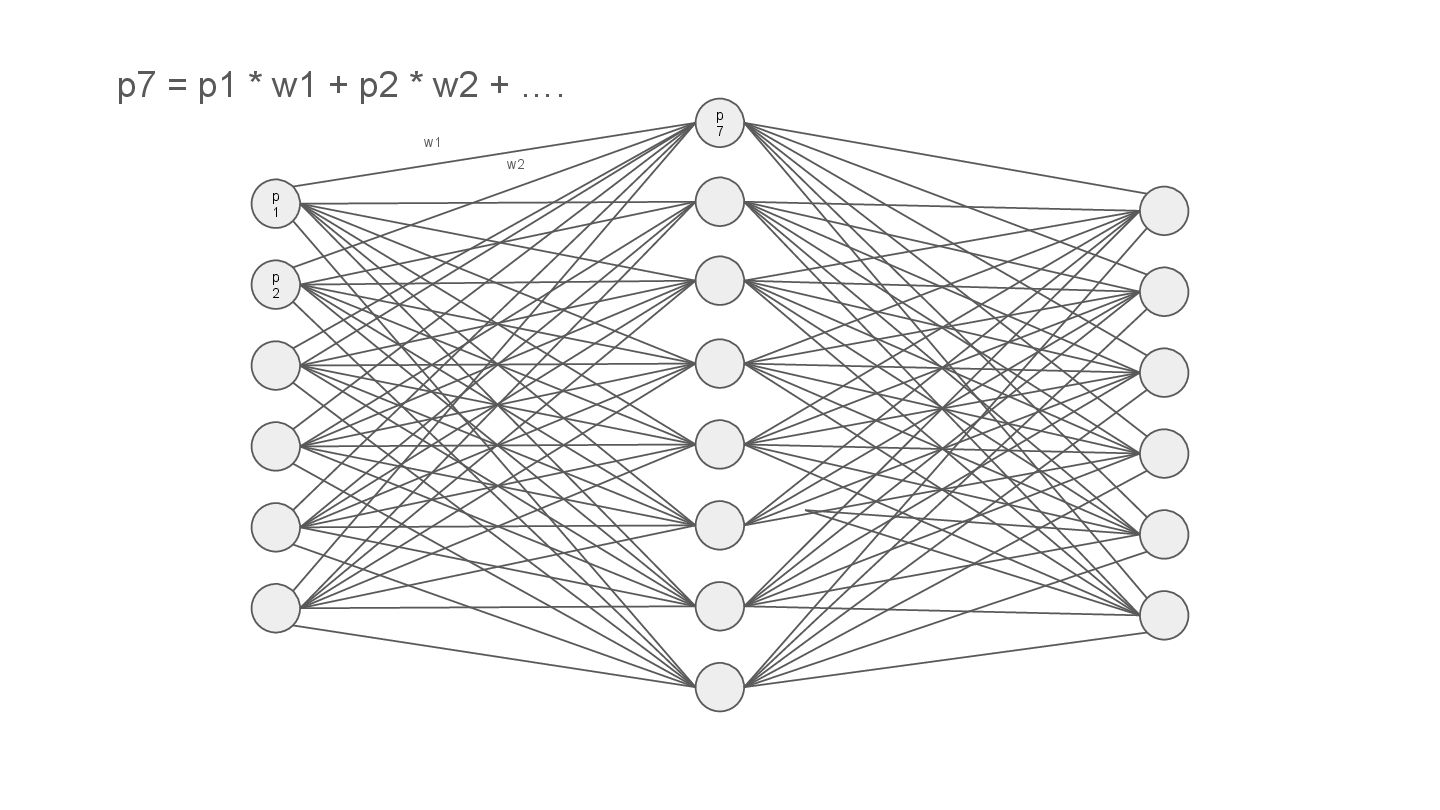

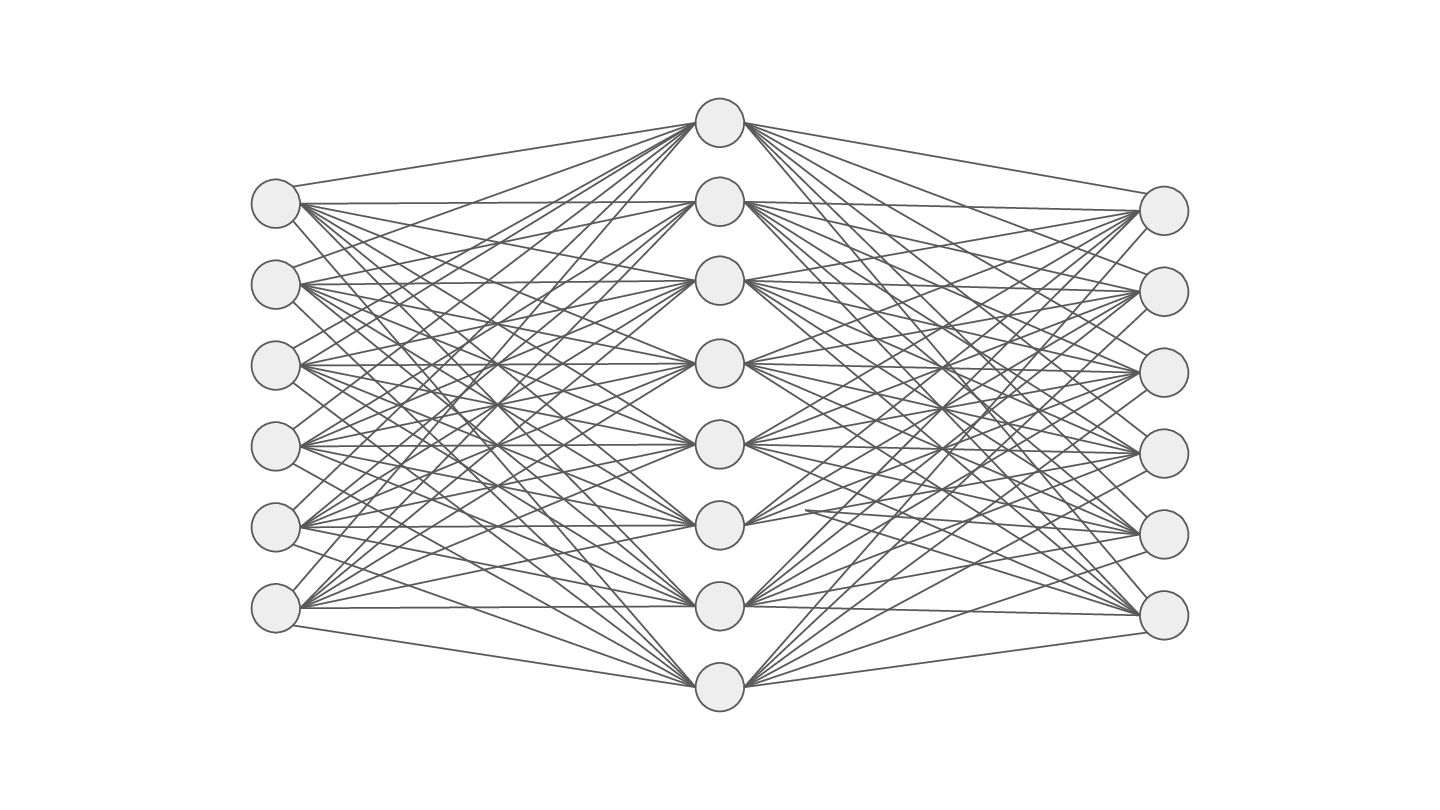

57. p 1 p 2 p 7 p7 = p1 * w1 + p2 * w2 + …. w1 w2
58. IOKI loves AI Tokenizer Embeddings Attention FFNN Training data Parameter Parameter

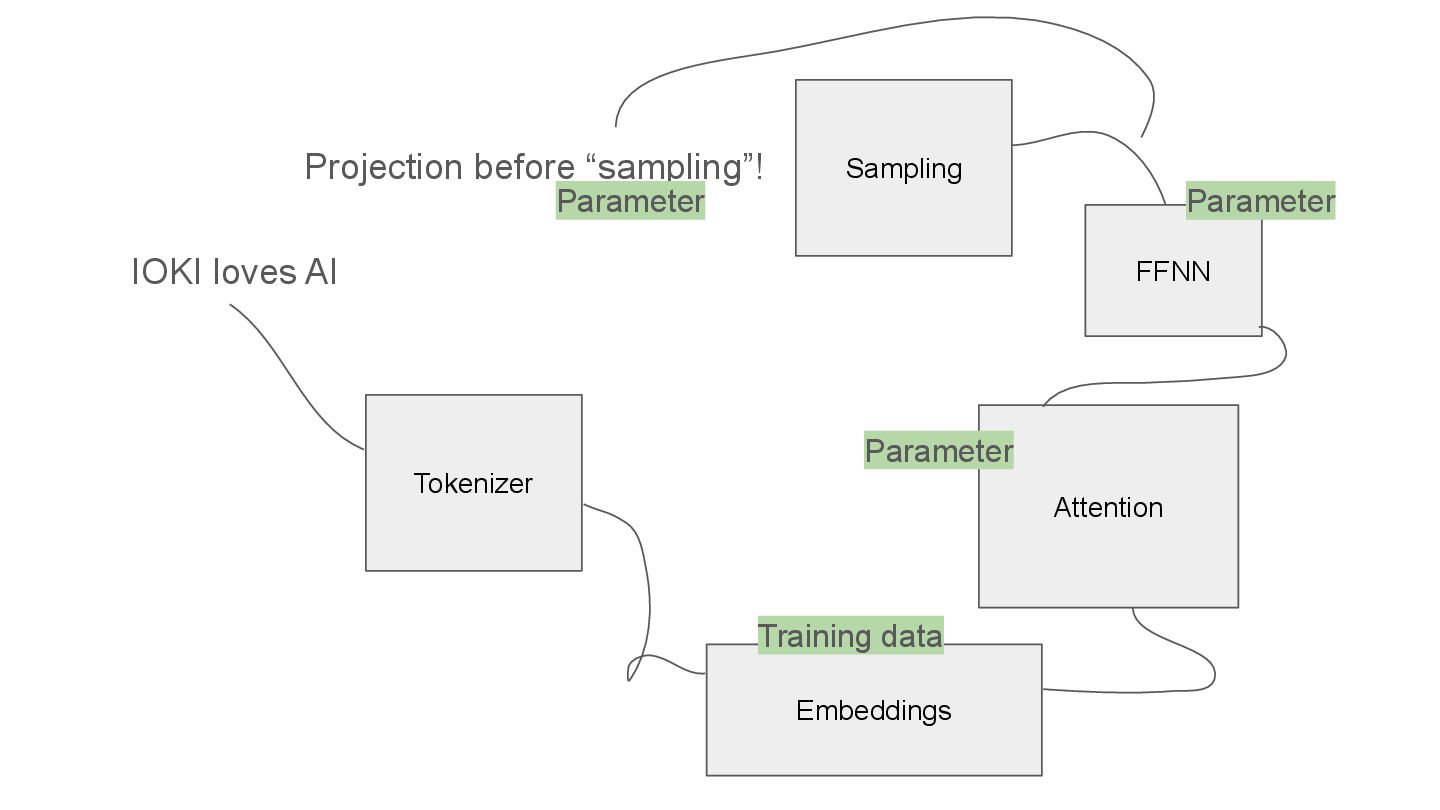

59. IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Training data Parameter Parameter Projection before “sampling”! Parameter

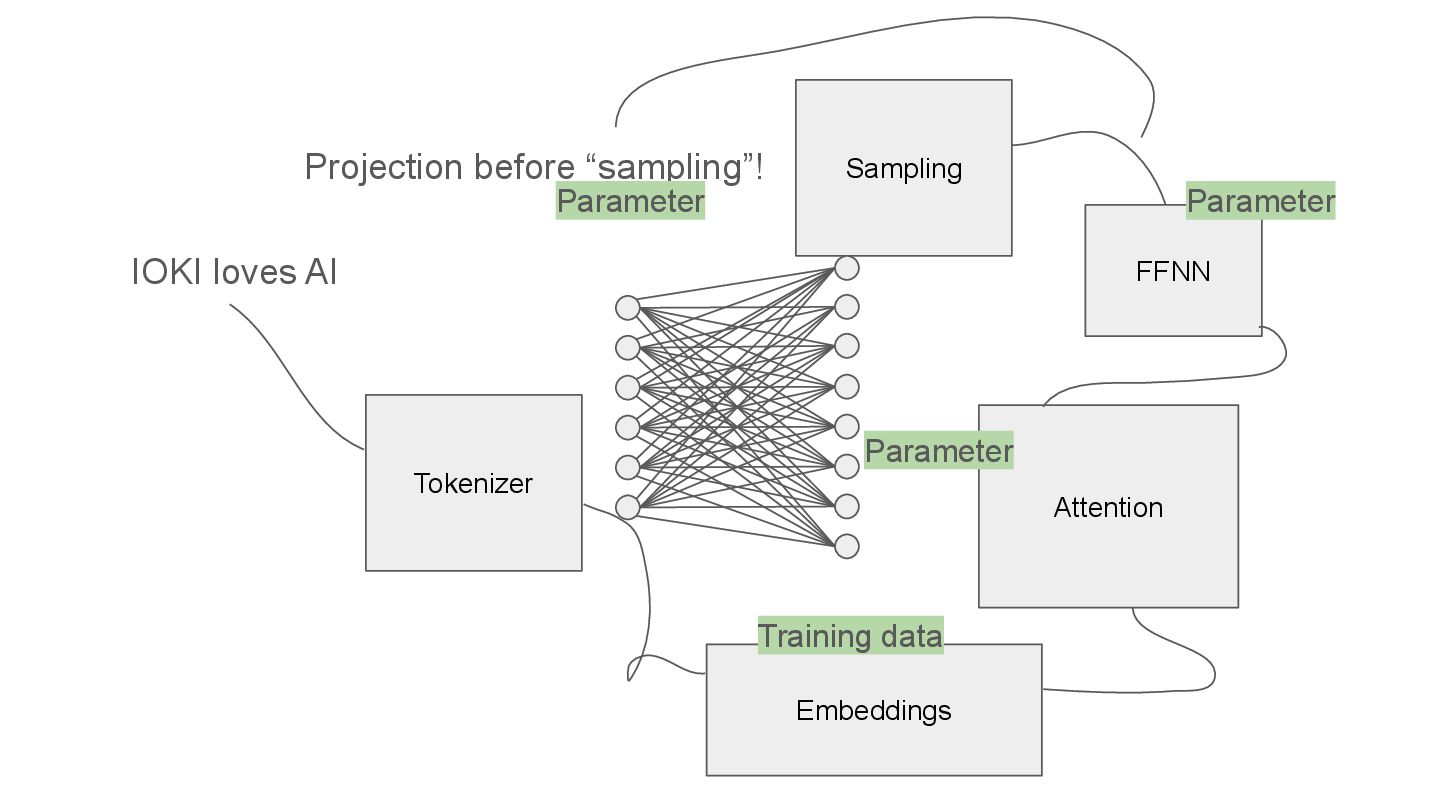

60. IOKI loves AI Tokenizer Embeddings Attention FFNN Sampling Training data Parameter Parameter Projection before “sampling”! Parameter
61. Thanks for listening! Questions?
