macvlan and ipvlan at Docker Bangalore July 2016 meetup

What is ipvlan and macvlan and how do you use it in linux and also with docker.

Transcript

1. macvlan and ipvlan - Suraj Deshmukh @surajd_
2. Introduction • macvlan and ipvlan exposes the underlying host's interfaces directly to VMs or Containers. • Both do not use bridge. • Both are implicitly namespace aware. • Traditionally we have been using Linux Bridge to get VM access to the outside network or default gateway, now you don't need that extra NATing overhead. • Lightweight and Fast.

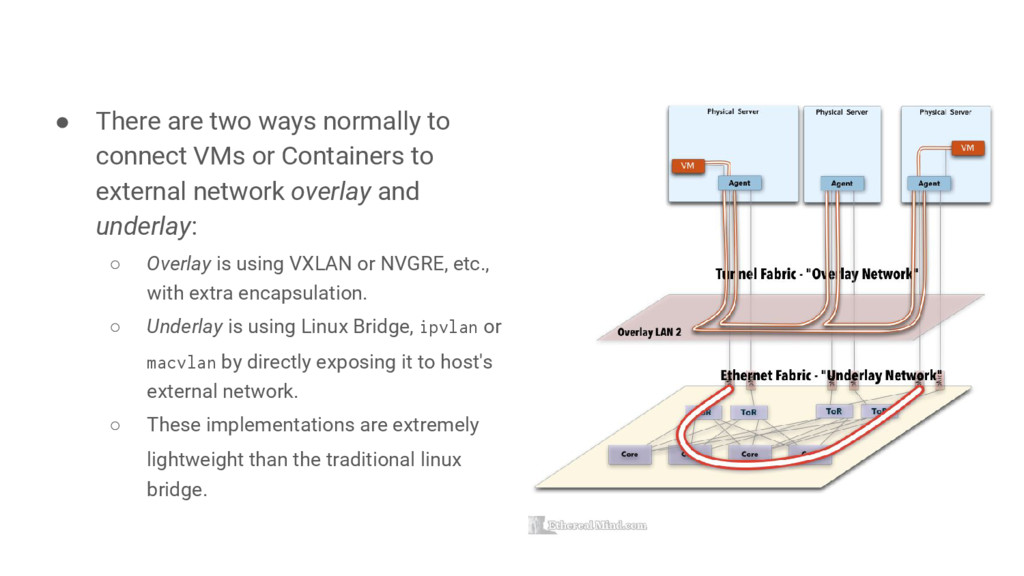

3. • There are two ways normally to connect VMs or Containers to external network overlay and underlay: ◦ Overlay is using VXLAN or NVGRE, etc., with extra encapsulation. ◦ Underlay is using Linux Bridge, ipvlan or macvlan by directly exposing it to host's external network. ◦ These implementations are extremely lightweight than the traditional linux bridge.

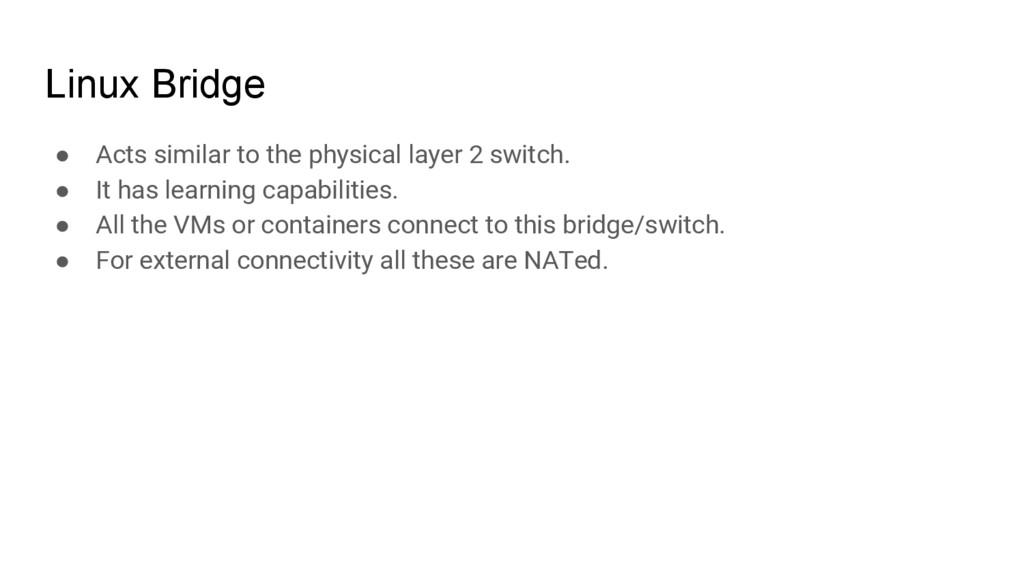

4. Linux Bridge • Acts similar to the physical layer 2 switch. • It has learning capabilities. • All the VMs or containers connect to this bridge/switch. • For external connectivity all these are NATed.
5. macvlan • macvlan allows a single interface to have multiple MAC and IP addresses using macvlan sub-interfaces. • This is different from creating sub-interfaces on a physical interface using VLAN, here every sub-interface belongs to different Layer-2 domain and all sub-interfaces have different MAC address.
6. • macvlan has been in use with lxc containers before docker support was introduced. • Each interface will have different MAC address and will be exposed directly in the underlay network. • This will help people who wanna use the existing network infrastructure with Containers and VMs.
7. • macvlan will only see traffic that has MAC address that matches interface’s MAC address. • macvlan has 4 types (private, bridge, passthrough, VEPA(Virtual Ethernet Port Aggregator)) ◦ Commonly used is a macvlan bridge because it allows the Container or VMs on the same host to talk to each other without packet leaving the host. ◦ Bridge mode works like traditional bridge and removes the requirement of learning and STP, learning not needed because it already knows what MAC addresses.
8. ipvlan • Conceptually similar to macvlan but uses layer 3. • Unlike macvlan no unique MAC addresses. • Can be used in scenarios where MAC addresses per port are restricted. • Right now supported modes are l2 and l3.
9. When to use ipvlan over macvlan? • These two are very similar in many regards and the specific use case could very well define which device to choose. ◦ The Linux host that is connected to the external switch / router has policy configured that allows only one mac per port. ◦ No of virtual devices created on a master exceed the MAC capacity and puts the NIC in promiscuous mode and degraded performance is a concern. ◦ If the slave device is to be put into the hostile / untrusted network namespace where l2 on the slave could be changed / misused.

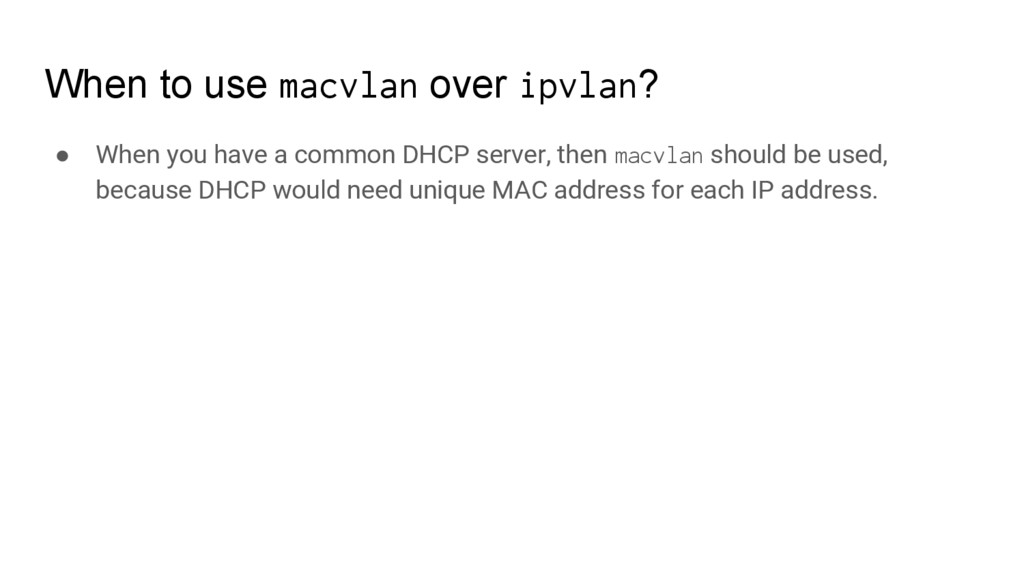

10. When to use macvlan over ipvlan? • When you have a common DHCP server, then macvlan should be used, because DHCP would need unique MAC address for each IP address.

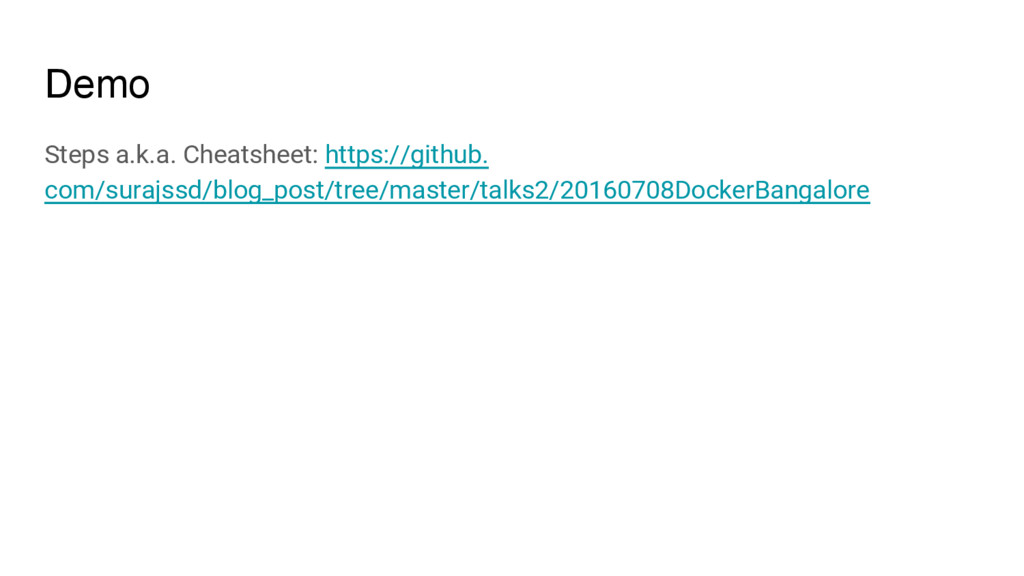

11. Demo Steps a.k.a. Cheatsheet: https://github. com/surajssd/blog_post/tree/master/talks2/20160708DockerBangalore
12. Ref: • Macvlan and IPvlan basics https://sreeninet.wordpress.com/2016/05/29/macvlan-and-ipvlan/ • Macvlan and Ipvlan Network Drivers https://github.com/docker/docker/blob/master/experimental/vlan-networks.md • Experimental Docker https://sreeninet.wordpress.com/2016/05/29/experimental-docker-with-docker-machine/ and https: //github.com/docker/docker/tree/master/experimental • Some notes on macvlan/macvtap http://backreference.org/2014/03/20/some-notes-on-macvlanmacvtap/ • Configuring Macvlan and Ipvlan Linux Networking http://networkstatic.net/configuring-macvlan-ipvlan-linux-networking/ • About Veth and Macvlan https://docs.oracle.com/cd/E37670_01/E37355/html/ol_mcvnbr_lxc.html • LXC Macvlan networking https://www.flockport.com/lxc-macvlan-networking/ • MacVTap http://virt.kernelnewbies.org/MacVTap • IPVLAN Driver HOWTO https://www.kernel.org/doc/Documentation/networking/ipvlan.txt • Linux Networking: MAC VLANs and Virtual Ethernets http://www.pocketnix.org/posts/Linux%20Networking:%20MAC% 20VLANs%20and%20Virtual%20Ethernets • macvlan: implement bridge, VEPA and private mode https://git.kernel.org/cgit/linux/kernel/git/torvalds/linux.git/commit/? id=618e1b7482f7a8a4c6c6e8ccbe140e4c331df4e9 • IPVLAN – The beginning http://people.netfilter.org/pablo/netdev0.1/papers/IPVLAN-The-beginning.pdf • Integrating Overlay Networking and the Physical Network http://etherealmind.com/integrating-overlay-networking-and-the- physical-network/
