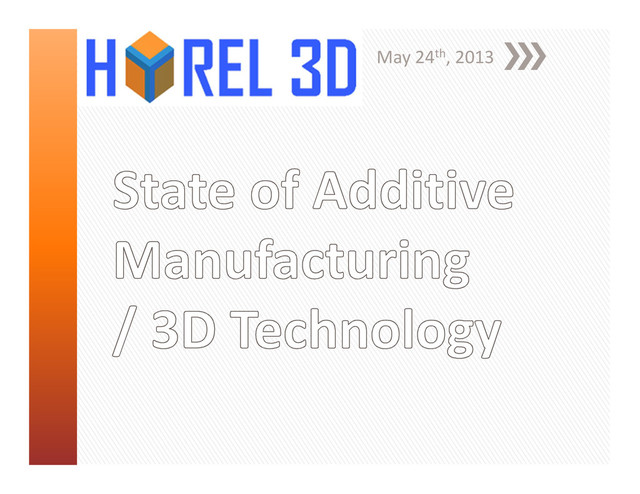

  1. May 24th, 2013

  2. » Subtractive vs Additive Manufacturing » 3D Printers » 3D

    Scanners » DIY Manufacturing » What Makes HYREL Different
  3. CNC Manual Mill Lathe Raw Material Blocks Finished Product

  4. Raw Materials: Selective Laser/Layer Sintering (SLS) 3D Printer Stereo lithography

    (SL) 3D Printer Fused Deposition Modeling (FDM) / Free Form Fabrication (FFF) Powder Resin Filament
  5. Design Prototype Review & Test Refine Idea Market Sell Support

    Feedback Produce Research & Development Production & Selling Start Here
  6. Design Prototype Review & Test Refine Idea Market Sell Support

    Feedback Produce Research & Development Production & Selling Start Here
  7. Design Prototype Review & Test Refine Idea Market Sell Support

    Feedback Produce Research & Development Production & Selling Start Here
  8. Prototype • Reduces or Eliminates Tooling & Setup • On-site

    manufacturing and processing (Time Reduction) • Economical Material Costs Review & Test • Multiple Prototypes available sooner • Reduced Waiting Time for Review • Printed Parts can be functional Refine • Identify Physical Prototype Imperfections before Production • Identify Assembly Imperfections before Production Produce • Faster than Injection Molding for Smaller Production Runs • More Cost Effective at Smaller Production Runs
  9. Subtractive Manufacturing Additive Manufacturing + Very Mature, T&T + Great

    Precision + Low Maintenance - Costly (Time & Labor) - Lots of Scrap Produced + Cheaper, Faster Turn + Reduced Scrap - Not Yet Mature - Decent Precision - Maintenance Intensive
  10. None
  11. None
  12. Extruder Extruded Material Base Platform

  13. Aerospace Automotive Bio-Medical Product R&D Fashion / Clothing Artists

  14. None
  15. Hand-Held DIY Open Source Apps for iPhones Point-Cloud Mesh .stl

    file
  16. CAD Model Slicing Printing ç .stl file ç G-code

  17. » Support Material Removal (All, SLS, SL, & FDM /

    FFF) » SLS – Hardening Processing » SL – UV Resin Curing » FDM/FFF – Acetone Smoothing
  18. None
  19. » Mean Time Between Assists / Failures (MTBA/MTBF) » Motion

    Controls » Solid Chassis » Kit vs Preassembled » Printing Resolution? What’s the real deal? » Support or no Support Material? » Build Area Size » Materials to print in / with » Electronics » Ease of Use » Enclosures – Yes or No? » Integrated PC & Webcam?
  20. None
  21. None
  22. None
  23. Expandable to use more heads consecutively or concurrently Multiple Materials

    available
  24. Subtractive Manufacturing Additive Manufacturing + Very Mature, T&T + Great

    Precision + Low Maintenance - Costly (Time & Labor) - Lots of Scrap Produced + Cheaper, Faster Turn + Reduced Scrap - Not Yet Mature - Decent Precision - Maintenance Intensive HYREL’s Printers are designed to be: 1.) Based off CNC Tech, Mature T&T 2.) Excellent Positioning Resolution 3.) Low Maintenance
  25. » Wohler’s Report » 3ders.org » NAMII » RepRap Wiki

    » 3DS.com » Thingify.com » Shapeways.com
  26. » This presentation is used to inform those watching of

    our current state of knowledge about the industry. » All photos of all machines, products, tools, etc. used in this presentation are property of their respective companies & owners. » We urge anyone watching this presentation to verify our findings and find the right solution for their needs.
  27. Thank You, Big Nerd Ranch for hosting this Tech Talk!

    More Information is Available at www.hyrel3d.com If you have any questions, comments, suggestions, and/or feedback, please reach out to us here: www.hyrel3d.com sales@hyrel3d.com (404)-914-1748 (US Shop Phone) Skype: hy.rel (video chat is available) Twitter: @hyrel3d Facebook: Hyrel L.L.C. & Hy Rel
