Auto layout - and how to royally mess it up

A tour of some of the more annoying Auto Layout issues encountered during development of the Screens for iOS SDK at Yext.

Transcript

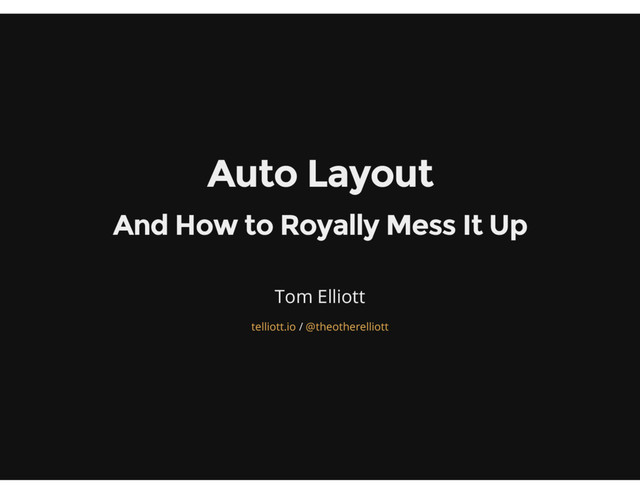

1. Auto Layout And How to Royally Mess It Up Tom Elliott / telliott.io @theotherelliott
2. #1 in Digital Location Management Forbes Most Promising Companies (2014 & 2015) Fortune's Best Places to Work (2014 & 2015).
3. Screens Mobile SDK for Yext-powered store locators
4. Requirements Support iOS 7 and 8 No third-party libraries Embed into any UI Distribute as framework (No storyboards or xib)
5. Consequence Only use programmatic autolayout
6. What is Auto Layout?
7. Solution of simultaneous equations
8. Constraints Specify a relationship between the layout properties of two views Properties: position or size Comparison and may include a constant Vertical solution does not affect horizontal solution
9. Programmatic Auto Layout Creating a Constraint [view addConstraint:[NSLayoutConstraint constraintWithItem:child1 attribute:NSLayoutAttributeCenterY relatedBy:NSLayoutRelationEqual toItem:child2 attribute:NSLayoutAttributeCenterY multiplier:1.0 constant:0.0] ];
10. Programmatic Autolayout Creating multiple constraints - Visual Format Language [view addConstraints: [NSLayoutConstraint constraintsWithVisualFormat:@"V:|-[child1]-(20)-[child2]-|" options:kNilOptions metrics:@{} views:views ] ];
11. What Could Go Wrong? 1. Unsatisfiable Constraints 2. Ambiguous Layout 3. Crashes
12. Unsatisfiable Constraints Unable to simultaneously satisfy constraints. Probably at least one of the constraints in the following list is one you don't want. Try this: (1) look at each constraint and try to figure out which you don't expect; (2) find the code that added the unwanted constraint or constraints and fix it. (Note: If you're seeing NSAutoresizingMaskLayoutConstraints that you don't understand , refer to the documentation for the UIView property translatesAutoresizingMaskIntoCons traints) ( "<NSAutoresizingMaskLayoutConstraint:0x7fe709418da0 h=--& v=--& H:[UIImageView:0x7f e709434820(320)]>", "<NSLayoutConstraint:0x7fe70943b4b0 H:|-(0)-[UIImageView:0x7fe709434820] (Names: '|':UIView:0x7fe709434f40 )>", "<NSLayoutConstraint:0x7fe70943b500 H:[UIImageView:0x7fe709434820]-(0)-| (Names: '|':UIView:0x7fe709434f40 )>", "<NSLayoutConstraint:0x7fe709438470 'UIView-Encapsulated-Layout-Width' H:[UIView:0x 7fe709434f40(414)]>" )
13. Unsatisfiable Constraints Simplified
15. Unsatisfiable Constraints How to Break It Forget to set up your views for autolayout Autoresizing: predecessor to Auto Layout By default, all programmatically created views are configured for autoresizing compatibility Adds constraints that will mess yours up
16. Unsatisfiable Constraints How Not to Break It Turn off autoresizing support subview.translatesAutoresizingMaskIntoConstraints = NO;
17. Unsatisfiable Constraints How to Break It Limit your view to a fixed size @"H:|[green(==100)][blue(==100)]|"
18. Unsatisfiable Constraints How to Break It Limit your view to a minimum/maxiumum size @"H:|[green(==100)][blue(<=100)]|"
19. Unsatisfiable Constraints How Not to Break It Use priorities @"H:|[green(==100@999)]-(100@700)-[blue(==100@800)]|"
20. Debugging Breakpoint: UIViewAlertForUnsatisfiableConstraints Breaks at unsatisfiable constraint errors as they happen
21. Debugging YXTUnsatisfiableConstraintsDetector Monitors the console for unsatisfiable constraint errors and provides runtime callbacks https://github.com/yext/YXTUnsatisfiableConstraintsDetector
22. Ambiguous Layout Multiple solutions to constraints May not always be apparent in testing Test with: hasAmbiguousLayout Exercise with: exerciseAmbiguityInLayout
23. Ambiguous Layout How to Break It Inequalities @"H:|[green(>=5)][blue(>=5)]" @"H:|[green(<=100)][blue(<=100)]" [green hasAmbiguousLayout] == YES && [blue hasAmbiguousLayout] == YES
24. Ambiguous Layout How Not to Break It Add a Deciding Constraint Spacer is a UIView used to support up to 300px @"H:|[leftView(==rightView)]" @"H:|[leftView(<=100)][spacer(==leftView@999)][rightView(<=100)]|"
25. Crashes Bad Visual Format Language strings Constraining to superview before adding
26. Crashes How to Break It Bad VFL - Typos
27. Crashes How to Break It Typos [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"H:|[one][two(==one)][three(==one)]|" options:0 metrics:nil views:views]]; [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"H:|[four(==one)][five(==one)][six(==one)]|" options:0 metrics:nil views:views]]; [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"H:|[seven(==one)][eigdt(==one)][nine(==one)]|" options:0 metrics:nil views:views]]; [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"H:|[star(==one)][zero(==one)][hash(==one)]|" options:0 metrics:nil views:views]];
28. Crashes How to Break It Typos (part 2) Seven blocks of VFL [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"V:|[one][four(==one)][seven(==one)][star(==one)]|" options:0 metrics:nil views:views]]; [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"V:|[two(==one)][five(==one)][eight(==one)][zero(==one)]|" options:0 metrics:nil views:views]]; [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat: @"V:|[three(==one)][six(==one)][nine(==one)][hash(==one)]|" options:0 metrics:nil views:views]];
29. Crashes How Not to Break It Simpler Views
30. Crashes How Not to Break It @implementation PhoneRowView - (id) initWithLeft:(UIButton*)left middle:(UIButton*)middle right:(UIButton*)right { if(self = [super init]){ [self addSubview:left]; [self addSubview:middle]; [self addSubview:right]; NSDictionary *views = NSDictionaryOfVariableBindings(left,middle,right); // OMITTED: Make our left, right and middle views full-height (V:|[view]|) [self addConstraints: [NSLayoutConstraint constraintsWithVisualFormat:@"H:|[left][middle(==left)][right(==left)]|" options:0 metrics:nil views:views]]; } return self; } @end
31. Crashes How Not to Break It Four blocks of VFL at most PhoneRowView *row1 = [[PhoneRowView alloc] initWithLeft:digits[7] middle:digits[8] right:digits[9]]; PhoneRowView *row2 = [[PhoneRowView alloc] initWithLeft:digits[4] middle:digits[5] right:digits[6]]; PhoneRowView *row3 = [[PhoneRowView alloc] initWithLeft:digits[1] middle:digits[2] right:digits[3]]; PhoneRowView *row4 = [[[PhoneRowView alloc] initWithLeft:hash middle:digits[0] right:star]; // OMITTED: Prepare rows for Auto Layout, add to view // and make full width (H:|[view]|) NSDictionary *views = NSDictionaryOfVariableBindings(row1,row2,row3,row4); [self addConstraints:[NSLayoutConstraint constraintsWithVisualFormat: @"V:|[row1][row2(==row1)][row3(==row1)][row4(==row1)]|" options:0 metrics:nil views:views]];
32. Crashes How to Break It Constraining to a superview too early - (id) init { // ... [self addConstraints:[NSLayoutConstraint constraintsWithVisualFormat:@"H:|[self]|" options:0 metrics:nil views:@{@"self" : self}]];
33. Crashes How Not to Break It Only constrain subviews
34. Additional Best Practices
35. Avoid Adding/Removing Constraints Add constraints up-front in the init method Modify constraints in updateConstraints method Change properties rather than replacing constraints Example: Resizing the height of a view Two constraints: heightConstraintCollapsed and heightConstraintExpanded
36. Avoid Adding/Removing Constraints Not ideal - (void) updateConstraints { if(self.isExpanded){ [self removeConstraint:self.heightConstraintCollapsed]; [self addConstraint:self.heightConstraintExpanded]; } else { [self removeConstraint:self.heightConstraintExpanded]; [self addConstraint:self.heightConstraintCollapsed]; } [super updateConstraints]; }
37. Avoid Adding/Removing Constraints Very Bad - (void) updateConstraints { [self removeConstraints:self.constraints]; [self addConstraints:[NSLayoutConstraint constraintsWithVisualFormat:@"H:|[content]|" options:0 metrics:nil views:@{@"content" : self.content}]]; [self addConstraint:[NSLayoutConstraint constraintWithItem:self.content attribute:NSLayoutAttributeHeight relatedBy:NSLayoutRelationEqual toItem:nil attribute:NSLayoutAttributeNotAnAttribute multiplier:1.0 constant:self.expanded ? 300 : 20]] [super updateConstraints]; }
38. Avoid Adding/Removing Constraints A Better Approach Modify constraint priorities - (void) updateConstraints { if(self.isExpanded){ self.heightConstraintCollapsed.priority = 1; self.heightConstraintExpanded.priority = 999; } else { self.heightConstraintCollapsed.priority = 999; self.heightConstraintExpanded.priority = 1; } [super updateConstraints]; }
39. Avoid Adding/Removing Constraints The Best Approach Modify constraint constants - (void) updateConstraints { self.heightConstraint.constant = self.isExpanded ? 300 : 20; [super updateConstraints]; }
40. Use Intrinsic Sizing // Specify width only - (CGSize) intrinsicContentSize { return CGSizeMake(500,UIViewNoIntrinsicMetric); } // Specify minimal size that satisfies constraints - (CGSize) intrinsicContentSize { [self systemLayoutSizeFittingSize:UILayoutFittingCompressedSize]; } // Prefer to be equal to or larger than intrinsic size [self setContentCompressionResistancePriority:UILayoutPriorityDefaultHigh forAxis:UILayoutConstraintAxisHorizontal]; // Don't worry about fitting content [self setContentHuggingPriority:UILayoutPriorityDefaultLow forAxis:UILayoutConstraintAxisHorizontal];
41. Use UIStackLayout (iOS 9+) [green.heightAnchor constraintEqualToConstant:100].active = true; [green.widthAnchor constraintEqualToConstant:100].active = true; [blue.heightAnchor constraintEqualToConstant:100].active = true; [blue.widthAnchor constraintEqualToConstant:100].active = true; stack.axis = UILayoutConstraintAxisHorizontal; stack.distribution = UIStackViewDistributionEqualSpacing; stack.alignment = UIStackViewAlignmentCenter; [stack addArrangedSubview:green]; [stack addArrangedSubview:blue];
42. Conclusions
43. Placement is easy Sizing is hard
44. Keep it Simple
45. Be Flexible
46. Thank You Tom Elliott telliott.io @theotherelliott Yext yext.com/company/careers
