Caching Kubernetes? Introducing the Varnish Gateway Controller for Kubernetes

Slides for my SREDay Munich 2026 presentation about the Varnish Gateway Controller.

This Gateway Controller is a Gateway API implementation for Kubernetes that uses Varnish underneath. This allows requests to be cached inside the Varnish Gateway Controller without relying on service-specific caching implementations.

See https://feryn.eu/presentations/caching-kubernetes-introducing-the-varnish-gateway-controller-for-kubernetes-sreday-munich-2026 for more information.

Transcript

2. Slow websites SUCK
3. WEB PERFORMANCE IS AN ESSENTIAL PART OF THE USER EXPERIENCE
4. ~ SLOW DOWN
5. THROWING SERVERS AT THE PROBLEM
6. MO' MONEY MO' SERVERS MO' PROBLEMS
7. IDENTIFY SLOWEST PARTS
8. OPTIMIZE
9. AFTER A WHILE YOU HIT THE LIMITS
10. CACHING
11. HI, I'M THIJS
12. I'M THE TECH AT VARNISH EVANGELIST

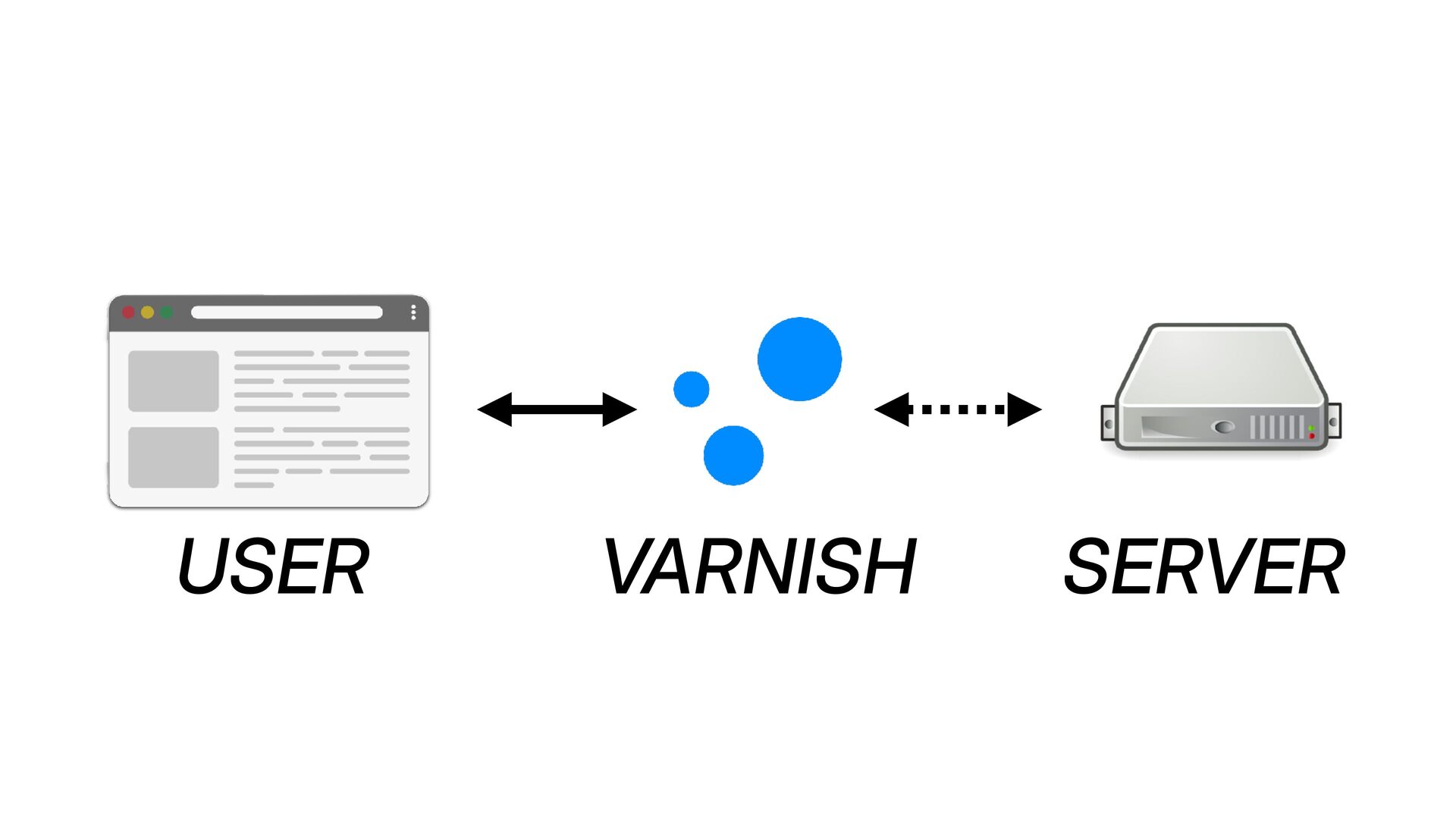

15. USER VARNISH SERVER

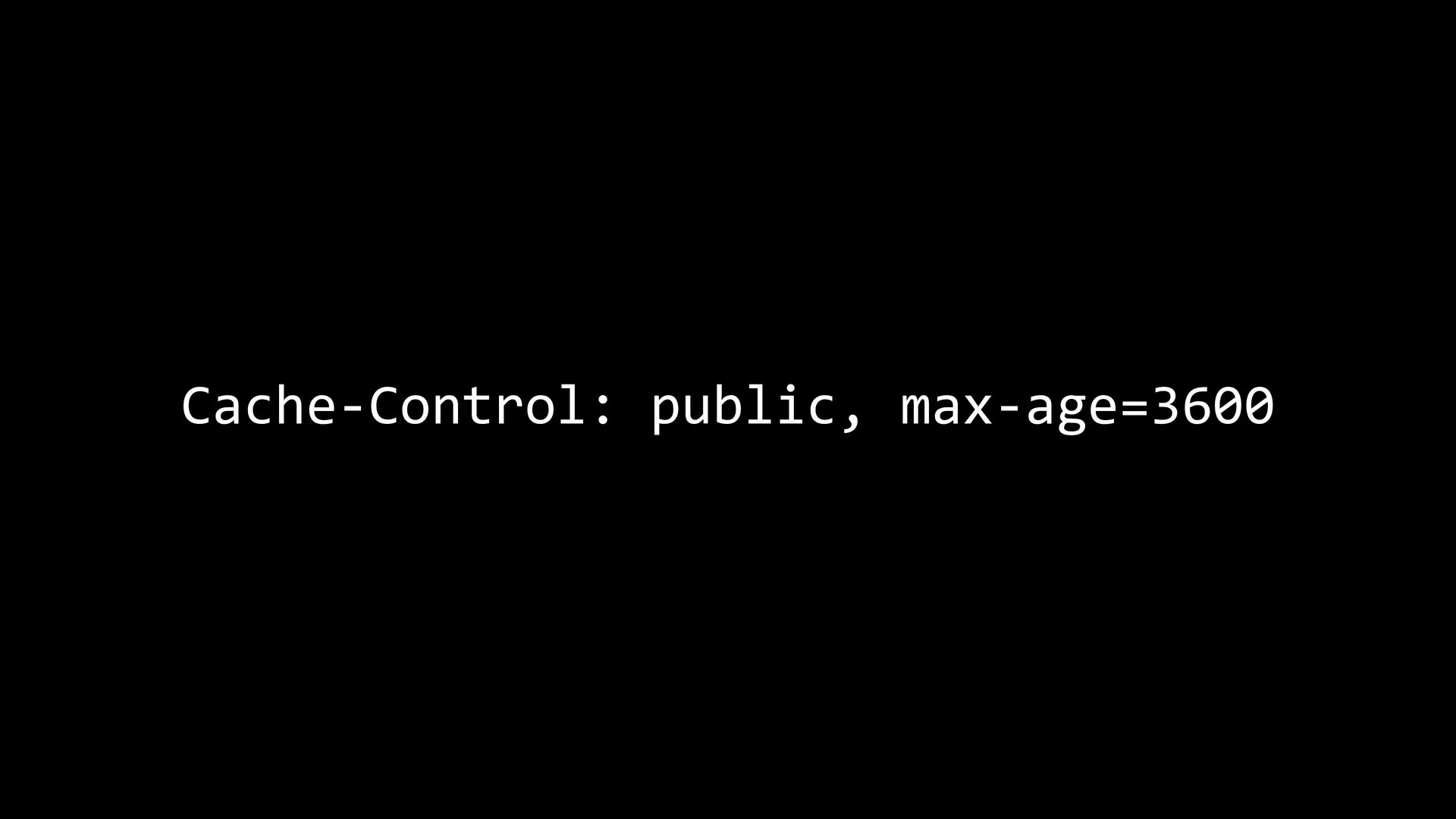

16. Cache-Control: public, max-age=3600

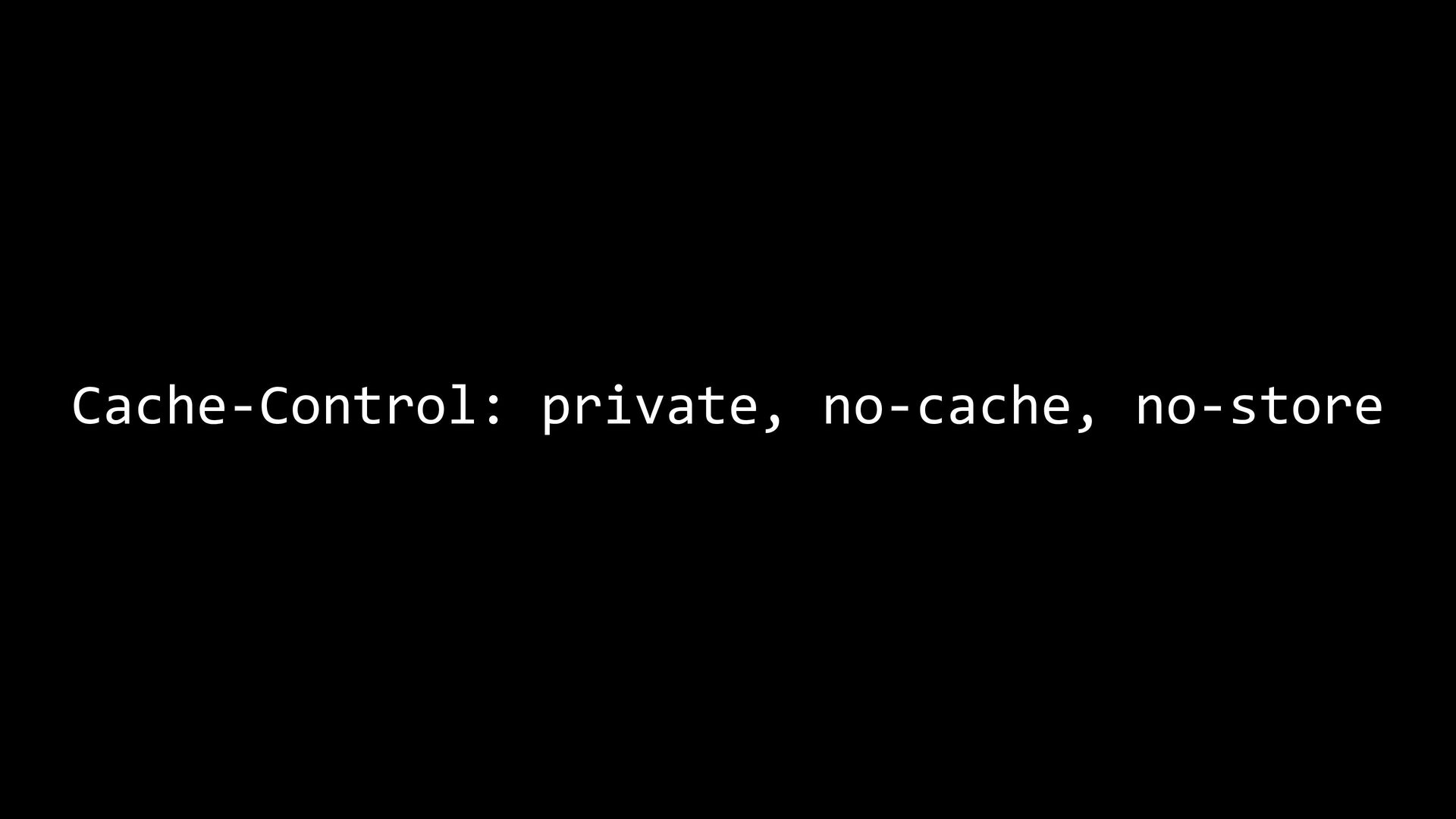

17. Cache-Control: private, no-cache, no-store

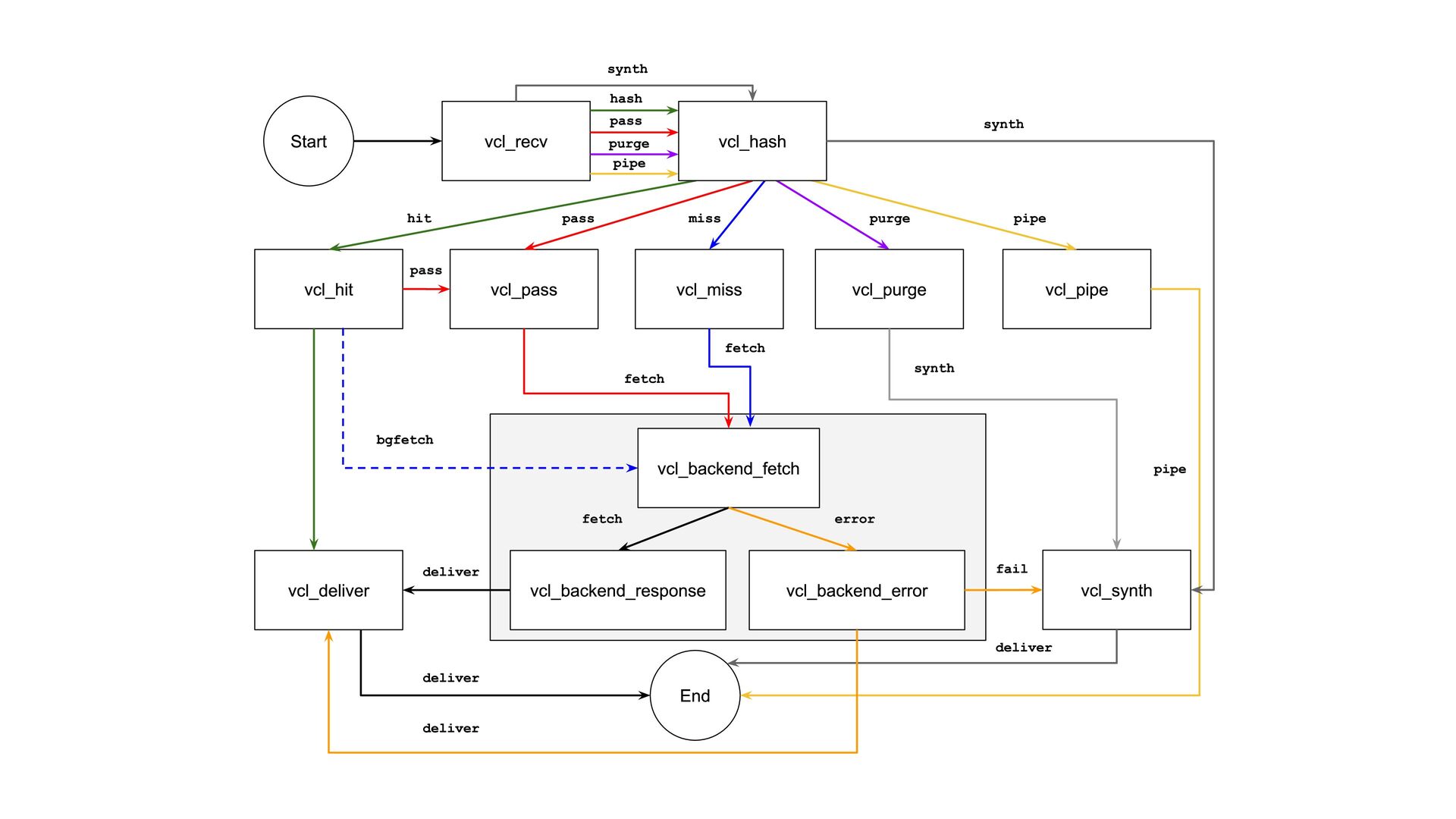

18. VARNISH CONFIGURATION LANGUAGE

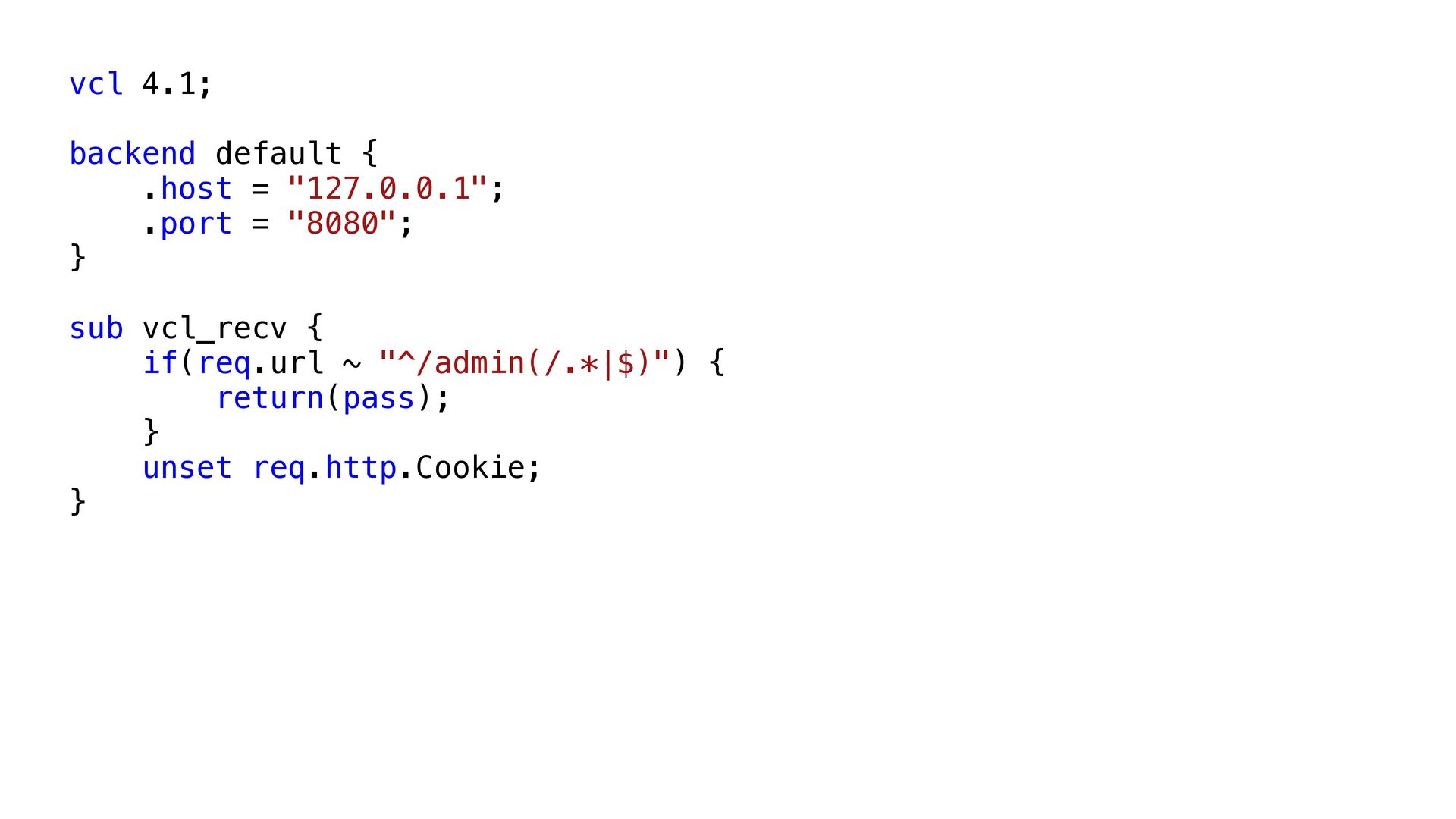

20. vcl 4.1; backend default { .host = "127.0.0.1"; .port = "8080"; } sub vcl_recv { if(req.url ~ "^/admin(/.*|$)") { return(pass); } unset req.http.Cookie; }

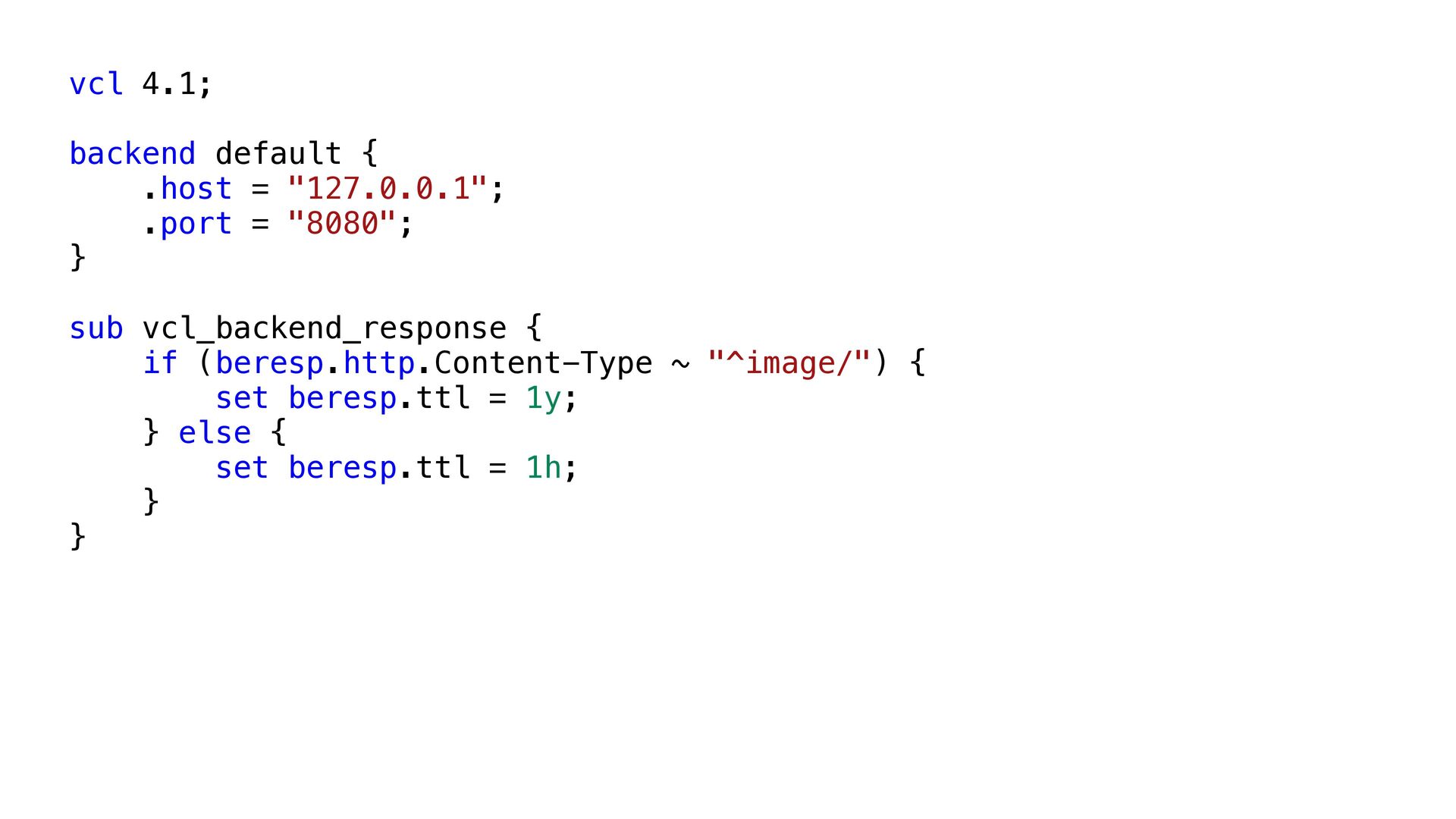

21. vcl 4.1; backend default { .host = "127.0.0.1"; .port = "8080"; } sub vcl_backend_response { if (beresp.http.Content-Type ~ "^image/") { set beresp.ttl = 1y; } else { set beresp.ttl = 1h; } }
22. WHAT ABOUT KUBERNETES?

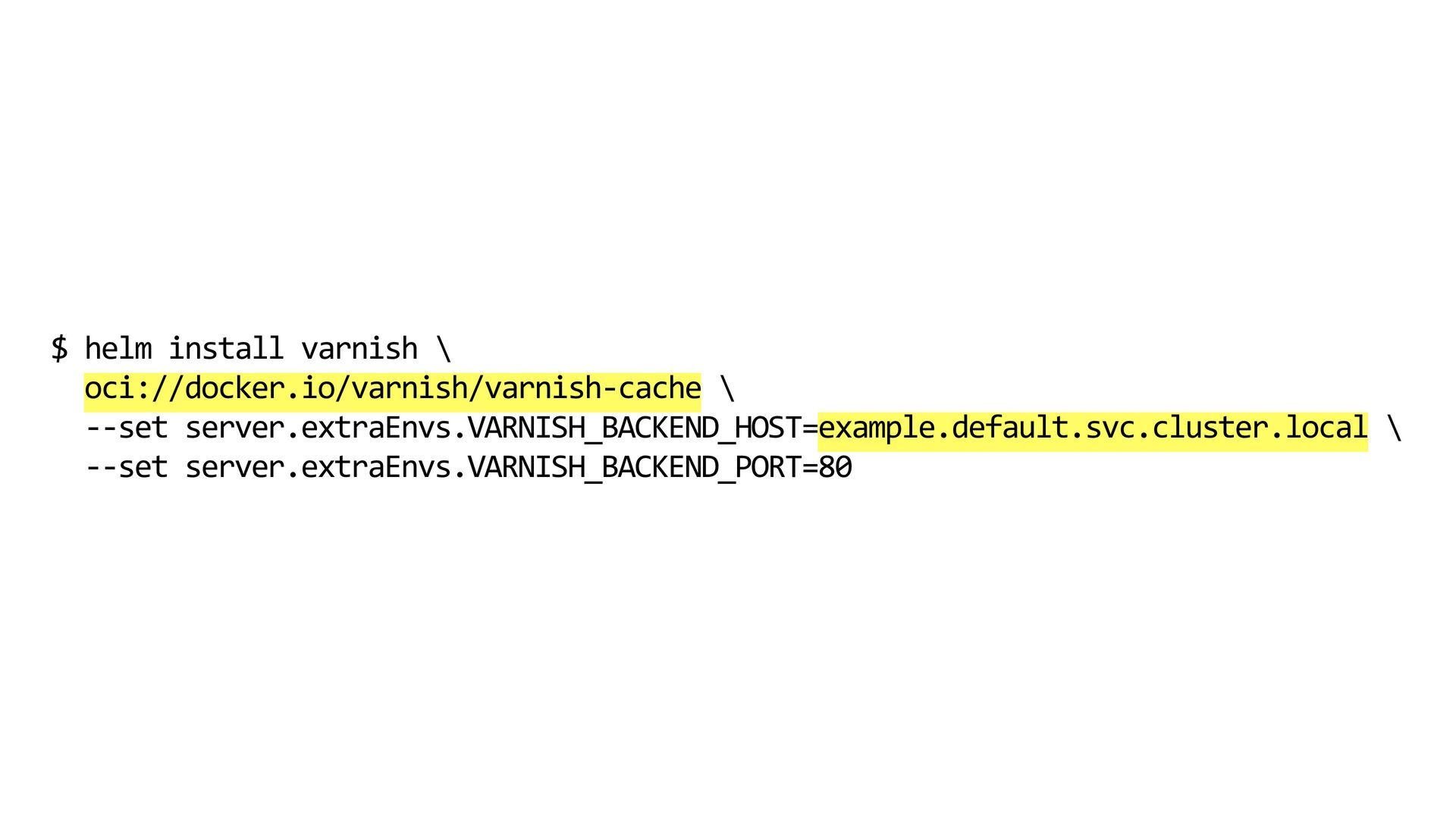

23. $ helm install varnish \ oci://docker.io/varnish/varnish-cache \ --set server.extraEnvs.VARNISH_BACKEND_HOST=example.default.svc.cluster.local \ --set server.extraEnvs.VARNISH_BACKEND_PORT=80

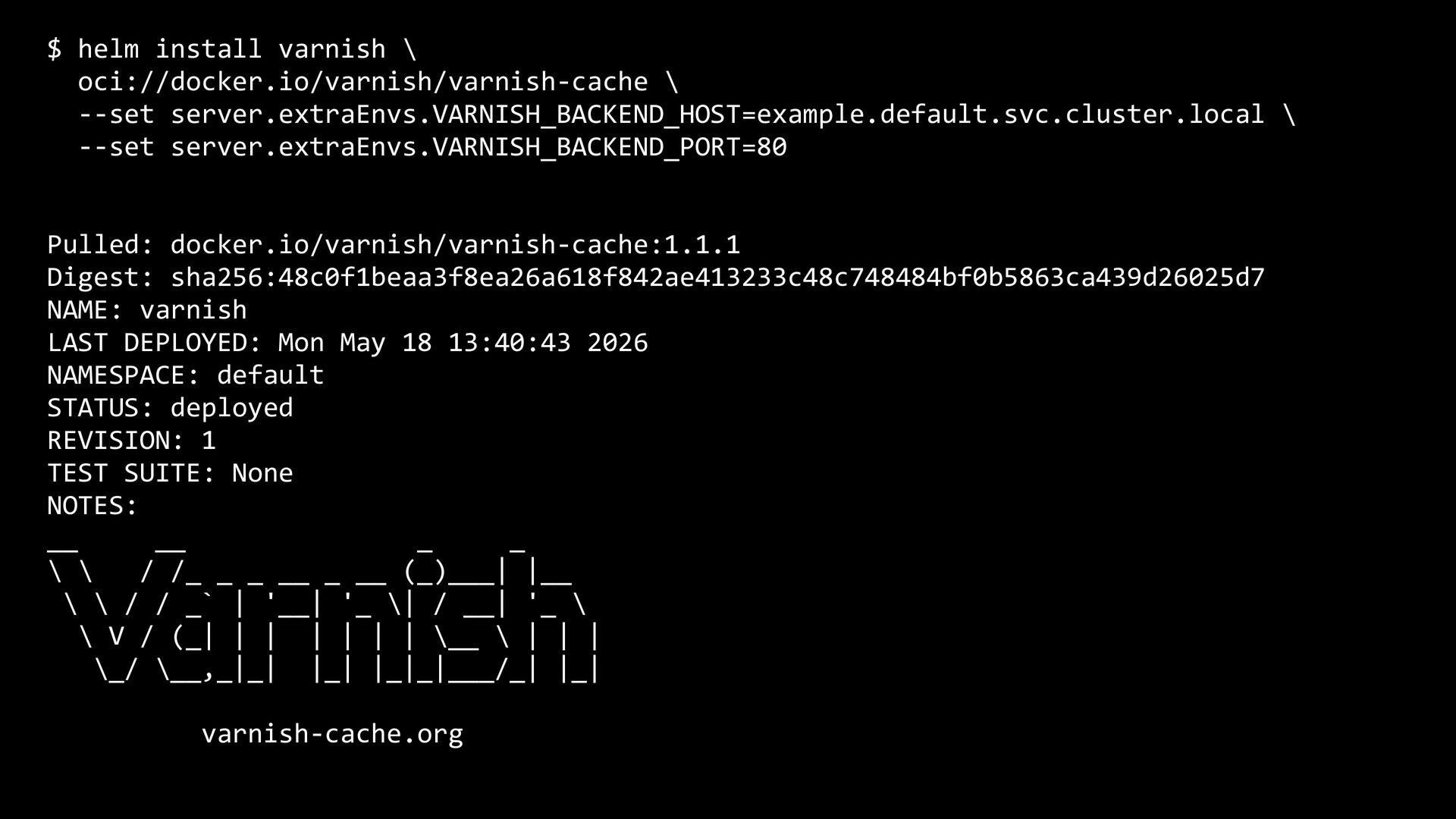

24. $ helm install varnish \ oci://docker.io/varnish/varnish-cache \ --set server.extraEnvs.VARNISH_BACKEND_HOST=example.default.svc.cluster.local \ --set server.extraEnvs.VARNISH_BACKEND_PORT=80 Pulled: docker.io/varnish/varnish-cache:1.1.1 Digest: sha256:48c0f1beaa3f8ea26a618f842ae413233c48c748484bf0b5863ca439d26025d7 NAME: varnish LAST DEPLOYED: Mon May 18 13:40:43 2026 NAMESPACE: default STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: __ __ _ _ \ \ / /_ _ _ __ _ __ (_)___| |__ \ \ / / _` | '__| '_ \| / __| '_ \ \ V / (_| | | | | | | \__ \ | | | \_/ \__,_|_| |_| |_|_|___/_| |_| varnish-cache.org

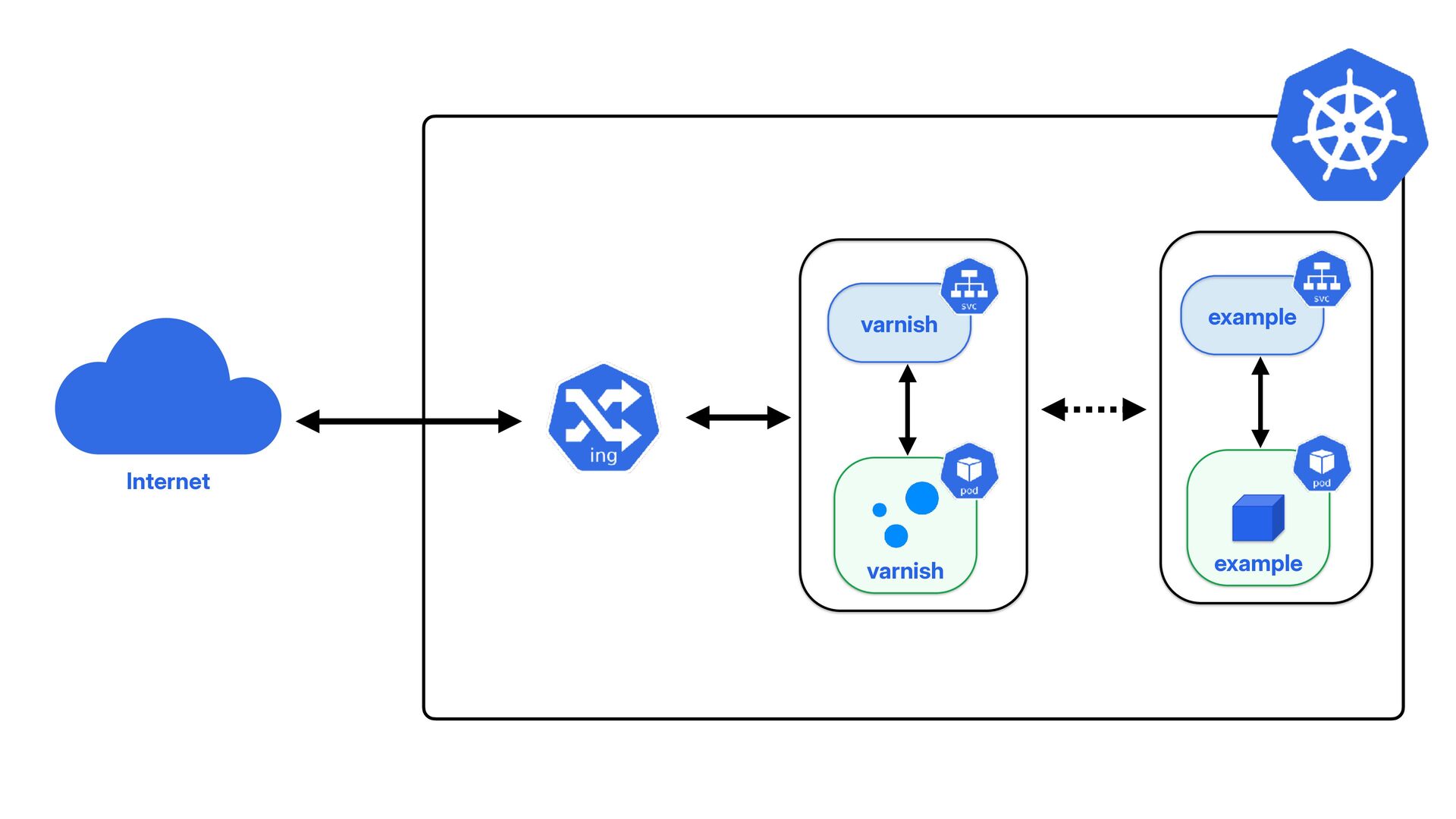

25. varnish example varnish example Internet

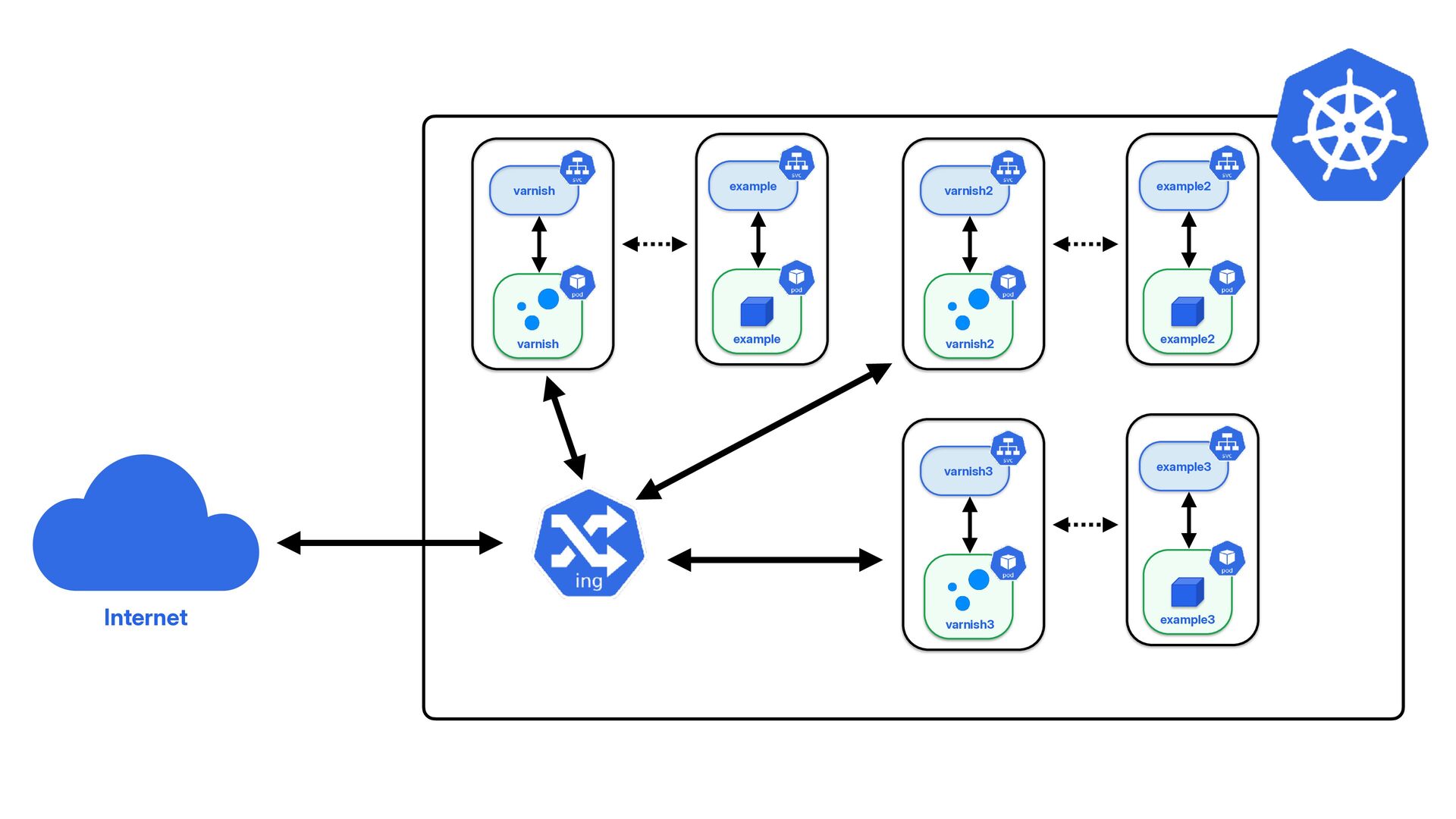

26. Internet varnish example varnish2 example2 varnish example varnish2 example2 varnish3 example3 varnish3 example3

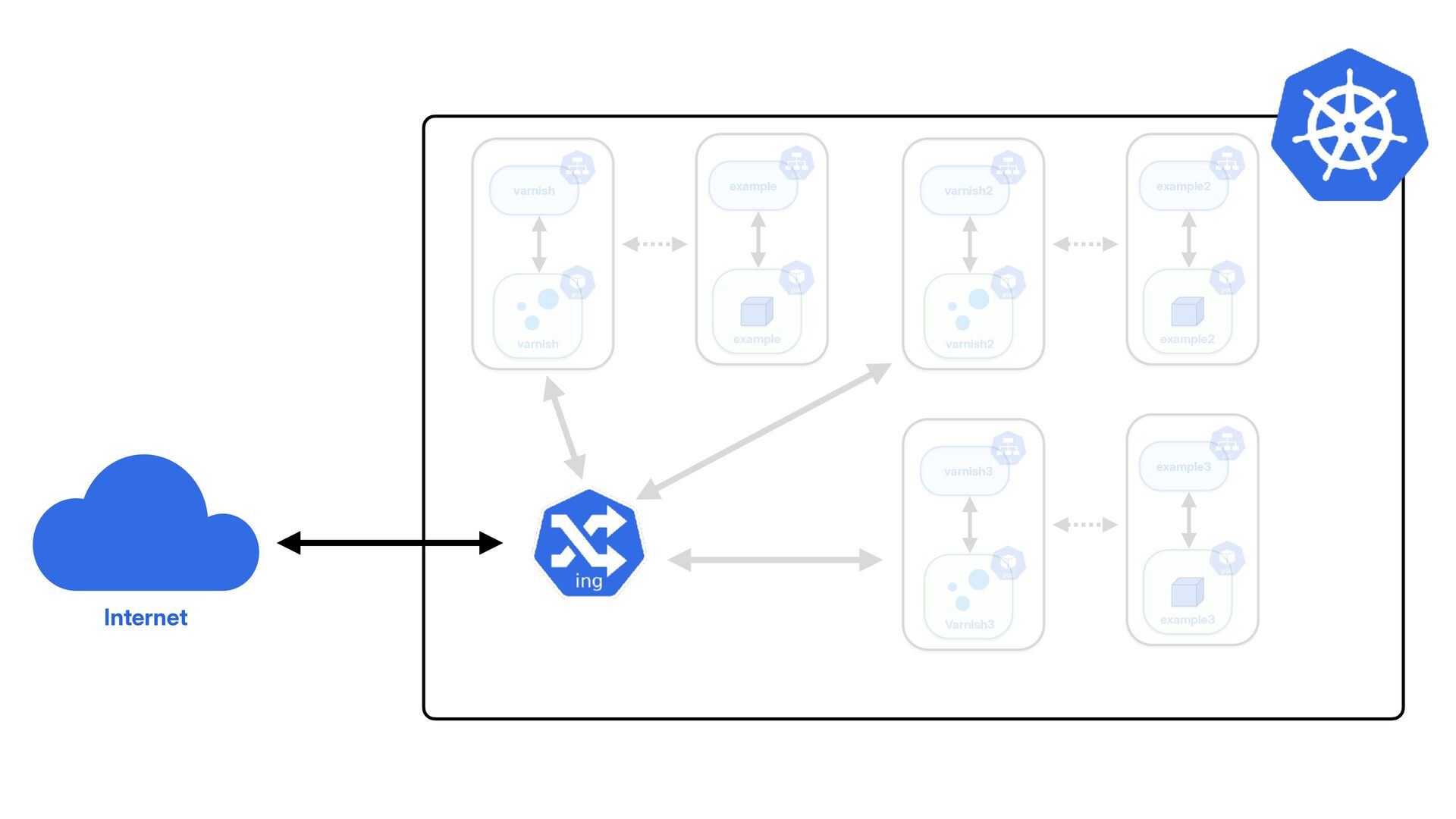

27. Internet varnish example varnish2 example2 varnish example varnish2 example2 varnish3 example3 Varnish3 example3
28. Internet varnish example varnish2 example2 varnish example varnish2 example2 varnish3 example3 varnish3 example3

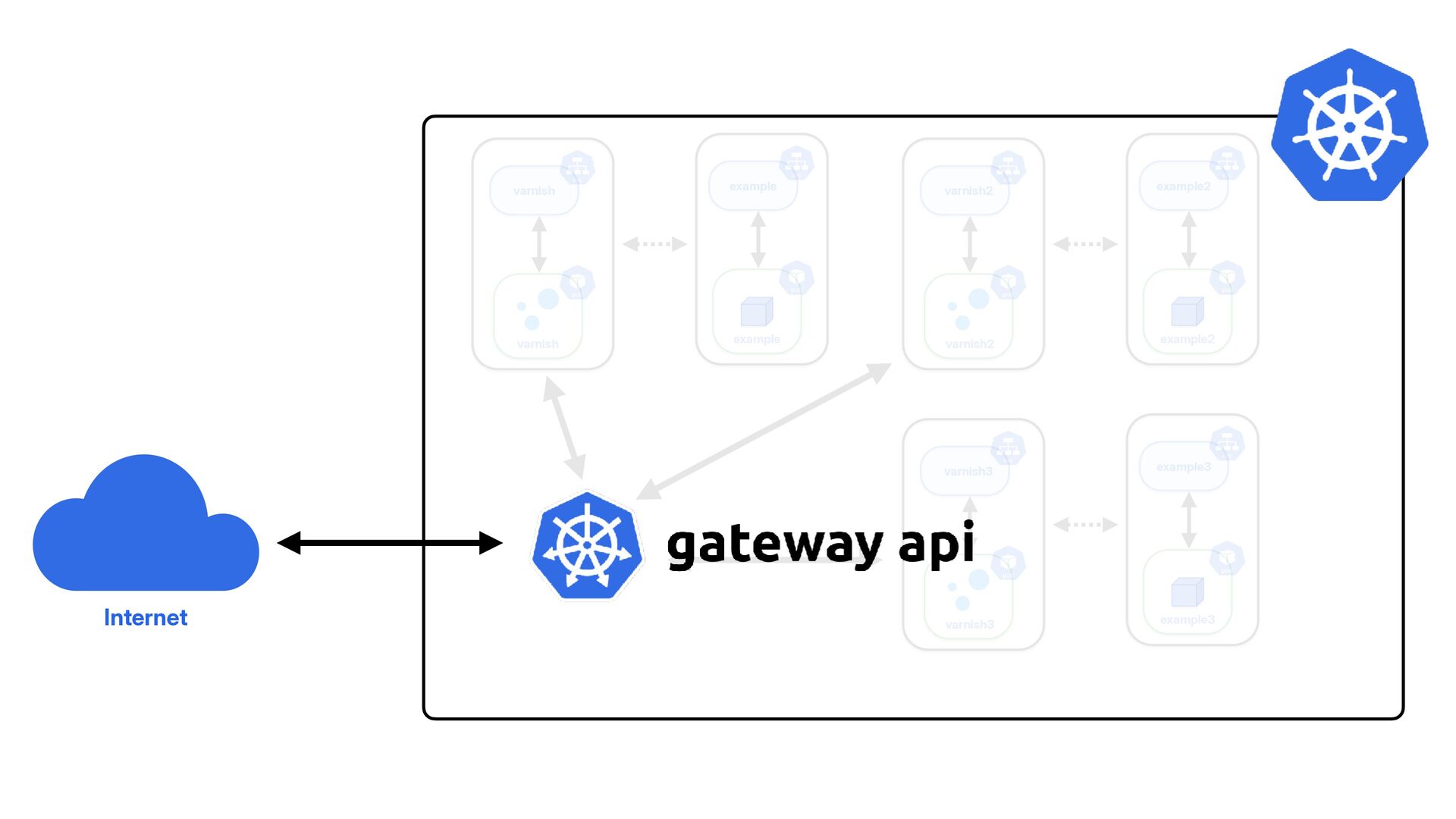

29. GA TEWA Y

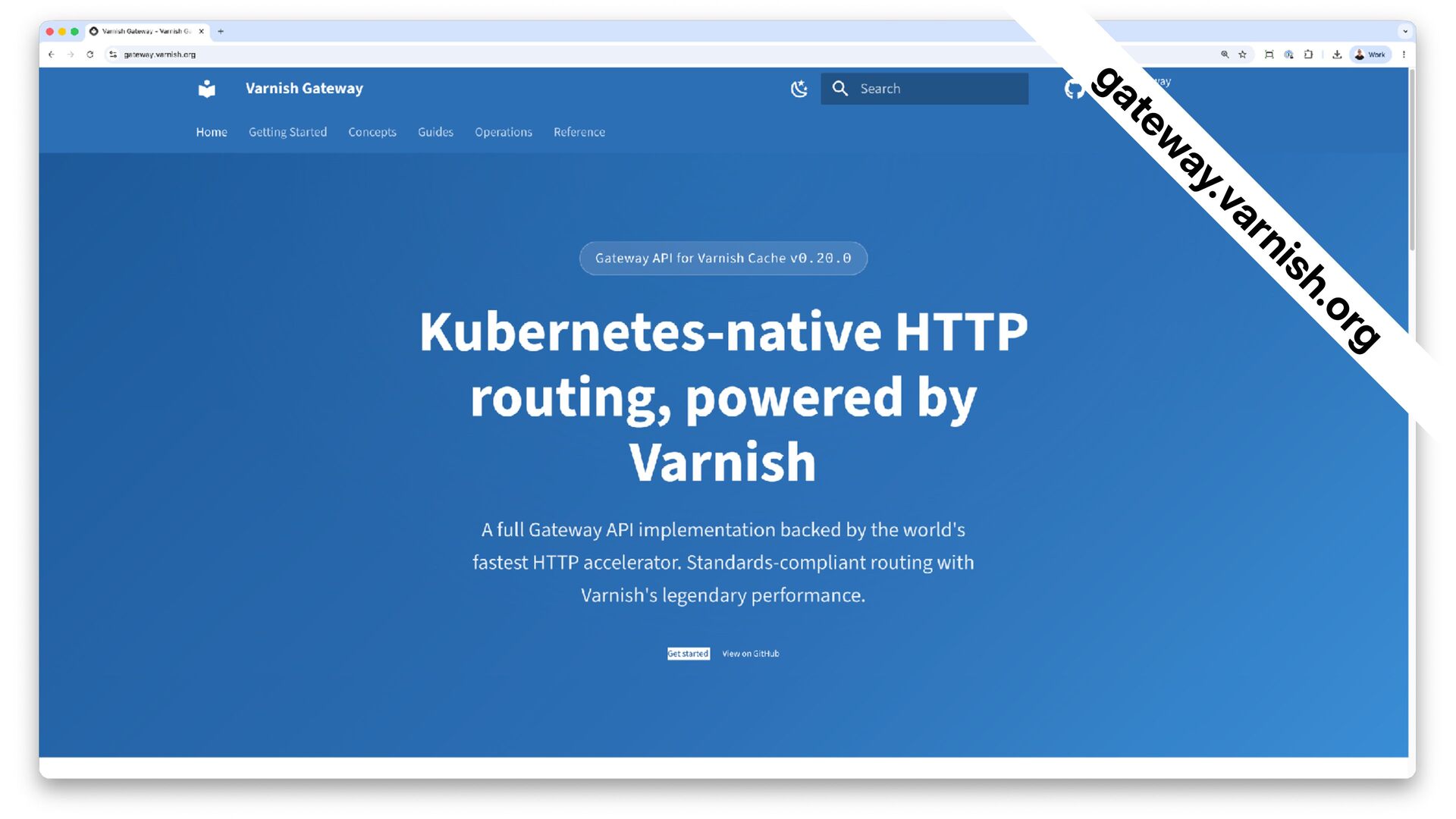

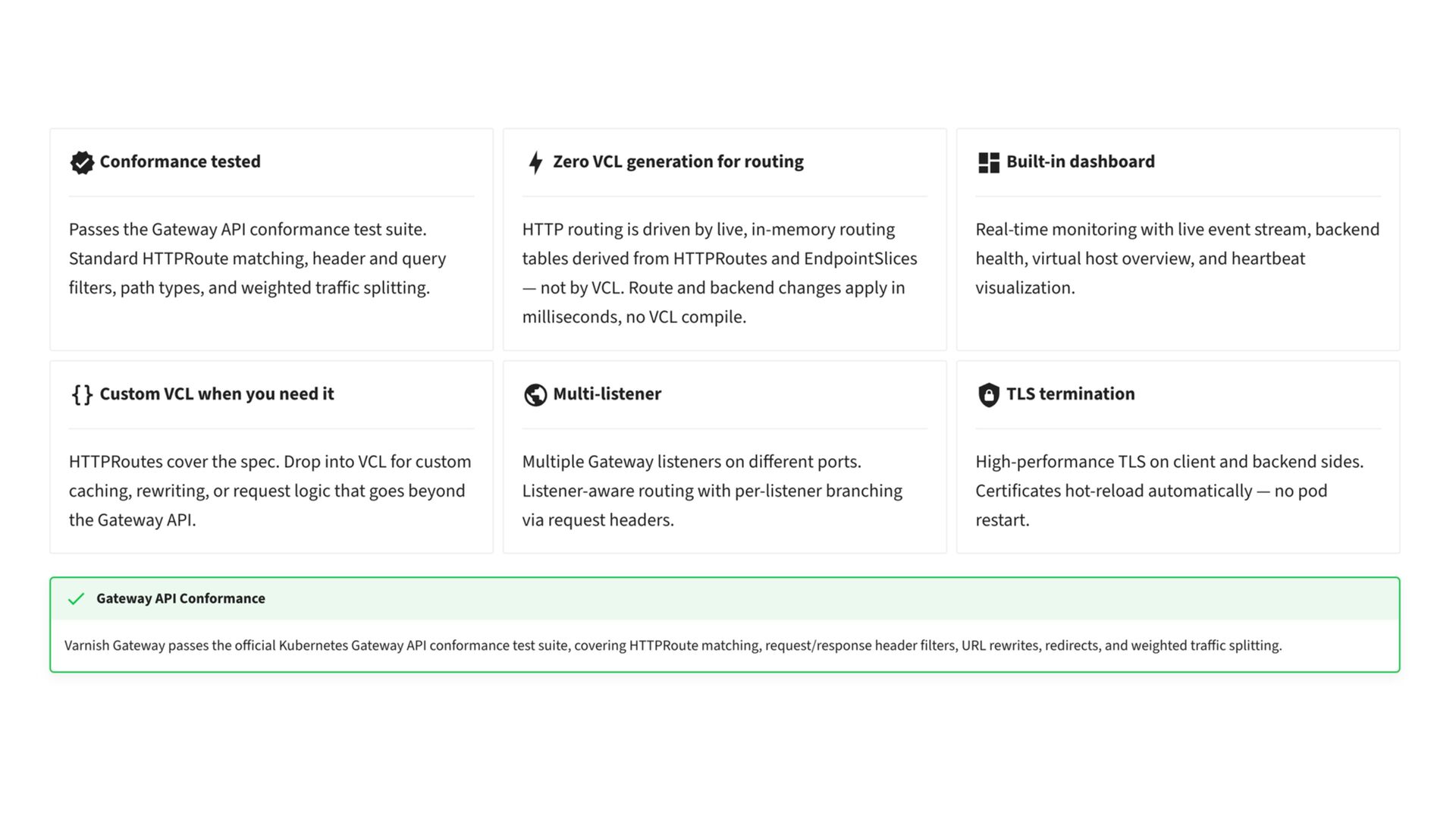

30. n ar .v ay w te ga h is rg .o
32. POWERED BY VARNISH 9

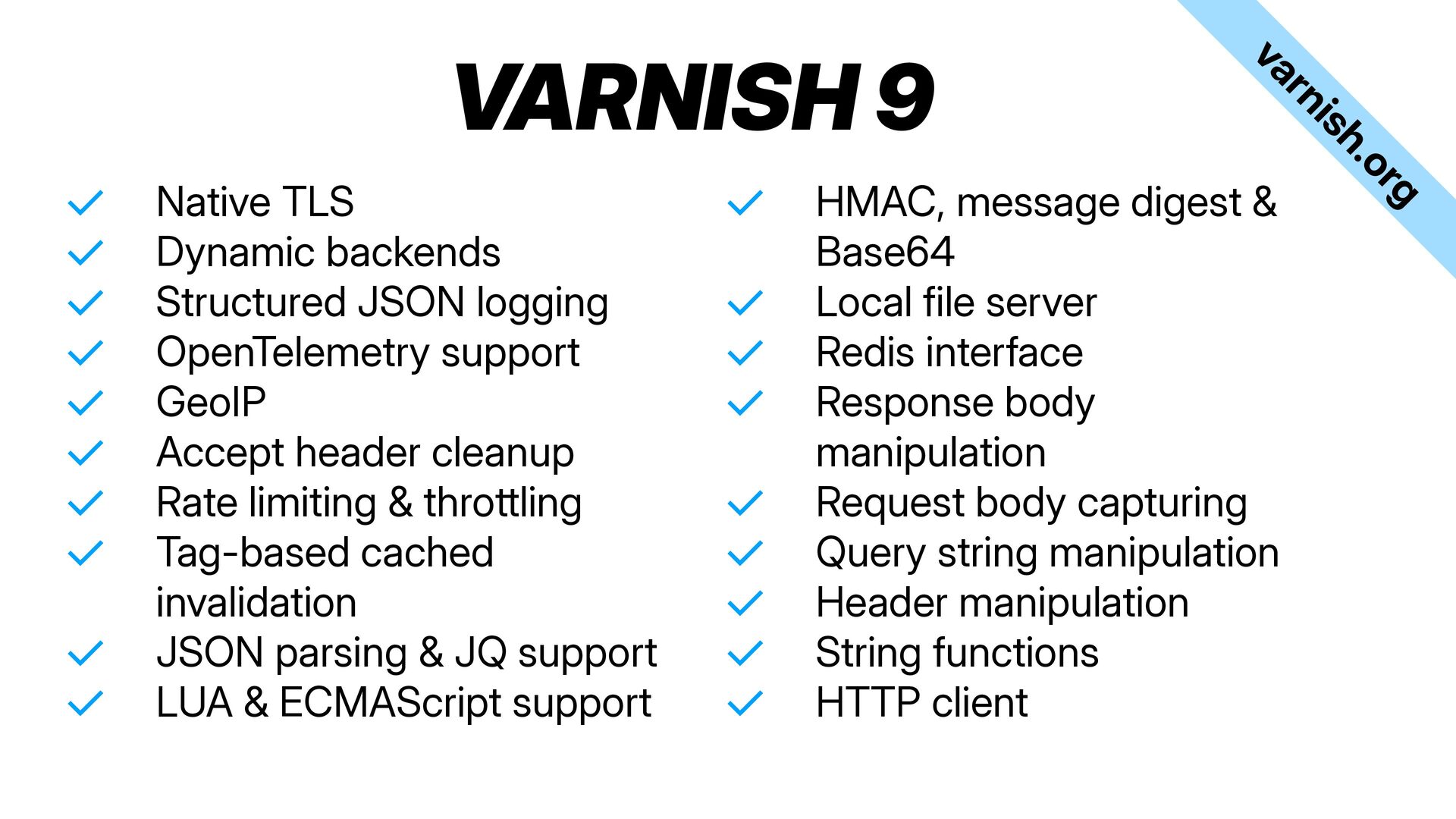

33. ✓ ✓ Native TLS Dynamic backends Structured JSON logging OpenTelemetry support GeoIP Accept header cleanup Rate limiting & throttling Tag-based cached invalidation JSON parsing & JQ support LUA & ECMAScript support ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ HMAC, message digest & Base64 Local file server Redis interface Response body manipulation Request body capturing Query string manipulation Header manipulation String functions HTTP client g or h. is ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ rn va VARNISH 9

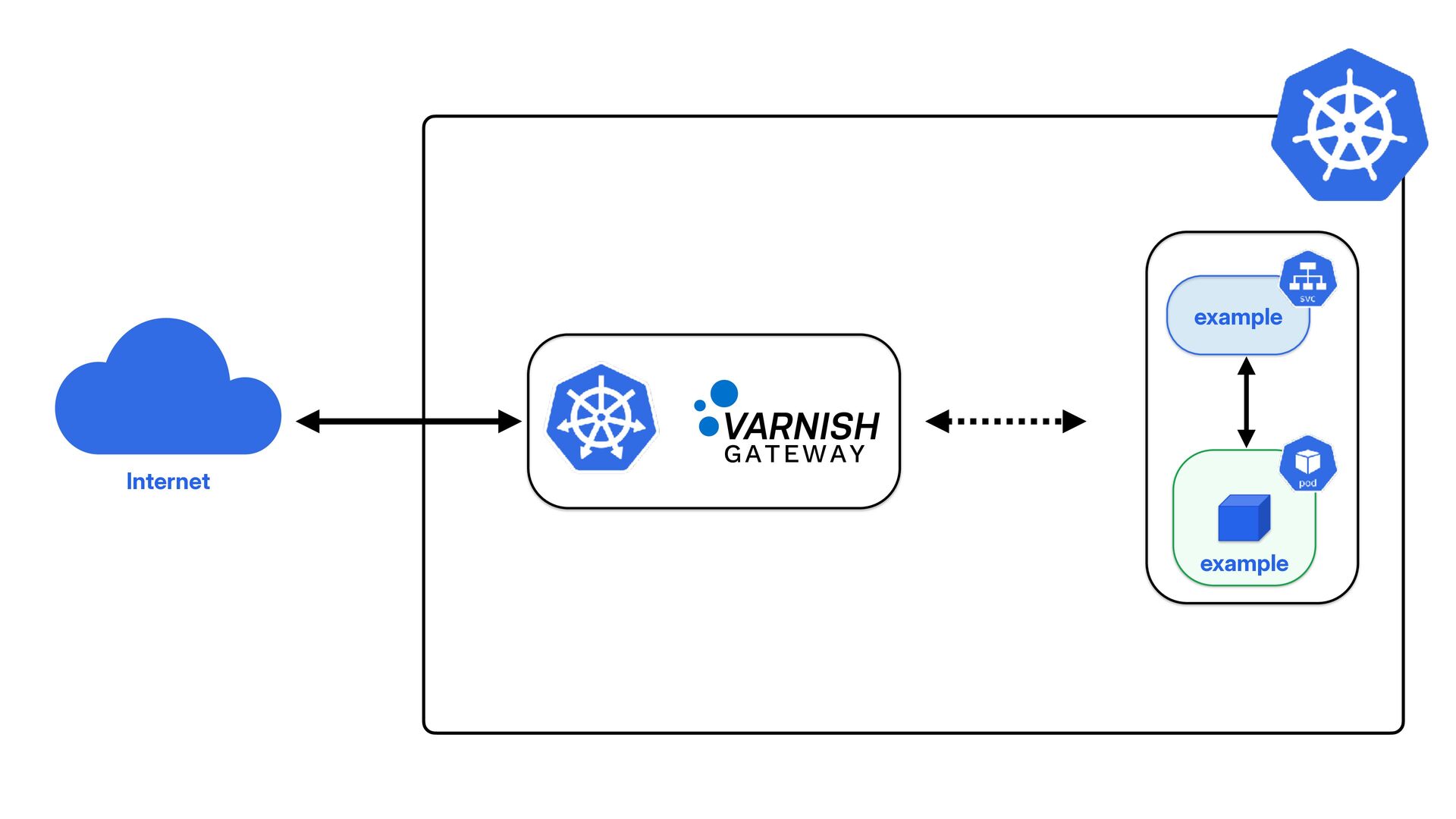

34. example Internet GA TEWA Y example

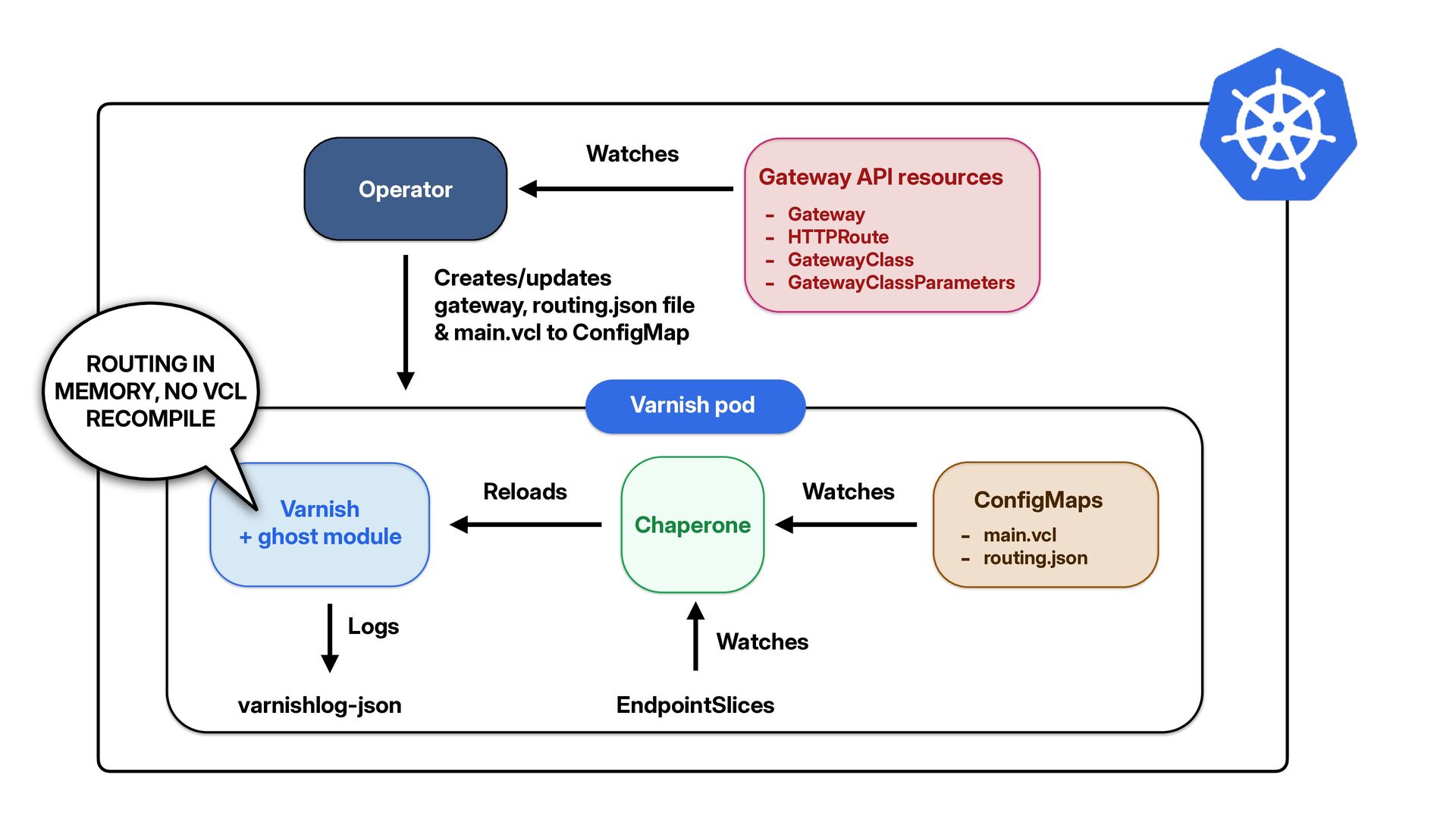

36. Watches Gateway API resources Operator - Gateway - HTTPRoute - GatewayClass - GatewayClassParameters Creates/updates gateway, routing.json file & main.vcl to ConfigMap ROUTING IN MEMORY, NO VCL RECOMPILE Varnish pod Varnish + ghost module Logs varnishlog-json Reloads Watches Chaperone Watches EndpointSlices ConfigMaps - main.vcl - routing.json

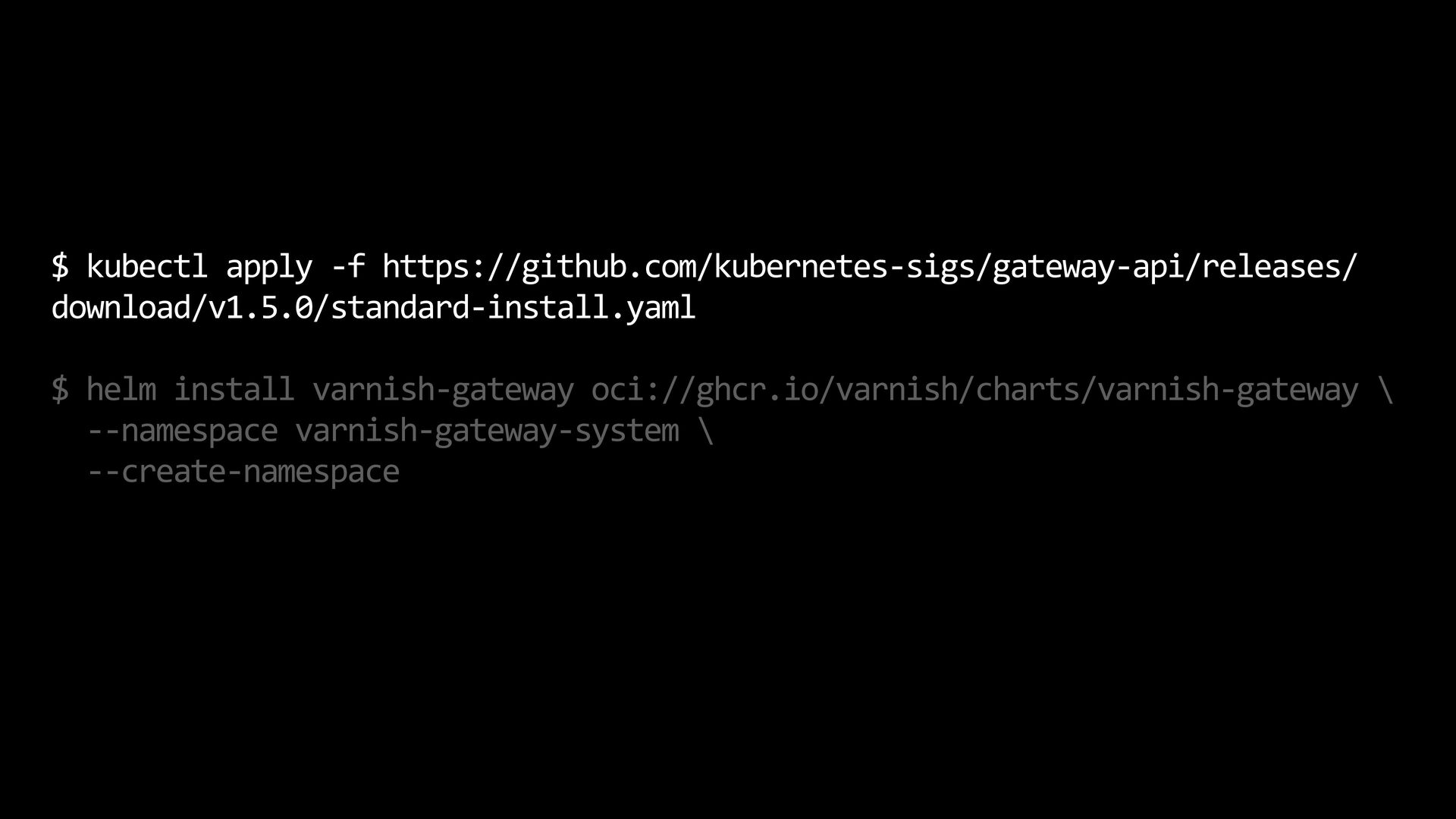

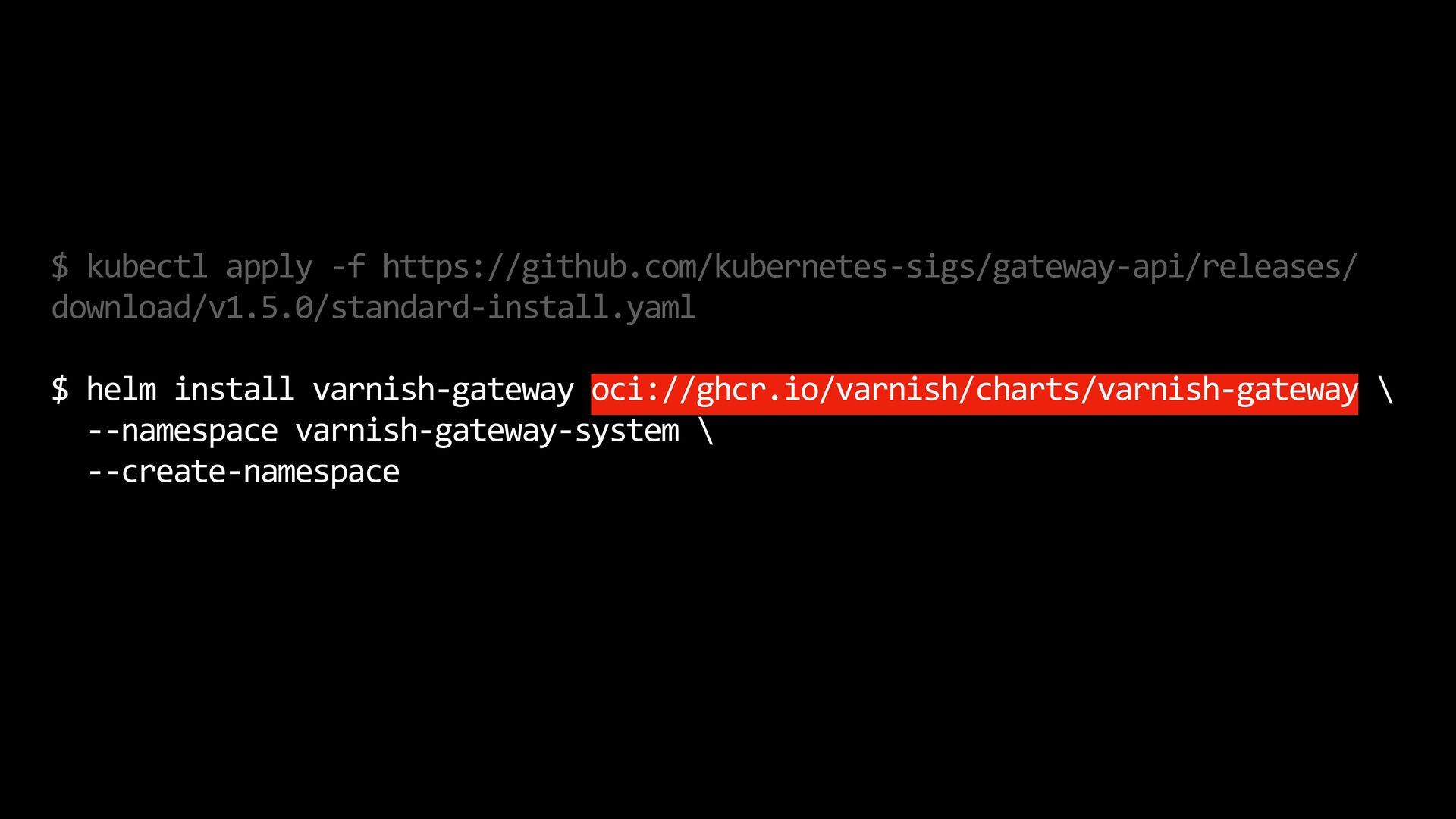

37. $ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/ download/v1.5.0/standard-install.yaml $ helm install varnish-gateway oci://ghcr.io/varnish/charts/varnish-gateway \ --namespace varnish-gateway-system \ --create-namespace
38. $ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/ download/v1.5.0/standard-install.yaml $ helm install varnish-gateway oci://ghcr.io/varnish/charts/varnish-gateway \ --namespace varnish-gateway-system \ --create-namespace

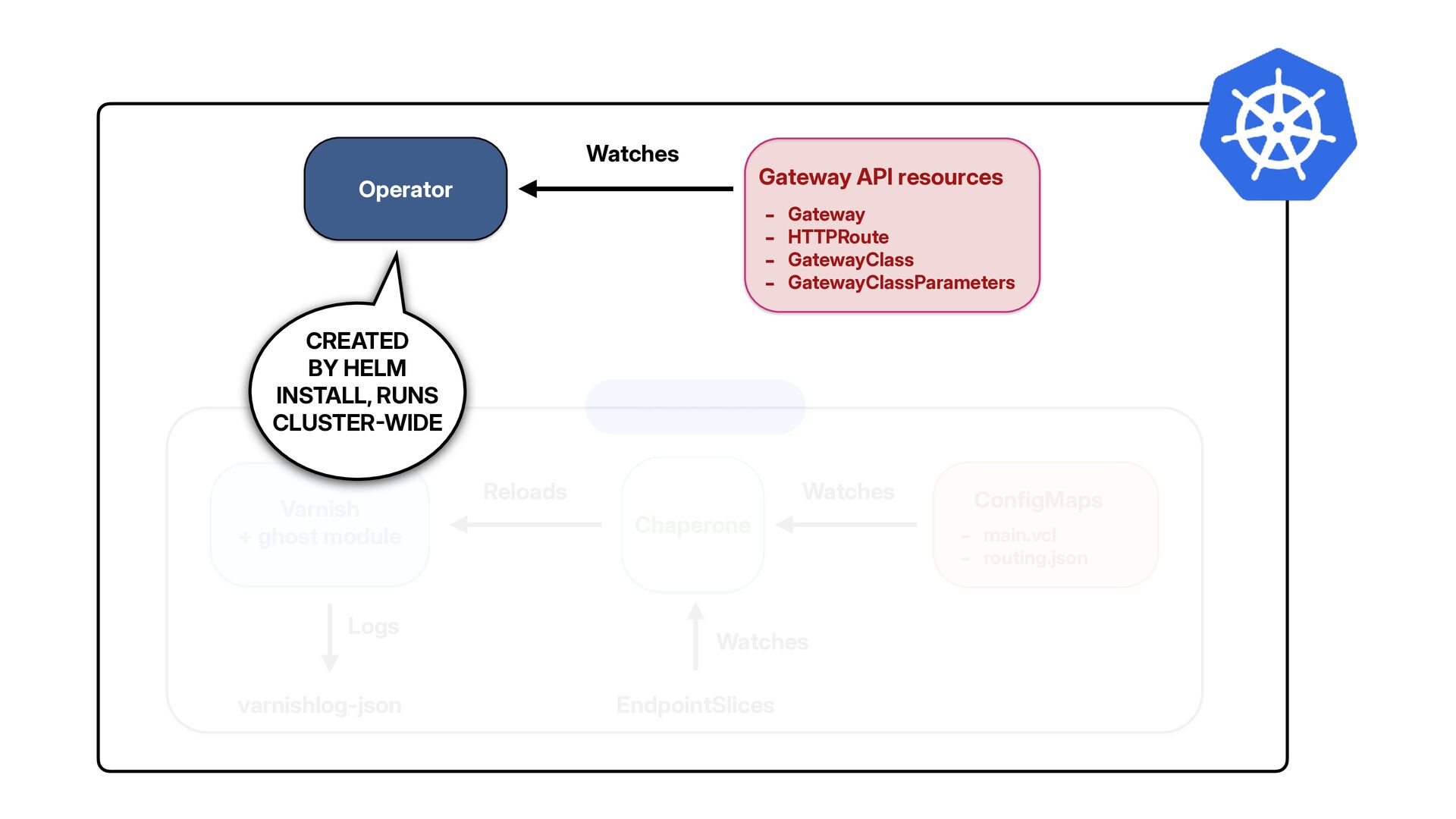

39. Watches Gateway API resources Operator - Gateway - HTTPRoute - GatewayClass - GatewayClassParameters CREATED BY HELM INSTALL, RUNS CLUSTER WIDE Varnish + ghost module Logs - varnishlog-json Varnish pod Reloads Watches Chaperone Watches EndpointSlices ConfigMaps - main.vcl - routing.json

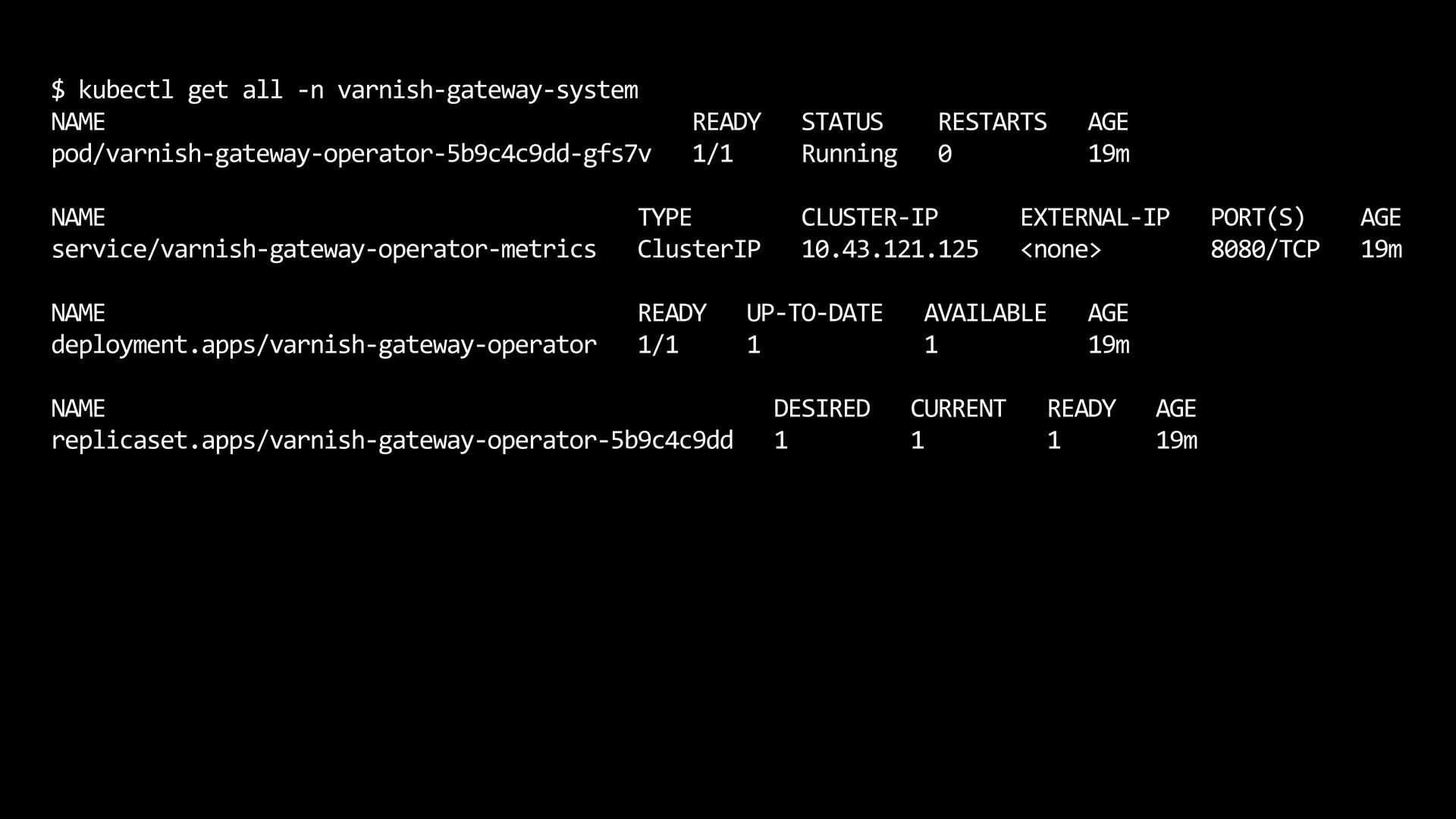

40. $ kubectl get all -n varnish-gateway-system NAME pod/varnish-gateway-operator-5b9c4c9dd-gfs7v READY 1/1 NAME service/varnish-gateway-operator-metrics TYPE ClusterIP NAME deployment.apps/varnish-gateway-operator READY 1/1 NAME replicaset.apps/varnish-gateway-operator-5b9c4c9dd STATUS Running RESTARTS 0 CLUSTER-IP 10.43.121.125 UP-TO-DATE 1 DESIRED 1 EXTERNAL-IP <none> AVAILABLE 1 CURRENT 1 AGE 19m AGE 19m READY 1 AGE 19m PORT(S) 8080/TCP AGE 19m

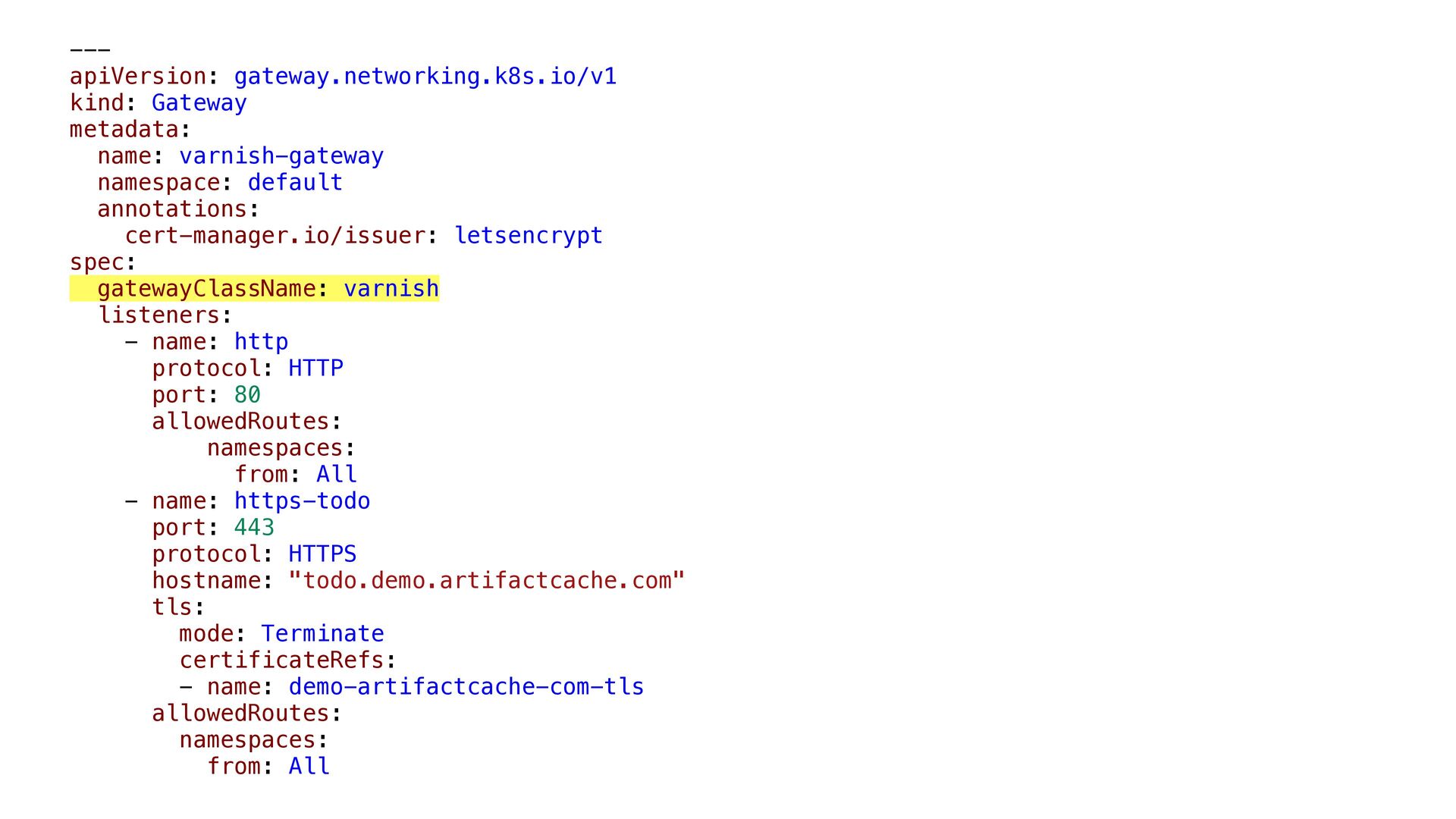

41. --apiVersion: gateway.networking.k8s.io/v1 kind: Gateway metadata: name: varnish-gateway namespace: default annotations: cert-manager.io/issuer: letsencrypt spec: gatewayClassName: varnish listeners: - name: http protocol: HTTP port: 80 allowedRoutes: namespaces: from: All - name: https-todo port: 443 protocol: HTTPS hostname: "todo.demo.artifactcache.com" tls: mode: Terminate certificateRefs: - name: demo-artifactcache-com-tls allowedRoutes: namespaces: from: All

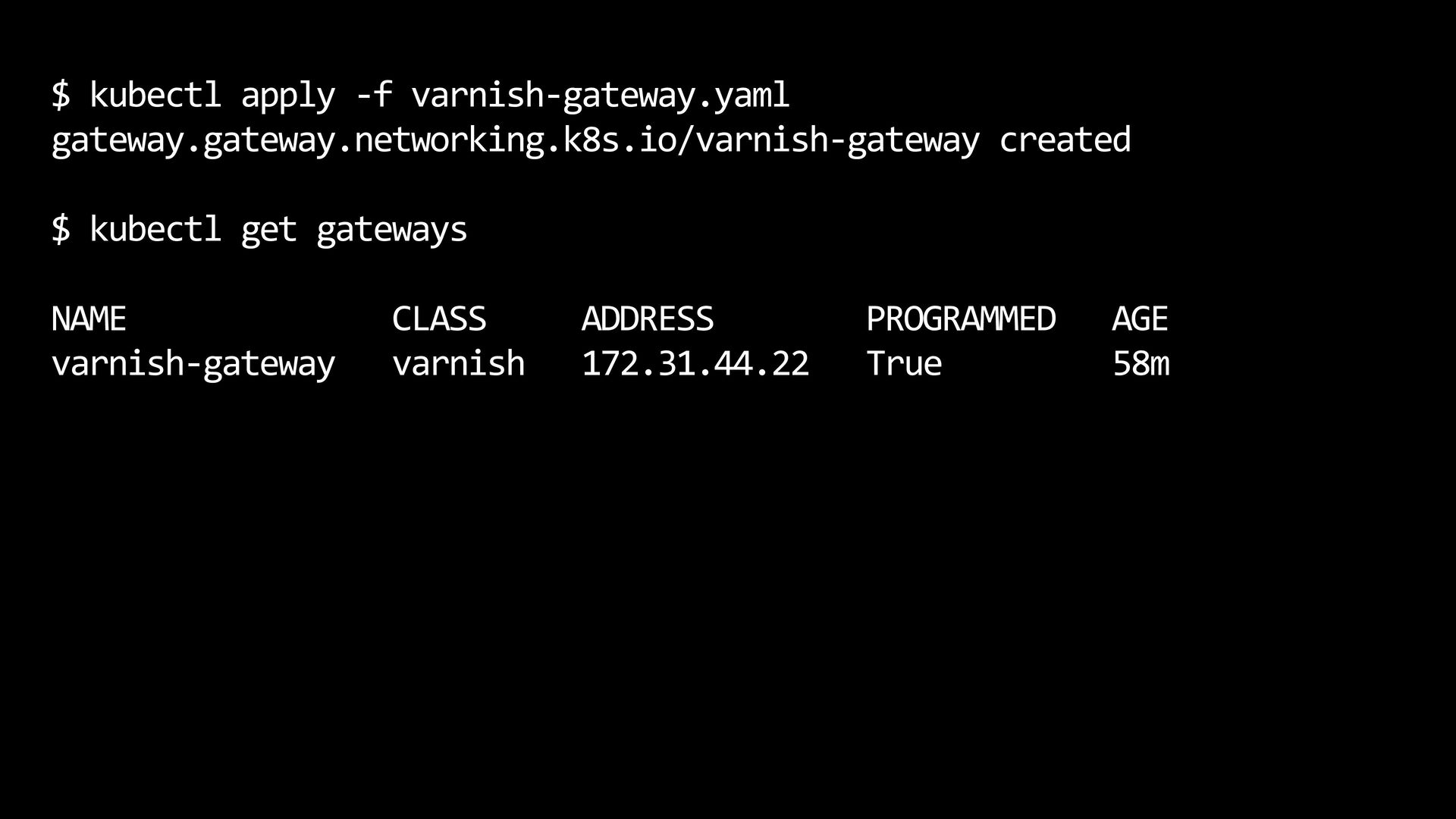

42. $ kubectl apply -f varnish-gateway.yaml gateway.gateway.networking.k8s.io/varnish-gateway created $ kubectl get gateways NAME varnish-gateway CLASS varnish ADDRESS 172.31.44.22 PROGRAMMED True AGE 58m

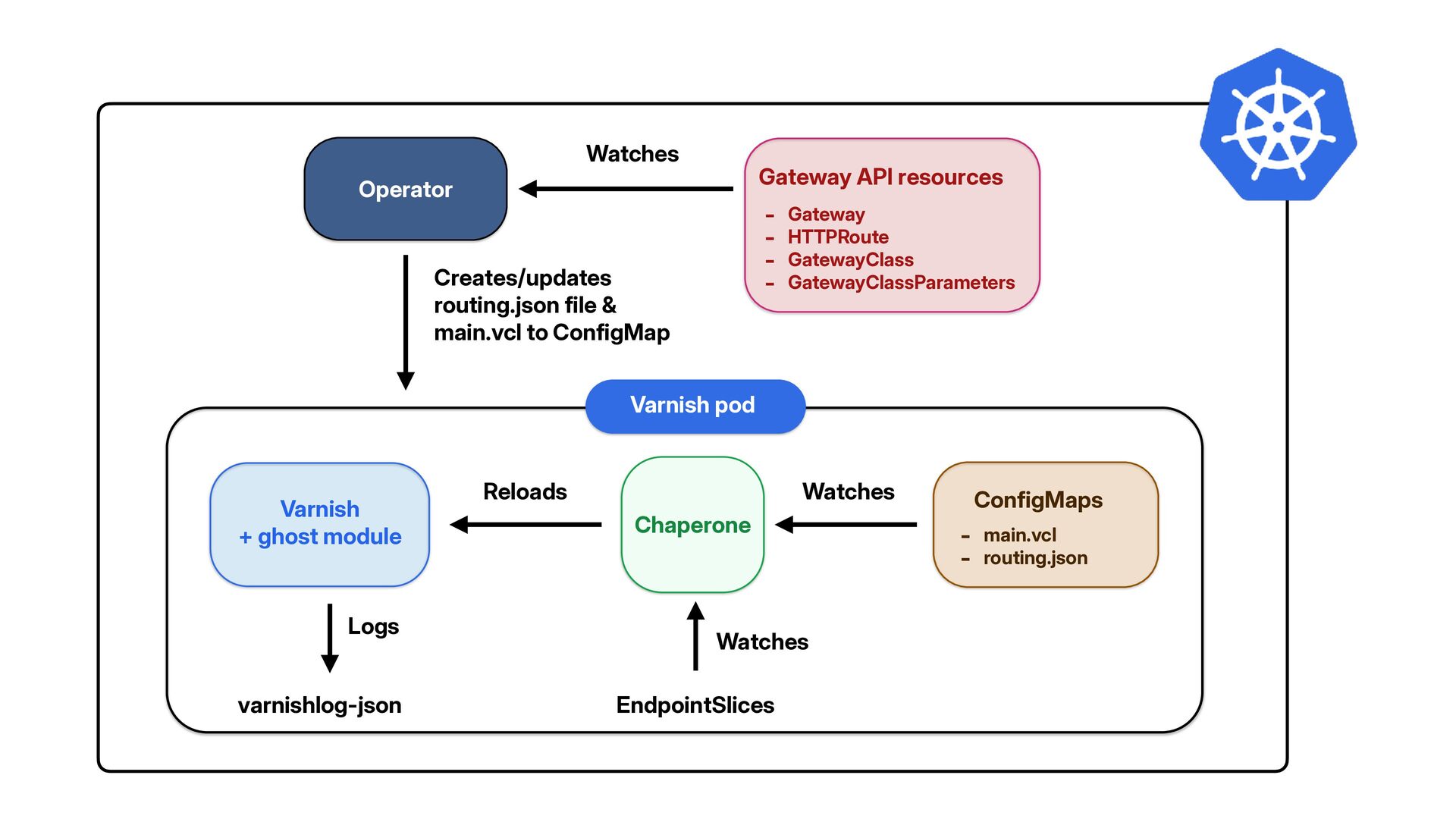

43. Watches Gateway API resources Operator - Gateway - HTTPRoute - GatewayClass - GatewayClassParameters Creates/updates routing.json file & main.vcl to ConfigMap Varnish pod Varnish + ghost module Logs varnishlog-json Reloads Watches Chaperone Watches EndpointSlices ConfigMaps - main.vcl - routing.json

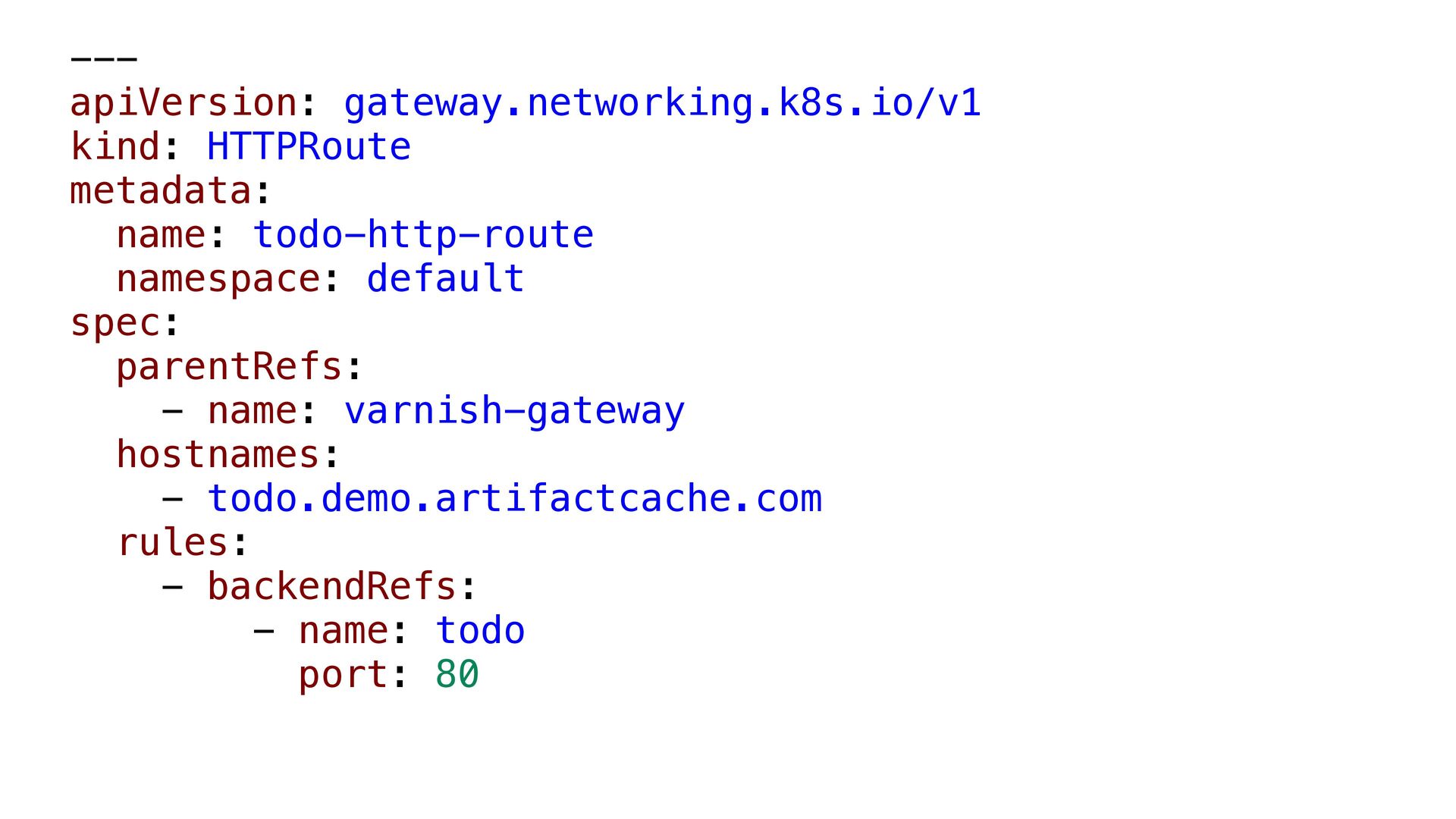

44. --apiVersion: gateway.networking.k8s.io/v1 kind: HTTPRoute metadata: name: todo-http-route namespace: default spec: parentRefs: - name: varnish-gateway hostnames: - todo.demo.artifactcache.com rules: - backendRefs: - name: todo port: 80

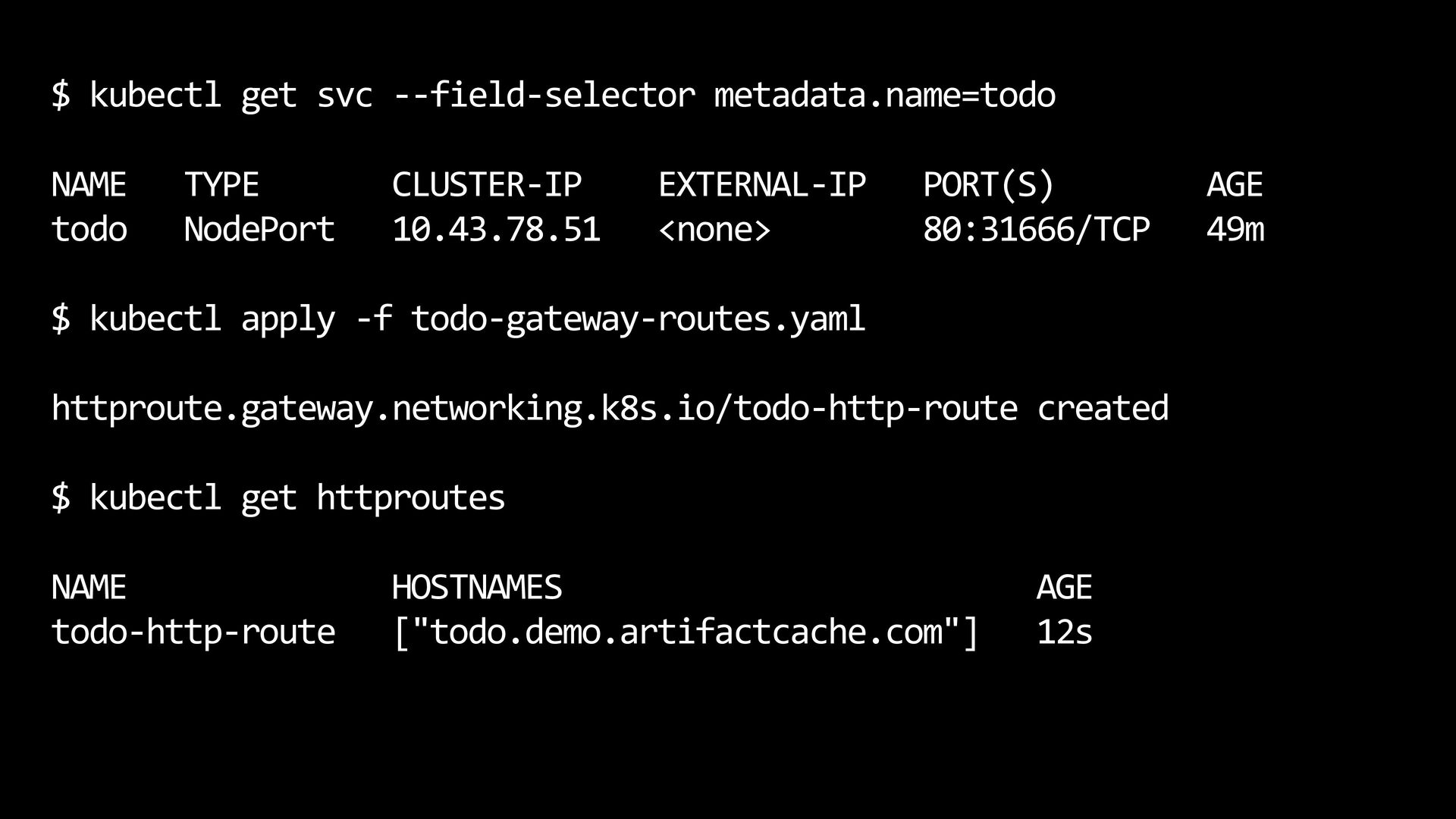

45. $ kubectl get svc --field-selector metadata.name=todo NAME todo TYPE NodePort CLUSTER-IP 10.43.78.51 EXTERNAL-IP <none> PORT(S) 80:31666/TCP $ kubectl apply -f todo-gateway-routes.yaml httproute.gateway.networking.k8s.io/todo-http-route created $ kubectl get httproutes NAME todo-http-route HOSTNAMES ["todo.demo.artifactcache.com"] AGE 12s AGE 49m

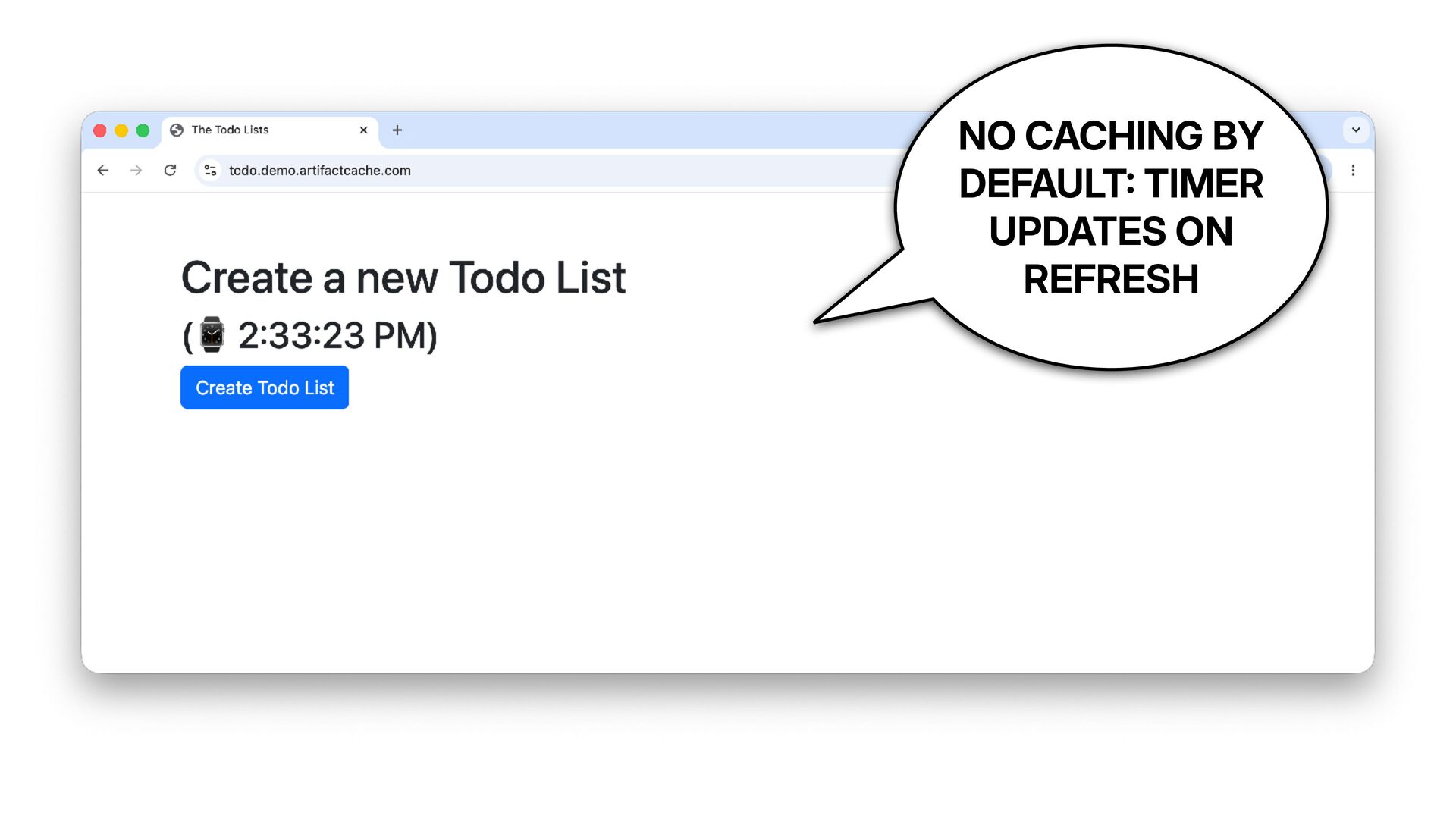

46. : NO CACHING BY DEFAULT TIMER UPDATES ON REFRESH

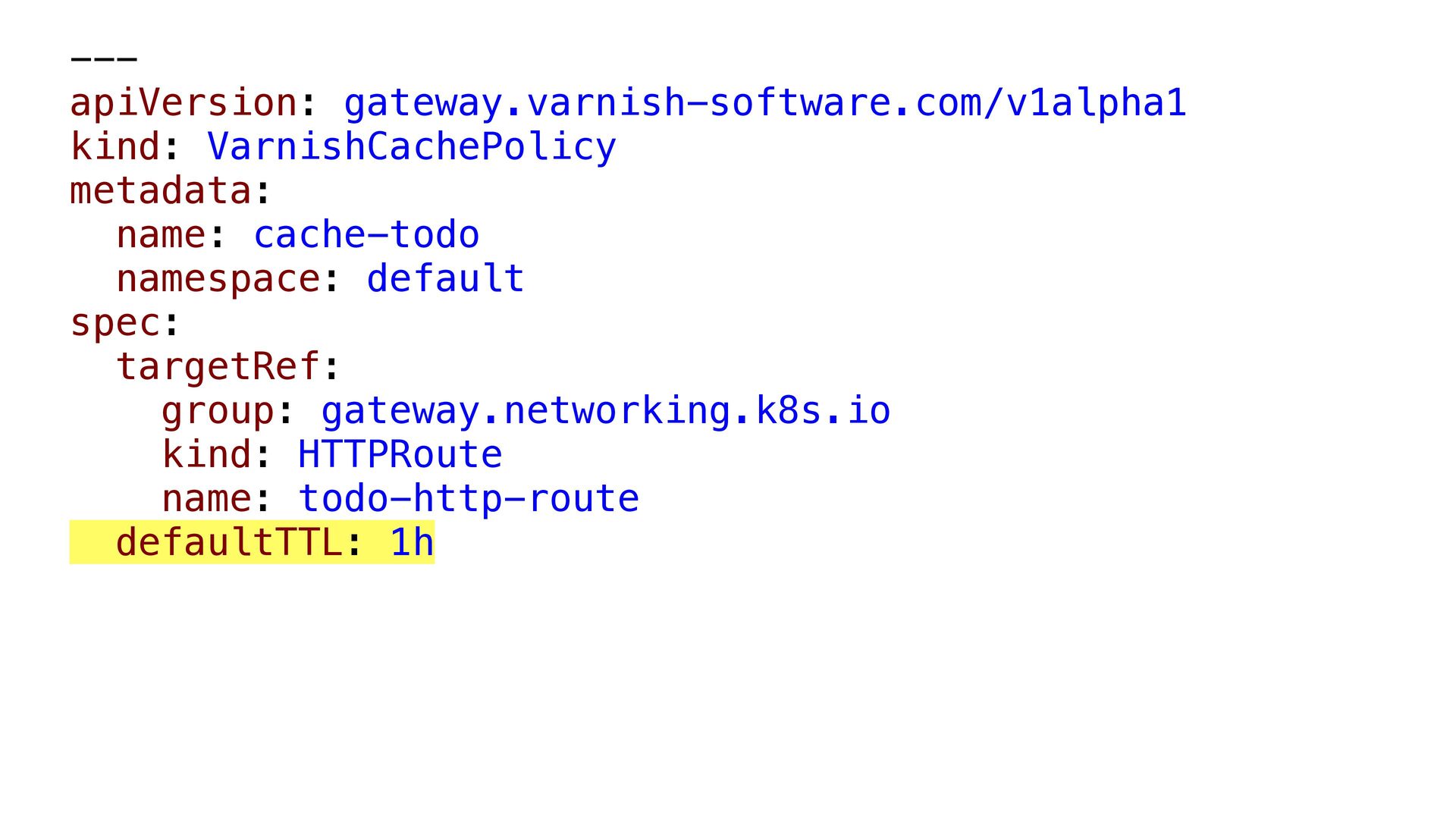

47. --apiVersion: gateway.varnish-software.com/v1alpha1 kind: VarnishCachePolicy metadata: name: cache-todo namespace: default spec: targetRef: group: gateway.networking.k8s.io kind: HTTPRoute name: todo-http-route defaultTTL: 1h

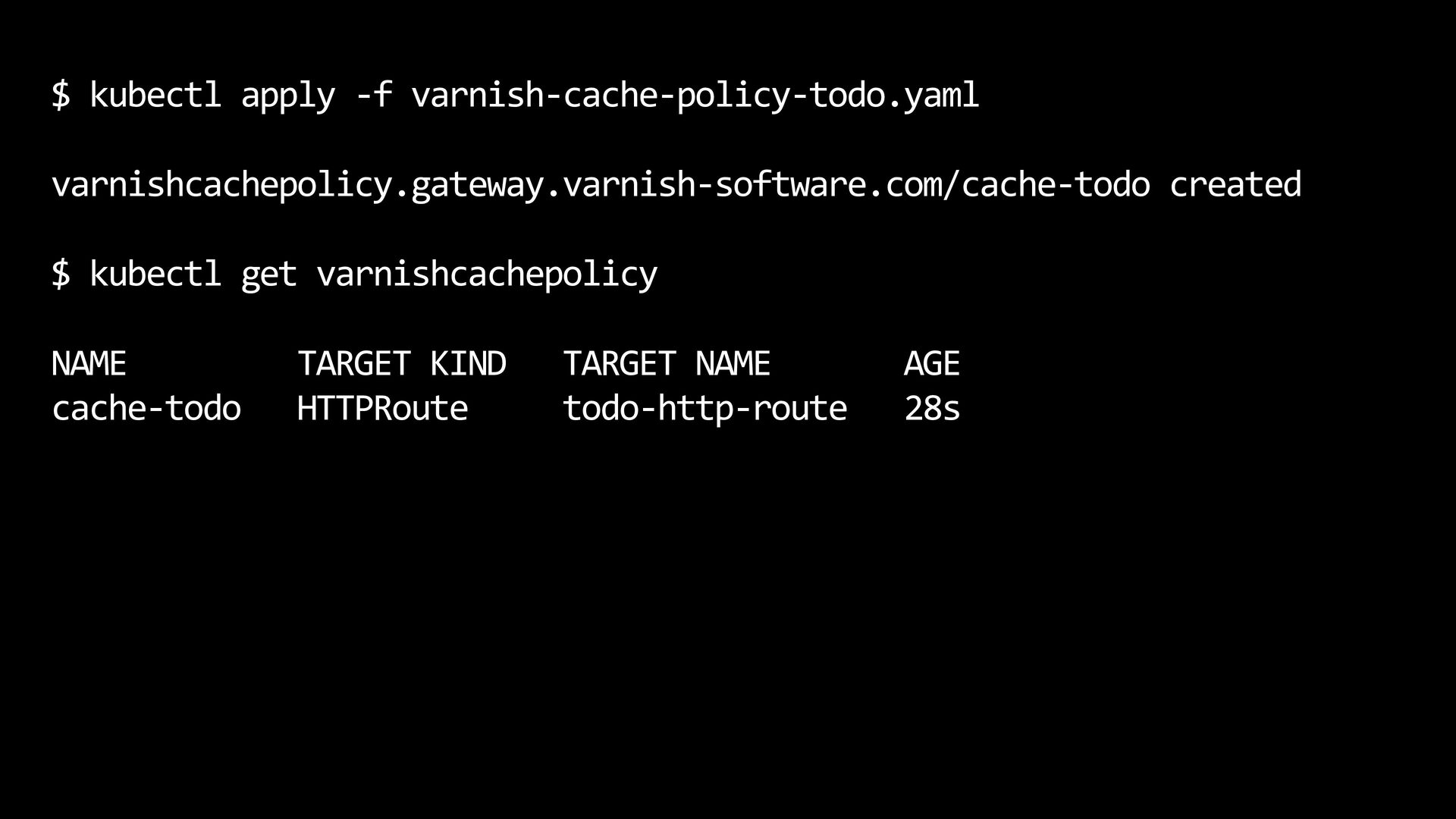

48. $ kubectl apply -f varnish-cache-policy-todo.yaml varnishcachepolicy.gateway.varnish-software.com/cache-todo created $ kubectl get varnishcachepolicy NAME cache-todo TARGET KIND HTTPRoute TARGET NAME todo-http-route AGE 28s

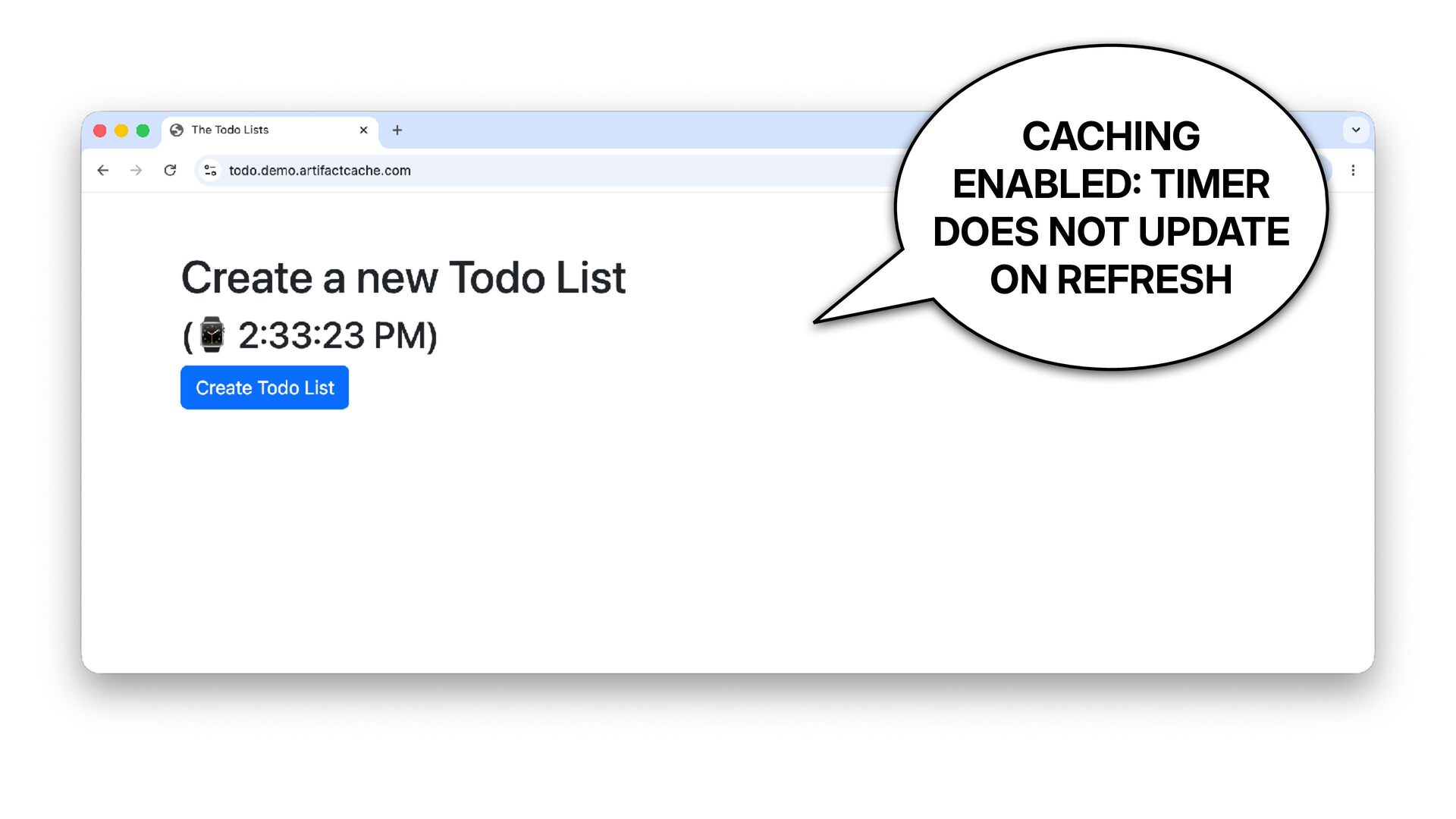

49. : CACHING ENABLED TIMER DOES NOT UPDATE ON REFRESH

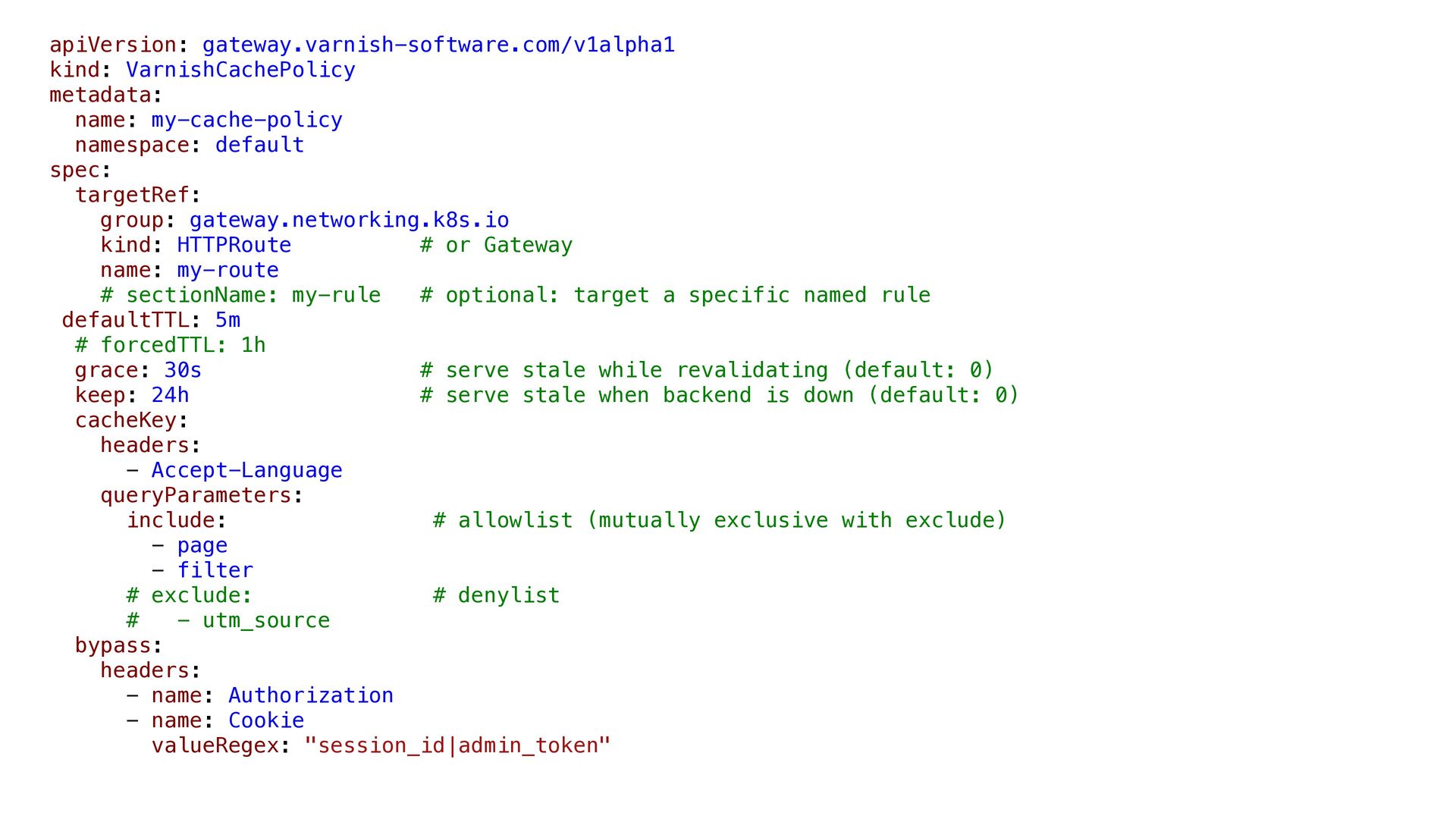

51. apiVersion: gateway.varnish-software.com/v1alpha1 kind: VarnishCachePolicy metadata: name: my-cache-policy namespace: default spec: targetRef: group: gateway.networking.k8s.io kind: HTTPRoute # or Gateway name: my-route # sectionName: my-rule # optional: target a specific named rule defaultTTL: 5m # forcedTTL: 1h grace: 30s # serve stale while revalidating (default: 0) keep: 24h # serve stale when backend is down (default: 0) cacheKey: headers: - Accept-Language queryParameters: include: # allowlist (mutually exclusive with exclude) - page - filter # exclude: # denylist # - utm_source bypass: headers: - name: Authorization - name: Cookie valueRegex: "session_id|admin_token"
52. WANT TO WRITE YOUR OWN VCL?

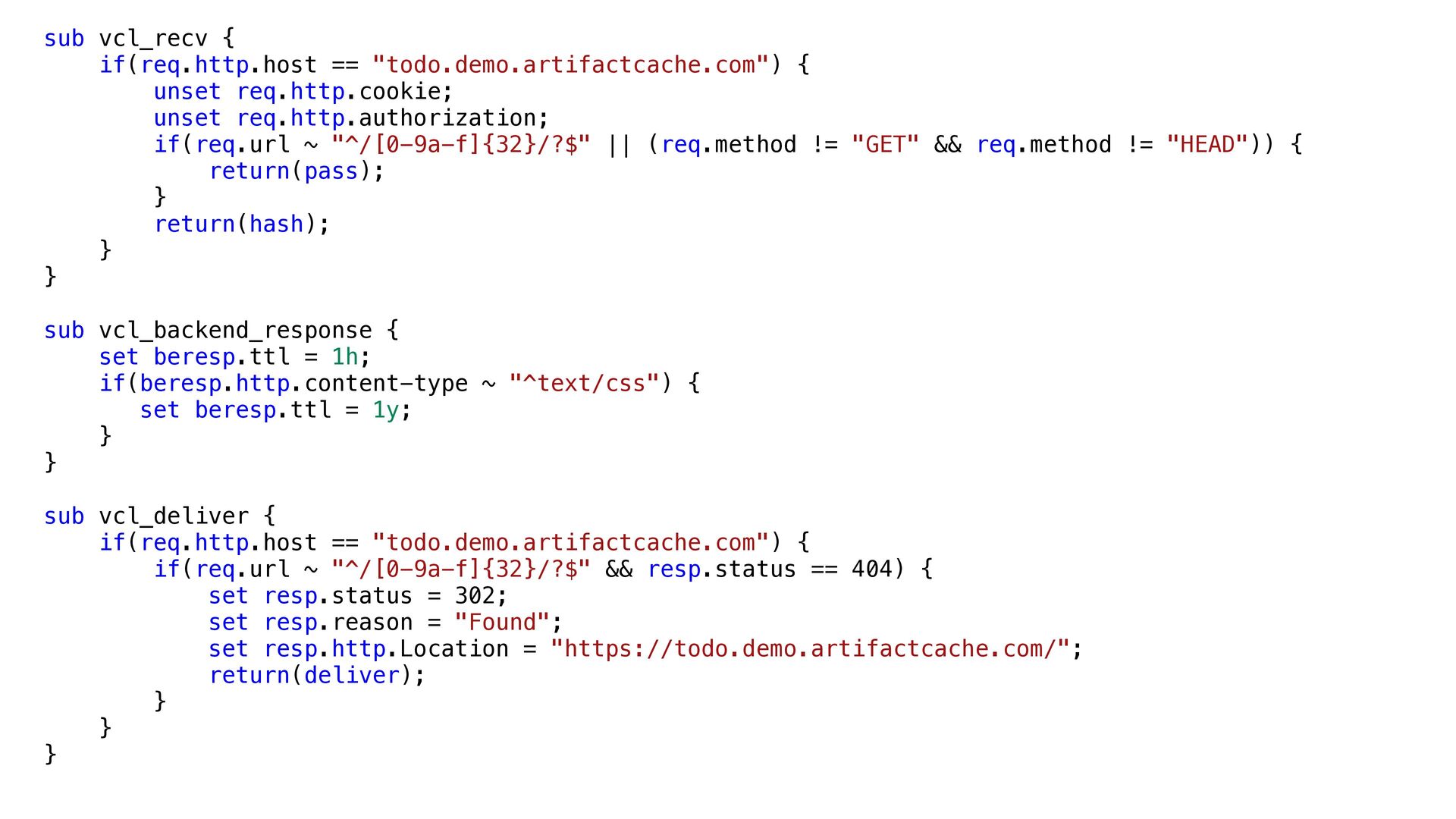

53. sub vcl_recv { if(req.http.host == "todo.demo.artifactcache.com") { unset req.http.cookie; unset req.http.authorization; if(req.url ~ "^/[0-9a-f]{32}/?$" || (req.method != "GET" && req.method != "HEAD")) { return(pass); } return(hash); } } sub vcl_backend_response { set beresp.ttl = 1h; if(beresp.http.content-type ~ "^text/css") { set beresp.ttl = 1y; } } sub vcl_deliver { if(req.http.host == "todo.demo.artifactcache.com") { if(req.url ~ "^/[0-9a-f]{32}/?$" && resp.status == 404) { set resp.status = 302; set resp.reason = "Found"; set resp.http.Location = "https://todo.demo.artifactcache.com/"; return(deliver); } } }

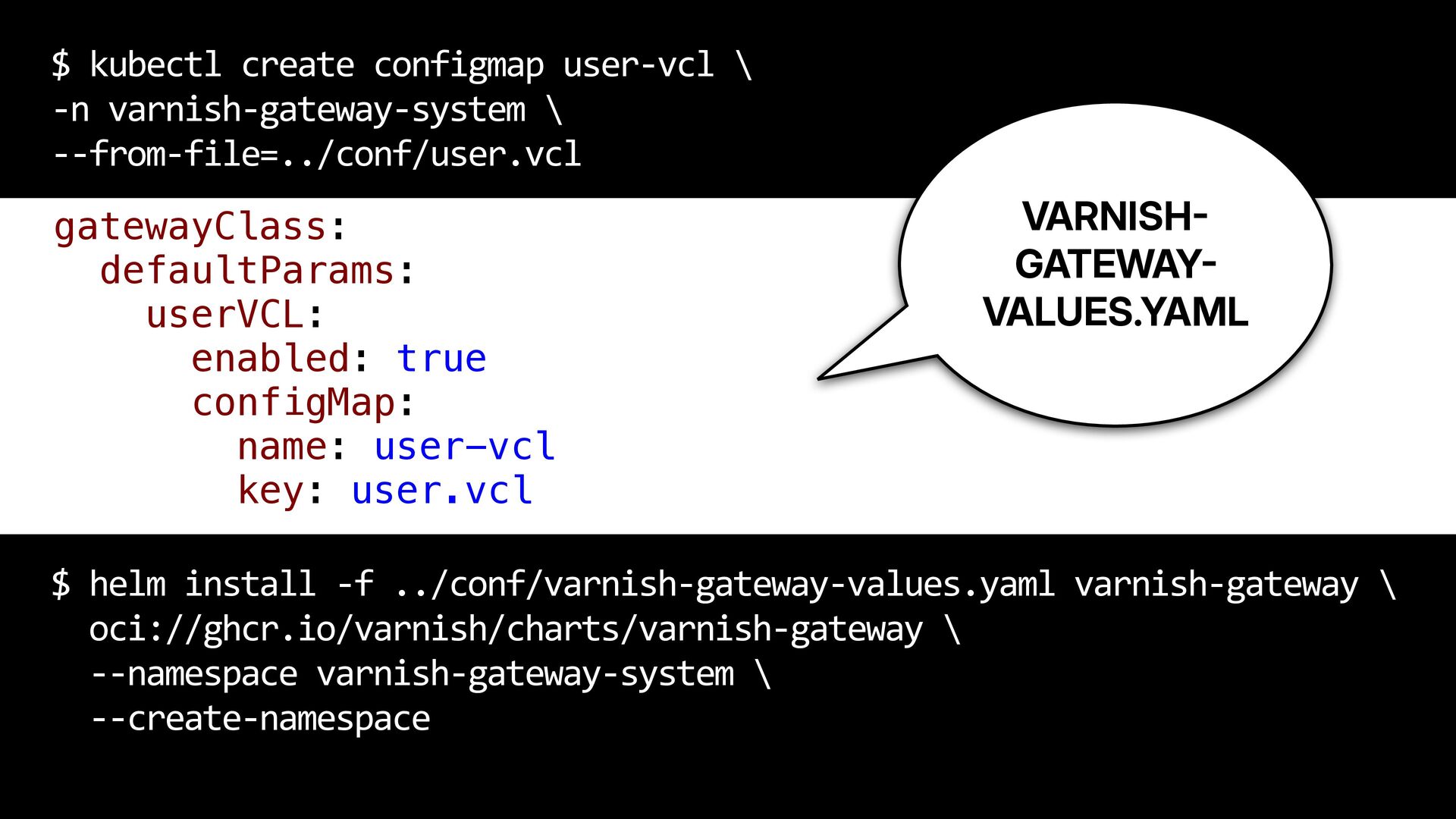

54. $ kubectl create configmap user-vcl \ -n varnish-gateway-system \ --from-file=../conf/user.vcl gatewayClass: defaultParams: userVCL: enabled: true configMap: name: user-vcl key: user.vcl VARNISH GATEWAY VALUES.YAML - - $ helm install -f ../conf/varnish-gateway-values.yaml varnish-gateway \ oci://ghcr.io/varnish/charts/varnish-gateway \ --namespace varnish-gateway-system \ --create-namespace

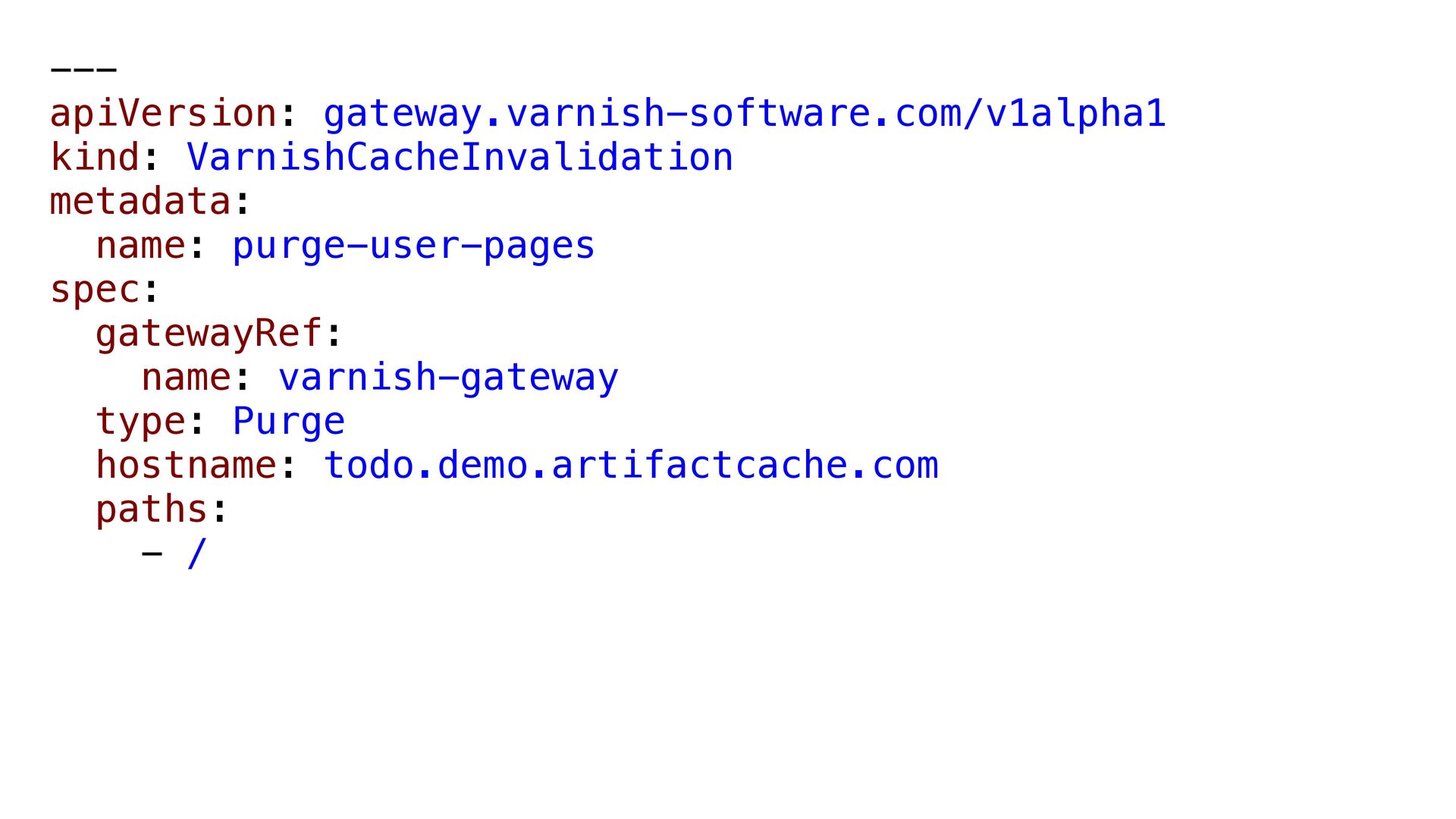

55. --apiVersion: gateway.varnish-software.com/v1alpha1 kind: VarnishCacheInvalidation metadata: name: purge-user-pages spec: gatewayRef: name: varnish-gateway type: Purge hostname: todo.demo.artifactcache.com paths: - /

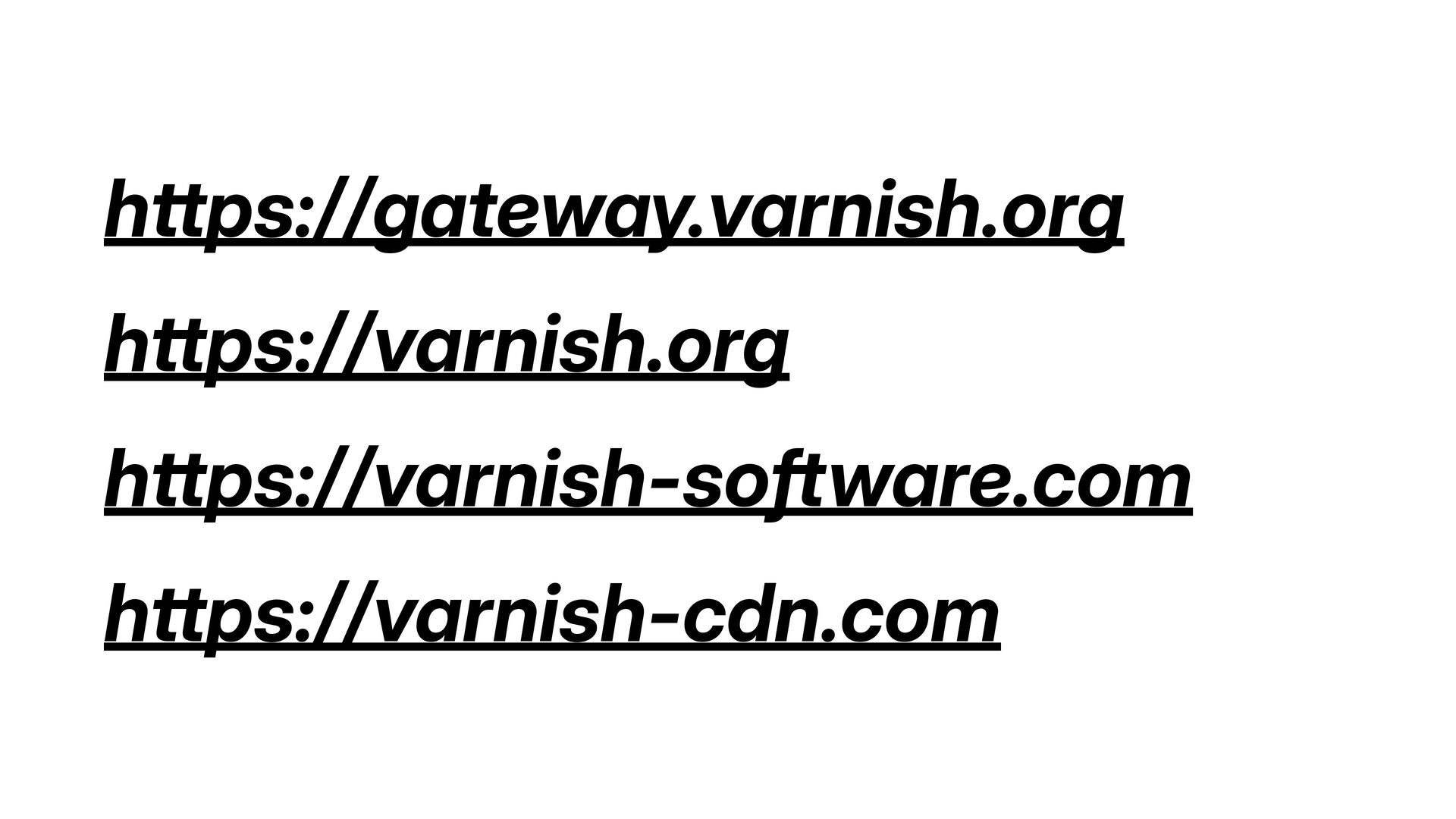

56. https://gateway.varnish.org https://varnish.org https://varnish-software.com https://varnish-cdn.com
