An Alternative to Fragments - Say Hello to Mortar + Flow

Talk about Mortar and Flow - Given at droidcon Berlin - June 2015

Transcript

1. AN ALTERNATIVE TO FRAGMENTS Thorben Primke thorben@primke.com
 @tprimke SAY HELLO TO MORTAR + FLOW
2. Overview • Background • Flow / Mortar • Deep dive • Demo

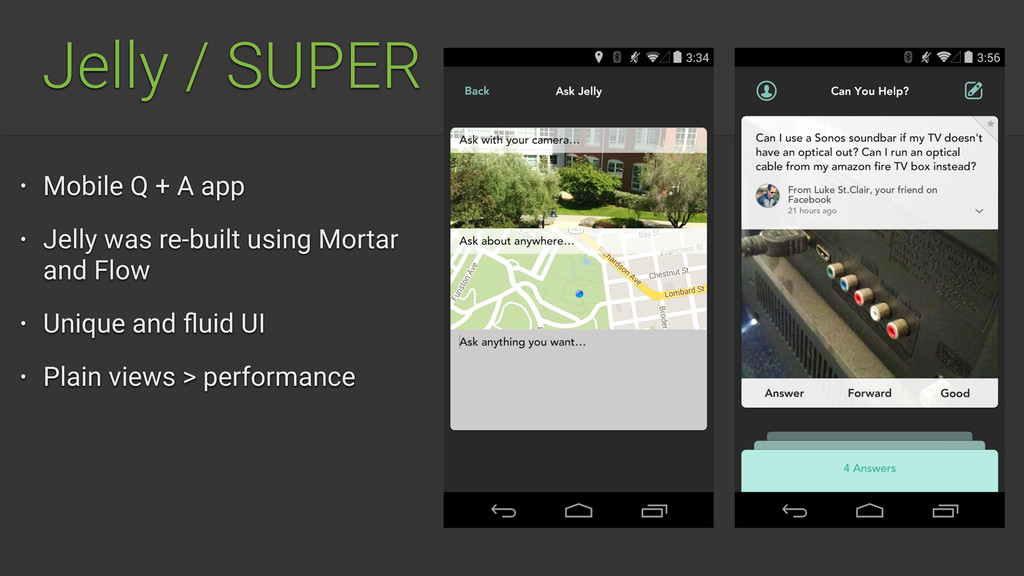

3. Jelly / SUPER • Mobile Q + A app • Jelly was re-built using Mortar and Flow • Unique and fluid UI • Plain views > performance

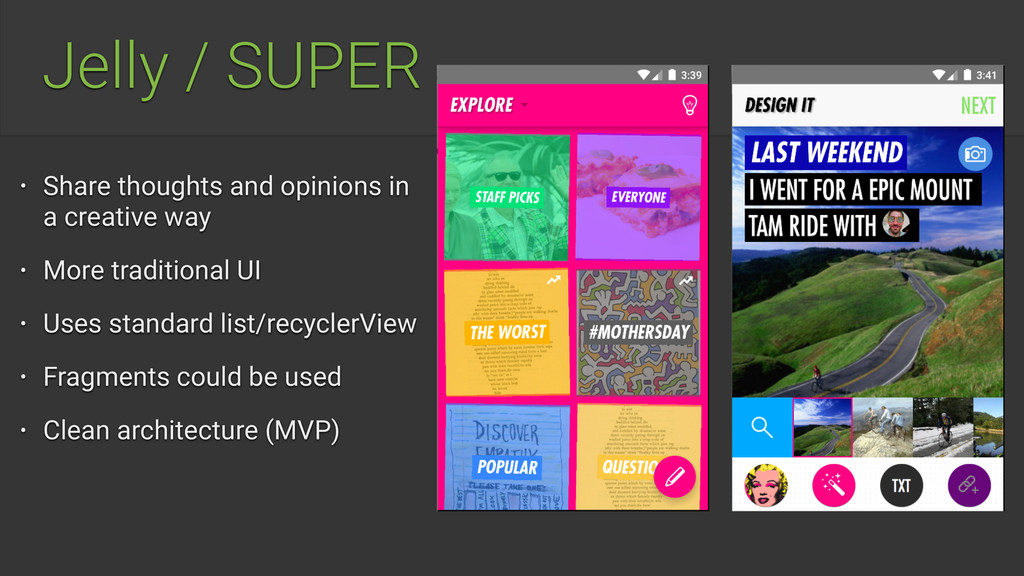

4. Jelly / SUPER • Share thoughts and opinions in a creative way • More traditional UI • Uses standard list/recyclerView • Fragments could be used • Clean architecture (MVP)

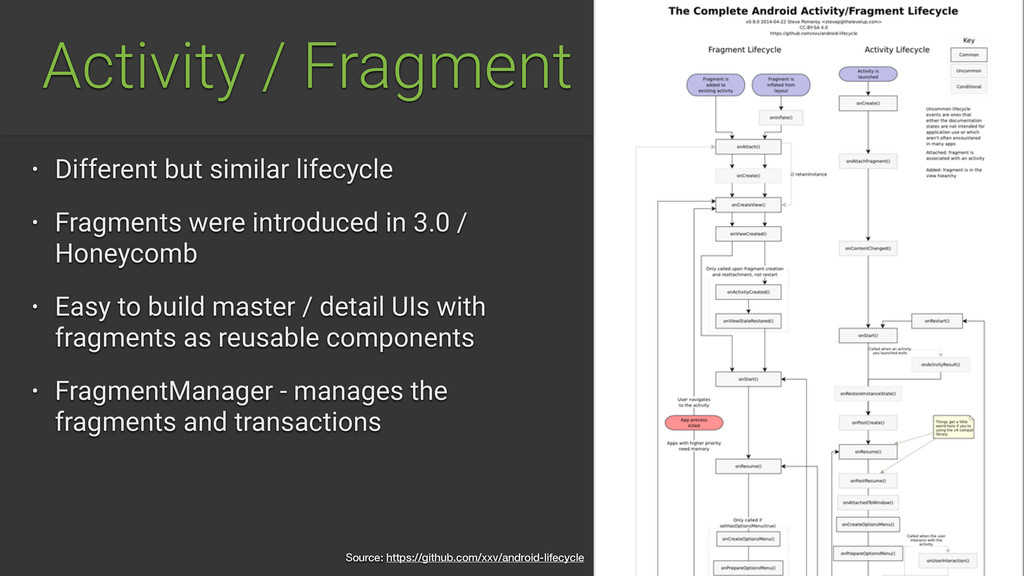

5. Activity / Fragment • Different but similar lifecycle • Fragments were introduced in 3.0 / Honeycomb • Easy to build master / detail UIs with fragments as reusable components • FragmentManager - manages the fragments and transactions Source: https://github.com/xxv/android-lifecycle

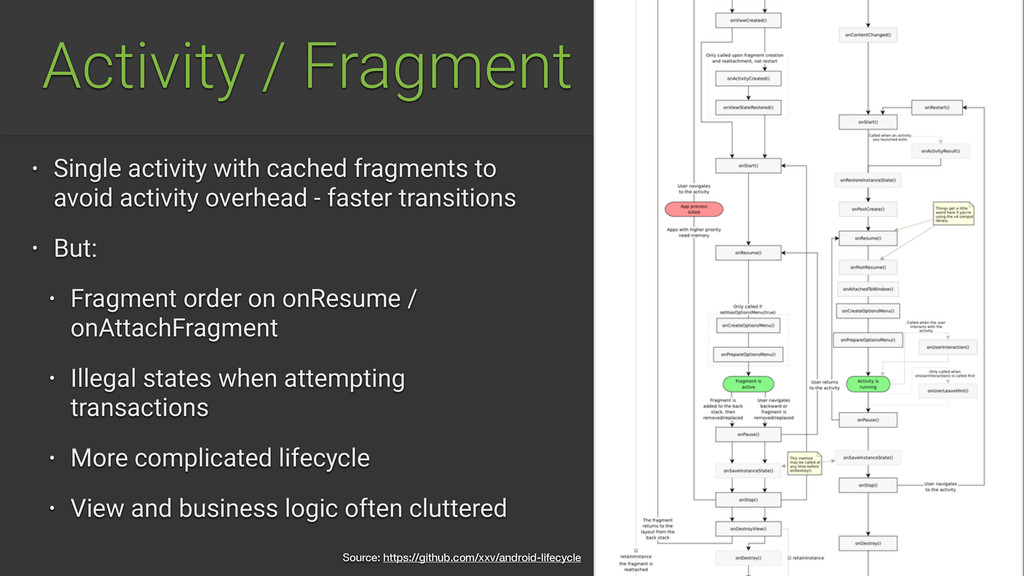

6. Activity / Fragment • Single activity with cached fragments to avoid activity overhead - faster transitions • But: • Fragment order on onResume / onAttachFragment • Illegal states when attempting transactions • More complicated lifecycle • View and business logic often cluttered Source: https://github.com/xxv/android-lifecycle
7. Activity / View • Single activity • Simple views • Backstack management ! • (A) Solution: Mortar and Flow Source: https://github.com/xxv/android-lifecycle
8. Flow

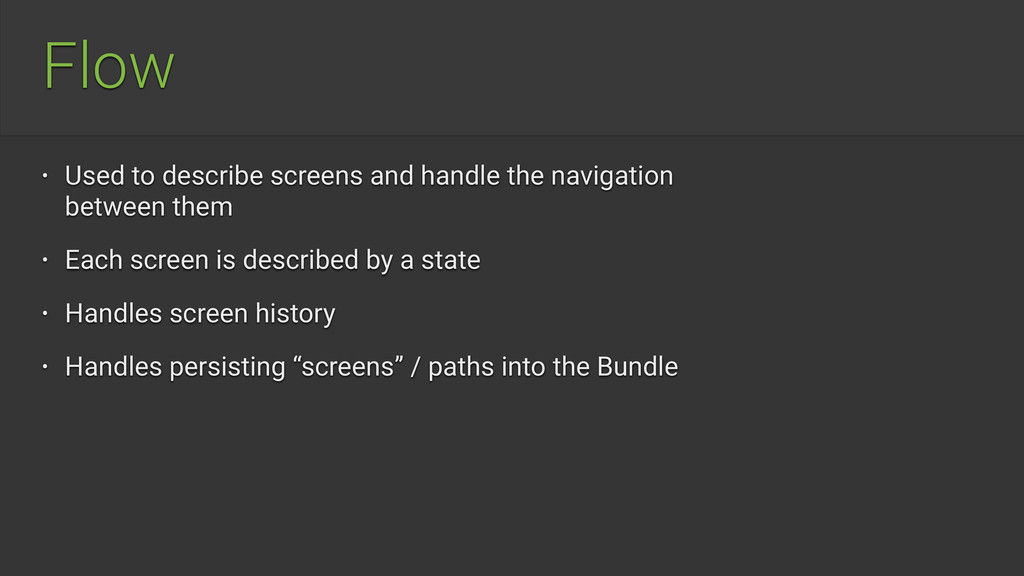

9. Flow • Used to describe screens and handle the navigation between them • Each screen is described by a state • Handles screen history • Handles persisting “screens” / paths into the Bundle

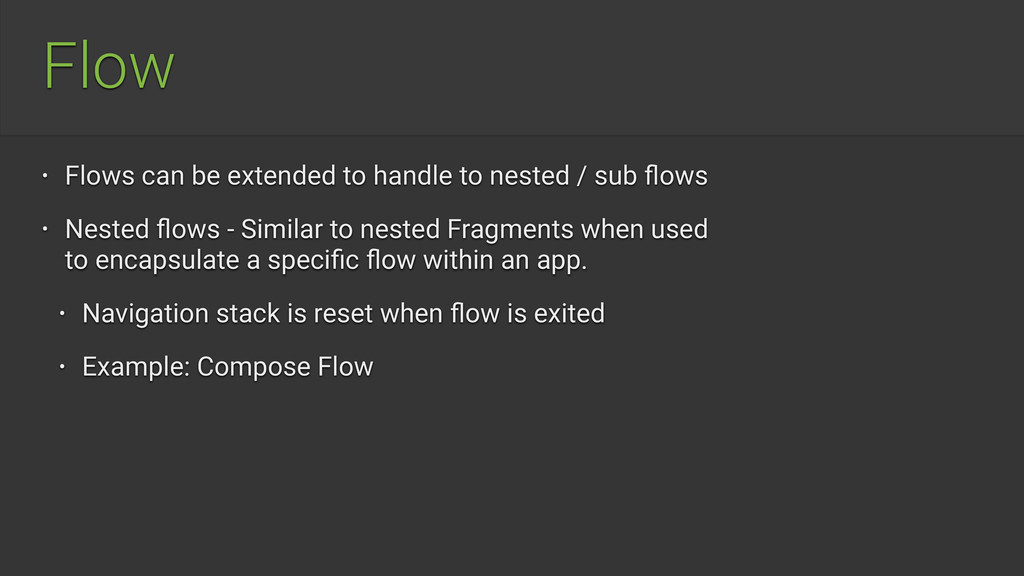

10. • Flows can be extended to handle to nested / sub flows • Nested flows - Similar to nested Fragments when used to encapsulate a specific flow within an app. • Navigation stack is reset when flow is exited • Example: Compose Flow Flow
11. Mortar

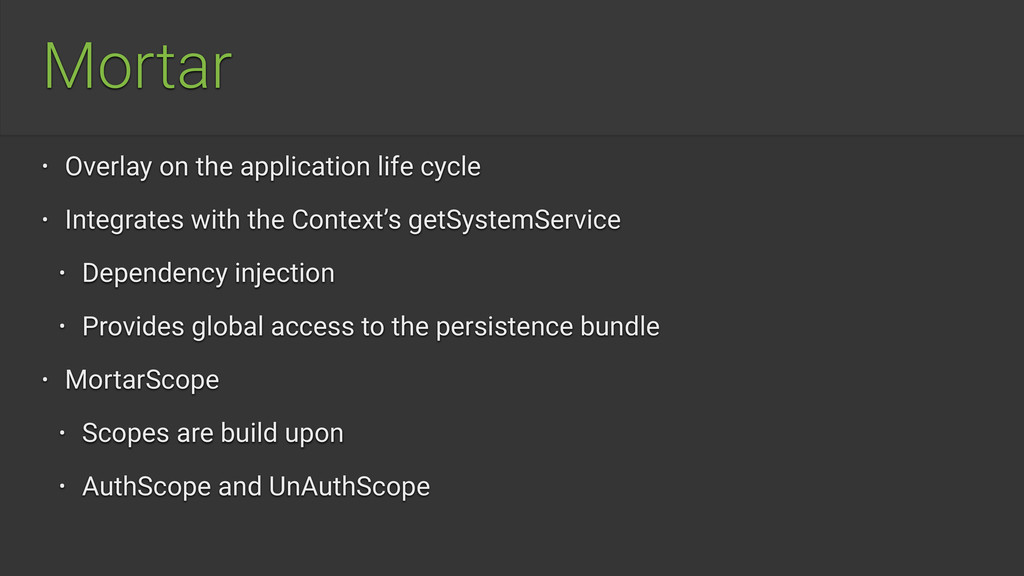

12. Mortar • Overlay on the application life cycle • Integrates with the Context’s getSystemService • Dependency injection • Provides global access to the persistence bundle • MortarScope • Scopes are build upon • AuthScope and UnAuthScope
13. • BundleService - Any class has access to the Activity’s persistence bundle • Provides a Presenter / ViewPresenter • Integrates with Bundler • Can easily persist the Presenter data (onSave method) Mortar

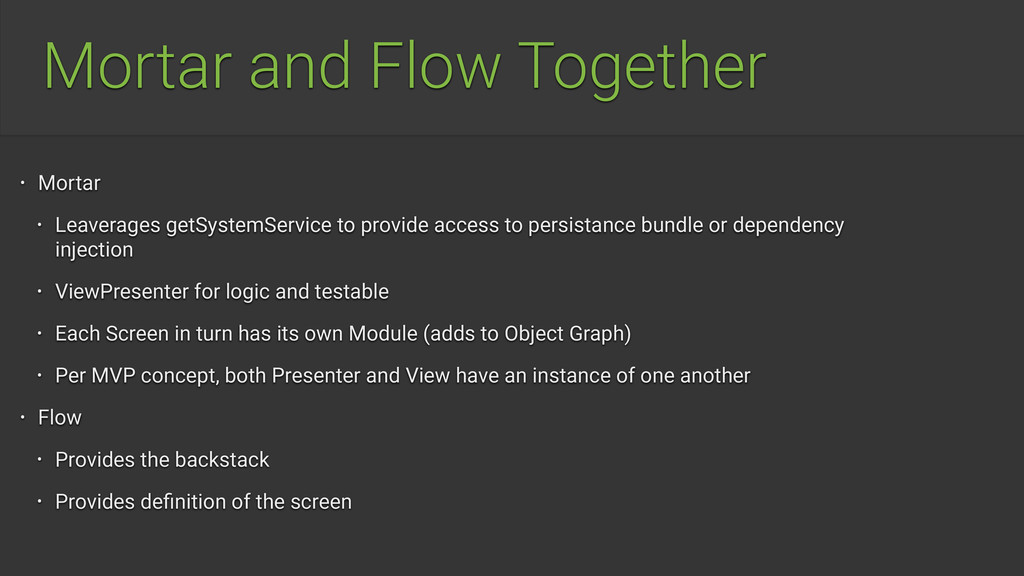

14. Mortar and Flow Together • Mortar • Leaverages getSystemService to provide access to persistance bundle or dependency injection • ViewPresenter for logic and testable • Each Screen in turn has its own Module (adds to Object Graph) • Per MVP concept, both Presenter and View have an instance of one another • Flow • Provides the backstack • Provides definition of the screen
15. Deep Dive

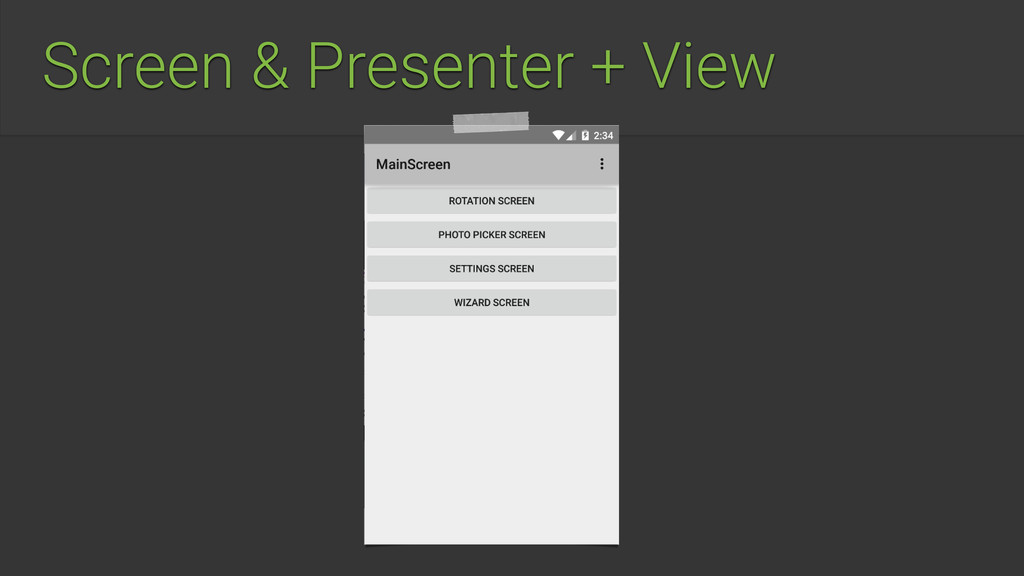

16. Screen & Presenter + View
17. Screen & Presenter + View
18. Screen & Presenter + View

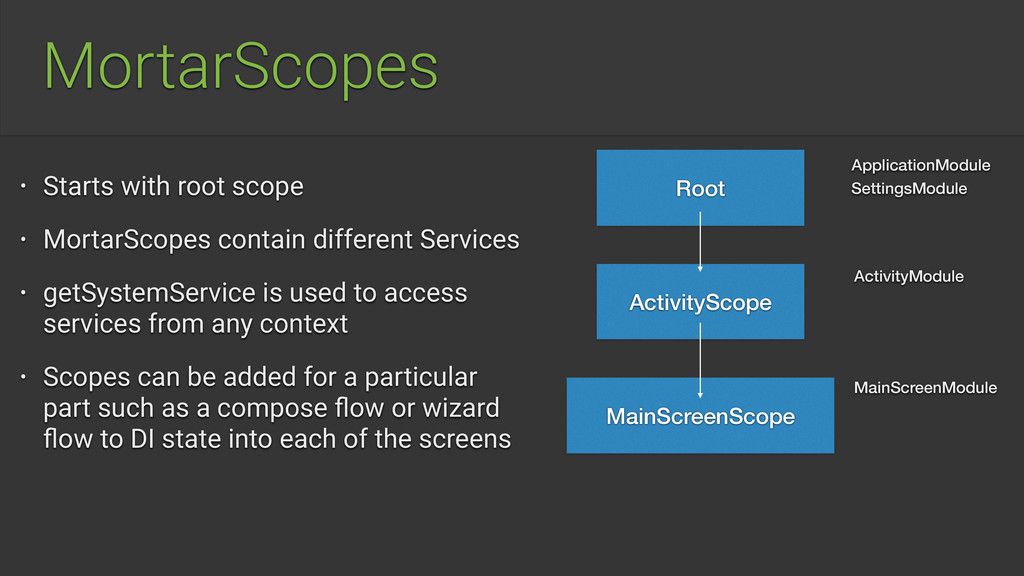

19. MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens Root ActivityScope MainScreenScope ApplicationModule SettingsModule ActivityModule MainScreenModule
20. Root ActivityScope WizardScope WizardScreen1Scope ApplicationModule SettingsModule ActivityModule WinzardModule Winzard1Module MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens
21. Root ActivityScope WizardScope WizardScreen2Scope ApplicationModule SettingsModule ActivityModule WinzardModule Winzard2Module MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens

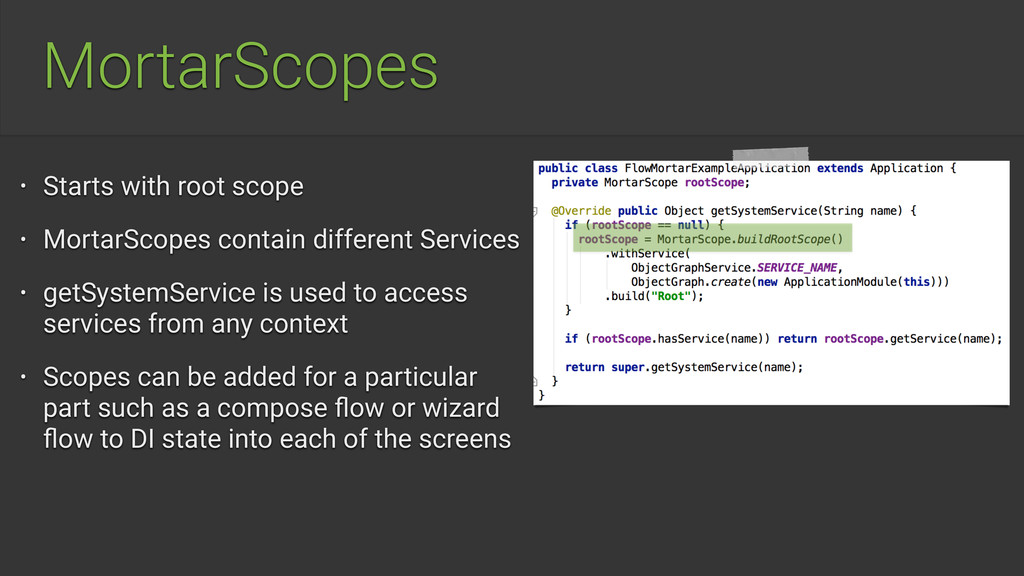

22. MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens
23. MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens
24. MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens
25. MortarScopes • Starts with root scope • MortarScopes contain different Services • getSystemService is used to access services from any context • Scopes can be added for a particular part such as a compose flow or wizard flow to DI state into each of the screens

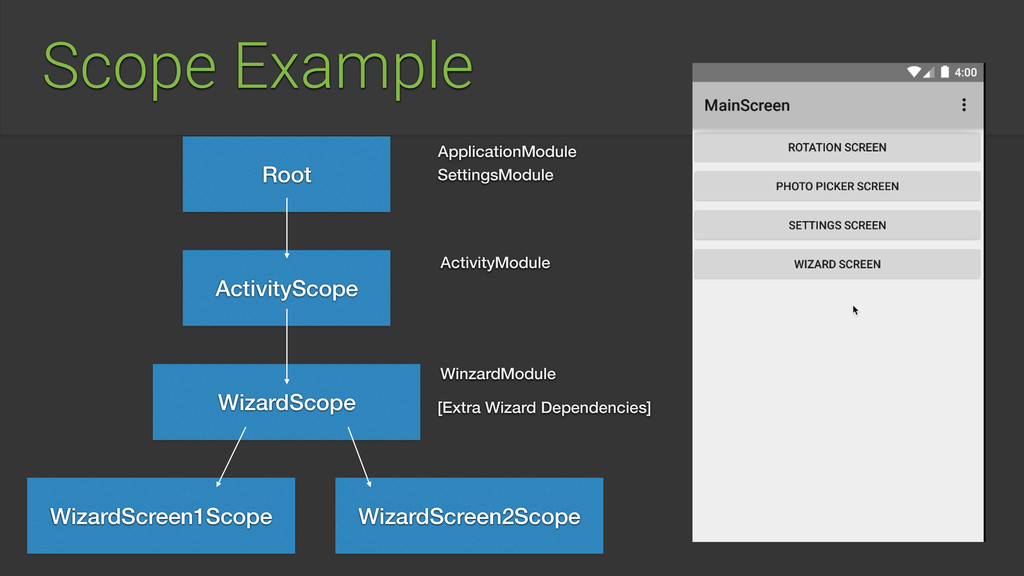

26. Scope Example Root ActivityScope WizardScope WizardScreen2Scope ApplicationModule SettingsModule ActivityModule WinzardModule WizardScreen1Scope [Extra Wizard Dependencies]
27. Screen Rotation • Presenter is Singleton • Survives activity recreation • Screen is not recreated - only View • BundlerService • Save into PersistanceBundle

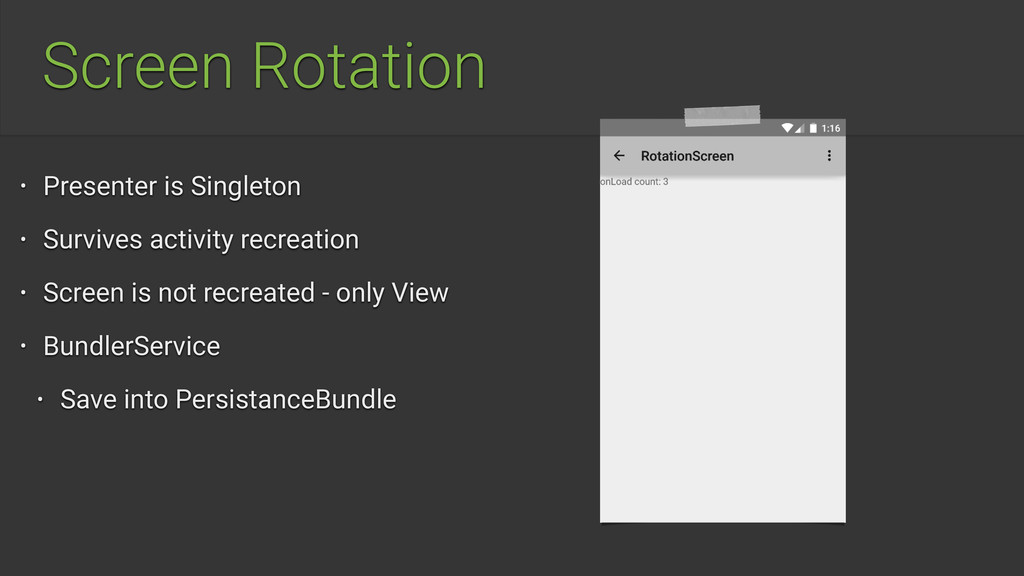

28. Screen Rotation • Presenter is Singleton • Survives activity recreation • Screen is not recreated - only View • BundlerService • Save into PersistanceBundle

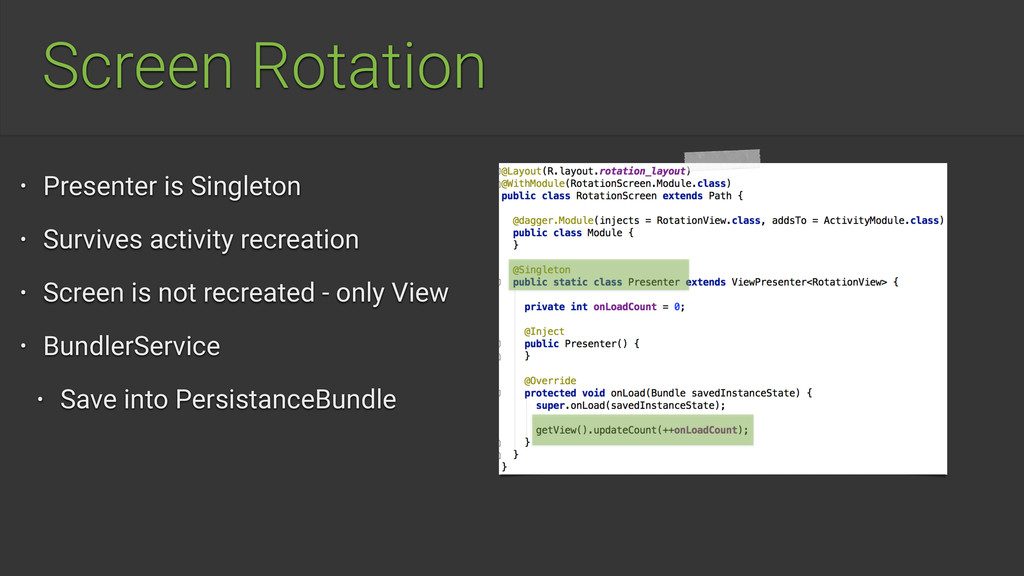

29. • Presenter is Singleton • Survives activity recreation • Screen is not recreated - only View • BundlerService • Save into PersistanceBundle Screen Rotation

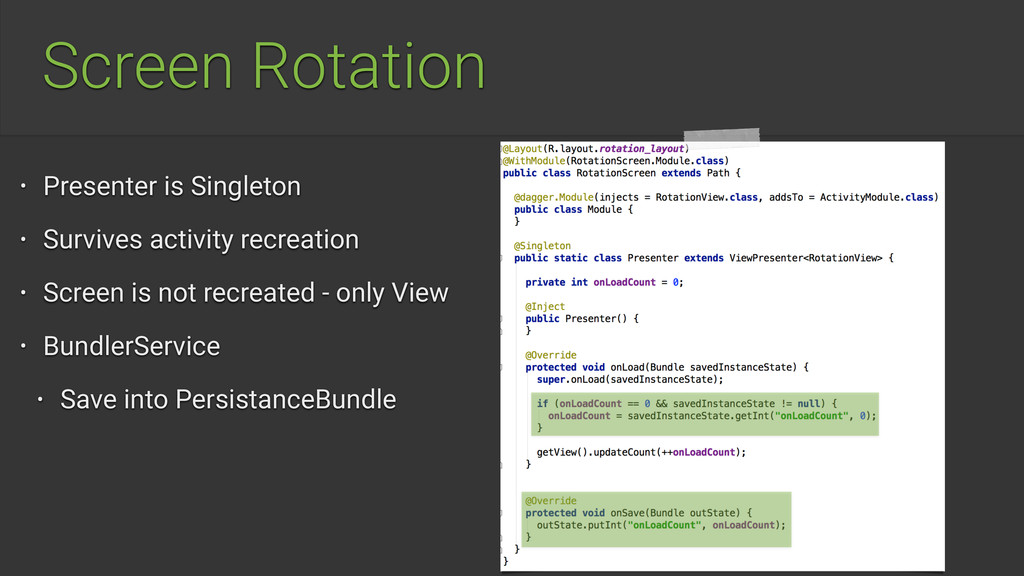

30. Screen Rotation • Presenter is Singleton • Survives activity recreation • Screen is not recreated - only View • BundlerService • Save into PersistanceBundle
31. Screen Rotation • Presenter is Singleton • Survives activity recreation • Screen is not recreated - only View • BundlerService • Save into PersistanceBundle
32. Flow Navigation • Provides navigation for setting / adding to the history • Provides back navigation in case there is more than one screen on the history stack • Set method’s logic depends on if a Screen is already in the history or not
33. Flow Navigation • Provides navigation for setting / adding to the history • Provides back navigation in case there is more than one screen on the history stack • Set method’s logic depends on if a Screen is already in the history or not
34. Flow Navigation • Provides navigation for setting / adding to the history • Provides back navigation in case there is more than one screen on the history stack • Set method’s logic depends on if a Screen is already in the history or not
35. Flow Navigation • Provides navigation for setting / adding to the history • Provides back navigation in case there is more than one screen on the history stack • Set method’s logic depends on if a Screen is already in the history or not

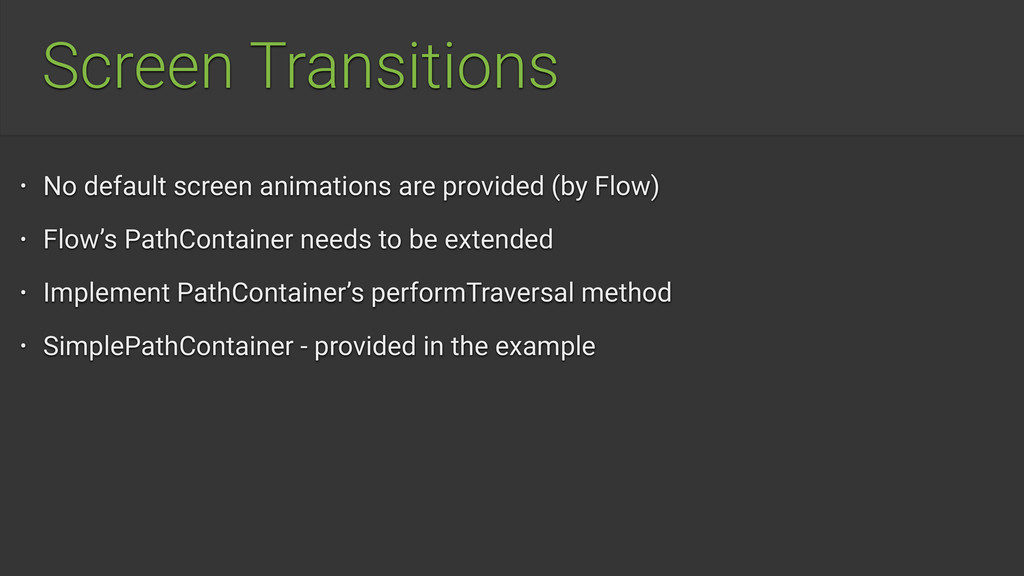

36. Screen Transitions • No default screen animations are provided (by Flow) • Flow’s PathContainer needs to be extended • Implement PathContainer’s performTraversal method • SimplePathContainer - provided in the example
37. Scale
38. Sliding
39. Screen Transitions
40. Screen Transitions

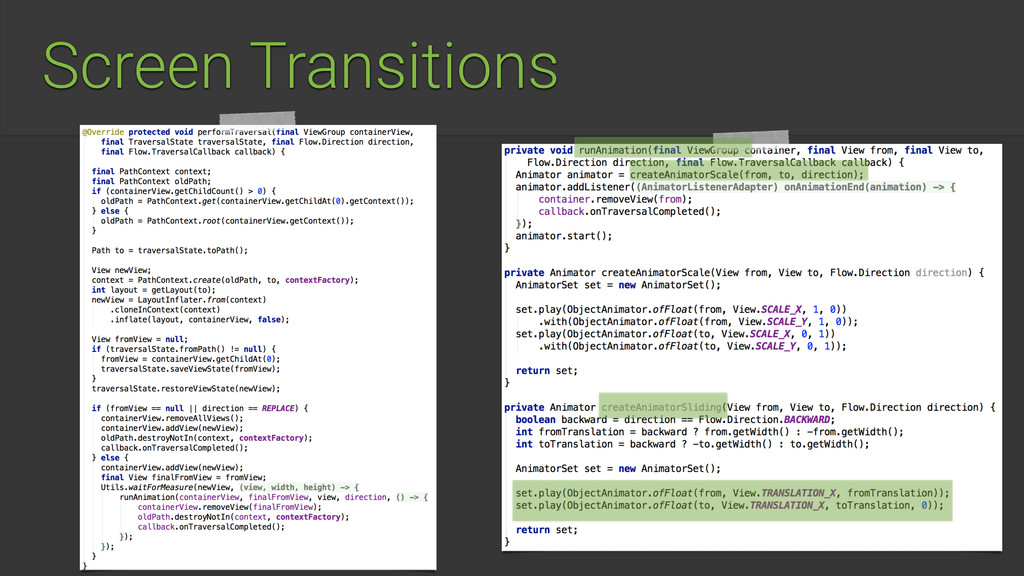

41. Screen Transitions
42. Screen Transitions

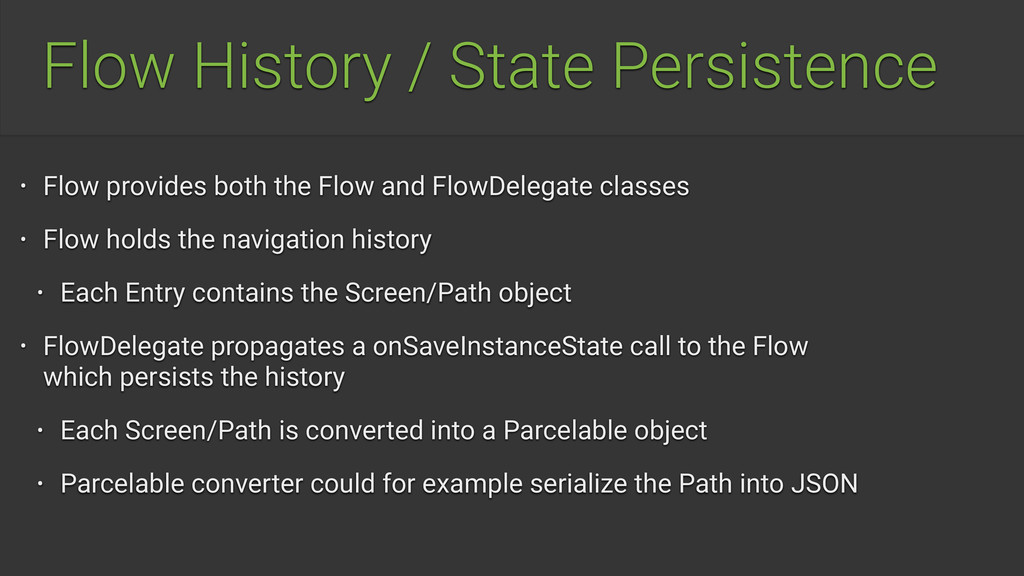

43. • Flow provides both the Flow and FlowDelegate classes • Flow holds the navigation history • Each Entry contains the Screen/Path object • FlowDelegate propagates a onSaveInstanceState call to the Flow which persists the history • Each Screen/Path is converted into a Parcelable object • Parcelable converter could for example serialize the Path into JSON Flow History / State Persistence
44. Flow History / State Persistence [Snippet from FlowDelegate]

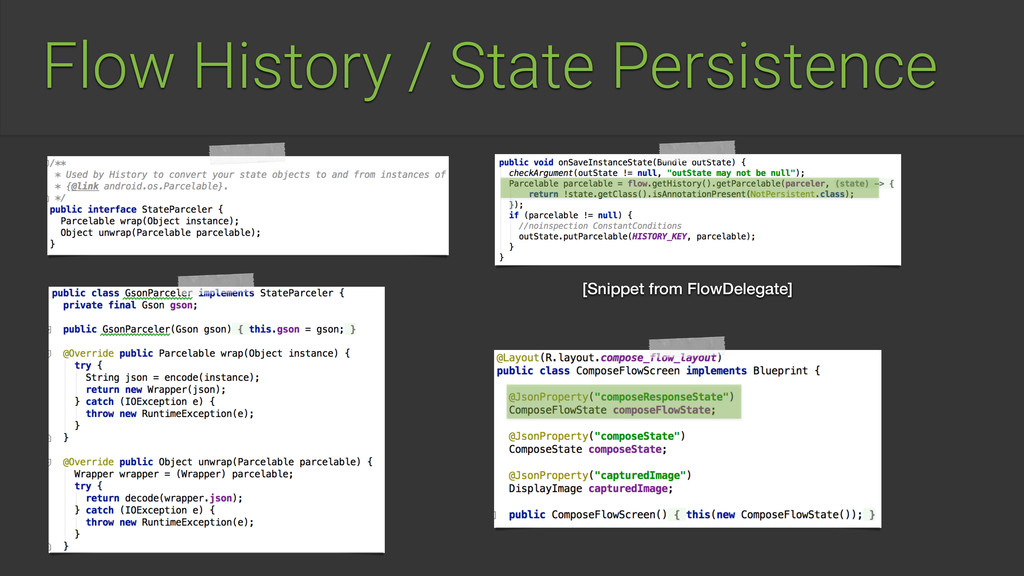

45. Flow History / State Persistence [Snippet from FlowDelegate]
46. Flow History / State Persistence [Snippet from FlowDelegate]
47. Flow History / State Persistence [Snippet from FlowDelegate]

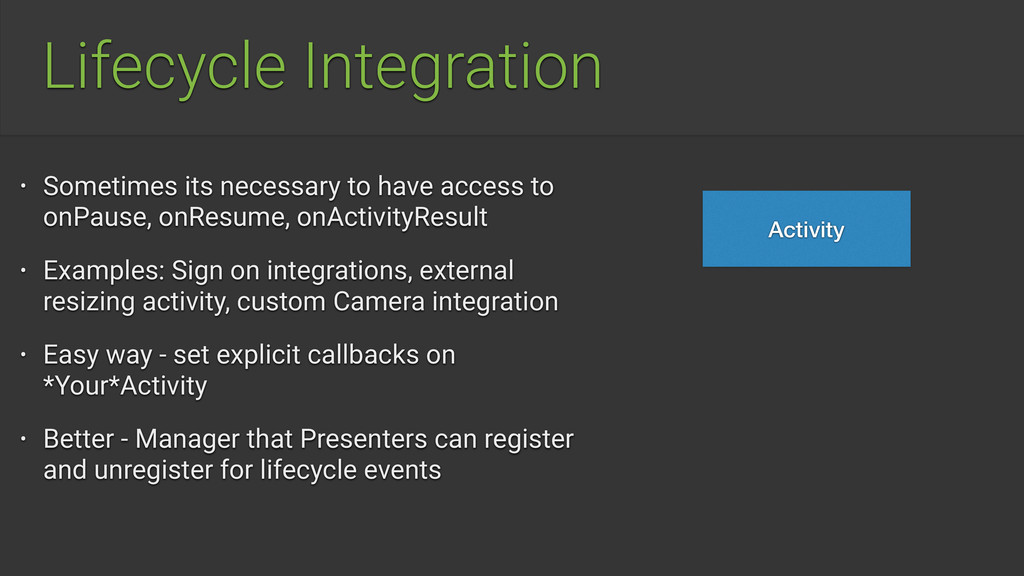

48. Lifecycle Integration • Sometimes its necessary to have access to onPause, onResume, onActivityResult • Examples: Sign on integrations, external resizing activity, custom Camera integration • Easy way - set explicit callbacks on *Your*Activity • Better - Manager that Presenters can register and unregister for lifecycle events Activity
49. Lifecycle Integration • Sometimes its necessary to have access to onPause, onResume, onActivityResult • Examples: Sign on integrations, external resizing activity, custom Camera integration • Easy way - set explicit callbacks on *Your*Activity • Better - Manager that Presenters can register and unregister for lifecycle events Activity LifecycleOwner
50. Lifecycle Integration • Sometimes its necessary to have access to onPause, onResume, onActivityResult • Examples: Sign on integrations, external resizing activity, custom Camera integration • Easy way - set explicit callbacks on *Your*Activity • Better - Manager that Presenters can register and unregister for lifecycle events Activity LifecycleOwner LifecycleViewPresenter

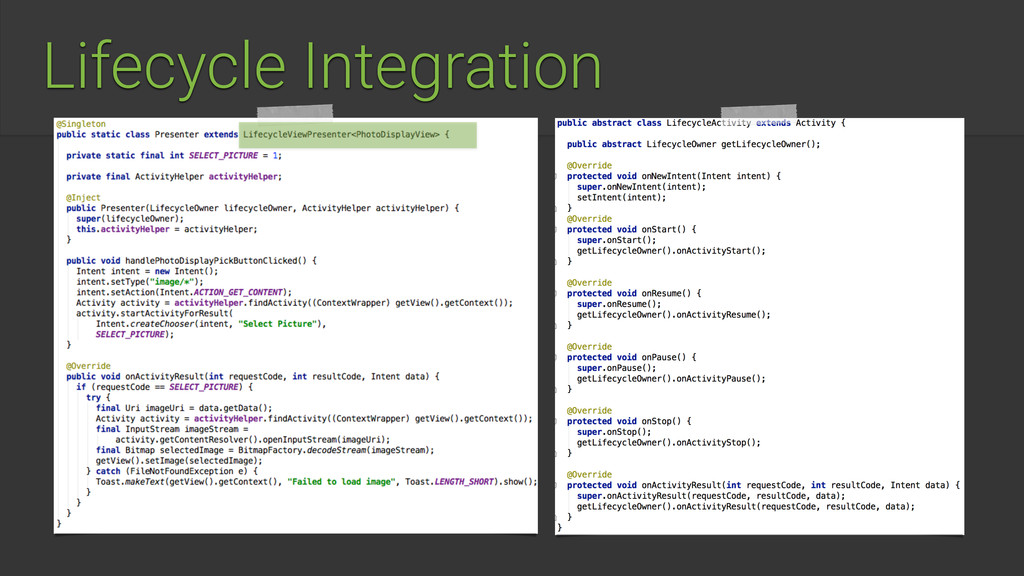

51. Lifecycle Integration
52. Lifecycle Integration

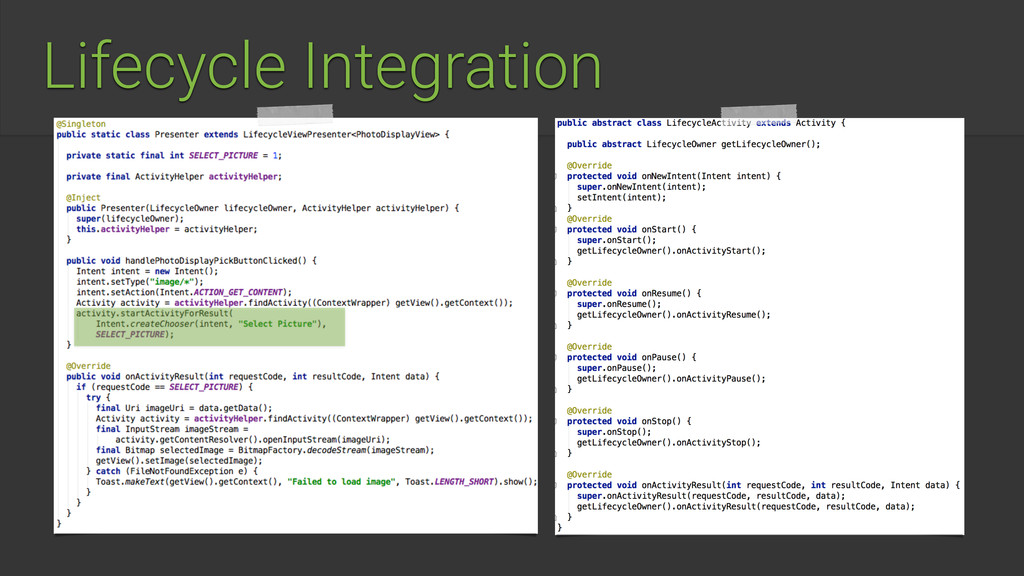

53. Lifecycle Integration

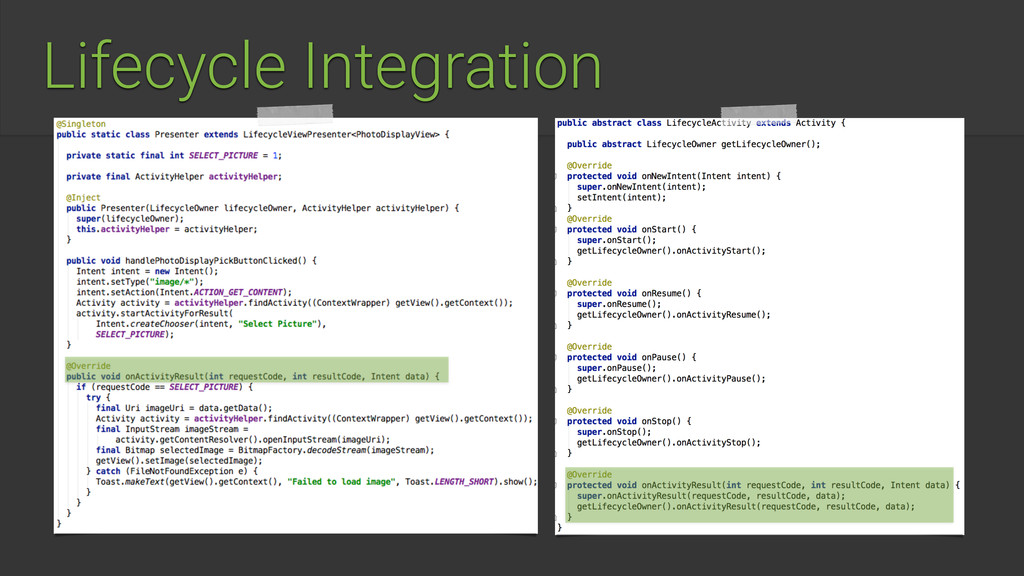

54. Lifecycle Integration
55. Lifecycle Integration

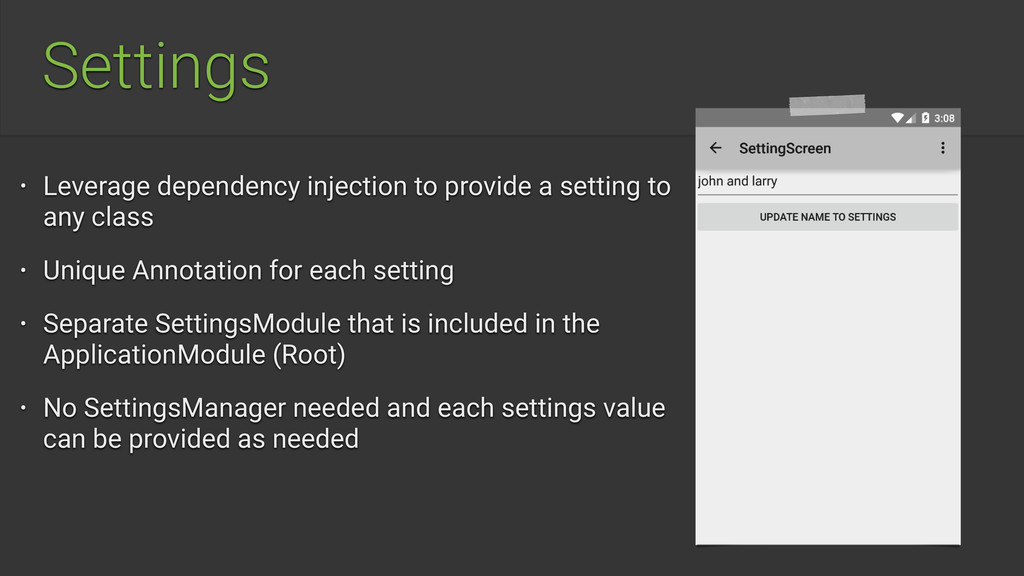

56. Settings • Leverage dependency injection to provide a setting to any class • Unique Annotation for each setting • Separate SettingsModule that is included in the ApplicationModule (Root) • No SettingsManager needed and each settings value can be provided as needed

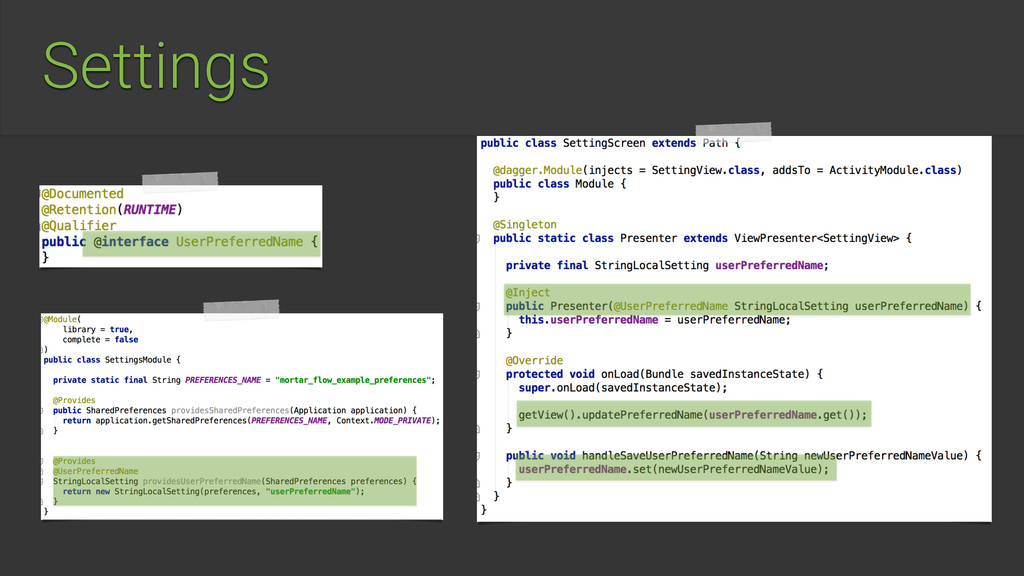

57. Settings
58. Takeaways • Mortar + Flow -> clean (M)VP architecture • Mortar’s scopes + objectGraphService = WIN • View and business logic are separated • Presenter can easily be unit tested
59. Resources • Flow - https://github.com/square/flow • Mortar - https://github.com/square/mortar • Example - In the Mortar repo • Mortar / Flow Example App - https://github.com/thorbenprimke/ mortar-flow-example-app
60. Thorben Primke thorben@primke.com
 @tprimke Questions?
