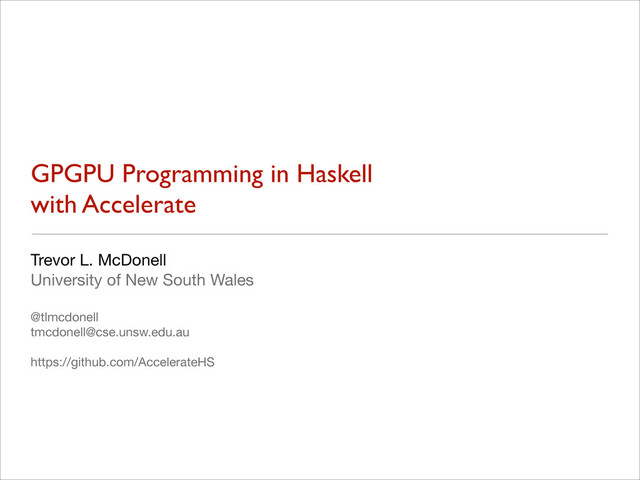

  1. GPGPU Programming in Haskell
    with Accelerate
    Trevor L. McDonell

    University of New South Wales

    !
    @tlmcdonell

    [email protected]

    !
    https://github.com/AccelerateHS

    View Slide

  2. What is GPGPU Programming?
    • General Purpose Programming on Graphics Processing Units (GPUs)

    • Using your graphics card for something other than playing games

    • GPUs have many more cores than a CPU

    - GeForce GTX Titan

    - 2688 cores @ 837 MHz

    - 6 GB memory @ 288 GB/s

    View Slide

  3. What is GPGPU Programming?
    • Main differences:

    - Single program multiple data (SPMD / SIMD), or just data-parallelism

    - All the cores run the same program, but on different data

    • We can’t program these in the same way as a CPU

    - Different instruction sets: can’t run a Haskell program directly

    - More restrictive hardware designs, limited control structures

    • GPUs have their own memory

    - Data has to be explicitly moved back and forth

    View Slide

  4. Dot product four ways
    • Dot-product: pair-wise multiply two arrays and sum the result

    • C (sequential):
    float  dotp(float  *xs,  float  *ys,  int  size)
    {
           int      i;
           float  sum  =  0;
    !
           for  (i  =  0;  i  <  size;  ++i)  {
                   sum  =  sum  +  xs[i]  *  ys[i];
           }
    !
           return  sum;
    }

    View Slide

  5. Dot product four ways
    • Haskell (sequential):
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  6. Dot product four ways
    • Haskell (sequential):
    - [Float] is a list of floating point numbers
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  7. Dot product four ways
    • Haskell (sequential):
    - [Float] is a list of floating point numbers
    - zipWith applies the function (*) element-wise to the two input lists
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  8. Dot product four ways
    • Haskell (sequential):
    - [Float] is a list of floating point numbers
    - zipWith applies the function (*) element-wise to the two input lists
    - foldl sums the result of zipWith
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  9. Dot product four ways
    • CUDA (parallel):
    - Step 1: element-wise multiplication
    __global__
    void  zipWithMult(float  *xs,  float  *ys,  float  *zs,  int  size)
    {
           int  i  =  blockDim.x  *  blockIdx.x  +  threadIdx.x;
    !
           if  (i  <  size)  {
                   zs[i]  =  xs[i]  *  ys[i];
           }
    }

    View Slide

  10. Dot product four ways
    • CUDA (parallel):
    - Step 1: element-wise multiplication
    - __global__ indicates this is a function that runs on the GPU
    __global__
    void  zipWithMult(float  *xs,  float  *ys,  float  *zs,  int  size)
    {
           int  i  =  blockDim.x  *  blockIdx.x  +  threadIdx.x;
    !
           if  (i  <  size)  {
                   zs[i]  =  xs[i]  *  ys[i];
           }
    }

    View Slide

  11. Dot product four ways
    • CUDA (parallel):
    - Step 1: element-wise multiplication
    - __global__ indicates this is a function that runs on the GPU
    - spawn one thread for each element in the vector: unique for each thread
    __global__
    void  zipWithMult(float  *xs,  float  *ys,  float  *zs,  int  size)
    {
           int  i  =  blockDim.x  *  blockIdx.x  +  threadIdx.x;
    !
           if  (i  <  size)  {
                   zs[i]  =  xs[i]  *  ys[i];
           }
    }

    View Slide

  12. Dot product four ways
    • CUDA (parallel):

    - Step 2: vector reduction … is somewhat complex
    struct  SharedMemory
    {
           __device__  inline  operator  float  *()
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    !
           __device__  inline  operator  const  float  *()  const
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    };
    !
    template
    __global__  void
    reduce_kernel(float  *g_idata,  float  *g_odata,  unsigned  int  n)
    {
           float  *sdata  =  SharedMemory();
    !
           unsigned  int  tid            =  threadIdx.x;
           unsigned  int  i                =  blockIdx.x*blockSize*2  +  threadIdx.x;
           unsigned  int  gridSize  =  blockSize*2*gridDim.x;
    !
           float  sum  =  0;
    !
           while  (i  <  n)  {
                   sum  +=  g_idata[i];
    !
                   if  (nIsPow2  ||  i  +  blockSize  <  n)
                           sum  +=  g_idata[i+blockSize];
    !
                   i  +=  gridSize;
           }
    !
           sdata[tid]  =  sum;
           __syncthreads();
    !
           if  (blockSize  >=  512)  {
                   if  (tid  <  256)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  256];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  256)  {
                   if  (tid  <  128)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  128];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  128)  {
                   if  (tid  <    64)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +    64];
                   }
    !
                   __syncthreads();
           }
    !
           if  (tid  <  32)
           {
                   volatile  float  *smem  =  sdata;
    !
                   if  (blockSize  >=    64)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  32];
                   }
    !
                   if  (blockSize  >=    32)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  16];
                   }
    !
                   if  (blockSize  >=    16)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    8];
                   }
    !
                   if  (blockSize  >=      8)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    4];
                   }
    !
                   if  (blockSize  >=      4)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    2];
                   }
    !
                   if  (blockSize  >=      2)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    1];
                   }
           }
    !
           if  (tid  ==  0)
                   g_odata[blockIdx.x]  =  sdata[0];
    }
    !
    void  getNumBlocksAndThreads(int  n,  int  maxBlocks,  int  maxThreads,  int  &blocks,  int  &threads)
    {
           cudaDeviceProp  prop;
           int  device;
           checkCudaErrors(cudaGetDevice(&device));
           checkCudaErrors(cudaGetDeviceProperties(&prop,  device));
    !
           threads  =  (n  <  maxThreads*2)  ?  nextPow2((n  +  1)/  2)  :  maxThreads;
           blocks    =  (n  +  (threads  *  2  -­‐  1))  /  (threads  *  2);
    !
           if  (blocks  >  prop.maxGridSize[0])
           {
                   blocks    /=  2;
                   threads  *=  2;
           }
    !
           blocks  =  min(maxBlocks,  blocks);
    }
    !
    float
    reduce(int  n,  float  *d_idata,  float  *d_odata)
    {
           int  threads        =  0;
           int  blocks          =  0;
           int  maxThreads  =  256;
           int  maxBlocks    =  64;
           int  size              =  n
    !
           while  (size  >  1)  {
                   getNumBlocksAndThreads(size,  maxBlocks,  maxThreads,  blocks,  threads);
    !
                   int  smemSize  =  (threads  <=  32)  ?  2  *  threads  *  sizeof(float)  :  threads  *  sizeof(float);
                   dim3  dimBlock(threads,  1,  1);
                   dim3  dimGrid(blocks,  1,  1);
    !
                   if  (isPow2(size))
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
                   else
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
    !
                   size  =  (size  +  (threads*2-­‐1))  /  (threads*2);
           }
    !
           float  sum;
           checkCudaErrors(cudaMemcpy(&sum,  d_odata,  sizeof(float),  cudaMemcpyDeviceToHost));
    !
    }
    !

    View Slide

  13. Dot product four ways
    • CUDA (parallel):

    - Step 2: vector reduction … is somewhat complex
    struct  SharedMemory
    {
           __device__  inline  operator  float  *()
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    !
           __device__  inline  operator  const  float  *()  const
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    };
    !
    template
    __global__  void
    reduce_kernel(float  *g_idata,  float  *g_odata,  unsigned  int  n)
    {
           float  *sdata  =  SharedMemory();
    !
           unsigned  int  tid            =  threadIdx.x;
           unsigned  int  i                =  blockIdx.x*blockSize*2  +  threadIdx.x;
           unsigned  int  gridSize  =  blockSize*2*gridDim.x;
    !
           float  sum  =  0;
    !
           while  (i  <  n)  {
                   sum  +=  g_idata[i];
    !
                   if  (nIsPow2  ||  i  +  blockSize  <  n)
                           sum  +=  g_idata[i+blockSize];
    !
                   i  +=  gridSize;
           }
    !
           sdata[tid]  =  sum;
           __syncthreads();
    !
           if  (blockSize  >=  512)  {
                   if  (tid  <  256)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  256];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  256)  {
                   if  (tid  <  128)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  128];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  128)  {
                   if  (tid  <    64)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +    64];
                   }
    !
                   __syncthreads();
           }
    !
           if  (tid  <  32)
           {
                   volatile  float  *smem  =  sdata;
    !
                   if  (blockSize  >=    64)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  32];
                   }
    !
                   if  (blockSize  >=    32)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  16];
                   }
    !
                   if  (blockSize  >=    16)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    8];
                   }
    !
                   if  (blockSize  >=      8)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    4];
                   }
    !
                   if  (blockSize  >=      4)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    2];
                   }
    !
                   if  (blockSize  >=      2)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    1];
                   }
           }
    !
           if  (tid  ==  0)
                   g_odata[blockIdx.x]  =  sdata[0];
    }
    !
    void  getNumBlocksAndThreads(int  n,  int  maxBlocks,  int  maxThreads,  int  &blocks,  int  &threads)
    {
           cudaDeviceProp  prop;
           int  device;
           checkCudaErrors(cudaGetDevice(&device));
           checkCudaErrors(cudaGetDeviceProperties(&prop,  device));
    !
           threads  =  (n  <  maxThreads*2)  ?  nextPow2((n  +  1)/  2)  :  maxThreads;
           blocks    =  (n  +  (threads  *  2  -­‐  1))  /  (threads  *  2);
    !
           if  (blocks  >  prop.maxGridSize[0])
           {
                   blocks    /=  2;
                   threads  *=  2;
           }
    !
           blocks  =  min(maxBlocks,  blocks);
    }
    !
    float
    reduce(int  n,  float  *d_idata,  float  *d_odata)
    {
           int  threads        =  0;
           int  blocks          =  0;
           int  maxThreads  =  256;
           int  maxBlocks    =  64;
           int  size              =  n
    !
           while  (size  >  1)  {
                   getNumBlocksAndThreads(size,  maxBlocks,  maxThreads,  blocks,  threads);
    !
                   int  smemSize  =  (threads  <=  32)  ?  2  *  threads  *  sizeof(float)  :  threads  *  sizeof(float);
                   dim3  dimBlock(threads,  1,  1);
                   dim3  dimGrid(blocks,  1,  1);
    !
                   if  (isPow2(size))
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
                   else
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
    !
                   size  =  (size  +  (threads*2-­‐1))  /  (threads*2);
           }
    !
           float  sum;
           checkCudaErrors(cudaMemcpy(&sum,  d_odata,  sizeof(float),  cudaMemcpyDeviceToHost));
    !
    }
    !

    View Slide

  14. Dot product four ways
    • CUDA (parallel):

    - Step 2: vector reduction … is somewhat complex
    struct  SharedMemory
    {
           __device__  inline  operator  float  *()
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    !
           __device__  inline  operator  const  float  *()  const
           {
                   extern  __shared__  int  __smem[];
                   return  (float  *)__smem;
           }
    };
    !
    template
    __global__  void
    reduce_kernel(float  *g_idata,  float  *g_odata,  unsigned  int  n)
    {
           float  *sdata  =  SharedMemory();
    !
           unsigned  int  tid            =  threadIdx.x;
           unsigned  int  i                =  blockIdx.x*blockSize*2  +  threadIdx.x;
           unsigned  int  gridSize  =  blockSize*2*gridDim.x;
    !
           float  sum  =  0;
    !
           while  (i  <  n)  {
                   sum  +=  g_idata[i];
    !
                   if  (nIsPow2  ||  i  +  blockSize  <  n)
                           sum  +=  g_idata[i+blockSize];
    !
                   i  +=  gridSize;
           }
    !
           sdata[tid]  =  sum;
           __syncthreads();
    !
           if  (blockSize  >=  512)  {
                   if  (tid  <  256)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  256];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  256)  {
                   if  (tid  <  128)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +  128];
                   }
    !
                   __syncthreads();
           }
    !
           if  (blockSize  >=  128)  {
                   if  (tid  <    64)  {
                           sdata[tid]  =  sum  =  sum  +  sdata[tid  +    64];
                   }
    !
                   __syncthreads();
           }
    !
           if  (tid  <  32)
           {
                   volatile  float  *smem  =  sdata;
    !
                   if  (blockSize  >=    64)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  32];
                   }
    !
                   if  (blockSize  >=    32)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +  16];
                   }
    !
                   if  (blockSize  >=    16)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    8];
                   }
    !
                   if  (blockSize  >=      8)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    4];
                   }
    !
                   if  (blockSize  >=      4)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    2];
                   }
    !
                   if  (blockSize  >=      2)  {
                           smem[tid]  =  sum  =  sum  +  smem[tid  +    1];
                   }
           }
    !
           if  (tid  ==  0)
                   g_odata[blockIdx.x]  =  sdata[0];
    }
    !
    void  getNumBlocksAndThreads(int  n,  int  maxBlocks,  int  maxThreads,  int  &blocks,  int  &threads)
    {
           cudaDeviceProp  prop;
           int  device;
           checkCudaErrors(cudaGetDevice(&device));
           checkCudaErrors(cudaGetDeviceProperties(&prop,  device));
    !
           threads  =  (n  <  maxThreads*2)  ?  nextPow2((n  +  1)/  2)  :  maxThreads;
           blocks    =  (n  +  (threads  *  2  -­‐  1))  /  (threads  *  2);
    !
           if  (blocks  >  prop.maxGridSize[0])
           {
                   blocks    /=  2;
                   threads  *=  2;
           }
    !
           blocks  =  min(maxBlocks,  blocks);
    }
    !
    float
    reduce(int  n,  float  *d_idata,  float  *d_odata)
    {
           int  threads        =  0;
           int  blocks          =  0;
           int  maxThreads  =  256;
           int  maxBlocks    =  64;
           int  size              =  n
    !
           while  (size  >  1)  {
                   getNumBlocksAndThreads(size,  maxBlocks,  maxThreads,  blocks,  threads);
    !
                   int  smemSize  =  (threads  <=  32)  ?  2  *  threads  *  sizeof(float)  :  threads  *  sizeof(float);
                   dim3  dimBlock(threads,  1,  1);
                   dim3  dimGrid(blocks,  1,  1);
    !
                   if  (isPow2(size))
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  true><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
                   else
                   {
                           switch  (threads)
                           {
                                   case  512:
                                           reduce_kernel<512,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  256:
                                           reduce_kernel<256,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  128:
                                           reduce_kernel<128,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  64:
                                           reduce_kernel<  64,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  32:
                                           reduce_kernel<  32,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case  16:
                                           reduce_kernel<  16,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    8:
                                           reduce_kernel<    8,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    4:
                                           reduce_kernel<    4,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    2:
                                           reduce_kernel<    2,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                                   case    1:
                                           reduce_kernel<    1,  false><<<  dimGrid,  dimBlock,  smemSize  >>>(d_idata,  d_odata,  size);
                                           break;
                           }
                   }
    !
                   size  =  (size  +  (threads*2-­‐1))  /  (threads*2);
           }
    !
           float  sum;
           checkCudaErrors(cudaMemcpy(&sum,  d_odata,  sizeof(float),  cudaMemcpyDeviceToHost));
    !
    }
    !
    o_O

    View Slide

  15. Dot product four ways
    • Accelerate (parallel):
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  16. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  17. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  18. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )

    View Slide

  19. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )
    left-to-right
    traversal

    View Slide

  20. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )
    left-to-right
    traversal
    neither left nor right:
    happens in parallel (tree-like)

    View Slide

  21. Dot product four ways
    • Accelerate (parallel):
    • Recall the sequential Haskell version:
    dotp  ::  Acc  (Vector  Float)  -­‐>  Acc  (Vector  Float)  -­‐>  Acc  (Scalar  Float)
    dotp  xs  ys  =  fold  (+)  0
                         (  zipWith  (*)  xs  ys  )
    dotp  ::  [Float]  -­‐>  [Float]  -­‐>  Float
    dotp  xs  ys  =  foldl  (+)  0
                         (  zipWith  (*)  xs  ys  )
    left-to-right
    traversal
    neither left nor right:
    happens in parallel (tree-like)
    But… how does it perform?

    View Slide

  22. Dot product four ways
    0.1
    1
    10
    100
    2 4 6 8 10 12 14 16 18 20
    Run Time (ms)
    Elements (millions)
    Dot product
    sequential
    Accelerate
    CUBLAS
    Tesla T10 (240 cores @ 1.3 GHz) vs. Xenon E5405 (2GHz)

    View Slide

  23. Dot product four ways
    0.1
    1
    10
    100
    2 4 6 8 10 12 14 16 18 20
    Run Time (ms)
    Elements (millions)
    Dot product
    sequential
    Accelerate
    CUBLAS
    1.2x
    Tesla T10 (240 cores @ 1.3 GHz) vs. Xenon E5405 (2GHz)

    View Slide

  24. Dot product four ways
    0.1
    1
    10
    100
    2 4 6 8 10 12 14 16 18 20
    Run Time (ms)
    Elements (millions)
    Dot product
    sequential
    Accelerate
    CUBLAS
    30x
    1.2x
    Tesla T10 (240 cores @ 1.3 GHz) vs. Xenon E5405 (2GHz)

    View Slide

  25. View Slide

  26. Mandelbrot fractal

    View Slide

  27. Mandelbrot fractal
    n-body gravitational simulation

    View Slide

  28. Mandelbrot fractal
    n-body gravitational simulation
    Canny edge detection

    View Slide

  29. Mandelbrot fractal
    n-body gravitational simulation
    Canny edge detection
    SmoothLife cellular automata

    View Slide

  30. Mandelbrot fractal
    n-body gravitational simulation
    Canny edge detection
    SmoothLife cellular automata
    stable fluid flow

    View Slide

  31. Mandelbrot fractal
    n-body gravitational simulation
    Canny edge detection
    SmoothLife cellular automata
    stable fluid flow
    ...
    d6b821d937a4170b3c4f8ad93495575d:  saitek1
    d0e52829bf7962ee0aa90550ffdcccaa:  laura1230
    494a8204b800c41b2da763f9bbbcc462:  lina03
    d8ff07c52a95b30800809758f84ce28c:  Jenny10
    e81bed02faa9892f8360c705241191ae:  carmen89
    46f7d75718029de99dd81fd907034bc9:  mellon22
    0dd3c176cf34486ec00b526b6920b782:  helena04
    9351c4bc8c8ba17b58d5a6a1f839f356:  85548554
    9c36c5599f40d08f874559ac824d091a:  585123456
    4b4dce6c91b429e8360aa65f97342e90:  5678go
    3aa561d4c17d9d58443fc15d10cc86ae:  momo55
    !
    Recovered  150/1000  (15.00  %)  digests  in  59.45  s,  185.03  MHash/sec
    Password “recovery” (MD5 dictionary attack)

    View Slide

  32. Accelerate
    • Accelerate is a Domain-Specific Language for GPU programming
    Haskell/Accelerate
    program
    CUDA code
    Compile with NVIDIA’s
    compiler & load onto the GPU
    Copy result back to Haskell
    Transform Accelerate
    program into CUDA program

    View Slide

  33. Accelerate
    • Accelerate is a Domain-Specific Language for GPU programming

    - This process may happen several times during program execution

    - Code and data fragments get cached and reused

    • An Accelerate program is a Haskell program that generates a CUDA program

    - However, in many respects this still looks like a Haskell program

    - Shares various concepts with Repa, a Haskell array library for CPUs

    View Slide

  34. Accelerate
    • To execute an Accelerate computation (on the GPU):
    - run comes from whichever backend we have chosen (CUDA)
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  35. Accelerate
    • To execute an Accelerate computation (on the GPU):
    - run comes from whichever backend we have chosen (CUDA)
    - Arrays constrains the result to be an Array, or tuple thereof
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  36. Accelerate
    • To execute an Accelerate computation (on the GPU):
    - run comes from whichever backend we have chosen (CUDA)
    - Arrays constrains the result to be an Array, or tuple thereof
    • What is Acc?
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  37. Accelerate
    • To execute an Accelerate computation (on the GPU):
    - run comes from whichever backend we have chosen (CUDA)
    - Arrays constrains the result to be an Array, or tuple thereof
    • What is Acc?
    - This is our DSL type
    - A data structure (Abstract Syntax Tree) representing a computation that
    once executed will yield a result of type ‘a’
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  38. Accelerate
    • To execute an Accelerate computation (on the GPU):
    - run comes from whichever backend we have chosen (CUDA)
    - Arrays constrains the result to be an Array, or tuple thereof
    • What is Acc?
    - This is our DSL type
    - A data structure (Abstract Syntax Tree) representing a computation that
    once executed will yield a result of type ‘a’
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a
    Accelerate is a library of
    collective operations over
    arrays of type Acc  a

    View Slide

  39. Accelerate
    • Accelerate computations take place on arrays
    - Parallelism is introduced in the form of collective operations over arrays
    Accelerate
    computation
    Arrays in Arrays out
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  40. Accelerate
    • Accelerate computations take place on arrays
    - Parallelism is introduced in the form of collective operations over arrays
    • Arrays have two type parameters
    data  Array  sh  e
    Accelerate
    computation
    Arrays in Arrays out
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  41. Accelerate
    • Accelerate computations take place on arrays
    - Parallelism is introduced in the form of collective operations over arrays
    • Arrays have two type parameters
    - The shape of the array, or dimensionality
    data  Array  sh  e
    Accelerate
    computation
    Arrays in Arrays out
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  42. Accelerate
    • Accelerate computations take place on arrays
    - Parallelism is introduced in the form of collective operations over arrays
    • Arrays have two type parameters
    - The shape of the array, or dimensionality
    - The element type of the array: Int, Float, etc.
    data  Array  sh  e
    Accelerate
    computation
    Arrays in Arrays out
    run  ::  Arrays  a  =>  Acc  a  -­‐>  a

    View Slide

  43. Arrays
    • Supported array element types are members of the Elt class:

    - ()

    - Int, Int32, Int64, Word, Word32, Word64...

    - Float, Double

    - Char

    - Bool

    - Tuples up to 9-tuples of these, including nested tuples

    • Note that Array itself is not an allowable element type. There are no nested
    arrays in Accelerate, regular arrays only!
    data  Array  sh  e

    View Slide

  44. Accelerate by example
    Mandelbrot fractal

    View Slide

  45. Mandelbrot set generator
    • Basics

    - Pick a window onto the complex plane & divide into pixels

    - A point is in the set if the value of does not diverge to infinity

    !
    - Each pixel has a value given by its coordinates in the complex plane

    - Colour depends on number of iterations before divergence

    • Each pixel is independent: lots of data parallelism
    c
    n
    |z|
    zn+1 = c + z2
    n

    View Slide

  46. Mandelbrot set generator
    • First, some types:
    - A pair of floating point numbers for the real and imaginary parts
    data  Complex     =  (Float,  Float)
    data  Array  sh  e

    View Slide

  47. Mandelbrot set generator
    • First, some types:
    - A pair of floating point numbers for the real and imaginary parts
    - DIM2 is a type synonym for a two dimensional Shape
    data  Complex     =  (Float,  Float)
    data  ComplexPlane
    =  Array  DIM2  Complex
    data  Array  sh  e

    View Slide

  48. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head

    View Slide

  49. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head

    View Slide

  50. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head

    View Slide

  51. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    • Examples:

    - One-dimensional array (Vector) indexed by Int: (Z  :.  Int)

    - Two-dimensional array, indexed by Int: (Z  :.  Int  :.  Int)
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head

    View Slide

  52. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    • Examples:

    - One-dimensional array (Vector) indexed by Int: (Z  :.  Int)

    - Two-dimensional array, indexed by Int: (Z  :.  Int  :.  Int)
    • This style is used at both the type and value level:
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head
    sh  ::  Z  :.  Int
    sh  =    Z  :.  10

    View Slide

  53. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    • Examples:

    - One-dimensional array (Vector) indexed by Int: (Z  :.  Int)

    - Two-dimensional array, indexed by Int: (Z  :.  Int  :.  Int)
    • This style is used at both the type and value level:
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head
    sh  ::  Z  :.  Int
    sh  =    Z  :.  10

    View Slide

  54. Shapes
    • Shapes determines the dimensions of the array and the type of the index

    - Z represents a rank-zero array (singleton array with one element)

    - (:.) increases the rank by adding a new dimension on the right
    • Examples:

    - One-dimensional array (Vector) indexed by Int: (Z  :.  Int)

    - Two-dimensional array, indexed by Int: (Z  :.  Int  :.  Int)
    • This style is used at both the type and value level:
    data  Z                        =  Z
    data  tail  :.  head  =  tail  :.  head
    sh  ::  Z  :.  Int
    sh  =    Z  :.  10

    View Slide

  55. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    z0 = c

    View Slide

  56. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    - Supported shape and element types: we will use DIM2 and Complex
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    z0 = c

    View Slide

  57. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    - Supported shape and element types: we will use DIM2 and Complex
    - Size of the result array: number of pixels in the image
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    z0 = c

    View Slide

  58. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    - Supported shape and element types: we will use DIM2 and Complex
    - Size of the result array: number of pixels in the image
    - A function to apply at every index: generate the values of at each pixel
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    c
    z0 = c

    View Slide

  59. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    - Supported shape and element types: we will use DIM2 and Complex
    - Size of the result array: number of pixels in the image
    - A function to apply at every index: generate the values of at each pixel
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    c
    z0 = c

    View Slide

  60. Mandelbrot set generator
    • The initial complex plane:
    • generate is a collective operation that yields a value for an index in the array
    - Supported shape and element types: we will use DIM2 and Complex
    - Size of the result array: number of pixels in the image
    - A function to apply at every index: generate the values of at each pixel
    generate  ::  (Shape  sh,  Elt  a)
                     =>  Exp  sh
                     -­‐>  (Exp  sh  -­‐>  Exp  a)
                     -­‐>  Acc  (Array  sh  a)
    c
    z0 = c
    If Acc is our DSL type,
    what is Exp?

    View Slide

  61. A Stratified Language
    • Accelerate is split into two worlds: Acc and Exp

    - Acc represents collective operations over instances of Arrays

    - Exp is a scalar computation on things of type Elt

    View Slide

  62. A Stratified Language
    • Accelerate is split into two worlds: Acc and Exp

    - Acc represents collective operations over instances of Arrays

    - Exp is a scalar computation on things of type Elt
    • Collective operations in Acc comprise many scalar operations in Exp,
    executed in parallel over Arrays

    - Scalar operations can not contain collective operations

    View Slide

  63. A Stratified Language
    • Accelerate is split into two worlds: Acc and Exp

    - Acc represents collective operations over instances of Arrays

    - Exp is a scalar computation on things of type Elt
    • Collective operations in Acc comprise many scalar operations in Exp,
    executed in parallel over Arrays

    - Scalar operations can not contain collective operations
    • This stratification excludes nested data parallelism

    View Slide

  64. Collective Operations
    • Collective operations comprise many scalar operations applied in parallel
    example  ::  Acc  (Vector  Int)
    example  =  generate  (constant  (Z:.10))
                                         (\ix  -­‐>  f  ix)

    View Slide

  65. Collective Operations
    • Collective operations comprise many scalar operations applied in parallel
    - constant lifts a plain value into Exp land of scalar expressions
    example  ::  Acc  (Vector  Int)
    example  =  generate  (constant  (Z:.10))
                                         (\ix  -­‐>  f  ix)
    constant  ::  Elt  e  =>  e  -­‐>  Exp  e

    View Slide

  66. Collective Operations
    • Collective operations comprise many scalar operations applied in parallel
    - constant lifts a plain value into Exp land of scalar expressions
    example  ::  Acc  (Vector  Int)
    example  =  generate  (constant  (Z:.10))
                                         (\ix  -­‐>  f  ix)
    generate  (constant  (Z:.10))  f
    constant  ::  Elt  e  =>  e  -­‐>  Exp  e

    View Slide

  67. Collective Operations
    • Collective operations comprise many scalar operations applied in parallel
    - constant lifts a plain value into Exp land of scalar expressions
    example  ::  Acc  (Vector  Int)
    example  =  generate  (constant  (Z:.10))
                                         (\ix  -­‐>  f  ix)
    f  0 f  1 f  2 f  3 f  4 f  5 f  6 f  7 f  8 f  9
    generate  (constant  (Z:.10))  f
    f  ::  Exp  DIM1  -­‐>  Exp  Int
    constant  ::  Elt  e  =>  e  -­‐>  Exp  e

    View Slide

  68. Collective Operations
    • Collective operations comprise many scalar operations applied in parallel
    - constant lifts a plain value into Exp land of scalar expressions
    example  ::  Acc  (Vector  Int)
    example  =  generate  (constant  (Z:.10))
                                         (\ix  -­‐>  f  ix)
    f  0 f  1 f  2 f  3 f  4 f  5 f  6 f  7 f  8 f  9
    Acc  (Vector  Int)
    constant  ::  Elt  e  =>  e  -­‐>  Exp  e

    View Slide

  69. Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin

    View Slide

  70. Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin

    View Slide

  71. - unlift has a funky type, but just unpacks “stuff”. lift does the reverse.
    Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin
    unlift  ::  Exp  (Z  :.  Int  :.  Int)
                 -­‐>  Z  :.  Exp  Int  :.  Exp  Int

    View Slide

  72. - unlift has a funky type, but just unpacks “stuff”. lift does the reverse.
    Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin
    unlift  ::  Exp  (F,F,F,F)
                 -­‐>  (Exp  F,  Exp  F,  Exp  F,  Exp  F)

    View Slide

  73. - unlift has a funky type, but just unpacks “stuff”. lift does the reverse.
    Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin

    View Slide

  74. - unlift has a funky type, but just unpacks “stuff”. lift does the reverse.
    - Even though operations are in Exp, can still use standard Haskell
    operations like (*) and (-­‐)
    Mandelbrot set generator
    genPlane  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  ComplexPlane
    genPlane  view  =
       generate  (constant  (Z:.600:.800))
                         (\ix  -­‐>  let  Z  :.  y  :.  x  =  unlift  ix
                                         in  lift  (  xmin  +  (fromIntegral  x  *  viewx)  /  800
                                                         ,  ymin  +  (fromIntegral  y  *  viewy)  /  600  ))
       where
           (xmin,ymin,xmax,ymax)  =  unlift  view
           viewx                                  =  xmax  -­‐  xmin
           viewy                                  =  ymax  -­‐  ymin

    View Slide

  75. Mandelbrot set generator
    • Let’s define the function we will iterate
    zn+1 = c + z2
    n
    next  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    next  c  z  =  plus  c  (times  z  z)

    View Slide

  76. Mandelbrot set generator
    • Let’s define the function we will iterate
    - Use lift and unlift as before to unpack the tuples
    zn+1 = c + z2
    n
    next  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    next  c  z  =  plus  c  (times  z  z)
    plus  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    plus  a  b  =  lift  (ax+bx,  ay+by)
       where
           (ax,ay)  =  unlift  a    ::  (Exp  Float,  Exp  Float)
           (bx,by)  =  unlift  b    ::  (Exp  Float,  Exp  Float)

    View Slide

  77. Mandelbrot set generator
    • Let’s define the function we will iterate
    - Use lift and unlift as before to unpack the tuples
    zn+1 = c + z2
    n
    next  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    next  c  z  =  plus  c  (times  z  z)
    plus  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    plus  a  b  =  lift  (ax+bx,  ay+by)
       where
           (ax,ay)  =  unlift  a    ::  (Exp  Float,  Exp  Float)
           (bx,by)  =  unlift  b    ::  (Exp  Float,  Exp  Float)
    lift  ::  (Exp  Float,  Exp  Float)
             -­‐>  Exp  (Float,  Float)

    View Slide

  78. Mandelbrot set generator
    • Let’s define the function we will iterate
    - Use lift and unlift as before to unpack the tuples
    - Note that we had to add some type signatures to unlift
    zn+1 = c + z2
    n
    next  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    next  c  z  =  plus  c  (times  z  z)
    plus  ::  Exp  Complex  -­‐>  Exp  Complex  -­‐>  Exp  Complex
    plus  a  b  =  lift  (ax+bx,  ay+by)
       where
           (ax,ay)  =  unlift  a    ::  (Exp  Float,  Exp  Float)
           (bx,by)  =  unlift  b    ::  (Exp  Float,  Exp  Float)
    lift  ::  (Exp  Float,  Exp  Float)
             -­‐>  Exp  (Float,  Float)

    View Slide

  79. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    zn+1 = c + z2
    n

    View Slide

  80. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    zn+1 = c + z2
    n
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  81. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    zn+1 = c + z2
    n
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  82. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    - dot is the magnitude of a complex number squared
    zn+1 = c + z2
    n
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  83. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    - dot is the magnitude of a complex number squared
    - Conditionals can lead to SIMD divergence, so use sparingly
    zn+1 = c + z2
    n
    (?)  ::  Elt  t  =>  Exp  Bool  -­‐>  (Exp  t,  Exp  t)  -­‐>  Exp  t
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  84. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    - dot is the magnitude of a complex number squared
    - Conditionals can lead to SIMD divergence, so use sparingly
    zn+1 = c + z2
    n
    (?)  ::  Elt  t  =>  Exp  Bool  -­‐>  (Exp  t,  Exp  t)  -­‐>  Exp  t
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  85. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    - dot is the magnitude of a complex number squared
    - Conditionals can lead to SIMD divergence, so use sparingly
    zn+1 = c + z2
    n
    (?)  ::  Elt  t  =>  Exp  Bool  -­‐>  (Exp  t,  Exp  t)  -­‐>  Exp  t
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  86. Mandelbrot set generator
    • Complication: GPUs must do the same thing to lots of different data
    - Keep a pair (z,i) for each pixel, where i is the point iteration diverged
    - fst and snd to extract individual tuple components
    - dot is the magnitude of a complex number squared
    - Conditionals can lead to SIMD divergence, so use sparingly
    zn+1 = c + z2
    n
    (?)  ::  Elt  t  =>  Exp  Bool  -­‐>  (Exp  t,  Exp  t)  -­‐>  Exp  t
    step  ::  Exp  Complex  -­‐>  Exp  (Complex,  Int)  -­‐>  Exp  (Complex,  Int)
    step  c  zi  =  f  (fst  zi)  (snd  zi)
       where
           f  z  i  =  let  z'  =  next  c  z
                           in    dot  z'  >*  4  ?  (  zi,  lift  (z',  i+1)  )

    View Slide

  87. Mandelbrot set generator
    • Accelerate is a meta programming language
    - So, just use regular Haskell to unroll the loop a fixed number of times
    zn+1 = c + z2
    n
    mandel  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  (Array  DIM2  (Complex,  Int))
    mandel  view  =
       Prelude.foldl1  (.)  (Prelude.replicate  255  go)  zs0
       where
           cs          =  genPlane  view
           zs0        =  zip  cs  (fill  (shape  cs)  0)
           go  zs    =  zipWith  step  cs  zs

    View Slide

  88. Mandelbrot set generator
    • Accelerate is a meta programming language
    - So, just use regular Haskell to unroll the loop a fixed number of times
    - zipWith applies its function step pairwise to elements of the two arrays
    zn+1 = c + z2
    n
    mandel  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  (Array  DIM2  (Complex,  Int))
    mandel  view  =
       Prelude.foldl1  (.)  (Prelude.replicate  255  go)  zs0
       where
           cs          =  genPlane  view
           zs0        =  zip  cs  (fill  (shape  cs)  0)
           go  zs    =  zipWith  step  cs  zs

    View Slide

  89. Mandelbrot set generator
    • Accelerate is a meta programming language
    - So, just use regular Haskell to unroll the loop a fixed number of times
    - zipWith applies its function step pairwise to elements of the two arrays
    - Replicate the transition step from to
    zn+1 = c + z2
    n
    mandel  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  (Array  DIM2  (Complex,  Int))
    mandel  view  =
       Prelude.foldl1  (.)  (Prelude.replicate  255  go)  zs0
       where
           cs          =  genPlane  view
           zs0        =  zip  cs  (fill  (shape  cs)  0)
           go  zs    =  zipWith  step  cs  zs
    zn
    zn+1

    View Slide

  90. Mandelbrot set generator
    • Accelerate is a meta programming language
    - So, just use regular Haskell to unroll the loop a fixed number of times
    - zipWith applies its function step pairwise to elements of the two arrays
    - Replicate the transition step from to
    - Applies the steps in sequence, beginning with the initial data zs0
    zn+1 = c + z2
    n
    mandel  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  (Array  DIM2  (Complex,  Int))
    mandel  view  =
       Prelude.foldl1  (.)  (Prelude.replicate  255  go)  zs0
       where
           cs          =  genPlane  view
           zs0        =  zip  cs  (fill  (shape  cs)  0)
           go  zs    =  zipWith  step  cs  zs
    zn
    zn+1

    View Slide

  91. Mandelbrot set generator
    • Accelerate is a meta programming language
    - So, just use regular Haskell to unroll the loop a fixed number of times
    - zipWith applies its function step pairwise to elements of the two arrays
    - Replicate the transition step from to
    - Applies the steps in sequence, beginning with the initial data zs0
    zn+1 = c + z2
    n
    mandel  ::  Exp  (Float,Float,Float,Float)  -­‐>  Acc  (Array  DIM2  (Complex,  Int))
    mandel  view  =
       Prelude.foldl1  (.)  (Prelude.replicate  255  go)  zs0
       where
           cs          =  genPlane  view
           zs0        =  zip  cs  (fill  (shape  cs)  0)
           go  zs    =  zipWith  step  cs  zs
    zn
    zn+1
    f (g x) ≣ (f . g) x

    View Slide

  92. In the workshop…
    • More example code, computational kernels

    - Common pitfalls

    - Tips for good performance

    - Figuring out what went wrong (or knowing who to blame)

    View Slide

  93. In the workshop…
    • More example code, computational kernels

    - Common pitfalls

    - Tips for good performance

    - Figuring out what went wrong (or knowing who to blame)
    me

    View Slide

  94. Questions?
    https://github.com/AccelerateHS/
    http://xkcd.com/365/

    View Slide

  95. Extra Slides…

    View Slide

  96. Seriously?

    View Slide

  97. Arrays
    • Create an array from a list:

    !
    - Generates a multidimensional array by consuming elements from the list
    and adding them to the array in row-major order

    • Example:
    data  Array  sh  e
    fromList  ::  (Shape  sh,  Elt  e)  =>  sh  -­‐>  [e]  -­‐>  Array  sh  e
    ghci>  fromList  (Z:.10)  [1..10]

    View Slide

  98. Arrays
    • Create an array from a list:
    data  Array  sh  e
    >  fromList  (Z:.10)  [1..10]  ::  Vector  Float
    Array  (Z  :.  10)  [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0,9.0,10.0]

    View Slide

  99. Arrays
    • Create an array from a list:
    • Multidimensional arrays are similar:

    - Elements are filled along the right-most dimension first
    data  Array  sh  e
    >  fromList  (Z:.10)  [1..10]  ::  Vector  Float
    Array  (Z  :.  10)  [1.0,2.0,3.0,4.0,5.0,6.0,7.0,8.0,9.0,10.0]
    >  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    Array  (Z  :.  3  :.  5)  [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]
    1 2 3 4 5
    6 7 8 9 10
    11 12 13 14 15

    View Slide

  100. Arrays
    • Array indices start counting from zero
    data  Array  sh  e
    >  let  mat  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  indexArray  mat  (Z:.2:.1)
    12
    1 2 3 4 5
    6 7 8 9 10
    11 12 13 14 15

    View Slide

  101. Arrays
    • Similarly, an array of (nested) tuples:

    - This is just a trick: internally converted into a tuple of arrays
    data  Array  sh  e
    >  fromList  (Z:.2:.3)  $  P.zip  [1..]  ['a'..]  ::  Array  DIM2  (Int,Char)
    Array  (Z  :.  2  :.  3)  [(1,'a'),(2,'b'),(3,'c'),(4,'d'),(5,'e'),(6,'f')]
    1 2 3
    4 5 6
    a b c
    d e f
    ( )
    ,

    View Slide

  102. Data.Array.Accelerate
    • Need to import both the base library as well as a backend

    - There is also an interpreter available for testing

    - Runs without using the GPU (much more slowly of course)
    import  Prelude                                        as  P
    import  Data.Array.Accelerate            as  A
    import  Data.Array.Accelerate.CUDA  as  CUDA

    View Slide

  103. Data.Array.Accelerate

    View Slide

  104. Data.Array.Accelerate
    • To get arrays into the Acc world:

    !
    - This may involve copying data to the GPU
    use  ::  Arrays  a  =>  a  -­‐>  Acc  a

    View Slide

  105. Data.Array.Accelerate
    • To get arrays into the Acc world:

    !
    - This may involve copying data to the GPU
    • use injects arrays into our DSL
    • run executes the computation to get arrays out
    • Using Accelerate focuses on everything in between
    use  ::  Arrays  a  =>  a  -­‐>  Acc  a

    View Slide

  106. Collective Operations
    • Example: add one to each element of an array
    >  let  arr  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.map  (+1)  (use  arr)
    Array  (Z  :.  3  :.  5)  [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]

    View Slide

  107. Collective Operations
    • Example: add one to each element of an array
    • What is the type of map?
    >  let  arr  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.map  (+1)  (use  arr)
    Array  (Z  :.  3  :.  5)  [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]
    map  ::  (Shape  sh,  Elt  a,  Elt  b)
           =>  (Exp  a  -­‐>  Exp  b)
           -­‐>  Acc  (Array  sh  a)
           -­‐>  Acc  (Array  sh  b)

    View Slide

  108. Collective Operations
    • Example: add one to each element of an array
    • What is the type of map?
    >  let  arr  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.map  (+1)  (use  arr)
    Array  (Z  :.  3  :.  5)  [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]
    map  ::  (Shape  sh,  Elt  a,  Elt  b)
           =>  (Exp  a  -­‐>  Exp  b)
           -­‐>  Acc  (Array  sh  a)
           -­‐>  Acc  (Array  sh  b)
    Supported shape &
    element types

    View Slide

  109. Collective Operations
    • Example: add one to each element of an array
    • What is the type of map?
    >  let  arr  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.map  (+1)  (use  arr)
    Array  (Z  :.  3  :.  5)  [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]
    map  ::  (Shape  sh,  Elt  a,  Elt  b)
           =>  (Exp  a  -­‐>  Exp  b)
           -­‐>  Acc  (Array  sh  a)
           -­‐>  Acc  (Array  sh  b)
    DSL array
    Supported shape &
    element types

    View Slide

  110. Collective Operations
    • Example: add one to each element of an array
    • What is the type of map?
    >  let  arr  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.map  (+1)  (use  arr)
    Array  (Z  :.  3  :.  5)  [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]
    map  ::  (Shape  sh,  Elt  a,  Elt  b)
           =>  (Exp  a  -­‐>  Exp  b)
           -­‐>  Acc  (Array  sh  a)
           -­‐>  Acc  (Array  sh  b)
    DSL array
    Function to apply at every
    element. But what is Exp?
    Supported shape &
    element types

    View Slide

  111. • The type class overloading trick is used for standard Haskell classes

    !
    • Standard boolean operations are available with slightly different names

    - The standard names can not be overloaded

    !
    • Conditionals

    - Use sparingly: leads to SIMD divergence
    (+1)  ::  (Elt  a,  IsNum  a)  =>  Exp  a  -­‐>  Exp  a
    Scalar Expressions
    (==*)  ::  (Elt  t,  IsScalar  t)  =>  Exp  t  -­‐>  Exp  t  -­‐>  Exp  Bool
    (/=*),  (<*),  (>*),  min,  max,  (||*),  (&&*)      -­‐-­‐  and  so  on...
    (?)  ::  Elt  t  =>  Exp  Bool  -­‐>  (Exp  t,  Exp  t)  -­‐>  Exp  t

    View Slide

  112. Scalar Expressions
    • Bring a Haskell value into Exp land

    !
    • Lift an expression into a singleton array

    !
    • Extract the element from a singleton array
    constant  ::  Elt  e  =>  e  -­‐>  Exp  e
    unit  ::  Exp  e  -­‐>  Acc  (Scalar  e)
    the  ::  Acc  (Scalar  e)  -­‐>  Exp  e

    View Slide

  113. Reductions
    • Folding (+) over a vector produces a sum

    - The result is a one-element array (scalar). Why?

    !
    >  let  xs  =  fromList  (Z:.10)  [1..]  ::  Vector  Int
    >  run  $  A.fold  (+)  0  (use  xs)
    Array  (Z)  [55]

    View Slide

  114. Reductions
    • Folding (+) over a vector produces a sum

    - The result is a one-element array (scalar). Why?

    !
    • Fold has an interesting type:
    >  let  xs  =  fromList  (Z:.10)  [1..]  ::  Vector  Int
    >  run  $  A.fold  (+)  0  (use  xs)
    Array  (Z)  [55]
    fold  ::  (Shape  sh,  Elt  a)
             =>  (Exp  a  -­‐>  Exp  a  -­‐>  Exp  a)
             -­‐>  Exp  a
             -­‐>  Acc  (Array  (sh:.Int)  a)
             -­‐>  Acc  (Array  sh                a)

    View Slide

  115. Reductions
    • Folding (+) over a vector produces a sum

    - The result is a one-element array (scalar). Why?

    !
    • Fold has an interesting type:
    >  let  xs  =  fromList  (Z:.10)  [1..]  ::  Vector  Int
    >  run  $  A.fold  (+)  0  (use  xs)
    Array  (Z)  [55]
    fold  ::  (Shape  sh,  Elt  a)
             =>  (Exp  a  -­‐>  Exp  a  -­‐>  Exp  a)
             -­‐>  Exp  a
             -­‐>  Acc  (Array  (sh:.Int)  a)
             -­‐>  Acc  (Array  sh                a)
    input array

    View Slide

  116. Reductions
    • Folding (+) over a vector produces a sum

    - The result is a one-element array (scalar). Why?

    !
    • Fold has an interesting type:
    >  let  xs  =  fromList  (Z:.10)  [1..]  ::  Vector  Int
    >  run  $  A.fold  (+)  0  (use  xs)
    Array  (Z)  [55]
    fold  ::  (Shape  sh,  Elt  a)
             =>  (Exp  a  -­‐>  Exp  a  -­‐>  Exp  a)
             -­‐>  Exp  a
             -­‐>  Acc  (Array  (sh:.Int)  a)
             -­‐>  Acc  (Array  sh                a)
    outer dimension removed
    input array

    View Slide

  117. Reductions
    • Fold occurs over the outer dimension of the array
    >  let  mat  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  A.fold  (+)  0  (use  mat)
    Array  (Z  :.  3)  [15,40,65]
    1 2 3 4 5
    6 7 8 9 10
    11 12 13 14 15
    15
    40
    65

    View Slide

  118. Reductions
    • Is this a left-fold or a right-fold?

    - Neither! The fold happens in parallel, tree-like

    - Therefore the function must be associative: (Exp  a  -­‐>  Exp  a  -­‐>  Exp  a)

    - (We pretend that floating point operations are associative, though strictly
    speaking they are not)

    View Slide

  119. Stencils
    • A stencil is a map with access to the neighbourhood around each element
    - Useful in many scientific & image processing algorithms
    laplace  ::  Stencil3x3  Int  -­‐>  Exp  Int
    laplace  ((_,t,_)
                   ,(l,c,r)
                   ,(_,b,_))  =  t  +  b  +  l  +  r  -­‐  4*c
    t
    l c r
    b

    View Slide

  120. Stencils
    • A stencil is a map with access to the neighbourhood around each element
    - Useful in many scientific & image processing algorithms
    - Boundary conditions specify how to handle out-of-bounds neighbours
    laplace  ::  Stencil3x3  Int  -­‐>  Exp  Int
    laplace  ((_,t,_)
                   ,(l,c,r)
                   ,(_,b,_))  =  t  +  b  +  l  +  r  -­‐  4*c
    >  let  mat  =  fromList  (Z:.3:.5)  [1..]  ::  Array  DIM2  Int
    >  run  $  stencil  laplace  (Constant  0)  (use  mat)
    Array  (Z  :.  3  :.  5)  [4,3,2,1,-­‐6,-­‐5,0,0,0,-­‐11,-­‐26,-­‐17,-­‐18,-­‐19,-­‐36]
    t
    l c r
    b

    View Slide

  121. Stencils
    • A stencil is a map with access to the neighbourhood around each element

    - Useful in many scientific & image processing algorithms

    View Slide

  122. Index Transforms
    • Index transforms change the order of elements, not their values

    - We usually want to push such operations into the consumer

    • backpermute specifies which element to read from a source array
    backpermute  ::  (Shape  ix,  Shape  ix',  Elt  a)
                           =>  Exp  ix'
                           -­‐>  (Exp  ix'  -­‐>  Exp  ix)
                           -­‐>  Acc  (Array  ix    a)
                           -­‐>  Acc  (Array  ix'  a)

    View Slide

  123. Index Transforms
    • Index transforms change the order of elements, not their values

    - We usually want to push such operations into the consumer

    • backpermute specifies which element to read from a source array
    backpermute  ::  (Shape  ix,  Shape  ix',  Elt  a)
                           =>  Exp  ix'
                           -­‐>  (Exp  ix'  -­‐>  Exp  ix)
                           -­‐>  Acc  (Array  ix    a)
                           -­‐>  Acc  (Array  ix'  a)
    shape of result

    View Slide

  124. Index Transforms
    • Index transforms change the order of elements, not their values

    - We usually want to push such operations into the consumer

    • backpermute specifies which element to read from a source array
    backpermute  ::  (Shape  ix,  Shape  ix',  Elt  a)
                           =>  Exp  ix'
                           -­‐>  (Exp  ix'  -­‐>  Exp  ix)
                           -­‐>  Acc  (Array  ix    a)
                           -­‐>  Acc  (Array  ix'  a)
    shape of result
    source data

    View Slide

  125. Index Transforms
    • Index transforms change the order of elements, not their values

    - We usually want to push such operations into the consumer

    • backpermute specifies which element to read from a source array
    backpermute  ::  (Shape  ix,  Shape  ix',  Elt  a)
                           =>  Exp  ix'
                           -­‐>  (Exp  ix'  -­‐>  Exp  ix)
                           -­‐>  Acc  (Array  ix    a)
                           -­‐>  Acc  (Array  ix'  a)
    shape of result
    source data
    index mapping from
    destination array to
    source

    View Slide

  126. Index Transforms
    • Index transforms change the order of elements, not their values
    transpose  mat  =
       let  swap  =  lift1  $  \(Z:.j:.i)  -­‐>  Z:.i:.j  ::  Z  :.  Exp  Int  :.  Exp  Int
       in    backpermute  (swap  $  shape  mat)  swap  mat
    1 2 3 4 5
    6 7 8 9 10
    11 12 13 14 15
    1 6 11
    2 7 12
    3 8 13
    4 9 14
    5 10 15

    View Slide
