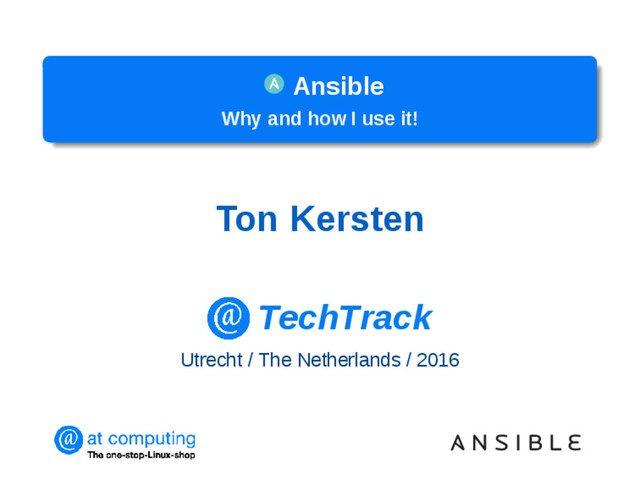

  1. Ansible
    Why and how I use it!
    Ton Kersten
    TechTrack
    Utrecht / The Netherlands / 2016

    View full-size slide

  2. Agenda
    1 Introduction
    2 Why
    3 How
    4 Recap
    5 Resources
    6 Question Time!
    ans-v1.8-2

    View full-size slide

  3. $ who am i
    UNIX/Linux consultant and Trainer @ AT Computing
    UNIX Nerd (started in 1986 with SunOS 3)
    Linux Geek (started in 1992 with 0.96α)
    Scripting Nerd
    Configuration Management addict
    Free and Open Source Software enthusiast
    HAM Operator (pa1ton)
    Programming
    Plain text aficionado
    Big fan of things that just work
    · · ·
    ans-v1.8-3

    View full-size slide

  4. Long ago
    Shell scripts
    SSH loops
    Parallel SSH
    Cluster SSH
    Screen synchronized windows
    tmux synchronized panes
    · · ·
    Things got out of control
    ans-v1.8-4

    View full-size slide

  5. Next
    CF Engine ⇒ The first Config Management tool
    Puppet ⇒ Widely used, master / slave
    Chef ⇒ Puppet lookalike, configured through Ruby
    Ansible ⇒ Easy to use, configured through yaml
    Salt Stack ⇒ master / slave
    Propellor ⇒ master / slave, configured through Haskell
    Juju ⇒ Ubuntu, designed for the cloud
    Capistrano ⇒ Scripting in Ruby
    Fabric ⇒ Python Library for CM (Only Python 2)
    Invoke ⇒ Python 3 successor of Fabric1
    Paver ⇒ Fabric alternative for Python 3
    · · ·
    1Seems to be the successor, but still beta. Has the same author
    ans-v1.8-5

    View full-size slide

  6. What I want
    Simple command
    root@master1 # easy-command install_database
    PLAY [dbservers] ****************************************
    TASK: [install package dbase] ***************************
    TASK: [deploy dbase config] *****************************
    TASK: [ensure dbased is running] ************************
    NOTIFIED: [restart dbased] ******************************
    PLAY RECAP **********************************************
    db1 : ok=1 changed=4 unreachable=0 failed=0
    ans-v1.8-6

    View full-size slide

  7. Why Ansible
    No master server
    No more daemons on the master
    No more agents on the nodes
    No databases
    No separate PKI
    Uses standard SSH functionality
    Very, very powerful
    Configuration, deployment, ad-hoc, continuous delivery
    Simple configuration files (yaml)
    Idempotent ⇒ f(x) = f(f(x))
    No convergence
    ans-v1.8-7

    View full-size slide

  8. Easy
    From nothing to production in a jiffy
    Python 2.6 + Paramiko, PyYAML, Jinja2 on master
    Python 2.4 + simplejson on nodes
    Can run in Python virtualenv
    Can run from git checkout
    Uses SSH for transport and login
    No root needed, can use sudo, pbrun, pfexec, etc.
    ans-v1.8-8

    View full-size slide

  9. Simple components (Commands)
    Ansible commands
    ansible ⇒ The main Ansible command
    ansible-playbook ⇒ Command to run playbooks
    ansible-pull ⇒ The main Ansible pull command
    ansible-doc ⇒ Ansible documentation program
    ansible-galaxy ⇒ Command to interact with Galaxy
    ansible-vault ⇒ The Ansible password vault
    ans-v1.8-9

    View full-size slide

  10. Simple components (Modules)
    A lot of modules
    Ansible version 1 ⇒ 250+
    Ansible version 2 ⇒ 450+
    Commands
    Files / templating
    Users
    Packages (yum, apt, zypper, …)
    Services
    Version control
    Databases
    · · · (See: ansible-doc)
    Or, write your own
    ans-v1.8-10

    View full-size slide

  11. Easy install
    On all operating systems
    Create a Python virtualenv
    # pip install ansible
    On CentOS / RHEL / Scientific Linux
    Enable the EPEL repository
    # yum install ansible
    On Debian / Ubuntu
    Available in standard repository
    # apt-get install ansible
    From github (Bleeding edge)
    Install and configure git
    $ git clone http://github.com/ansible/ansible.git
    $ cd ansible
    $ sudo make install
    ans-v1.8-11

    View full-size slide

  12. How it works
    Module(s)
    Management
    node
    Node
    Node
    Node
    Playbooks
    or
    roles
    Hosts
    no agents
    communication
    over SSH
    ans-v1.8-12

    View full-size slide

  13. My example network
    Management
    node
    Web server
    DB server
    Web server
    master1.example.net
    192.168.56.101/24
    web1.example.net
    192.168.56.102/24
    db1.example.net
    192.168.56.103/24
    web2.example.net
    192.168.56.104/24
    DNS server
    dns1.example.net
    192.168.56.105/24
    ans-v1.8-13

    View full-size slide

  14. Inventory file
    # cat /etc/ansible/hosts
    dns1 ansible_ssh_port=5555 ansible_ssh_user=ford
    web[1:9]
    [dnsservers]
    dns1
    [webservers]
    web[1:9] ansible_ssh_port=7856 ansible_ssh_user=zaphod
    [dbservers]
    db1 db_port=3501 default_db=vogon_poetry
    ans-v1.8-14

    View full-size slide

  15. Site playbook
    # cat /etc/ansible/site.yml
    - hosts: all
    user: ansible
    become: true
    become_user: root
    roles:
    - common
    - sudo
    - include: playbooks/dbase/main.yml
    ans-v1.8-15

    View full-size slide

  16. Running Ansible
    General ansible command form:
    ansible -m -a
    # ansible all -m ping -o
    web2 | success >> {"changed": false, "ping": "pong"}
    db1 | success >> {"changed": false, "ping": "pong"}
    web1 | success >> {"changed": false, "ping": "pong"}
    dns1 | success >> {"changed": false, "ping": "pong"}
    ans-v1.8-16

    View full-size slide

  17. Running a single command
    The command module is default
    # ansible webservers -a 'ls -l /etc/passwd'
    web2 | success | rc=0 >>
    -rw-r--r-- 1 root root 2302 Nov 25 13:20 /etc/passwd
    web1 | success | rc=0 >>
    -rw-r--r-- 1 root root 1906 Oct 26 19:31 /etc/passwd
    ans-v1.8-17

    View full-size slide

  18. Installing a package
    # ansible dbservers -m yum -a name=dbase
    db1 | success >> {
    "changed": false,
    "msg": "",
    "rc": 0,
    "results": [
    "dbase-3.0.2-1.el6.rf.x86_64 providing
    dbase is already installed"
    ]
    }
    ans-v1.8-18

    View full-size slide

  19. Playbooks
    Written in YAML
    Recipes of desired state, for which hosts
    Can use variables
    Can contain handlers
    When a state changes, take configured action
    Can be re-used
    ans-v1.8-19

    View full-size slide

  20. Simple playbook
    # cat /etc/ansible/playbooks/dbase/main.yml
    - hosts: dbservers
    tasks:
    - name: install package dbase
    yum: pkg=dbase state=present
    tags:
    - package
    - name: deploy dbase config
    template: src=dbased.conf.j2
    dest=/etc/dbased.conf
    owner=root group=root mode=0400
    notify:
    - restart dbased
    - name: ensure dbased is running
    service: name=dbased state=started enabled=yes
    handlers:
    - name: restart dbased
    service: name=dbased state=restarted
    ans-v1.8-20

    View full-size slide

  21. Playbook run
    # ansible-playbook playbooks/dbase/main.yml
    PLAY [dbservers] ****************************************
    TASK: [install package dbase] ***************************
    ok: [db1]
    TASK: [deploy dbase config] *****************************
    ok: [db1]
    TASK: [ensure dbased is running] ************************
    ok: [db1]
    NOTIFIED: [restart dbased] ******************************
    changed: [db1]
    PLAY RECAP **********************************************
    db1 : ok=1 changed=4 unreachable=0 failed=0
    ans-v1.8-21

    View full-size slide

  22. Gathering Facts
    # ansible web1 -m setup
    web1 | success >> {
    "ansible_facts": {
    "ansible_all_ipv4_addresses": [
    "192.168.56.102",
    "10.10.30.1"
    ],
    "ansible_all_ipv6_addresses": [
    "2001:123:1f19:480:20c:45ff:fe61:ac8d",
    "fe80::20c:45ff:fe61:ab8d"
    ],
    "ansible_architecture": "x86_64",
    "ansible_bios_date": "04/14/2014",
    "ansible_bios_version": "6.00",
    .
    .
    },
    "changed": false
    }
    ans-v1.8-22

    View full-size slide

  23. Templates
    Ansible uses the Jinja2 templating engine
    Variable substitution
    Loops
    Comments
    Conditionals
    Filters
    Ansible facts are available
    Puppet Facter facts are available (if installed)
    Chefs Ohai facts are available (if installed)
    ans-v1.8-23

    View full-size slide

  24. Templates
    # cat playbooks/dbase/dbase.conf.j2
    # Ansible information:
    # Filename : {{ template_path|replace("/etc/ansible", "...") }}
    # Filedate : {{ ansible_managed }}
    # Hostname : {{ ansible_hostname }}
    dbase {
    passwd {{ secretpassword }};
    port 9910; # Database port
    host localhost; # Database host
    }
    # (c) 2012-{{ ansible_date_time.year }} by {{ name }}
    ans-v1.8-24

    View full-size slide

  25. Roles
    Playbooks grow large and become unreadable
    A standard way of organizing things
    Can easily be shared with others (Through Galaxy)
    Ansible role directory structuur
    thisrole.............................................................Top of the role
    files..................................................................Role files
    handlers..........................................................Role handlers
    main.yml.............................................Role handlers start
    tasks..................................................................Role tasks
    main.yml.............................................Role starting point
    templates........................................................Role templates
    vars..............................................................Role variables
    main.yml............................................Role variables start
    ans-v1.8-25

    View full-size slide

  26. Roles in playbooks
    Using roles in playbooks
    - hosts: all
    roles:
    - common
    - users
    - sudo
    - hosts: webservers
    roles:
    - nginx
    - hosts: dbservers
    roles:
    - dbase
    ans-v1.8-26

    View full-size slide

  27. Recap
    Entire Ansible configuration is in a git repo
    Use become for root commands
    Configure authorized_keys for connections
    Run ansible script every hour
    Log playbook runs to /var/log/ansible.log
    Use Ansible callbacks to give feedback
    Use roles as much as possible
    Make roles generic
    Define variables for site configuration
    ans-v1.8-27

    View full-size slide

  28. Resources
    Website: http://www.ansible.com
    Documentation: http://docs.ansible.com
    IRC on Freenode: #ansible and #ansibleu
    Meetups: http://meetup.com/Ansible-Benelux
    Twitter: @ansible and @AnsibleBenelux
    Reddit: http://www.reddit.com/r/ansible
    Google Group: https://groups.google.com
    Weekly newsletter: https://valdhaus.com
    Checkout and study the source from github
    · · ·
    ans-v1.8-28

    View full-size slide

  29. Please!!!!
    Contribute to Ansible code
    Contribute to Ansible documentation
    Use roles from Galaxy
    Share roles on Galaxy
    Visit Ansible Meetups
    Spread the Ansible word. . .
    ans-v1.8-29

    View full-size slide

  30. Question Time!
    Questions??
    Contact me
    [email protected]
    http://www.atcomputing.nl
    https://github.com/tonk
    https://speakerdeck.com/tonk
    @TonKersten on Twitter
    TKersten on IRC
