Tomorrow's components, today!

A primer on W3C web components, including HTML imports, shadow dom, custom elements and HTML templates

Transcript

1. TOMORROW’S COMPONENTS, TODAY! <presentation>
2. HELLO Mike North UI Engineering Lead @MichaelLNorth
3. THE WEB WAS BUILT FOR… Document Viewer Document

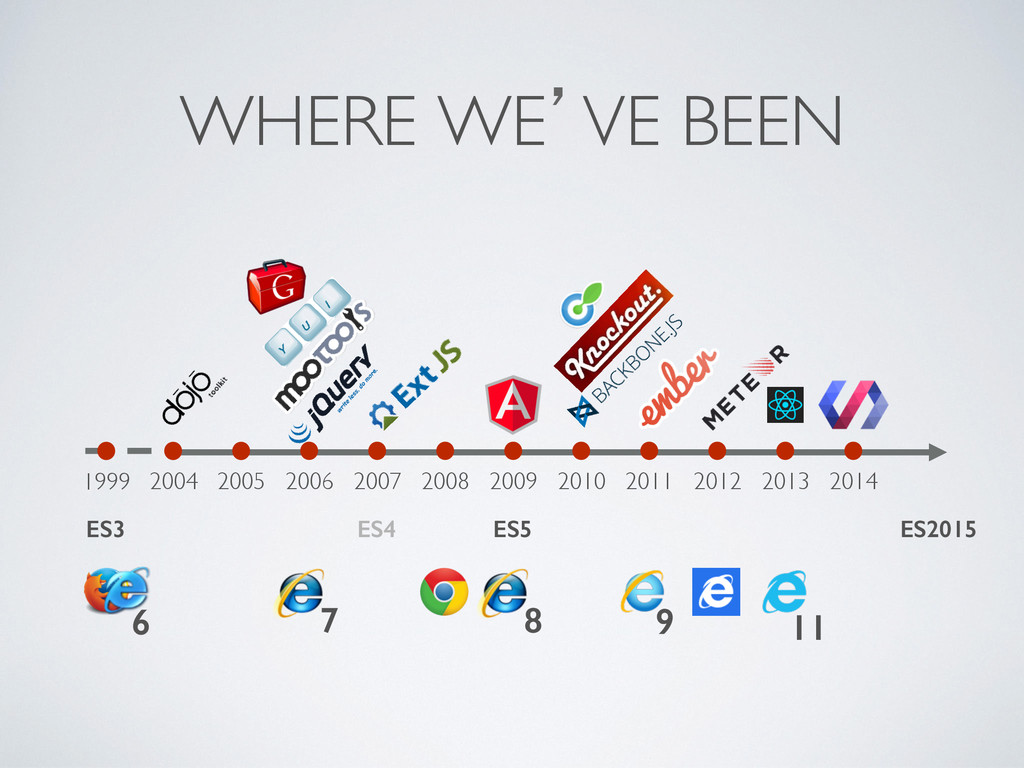

4. 2006 2007 2008 2009 2010 2011 2012 2013 2014 2005 2004 ES3! ES4! ES5! ES2015! 1999 6! 7! 8! 9! 11! WHERE WE’VE BEEN
5. THE BROWSER AS AN APPLICATION PLATFORM •  Powerful new language standards (TC39) •  Uniting around web standards (W3C) •  Use tomorrow’s technology today (Babel, Web Frameworks)
6. HOW COMPONENTS HELP •  Encapsulation •  Maintainability •  Testability •  Scalability •  Extensibility

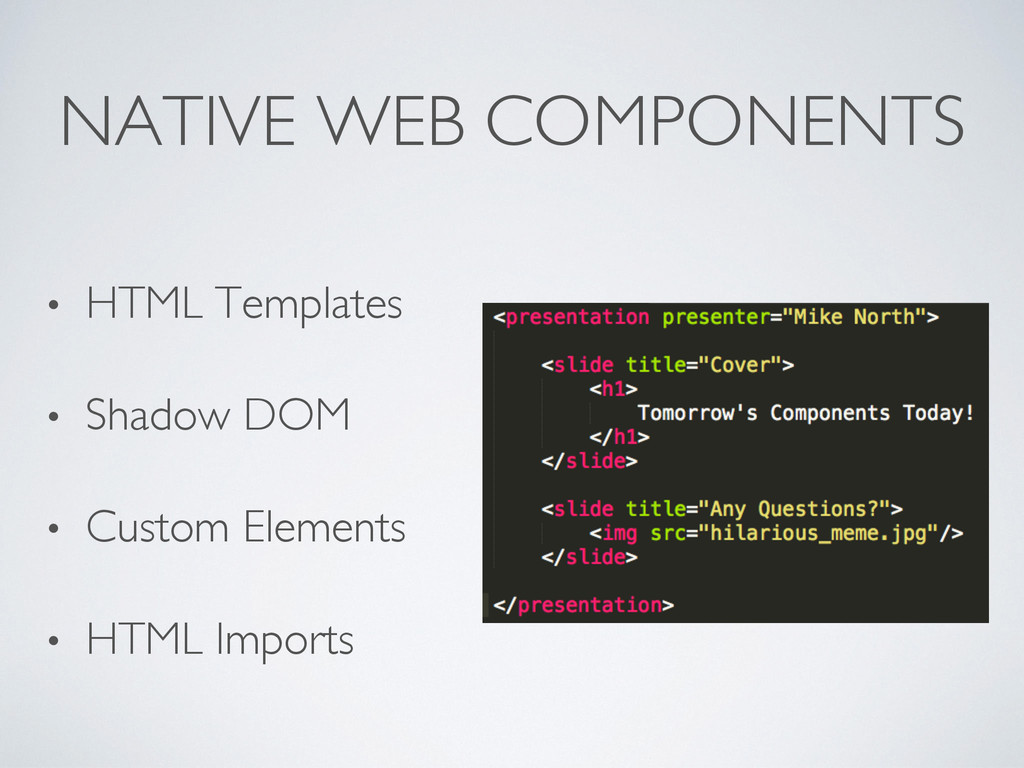

7. NATIVE WEB COMPONENTS •  HTML Templates •  Shadow DOM •  Custom Elements •  HTML Imports
8. HTML TEMPLATES What’s the point? •  Get some HTML into the DOM, and have it remain inert •  Defer loading of resources •  Defer rendering of content

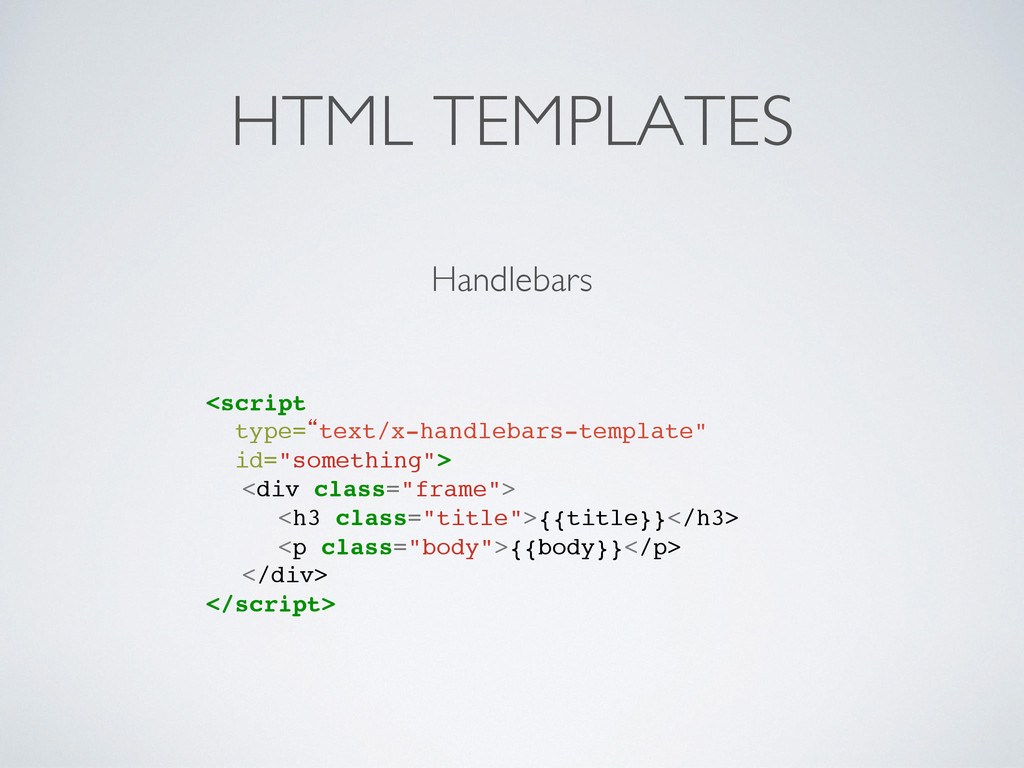

9. HTML TEMPLATES <script type=“text/x-handlebars-template" id="something"> <div class="frame"> <h3 class="title">{{title}}</h3> <p class="body">{{body}}</p> </div> </script> Handlebars
10. HTML TEMPLATES <template id="something"> <div class="frame"> <h3 class="title">I am a title</h3> <p class="body">I am the body</p> </div> </template> Native
11. HTML TEMPLATES <template id="something"> <!-- Some style --> <style type="text/css"> .title { font-size: 24px; } </style> <!-- Some behavior --> <script type="text/javascript"> </script> <!-- Some structure and content --> <div class="frame"> <h3 class="title">I am a title</h3> <p class="body">I am the body</p> </div> </template>
12. HTML TEMPLATES Add to the DOM Example: http://codepen.io/TrueNorth/pen/xbyVgL?editors=101 // Grab the template var tmpl = document.querySelector('#something'); // Add the cloned document fragment to the DOM document.body.appendChild( // Clone the template's document fragment document.importNode(tmpl.content, true) );

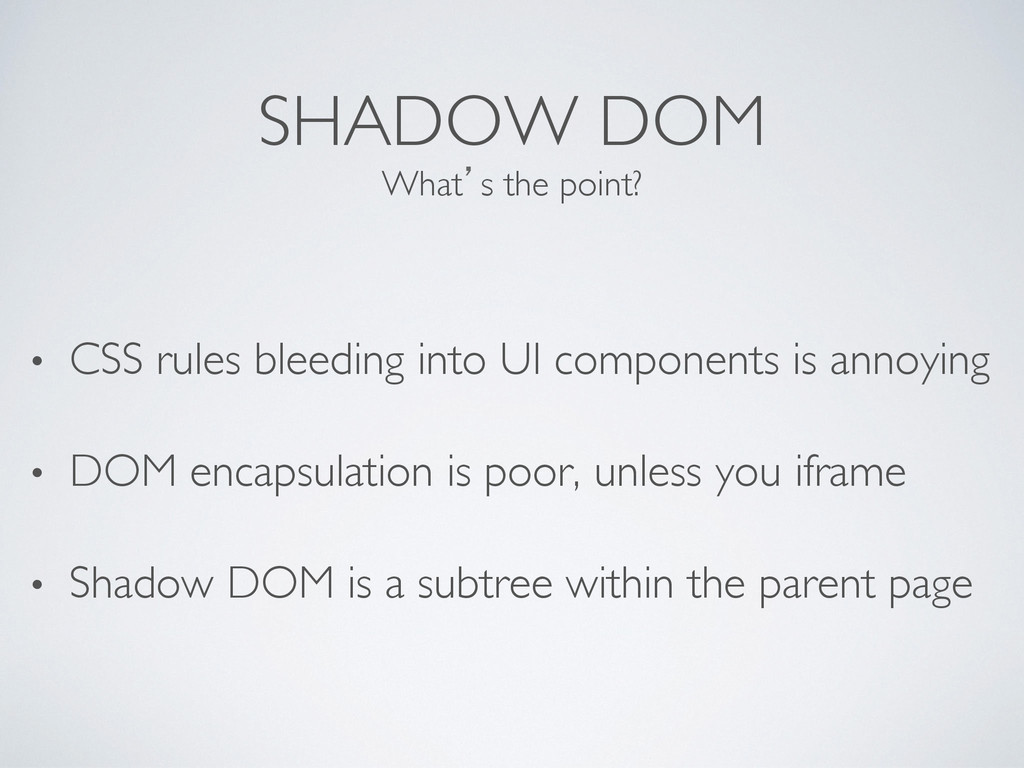

13. SHADOW DOM What’s the point? •  CSS rules bleeding into UI components is annoying •  DOM encapsulation is poor, unless you iframe •  Shadow DOM is a subtree within the parent page

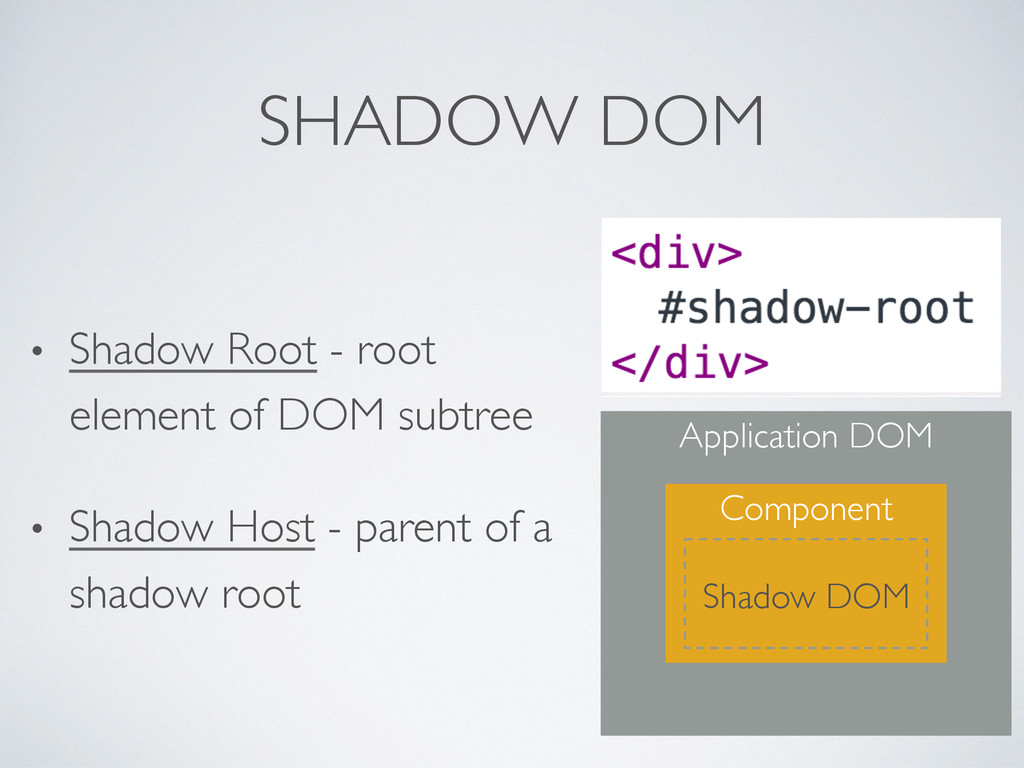

14. SHADOW DOM •  Shadow Root - root element of DOM subtree •  Shadow Host - parent of a shadow root Application DOM Component Shadow DOM
15. SHADOW DOM Creating a Shadow Root // Grab an element var elem = document.querySelector("#good-host"); // Create the shadow root var root = elem.createShadowRoot(); // Create a new element var h1 = document.createElement("h1"); h1.innerHTML = "Hello World"; // Append to the shadow root root.appendChild(h1);
16. SHADOW DOM Add a template to the mix Example: http://codepen.io/TrueNorth/pen/OPBNmq?editors=101 <template id="something"> <h1>Hello, world!</h1> <p>This is part of my component</p> </template> <div id="good-host"></div> // Grab an element var elem = document.querySelector("#good-host"); // Create the shadow root var root = elem.createShadowRoot(); // Grab the template var tmpl = document.querySelector('#something'); // Add the cloned document fragment to the DOM root.appendChild( // Clone the template's document fragment document.importNode(tmpl.content, true) );

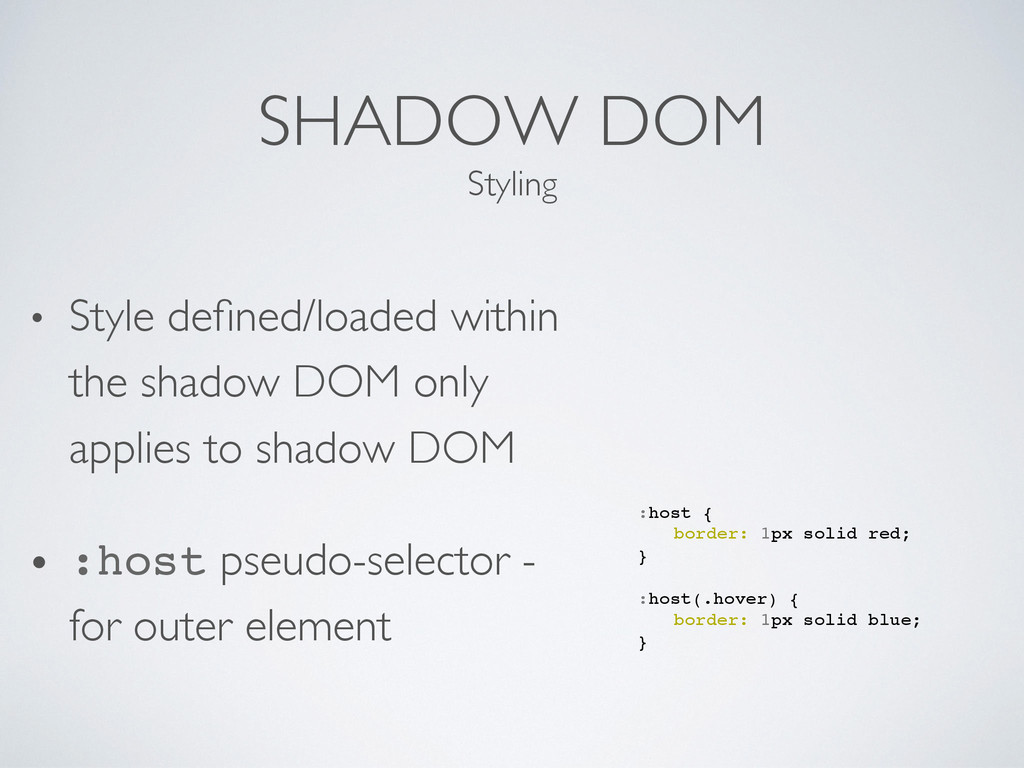

17. SHADOW DOM Styling •  Style defined/loaded within the shadow DOM only applies to shadow DOM •  :host pseudo-selector - for outer element :host { border: 1px solid red; } :host(.hover) { border: 1px solid blue; }

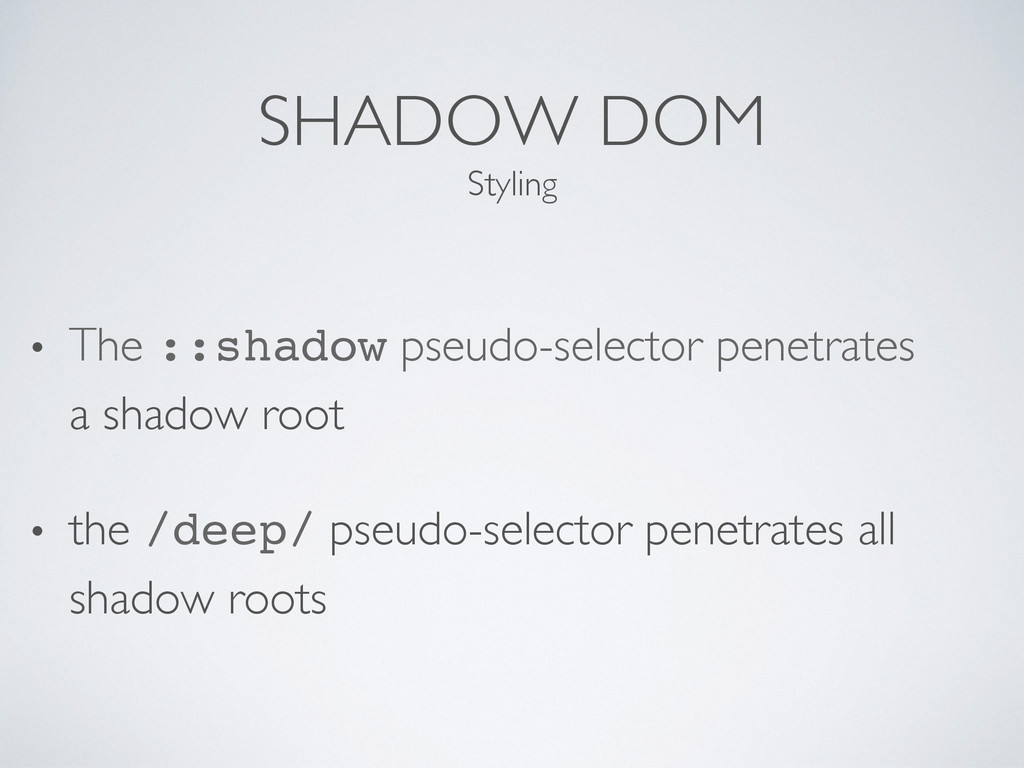

18. SHADOW DOM Styling •  The ::shadow pseudo-selector penetrates a shadow root •  the /deep/ pseudo-selector penetrates all shadow roots

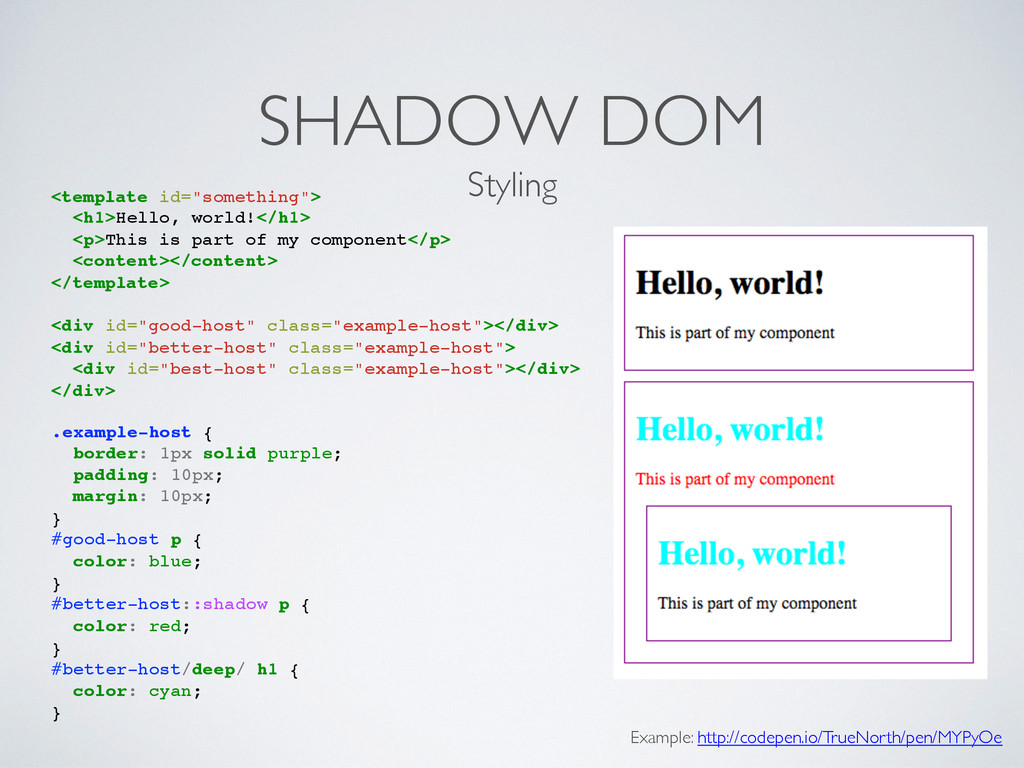

19. SHADOW DOM Styling .example-host { border: 1px solid purple; padding: 10px; margin: 10px; } #good-host p { color: blue; } #better-host::shadow p { color: red; } #better-host/deep/ h1 { color: cyan; } <template id="something"> <h1>Hello, world!</h1> <p>This is part of my component</p> <content></content> </template> <div id="good-host" class="example-host"></div> <div id="better-host" class="example-host"> <div id="best-host" class="example-host"></div> </div> Example: http://codepen.io/TrueNorth/pen/MYPyOe

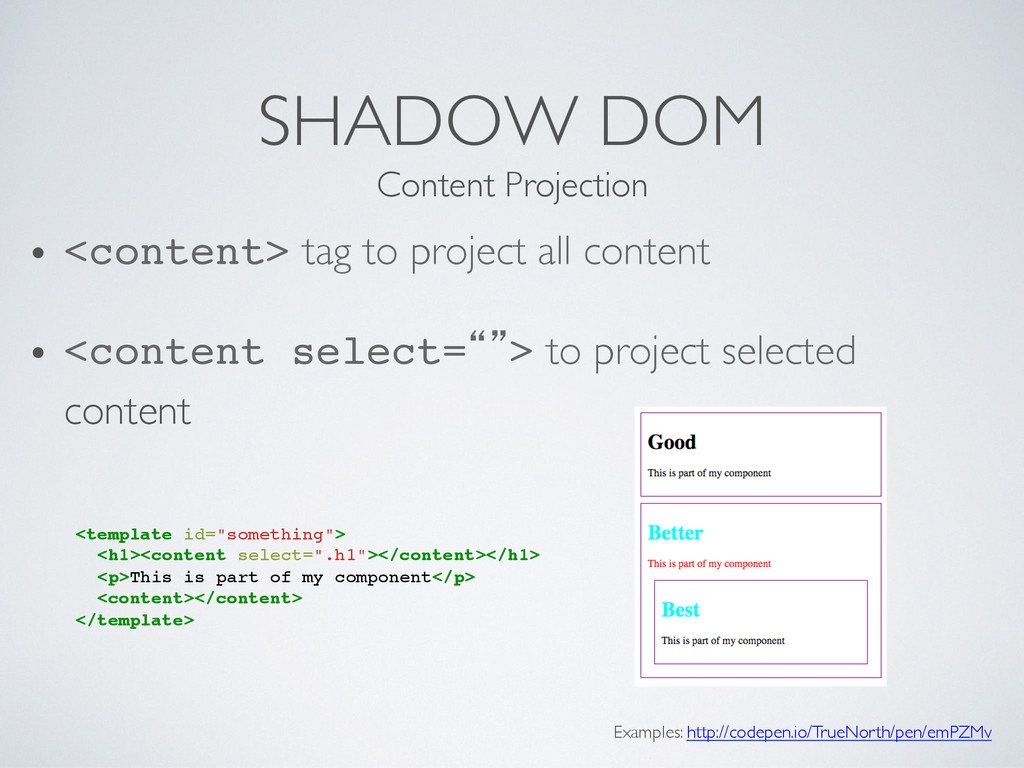

20. SHADOW DOM Content Projection •  <content> tag to project all content •  <content select=“”> to project selected content <template id="something"> <h1><content select=".h1"></content></h1> <p>This is part of my component</p> <content></content> </template> Examples: http://codepen.io/TrueNorth/pen/emPZMv
21. CUSTOM ELEMENTS What’s the point? •  Compose larger parts of an app declaratively •  Provide a standard and consistent life-cycle •  Extensibility
22. CUSTOM ELEMENTS Registering // Extend a DOM element prototype var MegaButtonProto = Object.create(HTMLButtonElement.prototype); // Register your new element type var MegaButton = document.registerElement("mega-button", { prototype: MegaButtonProto, extends: "button" });
23. CUSTOM ELEMENTS Adding templates // Template var infoBoxTemplate = document.querySelector('#info-pane-template'); // Register the custom element var InfoBox = document.registerElement("info-pane", { prototype: Object.create(HTMLElement.prototype, { createdCallback: { value: function () { // Create the shadow root this.createShadowRoot() // Add the template to the shadow root .appendChild( document.importNode( infoBoxTemplate.content, true) ); } } }) }); Examples: http://codepen.io/TrueNorth/pen/gbBmMR
24. HTML IMPORTS •  #include for the web •  onload, onerror hooks •  Can include CSS, JS and HTML •  Content can be accessed from the outside •  HTML Imported JS can reference either the main DOM or imported document fragment <link rel="import" href="myfile.html" /> // Get document fragment of an import var content = document .querySelector('link[rel="import"]') .import; // From a <script> included, // with the import access, // imported DOM document .currentScript .ownerDocument .querySelector('.abc');
25. A REAL USE CASE •  Declarative Syntax •  Responds to click •  Content projection •  Style on shadow root <hamburger-menu title="My Menu"> <hb-menu-item href="#abc" caption="Better get on these soon"> Serious Bugs </hb-menu-item> <hb-menu-item href="#def" caption="Oh %#@$!"> Really Serious Bugs </hb-menu-item> </hamburger-menu> Starting Point: http://codepen.io/TrueNorth/pen/PwdLrj Componentized: http://codepen.io/TrueNorth/pen/xbyqME HTML Importified: http://codepen.io/TrueNorth/pen/ogawLm
26. is recruiting
27. </presentation> <questions> ? </questions>
