Making your life easier with CustomViews

How to use and create Custom Views, reduce boilerplate codes and reuse your custom views

Transcript

1. M A K I N G YO U R L I F E E A S I E R W IT H C U S TO M V I E W S YG O R C É S A R
2. W H AT A R E V I E W ? “(View) This class represents the basic building block for user interface components. A View occupies a rectangular area on the screen and is responsible for drawing and event handling.  —  Oficial Android documentation”
3. W I D G E T S / V I E W G R O U P V I E W EditText Button TextView ViewGroup RelativeLayout LinearLayout FrameLayout
4. L I F E C YC L E
5. W H AT A R E C U S TO M V I E W S ?
6. W H E N U S E C U S TO M V I E W S ?
7. S O M E B E N E F IT S • Simplify your code • Make your code reusable • Encapsulation • Performance
8. View ViewGroup CustomView CustomView C R E AT I N G A C U S TO M V I E W
9. C O N S T R U CTO R Every view starts it’ s life from a Constructor. And what it gives us, is a great opportunity to prepare it for an initial drawing, make various calculation, set default values or whatever we need.
10. AT T R I B U T E S E T Make our view easy to use and setup
11. AT T R I B U T E S E T Create a new file in res/values and call it attrs.xml
12. L E T ’ S G O TO C O D E
13. I M P L E M E NT I N G A S E A R C H V I E W
14. S E A R C H V I E W class SearchView @JvmOverloads constructor( context: Context, attrs: AttributeSet? = null, defStyleAttr: Int = 0 ) : RelativeLayout(context, attrs, defStyleAttr) Create a new class extends from a View
15. S E A R C H V I E W <declare-styleable name="SearchView"> <attr name="sv_hint" format="reference"/> <attr name="sv_close_icon" format="reference"/> <attr name="sv_close_icon_color" format="color"/> <attr name="sv_field_focusable" format="boolean"/> <attr name="sv_close_button_visibility" format="enum"> <enum name="visible" value="0"/> <enum name="gone" value="1"/> </attr> </declare-styleable> Create a new declare-styleable on res/value/attrs.xml
16. S E A R C H V I E W init { val appearance = context.obtainStyledAttributes( attrs, R.styleable.SearchView ) // . . . } Obtain styled attributes
17. S E A R C H V I E W init { . . . val hintText = appearance.getResourceId( R.styleable.SearchView_sv_hint, R.string.search_hint ) val closeIconColor = appearance.getColor( R.styleable.SearchView_sv_close_icon_color, context.getColorRes(R.color.colorIconSecondary) ) val fieldIsFocusable = appearance.getBoolean( R.styleable.SearchView_sv_field_focusable, true ) val closeButtonVisibility = appearance.getInt( R.styleable.SearchView_sv_close_button_visibility, 0 ) // . . . } Fetch attributes

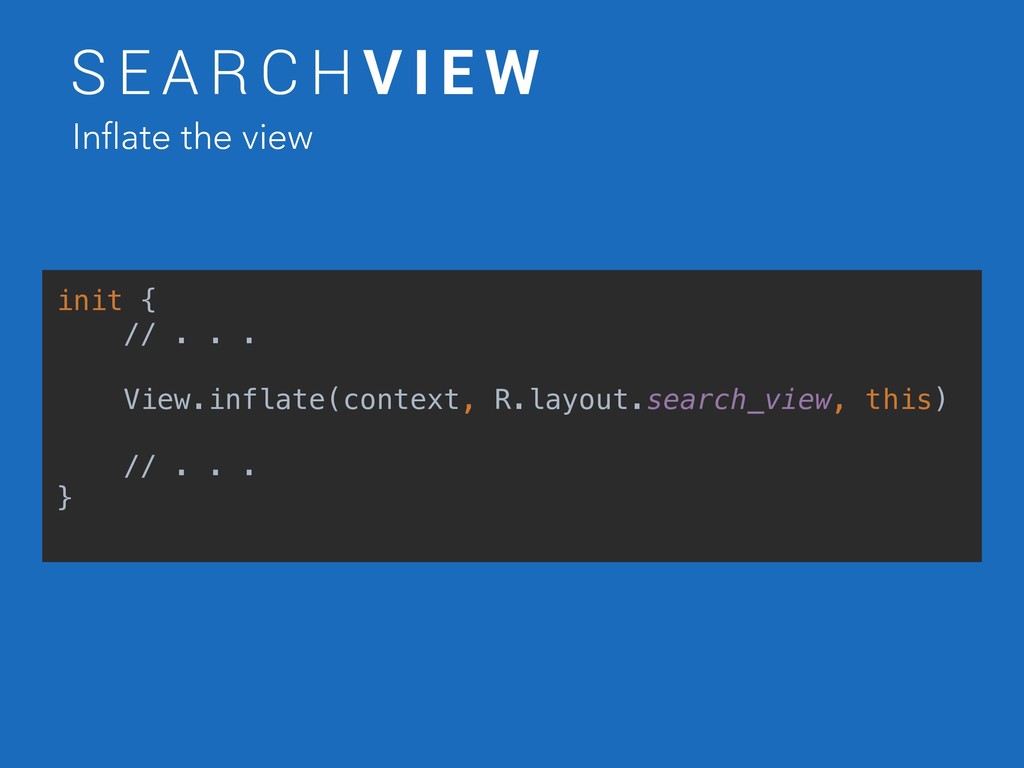

18. S E A R C H V I E W init { // . . . View.inflate(context, R.layout.search_view, this) // . . . } Inflate the view
19. S E A R C H V I E W init { // . . . searchCloseButton.apply { setImageResource(closeIconResId) setColorFilter(closeIconColor) isVisible = closeButtonVisibility == VISIBLE } searchFilter.isVisible = filterVisibility == VISIBLE searchField.apply { isFocusable = fieldIsFocusable isFocusableInTouchMode = fieldIsFocusable setHint(hintText) } onClearTextClick(isClearButtonEnabled) // . . . } Configure the components
20. S E A R C H V I E W init { // . . . appearance.recycle() // . . . } And then but not last
21. S E A R C H V I E W <merge android:layout_width="match_parent" android:layout_height="wrap_content"> <androidx.appcompat.widget.AppCompatImageView android:id="@+id/searchCloseButton" android:layout_width="wrap_content" android:layout_height="wrap_content" tools:src="@drawable/ic_close_black"/> <androidx.appcompat.widget.AppCompatEditText android:id="@+id/searchField" style="@style/SearchEditText" android:layout_width="match_parent" android:layout_height="wrap_content"/> <androidx.appcompat.widget.AppCompatImageView android:id="@+id/searchClearText" android:layout_width="wrap_content" android:layout_height="wrap_content" app:srcCompat="@drawable/ic_clear_text"/> <LinearLayout android:id="@+id/searchFilter" android:layout_width="wrap_content" android:layout_height="wrap_content"> <TextView android:id="@+id/searchFilterCount" android:layout_width=“22dp” android:layout_height="22dp" android:background="@drawable/circle"/> <TextView android:id="@+id/searchFilterText" android:layout_width="wrap_content" android:layout_height="wrap_content"/> </LinearLayout> </merge> The layout * The layout xml is no complete, only for show hierarchy and views
22. S E A R C H V I E W class SearchView @JvmOverloads constructor( . . . ) : RelativeLayout(. . .) { private val textObservable = PublishSubject.create<String>() fun observeTextChange(): Observable<String> { searchField?.addTextChangedListener(object : TextWatcher { override fun afterTextChanged(text: Editable?) { val query = text?.toString() ?: "" onTextChange(query) } }) return textObservable.debounce(1, TimeUnit.SECONDS) .filter { it != INVALID_VALUE } } } Encapsulation - Observing TextChange
23. S E A R C H V I E W class SearchView @JvmOverloads constructor( . . . ) : RelativeLayout(. . .) { fun onTextChange(query: String) { searchClearText?.apply { if (isEnabled) isVisible = query.isNotBlank() } when { query.length >= 3 -> textObservable.onNext(query) query.isBlank() -> textObservable.onNext(“") else -> textObservable.onNext(INVALID_VALUE) } } } Encapsulation - Notify TextChange
24. S E A R C H V I E W class SearchView @JvmOverloads constructor( . . . ) : RelativeLayout(. . .) { fun setFilterCount(count: Int) { if (count > 0) setFilterCount(count.toString()) else setFilterCount("") } private fun setFilterCount(count: String) { searchFilterCount?.apply { text = count isVisible = count.isNotBlank() } } } Encapsulation - set FilterCount
25. S E A R C H V I E W Using my CustomView in layout.xml
26. S E A R C H V I E W Using my CustomView in { Activity, Fragment, View } private fun setupSearchView() { searchView.apply { setOnCloseClick { finish() } setOnFilterClick { NavigationManager.goToFilter(this@SearchActivity) } setFilterCount(viewModel.filters.count) observeTextChange() .subscribe({ query -> viewModel.search(query) }, { Timber.e(it) }) .addToComposite(compositeDisposable) } }
27. T H A N K S , T H AT ’ S A L L F O L K S ! ! ! /ygorcesar @ygorcesar @ygorces4r ygorces4r@gmail
