Taming UI complexity with Typed State Machines

Managing state in UI apps is hard. Keeping a coherent mental model of it is even harder.

Finite State Machines seem to offer a good abstraction of the way we interact with UIs, making states and transitions between them explicit, and thus easier to reason about.

One of the nice things about FSMs is that only certain transitions are legal from each state. But is it possible to enforce that in code? It seems that, with some TypeScript magic, it is possible.

In this talk, you'll be exposed to a new perspective on implementing FSMs in JS/TS and how it compares to libraries such as XState or Redux (not really a FSM, but similar). You'll also see how this new approach can be used in real apps, using various libraries, such as React, Vue, and others, some of them quite unexpected.

Transcript

1. TAMING UI COMPLEXITY WITH TYPED STATES MACHINES
3. ‣ Software developer @ ‣ Doing React with Typescript @work ‣ Played with Elm @home ABOUT ME BOGDAN ZAHARIA @zaboco
4. http://bit.ly/taming-ui
5. POTENTIALLY ASKED QUESTIONS ‣ Do I need to know about state machines? ‣ NO ‣ Do I need to know Typescript? ‣ A LITTLE PAQ
6. in the real world State machines
7. STATES ‣ Idle 1. INSERT_CAN ‣ Loaded 2. PRESS_BUTTON ‣ Recycling 2.5 WAIT_FOR_RECYCLING ‣ Done 3. COLLECT_REWARD ‣ Idle (again)
8. Idle Loaded INSERT_CAN Recycling PRESS_BUTTON Done COLLECT_REWARD IDEAL WAIT_FOR_RECYCLING
9. Idle Loaded INSERT_CAN Recycling PRESS_BUTTON Done WAIT_FOR_RECYCLING COLLECT_REWARD REAL PRESS_BUTTON COLLECT_REWARD " WAIT_FOR_RECYCLING PRESS_BUTTON PRESS_BUTTON INSERT_CAN INSERT_CAN INSERT_CAN
10. But in software we can do better
11. WHAT ABOUT XSTATE? ‣ Great library, a lot of features. ‣ Can specify states and transitions: const recyclingMachine = Machine({ initial: "Idle", states: { Idle: { on: { INSERT_CAN: "Loaded" } }, "// ""... } }); ‣ Written in Typescript ‣ Does not enforce transitions recyclingMachine.transition('INSERT_CAN') "// Loaded recyclingMachine.transition('INSERT_CAN') "// still Loaded
12. WHAT ABOUT REDUX? What about it? Redux is not a state machine Or is it? Maybe Redux is a machine with 1 state.
13. But… Redux already uses “state” We’ll just call it Model
14. Let’s see an example
16. function reducer( model: AppModel = {}, action: AppAction ): AppModel { switch (action.type) { case 'LOGIN_SUCCESS': return { name: action.payload }; case 'LOGIN_ERROR': return { error: action.payload }; case 'LOGOUT': return {}; case 'NAME_TO_LOWERCASE': return { name: model.name.toLowerCase() } } } OUR REDUX APP type AppModel = { error"?: string; name"?: string; }; type AppAction = | { type: 'LOGIN_SUCCESS'; payload: string; } | { type: 'LOGIN_ERROR'; payload: string; } | { type: 'NAME_TO_LOWERCASE' } | { type: 'LOGOUT' }; ❗
17. Maybe we need to split the Model by state

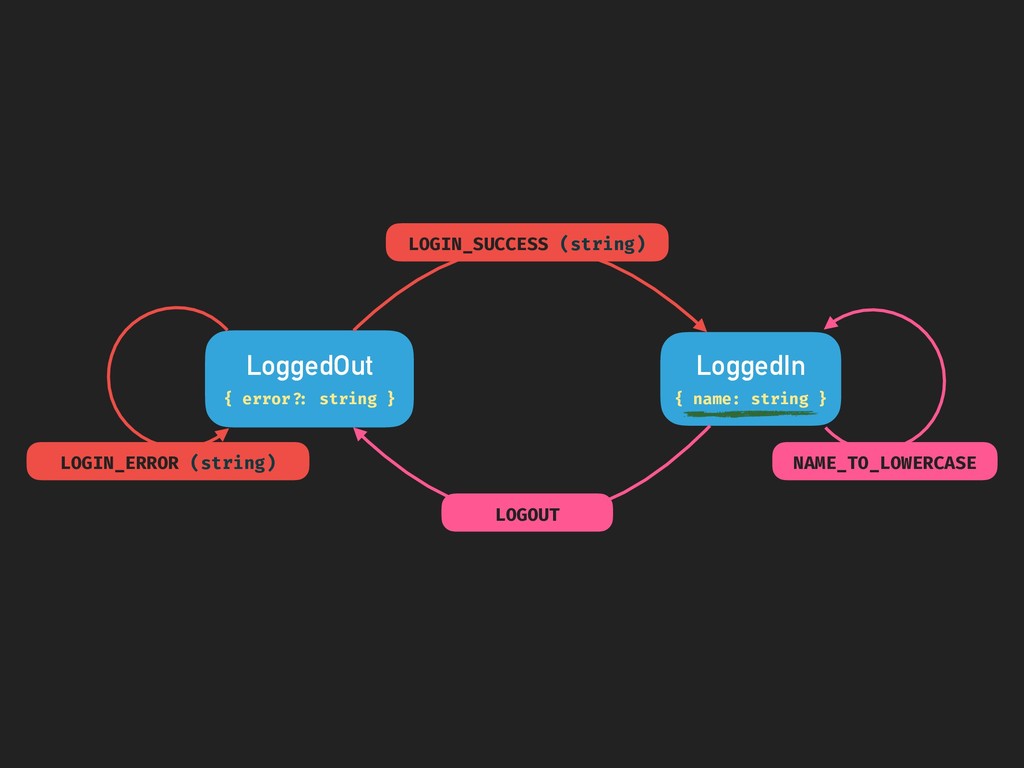

18. LoggedOut { error!?: string } LoggedIn { name: string } LOGIN_SUCCESS (string) LOGIN_ERROR (string) LOGOUT NAME_TO_LOWERCASE
19. But how do we restrict transitions?
20. View HOW UI IS HANDLED IN REDUX Store uses the model dispatch Machine transition OR XSTATE
21. LoggedIn View WHAT IF WE INVERT THE CONTROL? Machine {name:string} LOGOUT or NAME_TO_LOWERCASE LoggedOut View {error!?:string} LOGIN_SUCCESS or LOGIN_ERROR
22. Introducing typed-machine
23. Demo Time ▶
24. NOT ONLY REACT ‣ A machine is abstract ‣ Needs adapters (e.g. MachineAdapter for React) ‣ Same machine used with different views/adapters ‣ Other implemented (more or less) adapters: ✓ Vue.js ✓ CLI ✓ Koa (server-side)
26. Thanks! @zaboco
27. NEXT STEPS ๏ Update docs ๏ Scaling - machines inside machines (as model) [WIP] ๏ Async transitions (e.g. fetch requests) [WIP] x Routing x History - undo/redo x Time travel debugging x Eslint plugin (multiple dispatches, unreachable states)
28. WHAT IF I DON’T WANT TO USE TYPESCRIPT ‣ TS is still JS, so typed-machine can be used with JS - (all the type guarantees are lost) ‣ Try XState or others ‣ Port typed-machine to Flow or Reason
29. ๏ Repo: https://github.com/zaboco/typed-machine/tree/ jsheroes-demo ๏ Related talk: “Making Impossible states impossible” ‣ https://youtu.be/IcgmSRJHu_8 LINKS
