Non-Functional Testing and Tuning - A Scientific Approach

Slides from the presentation I gave with Kevin Rudland at the 2016 Devoxx UK Conference

Transcript

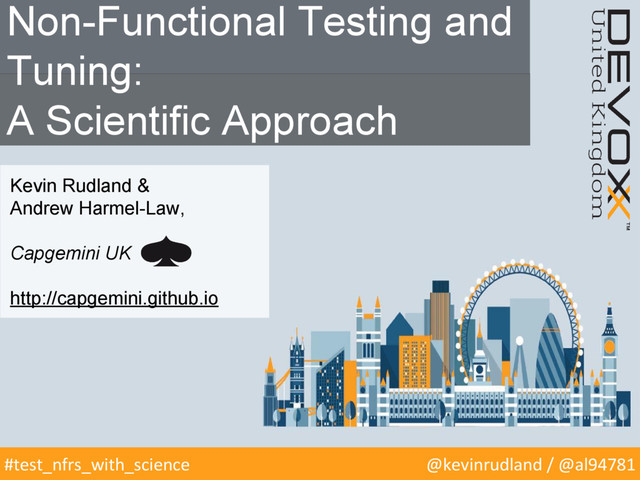

1. @YourTwitterHandle #YourSessionHashtag Kevin Rudland & Andrew Harmel-Law, Capgemini UK http://capgemini.github.io Non-Functional Testing and Tuning: A Scientific Approach @kevinrudland / @al94781 #test_nfrs_with_science
2. Who Are We ? • Andrew Harmel-Law • Kevin Rudland @kevinrudland / @al94781 #test_nfrs_with_science
3. The bit you always write at the end after you’ve done all the work which summarises your findings. ABSTRACT @kevinrudland / @al94781 #test_nfrs_with_science
4. Meta-Hypothesis: H1: We can give ourselves confidence that our hyper-distributed systems will meet our Non Functional Requirements by applying the same method that scientists use to understand and predict the world around us: Science; specifically the Scientific Method. @kevinrudland / @al94781 #test_nfrs_with_science
5. INTRODUCTION (Pt. 1) The bit where we try and get you to agree with us about the nature of the problem we need to solve. @kevinrudland / @al94781 #test_nfrs_with_science
6. Image from: http://www.slideshare.net/InfoQ/migrating-to-cloud-native-with-microservices (slide 66) @kevinrudland / @al94781 #test_nfrs_with_science
7. Have we lost, or are we in the process of losing, predictability in the systems we build? @kevinrudland / @al94781 #test_nfrs_with_science
8. But Wait... “...if you are trying to break new ground and be really innovative, that's where you have to apply first-principle thinking and try to identify the most fundamental truths in any particular arena and you reason up from there.” Elon Musk [Profiles in versatility - http: //www.aps. org/publications/apsnews/201310/profiles. cfm] talking about applying the methods of Physics to problems Musk at the 2015 Tesla Motors Annual Meeting Photo by Steve Jurvetson - https://www.flickr.com/photos/jurvetson/18659265152/, CC BY 2.0, https://commons.wikimedia.org/w/index.php?curid=40974345 @kevinrudland / @al94781 #test_nfrs_with_science
9. COUNTER-PROPOSAL: This proliferation is a good thing Scalability? - Up! Resilience? - Up! Service Availability? - Up! Maintainability? - Up! Monitorability? - Up! Deployment Frequency? - Up! Time-to-change? - Down! Flexibility? - Up! Cost? - Focussed! @kevinrudland / @al94781 #test_nfrs_with_science
10. Rather than having lost predictability, did we ever really have it in the first place? And haven’t we actually gained as a result? @kevinrudland / @al94781 #test_nfrs_with_science
11. So then how do we know we have these qualities? (Given that we’re agreed we've fundamentally relinquished *control* of them.) @kevinrudland / @al94781 #test_nfrs_with_science
12. from “The Phoenix Project: A Novel About IT, DevOps, and Helping Your Business Win" by Gene Kim, Kevin Behr & George Spafford @kevinrudland / @al94781 #test_nfrs_with_science
13. 1. Testing simply to validate is no longer enough 16th-century illustration of Archimedes in the bath, with Hiero's crown at bottom right By Unknown - Historia N° 767 - Novembre 2010 - page 38, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=12080104 @kevinrudland / @al94781 #test_nfrs_with_science
14. @kevinrudland / @al94781 #test_nfrs_with_science 1. Testing simply to validate is no longer enough 2. We must test to investigate and learn 16th-century illustration of Archimedes in the bath, with Hiero's crown at bottom right By Unknown - Historia N° 767 - Novembre 2010 - page 38, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=12080104
15. 1. Testing simply to validate is no longer enough 2. We must test to investigate and learn 3. And the best way to do that is to hypothesise, experiment, measure and adapt… 16th-century illustration of Archimedes in the bath, with Hiero's crown at bottom right By Unknown - Historia N° 767 - Novembre 2010 - page 38, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=12080104 @kevinrudland / @al94781 #test_nfrs_with_science
16. 1. Testing simply to validate is no longer enough 2. We must test to investigate and learn 3. And the best way to do that is to hypothesise, experiment, measure and adapt… Repeatedly. 16th-century illustration of Archimedes in the bath, with Hiero's crown at bottom right By Unknown - Historia N° 767 - Novembre 2010 - page 38, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=12080104 @kevinrudland / @al94781 #test_nfrs_with_science
17. Meta-Hypothesis #1: H1: We can give ourselves confidence that our hyper-distributed systems will meet our Non Functional Requirements by applying the same method that scientists use to understand and predict the world around us: Science; specifically the Scientific Method. @kevinrudland / @al94781 #test_nfrs_with_science
18. INTRODUCTION (Pt. 2) The after we agree what the problem is and have come to a possible solution but still need some details about the approach @kevinrudland / @al94781 #test_nfrs_with_science
19. “The scientific method is a body of techniques for investigating phenomena [&] acquiring new knowledge" Ibn al-Haytham (Alhazen), considered the father of the modern scientific methodology by Unknown - http://islamicrenaissance.tumblr. com/post/38457296805/ibn-al-haytham-father-of-fiber-optics-born-in, Public Domain, https://commons.wikimedia.org/w/index.php? curid=47132269 Tip: Acquire Knowledge @kevinrudland / @al94781 #test_nfrs_with_science
20. Tip: Theories == NFRs Science is driven by theories, and theories are detailed statements about what we believe to be true. Roger Bacon sometimes credited as being one of the earliest European Advocates of the Modern Scientific Method By Jan Verhas - Britannica upload from a 1867 original, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=44315585 @kevinrudland / @al94781 #test_nfrs_with_science
21. Example: NFR-Driven “Theories” Example 1: “The System will be able to support peak volumes of 100,000 requests per minute. These requests are to have a response time of 0.5 seconds or less, with less than 1% errors per request reported, considering 2000 requests per second.” Example 2: “Scaling Out - Adding additional instances of the API Service on additional servers increases the throughput near-linearly.” @kevinrudland / @al94781 #test_nfrs_with_science
22. Tip: Falsifiability "A scientific hypothesis must be falsifiable [...] otherwise, [it] cannot be meaningfully tested" Johannes Kepler, believed by some to be the archetype of the inductive scientific genius By Unknown - Kopie eines verlorengegangenen Originals von 1610 im Benediktinerkloster in Kremsmünster, Public Domain, https://commons.wikimedia. org/w/index.php?curid=470711 @kevinrudland / @al94781 #test_nfrs_with_science
23. Example: Hypotheses Example 1: H1: WHEN xxx requests per second are sent to the ABC_SERVICE THEN the average will respond successfully within 0.5 seconds and less than 1% will result in an error H0: WHEN … THEN the average will respond in greater than 0.5 seconds OR more than 1% will result in an error @kevinrudland / @al94781 #test_nfrs_with_science
24. Tip: Prioritise Counterexamples "no number of positive outcomes [...] can confirm a scientific theory, but a single counterexample is logically decisive" Karl Popper, By LSE library - http://www.flickr.com/photos/lselibrary/3833724834/in/set- 72157623156680255/, No restrictions, https://commons.wikimedia.org/w/index.php? curid=9694262 @kevinrudland / @al94781 #test_nfrs_with_science
25. never happens Prioritisation : Scalability @kevinrudland / @al94781 #test_nfrs_with_science
26. Prioritisation : SLAs & Resilience @kevinrudland / @al94781 #test_nfrs_with_science
27. Prioritisation : Ohhh, Shiny and New! @kevinrudland / @al94781 #test_nfrs_with_science
28. Example: A Scary Hypotheses : Tolerance of Downstream Failures Example 3: H1: Failure of the ABC service to connect to the XYZ service is handled without manual intervention, logged, and reported back to the ABC service within 100ms of the call to the XYZ service being made. If there are > X errors in a 10 second window, the circuit-breaker in the ABC service opens H0: Failure of the ABC service to connect to the XYZ service causes failures which need manual intervention, which are not logged, and the circuit-breaker in the ABC service does not open, no matter how many, or how frequently errors are seen @kevinrudland / @al94781 #test_nfrs_with_science
29. Tip: Apply Occam’s Razor "the simplest explanation is usually the correct one” William of Ockham, credited with originating Occam’s Razor By self-created (Moscarlop) - Own work, CC BY-SA 3.0, https://commons.wikimedia. org/w/index.php?curid=5523066 @kevinrudland / @al94781 #test_nfrs_with_science
30. METHOD The bit where we discuss how we’re going to get to where we think we want to get @kevinrudland / @al94781 #test_nfrs_with_science
31. Tip: Be Repeatable "If an experiment cannot be repeated to produce the same results, this implies that the original results might have been in error." Marie Curie, conducted pioneering research on radioactivity By Unknown - Christie's, [1], Public Domain, https://commons.wikimedia.org/w/index.php? curid=32735756 @kevinrudland / @al94781 #test_nfrs_with_science
32. • Subjects • Their Environment • The Independent Variables • (The Dependent Variables) Milgram’s Obedience Experiment Image from: https://thoughtmaybe.com/the-milgram-experiment-obedience/ Tip: Experiments Typically Consist of... @kevinrudland / @al94781 #test_nfrs_with_science
33. Subjects Think: • How many of them? • How are they connected? • What do they already know? Milgram’s Obedience Experiment Image from: https://thoughtmaybe.com/the-milgram-experiment-obedience/ @kevinrudland / @al94781 #test_nfrs_with_science
34. Example: Hypothesis - v.2 GIVEN n instances of the ABC_SERVICE with the DEFAULT_CONFIGURATION and empty REQUEST_CACHES, and which are connected to n instances of the downstream XYZ_SERVICE with the DEFAULT_CONFIGURATION via EUREKA over the PROD_NETWORK H1: WHEN xxx requests per second are sent to the ABC_SERVICE THEN the average will respond successfully within 0.5 seconds and less than 1% will result in an error H0: WHEN xxx requests per second are sent to the ABC_SERVICE THEN the average will not respond successfully within 0.5 seconds and more than 1% will result in an error @kevinrudland / @al94781 #test_nfrs_with_science
35. Tip: Sometimes; Keep Looking “Absence of evidence is not evidence of absence.” Chien-Shiung Wu, Chinese American experimental physicist who made significant contributions in the field of nuclear physics. She is best known for conducting the Wu experiment, which contradicted the hypothetical law of conservation of parity By Smithsonian Institution from United States - Chien-shiung Wu (1912-1997)Uploaded by Fæ, No restrictions, https://commons.wikimedia.org/w/index.php?curid=18877882 @kevinrudland / @al94781 #test_nfrs_with_science
36. WARNING! Sometimes things go very well in test and this can give you a false sense of security: Sometimes you can be live-like, but not live-like enough (and didn’t realise). What went wrong? How did we manage to predict things? @kevinrudland / @al94781 #test_nfrs_with_science
37. Meta-Hypothesis #2: H1: the only environment exactly like production is production, therefore only results from testing in production really count. @kevinrudland / @al94781 #test_nfrs_with_science
38. Tip: Fake it “To be ecologically valid, the methods, materials and setting of a study must approximate the real-life situation that is under investigation.” Francis Bacon, philosophical advocate and practitioner of the scientific method By Paul van Somer (1576/1578–1622) - pl.pinterest.com, Public Domain, https: //commons.wikimedia.org/w/index.php?curid=19958108 @kevinrudland / @al94781 #test_nfrs_with_science
39. Tip: Axes of Realism So, if science can do it, what are our axes of realism?: • Environment ◦ Configuration ◦ Data ◦ Platform and connectivity ◦ Monitoring • Also, are you in; ◦ a Normal-Running or a DR scenario? • And are there; ◦ events such as a fail and recover,? ◦ or a slow down and speed up? Etc. @kevinrudland / @al94781 #test_nfrs_with_science
40. Tip: Realism Techniques • Take a copy of prod data • Take a copy of prod requests • Close observation of prod followed by replication in the “lab” @kevinrudland / @al94781 #test_nfrs_with_science
41. Method: Data • Of all the environmental elements, data can have a MOST SIGNIFICANT IMPACT • Easiest to change • This is the type of data, its mix and variety • Look at your data model – Examine: 1:n – Examine: nullable @kevinrudland / @al94781 #test_nfrs_with_science
42. Charles R. Drew, developed improved techniques for blood storage, and applied his expert knowledge to developing large-scale blood banks By Associated Photographic Services, Inc - Original Repository: Howard University. Moorland-Spingarn Research Center. Charles R. Drew Papers http://profiles.nlm.nih. gov/ps/retrieve/ResourceMetadata/BGBBCT, https://en.wikipedia.org/w/index.php? curid=47837720 Tip: Manipulate Independent Variables @kevinrudland / @al94781 #test_nfrs_with_science
43. Hard-Coded Successful Requests @kevinrudland / @al94781 #test_nfrs_with_science
44. A Mix of Good and Bad Requests @kevinrudland / @al94781 #test_nfrs_with_science
45. Example: Hypothesis - v.3.1 GIVEN n instances of the ABC_SERVICE with the DEFAULT_CONFIGURATION and empty REQUEST_CACHES, and which are connected to n instances of the downstream XYZ_SERVICE with the DEFAULT_CONFIGURATION via EUREKA over the PROD_NETWORK H1: WHEN a mix of xxx VALID requests per second and yyy INVALID requests per second are sent to the ABC_SERVICE THEN the average will respond correctly within 0.5 seconds and less than 1% will result in an error H0: WHEN a mix of xxx VALID requests per second and yyy INVALID requests per second are sent to the ABC_SERVICE THEN the average will not respond correctly within 0.5 seconds and more than 1% will result in an error @kevinrudland / @al94781 #test_nfrs_with_science
46. @kevinrudland / @al94781 #test_nfrs_with_science
47. JMeter - Dynamic Request Gen @kevinrudland / @al94781 #test_nfrs_with_science
48. @kevinrudland / @al94781 #test_nfrs_with_science
49. Dynamic Request Generation @kevinrudland / @al94781 #test_nfrs_with_science
50. Dynamic Request Generation @kevinrudland / @al94781 #test_nfrs_with_science
51. Test Plus Background Load Mix @kevinrudland / @al94781 #test_nfrs_with_science
52. Example: Hypothesis - v.3.2 GIVEN n instances of the ABC_SERVICE with the DEFAULT_CONFIGURATION and empty REQUEST_CACHES, and which are connected to n instances of the downstream XYZ_SERVICE with the DEFAULT_CONFIGURATION via EUREKA over the PROD_NETWORK with BACKGROUND_LOAD H1: WHEN a mix of xxx VALID requests per second and yyy INVALID requests per second are sent to the ABC_SERVICE THEN the average will respond correctly within 0.5 seconds and less than 1% will result in an error H0: WHEN a mix of xxx VALID requests per second and yyy INVALID requests per second are sent to the ABC_SERVICE THEN the average will not respond correctly within 0.5 seconds and more than 1% will result in an error @kevinrudland / @al94781 #test_nfrs_with_science
53. Method: Events Dear boy… An 1888 lithograph of the 1883 eruption of Krakatoa. By Lithograph: Parker & Coward, Britain; - Image published as Plate 1 in The eruption of Krakatoa, and subsequent phenomena. Report of the Krakatoa Committee of the Royal Society (London, Trubner & Co., 1888)., Public Domain, https://commons.wikimedia. org/w/index.php?curid=7696837 @kevinrudland / @al94781 #test_nfrs_with_science
54. Method: Execute • Manipulate the independent variables: – e.g. req./sec. – e.g. concurrent users – e.g. req. mix • One at a time @kevinrudland / @al94781 #test_nfrs_with_science
55. So, back at Meta-Hypothesis #2: Proven - H0: We can proceed without testing in production @kevinrudland / @al94781 #test_nfrs_with_science
56. The bit where we look at the outputs collected from testing our hypotheses RESULTS @kevinrudland / @al94781 #test_nfrs_with_science
57. Tip: Be Empirical "To be termed scientific, a method of inquiry is commonly based on empirical or measurable evidence" Rosalind Franklin, had a key role (largely unacknowledged during her lifetime) in discovering the helical structure of DNA By Jewish Chronicle Archive/Heritage-Imageshttp://www.britannica.com/EBchecked/topic- art/217394/99712/Rosalind-Franklin, Fair use, https://en.wikipedia.org/w/index.php? curid=24959067 @kevinrudland / @al94781 #test_nfrs_with_science
58. Tip: Measure Dependent Variables Sir C. V. Rahman, winner of the 1030 Nobel Prize for Physics for his work on light scattering By Nobel Foundation - From Nobel Lectures, Physics 1922-1941, Elsevier Publishing Company, Amsterdam, 1965, Public Domain, https://commons.wikimedia.org/w/index. php?curid=4213636 @kevinrudland / @al94781 #test_nfrs_with_science
59. @kevinrudland / @al94781 #test_nfrs_with_science
60. @kevinrudland / @al94781 #test_nfrs_with_science
61. DISCUSSION The bit where we try and make coherent sense of what we found @kevinrudland / @al94781 #test_nfrs_with_science
62. Tip: Investigate • Tally your counts • Attribute all noted errors • and resource utilization The Stanford Prison Experiment Image from http://www.prisonexp.org/the-story/ @kevinrudland / @al94781 #test_nfrs_with_science
63. Tip: Stats Can Help • Why do you care?: • Means mean nothing • The impacts of (statistical) distribution @kevinrudland / @al94781 #test_nfrs_with_science
64. @kevinrudland / @al94781 #test_nfrs_with_science
65. Stats: Data Distribution @kevinrudland / @al94781 #test_nfrs_with_science
66. A Better Example @kevinrudland / @al94781 #test_nfrs_with_science
67. Stats: Percentiles @kevinrudland / @al94781 #test_nfrs_with_science
68. A Better Example (Again) @kevinrudland / @al94781 #test_nfrs_with_science
69. Example: Hypothesis - v.4 GIVEN n instances of the ABC_SERVICE with the DEFAULT_CONFIGURATION and empty REQUEST_CACHES, and which are connected to n instances of the downstream XYZ_SERVICE with the DEFAULT_CONFIGURATION via EUREKA over the PROD_NETWORK with BACKGROUND_LOAD H1: WHEN a mix of xxx VALID requests per second and xxx INVALID requests per second are sent to the ABC_SERVICE THEN 95% will respond correctly within 0.5 seconds and less than 1% will result in an error H0: WHEN a mix of xxx VALID requests per second and xxx INVALID requests per second are sent to the ABC_SERVICE THEN 95% will not respond correctly within 0.5 seconds and more than 1% will result in an error @kevinrudland / @al94781 #test_nfrs_with_science
70. Decide: H1 or H0? Did the test pass or fail? @kevinrudland / @al94781 #test_nfrs_with_science
71. The bit where we sum up. (And also perhaps invite some questions.) CONCLUSION @kevinrudland / @al94781 #test_nfrs_with_science
72. Conclusion: Refine and Retest • We did not verify H1 :( • Do you need to look elsewhere? • Revisit H0 / H1 - Apply Occam’s Razor • Only change 1 thing at a time @kevinrudland / @al94781 #test_nfrs_with_science
73. Tip: Tune & Fix Too • Change one thing at a time (unless it’s your DVs) • Think!: ◦ Will it have the desired effect? ◦ Will it have side-effects? ◦ Tuning the slowest won’t always win Image: cc: Kalle Hyttinen - https://www.flickr.com/photos/129560755@N03 @kevinrudland / @al94781 #test_nfrs_with_science
74. Tip: Re-Run (again) Always re-baseline after a change / fix has gone in - make no other changes @kevinrudland / @al94781 #test_nfrs_with_science
75. N.b. Your Targets Don't get carried away @kevinrudland / @al94781 #test_nfrs_with_science
76. The bit you always write at the end after you’ve done all the work which summarises your findings. ABSTRACT @kevinrudland / @al94781 #test_nfrs_with_science
77. Meta-Hypothesis #1: H1: We can give ourselves confidence that our hyper-distributed systems will meet our Non Functional Requirements by applying the same method that scientists use to understand and predict the world around us: Science; specifically the Scientific Method. @kevinrudland / @al94781 #test_nfrs_with_science P R O V E N
78. The bit everyone dreads in case they got something wrong along the way. QUESTIONS? @kevinrudland / @al94781 #test_nfrs_with_science
79. cc: ptrlx - https://www.flickr.com/photos/58615912@N05 Oh, and did we mention we (Capgemini) are hiring? (see bit.ly/cg-jvm-jobs-nfr for lots more info) @kevinrudland / @al94781 #test_nfrs_with_science
80. The bit where you dump things that didn’t fit anywhere else. APPENDICES @kevinrudland / @al94781 #test_nfrs_with_science
81. @kevinrudland / @al94781 #test_nfrs_with_science
82. Marginalia: Record It • Use templates • Visualise • Summarize • Supporting evidence Marginalia Image from: http://spec.lib.miamioh.edu/home/marginalia-from-the-stacks/ @kevinrudland / @al94781 #test_nfrs_with_science
