Android App Architecture & Navigation

A look into the new navigation architecture component and how it fits with Fragments and Activites

Transcript

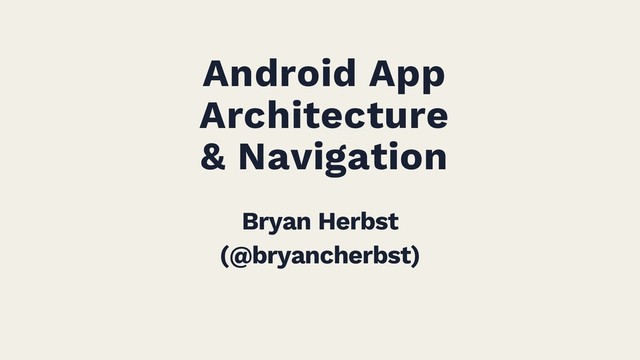

1. Android App
   Architecture
   & Navigation
   Bryan Herbst
   (@bryancherbst)


   View Slide

2. Activities
   &
   Fragments


   View Slide

3. STOP


   View Slide

4. STOP
   If you like what you have, keep it


   View Slide

5. When to use what?


   View Slide

6. Where we’ve been


   View Slide

7. In the beginning
   there was Activity


   View Slide

8. Activity
   Entry point to your application


   View Slide

9. Activity
   Entry point to your application
   Has a Window


   View Slide

10. Activity
    Entry point to your application
    Has a Window
    Has a lifecycle


    View Slide

11. Activity
    Entry point to your application
    Has a Window
    Has a lifecycle
    Responds to configuration changes


    View Slide

12. Activity
    Entry point to your application
    Has a Window
    Has a lifecycle
    Responds to configuration changes
    ActivityManager handles back stack


    View Slide

13. Activity
    Layout inflation
    View manipulation
    Click handlers
    Animations
    Navigation
    Menu creation
    Menu item callbacks
    Database calls
    Networking calls
    Disk I/O
    Sensor input
    Geolocation


    View Slide

14. Activity
    Window transitions can be difficult
    !


    View Slide

15. Activity
    Window transitions can be difficult
    A lot of plumbing
    !


    View Slide

16. Activity
    Window transitions can be difficult
    A lot of plumbing
    Nuanced (and limited) backstack
    !


    View Slide

17. Enter Honeycomb (3.0)


    View Slide

18. View Slide

19. Fragments!


    View Slide

20. Fragment
    Has lifecycle (less than Activity)


    View Slide

21. Fragment
    Has lifecycle (less than Activity)
    Backstack via FragmentManager


    View Slide

22. Fragment
    Has lifecycle (less than Activity)
    Backstack via FragmentManager
    Composable


    View Slide

23. Fragment
    Has lifecycle (less than Activity)
    Backstack via FragmentManager
    Composable
    Belong to an Activity


    View Slide

24. Fragments
    Transactions are annoying
    !


    View Slide

25. Fragments
    Transactions are annoying
    Lifecycles are annoying
    !


    View Slide

26. Fragments
    Transactions are annoying
    Lifecycles are annoying
    Can still be too big
    !


    View Slide

27. Fragments
    Transactions are annoying
    Lifecycles are annoying
    Can still be too big
    Bugs
    !


    View Slide

28. Fragments
    Transactions are annoying
    Lifecycles are annoying
    Can still be too big
    Bugs
    Differences from Activity
    !


    View Slide

29. Meanwhile


    View Slide

30. View-based
    architecture


    View Slide

31. View
    Draws things
    Reacts to user interaction


    View Slide

32. View
    Almost no lifecycle
    No backstack
    !


    View Slide

33. Where are we now?


    View Slide

34. Single activity app
    Easier to manage transitions


    View Slide

35. Single activity app
    Easier to manage transitions
    Composable UI elements


    View Slide

36. Single activity app
    Easier to manage transitions
    Composable UI elements
    Google can be opinionated


    View Slide

37. Don’t like lifecyles?
    Use Lifecycle


    View Slide

38. class MainActivity : Activity {
    override fun onStart() {
    super.onStart()
    analytics.reportStart()
    }
    }


    View Slide

39. activity.lifecycle
    .addObserver(AnalyticsObserver())
    class AnalyticsObserver : LifecycleObserver {
    @OnLifecycleEvent(ON_START)
    fun trackPageLoad() {
    analytics.reportStart()
    }
    }


    View Slide

40. activity.lifecycle
    .addObserver(AnalyticsObserver())
    class AnalyticsObserver : LifecycleObserver {
    @OnLifecycleEvent(ON_START)
    fun trackPageLoad() {
    analytics.reportStart()
    }
    }


    View Slide

41. Fragment refresher


    View Slide

42. Which Fragments?
    Framework fragments
    Support fragments


    View Slide

43. Which Fragments?
    Framework fragments
    Support fragments
    !
    "


    View Slide

44. Fragment transactions


    View Slide

45. Fragment transactions
    fragmentManager.beginTransaction()


    View Slide

46. Fragment transactions
    fragmentManager.beginTransaction()
    .add()


    View Slide

47. Fragment transactions
    fragmentManager.beginTransaction()
    .remove()


    View Slide

48. Fragment transactions
    fragmentManager.beginTransaction()
    .replace()


    View Slide

49. Fragment transactions
    fragmentManager.beginTransaction()
    .show()


    View Slide

50. Fragment transactions
    fragmentManager.beginTransaction()
    .hide()


    View Slide

51. Fragment transactions
    fragmentManager.beginTransaction()
    .addToBackstack()


    View Slide

52. Fragment transactions
    fragmentManager.beginTransaction()
    .commit()


    View Slide

53. Fragment transactions
    fragmentManager.beginTransaction()
    .add()
    .replace()
    .hide()
    .addToBackstack()
    .commit()


    View Slide

54. Transactions are
    asynchronous


    View Slide

55. The IllegalStateException
    com.awesomeapp E/MainActivity:
    java.lang.IllegalStateException:
    Cannot perform this action
    after onSaveInstanceState


    View Slide

56. The IllegalStateException
    FM State


    View Slide

57. The IllegalStateException
    FM State
    add()


    View Slide

58. The IllegalStateException
    FM State
    add()


    View Slide

59. The IllegalStateException
    FM State
    add()
    hide()


    View Slide

60. The IllegalStateException
    FM State
    add()
    hide()
    onStop()!!


    View Slide

61. The IllegalStateException
    FM State
    add()
    hide()
    onStop()!!
    Persisted
    add()
    hide()


    View Slide

62. The IllegalStateException
    FM State
    onStart()
    Persisted
    add()
    hide()


    View Slide

63. The IllegalStateException
    FM State
    add()
    hide()
    Persisted
    add()
    hide()
    replace()


    View Slide

64. The IllegalStateException
    After onSaveInstanceState
    any future changes
    may be lost


    View Slide

65. Okay, but async
    transactions suck


    View Slide

66. Commit()
    commit()
    executePendingTransactions()
    commitAllowingStateLoss()
    commitNow()
    commitNowAllowingStateLoss()


    View Slide

67. Commit()
    commit()
    executePendingTransactions()
    commitAllowingStateLoss()
    commitNow()
    commitNowAllowingStateLoss()


    View Slide

68. Commit()
    commit()
    executePendingTransactions()
    commitAllowingStateLoss()
    commitNow()
    commitNowAllowingStateLoss()


    View Slide

69. Commit()
    commit()
    executePendingTransactions()
    commitAllowingStateLoss()
    commitNow()
    commitNowAllowingStateLoss()


    View Slide

70. Back stack
    addToBackStack(null)


    View Slide

71. Back stack
    popBackStack()


    View Slide

72. Back stack
    addToBackStack("screenA")


    View Slide

73. Back stack
    addToBackStack("screenA")


    View Slide

74. Back stack
    addToBackStack("screenB")


    View Slide

75. Back stack
    addToBackStack("screenC")


    View Slide

76. Back stack
    popBackStack("screenA", 0)


    View Slide

77. But that’s
    a lot of work


    View Slide

78. Navigation


    View Slide

79. Navigation Challenges
    Transitions


    View Slide

80. Navigation Challenges
    Transitions
    Back stack management


    View Slide

81. Navigation Challenges
    Transitions
    Back stack management
    Up vs. back


    View Slide

82. Navigation Challenges
    Transitions
    Back stack management
    Up vs. back
    Passing data


    View Slide

83. Navigation Challenges
    Transitions
    Back stack management
    Up vs. back
    Passing data
    Deep linking


    View Slide

84. Android Jetpack:
    Navigation


    View Slide

85. Principles
    Navigation is a stack


    View Slide

86. Principles
    Navigation is a stack
    Up never exits the app


    View Slide

87. Principles
    Navigation is a stack
    Up never exits the app
    Up = Back within your app


    View Slide

88. Principles
    Navigation is a stack
    Up never exits the app
    Up = Back within your app
    Deep linking should yield the same stack


    View Slide

89. Navigation (the library)


    View Slide

90. Navigation library
    No more Fragment transactions!


    View Slide

91. Navigation library
    No more Fragment transactions!
    No more startActivity()!


    View Slide

92. Navigation library
    No more Fragment transactions!
    No more startActivity()!
    Just call navigate()


    View Slide

93. Navigation Graph
    All the destinations in your app,
    plus the action that connect
    them.


    View Slide

94. Navigation Graph
    New XML resource type!


    View Slide

95. Navigation tooling


    View Slide

96. Navigator
    What destination types are
    available?


    View Slide

97. NavHost
    Where do those destinations
    reside?


    View Slide

98. NavController
    How do I get there?


    View Slide

99. Current Navigators
    ActivityNavigator


    View Slide

100. Current Navigators
     ActivityNavigator
     FragmentNavigator


     View Slide

101. android:id="@+id/navHost"
     android:name=
     "androidx.navigation.fragment.NavHostFragment"
     android:layout_width="match_parent"
     android:layout_height="match_parent"
     app:defaultNavHost="true"
     app:navGraph="@navigation/nav_graph" />


     View Slide

102. android:id="@+id/navHost"
     android:name=
     "androidx.navigation.fragment.NavHostFragment"
     android:layout_width="match_parent"
     android:layout_height="match_parent"
     app:defaultNavHost="true"
     app:navGraph="@navigation/nav_graph" />


     View Slide

103. Do the navigation
     Navigation
     .findNavController(view)
     .navigate(R.id.action_id)


     View Slide

104. Destinations: Deep link
     Destinations can have deep links
     android:id="@+id/home”
     android:name="com.example.HomeFragment"
     android:label="fragment_home">




     View Slide

105. Actions: Animations
     Actions can have transition animations
     app:destination="@id/detail"
     app:popEnterAnim="@anim/slide_in_left"
     app:popExitAnim="@anim/slide_out_right"
     app:enterAnim="@anim/slide_in_right"
     app:exitAnim="@anim/slide_out_left"/>


     View Slide

106. Actions: back stack
     Each action can define its own behavior
     android:id="@+id/home_to_details"
     app:destination="@id/details”
     app:popUpTo="@id/splash”
     app:popUpToInclusive="false" />


     View Slide

107. Arguments
     Actions can all have arguments

     android:name="name"
     android:defaultValue="Joe" />



     View Slide

108. Arguments
     Works with deep links!

     android:name="name"
     android:defaultValue="Joe" />




     View Slide

109. Safeargs
     androidx.navigation.safeargs


     View Slide

110. Safeargs
     androidx.navigation.safeargs
     Generates argument wrapper classes


     View Slide

111. Safeargs
     Demo time!


     View Slide

112. Demo time!


     View Slide

113. Custom destination
     You can make your own Navigator!


     View Slide

114. What’s missing
     Some integration with common elements
     like bottom navigation


     View Slide

115. What’s missing
     Some integration with common elements
     like bottom navigation
     Shared element transitions


     View Slide

116. What’s missing
     Some integration with common elements
     like bottom navigation
     Shared element transitions
     Nested navigation graphs


     View Slide

117. What’s missing
     Some integration with common elements
     like bottom navigation
     Shared element transitions
     Nested navigation graphs
     Result data (e.g. startActivityForResult())


     View Slide

118. What if I want to
     migrate to Navigation?


     View Slide

119. I currently have…


     View Slide

120. Single Activity


     View Slide

121. Single Activity
     Set up navigation graph


     View Slide

122. Single Activity
     Set up navigation graph
     Each Fragment is a destination


     View Slide

123. Single Activity
     Set up navigation graph
     Each Fragment is a destination
     Every transaction is an action


     View Slide

124. Single Activity
     Set up navigation graph
     Each Fragment is a destination
     Every transaction is an action
     Define arguments


     View Slide

125. Single Activity
     Set up navigation graph
     Each Fragment is a destination
     Every transaction is an action
     Define arguments
     Replace transactions with
     NavController.navigate()


     View Slide

126. Multiple activities
     Start by making a graph for each Activity


     View Slide

127. Multiple activities
     Start by making a graph for each Activity
     If you want a single Activity,
     combine Activities one screen at a time


     View Slide

128. Activity Chrome


     View Slide

129. Activity Chrome
     CoordinatorLayout
     .setStatusBarBackgroundColor()


     View Slide

130. Activity Features
     android:name=".MainActivity"
     android:windowSoftInputMode="adjustPan" />


     View Slide

131. Activity Features
     android:name=".MainActivity"
     android:windowSoftInputMode="adjustPan" />
     activity.window
     .setSoftInputMode(SOFT_INPUT_ADJUST_PAN)


     View Slide

132. More complex
     Watch for updates!
     Provide feedback!


     View Slide

133. Resources
     https://developer.android.com
     /topic
     /libraries
     /architecture
     /navigation


     View Slide
