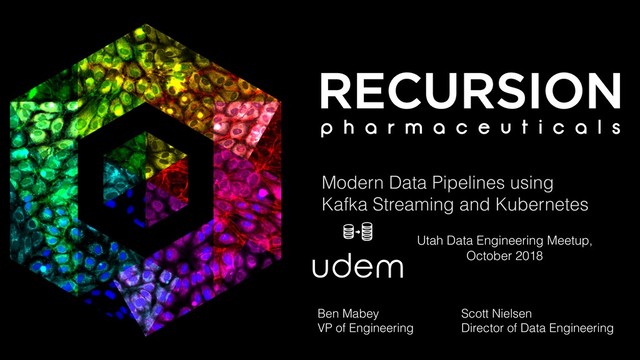

  1. Ben Mabey
    VP of Engineering
    Modern Data Pipelines using
    Kafka Streaming and Kubernetes
    Scott Nielsen
    Director of Data Engineering
    Utah Data Engineering Meetup,
    October 2018

    View Slide

  2. Decoding Biology
    to Radically Improve Lives

    View Slide

  3. © 2017 Recursion Pharmaceuticals
    1000s of untreated
    genetic diseases
    Photo of our wall?

    View Slide

  4. Why is this needed?

    View Slide

  5. 0.00001
    0.0001
    0.001
    0.01
    0.1
    1
    10
    100
    1000
    1971
    1972
    1973
    1974
    1975
    1976
    1977
    1978
    1979
    1980
    1981
    1982
    1983
    1984
    1985
    1986
    1987
    1988
    1989
    1990
    1991
    1992
    1993
    1994
    1995
    1996
    1997
    1998
    1999
    2000
    2001
    2002
    2003
    2004
    2005
    2006
    2007
    2008
    2009
    2010
    2011
    2012
    2013
    2014
    2015
    Transistor Area (% of 1970 values)
    Moore’s Law

    View Slide

  6. 0.00001
    0.0001
    0.001
    0.01
    0.1
    1
    10
    100
    1000
    1971
    1972
    1973
    1974
    1975
    1976
    1977
    1978
    1979
    1980
    1981
    1982
    1983
    1984
    1985
    1986
    1987
    1988
    1989
    1990
    1991
    1992
    1993
    1994
    1995
    1996
    1997
    1998
    1999
    2000
    2001
    2002
    2003
    2004
    2005
    2006
    2007
    2008
    2009
    2010
    2011
    2012
    2013
    2014
    2015
    Transistor Area (% of 1970 values)
    Moore’s Law
    Eroom’s Law

    View Slide

  7. 0.00001
    0.0001
    0.001
    0.01
    0.1
    1
    10
    100
    1000
    1971
    1972
    1973
    1974
    1975
    1976
    1977
    1978
    1979
    1980
    1981
    1982
    1983
    1984
    1985
    1986
    1987
    1988
    1989
    1990
    1991
    1992
    1993
    1994
    1995
    1996
    1997
    1998
    1999
    2000
    2001
    2002
    2003
    2004
    2005
    2006
    2007
    2008
    2009
    2010
    2011
    2012
    2013
    2014
    2015
    Transistor Area (% of 1970 values)
    1
    10
    100
    1971
    1972
    1973
    1974
    1975
    1976
    1977
    1978
    1979
    1980
    1981
    1982
    1983
    1984
    1985
    1986
    1987
    1988
    1989
    1990
    1991
    1992
    1993
    1994
    1995
    1996
    1997
    1998
    1999
    2000
    2001
    2002
    2003
    2004
    2005
    2006
    2007
    2008
    2009
    2010
    R&D Spend / Drug (% of 2007 values)
    Moore’s Law
    Eroom’s Law

    View Slide

  8. How?

    View Slide

  9. RecursionPharma.com

    View Slide

  10. RecursionPharma.com
    hoechst (DNA)

    View Slide

  11. RecursionPharma.com
    concanavalin A (ER)

    View Slide

  12. RecursionPharma.com
    mitotracker (mitochondria)

    View Slide

  13. RecursionPharma.com
    WGA (golgi apparatus, cell membrane)

    View Slide

  14. RecursionPharma.com
    SYTO 14 (RNA, nucleoli)

    View Slide

  15. RecursionPharma.com
    phalloidin (actin fibers)

    View Slide

  16. RecursionPharma.com
    combined

    View Slide

  17. RecursionPharma.com

    View Slide

  18. RecursionPharma.com

    View Slide

  19. RecursionPharma.com

    View Slide

  20. RecursionPharma.com
    Over 2 million per week
    25 cents each

    View Slide

  21. Images are rich.

    View Slide

  22. Images are rich.
    fast.

    View Slide

  23. Images are rich.
    fast.
    cheap.

    View Slide

  24. Images are rich.
    fast.
    cheap.
    Fix drug discovery?

    View Slide

  25. Healthy child
    Child with rare
    genetic disease
    (Cornelia de Lange
    Syndrome)

    View Slide

  26. Healthy child Healthy cells
    Child with rare
    genetic disease
    (Cornelia de Lange
    Syndrome)
    Genetic disease
    model cells
    (Cornelia de Lange
    Syndrome)

    View Slide

  27. View Slide

  28. Healthy Disease

    View Slide

  29. Healthy Disease Disease + Drug?

    View Slide

  30. Experiment A Experiment B Experiment C
    Experiment D

    View Slide

  31. 86mm
    2mm
    86mm
    2mm
    86mm
    2mm
    308 wells/plate

    View Slide

  32. 86mm
    2mm
    4 sites/well
    308 wells/plate

    View Slide

  33. 86mm
    2mm
    86mm
    2mm
    86mm
    2mm
    86mm
    2mm
    6 channels (images)/site
    7,392 images per plate
    4 sites/well
    308 wells/plate

    View Slide

  34. 86mm
    2mm
    86mm
    2mm
    86mm
    2mm
    86mm
    2mm
    6 channels (images)/site
    7,392 images per plate
    4 sites/well
    308 wells/plate
    ~69GB per plate

    View Slide

  35. Images / channel level

    View Slide

  36. Images / channel level
    image level metrics

    View Slide

  37. Images / channel level
    site (all channels/images)
    thumbnails
    image level metrics

    View Slide

  38. Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics

    View Slide

  39. Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics

    View Slide

  40. Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics
    site metrics

    View Slide

  41. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics
    site metrics

    View Slide

  42. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics
    site metrics
    metrics

    View Slide

  43. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    image level metrics
    site metrics
    metrics
    plate level features metrics

    View Slide

  44. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics

    View Slide

  45. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc

    View Slide

  46. Traditional, low throughput, biology

    View Slide

  47. © 2017 Recursion Pharmaceuticals
    High-throughput
    experiments
    Robots

    View Slide

  48. View Slide

  49. 100
    6.9TB

    View Slide

  50. 100
    6.9TB
    300
    20TB

    View Slide

  51. 100
    6.9TB
    300
    20TB
    700
    48TB
    1,300
    90TB
    1,700
    118TB
    1,900
    132 TB

    View Slide

  52. 100
    6.9TB
    300
    20TB
    700
    48TB
    1,300
    90TB
    1,700
    118TB
    1,900
    132 TB
    3,600
    250 TB

    View Slide

  53. Systems early 2017

    View Slide

  54. Systems early 2017
    •Microservices written in Python and Go. Some were AWS
    lambdas while others were containerized, running on
    kubernetes.

    View Slide

  55. Systems early 2017
    •Microservices written in Python and Go. Some were AWS
    lambdas while others were containerized, running on
    kubernetes.
    •Main job queue ran on Google pub/sub with autoscaling
    feature. Experimenting with Kubernetes jobs for other use
    cases.

    View Slide

  56. View Slide

  57. View Slide

  58. Systems early 2017
    •Microservices written in Python and Go. Some were AWS
    lambdas while others were containerized, running on
    kubernetes.
    •Main job queue ran on Google pub/sub with autoscaling
    feature. Experimenting with Kubernetes jobs for other use
    cases.

    View Slide

  59. Systems early 2017
    •Experiments processed in batch once an experiment was
    complete.
    •Microservices written in Python and Go. Some were AWS
    lambdas while others were containerized, running on
    kubernetes.
    •Main job queue ran on Google pub/sub with autoscaling
    feature. Experimenting with Kubernetes jobs for other use
    cases.

    View Slide

  60. Experiment A Experiment B Experiment C
    Experiment D
    Plates are not imaged in order

    View Slide

  61. Lab wanted realtime feedback…

    View Slide

  62. View Slide

  63. View Slide

  64. View Slide

  65. Why not ?

    View Slide

  66. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)

    View Slide

  67. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)

    View Slide

  68. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))

    View Slide

  69. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)

    View Slide

  70. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)

    View Slide

  71. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)
    plate_features = well_site_features.groupBy(lambda w: w['plate'])
    plate_metrics = plate_features.map(calc_plate_features)

    View Slide

  72. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)
    plate_features = well_site_features.groupBy(lambda w: w['plate'])
    plate_metrics = plate_features.map(calc_plate_features)
    experiment_features = plate_features.groupBy(lambda p: p['experiment'])
    experiment_metrics = (experiment_features
    .map(lambda e: e[‘experiment']).map(calc_exp_metrics))

    View Slide

  73. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc
    (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)
    plate_features = well_site_features.groupBy(lambda w: w['plate'])
    plate_metrics = plate_features.map(calc_plate_features)
    experiment_features = plate_features.groupBy(lambda p: p['experiment'])
    experiment_metrics = (experiment_features
    .map(lambda e: e[‘experiment']).map(calc_exp_metrics))
    reports = experiment_features.map(lambda e: e['experiment']).map(run_report)

    View Slide

  74. (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)
    plate_features = well_site_features.groupBy(lambda w: w['plate'])
    plate_metrics = plate_features.map(calc_plate_features)
    experiment_features = plate_features.groupBy(lambda p: p['experiment'])
    experiment_metrics = (experiment_features
    .map(lambda e: e[‘experiment']).map(calc_exp_metrics))
    reports = experiment_features.map(lambda e: e['experiment']).map(run_report)

    View Slide

  75. (pseudocode)
    images = get_images_rdd_for_experiment('foo')
    image_metrics = images.map(compute_image_metrics)
    sites = images.groupBy(lambda i: (i['plate'], i['site']))
    site_features = sites.map(lambda i: extract_features(i['data']))
    site_metrics = site_features.map(compute_site_metrics)
    well_site_features = site_features.groupBy(lambda s: s['well'])
    well_features = well_site_features.map(aggregate_site_to_well)
    plate_features = well_site_features.groupBy(lambda w: w['plate'])
    plate_metrics = plate_features.map(calc_plate_features)
    experiment_features = plate_features.groupBy(lambda p: p['experiment'])
    experiment_metrics = (experiment_features
    .map(lambda e: e[‘experiment']).map(calc_exp_metrics))
    reports = experiment_features.map(lambda e: e['experiment']).map(run_report)
    ?

    View Slide

  76. Why not ?

    View Slide

  77. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.

    View Slide

  78. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.
    •We didn’t want to rewrite any of the microservices.

    View Slide

  79. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.
    •We didn’t want to rewrite any of the microservices.
    •Some of our “map” operations are dependency heavy and
    have high variation in memory usage which requires fine
    tuning of workers for that particular function/task.

    View Slide

  80. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.
    •We didn’t want to rewrite any of the microservices.
    •Some of our “map” operations are dependency heavy and
    have high variation in memory usage which requires fine
    tuning of workers for that particular function/task.
    •Cloud providers didn’t have container support. No Kubernetes
    support then either. (now in beta)

    View Slide

  81. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.
    •We didn’t want to rewrite any of the microservices.
    •Some of our “map” operations are dependency heavy and
    have high variation in memory usage which requires fine
    tuning of workers for that particular function/task.
    •Cloud providers didn’t have container support. No Kubernetes
    support then either. (now in beta)

    View Slide

  82. Why not ?
    •Spark Streaming in 2017 with the mini batch model would not
    allow us to express the workflow naturally.
    •We didn’t want to rewrite any of the microservices.
    •Some of our “map” operations are dependency heavy and
    have high variation in memory usage which requires fine
    tuning of workers for that particular function/task.
    •Cloud providers didn’t have container support. No Kubernetes
    support then either. (now in beta)

    View Slide

  83. What about ?

    View Slide

  84. What about ?
    •Probably the closest to what we wanted/needed. But…

    View Slide

  85. What about ?
    •Probably the closest to what we wanted/needed. But…
    •The migration path was still unclear with all of our
    microservices.

    View Slide

  86. What about ?
    •Probably the closest to what we wanted/needed. But…
    •The migration path was still unclear with all of our
    microservices.
    •Lots of operational complexity around running a Storm
    cluster. No Kubernetes support.

    View Slide

  87. What about ?
    •Probably the closest to what we wanted/needed. But…
    •The migration path was still unclear with all of our
    microservices.
    •Lots of operational complexity around running a Storm
    cluster. No Kubernetes support.
    •Popularity seemed to be fading.

    View Slide

  88. What about ?
    •Probably the closest to what we wanted/needed. But…
    •The migration path was still unclear with all of our
    microservices.
    •Lots of operational complexity around running a Storm
    cluster. No Kubernetes support.
    •Popularity seemed to be fading.
    •The real reason… it was 2017. Better cluster and streaming
    primitives existed.

    View Slide

  89. What about ?
    •Probably the closest to what we wanted/needed. But…
    •The migration path was still unclear with all of our
    microservices.
    •Lots of operational complexity around running a Storm
    cluster. No Kubernetes support.
    •Popularity seemed to be fading.
    •The real reason… it was 2017. Better cluster and streaming
    primitives existed.

    View Slide

  90. With all of these stream
    processors you still needed to
    provide a stream (queue)…

    View Slide

  91. View Slide

  92. View Slide

  93. Kafka Streams
    was just released…

    View Slide

  94. ANATOMY OF A KAFKA TOPIC
    Partition 0 Partition 0 Partition 0
    Partition 1 Partition 1 Partition 1
    Partition 2 Partition 2
    Partition 2
    A partitioned and replicated structured commit log

    View Slide

  95. View Slide

  96. CONSUMER GROUPS
    Parallelism is only limited by the number of partitions

    View Slide

  97. KAFKA STREAMS
    Obligatory Word Count Example

    View Slide

  98. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();

    View Slide

  99. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();
    KStream textLines = builder.stream("streams-plaintext-input",
    Consumed.with(stringSerde, stringSerde);

    View Slide

  100. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();
    KStream textLines = builder.stream("streams-plaintext-input",
    Consumed.with(stringSerde, stringSerde);
    KTable wordCounts = textLines
    .flatMapValues(value -> Arrays.asList(value.toLowerCase().split("\\W+")))

    View Slide

  101. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();
    KStream textLines = builder.stream("streams-plaintext-input",
    Consumed.with(stringSerde, stringSerde);
    KTable wordCounts = textLines
    .flatMapValues(value -> Arrays.asList(value.toLowerCase().split("\\W+")))
    .groupBy((key, value) -> value)

    View Slide

  102. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();
    KStream textLines = builder.stream("streams-plaintext-input",
    Consumed.with(stringSerde, stringSerde);
    KTable wordCounts = textLines
    .flatMapValues(value -> Arrays.asList(value.toLowerCase().split("\\W+")))
    .groupBy((key, value) -> value)
    .count()

    View Slide

  103. KAFKA STREAMS
    Obligatory Word Count Example
    final Serde stringSerde = Serdes.String();
    final Serde longSerde = Serdes.Long();
    KStream textLines = builder.stream("streams-plaintext-input",
    Consumed.with(stringSerde, stringSerde);
    KTable wordCounts = textLines
    .flatMapValues(value -> Arrays.asList(value.toLowerCase().split("\\W+")))
    .groupBy((key, value) -> value)
    .count()
    wordCounts.toStream().to("streams-wordcount-output", Produced.with(Serdes.String(), Serdes.Long()));

    View Slide

  104. dagger
    workflow library
    written on top of Kafka Streams
    that orchestrates microservices

    View Slide

  105. dagger
    workflow library
    written on top of Kafka Streams
    that orchestrates microservices
    Dagger, ya know, because
    it is all about the workflows
    represented as directed
    acyclic graphs, i.e. DAGs.

    View Slide

  106. dagger
    workflow library
    written on top of Kafka Streams
    that orchestrates microservices

    View Slide

  107. How big is it?

    View Slide

  108. core logic
    ~2700 LOC
    How big is it?

    View Slide

  109. core logic
    ~2700 LOC
    All of our our DAGs,
    including schema, task,
    and workflow definition
    ~1700 LOC
    How big is it?

    View Slide

  110. core logic
    ~2700 LOC
    All of our our DAGs,
    including schema, task,
    and workflow definition
    ~1700 LOC
    How big is it?

    View Slide

  111. View Slide

  112. DAGGER CONCEPTUAL OVERVIEW

    View Slide

  113. DAGGER CONCEPTUAL OVERVIEW
    Schemas - What does my data look like

    View Slide

  114. DAGGER CONCEPTUAL OVERVIEW
    Schemas - What does my data look like
    Topics - Where is my data coming from / going to

    View Slide

  115. DAGGER CONCEPTUAL OVERVIEW
    Schemas - What does my data look like
    Topics - Where is my data coming from / going to
    External Tasks - Triggers actions outside of the streams application

    View Slide

  116. DAGGER CONCEPTUAL OVERVIEW
    Schemas - What does my data look like
    Topics - Where is my data coming from / going to
    External Tasks - Triggers actions outside of the streams application
    DAGs - Combines schemas, topics, and tasks into a complete workflow

    View Slide

  117. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc

    View Slide

  118. images_channel

    View Slide

  119. images_channel
    Kafka topic, images_channel, a message for each image

    View Slide

  120. images_channel
    (d/register-schema!
    system
    (d/record "channel_level"
    ["experiment_id" "string"]
    ["cell_type" "string"]
    ["plate_number" "int"]
    ["plate_barcode" "string"]
    ["well" "string"]
    ["site" "int"]
    ["channel" "int"]
    ["location" "string"]))
    Kafka topic, images_channel, a message for each image

    View Slide

  121. images_channel
    (d/register-schema!
    system
    (d/record "channel_level"
    ["experiment_id" "string"]
    ["cell_type" "string"]
    ["plate_number" "int"]
    ["plate_barcode" "string"]
    ["well" "string"]
    ["site" "int"]
    ["channel" "int"]
    ["location" "string"]))
    Everything is serialized to Avro
    Kafka topic, images_channel, a message for each image

    View Slide

  122. images_channel
    (d/register-schema!
    system
    (d/record "channel_level"
    ["experiment_id" "string"]
    ["cell_type" "string"]
    ["plate_number" "int"]
    ["plate_barcode" "string"]
    ["well" "string"]
    ["site" "int"]
    ["channel" "int"]
    ["location" "string"]))
    Everything is serialized to Avro
    In the future will use the Confluent
    Schema Registry
    Kafka topic, images_channel, a message for each image

    View Slide

  123. images_channel
    Kafka topic, images_channel, a message for each image
    (d/register-topic!
    system
    {::d/name "images_channel"
    ::d/key-schema :string
    ::d/value-schema "channel_level"})

    View Slide

  124. images_channel
    Kafka topic, images_channel, a message for each image
    (d/register-topic!
    system
    {::d/name "images_channel"
    ::d/key-schema :string
    ::d/value-schema "channel_level"})
    Specifies the schema to use for the
    key and value of a Kafka topic

    View Slide

  125. images_channel
    Kafka topic, images_channel, a message for each image
    (d/register-topic!
    system
    {::d/name "images_channel"
    ::d/key-schema :string
    ::d/value-schema "channel_level"})
    Specifies the schema to use for the
    key and value of a Kafka topic
    In the future will also use the Confluent
    Schema Registry

    View Slide

  126. images_channel
    image level metrics
    (d/register-task!
    system metrics-registry
    {::d/name “image-level-metrics“
    ::d/doc “Extracts descriptive pixel stats from images"
    ::d/input {::d/schema “channel_level"}
    ::d/output {::d/name “image_stats_results"
    ::d/schema “image_stats_results"}})
    ::d/input {::d/schema “channel_level"}

    View Slide

  127. images_channel
    image level metrics
    (d/register-task!
    system metrics-registry
    {::d/name “image-level-metrics“
    ::d/doc “Extracts descriptive pixel stats from images"
    ::d/input {::d/schema “channel_level"}
    ::d/output {::d/name “image_stats_results"
    ::d/schema “image_stats_results"}})
    Creates a task input topic to be
    consumed by an external service
    Dagger DAG
    (Kafka Streams App)
    Kafka
    Dagger Task
    (External Service)
    task input topic
    ::d/input {::d/schema “channel_level"}

    View Slide

  128. images_channel
    image level metrics
    (d/register-task!
    system metrics-registry
    {::d/name “image-level-metrics“
    ::d/doc “Extracts descriptive pixel stats from images"
    ::d/input {::d/schema “channel_level"}
    ::d/output {::d/name “image_stats_results"
    ::d/schema “image_stats_results"}})
    Optionally creates a task output topic
    where the external service will publish
    results
    Creates a task input topic to be
    consumed by an external service
    Dagger DAG
    (Kafka Streams App)
    Kafka
    Dagger Task
    (External Service)
    task input topic
    task output topic
    ::d/output {::d/name “image_stats_results"
    ::d/schema “image_stats_results"}})

    View Slide

  129. (d/register-http-task!
    system metrics-registry
    {::d/name "image-thumbnails"
    ::d/doc "Create composite thumbnail images for
    the given well."
    ::d/input {::d/schema "well_level"}
    ::d/output {::d/schema “ack"}
    ::d/request-fn
    (fn [cb well]
    {:method :post
    :url "https://lambda.amazonaws.com/prod/thumbnails"
    :headers {"X-Amz-Invocation-Type" "Event"}
    :body (json/generate-string well)})
    ::d/max-inflight 400
    ::d/retries 5
    ::d/response-fn
    (fn [req]
    (and (= (:status req) 200)
    (not
    (#{"Handled" "Unhandled"}
    (get-in req [:headers :x-amx-function-error])))))})
    EXTERNAL TASKS

    View Slide

  130. (d/register-http-task!
    system metrics-registry
    {::d/name "image-thumbnails"
    ::d/doc "Create composite thumbnail images for
    the given well."
    ::d/input {::d/schema "well_level"}
    ::d/output {::d/schema “ack"}
    ::d/request-fn
    (fn [cb well]
    {:method :post
    :url "https://lambda.amazonaws.com/prod/thumbnails"
    :headers {"X-Amz-Invocation-Type" "Event"}
    :body (json/generate-string well)})
    ::d/max-inflight 400
    ::d/retries 5
    ::d/response-fn
    (fn [req]
    (and (= (:status req) 200)
    (not
    (#{"Handled" "Unhandled"}
    (get-in req [:headers :x-amx-function-error])))))})
    EXTERNAL TASKS
    A HTTP layer on top of tasks

    View Slide

  131. (d/register-http-task!
    system metrics-registry
    {::d/name "image-thumbnails"
    ::d/doc "Create composite thumbnail images for
    the given well."
    ::d/input {::d/schema "well_level"}
    ::d/output {::d/schema “ack"}
    ::d/request-fn
    (fn [cb well]
    {:method :post
    :url "https://lambda.amazonaws.com/prod/thumbnails"
    :headers {"X-Amz-Invocation-Type" "Event"}
    :body (json/generate-string well)})
    ::d/max-inflight 400
    ::d/retries 5
    ::d/response-fn
    (fn [req]
    (and (= (:status req) 200)
    (not
    (#{"Handled" "Unhandled"}
    (get-in req [:headers :x-amx-function-error])))))})
    EXTERNAL TASKS
    A HTTP layer on top of tasks
    Starts an in process consumer which
    consumes from the task input topic
    and sends HTTP requests to an
    external service

    View Slide

  132. (d/register-http-task!
    system metrics-registry
    {::d/name "image-thumbnails"
    ::d/doc "Create composite thumbnail images for
    the given well."
    ::d/input {::d/schema "well_level"}
    ::d/output {::d/schema “ack"}
    ::d/request-fn
    (fn [cb well]
    {:method :post
    :url "https://lambda.amazonaws.com/prod/thumbnails"
    :headers {"X-Amz-Invocation-Type" "Event"}
    :body (json/generate-string well)})
    ::d/max-inflight 400
    ::d/retries 5
    ::d/response-fn
    (fn [req]
    (and (= (:status req) 200)
    (not
    (#{"Handled" "Unhandled"}
    (get-in req [:headers :x-amx-function-error])))))})
    EXTERNAL TASKS
    A HTTP layer on top of tasks
    Starts an in process consumer which
    consumes from the task input topic
    and sends HTTP requests to an
    external service
    Uses green threads to control the
    maximum number of inflight requests
    to the service

    View Slide

  133. (d/register-http-task!
    system metrics-registry
    {::d/name "image-thumbnails"
    ::d/doc "Create composite thumbnail images for
    the given well."
    ::d/input {::d/schema "well_level"}
    ::d/output {::d/schema “ack"}
    ::d/request-fn
    (fn [cb well]
    {:method :post
    :url "https://lambda.amazonaws.com/prod/thumbnails"
    :headers {"X-Amz-Invocation-Type" "Event"}
    :body (json/generate-string well)})
    ::d/max-inflight 400
    ::d/retries 5
    ::d/response-fn
    (fn [req]
    (and (= (:status req) 200)
    (not
    (#{"Handled" "Unhandled"}
    (get-in req [:headers :x-amx-function-error])))))})
    EXTERNAL TASKS
    A HTTP layer on top of tasks
    Starts an in process consumer which
    consumes from the task input topic
    and sends HTTP requests to an
    external service
    Uses green threads to control the
    maximum number of inflight requests
    to the service
    Automatically backs off and retries on
    failure

    View Slide

  134. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc

    View Slide

  135. site level features
    images_channel topic experiment_metadata topic
    cellprofiler_features topic
    site_images stream

    View Slide

  136. images_channel topic

    View Slide

  137. images_channel topic
    (d/register-dag!
    system
    {::d/name "standard-cellprofiler"
    ::d/graph
    {:images-channel (topic-stream “images_channel”)

    View Slide

  138. images_channel topic experiment_metadata topic
    (d/register-dag!
    system
    {::d/name "standard-cellprofiler"
    ::d/graph
    {:images-channel (topic-stream “images_channel”)
    :experiment-metadata (topic-table “experiment_metadata” “exp—store”)

    View Slide

  139. site_images stream
    images_channel topic experiment_metadata topic
    (d/register-dag!
    system
    {::d/name "standard-cellprofiler"
    ::d/graph
    {:images-channel (topic-stream “images_channel”)
    :experiment-metadata (topic-table “experiment_metadata” “exp—store”)
    :images-site
    (stream-operation {:channel-level :images-channel
    :experiment-metadata :experiment-metadata}
    (agg/site-level agg/preserve-key "images-site-agg")
    :long "site_level")

    View Slide

  140. site level features
    site_images stream
    images_channel topic experiment_metadata topic
    (d/register-dag!
    system
    {::d/name "standard-cellprofiler"
    ::d/graph
    {:images-channel (topic-stream “images_channel”)
    :experiment-metadata (topic-table “experiment_metadata” “exp—store”)
    :images-site
    (stream-operation {:channel-level :images-channel
    :experiment-metadata :experiment-metadata}
    (agg/site-level agg/preserve-key "images-site-agg")
    :long "site_level")
    :features-site
    (external-task :images-site "cellprofiler"
    {:input-mapper (partial standard-cp-instruction config)
    :output-mapper unpack-cp-response})

    View Slide

  141. site level features
    site_images stream
    images_channel topic experiment_metadata topic
    cellprofiler_features topic
    (d/register-dag!
    system
    {::d/name "standard-cellprofiler"
    ::d/graph
    {:images-channel (topic-stream “images_channel”)
    :experiment-metadata (topic-table “experiment_metadata” “exp—store”)
    :images-site
    (stream-operation {:channel-level :images-channel
    :experiment-metadata :experiment-metadata}
    (agg/site-level agg/preserve-key "images-site-agg")
    :long "site_level")
    :features-site
    (external-task :images-site "cellprofiler"
    {:input-mapper (partial standard-cp-instruction config)
    :output-mapper unpack-cp-response})
    :features-output
    (publish :features-site "cellprofiler_features")}})

    View Slide

  142. site level features
    site_images stream
    images_channel topic experiment_metadata topic
    cellprofiler_features topic

    View Slide

  143. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc

    View Slide

  144. 86mm
    2mm
    well level features
    Images / channel level
    site (all channels/images)
    thumbnails
    site level features
    experiment features
    image level metrics
    site metrics
    metrics
    plate level features metrics
    metrics, models,
    reports, etc

    View Slide

  145. View Slide

  146. The majority of our work are
    external tasks on a job queue…

    View Slide

  147. Systems early 2017
    •Experiments processed in batch once an experiment was
    complete.
    •Microservices written in Python and Go. Some were AWS
    lambdas while others were containerized, running on
    kubernetes.
    •Main job queue ran on Google pub/sub with autoscaling
    feature. Experimenting with Kubernetes jobs for other use
    cases.

    View Slide

  148. Job queue desiderata

    View Slide

  149. Job queue desiderata
    •Language agnostic

    View Slide

  150. Job queue desiderata
    •Language agnostic
    •Container support, ideally on top of Kubernetes

    View Slide

  151. Job queue desiderata
    •Language agnostic
    •Container support, ideally on top of Kubernetes
    •Autoscaling

    View Slide

  152. Job queue desiderata
    •Language agnostic
    •Container support, ideally on top of Kubernetes
    •Autoscaling
    •Sane retry and backoff semantics to handle
    common failure modes

    View Slide

  153. We looked and looked but
    couldn’t find one….

    View Slide

  154. So, we built one.
    We call it taskstore.

    View Slide

  155. So, we built one.
    We call it taskstore.

    View Slide

  156. So, we built one.
    We call it taskstore.
    server
    ~2300 LOC

    View Slide

  157. So, we built one.
    We call it taskstore.
    server
    ~2300 LOC
    worker
    ~800 LOC

    View Slide

  158. Kubernetes Master
    Node
    API
    Scheduler
    Controller Manager
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    KUBERNETES: AN OS FOR THE CLUSTER

    View Slide

  159. PODS
    • The base schedulable unit of compute and memory

    View Slide

  160. CONTROLLER RESOURCES
    Manage pods with higher level semantics

    View Slide

  161. CONTROLLER RESOURCES
    Manage pods with higher level semantics
    Replication Controller - runs N copies of a pod across the cluster

    View Slide

  162. CONTROLLER RESOURCES
    Manage pods with higher level semantics
    Replication Controller - runs N copies of a pod across the cluster
    Deployment - uses multiple replication controllers to provide rolling deployments

    View Slide

  163. CONTROLLER RESOURCES
    Manage pods with higher level semantics
    Replication Controller - runs N copies of a pod across the cluster
    Deployment - uses multiple replication controllers to provide rolling deployments
    DaemonSet - runs one copy of a pod on each node in the cluster

    View Slide

  164. CONTROLLER RESOURCES
    Manage pods with higher level semantics
    Replication Controller - runs N copies of a pod across the cluster
    Deployment - uses multiple replication controllers to provide rolling deployments
    DaemonSet - runs one copy of a pod on each node in the cluster
    Job - runs M copies of a pod until it has completed N times

    View Slide

  165. KUBERNETES: AN OS FOR THE CLUSTER
    Kubernetes Master
    Node
    API
    Scheduler
    Controller Manager
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod

    View Slide

  166. KUBERNETES: AN OS FOR THE CLUSTER
    Node Pool (n1-standard-4, min: 2, max: 100)
    Autoscaler
    Node Pool (n1-standard-64, min: 0, max: 300)
    Kubernetes Master
    Node
    API
    Scheduler
    Controller Manager
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod
    Node
    Pod Pod Pod
    Pod Pod

    View Slide

  167. Server
    Client

    View Slide

  168. Server
    Client
    Group A Group X
    POST /groups
    A Group is an ordered queue
    of tasks to be executed.

    View Slide

  169. Server
    Client
    Group A Group X
    POST /groups
    A Group is an ordered queue
    of tasks to be executed.
    Max time before a task is presumed
    hanging and execution is halted

    View Slide

  170. Server
    Client
    Group A Group X
    POST /groups
    A Group is an ordered queue
    of tasks to be executed.
    Autoscaling settings dictate
    how many workers per tasks
    should be spun up.
    Max time before a task is presumed
    hanging and execution is halted

    View Slide

  171. Server
    Client
    Group A Group X
    POST /groups
    A Group is an ordered queue
    of tasks to be executed.
    Autoscaling settings dictate
    how many workers per tasks
    should be spun up.
    Max time before a task is presumed
    hanging and execution is halted
    Retry settings handle common
    failure modes. More on this later.

    View Slide

  172. Server
    Client
    Group A Group X

    View Slide

  173. Server
    Client
    Group A Group X
    POST /tasks
    {
    "cmd": ["my-program.py", "url-to-data", "settings"],
    "group": "Group A",
    "labels": {"my-label": "is-good",
    "this-label": "is-helpful"}
    }

    View Slide

  174. Server
    Group A Group X
    Request new workers

    View Slide

  175. Server
    Group A Group X
    Request new workers
    Worker A Worker X

    View Slide

  176. Server
    Group A Group X
    Worker A Worker X
    POST /tasks/claim
    {
    "groups": ["Group A"],
    "client-id": "client-123",
    "duration": 30000
    }
    Request
    A Worker claims a task to work
    on for a period of time.

    View Slide

  177. Server
    Group A Group X
    Worker A Worker X
    POST /tasks/claim
    {
    "groups": ["Group A"],
    "client-id": "client-123",
    "duration": 30000
    }
    Request Response
    {
    "cmd": [“my-program.py","url-to-data",
    "settings"],
    "group": "Group A",
    "labels": {"my-label": "is-good",
    "this-label": "is-helpful"}
    "version": 1,
    "id": "5292d800-cdda-11e8-87d7-9d45611d
    "status": "available"
    }
    A Worker claims a task to work
    on for a period of time.

    View Slide

  178. Server
    Group A Group X
    Worker A Worker X
    POST /tasks/claim
    Request
    A Worker claims a task to work
    on for a period of time.
    POST /tasks/extend-claim It must extend the lease of the task
    or else it will become available for
    another worker to claim it.
    {
    "client-id": "client-123",
    "duration": 30000,
    "id": "5292d800-cdda-11e8-87d7-9d45611de99b",
    "version": 1
    }

    View Slide

  179. Server
    Group A Group X
    Worker A Worker X
    POST /tasks/claim
    Request
    Response
    {

    "version": 2,
    "id": "5292d800-cdda-11e8-87d7-9d45611de99b",
    }
    A Worker claims a task to work
    on for a period of time.
    POST /tasks/extend-claim It must extend the lease of the task
    or else it will become available for
    another worker to claim it.
    {
    "client-id": "client-123",
    "duration": 30000,
    "id": "5292d800-cdda-11e8-87d7-9d45611de99b",
    "version": 1
    }

    View Slide

  180. Server
    Group A Group X
    Worker A Worker X
    POST /tasks/success
    or
    POST /tasks/failure
    A Worker reports back when a task
    is finished executing.
    {
    "client-id": "client-123",
    “elapsed-time": 300232000,
    "id": "5292d800-cdda-11e8-87d7-9d45611de99b",
    "version": 43
    }

    View Slide

  181. TASK LIFECYCLE

    View Slide

  182. View Slide

  183. View Slide

  184. Lessons learned…

    View Slide

  185. View Slide

  186. •The public cloud tide is rising

    View Slide

  187. •The public cloud tide is rising
    •Crushing storage costs

    View Slide

  188. •The public cloud tide is rising
    •Crushing storage costs
    •Faster, better, and cheaper cloud
    databases (e.g. BigQuery)

    View Slide

  189. •The public cloud tide is rising
    •Crushing storage costs
    •Faster, better, and cheaper cloud
    databases (e.g. BigQuery)
    •Python and R data science running on
    containers and Kubernetes

    View Slide

  190. •The public cloud tide is rising
    •Crushing storage costs
    •Faster, better, and cheaper cloud
    databases (e.g. BigQuery)
    •Python and R data science running on
    containers and Kubernetes
    As recently as this week, the big Hadoop vendors’ advice has been
    “translate Python/R code into Scala/Java,” which sounds like King
    Hadoop commanding the Python/R machine learning tide to go back out
    again. Containers and Kubernetes work just as well with Python and R
    as they do with Java and Scala, and provide a far more flexible and
    powerful framework for distributed computation. And it’s where software
    development teams are heading anyway – they’re not looking to
    distribute new microservice applications on top of Hadoop/Spark. Too
    complicated and limiting.

    View Slide

  191. Come help us decode biology!

    View Slide
