Suuchi - FifthElephant, Bengaluru 2017

Slides were designed by my wife - Swathi Ravichandran
www.swathiravichandran.com | @swathrav

Transcript

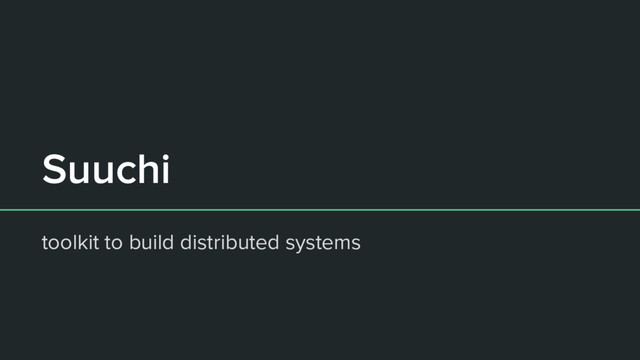

1. Suuchi
   toolkit to build distributed systems


   View Slide

2. Sriram
   Ramachandrasekaran
   Principal Engineer, Indix
   https://github.com/brewkode


   View Slide

3. 950M+
   Products
   50K+
   Brands
   2B+
   Offers
   7.5K+
   Categories


   View Slide

4. Crawl Parse Dedup Classify Extract Match Index
   Data Pipeline @ Indix


   View Slide

5. Crawl Parse Dedup Classify Extract Match Index
   Data Pipeline @ Indix


   View Slide

6. Desirable Properties
   ● Handle Scale - order of TBs
   ● Fault Tolerant
   ● Ease of operations - less moving parts


   View Slide

7. Traditionally...
   ● Tiered architecture
   ● Scale individual tiers
   ● Until...


   View Slide

8. Traditionally...
   ● Tiered architecture
   ● Scale individual tiers
   ○ Web Tier
   ○ Service Tier
   ● Until...


   View Slide

9. Traditionally...
   ● Tiered architecture
   ● Scale individual tiers
   ○ Web Tier
   ○ Service Tier
   ● Until...


   View Slide

10. Essentially, we are looking
    to Scale data systems


    View Slide

11. BigTable,
    2006
    Dynamo,
    2007
    Cassandra,
    2008
    Voldemort,
    2009
    rise of KV Stores
    distributed, replicated, fault-tolerant, sorted*


    View Slide

12. Service Service Service
    Distributed Data Store


    View Slide

13. Service Service Service
    Distributed Data Store
    Latency


    View Slide

14. Distributed Service


    View Slide

15. Distributed Service
    Data locality
    kills
    latency
    Increases
    Application
    Complexity


    View Slide

16. Just having a distributed store
    isn’t enough!
    We need something more...


    View Slide

17. boils down to...
    Distributed Data Store
    +
    CoProcessors
    (Bigtable / HBase)
    …run arbitrary code “next” to each shard


    View Slide

18. Distributed Data Store + CoProcessors
    (Bigtable / HBase)
    - Business logic upgrade is painful
    - CoProcessors are not services, more an afterthought
    - Failure semantics are not well established
    - More applications means multiple coproc or single bloated coproc
    - Noisy neighbours / Impedance due to a shared datastore


    View Slide

19. Applications need to
    OWN
    Scaling


    View Slide

20. In-house Vs Off-the-shelf
    In-house Off-the-shelf
    Features Subset Superset
    Moving parts Fully Controllable Community Controlled
    Ownership Implicit Acquired / Cultural
    Upfront cost High Low
    Expertise Hired / Retained / Nurtured Community


    View Slide

21. पांग
    ப
    Communication
    key=”foo”
    key=”bar”
    key=”baz”
    Request Routing
    Sync / Async
    Replication
    Replication
    Data Sharding
    Cluster Membership


    View Slide

22. Introducing Suuchi
    DIY kit for building distributed systems
    github.com/ashwanthkumar/suuchi


    View Slide

23. Suuchi
    Provides support for ...
    - underlying communication channel
    - routing queries to appropriate member
    - detecting your cluster members
    - replicating your data based on your strategy
    - local state via embedded KV store per node (optionally)
    github.com/ashwanthkumar/suuchi


    View Slide

24. Communication
    + HandleOrForward
    + Scatter Gather
    uses http/2 with streaming


    View Slide

25. Sharding / Routing
    + Consistent Hash Ring
    - Your own sharding technique?
    node 2
    node 1
    node 3
    node 4
    Consistent hashing and random trees: Distributed
    caching protocols for relieving hot spots on the
    World Wide Web


    View Slide

26. Membership
    static dynamic
    fault tolerance in case of
    node/process failure
    scaling up/down needs downtime
    of the system


    View Slide

27. Replication
    sync async
    provides very high availability for write systems
    at the cost of eventual consistency
    every request is successful only if
    all the replicas succeeded


    View Slide

28. Storage
    + KeyValue
    + RocksDB
    - Your own abstraction?
    embedded KV store from FB for server
    workloads


    View Slide

29. Getting started
    ● gRPC Service using Protobuf2
    ● Generate stubs & implement them
    ● Connect using Suuchi “Server” abstraction


    View Slide

30. Server Abstraction
    ● Pluggable membership mechanism
    ● Pluggable routing strategy
    ● Pluggable replication method


    View Slide

31. Suuchi @ Indix
    ● HTML Archive
    ○ Handles 1000+ tps - write heavy system
    ○ Stores 120 TB of url & timestamp indexed HTML pages
    ● Stats Aggregation System
    ○ Approximate real-time aggregates
    ○ Timeline & windowed queries
    ● Real time scheduler for our Crawlers
    ○ Prioritising which next batch of urls to crawl
    ○ Helps crawl 20+ million urls per day


    View Slide

32. Thank you


    View Slide
