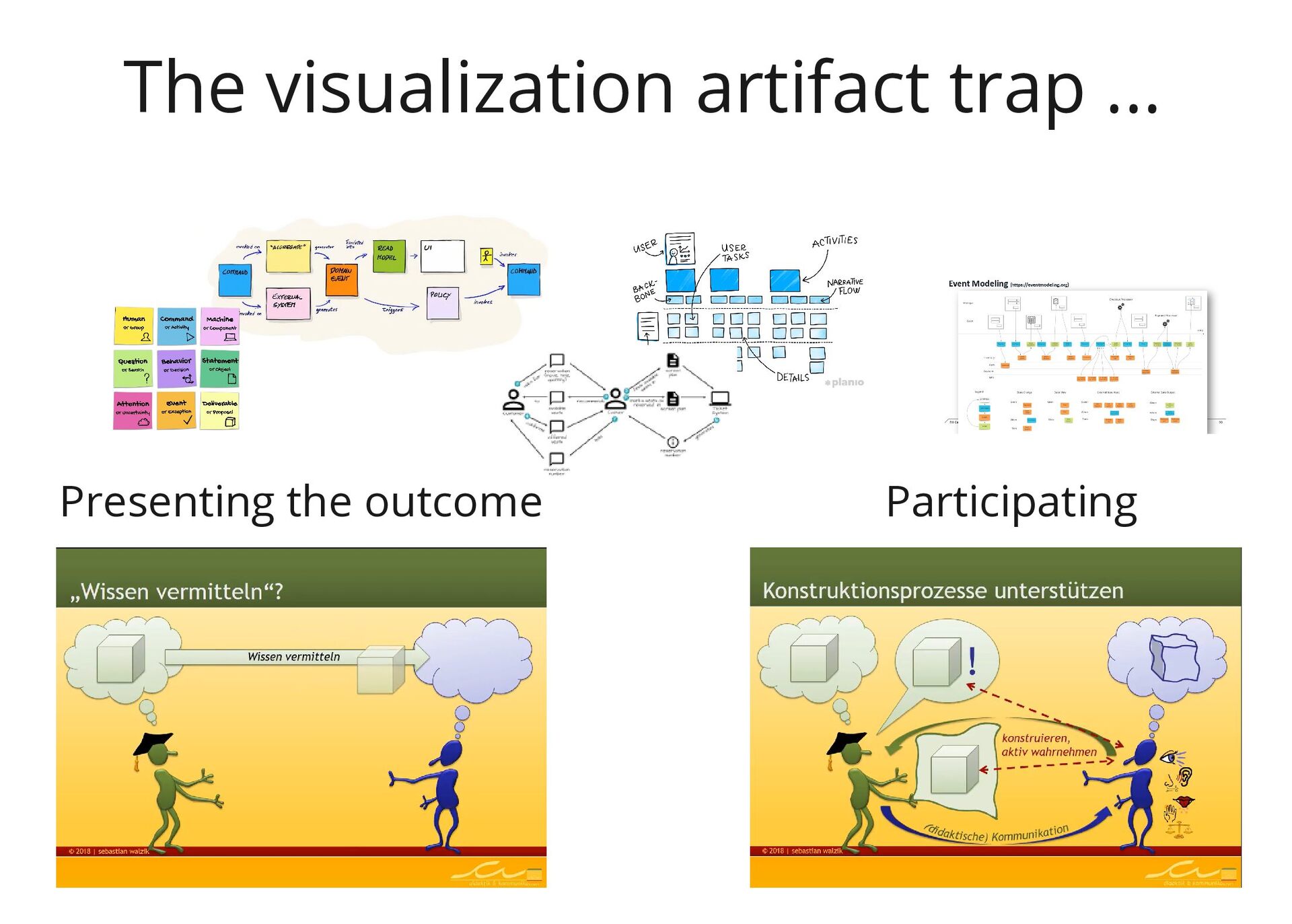

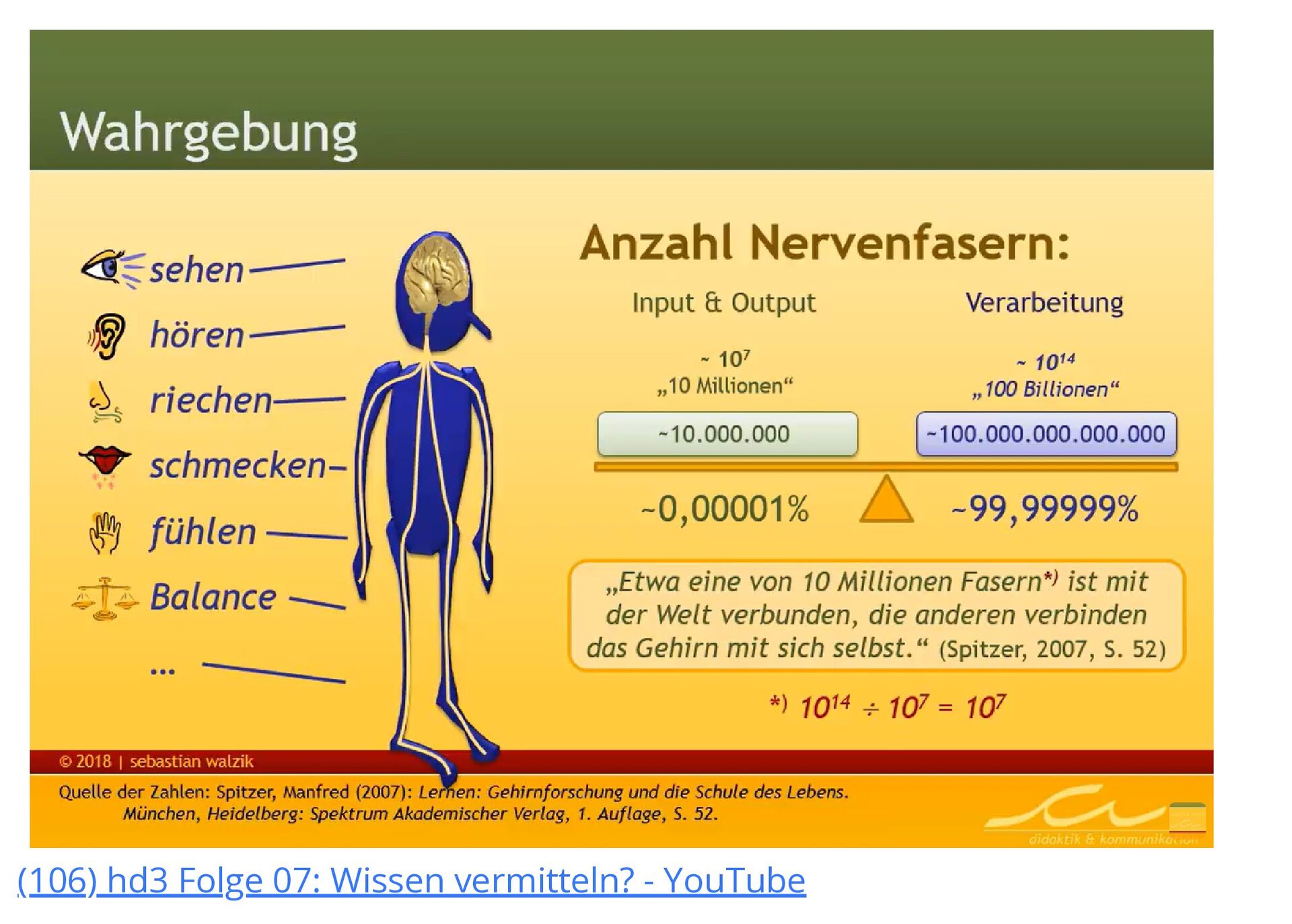

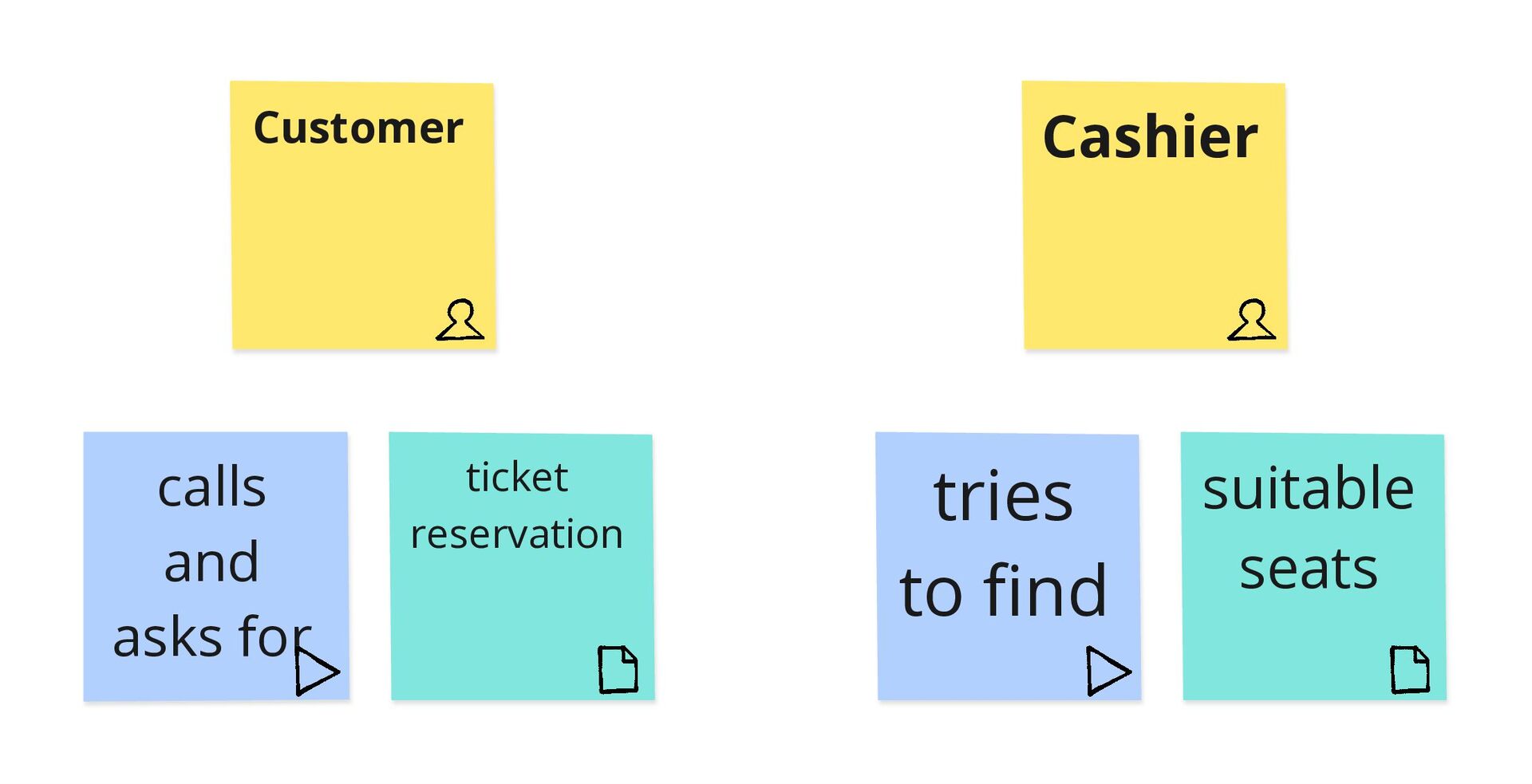

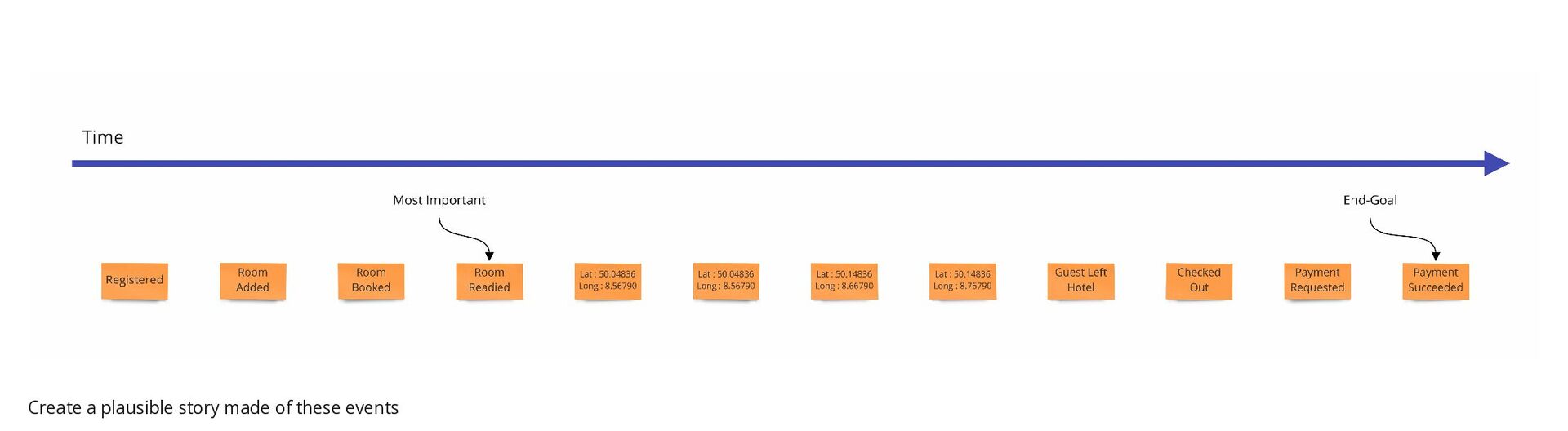

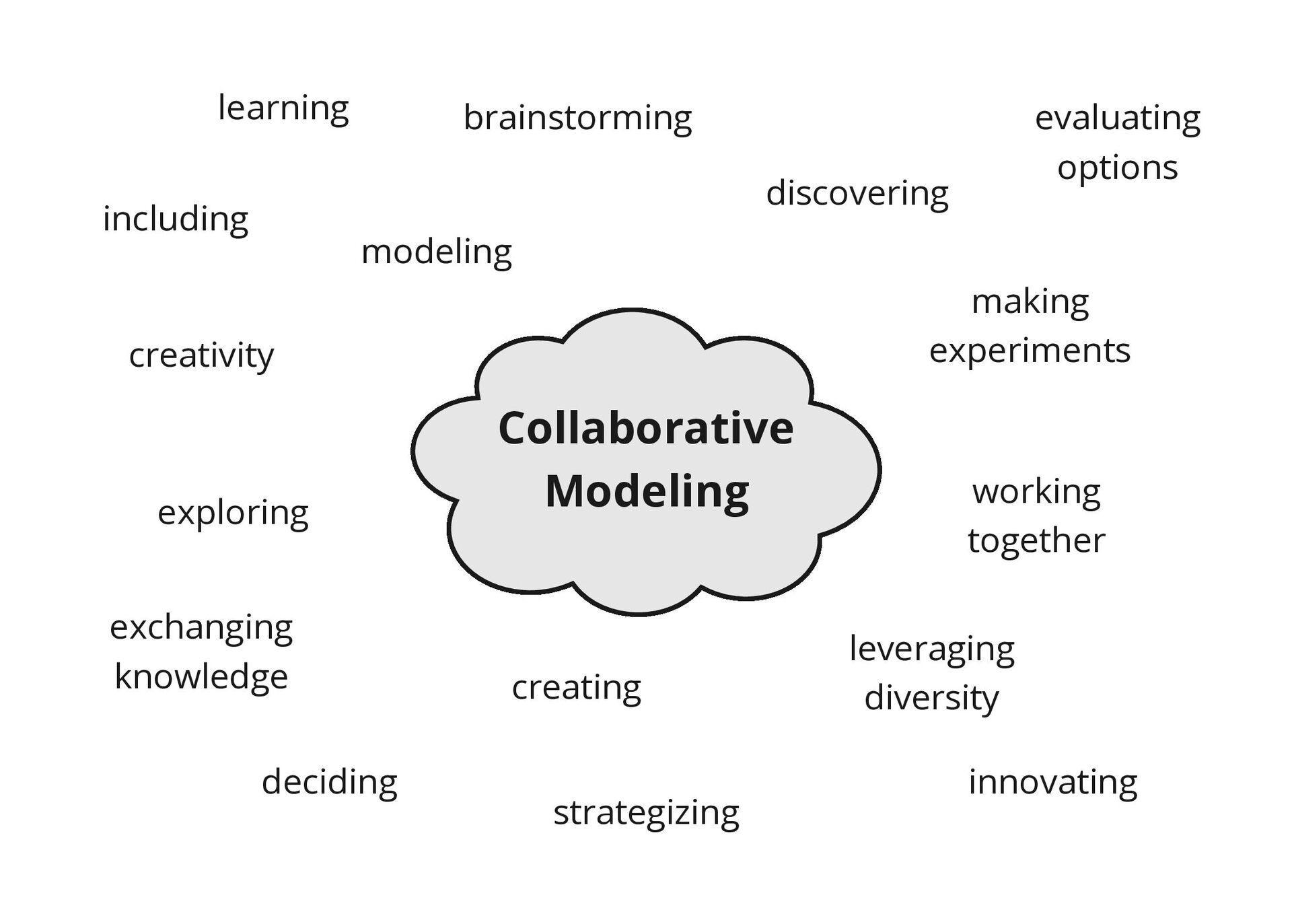

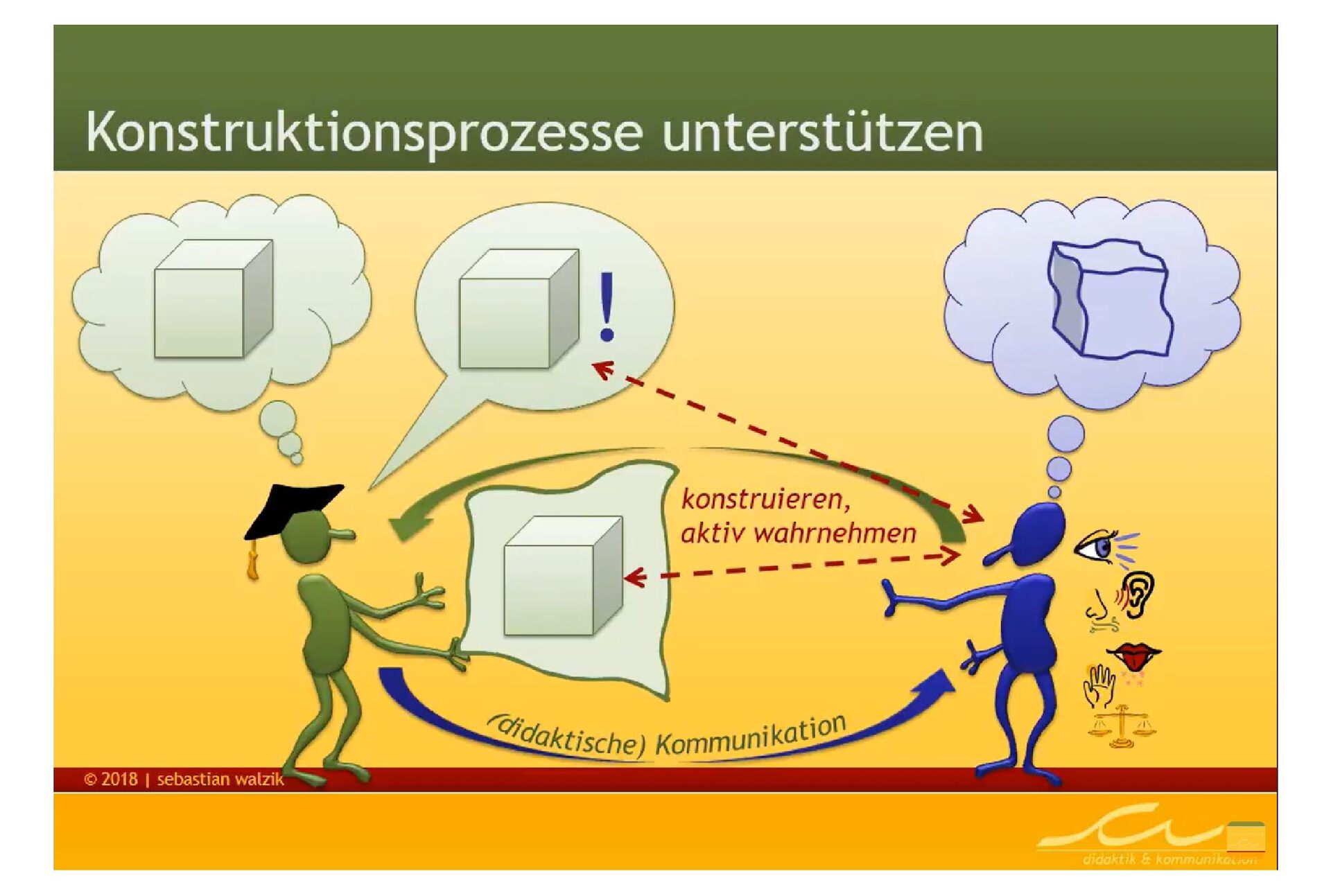

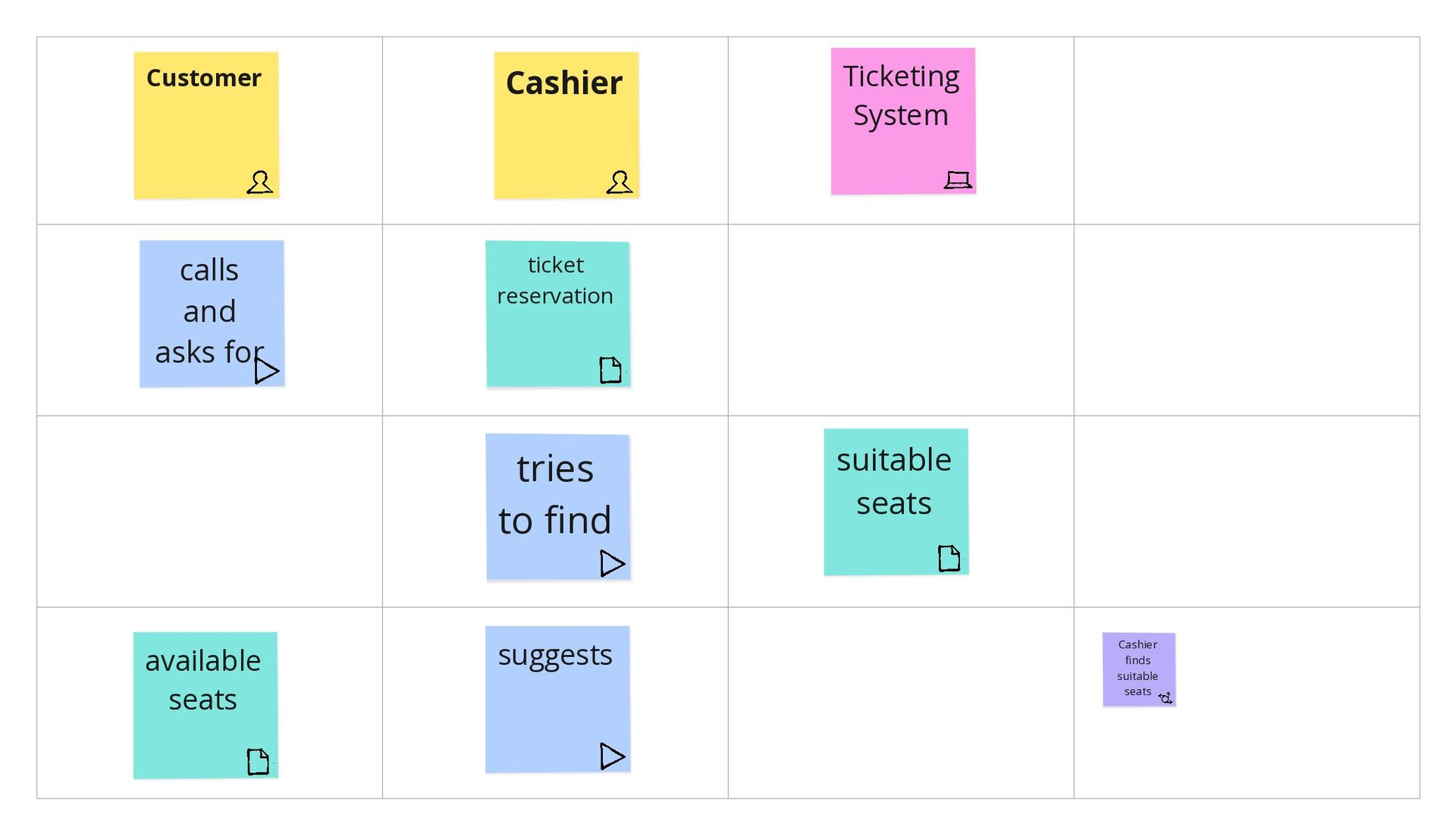

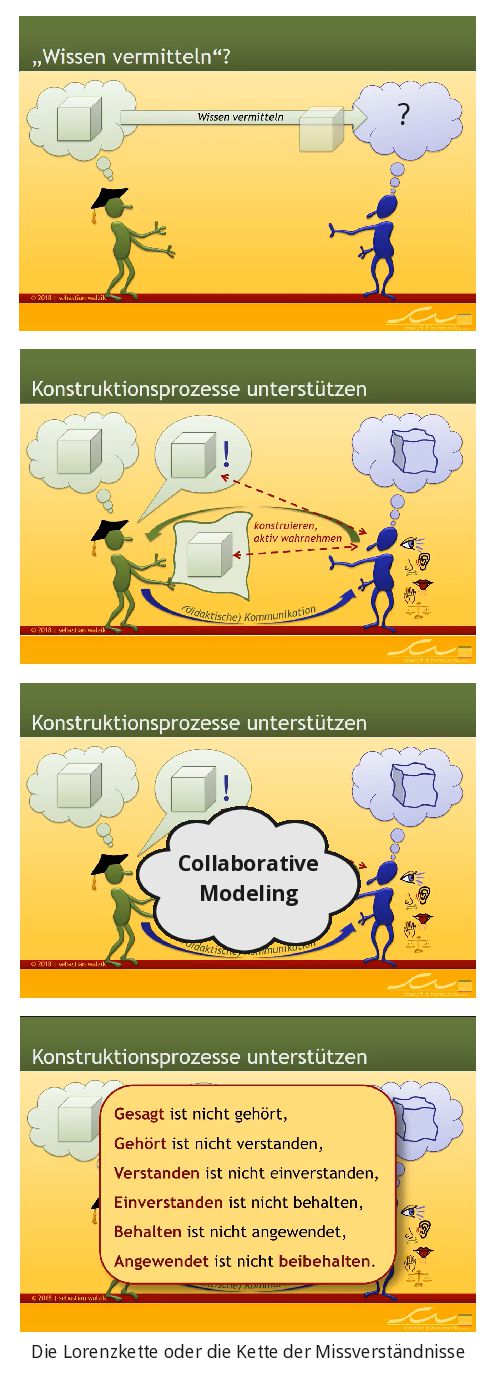

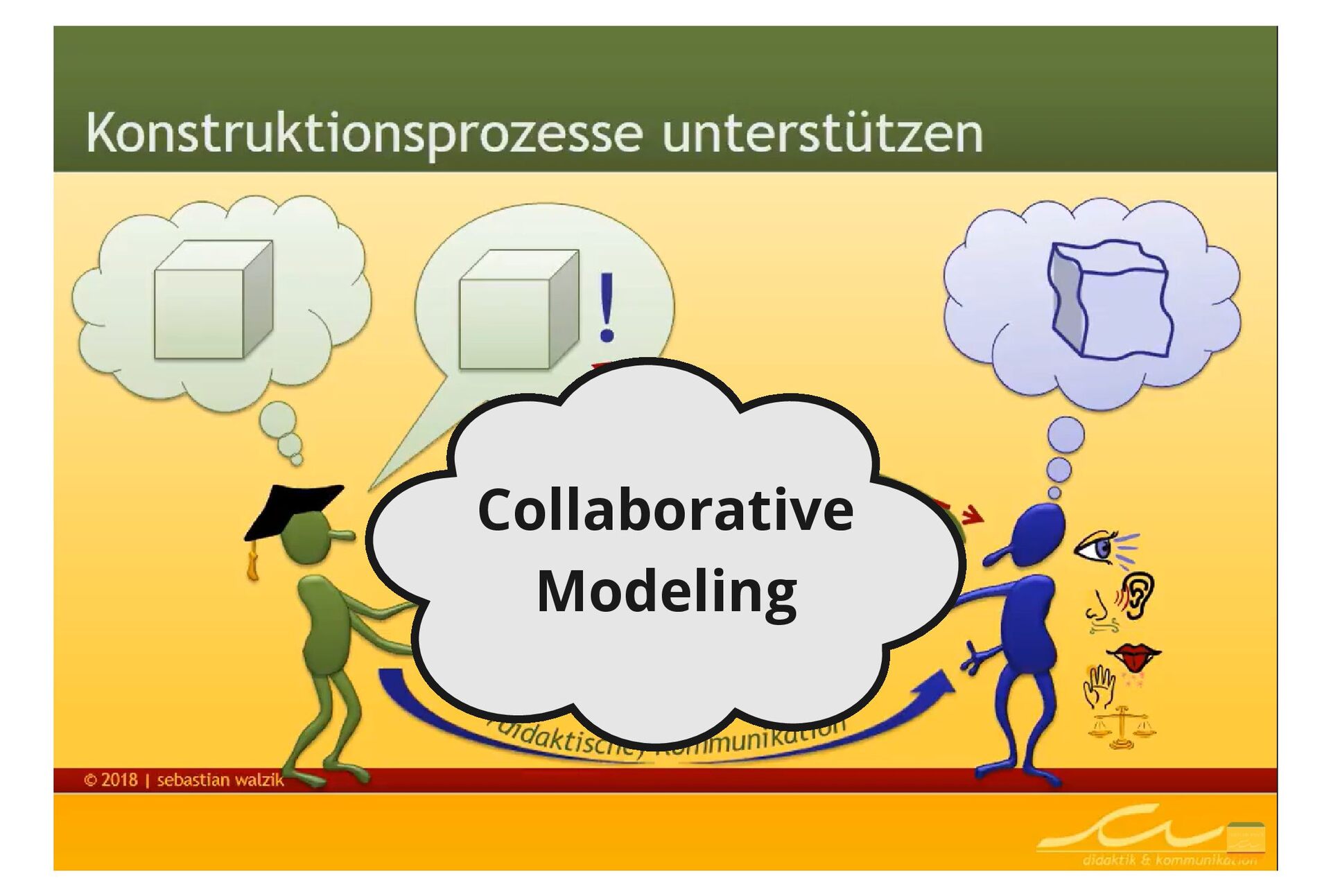

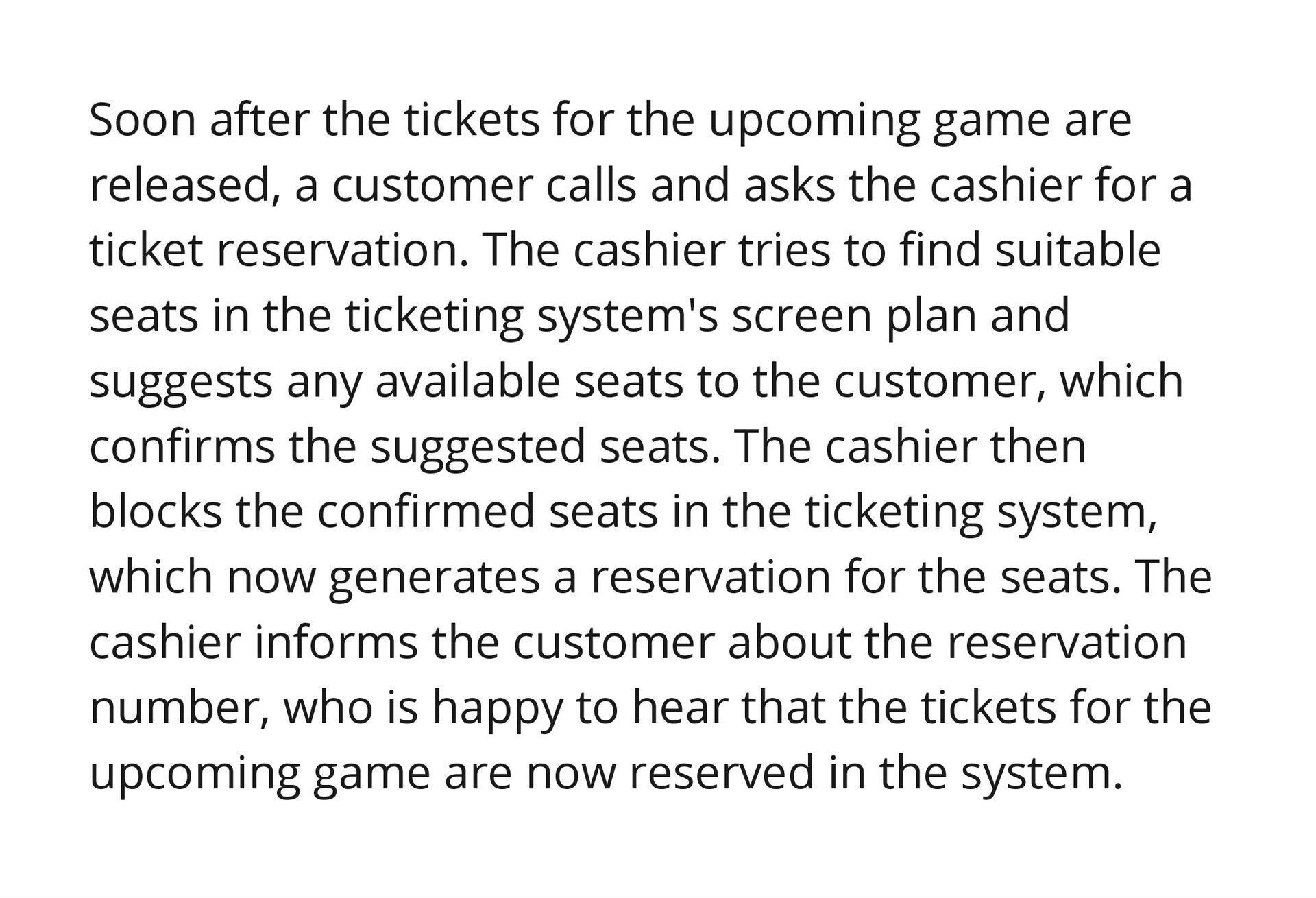

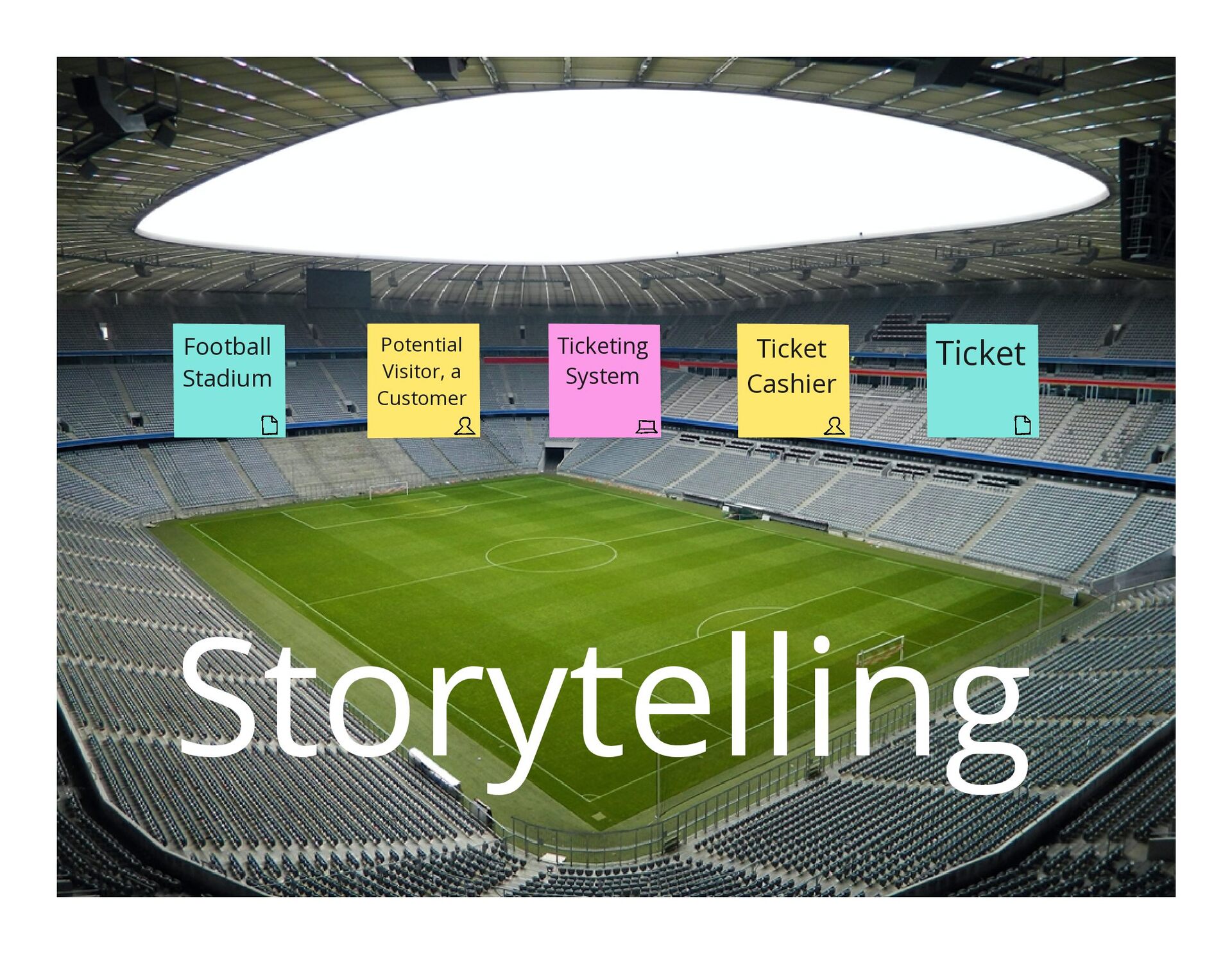

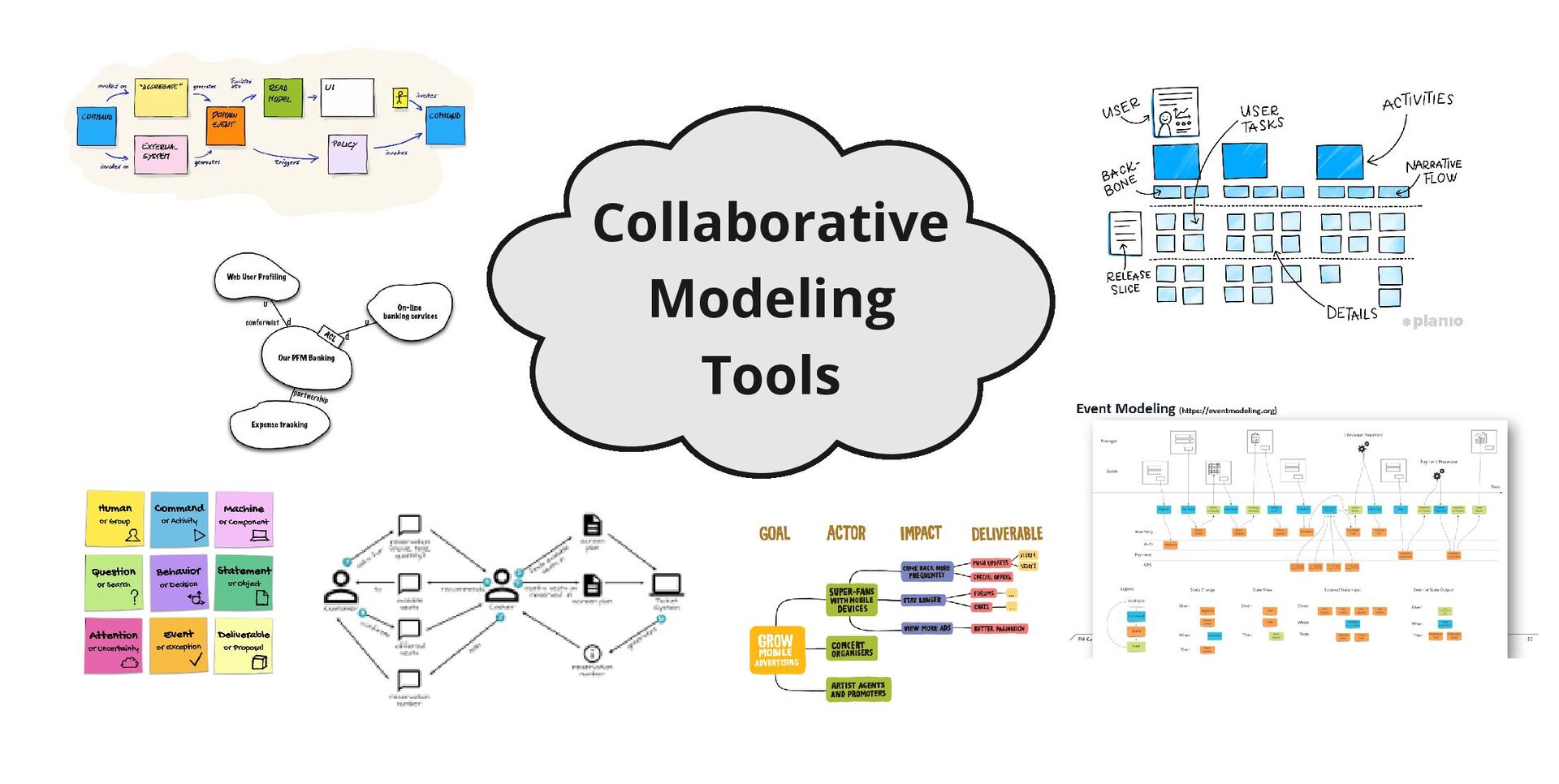

a customer calls and asks the cashier for a ticket reservation. The cashier tries to find suitable seats in the ticketing system's screen plan and suggests any available seats to the customer, which confirms the suggested seats. The cashier then blocks the confirmed seats in the ticketing system, which now generates a reservation for the seats. The cashier informs the customer about the reservation number, who is happy to hear that the tickets for the upcoming game are now reserved in the system.

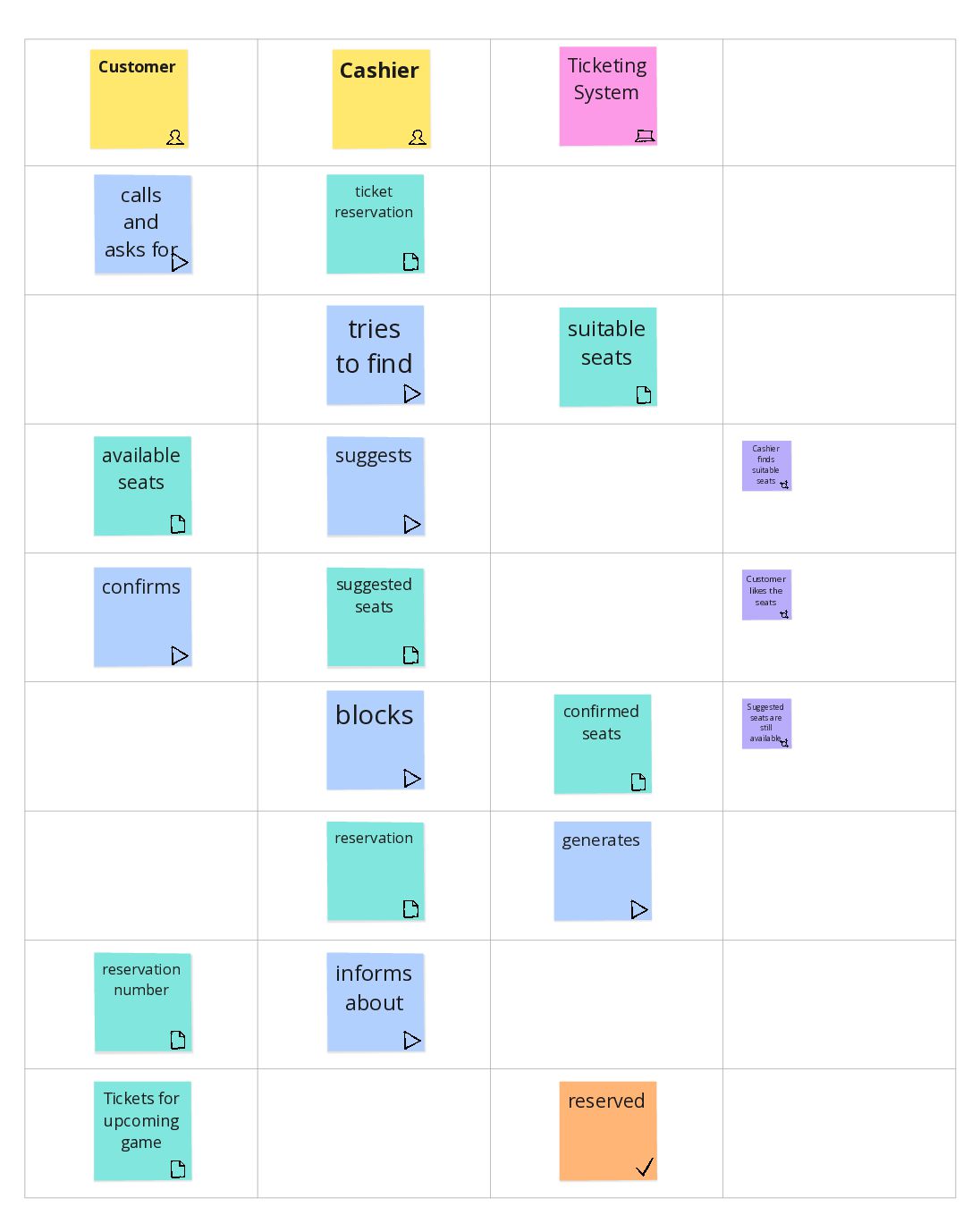

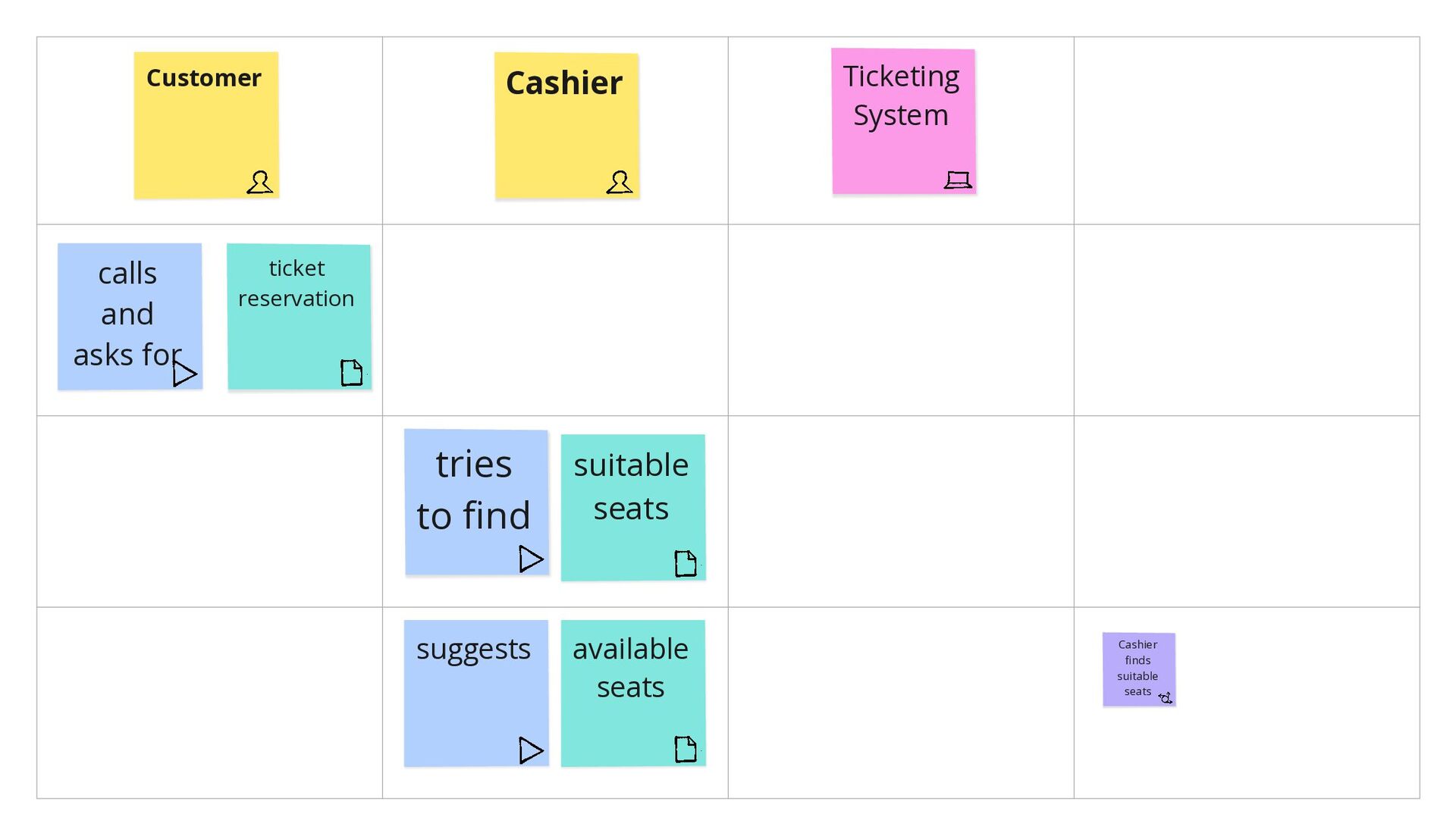

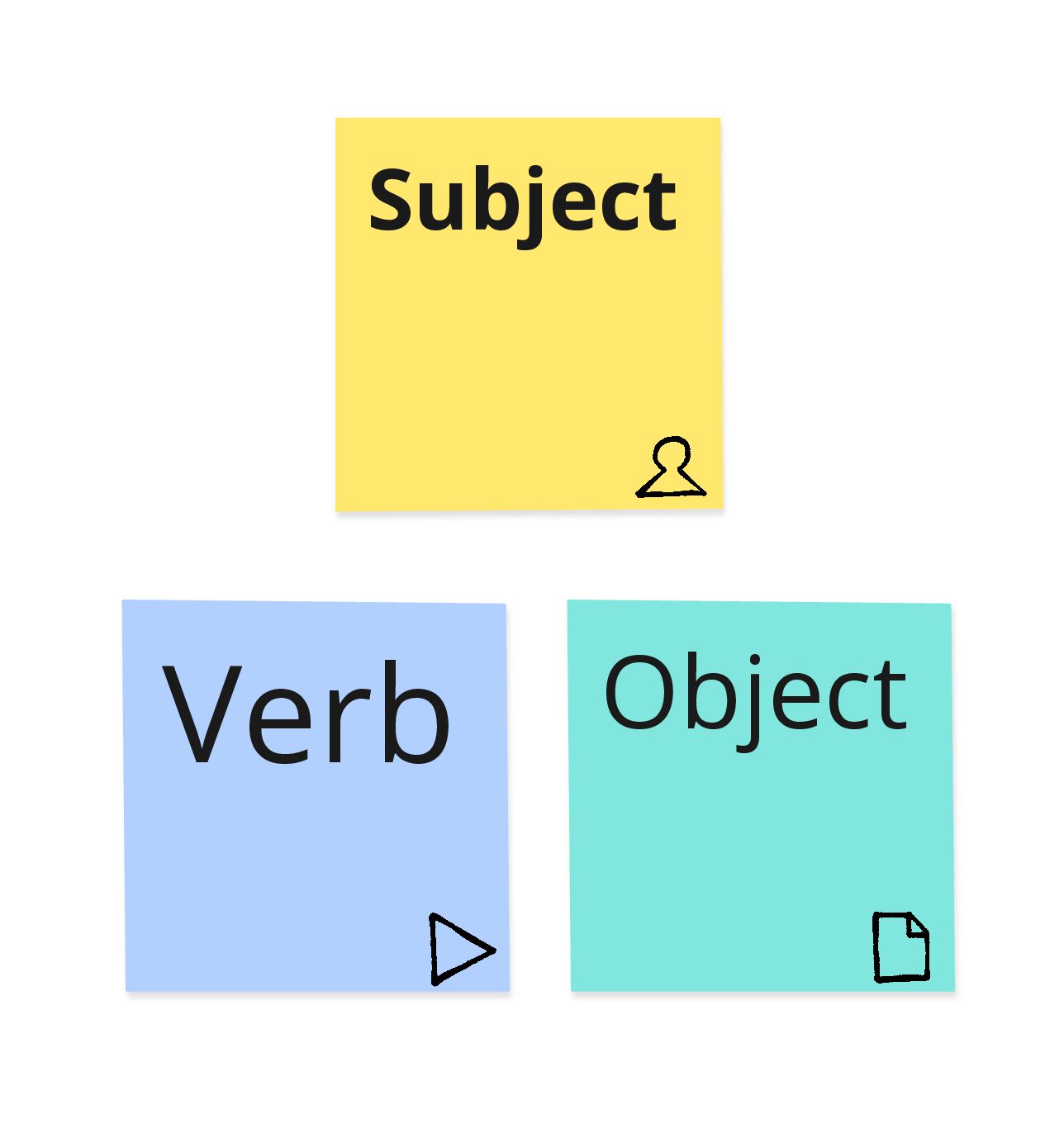

asks for ticket reservation tries to find suitable seats suggests available seats confirms suggested seats blocks confirmed seats generates reservation informs about reservation number Tickets for upcoming game reserved Customer likes the seats Suggested seats are still available

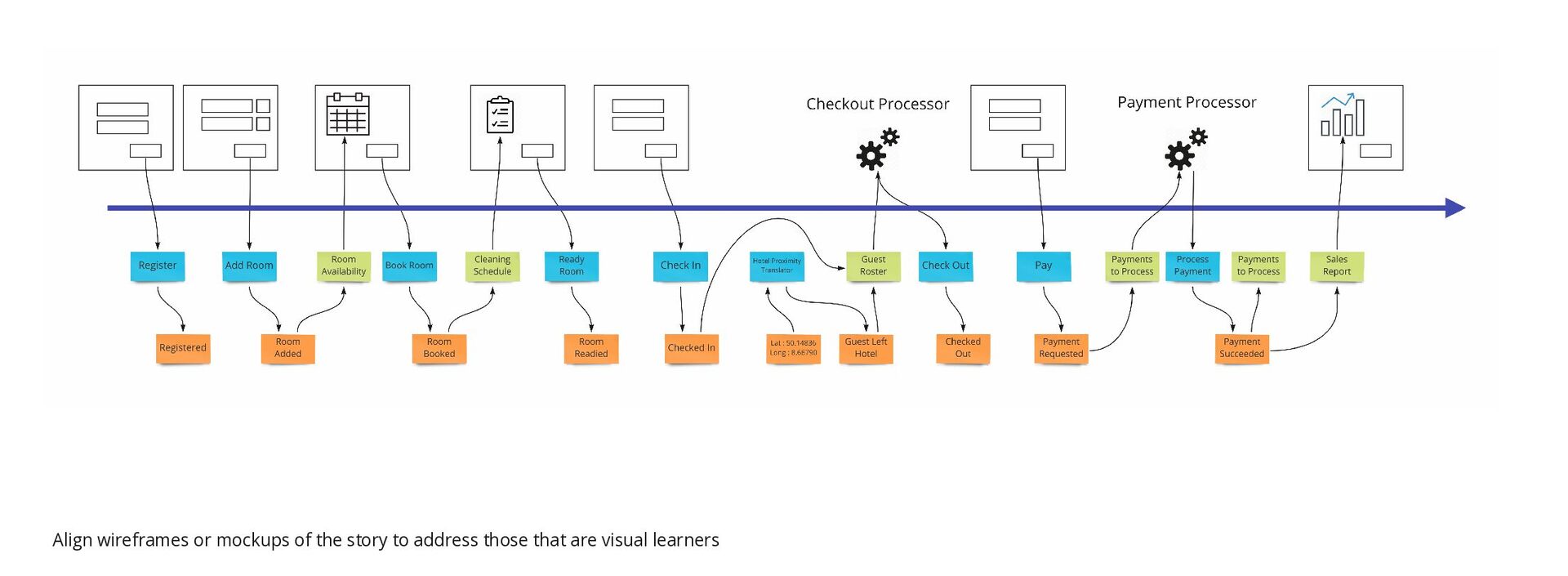

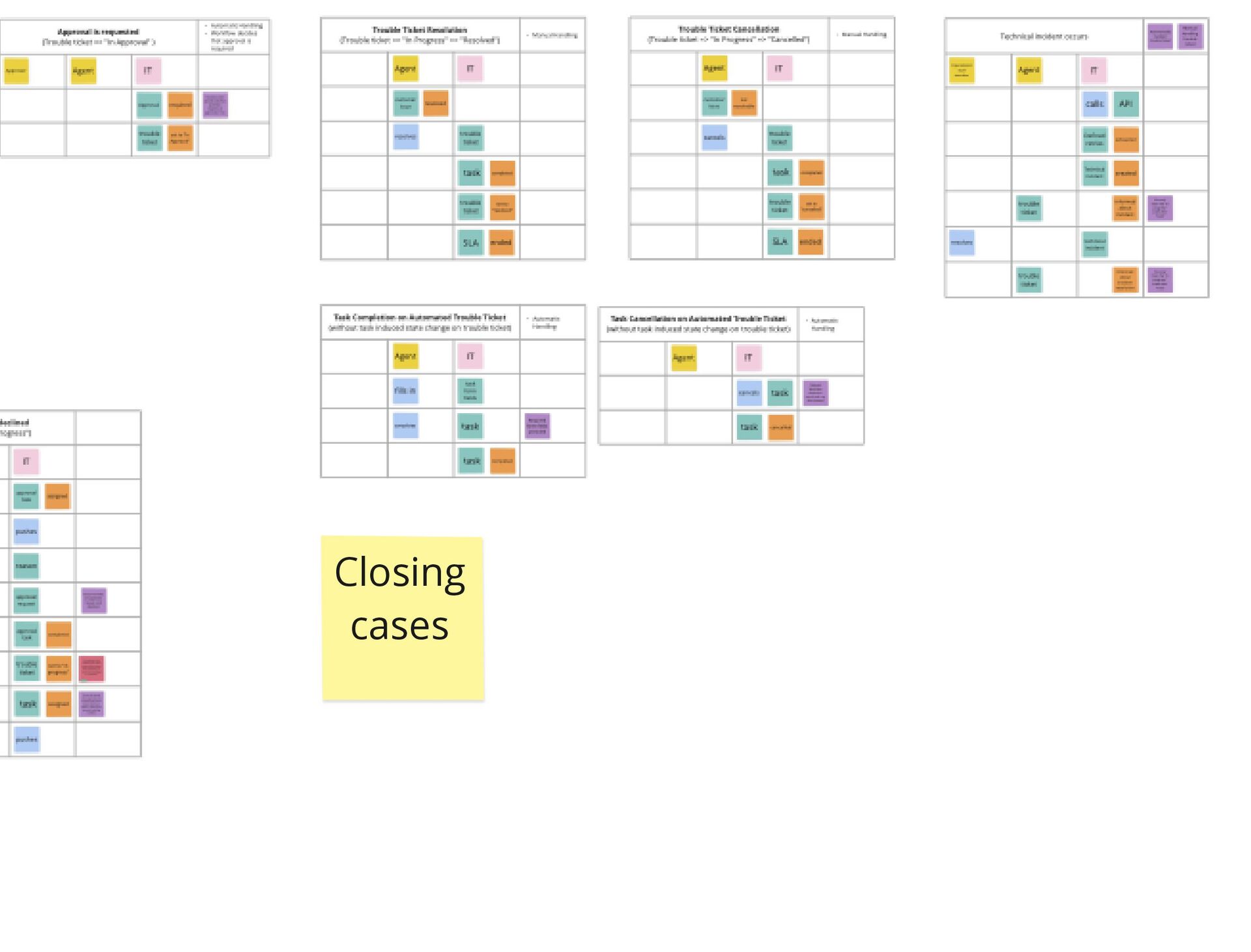

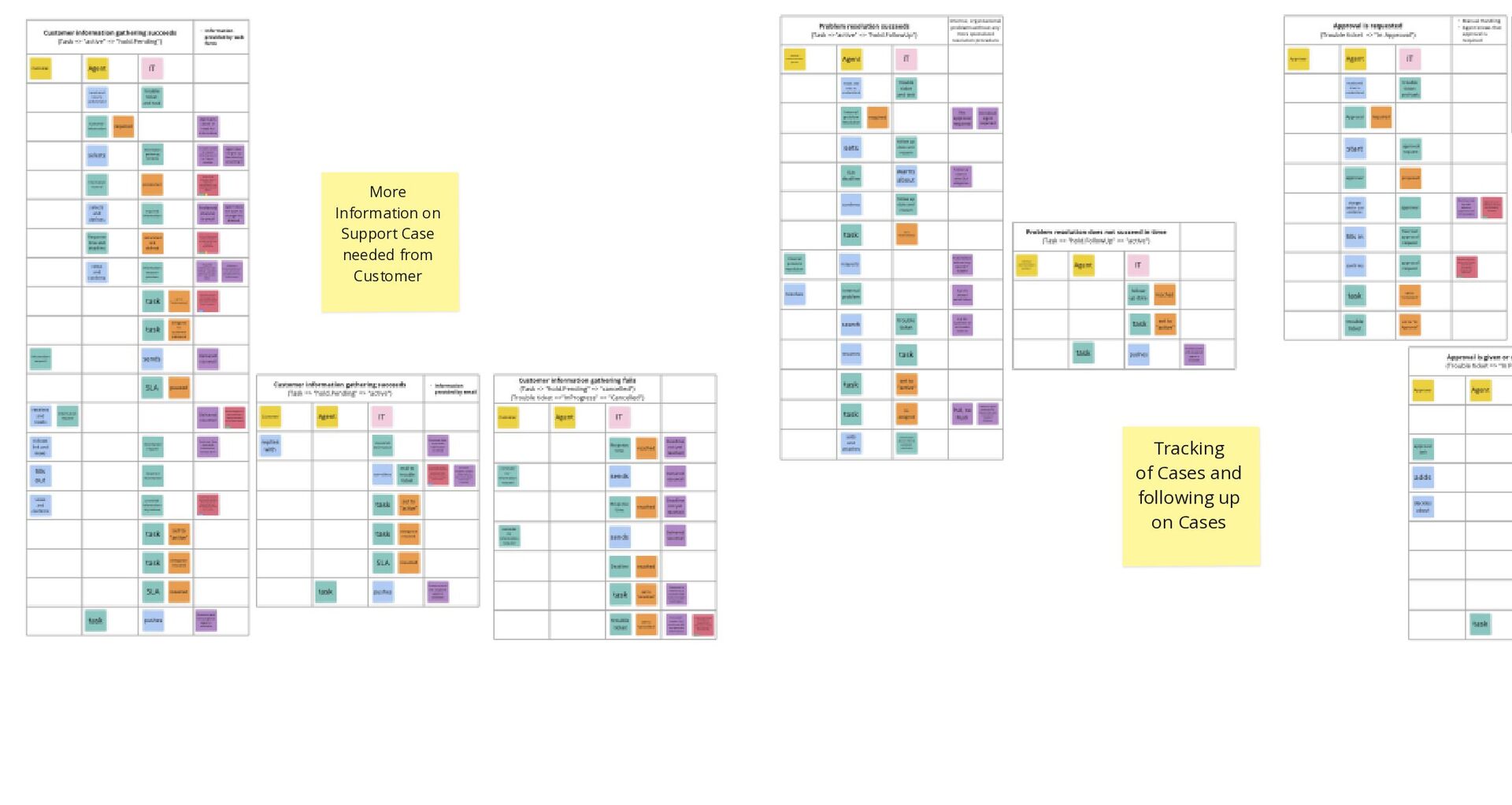

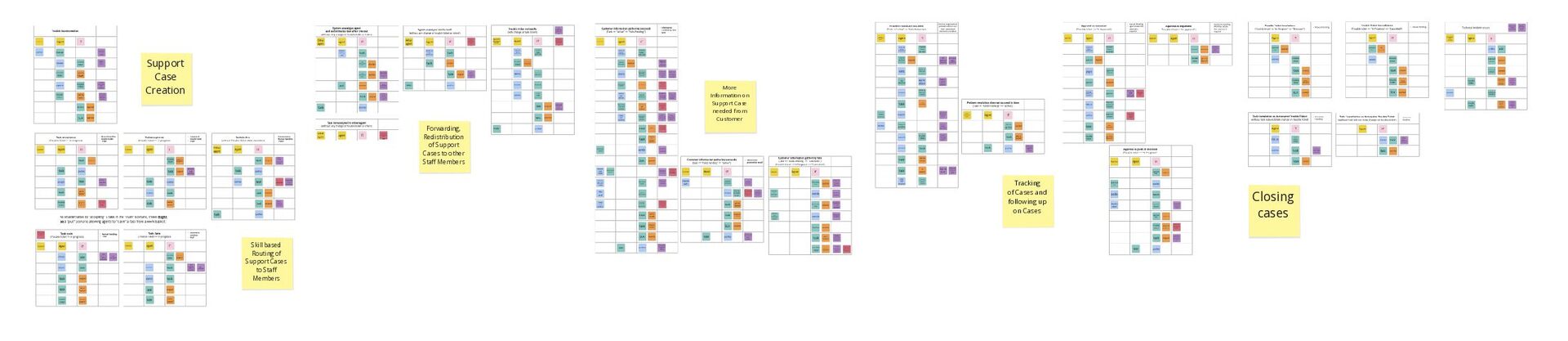

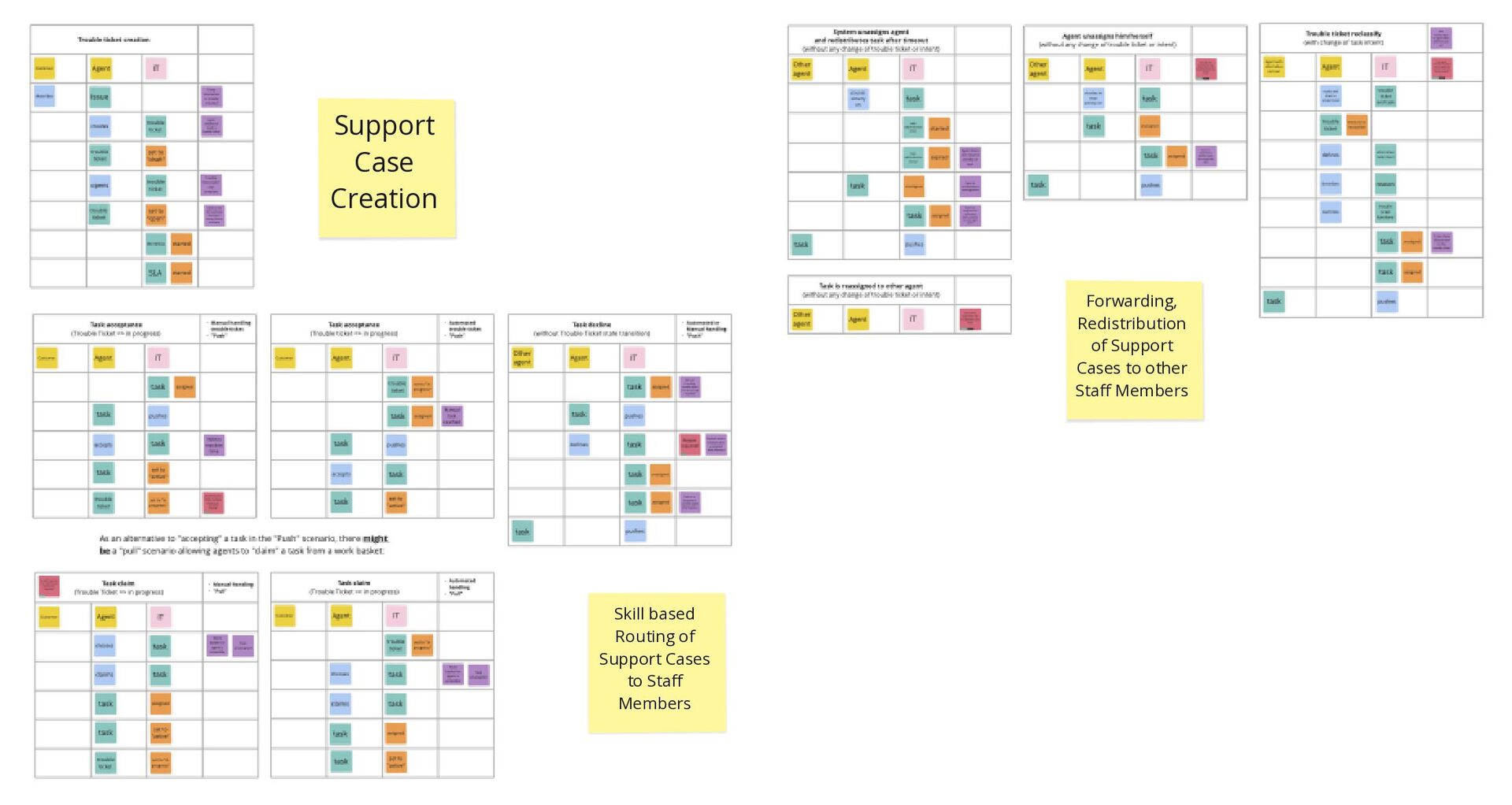

Staff Members Forwarding, Redistribution of Support Cases to other Staff Members More Information on Support Case needed from Customer Tracking of Cases and following up on Cases Closing cases

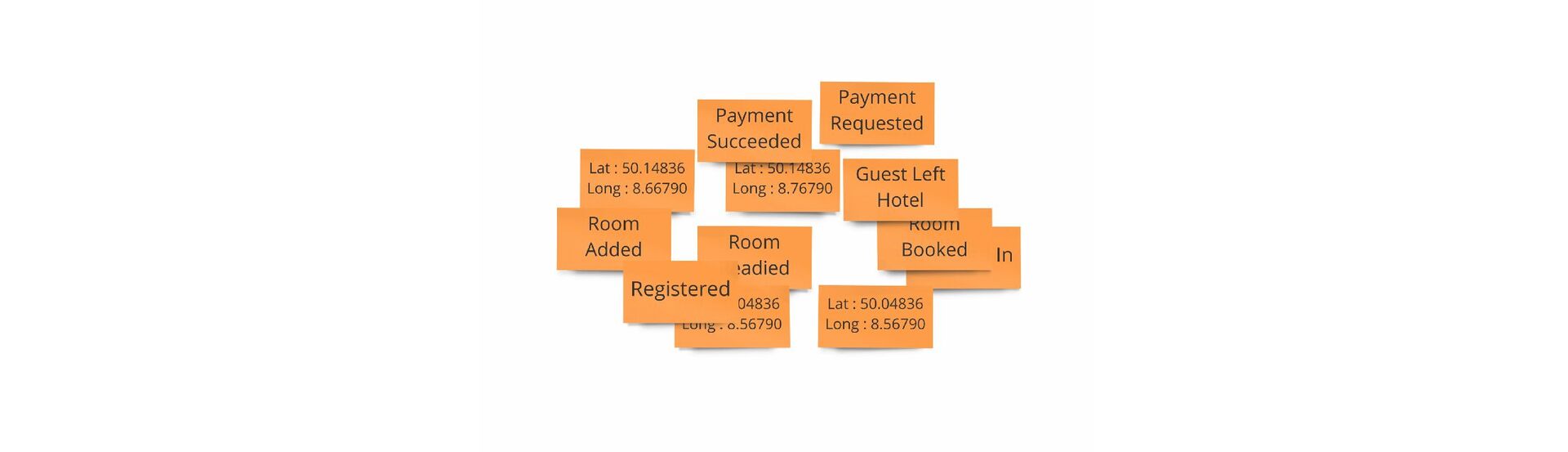

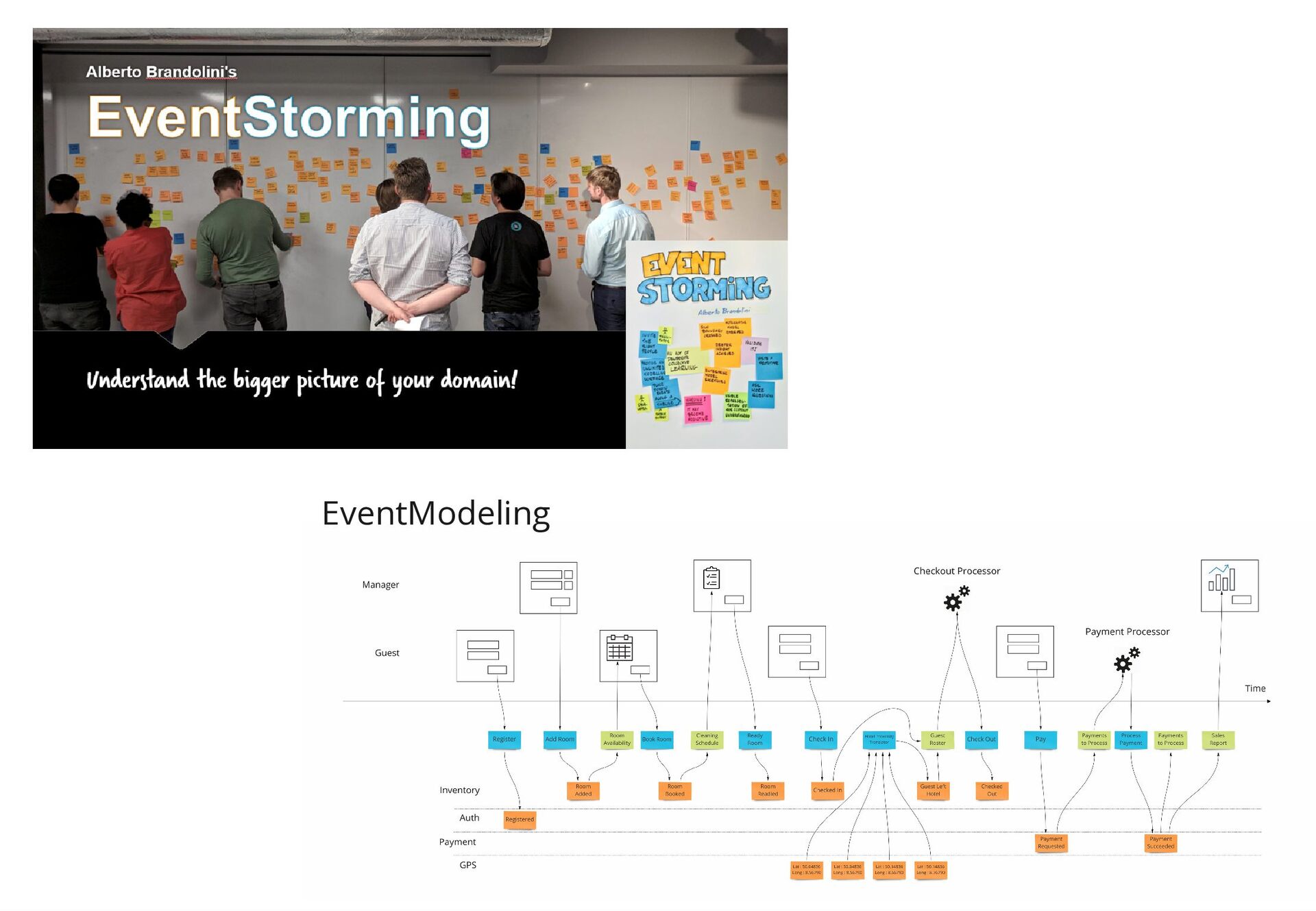

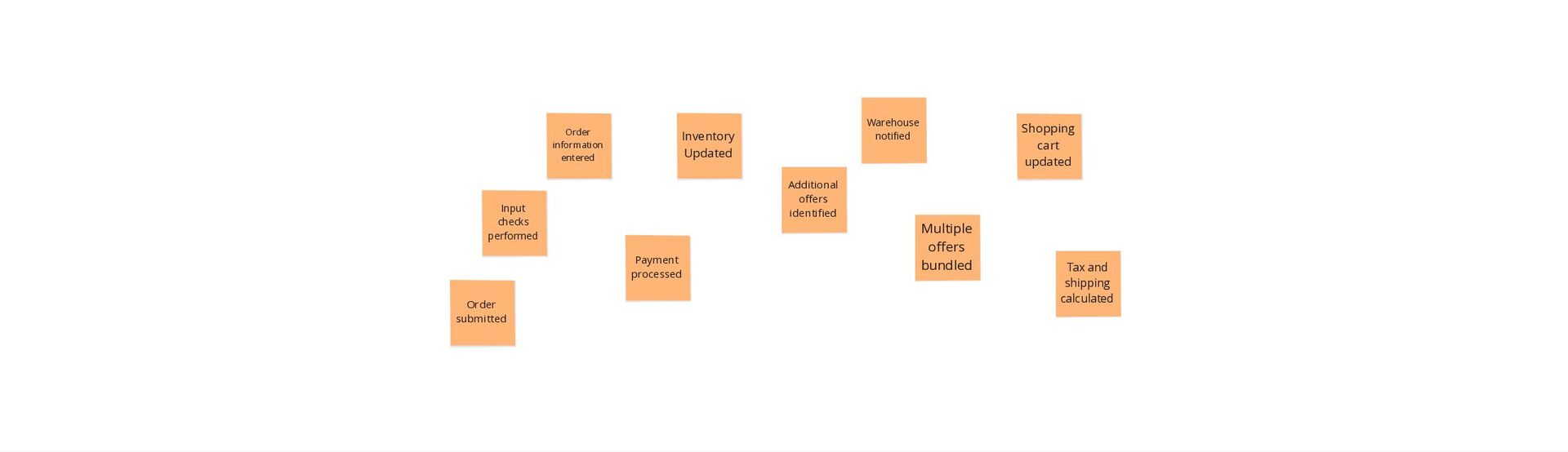

Input checks performed Additional offers identified Payment processed Order submitted Multiple offers bundled Tax and shipping calculated Order information entered Inventory Updated Warehouse notified Shopping cart updated Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output after identifying missing events (outlined in red) after putting them in sequence Order information entered Inventory Updated Warehouse notified Shopping cart updated Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output after identifying what triggers the events, the users and systems involved Webpage User Originations- system Offers accepted Offers declined User Accept Decline Add to chart User Offer System Checkout User Inventory System Process payment Fulfill order Warehouse System Visa, MC, American Express Order information entered Inventory Updated Warehouse notified Shopping cart updated Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output with aggregates added in and bounded context applied Webpage User Originations- system Offers accepted Offers declined User Accept Decline Add to chart User Offer System Checkout User Inventory System Process payment Fulfill order Warehouse System Visa, MC, American Express Order Inventory Order Order Shopping cart Offer Address Payment Inventory Order captured Shopping cart Offers Checkout process Payment processing Order fulfillment EventStorming EventModeling Create a plausible story made of these events Align wireframes or mockups of the story to address those that are visual learners

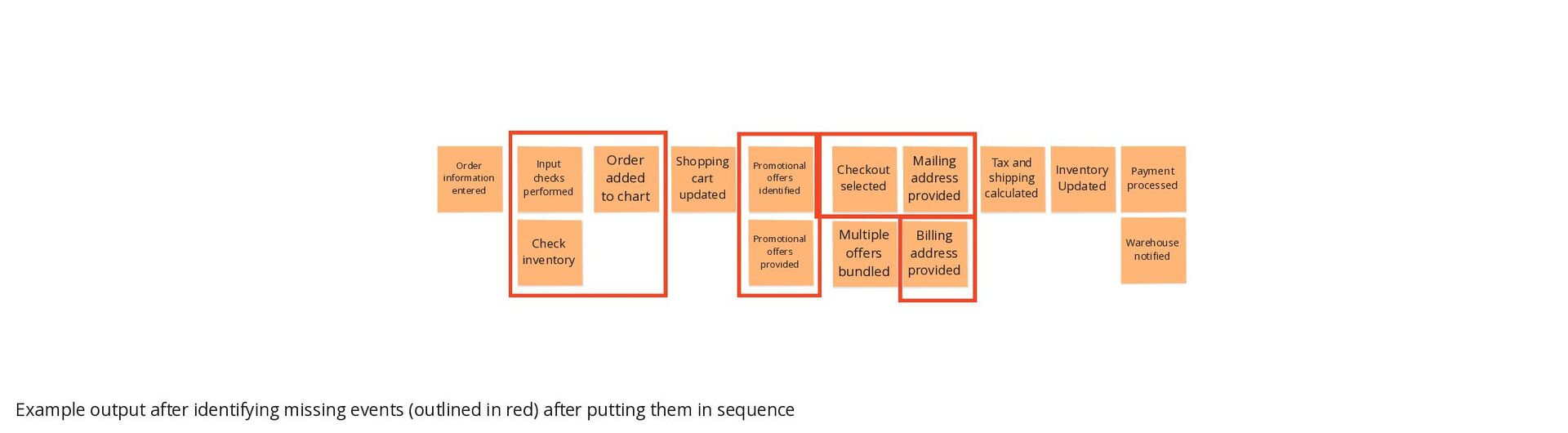

Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output after identifying missing events (outlined in red) after putting them in sequence

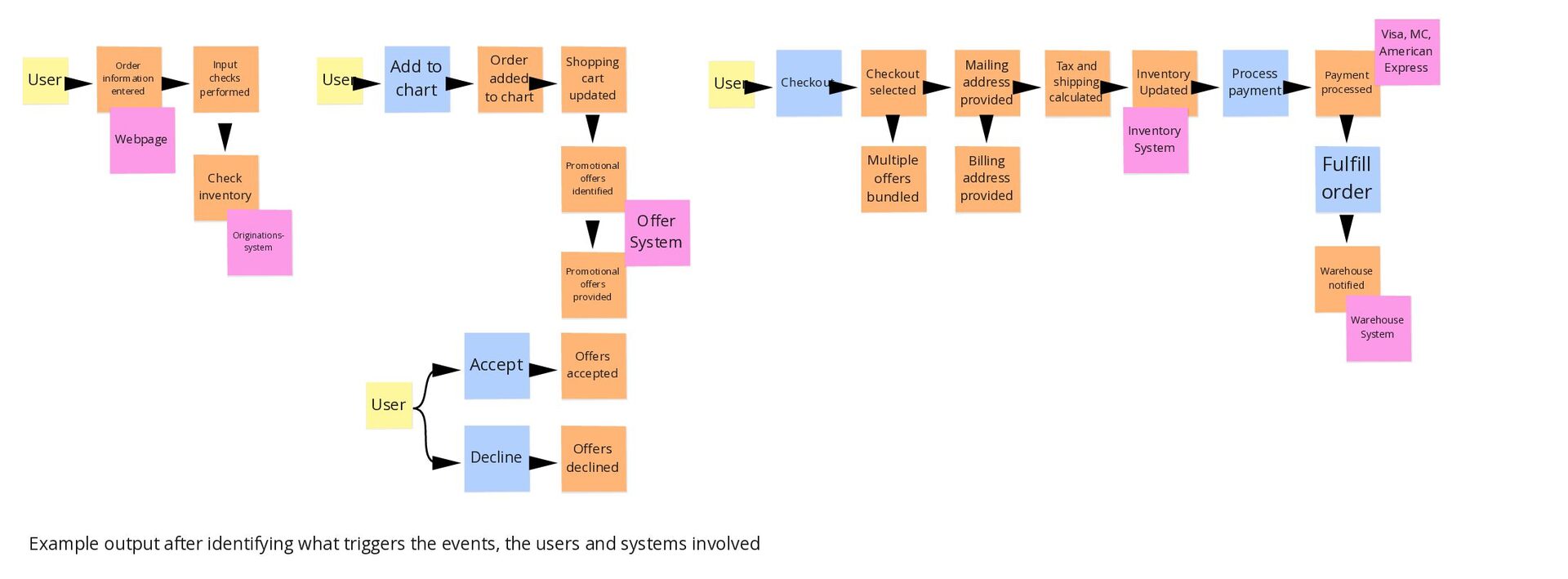

Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output after identifying what triggers the events, the users and systems involved Webpage User Originations- system Offers accepted Offers declined User Accept Decline Add to chart User Offer System Checkout User Inventory System Process payment Fulfill order Warehouse System Visa, MC, American Express

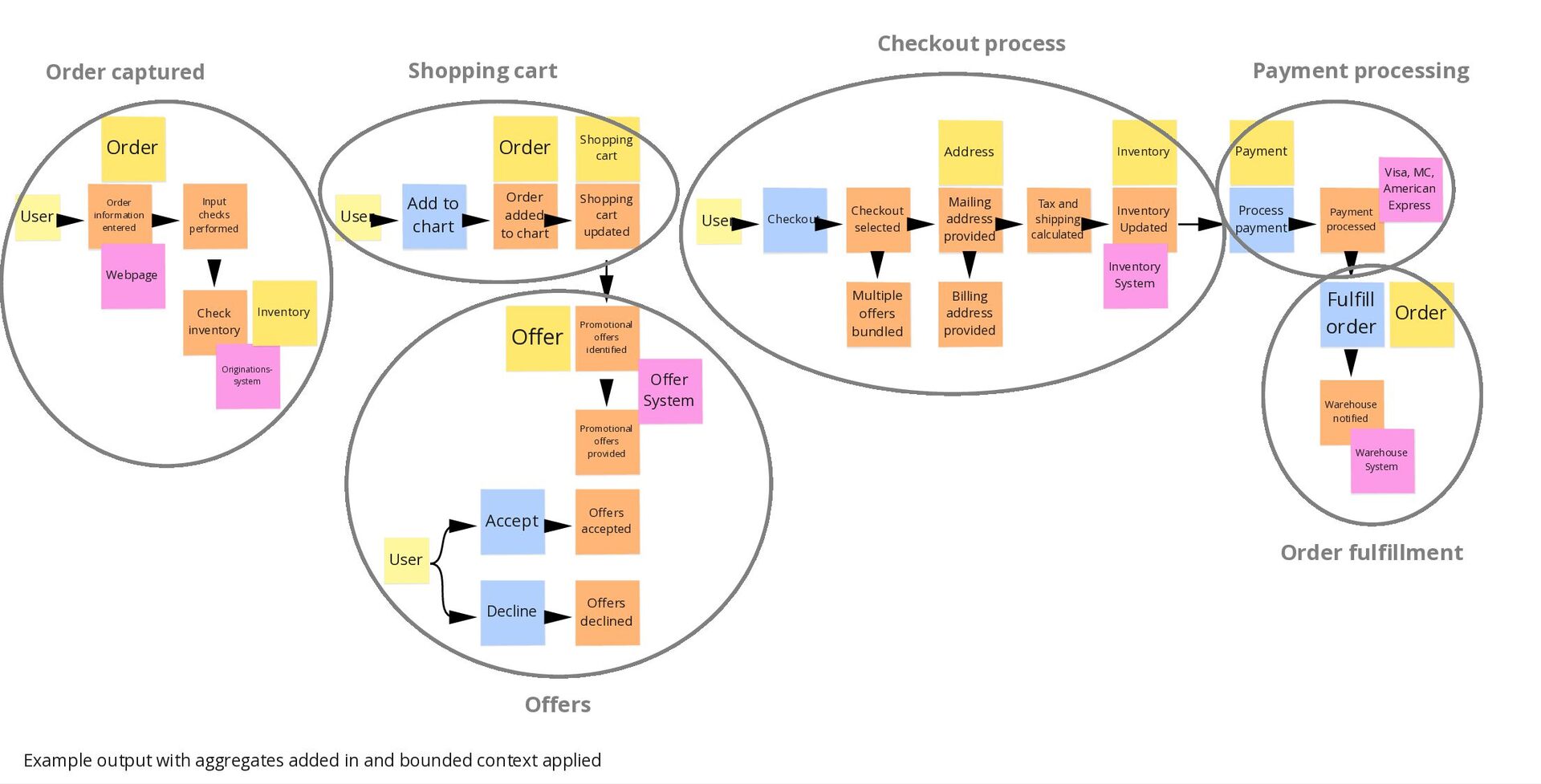

Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Example output with aggregates added in and bounded context applied Webpage User Originations- system Offers accepted Offers declined User Accept Decline Add to chart User Offer System Checkout User Inventory System Process payment Fulfill order Warehouse System Visa, MC, American Express Order Inventory Order Order Shopping cart Offer Address Payment Inventory Order captured Shopping cart Offers Checkout process Payment processing Order fulfillment

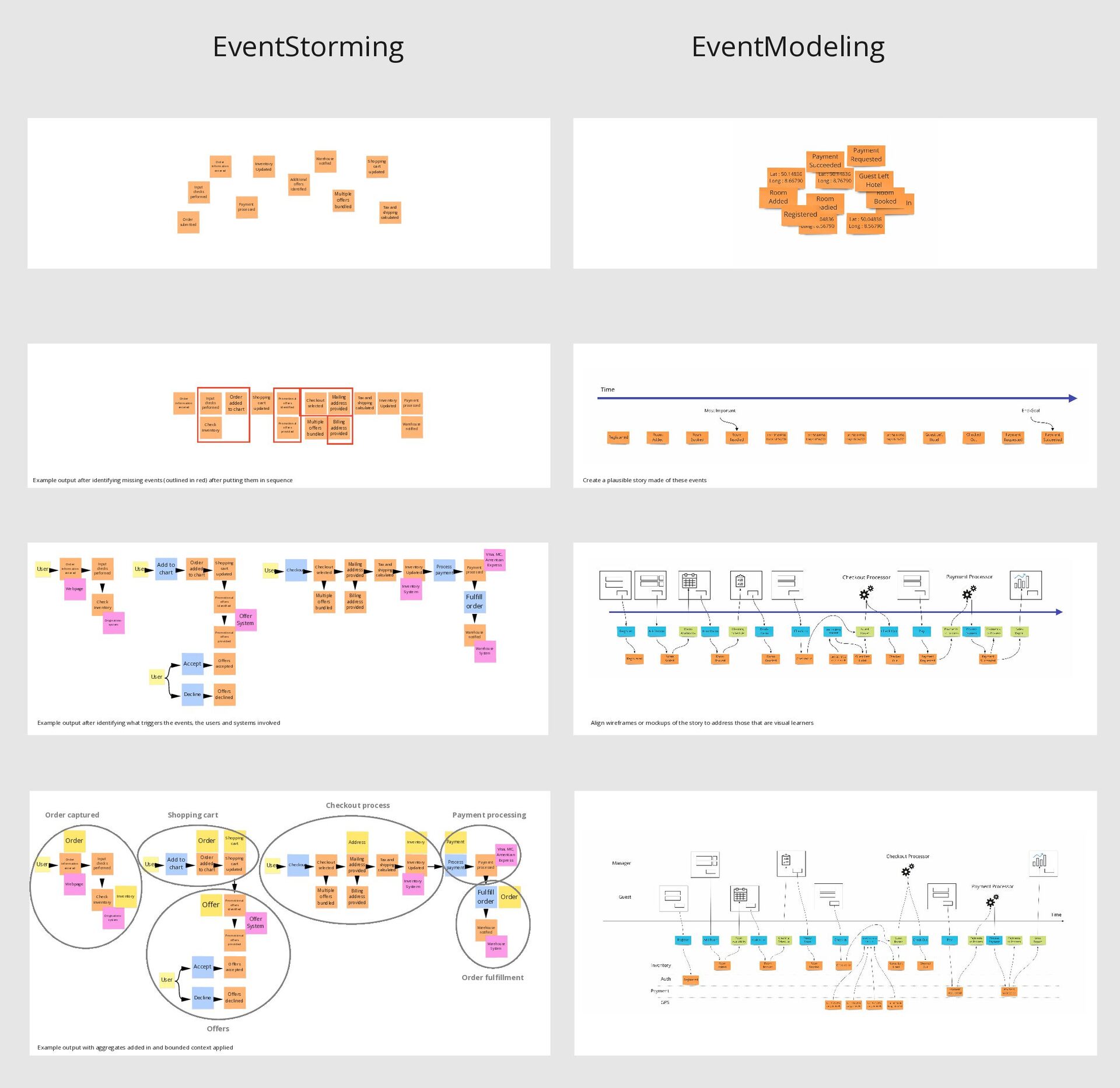

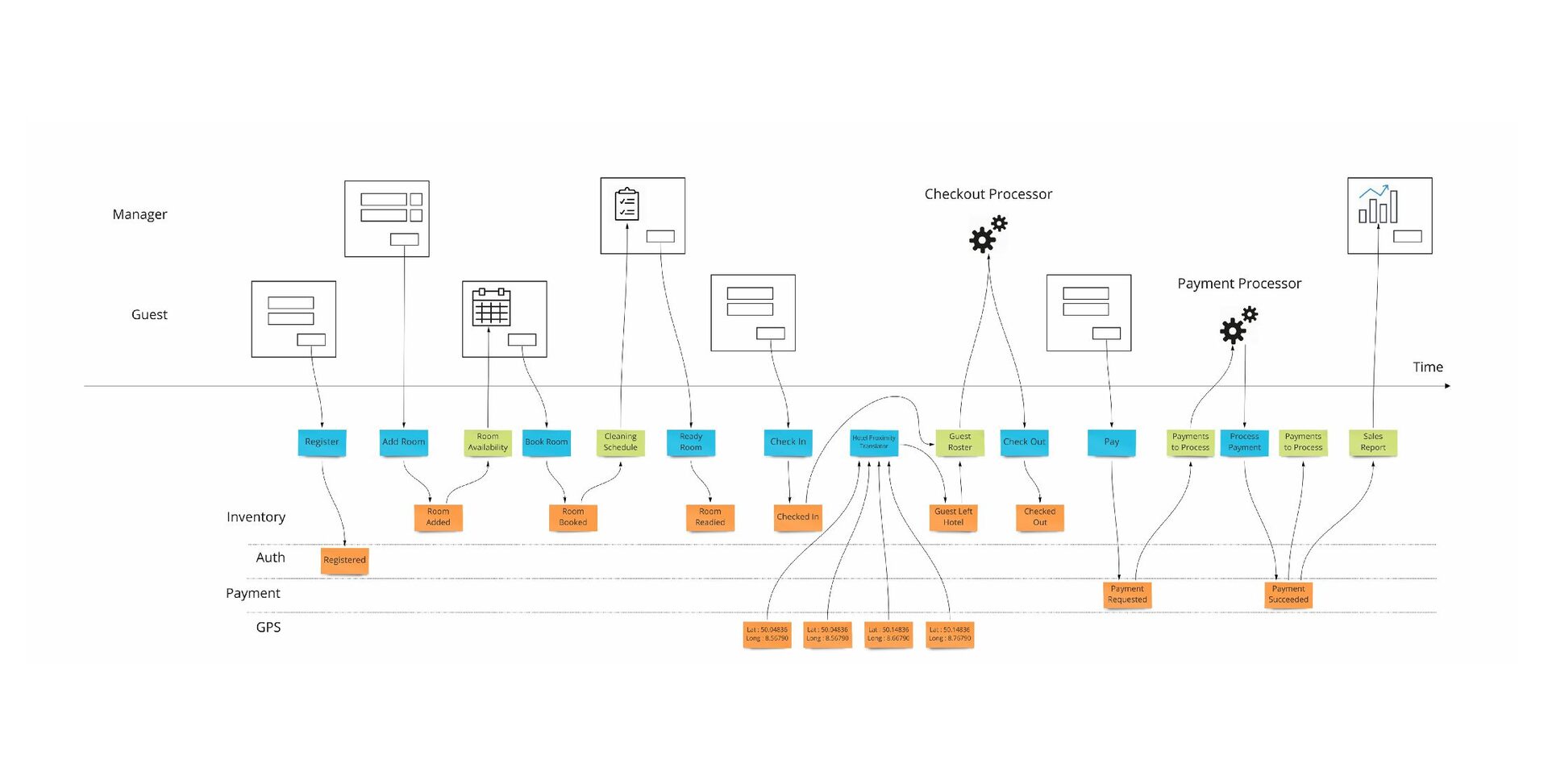

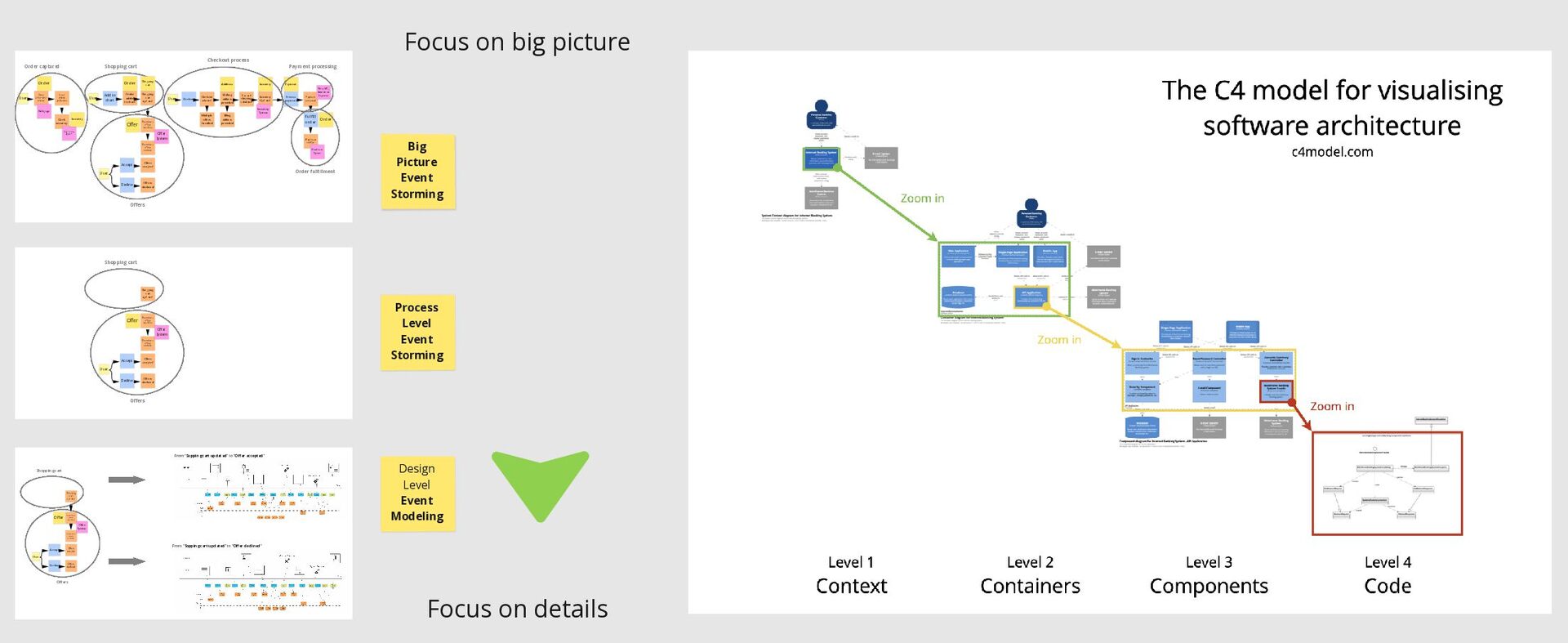

Storming Process Level Event Storming Design Level Event Modeling Order information entered Inventory Updated Warehouse notified Shopping cart updated Input checks performed Payment processed Multiple offers bundled Tax and shipping calculated Check inventory Order added to chart Promotional offers identified Promotional offers provided Checkout selected Mailing address provided Billing address provided Webpage User Originations- system Offers accepted Offers declined User Accept Decline Add to chart User Offer System Checkout User Inventory System Process payment Fulfill order Warehouse System Visa, MC, American Express Order Inventory Order Order Shopping cart Offer Address Payment Inventory Order captured Shopping cart Offers Checkout process Payment processing Order fulfillment Promotional offers identified Promotional offers provided Offers accepted Offers declined User Accept Decline Offer System Offer Offers Shopping cart updated Shopping cart Promotional offers identified Promotional offers provided Offers accepted Offers declined User Accept Decline Offer System Offer Offers Shopping cart updated Shopping cart From "Sopping cart updated" to "Offer accepted" From "Sopping cart updated" to "Offer declined"

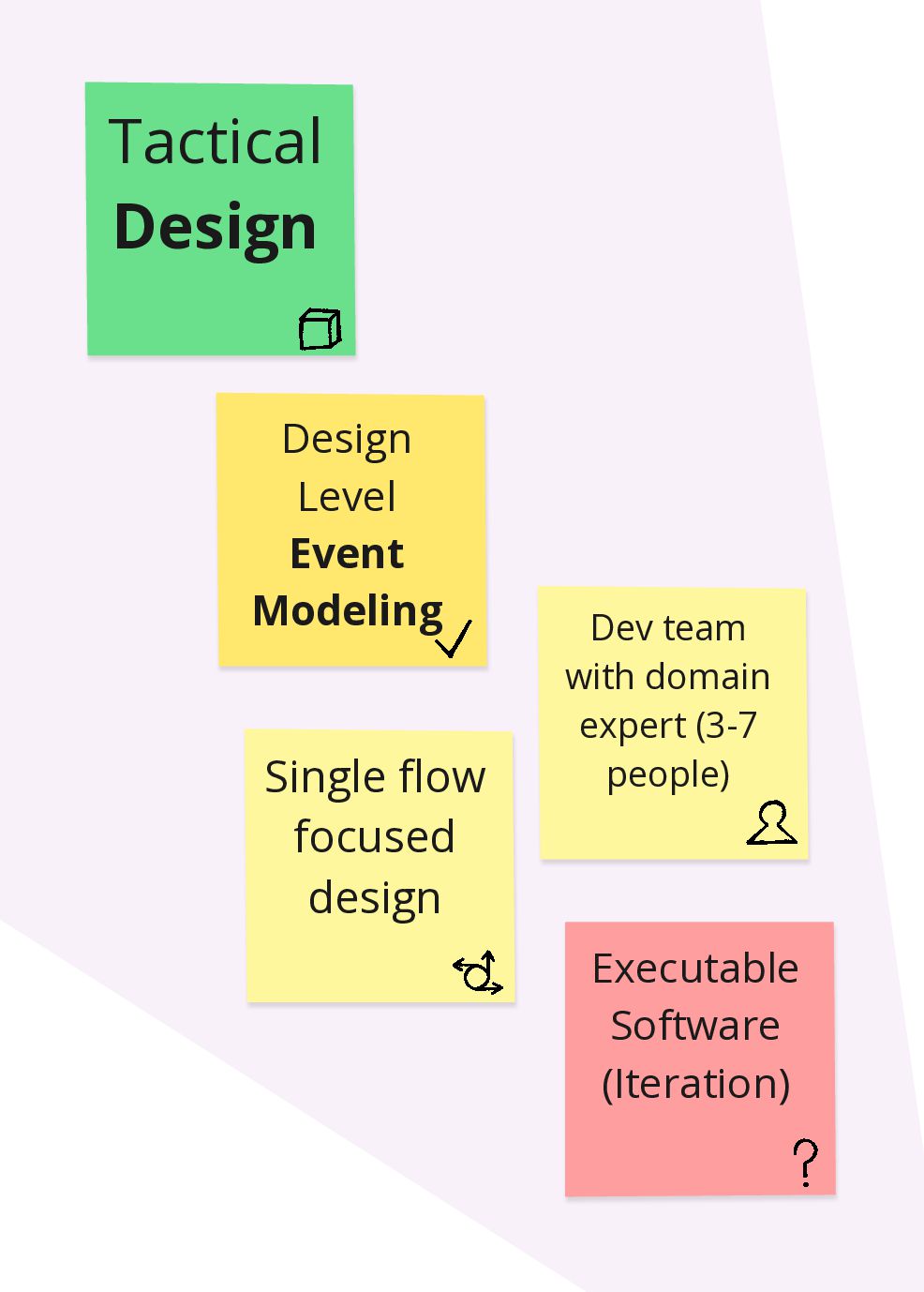

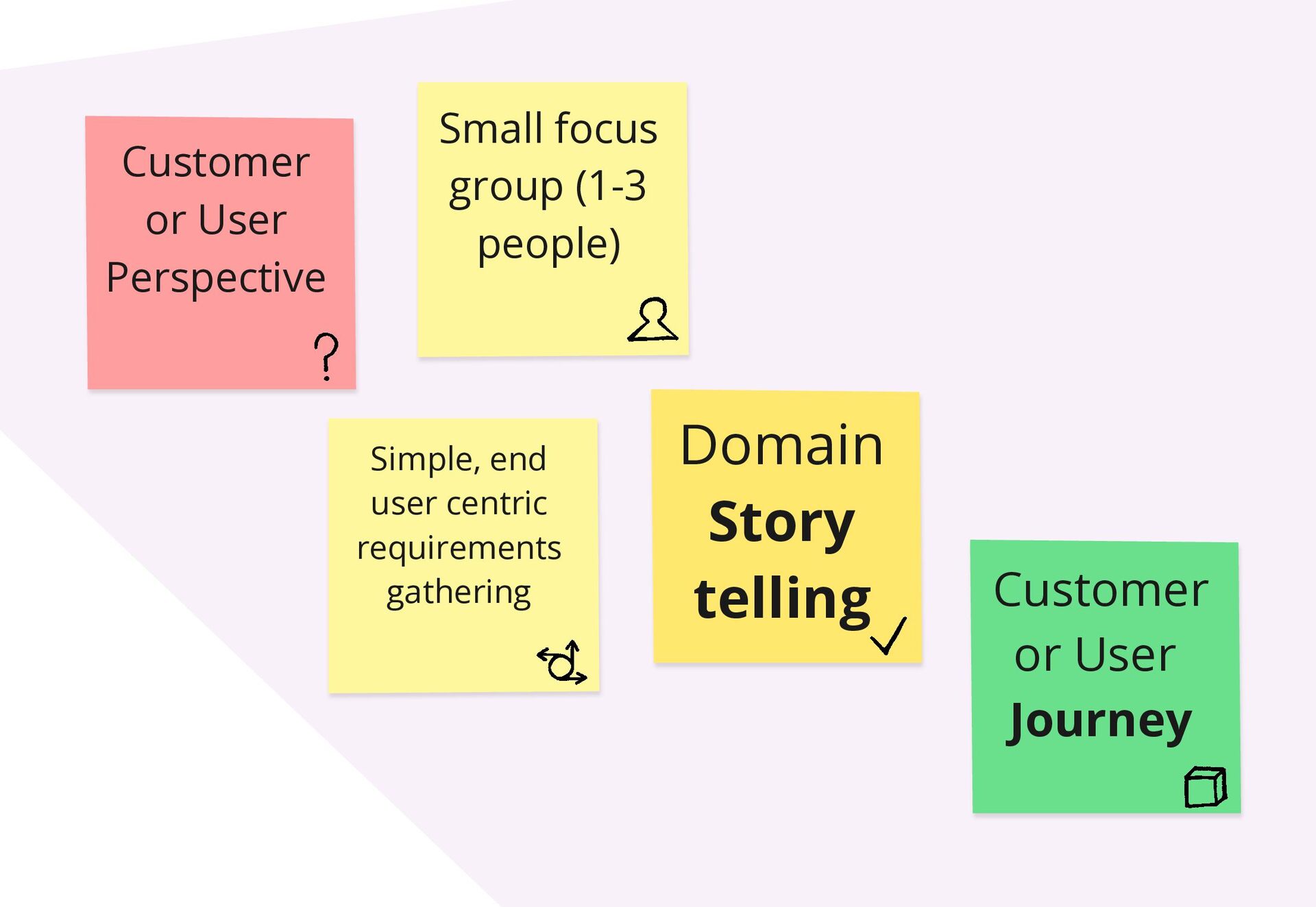

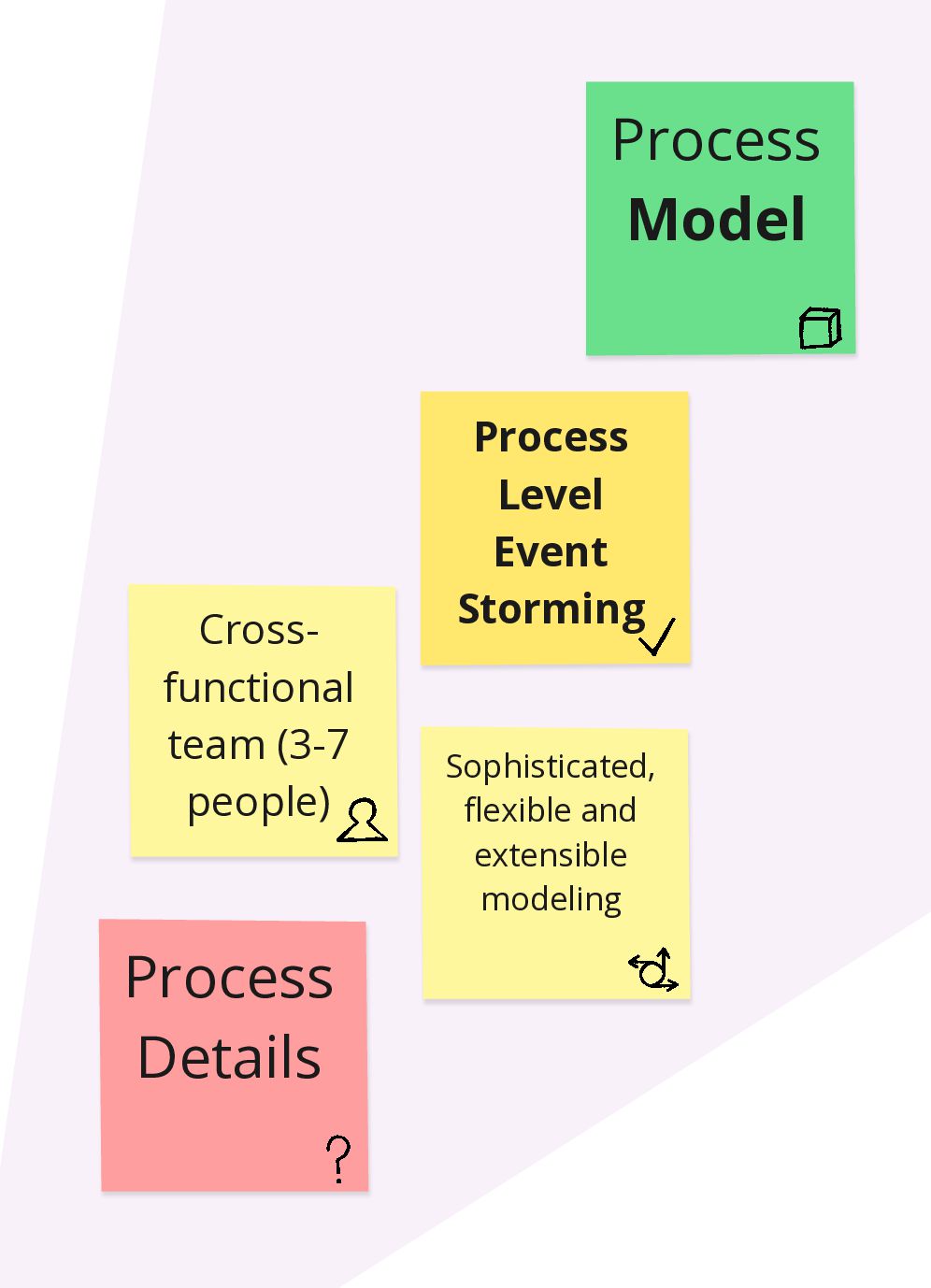

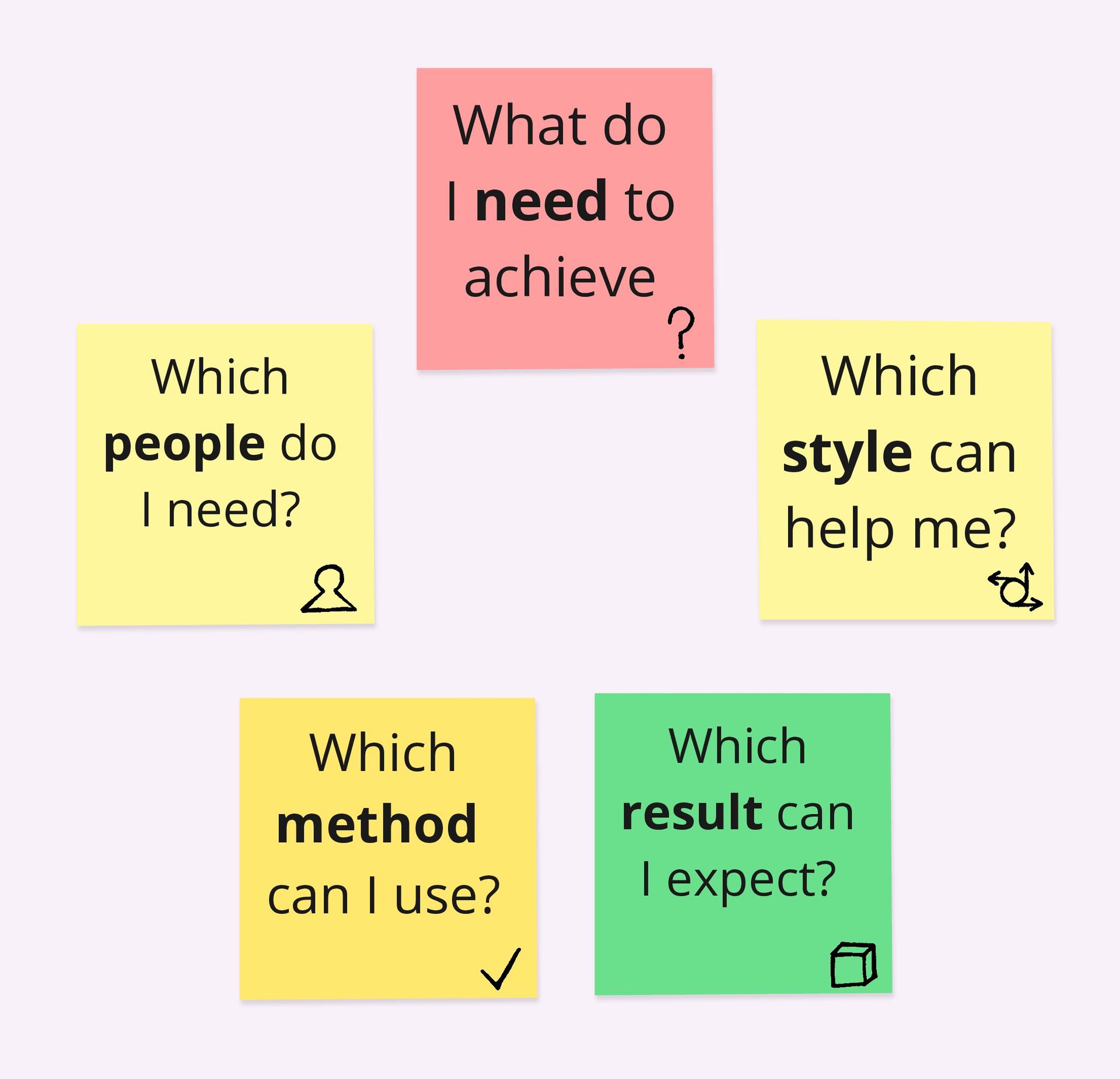

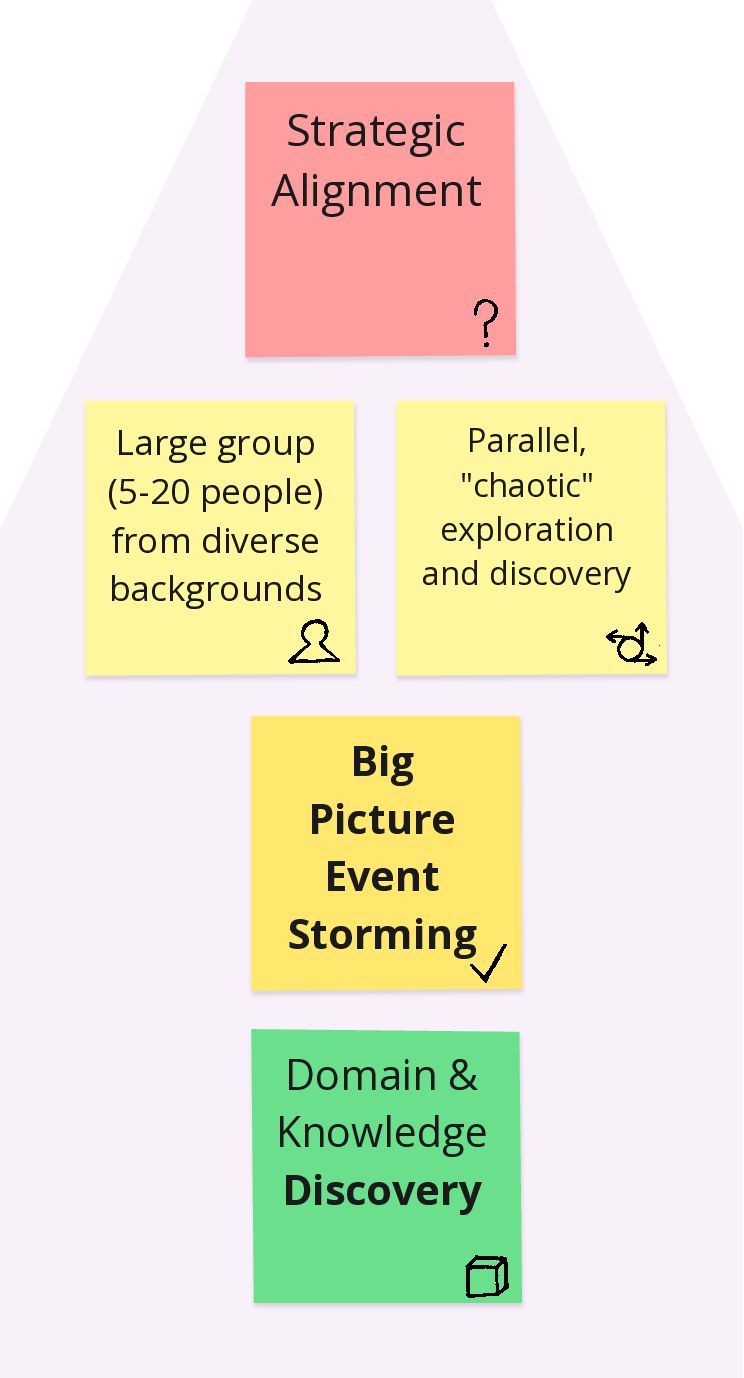

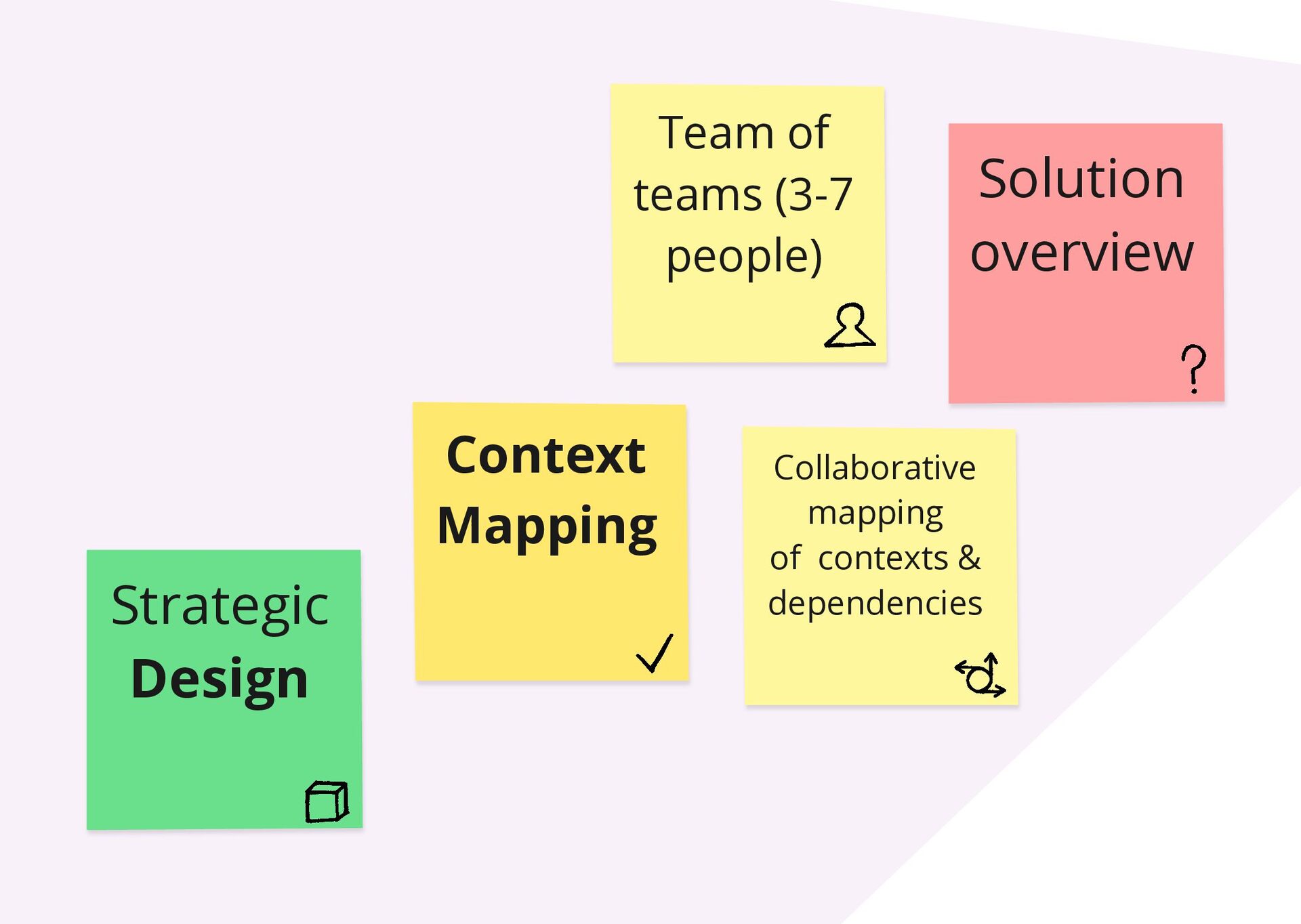

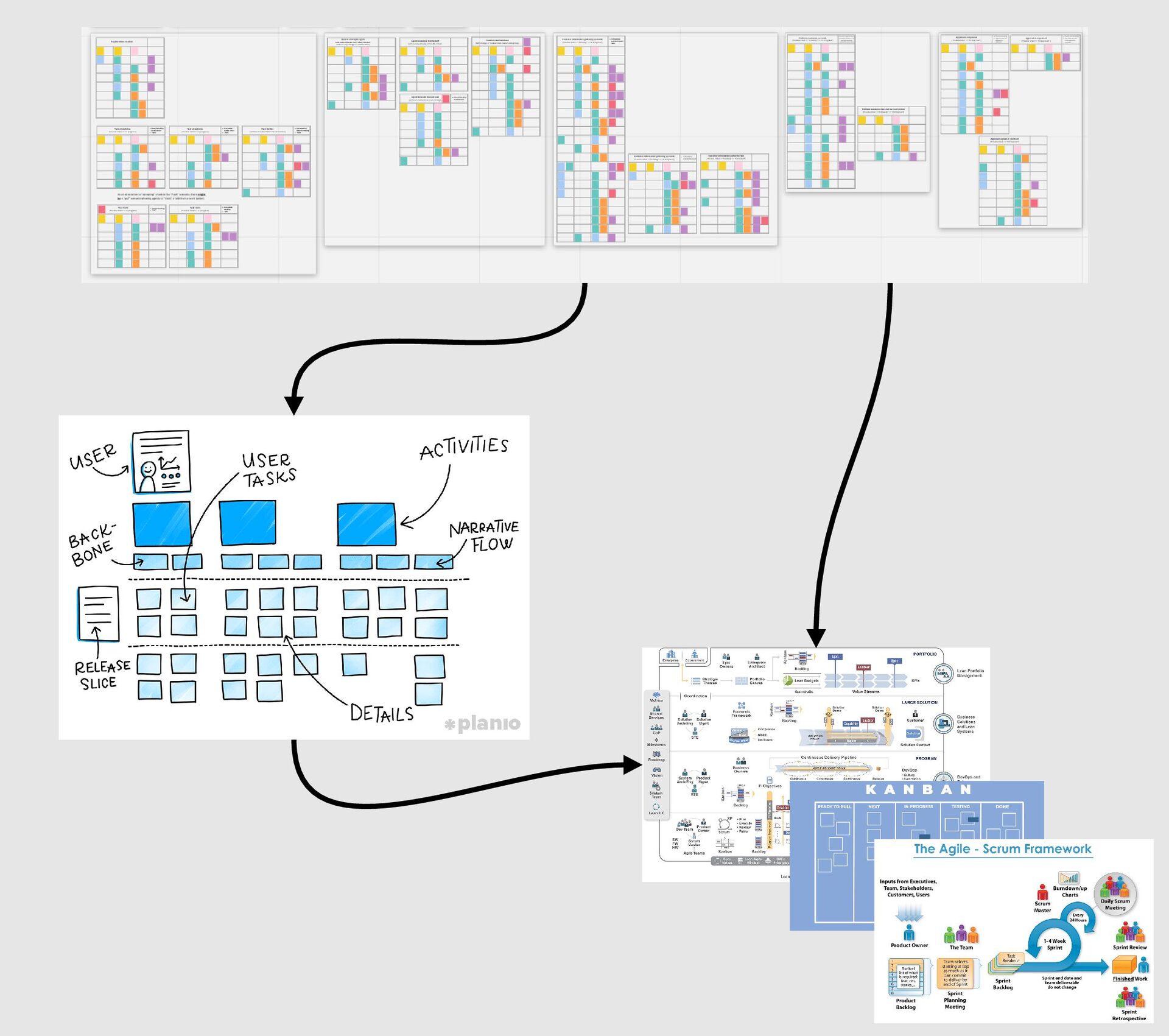

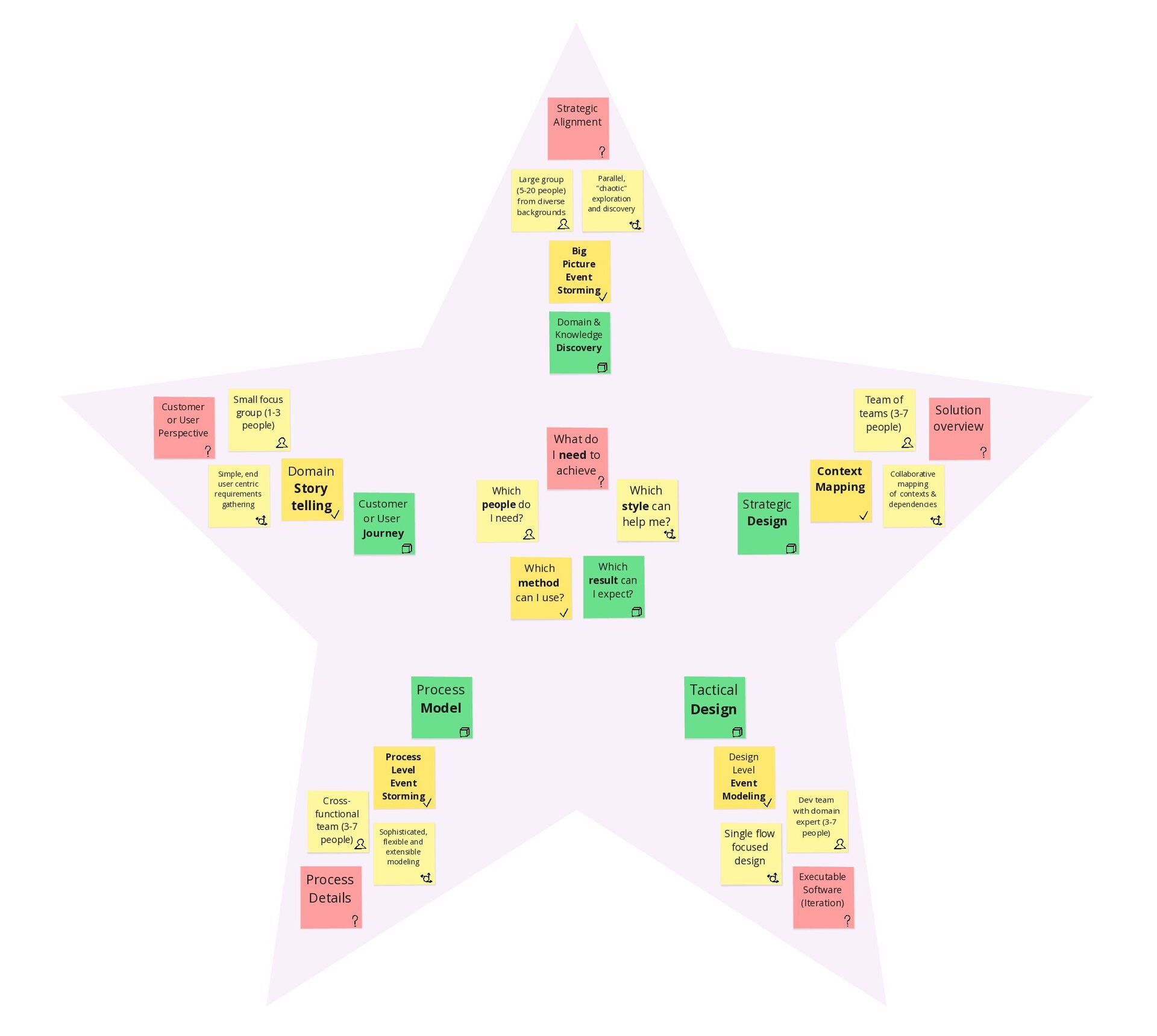

discovery Large group (5-20 people) from diverse backgrounds Domain & Knowledge Discovery Small focus group (1-3 people) Which result can I expect? What do I need to achieve Which people do I need? Which style can help me? Which method can I use? Customer or User Perspective Domain Story telling Customer or User Journey Simple, end user centric requirements gathering Process Details Process Level Event Storming Process Model Sophisticated, flexible and extensible modeling Dev team with domain expert (3-7 people) Executable Software (Iteration) Design Level Event Modeling Tactical Design Single flow focused design Cross- functional team (3-7 people) Solution overview Context Mapping Strategic Design Collaborative mapping of contexts & dependencies Team of teams (3-7 people)
