Workshop - Building a Baby PaaS with Vagrant, Docker.io and Node.js @ LXJS 2013

In this workshop you will build a baby PaaS from scratch. Starting with your development environment using Vagrant and ending with some Docker.io and Node.js magic.

When you are building a project that needs development time and constant care across all stack, for example devops tools or PaaS related software, the complexity of your development environment will quickly increase.

You will learn how to use Vagrant in order to leverage this task saving you precious time. Using this new development environment you will fiddle with Docker.io using Node.js while building a step­by­step basic PaaS using containers running on top of a Vagrant Virtual Machine. With your new ninja Docker skills, you will develop all container logic and control using Docker’s Remote API, implement container abstraction, scalable workers and balancer.

Transcript

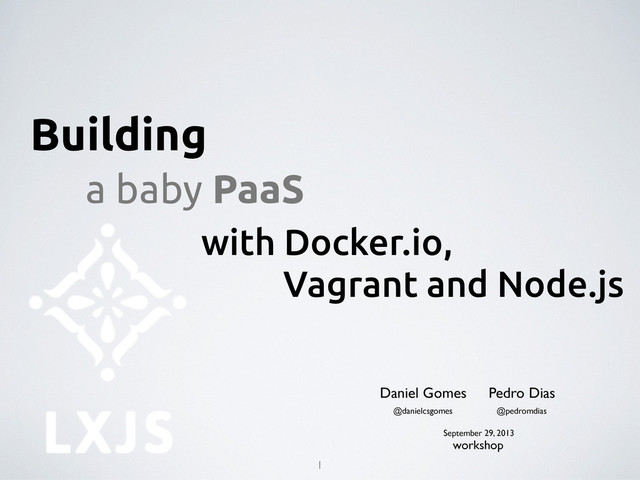

1. 1
   Building
   with Docker.io,
   Vagrant and Node.js
   a baby PaaS
   Pedro Dias
   @pedromdias
   workshop
   Daniel Gomes
   @danielcsgomes
   September 29, 2013


   View Slide

2. AGENDA
   • What is Vagrant
   • What is Docker
   • Let's get our hands dirty! :)
   2


   View Slide

3. 3
   ABOUT DANIEL GOMES
   • Senior Software Engineer @ GuestCentric
   • Father, Geek
   • @danielcsgomes


   View Slide

4. 4
   ABOUT PEDRO DIAS
   • Full Stack Engineer @ PTisp
   • Lecturer @ Polytechnic Institute of Tomar
   • Father, petrolhead and hiker
   • @pedromdias
   • apocas


   View Slide

5. 5
   What is
   http://www.vagrantup.com/
   ?


   View Slide

6. • Manage virtual machines (such as Virtual Box, VMware, AWS)
   • Define the configuration in code using a single file
   • Can use Shell scripts, Puppet, Chef and other tools to
   provisioning the Virtual Machines
   • Written in Ruby
   6


   View Slide

7. 7
   Why
   Vagrant?


   View Slide

8. Is portable and easy to share
   8


   View Slide

9. Reproducible and customizable
   9


   View Slide

10. Virtualized and isolated
    10


    View Slide

11. Allows you to work close
    to your production environment
    11


    View Slide

12. and makes your life easier
    and everyone happy
    12


    View Slide

13. Workflow of vagrant up
    13
    Vagrantfile
    Provisioning
    manifest
    has provisioning
    manifest?
    yes
    start provisioning the VM
    VM is running
    vagrant up
    downloads the box if needed
    and loads vagrant configurations
    (share folders, port forwarding, etc)
    and starts the VM


    View Slide

14. vagrant init
    vagrant up
    vagrant halt
    vagrant reload
    vagrant provision
    vagrant ssh
    vagrant suspend
    vagrant resume
    vagrant destroy
    14
    vagrant commands


    View Slide

15. Providers
    15


    View Slide

16. 16
    Shell scripts Ansible
    Provisioning


    View Slide

17. 17
    how to share
    your environment?


    View Slide

18. • Use (D)VCS (Git, SVN, Mercurial, etc.)
    • Add the Vagrantfile and provisioning files (puppet, chef, shell
    scripts, etc) to your repository
    • Add .vagrant folder to your repository ignore file or your
    global ignore file.
    18


    View Slide

19. • Sharing your dev environment saves you time and makes your life easier
    and everyone happy
    • Vagrant manages the Virtual Machines using a configuration file
    • Default provider is Virtual Box, but VMware and AWS are available too
    • Vagrant can provision the VM using Puppet, Chef, Shell scripts or other
    tools
    Wrap Up
    19


    View Slide

20. 20
    What is
    http://www.docker.io/
    ?


    View Slide

21. WOULDN’T BE GREAT IF...
    21


    View Slide

22. THAT’S DOCKER
    22


    View Slide

23. VMS VS CONTAINERS
    23


    View Slide

24. DOCKER BUILDER
    24


    View Slide

25. DOCKERFILE INSTRUCTIONS
    • FROM image:tag
    • MAINTAINER name
    • RUN command
    • EXPOSE port
    • ENTRYPOINT [‘cmd’, ‘arg’, ...]
    • USER user
    • ADD src dest
    • CMD [‘cmd’, ‘arg’, ...]
    25


    View Slide

26. DOCKERFILE
    26
    # Build the image of ubuntu 12.04 LTS
    from ubuntu:precise
    run apt-get -y wget
    # Install node.js
    run wget -O - http://nodejs.org/dist/v0.10.19/node-v0.10.19-linux-
    x64.tar.gz | tar -C /usr/local/ --strip-components=1 -zxv
    # Expose port 80 to the host machine
    expose 80


    View Slide

27. DOCKER COMMAND LINE
    • http://docs.docker.io/en/latest/commandline/
    • Containers
    • Images
    • Misc
    27


    View Slide

28. CONTAINERS
    • attach
    • run
    • start
    • stop
    • diff
    28
    • kill
    • rm
    • logs
    • cp
    • export
    • ps


    View Slide

29. FAMOUS RUN COMMAND
    29
    Usage: docker run [OPTIONS] IMAGE[:TAG] [COMMAND] [ARG...]
    Run a command in a new container
    -a=map[]: Attach to stdin, stdout or stderr.
    -c=0: CPU shares (relative weight)
    -cidfile="": Write the container ID to the file
    -d=false: Detached mode: Run container in the background, print new container id
    -e=[]: Set environment variables
    -h="": Container host name
    -i=false: Keep stdin open even if not attached
    -privileged=false: Give extended privileges to this container
    -m=0: Memory limit (in bytes)
    -n=true: Enable networking for this container
    -p=[]: Map a network port to the container
    -t=false: Allocate a pseudo-tty
    -u="": Username or UID
    -dns=[]: Set custom dns servers for the container
    -v=[]: Create a bind mount with: [host-dir]:[container-dir]:[rw|ro]. If "host-dir" is
    missing, then docker creates a new volume.
    -volumes-from="": Mount all volumes from the given container.
    -entrypoint="": Overwrite the default entrypoint set by the image.
    -w="": Working directory inside the container
    -lxc-conf=[]: Add custom lxc options -lxc-conf="lxc.cgroup.cpuset.cpus = 0,1"


    View Slide

30. IMAGES
    • commit
    • pull
    • push
    • images
    • rmi
    • search
    30


    View Slide

31. IMAGE REGISTRY
    • Registry != Index
    • Git’ish like behavior
    • pull
    • push
    • diff
    • search
    31


    View Slide

32. BEHAVIOR
    32


    View Slide

33. LOCAL SHARING
    • docker export 1aba8bfac7d5 > poc.tgz
    • cat poc.tgz | sudo docker import - poc
    • sudo docker run poc uptime
    33


    View Slide

34. REMOTE API
    • http://docs.docker.io/en/latest/api/docker_remote_api_v1.5/
    • Containers
    • Images
    • Misc
    34


    View Slide

35. CONNECTING
    • Using hostname:port pair.
    • 127.0.0.1:4243
    • Using unix socket. (default since Remote API v1.3)
    • unix:///var/run/docker.sock
    35


    View Slide

36. NODE CLIENT
    • dockerode
    • https://npmjs.org/package/dockerode
    • API feature 100% implemented and tested.
    • Leverage streams when possible (a lot :-))
    • Container and image abstraction.
    36


    View Slide

37. LET’S BUILD SOMETHING
    37


    View Slide

38. SPECIFICATION
    • Deployment using Git repos
    • Support apps from multiple languages
    • Hipache based proxy
    • Continuous stream
    38


    View Slide

39. ARCHITECTURE
    39
    VM1
    Drone
    Docker
    OS
    VM2
    Drone
    Docker
    OS
    Balancer
    CLI client
    ...
    CLI client ...
    Hipache


    View Slide

40. DEV ENVIROMNENT
    • Set your name servers to: 192.241.191.162
    • https://github.com/apocas/lxjs-dns
    • Answers *.lxjs.dev to10.0.5.50 (Vagrant VM IP) the rest is forwarded to 8.8.8.8
    • [app_name].lxjs.dev
    • helloworldphp.lxjs.dev
    • sdf67asks9.lxjs.dev
    • ...
    40


    View Slide
