Aladdin & the eBPF lamp: Travel in the kernel

Transcript

1. Aladdin & the eBPF lamp Travel in the kernel Donia Chaiehloudj, Software Engineer & Community Isovalent @Cisco
2. Living from hand to mouth without any visibility, security... (and money)
3. Living from hand to mouth without any visibility, security... (and money)
4. The Mysterious Cave The Kernel of Wonders...
5. The Mysterious Cave The Kernel of Wonders... Syscalls Sockets Packets Hooks Maps
6. The Mysterious Cave The Kernel of Wonders... with Rules To change the Kernel: Rebuild the kernel Load modules Risky for adventurers...
7. The Summons Aladdin is sent to the Cave....
8. The Summons Aladdin is sent to the Cave....
9. The Magic eBPF Lamp
10. The Magic eBPF Lamp And the eGenie...

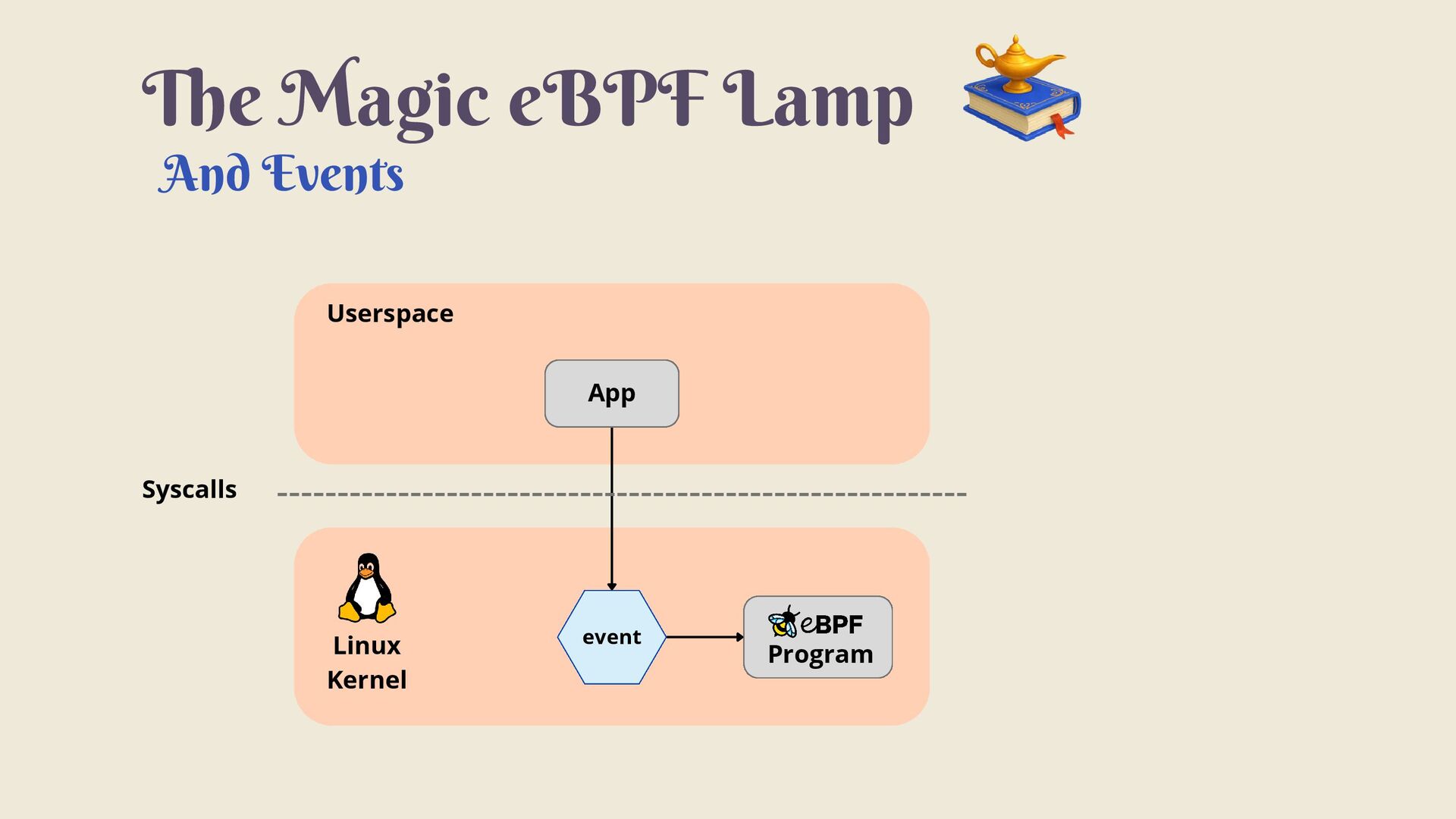

11. Program App The Magic eBPF Lamp And Events Userspace Syscalls Linux Kernel
12. Program App The Magic eBPF Lamp And Events Userspace Syscalls Linux Kernel event

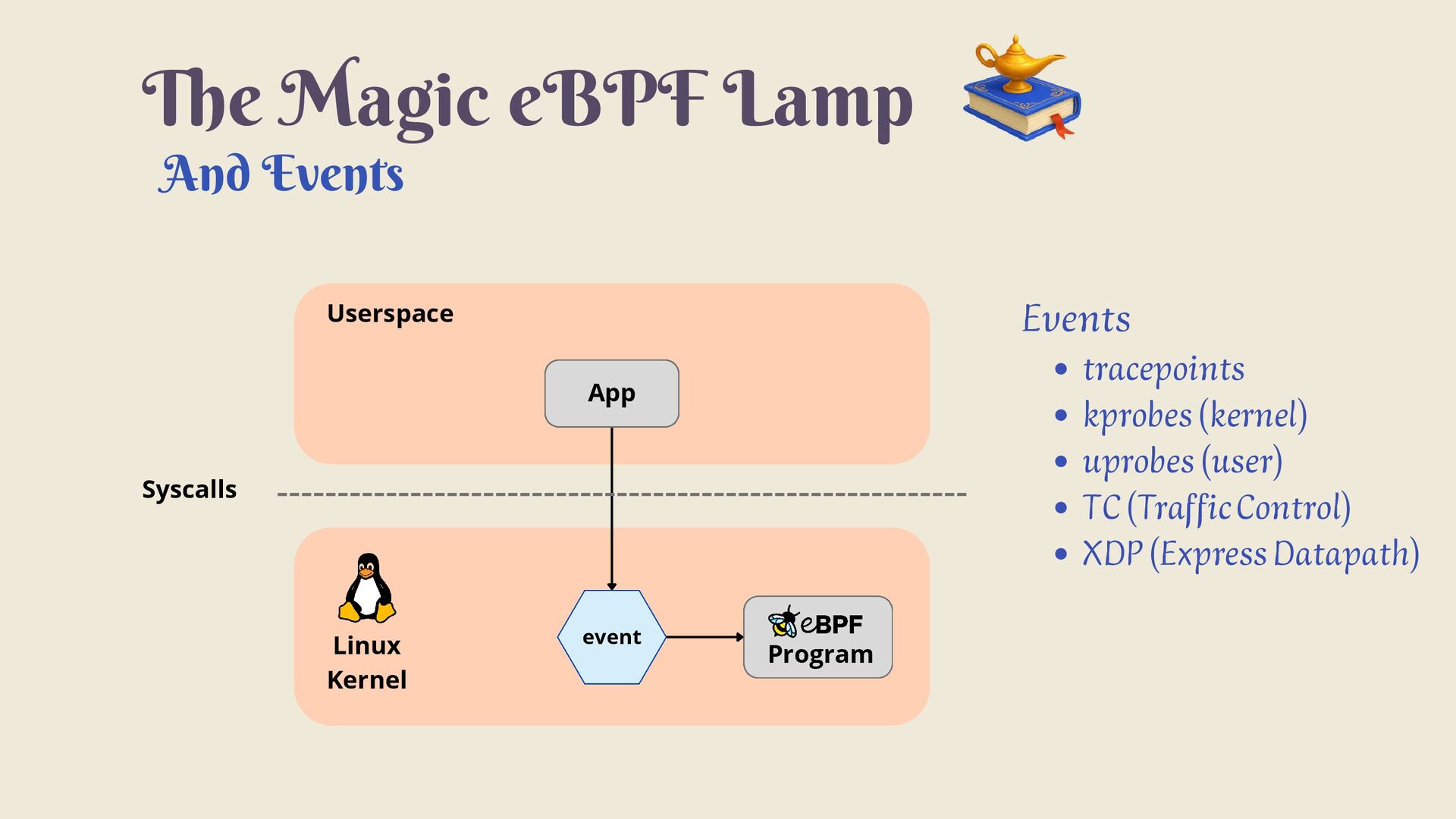

13. Program App The Magic eBPF Lamp And Events Events tracepoints kprobes (kernel) uprobes (user) TC (Traffic Control) XDP (Express Datapath) Userspace Syscalls Linux Kernel event

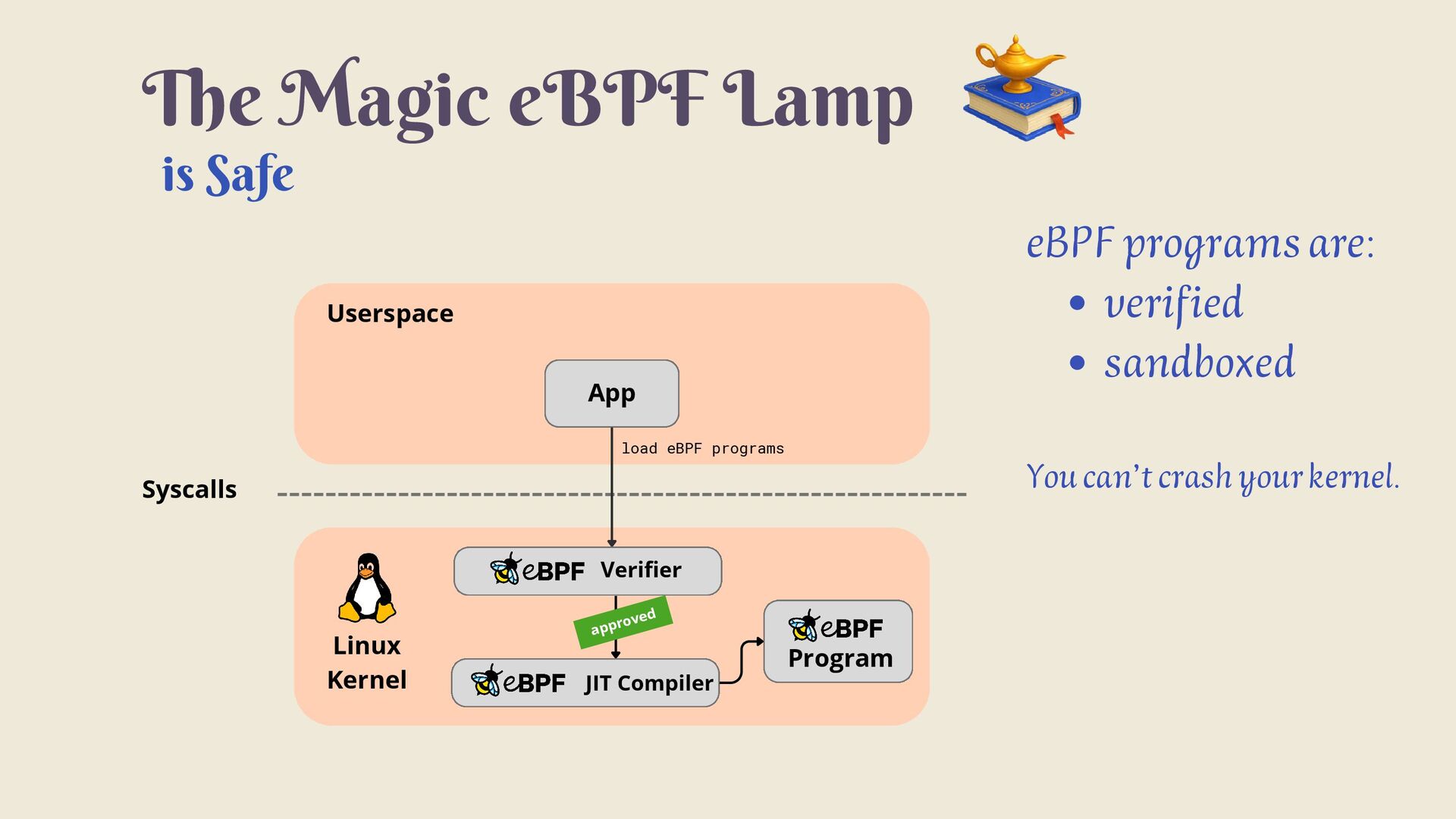

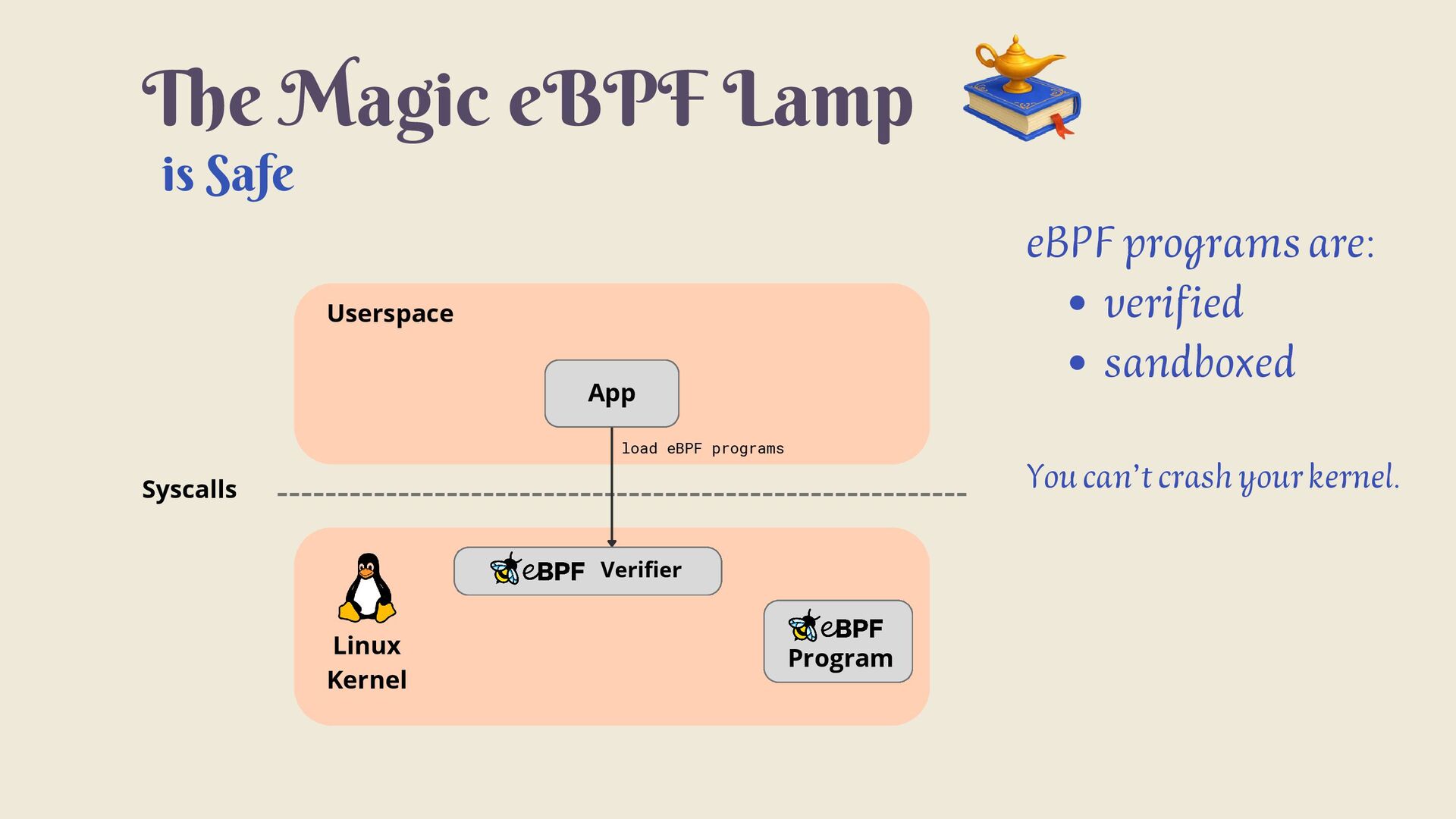

14. App Program Verifier The Magic eBPF Lamp is Safe eBPF programs are: verified sandboxed You can’t crash your kernel. Userspace Syscalls Linux Kernel load eBPF programs
15. App Program Verifier JIT Compiler approved The Magic eBPF Lamp is Safe eBPF programs are: verified sandboxed You can’t crash your kernel. Userspace Syscalls Linux Kernel load eBPF programs

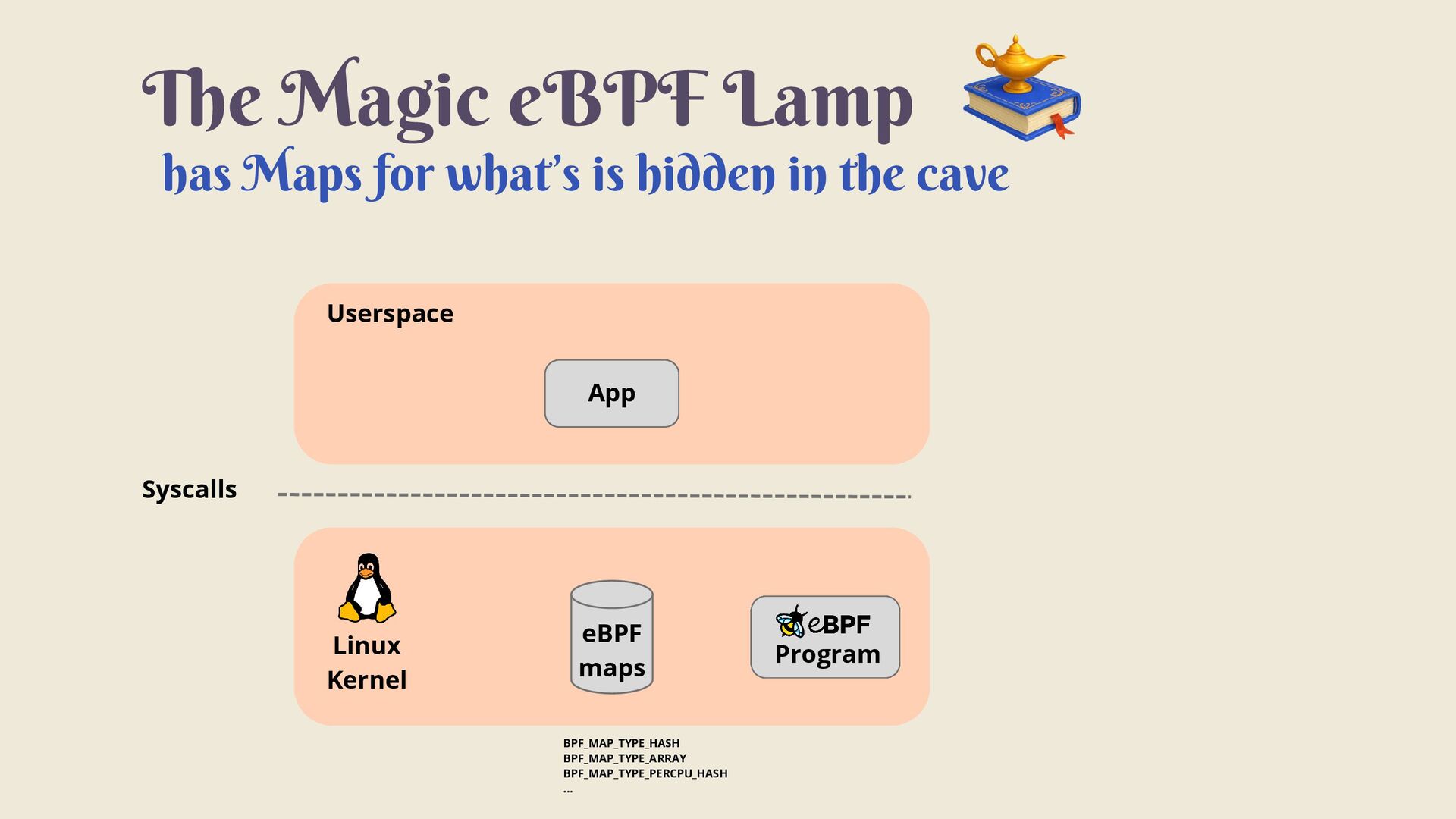

16. The Magic eBPF Lamp has Maps for what’s is hidden in the cave Userspace Syscalls Linux Kernel App eBPF maps Program BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ...

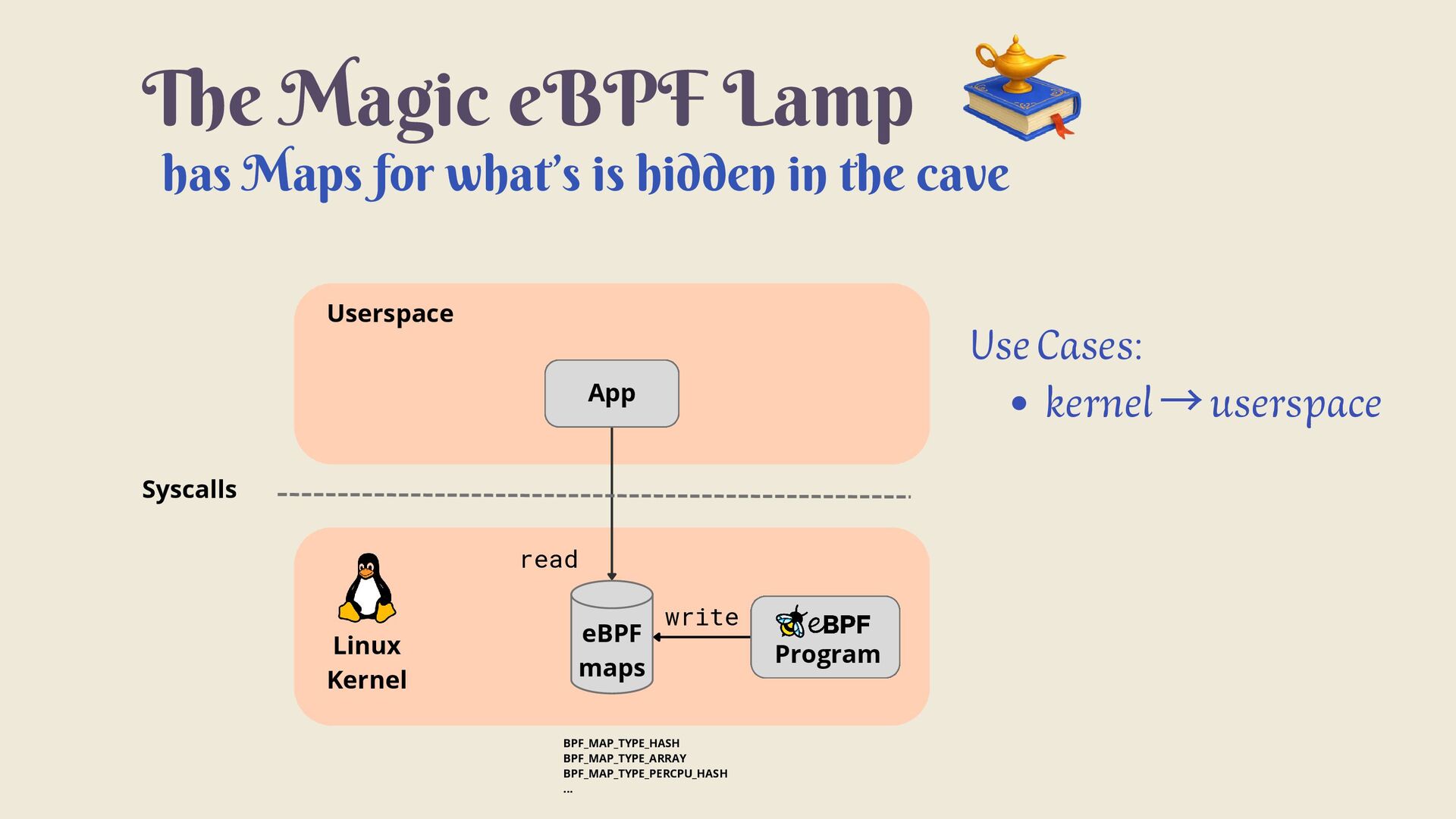

17. The Magic eBPF Lamp has Maps for what’s is hidden in the cave Userspace Syscalls Linux Kernel App eBPF maps read Use Cases: kernel → userspace write Program BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ...

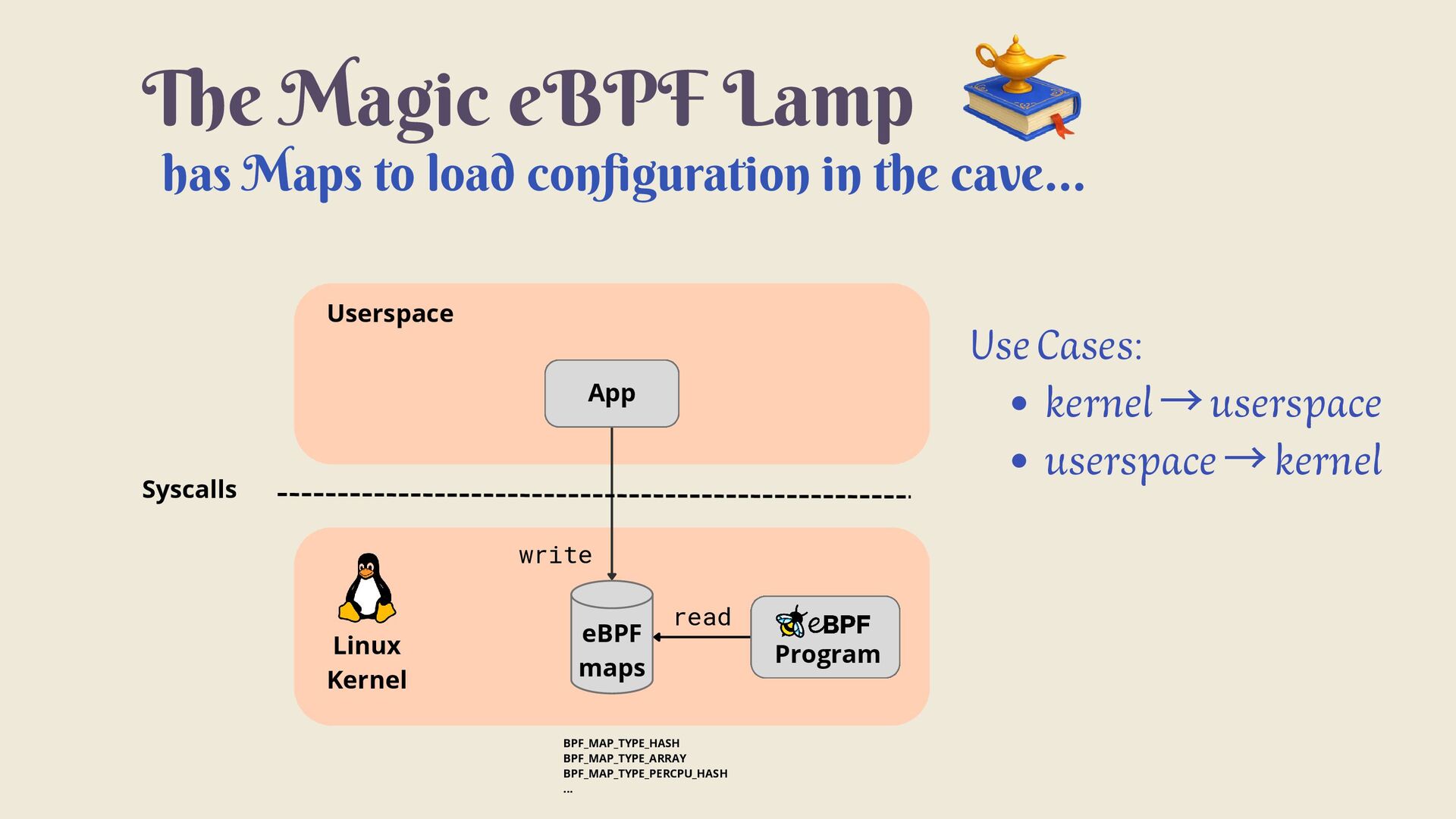

18. The Magic eBPF Lamp has Maps to load configuration in the cave... Use Cases: kernel → userspace userspace → kernel Userspace Syscalls Linux Kernel App eBPF maps read write Program BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ...

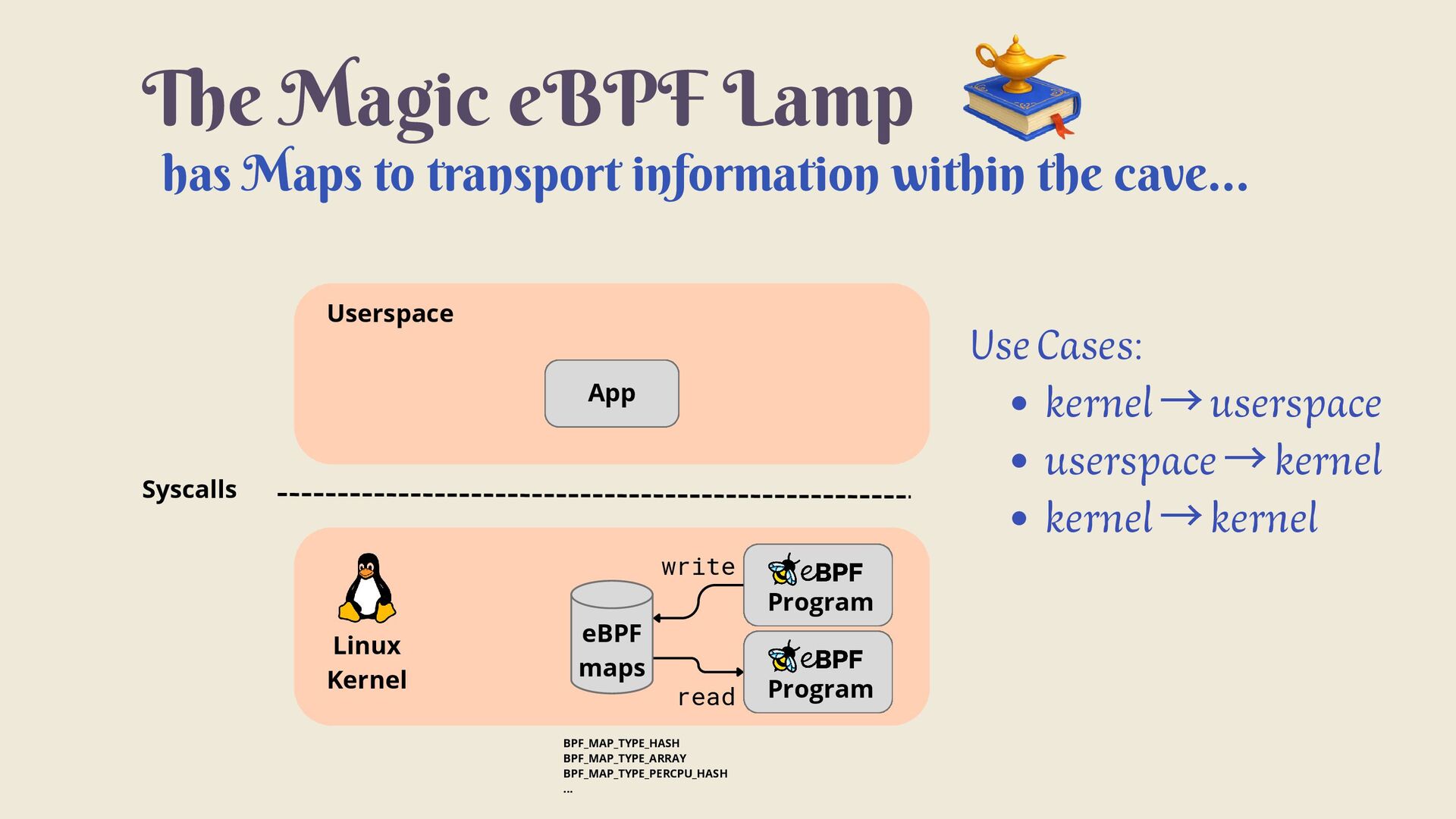

19. The Magic eBPF Lamp has Maps to transport information within the cave... Use Cases: kernel → userspace userspace → kernel kernel → kernel Userspace Syscalls Linux Kernel App eBPF maps write Program Program read BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ...
20. The Flying Carpet
21. → SDKs like cilium/ebpf let you write networking/security tooling + = Go the companion to travel easy The Flying Carpet

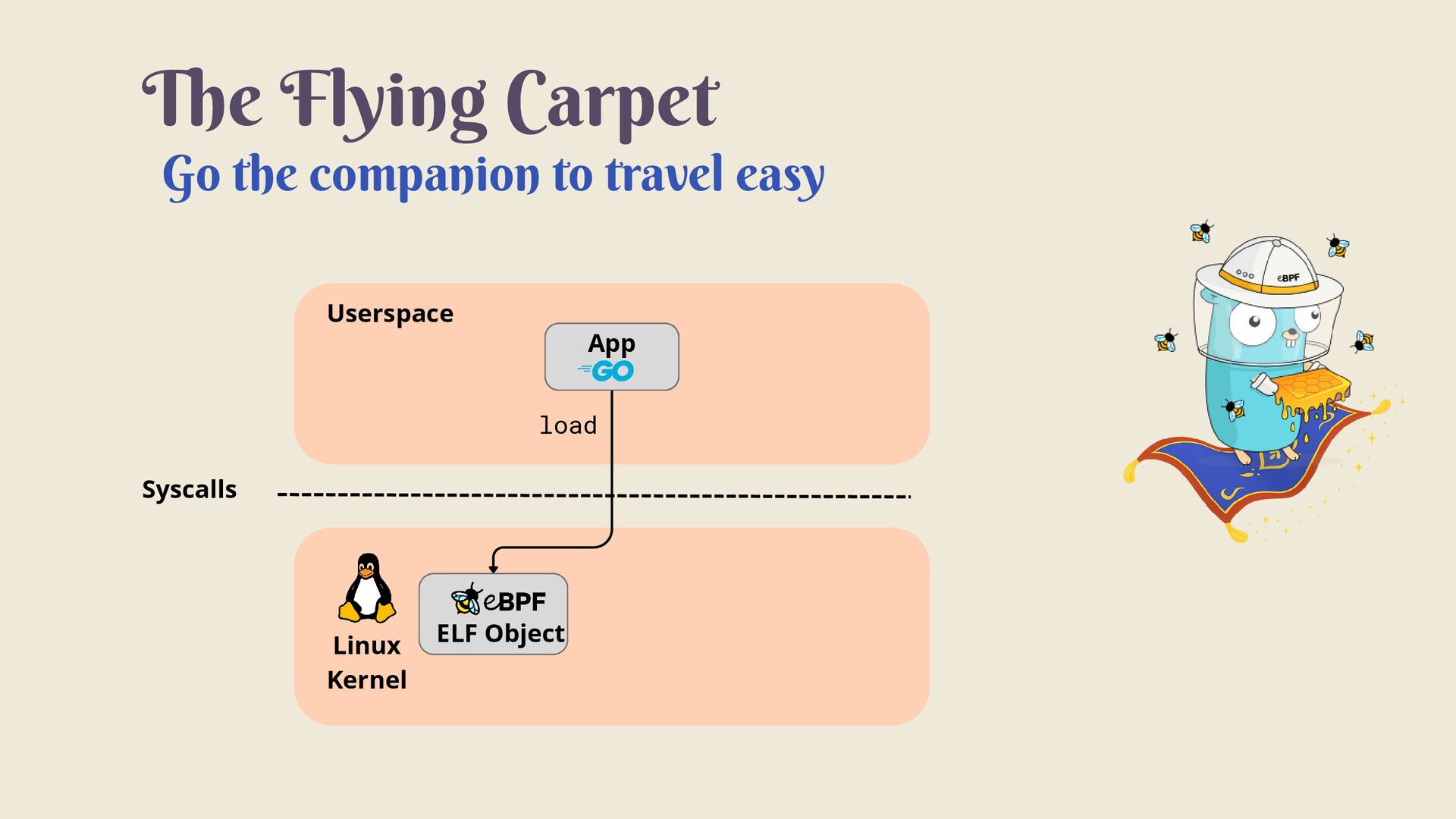

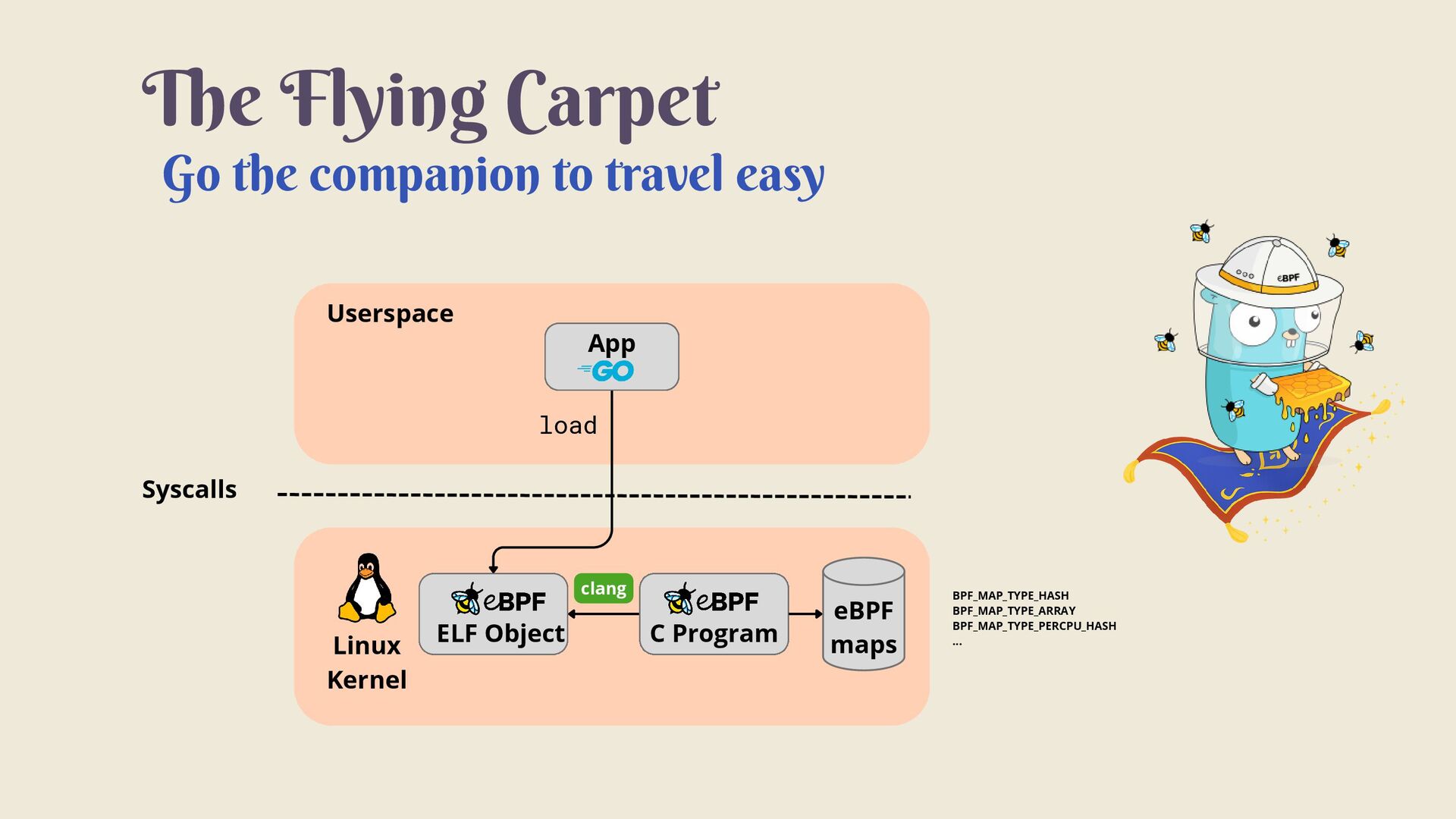

22. Go the companion to travel easy The Flying Carpet Userspace Syscalls Linux Kernel App ELF Object load

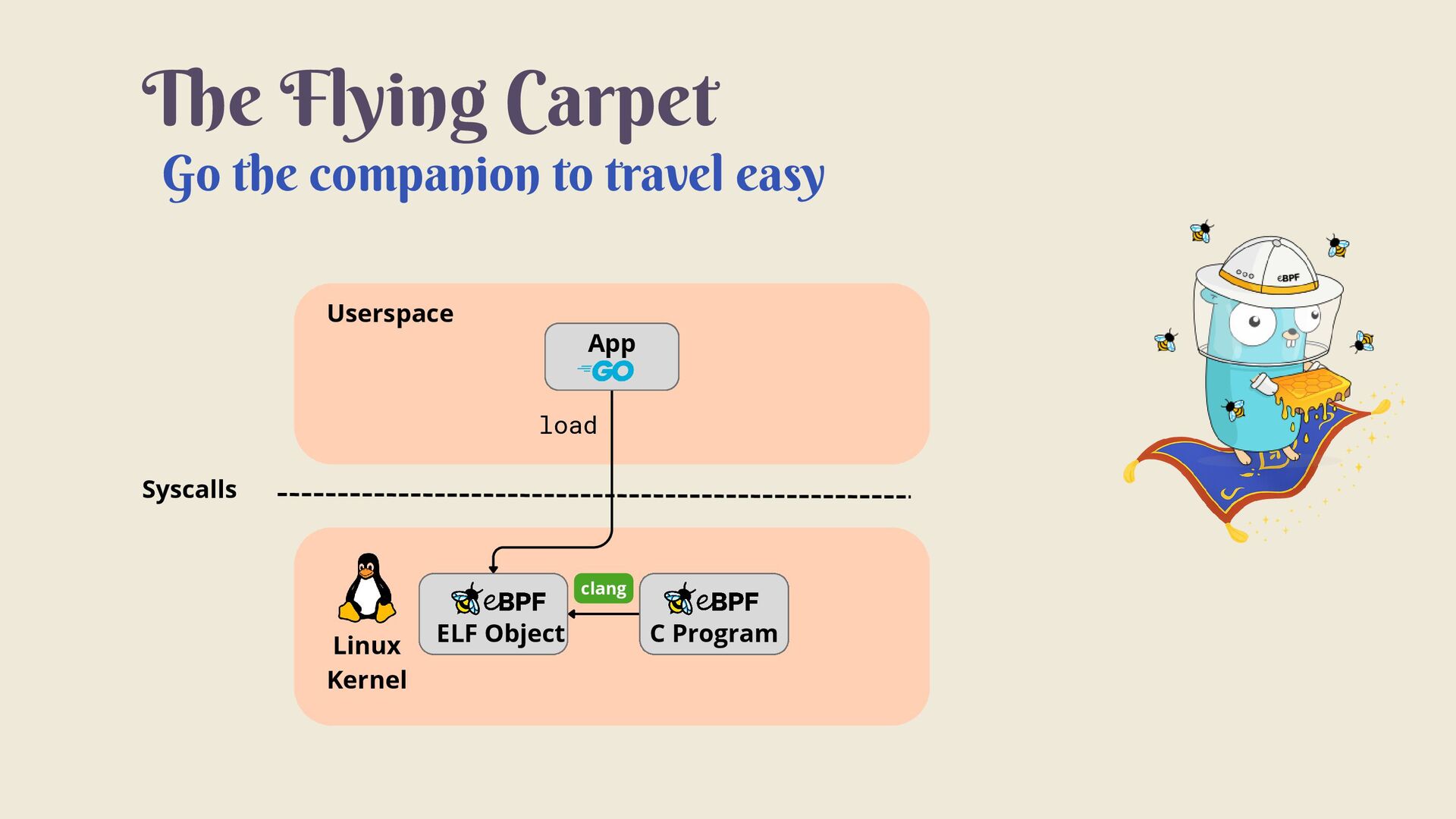

23. Go the companion to travel easy The Flying Carpet Userspace Syscalls Linux Kernel App C Program ELF Object load clang
24. Go the companion to travel easy The Flying Carpet Userspace Syscalls Linux Kernel eBPF maps BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ... App C Program ELF Object load clang

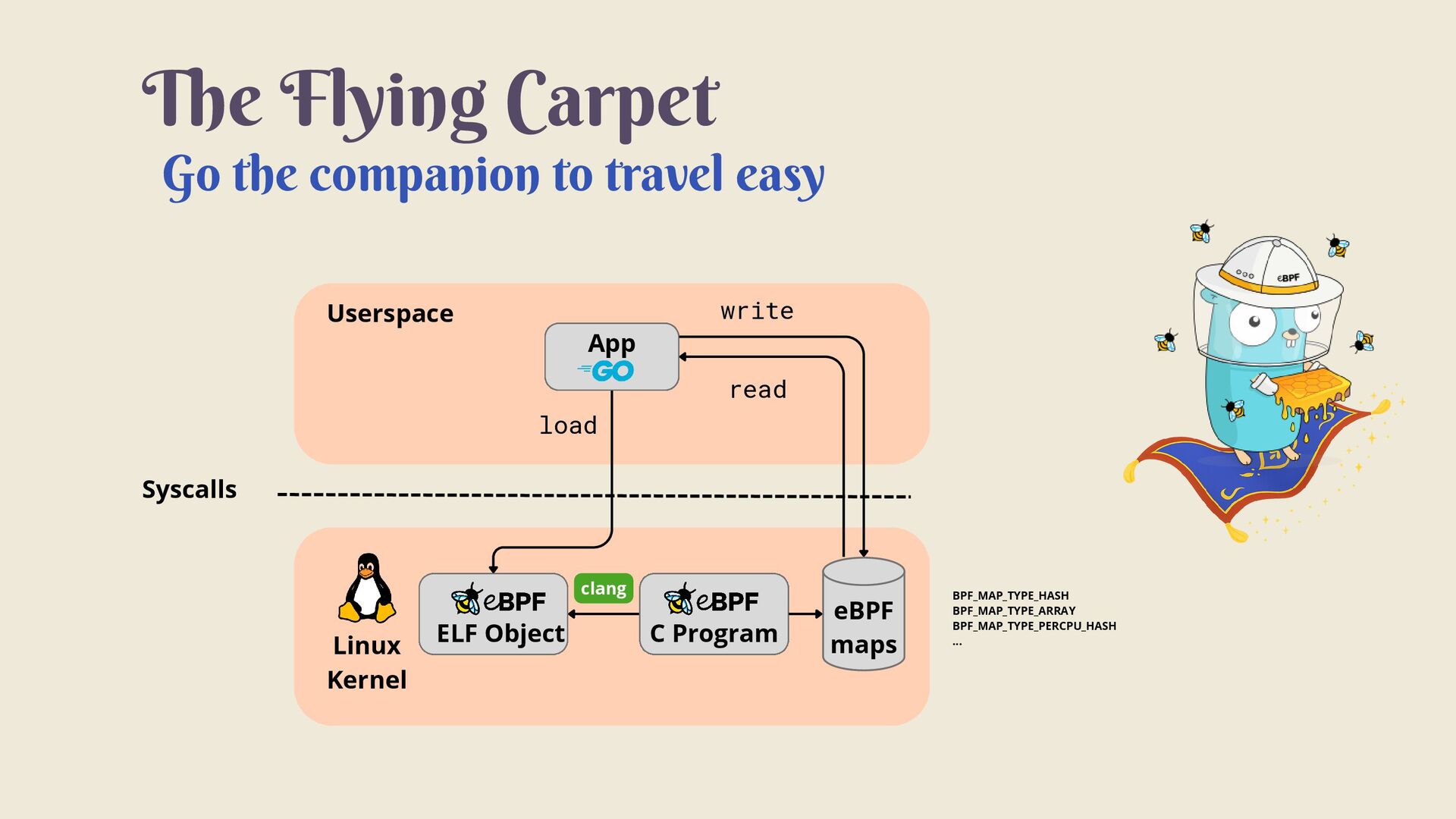

25. Go the companion to travel easy The Flying Carpet Userspace Syscalls Linux Kernel eBPF maps BPF_MAP_TYPE_HASH BPF_MAP_TYPE_ARRAY BPF_MAP_TYPE_PERCPU_HASH ... App C Program ELF Object load clang write read
26. Wish #1: Becoming a Prince
27. Wish #1: Becoming a Prince
28. Wish #1: Becoming a Prince Tracing Capability Step 1: Write C program

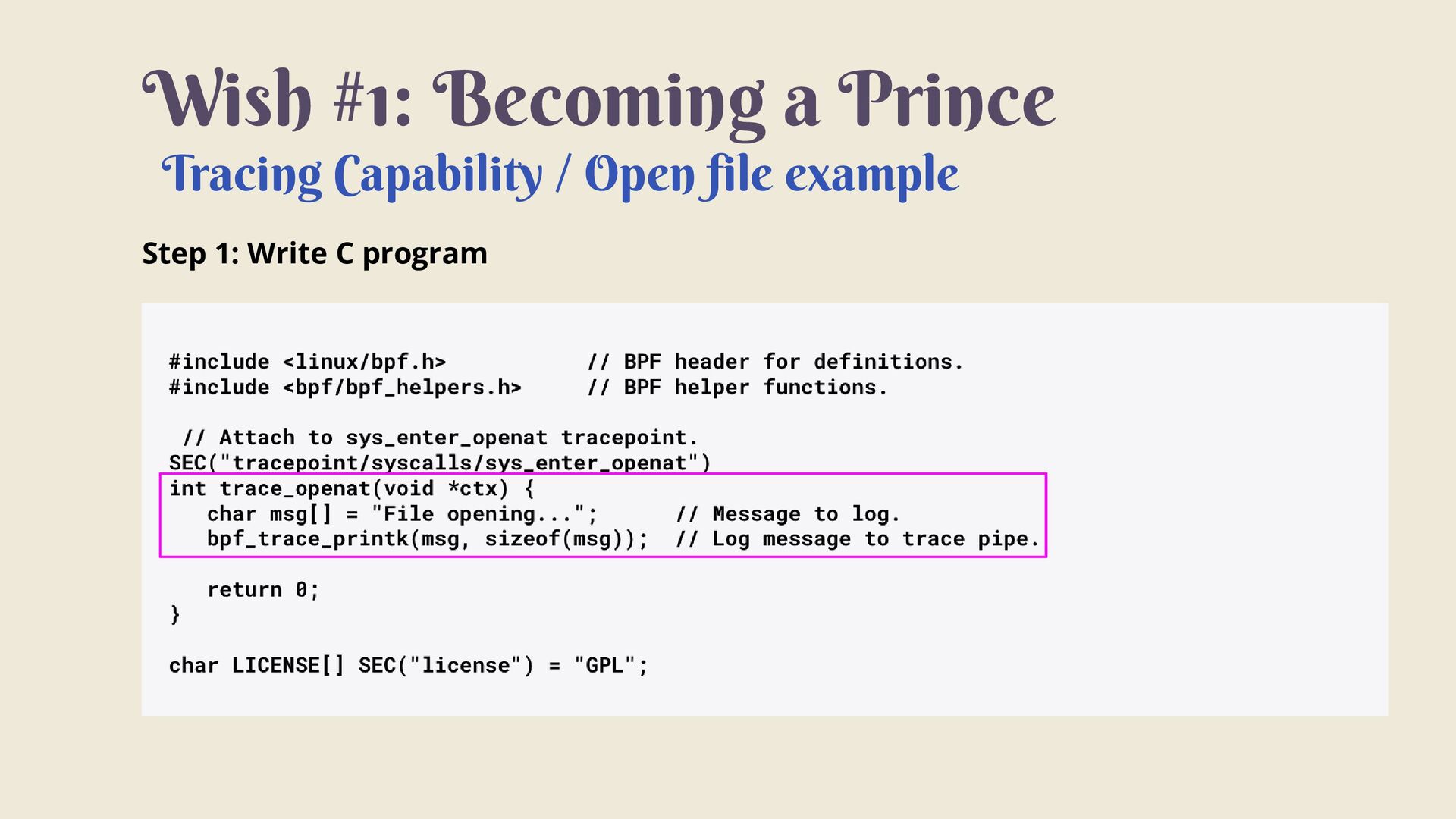

29. Wish #1: Becoming a Prince Tracing Capability / Open file example Step 1: Write C program

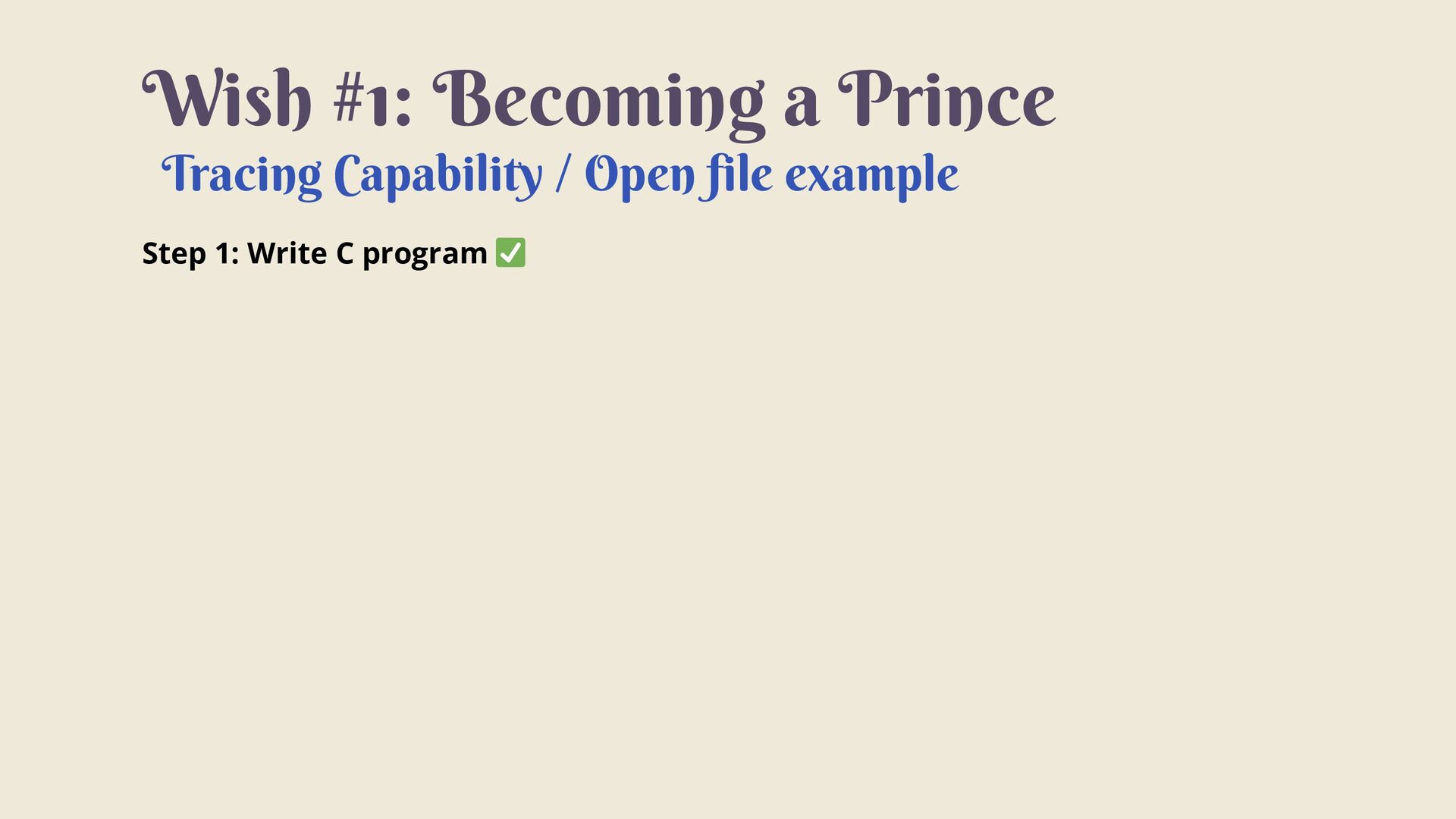

30. Wish #1: Becoming a Prince Tracing Capability / Open file example Step 1: Write C program ✅

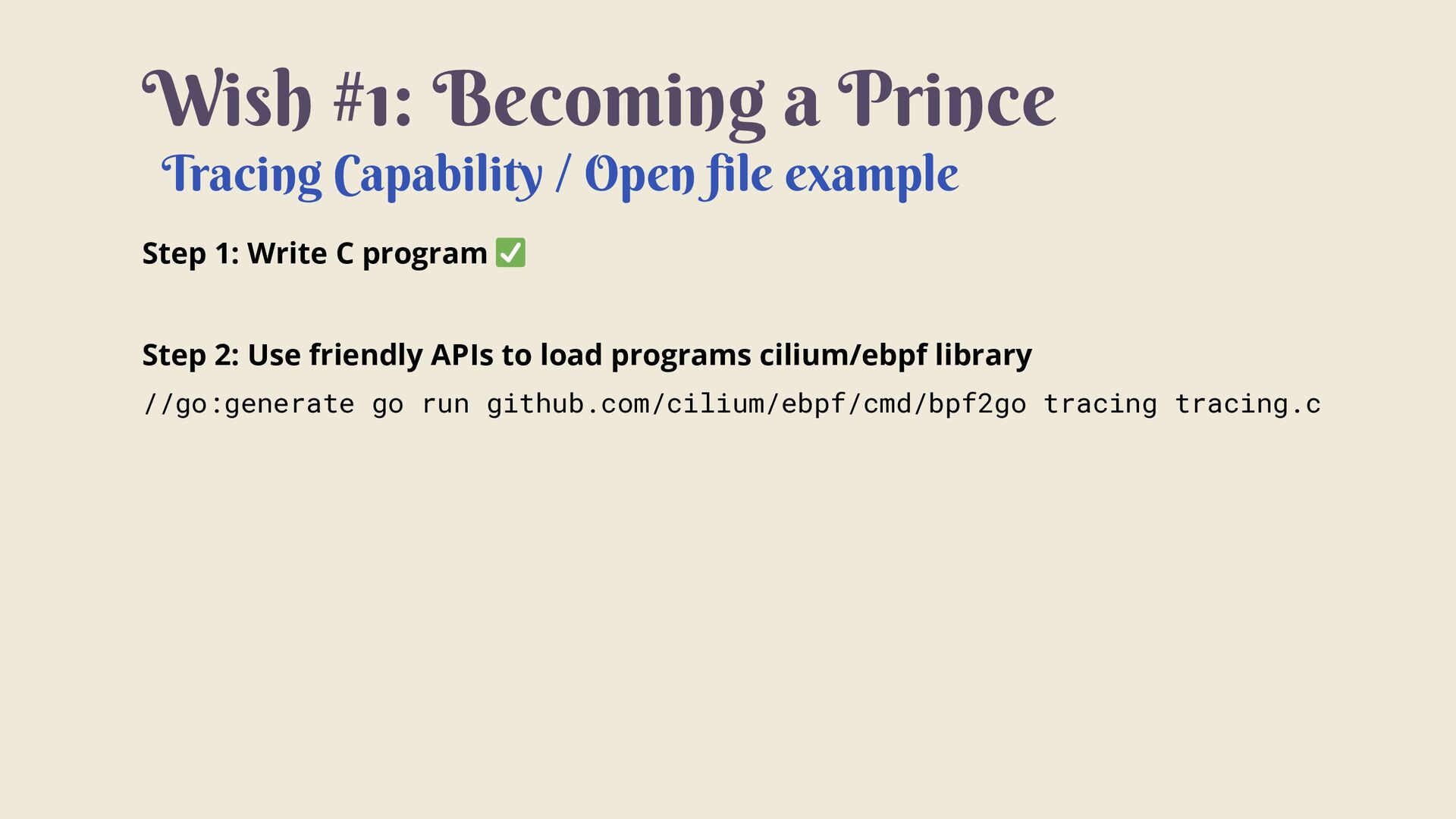

31. Wish #1: Becoming a Prince Tracing Capability / Open file example //go:generate go run github.com/cilium/ebpf/cmd/bpf2go tracing tracing.c Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library

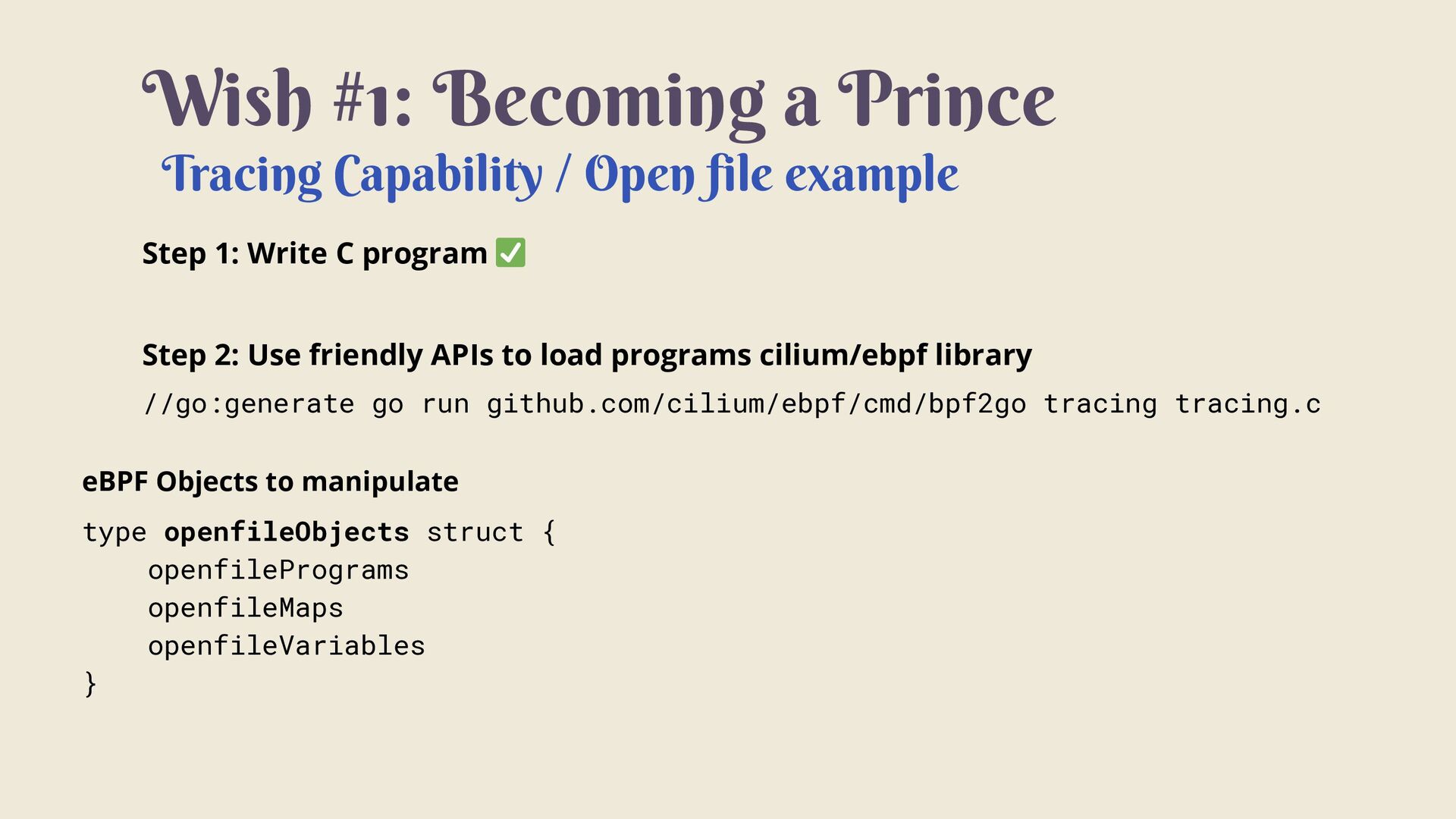

32. Wish #1: Becoming a Prince Tracing Capability / Open file example //go:generate go run github.com/cilium/ebpf/cmd/bpf2go tracing tracing.c Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library type openfileObjects struct { openfilePrograms openfileMaps openfileVariables } eBPF Objects to manipulate

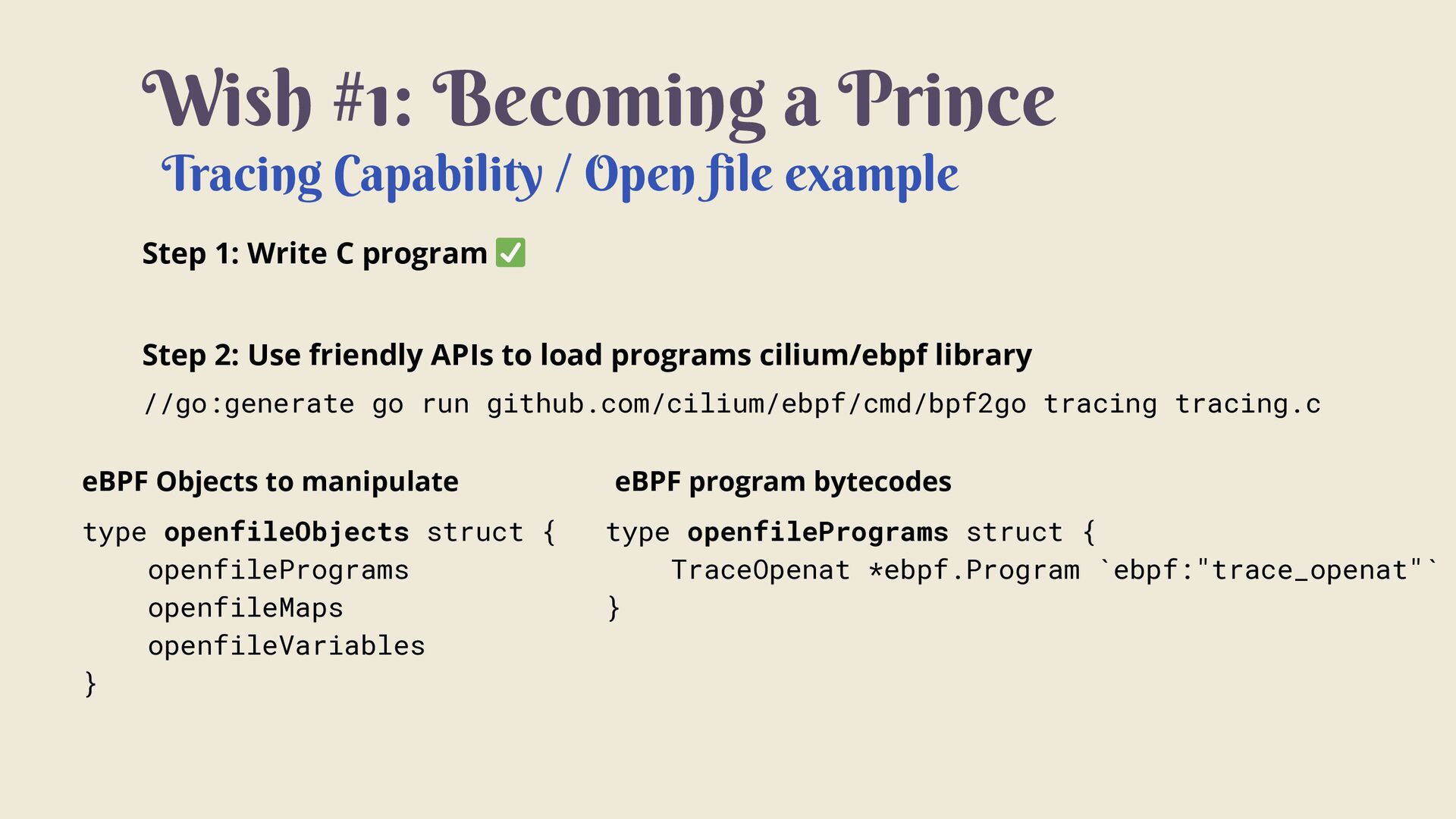

33. Wish #1: Becoming a Prince Tracing Capability / Open file example //go:generate go run github.com/cilium/ebpf/cmd/bpf2go tracing tracing.c Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library type openfileObjects struct { openfilePrograms openfileMaps openfileVariables } eBPF Objects to manipulate eBPF program bytecodes type openfilePrograms struct { TraceOpenat *ebpf.Program `ebpf:"trace_openat"` }

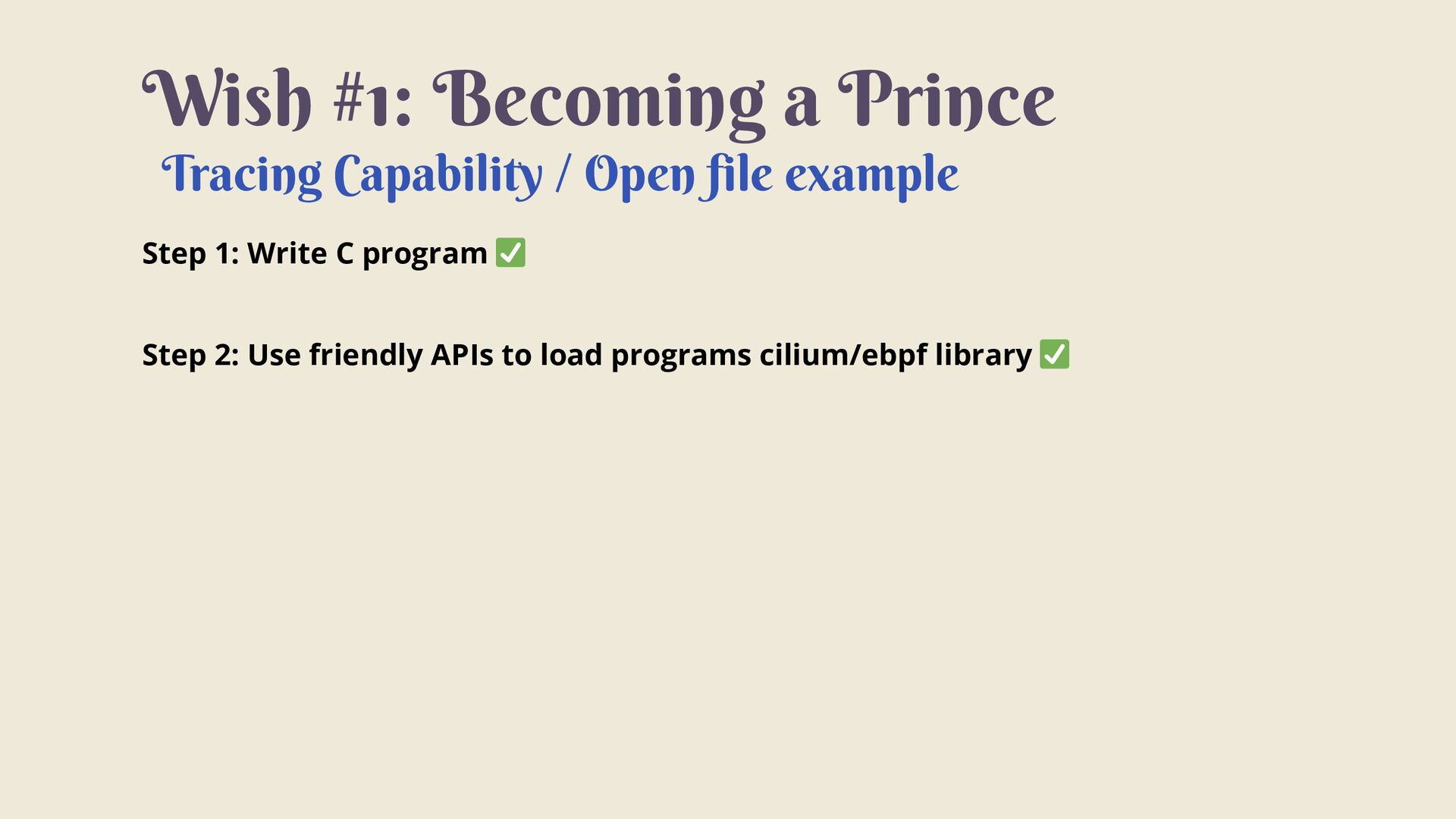

34. Wish #1: Becoming a Prince Tracing Capability / Open file example Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library ✅

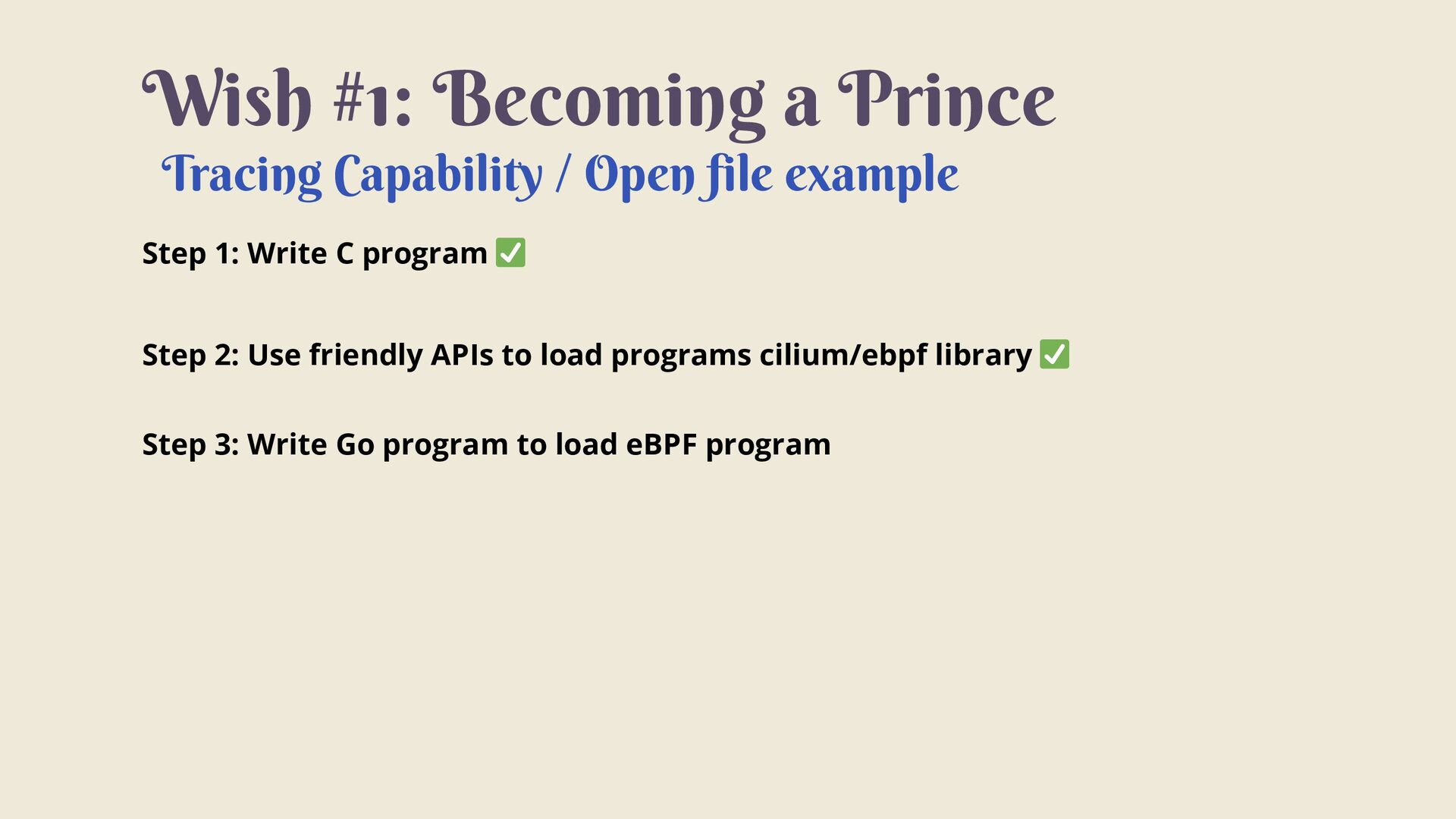

35. Wish #1: Becoming a Prince Tracing Capability / Open file example Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library ✅ Step 3: Write Go program to load eBPF program

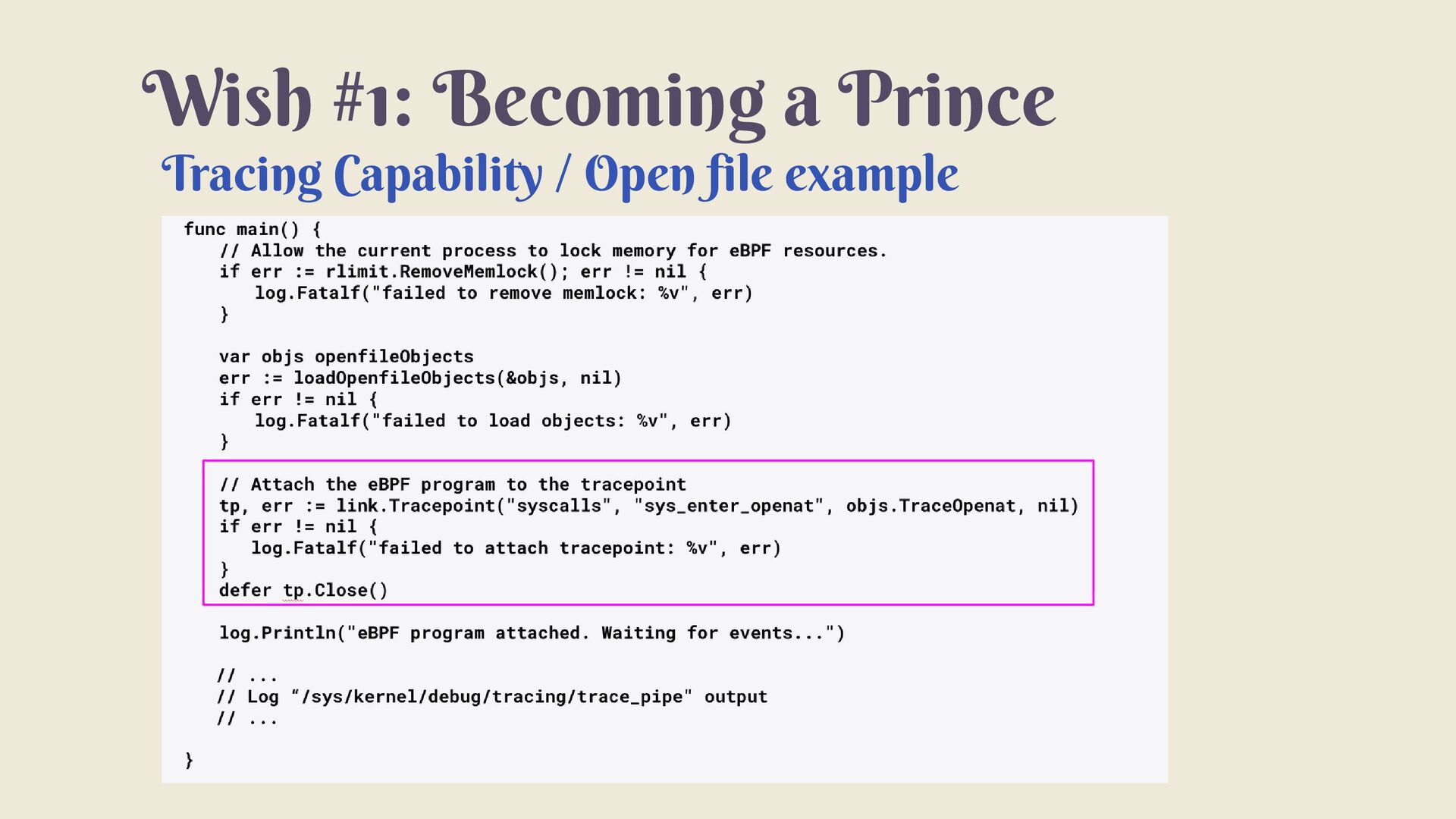

36. Wish #1: Becoming a Prince Tracing Capability / Open file example

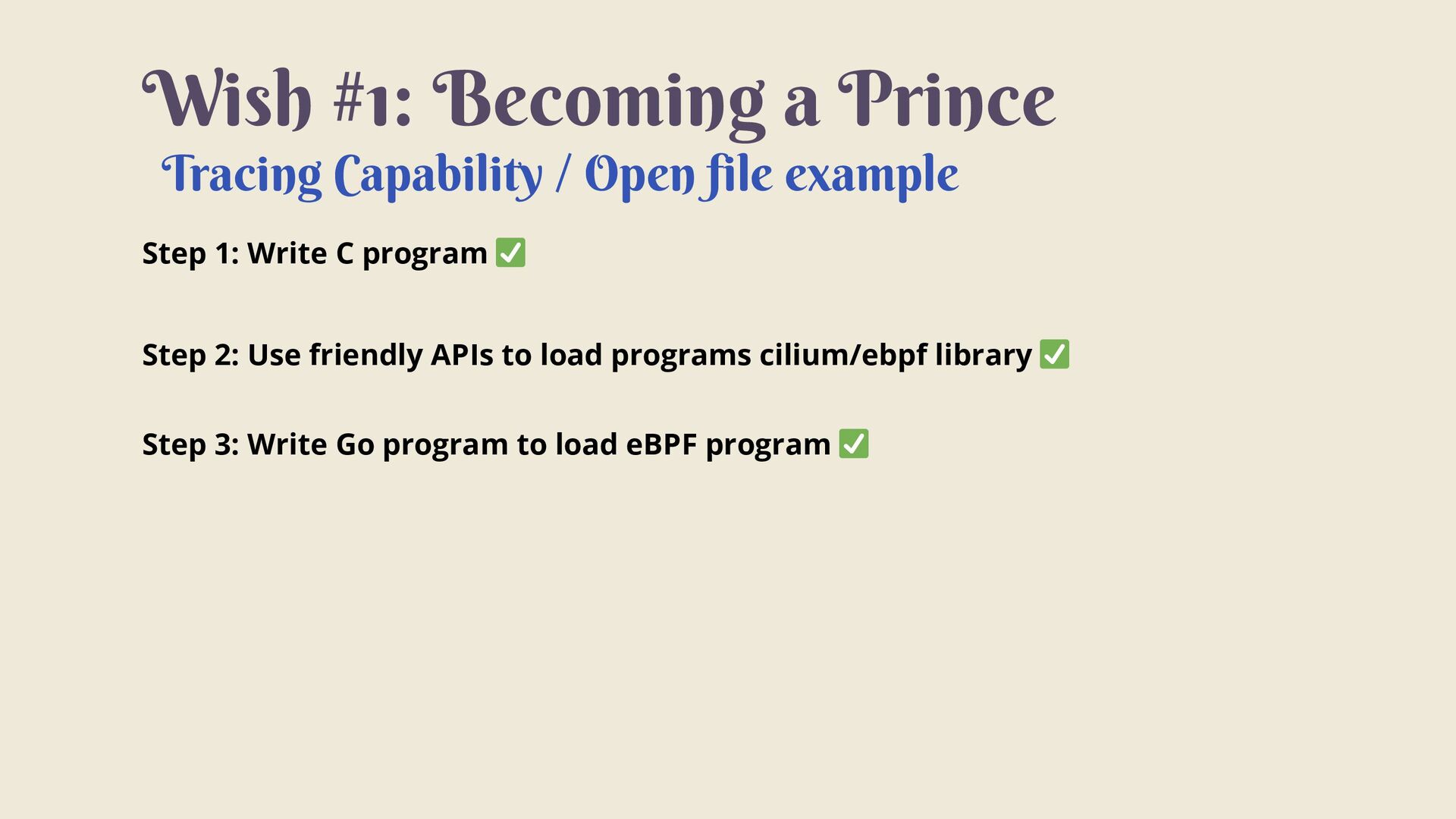

37. Wish #1: Becoming a Prince Tracing Capability / Open file example Step 1: Write C program ✅ Step 2: Use friendly APIs to load programs cilium/ebpf library ✅ Step 3: Write Go program to load eBPF program ✅

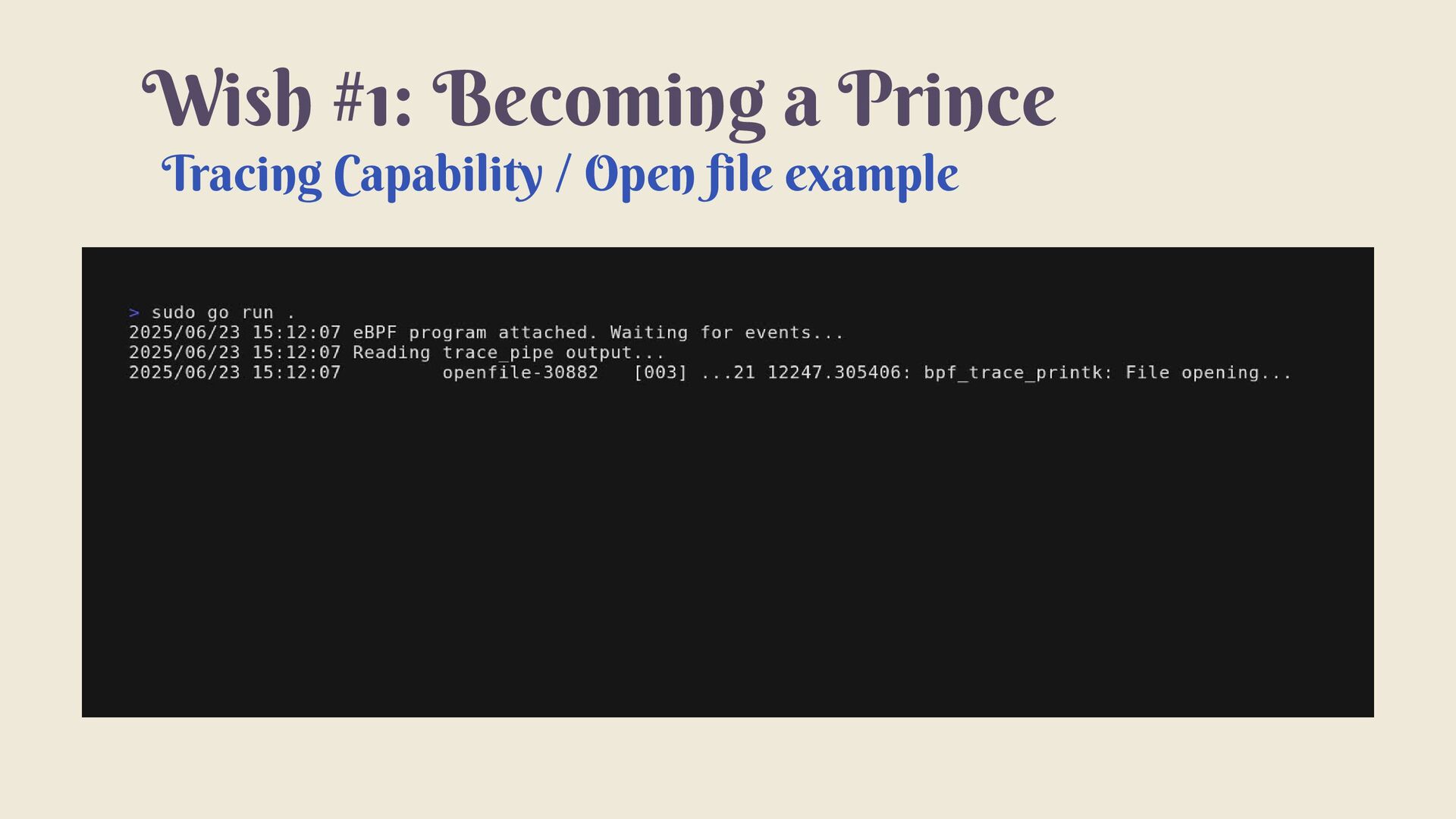

38. Wish #1: Becoming a Prince Tracing Capability / Open file example

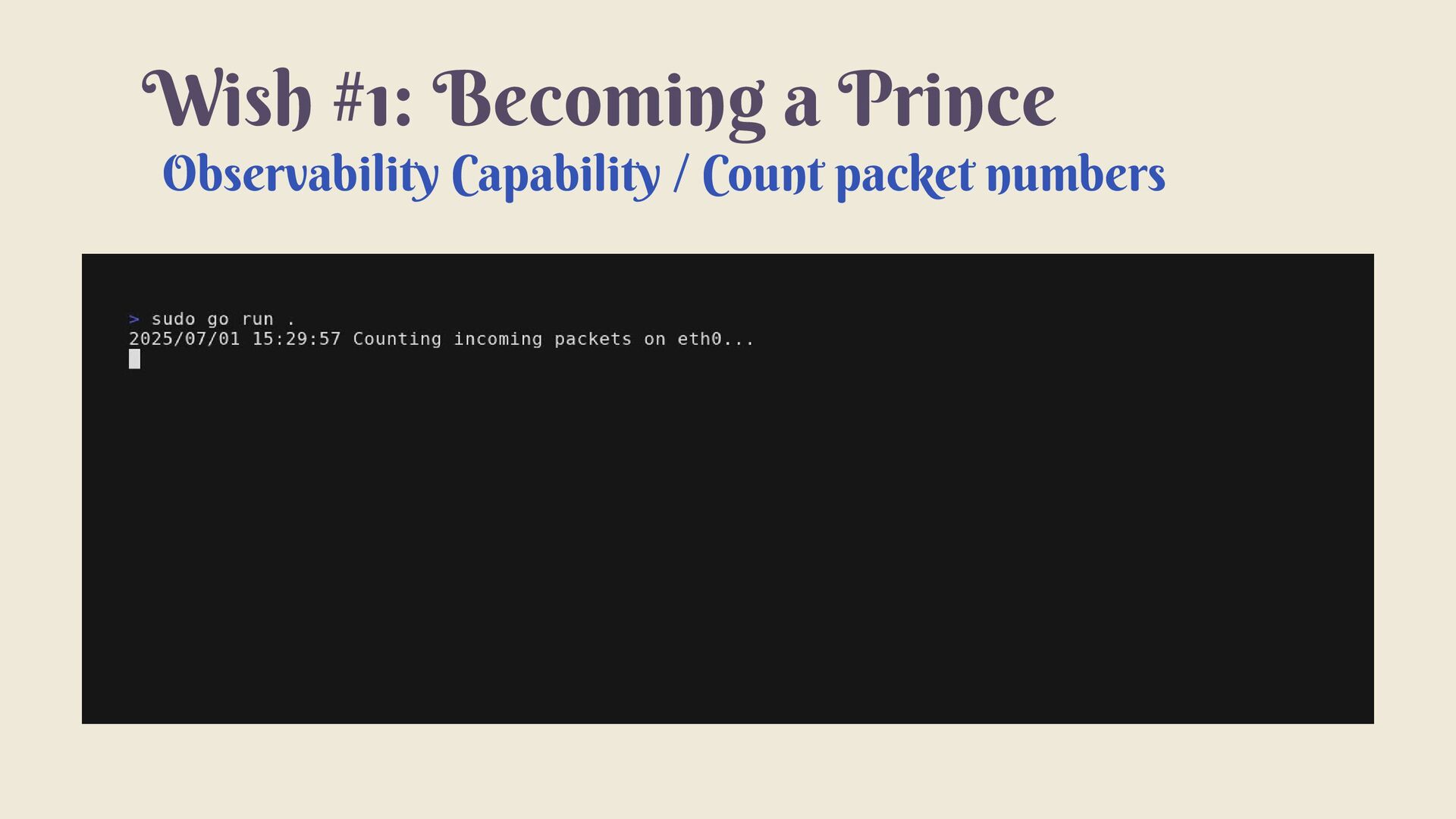

39. Wish #1: Becoming a Prince Observability Capability / Count packet numbers
40. Wish #1: Becoming a Prince Observability Capability / Count packet numbers

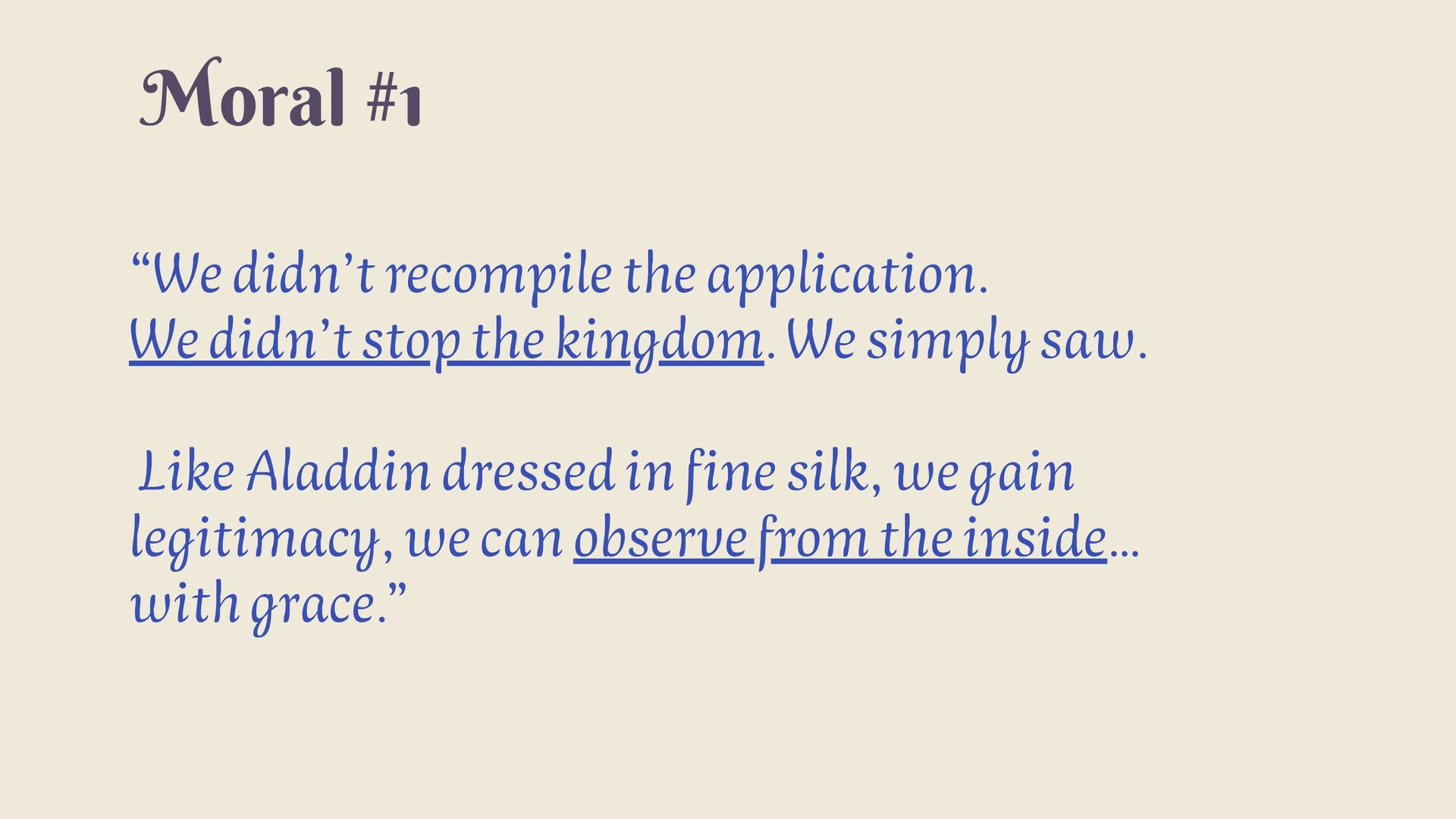

41. Moral #1 “We didn’t recompile the application. We didn’t stop the kingdom. We simply saw. Like Aladdin dressed in fine silk, we gain legitimacy, we can observe from the inside… with grace.”
42. 🥷 The Threat: “Jafar Strikes” A noisy neighbor A suspicious IP A storm of a packets at the gate
43. Wish #2: Save me eGenie from the Deep

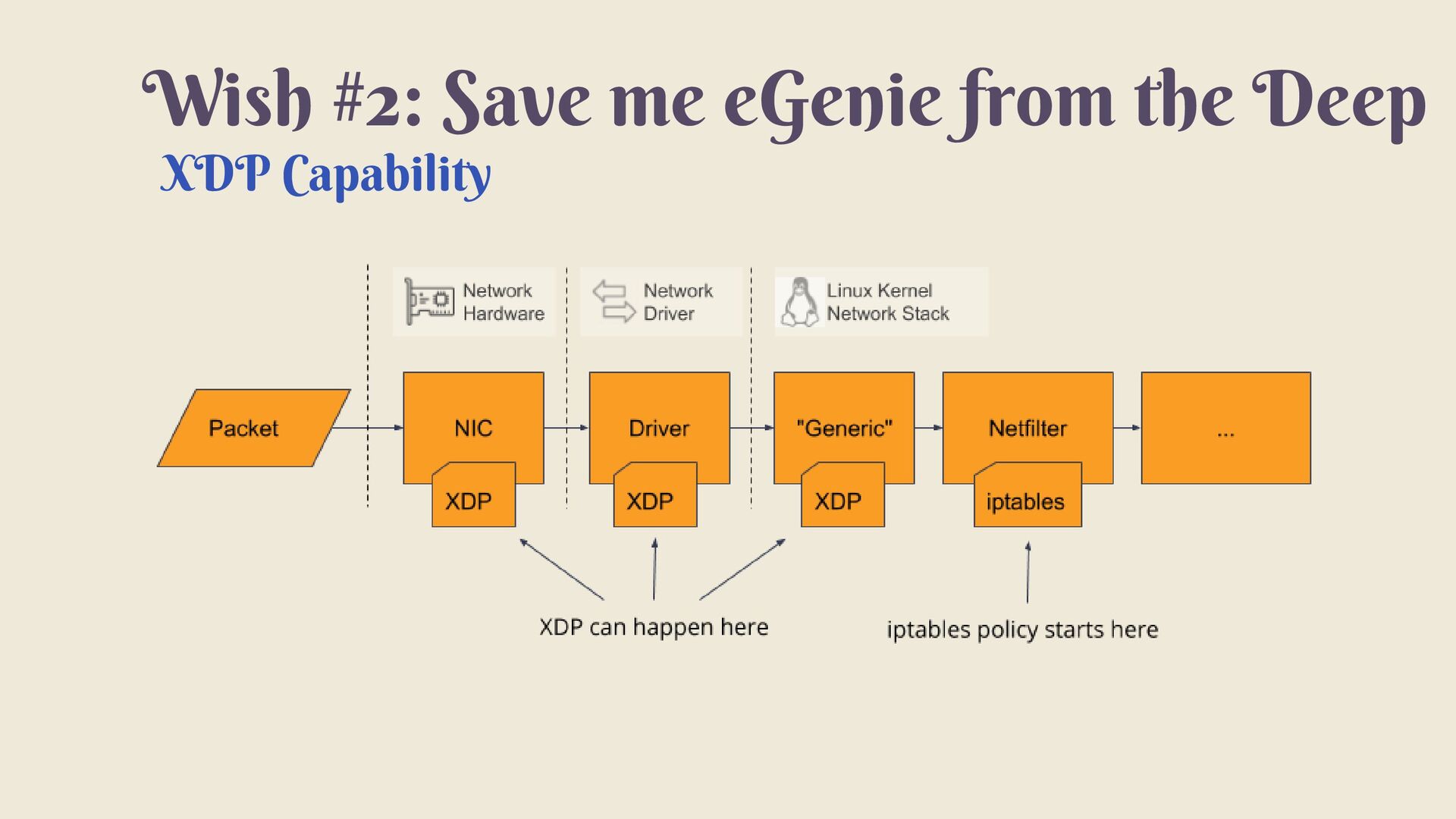

44. Wish #2: Save me eGenie from the Deep XDP Capability

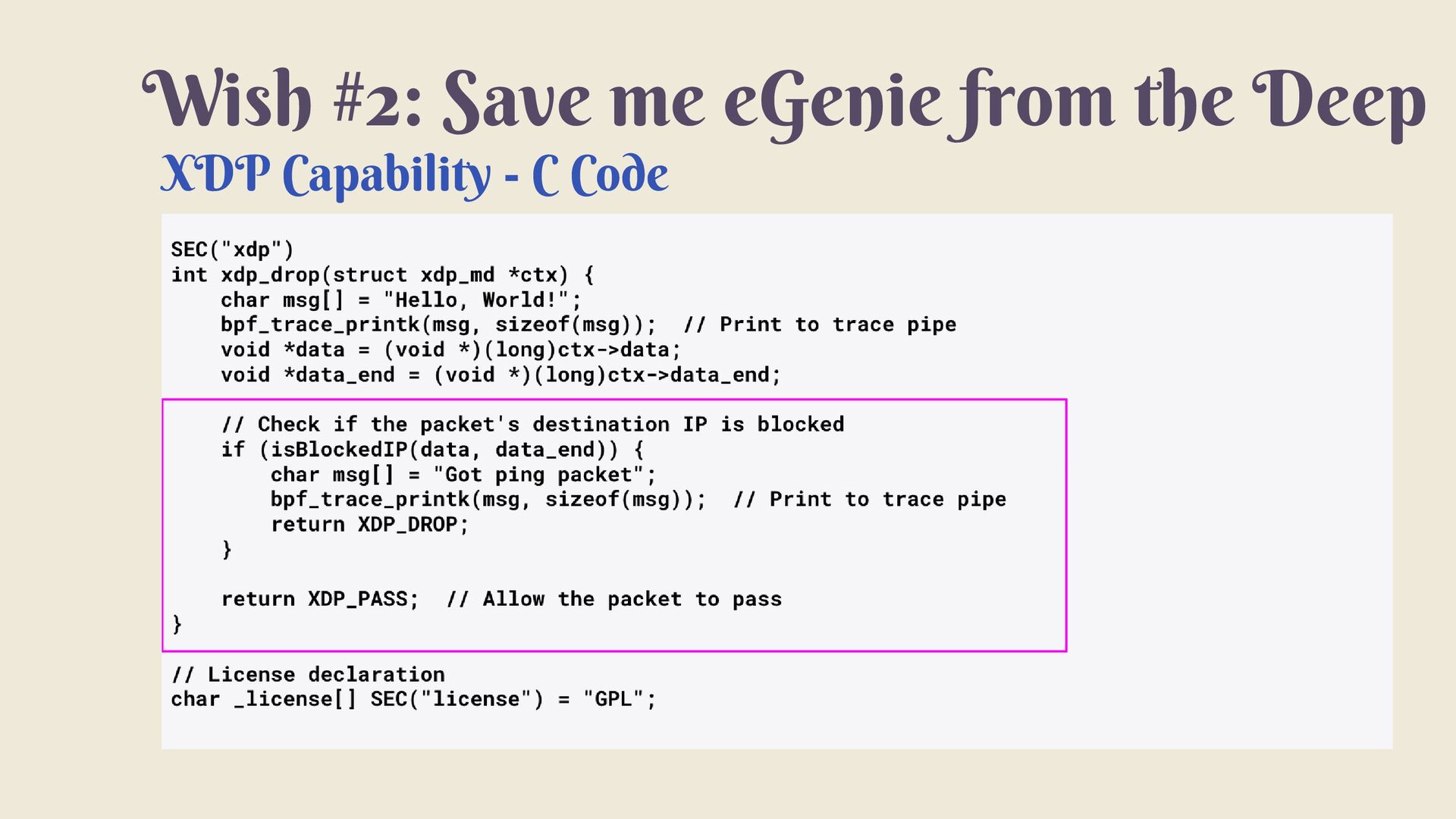

45. Wish #2: Save me eGenie from the Deep XDP Capability - C Code

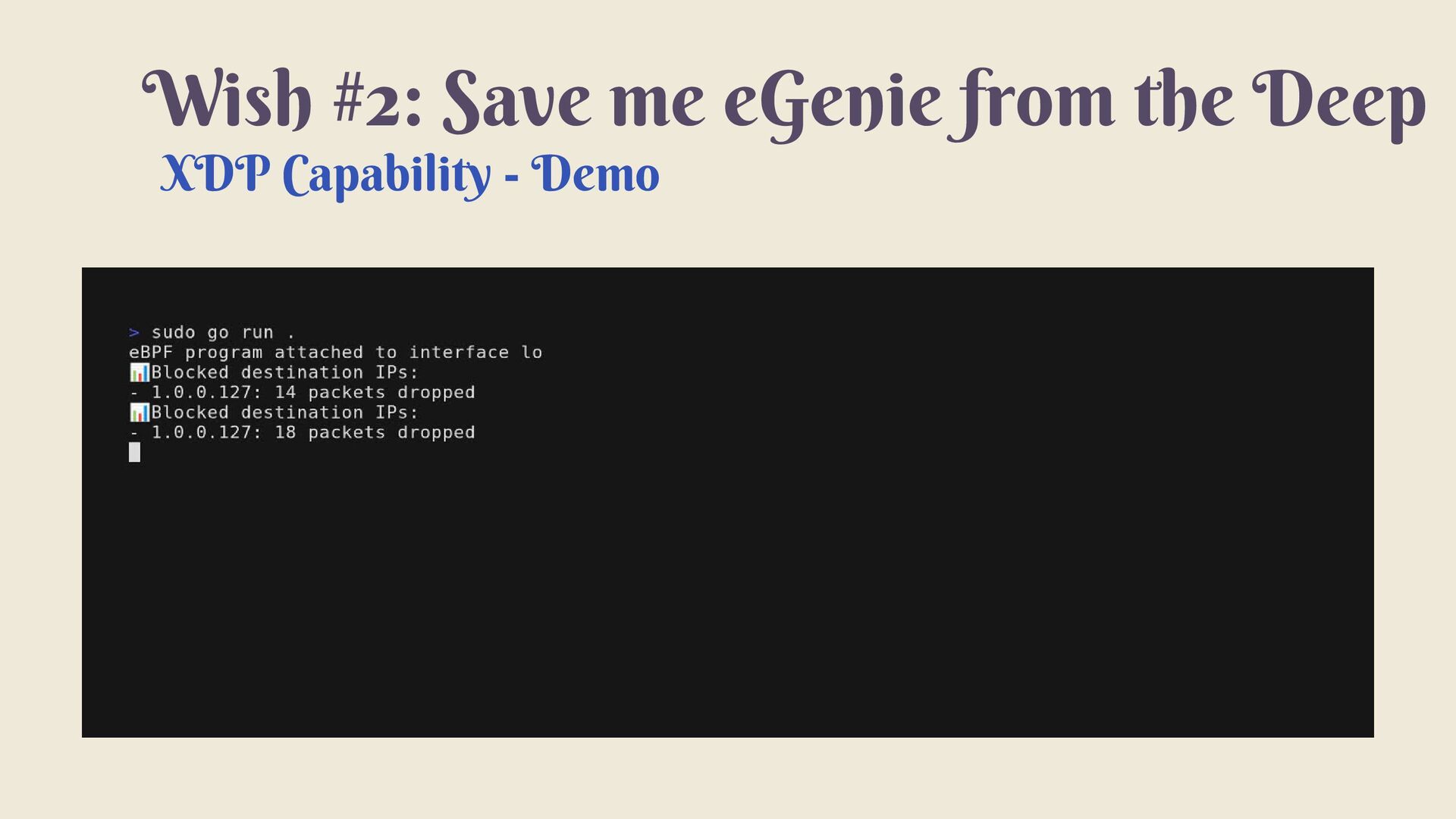

46. Wish #2: Save me eGenie from the Deep XDP Capability - Demo
47. Moral #2 When the sea turns rough, eBPF can pull you to the surface—not with blunt force, but with elegant control at the kernel’s edge.”
48. The Prince in the Kubernetes Palace

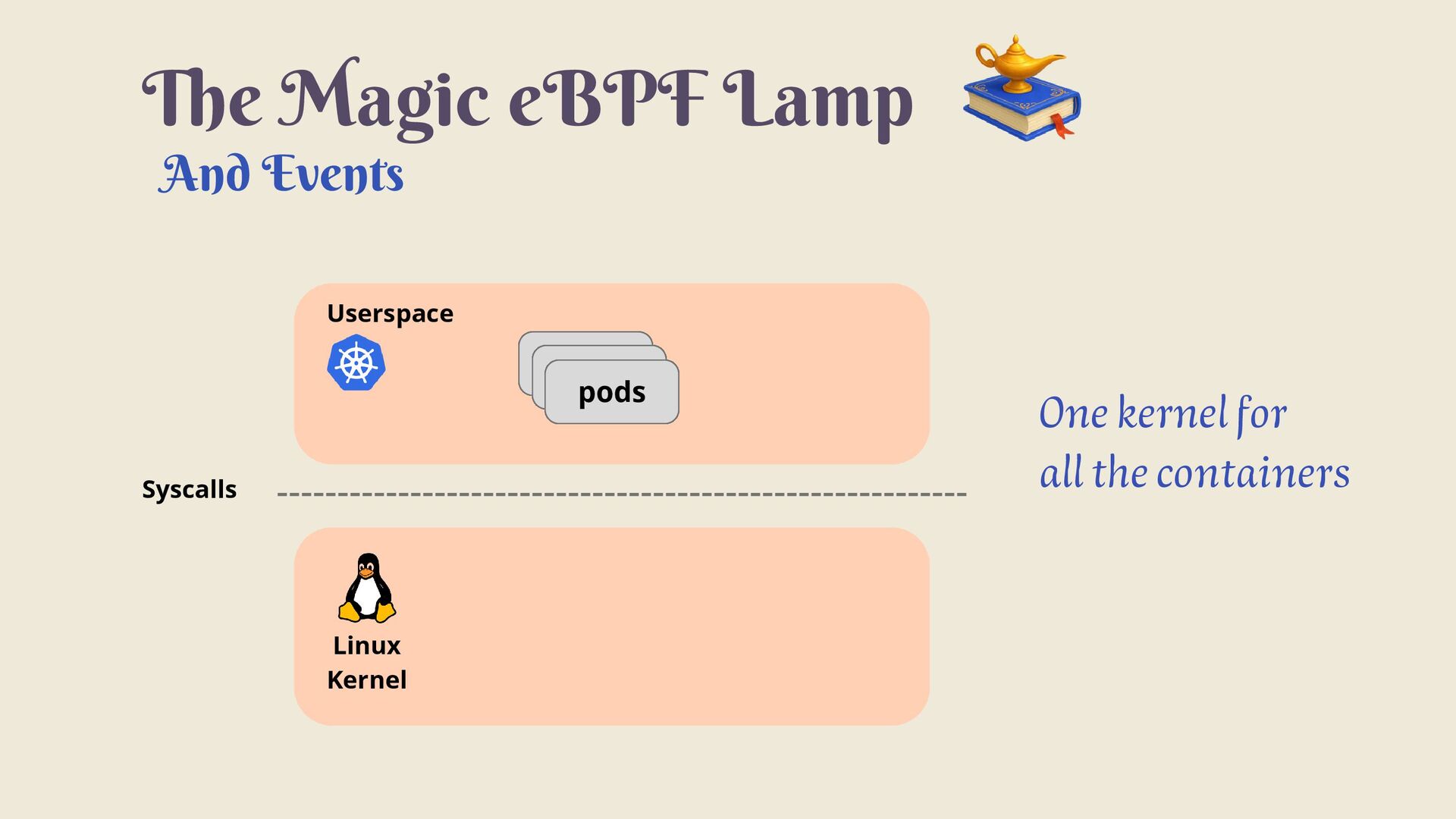

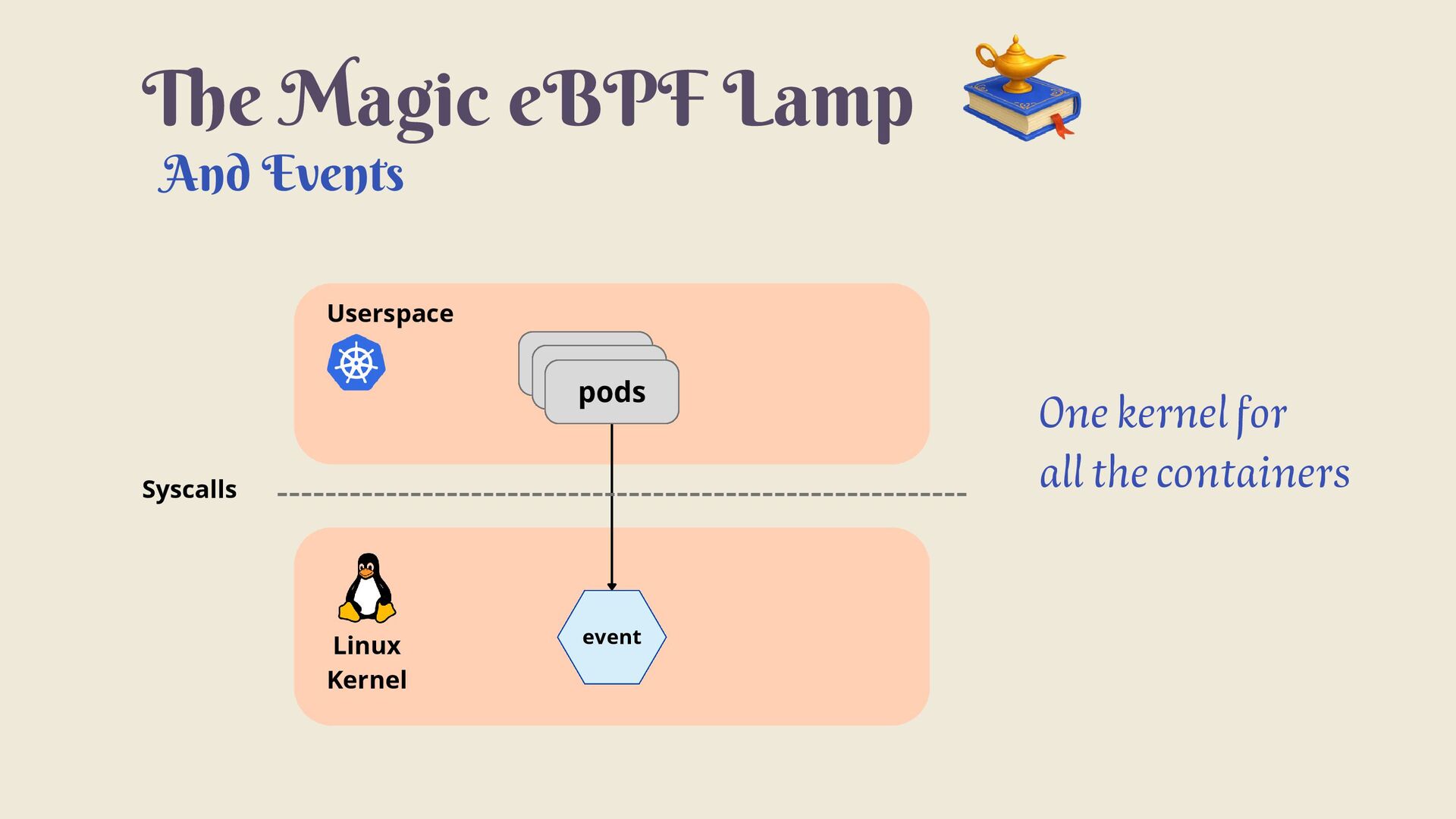

49. pods The Magic eBPF Lamp And Events One kernel for all the containers Userspace Syscalls Linux Kernel

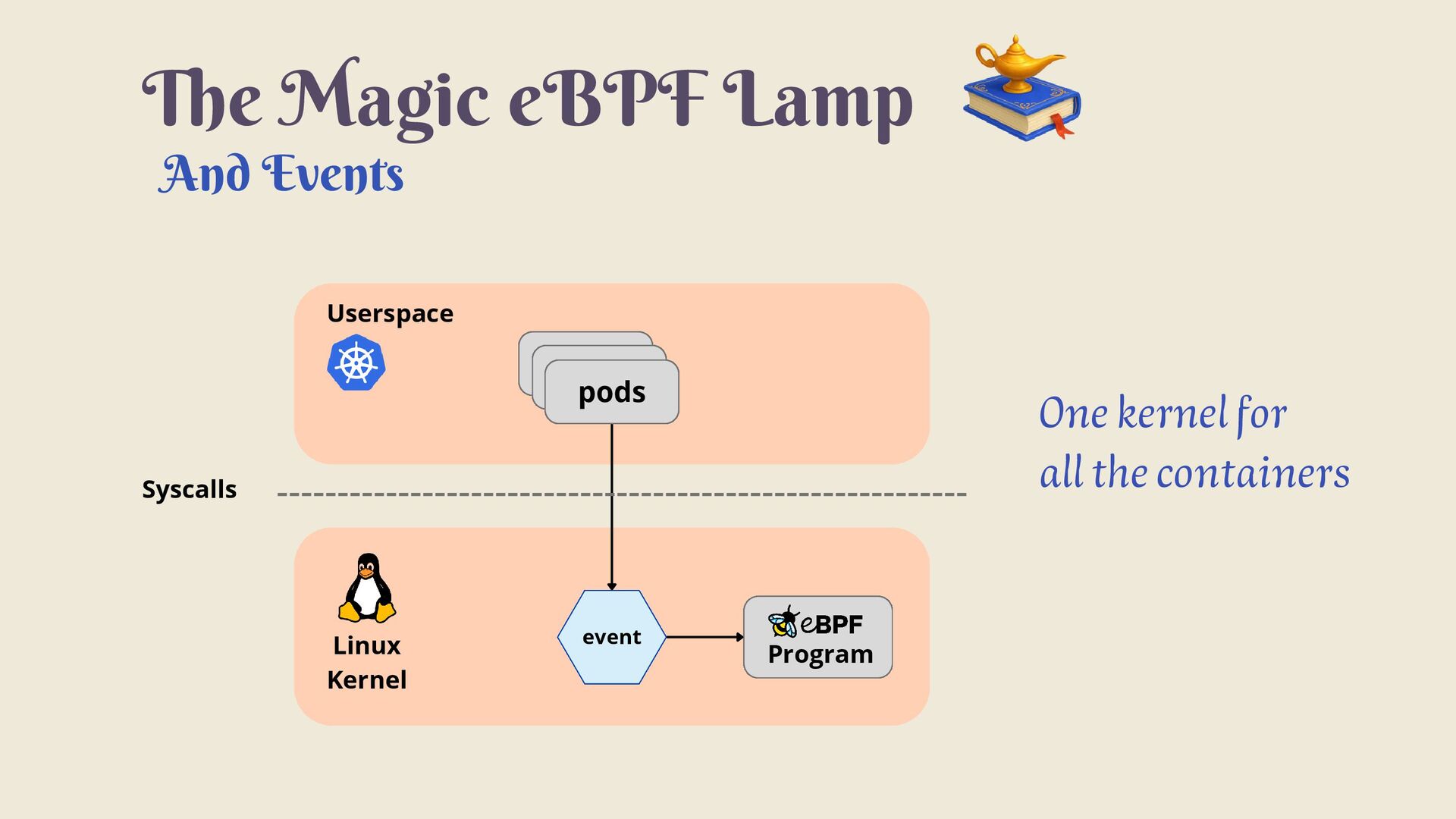

50. pods The Magic eBPF Lamp And Events One kernel for all the containers Userspace Syscalls Linux Kernel event
51. Program pods The Magic eBPF Lamp And Events One kernel for all the containers Userspace Syscalls Linux Kernel event

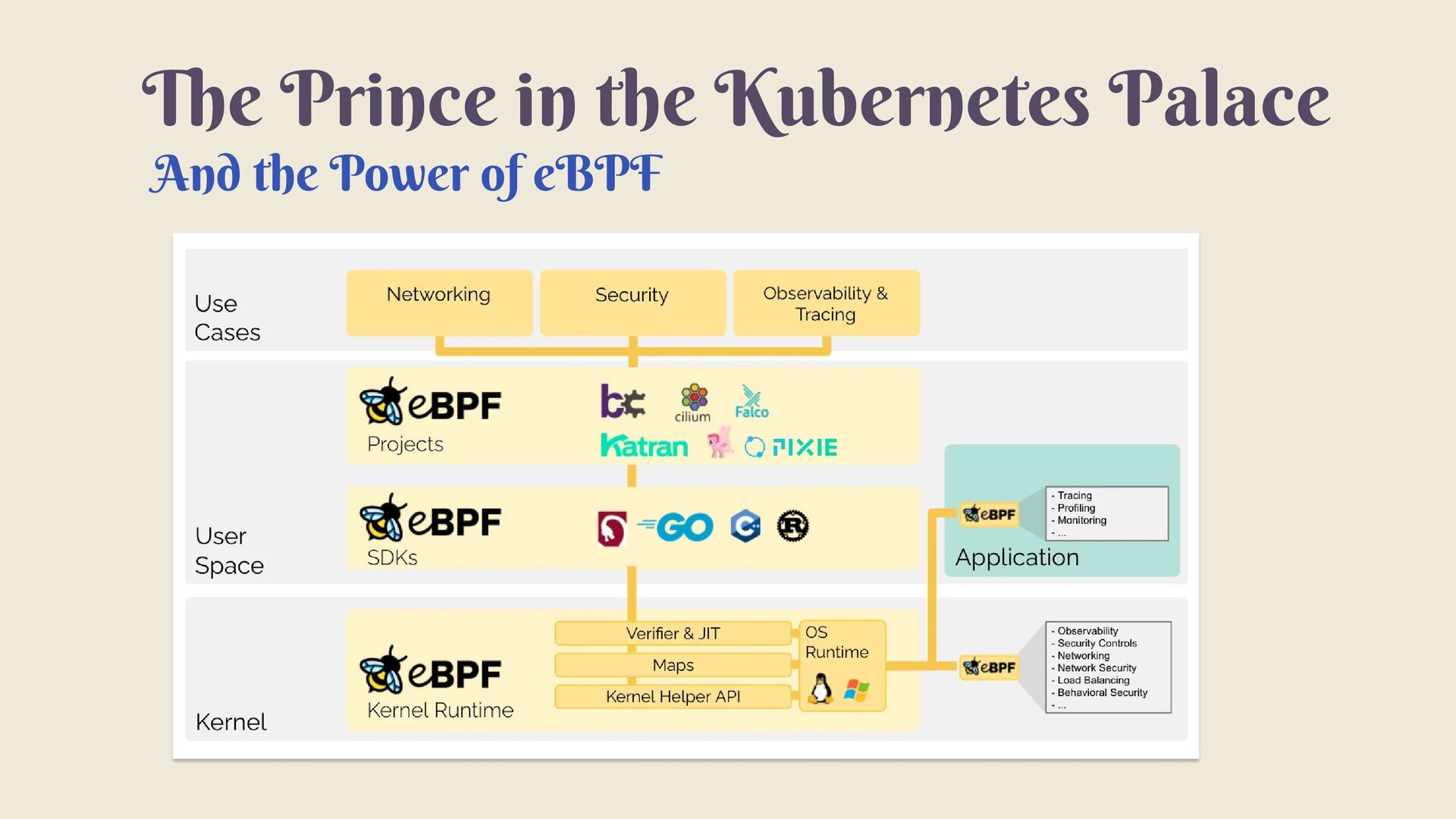

52. The Prince in the Kubernetes Palace And the Power of eBPF
53. Wish #3: Freeing the eGenie From Tools to Ecosystem

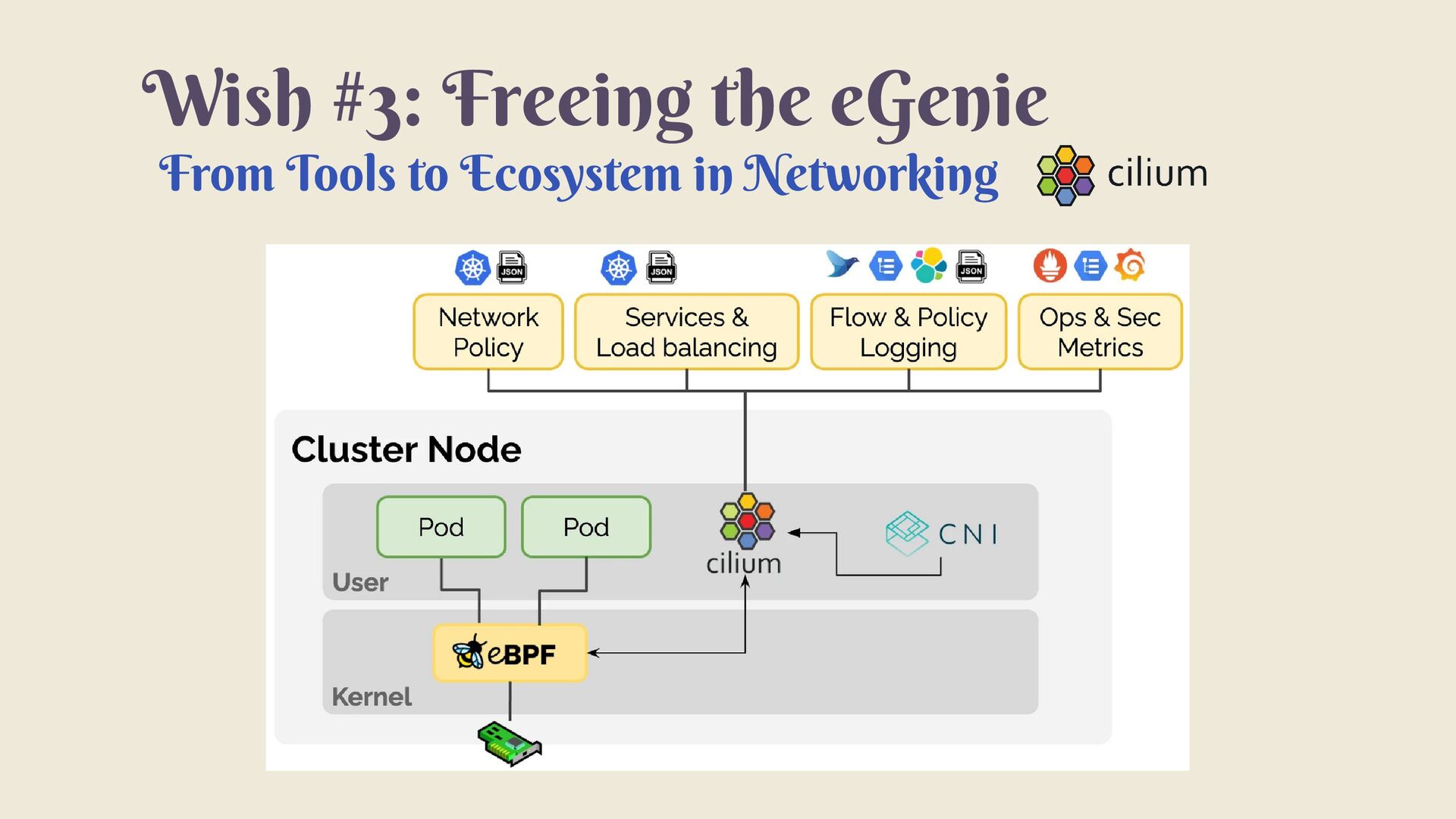

54. Wish #3: Freeing the eGenie From Tools to Ecosystem in Networking
55. Wish #3: Freeing the eGenie Cilium as the default Cloud Networking Interface (CNI) Amazon EKS Anywhere Anthos GKE Dataplane v2 Azure Kubernetes Service Azure Kubernetes Service source: https://cilium.io/use-cases/cni/ Managed Kubernetes Service MetaKube

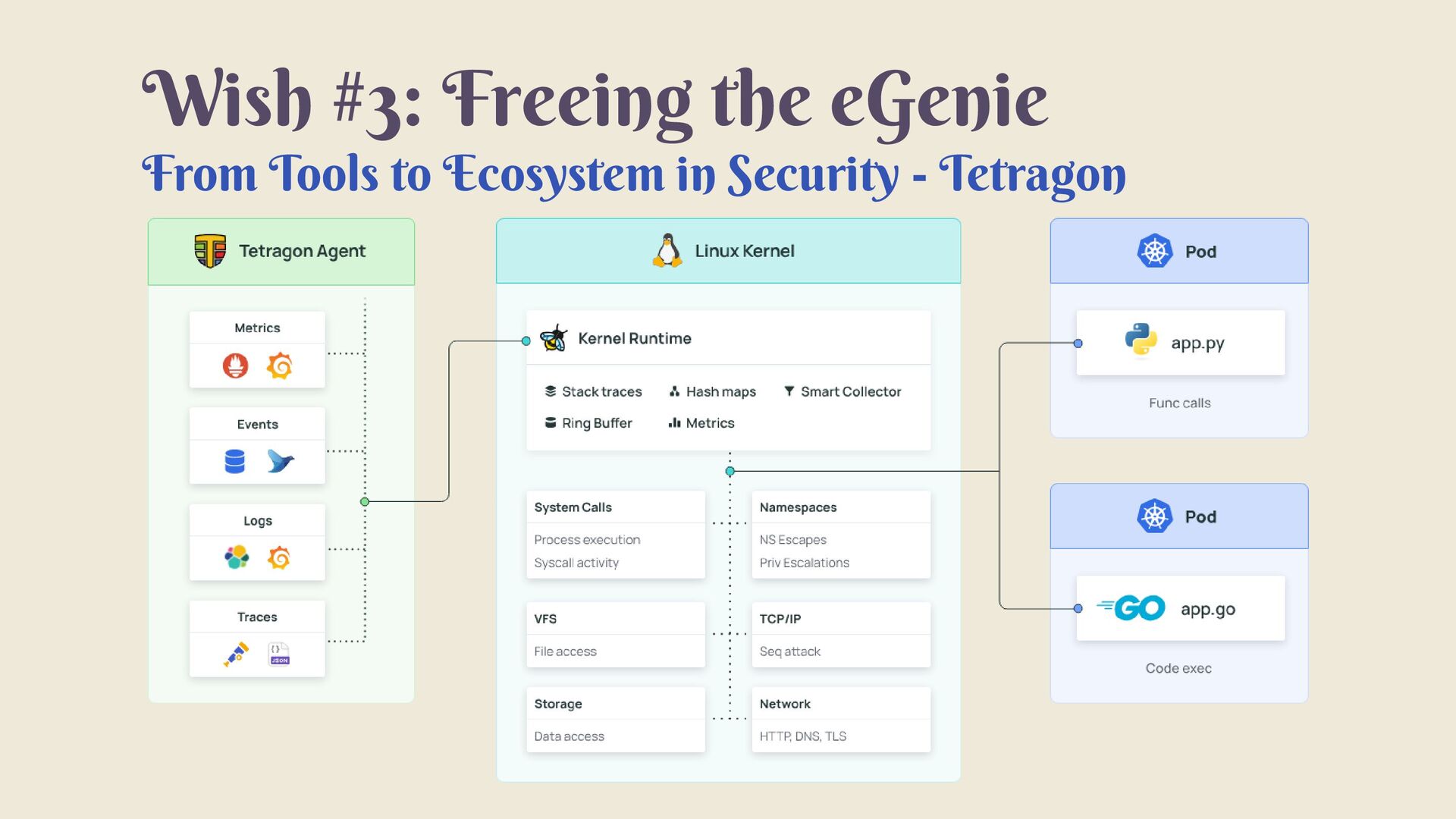

56. Wish #3: Freeing the eGenie From Tools to Ecosystem in Security - Tetragon
57. Moral #3 When the eGenie is free, standardized, open source, integrated, everyone benefits: platform teams, developers, security, and ultimately… users.”

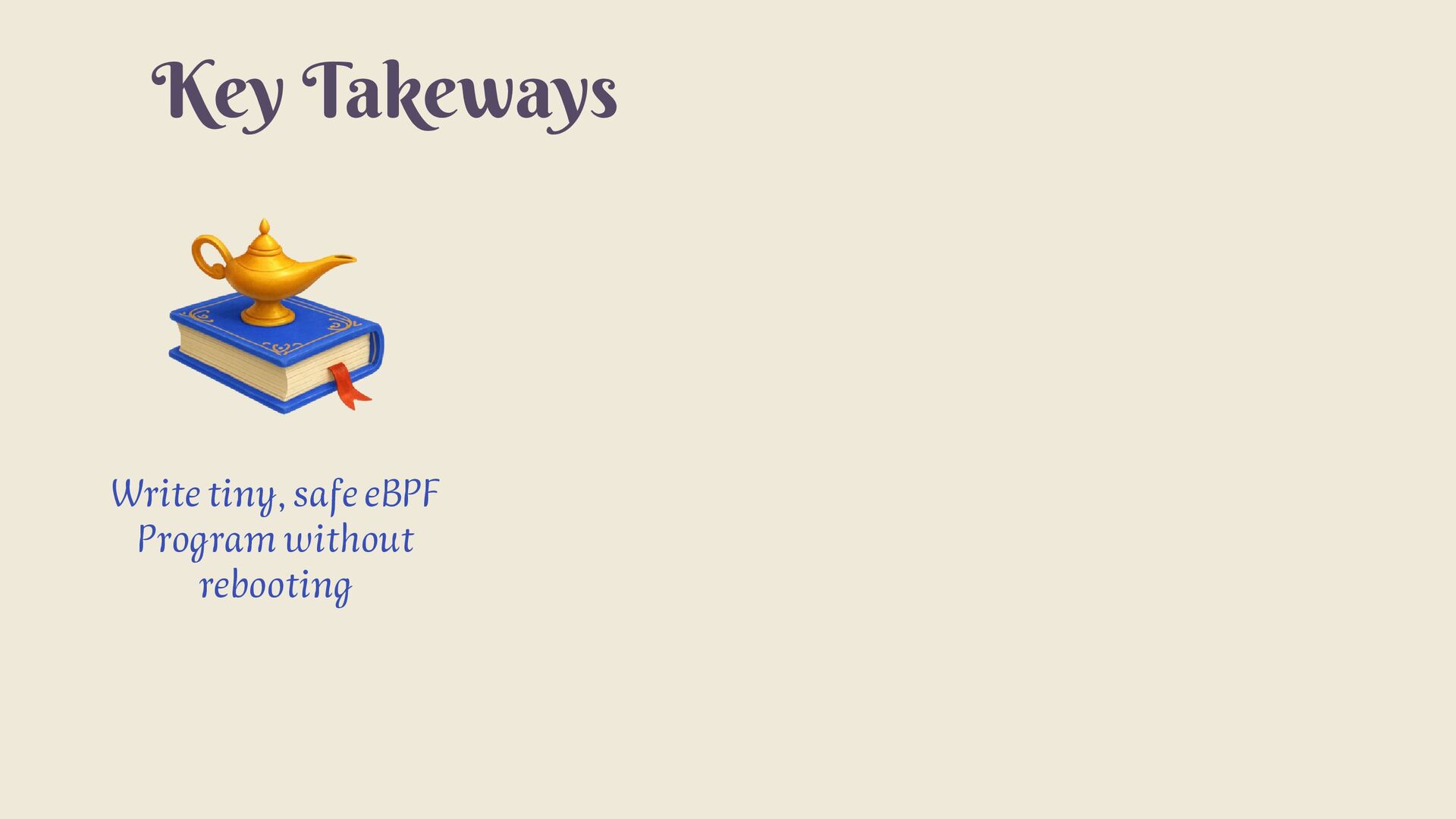

58. Key Takeways Write tiny, safe eBPF Program without rebooting
59. Key Takeways Write tiny, safe eBPF Program without rebooting Abstract syscalls, make programs practical, maintainable.
60. Key Takeways Write tiny, safe eBPF Program without rebooting Abstract syscalls, make programs practical, maintainable. Wish #1: Tracing Wish #2: Security XDP Wish #3: Networking k8s Palace
61. It’s not about power, it’s about wisdom. Use the genie well. Free it into the ecosystem. Build tools that help everyone. Key Takeways Write tiny, safe eBPF Program without rebooting Abstract syscalls, make programs practical, maintainable. Wish #1: Tracing Wish #2: Security XDP Wish #3: Networking k8s Palace
62. The End...
63. @doniacld ebpf.io @ciliumproject @isovalent 🧪 isovalent.com/labs/ebpf-getting-started/ 👩🏾‍💻 github.com/doniacld/ebpf-4-gophers/ Resources & Credits
64. @doniacld ebpf.io @ciliumproject @isovalent 🧪 isovalent.com/labs/ebpf-getting-started/ 👩🏾‍💻 github.com/doniacld/ebpf-4-gophers/ Resources & Credits Feedback is a gift 🎁
