And the beats go on - Breizhcamp 2016

And the beats go on - Breizhcamp 2016

Venez découvrir le nouveau Data Shippers pour Elasticsearch:

* Packetbeat : décortiquez les protocoles réseau
* Topbeat: récoltez vos métriques
* Filebeat: analysez vos logs en temps réel ou transmettez les vers logstash pour enrichissement

Et comment contribuer au mix et ajouter vos propres beats avec Libbeat.

Dd9d954997353b37b4c2684f478192d3?s=128

Elastic Co

March 24, 2016
Tweet

More Decks by Elastic Co

Other Decks in Technology

Transcript

  1. ‹#› And the beats go on! David Pilato Developer |

    Evangelist @dadoonet
  2. The Elastic Stack 2 Store, Index & Analyze User Interface

    Plugins Ingest Hosted Service
  3. None
  4. Beats are lightweight shippers that collect and ship all kinds

    of operational data to Elasticsearch
  5. Examples of operational data 7 wire data system stats logs

    Packetbeat Topbeat Filebeat Winlogbeat
  6. Captures insights from network packets 8 Packetbeat

  7. Sniffing the network traffic 9 Client Server sniff sniff •

    Copy traffic at OS or hardware level • Is completely passive • ZERO latency overhead • Not in the request/response path, cannot break your application
  8. Packetbeat: Available decoders 10 HTTP MySQL PostgreSQL MongoDB Memcache ICMP

    + Add your own Thrift-RPC DNS Redis AMQP

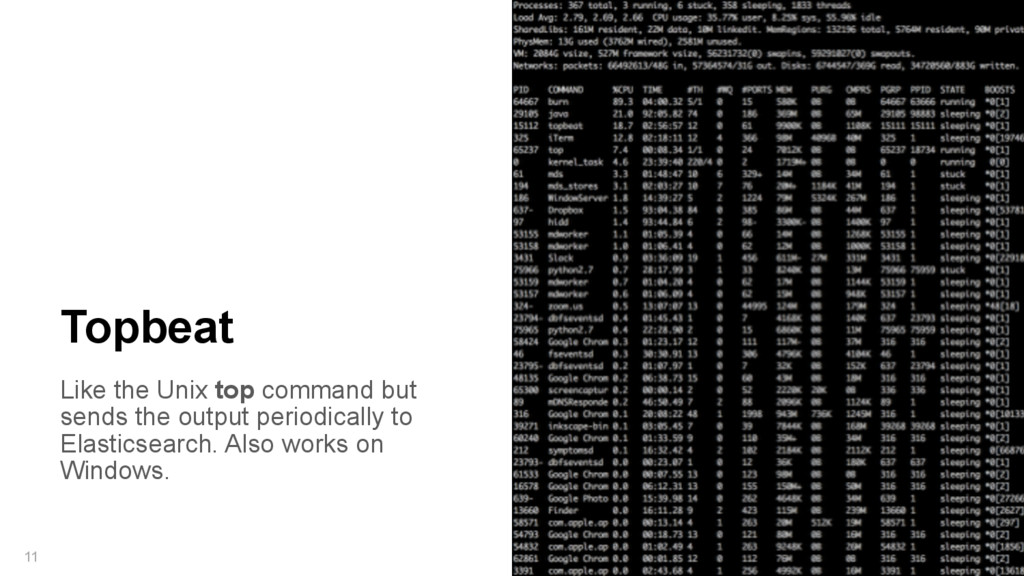

  9. Like the Unix top command but sends the output periodically

    to Elasticsearch. Also works on Windows. 11 Topbeat
  10. Topbeat: Exported data 12 • system load • total CPU

    usage • CPU usage per core • Swap, memory usage System wide • state • name • command line • pid • CPU usage • memory usage Per process • available disks • used, free space • mounted points Disk usage
  11. Forwards log lines to Elasticsearch 13 Filebeat

  12. Filebeat: Never lose a log line 14 line line line

    line line read pointer Filebeat Back-pressure sensitive protocol Yo Filebeat, slow it down a bit, pls K buddy line The original log lines act like a queue
  13. Filebeat: Parse logs with Logstash Parse logs with Logstash 15

    • Filebeat sends out unparsed log lines • Use filters from Logstash to parse the log lines • Flexible, with conditionals & custom filters • Forward data to other systems using the Logstash output plugins Filebeat Other systems
  14. Filebeat: Parse logs with Ingest Node Parse logs with Ingest

    node in Elasticsearch 16 • Filebeat sends out unparsed log lines directly to Elasticsearch • Use Ingest Node processors (grok, geoip…) to parse the log lines • Easier to setup Filebeat 5.0
  15. Forwards Windows Event logs to Elasticsearch 17 Winlogbeat

  16. Beats Platform 18 Explore & Visualize Search & Analyze Enrich

    & Transport Optional libbeat {Community} Beats Elastic Beats Collect, Parse & Ship

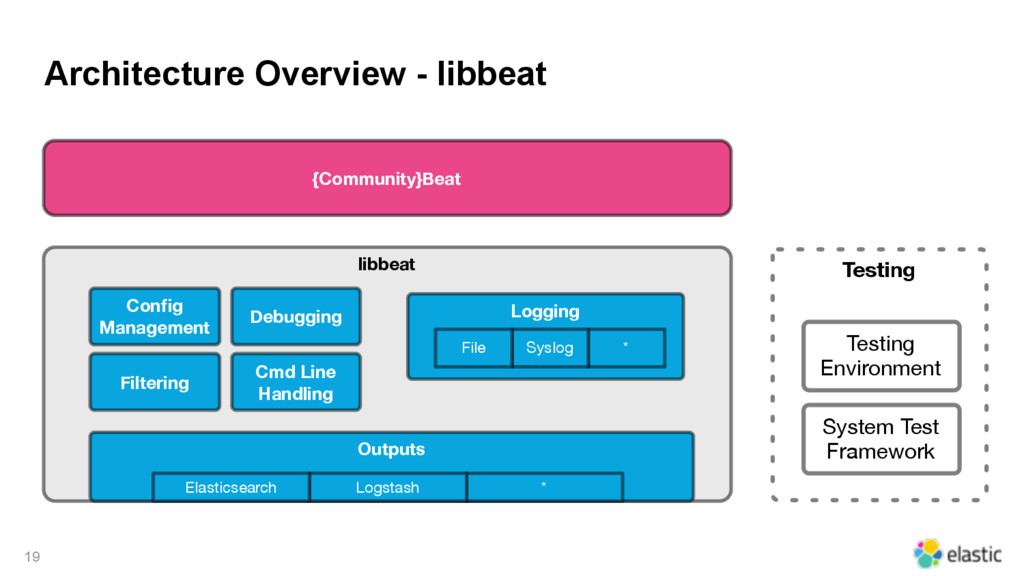

  17. Architecture Overview - libbeat 19 {Community}Beat libbeat Outputs * Logstash

    Elasticsearch Config Management Debugging Logging * Syslog File Cmd Line Handling Filtering Testing Testing Environment System Test Framework
  18. Produces RPMs, DEBs, … 20 Beats Packer https://github.com/elastic/beats-packer

  19. 22

  20. ‹#› https://github.com/dadoonet/soundbeat topbeat, packetbeat and soundbeat

  21. ‹#› https://github.com/dadoonet/soundbeat thanks!
