1. Jared McQueen 1 Cyber Security Innovations October 13, 2016 Identifying Statistical Anomalies Using Data- Driven Analysis
2. Finding Bad Guys Using Math Jared McQueen 2 Cyber Security Innovations October 13, 2016 Identifying Statistical Anomalies Using Data- Driven Analysis
3. 3 @goodguyguybrush https://github.com/jaredmcqueen/ https://gist.github.com/jaredmcqueen/ about me WARNING! Lots of code to follow! ~15 years cyber security consulting
 work with mostly Federal customers:
 DoD, Intelligence Community, Civilian Agencies software development systems engineering
 immersive 3D data visualizations

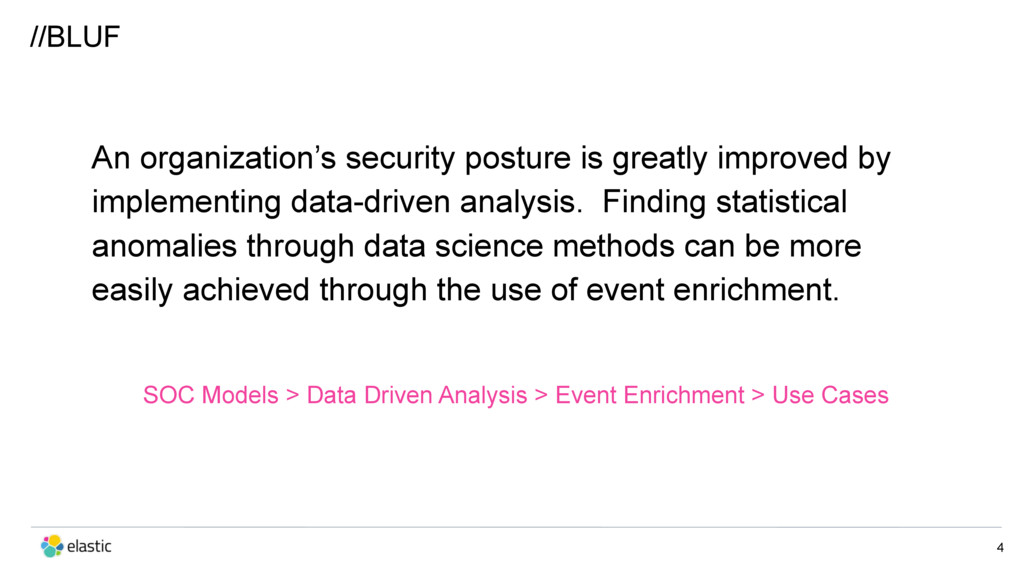

4. 4 An organization’s security posture is greatly improved by implementing data-driven analysis. Finding statistical anomalies through data science methods can be more easily achieved through the use of event enrichment. SOC Models > Data Driven Analysis > Event Enrichment > Use Cases //BLUF
5. SOC Analysis Models: Alert-Driven vs Data-Driven 5

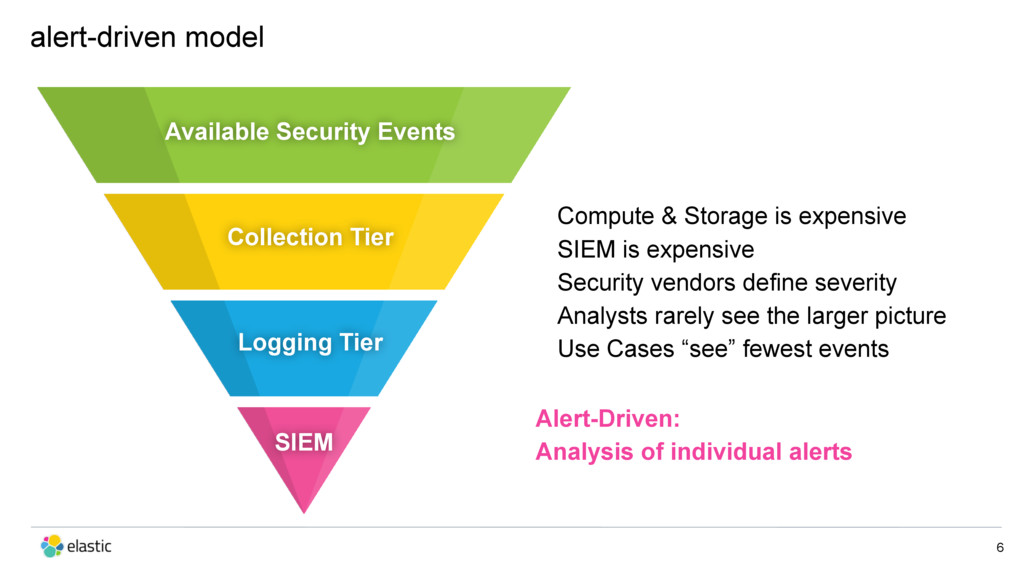

6. 6 Available Security Events Logging Tier SIEM Collection Tier alert-driven model Compute & Storage is expensive SIEM is expensive Security vendors define severity Analysts rarely see the larger picture Use Cases “see” fewest events Alert-Driven:
 Analysis of individual alerts

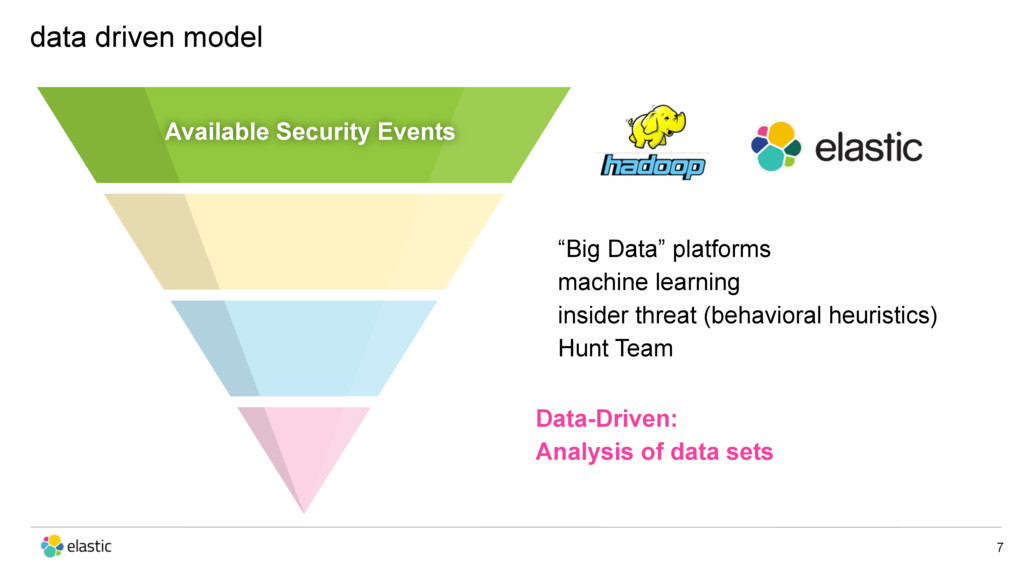

7. 7 Available Security Events “Big Data” platforms machine learning
 insider threat (behavioral heuristics) Hunt Team data driven model Data-Driven:
 Analysis of data sets

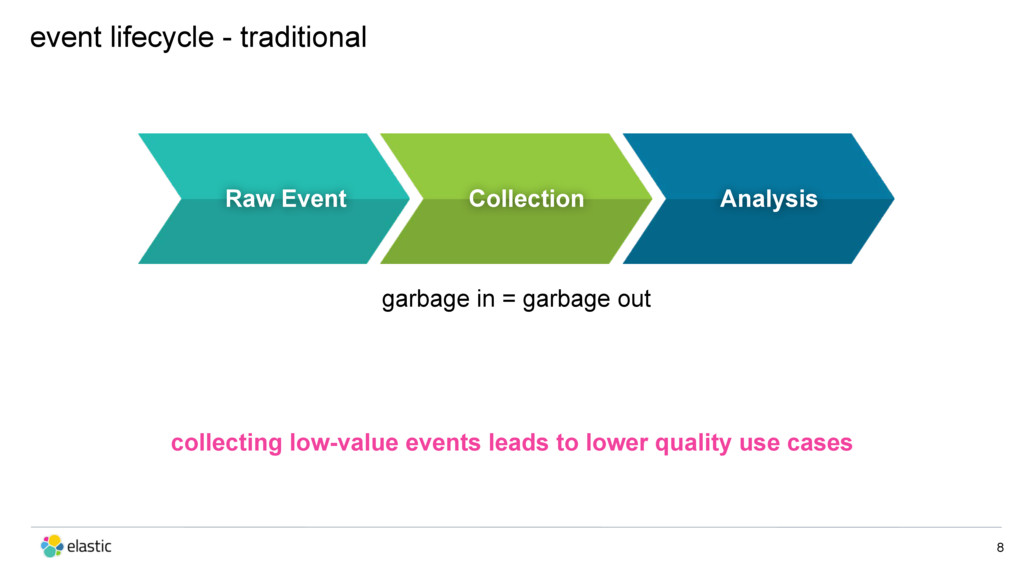

8. 8 garbage in = garbage out Raw Event Collection Analysis event lifecycle - traditional collecting low-value events leads to lower quality use cases

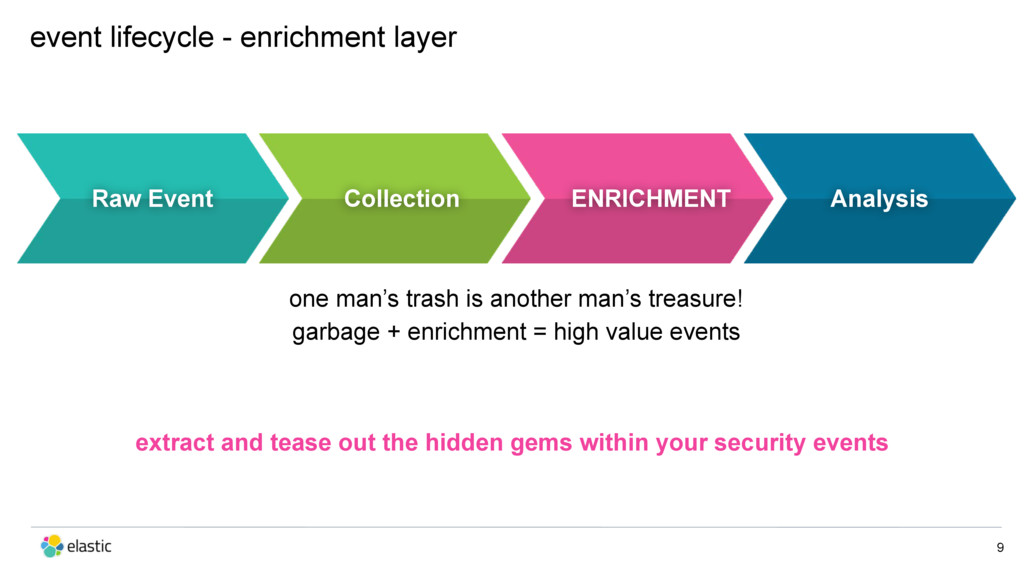

9. 9 Raw Event Collection ENRICHMENT one man’s trash is another man’s treasure!
 garbage + enrichment = high value events event lifecycle - enrichment layer Analysis extract and tease out the hidden gems within your security events
10. 10 Event Sources Logstash
 (enrichment) Elasticsearch
 (or ingest node) Kibana data driven architecture - the Elastic Stack enrichment prior to indexing is ideal but not necessary
 see docs for info on 5.0’s scripting (Painless)
 see docs on reindexing API (for your existing data)
 see docs for info on 5.0’s ingest nodes

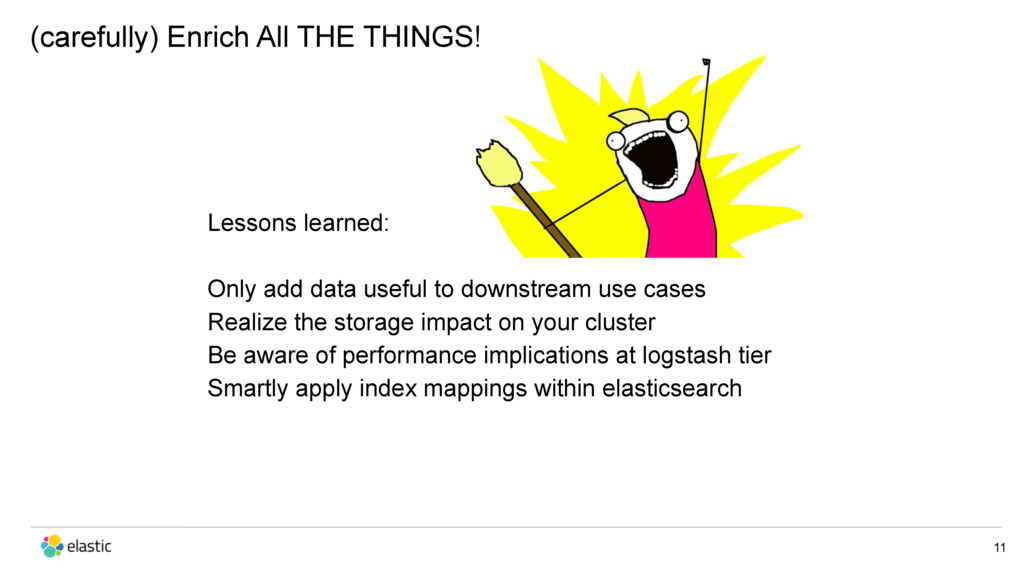

11. 11 Lessons learned:

 Only add data useful to downstream use cases
 Realize the storage impact on your cluster
 Be aware of performance implications at logstash tier
 Smartly apply index mappings within elasticsearch (carefully) Enrich All THE THINGS!
12. Enrichment Strategies:
 GEO, TLD, Length, Entropy 12

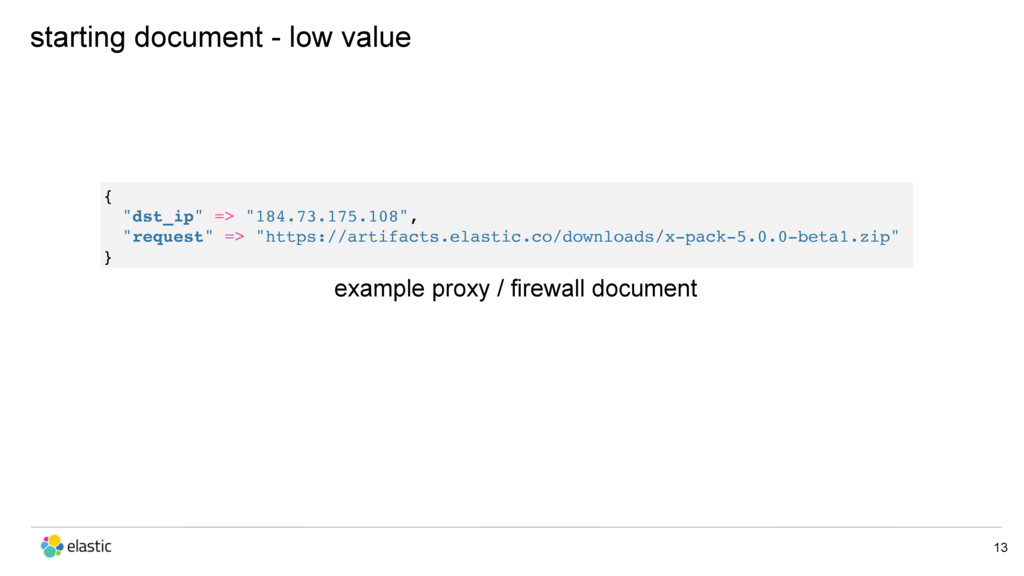

13. 13 {
 "dst_ip" => "184.73.175.108", "request" => "https://artifacts.elastic.co/downloads/x-pack-5.0.0-beta1.zip" } starting document - low value example proxy / firewall document

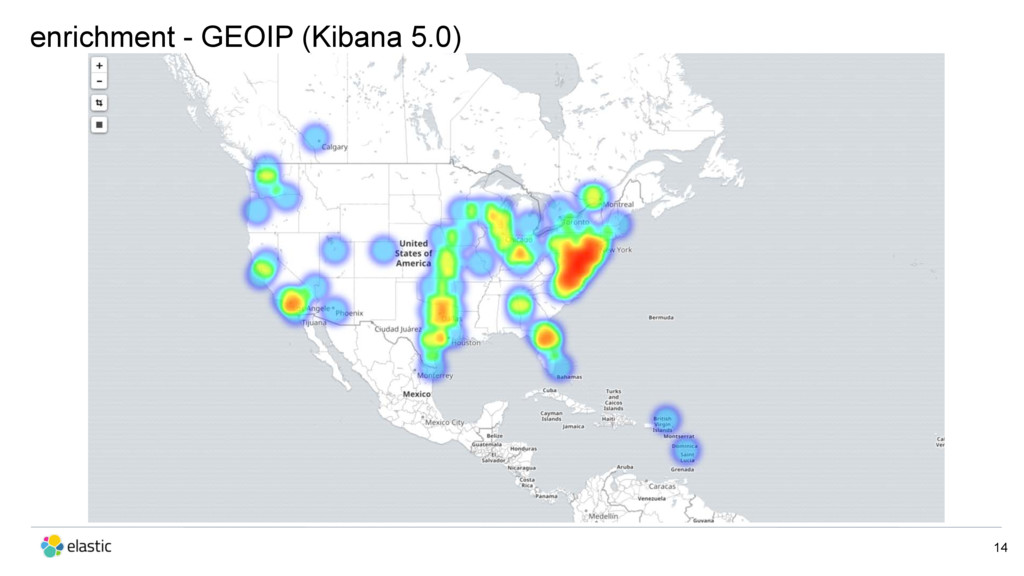

14. 14 enrichment - GEOIP (Kibana 5.0)

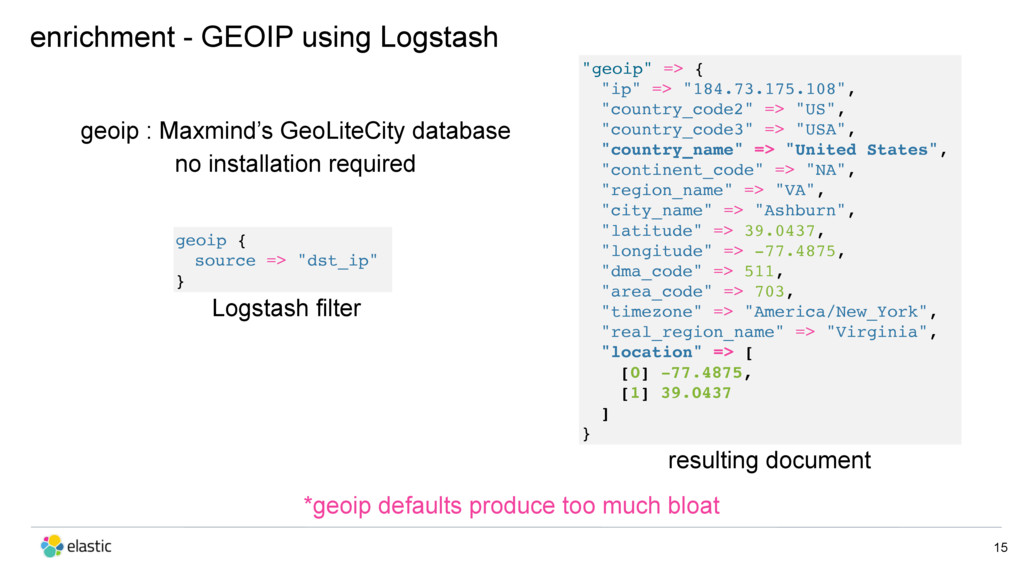

15. 15 geoip { source => "dst_ip" } "geoip" => { "ip" => "184.73.175.108", "country_code2" => "US", "country_code3" => "USA", "country_name" => "United States", "continent_code" => "NA", "region_name" => "VA", "city_name" => "Ashburn", "latitude" => 39.0437, "longitude" => -77.4875, "dma_code" => 511, "area_code" => 703, "timezone" => "America/New_York", "real_region_name" => "Virginia", "location" => [ [0] -77.4875, [1] 39.0437 ] } *geoip defaults produce too much bloat enrichment - GEOIP using Logstash resulting document Logstash filter geoip : Maxmind’s GeoLiteCity database
 no installation required

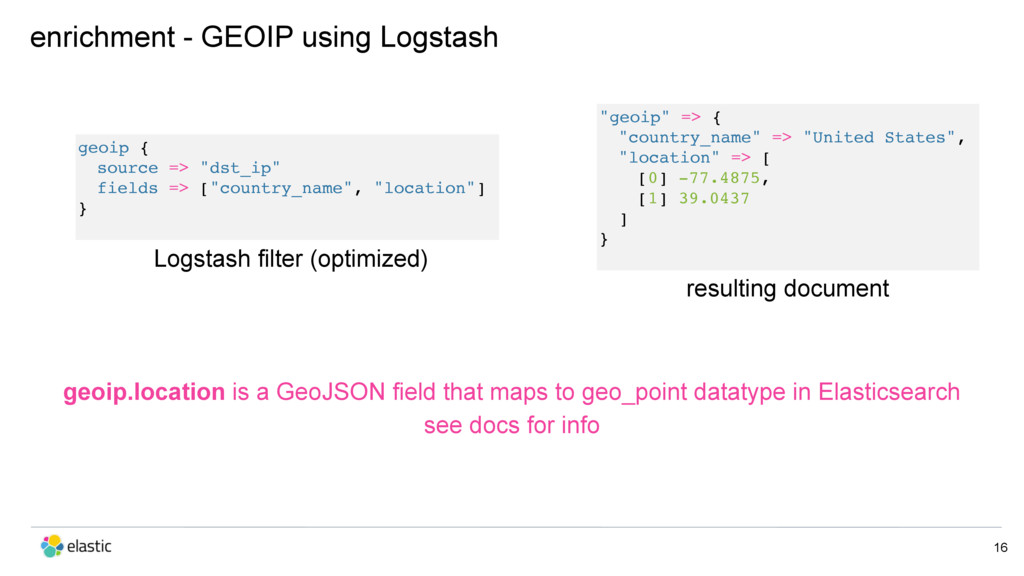

16. 16 geoip { source => "dst_ip" fields => ["country_name", "location"] } "geoip" => { "country_name" => "United States", "location" => [ [0] -77.4875, [1] 39.0437 ] } resulting document geoip.location is a GeoJSON field that maps to geo_point datatype in Elasticsearch
 see docs for info Logstash filter (optimized) enrichment - GEOIP using Logstash

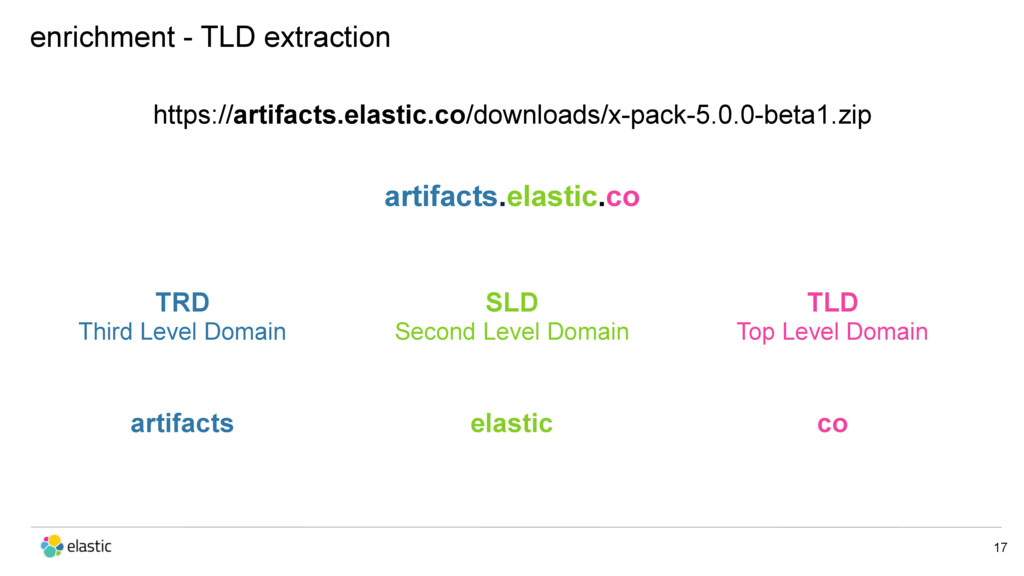

17. 17 https://artifacts.elastic.co/downloads/x-pack-5.0.0-beta1.zip artifacts.elastic.co TRD Third Level Domain
 artifacts SLD Second Level Domain
 elastic TLD Top Level Domain co enrichment - TLD extraction

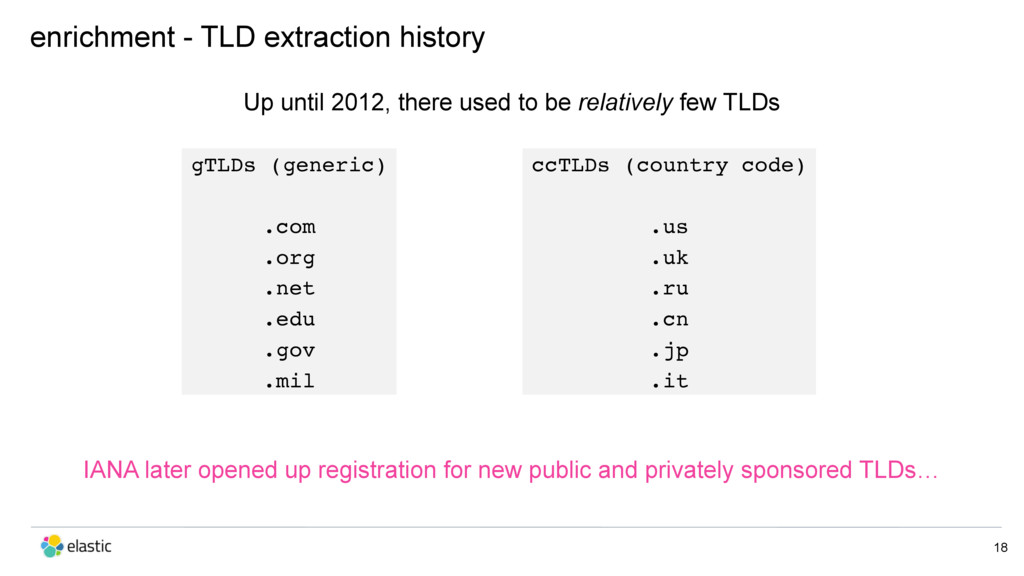

18. 18 gTLDs (generic)
 .com .org .net .edu .gov .mil ccTLDs (country code) .us .uk .ru .cn .jp .it Up until 2012, there used to be relatively few TLDs IANA later opened up registration for new public and privately sponsored TLDs… enrichment - TLD extraction history
19. 19 7995 TLDs and counting

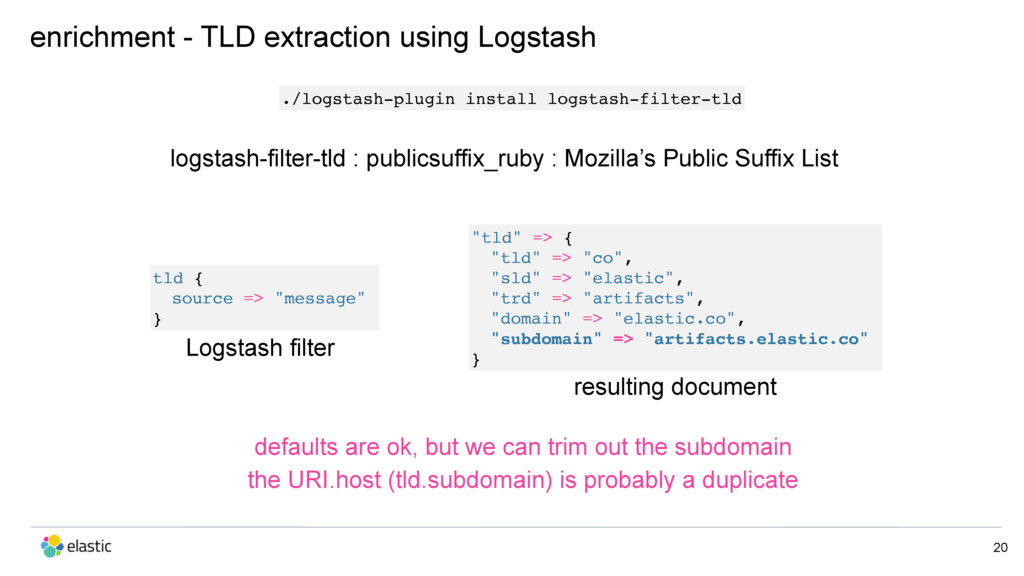

20. 20 "tld" => { "tld" => "co", "sld" => "elastic", "trd" => "artifacts", "domain" => "elastic.co", "subdomain" => "artifacts.elastic.co" } tld { source => "message" } Logstash filter resulting document defaults are ok, but we can trim out the subdomain
 the URI.host (tld.subdomain) is probably a duplicate enrichment - TLD extraction using Logstash ./logstash-plugin install logstash-filter-tld logstash-filter-tld : publicsuffix_ruby : Mozilla’s Public Suffix List

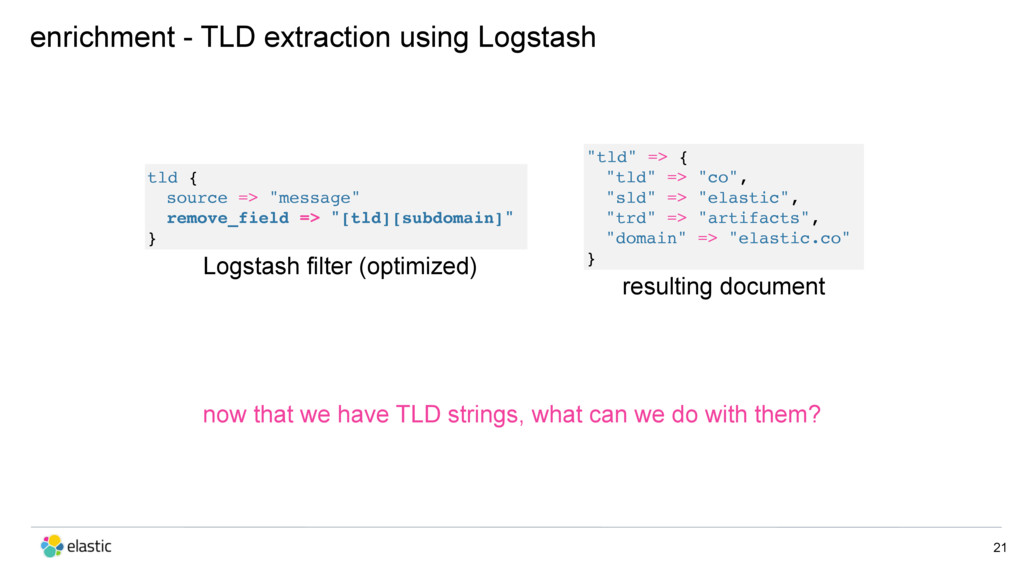

21. 21 "tld" => { "tld" => "co", "sld" => "elastic", "trd" => "artifacts", "domain" => "elastic.co" } tld { source => "message" remove_field => "[tld][subdomain]" } Logstash filter (optimized) resulting document enrichment - TLD extraction using Logstash now that we have TLD strings, what can we do with them?

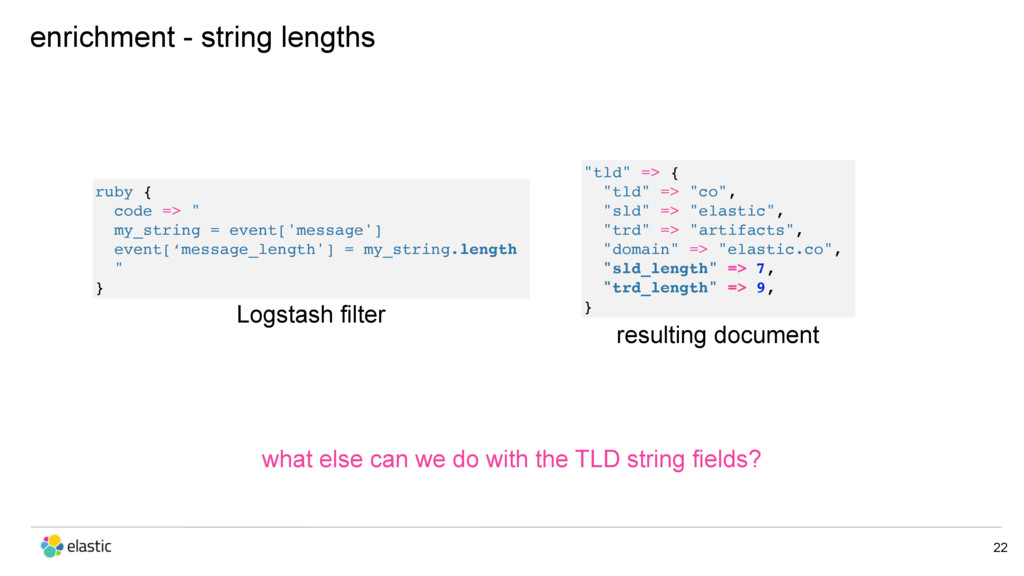

22. 22 "tld" => { "tld" => "co", "sld" => "elastic", "trd" => "artifacts", "domain" => "elastic.co", "sld_length" => 7, "trd_length" => 9, } ruby { code => " my_string = event['message'] event[‘message_length'] = my_string.length " } Logstash filter resulting document enrichment - string lengths what else can we do with the TLD string fields?

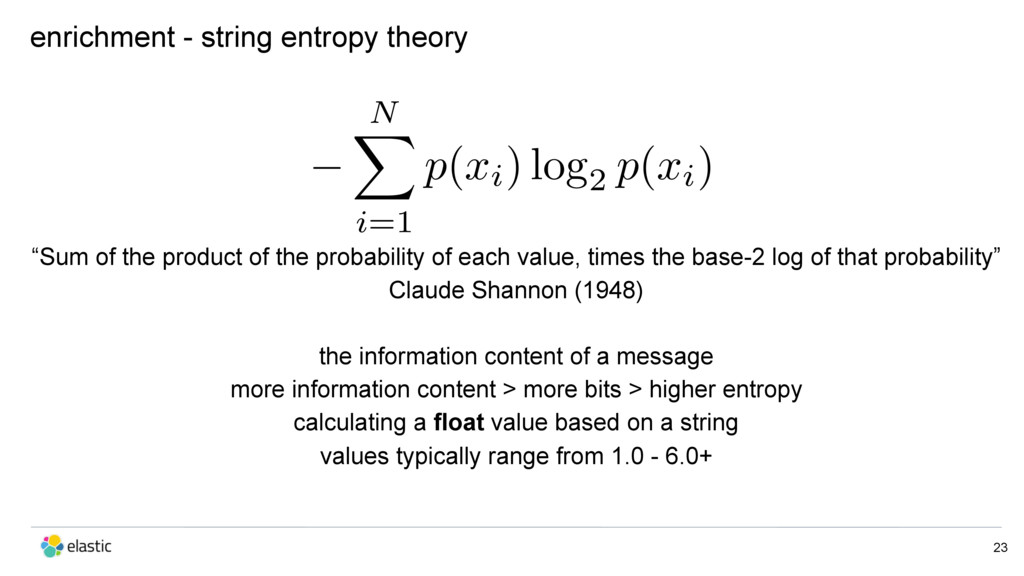

23. 23 N X i=1 p(xi) log2 p(xi) “Sum of the product of the probability of each value, times the base-2 log of that probability”
 Claude Shannon (1948)

 the information content of a message more information content > more bits > higher entropy calculating a float value based on a string values typically range from 1.0 - 6.0+ enrichment - string entropy theory

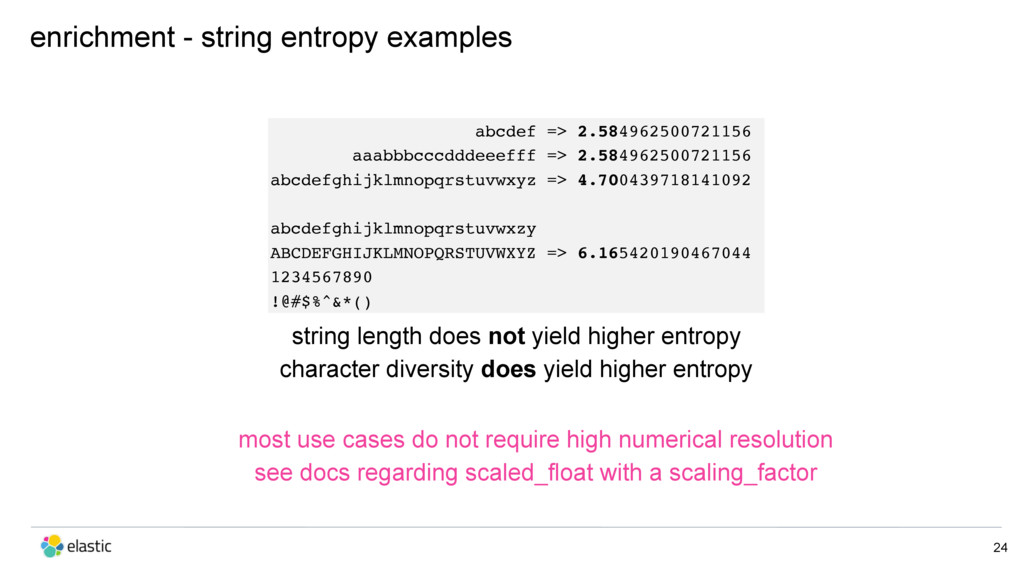

24. 24 abcdef => 2.584962500721156
 aaabbbcccdddeeefff => 2.584962500721156 abcdefghijklmnopqrstuvwxyz => 4.700439718141092

 abcdefghijklmnopqrstuvwxzy
 ABCDEFGHIJKLMNOPQRSTUVWXYZ => 6.165420190467044
 1234567890
 !@#$%^&*() string length does not yield higher entropy
 character diversity does yield higher entropy enrichment - string entropy examples most use cases do not require high numerical resolution see docs regarding scaled_float with a scaling_factor

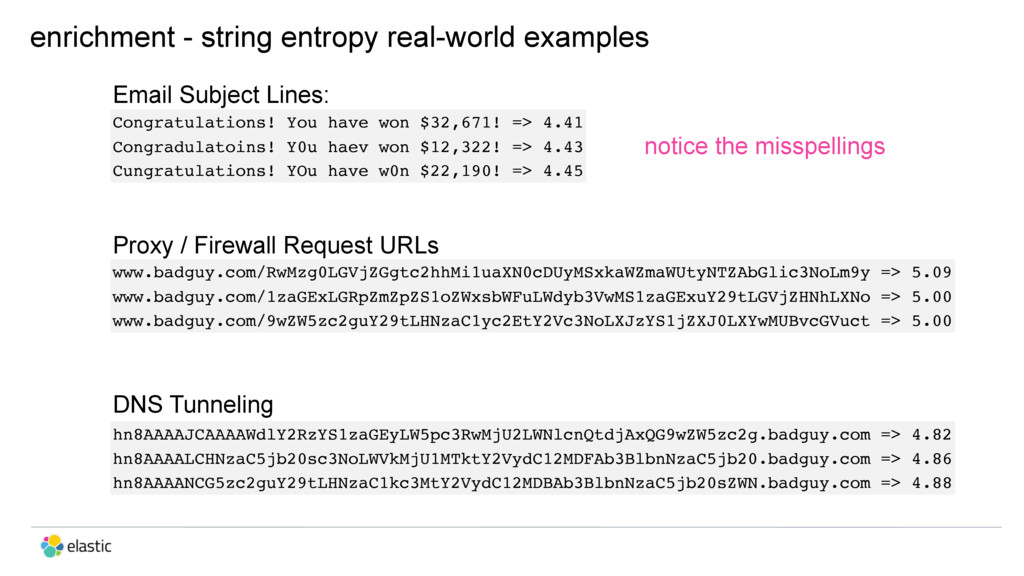

25. hn8AAAAJCAAAAWdlY2RzYS1zaGEyLW5pc3RwMjU2LWNlcnQtdjAxQG9wZW5zc2g.badguy.com => 4.82
 hn8AAAALCHNzaC5jb20sc3NoLWVkMjU1MTktY2VydC12MDFAb3BlbnNzaC5jb20.badguy.com => 4.86
 hn8AAAANCG5zc2guY29tLHNzaC1kc3MtY2VydC12MDBAb3BlbnNzaC5jb20sZWN.badguy.com => 4.88 Congratulations! You have won $32,671! => 4.41
 Congradulatoins! Y0u haev won $12,322! => 4.43
 Cungratulations! YOu have w0n $22,190! => 4.45 www.badguy.com/RwMzg0LGVjZGgtc2hhMi1uaXN0cDUyMSxkaWZmaWUtyNTZAbGlic3NoLm9y => 5.09
 www.badguy.com/1zaGExLGRpZmZpZS1oZWxsbWFuLWdyb3VwMS1zaGExuY29tLGVjZHNhLXNo => 5.00
 www.badguy.com/9wZW5zc2guY29tLHNzaC1yc2EtY2Vc3NoLXJzYS1jZXJ0LXYwMUBvcGVuct => 5.00 Email Subject Lines: Proxy / Firewall Request URLs DNS Tunneling enrichment - string entropy real-world examples notice the misspellings

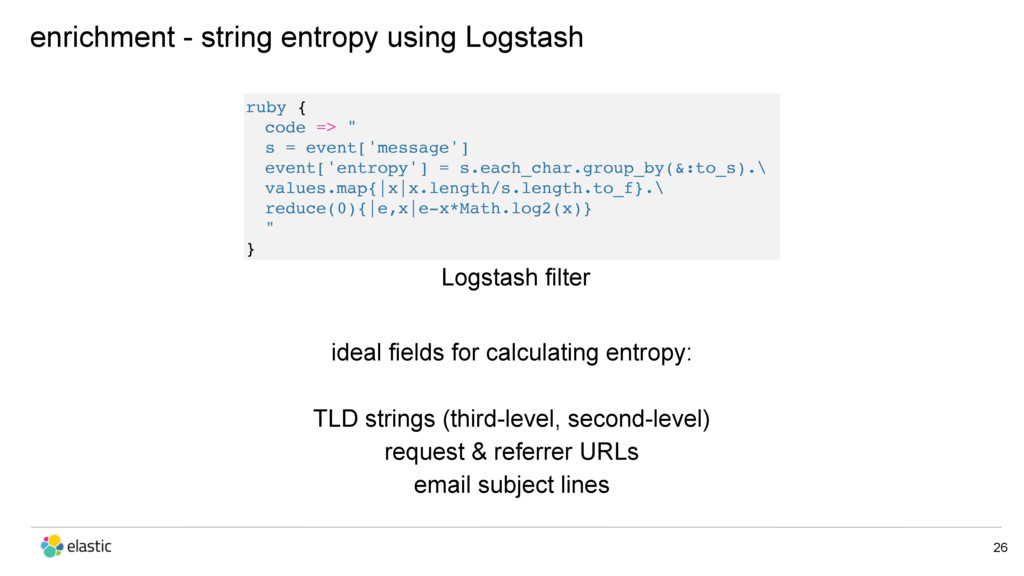

26. 26 ideal fields for calculating entropy:
 TLD strings (third-level, second-level)
 request & referrer URLs
 email subject lines ruby { code => " s = event['message'] event['entropy'] = s.each_char.group_by(&:to_s).\ values.map{|x|x.length/s.length.to_f}.\ reduce(0){|e,x|e-x*Math.log2(x)} " } enrichment - string entropy using Logstash Logstash filter

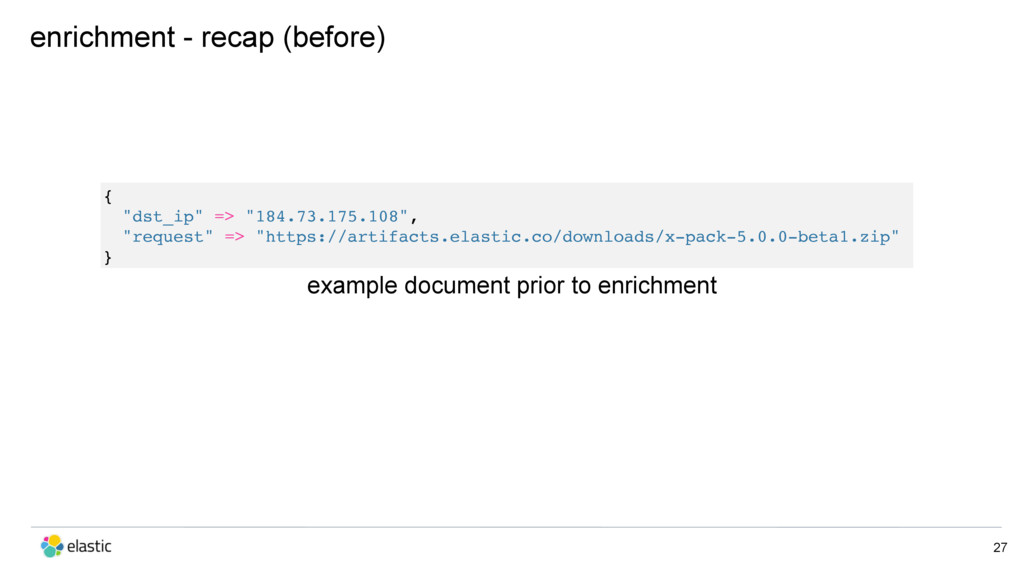

27. 27 enrichment - recap (before) {
 "dst_ip" => "184.73.175.108", "request" => "https://artifacts.elastic.co/downloads/x-pack-5.0.0-beta1.zip" } example document prior to enrichment

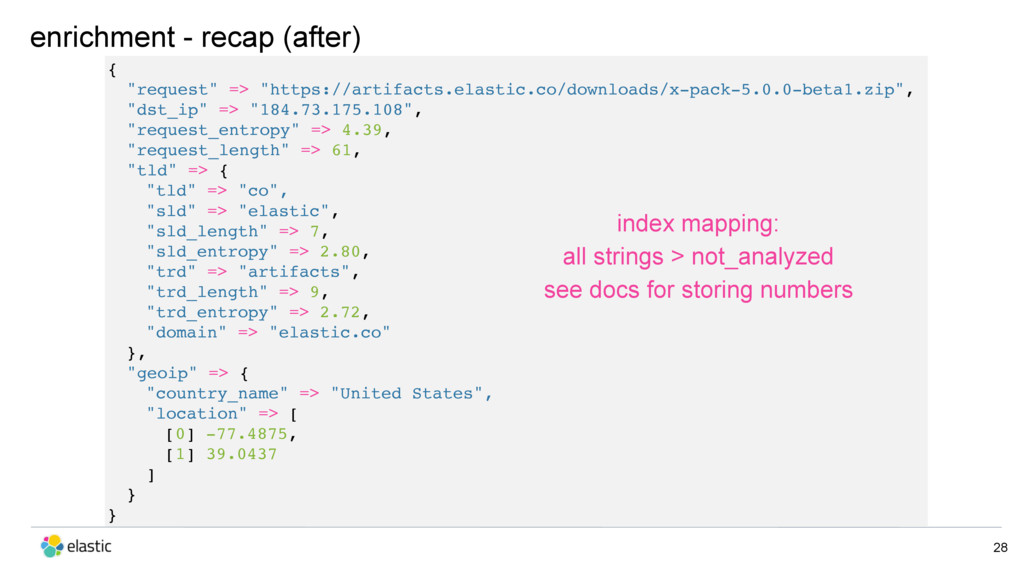

28. 28 { "request" => "https://artifacts.elastic.co/downloads/x-pack-5.0.0-beta1.zip", "dst_ip" => "184.73.175.108", "request_entropy" => 4.39,
 "request_length" => 61, "tld" => { "tld" => "co", "sld" => "elastic", "sld_length" => 7, "sld_entropy" => 2.80, "trd" => "artifacts", "trd_length" => 9, "trd_entropy" => 2.72, "domain" => "elastic.co" }, "geoip" => { "country_name" => "United States", "location" => [ [0] -77.4875, [1] 39.0437 ] } } index mapping:
 all strings > not_analyzed see docs for storing numbers enrichment - recap (after)
29. Use Cases! 29
30. 30 use cases - persistent threats OPM breach:
 estimated 21.5 million records SF-86s, clearance information, financials fingerprints of 5.6 million people NASA breach:
 250 GB of data released on pastebin allegedly partially commandeered
 a $222.7 million NASA drone

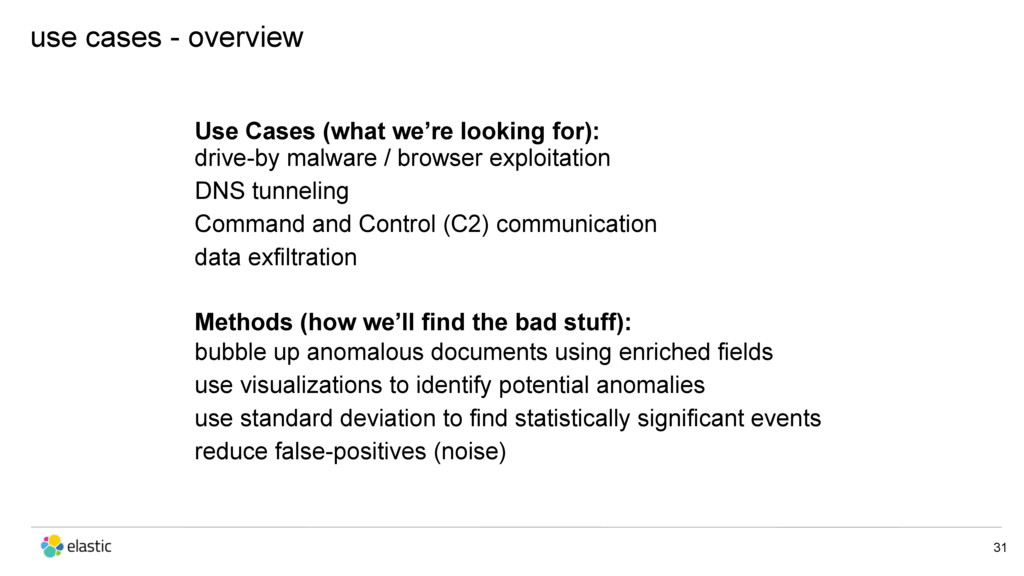

31. 31 use cases - overview bubble up anomalous documents using enriched fields use visualizations to identify potential anomalies use standard deviation to find statistically significant events reduce false-positives (noise) drive-by malware / browser exploitation DNS tunneling Command and Control (C2) communication data exfiltration Methods (how we’ll find the bad stuff): Use Cases (what we’re looking for):

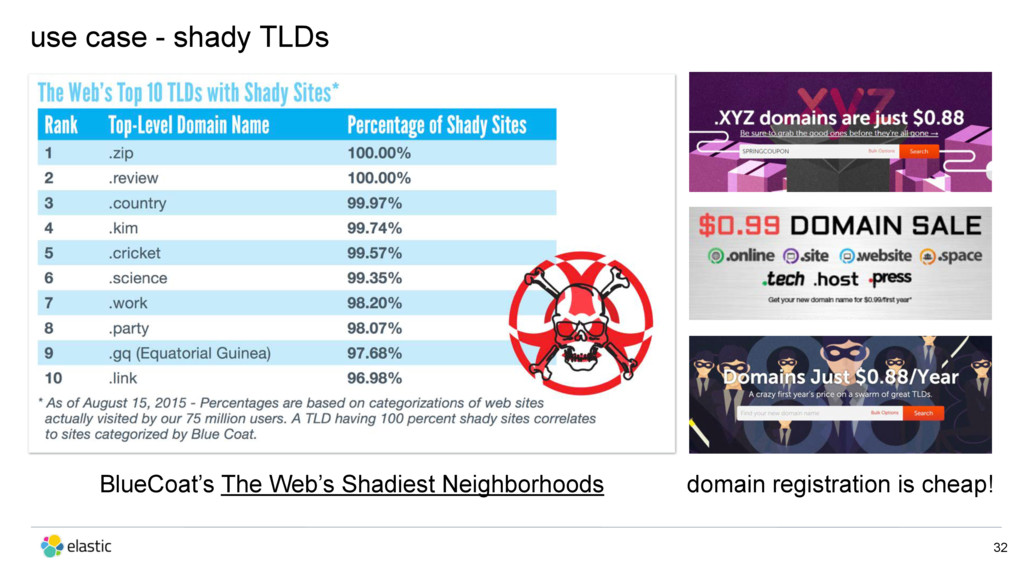

32. 32 use case - shady TLDs BlueCoat’s The Web’s Shadiest Neighborhoods domain registration is cheap!

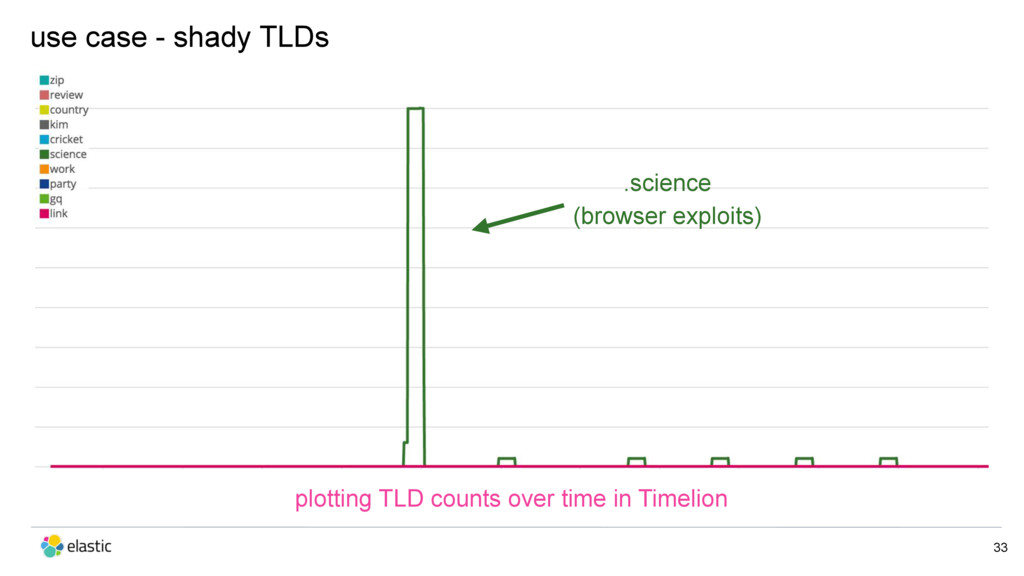

33. 33 use case - shady TLDs .science
 (browser exploits) plotting TLD counts over time in Timelion

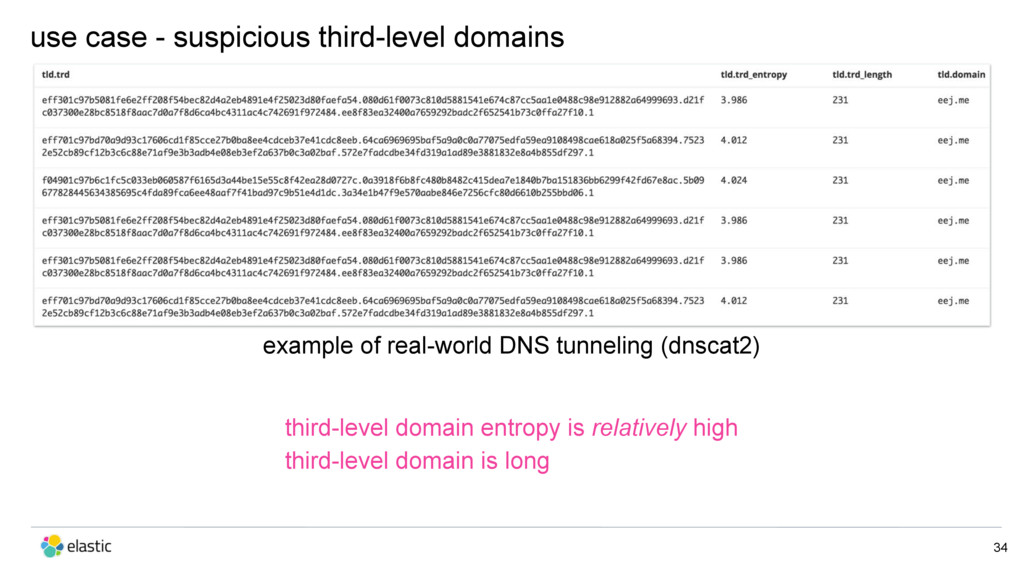

34. 34 third-level domain entropy is relatively high
 third-level domain is long use case - suspicious third-level domains example of real-world DNS tunneling (dnscat2)

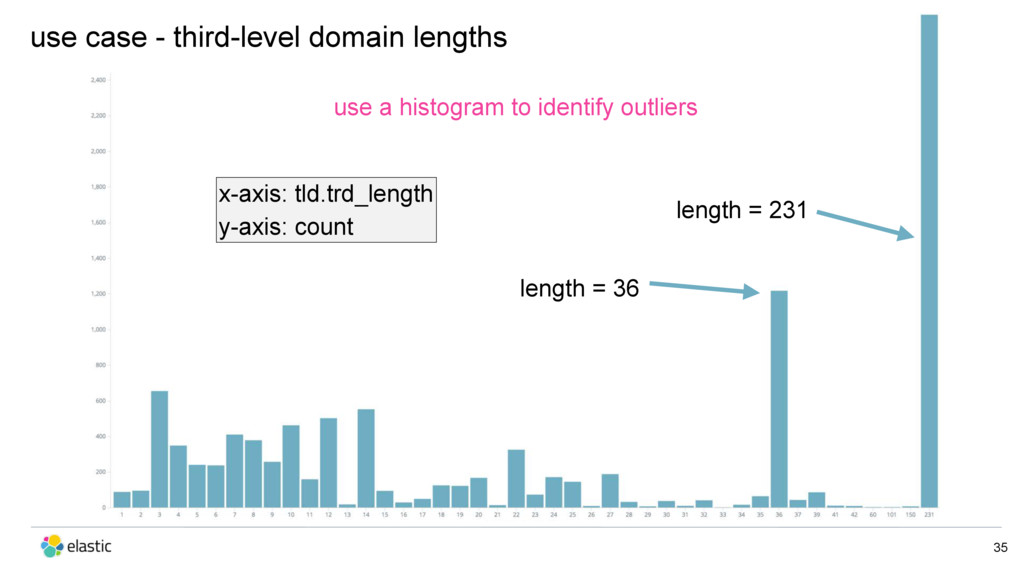

35. 35 x-axis: tld.trd_length
 y-axis: count length = 231 length = 36 use a histogram to identify outliers use case - third-level domain lengths

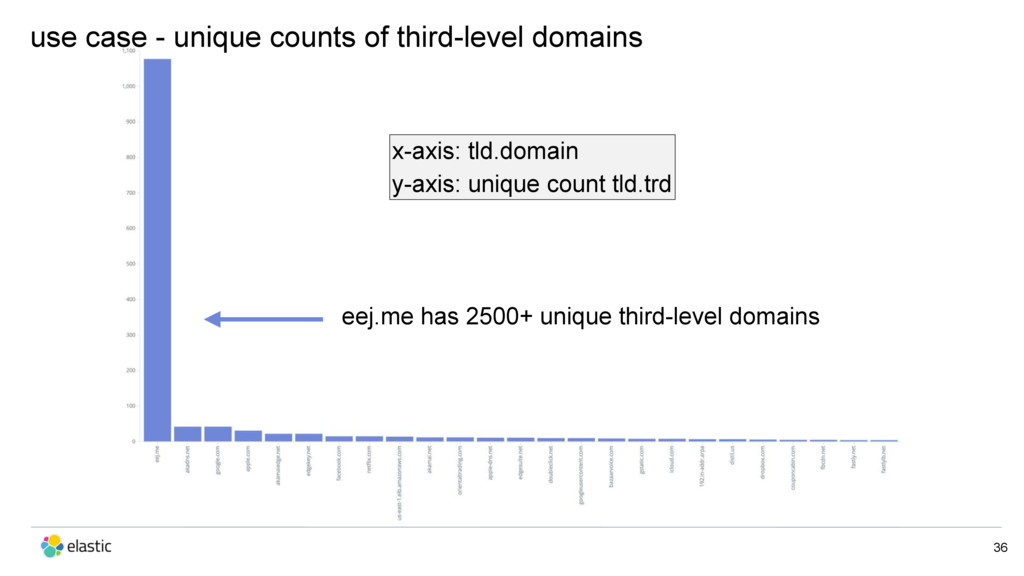

36. 36 eej.me has 2500+ unique third-level domains x-axis: tld.domain
 y-axis: unique count tld.trd use case - unique counts of third-level domains

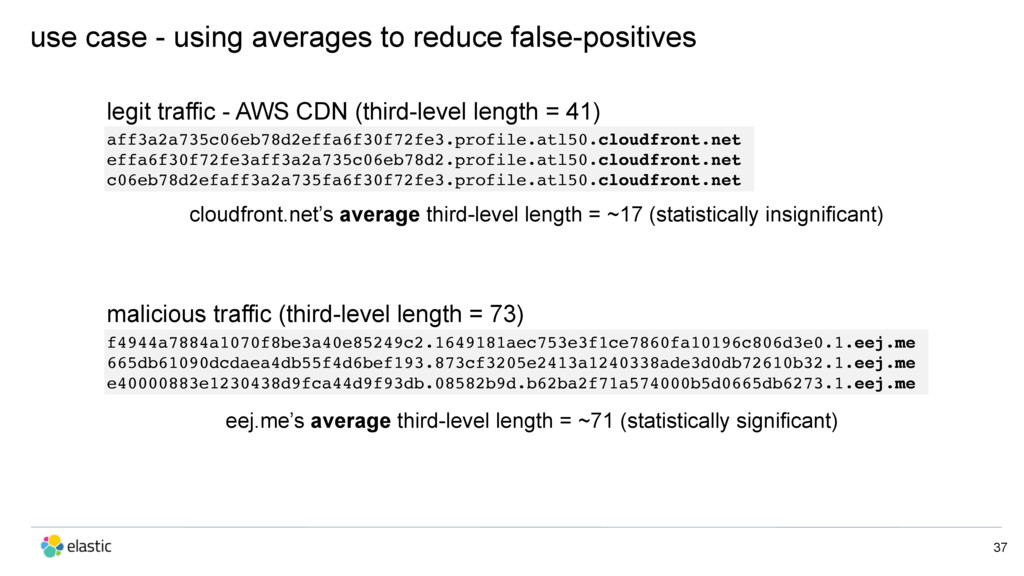

37. 37 aff3a2a735c06eb78d2effa6f30f72fe3.profile.atl50.cloudfront.net effa6f30f72fe3aff3a2a735c06eb78d2.profile.atl50.cloudfront.net c06eb78d2efaff3a2a735fa6f30f72fe3.profile.atl50.cloudfront.net legit traffic - AWS CDN (third-level length = 41) malicious traffic (third-level length = 73) f4944a7884a1070f8be3a40e85249c2.1649181aec753e3f1ce7860fa10196c806d3e0.1.eej.me 665db61090dcdaea4db55f4d6bef193.873cf3205e2413a1240338ade3d0db72610b32.1.eej.me e40000883e1230438d9fca44d9f93db.08582b9d.b62ba2f71a574000b5d0665db6273.1.eej.me cloudfront.net’s average third-level length = ~17 (statistically insignificant) eej.me’s average third-level length = ~71 (statistically significant) use case - using averages to reduce false-positives

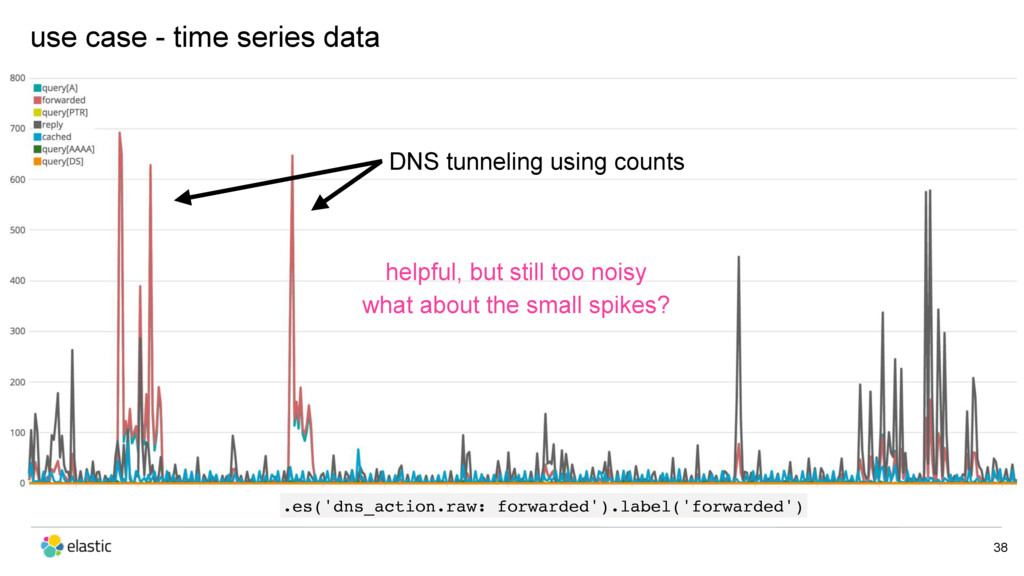

38. 38 DNS tunneling using counts .es('dns_action.raw: forwarded').label('forwarded') use case - time series data helpful, but still too noisy
 what about the small spikes?

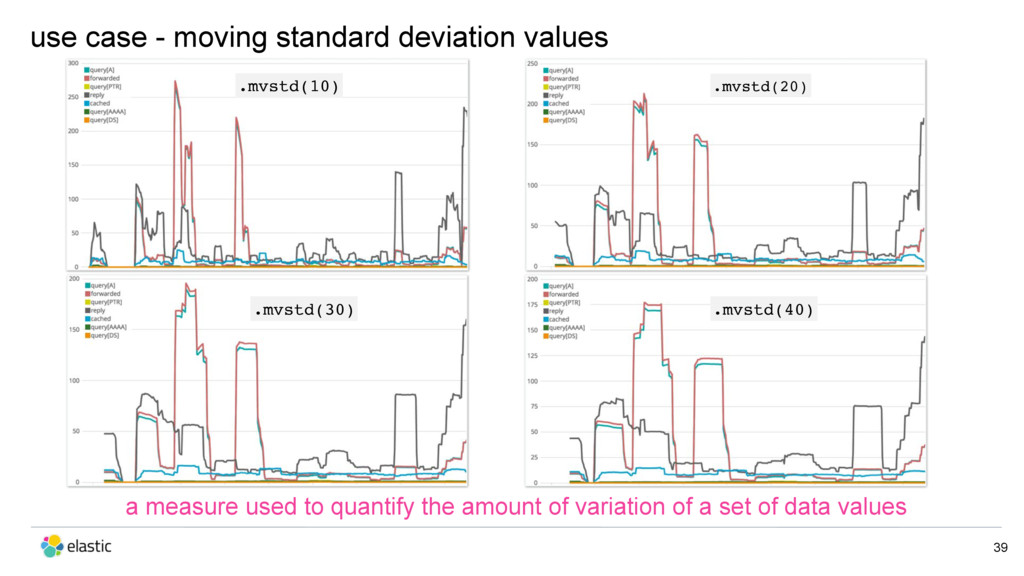

39. 39 .mvstd(10) .mvstd(30) .mvstd(40) .mvstd(20) use case - moving standard deviation values a measure used to quantify the amount of variation of a set of data values

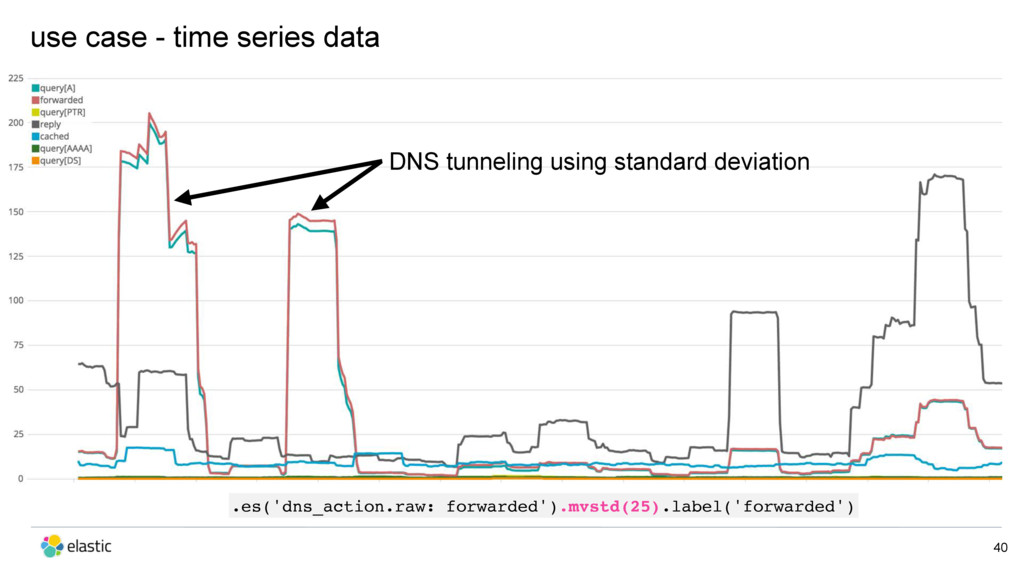

40. 40 DNS tunneling using standard deviation .es('dns_action.raw: forwarded').mvstd(25).label('forwarded') use case - time series data

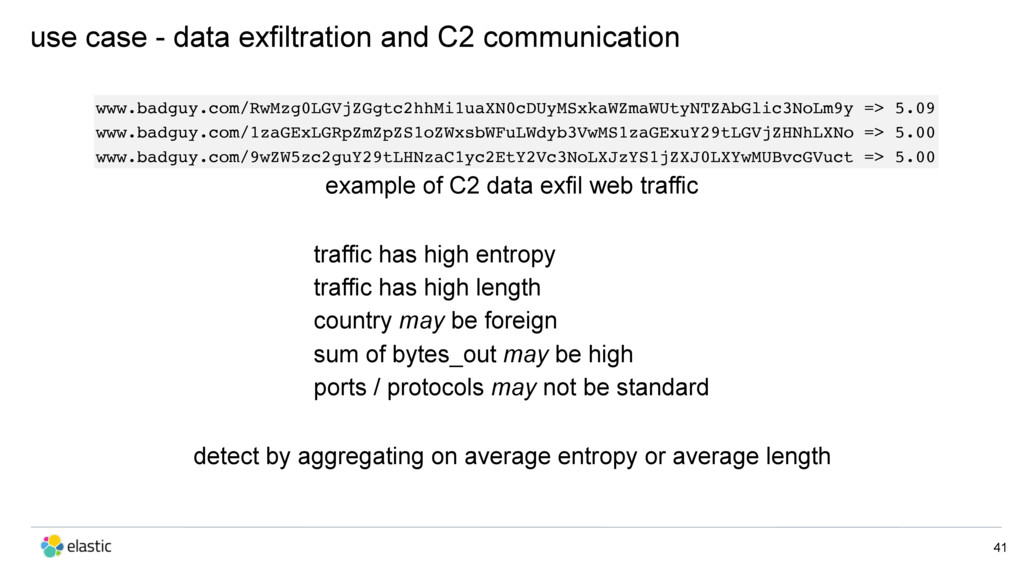

41. 41 use case - data exfiltration and C2 communication www.badguy.com/RwMzg0LGVjZGgtc2hhMi1uaXN0cDUyMSxkaWZmaWUtyNTZAbGlic3NoLm9y => 5.09
 www.badguy.com/1zaGExLGRpZmZpZS1oZWxsbWFuLWdyb3VwMS1zaGExuY29tLGVjZHNhLXNo => 5.00
 www.badguy.com/9wZW5zc2guY29tLHNzaC1yc2EtY2Vc3NoLXJzYS1jZXJ0LXYwMUBvcGVuct => 5.00 example of C2 data exfil web traffic traffic has high entropy
 traffic has high length
 country may be foreign
 sum of bytes_out may be high ports / protocols may not be standard detect by aggregating on average entropy or average length

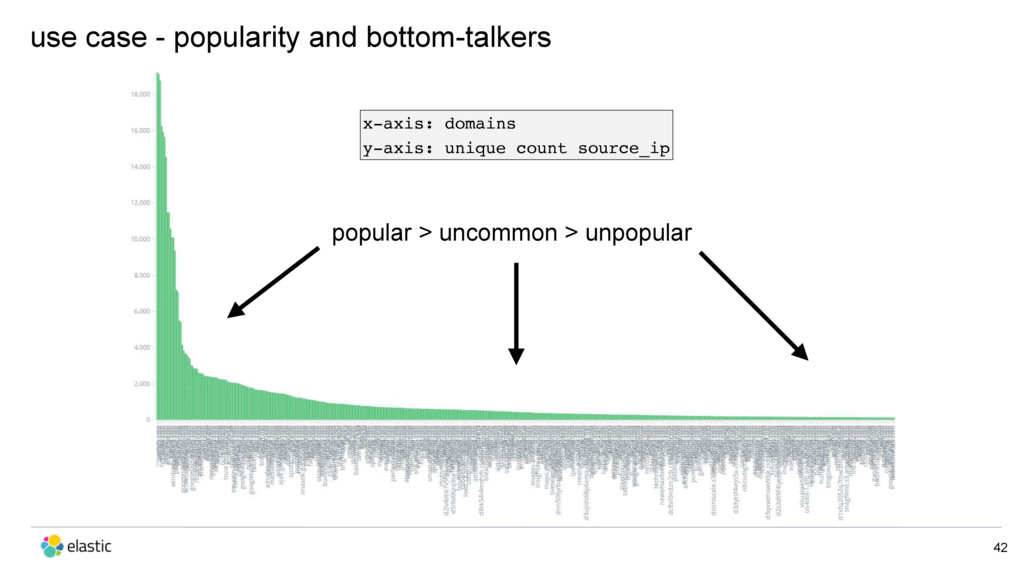

42. 42 use case - popularity and bottom-talkers popular > uncommon > unpopular x-axis: domains
 y-axis: unique count source_ip

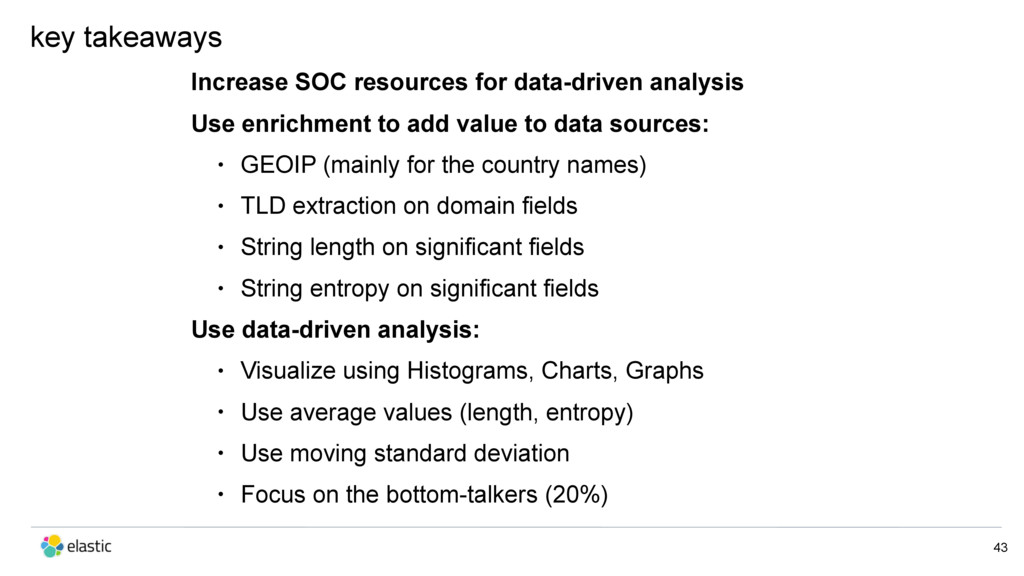

43. 43 key takeaways Increase SOC resources for data-driven analysis Use enrichment to add value to data sources: • GEOIP (mainly for the country names) • TLD extraction on domain fields • String length on significant fields • String entropy on significant fields Use data-driven analysis: • Visualize using Histograms, Charts, Graphs • Use average values (length, entropy) • Use moving standard deviation • Focus on the bottom-talkers (20%)
