Linux Virtualization Based Security

The Linux kernel incorporates self-protection mechanisms, such as control-register pinning, module and file authentication, and protection restrictions. However, sophisticated attackers operating at the kernel level can still circumvent these built-in defenses. To achieve significantly stronger protection, enforcement of such mechanisms can occur at the hypervisor level or through a hypervisor-backed trusted entity. This approach also enables safeguarding and monitoring of other critical system assets, including passwords, keys and essential kernel data structures, within a trusted environment.

This talk introduces the concept of Linux Virtualization Based Security (LVBS) as an umbrella term for various hypervisor-backed kernel protection solutions. LVBS implements a common, hypervisor-agnostic, and extendable architecture in the Linux kernel that should allow any hypervisor to implement and expand upon Linux kernel protections. This architecture enables different hypervisor frameworks-Hyper-V, as an example of a type-1 hypervisor, and KVM, as an example of a type-2 hypervisor-to connect with the common layer and enhance Linux kernel security.

The discussion then addresses ongoing efforts to implement the proposed architecture, focusing on several key areas:
History, development and status of the hypervisor-agnostic common layer
Utilization of Hyper-V’s Virtual Secure Mode (VSM) in combination with the common layer to reinforce Linux kernel protection, including current progress
Application of the proposed architecture by KVM and the current development status

Thara GOPINATH

Transcript

1. Linux Virtualization Based Security (LVBS): What, Why, and How Thara Gopinath, Linux Systems Group, Microsoft

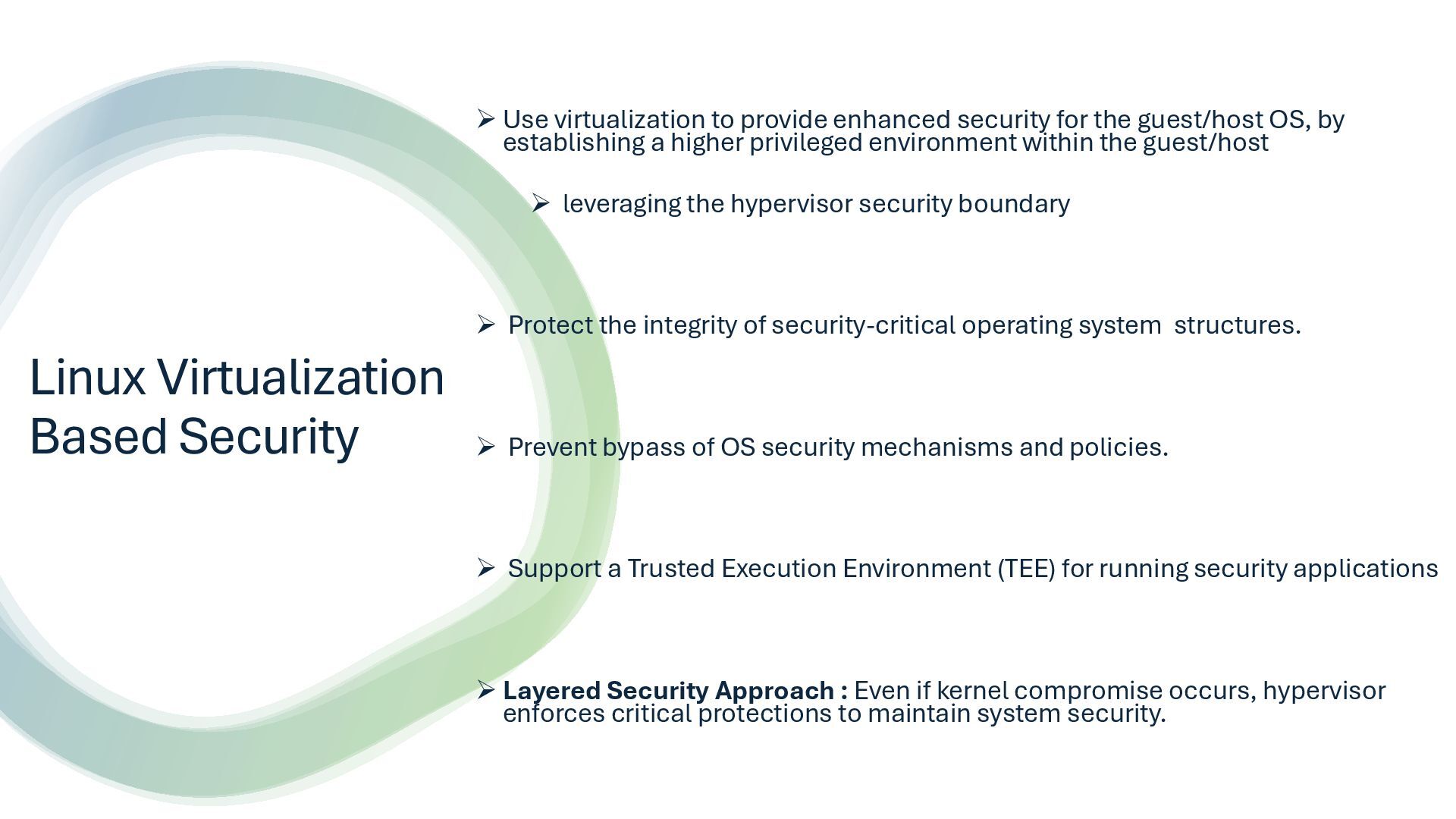

2. Linux Virtualization Based Security ➢ Use virtualization to provide enhanced security for the guest/host OS, by establishing a higher privileged environment within the guest/host ➢ leveraging the hypervisor security boundary ➢ Protect the integrity of security-critical operating system structures. ➢ Prevent bypass of OS security mechanisms and policies. ➢ Support a Trusted Execution Environment (TEE) for running security applications ➢ Layered Security Approach : Even if kernel compromise occurs, hypervisor enforces critical protections to maintain system security.

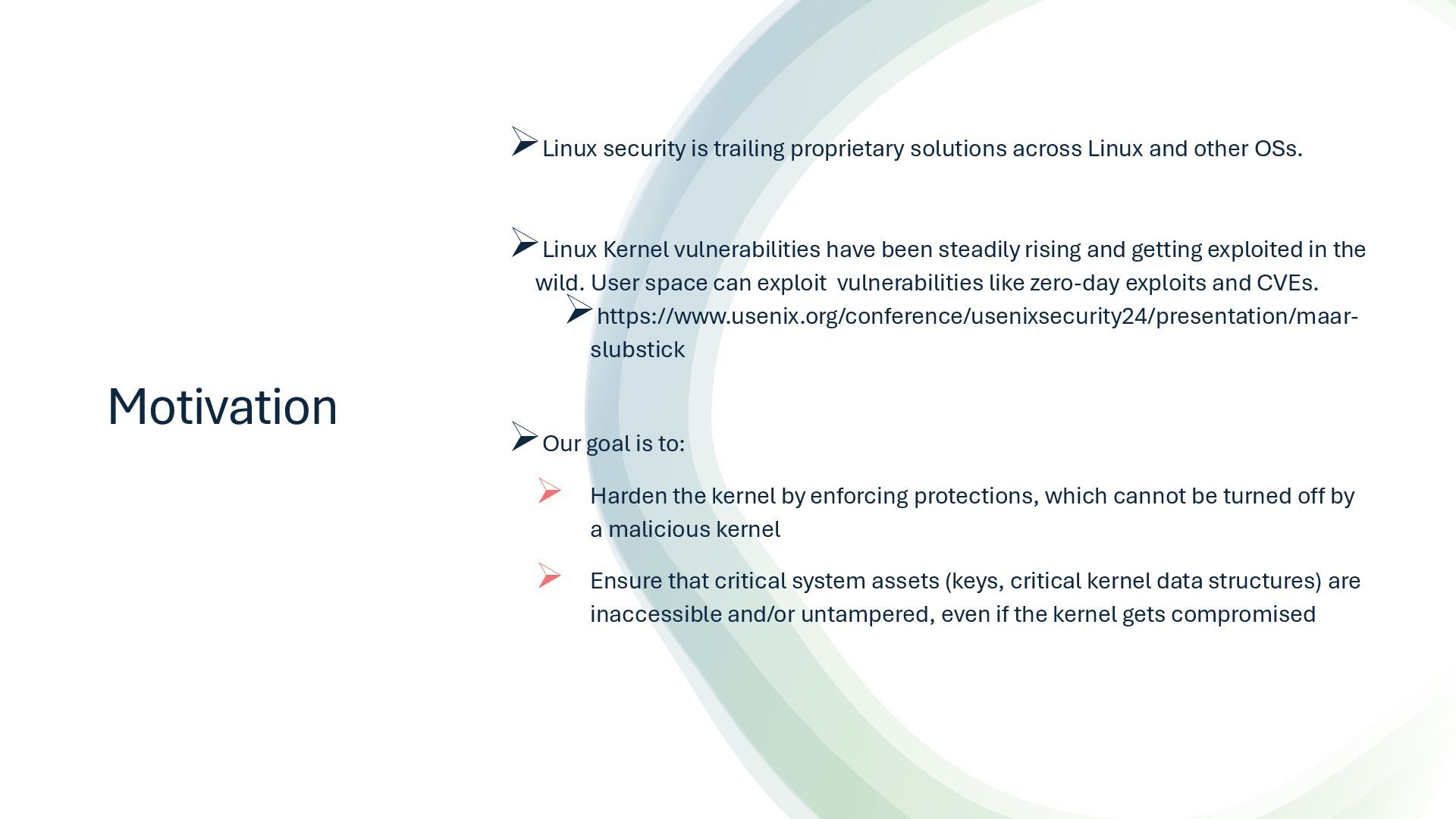

3. Motivation ➢Linux security is trailing proprietary solutions across Linux and other OSs. ➢Linux Kernel vulnerabilities have been steadily rising and getting exploited in the wild. User space can exploit vulnerabilities like zero-day exploits and CVEs. ➢https://www.usenix.org/conference/usenixsecurity24/presentation/maar- slubstick ➢Our goal is to: ➢ Harden the kernel by enforcing protections, which cannot be turned off by a malicious kernel ➢ Ensure that critical system assets (keys, critical kernel data structures) are inaccessible and/or untampered, even if the kernel gets compromised

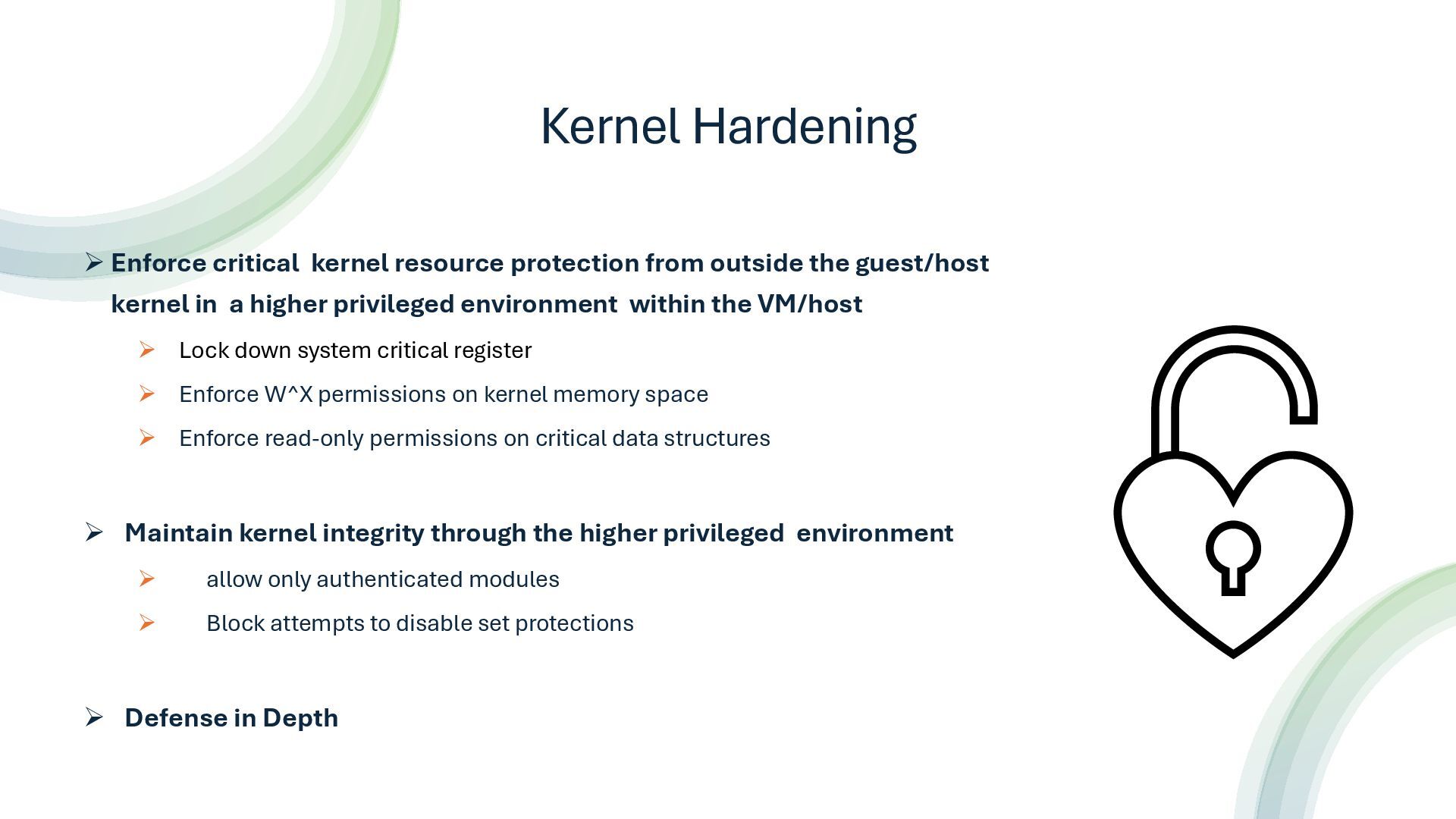

4. Kernel Hardening ➢ Enforce critical kernel resource protection from outside the guest/host kernel in a higher privileged environment within the VM/host ➢ Lock down system critical register ➢ Enforce W^X permissions on kernel memory space ➢ Enforce read-only permissions on critical data structures ➢ Maintain kernel integrity through the higher privileged environment ➢ allow only authenticated modules ➢ Block attempts to disable set protections ➢ Defense in Depth
5. Secure Enclaves ➢ Trusted Execution Environment ➢ Enable trusted applications to run isolated within virtual machines at a higher privilege level than guest/host kernels. ➢ Use Cases for Secure Enclaves ➢ Secure logging ➢ Secure key management ➢ Credential management ➢ Virtual hardware security module

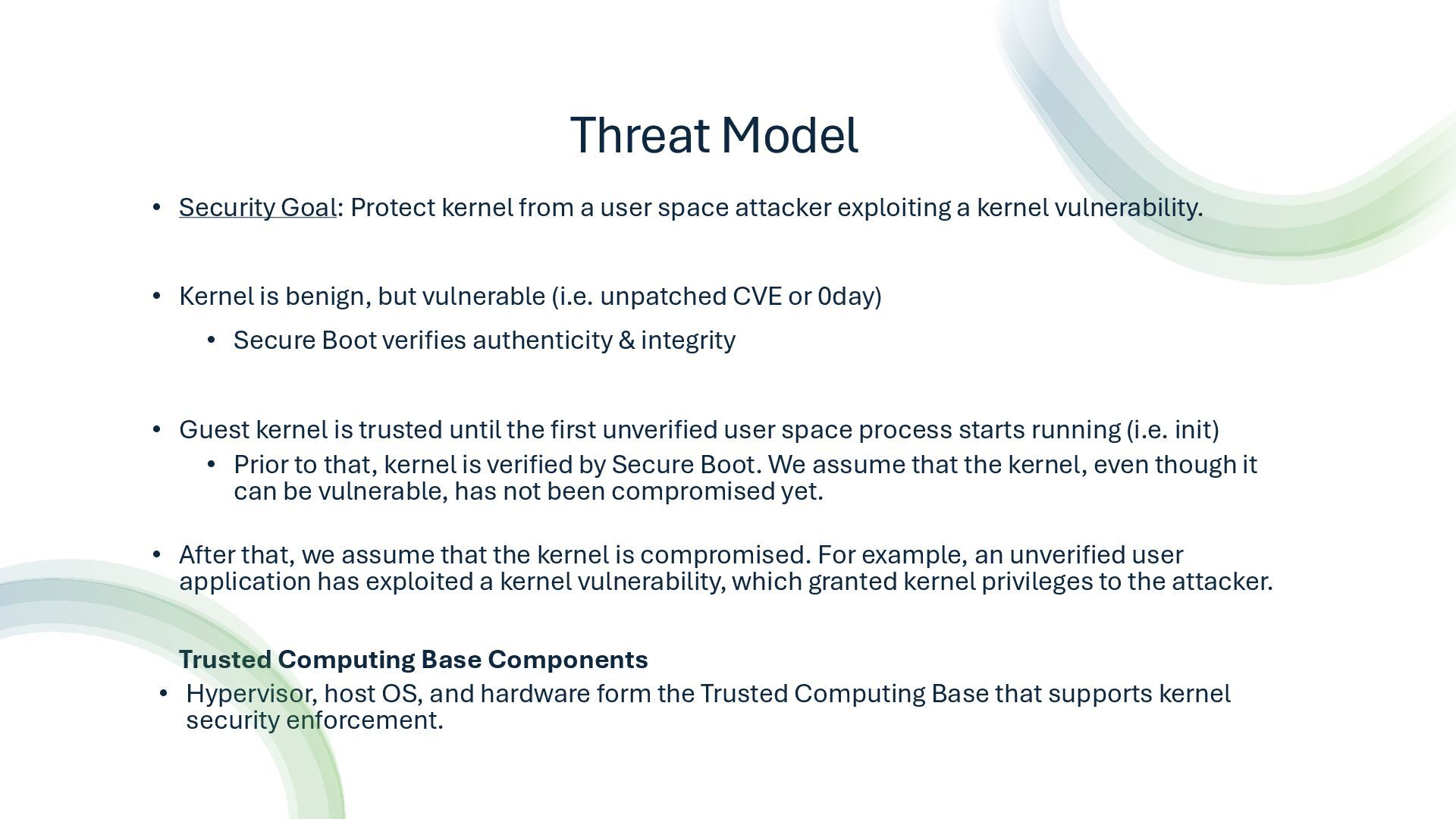

6. Threat Model • Security Goal: Protect kernel from a user space attacker exploiting a kernel vulnerability. • Kernel is benign, but vulnerable (i.e. unpatched CVE or 0day) • Secure Boot verifies authenticity & integrity • Guest kernel is trusted until the first unverified user space process starts running (i.e. init) • Prior to that, kernel is verified by Secure Boot. We assume that the kernel, even though it can be vulnerable, has not been compromised yet. • After that, we assume that the kernel is compromised. For example, an unverified user application has exploited a kernel vulnerability, which granted kernel privileges to the attacker. Trusted Computing Base Components • Hypervisor, host OS, and hardware form the Trusted Computing Base that supports kernel security enforcement.

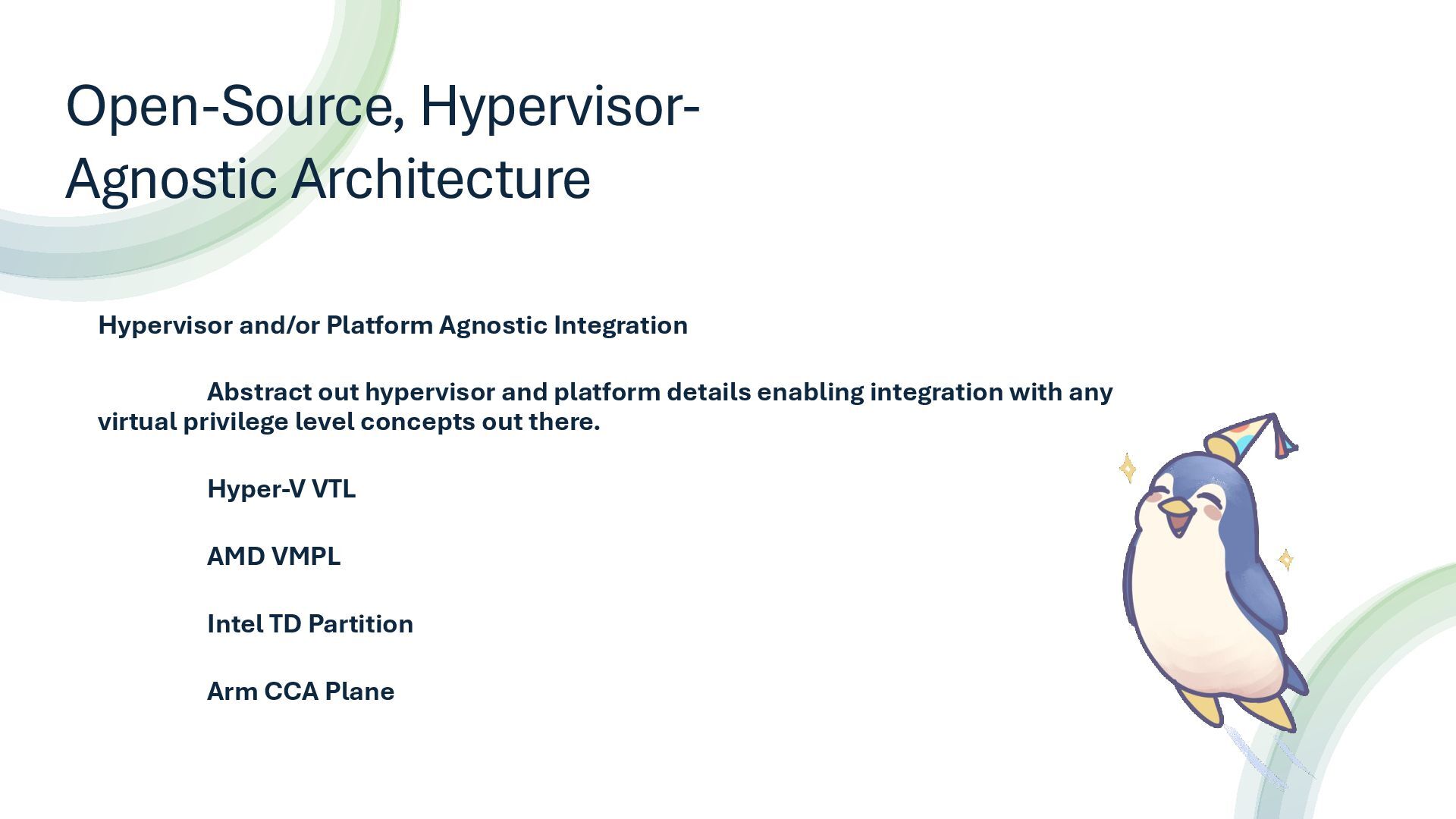

7. Hypervisor and/or Platform Agnostic Integration Abstract out hypervisor and platform details enabling integration with any virtual privilege level concepts out there. Hyper-V VTL AMD VMPL Intel TD Partition Arm CCA Plane Open-Source, Hypervisor- Agnostic Architecture

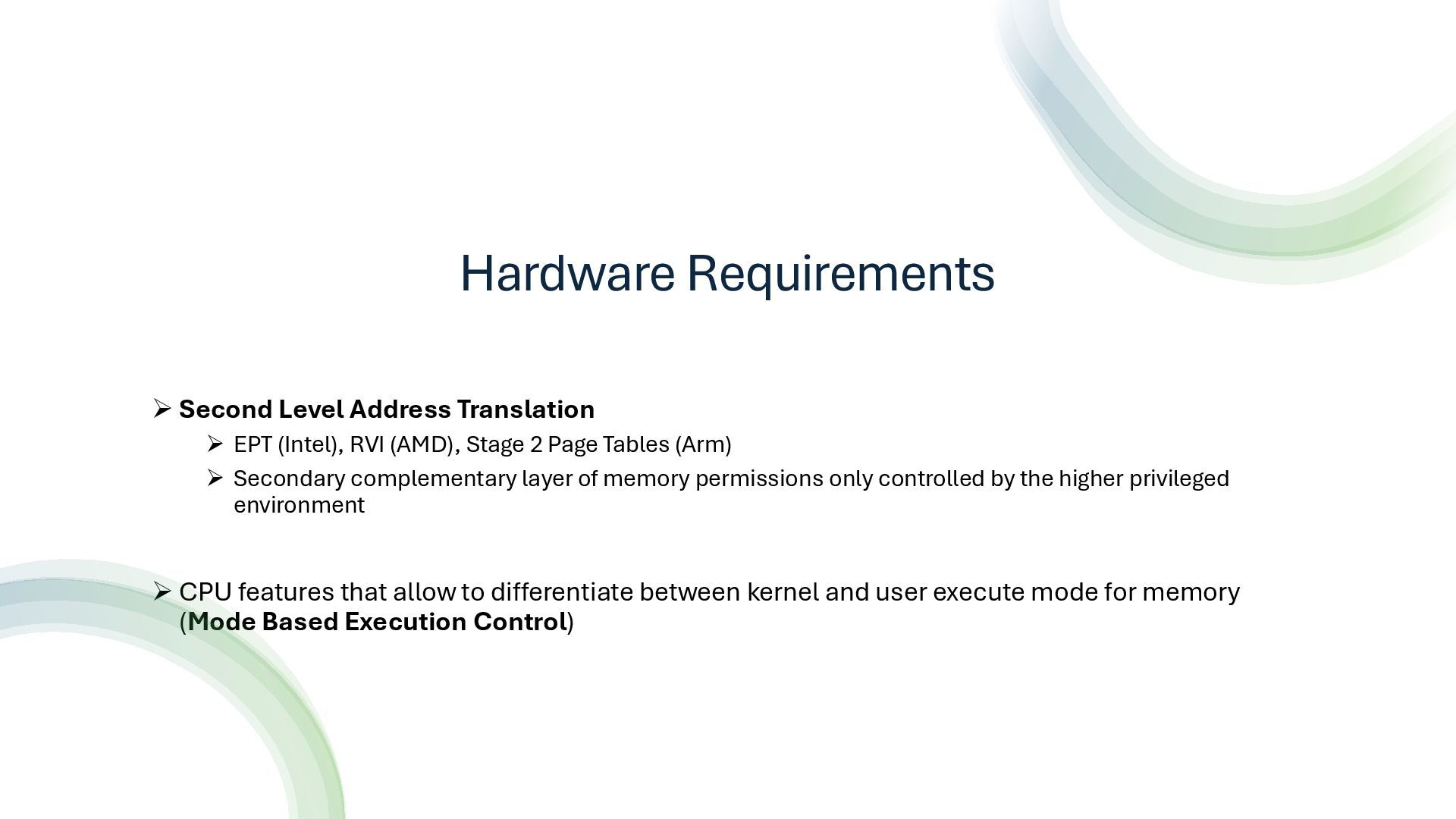

8. Hardware Requirements ➢ Second Level Address Translation ➢ EPT (Intel), RVI (AMD), Stage 2 Page Tables (Arm) ➢ Secondary complementary layer of memory permissions only controlled by the higher privileged environment ➢ CPU features that allow to differentiate between kernel and user execute mode for memory (Mode Based Execution Control)

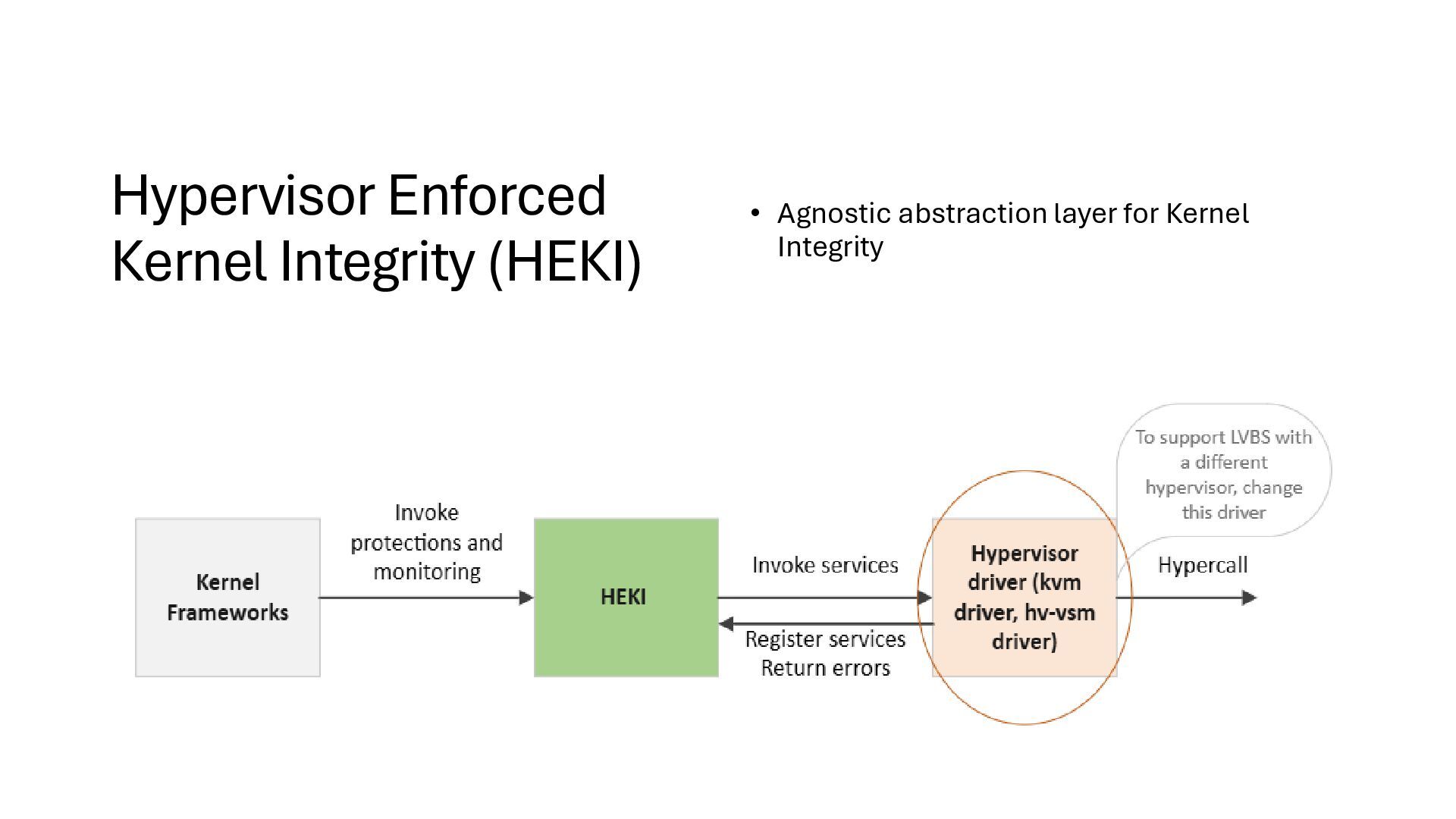

9. Hypervisor Enforced Kernel Integrity (HEKI) • Agnostic abstraction layer for Kernel Integrity

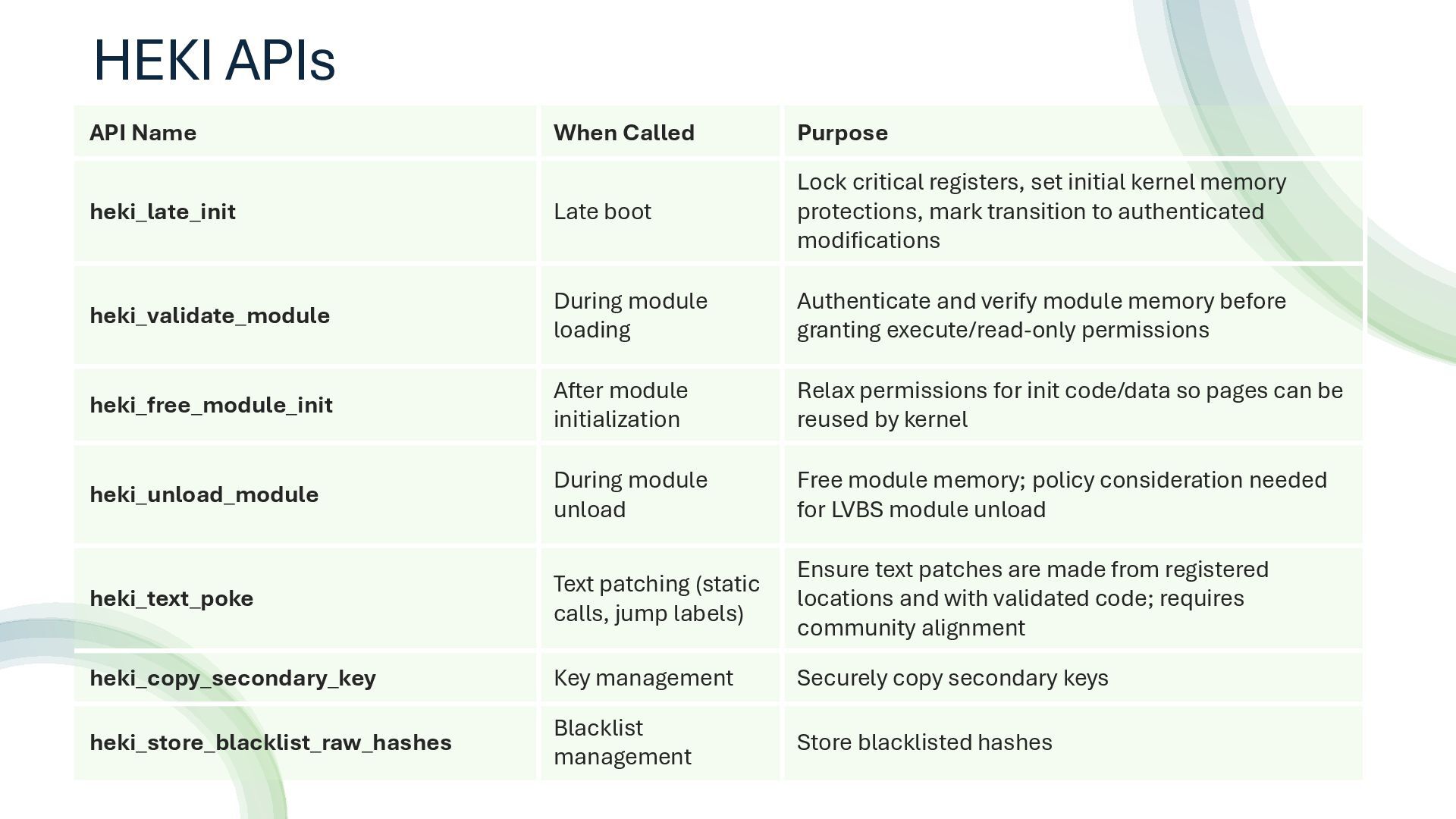

10. HEKI APIs API Name When Called Purpose heki_late_init Late boot Lock critical registers, set initial kernel memory protections, mark transition to authenticated modifications heki_validate_module During module loading Authenticate and verify module memory before granting execute/read-only permissions heki_free_module_init After module initialization Relax permissions for init code/data so pages can be reused by kernel heki_unload_module During module unload Free module memory; policy consideration needed for LVBS module unload heki_text_poke Text patching (static calls, jump labels) Ensure text patches are made from registered locations and with validated code; requires community alignment heki_copy_secondary_key Key management Securely copy secondary keys heki_store_blacklist_raw_hashes Blacklist management Store blacklisted hashes

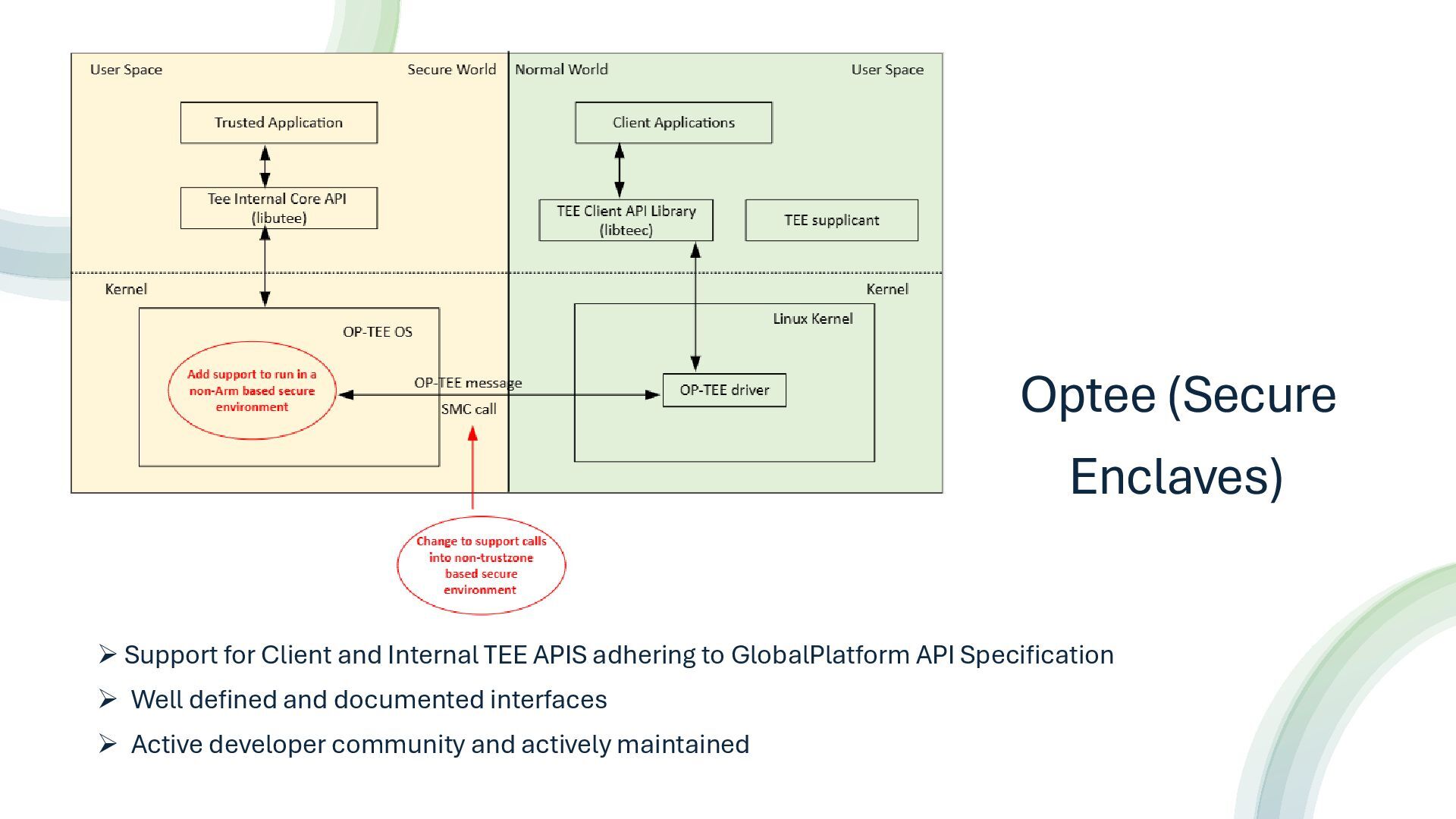

11. Optee (Secure Enclaves) ➢ Support for Client and Internal TEE APIS adhering to GlobalPlatform API Specification ➢ Well defined and documented interfaces ➢ Active developer community and actively maintained
12. Hyper-V Architecture

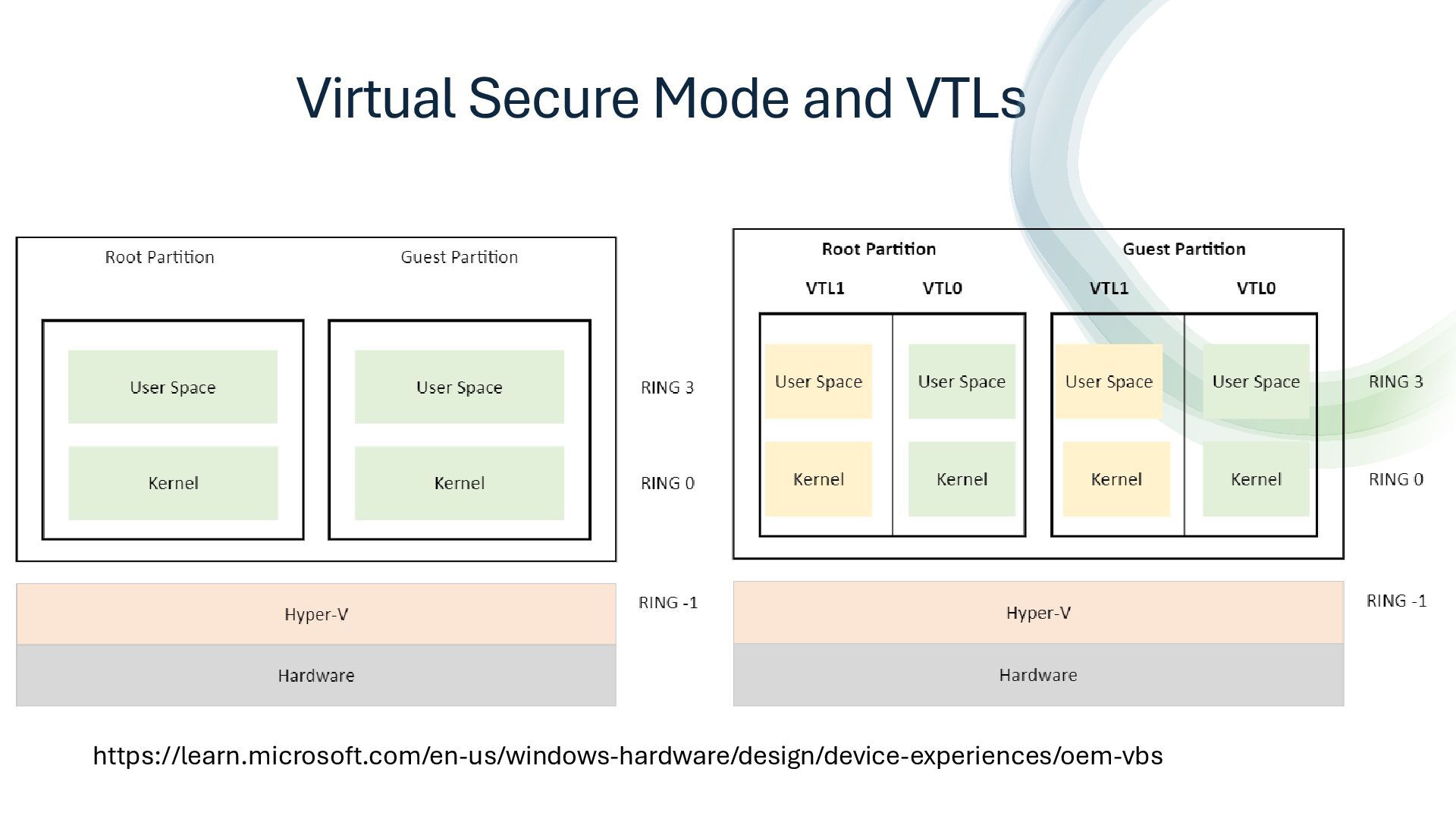

13. Virtual Secure Mode and VTLs https://learn.microsoft.com/en-us/windows-hardware/design/device-experiences/oem-vbs

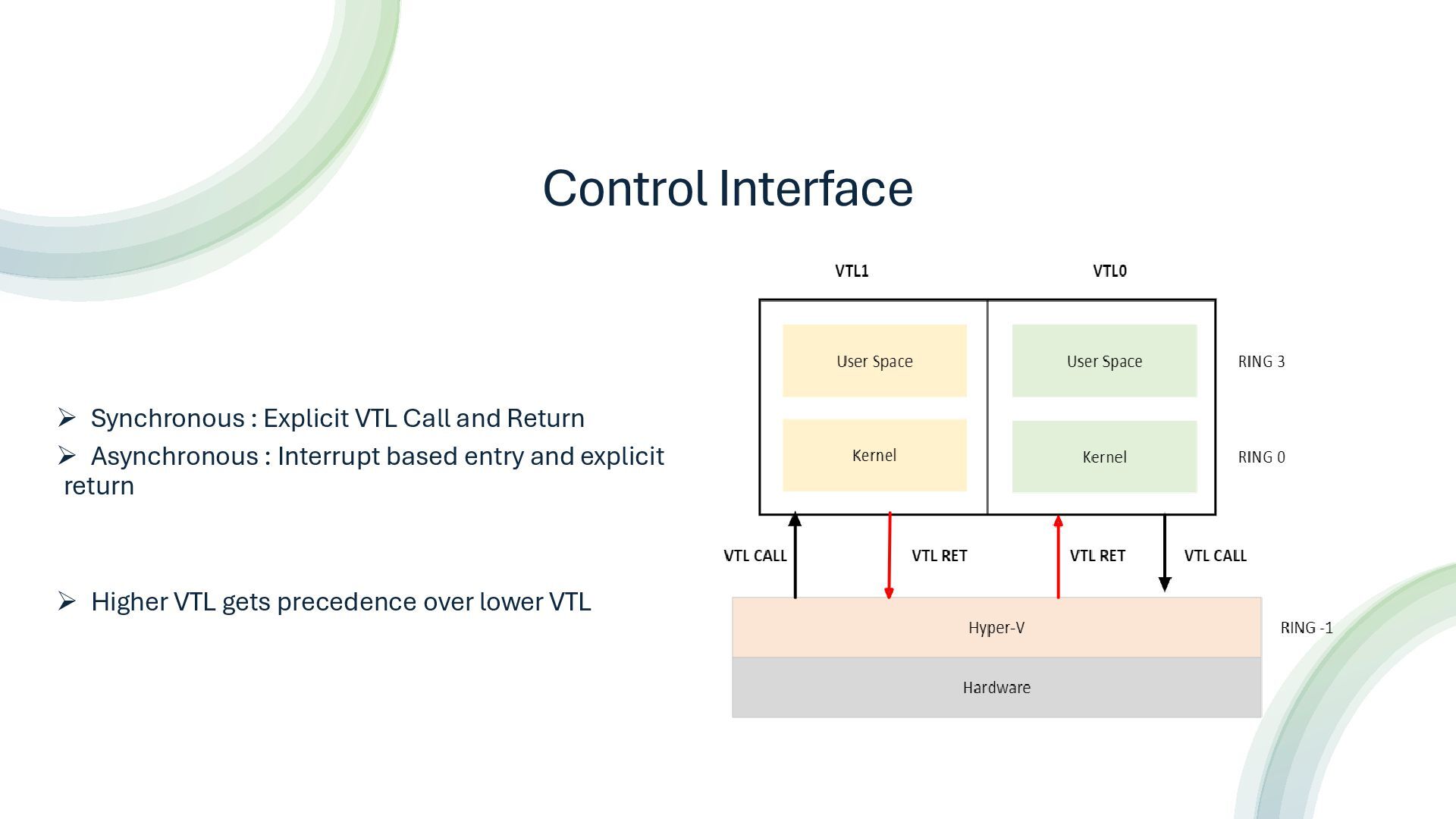

14. Control Interface ➢ Synchronous : Explicit VTL Call and Return ➢ Asynchronous : Interrupt based entry and explicit return ➢ Higher VTL gets precedence over lower VTL

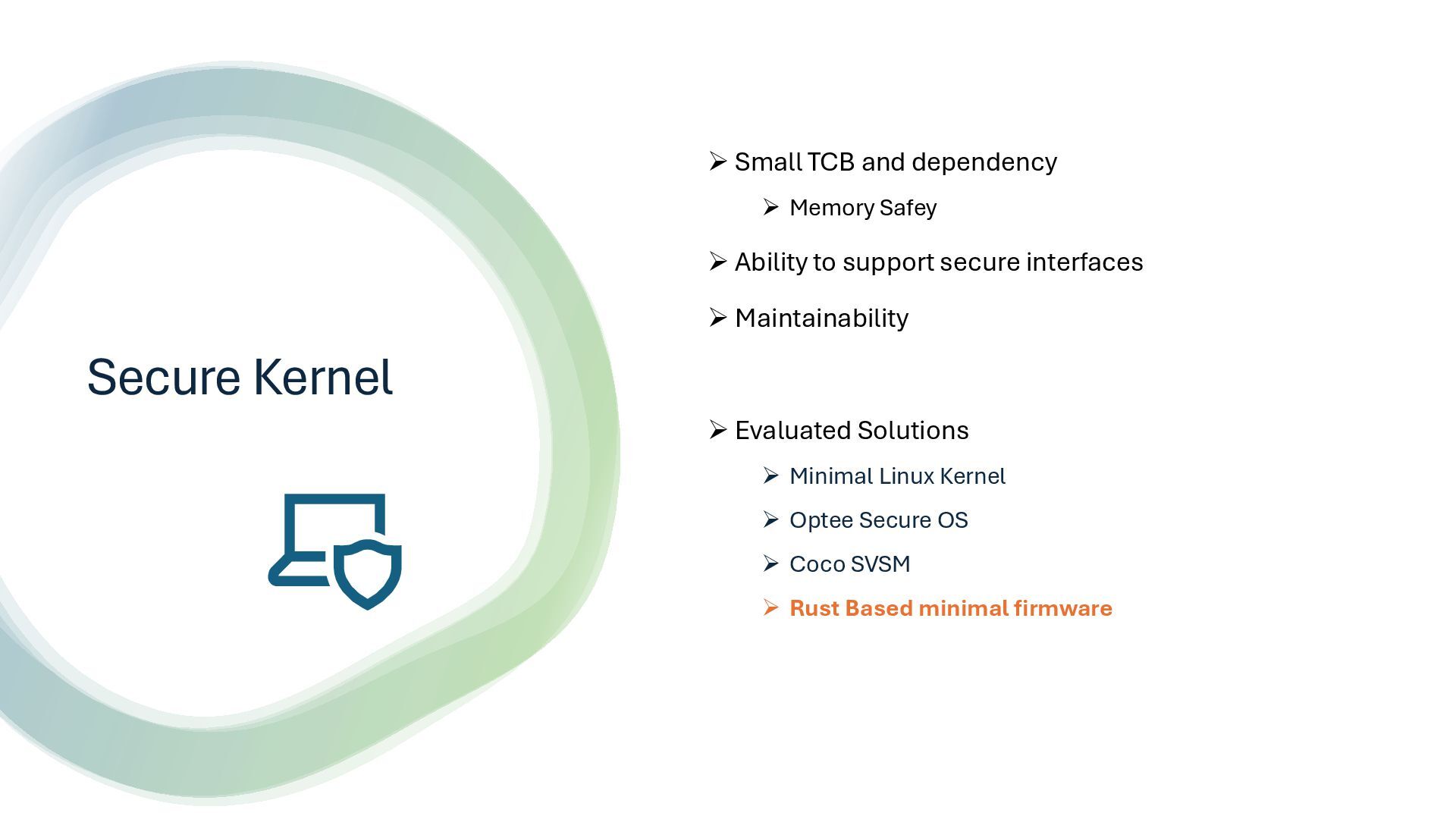

15. Secure Kernel ➢ Small TCB and dependency ➢ Memory Safey ➢ Ability to support secure interfaces ➢ Maintainability ➢ Evaluated Solutions ➢ Minimal Linux Kernel ➢ Optee Secure OS ➢ Coco SVSM ➢ Rust Based minimal firmware

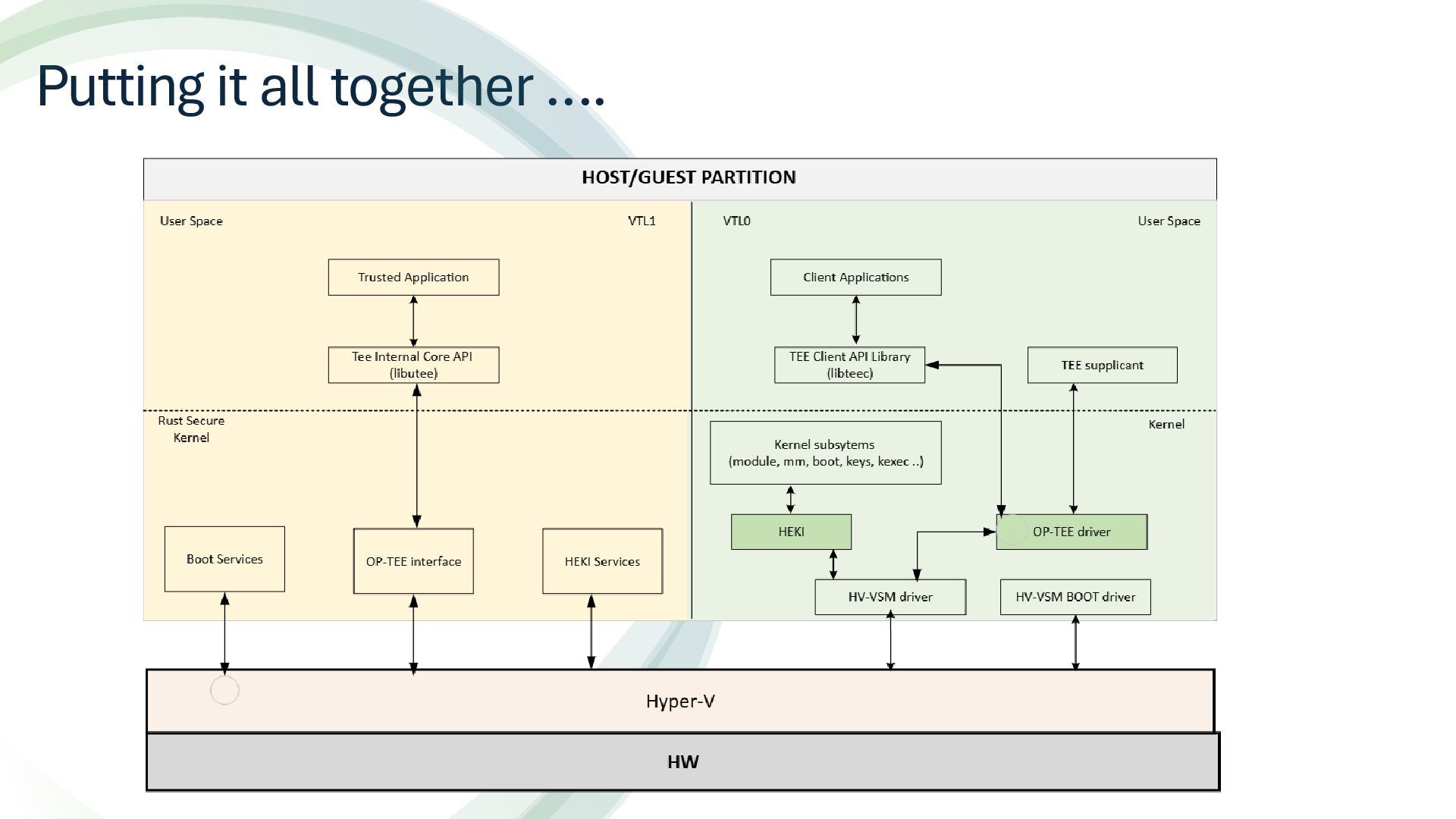

16. Putting it all together ….
17. Where do we stand with KVM ?

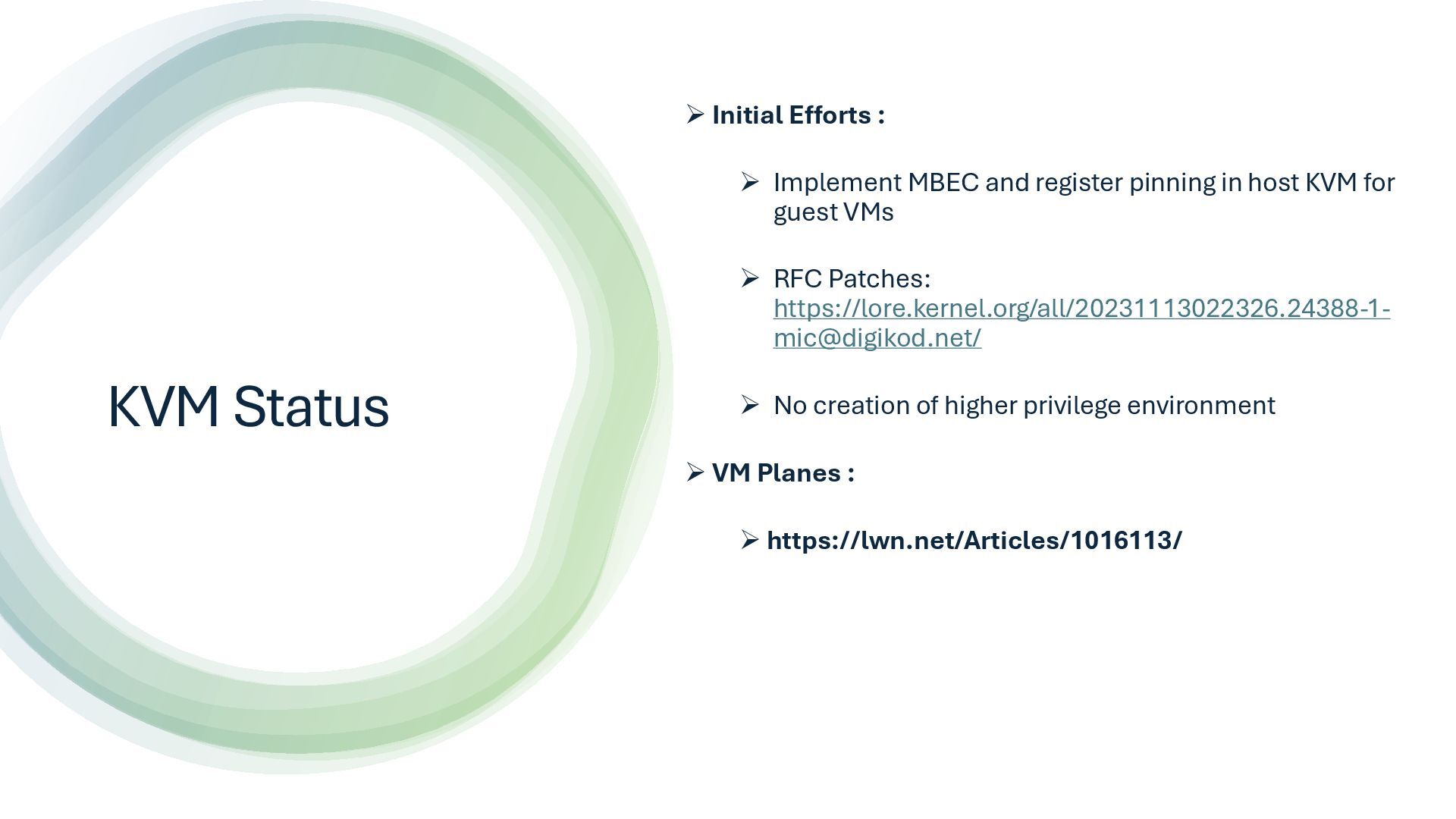

18. KVM Status ➢ Initial Efforts : ➢ Implement MBEC and register pinning in host KVM for guest VMs ➢ RFC Patches: https://lore.kernel.org/all/20231113022326.24388-1- mic@digikod.net/ ➢ No creation of higher privilege environment ➢ VM Planes : ➢ https://lwn.net/Articles/1016113/

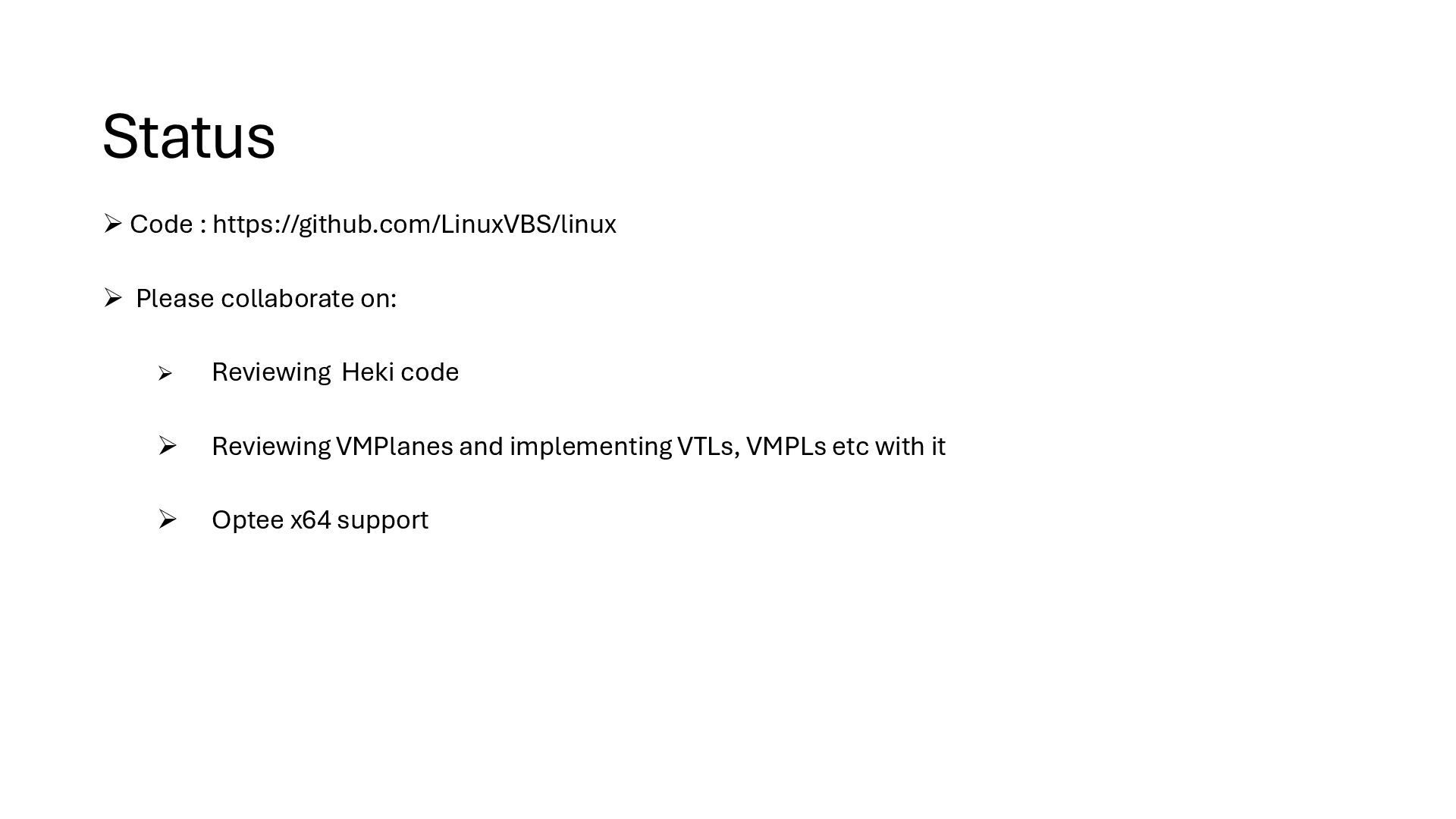

19. Status ➢ Code : https://github.com/LinuxVBS/linux ➢ Please collaborate on: ➢ Reviewing Heki code ➢ Reviewing VMPlanes and implementing VTLs, VMPLs etc with it ➢ Optee x64 support

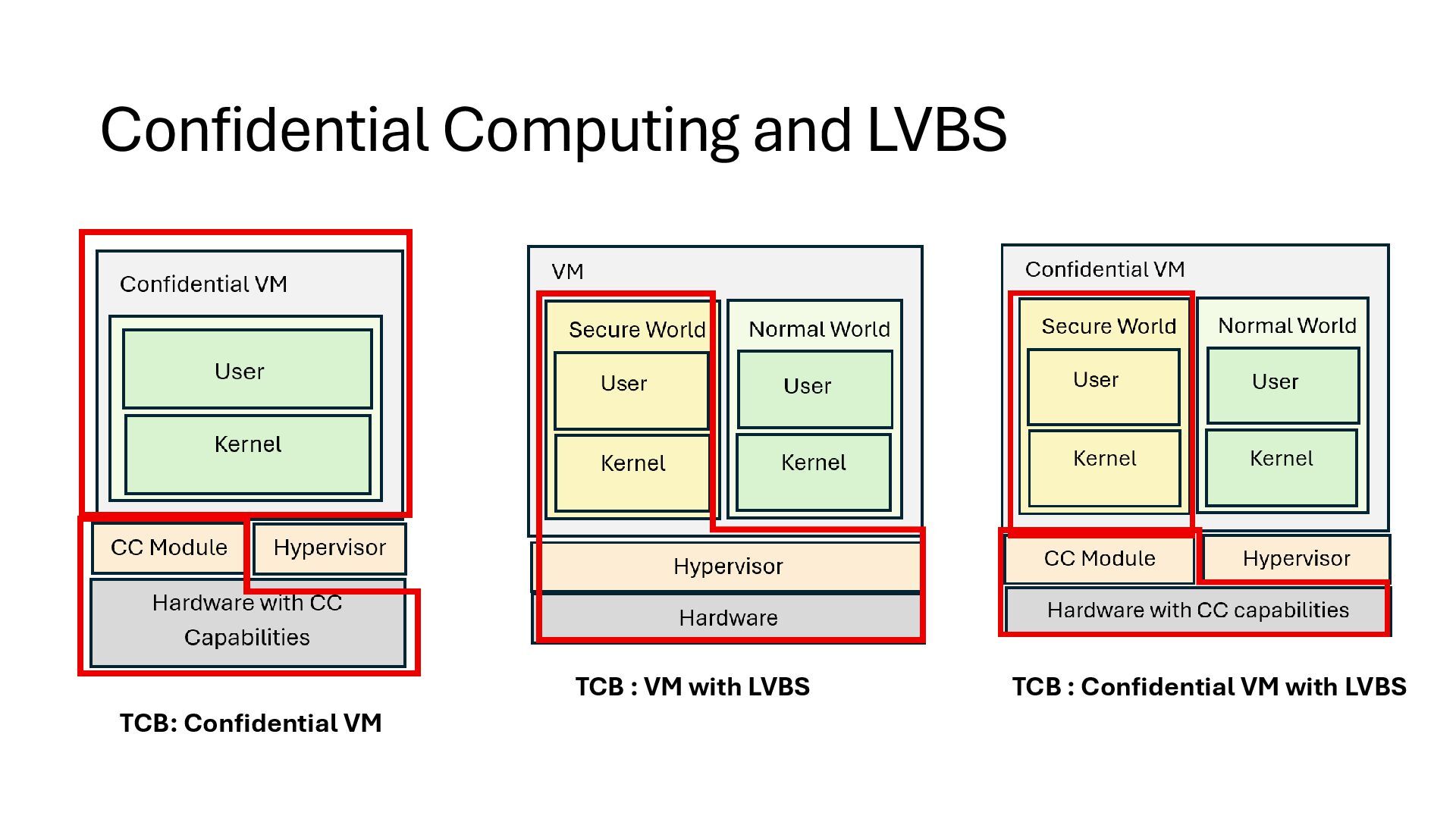

20. Confidential Computing and LVBS TCB: Confidential VM TCB : VM with LVBS TCB : Confidential VM with LVBS
21. Q&A
