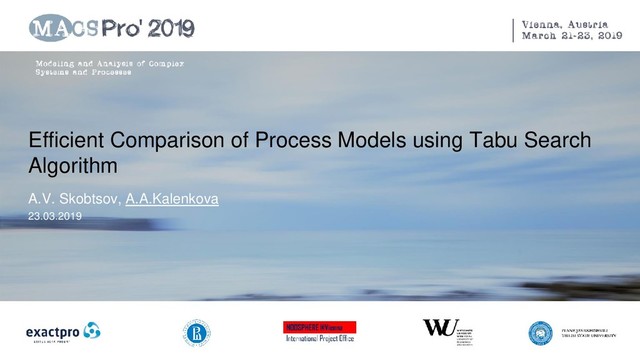

1. Efficient Comparison of Process Models using Tabu Search
   Algorithm
   A.V. Skobtsov, A.A.Kalenkova
   23.03.2019


   View Slide

2. Process mining
   Process
   ISO 9000:2005
   “Set of interrelated or interacting
   activities which transforms
   inputs into outputs”
   Mining


   View Slide

3. Process mining
   The number of information
   systems around us is constantly
   growing…
   We don't always know how they
   are actually used:
    What actions are most often
   performed?
    In what order?
    Are there bottlenecks?
    How far we are from the expected
   behavior of the system.


   View Slide

4. Process mining
   The number of information
   systems around us is constantly
   growing…
   We don't always know how they
   are actually used:
    What actions are most often
   performed?
    In what order?
    Are there bottlenecks?
    How far we are from the expected
   behavior of the system.


   View Slide

5. Process mining
   User interaction:
    Internet marketing;
    E-government services;
    …
   Complex multi-component systems
   (software process mining)


   View Slide

6. Process mining
   a
   a
   a
   a
   a
   a
   b
   b
   b
   b
   b
   b
   b
   b
   c
   c
   c
   c
   c
   c
   c
   d
   d d d
   d
   d
   d
   d
   d
   e
   e
   e
   e
   e
   e
   e
   e
   a b
   b
   a
   a b
   c
   Process-Aware
   Information Systems
   Industry
   a
   b
   c
   d
   f
   e
   Discovery
   • Discovery


   View Slide

7. Process mining
   a
   a
   a
   a
   a
   a
   b
   b
   b
   b
   b
   b
   b
   b
   c
   c
   c
   c
   c
   c
   c
   d
   d d d
   d
   d
   d
   d
   d
   e
   e
   e
   e
   e
   e
   e
   e
   a b
   b
   a
   a b
   c
   Process-Aware
   Information Systems
   Industry
   a
   b
   c
   d
   f
   e
   Enhancement
   • Enhancement


   View Slide

8. Process mining
   a
   a
   a
   a
   a
   a
   b
   b
   b
   b
   b
   b
   b
   b
   c
   c
   c
   c
   c
   c
   c
   d
   d d d
   d
   d
   d
   d
   d
   e
   e
   e
   e
   e
   e
   e
   e
   a b
   b
   a
   a b
   c
   Process-Aware
   Information Systems
   Industry
   a
   b
   c
   d
   f
   e
   Discovery
   Conformance
   checking
   Enhancement
   • Conformance
   checking


   View Slide

9. Process mining. Conformance checking
   L2L – Comparison of event structures
   L2M – Replay techniques
   M2M - Must be something visual?


   View Slide

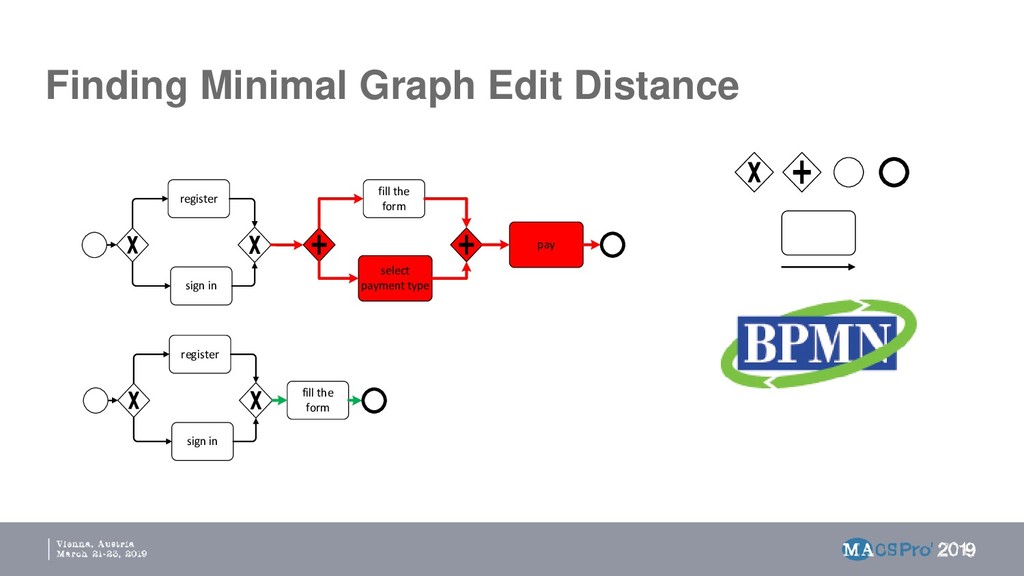

10. Finding Minimal Graph Edit Distance
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form


    View Slide

11. A* Algorithm
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=0
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=0
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=10
    (Levenshtein
    distance)
    …
    register register


    View Slide

12. register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=13
    (Levenshtein
    distance)
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=10
    (deletion
    cost)
    …
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=0
    A* Algorithm


    View Slide

13. …
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=10
    (Levenshtein
    Distance)
    register
    sign in
    fill the
    form
    select
    payment type
    pay
    register
    sign in
    fill the
    form
    cost=10
    (Deletion
    cost)
    …
    …
    … … …
    NP problem
    A* Algorithm


    View Slide

14. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

15. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

16. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

17. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

18. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

19. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

20. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

21. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

22. Greedy algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions


    View Slide

23. Tabu search algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions
    x
    Tabu list =


    View Slide

24. Tabu search algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions
    x
    Tabu list =
    y


    View Slide

25. Tabu search algorithm
    ...
    ...
    ... ...
    .
    .
    .
    .
    . .
    . .
    . .
    . .
    .
    .
    Possible solutions
    x
    Tabu list =
    y
    z


    View Slide

26. BPMNDiffViz Tool
    https://pais.hse.ru/research/projects/CompBPMN


    View Slide

27. Experimental results. BPMN models discovered
    from artificial event logs (different algorithms)


    View Slide

28. Experimental results. BPMN models discovered
    from real event logs (different algorithms)


    View Slide

29. Experimental results. BPMN models discovered
    from real event logs (different parts of logs)


    View Slide

30. Future work
    Industry
     New suboptimal
    methods
     New application fields
    Theory
     Compare with other
    conformance checking methods
     Formal languages
     Different discovery algorithms
    (different structure of process
    models)


    View Slide

31. Thank you!


    View Slide
