A Real use case of practical AR-AI couple - Size my luggage

You may have been reading about AR as the future platform, even though currently you are only able to experience gaming/entertainment use cases about it.

However, there are effective non-gaming examples: Many travel and transport companies are using AR to help you to understand if your luggage fit their limits. In this session, you will discover these apps and explore how to develop them as an Android native app using ARCore, Sceneform and a bit of AI with Firebase ML Kit. At the end you will be able to apply these new skills to new exciting use cases.

Transcript

1. A Real use case of practical AR-AI couple Size my luggage #DCBerlin19
4. @joaolaq https://laquysoft.com/
5. AR can bring anything to you. AR can *bring* anything to you. It adds computer-generated information and objects to your everyday world. @joaolaq
6. What’s the status of AR (on mobile devices)
7. What’s the status of AR
8. What’s the status of AR
9. What’s the status of AR

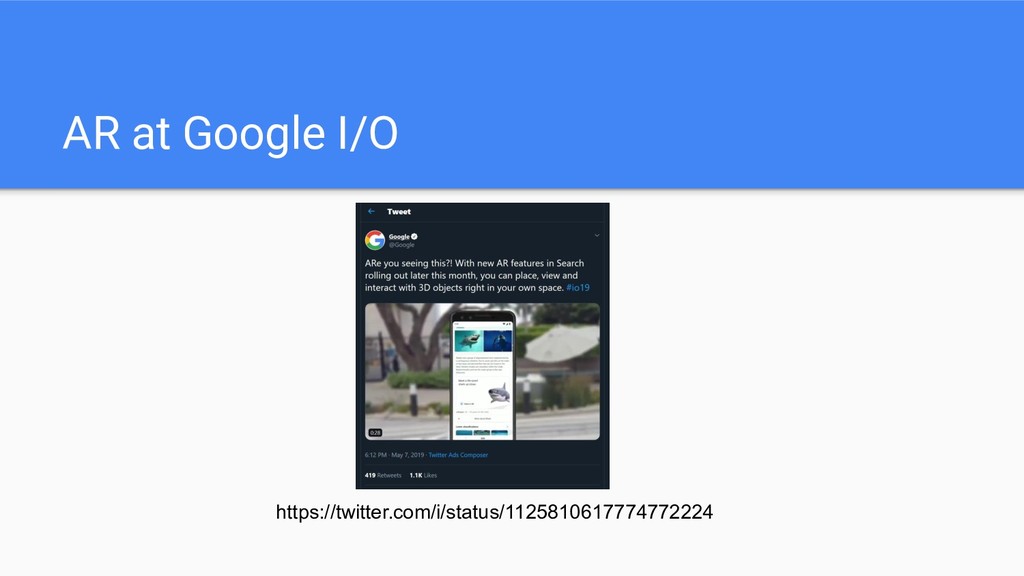

10. AR at Google I/O
11. AR at Google I/O https://twitter.com/i/status/1125810617774772224
12. AR at Google I/O
13. Ikea Place

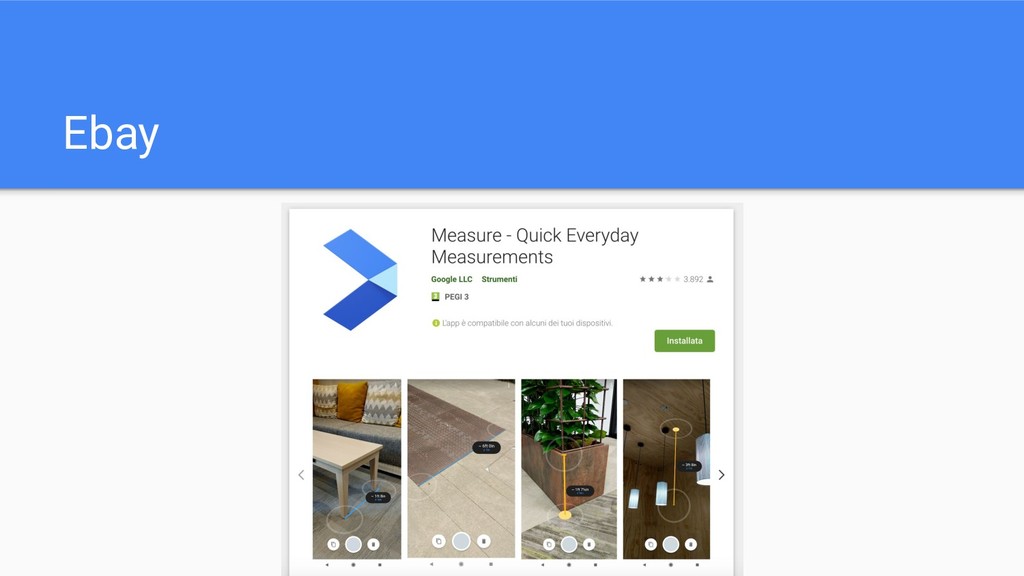

14. Ebay
15. Ebay
16. Measure is a good tool in Travel too
17. Hackathon
18. KLM
19. EasyJet https://www.youtube.com/watch?v=J-0P6ytH7tQ
20. Kayak https://www.youtube.com/watch?v=IBwHAhqo0oE
21. Ryanair https://www.express.co.uk/travel/articles/1115654/ryanair-flights-hand-luggag e-mobile-app-carry-on-cabin-baggage-allowance-size-news
22. iOS Only
23. What about Android
24. https://developers.google.com/ar/
25. MOTION TRACKING ENVIRONMENTAL UNDERSTANDING LIGHT ESTIMATION
26. https://developers.google.com/ar/develop/java/augmented-faces/
27. Again...
28. ARCore provides SDKs for many of the most popular development environments. These SDKs provide native APIs for all of the essential AR features like motion tracking, environmental understanding, and light estimation. With these capabilities you can build entirely new AR experiences or enhance existing apps with AR features. Use your favourite environment @joaolaq
32. Sceneform Sceneform is a 3D framework that makes it easy for Java developers to build augmented reality apps. • A high-level scene graph API • A realistic physically based renderer provided by Filament • An Android Studio plugin for importing, viewing, and building 3D assets https://developers.google.com/ar/develop/java/sceneform/
33. Development integration
34. Android sample integration
35. Android sample integration
36. Super impose a shape to compare
37. Android sample integration dependencies { … // Provides ArFragment, and other Sceneform UX resources: implementation "com.google.ar.sceneform.ux:sceneform-ux:1.9.0" }

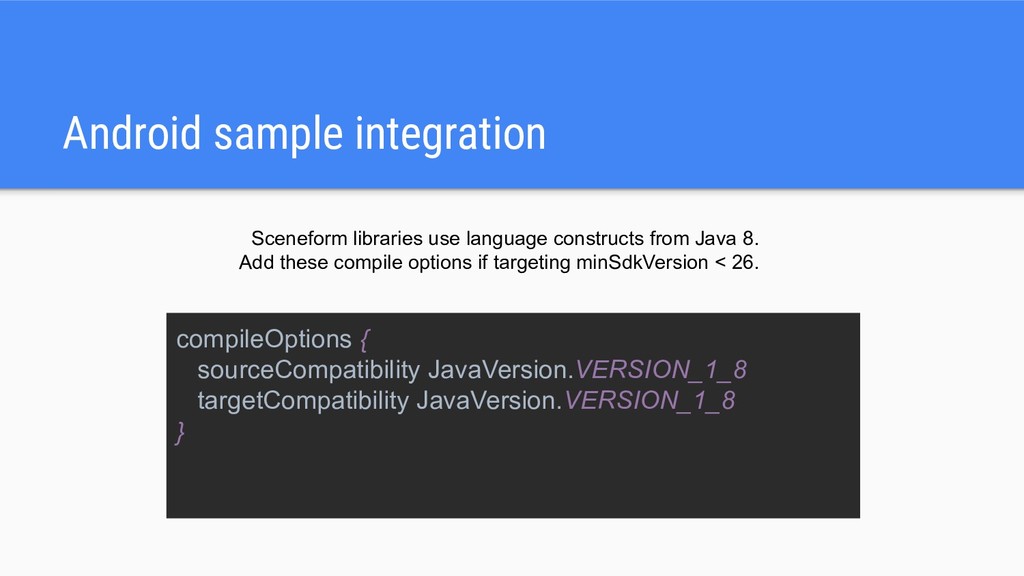

38. Android sample integration compileOptions { sourceCompatibility JavaVersion.VERSION_1_8 targetCompatibility JavaVersion.VERSION_1_8 } Sceneform libraries use language constructs from Java 8. Add these compile options if targeting minSdkVersion < 26.
39. ARFragment 1. Checks whether a compatible version of ARCore is installed, prompting the user to install or update as necessary 2. Checks whether the app has access to the camera, and asks the user for permission if it has not yet been granted <fragment android:name="com.google.ar.sceneform.ux.ArFragment" android:id="@+id/ux_fragment" android:layout_width="match_parent" android:layout_height="match_parent" />
40. Anchor // Create the Anchor. Anchor anchor = hitResult.createAnchor(); AnchorNode anchorNode = new AnchorNode(anchor); anchorNode.setParent(arFragment.getArSceneView().getScene()); // Create the transformable andy and add it to the anchor. TransformableNode andy = new TransformableNode(arFragment.getTransformationSystem()); andy.setParent(anchorNode); andy.setRenderable(andyRenderable); andy.select();
41. on Tap Listener arFragment.setOnTapArPlaneListener( (HitResult hitResult, Plane plane, MotionEvent motionEvent) -> {
42. Renderable A Renderable is a 3D model that can be placed anywhere in the scene and consists of Meshes, Materials and Textures. Renderables can be created from: • Standard Android ViewRenderables are rendered as flat 2D cards in the 3D scene, while maintaining the ability to interact with them via touch. • 3D asset files (OBJ, FBX, glTF) can be imported, converted, and previewed using the Android Studio plugin. For more information, see Import and Preview 3D Assets. • Basic shapes and materials can be programmatically combined to create more complicated objects at runtime.
43. Renderable ModelRenderable. builder() .setSource(this, R.raw.andy) .build() .thenAccept(renderable -> andyRenderable = renderable) .exceptionally ( throwable -> { Toast toast = Toast. makeText(this, "Unable to load andy renderable" , Toast.LENGTH_LONG); toast.setGravity (Gravity.CENTER, 0, 0); toast.show(); return null; });
44. Shape Factory MaterialFactory.makeOpaqueWithColor (this, com.google.ar.sceneform.rendering.Color (Color.GREEN)) .thenAccept { luggageBB = ShapeFactory.makeCube (Vector3(.45f, .56f, .25f), Vector3(0f, 0f, -0.3f), it) }
45. Shape Factory
46. Renderable from Layout ViewRenderable.builder() .setView(context, R.layout.luggage_size_length) .build() .thenAccept { renderable -> luggageLengthRenderable = renderable } ViewRenderable.builder() .setView(context, R.layout.luggage_size_height) .build() .thenAccept { renderable -> luggageHeightRenderable = renderable }
47. Get the ArFragment override fun onViewCreated(view: View, savedInstanceState: Bundle?) { super.onViewCreated(view, savedInstanceState) sceneformFragment = childFragmentManager.findFragmentById(R.id.ux_fragment) as ArFragment
48. Prepare Renderables // When you build a Renderable, Sceneform loads its resources in the background while returning // a CompletableFuture. Call thenAccept(), handle(), or check isDone() before calling get(). ModelRenderable.builder() .setSource(context, Uri.parse(LUGGAGE_MODEL)) .build() .thenAccept { renderable -> luggageRenderable = renderable } .exceptionally { val toast = Toast.makeText(context, "Unable to load andy renderable", Toast.LENGTH_LONG) toast.setGravity(Gravity.CENTER, 0, 0) toast.show() null }
49. Prepare Renderables ViewRenderable.builder() .setView(context, R.layout.luggage_size_length) .build() .thenAccept { renderable -> luggageLengthRenderable = renderable } ViewRenderable.builder() .setView(context, R.layout.luggage_size_height) .build() .thenAccept { renderable -> luggageHeightRenderable = renderable }

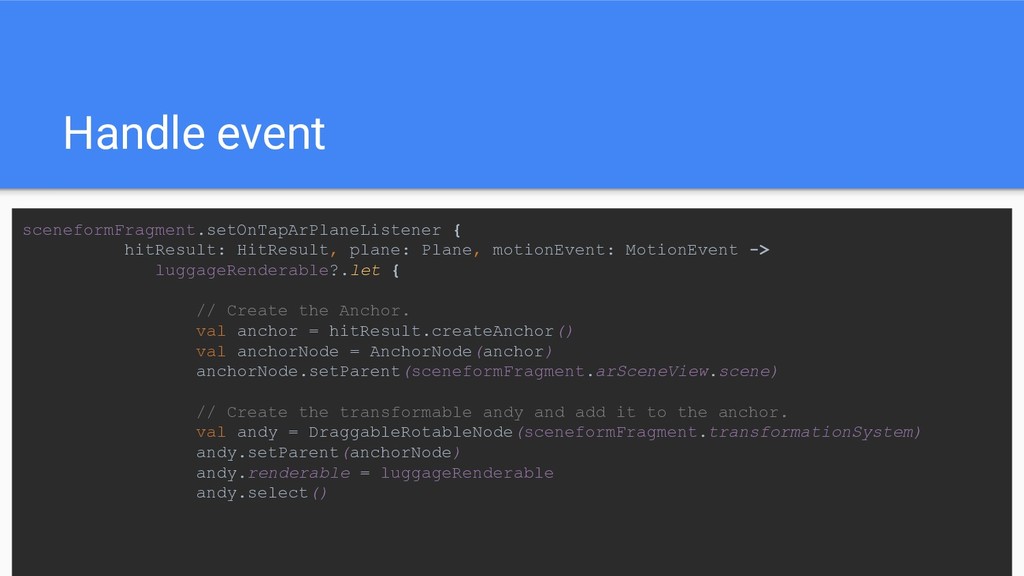

50. Handle event sceneformFragment.setOnTapArPlaneListener { hitResult: HitResult, plane: Plane, motionEvent: MotionEvent -> luggageRenderable?.let { // Create the Anchor. val anchor = hitResult.createAnchor() val anchorNode = AnchorNode(anchor) anchorNode.setParent(sceneformFragment.arSceneView.scene) // Create the transformable andy and add it to the anchor. val andy = DraggableRotableNode(sceneformFragment.transformationSystem) andy.setParent(anchorNode) andy.renderable = luggageRenderable andy.select()
51. What kind of Node is it class DraggableRotableNode(transformationSystem: TransformationSystem) : BaseTransformableNode(transformationSystem) { /** * Returns the controller that translates this node using a drag gesture. */ val translationController: TranslationController /** * Returns the controller that rotates this node using a twist gesture. */ val rotationController: RotationController

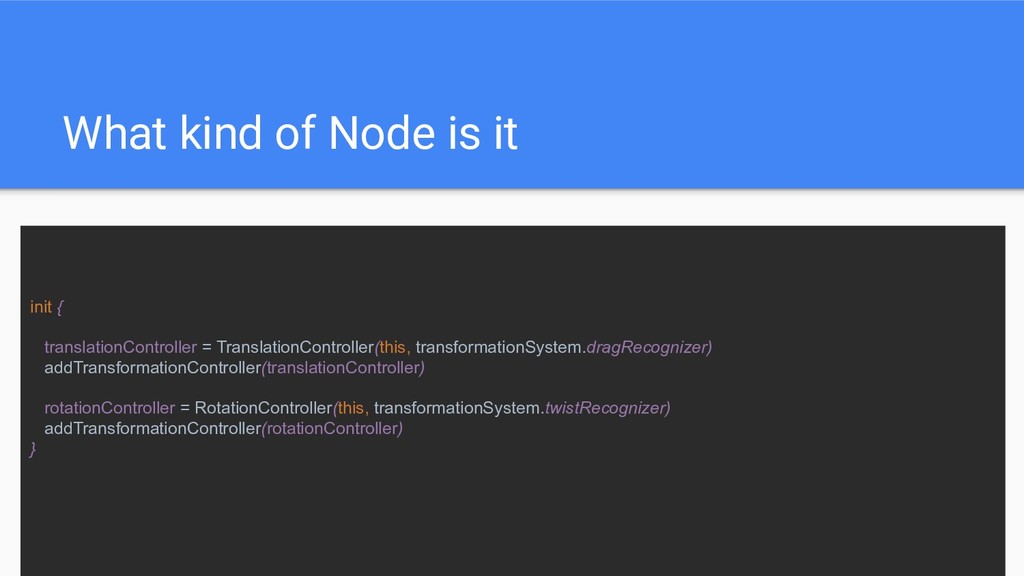

52. What kind of Node is it init { translationController = TranslationController(this, transformationSystem.dragRecognizer) addTransformationController(translationController) rotationController = RotationController(this, transformationSystem.twistRecognizer) addTransformationController(rotationController) }
53. Demo
54. Scan the object?
55. ARKit (iOS) Only
56. Cannot do it

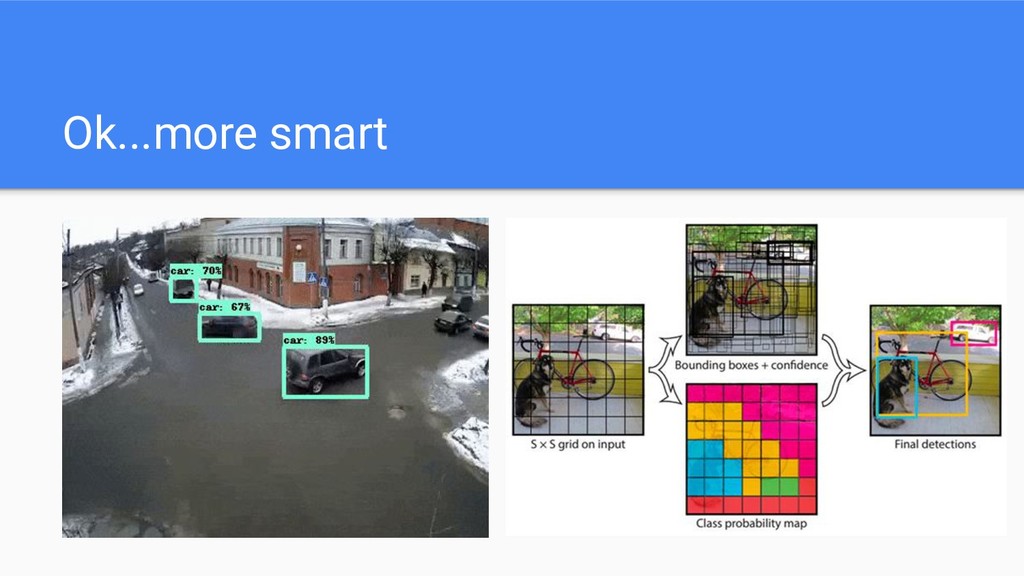

57. Ok...more smart
58. Ok...more smart https://opencv.org/android/
59. Ok...more smart https://github.com/tensorflow/examples/tree/master/lite/examples/object_detection/android
60. Ok...more smart
61. Firebase to the rescue https://firebase.google.com/products/ml-kit

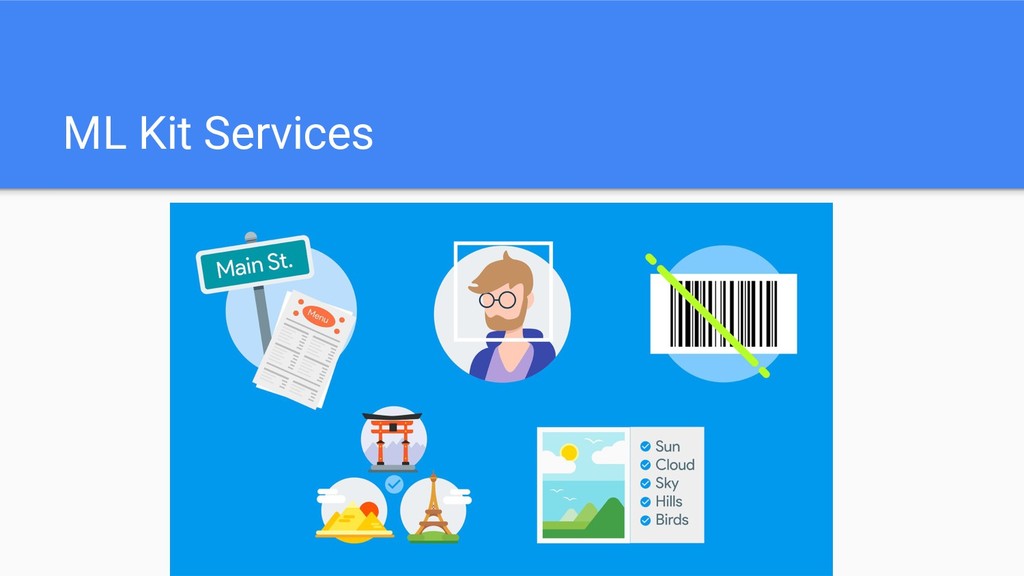

62. ML Kit Services
63. Sample App https://github.com/firebase/mlkit-material-android

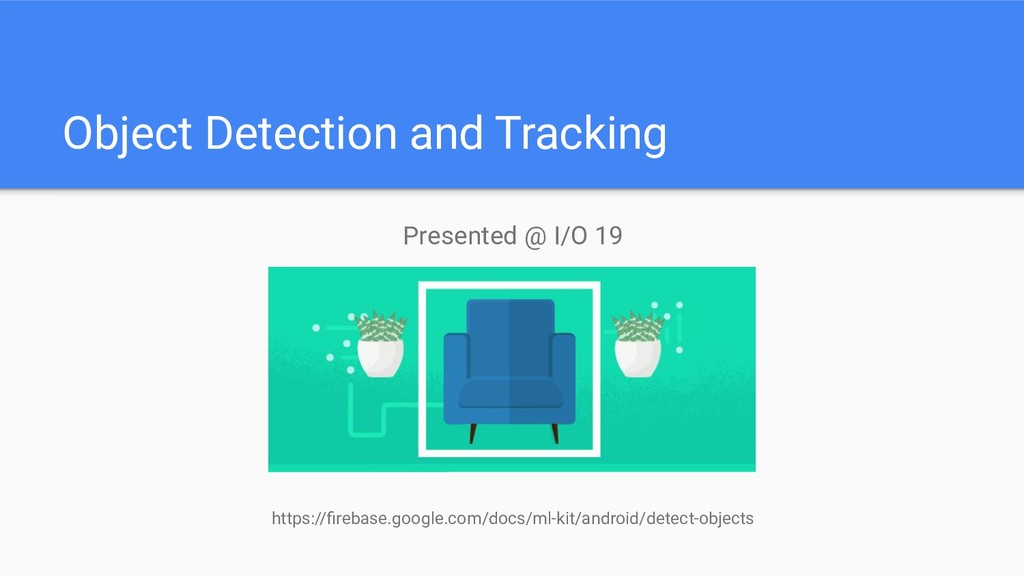

64. Object Detection and Tracking Presented @ I/O 19 https://firebase.google.com/docs/ml-kit/android/detect-objects
65. Object Detection and Tracking
66. Configuration and code analysis dependencies { // MLKit Dependencies implementation 'com.google.firebase:firebase-ml-vision:21.0.0' implementation 'com.google.firebase:firebase-ml-vision-object-detection-model:17.0.0' }
67. Configuration and code analysis val optionsBuilder = FirebaseVisionObjectDetectorOptions.Builder() .setDetectorMode(FirebaseVisionObjectDetectorOptions.STREAM_MODE) if (PreferenceUtils.isClassificationEnabled(graphicOverlay.context)) { optionsBuilder.enableClassification() } this.detector = FirebaseVision.getInstance().getOnDeviceObjectDetector(optionsBuilder.build())
68. Configuration and code analysis override fun detectInImage(image: FirebaseVisionImage): Task<List<FirebaseVisionObject>> { return detector.processImage(image) }
69. Configuration and code analysis detectInImage(image) .addOnSuccessListener { results -> Log.d(TAG, "Latency is: " + (SystemClock.elapsedRealtime() - startMs)) this@FrameProcessorBase.onSuccess(image, results, graphicOverlay) processLatestFrame(graphicOverlay) } .addOnFailureListener { this@FrameProcessorBase.onFailure(it) }
70. Configuration and code analysis // Observes changes on the object to search, if happens, fire image search request. objectToSearch.observe(this@LiveObjectDetectionActivity, Observer { detectObject -> searchEngine.search(detectObject) { detectedObject, products -> workflowModel.onSearchCompleted(detectedObject, products) } })
71. Configuration and code analysis fun onSearchCompleted (detectedObject: DetectedObject , products: List <Product>) { val titleList = products. map { it.title } if (titleList.contains ("Bag") || titleList.contains ("Baggage") || titleList.contains ("Luggage") || titleList.contains ("Backpack")) { val lConfirmedObject = confirmedObject if (detectedObject != lConfirmedObject ) { // Drops the search result from the object that has lost focus. return } objectIdsToSearch .remove(detectedObject. objectId)
72. Integration with ARCore/Sceneform @Synchronized @Throws(IOException:: class) internal fun start(scene: Scene? ) { this.scene = scene if (scene == null) return graphicOverlay .setTransformInfo (Size(640, 480)) scene.addOnUpdateListener { processingRunnable .setNextFrame (it) } processingThread = Thread(processingRunnable ).apply { processingRunnable .setActive(true) start() } }
73. Integration with ARCore/Sceneform try { frame.acquireCameraImage().use { image -> if (image.format != ImageFormat.YUV_420_888) { throw IllegalArgumentException( "Expected image in YUV_420_888 format, got format " + image.format) } Log.d("Hello", "Image acquired at $frameTime") previewSize = Size(image.width, image.height) val data = ImageConversion.YUV_420_888toNV21(image)
74. Integration with ARCore/Sceneform try { synchronized(processorLock ) { val rotation = ROTATION_90 val frameMetadata = FrameMetadata (previewSize .width, previewSize .height, rotation) data?.let { frameProcessor .process(it, frameMetadata , graphicOverlay ) } } } catch (t: Exception ) { Log.e(TAG, "Exception thrown from receiver." , t) }
75. Integration problems
76. Integration problems applicationVariants .all { variant -> variant.getRuntimeConfiguration ().exclude group: 'com.google.code.findbugs' , module: 'jsr305' variant.getRuntimeConfiguration ().exclude group: 'com.google.j2objc' , module: 'j2objc-annotations' variant.getRuntimeConfiguration ().exclude group: 'org.checkerframework' , module: 'checker-compat-qual' variant.getRuntimeConfiguration ().exclude group: 'org.codehaus.mojo' , module: 'animal-sniffer-annotations' }
77. Demo https://github.com/joaobiriba/arcoremlkit
78. Demo
79. Next steps 1. Proper TF Mobile Model (Using firebase) 2. Without Firebase, or with Firebase to create the model 3. Using openCV, identify vertex and measure distances 4. 3d Object detection with custom models
80. Wait for 3d Object scan
81. Questions? @joaolaq https://laquysoft.com/
