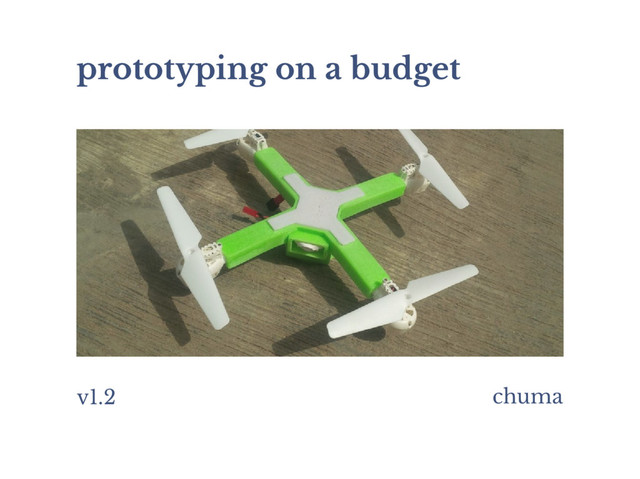

prototyping on a budget chuma v1.2
v1.2 me engineer writes quite a bit Gero + Tony
Involute @captainunibrow
v1.2 prototype (noun) a learning tool as part of a
product development process not, a proof of concept a product candidate looks-like vs works-like
v1.2 handheld remote build looks-like works-like
v1.2 objectives test: form > how does it look? feel?
function > does it behave as expected? material > extra strength? more flexibility? production > manufacture at scale?
v1.2 processes* 2D Sketching Laser Cutting 3D CAD Foam core/Paper
3D printing Silicone molding 4D Video *available in Nigeria
v1.2 sketching fast dispensable low resolution easy to communicate difficult
to replicate
v1.2 laser cutting good for displays cuts various materials can
prototype PCBs slower easily replicated Nisense, by Notonlab
v1.2 CAD suitable for analysis FEM enabled (plugins) slow requires
expertise requirement for scale SolidWorks
3D printing relative speed expensive when not owned requires expertise
only for prototyping v1.2
v1.2 silicone molding urethane casting good for products that should
handle food can employ 3D printed masters a mold can be used up to 50 times cheap -> $57 - $70 kits Stratasys
v1.2 video useful for crowdfunding particular doesn't require product permanent
Kickstarter
v1.2 extra plan your prototyping process understand the technique build
it into your CAD sketch extensively -> at the early stages ask for help may the force be with you
