1. LICENSE PLATE RECOGNITION MODULE FOR NUUO MAINCONSOLE VIT Autocode for NUUO
2. Structure  About “Video Internet Technologies”  Integrated solutions for NUUO  Installation and settings  Possibilities of Autocode for NUUO  Licensing system  Contacts and technical support
3. About VIT  Founded in 2000, Kiev, Ukraine  Video analytics since 2005  Partnership with NUUO since 2012
4. Exhibitions  Past: - Security Show, Essen, Germany - Bezpeka, Kiev, Ukraine - All-over-IP, Moscow, Russia - Intersec, Dubai, UAE - Security Show, Tokyo, Japan - MIPS, Moscow, Russia - IFSEC, Birmingham, United Kingdom - Intertraffic, Istanbul, Turkey  Future (2013-2014 year): - Bezpeka, Kiev, Ukraine - All-over-IP, Moscow, Russia - Intertraffic, Amsterdam, Netherlands - Security Show, Essen, Germany
5. Key projects  Automatic of entrance on customs, Ukraine  Mobile recognition, Bogota, Colombia  Automatic violation detection, Russia  Parking in hotels chain, Ukraine  Traffic surveillance, Spain
6. Products  OutdoorBox  Overseer Parking, Overseer Traffic  AutoSDK  Autocode for VMS (Parking, Traffic)
7. Autocode for NUUO  Integration of LPR system into NUUO Mainconsole
8. Supported cameras  All cameras, supported by NUUO (more than 90 manufacturers), both analog and IP:
9. Autocode for NUUO. Features  Recognition rate for Russian License Plates ≥96%*  Up to 10 license plates on one frame  Up to 16 recognition channels on one server  Display both Live View and Video Archive from NUUO  Creating reports, export of settings  Sending events to NUUO Mainconsole * According to “Interpolytech” exhibition’s contest PRO System CCTV №04 [28] July-August 2007
10. Parking & Traffic  Parking  Automatic fixation of entry and exit  ACMS  Automatic gate opening  Card file with unlimited groups  Traffic  Recognition on up to 180 km/h speed  ANPR time ≤2 milliseconds  Card file with possibility of “Wanted” groups  In future possible to integrate with radar systems
11. Comparison chart Autocode Parking for NUUO Autocode Traffic for NUUO Purpose Access control Traffic control Open/close gate + - «WANTED» - + Frame processing 6 fps 25 fps Maximal speed* 40 km/h 180 km/h or more * Depends on camera and shutter possibilities
12. Cameras and servers  Supports all camera types from Mainconsole  Cameras selection recommendations  The_camera_selection_guidelines.pdf  IR-light, white light  Servers selection recommendations  Servers_selection_recommendations.pdf
13. Servers selection recommendations Processor is loaded most in number plate recognition process, the amount of used RAM is 2GB. CONDITIONS:  1. Processor is busy with recognition only  2. Processor is loaded on 80-90%  3. XVID or MJPEG format of the input video for recognition module
14. Autocode Parking for NUUO  System is created for automation of business- processes at access control points  System does LPR and sends Entry/Exit events to NUUO Mainconsole, including such events as “Car in group” and “Car let”  Possibility to create and edit unlimited number of groups and clients
15. Installation. Step 1  Double-click -> “Run as administrator…”
16. Installation. Step 2  Choose the product
17. Installation. Step 3  Where to install Autocode & DB  Choose the largest disk for database
18. Installation. Step 4  Choose components and backup settings
19. Installation. Final  Installation process and finish  Installing cameras and HASP drivers  Restart is obligatory
20. Settings. License and registration  To check the current license run any internet browser and got o: http://127.0.0.1:1947/_int_/index.html -> Products  Registration in the system
21. Settings. Start Network Service in Mainconsole  Settings->Network Service
22. Settings. Start Network Service in Mainconsole  Live Streaming->Start (port - 5150)  Remote Playback->Start (port - 5160)
23. Settings. Video Sources in Autocode  Server port – target port for Metadata
24. Settings. Recognition. Step 1  Zone of recognition

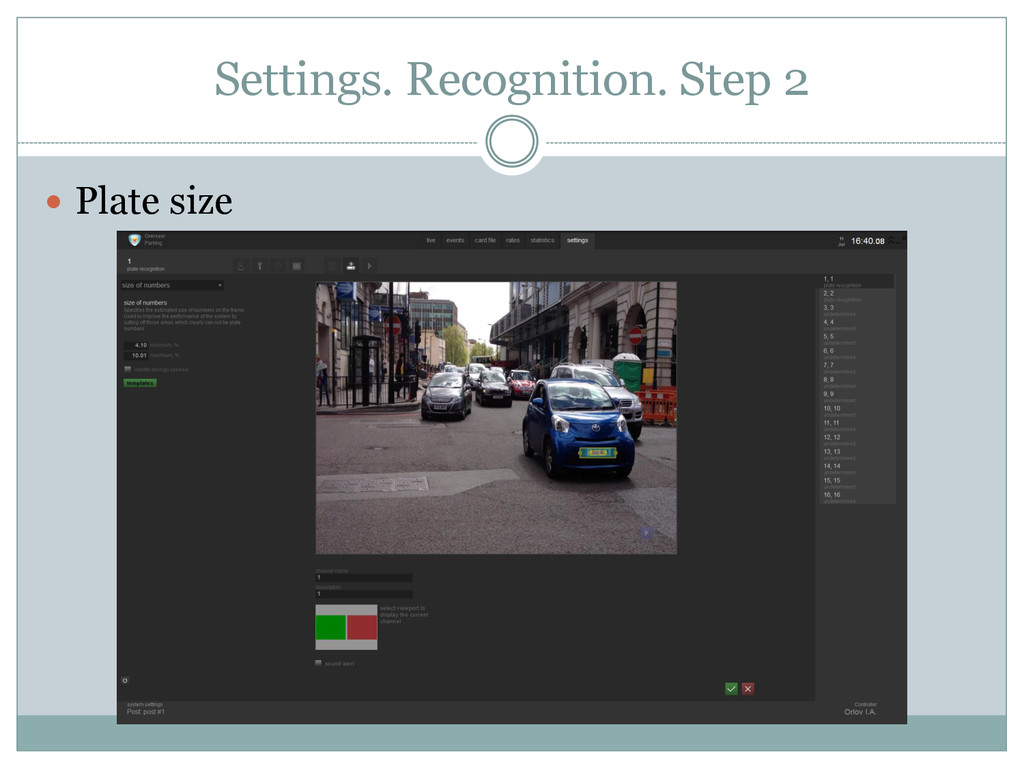

25. Settings. Recognition. Step 2  Plate size
26. Settings. Recognition. Step 3  Templates
27. Supported countries  More than 55 countries  Europe: from Portugal to Poland  Process of adding a new country takes 2-3 weeks
28. Settings. Receive Metadata in Mainconsole  Settings->Metadata Application->Insert
29. Settings. Receive Metadata in Mainconsole  Add metadata source and channels

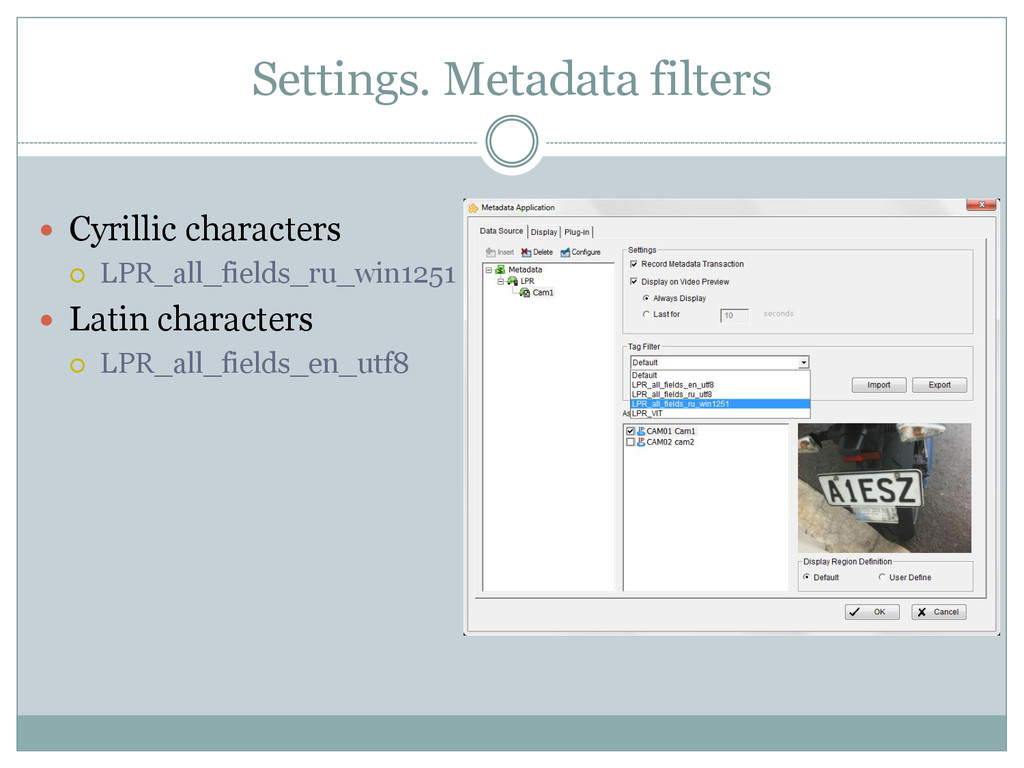

30. Settings. Metadata filters  Cyrillic characters  LPR_all_fields_ru_win1251  Latin characters  LPR_all_fields_en_utf8
31. Metadata information. Event types  Event types :  Plate detected  Plate lost  Car in group ***  Car let
32. 11 reaction types in NUUO  On-screen display  Play sound  Send email  Phone call  PTZ Preset go  Signal digital output  SMS messages  FTP  Pop up e-map  Send to central server  Push notification
33. Configure reaction in Mainconsole  Details: http://www.nuuo.com/WikiDetail.php?sid=0065&product=0002  Event and action configuration  Reaction by keyword
34. Configure reaction in Mainconsole  For each Metadata camera
35. Metadata Search  Search by date, events, plate number, channel…
36. Tabs in Autocode. Live
37. Tabs in Autocode. Events
38. Tabs in Autocode. Card file
39. Tabs in Autocode. Statistics
40. Tabs in Autocode. Settings
41. Autocode Traffic for NUUO  Designed for:  “black” list processing  high-speed recognition  collecting traffic statistics  integration with radars (possible in the nearest future)
42. Autocode Traffic. Difference in interface
43. Licensing system  License for metadata in NUUO + license for Autocode for NUUO  http://127.0.0.1:1947/_int_/index.html -> Products, Features  Key types:  HASP SL (demo)  HASP HL  By time:  Perpetual  Time period  Series:  EOAWT  AAOTB
44. Contacts VIT  Igor Orlov  Skype: igor_orlov92  Email: io@vit.ua NUUO  Trista Hu  Skype: nuuo_trista  Email: trista_hu@nuuo.com
45. The end Thanks for attention!
