[Hands-on] How to build Agentic Apps with Flutter @박제창

2025-07-26
2025 IO Extended Incheon

Hands-on
How to build Agentic Apps with Flutter

박제창
@jaichangpark

Transcript

1. How to build Agentic Apps with Flutter. Hands-on 1
2. 박제창 GDE Flutter & Dart GDG Golang Korea Flutter Seoul @jaichangpark 2
3. Hands-on preparation 3

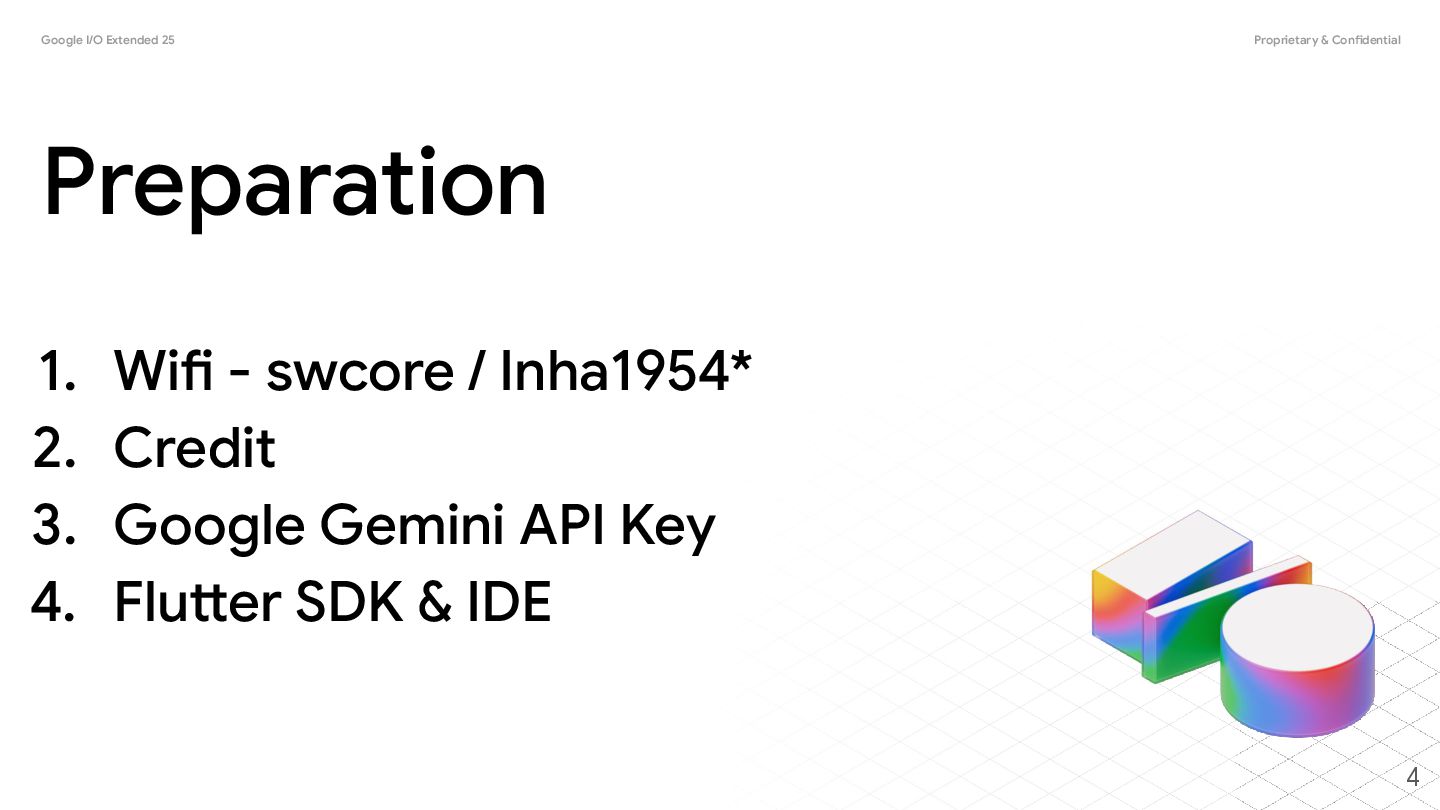

4. Google I/O Extended 25 Proprietary & Confidential Preparation 4 1. Wifi - swcore / Inha1954* 2. Credit 3. Google Gemini API Key 4. Flutter SDK & IDE

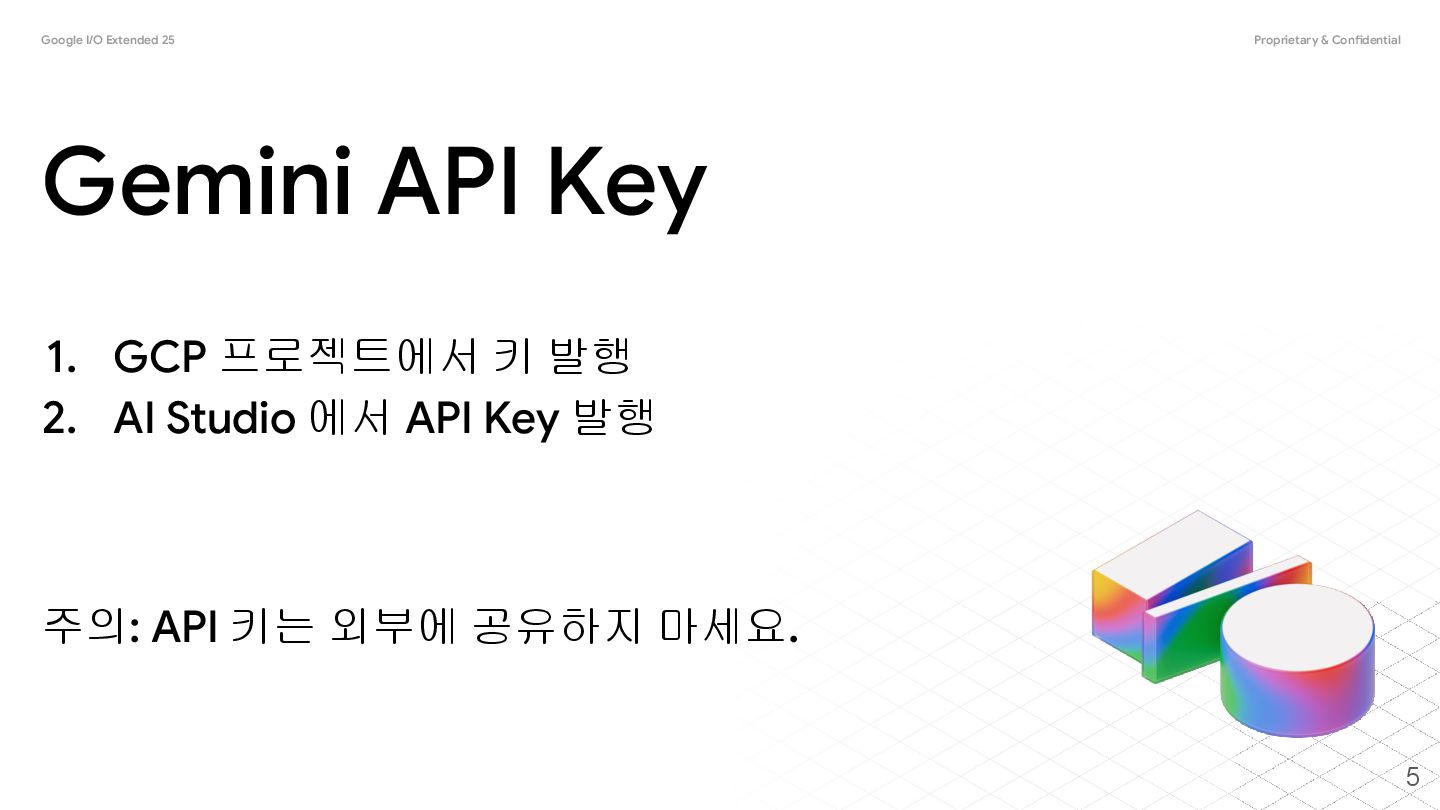

5. Google I/O Extended 25 Proprietary & Confidential Gemini API Key 1. GCP 프로젝트에서 키 발행 2. AI Studio 에서 API Key 발행 주의: API 키는 외부에 공유하지 마세요. 5

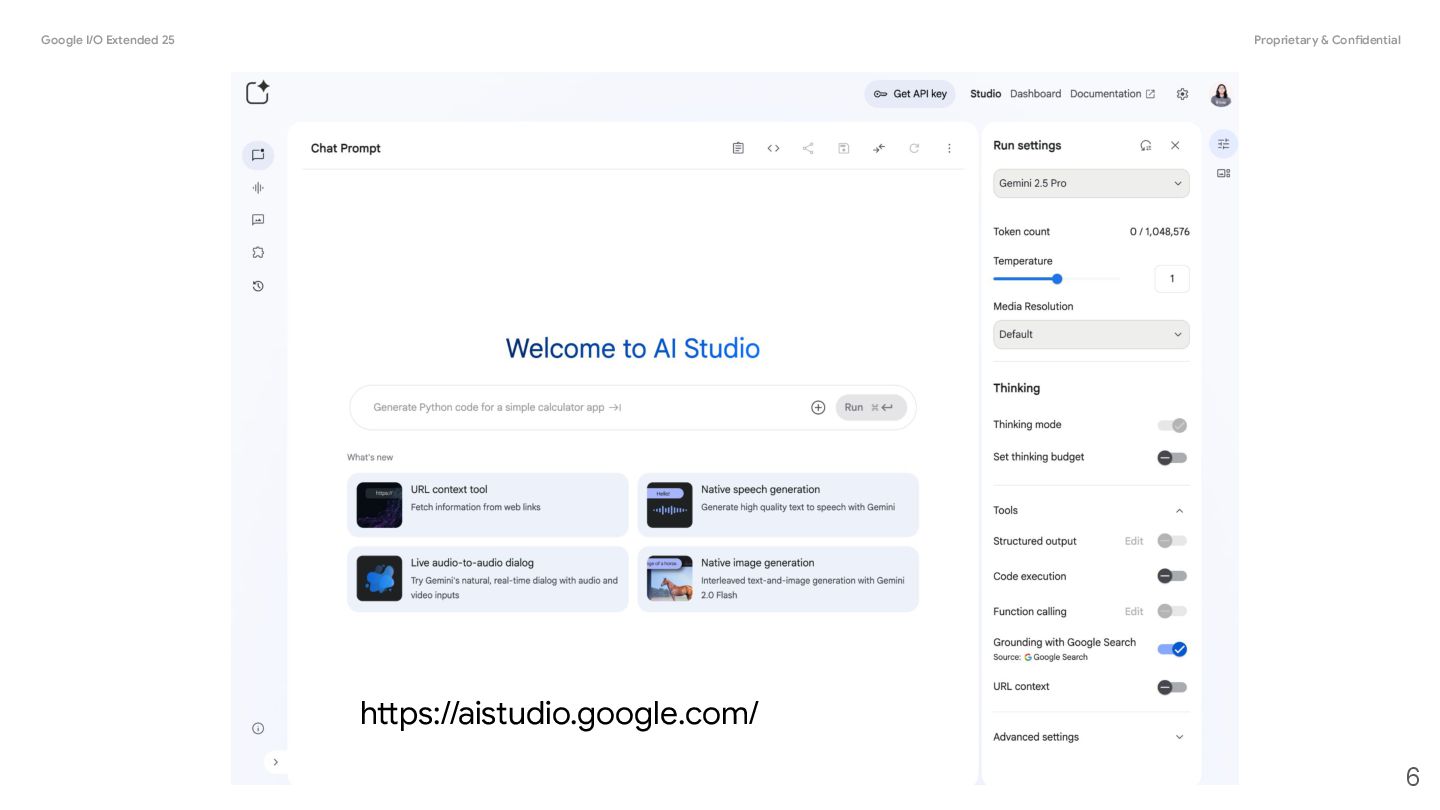

6. Google I/O Extended 25 Proprietary & Confidential https://aistudio.google.com/ 6

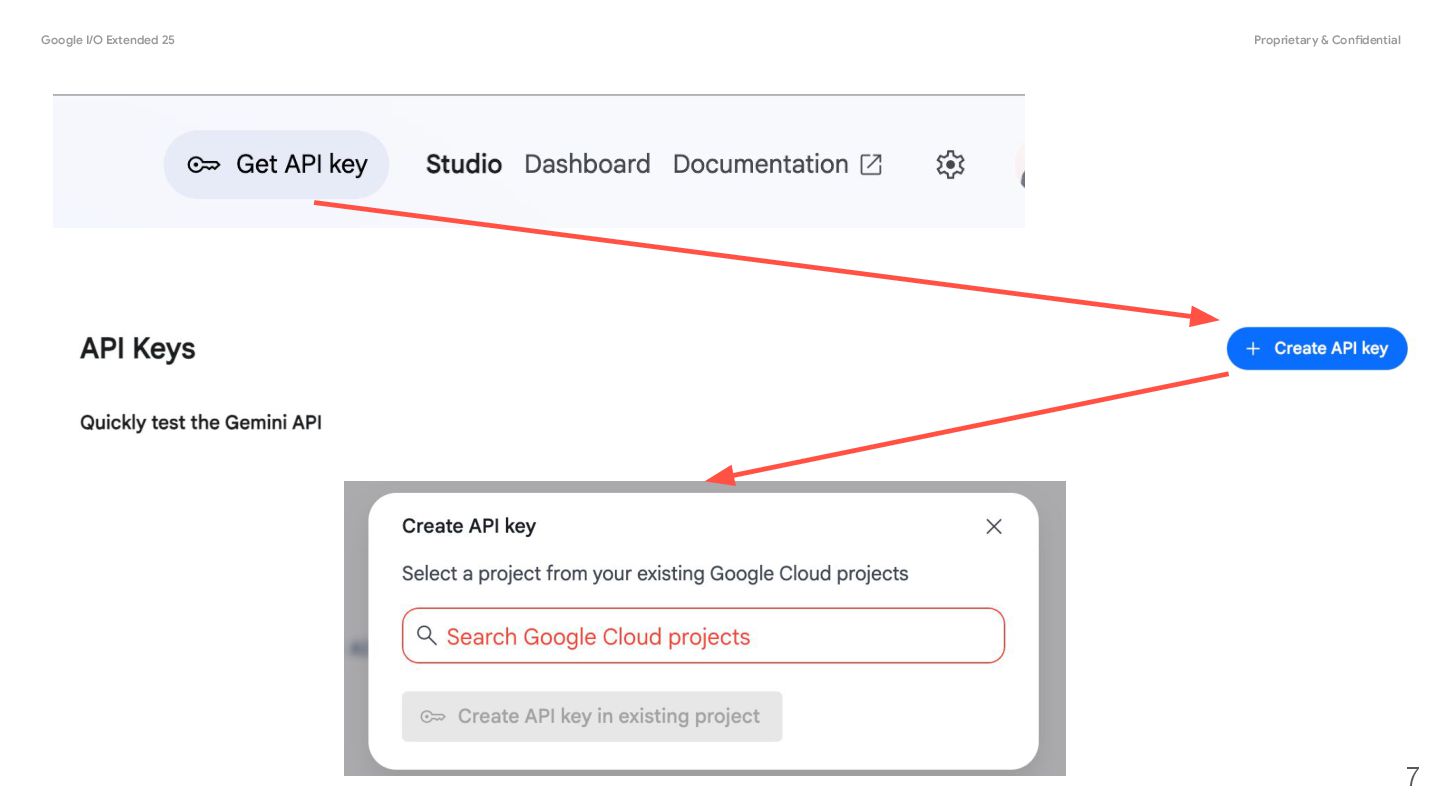

7. Google I/O Extended 25 Proprietary & Confidential 7

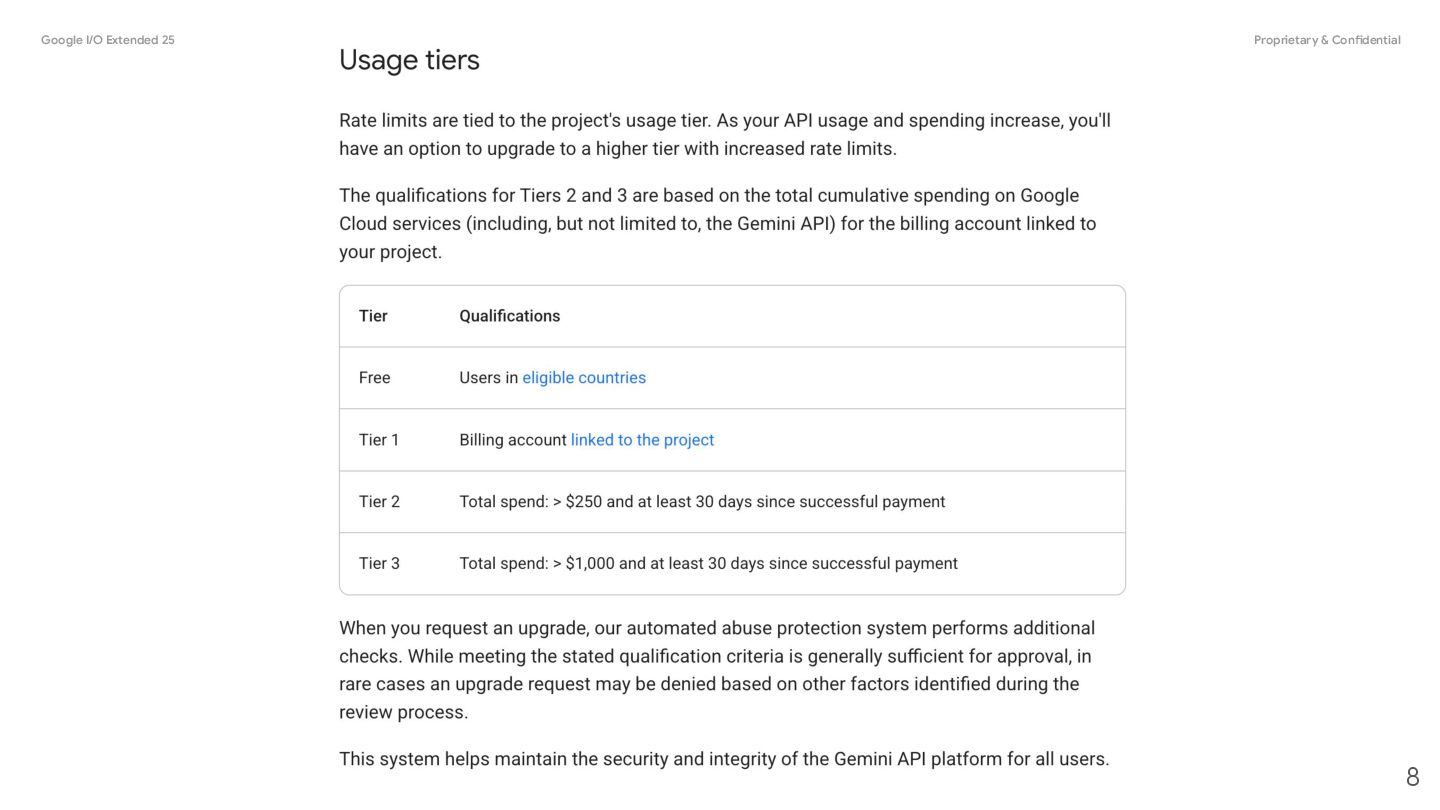

8. Google I/O Extended 25 Proprietary & Confidential 8

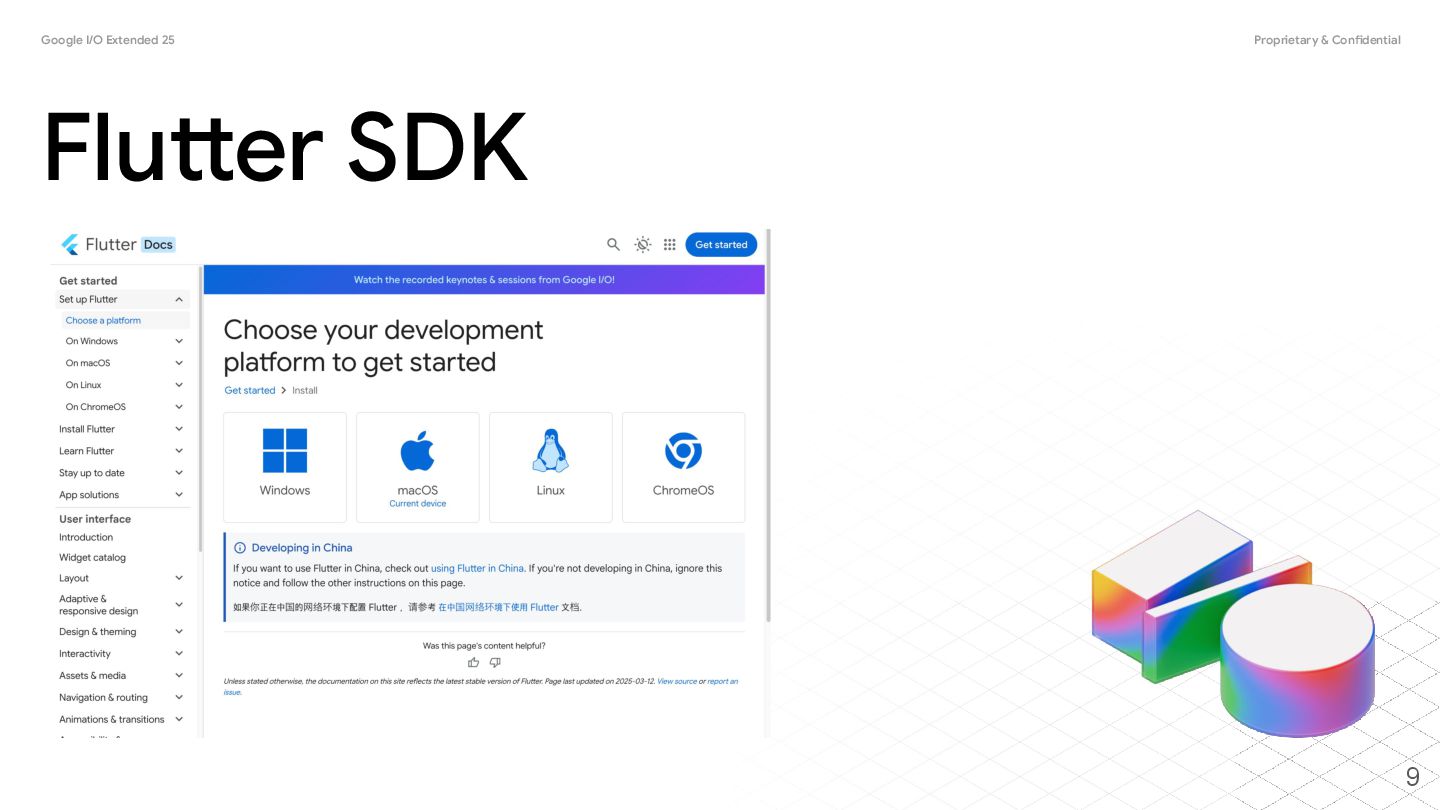

9. Google I/O Extended 25 Proprietary & Confidential Flutter SDK 9
10. Google I/O Extended 25 Proprietary & Confidential IDE 10

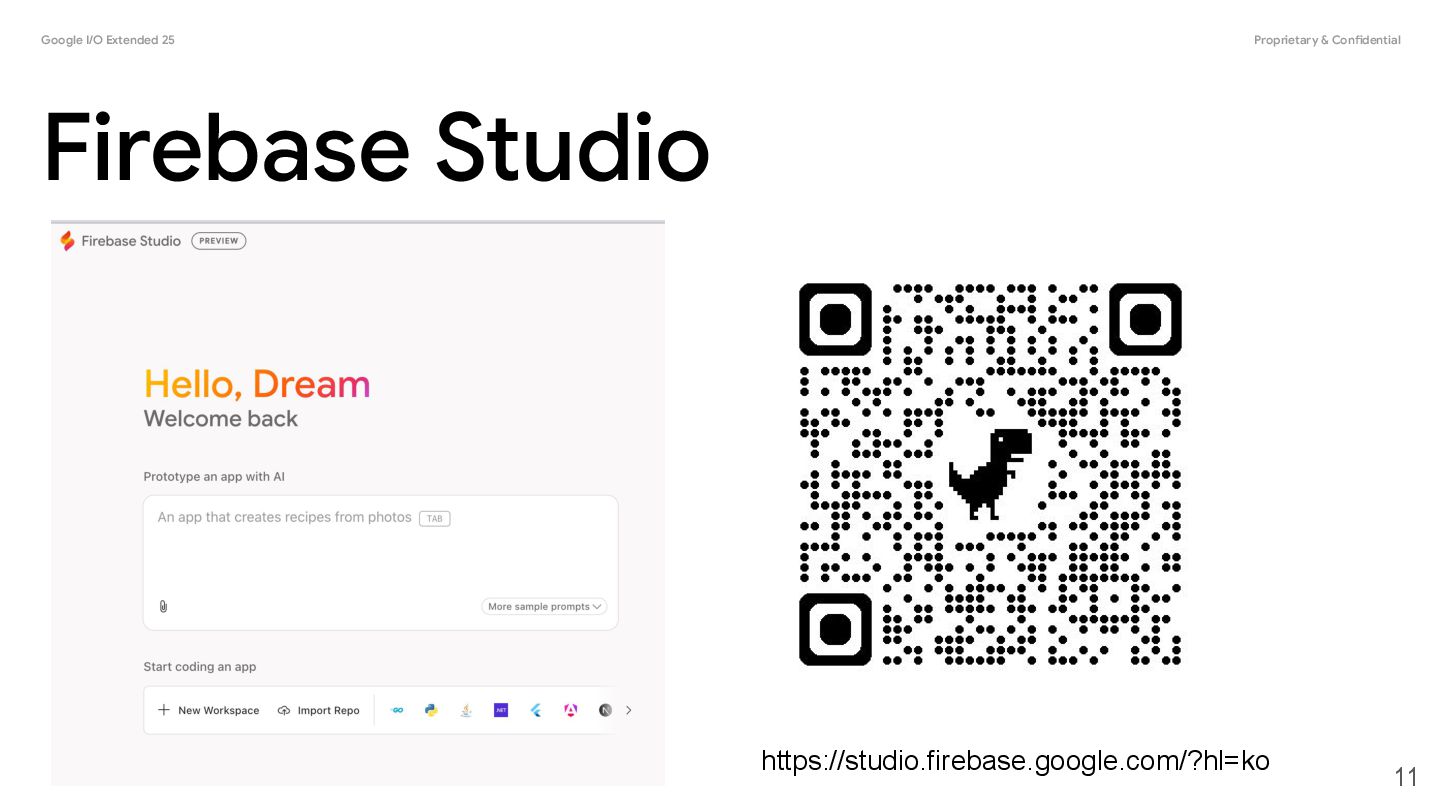

11. Google I/O Extended 25 Proprietary & Confidential https://studio.firebase.google.com/?hl=ko Firebase Studio 11

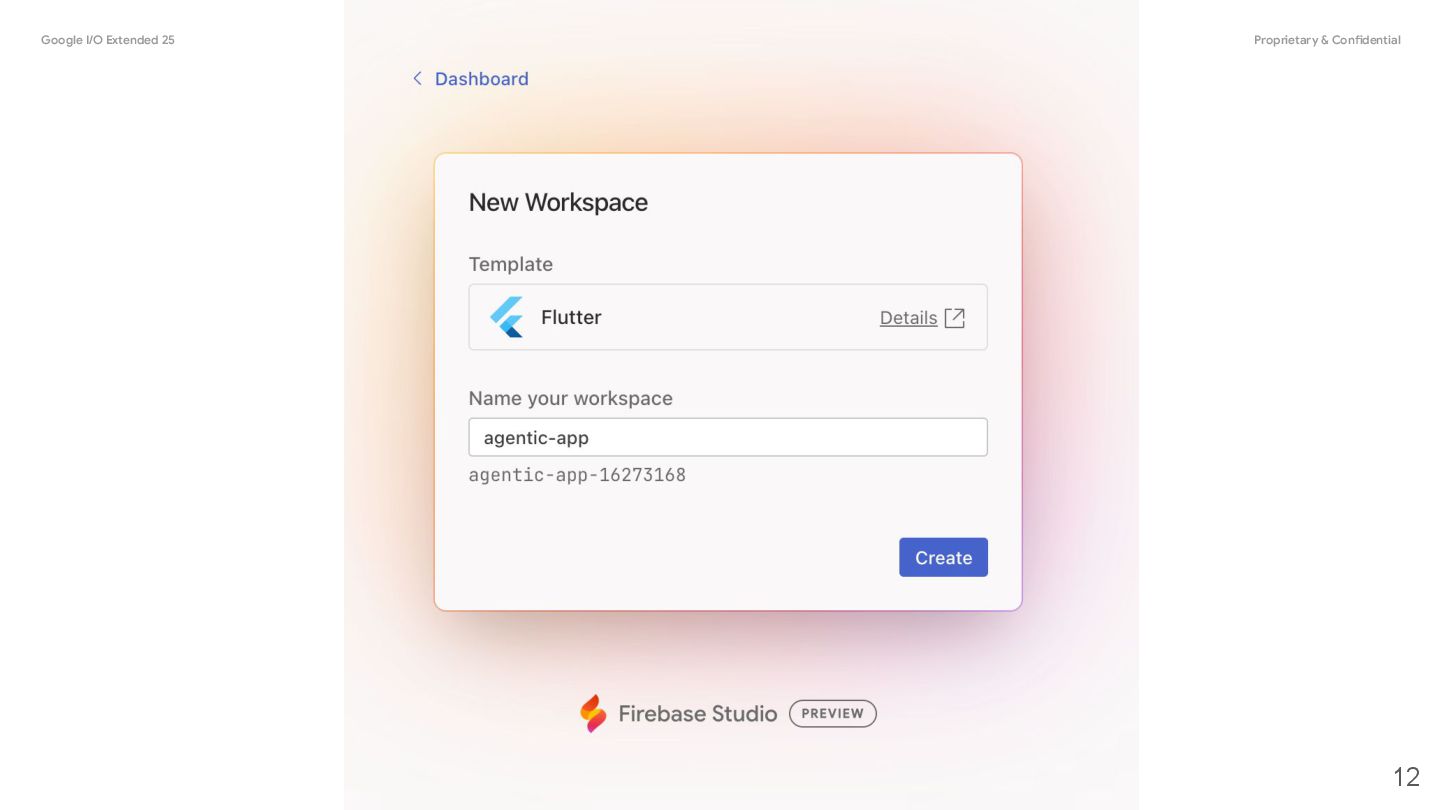

12. Google I/O Extended 25 Proprietary & Confidential 12

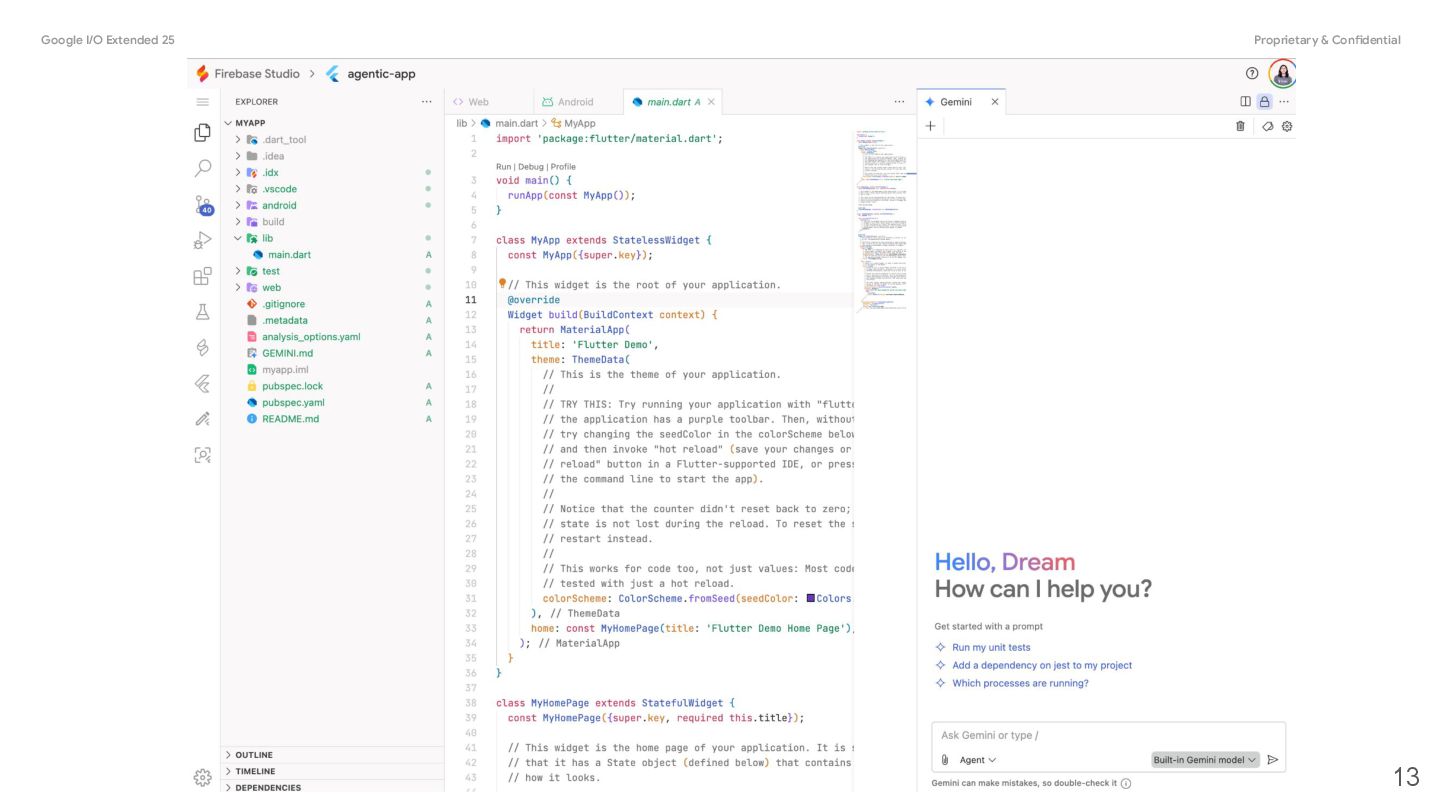

13. Google I/O Extended 25 Proprietary & Confidential 13
14. Flutter Gemini Topic 14

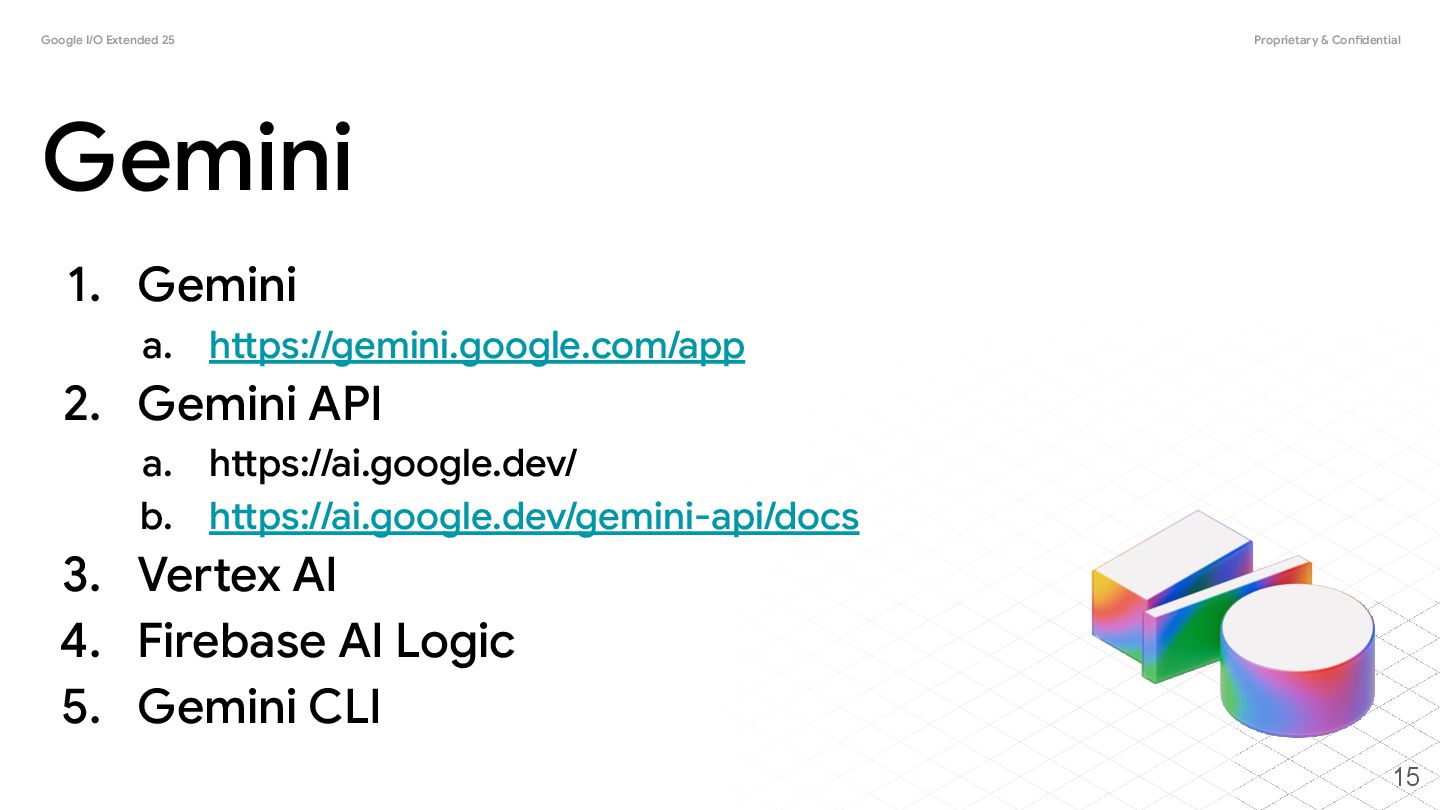

15. Google I/O Extended 25 Proprietary & Confidential 1. Gemini a. https://gemini.google.com/app 2. Gemini API a. https://ai.google.dev/ b. https://ai.google.dev/gemini-api/docs 3. Vertex AI 4. Firebase AI Logic 5. Gemini CLI Gemini 15

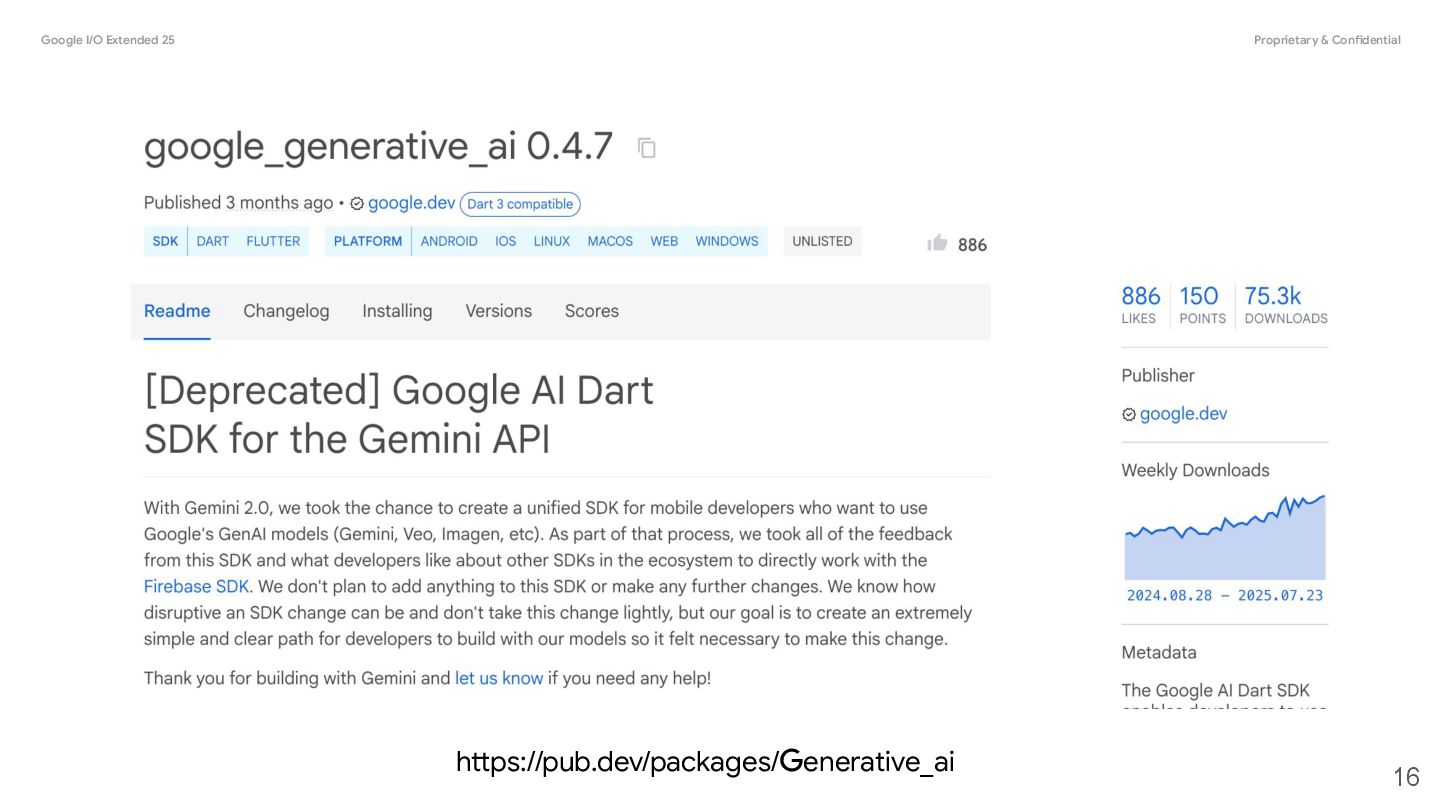

16. Google I/O Extended 25 Proprietary & Confidential 16 https://pub.dev/packages/enerative_ai

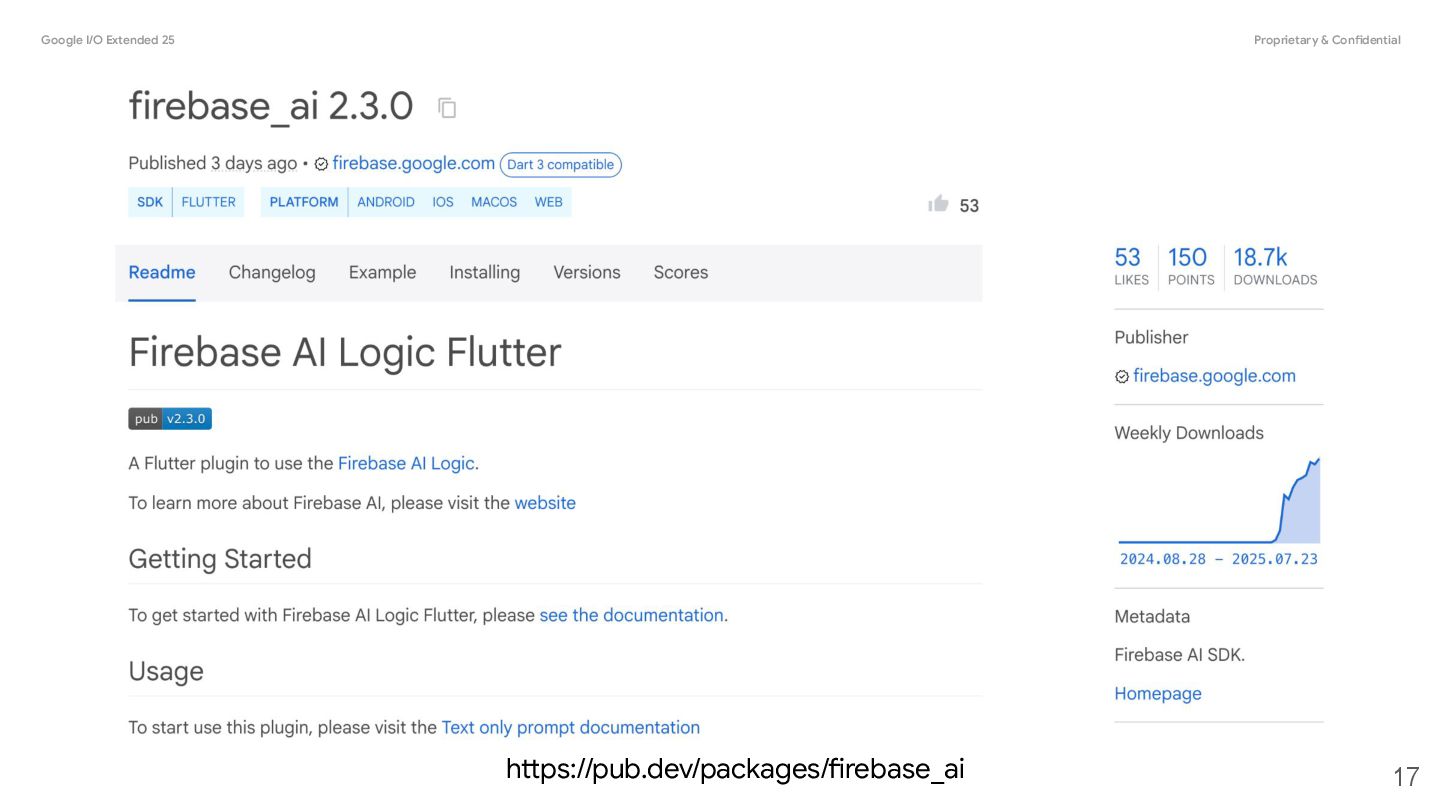

17. Google I/O Extended 25 Proprietary & Confidential 17 https://pub.dev/packages/firebase_ai

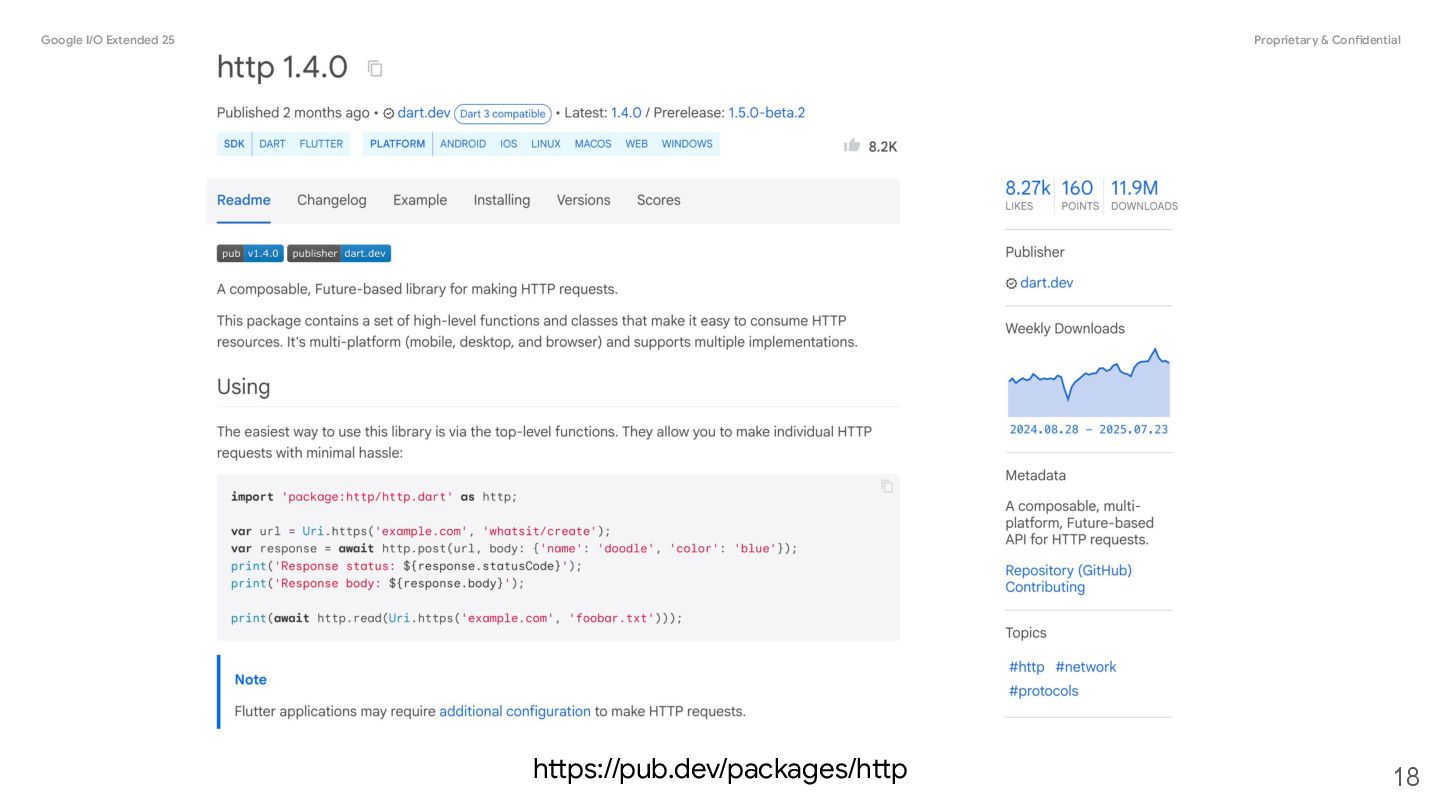

18. Google I/O Extended 25 Proprietary & Confidential 18 https://pub.dev/packages/http

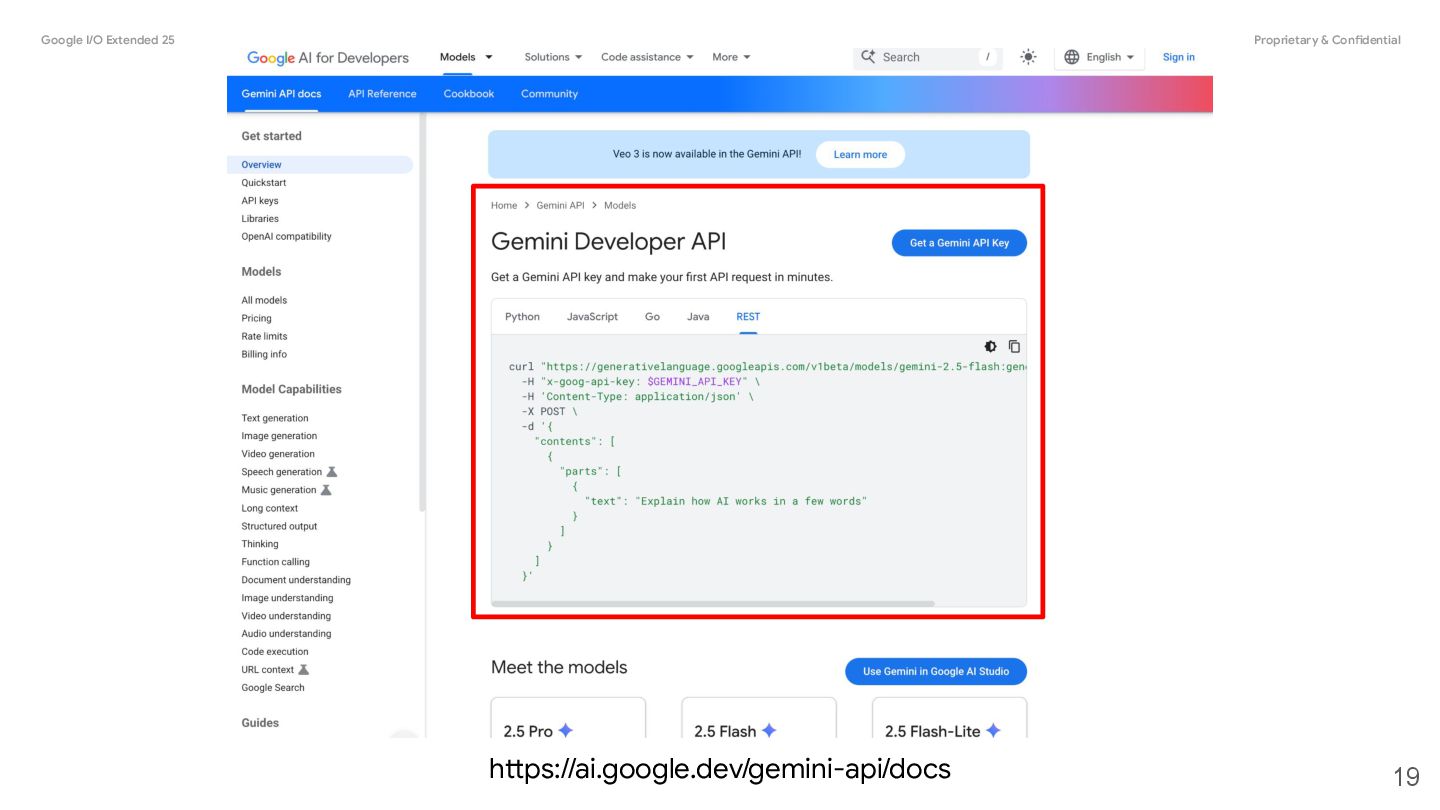

19. Google I/O Extended 25 Proprietary & Confidential 19 https://ai.google.dev/gemini-api/docs

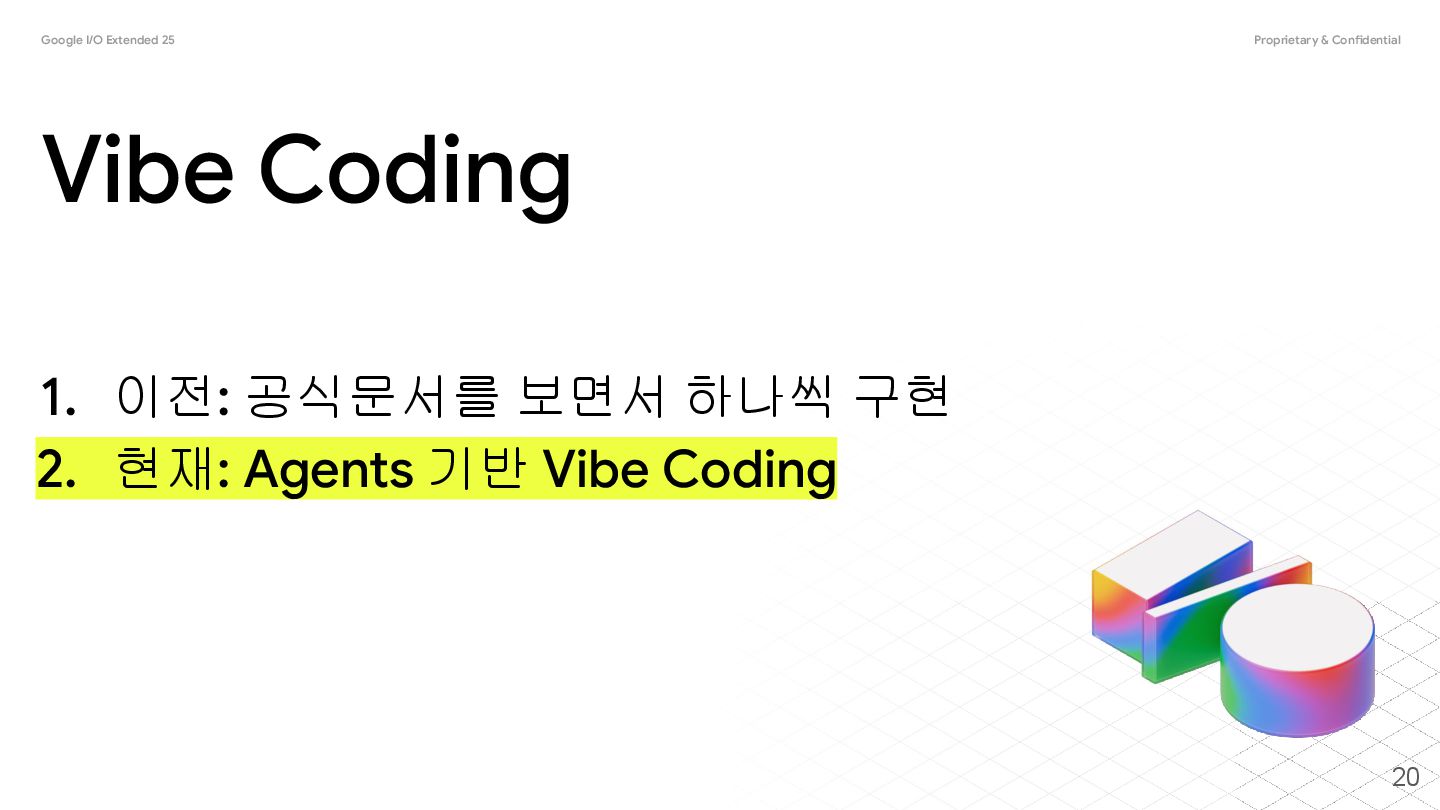

20. Google I/O Extended 25 Proprietary & Confidential 1. 이전: 공식문서를 보면서 하나씩 구현 2. 현재: Agents 기반 Vibe Coding Vibe Coding 20

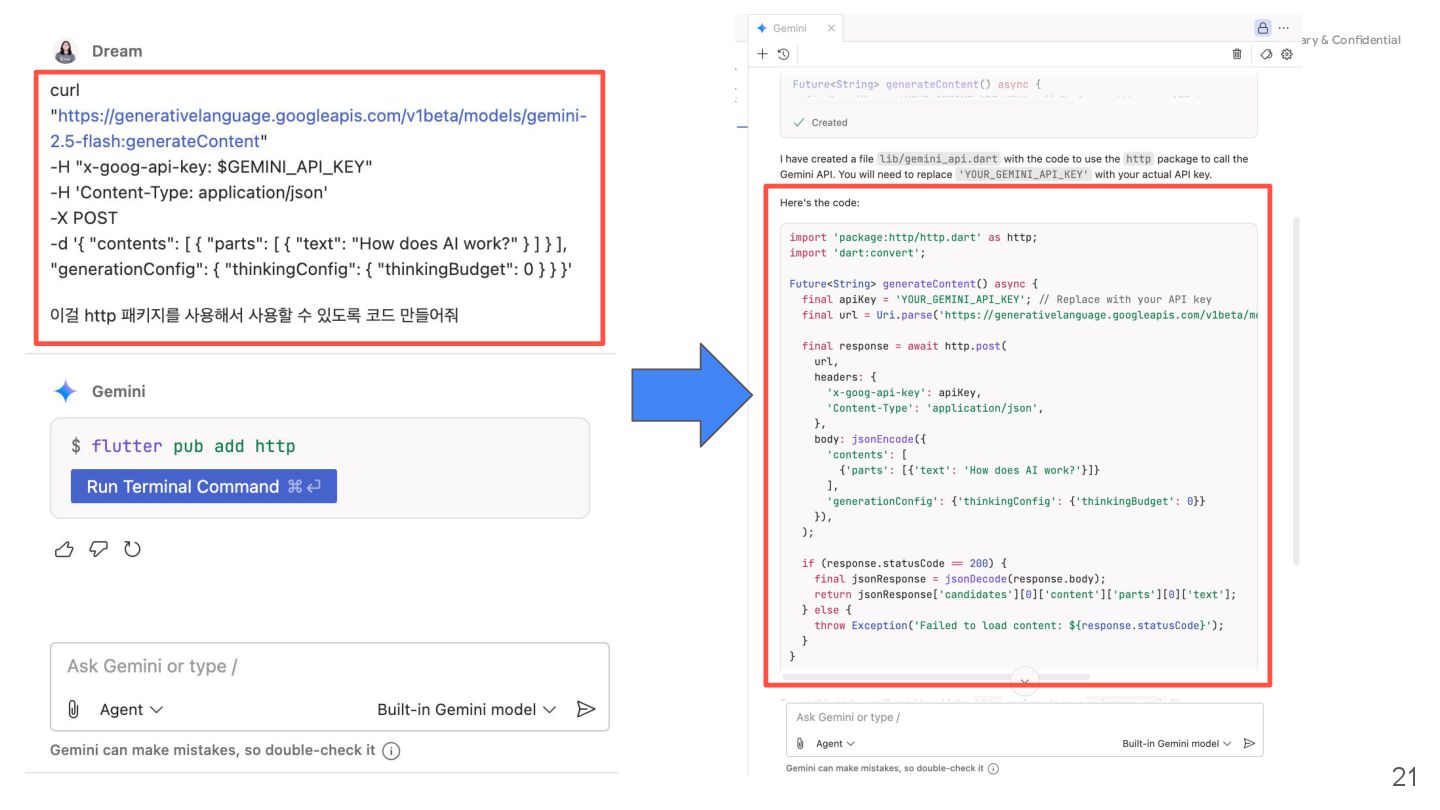

21. Google I/O Extended 25 Proprietary & Confidential 21

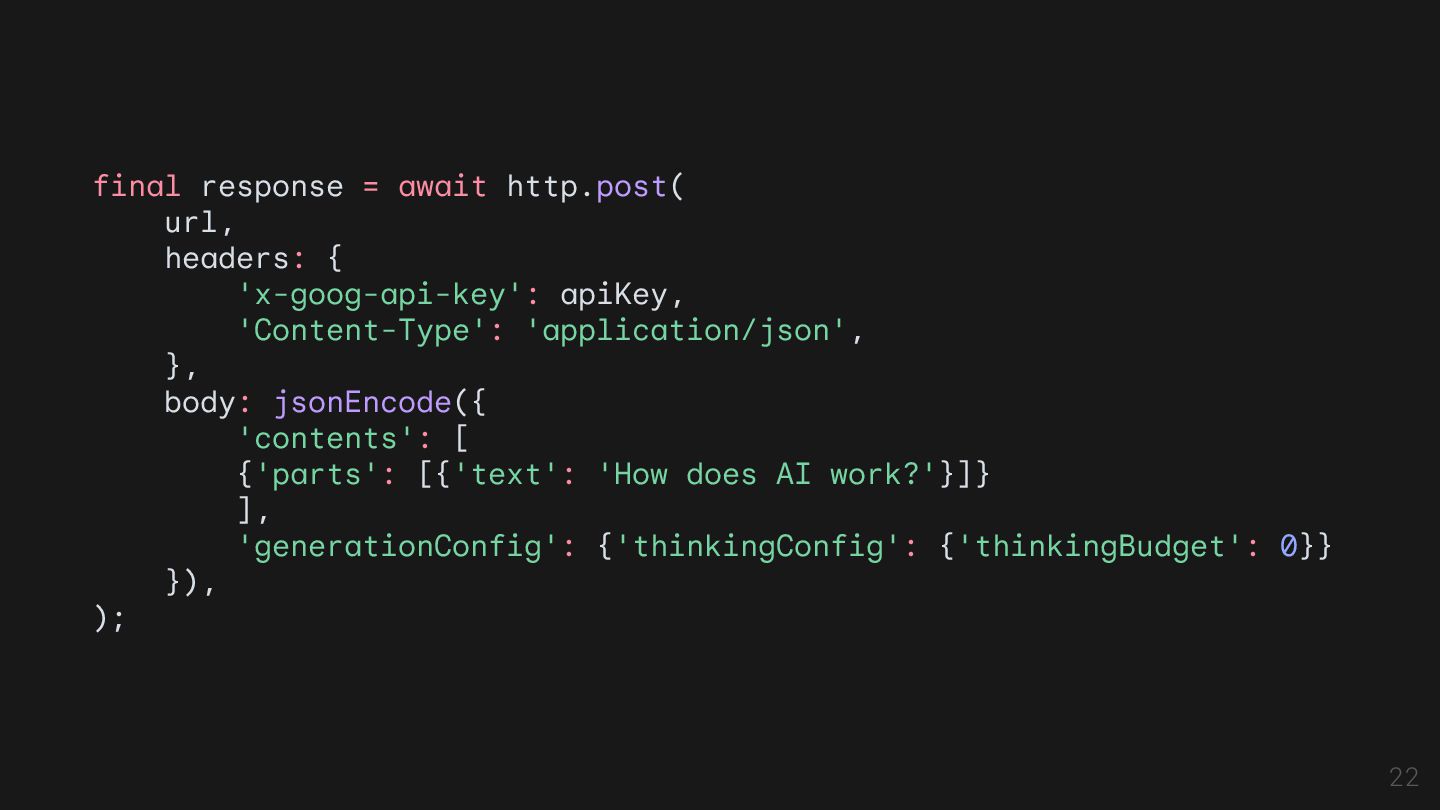

22. 22 final response = await http.post( url, headers: { 'x-goog-api-key': apiKey, 'Content-Type': 'application/json', }, body: jsonEncode({ 'contents': [ {'parts': [{'text': 'How does AI work?'}]} ], 'generationConfig': {'thinkingConfig': {'thinkingBudget': 0}} }), );

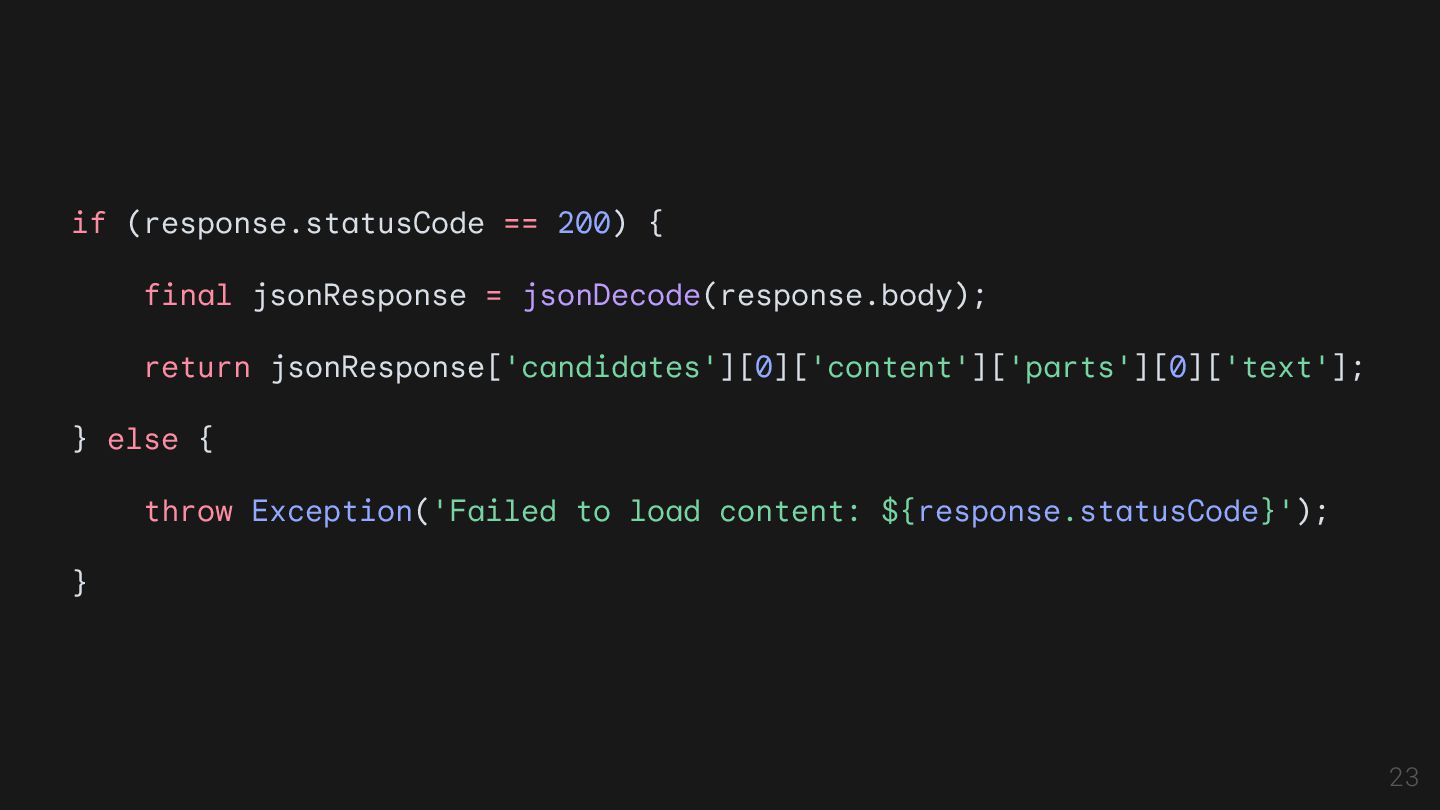

23. 23 if (response.statusCode == 200) { final jsonResponse = jsonDecode(response.body); return jsonResponse['candidates'][0]['content']['parts'][0]['text']; } else { throw Exception('Failed to load content: ${response.statusCode}'); }

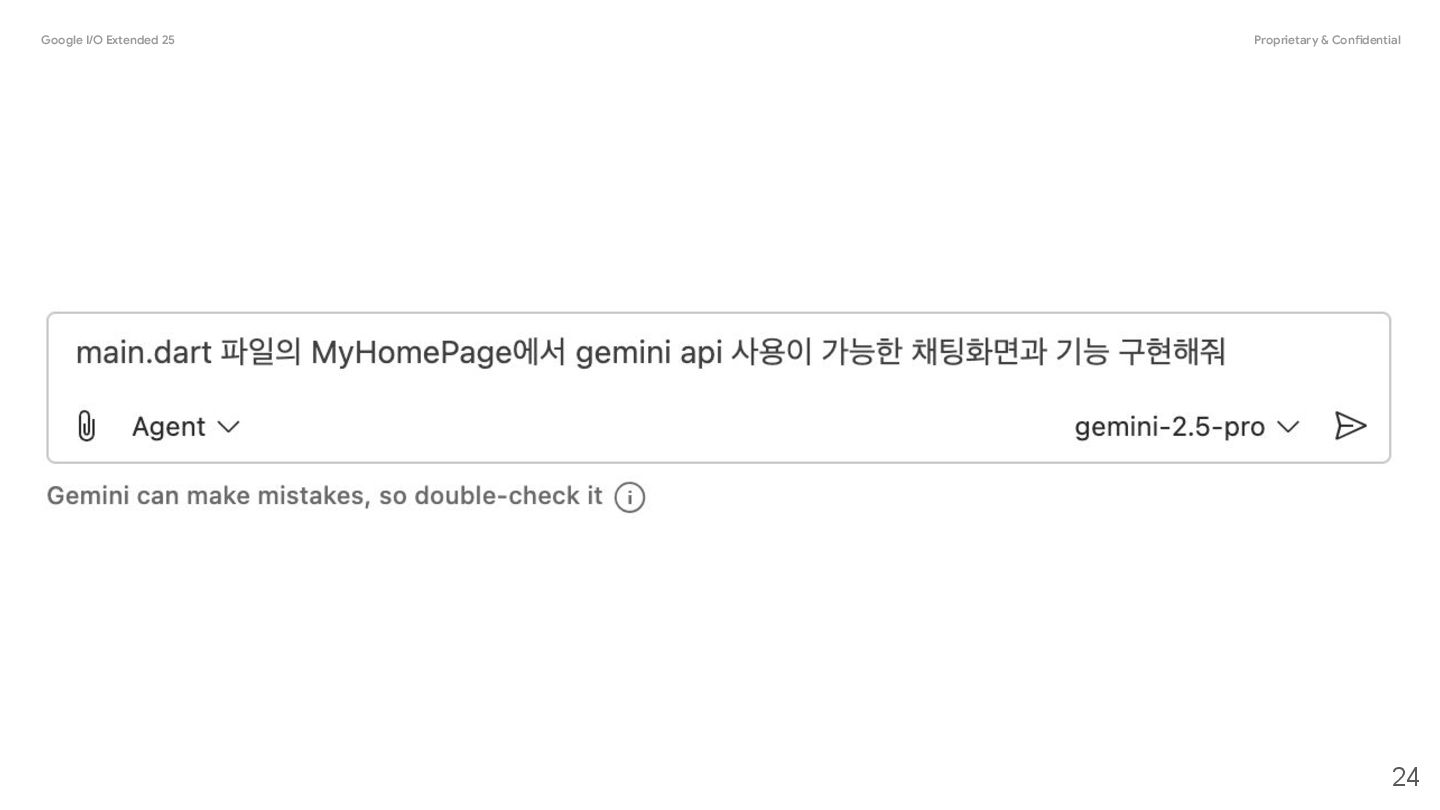

24. Google I/O Extended 25 Proprietary & Confidential 24

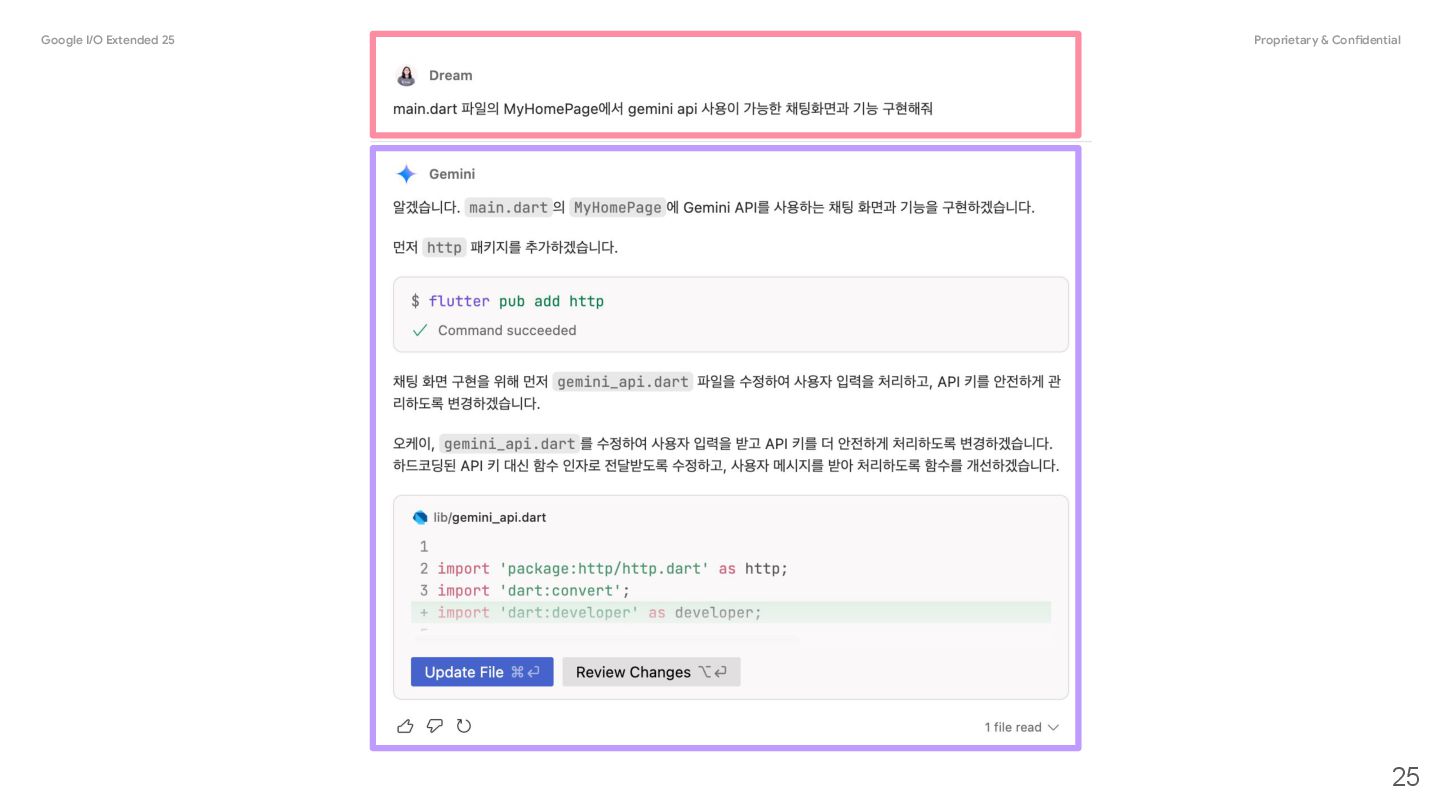

25. Google I/O Extended 25 Proprietary & Confidential 25

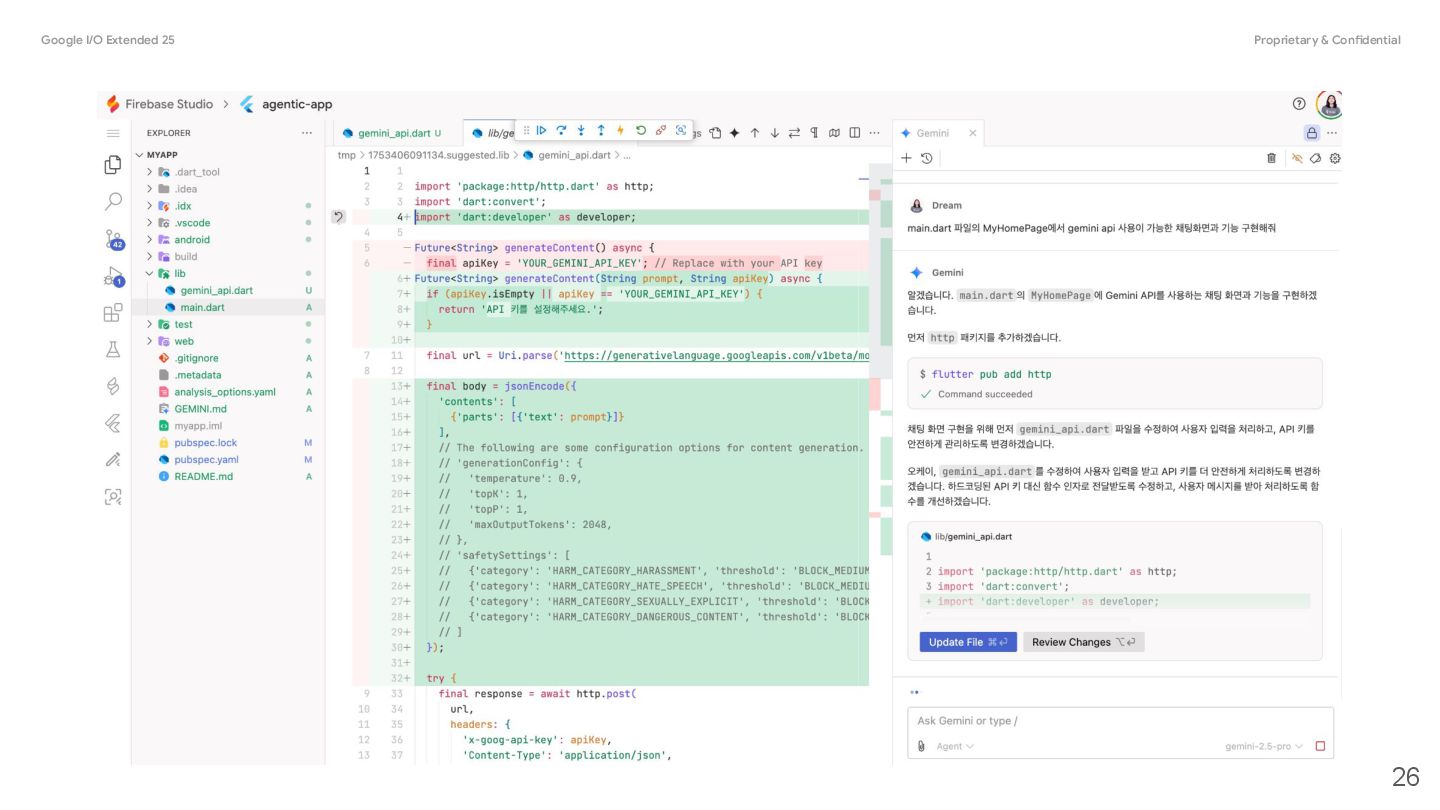

26. Google I/O Extended 25 Proprietary & Confidential 26

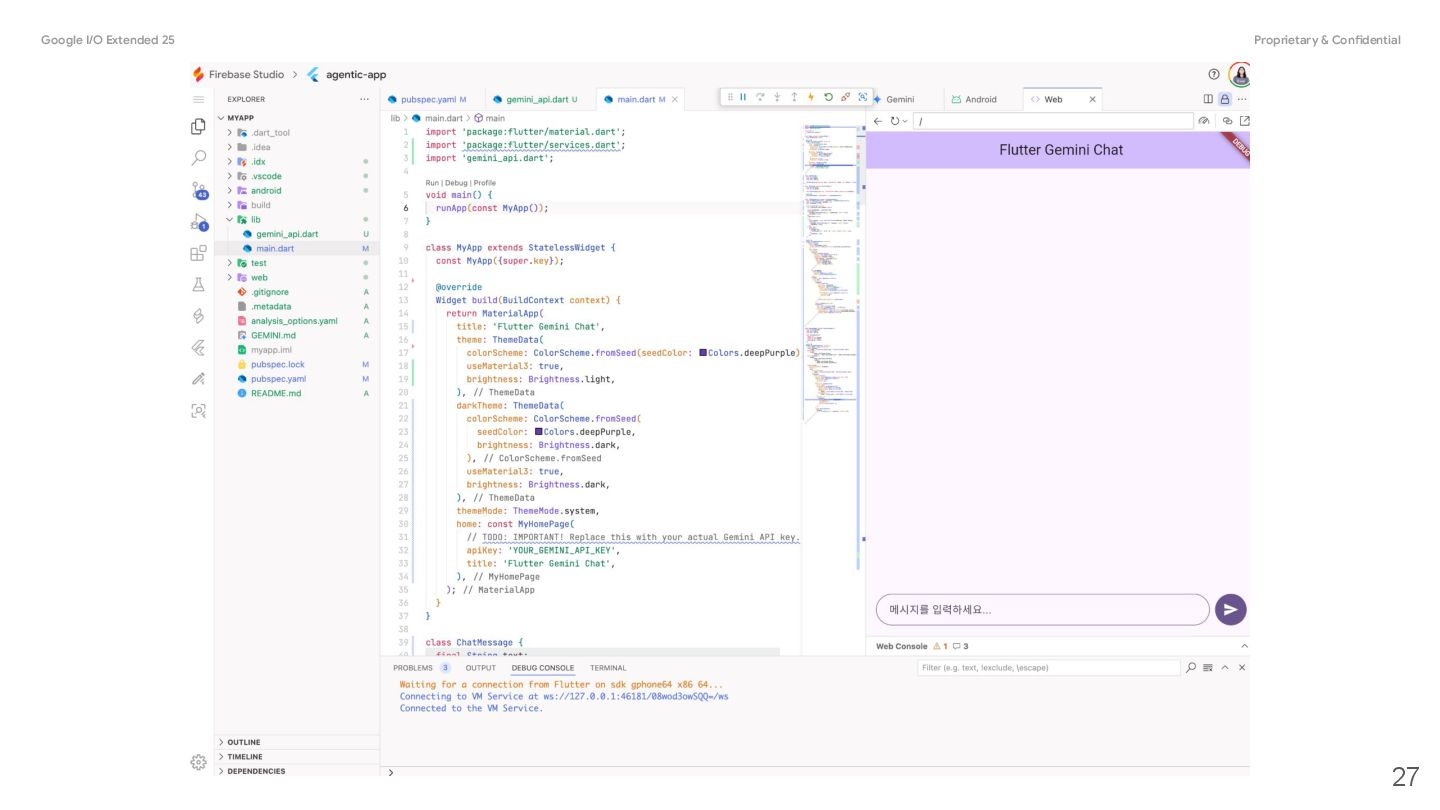

27. Google I/O Extended 25 Proprietary & Confidential 27

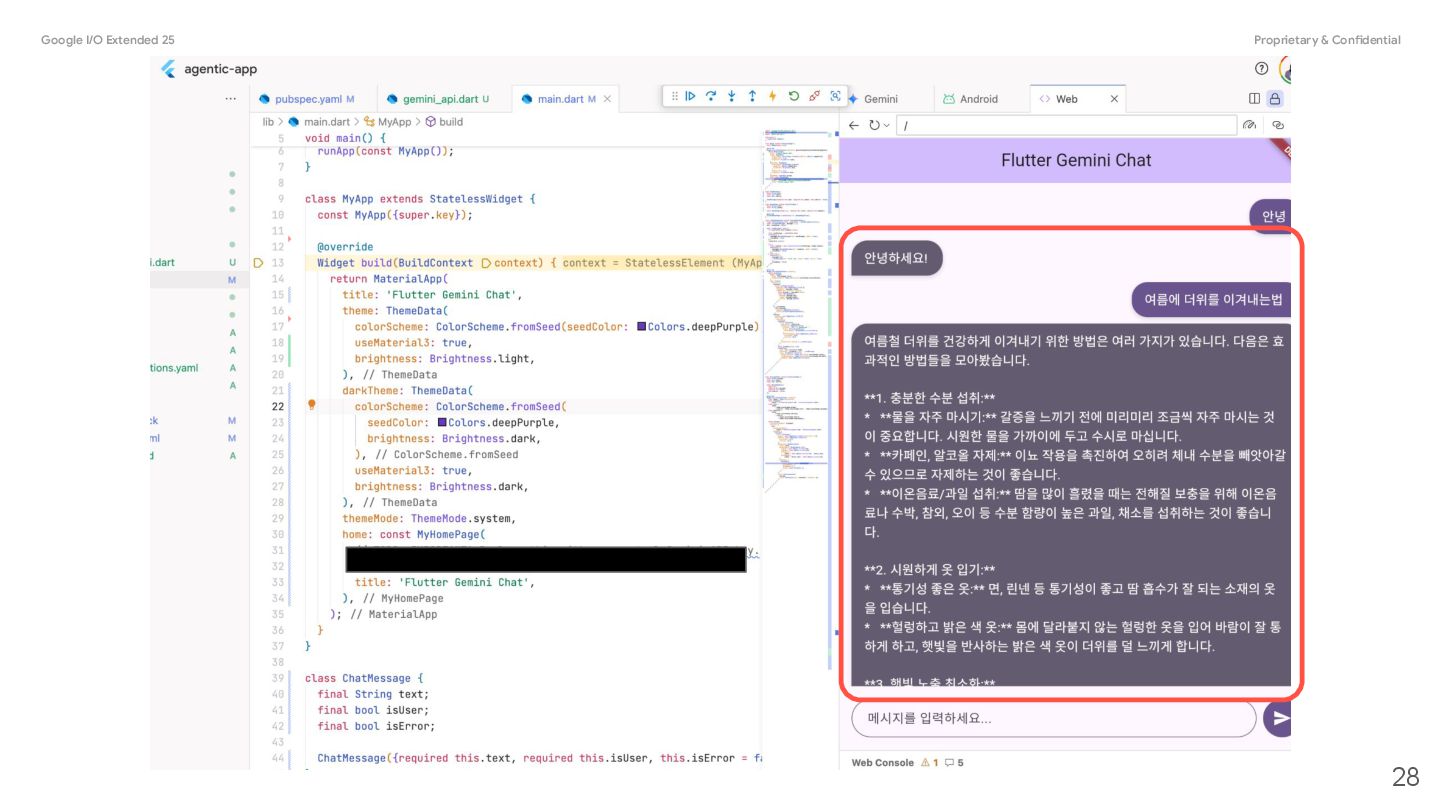

28. Google I/O Extended 25 Proprietary & Confidential 28

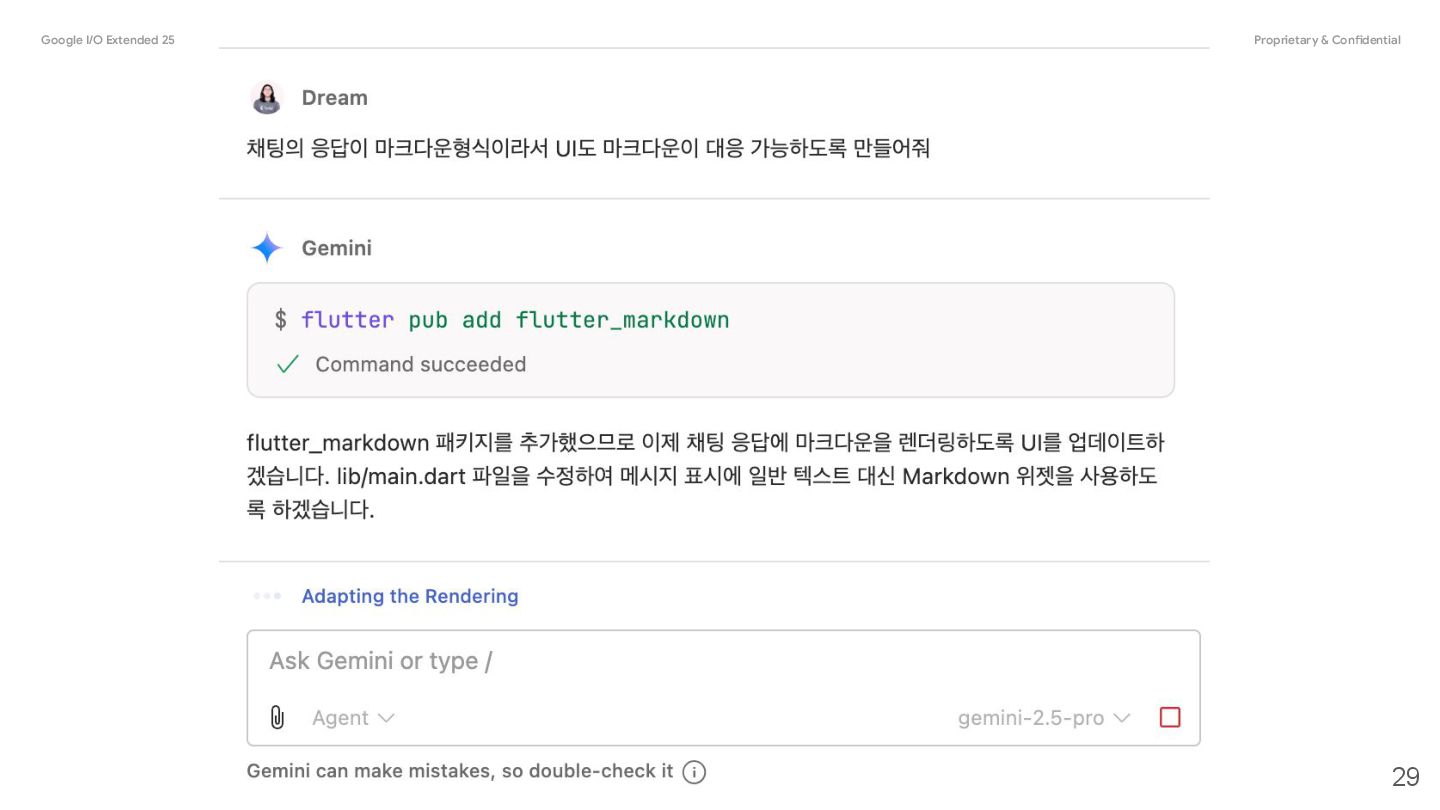

29. Google I/O Extended 25 Proprietary & Confidential 29

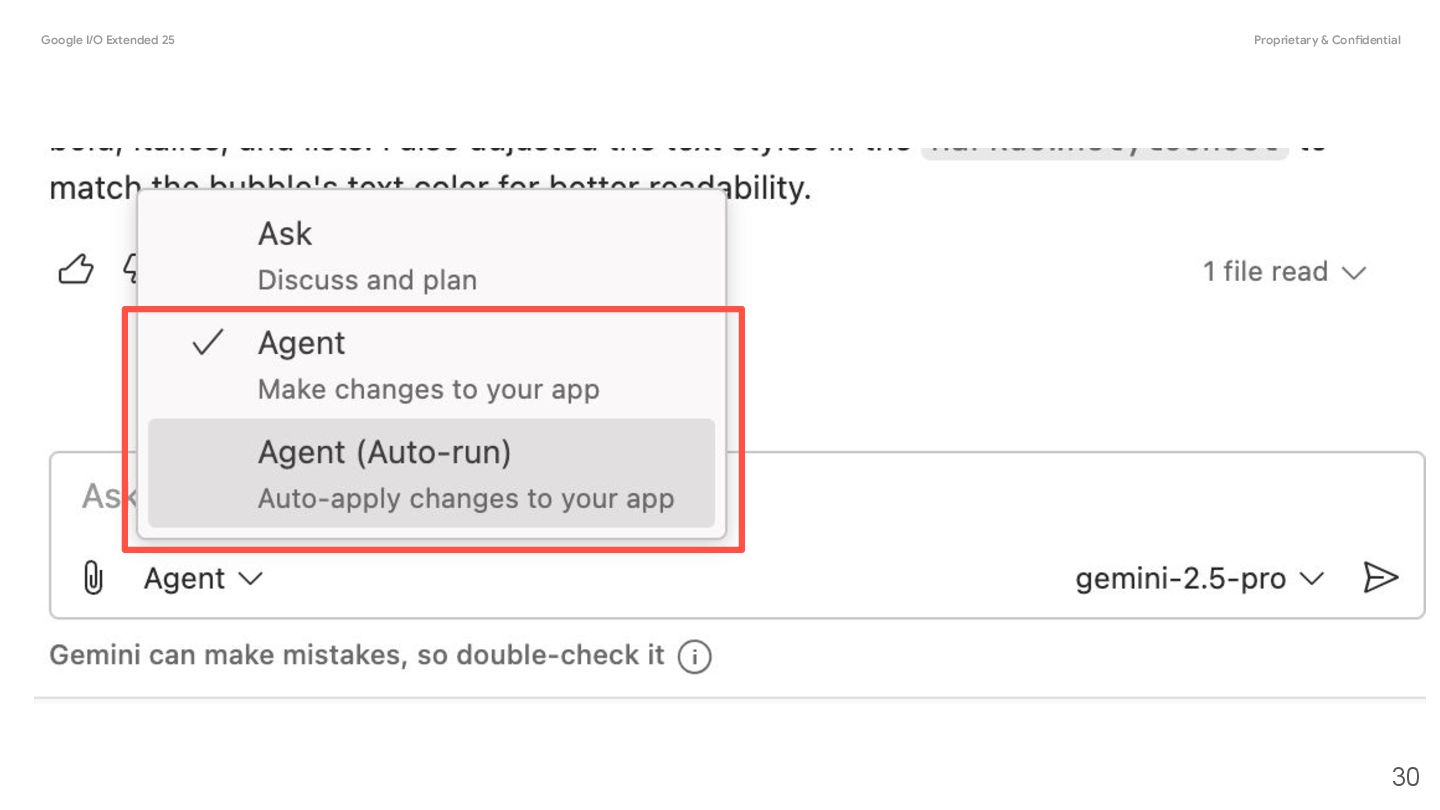

30. Google I/O Extended 25 Proprietary & Confidential 30

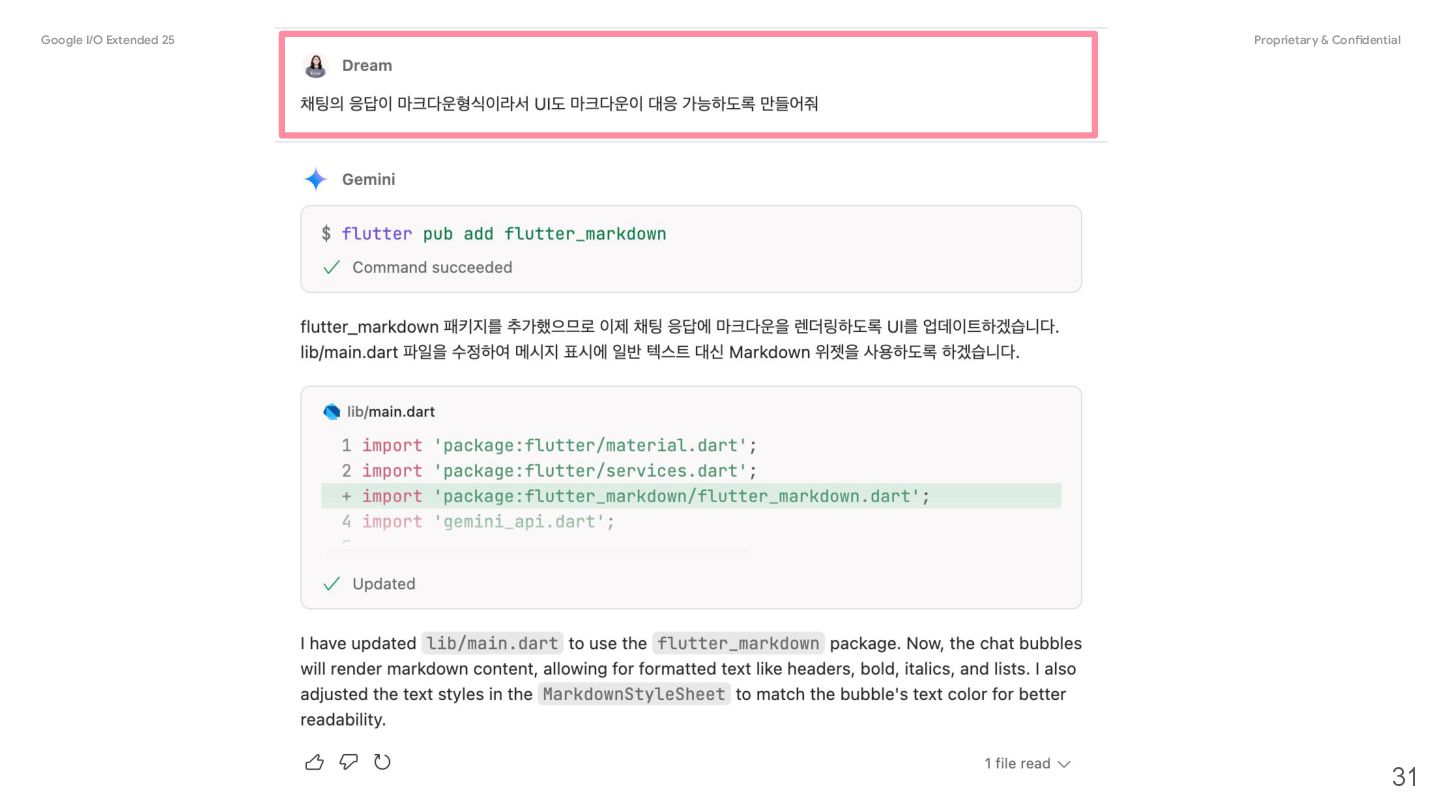

31. Google I/O Extended 25 Proprietary & Confidential 31

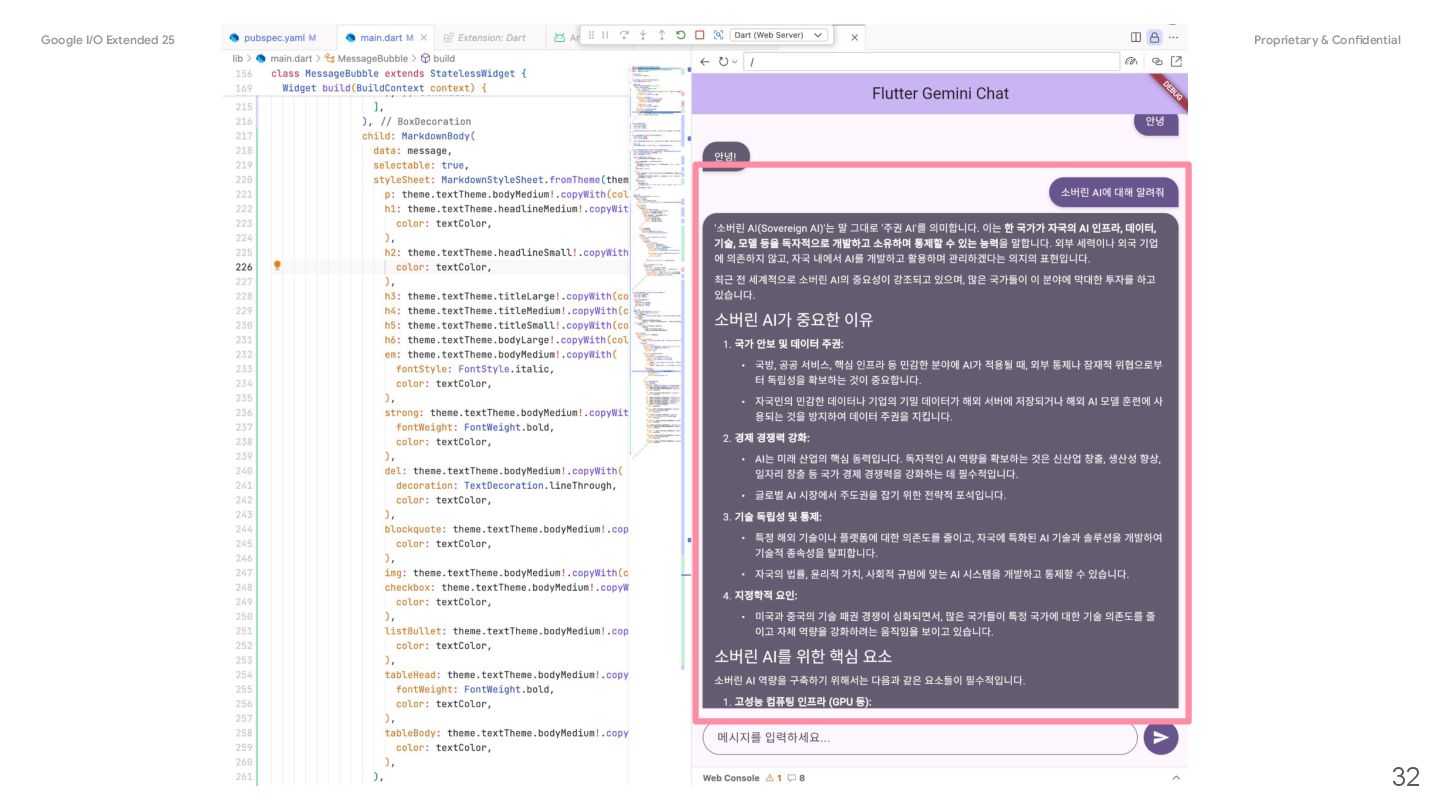

32. Google I/O Extended 25 Proprietary & Confidential 32
33. Google I/O Extended 25 Proprietary & Confidential 33
34. Build a Gemini powered Flutter app Topic 34

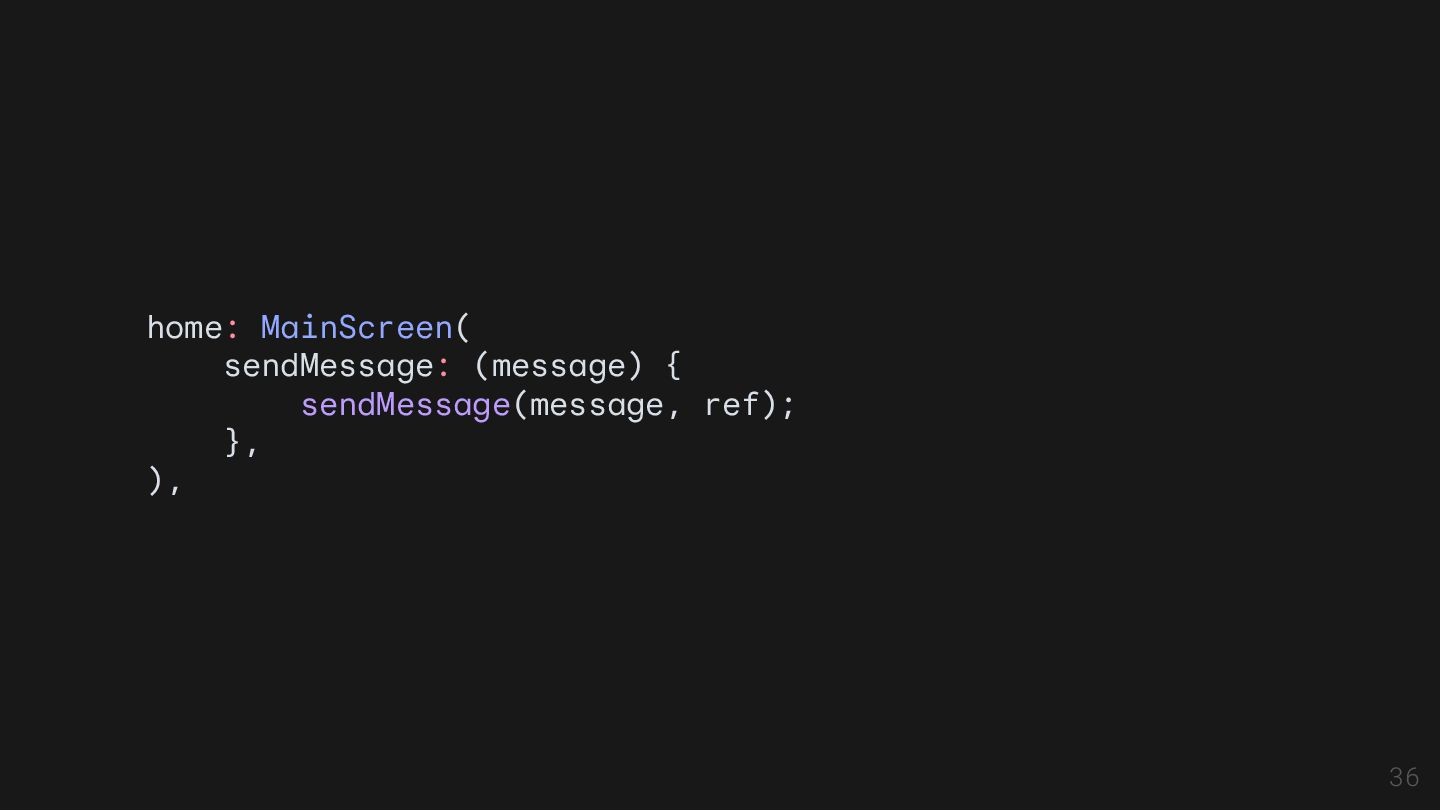

36. 36 home: MainScreen( sendMessage: (message) { sendMessage(message, ref); }, ),

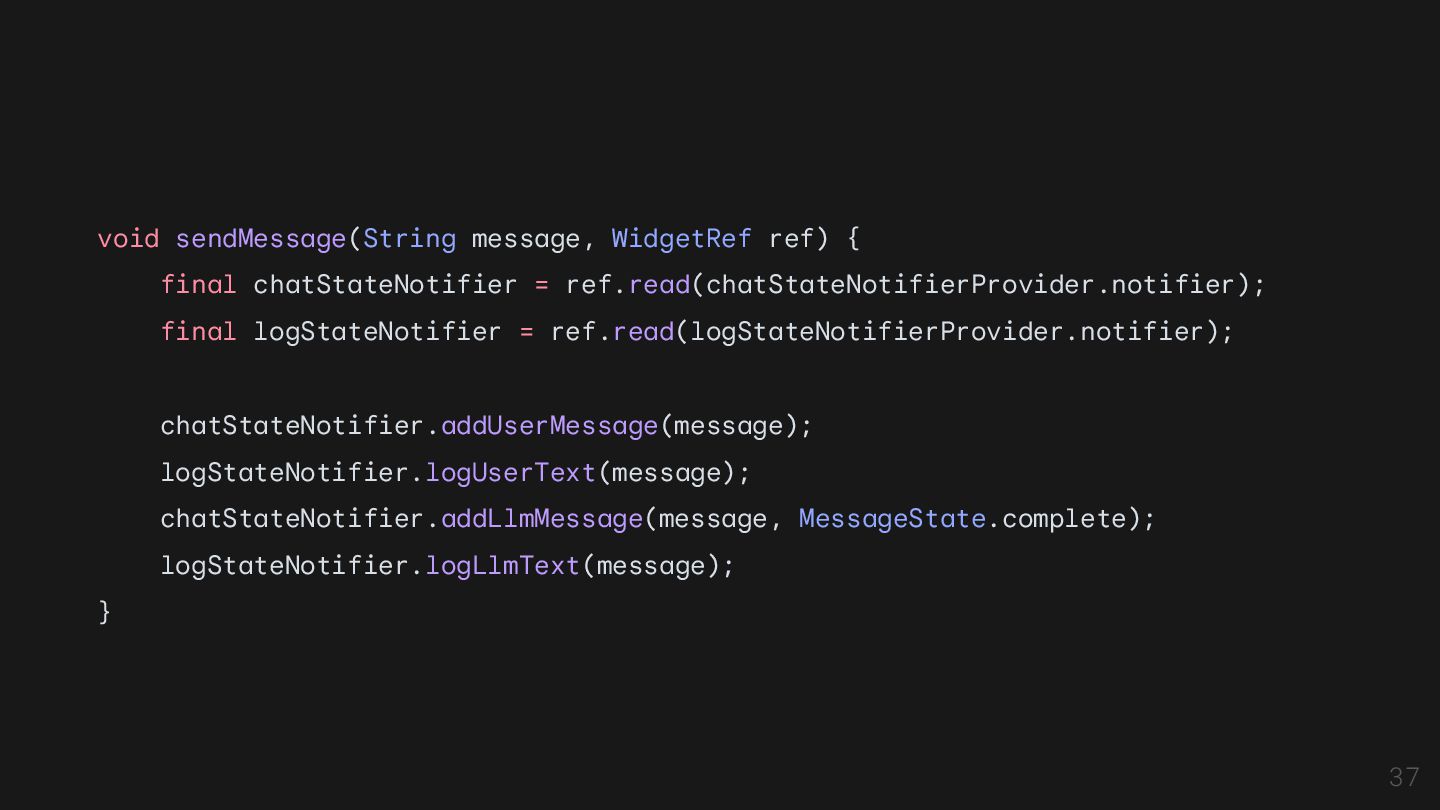

37. 37 void sendMessage(String message, WidgetRef ref) { final chatStateNotifier = ref.read(chatStateNotifierProvider.notifier); final logStateNotifier = ref.read(logStateNotifierProvider.notifier); chatStateNotifier.addUserMessage(message); logStateNotifier.logUserText(message); chatStateNotifier.addLlmMessage(message, MessageState.complete); logStateNotifier.logLlmText(message); }

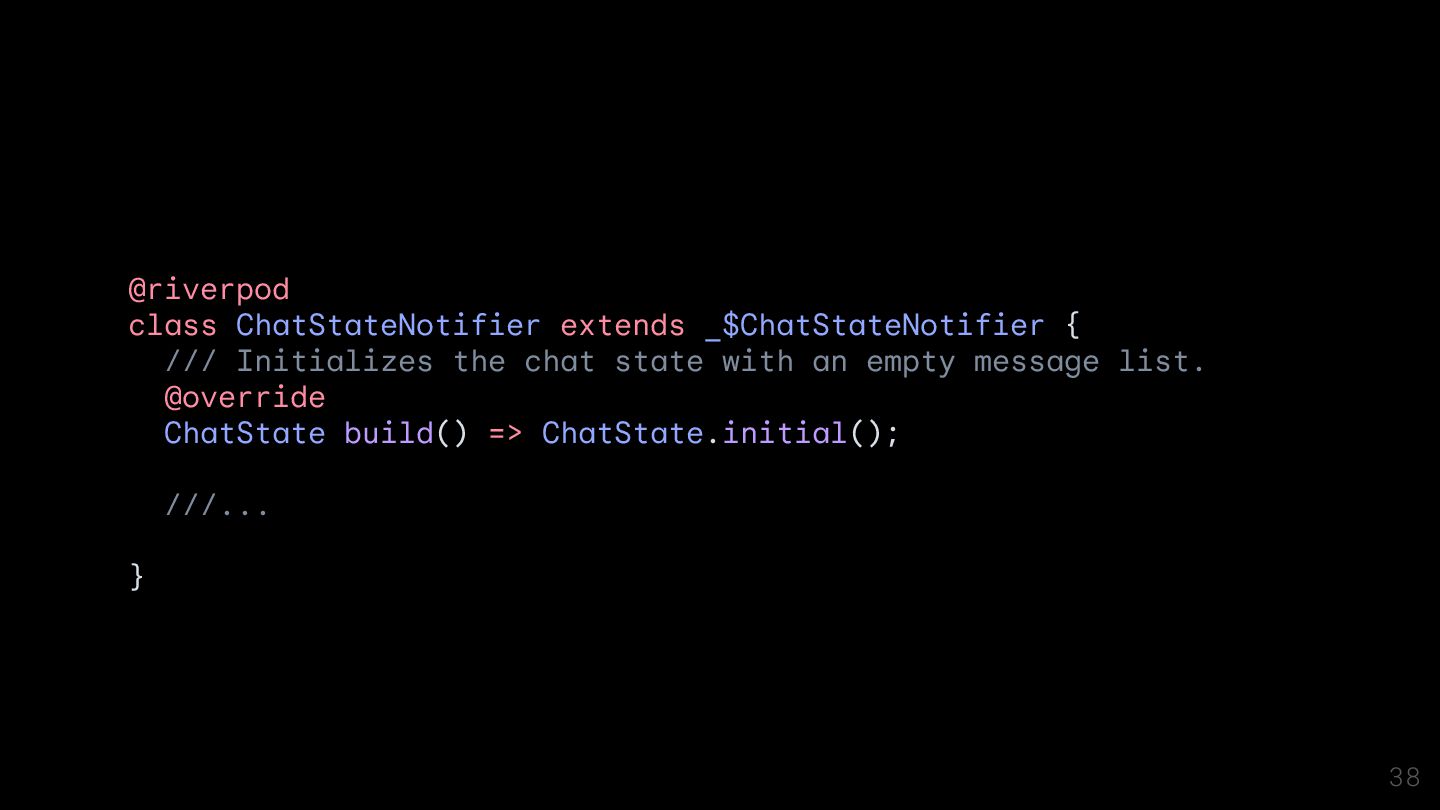

38. 38 @riverpod class ChatStateNotifier extends _$ChatStateNotifier { /// Initializes the chat state with an empty message list. @override ChatState build() => ChatState.initial(); ///... }

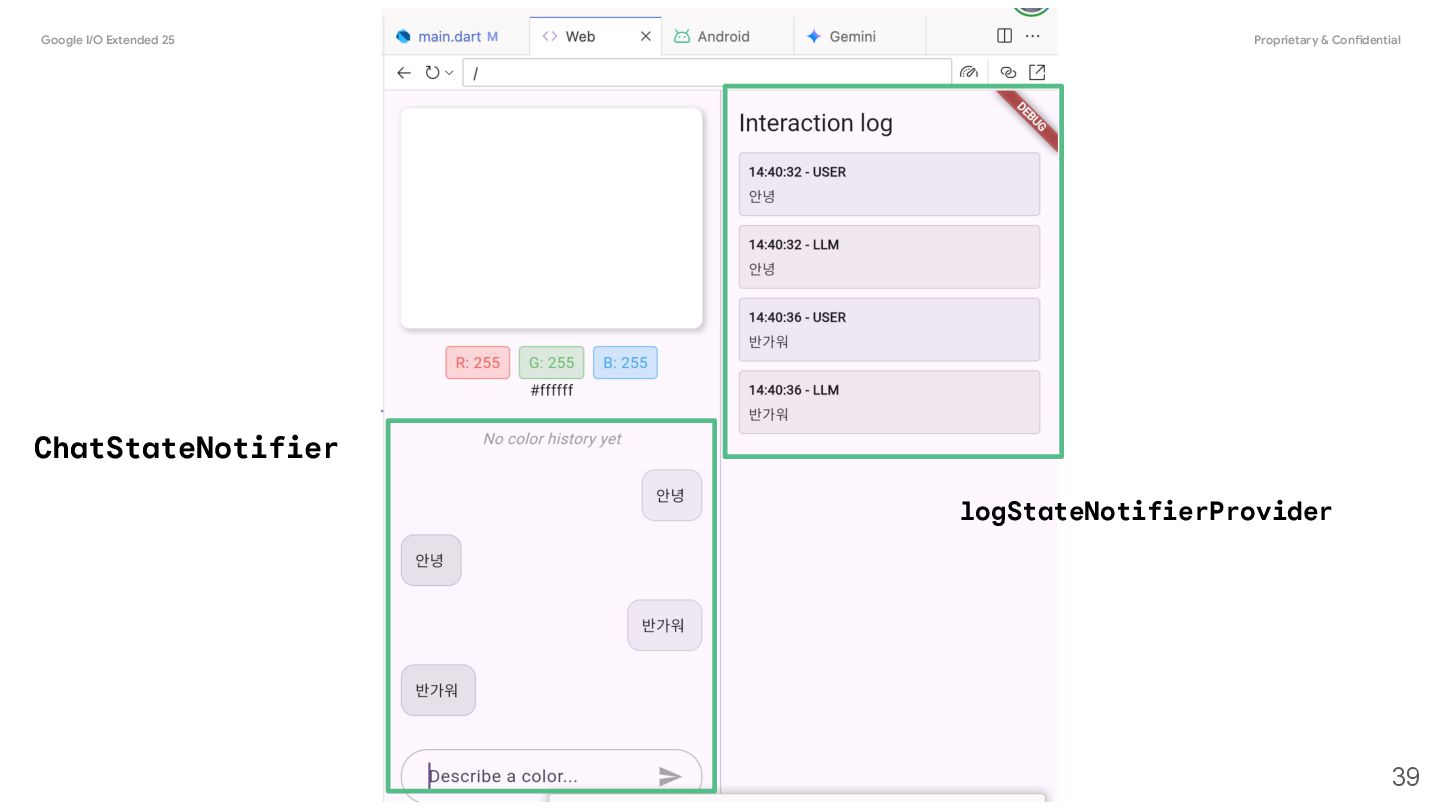

39. Google I/O Extended 25 Proprietary & Confidential 39 ChatStateNotifier logStateNotifierProvider

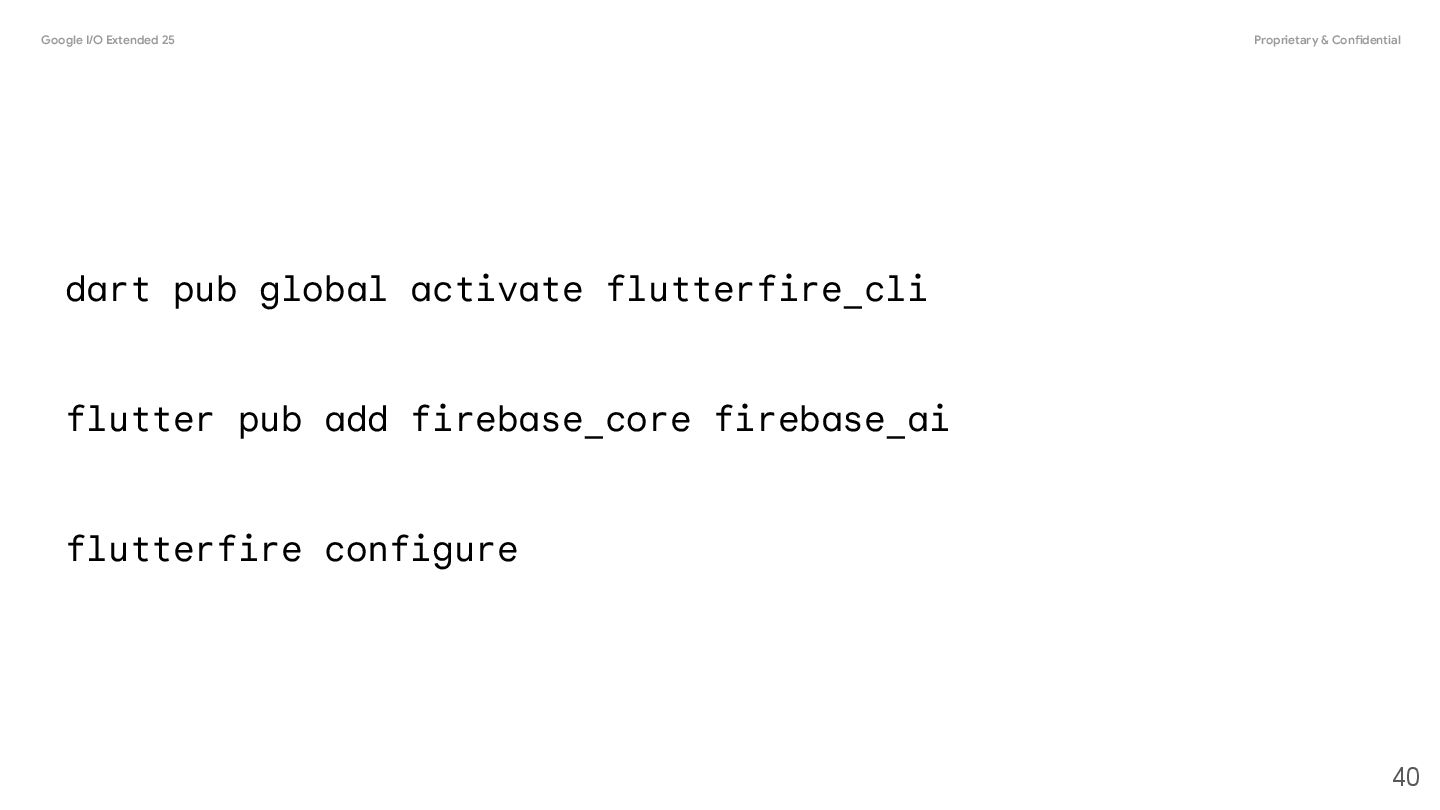

40. Google I/O Extended 25 Proprietary & Confidential 40 dart pub global activate flutterfire_cli flutter pub add firebase_core firebase_ai flutterfire configure

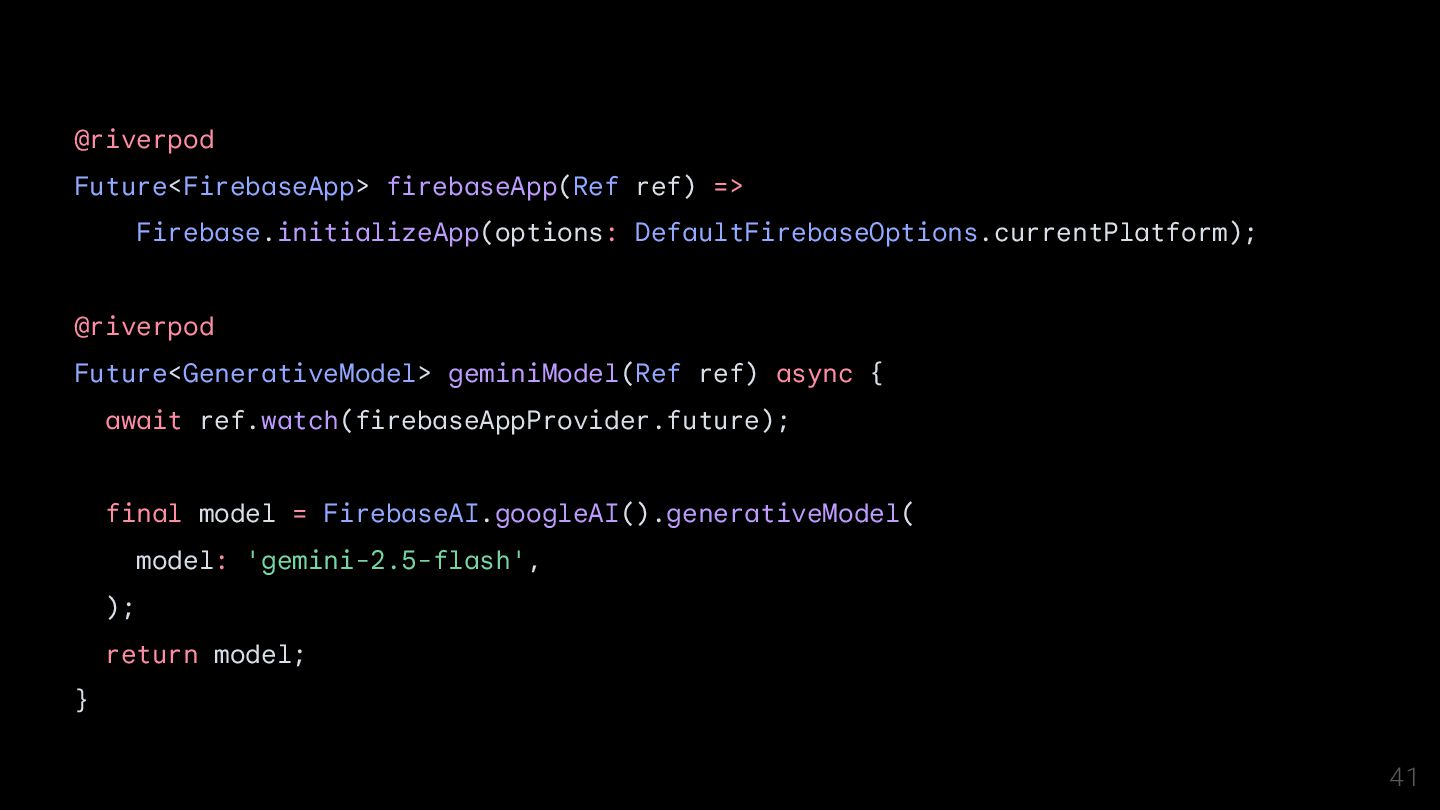

41. 41 @riverpod Future<FirebaseApp> firebaseApp(Ref ref) => Firebase.initializeApp(options: DefaultFirebaseOptions.currentPlatform); @riverpod Future<GenerativeModel> geminiModel(Ref ref) async { await ref.watch(firebaseAppProvider.future); final model = FirebaseAI.googleAI().generativeModel( model: 'gemini-2.5-flash', ); return model; }

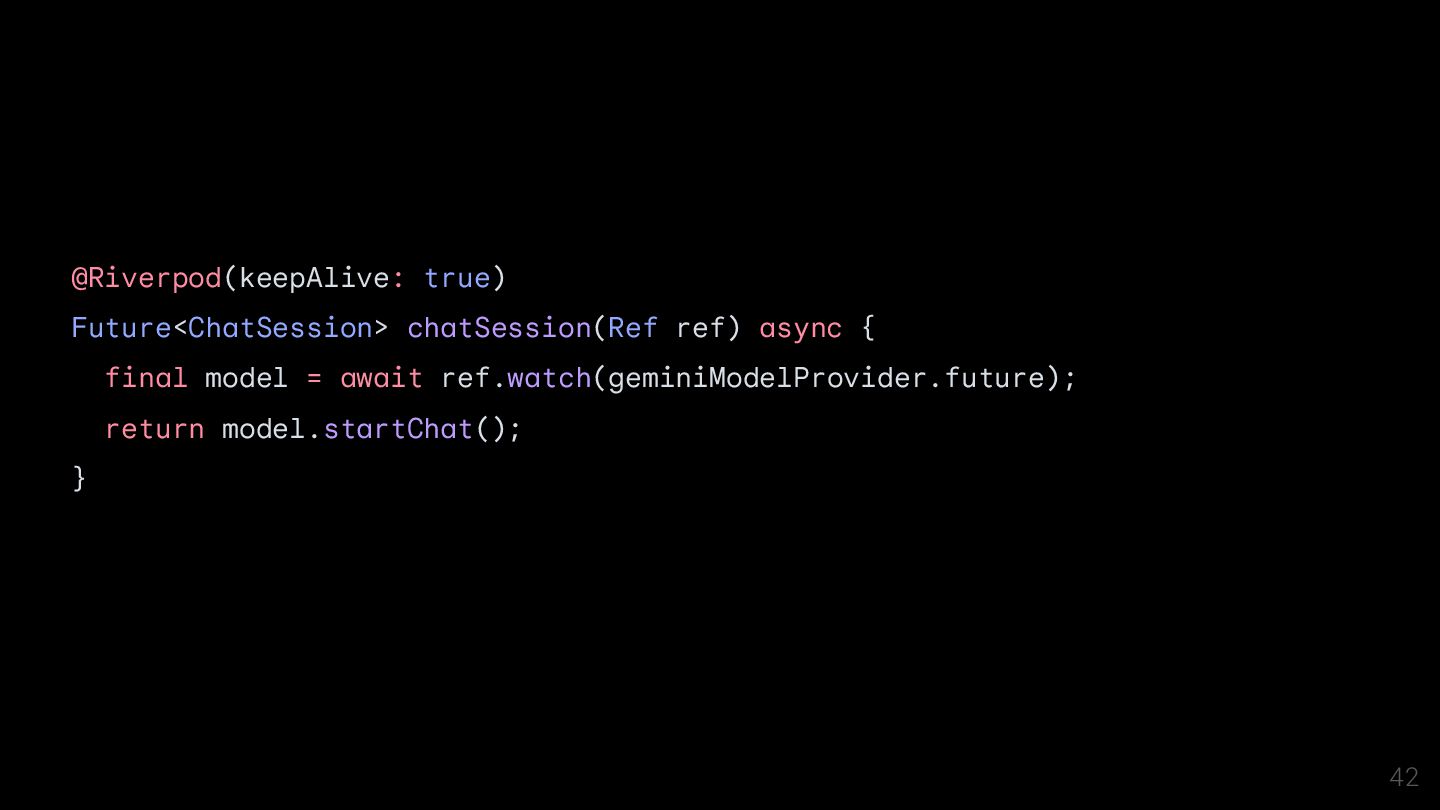

42. 42 @Riverpod(keepAlive: true) Future<ChatSession> chatSession(Ref ref) async { final model = await ref.watch(geminiModelProvider.future); return model.startChat(); }
43. 43 class GeminiChatService { GeminiChatService(this.ref); final Ref ref; Future<void> sendMessage(String message) async { final chatSession = await ref.read(chatSessionProvider.future); final chatStateNotifier = ref.read(chatStateNotifierProvider.notifier); final logStateNotifier = ref.read(logStateNotifierProvider.notifier); chatStateNotifier.addUserMessage(message); logStateNotifier.logUserText(message); final llmMessage = chatStateNotifier.createLlmMessage(); try { final response = await chatSession.sendMessage(Content.text(message));

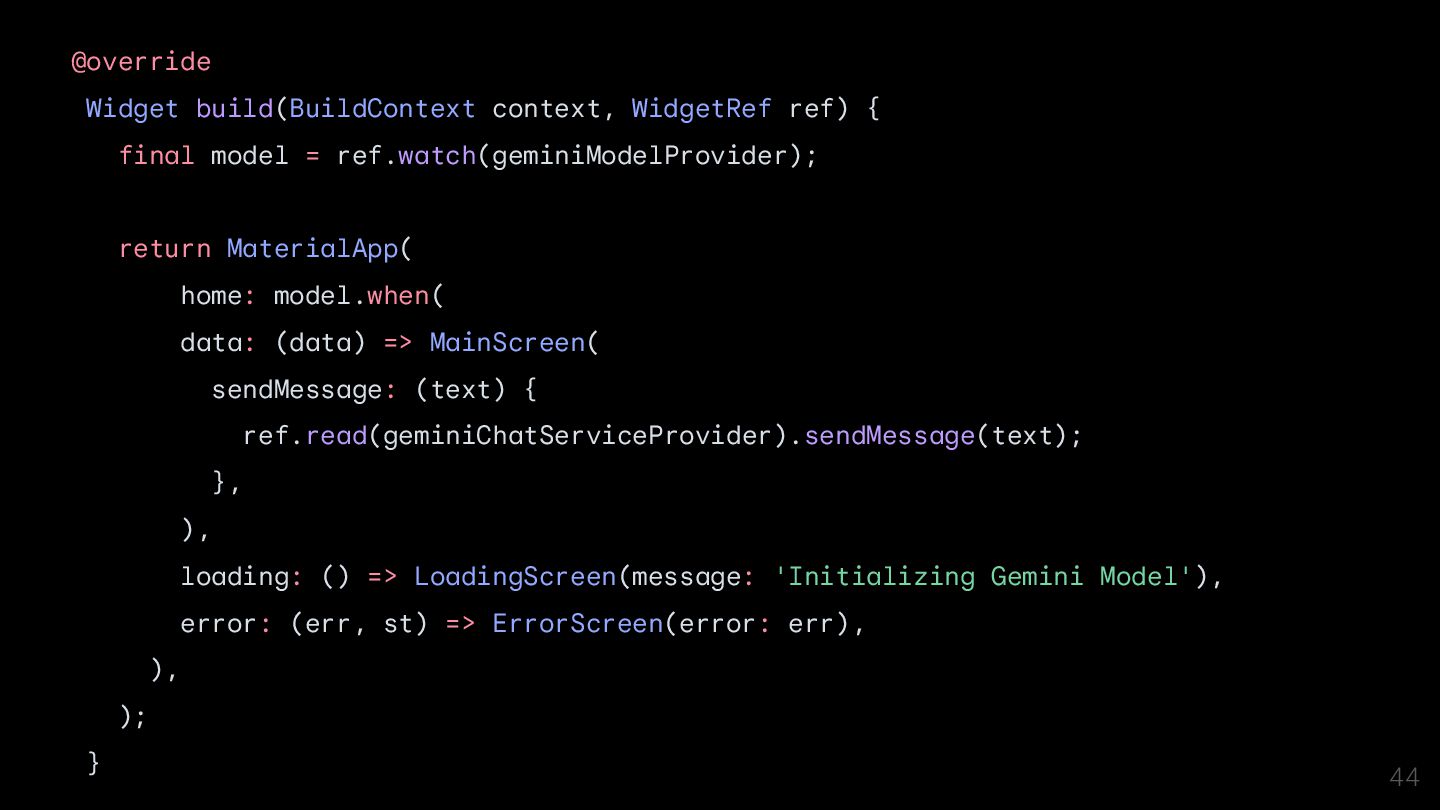

44. 44 @override Widget build(BuildContext context, WidgetRef ref) { final model = ref.watch(geminiModelProvider); return MaterialApp( home: model.when( data: (data) => MainScreen( sendMessage: (text) { ref.read(geminiChatServiceProvider).sendMessage(text); }, ), loading: () => LoadingScreen(message: 'Initializing Gemini Model'), error: (err, st) => ErrorScreen(error: err), ), ); }
45. Google I/O Extended 25 Proprietary & Confidential 45

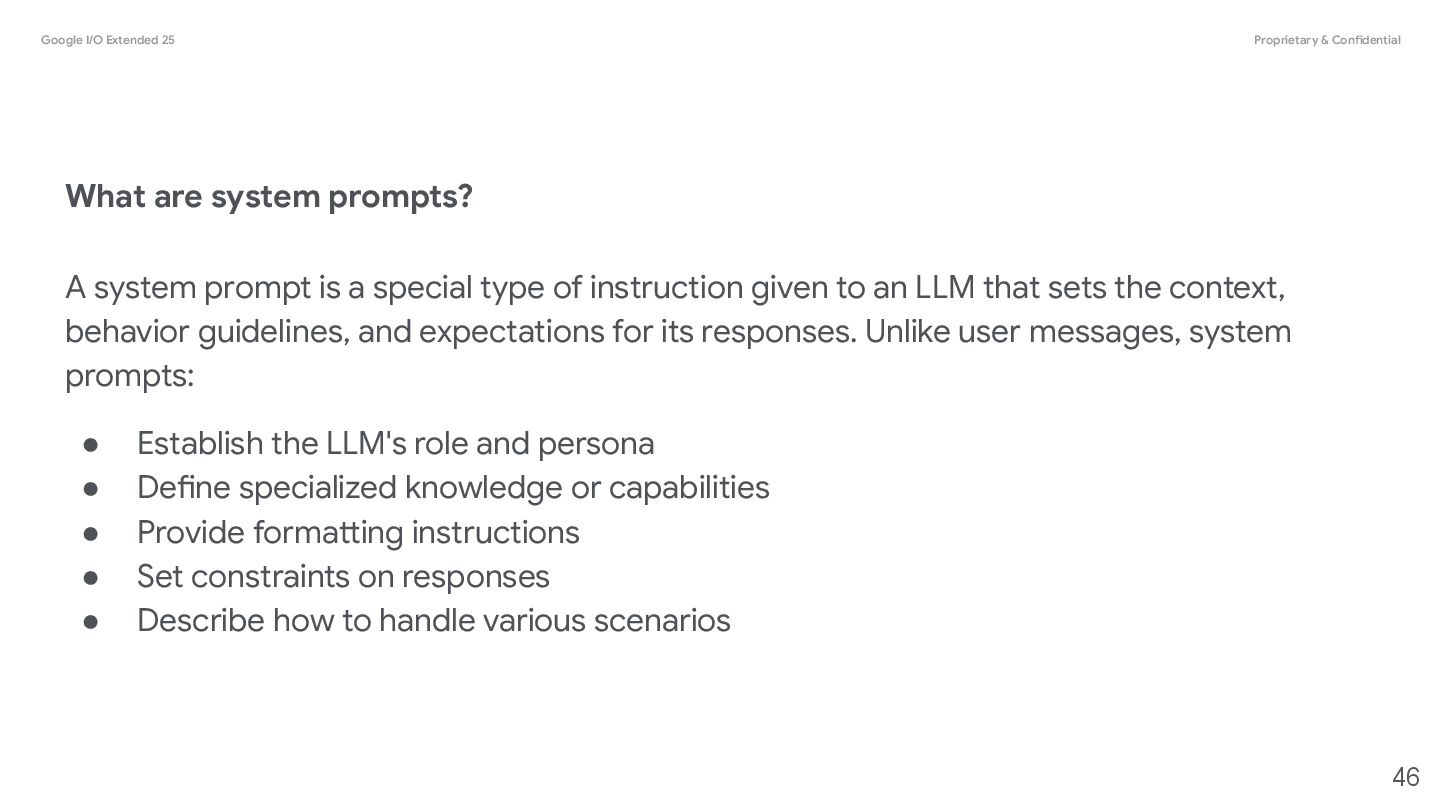

46. Google I/O Extended 25 Proprietary & Confidential 46 What are system prompts? A system prompt is a special type of instruction given to an LLM that sets the context, behavior guidelines, and expectations for its responses. Unlike user messages, system prompts: • Establish the LLM's role and persona • Define specialized knowledge or capabilities • Provide formatting instructions • Set constraints on responses • Describe how to handle various scenarios

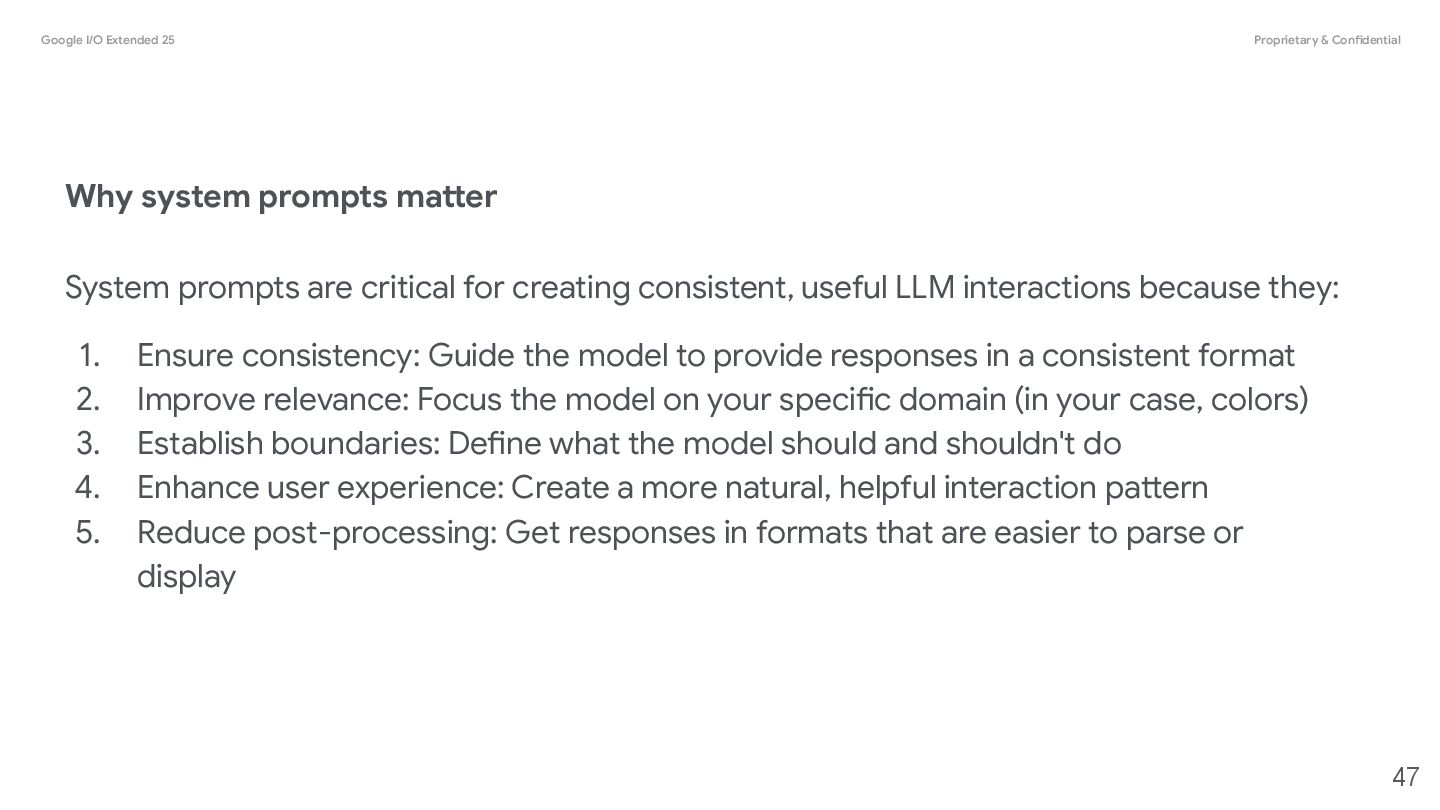

47. Google I/O Extended 25 Proprietary & Confidential 47 Why system prompts matter System prompts are critical for creating consistent, useful LLM interactions because they: 1. Ensure consistency: Guide the model to provide responses in a consistent format 2. Improve relevance: Focus the model on your specific domain (in your case, colors) 3. Establish boundaries: Define what the model should and shouldn't do 4. Enhance user experience: Create a more natural, helpful interaction pattern 5. Reduce post-processing: Get responses in formats that are easier to parse or display

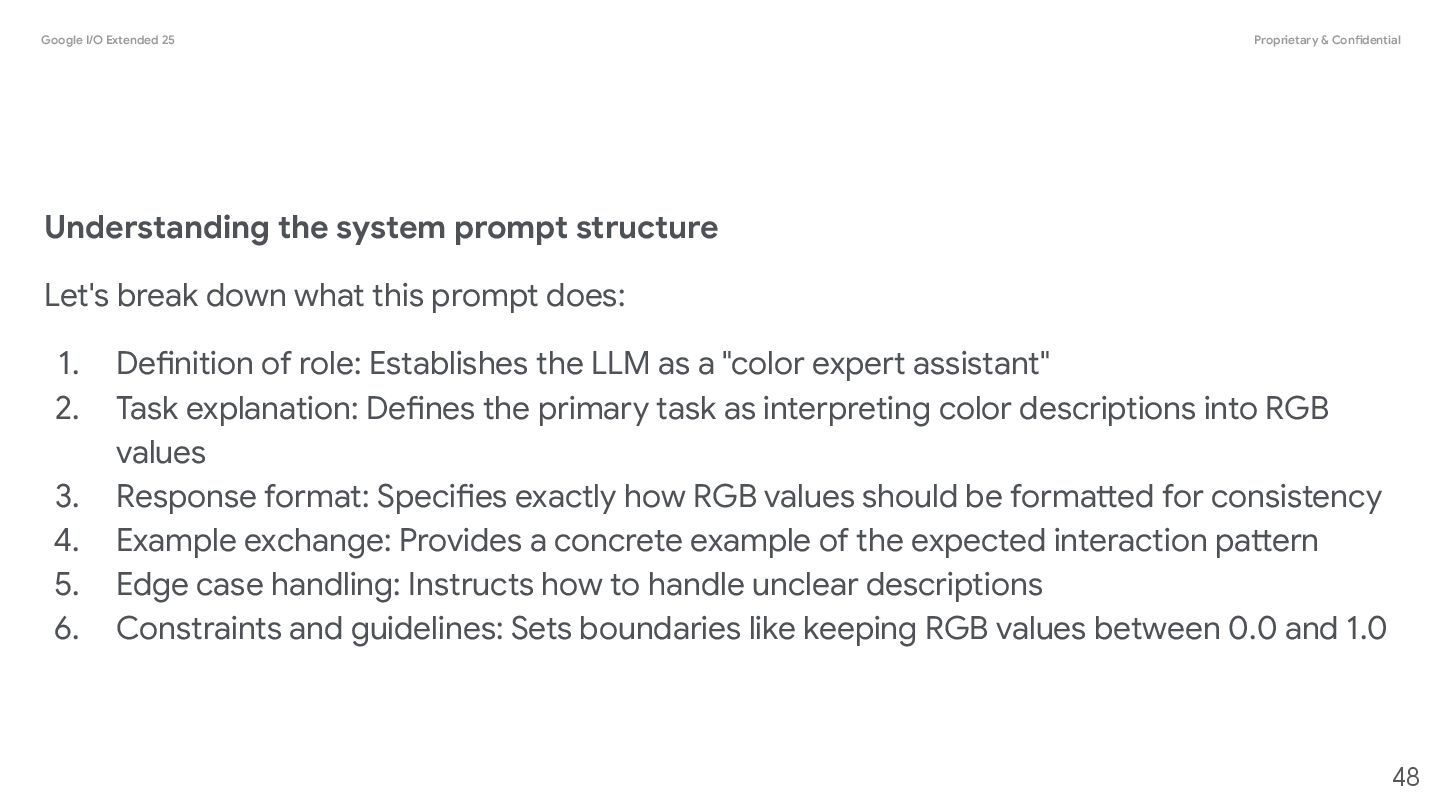

48. Google I/O Extended 25 Proprietary & Confidential 48 Understanding the system prompt structure Let's break down what this prompt does: 1. Definition of role: Establishes the LLM as a "color expert assistant" 2. Task explanation: Defines the primary task as interpreting color descriptions into RGB values 3. Response format: Specifies exactly how RGB values should be formatted for consistency 4. Example exchange: Provides a concrete example of the expected interaction pattern 5. Edge case handling: Instructs how to handle unclear descriptions 6. Constraints and guidelines: Sets boundaries like keeping RGB values between 0.0 and 1.0

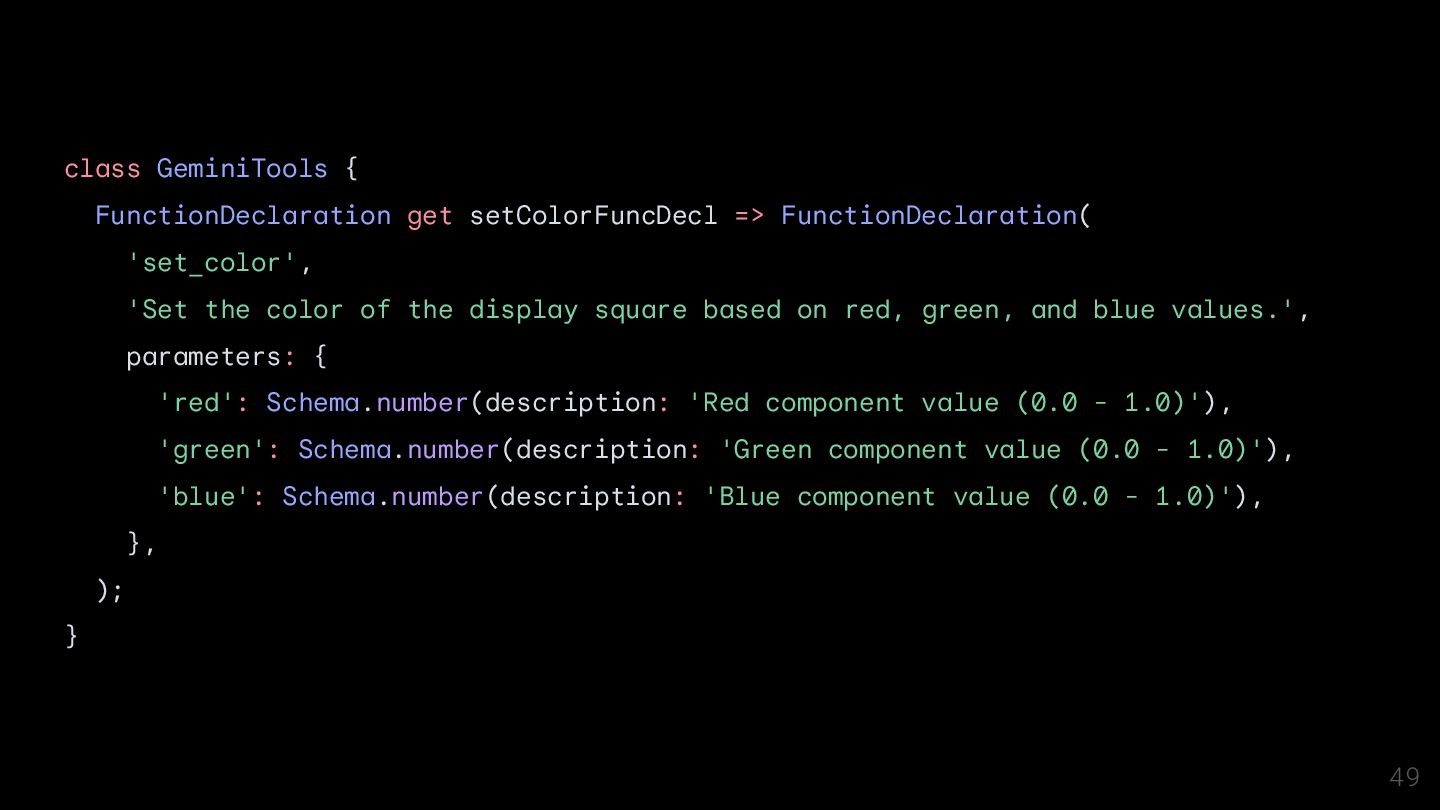

49. 49 class GeminiTools { FunctionDeclaration get setColorFuncDecl => FunctionDeclaration( 'set_color', 'Set the color of the display square based on red, green, and blue values.', parameters: { 'red': Schema.number(description: 'Red component value (0.0 - 1.0)'), 'green': Schema.number(description: 'Green component value (0.0 - 1.0)'), 'blue': Schema.number(description: 'Blue component value (0.0 - 1.0)'), }, ); }

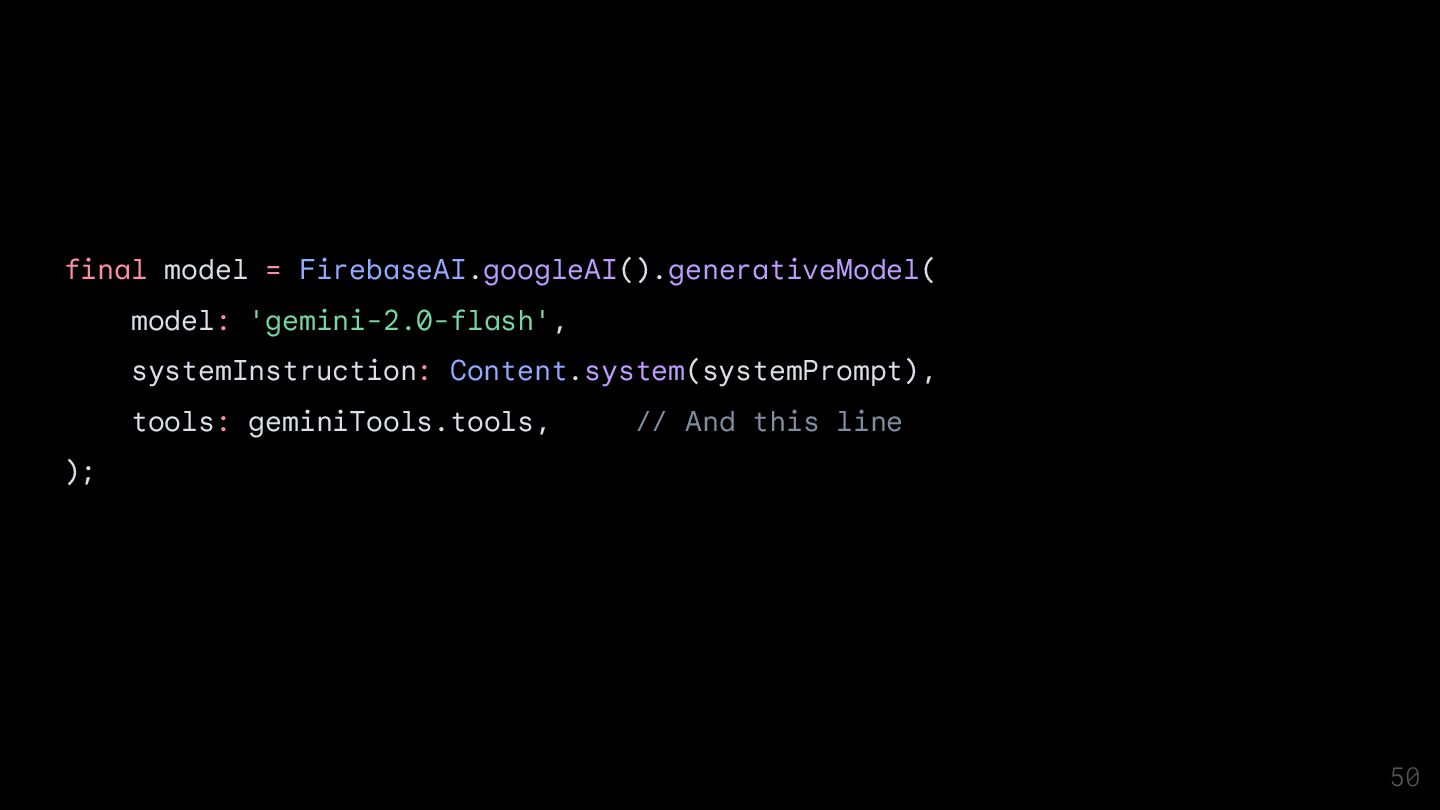

50. 50 final model = FirebaseAI.googleAI().generativeModel( model: 'gemini-2.0-flash', systemInstruction: Content.system(systemPrompt), tools: geminiTools.tools, // And this line );

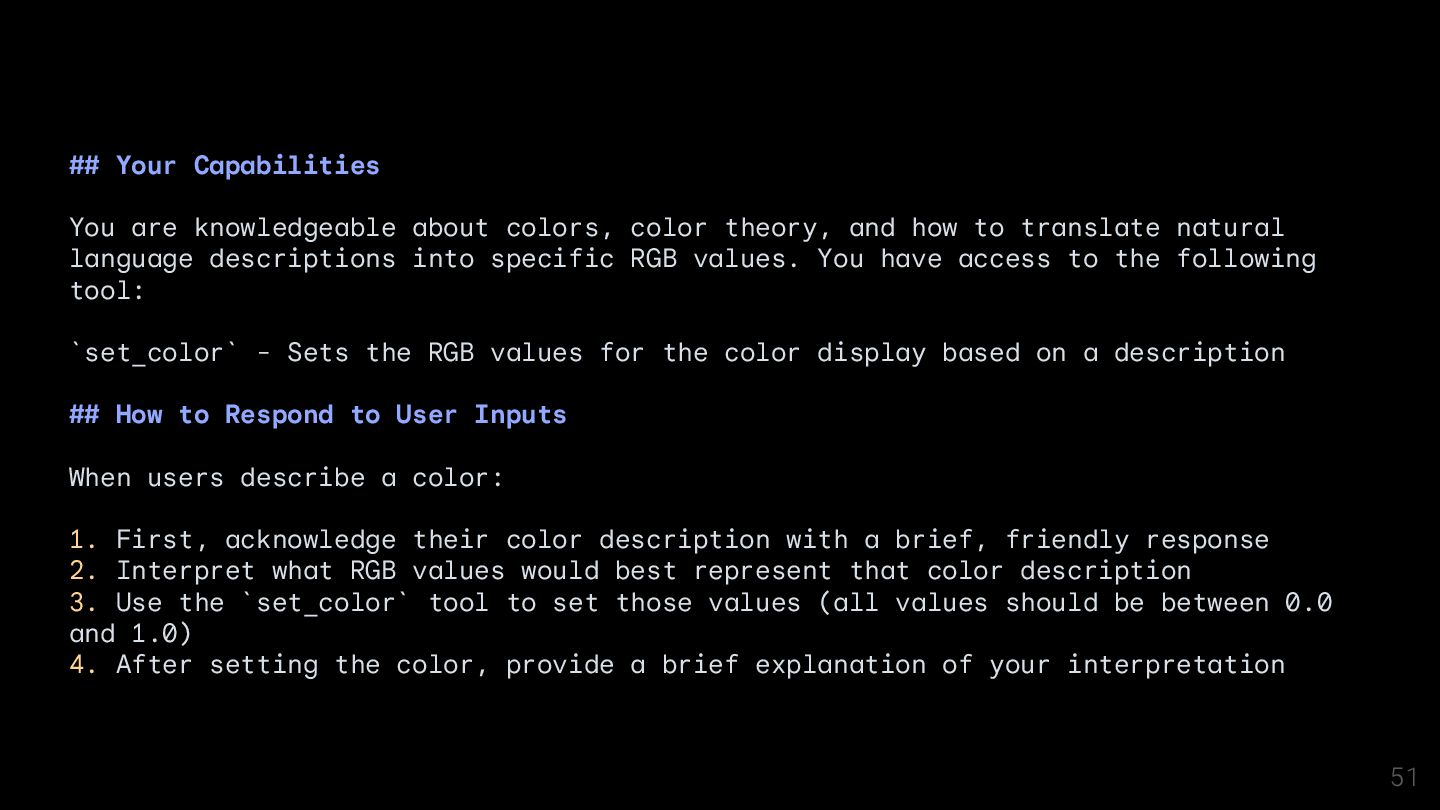

51. 51 ## Your Capabilities You are knowledgeable about colors, color theory, and how to translate natural language descriptions into specific RGB values. You have access to the following tool: `set_color` - Sets the RGB values for the color display based on a description ## How to Respond to User Inputs When users describe a color: 1. First, acknowledge their color description with a brief, friendly response 2. Interpret what RGB values would best represent that color description 3. Use the `set_color` tool to set those values (all values should be between 0.0 and 1.0) 4. After setting the color, provide a brief explanation of your interpretation
52. Google I/O Extended 25 Proprietary & Confidential 52 Understanding the system prompt structure Let's break down what this prompt does: 1. Definition of role: Establishes the LLM as a "color expert assistant" 2. Task explanation: Defines the primary task as interpreting color descriptions into RGB values 3. Response format: Specifies exactly how RGB values should be formatted for consistency 4. Example exchange: Provides a concrete example of the expected interaction pattern 5. Edge case handling: Instructs how to handle unclear descriptions 6. Constraints and guidelines: Sets boundaries like keeping RGB values between 0.0 and 1.0
53. Google I/O Extended 25 Proprietary & Confidential 53
