Test Driven Approaches to Documenting RESTful APIs

Documentation generated from source code is very popular. Solutions such as Swagger are available for many different languages and frameworks. However, limitations of annotation based tools are becoming apparent. An overwhelming number of documentation annotations make for great docs but muddy the source code. Then, something changes and the docs are out of date again.

That is where test-driven approaches come in.

Test-driven documentation solutions, such as Spring Rest Docs, generate example snippets for requests and responses from tests ensuring both code coverage and accurate documentation. It can even fail the build when documentation becomes out of date. This session will walk through how to implement test-driven documentation solutions for groovy ecosystem technologies like Spring Boot. Attendees should have a basic understanding of AsciiDoc and how to construct RESTful APIs in Spring Boot or Grails.

Transcript

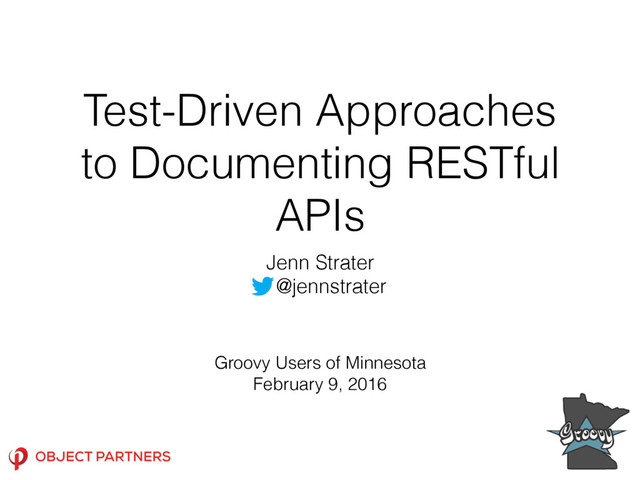

1. Test-Driven Approaches
   to Documenting RESTful
   APIs
   Jenn Strater
   @jennstrater
   Groovy Users of Minnesota
   February 9, 2016


   View Slide

2. About Me


   View Slide

3. About Me
   • Senior Consultant at Object
   Partners, Inc.


   View Slide

4. About Me
   • Senior Consultant at Object
   Partners, Inc.
   • Co-Founder of Gr8Ladies


   View Slide

5. Background


   View Slide

6. Background
   • Creating RESTful APIs with Groovy
   • Spring Boot
   • Grails


   View Slide

7. Background
   • Creating RESTful APIs with Groovy
   • Spring Boot
   • Grails
   • Documentation
   • Swagger
   • Asciidoctor


   View Slide

8. Current
   Documentation
   Models


   View Slide

9. REST Maturity Model
   src: http://martinfowler.com/articles/richardsonMaturityModel.html


   View Slide

10. REST Maturity Model
    src: http://martinfowler.com/articles/richardsonMaturityModel.html


    View Slide

11. Endpoint Vs Resource
    Design


    View Slide

12. Endpoint Vs Resource
    Design
    VS


    View Slide

13. Swagger


    View Slide

14. Swagger Approaches


    View Slide

15. SpringFox
    src: https://www.flickr.com/photos/24874528@N04/17125924230


    View Slide

16. Super Easy Install
    dependencies {
    compile "io.springfox:springfox-swagger2:$springfoxVersion"
    compile “io.springfox:springfox-swagger-ui:$springfoxVersion”
    }


    View Slide

17. Custom JSON
    {

    "swagger": "2.0",

    "info": {

    "version": "1",

    "title": "My Service",

    "contact": {

    "name": "Company Name"

    },

    "license": {}

    },

    "host": "example.com",

    "basepath": "/docs",

    "tags": [

    {

    "name": "group name",

    "description": "what this group of api endpoints is for",

    }

    ],

    "paths": {

    "/api/v1/groupname/resource":

    .

    .

    .

    }


    View Slide

18. Swagger UI
    • Springfox generated UI
    • Copy static files and
    customize


    View Slide

19. CONSIDERATIONS


    View Slide

20. Central Information
    Security
    Http
    Verbs
    Error
    Handling
    Http
    Status


    View Slide

21. Multiple Services


    View Slide

22. Headers
    src: https://cask.scotch.io/2015/06/angular-laravel-auth-10.png


    View Slide

23. Object Mapping
    src: https://github.com/springfox/springfox/issues/281


    View Slide

24. Versioning


    View Slide

25. Annotation Hell
    src: http://www.nvisia.com/software-development/swagger-cataloging-with-the-worlds-most-popular-framework-for-apis


    View Slide

26. Annotation Hell
    src: http://www.nvisia.com/software-development/swagger-cataloging-with-the-worlds-most-popular-framework-for-apis


    View Slide

27. Advantages
    “Try-It” Button


    View Slide

28. Swagger2Markup


    View Slide

29. public class Swagger2MarkupTest {

    @Autowired

    private WebApplicationContext context;



    private MockMvc mockMvc;



    @Before

    public void setUp() {

    this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();

    }





    View Slide

30. public class Swagger2MarkupTest {

    @Autowired

    private WebApplicationContext context;



    private MockMvc mockMvc;



    @Before

    public void setUp() {

    this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();

    }



    @Test

    public void convertSwaggerToAsciiDoc() throws Exception {

    this.mockMvc.perform(get("/v2/api-docs")

    .accept(MediaType.APPLICATION_JSON))

    .andDo(Swagger2MarkupResultHandler.outputDirectory(“src/docs/
    asciidoc/generated").build())

    .andExpect(status().isOk());

    }





    View Slide

31. public class Swagger2MarkupTest {

    @Autowired

    private WebApplicationContext context;



    private MockMvc mockMvc;



    @Before

    public void setUp() {

    this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();

    }



    @Test

    public void convertSwaggerToAsciiDoc() throws Exception {

    this.mockMvc.perform(get("/v2/api-docs")

    .accept(MediaType.APPLICATION_JSON))

    .andDo(Swagger2MarkupResultHandler.outputDirectory(“src/docs/
    asciidoc/generated").build())

    .andExpect(status().isOk());

    }



    @Test

    public void convertSwaggerToMarkdown() throws Exception {

    this.mockMvc.perform(get("/v2/api-docs")

    .accept(MediaType.APPLICATION_JSON))

    .andDo(Swagger2MarkupResultHandler.outputDirectory(“src/docs/
    markdown/generated")

    .withMarkupLanguage(MarkupLanguage.MARKDOWN).build())

    .andExpect(status().isOk());

    }

    }


    View Slide

32. View Slide

33. View Slide

34. Test-Driven Documentation
    Document Green
    Red Refactor


    View Slide

35. Spring REST Docs


    View Slide

36. Game Changers
    • Generated code snippets
    • Tests fail when documentation is missing or out-of-
    date
    • Supports Level III Rest APIs (Hypermedia)


    View Slide

37. Getting Started
    • Documentation - Spring Projects
    • Documenting RESTful Apis - SpringOne2GX 2015 -
    Andy Wilkinson
    • Spring REST Docs - Documenting RESTful APIs
    using your tests - Devoxx Belgium 2015
    - Anders Evers


    View Slide

38. Groovier Spring REST docs


    View Slide

39. Groovier Spring REST docs
    • Groovy Spring Boot Project
    • Level II Rest API


    View Slide

40. Groovier Spring REST docs
    • Groovy Spring Boot Project
    • Level II Rest API
    + Asciidoctor Gradle plugin


    View Slide

41. Groovier Spring REST docs
    • Groovy Spring Boot Project
    • Level II Rest API
    + Asciidoctor Gradle plugin
    + MockMVC and documentation to Spock tests


    View Slide

42. Groovy Spring Boot App
    • Start with lazybones spring boot app
    • Add mock endpoints for example
    https://github.com/jlstrater/groovy-spring-boot-
    restdocs-example


    View Slide

43. Endpoints
    @CompileStatic

    @RestController

    @RequestMapping('/hello')

    @Slf4j

    class ExampleController {



    @RequestMapping(method = RequestMethod.GET, produces =
    'application/json', consumes = 'application/json')

    Example list() {

    new Example(name: 'World')

    }



    @RequestMapping(method = RequestMethod.POST, produces =
    'application/json', consumes = 'application/json')

    Example list(@RequestBody Example example) {

    example

    }

    }


    View Slide

44. Asciidoctor Gradle
    Plugin


    View Slide

45. Install
    classpath 'org.asciidoctor:asciidoctor-gradle-plugin:1.5.3'

    apply plugin: 'org.asciidoctor.convert'



    asciidoctor {

    sourceDir = file('src/docs')

    outputDir "$projectDir/src/main/resources/public"

    backends 'html5'

    attributes 'source-highlighter' : 'prettify',

    'imagesdir':'images',

    'toc':'left',

    'icons': 'font',

    'setanchors':'true',

    'idprefix':'',

    'idseparator':'-',

    'docinfo1':'true'

    }



    View Slide

46. Example AsciiDoc
    = Gr8Data API Guide

    Jenn Strater;

    :doctype: book

    :icons: font

    :source-highlighter: highlightjs

    :toc: left

    :toclevels: 4

    :sectlinks:



    [introduction]

    = Introduction



    The Gr8Data API is a RESTful web service for aggregating and displaying gender
    ratios from

    various companies across the world. This document outlines how to submit data
    from your company or team and

    how to access the aggregate data.



    [[overview-http-verbs]]

    == HTTP verbs



    The Gr8Data API tries to adhere as closely as possible to standard HTTP and REST
    conventions in its

    use of HTTP verbs.


    View Slide

47. Converted to HTML


    View Slide

48. MockMvc Test
    src: http://www.javacodegeeks.com/2013/04/spring-mvc-introduction-in-testing.html


    View Slide

49. Stand Alone Setup
    class ExampleControllerSpec extends Specification {

    protected MockMvc mockMvc



    void setup() {

    this.mockMvc = MockMvcBuilders.standaloneSetup(
    new ExampleController()).build()

    }



    void 'test and document get with example endpoint’() {

    when:

    ResultActions result = this.mockMvc.perform(
    get(‘/hello’).contentType(MediaType.APPLICATION_JSON))
    then:

    result
    .andExpect(status().isOk())
    .andExpect(jsonPath("name").value("World"))

    .andExpect(jsonPath("message").value("Hello, World!”))
    }


    View Slide

50. Web Context Setup
    void setup() {

    this.mockMvc = MockMvcBuilders
    .webAppContextSetup(this.context)
    .build()

    }


    View Slide

51. Web Context Setup
    void setup() {

    this.mockMvc = MockMvcBuilders
    .webAppContextSetup(this.context)
    .build()

    }
    If context is null,
    remember to add
    spock-spring!!


    View Slide

52. Spring REST docs


    View Slide

53. Gradle
    ext {

    snippetsDir = file(
    'src/docs/generated-snippets')

    }
    testCompile “org.springframework.restdocs:spring-
    restdocs-mockmvc:1.0.1.RELEASE”



    View Slide

54. Gradle
    asciidoctor {

    dependsOn test

    sourceDir = file('src/docs')

    outputDir "$projectDir/src/main/resources/public"

    + inputs.dir snippetsDir

    backends 'html5'

    attributes 'source-highlighter' : 'prettify',

    'imagesdir':'images',

    'toc':'left',

    'icons': 'font',

    'setanchors':'true',

    'idprefix':'',

    'idseparator':'-',

    'docinfo1':'true',

    + 'snippets': snippetsDir,

    }


    View Slide

55. Setup & GET


    View Slide

56. Setup & GET
    class ExampleControllerSpec extends Specification {



    @Rule

    RestDocumentation restDocumentation = new RestDocumentation('src/docs/generated-
    snippets')



    protected MockMvc mockMvc



    void setup() {

    this.mockMvc = MockMvcBuilders.standaloneSetup(new ExampleController())

    .apply(documentationConfiguration(this.restDocumentation))

    .build()

    }


    View Slide

57. Setup & GET
    class ExampleControllerSpec extends Specification {



    @Rule

    RestDocumentation restDocumentation = new RestDocumentation('src/docs/generated-
    snippets')



    protected MockMvc mockMvc



    void setup() {

    this.mockMvc = MockMvcBuilders.standaloneSetup(new ExampleController())

    .apply(documentationConfiguration(this.restDocumentation))

    .build()

    }


    View Slide

58. Setup & GET
    class ExampleControllerSpec extends Specification {



    @Rule

    RestDocumentation restDocumentation = new RestDocumentation('src/docs/generated-
    snippets')



    protected MockMvc mockMvc



    void setup() {

    this.mockMvc = MockMvcBuilders.standaloneSetup(new ExampleController())

    .apply(documentationConfiguration(this.restDocumentation))

    .build()

    }
    void 'test and document get with example endpoint'() {

    when:

    ResultActions result = this.mockMvc.perform(get('/hello')

    .contentType(MediaType.APPLICATION_JSON))


    View Slide

59. Setup & GET
    class ExampleControllerSpec extends Specification {



    @Rule

    RestDocumentation restDocumentation = new RestDocumentation('src/docs/generated-
    snippets')



    protected MockMvc mockMvc



    void setup() {

    this.mockMvc = MockMvcBuilders.standaloneSetup(new ExampleController())

    .apply(documentationConfiguration(this.restDocumentation))

    .build()

    }
    void 'test and document get with example endpoint'() {

    when:

    ResultActions result = this.mockMvc.perform(get('/hello')

    .contentType(MediaType.APPLICATION_JSON))
    then:

    result

    .andExpect(status().isOk())
    .andExpect(jsonPath('name').value('World'))

    .andExpect(jsonPath('message').value('Hello, World!'))

    .andDo(document('hello-get-example', preprocessResponse(prettyPrint()),

    responseFields(

    fieldWithPath('name').type(JsonFieldType.STRING).description('name'),

    fieldWithPath('message').type(JsonFieldType.STRING).description('hello world'))

    ))

    }

    }


    View Slide

60. View Slide

61. POST


    View Slide

62. POST
    void 'test and document post with example endpoint and custom name'() {

    when:
    ResultActions result = this.mockMvc.perform(post(‘/hello')
    .content(new ObjectMapper()
    .writeValueAsString(new Example(name: 'mockmvc test’))
    .contentType(MediaType.APPLICATION_JSON))


    View Slide

63. POST
    void 'test and document post with example endpoint and custom name'() {

    when:
    ResultActions result = this.mockMvc.perform(post(‘/hello')
    .content(new ObjectMapper()
    .writeValueAsString(new Example(name: 'mockmvc test’))
    .contentType(MediaType.APPLICATION_JSON))
    then:

    result

    .andExpect(status().isOk())

    .andExpect(jsonPath('name').value('mockmvc test'))

    .andExpect(jsonPath('message').value('Hello, mockmvc test!'))
    .andDo(document('hello-post-example',
    preprocessResponse(prettyPrint()),

    responseFields(

    fieldWithPath('name').type(JsonFieldType.STRING)

    .description('name'),

    fieldWithPath('message').type(JsonFieldType.STRING)

    .description('hello world'))

    ))

    }


    View Slide

64. View Slide

65. List Example
    void 'test and document get of a list from example endpoint'() {

    when:

    ResultActions result = this.mockMvc.perform(get('/hello/list')

    .contentType(MediaType.APPLICATION_JSON))



    then:

    result

    .andExpect(status().isOk())

    .andDo(document('hello-list-example',
    preprocessResponse(prettyPrint()),

    responseFields(

    fieldWithPath('[].message').type(JsonFieldType.STRING)

    .description('message'))

    ))

    }


    View Slide

66. List Example
    void 'test and document get of a list from example endpoint'() {

    when:

    ResultActions result = this.mockMvc.perform(get('/hello/list')

    .contentType(MediaType.APPLICATION_JSON))



    then:

    result

    .andExpect(status().isOk())

    .andDo(document('hello-list-example',
    preprocessResponse(prettyPrint()),

    responseFields(

    fieldWithPath('[].message').type(JsonFieldType.STRING)

    .description('message'))

    ))

    }


    View Slide

67. Central Info - Errors
    void 'test and document error format’() {
    when:

    ResultActions result = this.mockMvc.perform(put('/error')

    .contentType(MediaType.APPLICATION_JSON)

    .requestAttr(RequestDispatcher.ERROR_STATUS_CODE, 405)

    .requestAttr(RequestDispatcher.ERROR_REQUEST_URI, '/hello')

    .requestAttr(RequestDispatcher.ERROR_MESSAGE,
    "Request method 'PUT' not supported"))



    View Slide

68. Central Info - Errors
    void 'test and document error format’() {
    when:

    ResultActions result = this.mockMvc.perform(put('/error')

    .contentType(MediaType.APPLICATION_JSON)

    .requestAttr(RequestDispatcher.ERROR_STATUS_CODE, 405)

    .requestAttr(RequestDispatcher.ERROR_REQUEST_URI, '/hello')

    .requestAttr(RequestDispatcher.ERROR_MESSAGE,
    "Request method 'PUT' not supported"))

    then:

    result
    .andExpect(status().isMethodNotAllowed())

    .andDo(document('error-example', preprocessResponse(prettyPrint()),

    responseFields(

    fieldWithPath(‘error')
    .description('The HTTP error that occurred, e.g. `Bad Request`'),

    fieldWithPath(‘message')
    .description('A description of the cause of the error'),

    fieldWithPath('path').description('The path to which the request was made'),

    fieldWithPath('status').description('The HTTP status code, e.g. `400`'),

    fieldWithPath(‘timestamp')
    .description('The time, in milliseconds, at which the error occurred'))

    ))

    }


    View Slide

69. Failing Tests


    View Slide

70. Failing Tests


    View Slide

71. Generated Snippets
    • curl-request.adoc
    • http-request.adoc
    • http-response.adoc
    • response-fields.adoc
    • request-parameters.adoc


    View Slide

72. Add Snippets to AsciiDoc
    == Errors



    Whenever an error response (status code >= 400) is returned, the
    body will contain a JSON object

    that describes the problem. The error object has the following
    structure:



    include::{snippets}/error-example/response-fields.adoc[]



    For example, a request that attempts to apply a non-existent tag
    to a note will produce a

    `400 Bad Request` response:



    include::{snippets}/error-example/http-response.adoc[]



    [[resources]]

    = Resources



    include::resources/example.adoc[]


    View Slide

73. Build Docs
    src/docs
    index.adoc
    src/main/
    resources/public/
    html5
    index.html


    View Slide

74. Publish Docs
    publish.gradle
    buildscript {

    repositories {

    jcenter()

    }



    dependencies {

    classpath 'org.ajoberstar:gradle-git:1.1.0'

    }

    }



    apply plugin: 'org.ajoberstar.github-pages'



    githubPages {

    repoUri = 'git@github.com:jlstrater/groovy-spring-boot-restdocs-example.git'

    pages {

    from(file('build/docs'))

    }

    }


    View Slide

75. http://jlstrater.github.io/groovy-spring-boot-restdocs-example


    View Slide

76. Grails
    Rest Assured - 1.1.0 Release
    img src: https://www.flickr.com/photos/dskley/15558668690


    View Slide

77. Conclusion
    • API documentation is complex
    • Choosing the right tool for the job not just about the
    easiest one to setup
    • Spring REST Docs is a promising tool to enforce
    good testing and documentation practices without
    muddying source code.


    View Slide

78. Questions?
    https://github.com/jlstrater/groovy-spring-boot-restdocs-example
    @jennstrater


    View Slide

79. Questions?
    https://github.com/jlstrater/groovy-spring-boot-restdocs-example
    @jennstrater


    View Slide
