Virtualize your stack with Vagrant and Puppet

Virtualize your stack with Vagrant and Puppet

An introduction to the how and why of Vagrant and Puppet.

Find out more at http://jmather.com/talks/2013-05-25/

Jacob Mather

May 25, 2013
Tweet

More Decks by Jacob Mather

Other Decks in Technology

Transcript

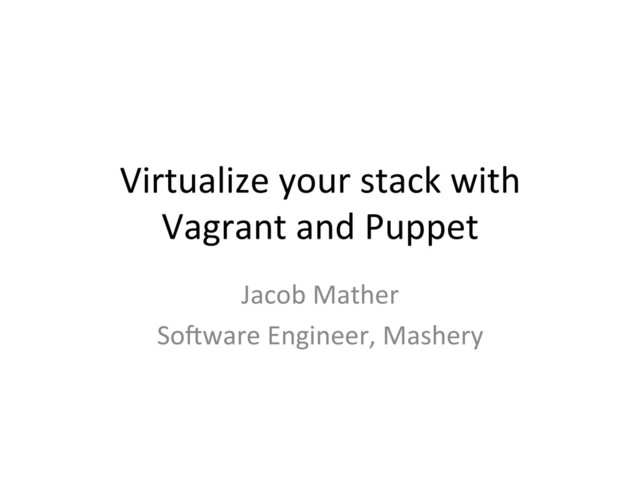

  1. Virtualize  your  stack  with
    Vagrant  and  Puppet
    Jacob  Mather
    So;ware  Engineer,  Mashery

    View Slide

  2. Vagrant

    View Slide

  3. What  is  Vagrant?
    A  tool  that  allows  you  to  create  and  configure
    lightweight,  reproducible,  and  portable
    development  environments.

    View Slide

  4. Vagrant  is  built…
    •  To  be  simple
    •  In  Ruby

    View Slide

  5. How  to  use  Vagrant
    •  Install  Vagrant  (hKp://vagrantup.com)
    •  Check  out  your  repository
    •  Run:  vagrant  up

    View Slide

  6. Vagrant  Terms
    •  Box  –  Also  called  base  box,  is  the  base  image
    •  Guest  –  Refers  to  an  individual  vm

    View Slide

  7. Vagrant  Providers
    Vagrant  can  use  a  few  different  plaVorms  for
    spinning  up  new  servers.  Currently,  they  are:

    •  VirtualBox  (hKps://www.virtualbox.org/)
    •  *VMware  (Fusion  and  WorkstaYon)
    VagrantUp.com  pushes  for  VMware  for  “work”

    View Slide

  8. Vagrant  Providers  (cont…)
    •  VirtualBox  is  FREE!
    – It  works  great  except  where  it  doesn’t
    •  Some  people  have  trouble  with  it  crashing
    •  It  can’t  handle  a  large  number  of  files  with  the  standard
    file  sharing  system
    •  NFS  poses  it’s  own  complicaYons
    •  Vmware  is  PAID!
    – It’s  $49  or  $99  for  the  so;ware  and  $79  for  the
    provider
    – Supposed  to  be  more  stable  and  faster

    View Slide

  9. Basic  Vagrant  Commands
    •  vagrant  up  –  Turn  guest  on
    •  vagrant  halt  –  Turn  guest  off
    •  vagrant  status  –  Show  guest  status
    •  vagrant  destroy  –  Delete  guest
    •  vagrant  suspend  –  Suspend  guest
    •  vagrant  resume  –  Resume  guest
    •  vagrant  ssh  –  SSH  into  guest

    View Slide

  10. Basic  VagranVile
    Vagrant.configure("2")  do  |config|
       config.vm.box  =  "base-­‐box-­‐name"
       config.vm.box_url  =  ”hKp://some/url.box"
    end

    View Slide

  11. Basic  VagranVile  (with  FS)
    Vagrant.configure("2")  do  |config|
       config.vm.box  =  "base-­‐box-­‐name"
       config.vm.box_url  =  ”hKp://some/url.box"
       config.vm.synced_folder  "/data",  "/vagrant_data"
    end

    View Slide

  12. Basic  VagranVile  (and  PF)
    Vagrant.configure("2")  do  |config|
       config.vm.box  =  "base-­‐box-­‐name"
       config.vm.box_url  =  "hKp://some/url.box"
       config.vm.network  :forwarded_port,  guest:  80,  host:  8080
       config.vm.synced_folder  "/data",  "/vagrant_data"
    end

    View Slide

  13. Basic  MulY-­‐Guest  VagranVile
    nodes  =  {
       :'webserver'  =>  {
           :hostname  =>  'server.example.com',
           :ipaddress  =>  '192.168.56.60',
       },
       :'dbserver'  =>  {
           :hostname  =>  'db.example.com',
           :ipaddress  =>  '192.168.56.61',
       }
    }

    View Slide

  14. Basic  MulY-­‐Guest  VagranVile
    nodes  =  {  …  node  configuraYon  …  }
    Vagrant.configure("2")  do  |config|
       nodes.each_pair  do  |name,opYons|
           config.vm.define  name  do  |node|
               node.vm.box  =  "base-­‐box-­‐name"
               node.vm.box_url  =  "hKp://some/url.box"
               node.vm.hostname  =  opYons[:hostname]
               node.vm.network  :private_network,  ip:  opYons[:ipaddress]
           end
       end
    end


    View Slide

  15. Vagrant  Limits
    So  this  whole  spinning  up  guests  thing  is  cool
    and  all,  but  what  am  I  supposed  to  do  with  all  of
    these  dumb  boxes?

    “Hardware”  without  so;ware  is  nearly  useless.

    View Slide

  16. Vagrant  Provisioning
    •  Shell  Scripts
    •  Ansible
    •  Chef  (Solo  and  Client)
    •  Puppet  (Apply  and  Agent)

    View Slide

  17. Puppet

    View Slide

  18. What  is  Puppet?
    Puppet  is  IT  automaYon  so;ware  that  helps
    system  administrators  manage  infrastructure
    throughout  its  lifecycle,  from  provisioning  and
    configuraYon  to  patch  management  and
    compliance.

    View Slide

  19. I  have  no  idea  what  that  means.

    View Slide

  20. What  is  Puppet?
    Puppet  gives  you  an  “object  oriented”  way  to
    manage  the  configuraYon  of  your  servers,  either
    on  your  laptop,  in  the  cloud,  or  in  your  favorite
    data  center.

    View Slide

  21. Puppet  is  built…
    •  To  be  simple
    •  With  it’s  own  configuraYon  language

    View Slide

  22. Puppet  Terms
    •  Manifests  –  EssenYally  instrucYons
    •  Modules  –  Abstracted  manifests
    •  Templates  –  Exactly  as  it  sounds
    •  Facter  –  Variable  manager
    •  Hiera  –  ConfiguraYon  management

    View Slide

  23. How  to  use  Puppet?
    Use  a  base  box  for  Vagrant  from  Puppet  Labs

    hKp://puppet-­‐vagrant-­‐boxes.puppetlabs.com/

    I  like  to  use  the  CentOS  6.4  for  VirtualBox


    View Slide

  24. Basic  Puppet  Powered  VagranVile
    Vagrant.configure("2")  do  |config|
       config.vm.box  =  "base-­‐box-­‐name"
       config.vm.box_url  =  "hKp://some/url.box"
       config.vm.provision  :puppet  do  |puppet|
           puppet.manifests_path  =  "puppet/manifests/"
           puppet.manifest_file    =  "guest.pp"
           puppet.module_path  =  "puppet/modules/"
       end
    end

    View Slide

  25. Vagrant  and  Puppet

    View Slide

  26. Other  Resources
    hKp://PuPHPet.com

    PuPHPet  provides  a
    simple  config  tool  for
    those  who  don’t  want
    to  Ynker  with  puppet
    and  need  a  LAMP  stack
    up  and  running  NOW.

    View Slide

  27. Thank  you!
    More  informaYon  can  be  found  at:

    hKp://jmather.com/talks/2013-­‐05-­‐25
