Quadratic Unconstrained Binary Optimization (QUBO) Problem Formulation of Fragment-Based Protein–Compound Flexible Docking

Avatar for Keisuke Yanagisawa

Keisuke Yanagisawa

October 29, 2024

More Decks by Keisuke Yanagisawa

Other Decks in Research

Transcript

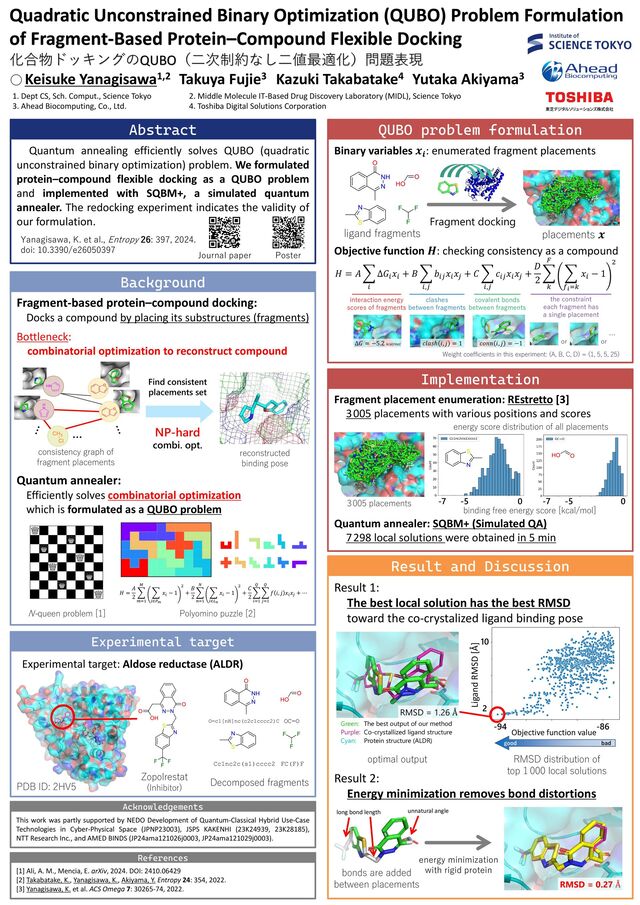

  1. Quadratic Unconstrained Binary Optimization (QUBO) Problem Formulation of Fragment-Based Protein–Compound

    Flexible Docking 1. Dept CS, Sch. Comput., Science Tokyo 2. Middle Molecule IT-Based Drug Discovery Laboratory (MIDL), Science Tokyo 3. Ahead Biocomputing, Co., Ltd. 4. Toshiba Digital Solutions Corporation 化合物ドッキングのQUBO(二次制約なし二値最適化)問題表現 This work was partly supported by NEDO Development of Quantum-Classical Hybrid Use-Case Technologies in Cyber-Physical Space (JPNP23003), JSPS KAKENHI (23K24939, 23K28185), NTT Research Inc., and AMED BINDS (JP24ama121026j0003, JP24ama121029j0003). Acknowledgements [1] Ali, A. M., Mencia, E. arXiv, 2024. DOI: 2410.06429 [2] Takabatake, K., Yanagisawa, K., Akiyama, Y. Entropy 24: 354, 2022. [3] Yanagisawa, K. et al. ACS Omega 7: 30265-74, 2022. References Keisuke Yanagisawa1,2 ◦ Takuya Fujie3 Kazuki Takabatake4 Yutaka Akiyama3 Quantum annealing efficiently solves QUBO (quadratic unconstrained binary optimization) problem. We formulated protein–compound flexible docking as a QUBO problem and implemented with SQBM+, a simulated quantum annealer. The redocking experiment indicates the validity of our formulation. Abstract Yanagisawa, K. et al., Entropy 26: 397, 2024. doi: 10.3390/e26050397 O=c1[nH]nc(c2c1cccc2)C Cc1nc2c(s1)cccc2 OC=O FC(F)F interaction energy scores of fragments covalent bonds between fragments clashes between fragments 𝐻 = 𝐴 ෍ 𝑖 Δ𝐺𝑖 𝑥𝑖 + 𝐵 ෍ 𝑖,𝑗 𝑏𝑖𝑗 𝑥𝑖 𝑥𝑗 + 𝐶 ෍ 𝑖,𝑗 𝑐𝑖𝑗 𝑥𝑖 𝑥𝑗 + 𝐷 2 ෍ 𝑘 𝐹 ෍ 𝑓𝑖=𝑘 𝑥𝑖 − 1 2 the constraint each fragment has a single placement Δ𝐺 = −5.2 kcal/mol 𝑐𝑜𝑛𝑛 𝑖, 𝑗 = −1 𝑐𝑙𝑎𝑠ℎ 𝑖, 𝑗 = 1 or or … QUBO problem formulation Experimental target Result and Discussion RMSD = 0.27 Å Background PDB ID: 2HV5 Zopolrestat (Inhibitor) Decomposed fragments Fragment-based protein–compound docking: Docks a compound by placing its substructures (fragments) Bottleneck: combinatorial optimization to reconstruct compound Quantum annealer: Efficiently solves combinatorial optimization which is formulated as a QUBO problem N-queen problem [1] Polyomino puzzle [2] 𝐻 = 𝐴 2 ෍ 𝑚=1 𝑀 ෍ 𝑖∈𝑃𝑚 𝑥𝑖 − 1 2 + 𝐵 2 ෍ 𝑛=1 𝑁 ෍ 𝑖∈𝐿𝑛 𝑥𝑖 − 1 2 + 𝐶 2 ෍ 𝑖=1 𝑄 ෍ 𝑗=1 𝑄 𝑓 𝑖, 𝑗 𝑥𝑖 𝑥𝑗 + ⋯ ⋮ consistency graph of fragment placements reconstructed binding pose Find consistent placements set NP-hard combi. opt. Experimental target: Aldose reductase (ALDR) Binary variables 𝒙𝒊 : enumerated fragment placements Fragment docking placements 𝒙 ligand fragments Objective function 𝑯: checking consistency as a compound Implementation Fragment placement enumeration: REstretto [3] 3005 placements with various positions and scores 0 -7 0 -7 -5 -5 binding free energy score [kcal/mol] 3005 placements Result 1: The best local solution has the best RMSD toward the co-crystalized ligand binding pose RMSD = 1.26 Å Objective function value -94 -86 2 10 Ligand RMSD [Å] optimal output RMSD distribution of top 1 000 local solutions Green: Purple: Cyan: The best output of our method Co-crystallized ligand structure Protein structure (ALDR) Result 2: Energy minimization removes bond distortions bonds are added between placements energy minimization with rigid protein long bond length unnatural angle Quantum annealer: SQBM+ (Simulated QA) 7298 local solutions were obtained in 5 min energy score distribution of all placements Journal paper Poster good bad Weight coefficients in this experiment: (A, B, C, D) = (1, 5, 5, 25)
