Papers We Love, Too Mini: Out of the Tar Pit

Mini talk given on 2015 June 30th on the paper "Out of the Tar Pit."

Transcript

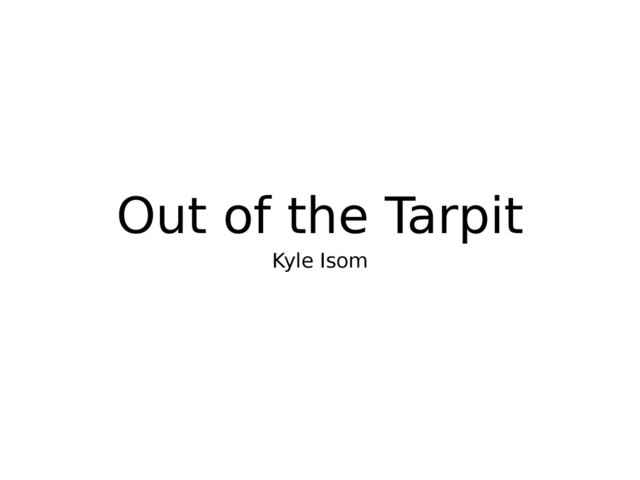

1. Out of the Tarpit Kyle Isom
2. Out of the Tarpit • Ben Moseley and Peter Marks • Published in 2006 • 63 pages and 2.5 pages of references • Only covering the first part
3. Summary • “Complexity causes more problems in large software than anything else” • “What is the way out of the tar pit? … we believe there can be no doubt it is simplicity.”
4. What makes building software hard? • Brooks identified four elements: • complexity • conformity • changeability • invisibility
5. What makes building software hard? • Last three: kinds of or due to complexity • Complexity is the root of all problems
6. Why is complexity bad? • It makes reasoning about a system difficult • Hoare: “the price of reliability is the pursuit of utmost simplicity” • Focus is on complexity that makes large systems difficult to understand
7. Where does complexity come from? Simplicity is hard
8. How do we understand a system? • Testing • Informal reasoning
9. Testing is limited • Improves error detection • We can only test what we can think to test
10. Informal reasoning is powerful • Less errors are created • Avoid bugs
11. Where does complexity come from? • State • Control • Code volume • Complexity • Power
12. Complexity from State • Increases the surface area that must be reasoned about • Can only test system in a specific state • A single bit of state doubles the possible number of states • State contaminates
13. Complexity from Control • Control: ordering of things • We don’t really want to have to think about this • Control is almost always implicit in a language • Requires specifying how system works, not what it should do
14. Complexity from Control • Artificial ordering is imposed where it usually isn’t needed • Reasoner has to expend effort (possibly incorrectly) removing ordering a := b + 3 c := d + 2 e := f * 4
15. Complexity from Control • Concurrency is specified explicitly in most languages • This leads to further difficulties in reasoning
16. Complexity from Volume • Complexity often increases nonlinearly with code size • The best code, then, is code that isn’t written • The less there is to reason about, the easier the whole is to reason about
17. Other causes of complexity • Complexity breeds complexity • The difficulty of building simple systems • Language power tends to encourage cleverness • Generally, complexity = {state, control}
18. Classical Complexity Management • Object-oriented programming • Functional programming • Logic programming
19. The OO approach to complexity management • Essentially imperative approach • Object: state + procedures for state access and manipulation • Enforcing constraints is awkward
20. The OO approach to complexity management • Intensional identity: objects are uniquely identified separately from attributes • Extensional identity: identity via attribute comparison
21. The OO approach to complexity management • Object-oriented (and conventional imperative) programs suffer from both state-derived and control-derived complexity
22. FP approach to complexity management • Explicit attempt to avoid state • System gains referential transparency • This has benefits for testing and concurrency as well
23. FP approach to complexity management • Functional programs still implicitly specify control (defun info (uuid) "Retrieve metadata about an entry." (let ((entry (lookup-entry uuid))) (pairlis '(:id :created :size :parent) (list (entry-uuid entry) (entry-created entry) (entry-size entry) (entry-parent entry))))))
24. Interlude: Kinds of state • Authors usually mean mutable state when they say state
25. FP approach to complexity management • FP simulates state with functional values • Often have a pool of global values • This can lead to hidden, implicit, mutable state • Avoids many state-derived complexity issues
26. Modularity • FP: the outcome of a function can be determined by examining the arguments • Stateful programming: you have no idea • Tradeoff between complexity and simplicity
27. Logic Programming • Not derived from von-Neumann architecture • Specify what needs to be done, not how • The system becomes a formal proof of the problem
28. Logic Programming • No mutable state • Purity is the only guarantee that state-related problems will not occur • Prolog has operational commitment to process language in same textual order
29. Classifying Complexity • Essential: the essence of the problem as seen by the users • Accidental: everything else • We’d ideally use tooling that lets us program using only the language of the users’ problem
30. Recommended General Approach • Start with informal requirements from users • Ultimately, something needs to happen • Building formal requirements must be done without introducing accidental complexity
31. State in the Ideal World • No state • Informal requirements specify data: input and derived • All data mentioned by users is essential data • Essential data does not necessarily imply essential state
32. Input Data • System might need this data in the future • System does not need this data in the future
33. Essential derived data • Immutable • Can be re-derived from the input data as needed • Doesn’t need to be stored • Mutable • Used where data cannot be easily re- derived from input data • Both are cases of accidental state
34. Accidental derived data • Not in users’ requirements • Accidental state
35. State in the ideal world • Some essential state is unavoidable • Pure functional programs can simulate accidental and essential state • Ideal world removes all non-essential state
36. Limitations • Formal specifications are essentially the same as formal requirements • Formal specifications should ideally derive entirely from users’ informal requirements
37. Formal Specifications • Property-based: what is required; includes algebraic (equational axiomatic semantics) • Model-based: potential model (often stateful) with behavioural description
38. Required Accidental Complexity • Sometimes it’s more natural to model the problem in a non-ideal way • e.g. derived data dependent on a series of user data • Accidental state may be required for performance or ease of expression
39. Required Accidental Complexity • This requires awareness that accidental state has been introduced • Increases risk of system entering an inconsistent state
40. Dealing with Complexity
41. Dealing with Complexity • There will always be complexity that is either required or practically useful in some way • Avoid complexity where possible • Separate accidental complexity from essential complexity
42. Dealing with Complexity • Avoid having to explicitly management of state • Declare the accidental state, and leave it to a separate infrastructure
43. Dealing with Complexity • Where ease-of-expression is concerned, treat accidental state as essential state for separation • All state should be separated from logic • This gets further partitioned into accidental and essential
44. Dealing with Complexity • Structure: essential complexity + accidental but useful complexity • Structuring the system like this → system functions correctly if “accidental but useful” complexity is removed • It could be unacceptably inefficient
45. Dealing with Complexity • Separated components may be very different • “May be ideal to use different languages for each” • Emphasis on restricting power of languages • “The weaker the language, the more simple it is to reason about”
46. Dealing with Complexity
47. Essential State • Foundation of system • Specification is completely self-contained
48. Essential logic • Business logic • Expresses what must be true in terms of the state • Says nothing about how, when, or why state changes • Only references essential state
49. Accidental State and Control • Least important part of system • Changes to this part never affect the other parts • Changes to either of the other parts can affect this part
50. Dealing with Complexity • Simplicity is hard • Making the up-front cost will cause fewer difficulties than dealing with the resultant complexity • Complexity spreads
