Slides I used for FinTech - Financial Innovation and the Internet 2025 Fall at Graduate School of Business and Finance, Waseda University on October 17, 2025.
the Internet 2025 Fall Lecture 5-6 : The World of Apps Kenji Saito, Graduate School of Business and Finance, Waseda University Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.1/53

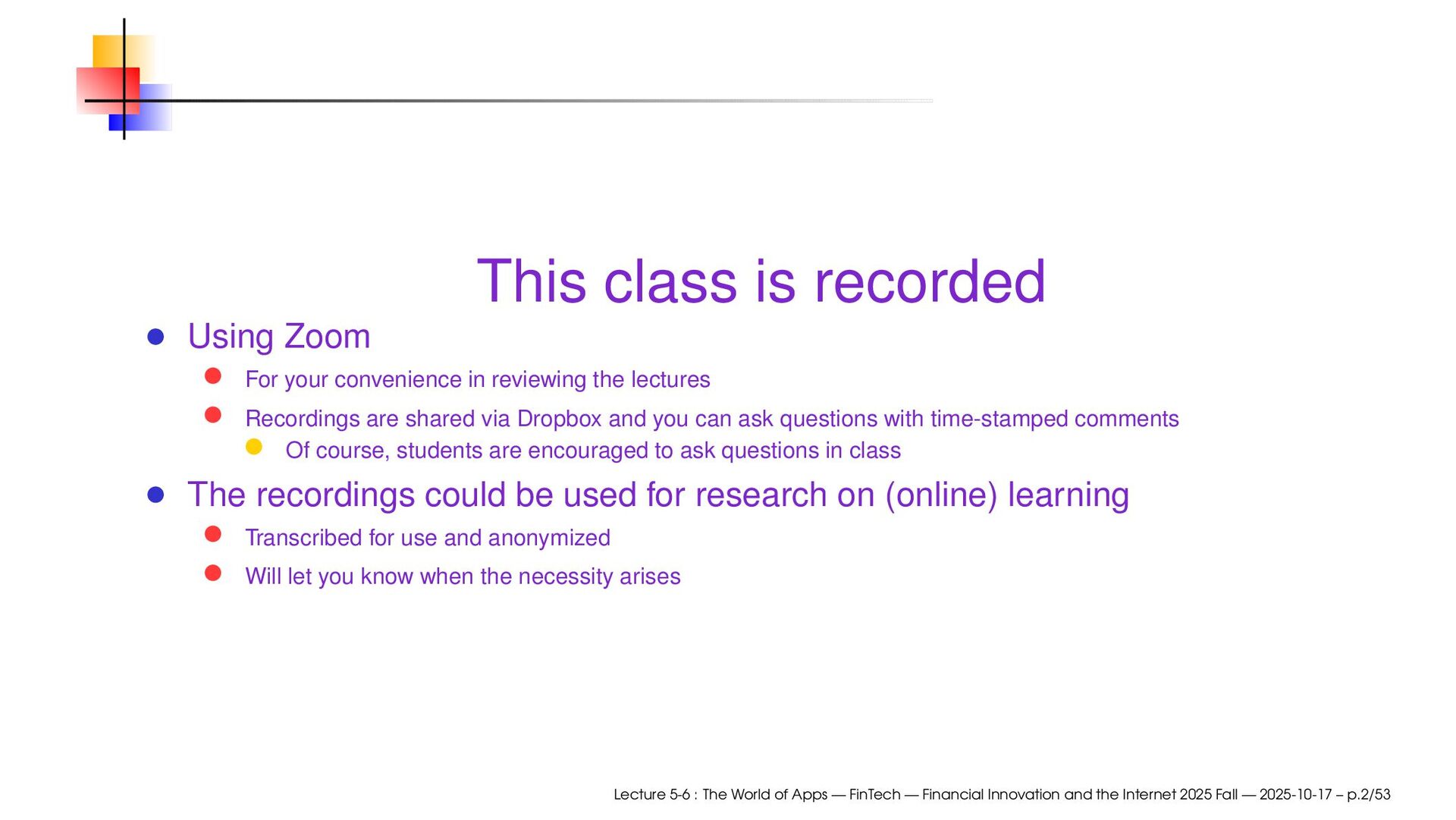

reviewing the lectures Recordings are shared via Dropbox and you can ask questions with time-stamped comments Of course, students are encouraged to ask questions in class The recordings could be used for research on (online) learning Transcribed for use and anonymized Will let you know when the necessity arises Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.2/53
and chat text will be posted at Moodle and Discord Note, however, that chat messages are often unnoticed Trial automatic transcription for lectures will be posted at Discord Because it would contain many mistakes More information is available on Discord, so you have a reason to join the Discord server Furthermore, in the end, participation in Discord may become mandatory for the progress of group work Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.3/53

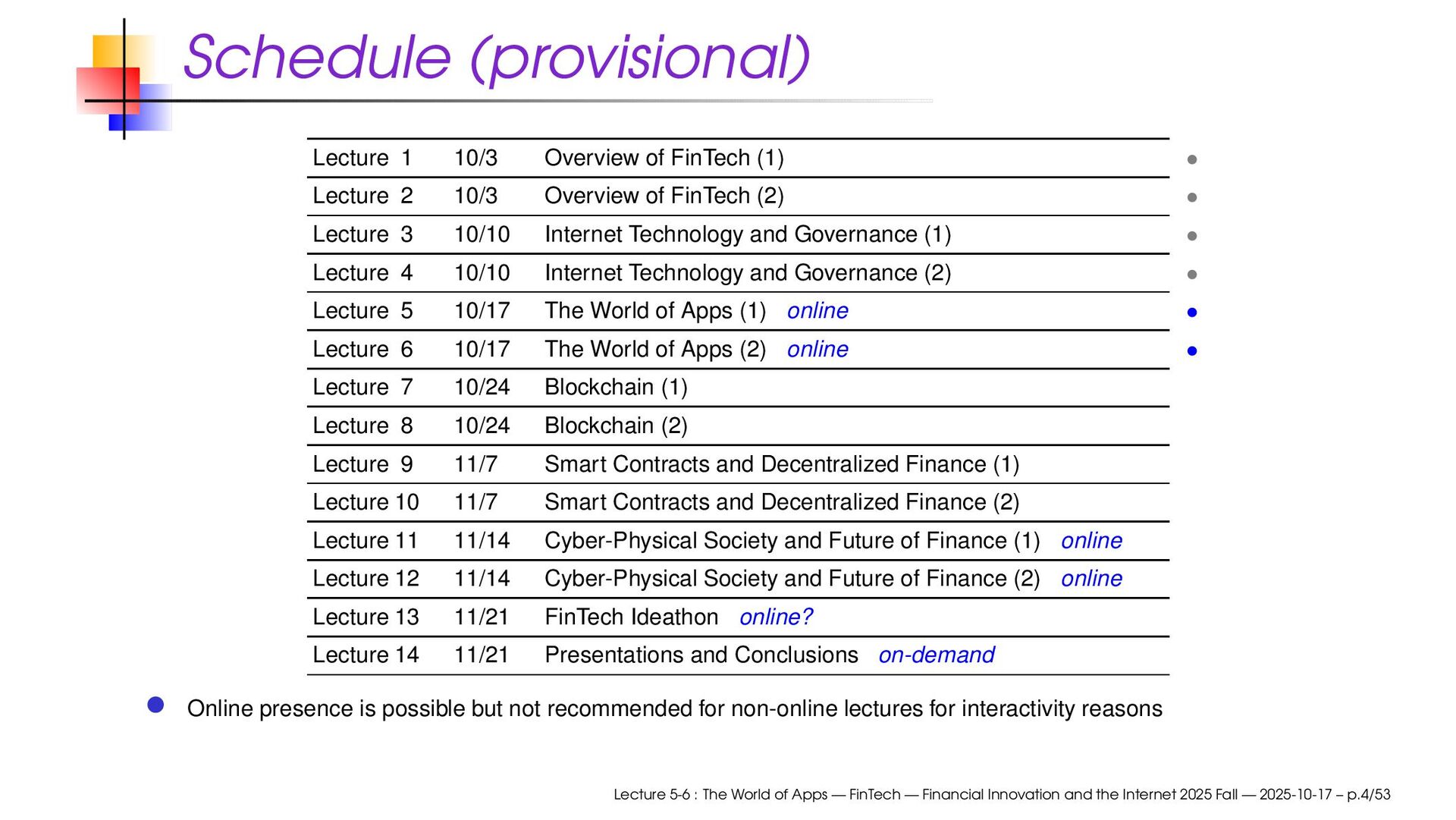

Lecture 2 10/3 Overview of FinTech (2) • Lecture 3 10/10 Internet Technology and Governance (1) • Lecture 4 10/10 Internet Technology and Governance (2) • Lecture 5 10/17 The World of Apps (1) online • Lecture 6 10/17 The World of Apps (2) online • Lecture 7 10/24 Blockchain (1) Lecture 8 10/24 Blockchain (2) Lecture 9 11/7 Smart Contracts and Decentralized Finance (1) Lecture 10 11/7 Smart Contracts and Decentralized Finance (2) Lecture 11 11/14 Cyber-Physical Society and Future of Finance (1) online Lecture 12 11/14 Cyber-Physical Society and Future of Finance (2) online Lecture 13 11/21 FinTech Ideathon online? Lecture 14 11/21 Presentations and Conclusions on-demand Online presence is possible but not recommended for non-online lectures for interactivity reasons Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.4/53

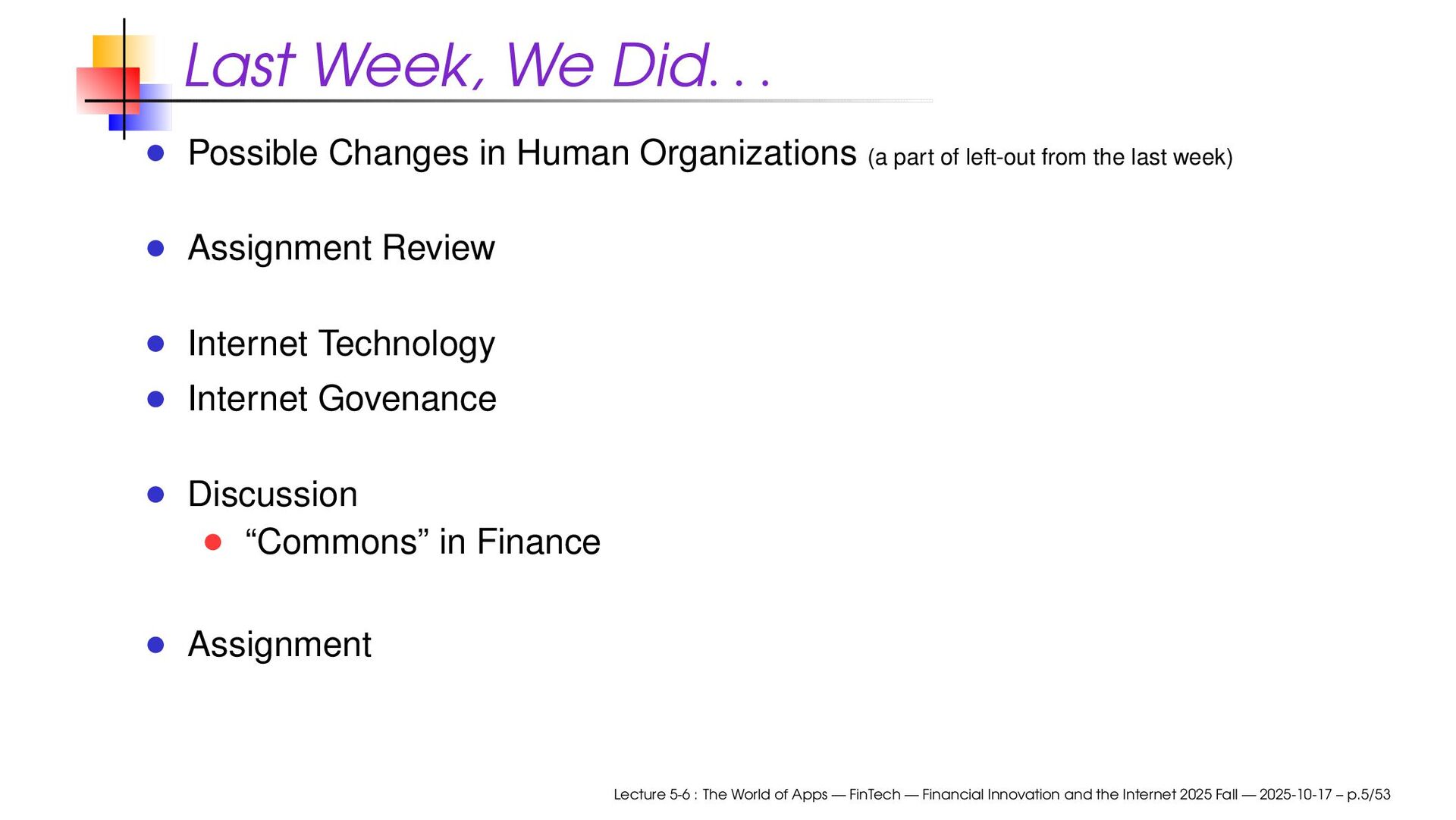

Human Organizations (a part of left-out from the last week) Assignment Review Internet Technology Internet Govenance Discussion “Commons” in Finance Assignment Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.5/53

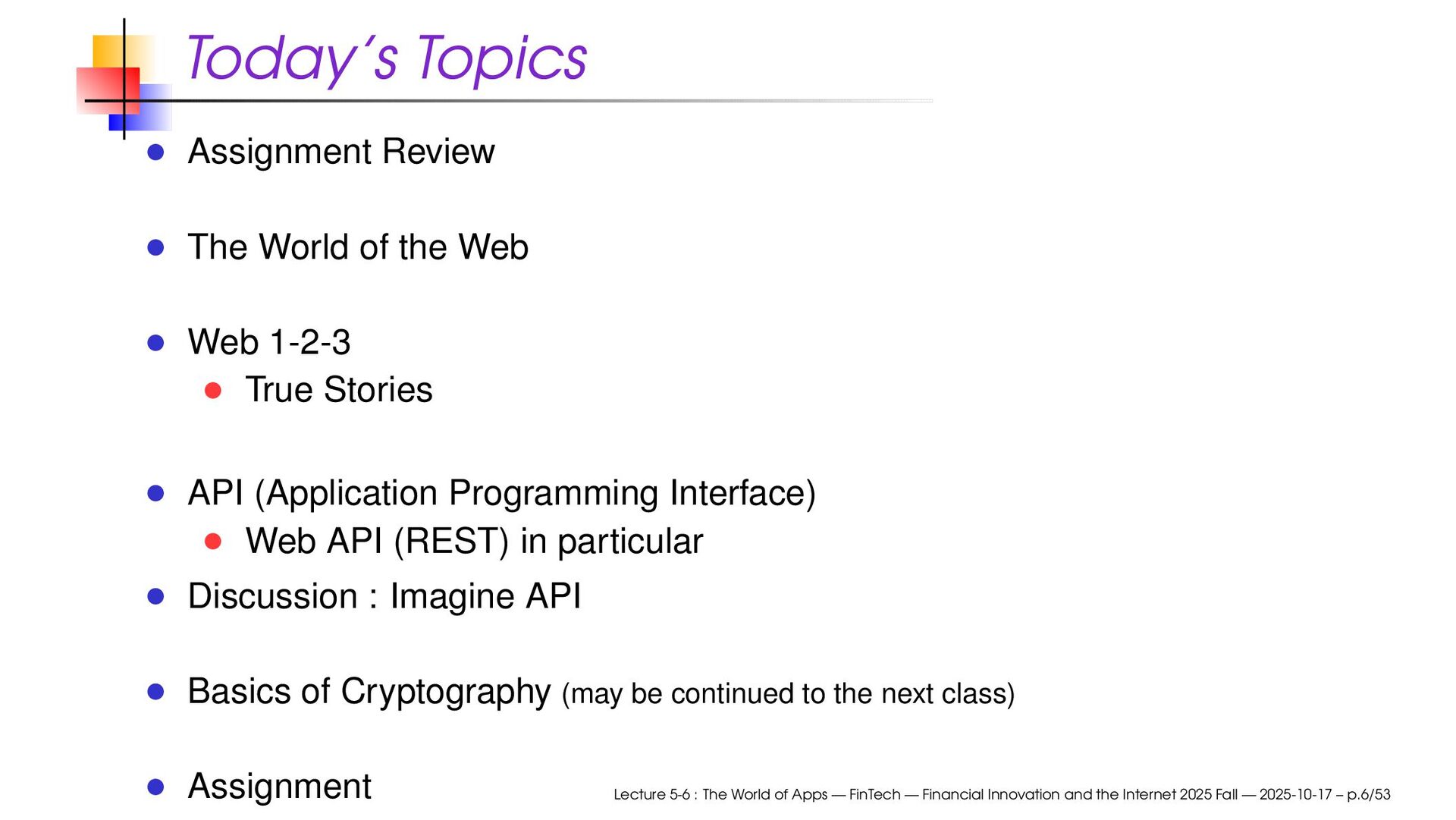

1-2-3 True Stories API (Application Programming Interface) Web API (REST) in particular Discussion : Imagine API Basics of Cryptography (may be continued to the next class) Assignment Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.6/53

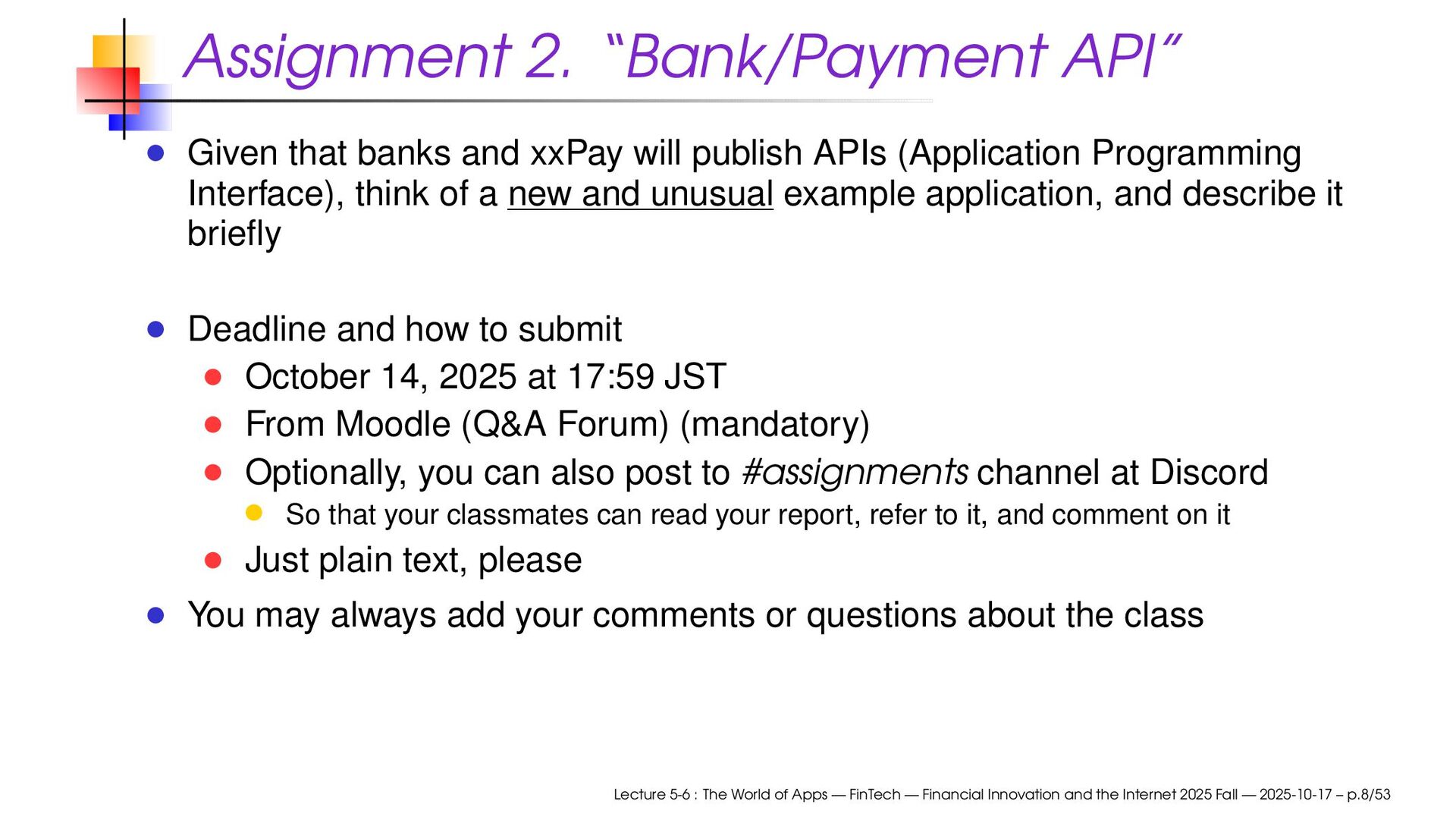

publish APIs (Application Programming Interface), think of a new and unusual example application, and describe it briefly Deadline and how to submit October 14, 2025 at 17:59 JST From Moodle (Q&A Forum) (mandatory) Optionally, you can also post to #assignments channel at Discord So that your classmates can read your report, refer to it, and comment on it Just plain text, please You may always add your comments or questions about the class Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.8/53

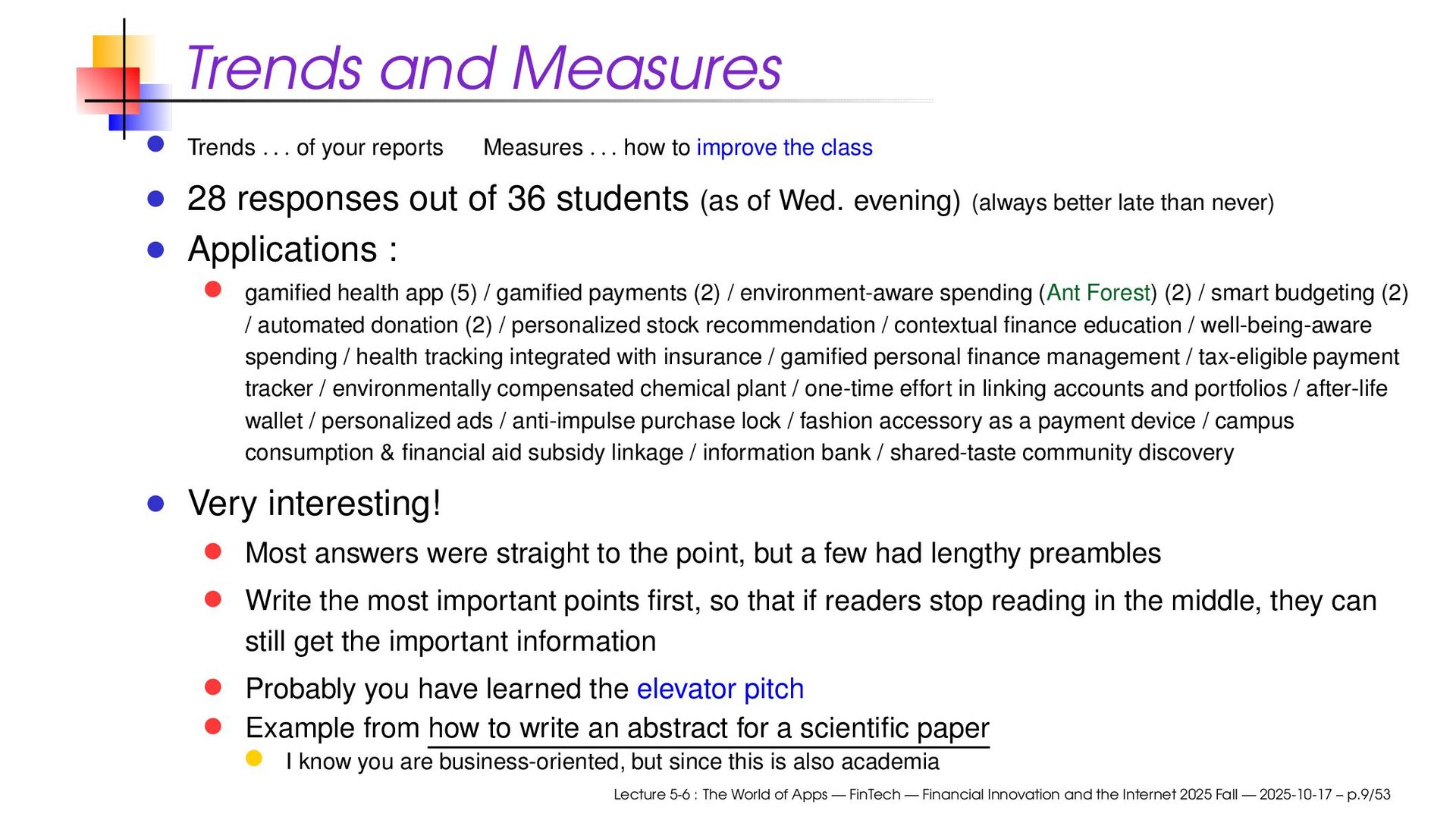

Measures . . . how to improve the class 28 responses out of 36 students (as of Wed. evening) (always better late than never) Applications : gamified health app (5) / gamified payments (2) / environment-aware spending (Ant Forest) (2) / smart budgeting (2) / automated donation (2) / personalized stock recommendation / contextual finance education / well-being-aware spending / health tracking integrated with insurance / gamified personal finance management / tax-eligible payment tracker / environmentally compensated chemical plant / one-time effort in linking accounts and portfolios / after-life wallet / personalized ads / anti-impulse purchase lock / fashion accessory as a payment device / campus consumption & financial aid subsidy linkage / information bank / shared-taste community discovery Very interesting! Most answers were straight to the point, but a few had lengthy preambles Write the most important points first, so that if readers stop reading in the middle, they can still get the important information Probably you have learned the elevator pitch Example from how to write an abstract for a scientific paper I know you are business-oriented, but since this is also academia Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.9/53

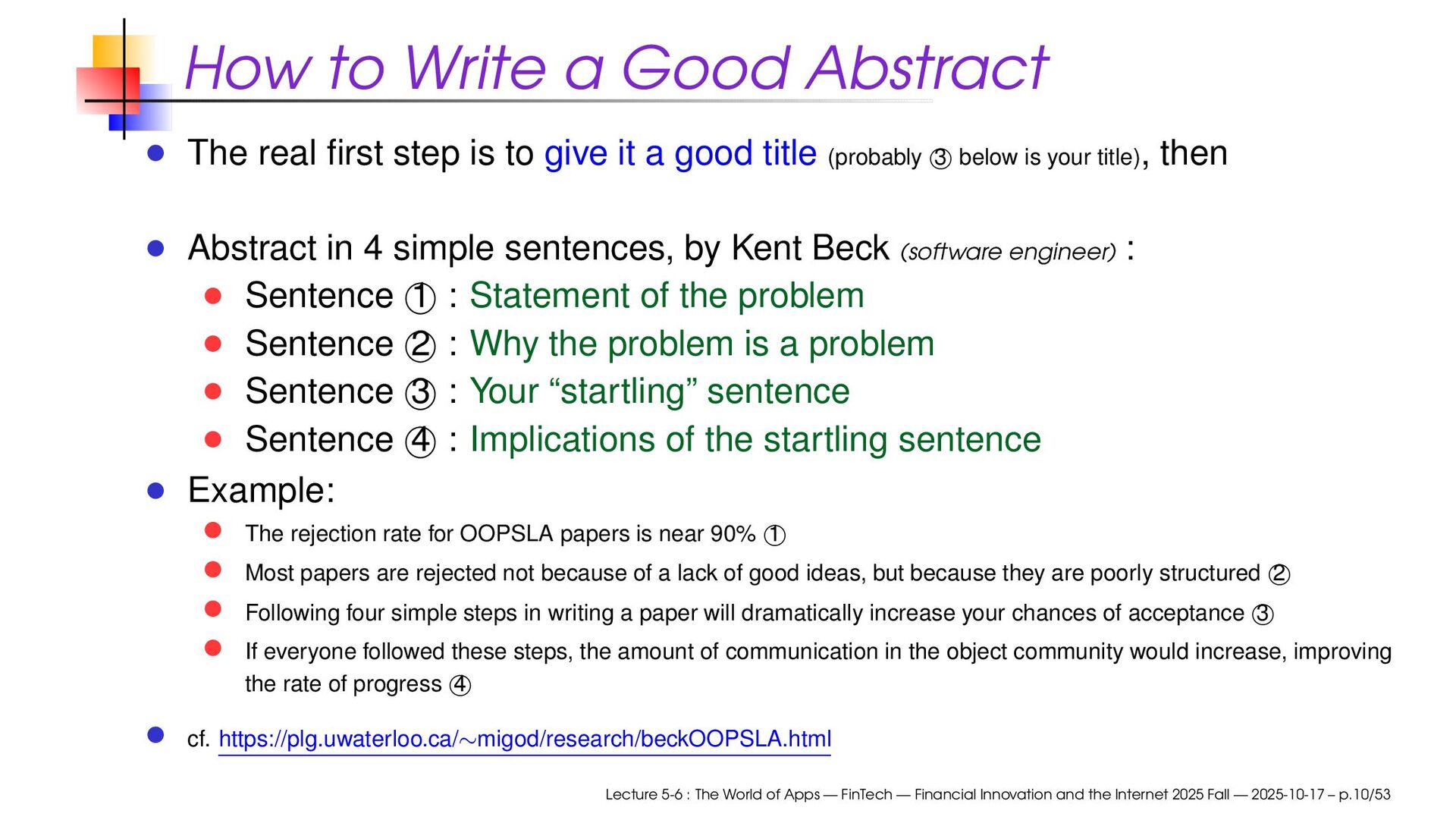

is to give it a good title (probably 3 below is your title), then Abstract in 4 simple sentences, by Kent Beck (software engineer) : Sentence 1 : Statement of the problem Sentence 2 : Why the problem is a problem Sentence 3 : Your “startling” sentence Sentence 4 : Implications of the startling sentence Example: The rejection rate for OOPSLA papers is near 90% 1 Most papers are rejected not because of a lack of good ideas, but because they are poorly structured 2 Following four simple steps in writing a paper will dramatically increase your chances of acceptance 3 If everyone followed these steps, the amount of communication in the object community would increase, improving the rate of progress 4 cf. https://plg.uwaterloo.ca/∼migod/research/beckOOPSLA.html Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.10/53

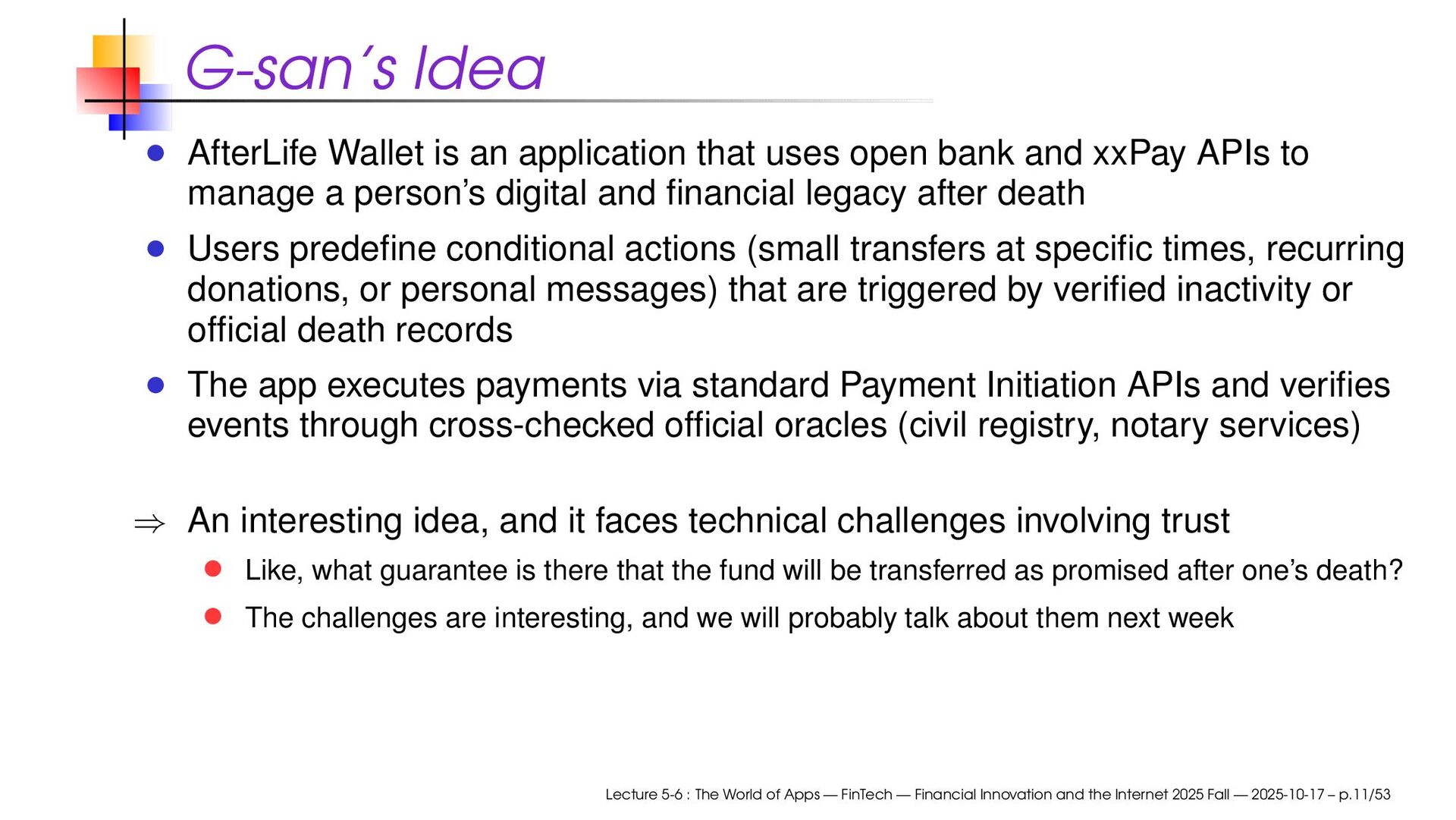

bank and xxPay APIs to manage a person’s digital and financial legacy after death Users predefine conditional actions (small transfers at specific times, recurring donations, or personal messages) that are triggered by verified inactivity or official death records The app executes payments via standard Payment Initiation APIs and verifies events through cross-checked official oracles (civil registry, notary services) ⇒ An interesting idea, and it faces technical challenges involving trust Like, what guarantee is there that the fund will be transferred as promised after one’s death? The challenges are interesting, and we will probably talk about them next week Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.11/53

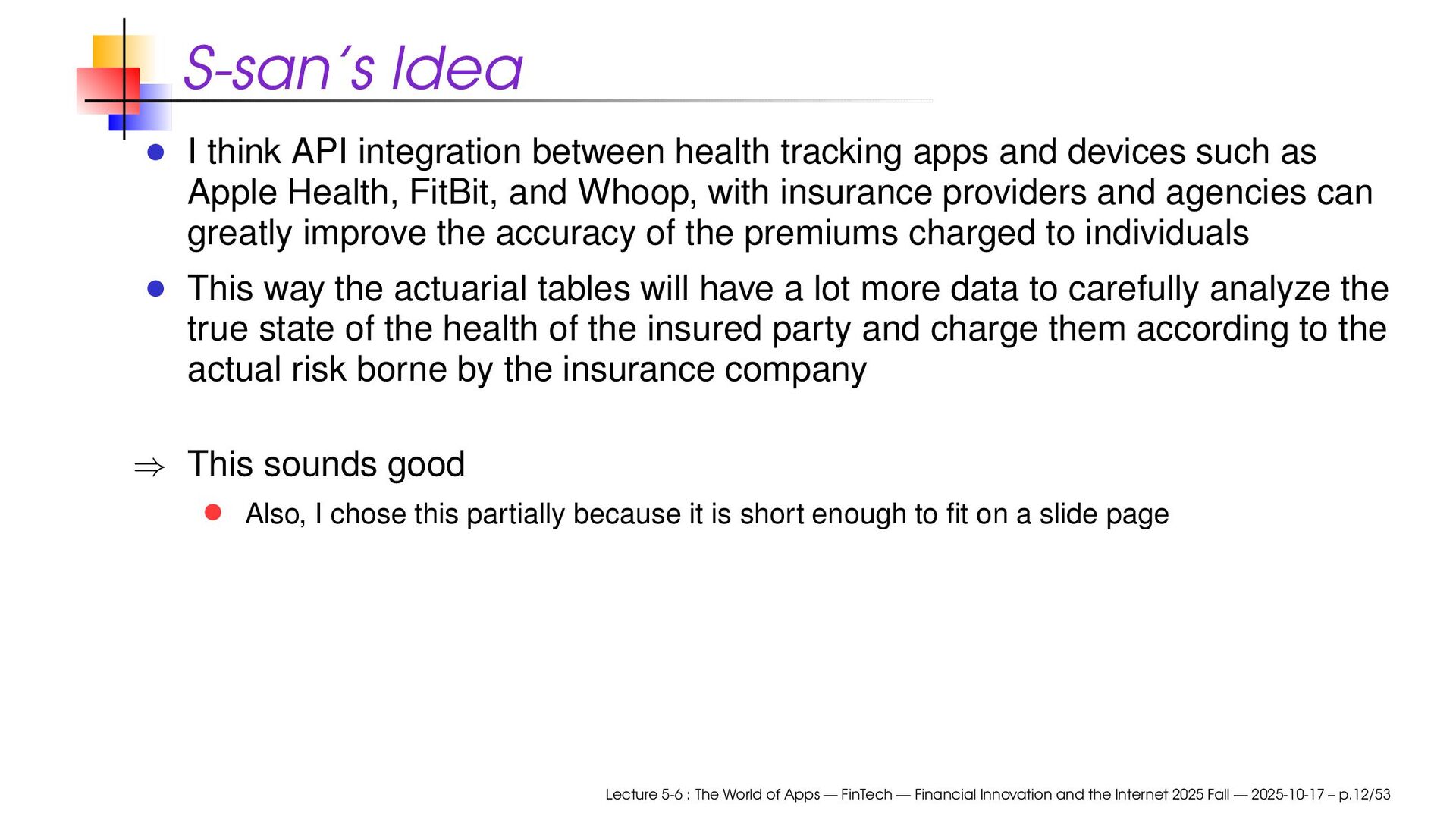

and devices such as Apple Health, FitBit, and Whoop, with insurance providers and agencies can greatly improve the accuracy of the premiums charged to individuals This way the actuarial tables will have a lot more data to carefully analyze the true state of the health of the insured party and charge them according to the actual risk borne by the insurance company ⇒ This sounds good Also, I chose this partially because it is short enough to fit on a slide page Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.12/53

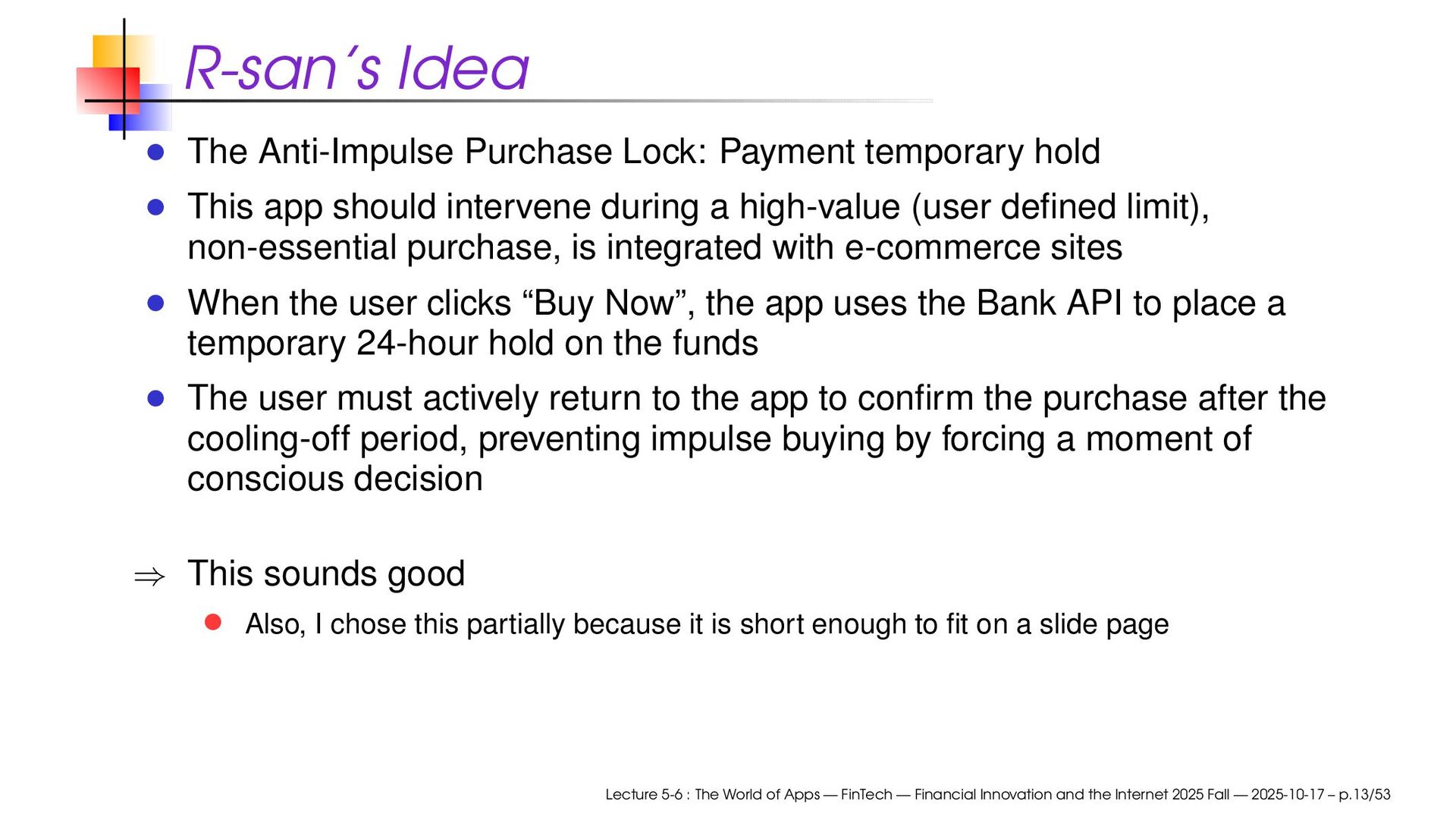

app should intervene during a high-value (user defined limit), non-essential purchase, is integrated with e-commerce sites When the user clicks “Buy Now”, the app uses the Bank API to place a temporary 24-hour hold on the funds The user must actively return to the app to confirm the purchase after the cooling-off period, preventing impulse buying by forcing a moment of conscious decision ⇒ This sounds good Also, I chose this partially because it is short enough to fit on a slide page Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.13/53

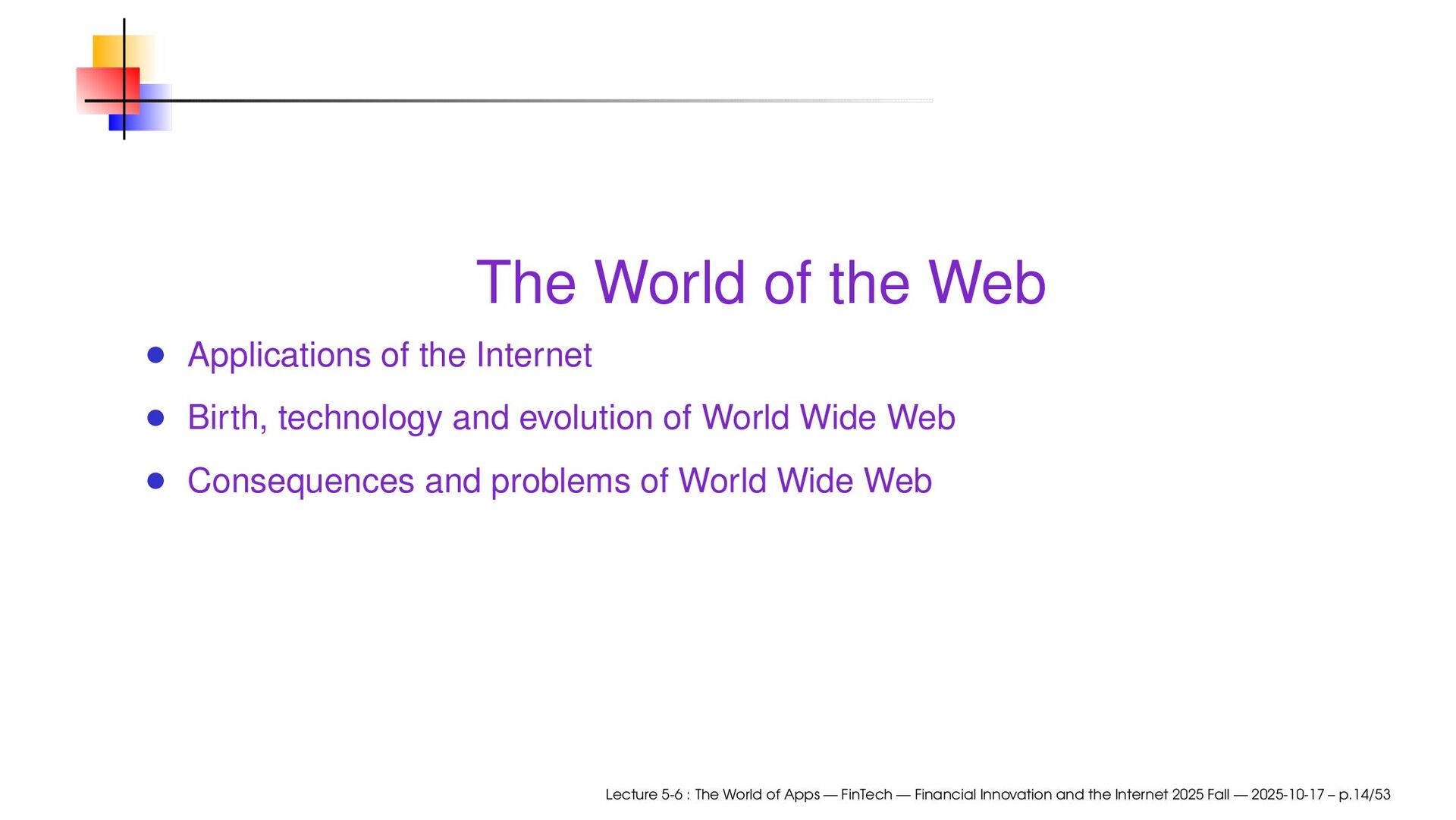

technology and evolution of World Wide Web Consequences and problems of World Wide Web Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.14/53

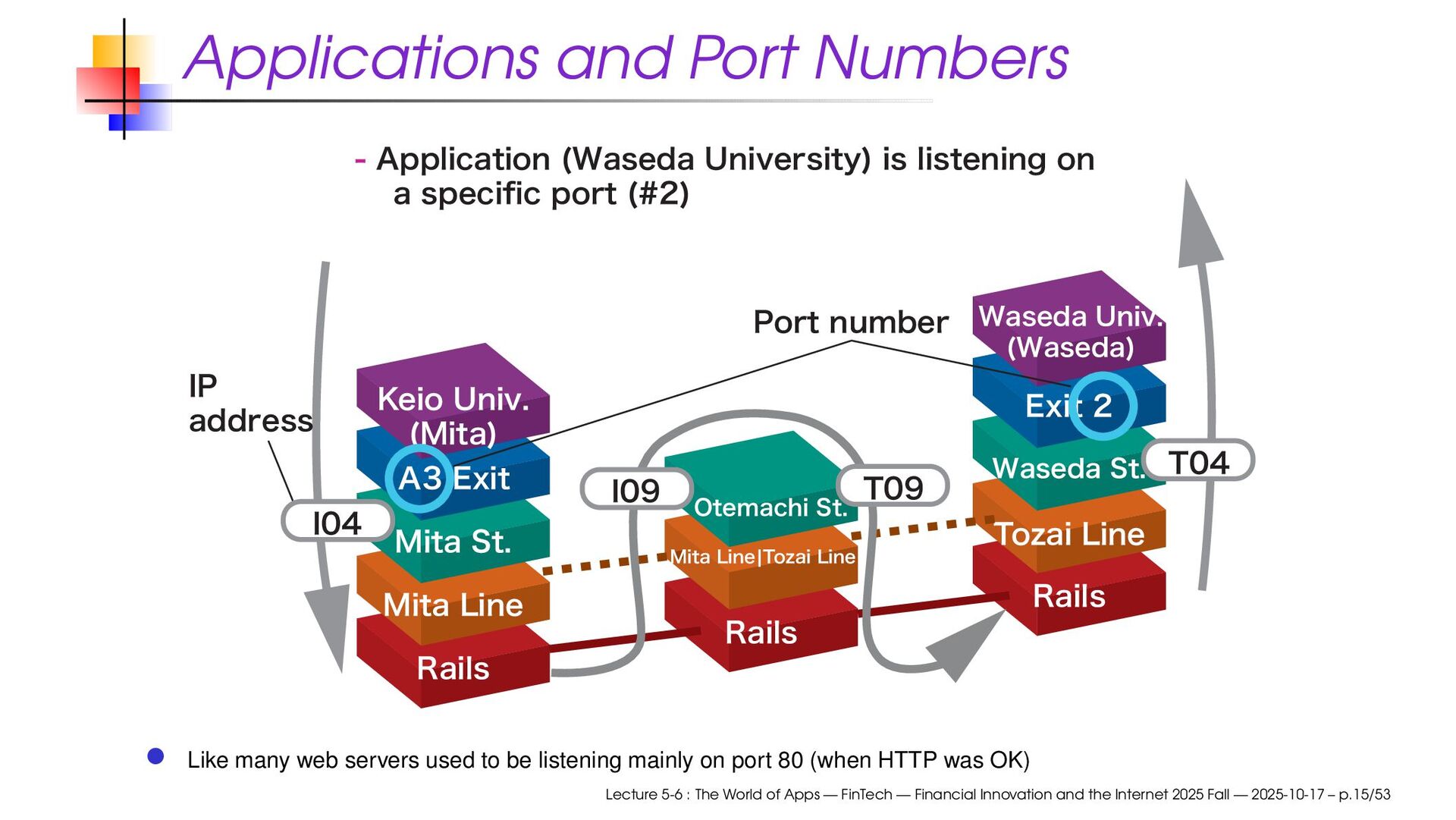

3BJMT .JUB-JOF .JUB4U ̖&YJU ,FJP6OJW .JUB 3BJMT ɹ0UFNBDIJ4U .JUB-JOFc5P[BJ-JOF "QQMJDBUJPO 8BTFEB6OJWFSTJUZ JTMJTUFOJOHPO BTQFDJpDQPSU *1 BEESFTT 1PSUOVNCFS * * 5 5 Like many web servers used to be listening mainly on port 80 (when HTTP was OK) Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.15/53

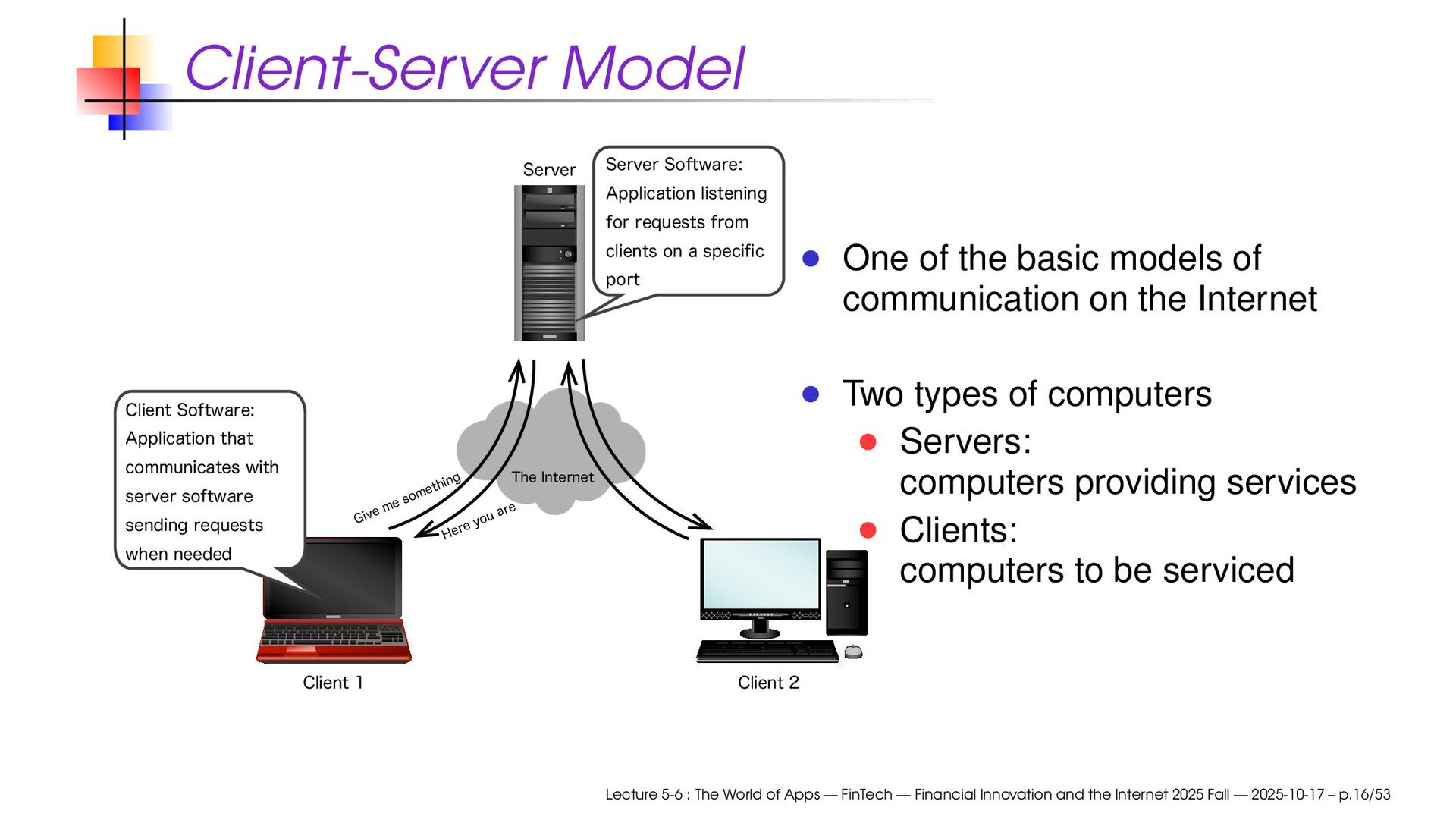

GPSSFRVFTUTGSPN DMJFOUTPOBTQFDJpD QPSU $MJFOU4PGUXBSF "QQMJDBUJPOUIBU DPNNVOJDBUFTXJUI TFSWFSTPGUXBSF TFOEJOHSFRVFTUT XIFOOFFEFE One of the basic models of communication on the Internet Two types of computers Servers: computers providing services Clients: computers to be serviced Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.16/53

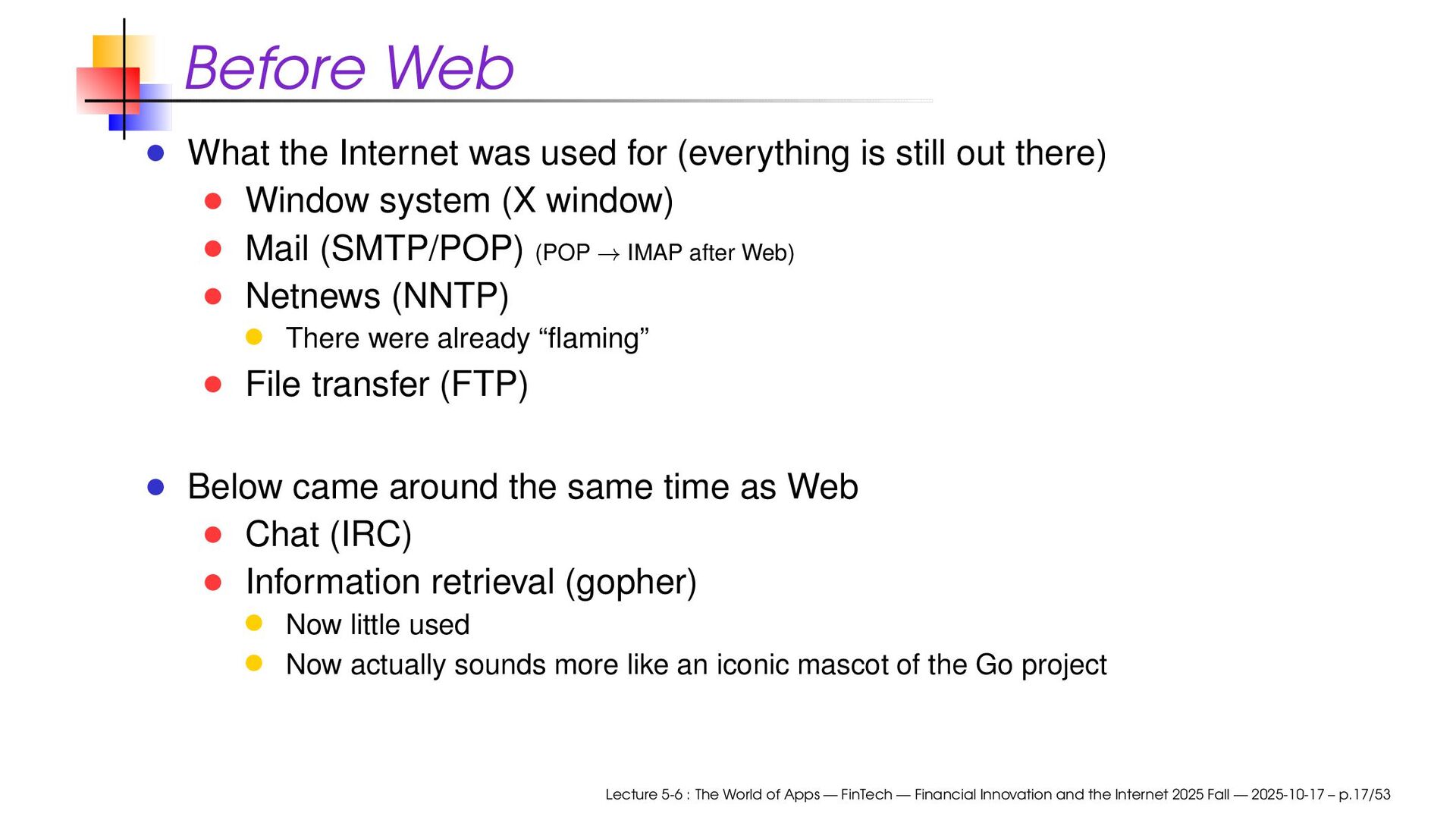

still out there) Window system (X window) Mail (SMTP/POP) (POP → IMAP after Web) Netnews (NNTP) There were already “flaming” File transfer (FTP) Below came around the same time as Web Chat (IRC) Information retrieval (gopher) Now little used Now actually sounds more like an iconic mascot of the Go project Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.17/53

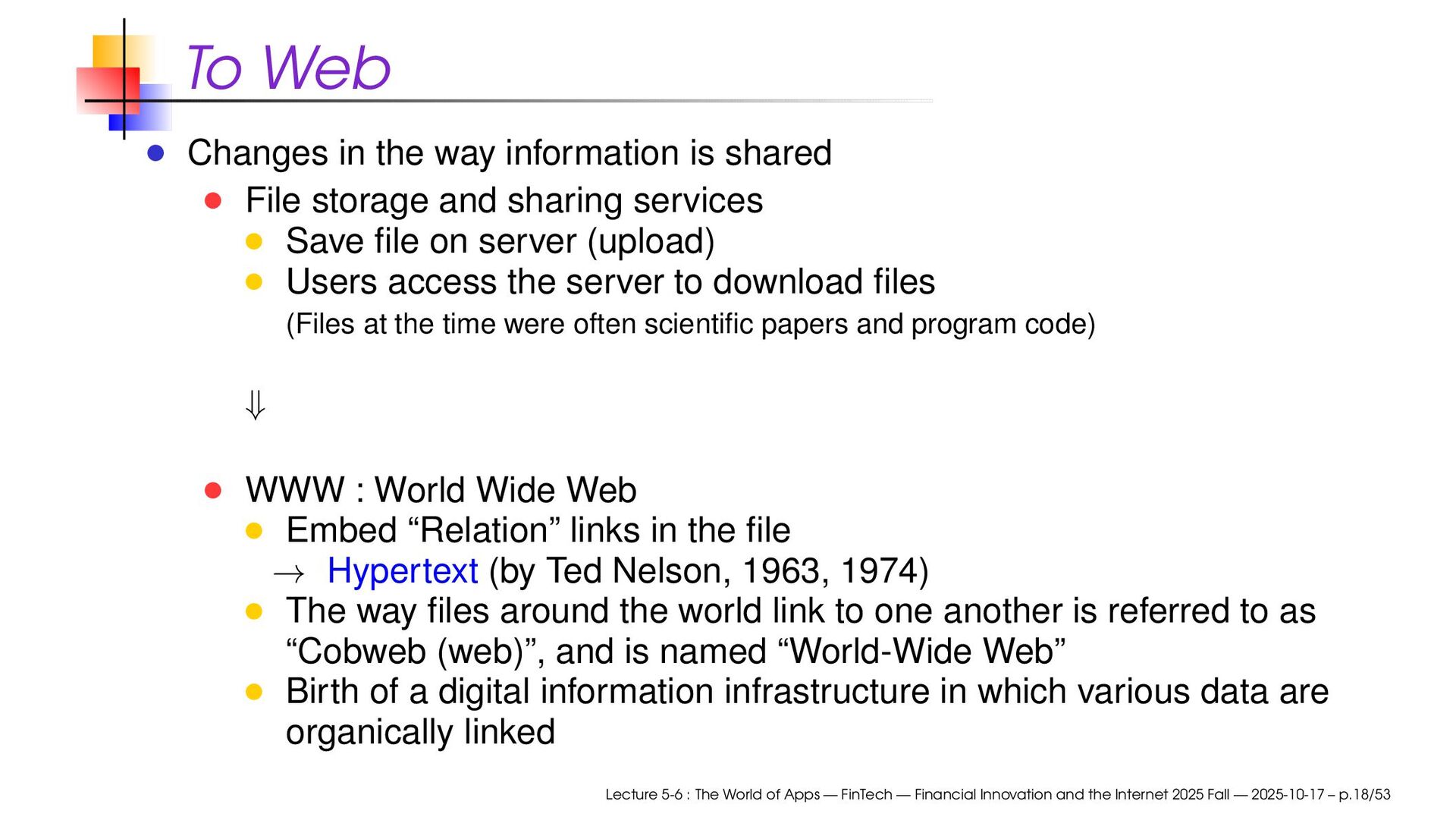

storage and sharing services Save file on server (upload) Users access the server to download files (Files at the time were often scientific papers and program code) ⇓ WWW : World Wide Web Embed “Relation” links in the file → Hypertext (by Ted Nelson, 1963, 1974) The way files around the world link to one another is referred to as “Cobweb (web)”, and is named “World-Wide Web” Birth of a digital information infrastructure in which various data are organically linked Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.18/53

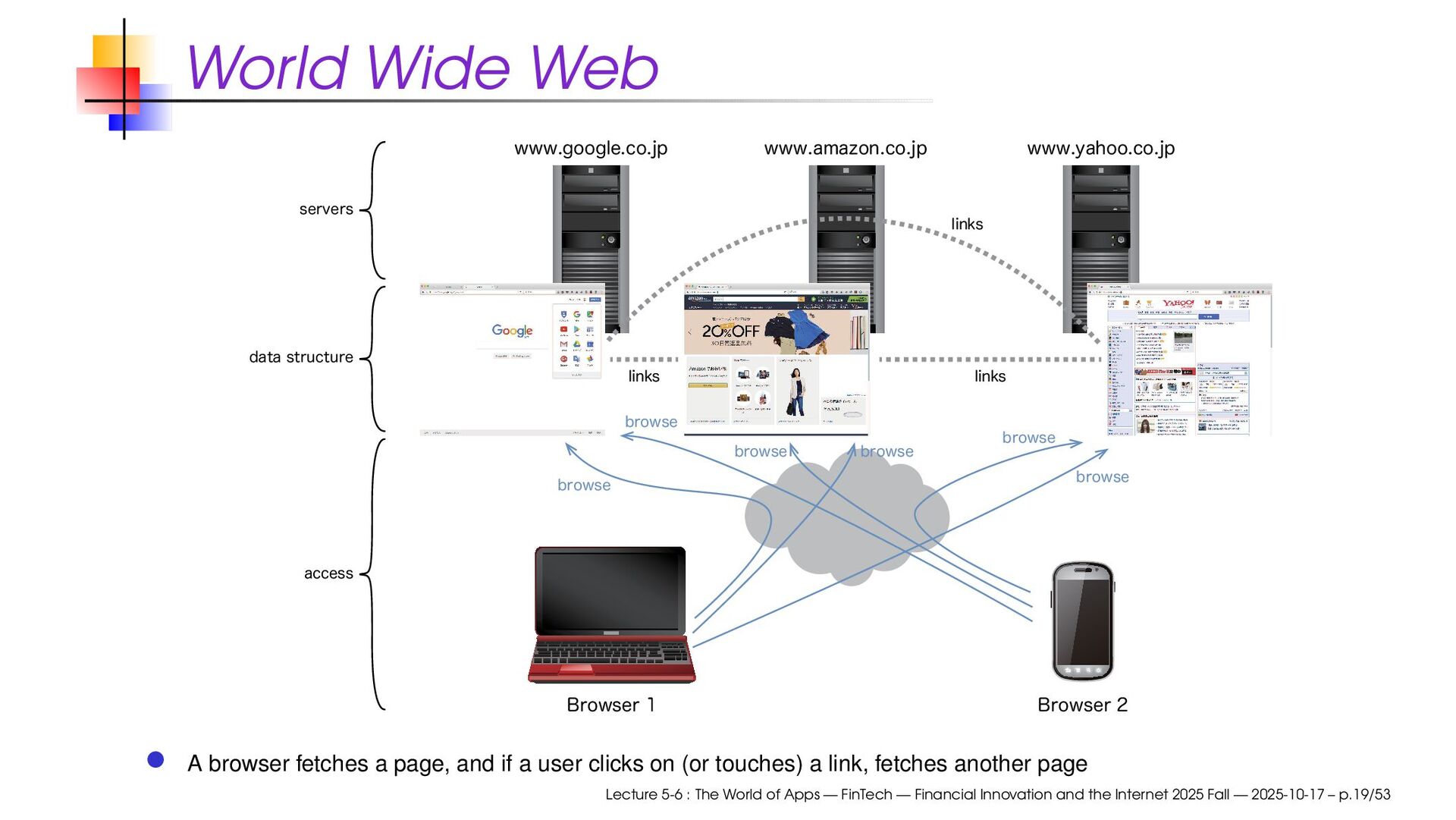

MJOLT MJOLT CSPXTF CSPXTF CSPXTF CSPXTF CSPXTF CSPXTF XXXHPPHMFDPKQ XXXZBIPPDPKQ A browser fetches a page, and if a user clicks on (or touches) a link, fetches another page Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.19/53

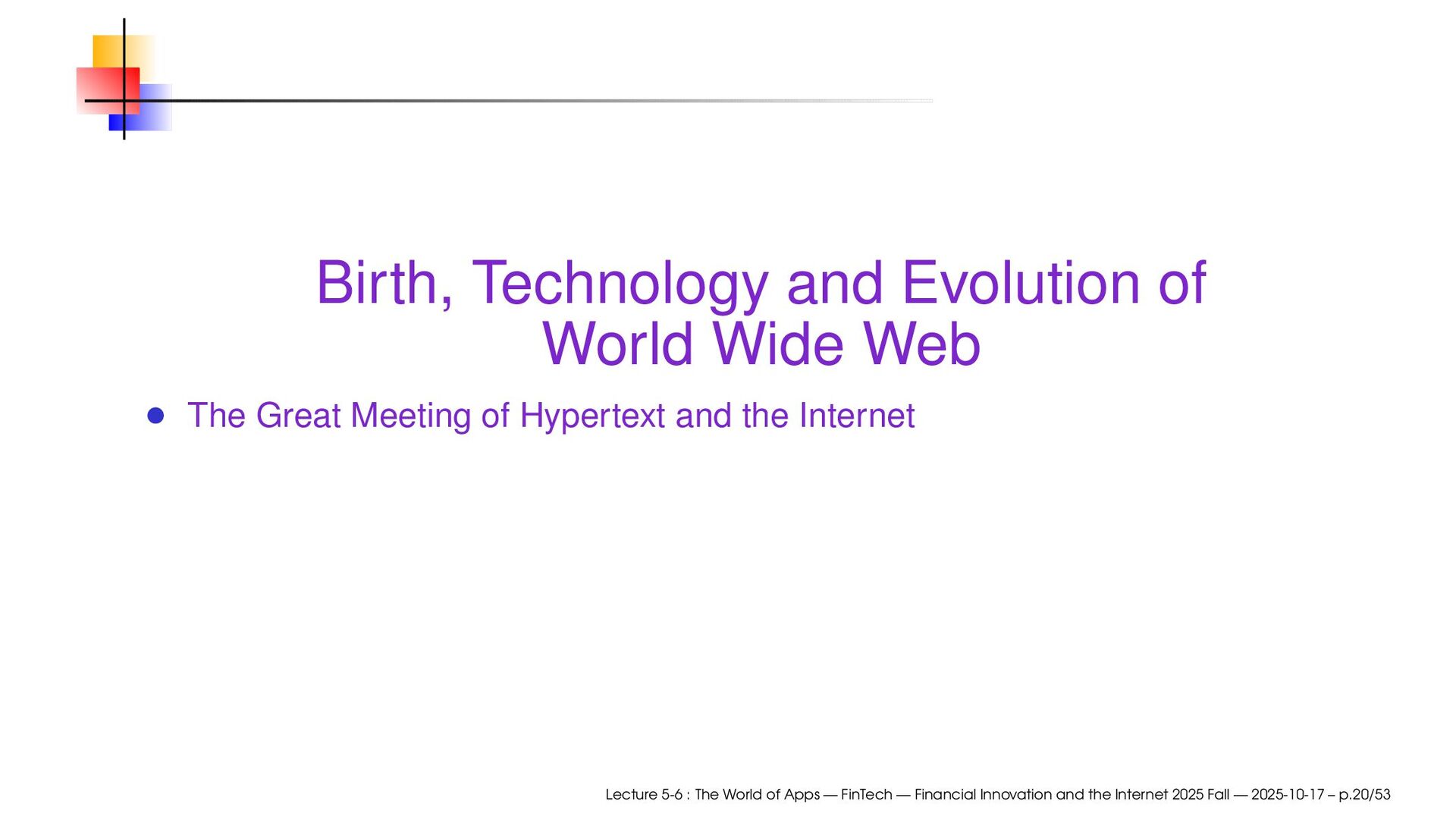

Meeting of Hypertext and the Internet Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.20/53

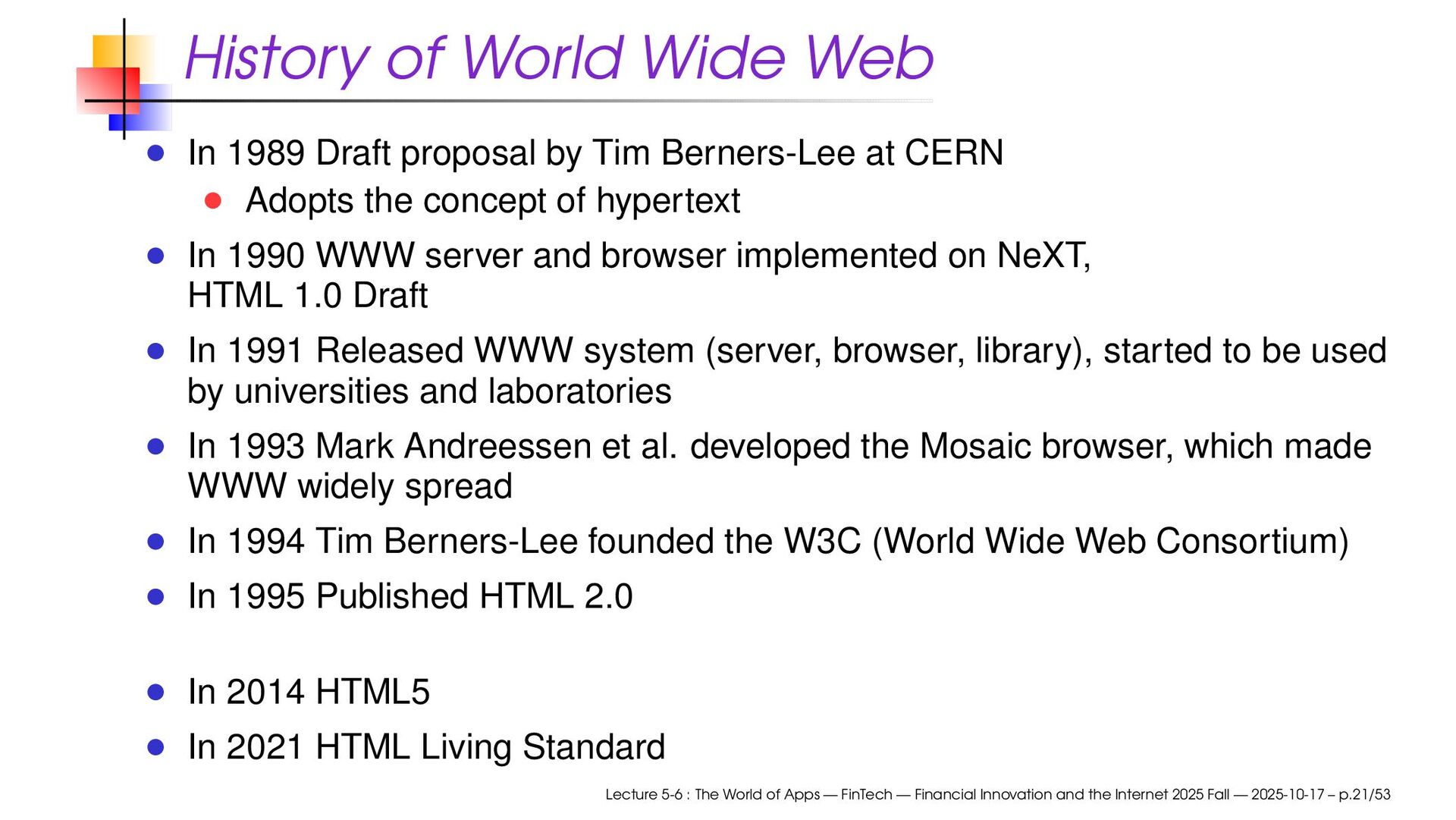

Tim Berners-Lee at CERN Adopts the concept of hypertext In 1990 WWW server and browser implemented on NeXT, HTML 1.0 Draft In 1991 Released WWW system (server, browser, library), started to be used by universities and laboratories In 1993 Mark Andreessen et al. developed the Mosaic browser, which made WWW widely spread In 1994 Tim Berners-Lee founded the W3C (World Wide Web Consortium) In 1995 Published HTML 2.0 In 2014 HTML5 In 2021 HTML Living Standard Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.21/53

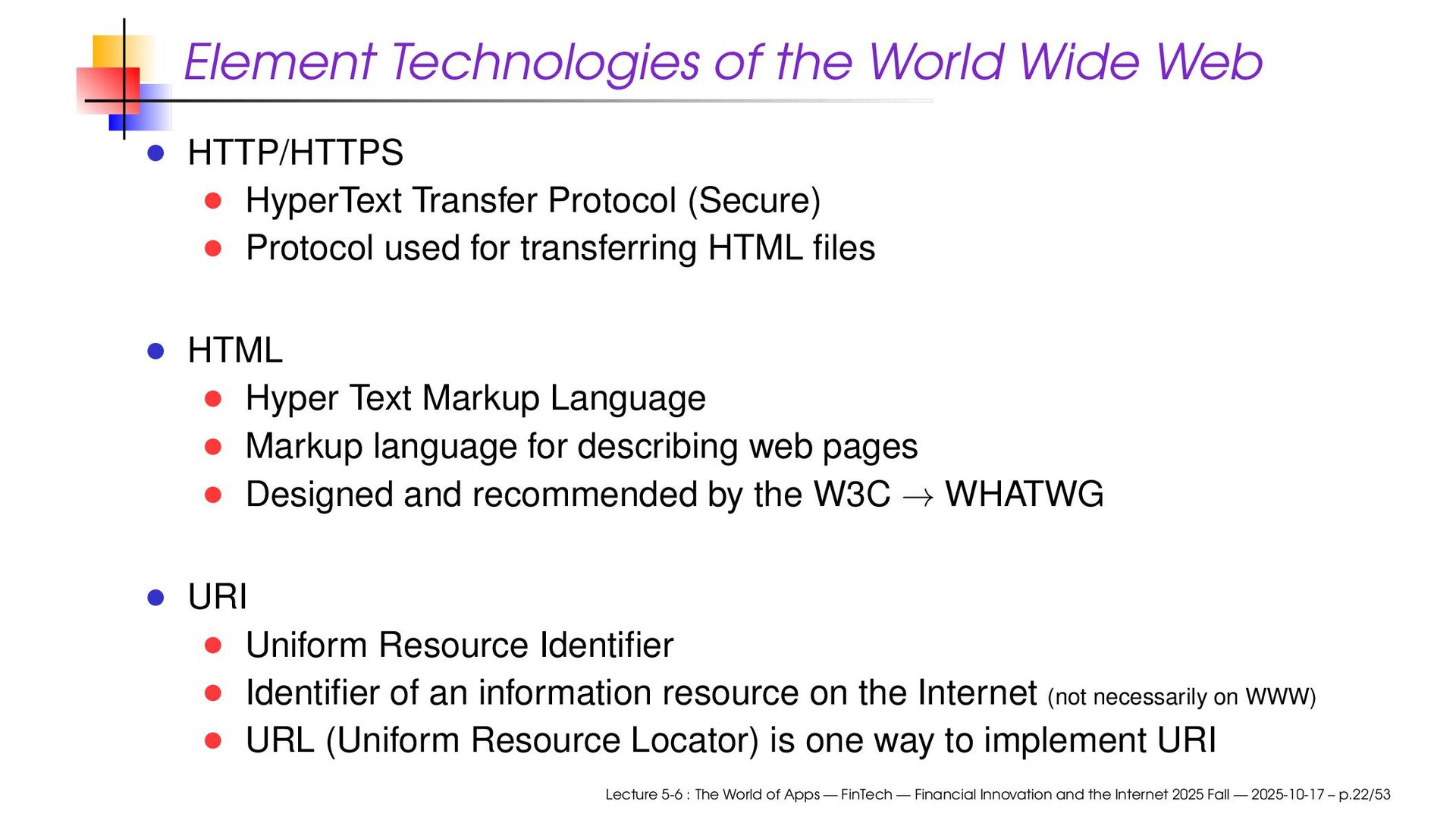

Protocol (Secure) Protocol used for transferring HTML files HTML Hyper Text Markup Language Markup language for describing web pages Designed and recommended by the W3C → WHATWG URI Uniform Resource Identifier Identifier of an information resource on the Internet (not necessarily on WWW) URL (Uniform Resource Locator) is one way to implement URI Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.22/53

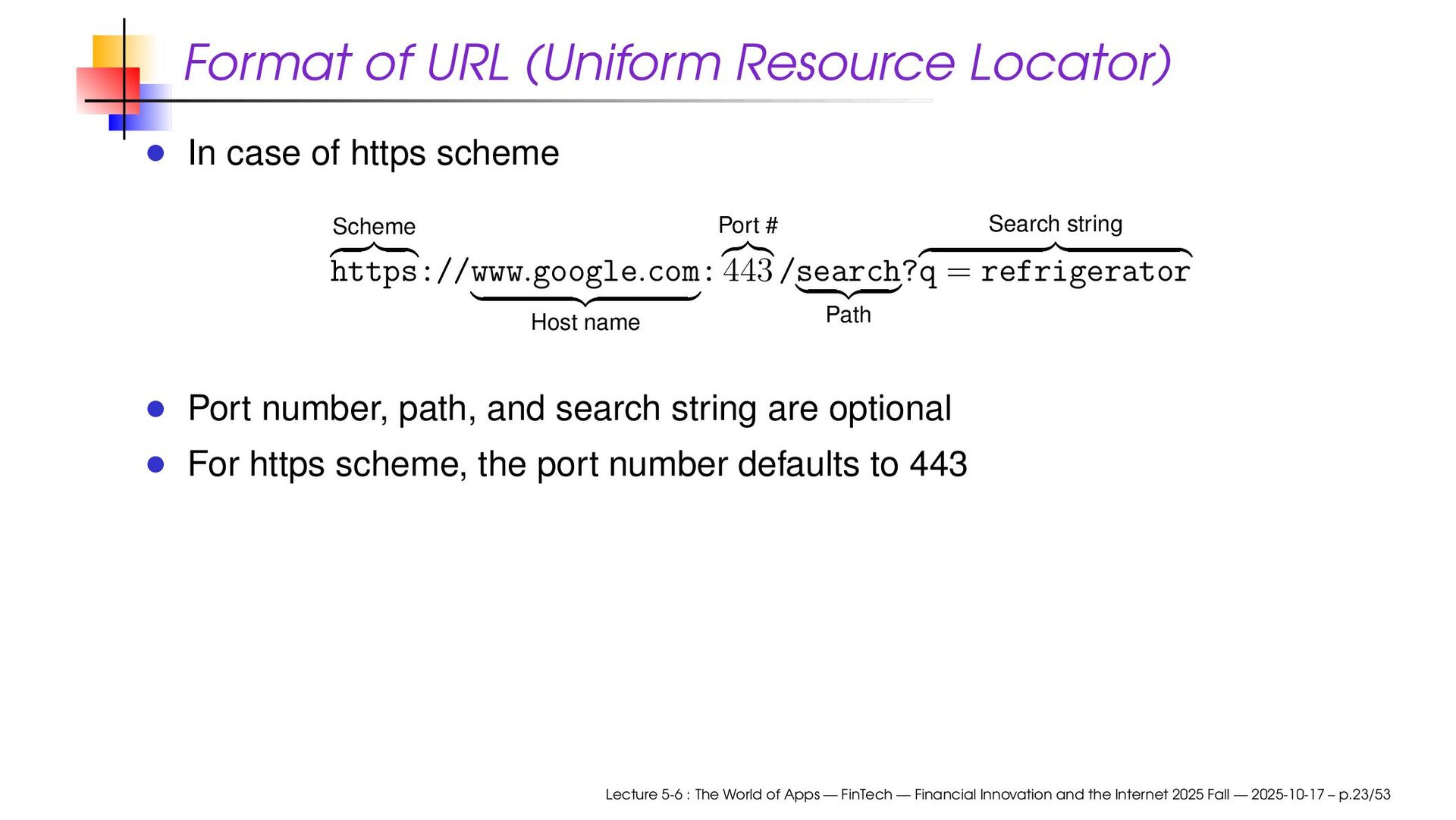

scheme Scheme https://www . google . com Host name : Port # 443/search Path ? Search string q = refrigerator Port number, path, and search string are optional For https scheme, the port number defaults to 443 Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.23/53
HTTP/1.1 Host: www.waseda.jp and an empty line After receiving the page, quit with Ctrl+D (press the control and D keys together) Install openssl in your environment and try it out Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.24/53

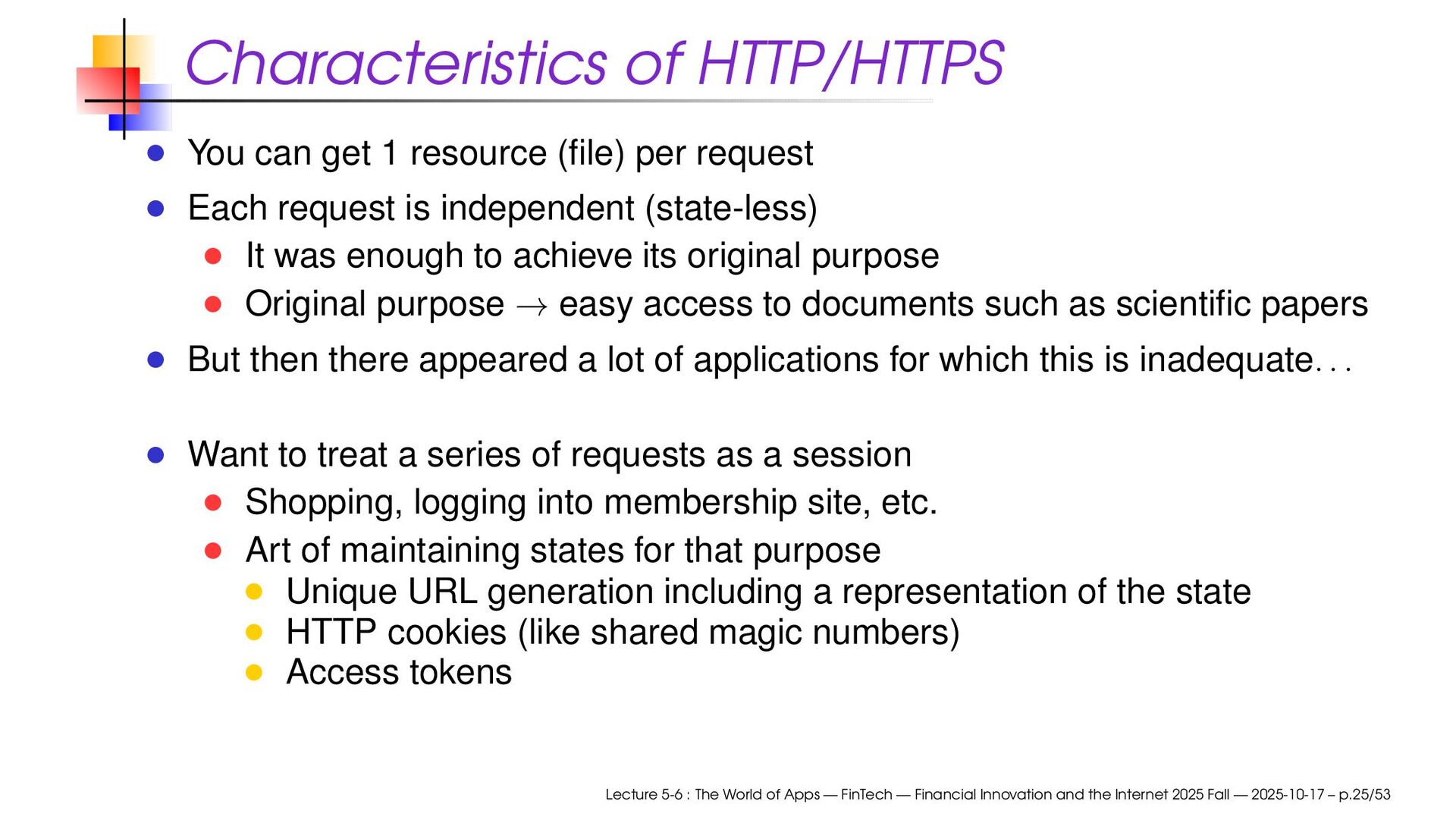

request Each request is independent (state-less) It was enough to achieve its original purpose Original purpose → easy access to documents such as scientific papers But then there appeared a lot of applications for which this is inadequate . . . Want to treat a series of requests as a session Shopping, logging into membership site, etc. Art of maintaining states for that purpose Unique URL generation including a representation of the state HTTP cookies (like shared magic numbers) Access tokens Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.25/53

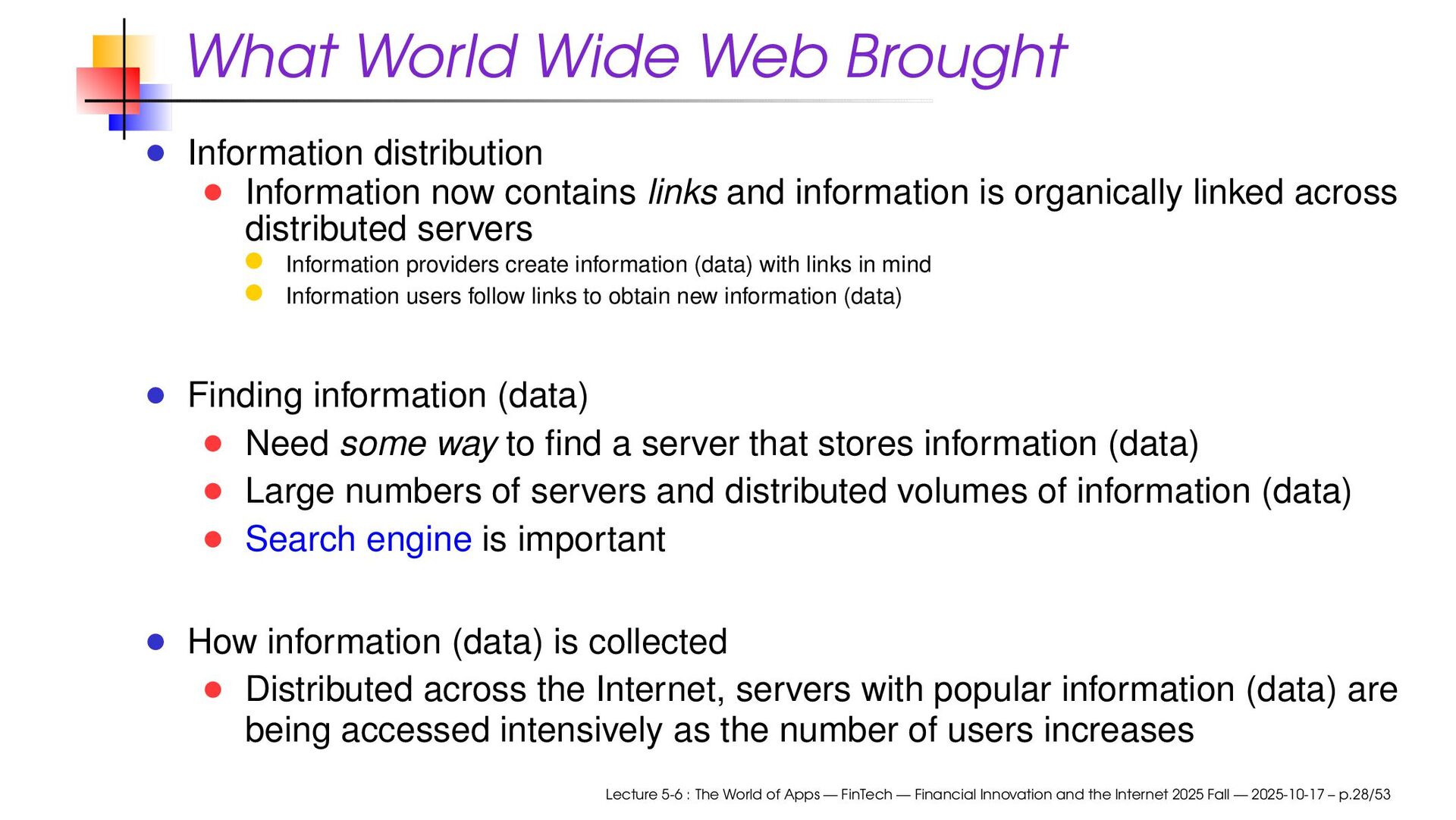

links and information is organically linked across distributed servers Information providers create information (data) with links in mind Information users follow links to obtain new information (data) Finding information (data) Need some way to find a server that stores information (data) Large numbers of servers and distributed volumes of information (data) Search engine is important How information (data) is collected Distributed across the Internet, servers with popular information (data) are being accessed intensively as the number of users increases Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.28/53

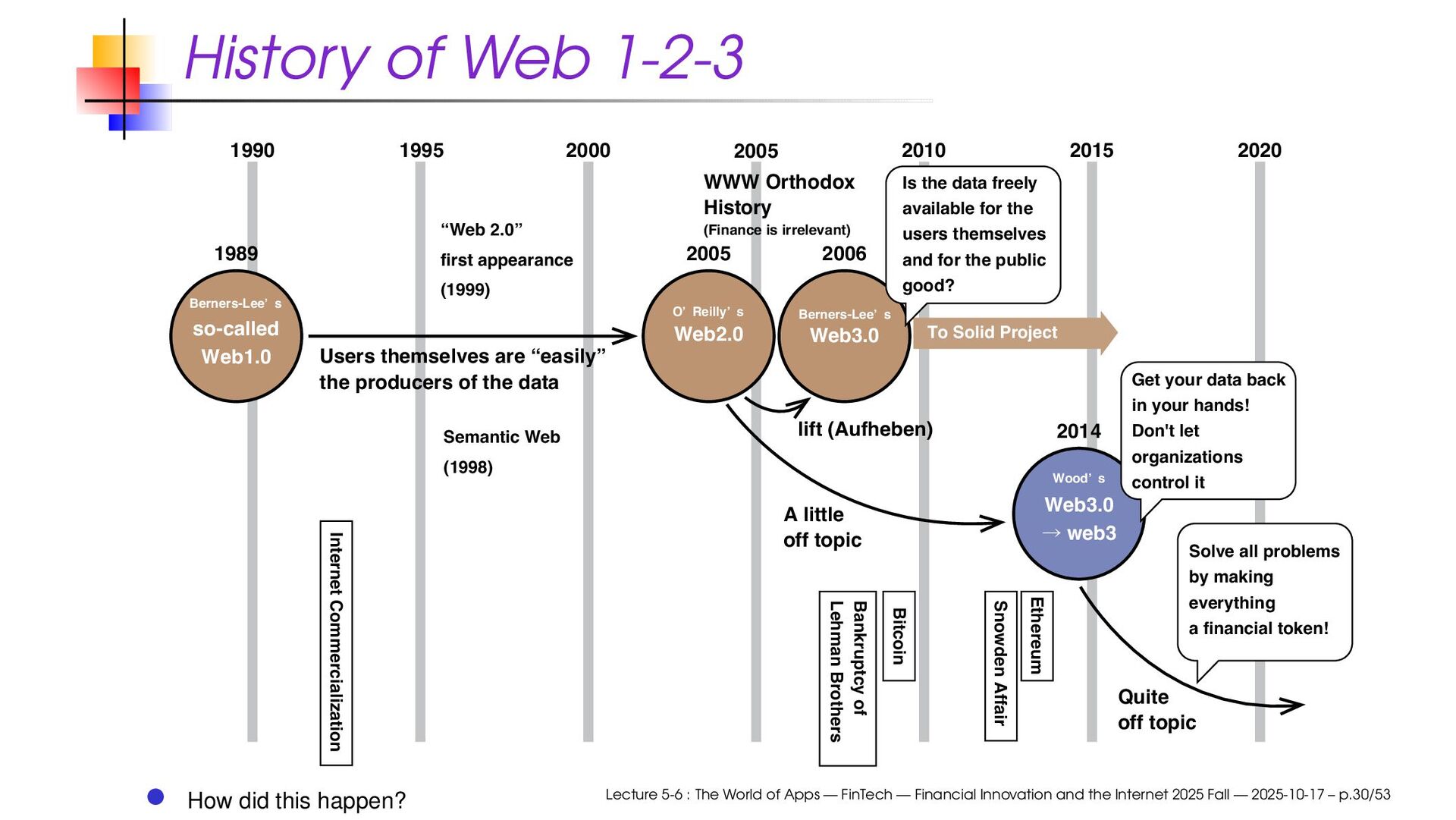

(Finance is irrelevant) Users themselves are “easily” the producers of the data A little off topic Quite off topic lift (Aufheben) 1989 Web3.0 ˠ web3 2014 1990 1995 2000 2005 2010 2015 2020 2005 2006 Web3.0 Get your data back in your hands! Don't let organizations control it Solve all problems by making everything a financial token! Berners-Lee’ s Berners-Lee’ s O’ Reilly’ s Wood’ s Bitcoin Ethereum Semantic Web (1998) “Web 2.0” first appearance (1999) Snowden Affair Bankruptcy of Lehman Brothers Internet Commercialization To Solid Project Is the data freely available for the users themselves and for the public good? How did this happen? Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.30/53

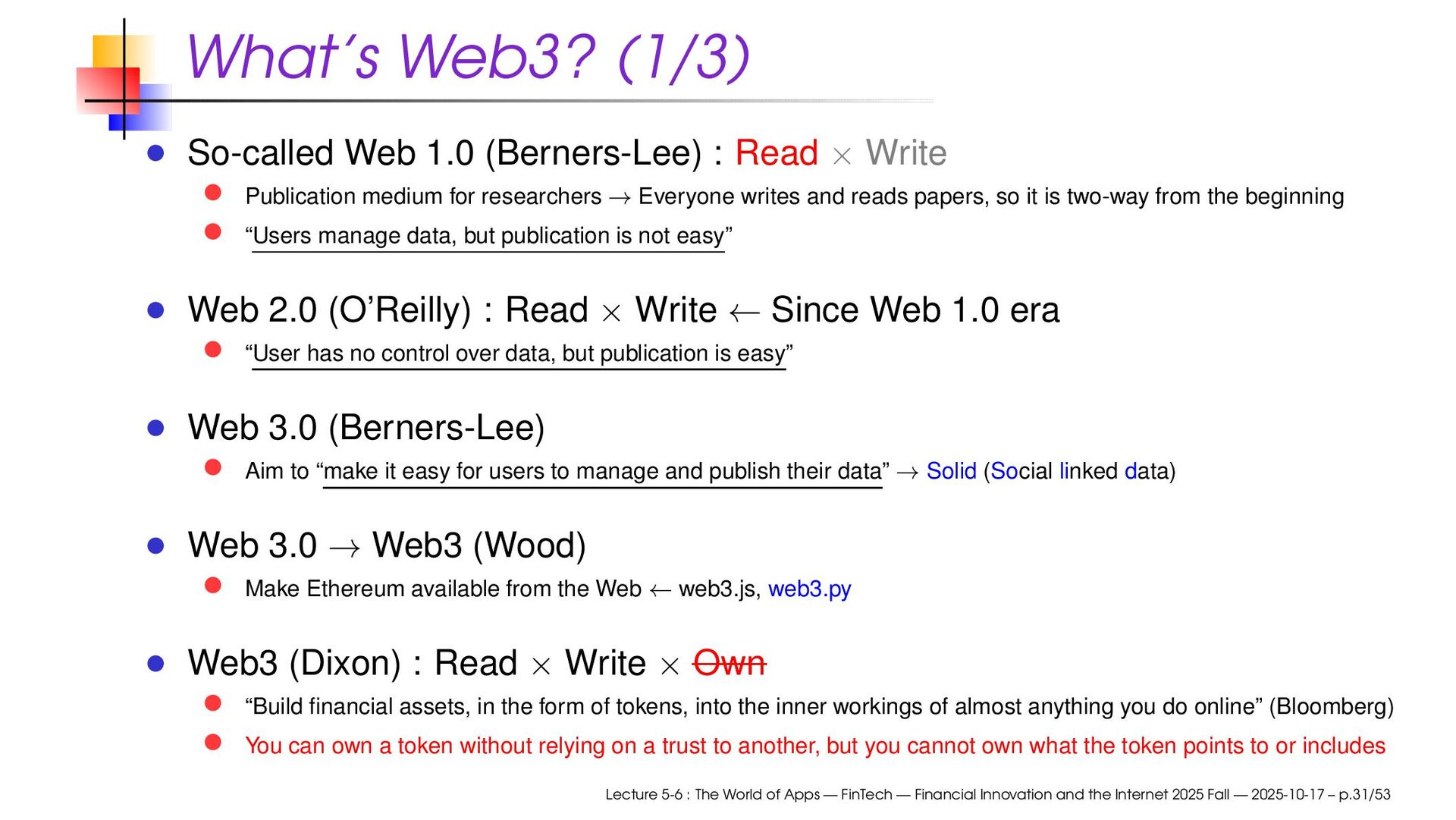

Write Publication medium for researchers → Everyone writes and reads papers, so it is two-way from the beginning “Users manage data, but publication is not easy” Web 2.0 (O’Reilly) : Read × Write ← Since Web 1.0 era “User has no control over data, but publication is easy” Web 3.0 (Berners-Lee) Aim to “make it easy for users to manage and publish their data” → Solid (Social linked data) Web 3.0 → Web3 (Wood) Make Ethereum available from the Web ← web3.js, web3.py Web3 (Dixon) : Read × Write × Own “Build financial assets, in the form of tokens, into the inner workings of almost anything you do online” (Bloomberg) You can own a token without relying on a trust to another, but you cannot own what the token points to or includes Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.31/53

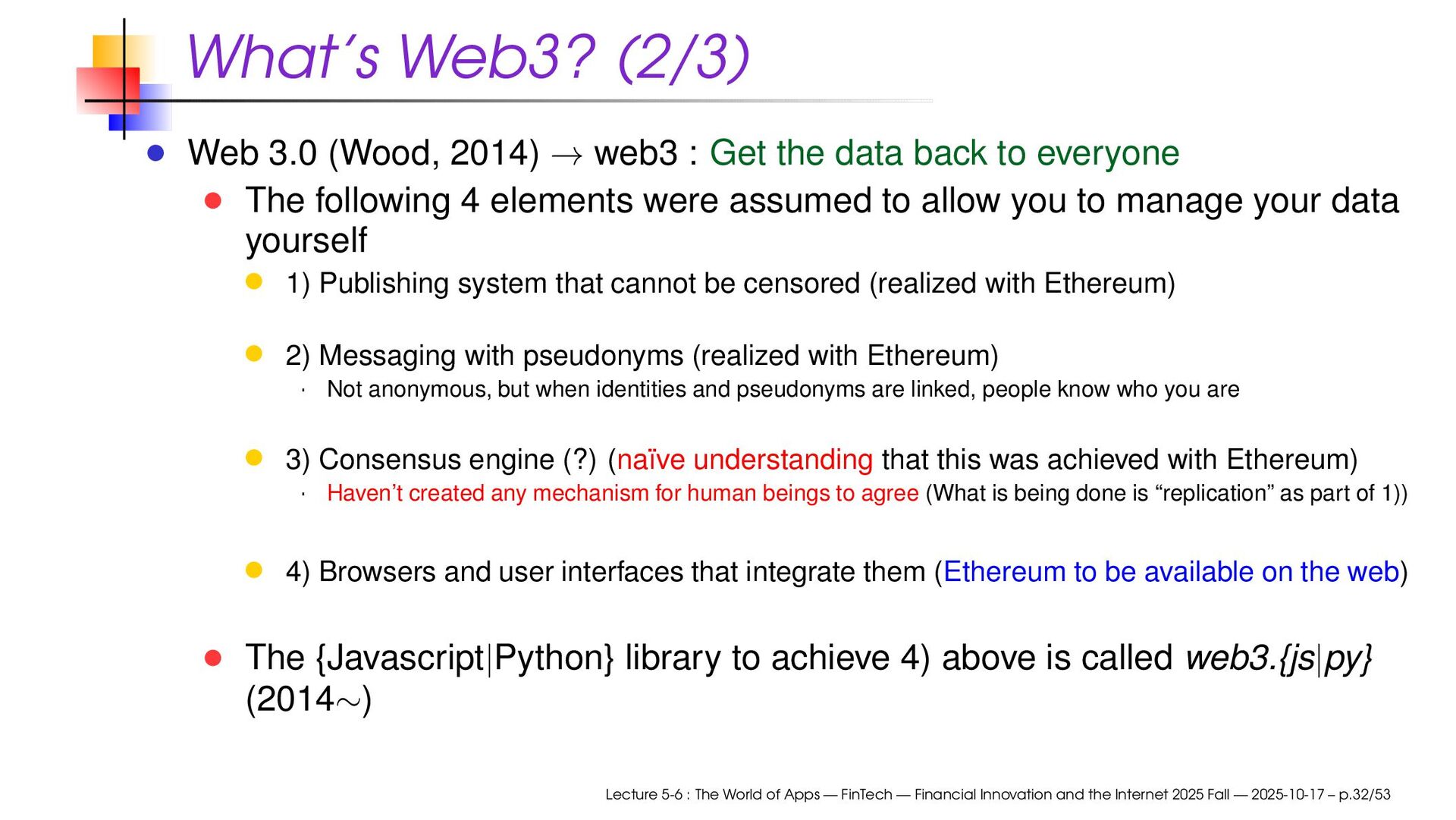

Get the data back to everyone The following 4 elements were assumed to allow you to manage your data yourself 1) Publishing system that cannot be censored (realized with Ethereum) 2) Messaging with pseudonyms (realized with Ethereum) · Not anonymous, but when identities and pseudonyms are linked, people know who you are 3) Consensus engine (?) (naïve understanding that this was achieved with Ethereum) · Haven’t created any mechanism for human beings to agree (What is being done is “replication” as part of 1)) 4) Browsers and user interfaces that integrate them (Ethereum to be available on the web) The {Javascript|Python} library to achieve 4) above is called web3.{js|py} (2014∼) Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.32/53

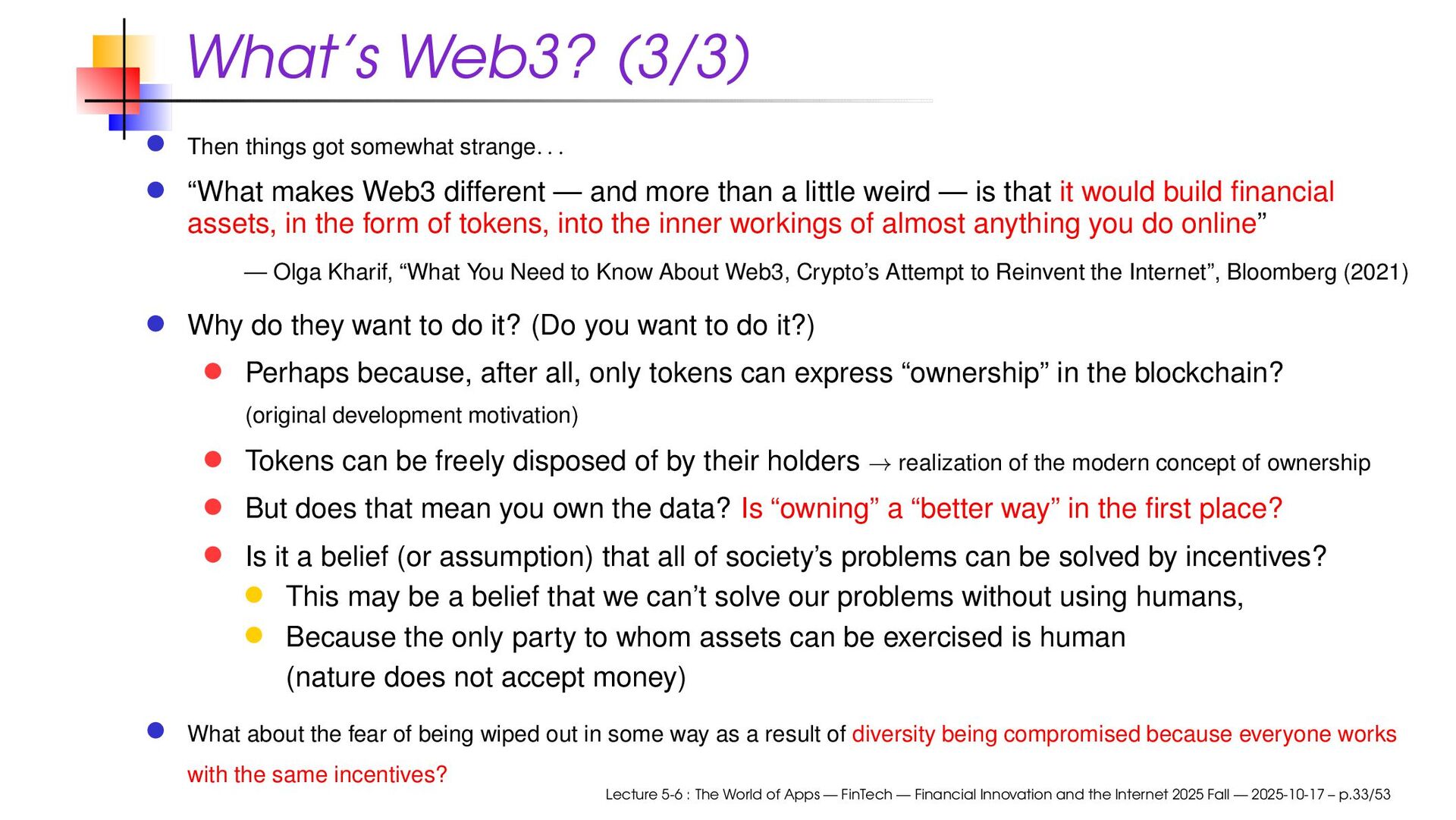

. “What makes Web3 different — and more than a little weird — is that it would build financial assets, in the form of tokens, into the inner workings of almost anything you do online” — Olga Kharif, “What You Need to Know About Web3, Crypto’s Attempt to Reinvent the Internet”, Bloomberg (2021) Why do they want to do it? (Do you want to do it?) Perhaps because, after all, only tokens can express “ownership” in the blockchain? (original development motivation) Tokens can be freely disposed of by their holders → realization of the modern concept of ownership But does that mean you own the data? Is “owning” a “better way” in the first place? Is it a belief (or assumption) that all of society’s problems can be solved by incentives? This may be a belief that we can’t solve our problems without using humans, Because the only party to whom assets can be exercised is human (nature does not accept money) What about the fear of being wiped out in some way as a result of diversity being compromised because everyone works with the same incentives? Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.33/53

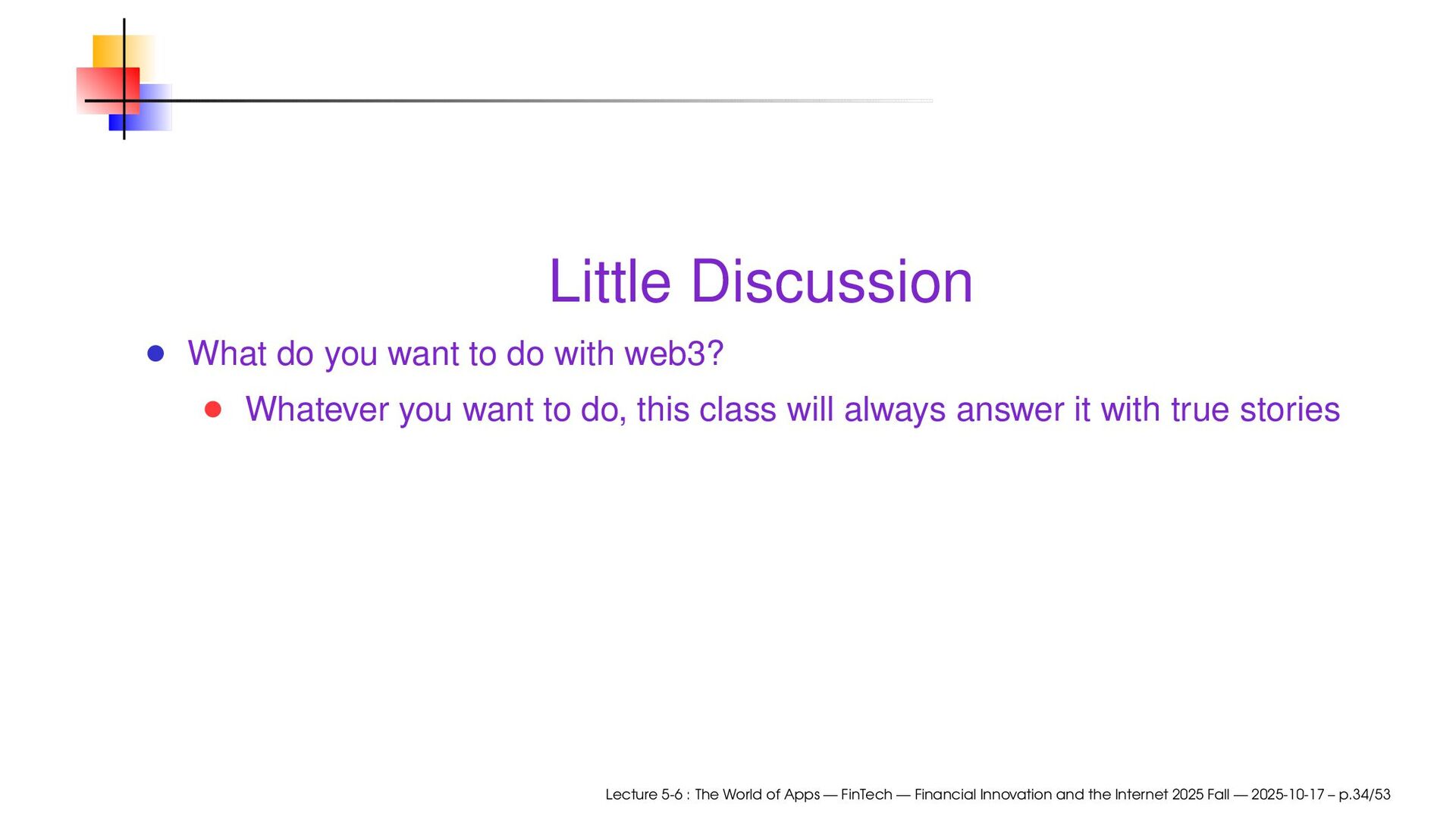

Whatever you want to do, this class will always answer it with true stories Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.34/53

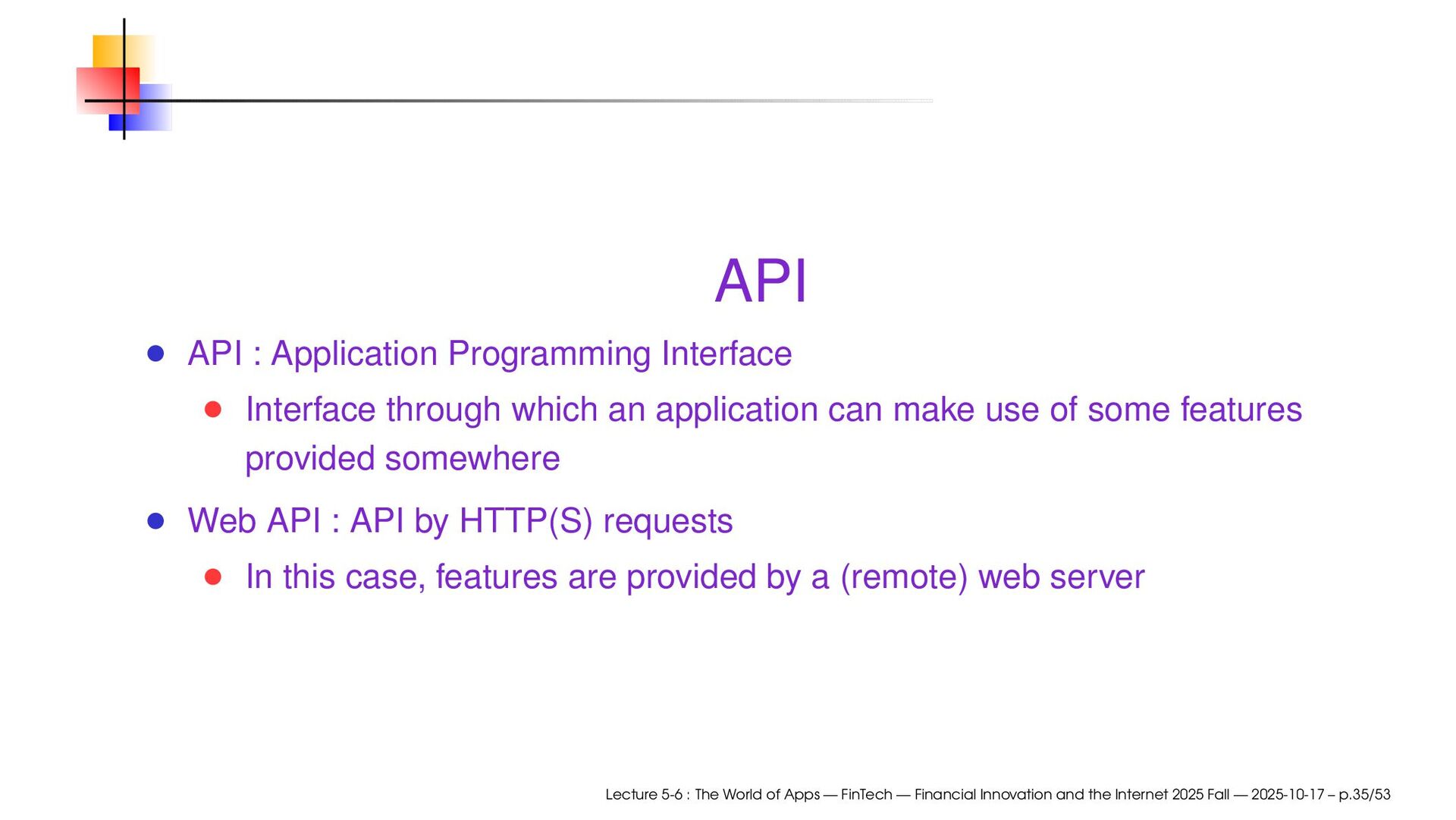

application can make use of some features provided somewhere Web API : API by HTTP(S) requests In this case, features are provided by a (remote) web server Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.35/53

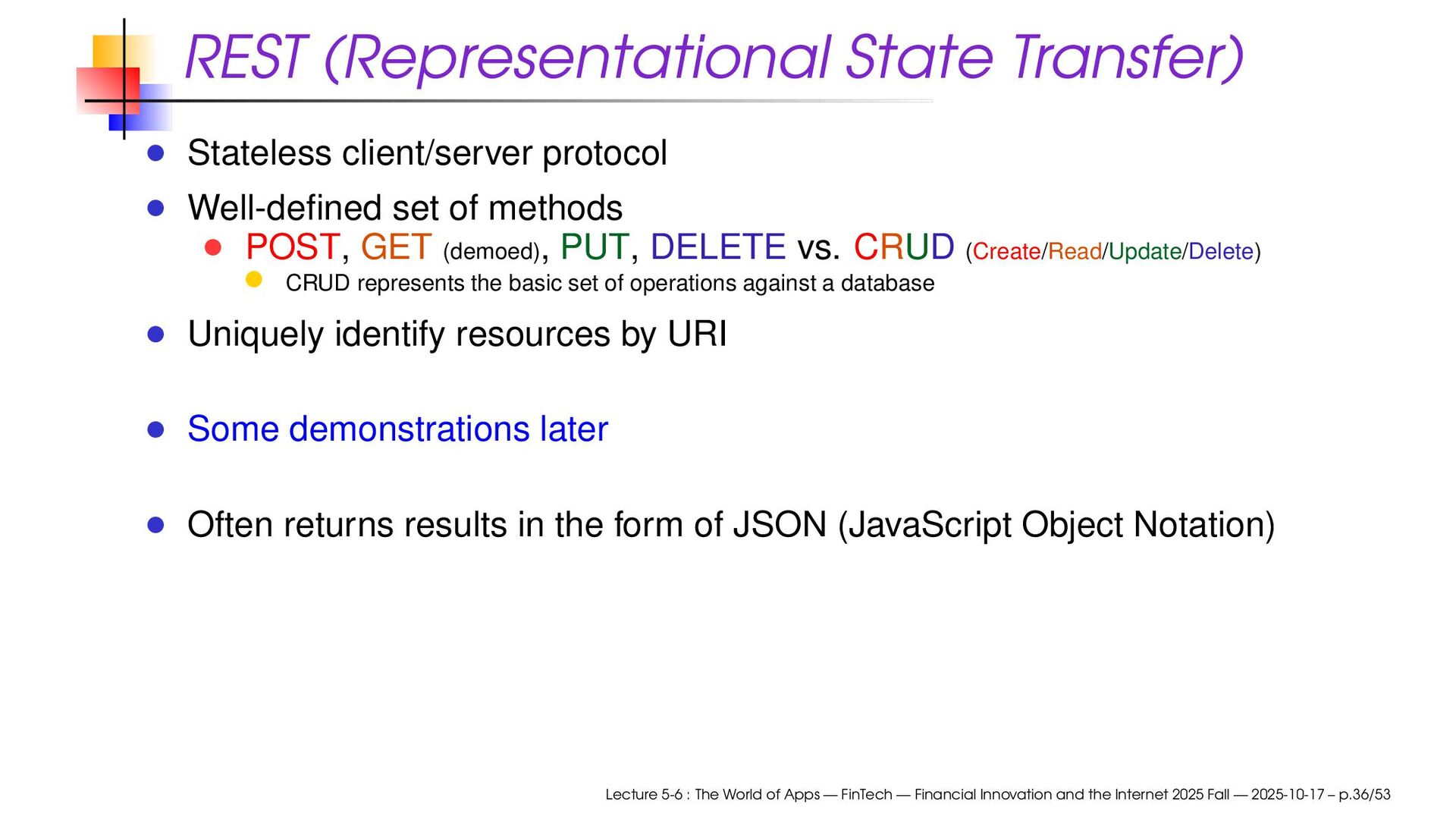

methods POST, GET (demoed), PUT, DELETE vs. CRUD (Create/Read/Update/Delete) CRUD represents the basic set of operations against a database Uniquely identify resources by URI Some demonstrations later Often returns results in the form of JSON (JavaScript Object Notation) Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.36/53

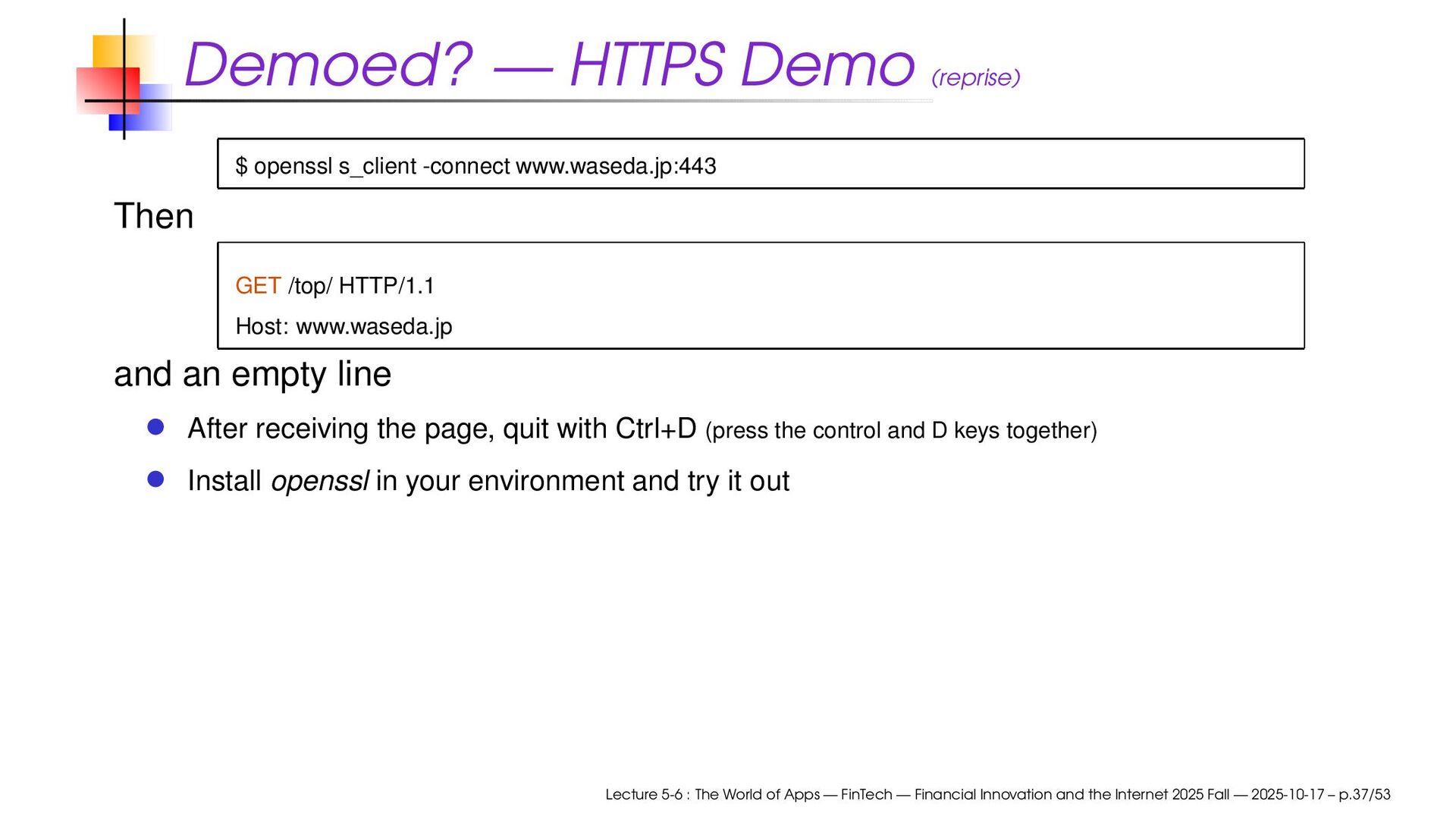

Then GET /top/ HTTP/1.1 Host: www.waseda.jp and an empty line After receiving the page, quit with Ctrl+D (press the control and D keys together) Install openssl in your environment and try it out Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.37/53

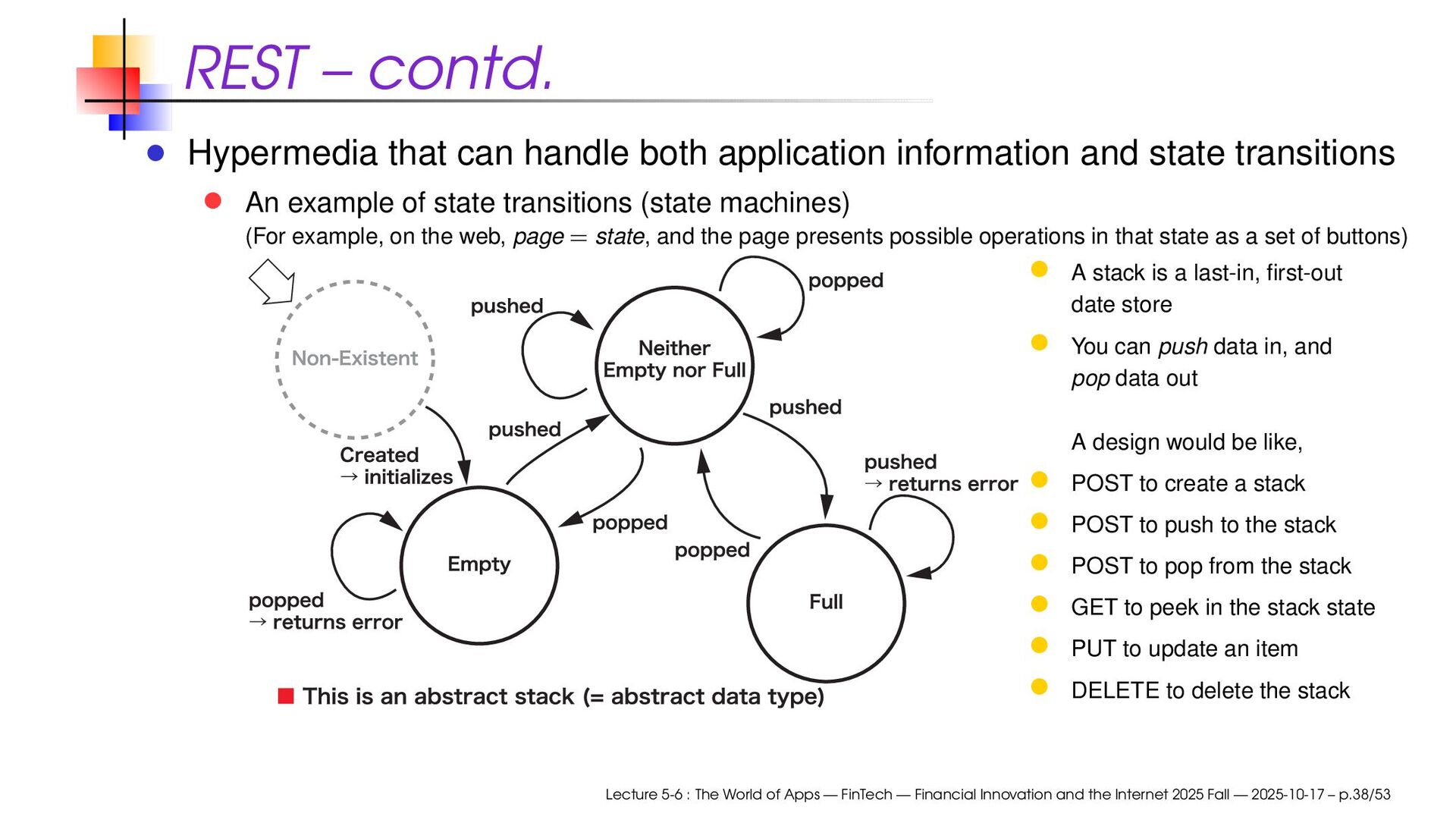

and state transitions An example of state transitions (state machines) (For example, on the web, page = state, and the page presents possible operations in that state as a set of buttons) A stack is a last-in, first-out date store You can push data in, and pop data out A design would be like, POST to create a stack POST to push to the stack POST to pop from the stack GET to peek in the stack state PUT to update an item DELETE to delete the stack Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.38/53

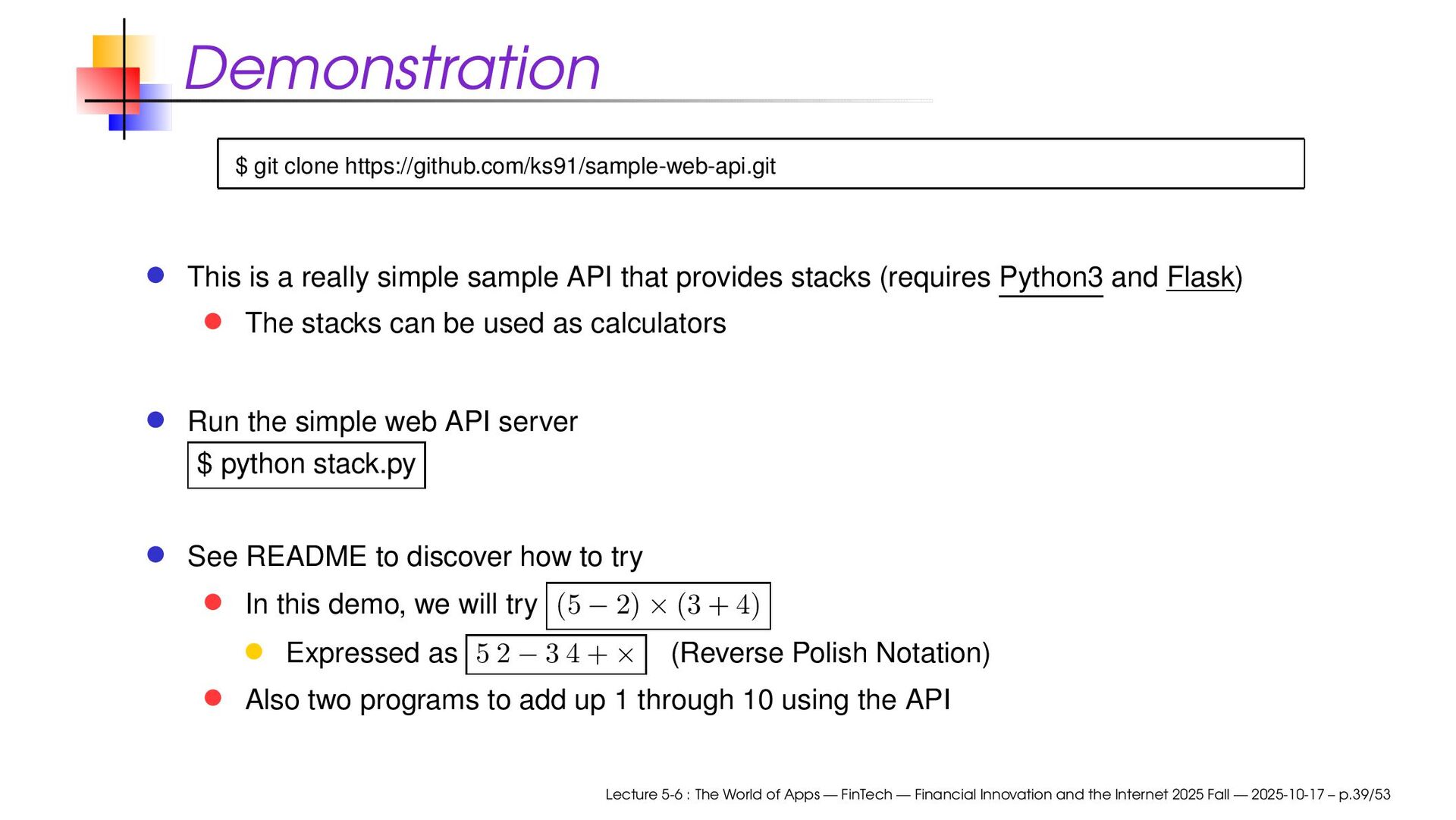

sample API that provides stacks (requires Python3 and Flask) The stacks can be used as calculators Run the simple web API server $ python stack.py See README to discover how to try In this demo, we will try (5 − 2) × (3 + 4) Expressed as 5 2 − 3 4 + × (Reverse Polish Notation) Also two programs to add up 1 through 10 using the API Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.39/53
the trouble of using APIs to do something this simple We did it as a demonstration in which we can easily confirm that the API worked correctly If I were to point at the moon, you should be looking at the moon, not at my index finger ↑ If you are wondering why I suddenly started talking about the moon, you are surely looking at my index finger At the same time, the stack calculator is an important concept You can make a (virtual) computer out of this concept It is called a stack machine Bitcoin’s virtual computer for scripting is a stack machine Ethereum Virtual Machine (EVM) is also a stack machine Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.40/53

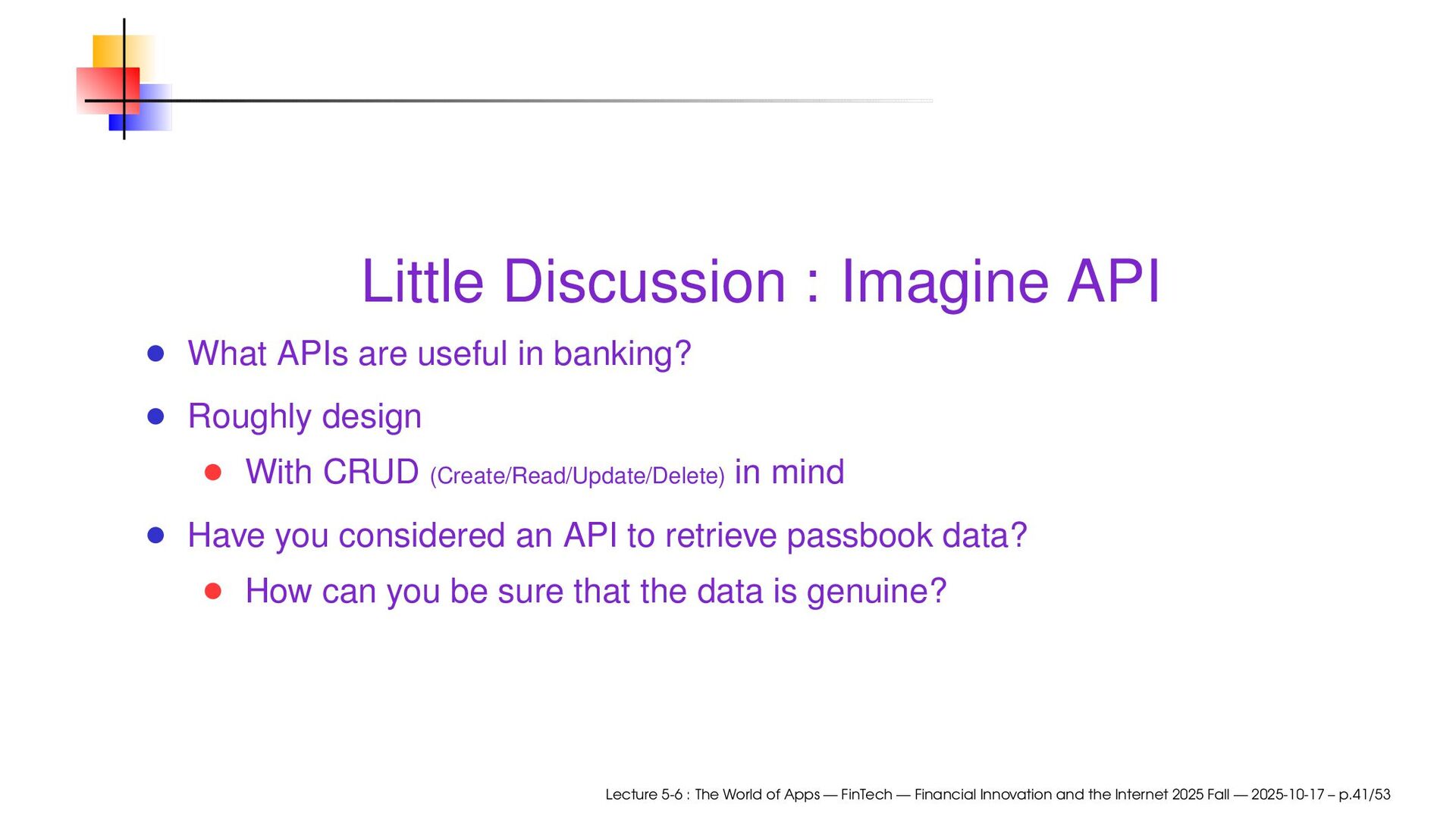

banking? Roughly design With CRUD (Create/Read/Update/Delete) in mind Have you considered an API to retrieve passbook data? How can you be sure that the data is genuine? Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.41/53

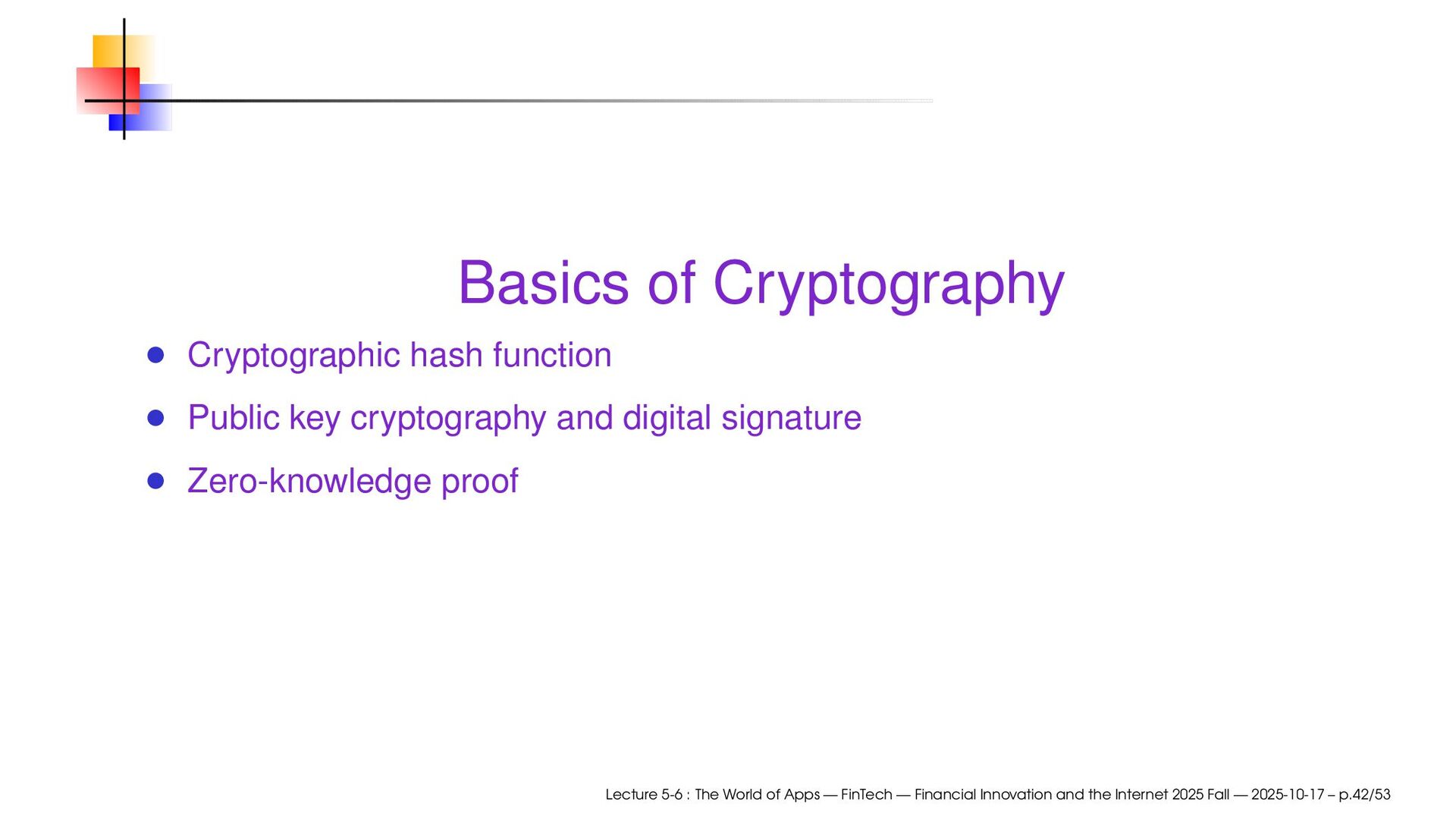

digital signature Zero-knowledge proof Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.42/53

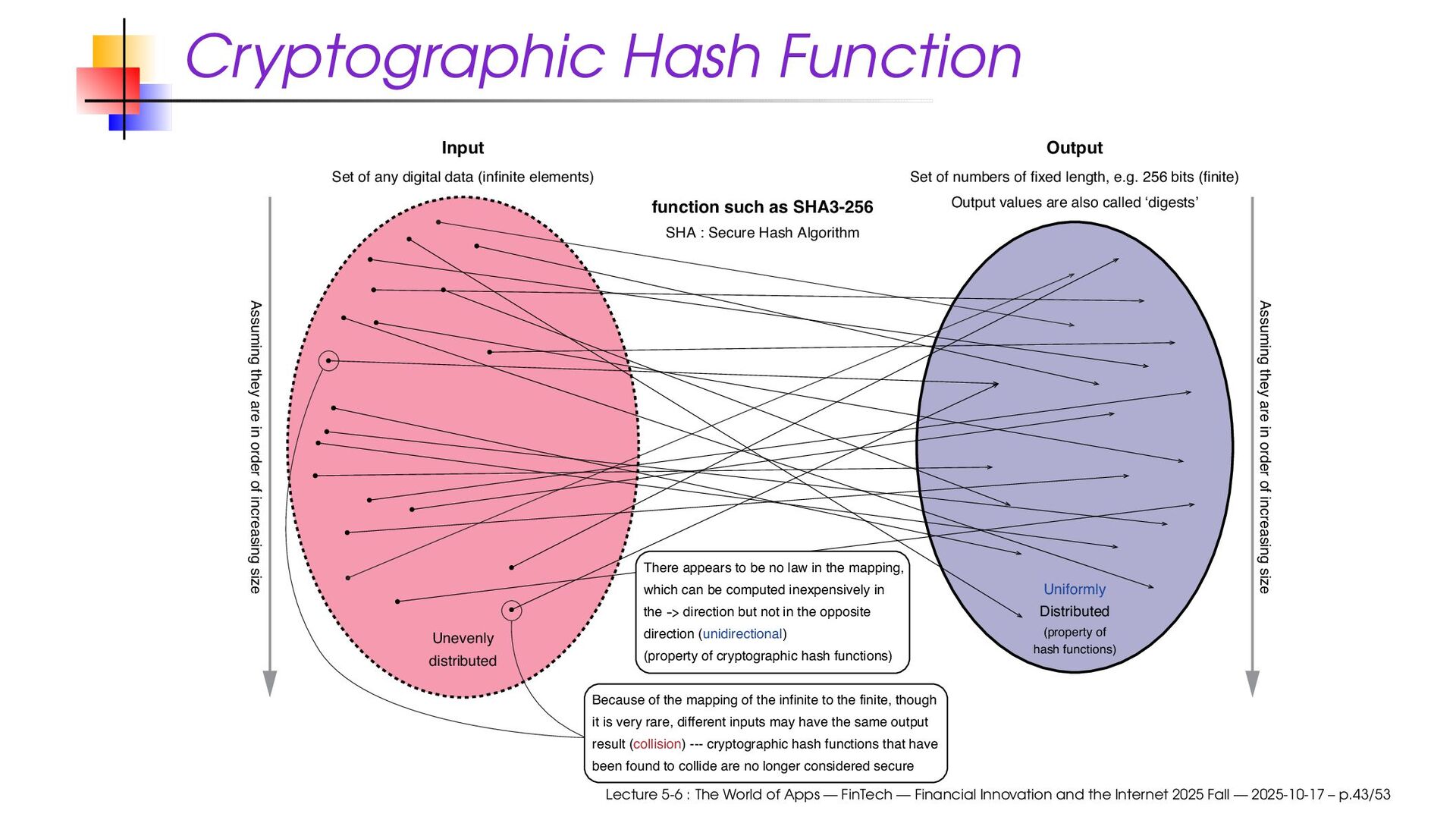

elements) Output Set of numbers of fixed length, e.g. 256 bits (finite) Output values are also called ‘digests’ Assuming they are in order of increasing size Assuming they are in order of increasing size function such as SHA3-256 SHA : Secure Hash Algorithm Uniformly Distributed (property of hash functions) Unevenly distributed There appears to be no law in the mapping, which can be computed inexpensively in the direction but not in the opposite direction (unidirectional) (property of cryptographic hash functions) Because of the mapping of the infinite to the finite, though it is very rare, different inputs may have the same output result (collision) --- cryptographic hash functions that have been found to collide are no longer considered secure Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.43/53

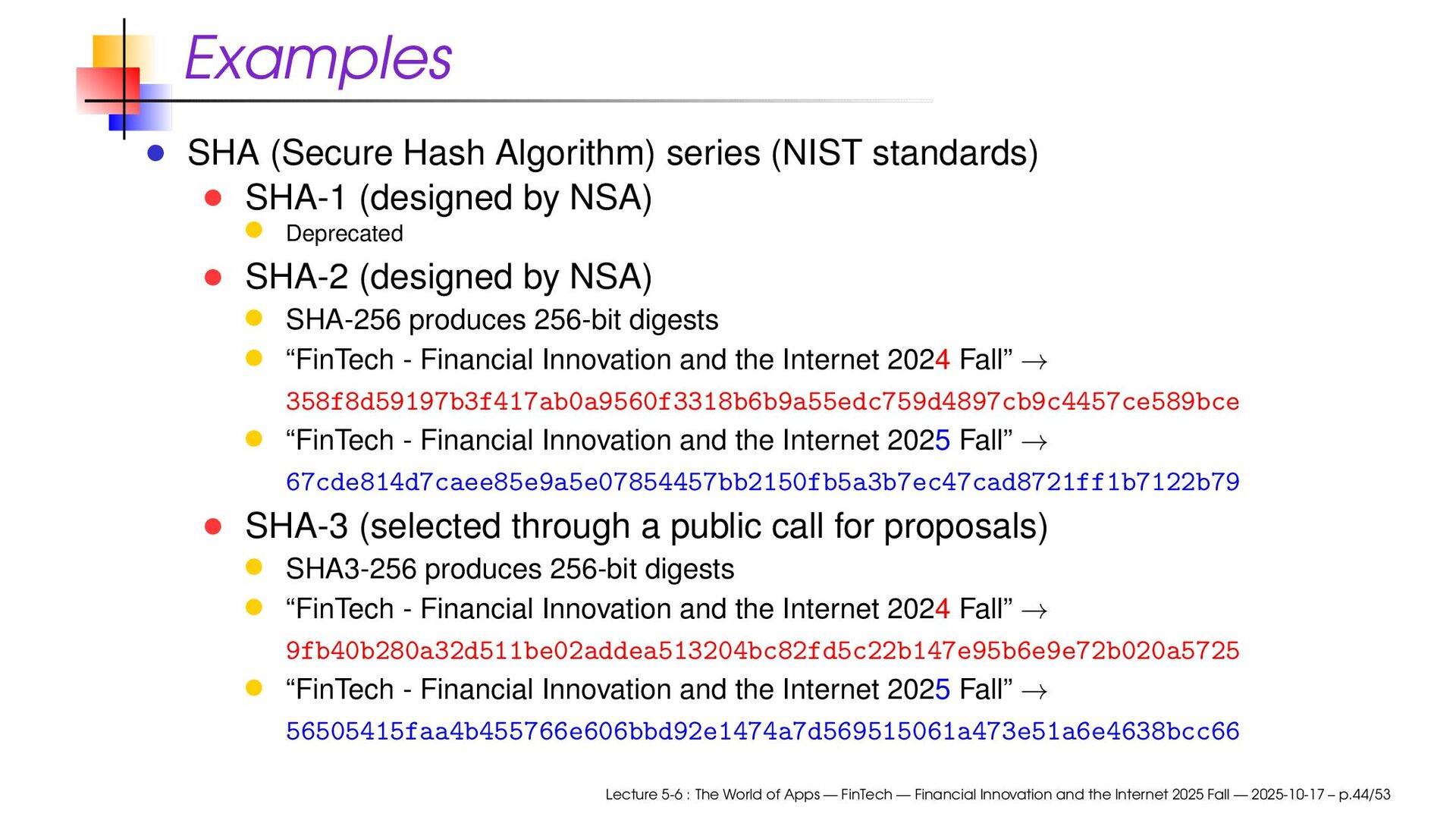

by NSA) Deprecated SHA-2 (designed by NSA) SHA-256 produces 256-bit digests “FinTech - Financial Innovation and the Internet 2024 Fall” → 358f8d59197b3f417ab0a9560f3318b6b9a55edc759d4897cb9c4457ce589bce “FinTech - Financial Innovation and the Internet 2025 Fall” → 67cde814d7caee85e9a5e07854457bb2150fb5a3b7ec47cad8721ff1b7122b79 SHA-3 (selected through a public call for proposals) SHA3-256 produces 256-bit digests “FinTech - Financial Innovation and the Internet 2024 Fall” → 9fb40b280a32d511be02addea513204bc82fd5c22b147e95b6e9e72b020a5725 “FinTech - Financial Innovation and the Internet 2025 Fall” → 56505415faa4b455766e606bbd92e1474a7d569515061a473e51a6e4638bcc66 Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.44/53

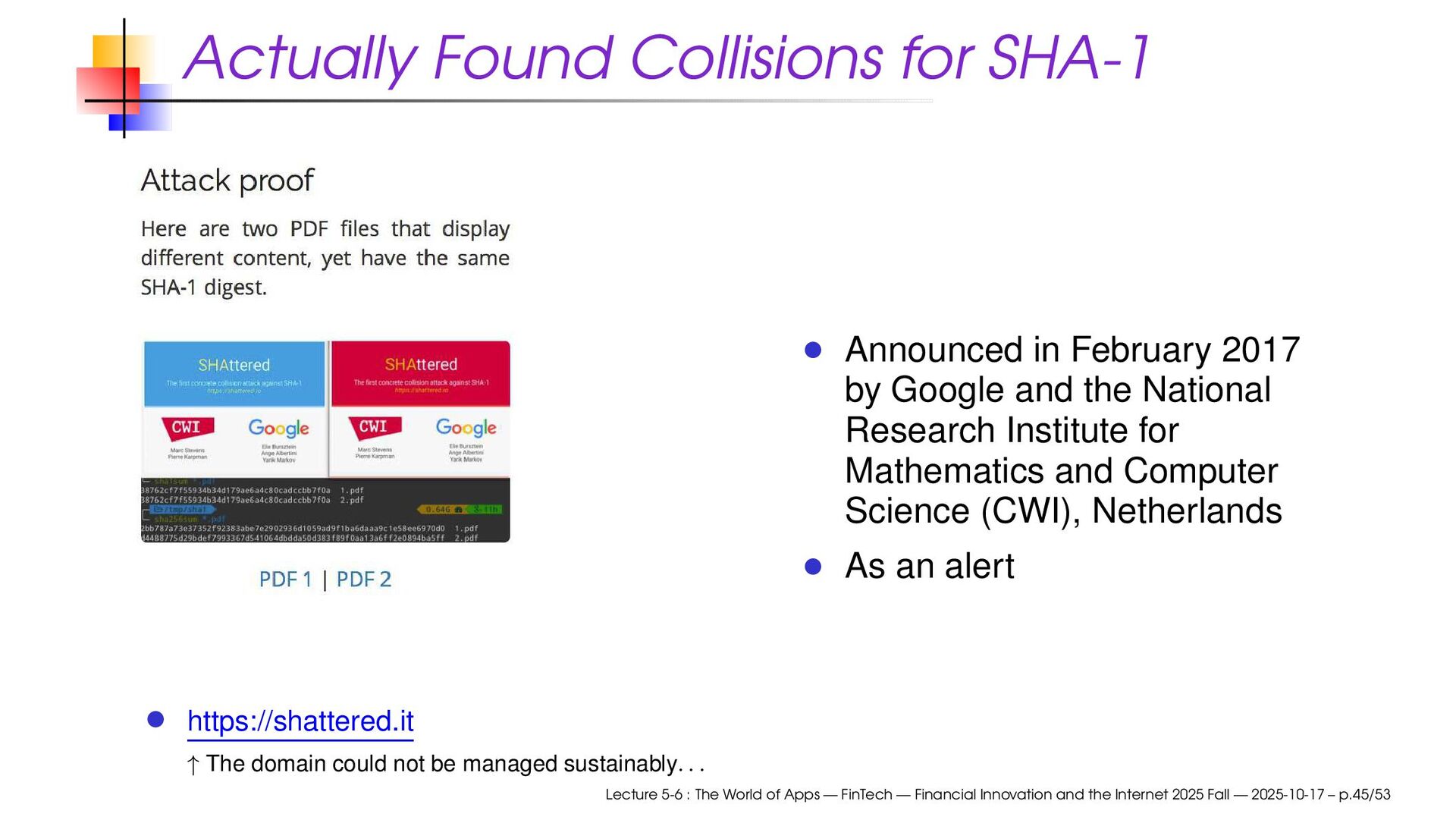

not be managed sustainably . . . Announced in February 2017 by Google and the National Research Institute for Mathematics and Computer Science (CWI), Netherlands As an alert Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.45/53

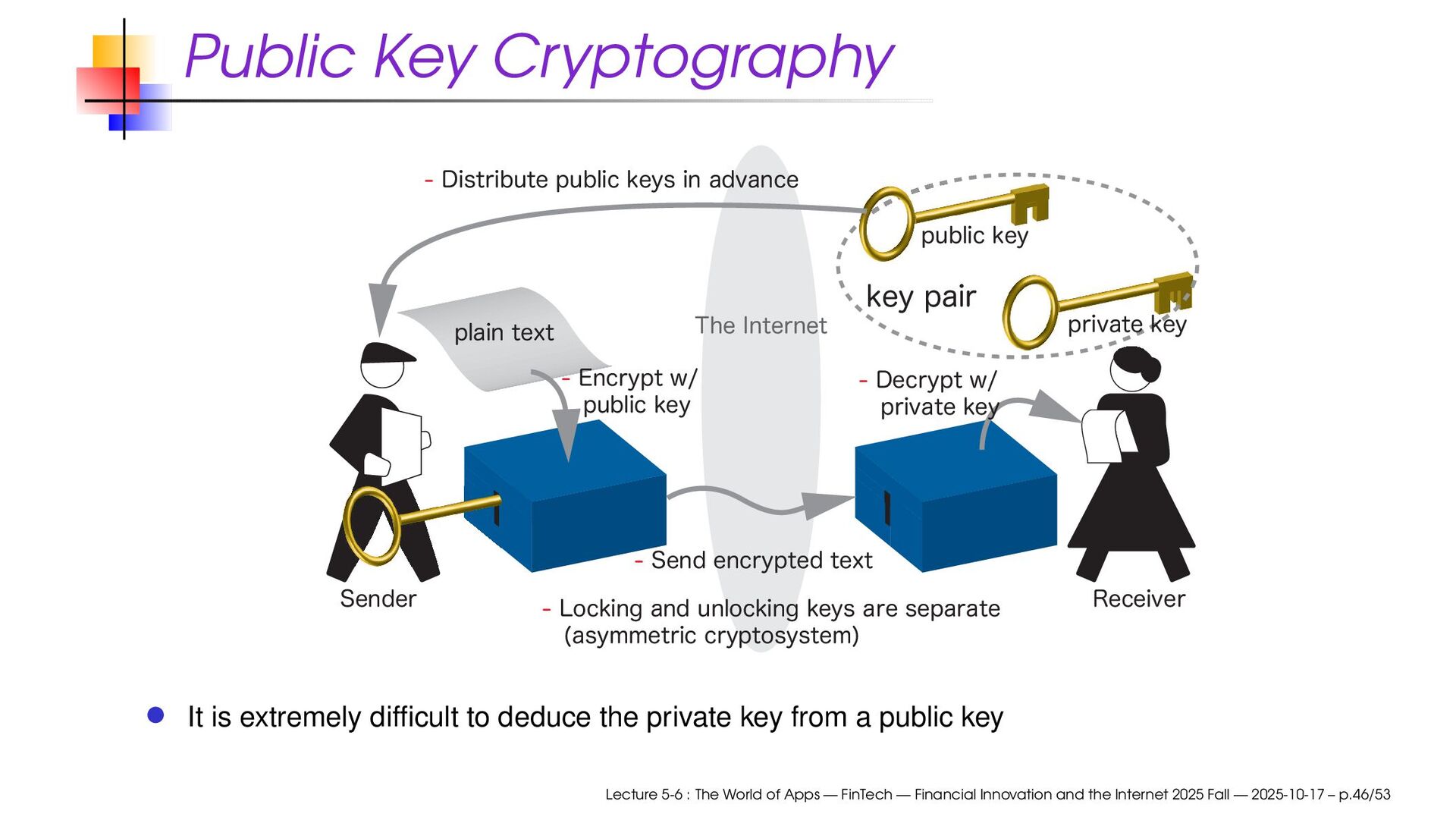

3FDFJWFS QMBJOUFYU QVCMJDLFZ QSJWBUFLFZ &ODSZQUX QVCMJDLFZ %FDSZQUX QSJWBUFLFZ 4FOEFODSZQUFEUFYU It is extremely difficult to deduce the private key from a public key Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.46/53

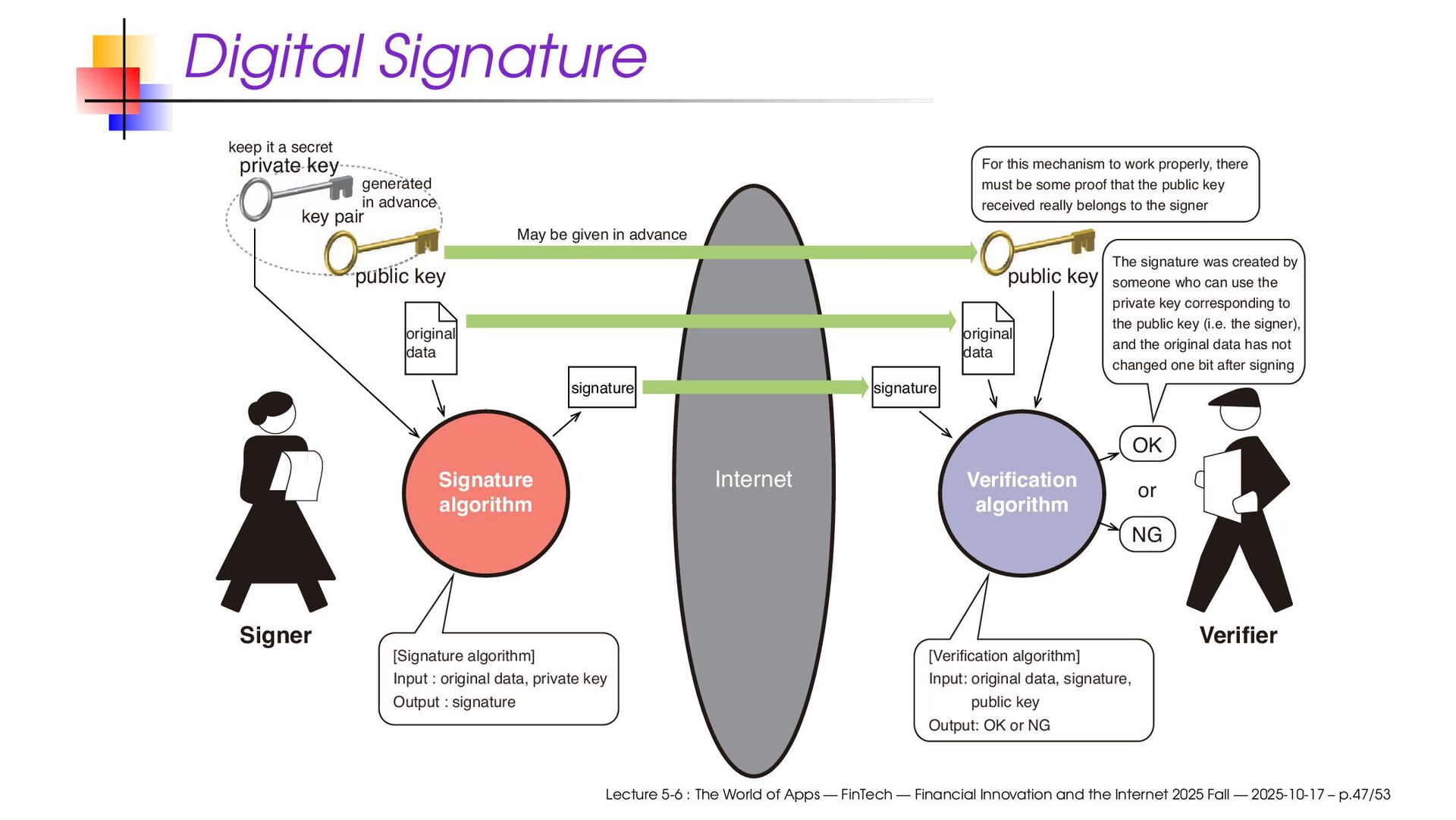

it a secret May be given in advance The signature was created by someone who can use the private key corresponding to the public key (i.e. the signer), and the original data has not changed one bit after signing For this mechanism to work properly, there must be some proof that the public key received really belongs to the signer [Signature algorithm] Input : original data, private key Output : signature [Verification algorithm] Input: original data, signature, public key Output: OK or NG Signer Signature algorithm Verification algorithm OK or NG Internet Verifier original data original data signature signature public key public key Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.47/53

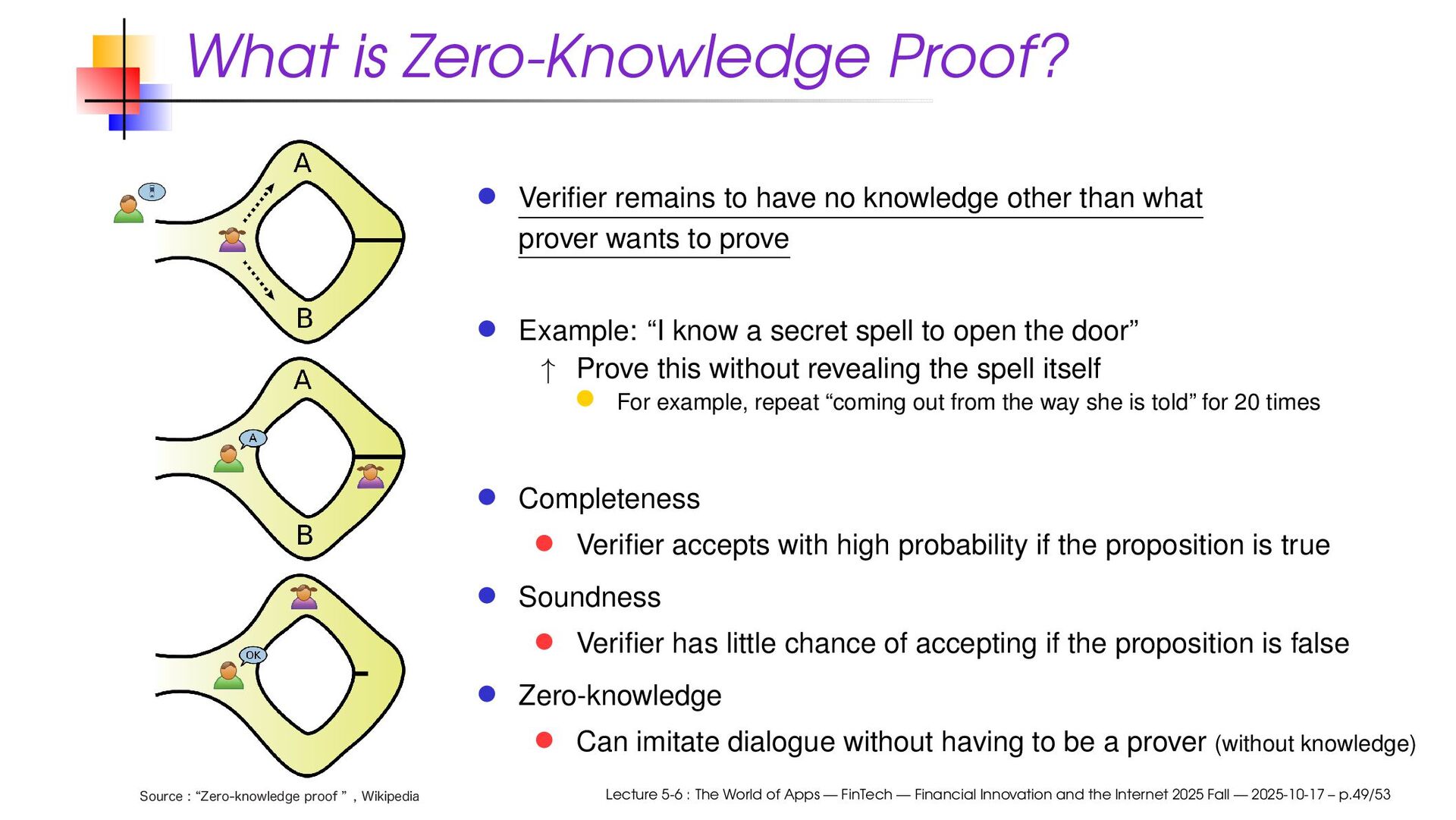

no knowledge other than what prover wants to prove Example: “I know a secret spell to open the door” ↑ Prove this without revealing the spell itself For example, repeat “coming out from the way she is told” for 20 times Completeness Verifier accepts with high probability if the proposition is true Soundness Verifier has little chance of accepting if the proposition is false Zero-knowledge Can imitate dialogue without having to be a prover (without knowledge) Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.49/53

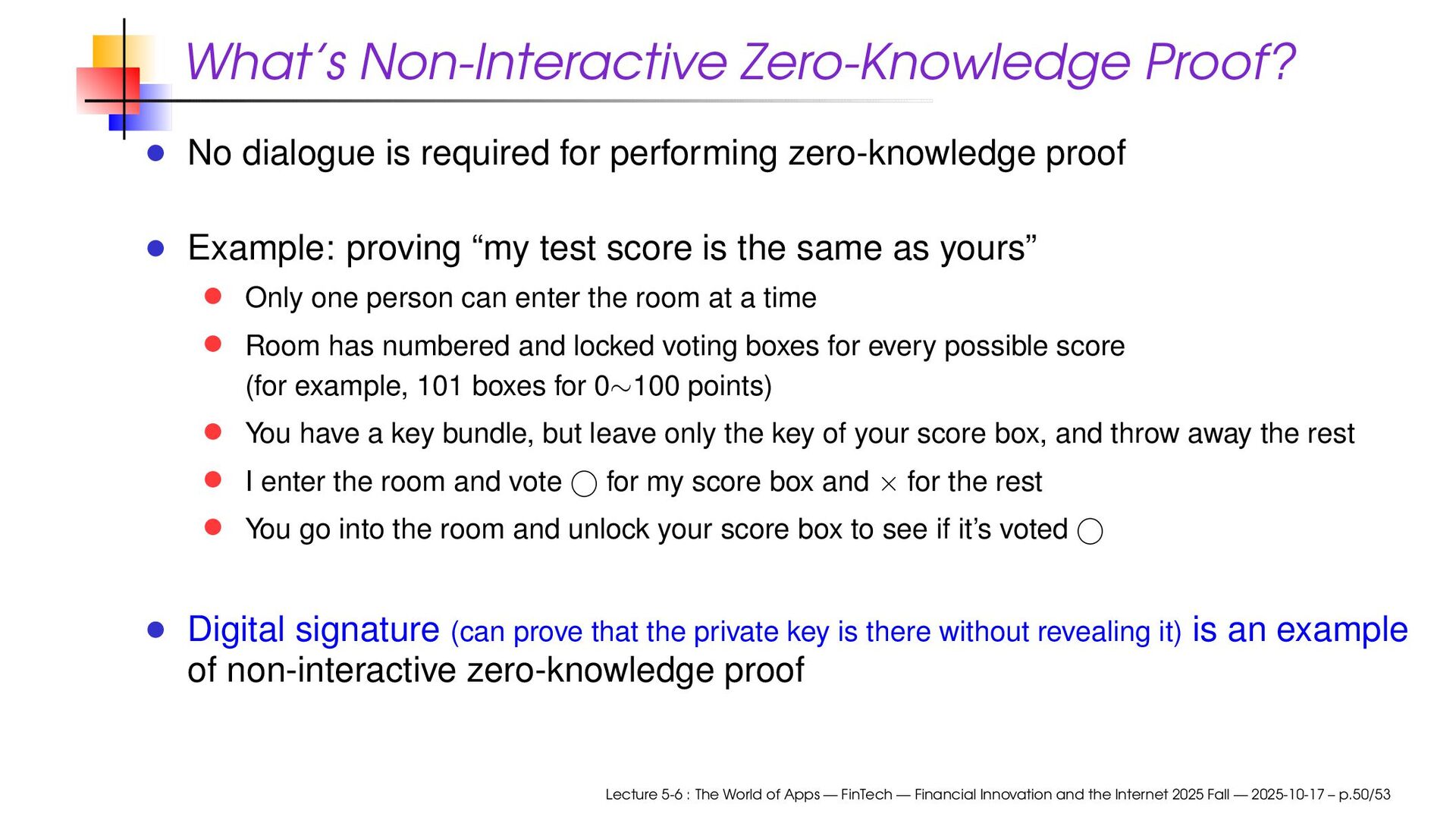

zero-knowledge proof Example: proving “my test score is the same as yours” Only one person can enter the room at a time Room has numbered and locked voting boxes for every possible score (for example, 101 boxes for 0∼100 points) You have a key bundle, but leave only the key of your score box, and throw away the rest I enter the room and vote for my score box and × for the rest You go into the room and unlock your score box to see if it’s voted Digital signature (can prove that the private key is there without revealing it) is an example of non-interactive zero-knowledge proof Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.50/53

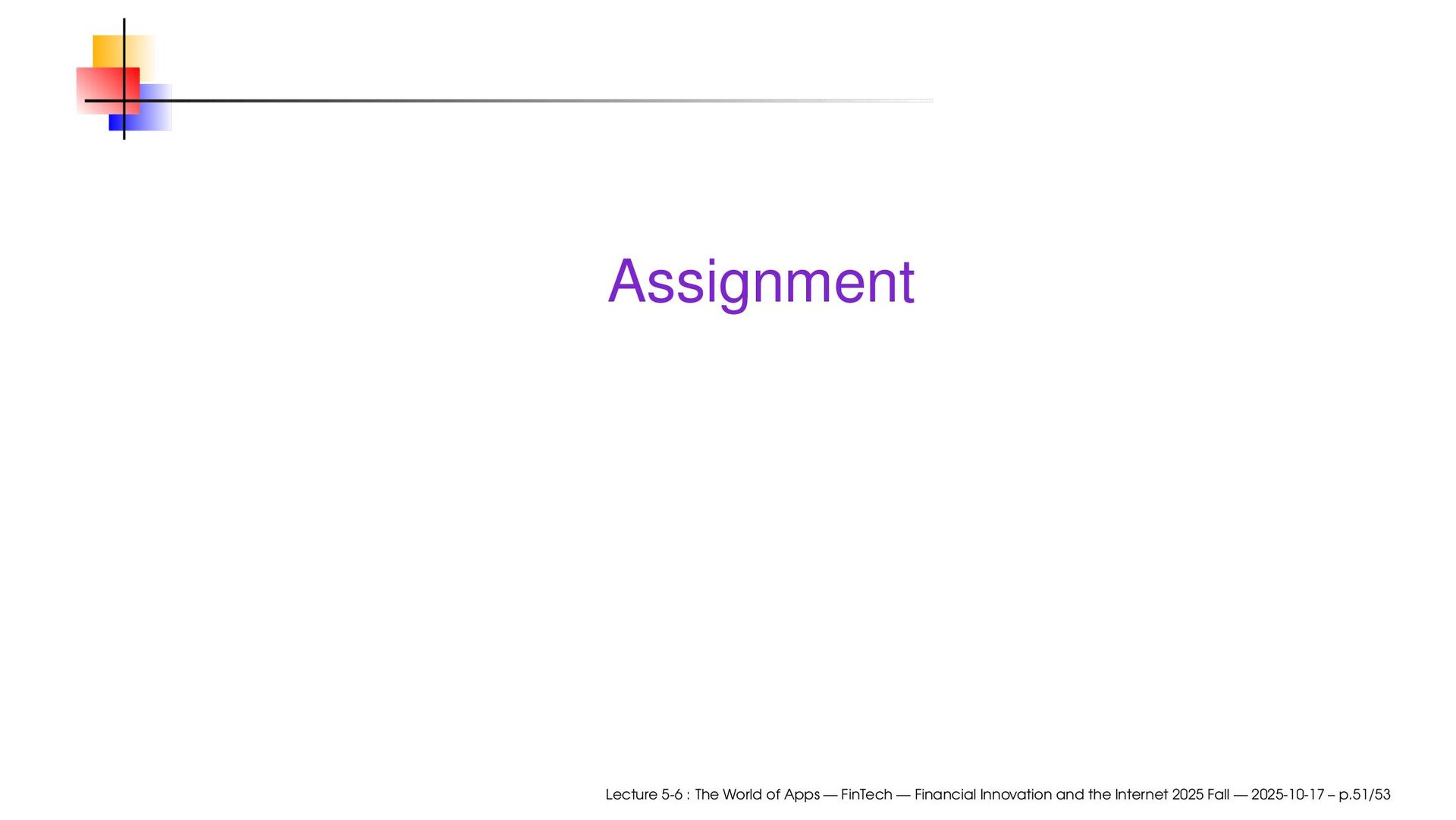

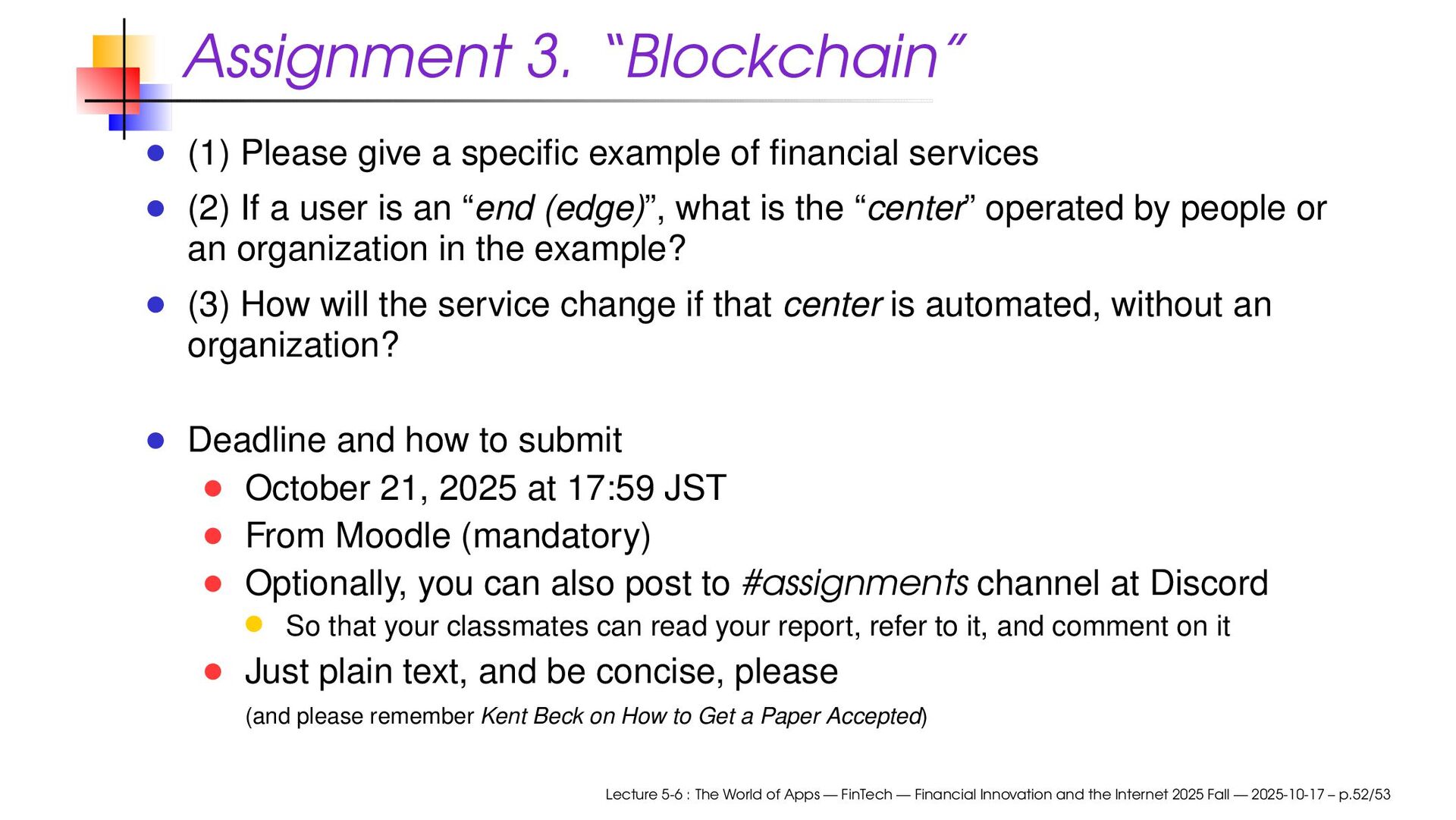

financial services (2) If a user is an “end (edge)”, what is the “center” operated by people or an organization in the example? (3) How will the service change if that center is automated, without an organization? Deadline and how to submit October 21, 2025 at 17:59 JST From Moodle (mandatory) Optionally, you can also post to #assignments channel at Discord So that your classmates can read your report, refer to it, and comment on it Just plain text, and be concise, please (and please remember Kent Beck on How to Get a Paper Accepted) Lecture 5-6 : The World of Apps — FinTech — Financial Innovation and the Internet 2025 Fall — 2025-10-17 – p.52/53
