1. I N D O O R & O U T D O O R V1.0 26-27 Architectural Lighting Solutions

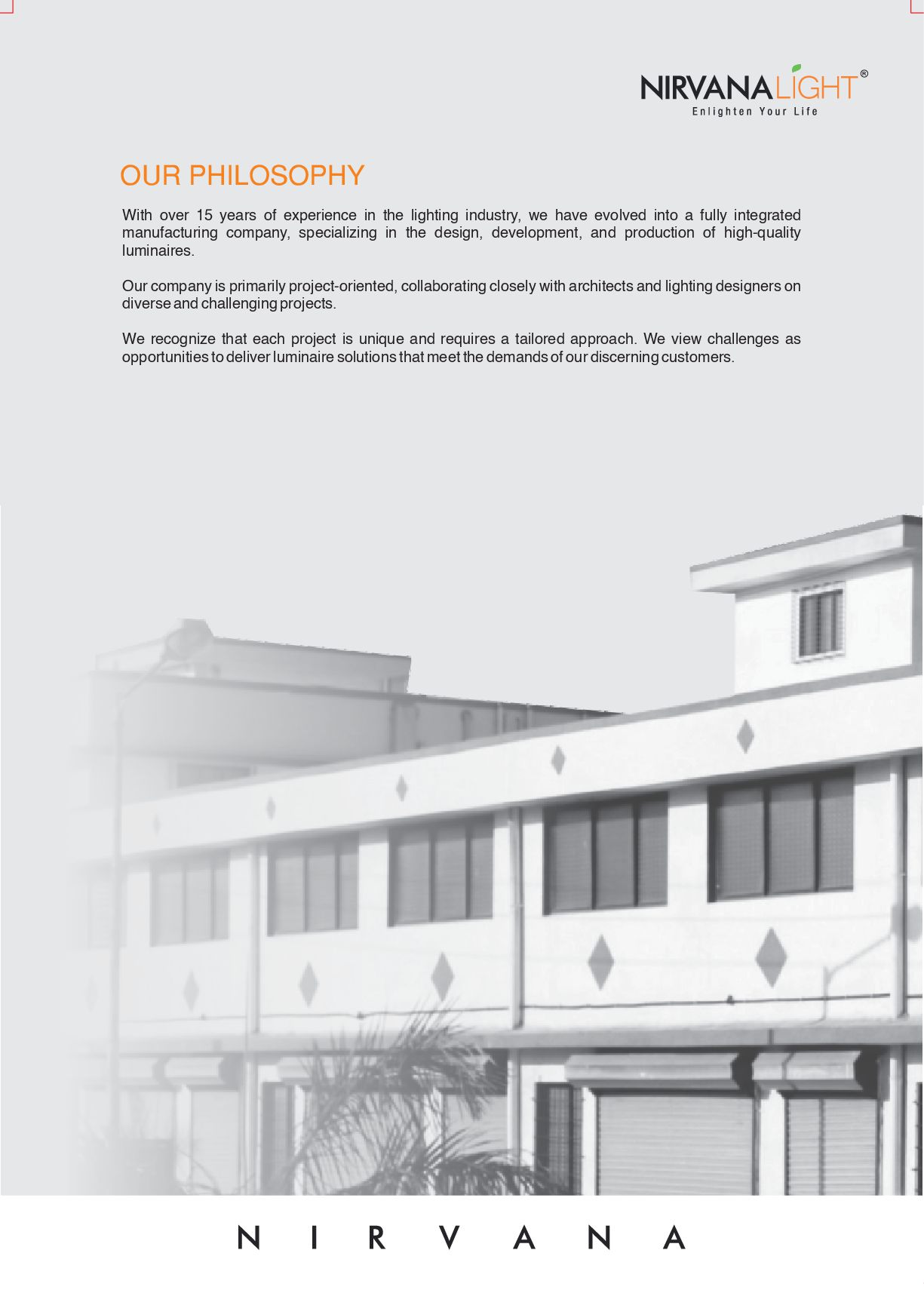

4. With over 15 years of experience in the lighting industry, we have evolved into a fully integrated manufacturing company, specializing in the design, development, and production of high-quality luminaires. Our company is primarily project-oriented, collaborating closely with architects and lighting designers on diverse and challenging projects. We recognize that each project is unique and requires a tailored approach. We view challenges as opportunities to deliver luminaire solutions that meet the demands of our discerning customers. OUR PHILOSOPHY

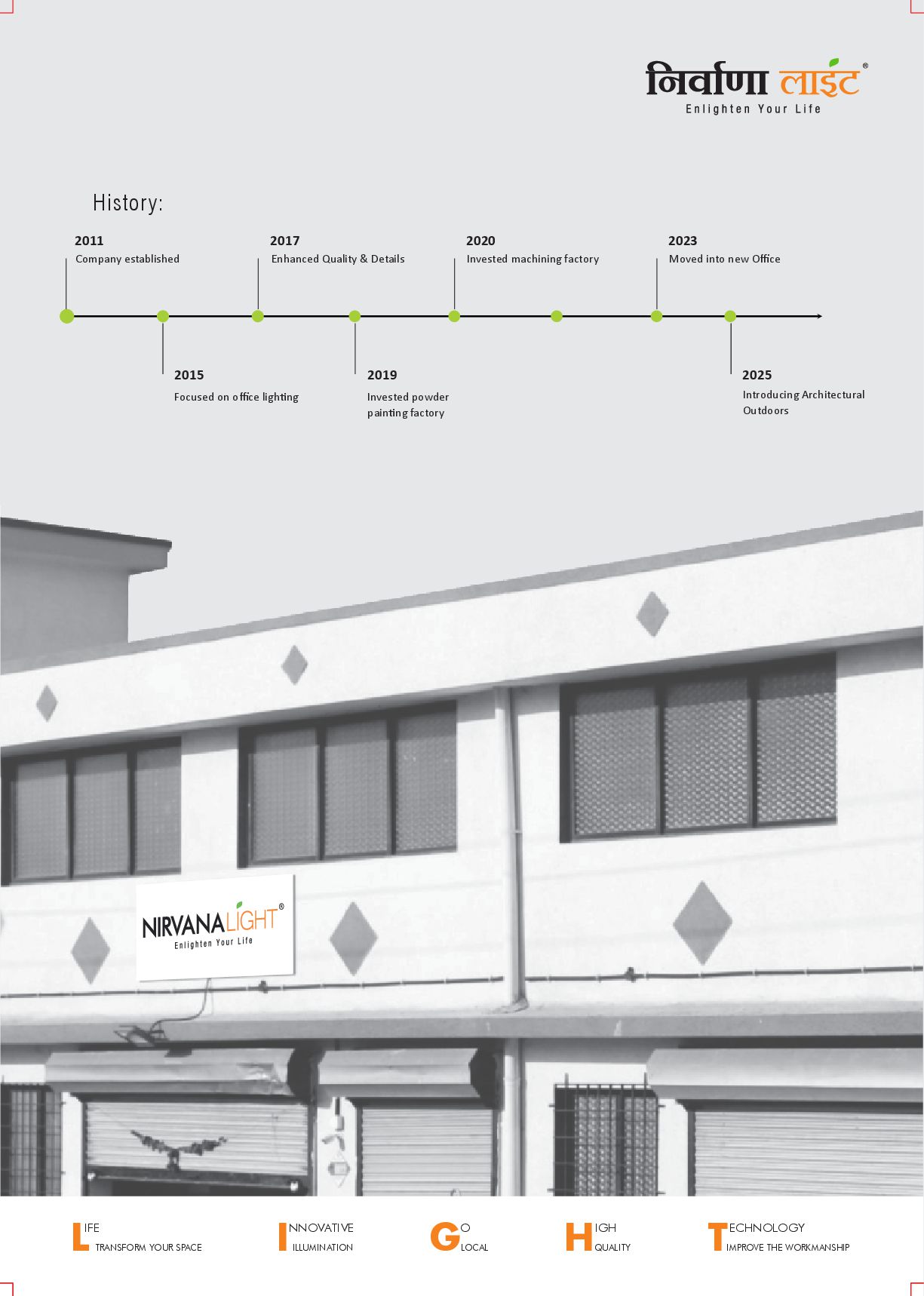

5. History: 2011 Company established Focused on office ligh ng 2015 Enhanced Quality & Details 2017 Invested powder pain ng factory 2019 Invested machining factory 2020 Moved into new Office 2023 2025 Introducing Architectural Outdoors LIFE TRANSFORM YOUR SPACE INNOVATIVE ILLUMINATION GO LOCAL HIGH QUALITY TECHNOLOGY IMPROVE THE WORKMANSHIP
6. It is not a secret that more than half of our turn over is generated by customized fixtures and bespoke luminaires. Faithful to our vocation for bespoke luminaires, in NIRVANA LIGHT we are always keen to challenge ourselves by delivering fixtures that are made to fit the specific requirements of our high demanding customers. Some of our projects are completely bespoke luminous installations that took months to manufacture and install. The results are always great as their expectations We work hard to ensure the minimum visual impact of our luminaires. No visible screws for an absolute clean and minimalistic aesthetic and no visible logo printed on our products. A minimal appearance that leaves the stage to the lampinstead of the fixture. The focus on the details combined with LED technology led to the development of an outstanding range of luminaires. Luminaires that disappear in the background for a total integration with architecture. MINIMAL AND LINEAR BESPOKE LUMINAIRES
7. Nirvana Light's comprehensive ability to design, manufacture, and distribute quality lighting fixtures has been well established over the years. The essence of light is one of the most important elements in anyone’s life. To enhance a building’s form or design is a prerequisite for any lighting designer, and at Nirvana Light Pvt. Ltd., we believe it is our profession to excel in this process. Founded in Mumbai, India, in 2011, Nirvana Light Pvt. Ltd. has emerged as a leading manufacturer of outdoor lighting and outdoor lighting applications. Our success is built on a solid foundation of identifying our clients’ requirements for sustainability, reliability, design, and functionality. Our history reflects a commitment to taking the necessary steps to ensure our clients are presented with the best possible products and solutions every time. We have invested significantly in understanding and integrating a combination of smart eco-technologies, innovative design, and efficient systems to help all clients reduce their environmental impact without compromising their desire for design and comfort. Over the past 14 years of steady and continuous development, Nirvana Light Pvt. Ltd. has made great strides in enterprise management, quality enhancement, and technology innovation.
8. Residen al Retail Linear/Offi ce Magne c Smart Ligh ng Urban Street Ligh ng Landscape So Light Sports Ligh ng Audotorium Hospitality Educ onal Hospital
9. Certificates: ZED CERTIFICATE ISO CERTIFICATE UDYAM REG. CERTIFICATE BRANDS WE USE : Logo | Trademark Are The Property Of The Respective Brands
10. 1301. Head Office, Mumbai HEAD OFFICE
11. Quality Control To ensure that all incoming raw materials meet the required specifica ons and are free of defects before they are used in produc on INWARD QC OF RAW MATERIAL To maintain quality control during the manufacturing process to catch any defects early and ensure the product is moving toward the desired quality standards. IN-PROCESS QC AT EVERY STAGE OF PRODUCTION To verify that the product is correctly assembled and func onal before moving to the final QC stage. QC AFTER ASSEMBLY To conduct a thorough inspec on before the product leaves the facility to ensure it is fully func onal, aesthe cally pleasing, and in compliance with all required standards. FINAL QC BEFORE DISPATCH Proper packing is essen al to ensure that the products arrive safely at their des na on without any damage. Packing material is used like thermocol, corner support, shrink wrap etc for transit safety. PACKING PROCESS FOR TRANSIT SAFETY The surface treatment process is essen al for ensuring that the product is durable, corrosion-resistant, and has a high-quality aesthe c. • Rust removing -To remove any rust or oxida on from metal surfaces, ensuring proper adhesion of subsequent coa ngs. • Primer coa ng - To apply a protec ve primer layer to the metal surface to ensure be er adhesion of the final topcoat and enhance corrosion resistance. SURFACE TREATMENT PROCESS (PRE-TREATMENT) FACTORY CAPABILITIES Component Selec ons FLICKER FREE DRIVER LED - Gold wire bonded SMD & Cob with high quality phosphor gives op mum efficacy of 180 lumen/wa at source level REFLECTOR High grade LED CHIP & op cally design reflector made from poly carbonate having top liquid aluminum coa ng (metalizing) offers up to 92% reflec vity INWARD QC CHECK Every Component prior to produc on LED MODULES U lizing the latest technology we have selected partners with specialized knowledge. BASE MATERIAL Aluminum basic raw material is interna onal die cas ng grade ADC 12 for indoor & LM6 for outdoor, aluminum extrusion we use special alloy 6063 ensure be er thermal conduc vity THERMAL GLUE / PASTE Thermal conduc ve engineering g ra d e s p e c i a l l y d eve l o p e d for LED Japanese make glue is used. SILICON GASKET Virgin grade silicon with stand temperature and harsh external environment offers excellent ingress protec on (IP) GLASS Lead-free extra clear toughen glass used
12. • Lighting Design Support • Product Design Facility (customization) • Pre & Post Site Service • Installation & Commissioning Service
15. INDEX | INDOOR Pg 4-7 Pg 4-7 Pg 4-7 Deep Recessed Anti-Glare Chrome Series - TILTO NL 1522 FX NL 1523 ADJ NL 1521 WW Fixed Optics Adjustable Optics Wall washer Pg 1-3 Pg 1-4 Pg 1-3 NL 1542 NL 1543 NL 1544 Deep Recessed Anti-Glare Chrome Series - CELESTIA * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 8-9 Pg 8-9 Pg 10 Detachable Chrome Series - TIRTH NL 1381 NL 1381-TL NL 1383 Trim Pg 10 Pg 11 NL 1383-TL NL 1386 Pg 11 NL 1386-TL Trimless Pg 12-13 Pg 12-13 Detachable Anti- Glare Chrome Series - TEJAS NL 1389 NL 1389-TL Trim Trimless Pg 14-15 Detachable Chrome Series - TRISHUL NL 1362 NL 1362-TL NL 1365 Trim NL 1365-TL NL 1368 Trimless Adjustable Surface Anti- Glare Series - SAURYA NL 1661 NL 1662 NL 1663 NL 1664 NL 1665 NL 1666 NL 1368-TL Detachable Anti-Glare Series - LOGUS NL 1371 NL 1371-TL NL 1374 Trim Trimless Trim Trimless Trim Trimless Adjustable Recessed Anti- Glare Series - SAURYA Pg 21 Pg 21 Pg 21 NL 1667 NL 1668 NL 1669 Pg 22 Pg 22 NL 1670 NL 1671 Pg 22 NL 1672 Pg 14-15 Pg 16 Pg 16 Pg 17 Pg 17 Pg 18-19 Pg 18-19 Pg 18-19 Pg 20 Pg 20 Pg 20 Pg 23-24 Pg 23-24 Pg 25 Accessories Pg 26
16. INDEX | INDOOR * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Anti-Glare Black Series - SOOTHE NL 1181 NL 1182 NL 1183 Fixed Down Light Adjustable Series - D-SIGNO NL 1446 NL 1446A Recessed With Snoot Recessed Without Snoot NL 1456 NL 1456A Trimless With Snoot Trimless Without Snoot Pg 38-40 Fixed Down Slim Trim Deep Recessed Series- ALINA & NL 0132 NL 0133 NL 0134 NL 0135 NL 0136 Dual Tone Fixed Down Lense Optics Series - FISSA & Dual Tone NL 0137L NL 0131 NL 0135L Trimless Series BULLET NL 1525 WW NL 1525 WW-TL Fixed Down METALLICA Series NL 0137 NL 0138 NL 0142 NL 0141 NL 0137 Adj NL 0138 Adj Adjustable Adjustable Pg 38-40 Pg 38-40 Pg 38-40 Pg 38-40 Pg 41-42 Pg 41-42 Pg 41-42 Pg 43-45 Pg 43-45 Pg 43-45 Pg 43-45 Pg 46 Pg 46 Pg 47-49 Pg 47-49 Pg 47-49 Pg 50-52 Pg 50-52 Pg 50-52 Pg 50-52 Fixed Pg 27-29 Pg 31 Pg 31 NL 1601 NL 1602 NL 1603 NL 1606 NL 1607 Deep Recessed Anti-Glare Chrome Series - NUBE Adjustable NL 1561 NL 1562 NL 1563 NL 1564 Deep Recessed Series- CIRRUS Pg 27-29 Pg 27-29 Pg 32-34 Pg 32-34 Pg 32-34 Pg 32-34 Pg 35-37 Pg 35-37
17. INDEX | INDOOR Pg 55-56 Fixed Down Light Adjustable Series - MOVE NL 1460 NL 1460TL NL 1448-S1 NL 1448-S2 Pg 53 NL 1445 NL 1445A NL 1444 NL 1447 Without Snoot With Snoot * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. SMD Down Lights Series DAZZLE NL 1194 NL 1195 NL 1196 NL 1091 NL 1093 Pg 69-71 Ceiling Recessed DownLight Series STRIKE NL 1414 NL 1415 NL 1416 Ceiling Recessed DownLight Series STRIKE NL 1414C NL 1414B NL 1414A NL 1414-FR AQUA IP Series NL 1130 NL 1170 NL 1171 Fixed & Adjustable Trimless Series- HIDO NL 1456 With Snoot NL 1456A Without Snoot NL 1457 NL 1460TL NL 1448 -S3 TL NL 1448- S1 TL NL 1448- S2 TL Pg 53 Pg 53 Pg 53 Pg 54 NL 1449 Pg 55-56 Pg 55-56 Pg 57-59 Pg 57-59 Pg 57-59 Pg 60 Pg 60 Pg 60 Pg 60 Pg 61-64 Pg 61-64 Pg 61-64 Pg 65-67 Pg 65-67 Pg 65-67 Pg 68 Pg 68 Pg 69-71 Pg 69-71 Pg 72 Pg 72 Pg 72 Pg 72 Pg 54 NL 1448-S3

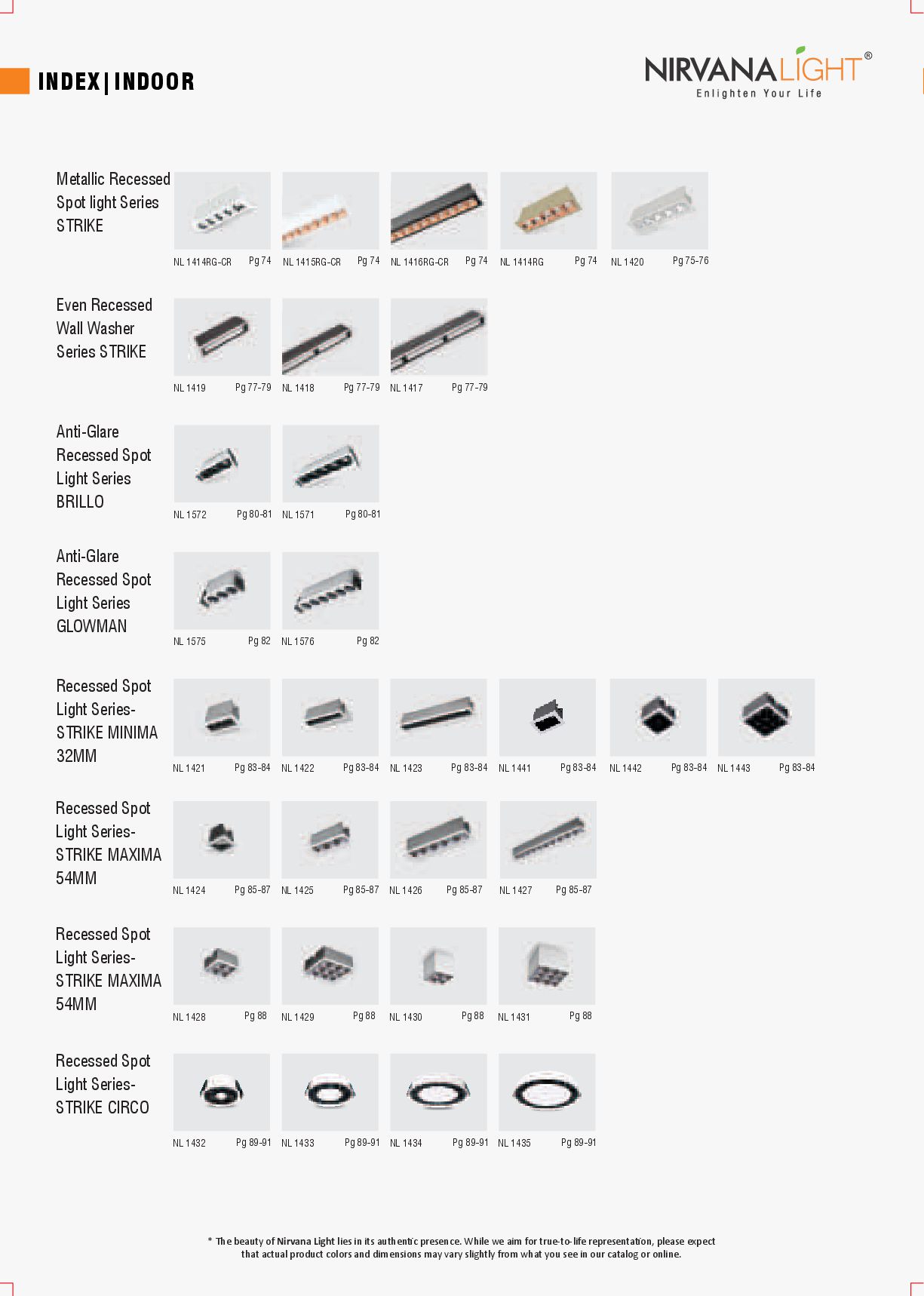

18. INDEX | INDOOR NL 1424 NL 1425 NL 1426 Recessed Spot Light Series- STRIKE MAXIMA 54MM Pg 88 Pg 88 NL 1427 NL 1428 NL 1429 Pg 88 NL 1430 NL 1431 Pg 88 Recessed Spot Light Series- STRIKE MAXIMA 54MM Recessed Spot Light Series- STRIKE CIRCO Pg 89-91 NL 1432 NL 1433 NL 1434 NL 1435 Pg 80-81 NL 1572 NL 1571 Anti-Glare Recessed Spot Light Series BRILLO NL 1575 NL 1576 Anti-Glare Recessed Spot Light Series GLOWMAN NL 1422 NL 1421 NL 1423 NL 1441 NL 1442 NL 1443 Recessed Spot Light Series- STRIKE MINIMA 32MM * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 80-81 Pg 82 Pg 82 Pg 89-91 Pg 89-91 Pg 89-91 Pg 77-79 Even Recessed Wall Washer Series STRIKE NL 1419 NL 1418 NL 1417 Pg 74 Metallic Recessed Spot light Series STRIKE NL 1414RG NL 1416RG-CR NL 1415RG-CR NL 1414RG-CR NL 1420 Pg 74 Pg 74 Pg 74 Pg 75-76 Pg 77-79 Pg 77-79 Pg 83-84 Pg 83-84 Pg 83-84 Pg 83-84 Pg 83-84 Pg 83-84 Pg 85-87 Pg 85-87 Pg 85-87 Pg 85-87
19. INDEX | INDOOR Surface Down Light Series OROFI NL 1464 NL 1465 NL 1491 NL 1478 Pg 92-94 NL 1479 NL 1348-S1-S Pg 97-99 NL 1086 NL 0391 Retail Recessed Downlight Series OPTIMA NL 0427 NL 1328 Pg 100 NL 1329 NL 1330 COB Track Spot NL ML20 SP007 NL ML20 SP012 NL ML20 LG300 NL ML20 LG600 Linear Diffused Track Spot Magnetic + Regular lights- CRUISER-20mm NL ML20 ST006 Pg 112 NL ML20 ST012 Linear Track Spot NL ML20 St012 ADJ NL ML20 ST018 ADJ Linear Track Spot Adjustable Pg 101-103 NL 1348 -S1 NL 1347 -S3 Retail Track Series - TWIST NL 1348 -S2 NL ML20 S200- 2000mm Magnetic + Regular lights- CRUISER-20mm ACCESSORIES Pg 111 NL MM SP006 NL MM RD-SP08 Track Light- MINI MAGNETIC NL MM LG300 NL MM ST010 NL MM S-100 ACCESSORIES * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 92-94 Pg 95 Pg 95 Pg 96 Pg 96 Pg 97-99 Pg 97-99 Pg 100 Pg 100 Pg 101-103 Pg 101-103 Pg 105-108 Pg 110 Pg 113 Pg 113 Pg 113 Pg 113 Pg 112 Pg 112 Pg 112 Pg 116 Pg 116 Pg 117 Pg 117 Pg 118 Pg 118 Pg 119 NL ML20 R2 100- 1000mm Pg 105-108 NL ML20 R3 100 NL MM R-100

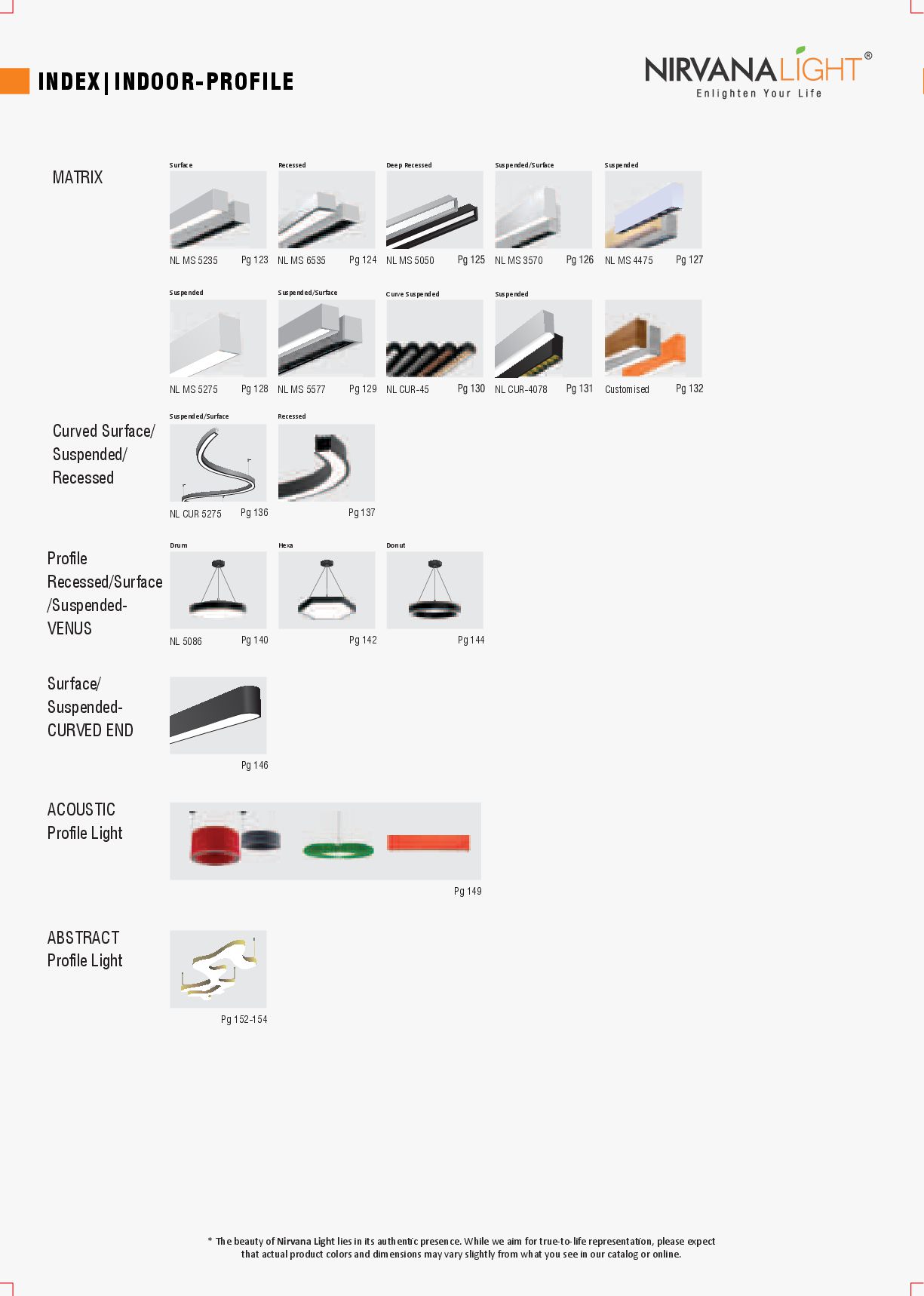

20. INDEX | INDOOR- PROFILE Pg 123 Pg 124 MATRIX NL MS 5235 NL MS 6535 NL MS 5050 NL MS 3570 Pg 128 Pg 129 NL MS 5275 NL MS 5577 Pg 136 Pg 137 Curved Surface/ Suspended/ Recessed Pg 140 Pg 142 Pg 144 Profile Recessed/Surface /Suspended- VENUS Pg 146 Surface/ Suspended- CURVED END Pg 149 ACOUSTIC Profile Light Pg 152-154 ABSTRACT Profile Light * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Surface Recessed Deep Recessed Suspended/Surface NL MS 4475 Suspended Suspended Suspended/Surface NL CUR-45 NL CUR-4078 Suspended Customised Curve Suspended Suspended/Surface NL CUR 5275 Recessed NL 5086 Drum Hexa Donut
21. INDEX | OUTDOOR Pg 157-161 NL 4305 Pg 161 NL 4306 Pg 161 NL 4309 Pg 161 NL 4301/2 Surface & Spike Light- GARDO Pg 163 NL 4310 Pg 163 NL 4307 Pg 163 NL 4308 Pg 1-4 Pg 168 NL 4035 Pg 168 NL 4045 Pg 168 NL 4124 NL 4121 Pg 167 NL 4032 NL 4042 Wall One-way Light- KUBO Pg 170-173 NL 4122 Pg 173 NL 4033 Pg 173 NL 4043 Pg 175 NL 4136 Pg 175 NL 4139 Wall Up-Down Light- KUBIC Pg 175 NL 4133 Pg 174 NL 4036 Pg 174 NL 4046 Pg 174 NL 4125 Pg 176-179 NL 4031 NL 4041 Ceiling Surface Light- OKIO Pg 182 NL 4123 Pg 182 NL 4034 Pg 182 NL 4044 Pg 185 NL 4137 Pg 185 NL 4140 CeilingSurface Light- GUIDE Pg 185 NL 4134 Pg 184 NL 4037 Pg 184 NL 4047 Pg 184 NL 4126 * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 164-167 Pg 167 NL 4132 NL 4135 NL 4138 Pg 169 Pg 169 Pg 169 Pg 176-179

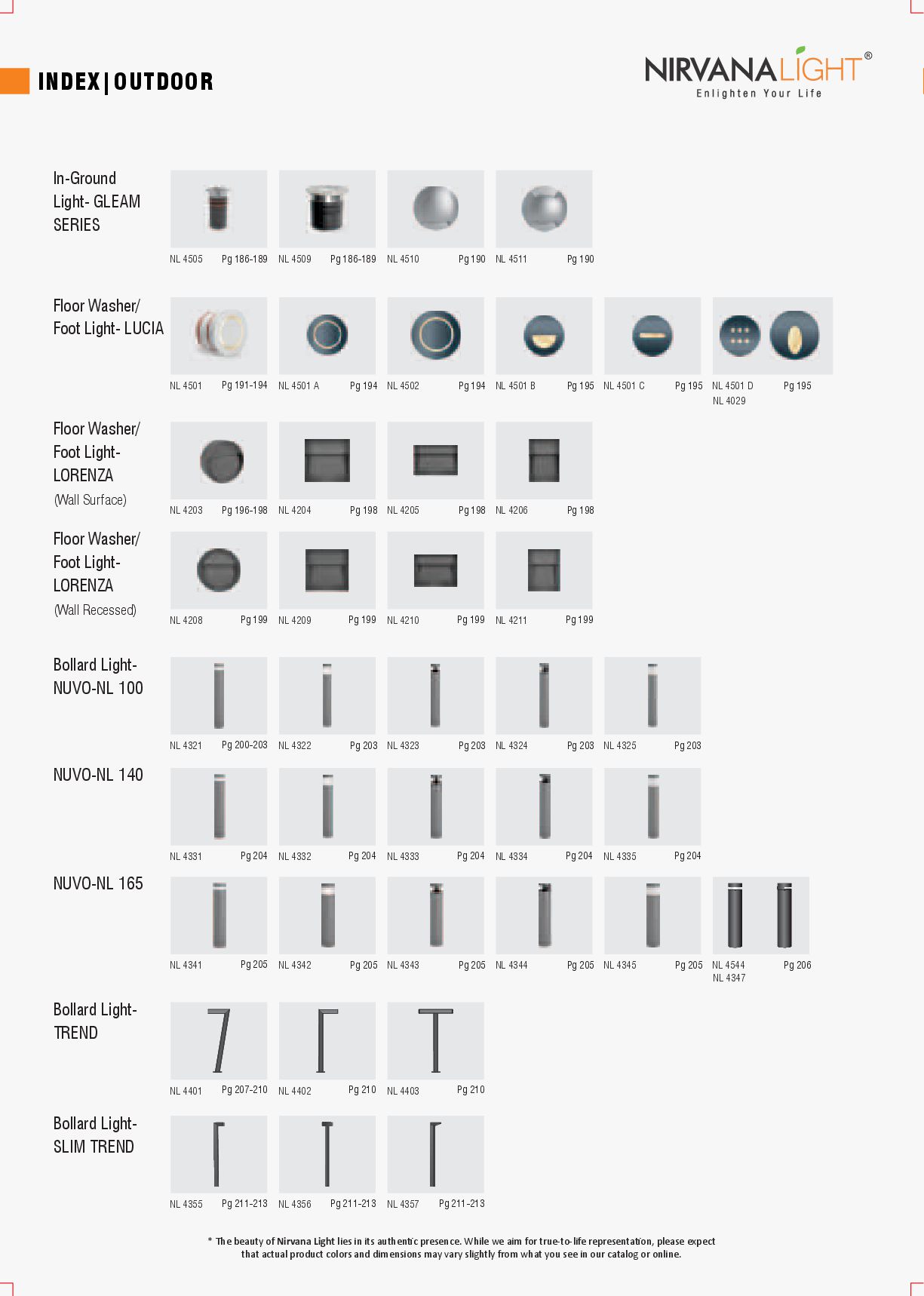

22. INDEX | OUTDOOR Pg 186-189 NL 4505 NL 4509 Pg 190 NL 4510 Pg 190 NL 4511 In-Ground Light- GLEAM SERIES NL 4501 Pg 194 NL 4501 A Pg 194 NL 4502 Pg 195 NL 4501 B Pg 195 NL 4501 C Floor Washer/ Foot Light- LUCIA Pg 195 NL 4501 D NL 4029 NL 4209 NL 4210 NL 4211 NL 4208 Floor Washer/ Foot Light- LORENZA (Wall Recessed) NL 4203 Pg 198 NL 4204 Pg 198 NL 4205 Pg 198 NL 4206 Floor Washer/ Foot Light- LORENZA (Wall Surface) NL 4321 Pg 203 NL 4322 Pg 203 NL 4323 Pg 203 NL 4324 Pg 203 NL 4325 Bollard Light- NUVO-NL 100 NL 4331 NL 4332 NL 4333 NL 4334 NL 4335 NUVO-NL 140 NL 4341 Pg 205 NL 4342 Pg 205 NL 4343 Pg 205 NL 4344 Pg 205 NL 4345 Pg 206 NL 4544 NL 4347 NUVO-NL 165 NL 4401 NL 4402 NL 4403 Bollard Light- TREND * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. NL 4355 NL 4356 NL 4357 Bollard Light- SLIM TREND Pg 186-189 Pg 191-194 Pg 196-198 Pg 199 Pg 199 Pg 199 Pg 199 Pg 200-203 Pg 204 Pg 204 Pg 204 Pg 204 Pg 204 Pg 205 Pg 207-210 Pg 210 Pg 210 Pg 211-213 Pg 211-213 Pg 211-213

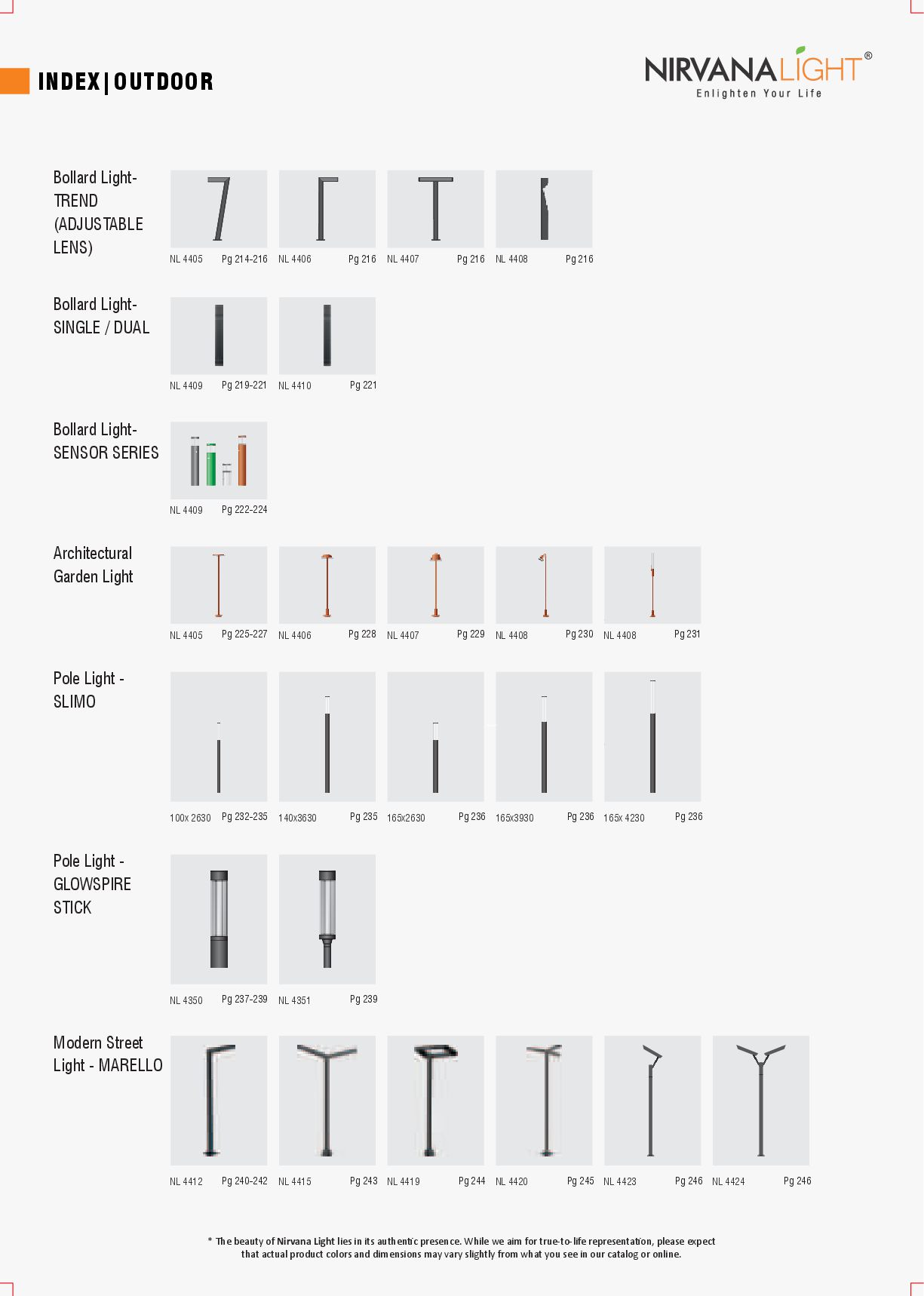

23. INDEX | OUTDOOR Bollard Light- SINGLE / DUAL NL 4409 NL 4410 Bollard Light- SENSOR SERIES NL 4409 Architectural Garden Light NL 4405 NL 4406 NL 4407 NL 4408 NL 4408 Pole Light - SLIMO Pg 235 Pg 236 Pg 236 Pg 236 100x 2630 140x3630 165x3930 165x 4230 165x2630 Pole Light - GLOWSPIRE STICK Pg 239 NL 4350 NL 4351 Modern Street Light - MARELLO Pg 243 NL 4412 NL 4415 Pg 244 NL 4419 Pg 245 NL 4420 Pg 246 NL 4423 Pg 246 NL 4424 Bollard Light- TREND (ADJUSTABLE LENS) NL 4405 NL 4406 NL 4407 NL 4408 * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 214-216 Pg 216 Pg 216 Pg 216 Pg 219-221 Pg 221 Pg 222-224 Pg 225-227 Pg 228 Pg 229 Pg 230 Pg 231 Pg 232-235 Pg 237-239 Pg 240-242
24. INDEX | OUTDOOR Street Light- BEACONGLOW NL 4390 NL 4391 NL 4431 Pg 273 NL 4432 S Pg 273 NL 4433 S Pg 273 NL 4432 R Pg 273 NL 4433 R TYPE-C NL 4428 Pg 271 NL 4429 S Pg 271 NL 4430 S Pg 271 NL 4429 R Pg 271 NL 4430 R TYPE-B Street Light- MODERN TYPE-A NL 4425 Pg 270 NL 4426 S Pg 270 NL 4427 S Pg 270 NL 4426 R Pg 270 NL 4427 R Bollard & Pole Light- ATRIA Pg 251 Pg 247-250 NL 4382 NL 4386 Pole Light- SQUARO NL 4421 NL 4422 Pg 252-255 Pole Light- GALAXY POST TOP Pg 258 NL 4390 NL 4391 Pg 256-258 Pg 258 NL 4392 Pg 260 NL 4393 Pg 260 NL 4394 Street Light- PHARO NL 4390 * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 261-265 Pg 261-265 Pg 261-265 Pg 266-267 Pg 266-267 Pg 268-270 Pg 271 Pg 273

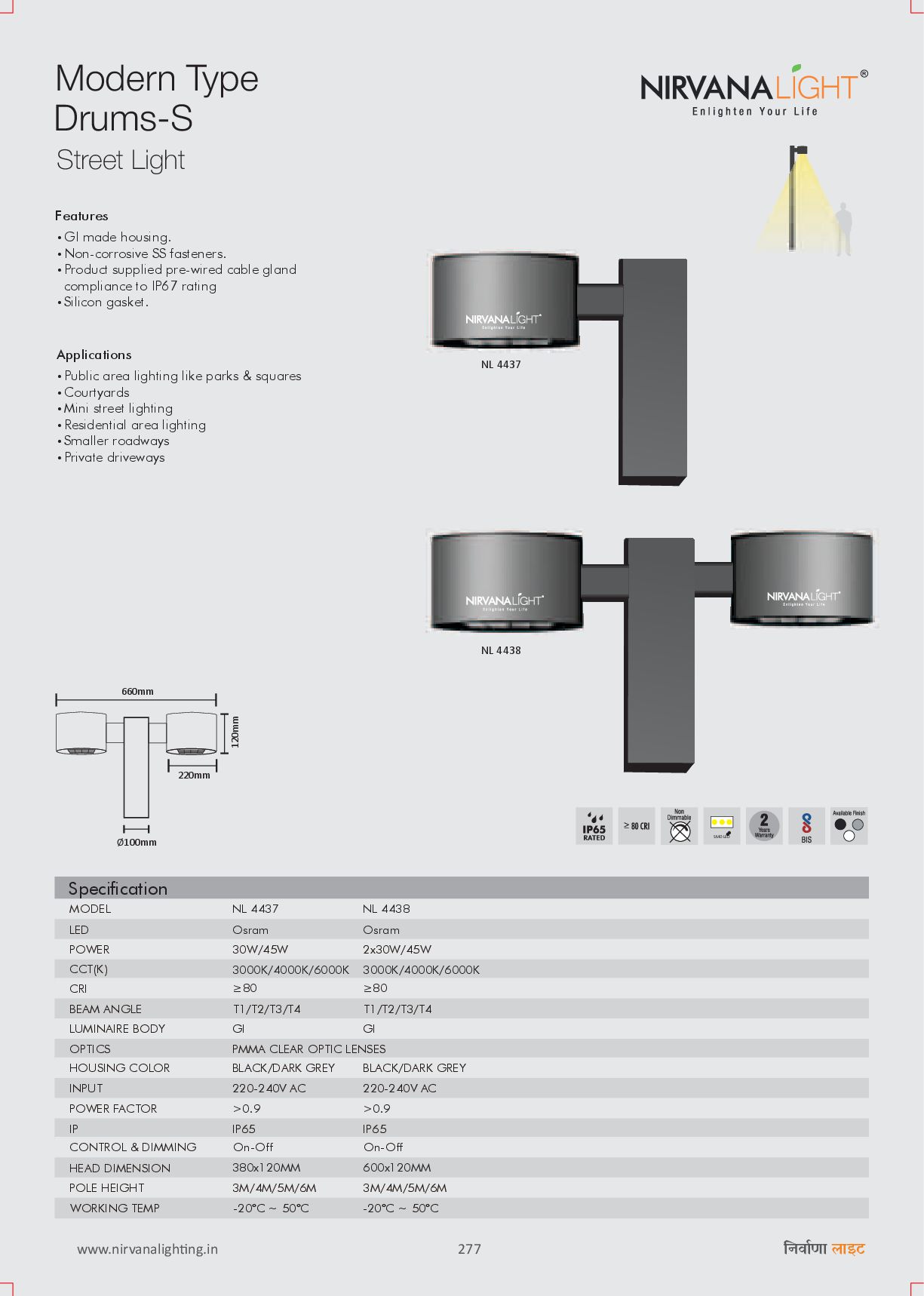

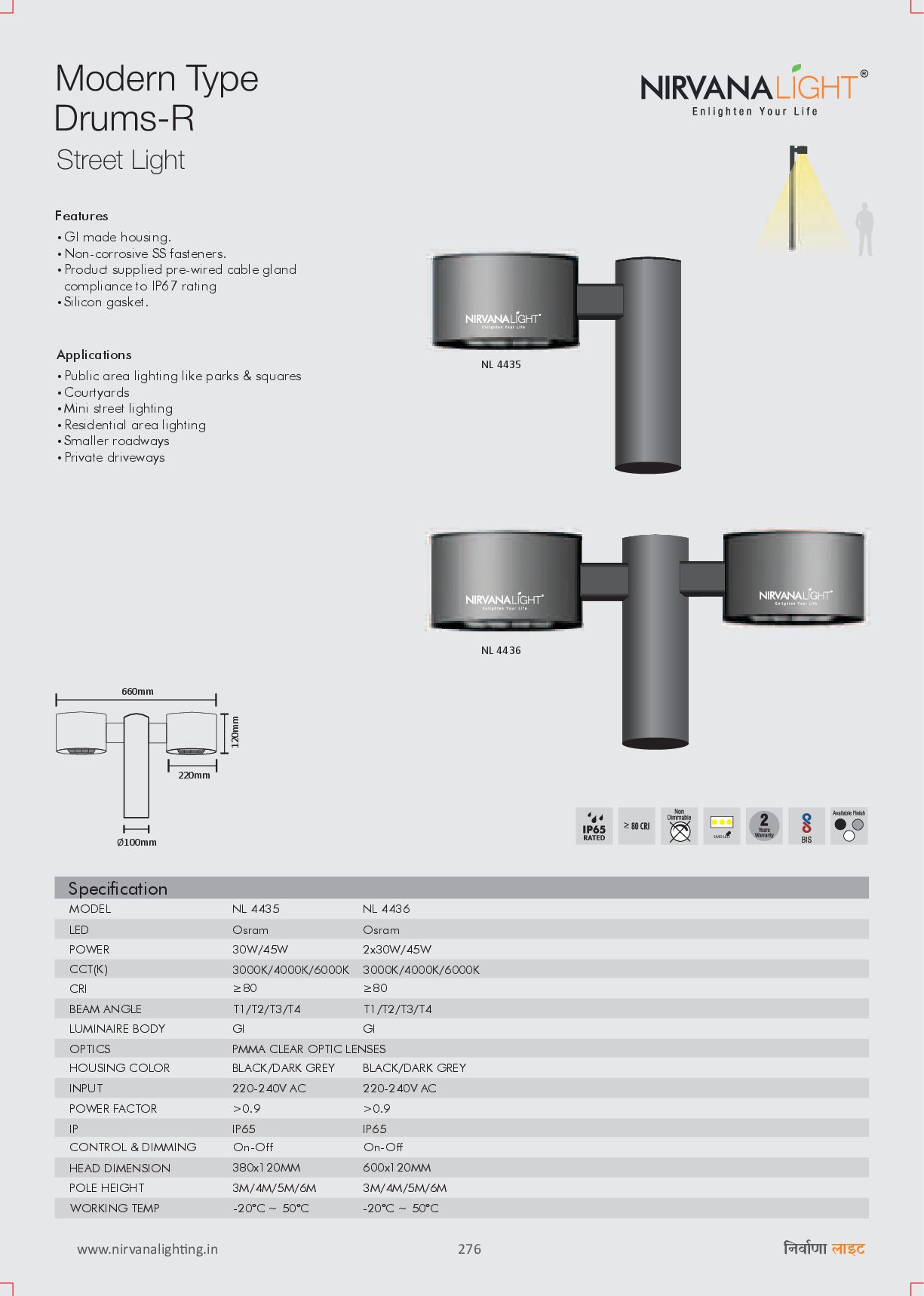

25. INDEX | OUTDOOR Street Light- MODERN TYPE DRUMS - R & S Pg 276 NL 4436 Pg 277 NL 4437 Pg 277 NL 4438 Bollards & Poles Light- VERTILUX NL 4435 FACADE Lighting System NL 4435 Pg 290 FLD-S1 Pg 290 FLD-S2 Pg 291 FLD-R1 Pg 291 FLD-R2 STREET Lighting System NL 4477 Pg 294 NL 4478 Pg 294 NL 4479 Pg 294 NL 4480 POLES Pg 295 D:60x114MM D:76x114MM D:60D76D114MM D:89x114MM Pg 296 D:100MM D:89MM D:76MM D:60MM D:114MM * The beauty of Nirvana Light lies in its authen c presence. While we aim for true-to-life representa on, please expect that actual product colors and dimensions may vary slightly from what you see in our catalog or online. Pg 274-276 NL 4435 Pg 278-286 Pg 287-290 Pg 292-294
26. 1 www.nirvanaligh ng.in नवाणा लाइट
27. Celestia Deep Recessed Anti-glare Chrome Series Indoor Architectural Lighting 2 www.nirvanaligh ng.in नवाणा लाइट
28. NL 1544 Fix Beam Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications ŸThe die-cast aluminum housing ensures efficient heat dissipation. ŸDelivering exceptional brightness, these lights provide ample illumination for indoor applications. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸHighend Residential ŸHotel ŸVillas ŸClubs ŸLobbies & Foyers ŸHospitality Industry ŸRetail Sector ŸCorporate Ofce Features Applications Deep Recessed Anti-glare Chrome Series Celestia Customized Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Specification 10W Reector Aluminum Die Cast White >80 3K/4K/6K/TW D : 65mm H : 61mm C : 55mm NL 1542 12W Reector Aluminum Die Cast White >80 3K/4K/6K/TW D : 75mm H : 70mm C : 65mm NL 1543 NL 1544 15W Reector Aluminum Die Cast White >80 3K/4K/6K/TW D : 85mm H : 80mm C : 75mm IP20 IP20 IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 38° 38° 38° 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 3 www.nirvanaligh ng.in नवाणा लाइट
29. 4 www.nirvanaligh ng.in नवाणा लाइट

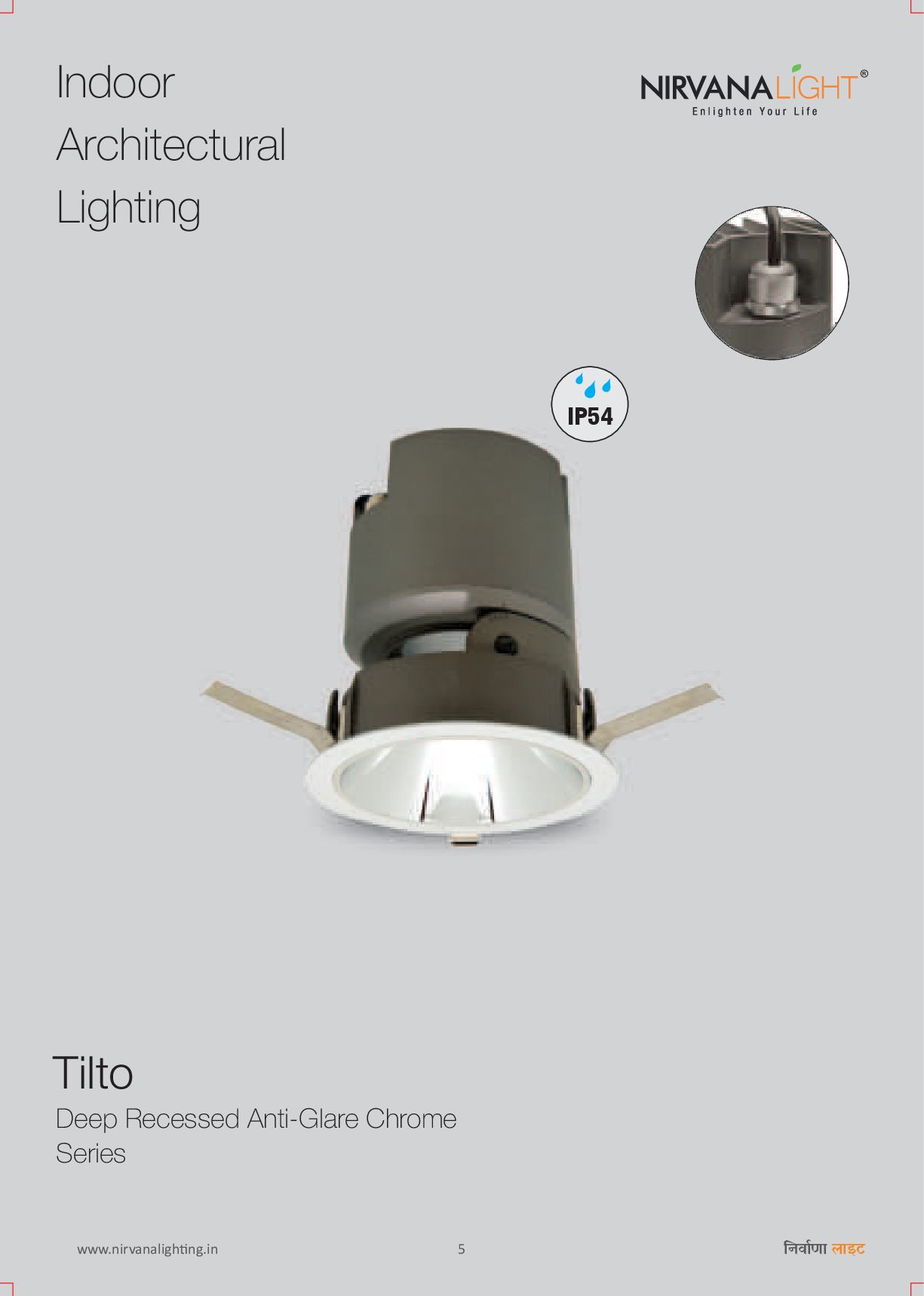

30. Indoor Architectural Lighting Tilto Deep Recessed Anti-Glare Chrome Series IP54 5 www.nirvanaligh ng.in नवाणा लाइट
31. NL 1522 FX Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP54 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Fixed Optics Features Changing one’s mind is natural. The project of a modular and multiform lighting can’t do without Tilto- Anti-Glare Chrome Ceiling Recessed spot light. Ÿ Aluminium die cast housing. Ÿ Deep recessed spot light with Silver chrome secondary reflector. Ÿ Low cut off angle and reduced glare. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. C H D Tilto Anti-glare Chrome Series 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Power (W) Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model Finish NL 1521 FX 3K, 4K, 6K, TW >80 D : 65mm H : 80mm C : 60mm 6W Reflector Aluminum Die cast White IP54 50,000 Hrs NL 1522 FX 3K, 4K, 6K, TW >80 D : 88mm H : 103mm C : 80mm 13W Reflector Aluminum Die cast White IP54 50,000 Hrs NL 1523 FX 3K, 4K, 6K, TW >80 D : 110mm H : 122mm C : 100mm 15W/20W Reflector Aluminum Die cast White IP54 50,000 Hrs Fixed Optics Beam Angle 24°/36° ŸResidential Spaces ŸHotel ŸVillas ŸClubs ŸLobbies & Foyers ŸHospitality Industry ŸRetail Sector ŸSemi-Outdoor Areas Applications Customized Finish 24°/36° 18°/24°/36° 6 www.nirvanaligh ng.in नवाणा लाइट
32. NL 1523 ADJ Tilto Anti-glare Chrome Series 30° 0° Adjustable Optics Wall washer Optics NL 1521 WW 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Power (W) Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model Finish NL 1521 WW 3K, 4K, 6K, TW 6W Reflector Aluminum Die cast White >80 50,000 Hrs D : 65mm H : 80mm C : 60mm NL 1522 WW 3K, 4K, 6K, TW 13W Reflector Aluminum Die cast White >80 50,000 Hrs D : 88mm H : 103mm C : 80mm Specification NL 1523 WW 3K, 4K, 6K, TW 15W/20W White >80 50,000 Hrs D : 110mm H : 122mm C : 100mm Reflector Aluminum Die cast Wall washer Optics IP54 IP54 IP54 Beam Angle Asymetric 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Power (W) Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model Finish Specification Adjustable Optics NL 1521 ADJ 3K, 4K, 6K, TW 6W Reflector Aluminum Die cast White >80 50,000 Hrs D : 65mm H : 84mm IP54 NL 1522 ADJ 3K, 4K, 6K, TW 13W Reflector Aluminum Die cast White >80 50,000 Hrs D : 88mm H : 109mm IP54 Aluminum Die cast NL 1523 ADJ 3K, 4K, 6K, TW 15W/20W Reflector White >80 50,000 Hrs D : 110mm C : 60mm C : 80mm C : 100mm H : 130mm IP54 Beam Angle 24°/36° 24°/36° 18°/24°/36° Asymetric Asymetric 7 www.nirvanaligh ng.in नवाणा लाइट
33. Indoor Architectural Lighting Tirth Detachable Chrome Series 8 www.nirvanaligh ng.in नवाणा लाइट
34. Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Tirth Features Applications Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish 30° 0° Adjustable Optics Detachable Chrome Series Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast White >80 3K/4K/6K/TW D : 65mm H : 78mm C : 55mm NL 1381 12W White >80 3K/4K/6K/TW D : 85mm H : 96mm C : 75mm NL 1382 NL 1383 24W White >80 3K/4K/6K/TW D : 105mm H : 121mm C : 95mm IP20 IP20 IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs 15° , 24°, 36° , 55° Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 6W White >80 3K/4K/6K/TW D : 88mm H : 78mm C : 55mm NL 1381-TL 12W White >80 3K/4K/6K/TW D : 108mm H : 96mm C : 75mm NL 1382-TL NL 1383-TL 24W White >80 3K/4K/6K/TW D : 128mm H : 110mm C : 95mm IP20 IP20 IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens NL 1381 NL 1381-TL IP20 9 www.nirvanaligh ng.in नवाणा लाइट
35. Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish 30° 0° Adjustable Optics Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle Aluminum Die Cast White >80 3K/4K/6K/TW D : 65x65mm H : 85mm C : 58x55mm NL 1383 White >80 3K/4K/6K/TW D : 85x85mm H : 111mm C : 78x55mm NL 1384 NL 1385 White >80 3K/4K/6K/TW D : 105x105mm H : 124mm C : 98x95mm IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT White >80 3K/4K/6K/TW D : 126x53mm H : 85mm C : 58x55mm NL 1383-TL White >80 3K/4K/6K/TW D : 146x74mm H : 111mm C : 78x75mm NL 1384-TL NL 1385-TL White >80 3K/4K/6K/TW D : 166x94mm H : 124mm C : 98x95mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 IP20 IP20 15° , 24°, 36° , 55° 7W 12W 24W 7W 12W 24W Tirth Detachable Chrome Series NL 1383 NL 1383-TL IP20 10 www.nirvanaligh ng.in नवाणा लाइट
36. 30° 0° Adjustable Optics Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 2x6W Aluminum Die Cast White >80 3K/4K/6K/TW D : 115x65mm H : 85mm C : 105x58mm NL 1386 2x12W 2x12W White >80 3K/4K/6K/TW D : 155x85mm H : 111mm C : 148x78mm NL 1387 NL 1388 2x24W 2x24W White >80 3K/4K/6K/TW D : 195x105mm H : 124mm C : 185x98mm IP20 IP20 IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 2x7W White >80 3K/4K/6K/TW D : 177x103mm H : 85mm C : 105x58mm White >80 3K/4K/6K/TW D : 217x145mm H : 111mm C : 145x78mm White >80 3K/4K/6K/TW D : 257x185mm H : 124mm C : 185x98mm IP20 IP20 IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens Tirth Detachable Chrome Series NL 1386-TL NL 1387-TL NL 1388-TL NL 1386 NL 1386-TL 15° , 24°, 36° , 55° IP20 11 www.nirvanaligh ng.in नवाणा लाइट
37. Indoor Architectural Lighting Tejas Detachable Anti-Glare Chrome Series 12 www.nirvanaligh ng.in नवाणा लाइट
38. Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Tejas Detachable Features Applications Anti-glare Chrome Series 30° 0° Adjustable Optics Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast White >80 3K/4K/6K/TW D : 65mm H : 75mm C : 55mm NL 1389 12W White >80 3K/4K/6K/TW D : 82mm H : 81mm C : 75mm NL 1390 IP20 IP20 IP20 IP20 50,000 Hrs 50,000 Hrs Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 6W White >80 3K/4K/6K/TW D : 88mm H : 75mm C : 55mm 12W White >80 3K/4K/6K/TW D : 108mm H : 81mm C : 75mm 50,000 Hrs 50,000 Hrs Lens Lens NL 1389-TL NL 1390-TL 15° , 24°, 36° , 55° IP20 NL 1389 NL 1389-TL 13 www.nirvanaligh ng.in नवाणा लाइट
39. Indoor Architectural Lighting Trishul Detachable Anti-glare Chrome Series 14 www.nirvanaligh ng.in नवाणा लाइट
40. Trishul Detachable Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 13W Aluminum Die Cast White >80 3K/4K/6K/TW D : 65mm H : 112mm C : 55mm NL 1362 22W White >80 3K/4K/6K/TW D : 85mm H : 148mm C : 75mm NL 1363 NL 1362-TL 13W White >80 3K/4K/6K/TW D : 88mm H : 112mm C : 55mm IP20 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Anti-glare Chrome Series 22W White >80 3K/4K/6K/TW D : 108mm H : 148mm C : 75mm NL 1363-TL 50,000 Hrs Lens Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 30° 0° Adjustable Optics Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish IP20 IP20 IP20 15° , 24°, 36° , 55° NL 1362 NL 1362-TL 15 www.nirvanaligh ng.in नवाणा लाइट
41. Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle Aluminum Die Cast White >80 3K/4K/6K/TW D : 65x65mm H : 120mm C : 55x55mm NL 1365 White >80 3K/4K/6K/TW D : 85x85mm H : 157mm C : 75x75mm NL 1366 NL 1365-TL White >80 3K/4K/6K/TW D : 124x54mm H : 120mm C : 55x55mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT White >80 3K/4K/6K/TW D : 145x74mm H : 157mm C : 75x75mm NL 1366-TL 50,000 Hrs Lens 30° 0° Adjustable Optics Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish Trishul Detachable Anti-glare Chrome Series IP20 IP20 IP20 IP20 IP20 13W 22W 13W 22W 15° , 24°, 36° , 55° NL 1365 NL 1365-TL 16 www.nirvanaligh ng.in नवाणा लाइट
42. Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 2x13W Aluminum Die Cast White >80 3K/4K/6K/TW D : 115x65mm H : 120mm C : 105x55mm NL 1368 2x22W White >80 3K/4K/6K/TW D : 155x85mm H : 157mm C : 145x75mm NL 1369 NL 1368-TL 2x13W White >80 3K/4K/6K/TW D : 176x54mm H : 120mm C : 105x55mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 2x22W White >80 3K/4K/6K/TW D : 216x47mm H : 157mm C : 145x75mm NL 1369-TL 50,000 Hrs Lens 30° 0° Adjustable Optics Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Customized Finish Trishul Detachable Anti-glare Chrome Series IP20 IP20 IP20 IP20 IP20 15° , 24°, 36° , 55° NL 1368 NL 1368-TL 17 www.nirvanaligh ng.in नवाणा लाइट

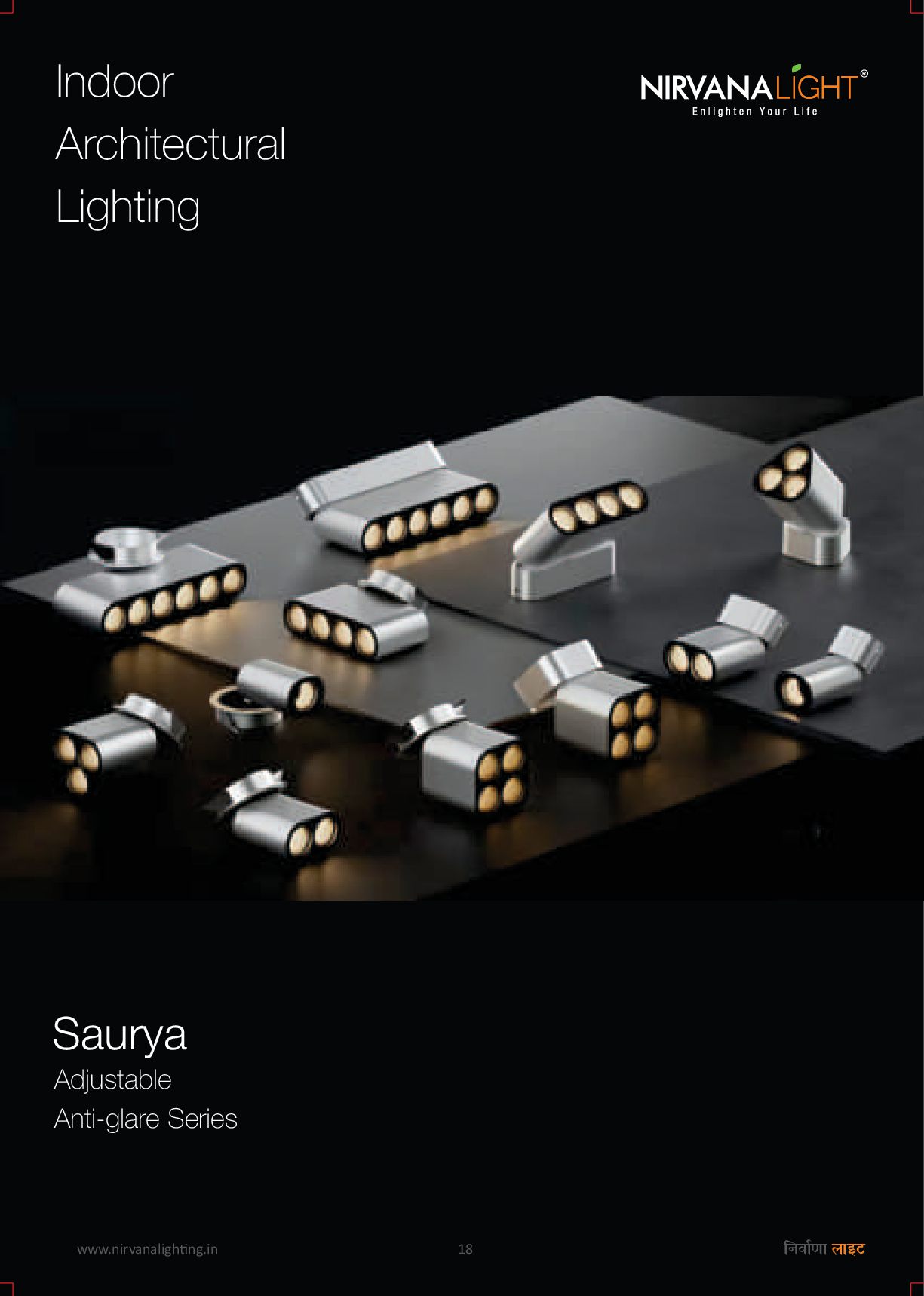

43. Indoor Architectural Lighting Saurya Adjustable Anti-glare Series 18 www.nirvanaligh ng.in नवाणा लाइट
44. Saurya Adjustable Surface Anti-glare Series Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 30° 0° Adjustable Optics 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast Matte Black >80 D : 47x37mm H : 117mm NL 1661 2x6W >80 D : 67x37mm H : 117mm NL 1662 NL 1663 3x6W >80 D : 67x63mm H : 117mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens Non- Dimmable IP20 IP20 IP20 36° NL 1661 NL 1662 NL 1663 D H Matte Black Matte Black 36° 36° 3K/4K/6K 3K/4K/6K 3K/4K/6K 19 www.nirvanaligh ng.in नवाणा लाइट
45. 30° 0° Adjustable Optics Saurya Adjustable Surface Anti-glare Series NL 1663 NL 1664 NL 1666 Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 4x6W Aluminum Die Cast Matte Black >80 D : 67x67mm H : 117mm NL 1664 4x6W >80 D : 127x37mm H : 117mm NL 1665 NL 1666 6x6W >80 D : 187x37mm H : 117mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 36° Matte Black Matte Black 36° 36° 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Non- Dimmable 3K/4K/6K 3K/4K/6K 3K/4K/6K 20 www.nirvanaligh ng.in नवाणा लाइट
46. Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 30° 0° Adjustable Optics Saurya Adjustable Recessed Anti-glare Series NL 1667 NL 1668 NL 1669 Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast Matte Black >80 3K/4K/6K D : 47x39mm H : 92mm NL 1667 2x6W >80 3K/4K/6K D : 67x37mm H : 92mm NL 1668 NL 1669 3x6W >80 3K/4K/6K D : 67x63mm H : 100mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 36° Matte Black Matte Black 36° 36° 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Non- Dimmable D H 21 www.nirvanaligh ng.in नवाणा लाइट
47. 30° 0° Adjustable Optics Saurya Adjustable Recessed Anti-glare Series NL 1670 NL 1671 NL 1672 Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 4x6W Aluminum Die Cast Matte Black >80 D : 67x67mm H : 100mm NL 1670 4x6W >80 D : 127x37mm H : 100mm NL 1671 NL 1672 6x6W >80 D : 187x37mm H : 100mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 36° Matte Black Matte Black 36° 36° 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Non- Dimmable 3K/4K/6K 3K/4K/6K 3K/4K/6K 22 www.nirvanaligh ng.in नवाणा लाइट
48. Indoor Architectural Lighting Logus Detachable Anti-glare Series 23 www.nirvanaligh ng.in नवाणा लाइट

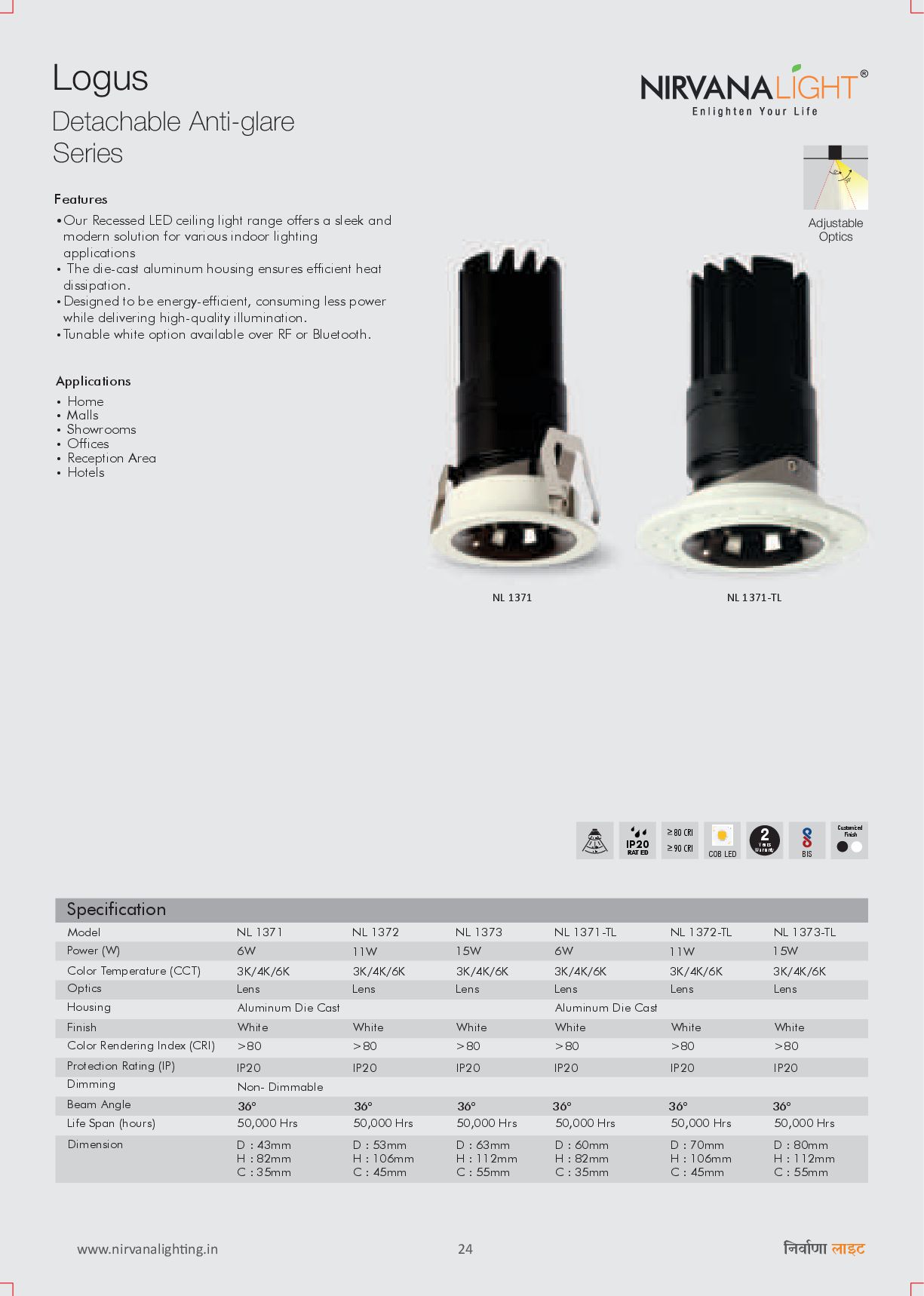

49. Logus Detachable Anti-glare Series Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 30° 0° Adjustable Optics Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast White >80 D : 43mm H : 82mm C : 35mm NL 1371 11W White >80 D : 53mm H : 106mm C : 45mm NL 1372 NL 1373 15W White >80 D : 63mm H : 112mm C : 55mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 Aluminum Die Cast White >80 D : 60mm H : 82mm C : 35mm NL 1371-TL White >80 D : 70mm H : 106mm C : 45mm NL 1372-TL NL 1373-TL White >80 D : 80mm H : 112mm C : 55mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 6W 11W 15W 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Non- Dimmable 3K/4K/6K 3K/4K/6K 3K/4K/6K 3K/4K/6K 3K/4K/6K 3K/4K/6K 36° 36° 36° 36° 36° 36° NL 1371 NL 1371-TL 24 www.nirvanaligh ng.in नवाणा लाइट
50. 30° 0° Adjustable Optics Logus Detachable Anti-glare Series Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 6W Aluminum Die Cast White >80 D : 39mm H : 74mm C : 30mm NL 1374 11W White >80 D : 49mm H : 89mm C : 40mm NL 1375 NL 1376 15W White >80 D : 59mm H : 93mm C : 50mm 50,000 Hrs 50,000 Hrs 50,000 Hrs Lens Lens Lens IP20 IP20 IP20 2 Years Warranty RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Customized Finish IP20 Non- Dimmable 3K/4K/6K 3K/4K/6K 3K/4K/6K 36° 36° 36° NL 1374 Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 25 www.nirvanaligh ng.in नवाणा लाइट

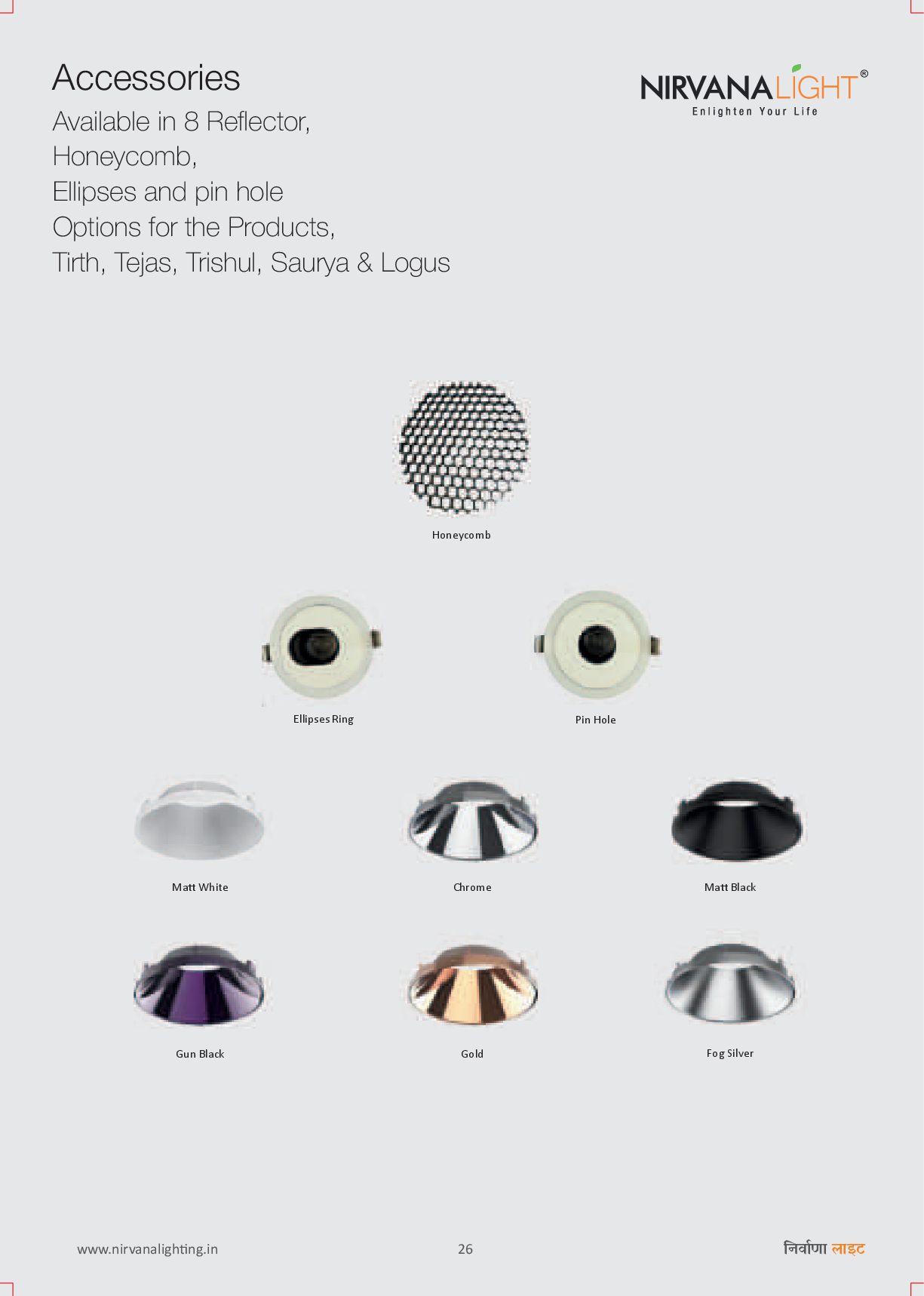

51. Accessories Gun Black Gold Fog Silver Ma White Chrome Ma Black Ellipses Ring Pin Hole Honeycomb Available in 8 Reflector, Honeycomb, Ellipses and pin hole Options for the Products, Tirth, Tejas, Trishul, Saurya & Logus 26 www.nirvanaligh ng.in नवाणा लाइट
52. 27 www.nirvanaligh ng.in नवाणा लाइट
53. Indoor Architectural Lighting Nube Deep Recessed Fixed Anti-glare Series 28 www.nirvanaligh ng.in नवाणा लाइट
54. Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Nube Deep Recessed Fixed Fix Beam NL 1603 Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 8W Aluminum Die Cast White >80 Non-Dimmable 3K/4K/6K/TW D : 43mm H : 76mm C : 36mm NL 1601 11W Aluminum Die Cast White >80 3K/4K/6K/TW D : 63mm H : 94mm C : 55mm NL 1602 NL 1603 15W Aluminum Die Cast White >80 3K/4K/6K/TW D : 83mm H : 94mm C : 55mm IP44 IP44 IP44 50,000 Hrs 50,000 Hrs 50,000 Hrs 55° 55° 55° Lens Lens Lens 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Anti-glare Series Customized Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Features Applications 29 www.nirvanaligh ng.in नवाणा लाइट
55. 45° Shilding Angle The embedded parts are adjustable in height 30° adjustable angle 30° Safe Ceiling a chment Indoor Architectural Lighting Ceiling Rota on Ring Nube Deep Recessed Adjustable Anti-glare Series 30 www.nirvanaligh ng.in नवाणा लाइट
56. D H C NL 1606 30° 0° Adjustable Beam Nube Deep Recessed Adjustble NL 1607(Adjustable) Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) Beam Angle 11W Lens Aluminum Die Cast White >80 3K/4K/6K/TW D : 63mm H : 94mm C : 55mm NL 1606 IP44 50,000 Hrs NL 1607 13W/15W Lens Aluminum Die Cast White >80 3K/4K/6K/TW D : 83mm H : 91mm C : 55mm IP44 50,000 Hrs 55° 55° Anti-glare Series 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Customized Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications Ÿ The die-cast aluminum housing ensures efficient heat dissipation. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. ŸTunable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications 31 www.nirvanaligh ng.in नवाणा लाइट
57. 32 www.nirvanaligh ng.in नवाणा लाइट
58. Cirrus Deep Recessed Series Indoor Architectural Lighting Anodized Dark Grey Anodized Black 33 www.nirvanaligh ng.in नवाणा लाइट
59. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Cirrus Deep Recessed Series Fix Beam Ÿ Our Recessed LED ceiling light range offers a sleek and modern solution for various indoor lighting applications. Ÿ The die-cast aluminum housing ensures efficient heat dissipation. Ÿ Delivering exceptional brightness, these lights provide ample illumination. ŸDesigned to be energy-efficient, consuming less power while delivering high-quality illumination. Ÿ Tunable white option available over RF or Bluetooth. NL 1563 NL 1564 NL 1561 NL 1562 Aluminum Die Cast Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Life Span (hours) 5W Aluminum Die Cast >80 Non-Dimmable 3K/4K/6K NL 1561 IP20 10W Aluminum Die Cast >80 Non-Dimmable 3K/4K/6K NL 1562 IP20 12W Aluminum Die Cast >80 3K/4K/6K/TW NL 1563 IP20 18W >80 3K/4K/6K/TW NL 1564 IP20 50,000 Hrs D : 30mm H : 86mm C : 25mm 50,000 Hrs D : 35mm H : 91mm C : 31mm 50,000 Hrs D : 52mm H : 73mm C : 48mm 50,000 Hrs D : 62mm H : 90mm C : 58mm Lens White Lens White Lens White Lens White 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Beam Angle 50° 50° 36° 36° Customized Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Features Applications 34 www.nirvanaligh ng.in नवाणा लाइट
60. 35 www.nirvanaligh ng.in नवाणा लाइट

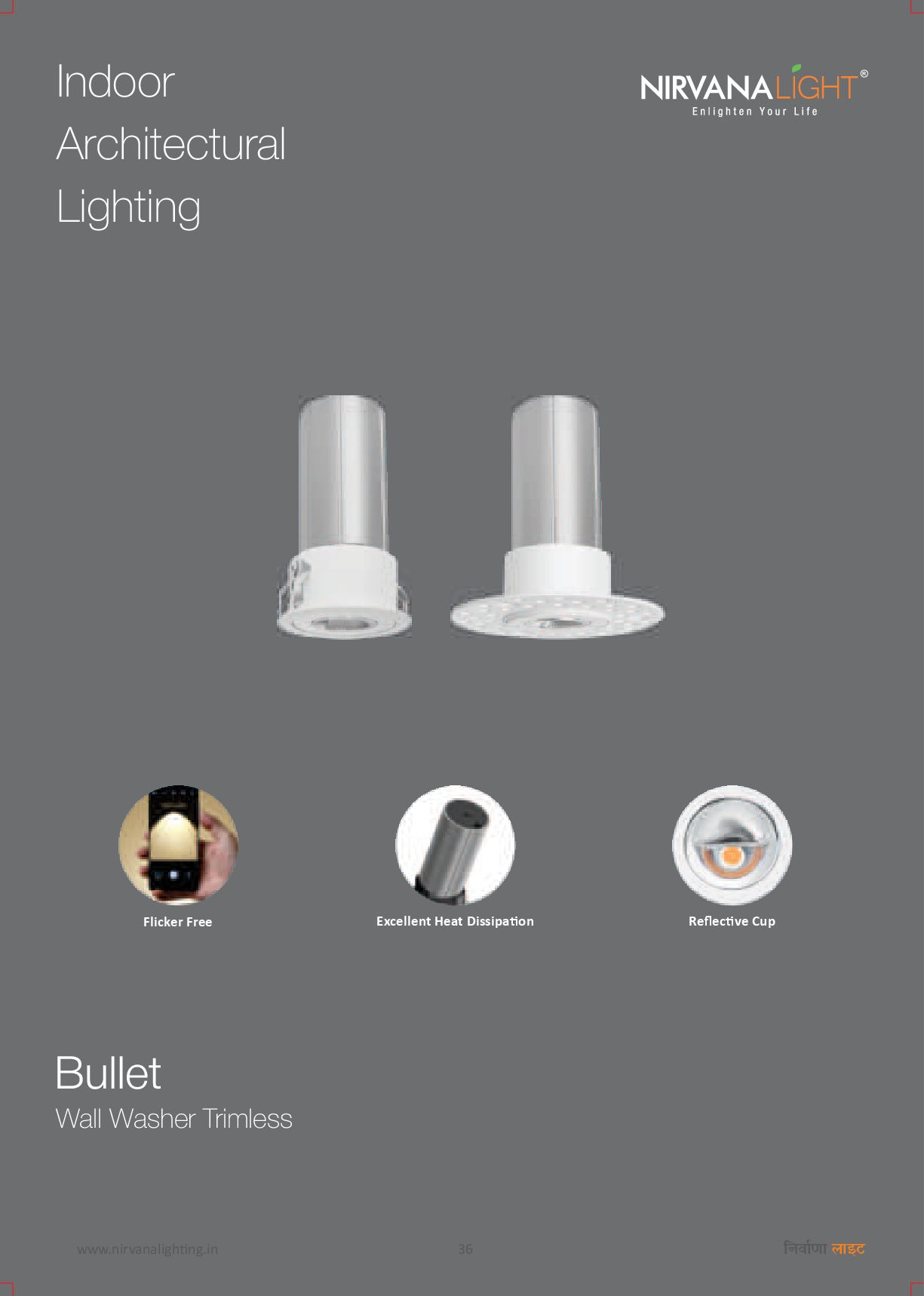

61. Bullet Wall Washer Trimless Indoor Architectural Lighting Excellent Heat Dissipa on Flicker Free Reflec ve Cup 36 www.nirvanaligh ng.in नवाणा लाइट
62. Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Trimless Series Bullet Wall washer Optics D H Location, space and wall are the logical delimitation of the environment in which ideas move to give consistency, concreteness and originally to a lighting designers sparks. Ÿ Aluminium die cast housing. Ÿ Trimless version of spot light. Ÿ Fixed Wall Washer Light Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Life Span (hours) Finish NL 1525 WW 3000K/4000K D : 35mm 5W Aluminum Die cast Silver body+White Buffle >90 IP20 50,000 Hrs NL 1525 WW-TL 3000K/4000K D : 35mm C : 45mm C : 64.5mm H : 70mm H : 70mm 5W Aluminum Die cast Silver body+White Buffle >90 IP20 50,000 Hrs Non-Dimmable Reflector Reflector Non-Dimmable NL 1525 WW NL 1525 WW-TL (Trimless) Customized Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI Features Applications 37 www.nirvanaligh ng.in नवाणा लाइट

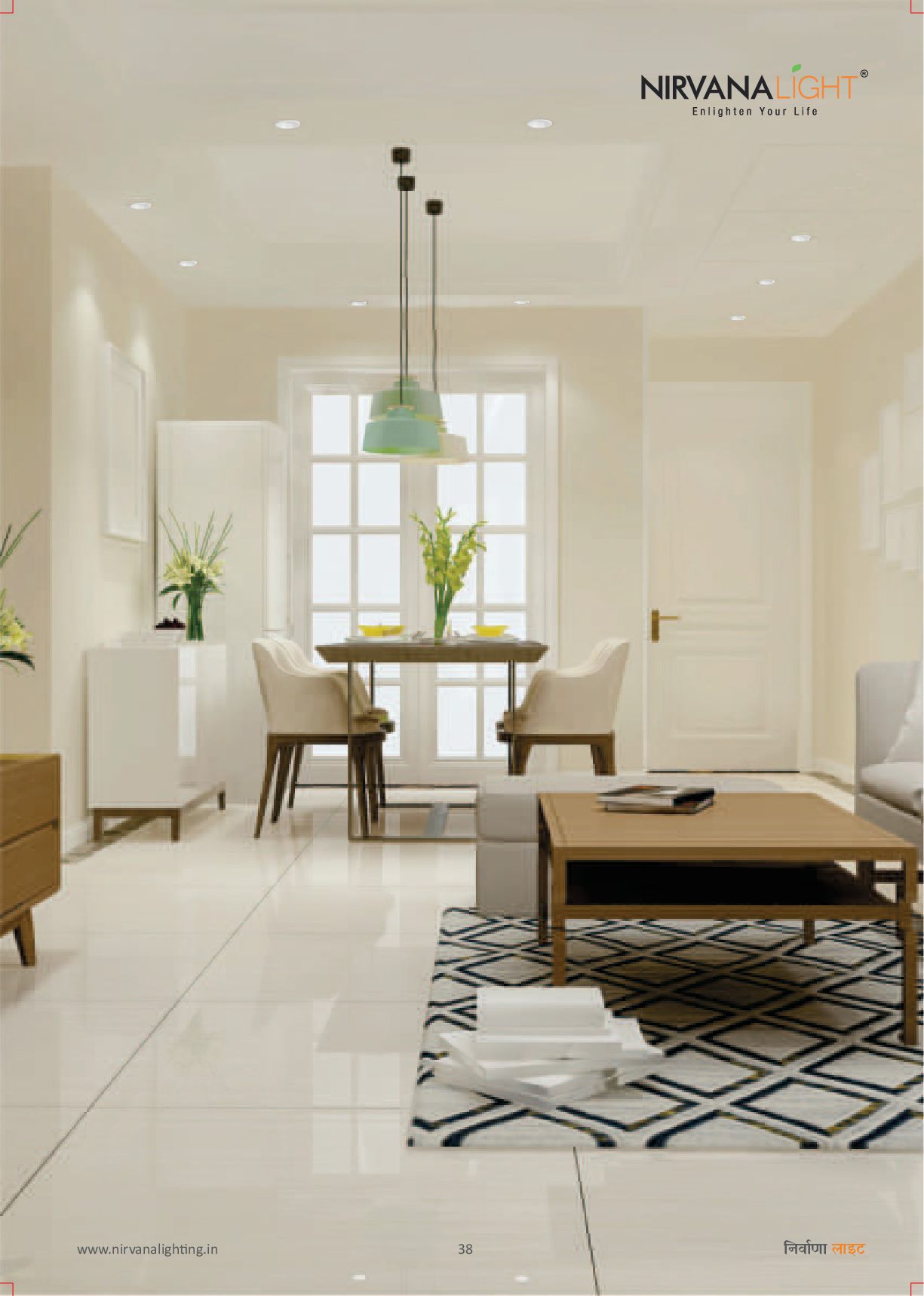

63. 38 www.nirvanaligh ng.in नवाणा लाइट
64. Indoor Architectural Lighting Alina Fix Down Series 39 www.nirvanaligh ng.in नवाणा लाइट

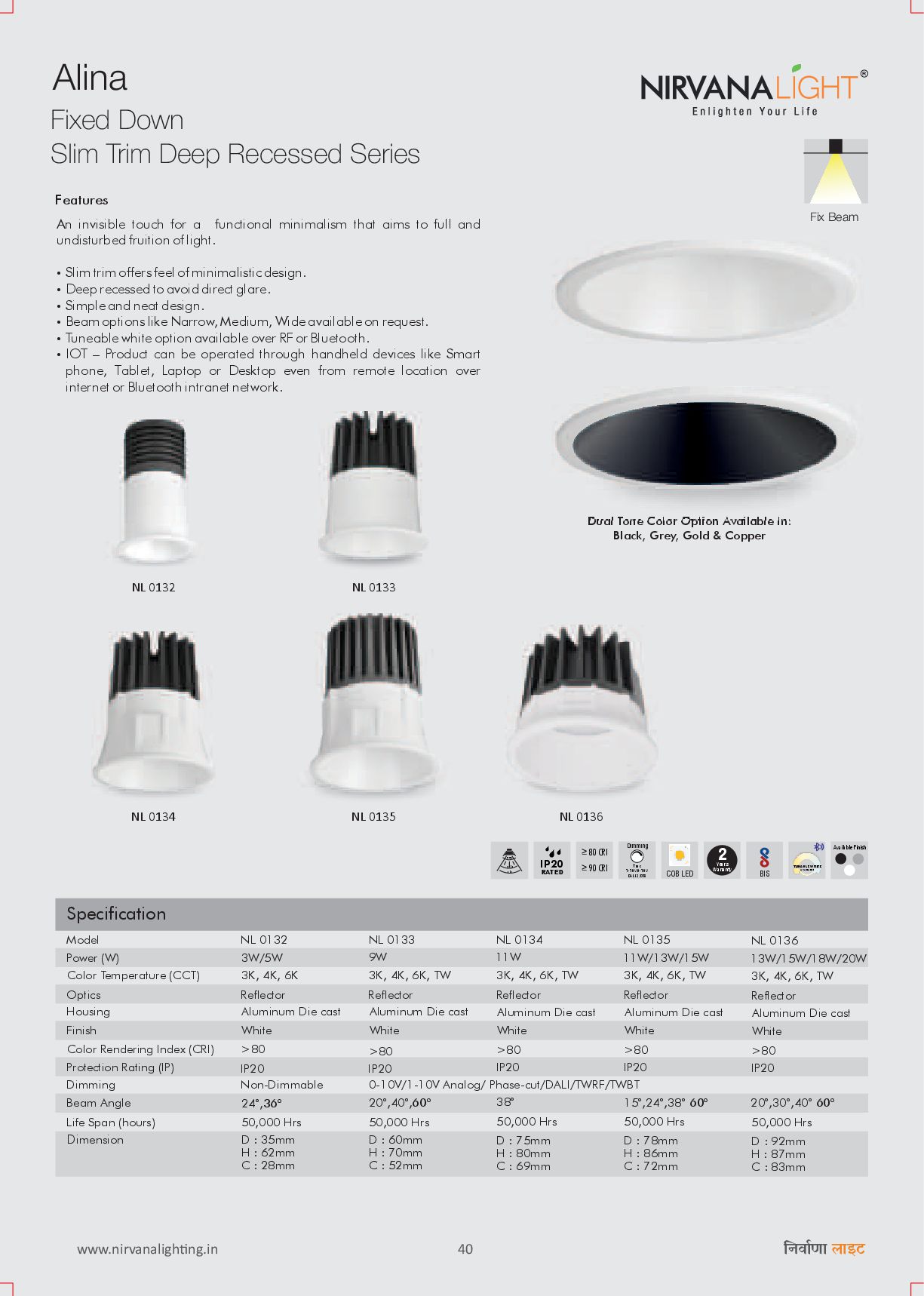

65. Features An invisible touch for a functional minimalism that aims to full and undisturbed fruition of light. Ÿ Slim trim offers feel of minimalistic design. Ÿ Deep recessed to avoid direct glare. Ÿ Simple and neat design. Ÿ Beam options like Narrow, Medium, Wide available on request. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Alina Fixed Down Slim Trim Deep Recessed Series Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE NL 0132 NL 0133 NL 0134 NL 0135 NL 0136 Dual Tone Color Option Available In: Black, Grey, Gold & Copper Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 0135 11W/13W/15W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 78mm H : 86mm C : 72mm NL 0136 13W/15W/18W/20W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 92mm H : 87mm C : 83mm NL 0134 11W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 75mm H : 80mm C : 69mm NL 0133 9W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs D : 60mm H : 70mm C : 52mm Aluminum Die cast Beam Angle Aluminum Die cast NL 0132 3W/5W 3K, 4K, 6K Reflector White >80 IP20 50,000 Hrs D : 35mm H : 62mm C : 28mm Non-Dimmable 24°,36° 20°,40°,60° 38° 15°,24°,38° 60° 20°,30°,40° 60° 40 www.nirvanaligh ng.in नवाणा लाइट
66. Fisa Indoor Architectural Lighting Fixed Down Lense Optics Series 41 www.nirvanaligh ng.in नवाणा लाइट
67. Features Fissa - Deep recessed led ceiling mounted fixed down lights are perfect for uniform and glare-free lighting. The die cast aluminium housing is ideal for better thermal management. Ÿ Slim trim offers feel of minimalistic design. Ÿ Deep recessed to avoid direct glare. Ÿ Simple and neat design. Ÿ Beam options like Narrow, Medium, Wide available on request. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Fissa Fixed Down Lense Optics Series Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Wide 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Extra Wide Lens For Better Uniformity Dual Tone Color Option Available In: Black, Grey, Gold & Copper Extra Wide 60° NL 1037L NL 1031 NL 0135L Beam Angle 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 50,000 Hrs NL 1037L 11W/13W/15W 3K, 4K, 6K, TW Lens White >80 IP20 D : 80mm H : 80mm C : 70mm Aluminium Die cast 50,000 Hrs IP20 NL 0135L 11W/13W/15W 3K, 4K, 6K, TW Lens White >80 D : 78mm H : 86mm C : 72mm Aluminium Die cast 50,000 Hrs IP20 NL 1031 11W/13W/15W 3K, 4K, 6K, TW Lens White >80 D : 82mm H : 70mm C : 70mm Aluminium Die cast Power (W) Color Temperature (CCT) optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model Specification 60° 60° 60° 42 www.nirvanaligh ng.in नवाणा लाइट
68. 43 www.nirvanaligh ng.in नवाणा लाइट
69. Indoor Architectural Lighting Metallica Series SILVER CHROME BLACK CHROME TRUE COPPER OLIVE GREEN 44 www.nirvanaligh ng.in नवाणा लाइट
70. Features Metallica is a family of recessed down light with a touch of metallic finish. Available in two trims of 60mm & 78mm, this versatile product offers features like no other series. Luminaire can be perfectly optimized to meet the lighting requirement. Ÿ Aluminium die cast housing. Ÿ Available in 4 Metalic finish like True Copper, Olive Green, Dark Chrome, Silver Chrome. Ÿ Fixed deep recessed spot light. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Metallica Series-Fixed Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE NL 0137 NL 0138 NL 0142 NL 0141 Fix Beam 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Power (W) Power (W) Color Temperature (CCT) Color Temperature (CCT) Optics Housing Ring Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model Beam Angle Reflector (Options) NL 0141 3K, 4K, 6K, >80 D : 38mm H : 65mm C : 33mm Aluminum Die cast 3W/5W Reflector White/Black IP20 50,000 Hrs Black Chrome NL 0142 3K, 4K, 6K >80 D : 50mm H : 80mm C : 43mm Aluminum Die cast 7W Reflector White/Black IP20 50,000 Hrs Black Chrome NL 0137 3K, 4K, 6K, TW >80 D : 60mm H : 84mm C : 52mm Aluminum Die cast 9W/11W Reflector White/Black IP20 50,000 Hrs Silver Chrome/Black Chrome True Copper / Olive Green >80 NL 0138 3K, 4K, 6K, TW D : 78mm H : 86mm C : 72mm Aluminum Die cast 13W / 15W Reflector White/Black IP20 50,000 Hrs Silver Chrome/Black Chrome True Copper / Olive Green Non-Dimmable Non-Dimmable 24° 24° 60° 32° 45 www.nirvanaligh ng.in नवाणा लाइट

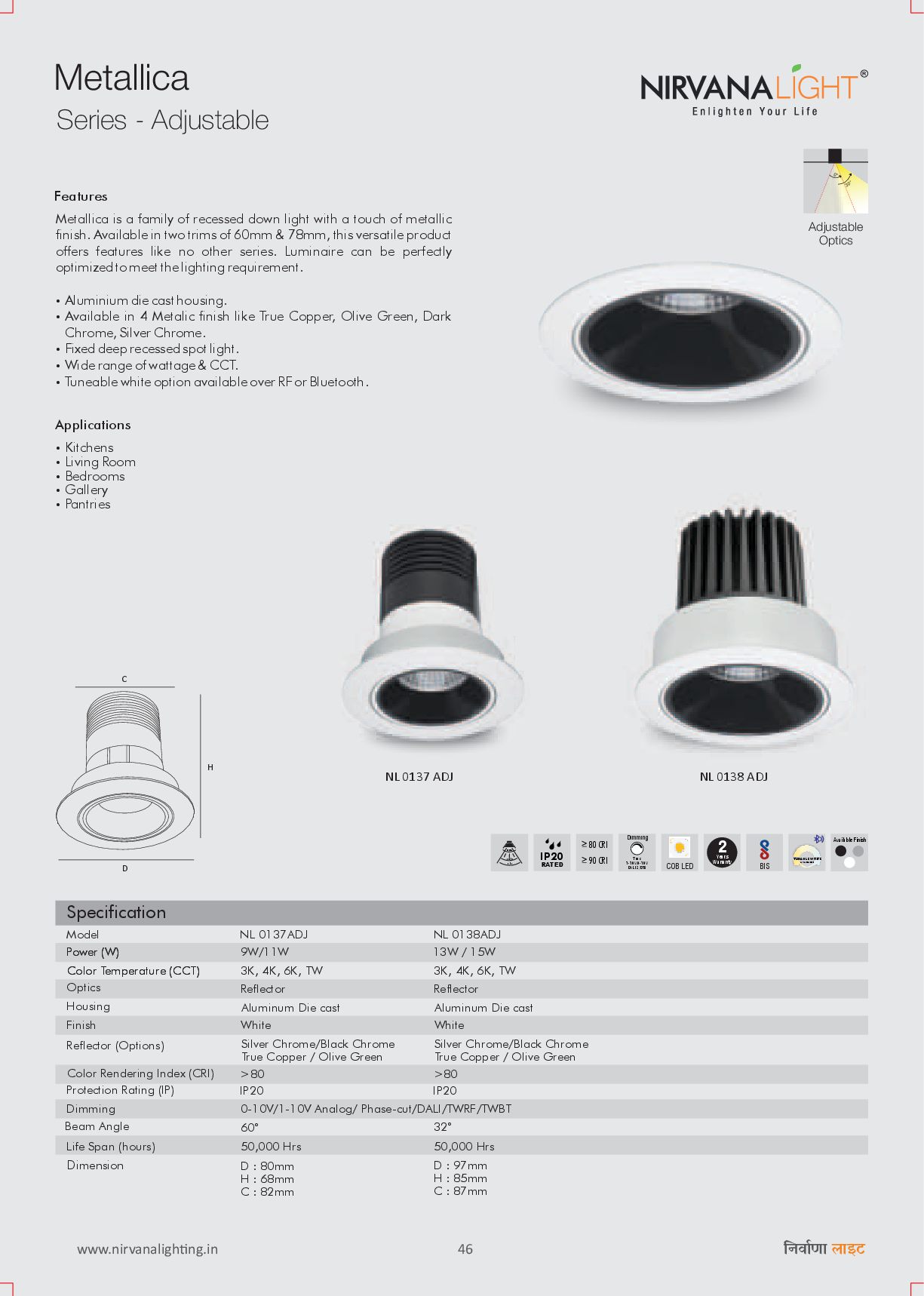

71. C H D Metallica Series - Adjustable Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE NL 0137 ADJ NL 0138 ADJ 30° 0° Adjustable Optics Specification 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Power (W) Power (W) Color Temperature (CCT) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 0137ADJ 3K, 4K, 6K, TW >80 D : 80mm H : 68mm C : 82mm Aluminum Die cast 9W/11W Reflector White IP20 50,000 Hrs NL 0138ADJ 3K, 4K, 6K, TW >80 D : 97mm H : 85mm C : 87mm Aluminum Die cast 13W / 15W Reflector White IP20 50,000 Hrs Beam Angle Reflector (Options) Silver Chrome/Black Chrome True Copper / Olive Green Silver Chrome/Black Chrome True Copper / Olive Green 32° 60° Features Metallica is a family of recessed down light with a touch of metallic finish. Available in two trims of 60mm & 78mm, this versatile product offers features like no other series. Luminaire can be perfectly optimized to meet the lighting requirement. Ÿ Aluminium die cast housing. Ÿ Available in 4 Metalic finish like True Copper, Olive Green, Dark Chrome, Silver Chrome. Ÿ Fixed deep recessed spot light. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 46 www.nirvanaligh ng.in नवाणा लाइट
72. 47 www.nirvanaligh ng.in नवाणा लाइट
73. Soothe Anti-glare Black Series Indoor Architectural Lighting 48 www.nirvanaligh ng.in नवाणा लाइट

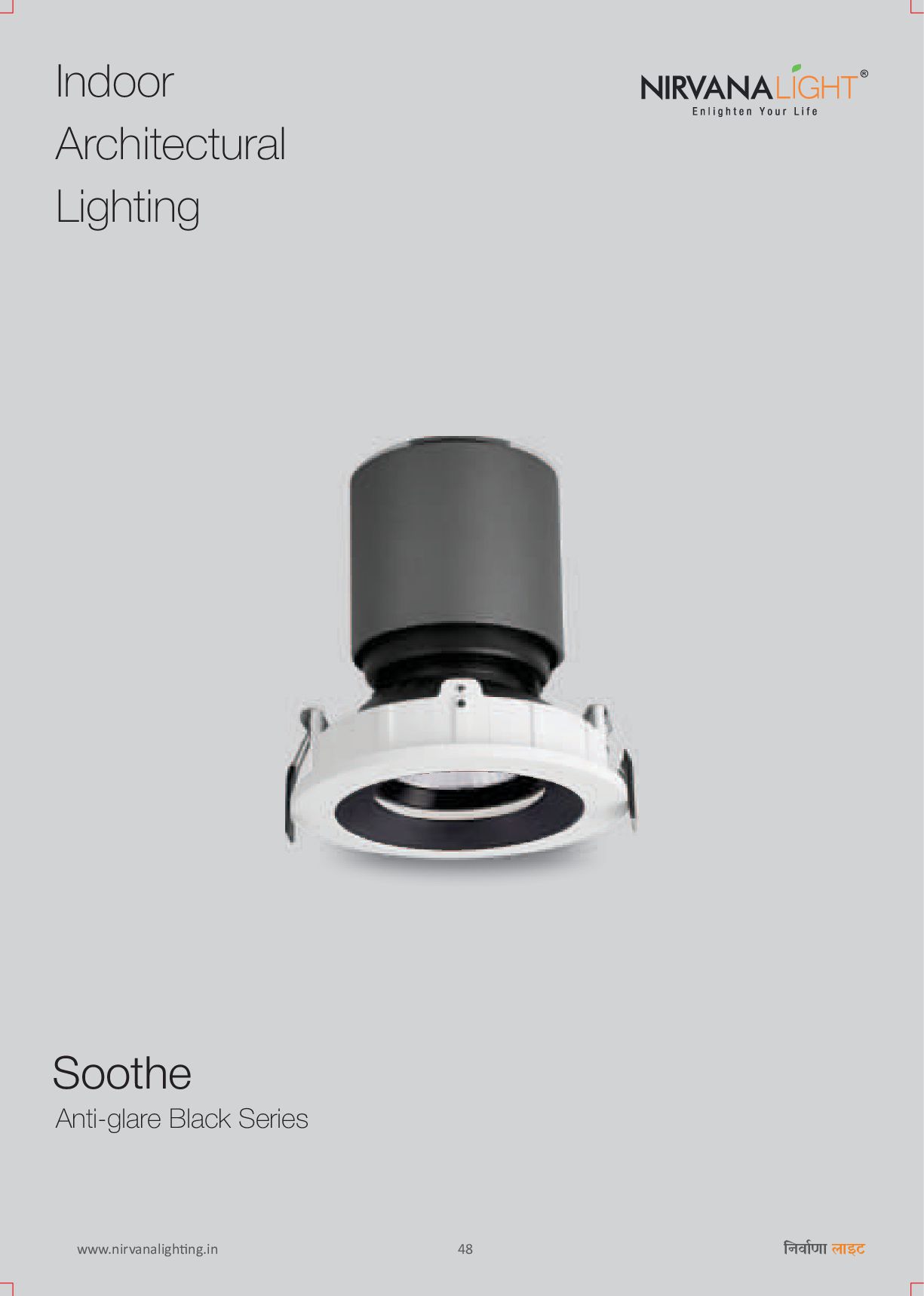

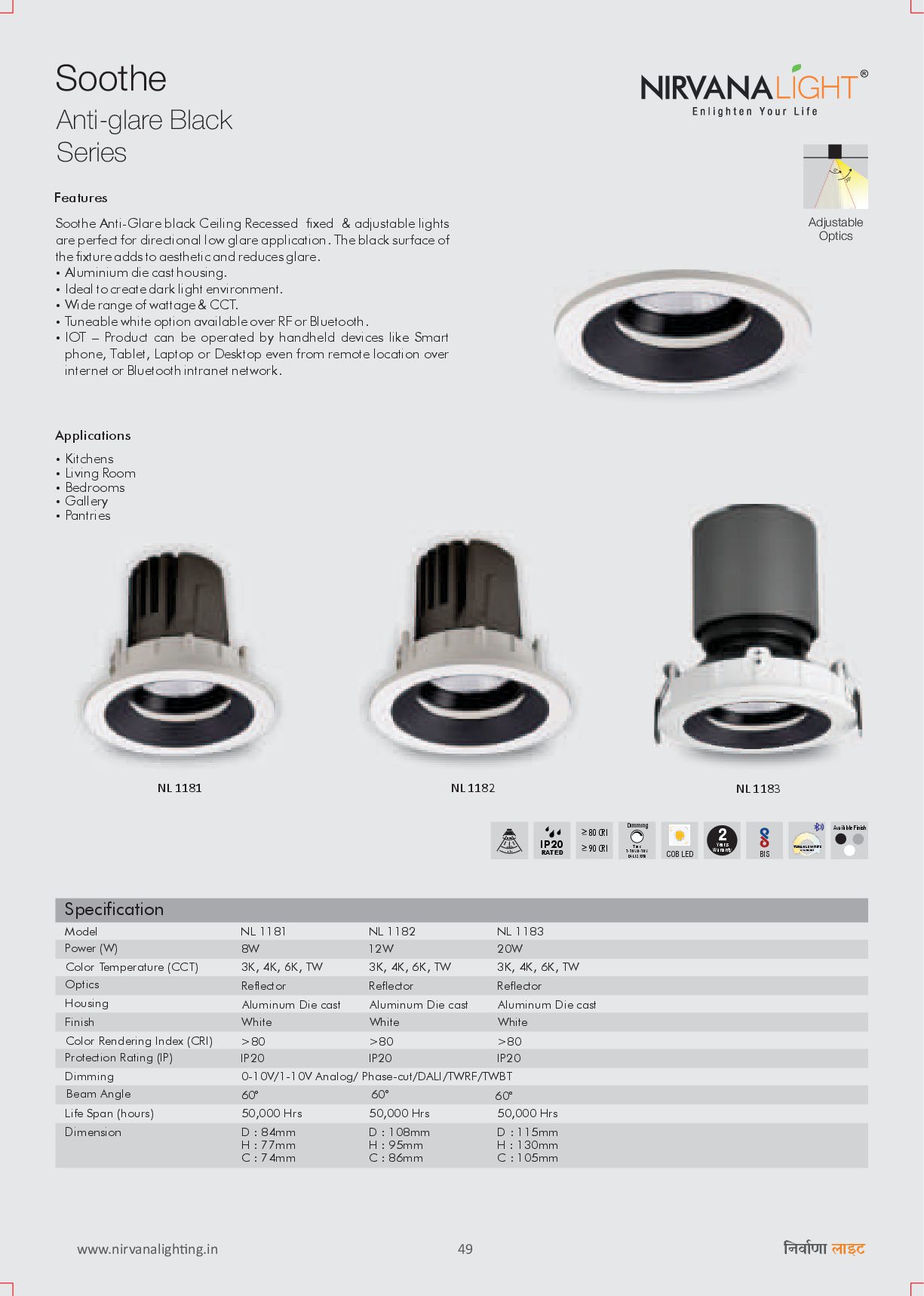

74. Features Soothe Anti-Glare black Ceiling Recessed fixed & adjustable lights are perfect for directional low glare application. The black surface of the fixture adds to aesthetic and reduces glare. Ÿ Aluminium die cast housing. Ÿ Ideal to create dark light environment. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated by handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Soothe Anti-glare Black Series Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE NL 1183 30° 0° Adjustable Optics NL 1181 NL 1182 Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 1182 12W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 108mm H : 95mm C : 86mm NL 1183 20W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 115mm H : 130mm C : 105mm NL 1181 8W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 84mm H : 77mm C : 74mm Beam Angle 60° 60° 60° 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT 49 www.nirvanaligh ng.in नवाणा लाइट
75. 50 www.nirvanaligh ng.in नवाणा लाइट
76. Indoor Architectural Lighting D-Signo-Adjustable Series 51 www.nirvanaligh ng.in नवाणा लाइट
77. NL 1446 NL 1446A Recessed With Snoot D-Signo Adjustable Series Recessed Without Snoot NL 1456 NL 1456A Trimless With Snoot Trimless Without Snoot Dual Tone Color Option Available In: Black, Grey, Gold & Copper 30° 0° Adjustable Optics 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 1446 3K, 4K, 6K, TW >80 D : 90mm H : 125mm C : 83mm Aluminum Die cast 13W Reflector White IP20 50,000 Hrs NL 1446A 3K, 4K, 6K, TW >80 D : 90mm H : 125mm C : 83mm Aluminum Die cast 13W Reflector White IP20 50,000 Hrs NL 1456 3K, 4K, 6K,TW D : 85mm H : 120mm C : 114mm 12W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1456A 3K, 4K, 6K, TW D : 85mm H : 120mm C : 114mm 12W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs Beam Angle 60° 60° 60° 60° 3 Super Narrow Spot 0 NL 1107 NL 1107 3K >80 D : 65mm H : 35mm C : 55mm 3W Reflector White IP20 50,000 Hrs 3° Aluminum Die cast 52 www.nirvanaligh ng.in नवाणा लाइट
78. D-Signo Adjustable Series Without Snoot NL 1445A Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Wide 80 CRI 90 CRI TUNABLE WHITE AVAILABLE 30° 0° Adjustable Optics NL 1447 NL 1444 With Snoot NL 1445 Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 1445 3K, 4K, 6K/TW >80 Aluminum Die cast D : 93x93mm H : 125mm C : 87x87mm 13W Reflector White IP20 50,000 Hrs NL 1445A 3K, 4K, 6K/TW >80 Aluminum Die cast D : 93x93mm H : 125mm C : 87x87mm 13W Reflector White IP20 50,000 Hrs NL 1447 3K, 4K, 6K, TW >80 Aluminum Die cast D : 90mm H : 51mm C : 83mm 10W Reflector White IP20 50,000 Hrs NL 1444 Aluminium Die cast 12W Lens White >80 IP20 50,000 Hrs 3K, 4K, 6K D : 93x93mm H : 82mm C : 87x87mm Beam Angle 60° 60° 60° 60° 25° 60° 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Features D-Signo Adjustable Spot Lights are ceiling recessed down lights having option of adjusting direction of the light source wherever needed. Ÿ Aluminium die cast housing. 0 0 Ÿ Adjustable in all directions, Max tilting 30 , rotation – 360 . Ÿ Deep recessed to avoid glare. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 53 www.nirvanaligh ng.in नवाणा लाइट
79. D H C NL 1448-S1/S2/S3 D-Signo Adjustable Series Specification Power (W) Color Temperature (CCT) LED Type Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1448-S1 8W 3K, 4K, 6K, TW COB White >80 IP20 50,000 Hrs Aluminum Die cast D : 76mm C : 55mm H : 38mm NL 1448-S2 11W/13W 3K, 4K, 6K, TW COB White >80 IP20 50,000 Hrs D : 98mm C : 75mm H : 45mm Aluminum Die cast NL 1448-S3 15W/20W 3K, 4K, 6K, TW COB White >80 IP20 50,000 Hrs D : 118mm C : 95mm H : 54mm Aluminum Die cast Beam Angle 24° 30° 0° Adjustable Optics 24° 24° Features D-Signo Adjustable Spot Lights are ceiling recessed down lights having option of adjusting direction of the light source wherever needed. Ÿ Aluminium die cast housing. 0 0 Ÿ Adjustable in all directions, Max tilting 30 , rotation – 360 . Ÿ Deep recessed to avoid glare. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 54 www.nirvanaligh ng.in नवाणा लाइट
80. Indoor Architectural Lighting Move Adjustable Series 55 www.nirvanaligh ng.in नवाणा लाइट

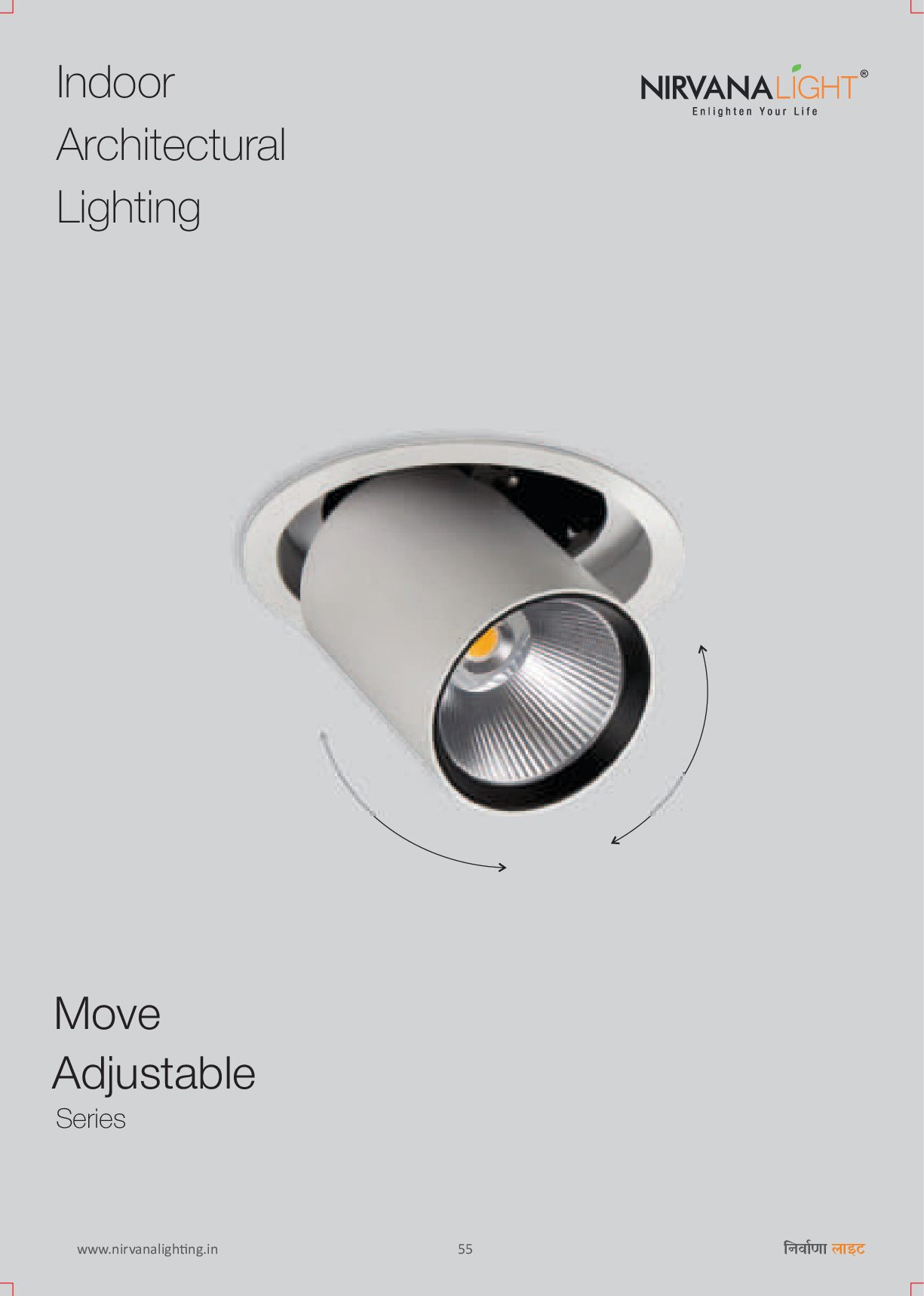

81. Features Moove is a family of adjustable downlights which are tiltable as well as rotatable. The luminaire design is such that it can reach maximum horizontal plane or vertical surfaces. Ÿ Aluminium die cast housing. Ÿ Adjustable in all directions, Tilting max 75', rotation 355'. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries NL 1460TL Trimless H D C Adjustable Move Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE Series Recessed 30° 0° Adjustable Optics Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 1460 3K, 4K, 6K, TW Aluminum Die cast D : 100mm H : 105mm C : 89mm 13W Reflector White >80 IP20 50,000 Hrs 3K, 4K, 6K, TW Aluminum Die cast D : 88mm H : 93mm C : 127mm NL 1460TL 13W Reflector White >80 IP20 50,000 Hrs NL 1449 3K, 4K, 6K, TW Aluminum Die cast D : 84mm H : 90mm C : 75mm 8W Reflector White >80 IP20 50,000 Hrs 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Beam Angle 24° 24° 24° 56 www.nirvanaligh ng.in नवाणा लाइट
82. 57 www.nirvanaligh ng.in नवाणा लाइट
83. Hido Series Fixed & Adjustable - Trimless Series Indoor Architectural Lighting 58 www.nirvanaligh ng.in नवाणा लाइट
84. NL 1448-TL Fixed & Adjustable - Trimless Series Hido Series D C H 30° 0° Adjustable Optics Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Life Span (hours) Finish 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1448-S1 TL 8W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 76mm H : 38mm C : 55mm NL 1448-S2 TL 11W/13W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 98mm H : 45mm C : 75mm NL 1448-S3 TL 15W/20W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 118mm H : 54mm C : 95mm Beam Angle 24° 59 www.nirvanaligh ng.in नवाणा लाइट
85. Features Location, space and wall are the logical delimitation of the environment in which ideas move to give consistency, concreteness and originally to a lighting designers sparks. Ÿ Aluminium die cast housing. Ÿ Trimless version of spot light. Ÿ Fix and adjustable deep recessed spot. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries NL 1457 NL 1460TL Fixed & Adjustable - Trimless Series Hido Series IP20 RATED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE COB LED NL 1456 NL 1456A Trimless With Snoot Trimless Without Snoot 30° 0° Adjustable Optics Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Life Span (hours) Finish NL 1457 10W 3K, 4K, 6K,TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 85mm H : 100mm C : 114mm NL 1460TL 13W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 88mm H : 93mm C : 127mm 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Beam Angle 60° NL 1456 3K, 4K, 6K,TW D : 85mm H : 120mm C : 114mm 12W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1456A 3K, 4K, 6K, TW D : 85mm H : 120mm C : 114mm 12W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs 60° 60° 60° 60 www.nirvanaligh ng.in नवाणा लाइट
86. 61 www.nirvanaligh ng.in नवाणा लाइट

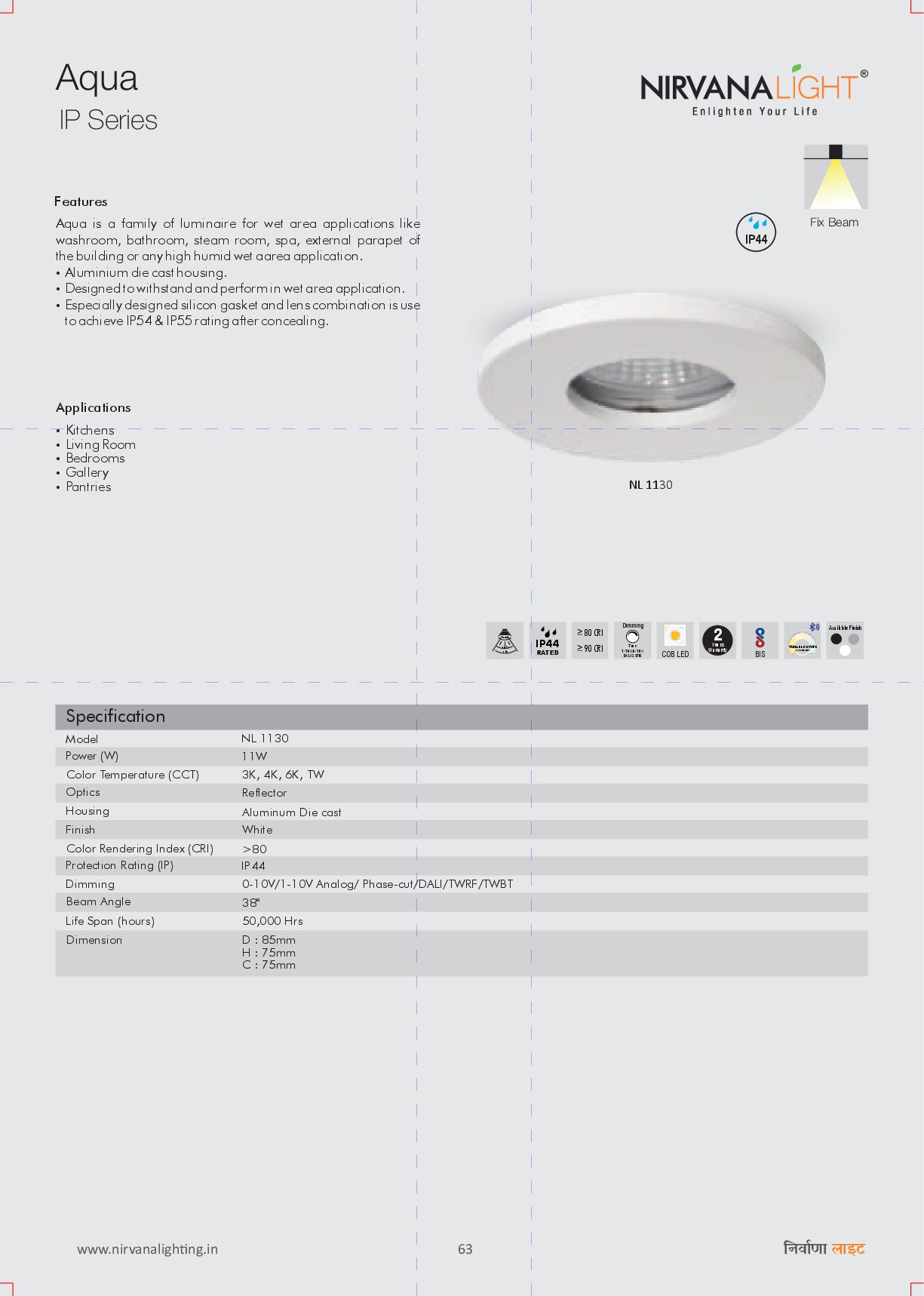

87. Aqua IP Series Indoor Architectural Lighting 62 www.nirvanaligh ng.in नवाणा लाइट

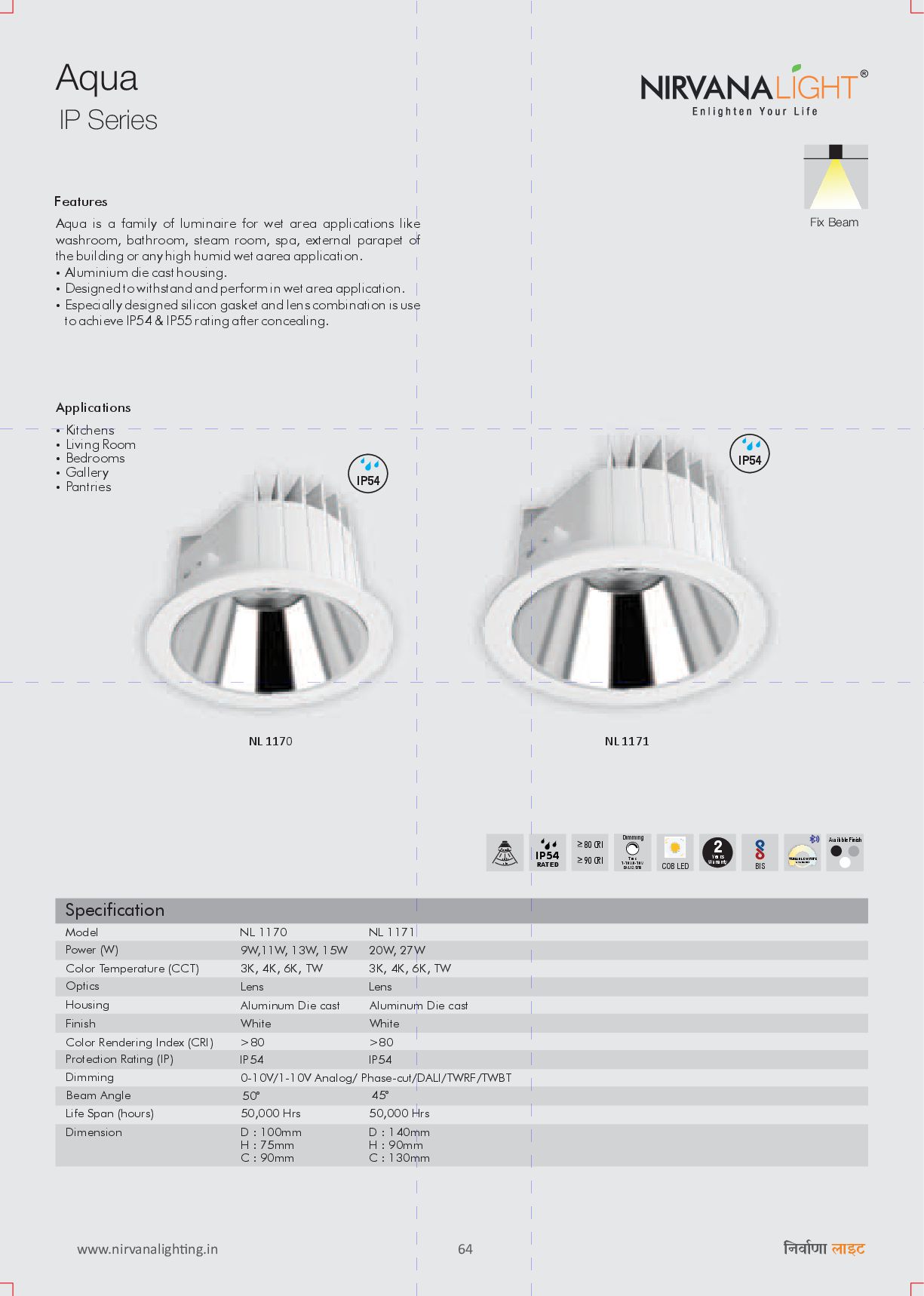

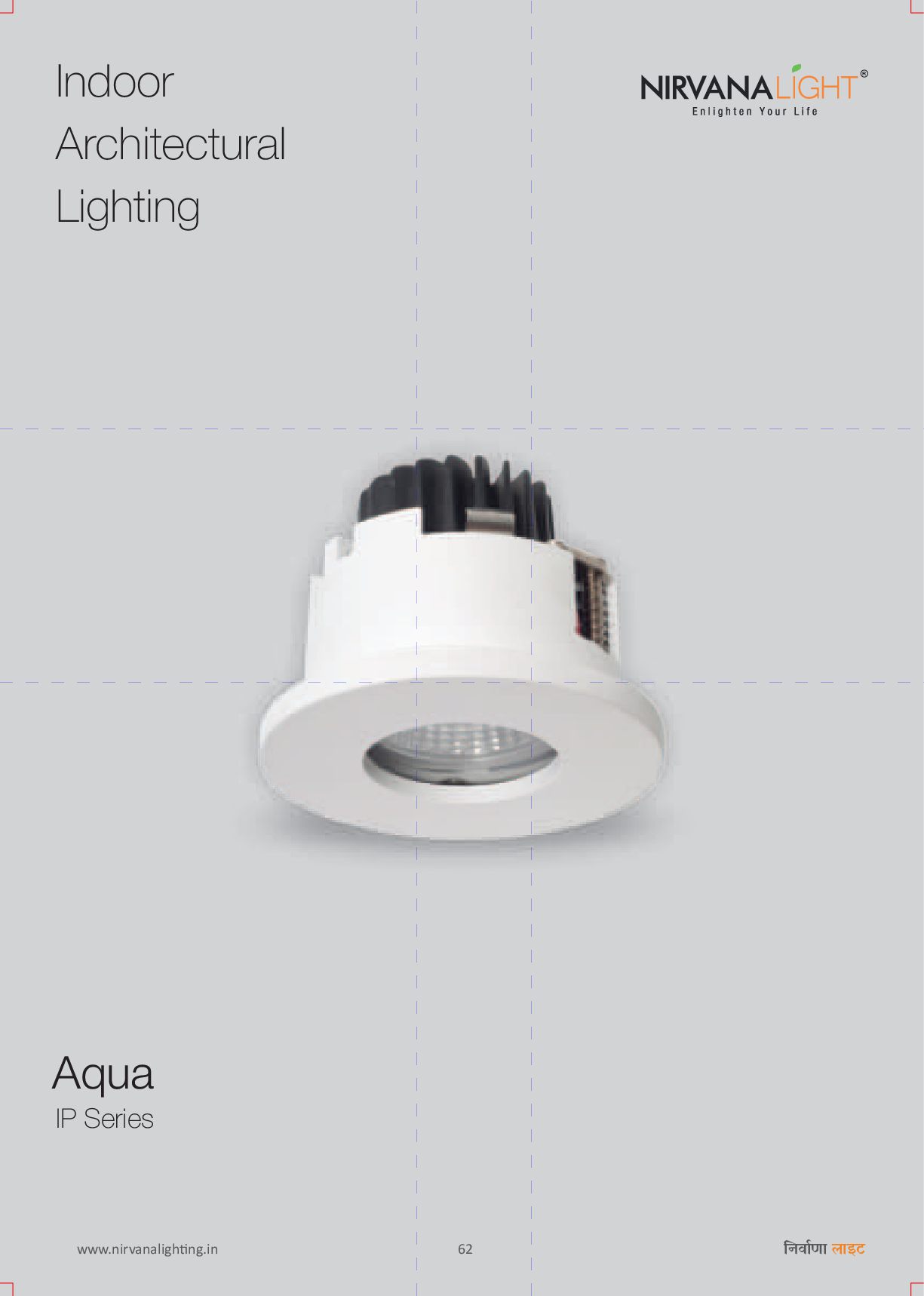

88. Features Aqua is a family of luminaire for wet area applications like washroom, bathroom, steam room, spa, external parapet of the building or any high humid wet aarea application. Ÿ Aluminium die cast housing. Ÿ Designed to withstand and perform in wet area application. Ÿ Especially designed silicon gasket and lens combination is use to achieve IP54 & IP55 rating after concealing. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Aqua IP Series Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP44 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE NL 1130 IP44 Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model D : 85mm H : 75mm C : 75mm NL 1130 11W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP44 50,000 Hrs 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Beam Angle 38° 63 www.nirvanaligh ng.in नवाणा लाइट
89. Aqua IP Series NL 1170 NL 1171 IP54 Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP54 RATED COB LED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE IP54 Aqua is a family of luminaire for wet area applications like washroom, bathroom, steam room, spa, external parapet of the building or any high humid wet aarea application. Ÿ Aluminium die cast housing. Ÿ Designed to withstand and perform in wet area application. Ÿ Especially designed silicon gasket and lens combination is use to achieve IP54 & IP55 rating after concealing. Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT D : 100mm H : 75mm C : 90mm NL 1170 9W,11W, 13W, 15W 3K, 4K, 6K, TW Lens Aluminum Die cast White >80 IP54 IP54 50,000 Hrs D : 140mm H : 90mm C : 130mm NL 1171 20W, 27W 3K, 4K, 6K, TW Lens Aluminum Die cast White >80 50,000 Hrs Beam Angle 50° 45° Features Applications 64 www.nirvanaligh ng.in नवाणा लाइट
90. 65 www.nirvanaligh ng.in नवाणा लाइट

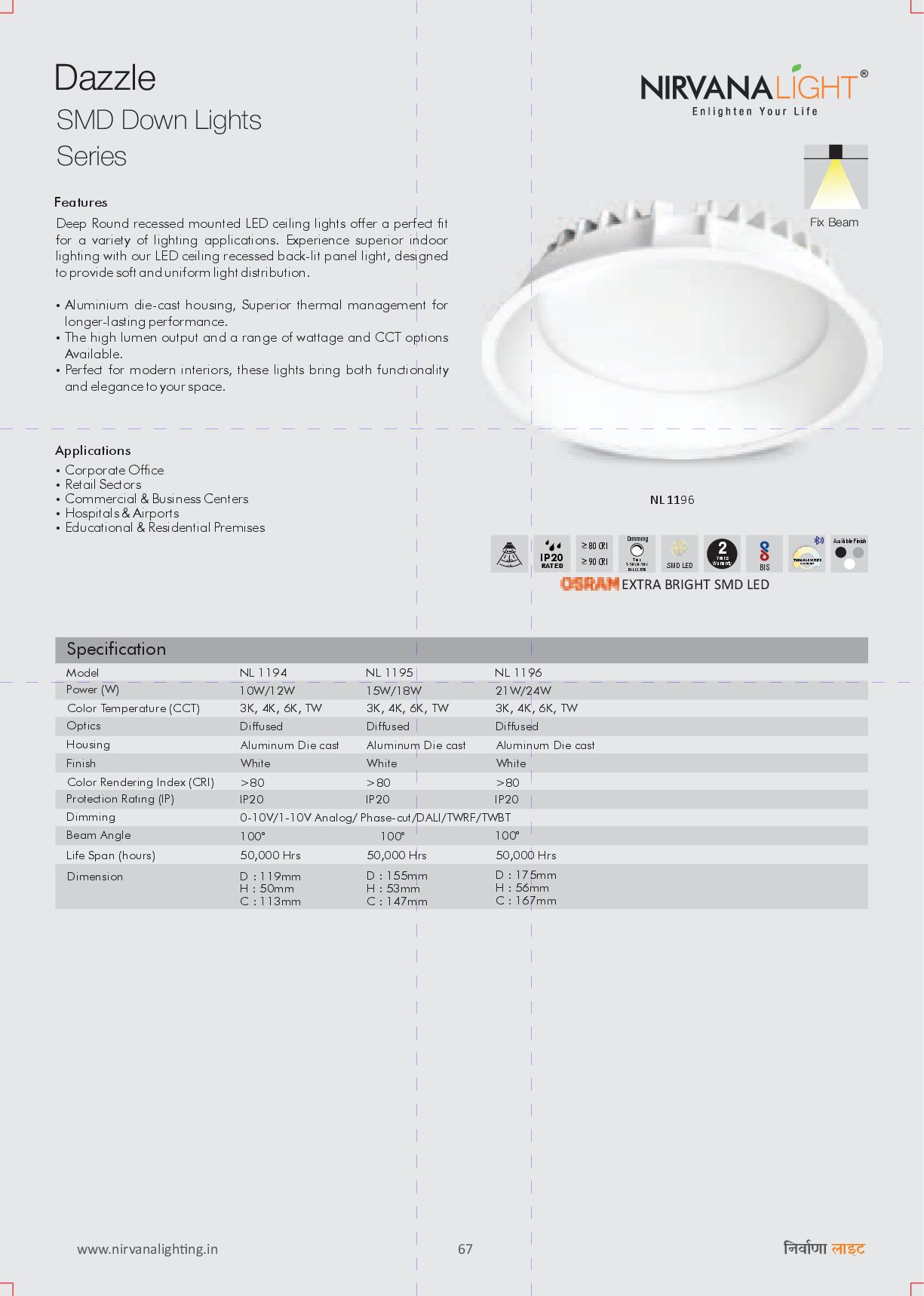

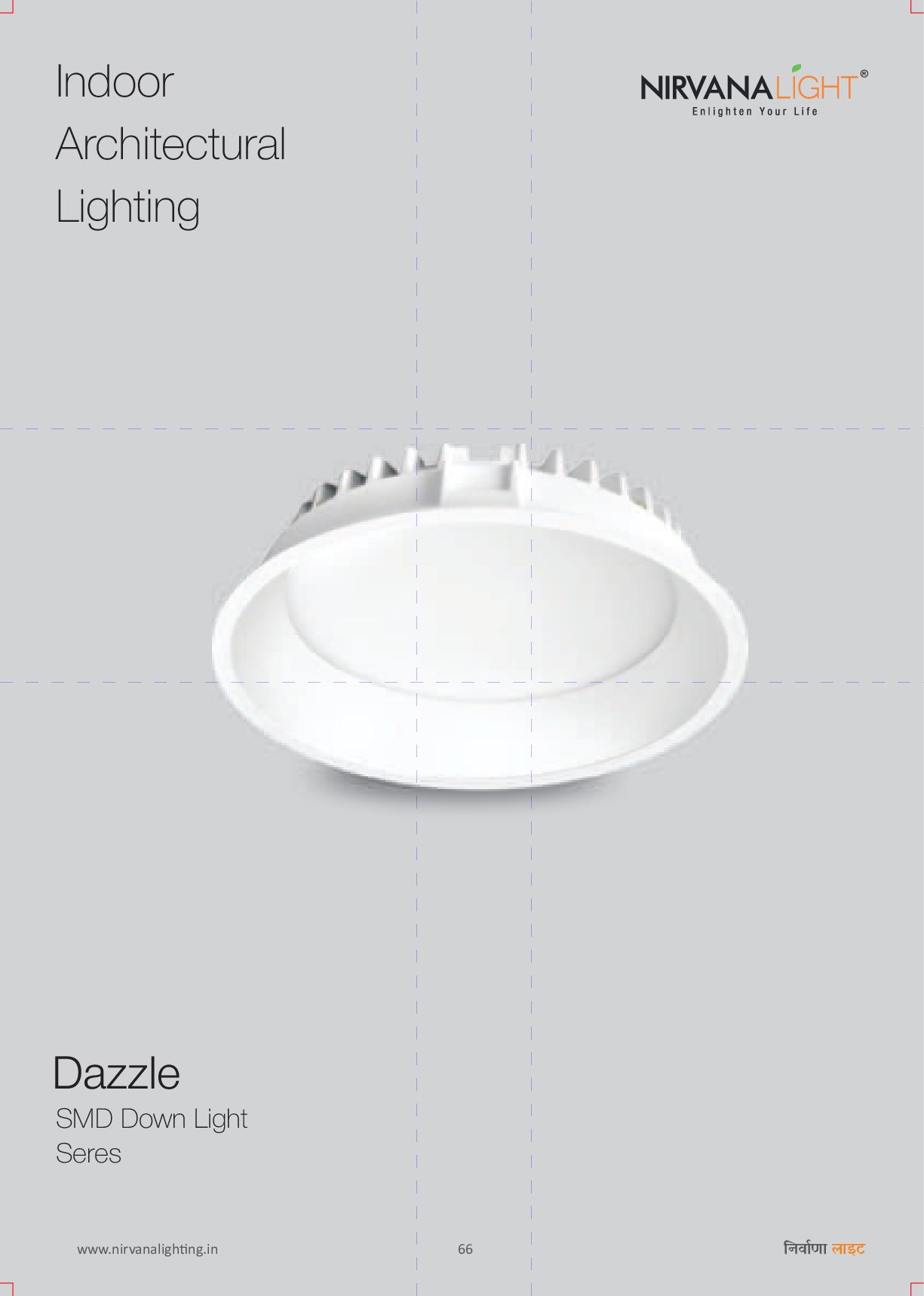

91. Dazzle SMD Down Light Seres Indoor Architectural Lighting 66 www.nirvanaligh ng.in नवाणा लाइट

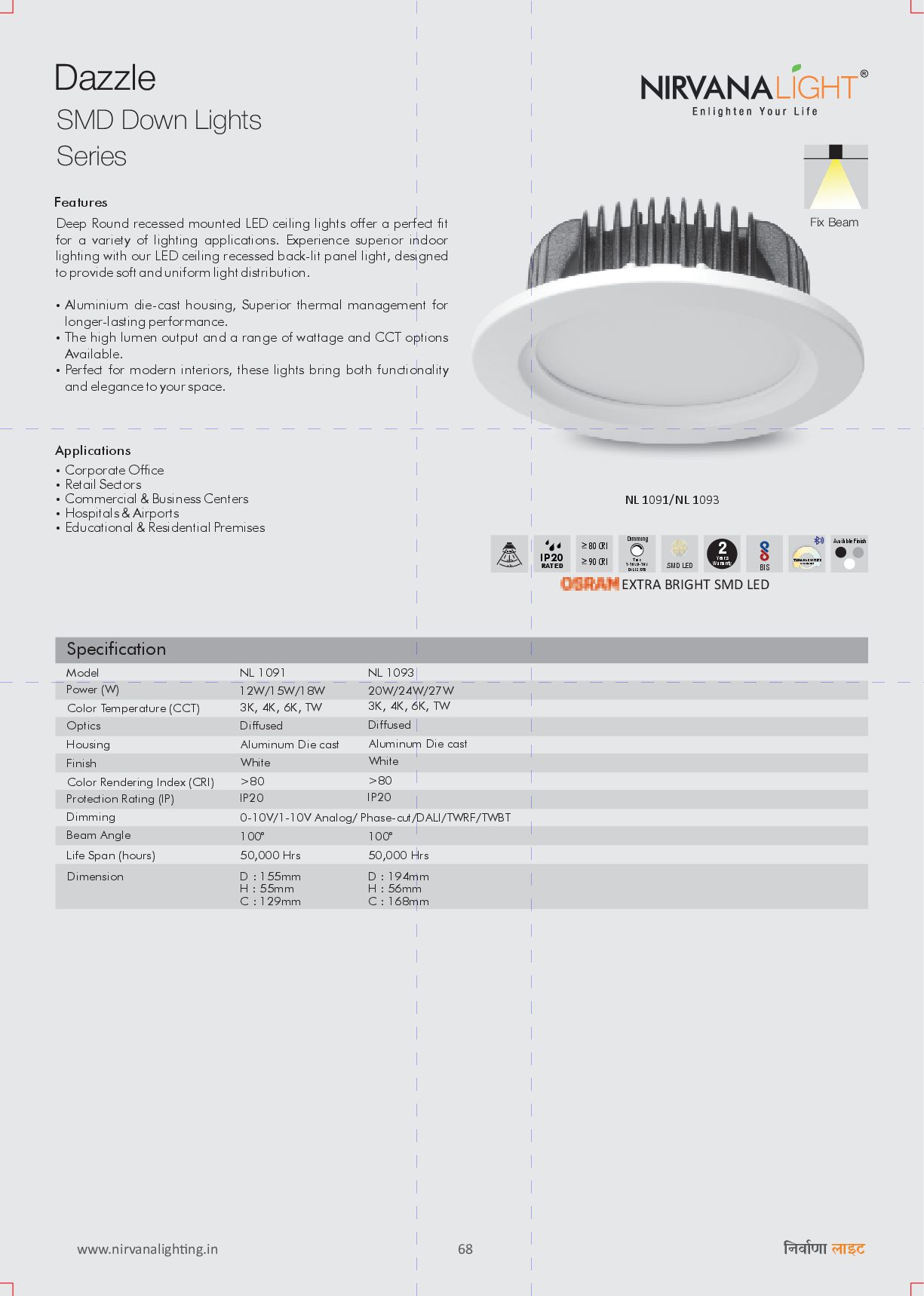

92. Features Deep Round recessed mounted LED ceiling lights offer a perfect fit for a variety of lighting applications. Experience superior indoor lighting with our LED ceiling recessed back-lit panel light, designed to provide soft and uniform light distribution. Ÿ Aluminium die-cast housing, Superior thermal management for longer-lasting performance. Ÿ The high lumen output and a range of wattage and CCT options Available. Ÿ Perfect for modern interiors, these lights bring both functionality and elegance to your space. Applications Ÿ Corporate Office Ÿ Retail Sectors Ÿ Commercial & Business Centers Ÿ Hospitals & Airports Ÿ Educational & Residential Premises Dazzle SMD Down Lights Series EXTRA BRIGHT SMD LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE SMD LED NL 1196 Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT D : 119mm H : 50mm C : 113mm 10W/12W 3K, 4K, 6K, TW Diffused Aluminum Die cast White >80 IP20 50,000 Hrs NL 1194 D : 155mm H : 53mm C : 147mm 15W/18W 3K, 4K, 6K, TW Diffused Aluminum Die cast White >80 IP20 50,000 Hrs NL 1195 D : 175mm H : 56mm C : 167mm 21W/24W 3K, 4K, 6K, TW Diffused Aluminum Die cast White >80 IP20 50,000 Hrs NL 1196 Beam Angle 100° 100° 100° 67 www.nirvanaligh ng.in नवाणा लाइट
93. Deep Round recessed mounted LED ceiling lights offer a perfect fit for a variety of lighting applications. Experience superior indoor lighting with our LED ceiling recessed back-lit panel light, designed to provide soft and uniform light distribution. Ÿ Aluminium die-cast housing, Superior thermal management for longer-lasting performance. Ÿ The high lumen output and a range of wattage and CCT options Available. Ÿ Perfect for modern interiors, these lights bring both functionality and elegance to your space. Ÿ Corporate Office Ÿ Retail Sectors Ÿ Commercial & Business Centers Ÿ Hospitals & Airports Ÿ Educational & Residential Premises Dazzle SMD Down Lights Series EXTRA BRIGHT SMD LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS Narrow Wide Medium 80 CRI 90 CRI TUNABLE WHITE AVAILABLE SMD LED NL 1091/NL 1093 Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT D : 155mm H : 55mm C : 129mm 12W/15W/18W 3K, 4K, 6K, TW Diffused Aluminum Die cast White >80 IP20 NL 1091 D : 194mm H : 56mm C : 168mm 20W/24W/27W 3K, 4K, 6K, TW Diffused Aluminum Die cast White >80 IP20 NL 1093 Beam Angle 50,000 Hrs 50,000 Hrs 100° 100° Features Applications 68 www.nirvanaligh ng.in नवाणा लाइट
94. 69 www.nirvanaligh ng.in नवाणा लाइट
95. Indoor Architectural Lighting Strike Lineo - Recessed Spot Light Series 70 www.nirvanaligh ng.in नवाणा लाइट

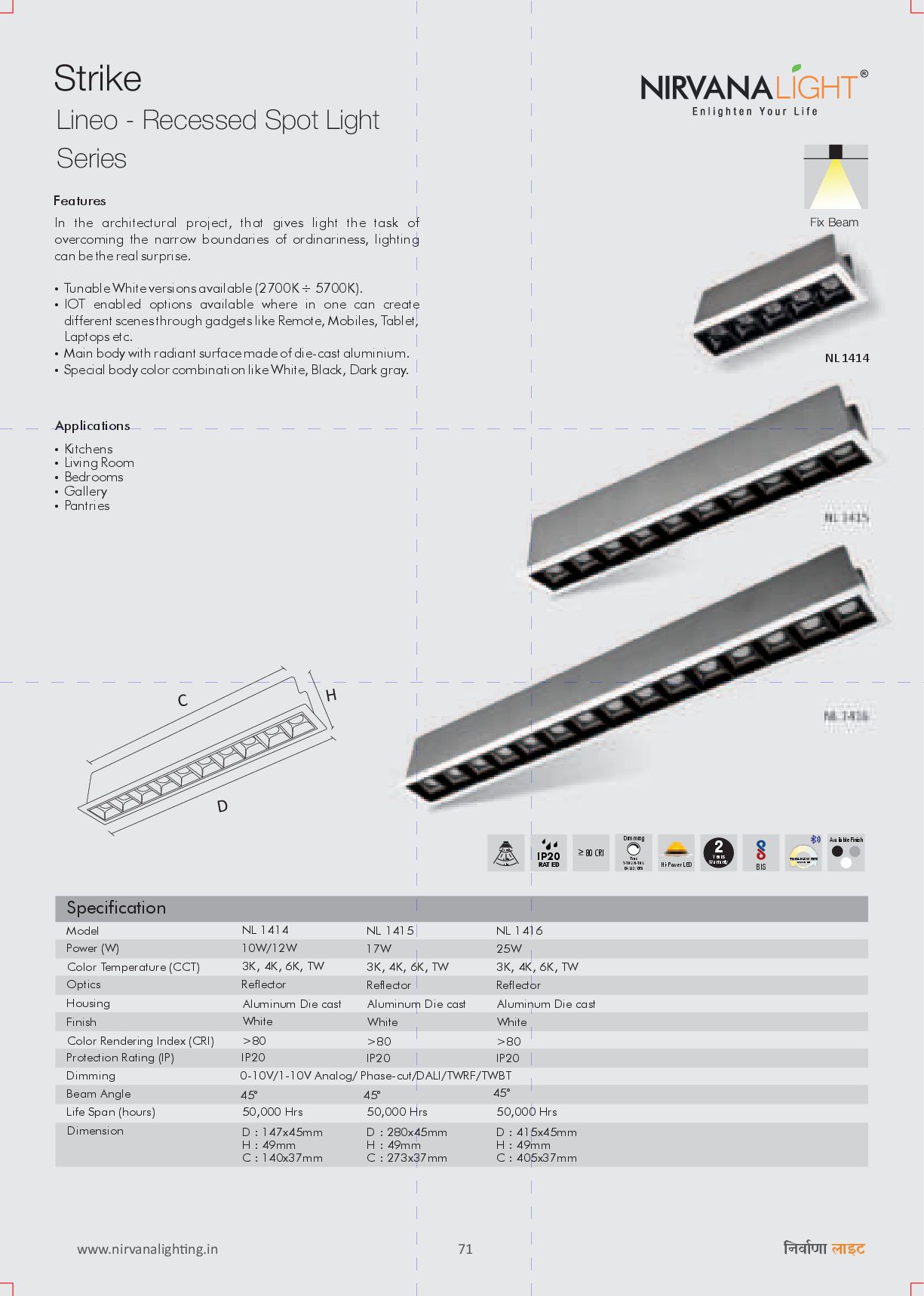

96. Features In the architectural project, that gives light the task of overcoming the narrow boundaries of ordinariness, lighting can be the real surprise. Ÿ Tunable White versions available (2700K ÷ 5700K). Ÿ IOT enabled options available where in one can create different scenes through gadgets like Remote, Mobiles, Tablet, Laptops etc. Ÿ Main body with radiant surface made of die-cast aluminium. Ÿ Special body color combination like White, Black, Dark gray. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries NL 1415 NL 1416 Strike Lineo - Recessed Spot Light Series Hi-Power LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS Narrow Wide Medium 80 CRI TUNABLE WHITE AVAILABLE NL 1414 C D H Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1415 17W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 280x45mm H : 49mm C : 273x37mm NL 1416 25W 3K, 4K, 6K, TW Reflector White >80 IP20 50,000 Hrs Aluminum Die cast D : 415x45mm H : 49mm C : 405x37mm NL 1414 10W/12W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 147x45mm H : 49mm C : 140x37mm Beam Angle 45° 45° 45° 71 www.nirvanaligh ng.in नवाणा लाइट
97. Strike Lineo - Recessed Spot Light Series Hi-Power LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS Narrow Wide Medium 80 CRI TUNABLE WHITE AVAILABLE NL 1414C NL 1414B NL 1414A NL 1414-FR Extra Wide Full Difuse 120° Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT D : 147x45mm H : 49mm C : 147x37mm NL 1414A 10W/12W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 147x45mm H : 49mm C : 147x37mm NL 1414B 10W/12W 3K, 4K, 6K, TW Reflector Aluminum Die cast White >80 IP20 50,000 Hrs D : 147x45mm H : 49mm C : 147x37mm Aluminum Die cast >80 IP20 50,000 Hrs NL 1414-C 3K/4K/6K/TW Reflector White+Re. Black 10W/12W Beam Angle NL 1414-FR D : 147x45mm H : 49mm C : 147x37mm Aluminum Die cast >80 IP20 50,000 Hrs 3K/4K/6K/TW Diffused White+Re. Black 10W/12W 45° 45° 45° 45° In the architectural project, that gives light the task of overcoming the narrow boundaries of ordinariness, lighting can be the real surprise. Ÿ Tunable White versions available (2700K ÷ 5700K). Ÿ IOT enabled options available where in one can create different scenes through gadgets like Remote, Mobiles, Tablet, Laptops etc. Ÿ Main body with radiant surface made of die-cast aluminium. Ÿ Special body color combination like White, Black, Dark gray. Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Features Applications 72 www.nirvanaligh ng.in नवाणा लाइट
98. Strike Metallic Recessed Spot Light Series Indoor Architectural Lighting 73 www.nirvanaligh ng.in नवाणा लाइट

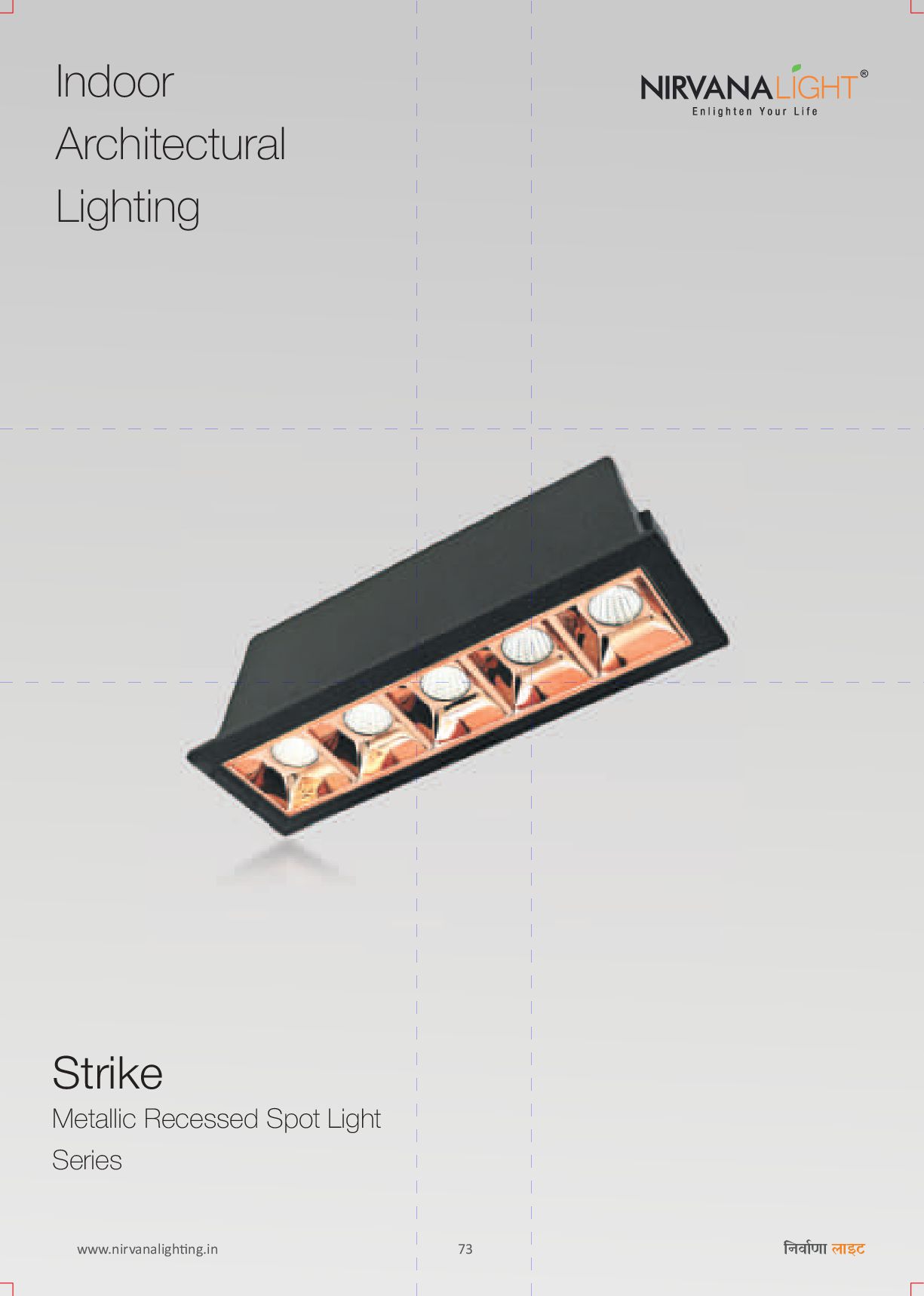

99. Strike - Metallic is an extension of STRIKE Lineo Regular 45mm series with vibrant Metalic Mirror finish like Silver Chrome and True Copper offering new design possibility and touch of a metal in black n white world of lighting. Ÿ Chrome Silver mirror finish / True Copper mirror finish Ÿ Configuration of 5/10/15 LED Module Ÿ Special body color combination like White, Black, Dark gray, Beige/Cream Body Color - White / Black Reflector Option - Silver Chrome / Rose Gold Beige Trim NL 1416RG/CR Strike Metallic Recessed Spot Light Series Hi-Power LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS Narrow Wide Medium 80 CRI TUNABLE WHITE AVAILABLE Dark Grey Trim Black Trim White Trim NL 1415RG/CR Fix Beam Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (Hours) Dimension Model 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1414RG/CR 10W/12W 3K, 4K, 6K, TW Reflector >80 IP20 50,000 Hrs Aluminum Die cast NL 1415RG/CR 17W 3K, 4K, 6K, TW Reflector >80 IP20 50,000 Hrs Aluminum Die cast NL 1416RG/CR 25W 3K, 4K, 6K, TW Reflector >80 IP20 50,000 Hrs Aluminum Die cast Ring - White/Black Reflector - Rose Gold / Silver Chrome D: 147x45mm H: 49mm C: 140x37mm D: 280x45mm H: 49mm C: 273x37mm D: 415x45mm H: 49mm C: 405x37mm Beam Angle 45° 45° 45° Features Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Applications 74 www.nirvanaligh ng.in नवाणा लाइट
100. VersaRay Ceiling recessed downlight Indoor Architectural Lighting 75 www.nirvanaligh ng.in नवाणा लाइट

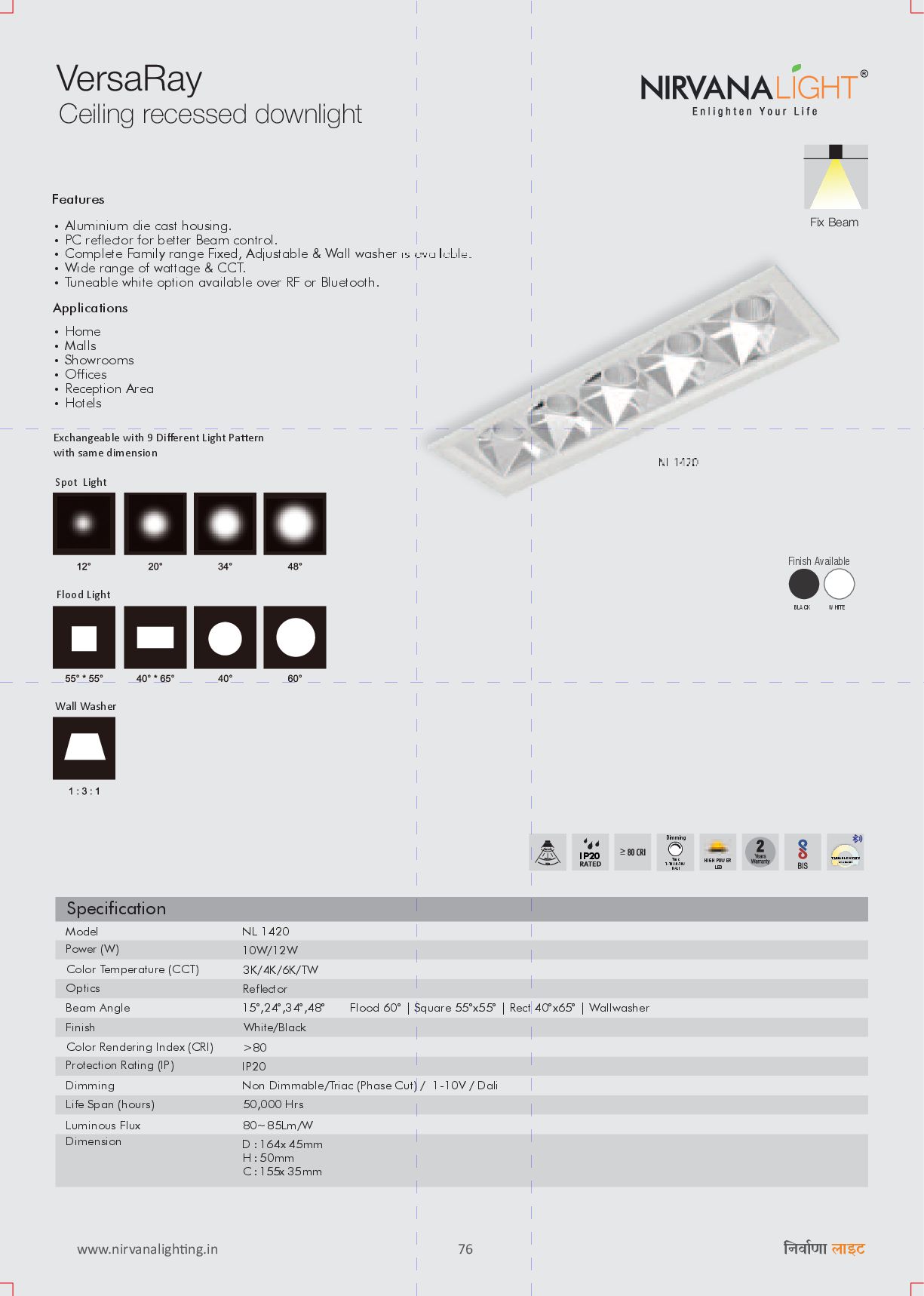

101. Ÿ Aluminium die cast housing. Ÿ PC reector for better Beam control. Ÿ Complete Family range Fixed, Adjustable & Wall washer is available. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Ofces Ÿ Reception Area Ÿ Hotels Features Applications Ceiling recessed downlight VersaRay NL 1420 Exchangeable with 9 Different Light Pa ern with same dimension Spot Light Flood Light Wall Washer WHITE BLACK Finish Available Dimming Triac 1-10V/0-10V DALI IP20 HIGH POWER LED TUNABLE WHITE AVAILABLE Fix Beam Specification Luminous Flux Dimension Model Color Temperature (CCT) Power (W) Optics Finish Life Span (hours) Dimming Protection Rating (IP) Color Rendering Index (CRI) Beam Angle Non Dimmable/Triac (Phase Cut) / 1-10V / Dali NL 1420 3K/4K/6K/TW Reector >80 IP20 50,000 Hrs White/Black 10W/12W D : 164 x 45 mm H : 50 mm C: 155 x 35 mm 80~85Lm/W 15°,24°,34°,48° Flood 60° | Square 55°x55° | Rect 40°x65° | Wallwasher 76 www.nirvanaligh ng.in नवाणा लाइट
102. 77 www.nirvanaligh ng.in नवाणा लाइट
103. Strike Even Recessesd - Wall Washer Series Indoor Architectural Lighting 78 www.nirvanaligh ng.in नवाणा लाइट

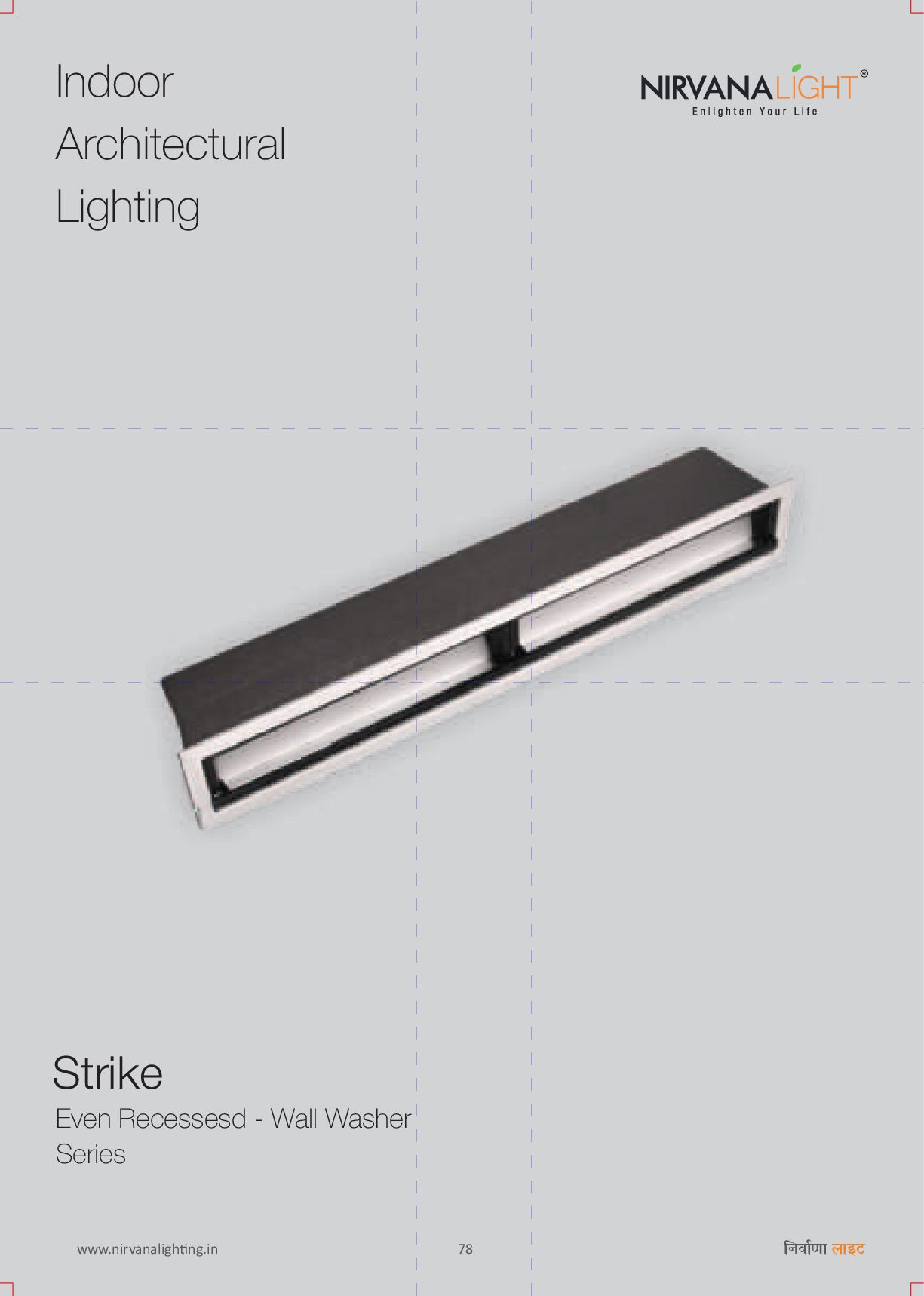

104. Features Ÿ Taking the road is the metaphor for walking towards a goal even and especially for lighting designers, when light want to point at a way with delicacy, consistency with the project and with the same visual power Ÿ Configuration of 10W, 17W, 25W LED Ÿ Black anti-glare angular fixed wall washer Ÿ Special body color combination like White, Black NL 1417 NL 1419 NL 1418 Strike Even Recessed - Wall Washer Series Hi-Power LED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED BIS 80 CRI TUNABLE WHITE AVAILABLE Wall Washer C H D Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Fix Beam 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Life Span (hours) Dimension Model NL 1417 D : 147x45mm C : 140x37mm H : 49mm Aluminum Die cast 10W/12W 3K, 4K, 6K, TW Diffused Reflector White >80 IP20 50,000 Hrs NL 1418 D : 280x45mm C : 273x37mm H : 49mm 17W 3K, 4K, 6K, TW Diffused Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1419 D : 415x45mm C : 405x37mm H : 49mm 25W 3K, 4K, 6K, TW Diffused Reflector Aluminum Die cast White >80 IP20 50,000 Hrs 79 www.nirvanaligh ng.in नवाणा लाइट

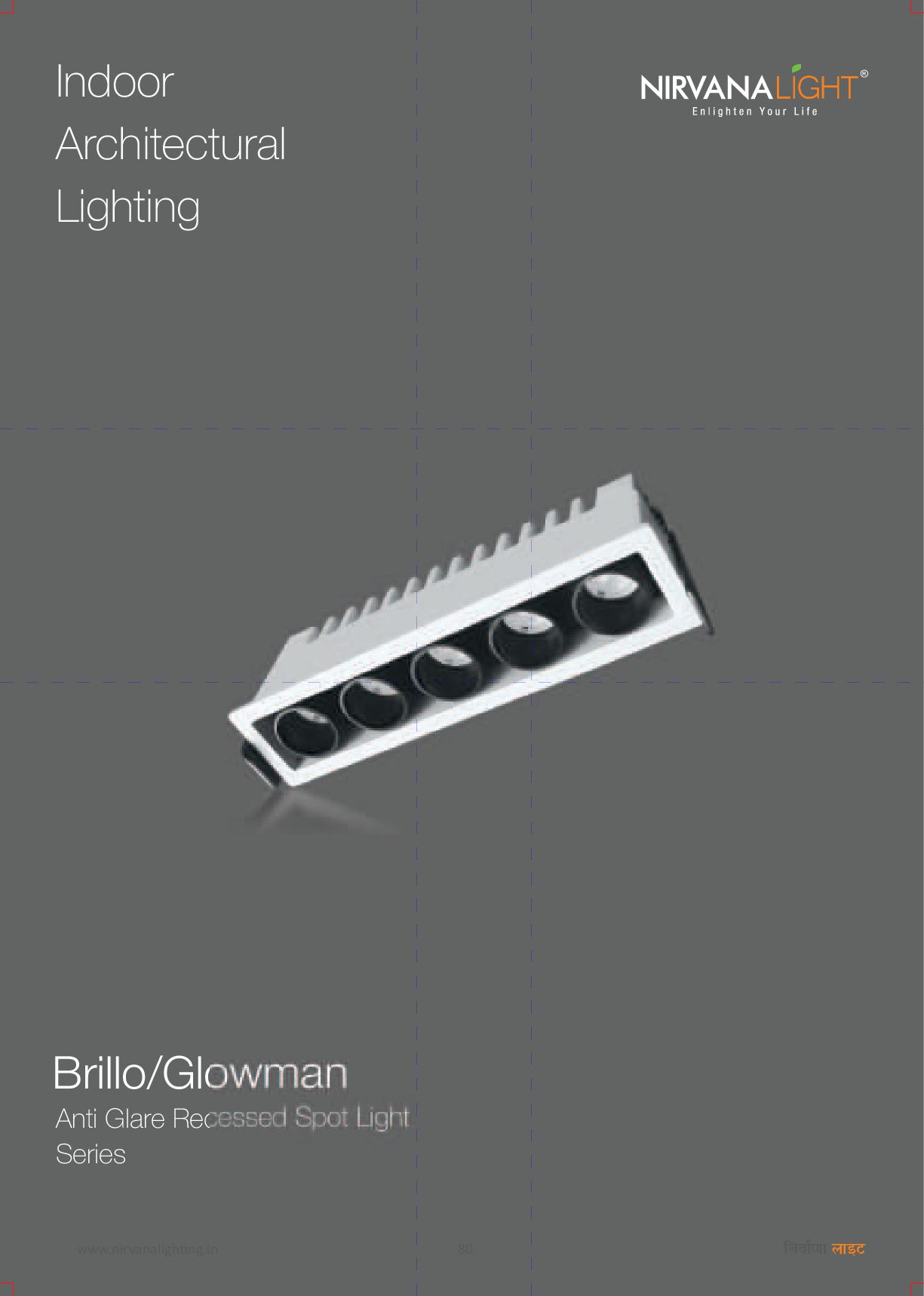

105. Brillo/Glowman Anti Glare Recessed Spot Light Series Indoor Architectural Lighting 80 www.nirvanaligh ng.in नवाणा लाइट
106. D H C Brillo Anti-glare Recessed Spot Light Series Fix Beam Features Ÿ The main body features a radiant surface made of die-cast aluminum, ensuring durability and effective heat dissipation. Ÿ Available in a range from 3000K to 6000K, allowing for customizable lighting that adapts to different moods and activities. Ÿ The fixture is designed for tool-free installation, making it user- friendly and efficient Ÿ This innovative design is integrated into a sleek black antiglare screen, which effectively minimizes glare and enhances visual comfort. NL 1571 NL 1572 Dimming Triac 1-10V/0-10V DALI IP20 Hi-Power LED 36° TUNABLE WHITE AVAILABLE Ÿ Living Room Ÿ Lobby Ÿ Showrooms Ÿ Ofces Ÿ Corridor Ÿ Study Room Applications Specification Model NL 1571 NL 1572 Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming 6W Reector Aluminum Die Cast White >80 Non-Dimmable 3K/4K/6K D : 78mmx28mm H : 38mm C : 74mmx24mm IP20 12W Lens Aluminum Die Cast White >80 Non-Dimmable 3K/4K/6K/TW IP20 D : 128mmx28mm H : 38mm C : 116mmx24mm Beam Angle Life Span (hours) Dimension 50,000 Hrs 50,000 Hrs 36° 36° 81 www.nirvanaligh ng.in नवाणा लाइट
107. Glowman Anti-glare Recessed Spot Light Series Fix Beam Dimming Triac 1-10V/0-10V DALI IP20 Hi-Power LED 36° TUNABLE WHITE AVAILABLE D C H Specification Model Power (W) Color Temperature (CCT) Optics Housing Finish Color Rendering Index (CRI) Protection Rating (IP) Dimming Beam Angle Life Span (hours) Dimension 6W Reector Aluminum Die Cast White >80 Non-Dimmable 3K/4K/6K NL 1575 IP20 12W Reector Aluminum Die Cast White >80 Non-Dimmable 3K/4K/6K/TW NL 1576 IP20 50,000 Hrs D : 69mmx30.5mm H : 27mm C : 64mmx25mm 50,000 Hrs D : 129mmx33mm H : 31.2mm C : 122mmx25mm 36° 36° NL 1575 NL 1576 Features Ÿ The main body features a radiant surface made of die-cast aluminum, ensuring durability and effective heat dissipation. Ÿ Available in a range from 3000K to 6000K, allowing for customizable lighting that adapts to different moods and activities. Ÿ The fixture is designed for tool-free installation, making it user- friendly and efficient Ÿ This innovative design is integrated into a sleek black antiglare screen, which effectively minimizes glare and enhances visual comfort. Ÿ Living Room Ÿ Lobby Ÿ Showrooms Ÿ Ofces Ÿ Corridor Ÿ Study Room Applications 82 www.nirvanaligh ng.in नवाणा लाइट
108. Strike Minima 32mm Recessed Spot Light Series Indoor Architectural Lighting 83 www.nirvanaligh ng.in नवाणा लाइट

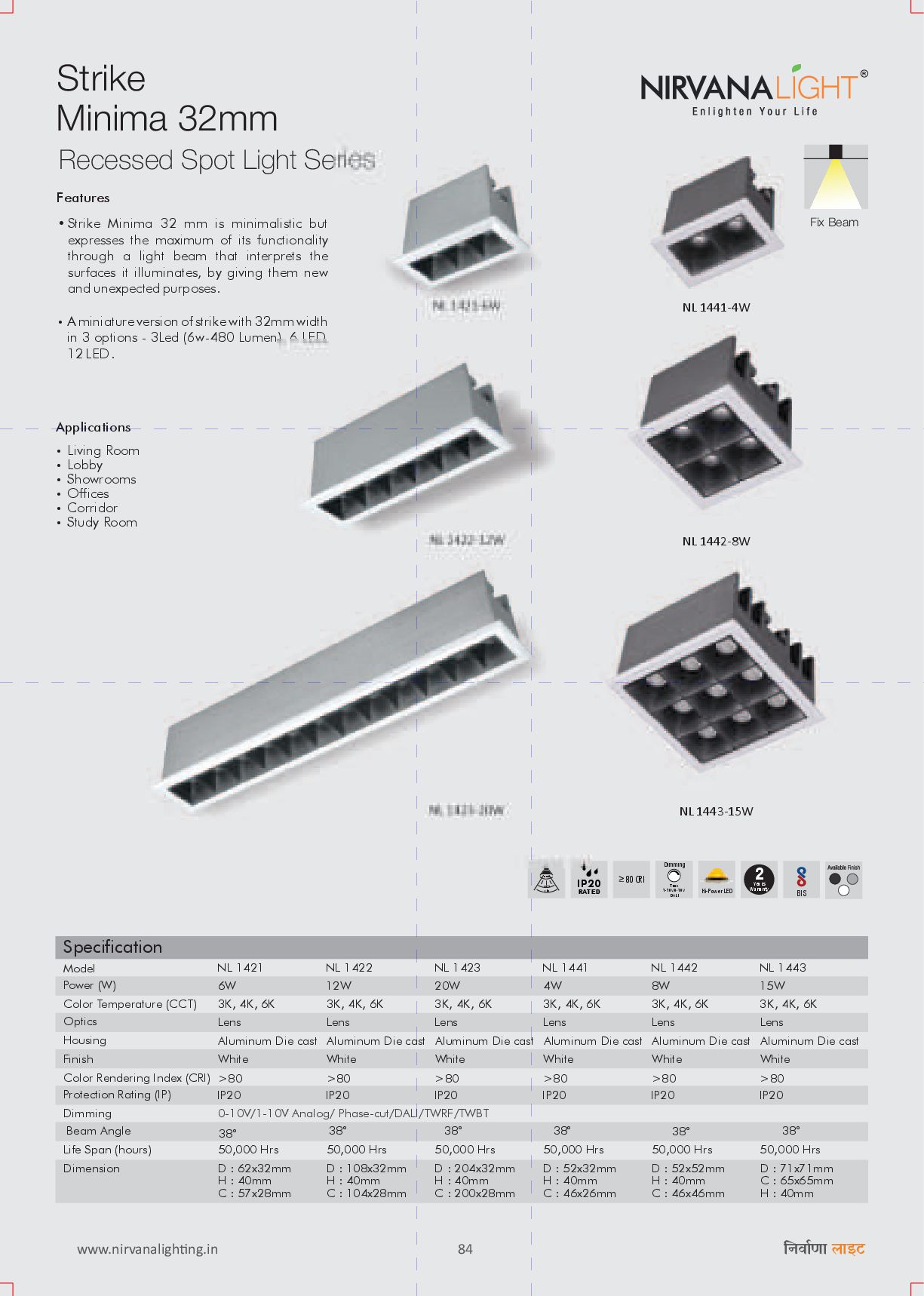

109. Features Ÿ Strike Minima 32 mm is minimalistic but expresses the maximum of its functionality through a light beam that interprets the surfaces it illuminates, by giving them new and unexpected purposes. Ÿ A miniature version of strike with 32mm width in 3 options - 3Led (6w-480 Lumen), 6 LED, 12 LED . NL 1422-12W NL 1421-6W NL 1423-20W Minima 32mm Recessed Spot Light Series Strike Dimming Triac 1-10V/0-10V DALI 2 Years Warranty IP20 RATED 80 CRI BIS Narrow Wide Medium Hi-Power LED Ÿ Living Room Ÿ Lobby Ÿ Showrooms Ÿ Ofces Ÿ Corridor Ÿ Study Room Applications NL 1441-4W NL 1442-8W NL 1443-15W Fix Beam 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Finish NL 1421 3K, 4K, 6K >80 D : 62x32mm H : 40mm C : 57x28mm 6W Aluminum Die cast White Lens IP20 50,000 Hrs NL 1422 3K, 4K, 6K >80 D : 108x32mm H : 40mm C : 104x28mm 12W Aluminum Die cast White Lens IP20 50,000 Hrs NL 1423 3K, 4K, 6K >80 D : 204x32mm H : 40mm C : 200x28mm 20W Aluminum Die cast White Lens IP20 50,000 Hrs NL 1441 3K, 4K, 6K >80 D : 52x32mm H : 40mm C : 46x26mm 4W Aluminum Die cast White Lens IP20 50,000 Hrs NL 1442 3K, 4K, 6K >80 D : 52x52mm H : 40mm C : 46x46mm 8W Aluminum Die cast White Lens IP20 50,000 Hrs NL 1443 3K, 4K, 6K >80 D : 71x71mm C : 65x65mm H : 40mm 15W Aluminum Die cast White Lens IP20 50,000 Hrs Life Span (hours) Beam Angle 38° 38° 38° 38° 38° 38° 84 www.nirvanaligh ng.in नवाणा लाइट
110. 85 www.nirvanaligh ng.in नवाणा लाइट

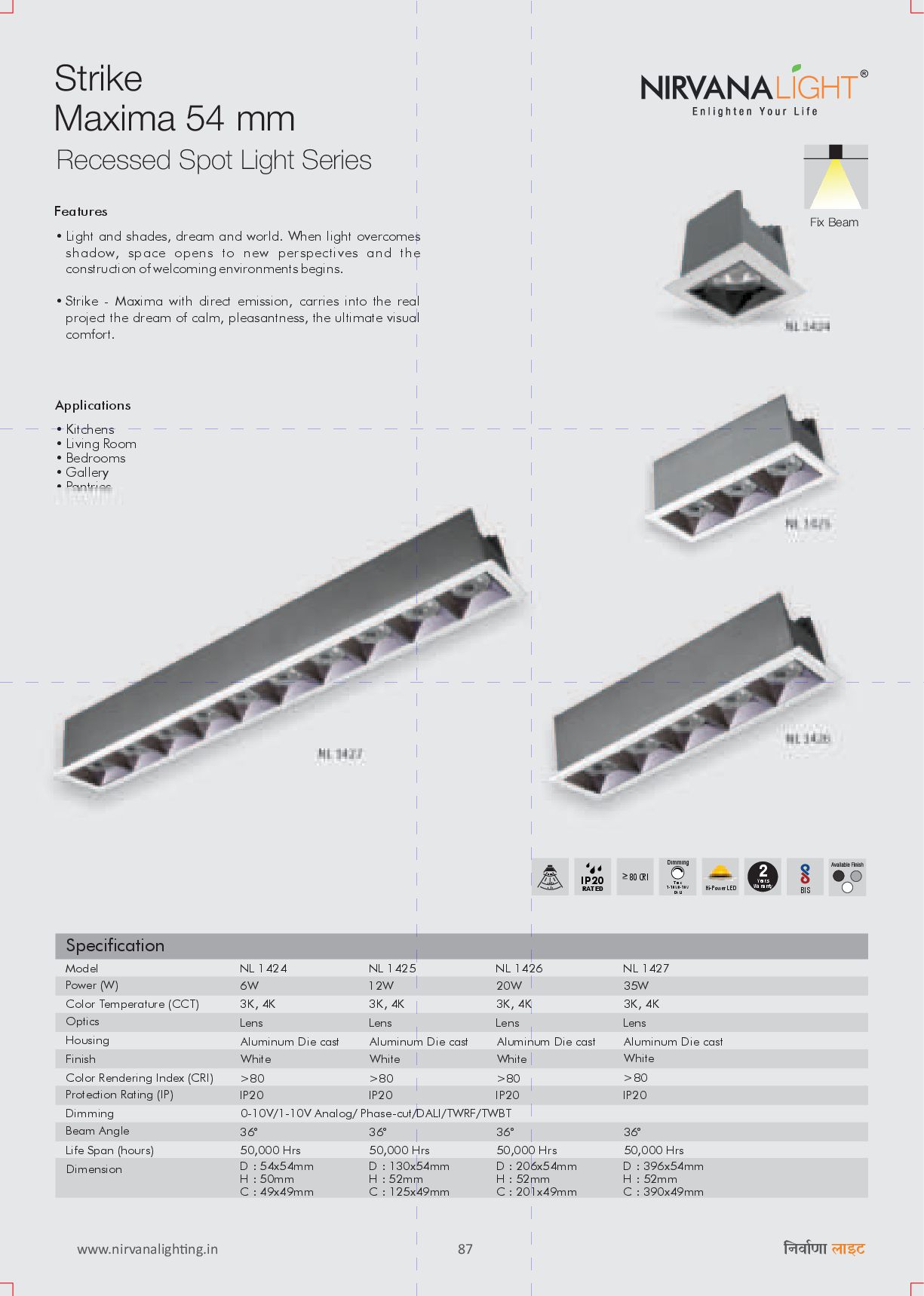

111. Strike Maxima 54mm Recessed Spot Light Series Indoor Architectural Lighting 86 www.nirvanaligh ng.in नवाणा लाइट

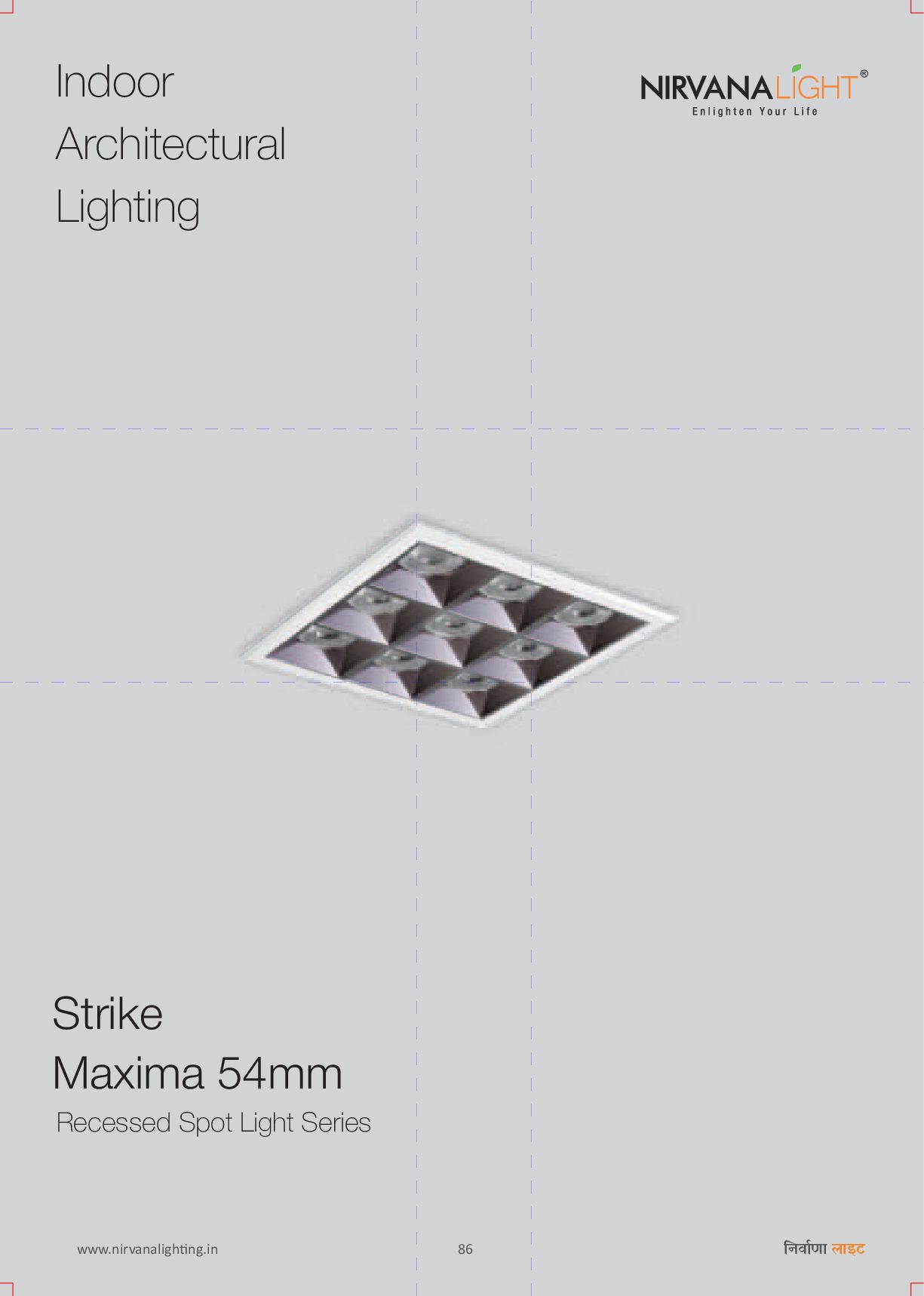

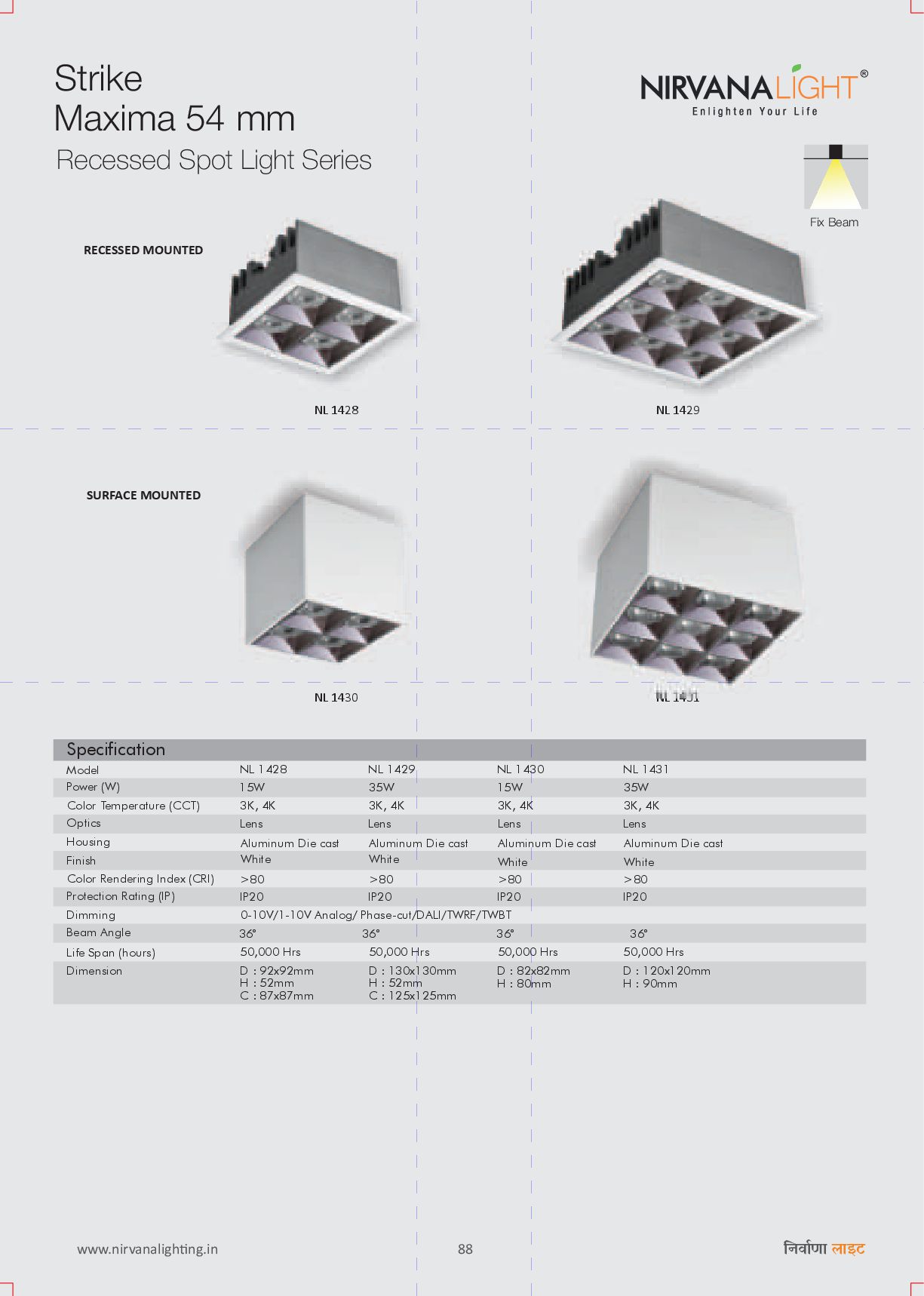

112. Features Ÿ Light and shades, dream and world. When light overcomes shadow, space opens to new perspectives and the construction of welcoming environments begins. Ÿ Strike - Maxima with direct emission, carries into the real project the dream of calm, pleasantness, the ultimate visual comfort. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries NL 1424 NL 1425 NL 1426 Maxima 54 mm Recessed Spot Light Series Strike Dimming Triac 1-10V/0-10V DALI 2 Years Warranty IP20 RATED 80 CRI BIS Narrow Wide Medium Hi-Power LED NL 1427 Fix Beam 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Finish Life Span (hours) NL 1424 3K, 4K D : 54x54mm H : 50mm C : 49x49mm Aluminum Die cast 6W Lens White >80 IP20 50,000 Hrs NL 1425 3K, 4K D : 130x54mm H : 52mm C : 125x49mm 12W Lens Aluminum Die cast White >80 IP20 50,000 Hrs NL 1426 3K, 4K D : 206x54mm H : 52mm C : 201x49mm 20W Lens Aluminum Die cast White >80 IP20 50,000 Hrs NL 1427 3K, 4K Aluminum Die cast D : 396x54mm H : 52mm C : 390x49mm 35W Lens White >80 IP20 50,000 Hrs Beam Angle 36° 36° 36° 36° 87 www.nirvanaligh ng.in नवाणा लाइट
113. 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Finish NL 1428 3K, 4K Aluminum Die cast D : 92x92mm H : 52mm 15W Lens White >80 IP20 50,000 Hrs NL 1429 3K, 4K Aluminum Die cast D : 130x130mm C : 87x87mm C : 125x125mm H : 52mm 35W Lens White >80 IP20 50,000 Hrs NL 1430 3K, 4K D : 82x82mm H : 80mm Aluminum Die cast 15W Lens White >80 IP20 50,000 Hrs NL 1431 3K, 4K D : 120x120mm H : 90mm Aluminum Die cast 35W Lens White >80 IP20 50,000 Hrs Life Span (hours) NL 1428 NL 1429 NL 1431 Maxima 54 mm Recessed Spot Light Series Strike NL 1430 SURFACE MOUNTED RECESSED MOUNTED Beam Angle Fix Beam 36° 36° 36° 36° 88 www.nirvanaligh ng.in नवाणा लाइट
114. 89 www.nirvanaligh ng.in नवाणा लाइट
115. Strike Circo Recessed Spot Light Series Indoor Architectural Lighting 90 www.nirvanaligh ng.in नवाणा लाइट

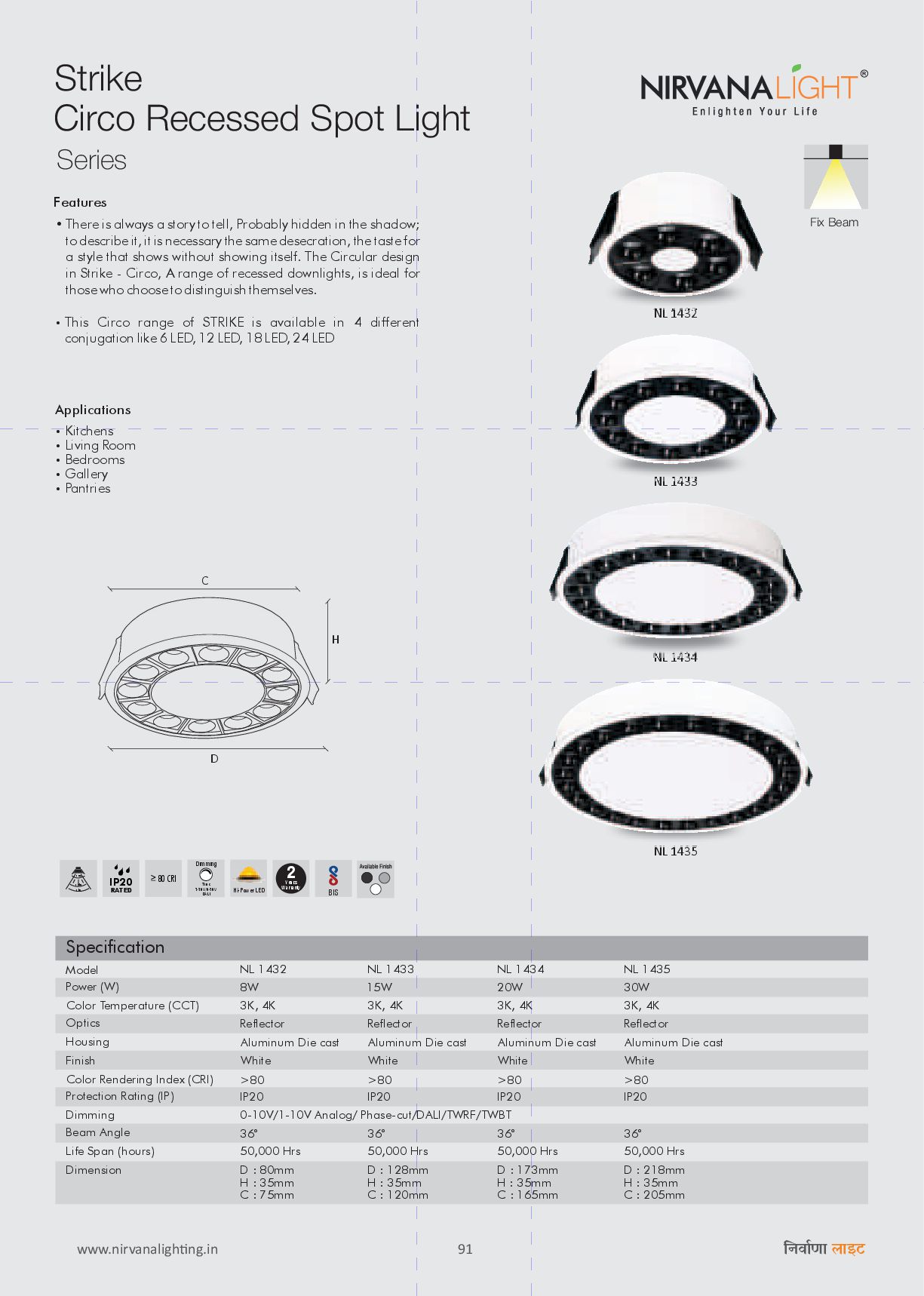

116. Features Ÿ There is always a story to tell, Probably hidden in the shadow; to describe it, it is necessary the same desecration, the taste for a style that shows without showing itself. The Circular design in Strike - Circo, A range of recessed downlights, is ideal for those who choose to distinguish themselves. Ÿ This Circo range of STRIKE is available in 4 different conjugation like 6 LED, 12 LED, 18 LED, 24 LED Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries C D H Circo Recessed Spot Light Series Strike Dimming Triac 1-10V/0-10V DALI 2 Years Warranty IP20 RATED 80 CRI BIS Narrow Wide Medium Hi-Power LED NL 1432 NL 1433 NL 1434 NL 1435 Fix Beam Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Protection Rating (IP) Dimming Dimension Model Power (W) Finish Life Span (hours) 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1433 3K, 4K D : 128mm H : 35mm C : 120mm 15W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1432 3K, 4K D : 80mm H : 35mm C : 75mm 8W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1434 3K, 4K D : 173mm H : 35mm C : 165mm 20W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs NL 1435 3K, 4K D : 218mm H : 35mm C : 205mm 30W Reflector Aluminum Die cast White >80 IP20 50,000 Hrs Beam Angle 36° 36° 36° 36° 91 www.nirvanaligh ng.in नवाणा लाइट
117. 92 www.nirvanaligh ng.in नवाणा लाइट
118. Orofi Suface Down Light Series Indoor Architectural Lighting 93 www.nirvanaligh ng.in नवाणा लाइट

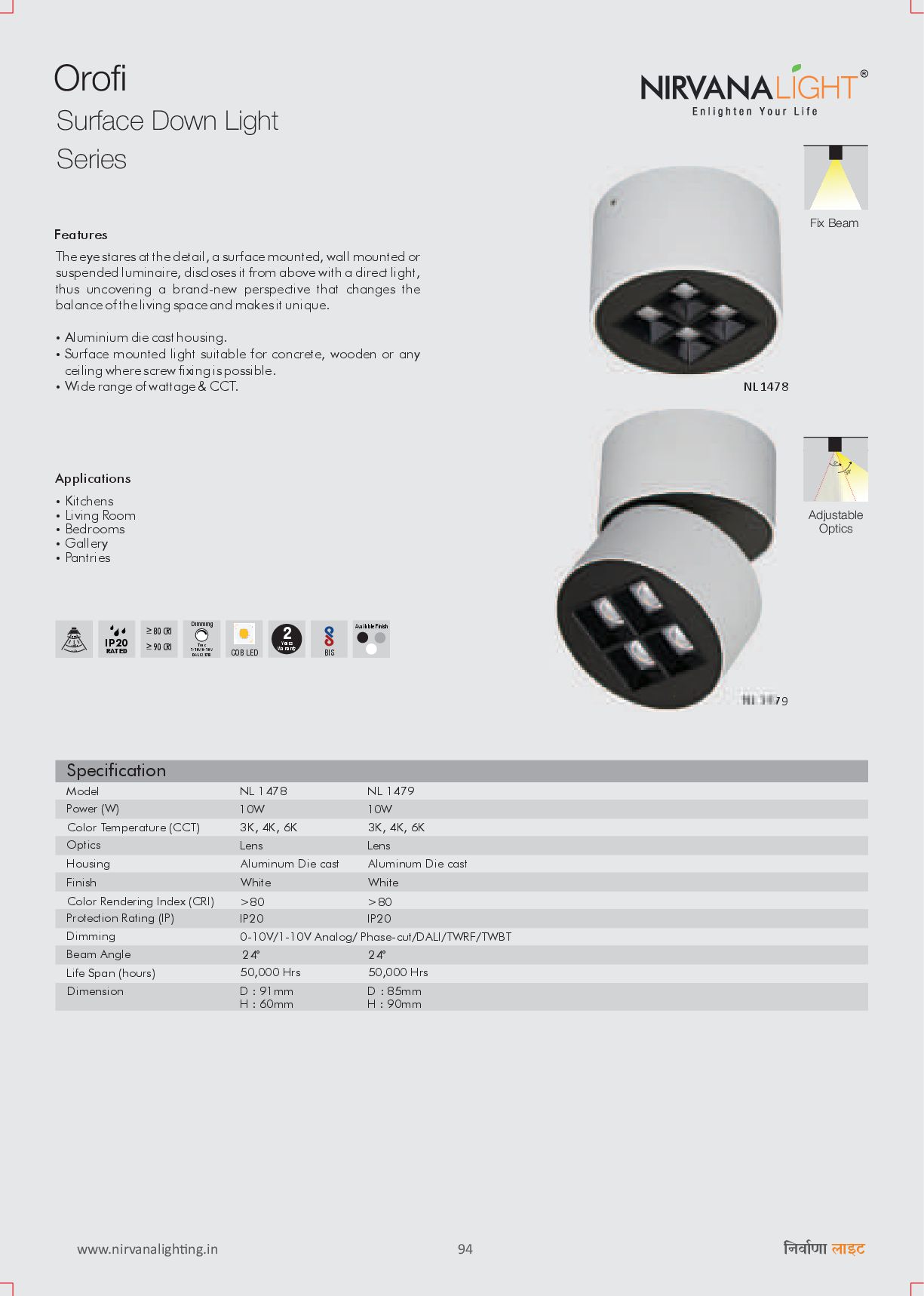

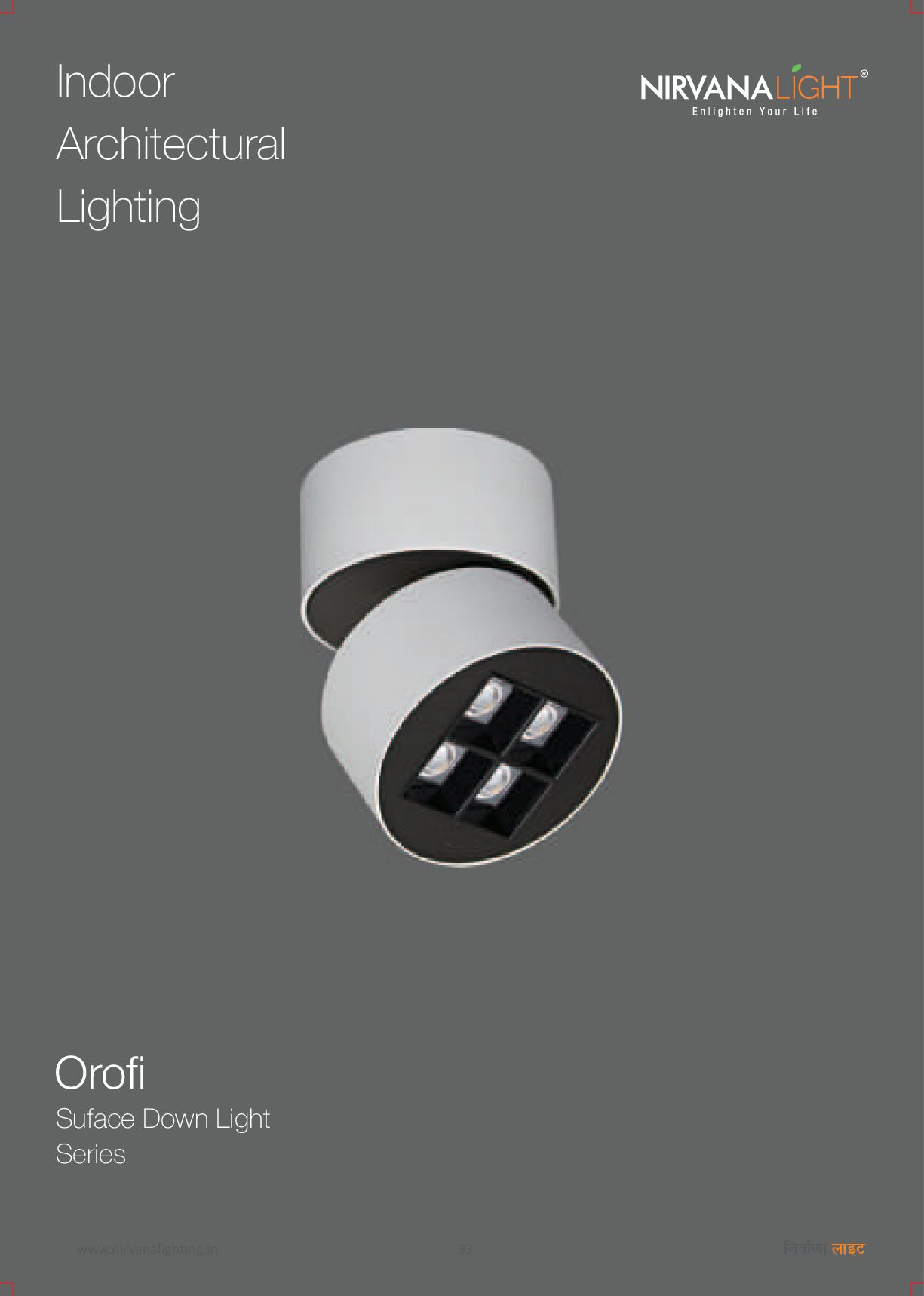

119. NL 1478 NL 1479 Orofi Surface Down Light Series Features The eye stares at the detail, a surface mounted, wall mounted or suspended luminaire, discloses it from above with a direct light, thus uncovering a brand-new perspective that changes the balance of the living space and makes it unique. Ÿ Aluminium die cast housing. Ÿ Surface mounted light suitable for concrete, wooden or any ceiling where screw fixing is possible. Ÿ Wide range of wattage & CCT. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries IP20 RATED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty BIS Narrow Wide Medium 80 CRI 90 CRI COB LED Fix Beam 30° 0° Adjustable Optics 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Dimming Dimension Model Power (W) Finish Protection Rating (IP) NL 1478 3K, 4K, 6K >80 D : 91mm H : 60mm Aluminum Die cast 10W Lens White IP20 50,000 Hrs NL 1479 3K, 4K, 6K >80 D : 85mm H : 90mm Aluminum Die cast 10W Lens White IP20 50,000 Hrs Life Span (hours) Beam Angle 24° 24° 94 www.nirvanaligh ng.in नवाणा लाइट
120. NL 1464 NL 1465 Orofi Surface Down Light Series IP20 RATED Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty BIS Narrow Wide Medium 80 CRI 90 CRI COB LED 30° 0° Adjustable Optics 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Dimming Dimension Model Power (W) Finish Protection Rating (IP) NL 1464 3K, 4K, 6K >80 D : 100x100mm H : 100mm Aluminum Die cast 8W Reflector White IP20 50,000 Hrs NL 1465 3K, 4K, 6K >80 D : 100x200mm H : 100mm Aluminum Die cast 2x8W Reflector White IP20 50,000 Hrs Life Span (hours) Beam Angle 60° 60° Features The eye stares at the detail, a surface mounted, wall mounted or suspended luminaire, discloses it from above with a direct light, thus uncovering a brand-new perspective that changes the balance of the living space and makes it unique. Ÿ Aluminium die cast housing. Ÿ Surface mounted light suitable for concrete, wooden or any ceiling where screw fixing is possible. Ÿ Wide range of wattage & CCT. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 95 www.nirvanaligh ng.in नवाणा लाइट
121. NL 1491 NL 1348-S1-S D H Orofi Surface Down Light Series Features The eye stares at the detail, a surface mounted, wall mounted or suspended luminaire, discloses it from above with a direct light, thus uncovering a brand-new perspective that changes the balance of the living space and makes it unique. Ÿ Aluminium die cast housing. Ÿ Surface mounted light suitable for concrete, wooden or any ceiling where screw fixing is possible. Ÿ Wide range of wattage & CCT. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 30° 0° Adjustable Optics Specification Color Temperature (CCT) Optics Housing Color Rendering Index (CRI) Dimming Dimension Model Power (W) Protection Rating (IP) Life Span (hours) Finish NL 1348-S1-S 10W White >80 IP20 50,000 Hrs D : 50mm H : 208mm Aluminium Die cast 3K, 4K, 6K Reflector NL 1348-S2-S 20W White >80 IP20 50,000 Hrs D : 60mm H : 229mm Aluminium Die cast 3K, 4K, 6K Reflector NL 1348-S3-S 32W White >80 IP20 50,000 Hrs D : 71mm H : 249mm Aluminium Die cast 3K, 4K, 6K Reflector Aluminium Die cast Beam Angle 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT NL 1491 3K, 4K, 6K >80 50,000 Hrs D : 152x78mm H : 164mm 2x12W Reflector White IP20 24° 24° 24° 24° 24° 96 www.nirvanaligh ng.in नवाणा लाइट

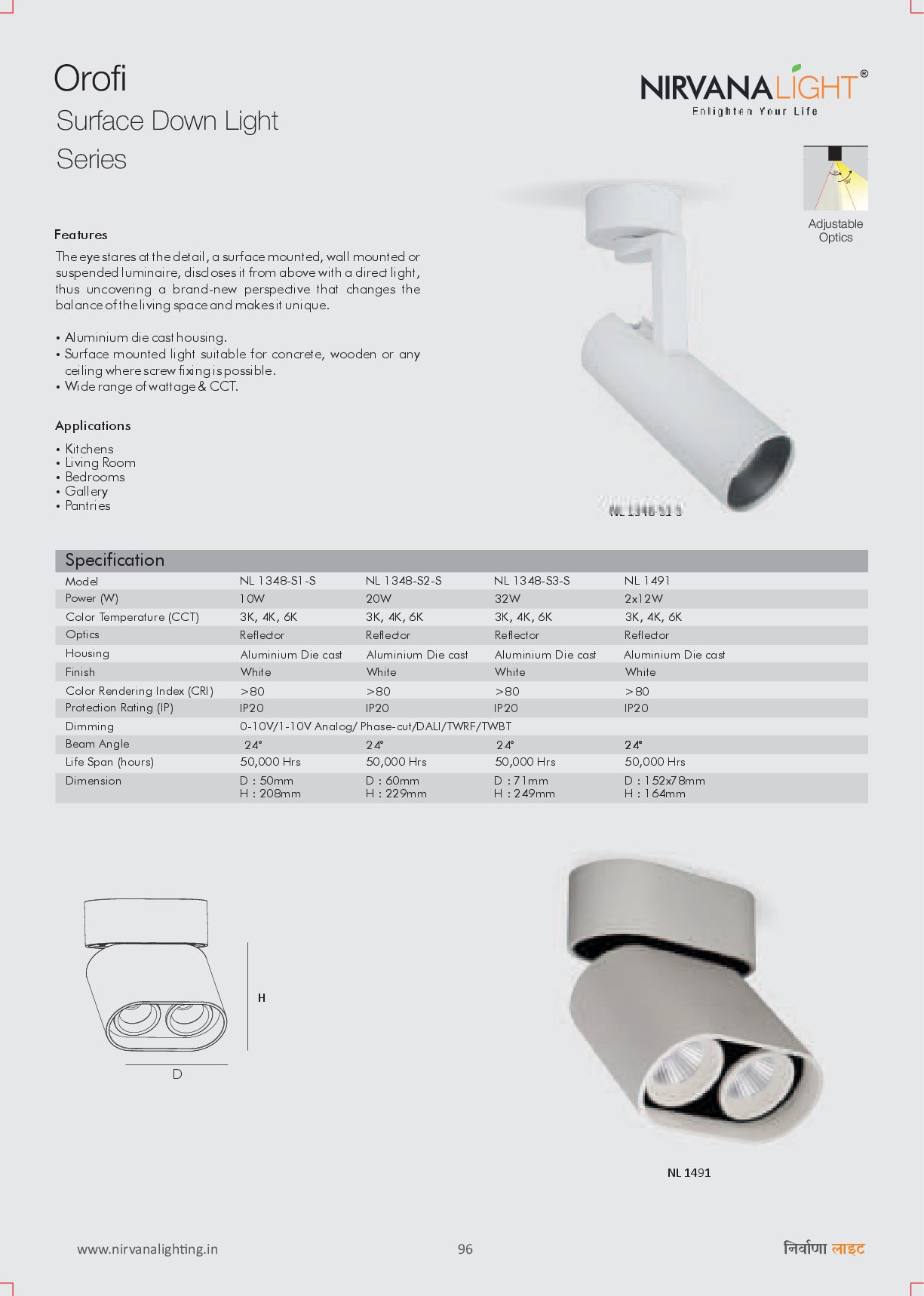

122. 97 www.nirvanaligh ng.in नवाणा लाइट
123. Indoor Architectural Lighting Optima Retail Recessed Down Light Series 98 www.nirvanaligh ng.in नवाणा लाइट

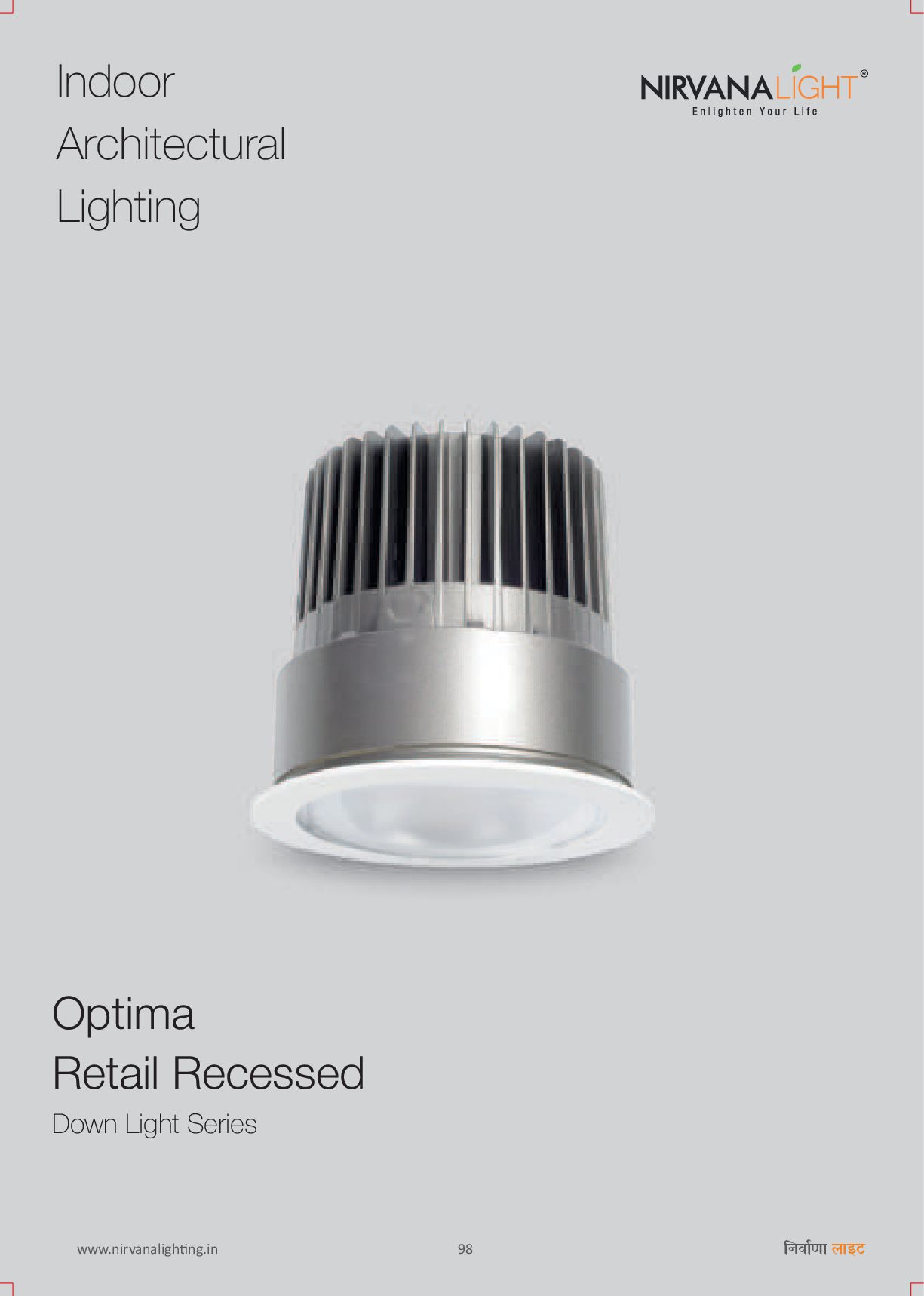

124. Features In architectural project that gives light the task of overcoming the narrow boundaries of ordinariness, lighting can be the real surprise. Recessed down lights arouses an amazement deriving from the transformation of a light source in real sculpture of spaces, in an elegant, not invasive and therefore, absolutely evident way. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Specification Color Temperature (CCT) Housing Color Rendering Index (CRI) Dimming Dimension Model Protection Rating (IP) Life Span (hours) Power (W) LED Type Finish NL 0391 3K, 4K, 6K,TW >80 D : 115mm H : 121mm C : 103mm Aluminum Die cast 25W/32W COB White IP20 50,000 Hrs NL 0421 3K, 4K, 6K,TW >80 D : 150mm H : 160mm C : 130mm Aluminum Die cast 36W/42W COB White IP20 50,000 Hrs Retail Recessed Down Light Series Optima Available Finish Dimming Triac 1-10V/0-10V DALI-2/DT8 2 Years Warranty IP20 RATED 80 CRI 90 CRI COB LED BIS TUNABLE WHITE AVAILABLE NL 0427 3K, 4K, 6K,TW >80 D : 135mm H : 124mm C : 123mm Aluminum Die cast 32W/36W COB White IP20 50,000 Hrs NL 0427 Beam Angle Wall washer Optics Fix Beam NL 0391 NL 0421 40° 40° 40° 99 www.nirvanaligh ng.in नवाणा लाइट

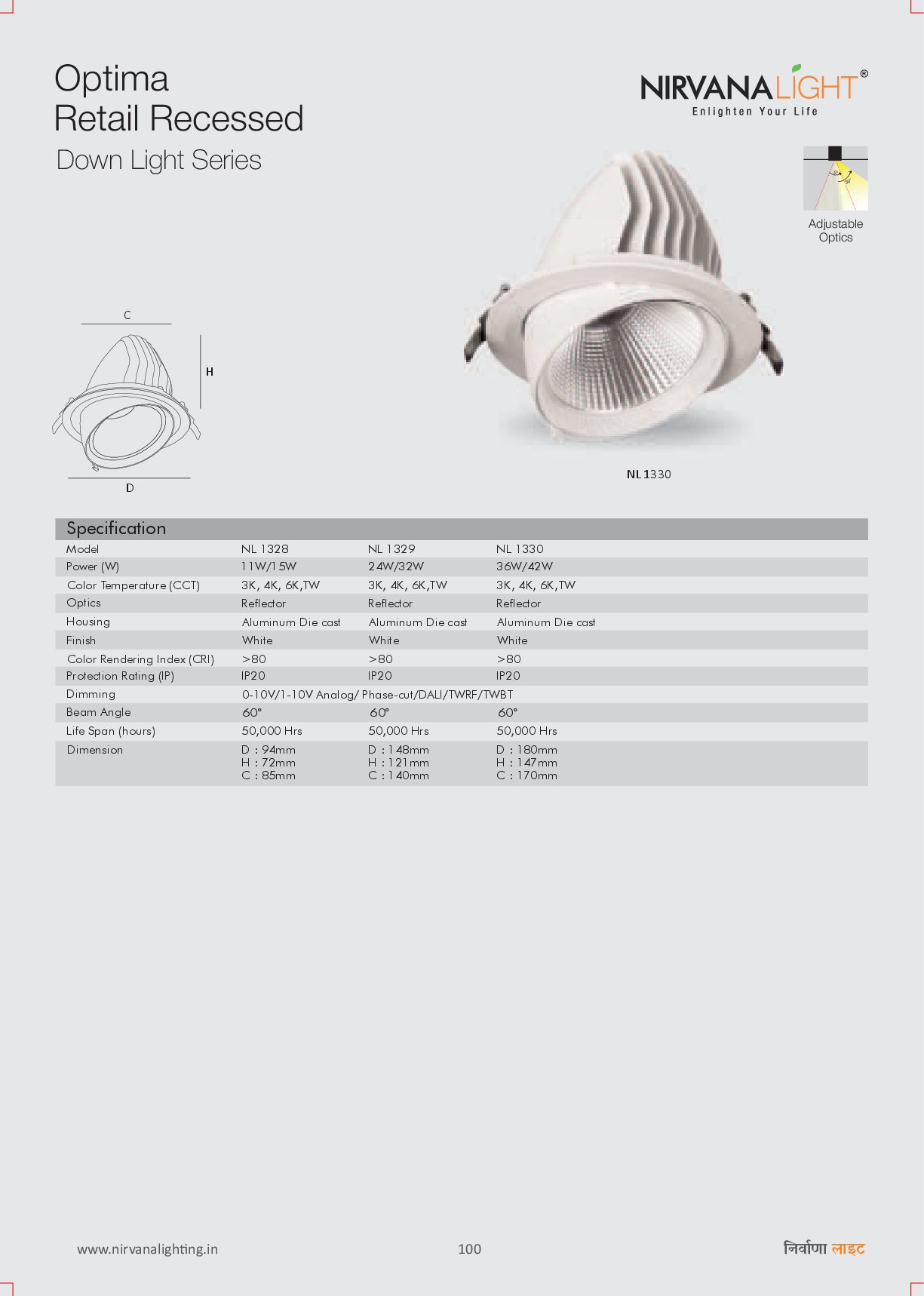

125. NL 1330 Retail Recessed Down Light Series Optima D H C 30° 0° Adjustable Optics Specification Color Temperature (CCT) Housing Color Rendering Index (CRI) Dimming Dimension Model Protection Rating (IP) Life Span (hours) Power (W) Optics Finish NL 1328 11W/15W 3K, 4K, 6K,TW Reflector White >80 IP20 50,000 Hrs D : 94mm H : 72mm C : 85mm Aluminum Die cast NL 1329 24W/32W 3K, 4K, 6K,TW Reflector White >80 IP20 50,000 Hrs D : 148mm H : 121mm C : 140mm Aluminum Die cast NL 1330 36W/42W 3K, 4K, 6K,TW Reflector White >80 IP20 50,000 Hrs D : 180mm H : 147mm C : 170mm Aluminum Die cast 0-10V/1-10V Analog/ Phase-cut/DALI/TWRF/TWBT Beam Angle 60° 60° 60° 100 www.nirvanaligh ng.in नवाणा लाइट
126. 101 www.nirvanaligh ng.in नवाणा लाइट
127. Indoor Architectural Lighting Twist Retail Track Series 102 www.nirvanaligh ng.in नवाणा लाइट

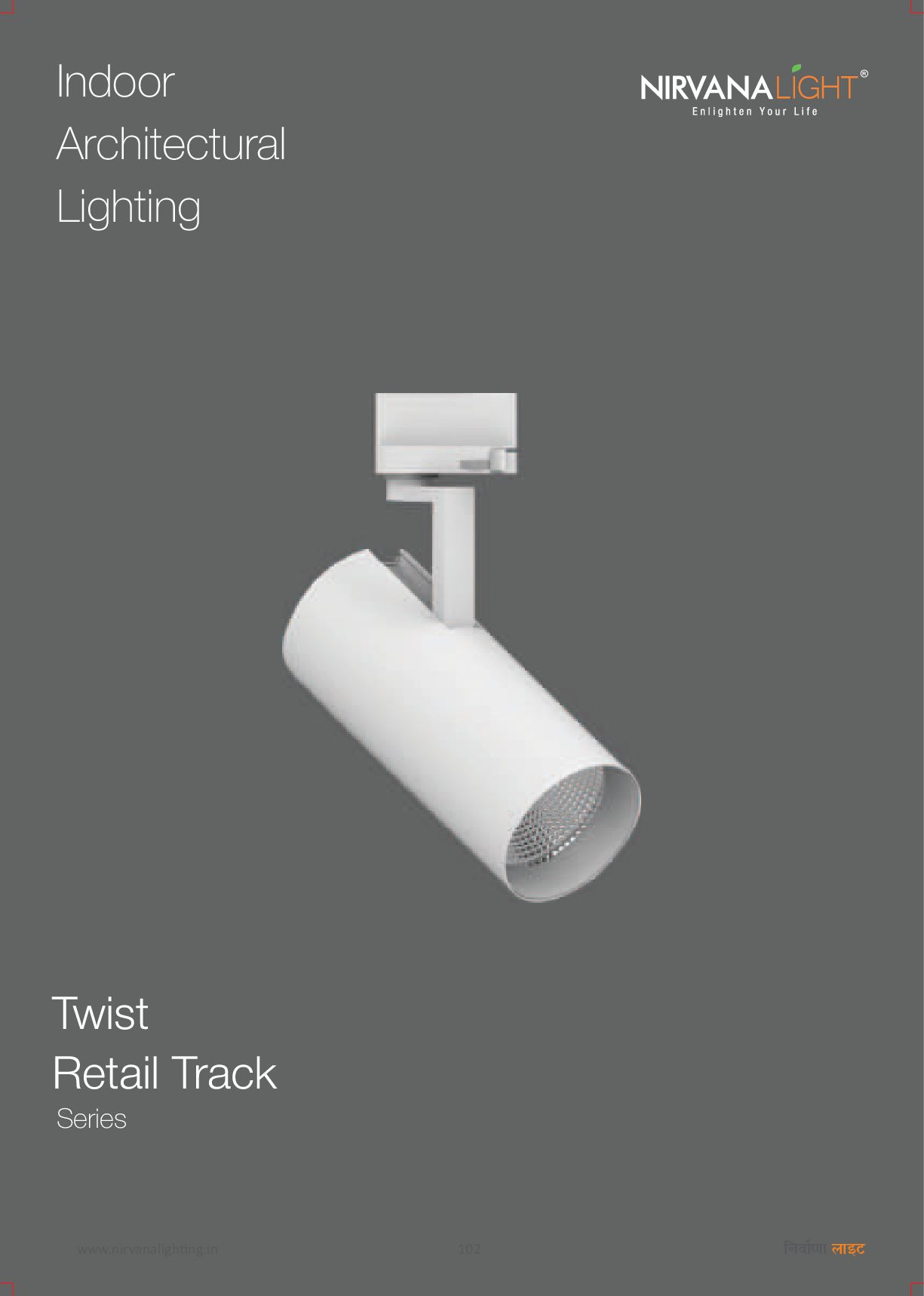

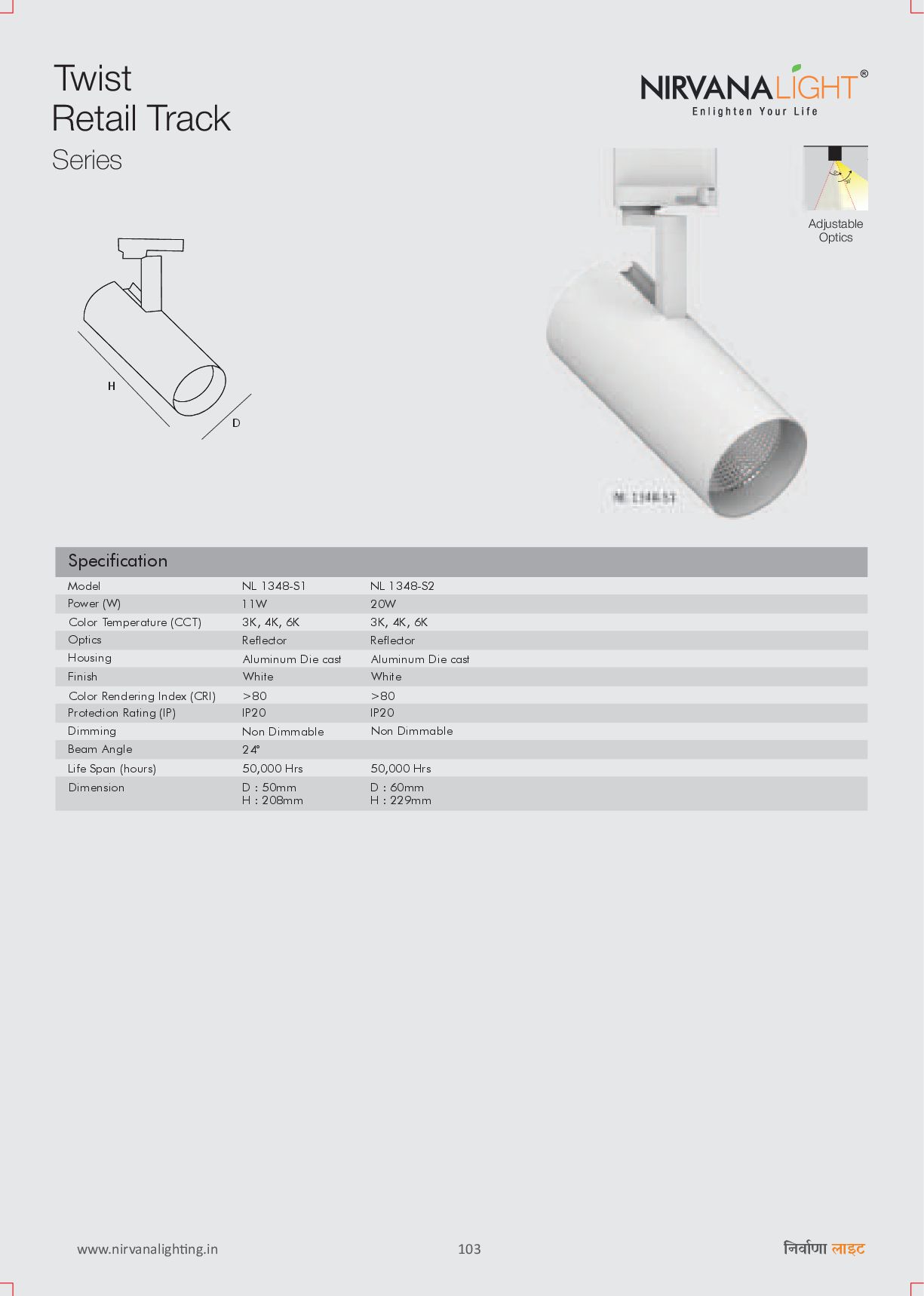

128. NL 1348-S1 D H Retail Track Series Twist 30° 0° Adjustable Optics Specification Color Temperature (CCT) Housing Color Rendering Index (CRI) Dimming Dimension Model Protection Rating (IP) Life Span (hours) Power (W) Optics Finish Non Dimmable NL 1348-S1 11W 3K, 4K, 6K Reflector >80 IP20 50,000 Hrs D : 50mm H : 208mm Aluminum Die cast White NL 1348-S2 20W 3K, 4K, 6K Reflector >80 IP20 50,000 Hrs D : 60mm H : 229mm Aluminum Die cast White Beam Angle Non Dimmable 24° 103 www.nirvanaligh ng.in नवाणा लाइट
129. Features Ÿ Intensity and strength depending on the width of the beam, a bright light similar to that f a halogen lamp to create visible and sable spaces, dominant in the architectural project. Ÿ Aluminium die cast housing. Ÿ Track offers design freedom, rapid adoption of new lighting scheme in case layout change. Ÿ Increase flexibility in design at last moment changes. Ÿ Beam options available like Narrow, Medium, Wide. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. Ÿ IOT – Product can be operated through handheld devices like Smart phone, Tablet, Laptop or Desktop even from remote location over internet or Bluetooth intranet network. Applications Ÿ Kitchens Ÿ Living Room Ÿ Bedrooms Ÿ Gallery Ÿ Pantries Retail Track Series Twist NL 1347-S2 D H Available Finish Dimming Triac 1-10V/0-10V DALI 2 Years Warranty IP20 RATED 80 CRI 90 CRI COB LED BIS TUNABLE WHITE AVAILABLE 30° 0° Adjustable Optics D : 82mm H : 180mm Specification Color Temperature (CCT) Housing Color Rendering Index (CRI) Dimming Dimension Model Protection Rating (IP) Life Span (hours) Power (W) Optics Finish NL 1347-S3 32W 3K, 4K, 6K, TW Reflector >80 IP20 50,000 Hrs Aluminum Die cast White Non Dimmable Beam Angle 38° 104 www.nirvanaligh ng.in नवाणा लाइट
130. 105 www.nirvanaligh ng.in नवाणा लाइट
131. 106 www.nirvanaligh ng.in नवाणा लाइट
132. 107 www.nirvanaligh ng.in नवाणा लाइट

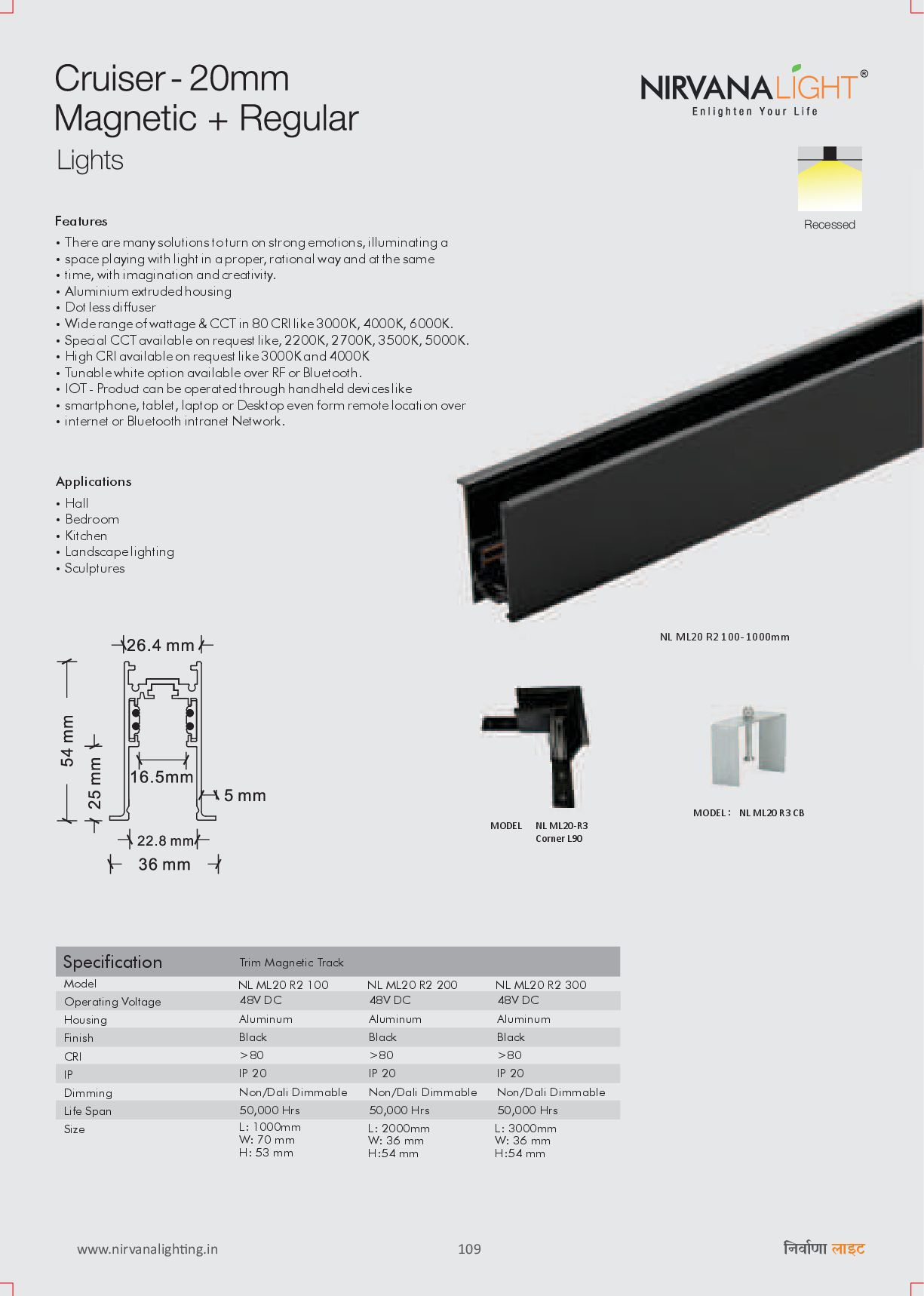

133. NL ML20 S200- 2000mm Ÿ Hall Ÿ Bedroom Ÿ Kitchen Ÿ Landscape lighting Ÿ Sculptures Features Applications Ÿ There are many solutions to turn on strong emotions, illuminating a Ÿ space playing with light in a proper, rational way and at the same Ÿ time, with imagination and creativity. Ÿ Aluminium extruded housing Ÿ Dot less diffuser Ÿ Wide range of wattage & CCT in 80 CRI like 3000K, 4000K, 6000K. Ÿ Special CCT available on request like, 2200K, 2700K, 3500K, 5000K. Ÿ High CRI available on request like 3000K and 4000K Ÿ Tunable white option available over RF or Bluetooth. Ÿ IOT - Product can be operated through handheld devices like Ÿ smartphone, tablet, laptop or Desktop even form remote location over Ÿ internet or Bluetooth intranet Network. NL ML20 S200 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs Suspended Magnetic Track L: 2000mm W: 26 mm H:53 mm Suspended Surface : MODEL NL ML20-S CORNER L90 Specification Model Operating Voltage Housing Finish CRI IP Dimming Life Span Size 108 www.nirvanaligh ng.in नवाणा लाइट
134. NL ML20 R2 100- 1000mm Ÿ Hall Ÿ Bedroom Ÿ Kitchen Ÿ Landscape lighting Ÿ Sculptures Features Applications Ÿ There are many solutions to turn on strong emotions, illuminating a Ÿ space playing with light in a proper, rational way and at the same Ÿ time, with imagination and creativity. Ÿ Aluminium extruded housing Ÿ Dot less diffuser Ÿ Wide range of wattage & CCT in 80 CRI like 3000K, 4000K, 6000K. Ÿ Special CCT available on request like, 2200K, 2700K, 3500K, 5000K. Ÿ High CRI available on request like 3000K and 4000K Ÿ Tunable white option available over RF or Bluetooth. Ÿ IOT - Product can be operated through handheld devices like Ÿ smartphone, tablet, laptop or Desktop even form remote location over Ÿ internet or Bluetooth intranet Network. NL ML20 R2 100 Trim Magnetic Track L: 1000mm W: 70 mm H: 53 mm NL ML20 R2 200 NL ML20 R2 300 L: 2000mm W: 36 mm H:54 mm L: 3000mm W: 36 mm H:54 mm Recessed MODEL NL ML20-R3 Corner L90 : MODEL NL ML20 R3 CB 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs Specification Model Operating Voltage Housing Finish CRI IP Dimming Life Span Size 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs 109 www.nirvanaligh ng.in नवाणा लाइट
135. NL ML20 R3 100 90° Corner for connecting surface suspended magnetic track from ceiling to ceiling installation C to C Ÿ Hall Ÿ Bedroom Ÿ Kitchen Ÿ Landscape lighting Ÿ Sculptures Features Applications Ÿ There are many solutions to turn on strong emotions, illuminating a Ÿ space playing with light in a proper, rational way and at the same Ÿ time, with imagination and creativity. Ÿ Aluminium extruded housing Ÿ Dot less diffuser Ÿ Wide range of wattage & CCT in 80 CRI like 3000K, 4000K, 6000K. Ÿ Special CCT available on request like, 2200K, 2700K, 3500K, 5000K. Ÿ High CRI available on request like 3000K and 4000K Ÿ Tunable white option available over RF or Bluetooth. Ÿ IOT - Product can be operated through handheld devices like Ÿ smartphone, tablet, laptop or Desktop even form remote location over Ÿ internet or Bluetooth intranet Network. NL ML20 R3 100 Trimless Magnetic Track L: 1000mm W: 73 mm H: 53 mm NL ML20 R3 200 NL ML20 R3 300 L: 1000mm W: 73 mm H: 53 mm L: 1000mm W: 73 mm H: 53 mm Trimless Specification Model Operating Voltage Housing Finish CRI IP Dimming Life Span Size 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs 48V DC Aluminum Black >80 IP 20 Non/Dali Dimmable 50,000 Hrs 110 www.nirvanaligh ng.in नवाणा लाइट
136. End Cap For Surface/ Recessed & Trimless Integrated Power Supply For The Magnetic Track Channel, Non Dimmable Straight Jointer For Surface/ Suspended For Track Channel 90° Corner for connecting surface / suspended magnetic track from ceiling to ceiling installation C to C 90° Corner for connecting Recessed magnetic track from ceiling to ceiling installation C to C 90° Corner for connecting Recessed magnetic track from ceiling to ceiling installation C to C NL ML20-S CORNER L90 NL ML20-S CORNER L90 NL ML20-S CORNER L90 NL ML20-R3 Corner L90 NL ML20-R3 Corner L90 NL ML20-R3 Corner L90 NL ML20-R2 CORNER L90 NL ML20-R2 CORNER L90 NL ML20-R2 CORNER L90 NL ML20 CORNER 4 DALI NL ML20 CORNER 4 DALI NL ML20 CORNER 4 DALI NL ML20 PC4 DALI NL ML20 PC4 DALI NL ML20 PC4 DALI NL ML20 SJ 4 DALI NL ML20 SJ 4 DALI NL ML20 SJ 4 DALI Straight Jointer - 4 Wire Dc Dali Power Wire For Magnetic Track Channel Straight Jointer - 4 Wire Dc Dali Power Wire For Magnetic Track Channel Corner - 4 Wire Corner Dali Connected Module For All The Track Channel NL ML20 PS48-100/ NL ML20 PS48-200 NL ML20 PS48-100/ NL ML20 PS48-200 NL ML20 PS48-100/ NL ML20 PS48-200 NL ML20 -S EC NL ML20 -S EC NL ML20 -S EC 1.5 Mtr Suspension Kit For Magnetic Track Channel NL Ml20 SUSPENSION KIT NL Ml20 SUSPENSION KIT NL Ml20 SUSPENSION KIT NL ML20 STRAIGHT SUPPORT NL ML20 STRAIGHT SUPPORT NL ML20 STRAIGHT SUPPORT NL ML20 R3 CB NL ML20 R3 CB NL ML20 R3 CB Ceiling Support For Trim Magnetic Track Channel Straight Jointer For Recessed Track Channel NL ML20 STRAIGHT SUPPORT R NL ML20 STRAIGHT SUPPORT R NL ML20 STRAIGHT SUPPORT R 111 www.nirvanaligh ng.in नवाणा लाइट

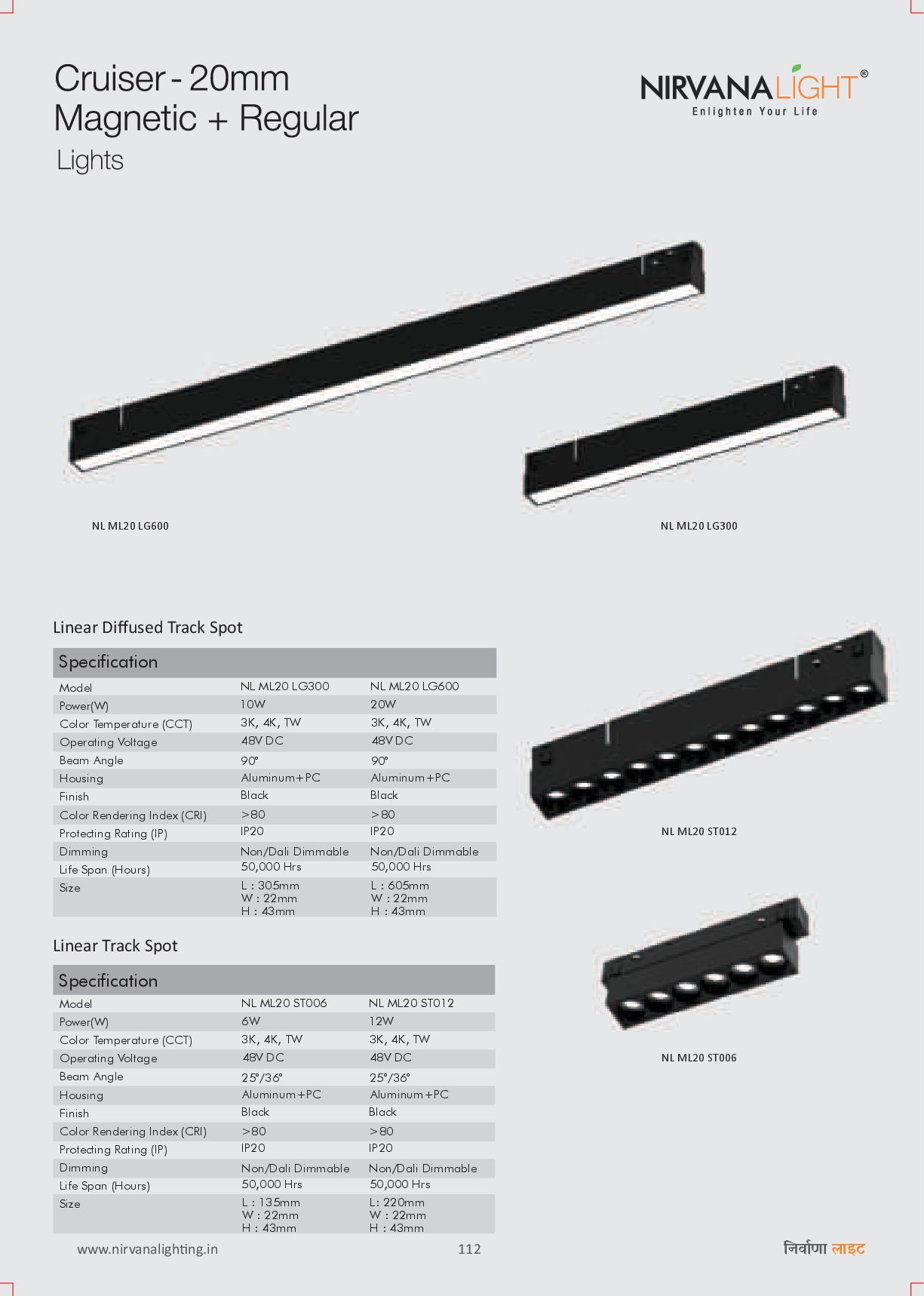

137. Linear Diffused Track Spot Linear Track Spot NL ML20 LG300 10W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 305mm W : 22mm H : 43mm Aluminum+PC Black 90° Non/Dali Dimmable NL ML20 LG600 20W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 605mm W : 22mm H : 43mm Aluminum+PC Black 90° Non/Dali Dimmable NL ML20 ST006 6W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 135mm W : 22mm H : 43mm Aluminum+PC Black 25°/36° Non/Dali Dimmable NL ML20 ST012 12W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L: 220mm W : 22mm H : 43mm Aluminum+PC Black 25°/36° Non/Dali Dimmable NL ML20 LG600 NL ML20 LG300 NL ML20 ST006 NL ML20 ST012 Specification Model Power(W) Color Temperature (CCT) Operating Voltage Beam Angle Housing Finish Color Rendering Index (CRI) Protecting Rating (IP) Dimming Life Span (Hours) Size Specification Model Power(W) Color Temperature (CCT) Operating Voltage Beam Angle Housing Finish Color Rendering Index (CRI) Protecting Rating (IP) Dimming Life Span (Hours) Size 112 www.nirvanaligh ng.in नवाणा लाइट
138. Linear Track Spot Adjustable COB Track Spot NL ML20 ST012 ADJ 12W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 215.5mm W : 22mm H : 47.5mm Aluminum+PC Black 25°/36° Non/Dali Dimmable NL ML20 ST018 ADJ 18W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 315.5mm W : 22mm H : 47.5mm Aluminum+PC Black 25°/36° Non/Dali Dimmable NL ML20 SP007 6W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 135mm W : 31mm H : 138mm Aluminum+PC Black Non/Dali Dimmable NL ML20 SP012 12W 3K, 4K, TW 48V DC >80 IP20 50,000 Hrs L : 135mm W : 45mm H : 123.5mm Aluminum+PC Black Non/Dali Dimmable NL ML20 ST012 ADJ NL ML20 ST018 ADJ NL ML20 SP007 NL ML20 SP012 Specification Model Power(W) Color Temperature (CCT) Operating Voltage Beam Angle Housing Finish Color Rendering Index (CRI) Protecting Rating (IP) Dimming Life Span (Hours) Size Specification Model Power(W) Color Temperature (CCT) Operating Voltage Beam Angle Housing Finish Color Rendering Index (CRI) Protecting Rating (IP) Dimming Life Span (Hours) Size 113 www.nirvanaligh ng.in नवाणा लाइट

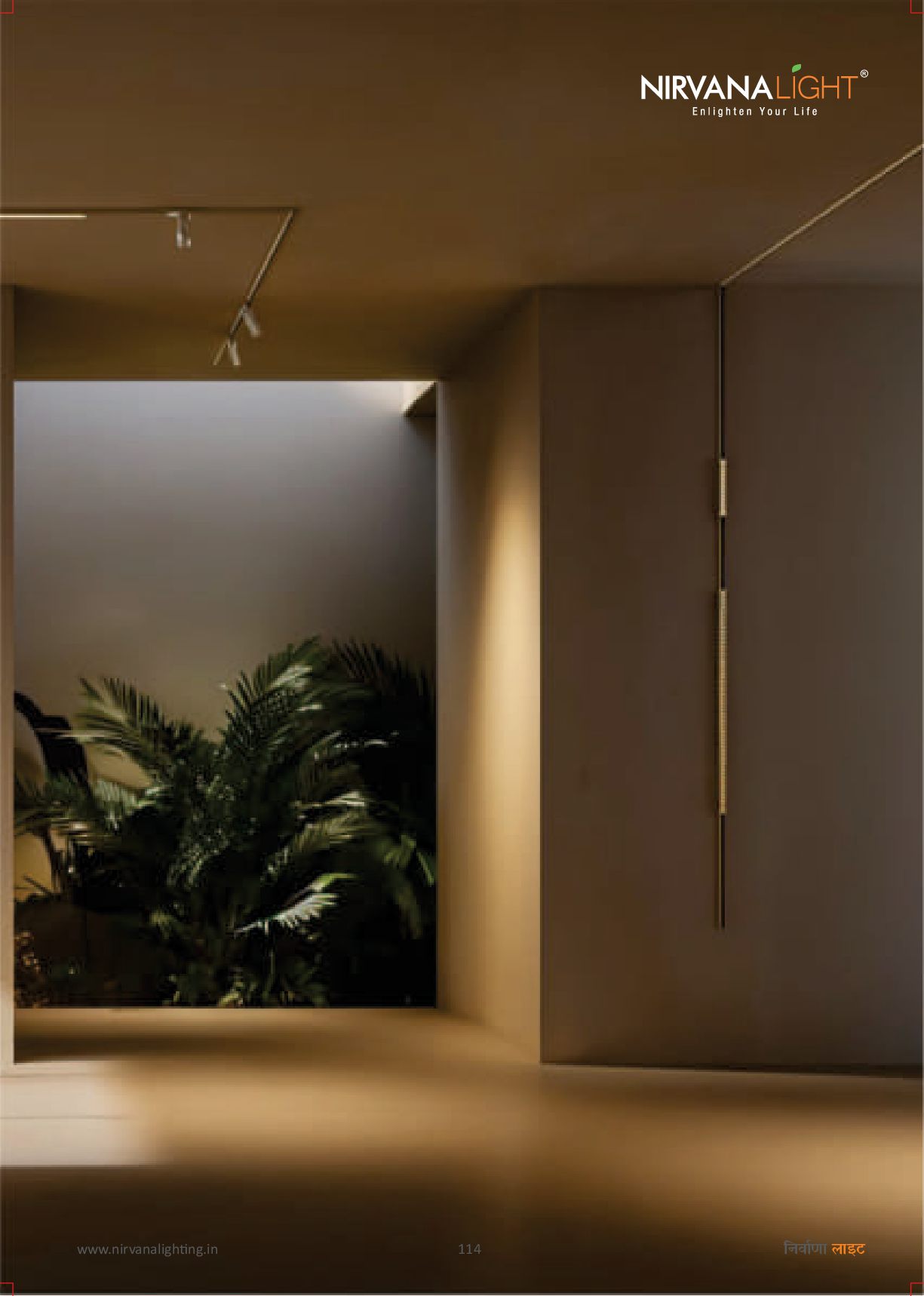

139. 114 www.nirvanaligh ng.in नवाणा लाइट

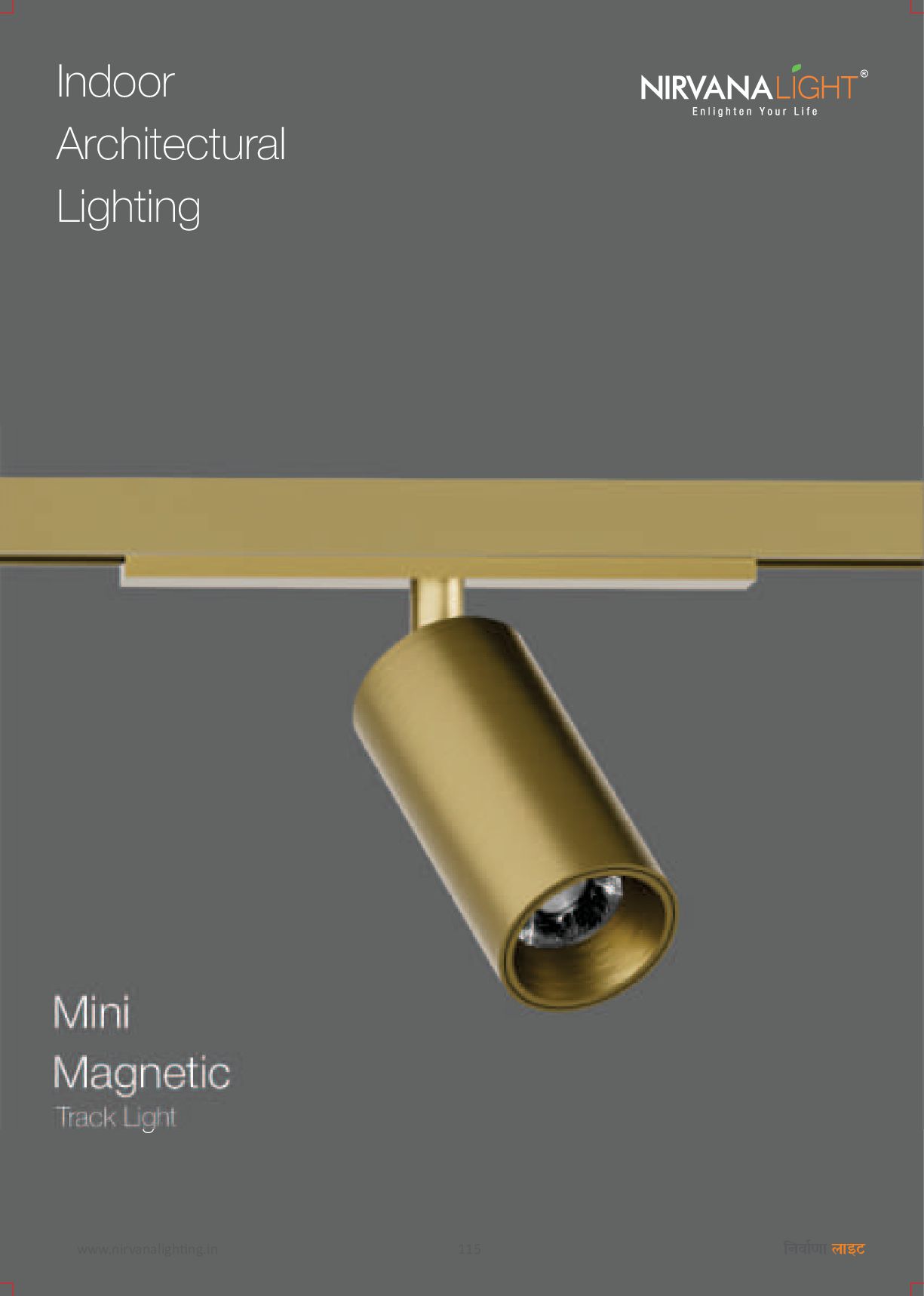

140. Indoor Architectural Lighting Mini Magnetic Track Light 115 www.nirvanaligh ng.in नवाणा लाइट
141. Magnetic| Track Light Mini NL MM R-200 NL MM R-300 Track rail including copper wire Recessed Mounted L 2000 x W 19 x H 18 mm L 3000 x W 19 x H 18 mm Model Dimension Model Dimension NL MM S-100 NL MM S-200 L 1000 x W 19 x H 18 mm L 2000 x W 19 x H 18 mm Track rail including copper wire withSurface/Suspended Mounted 116 www.nirvanaligh ng.in नवाणा लाइट

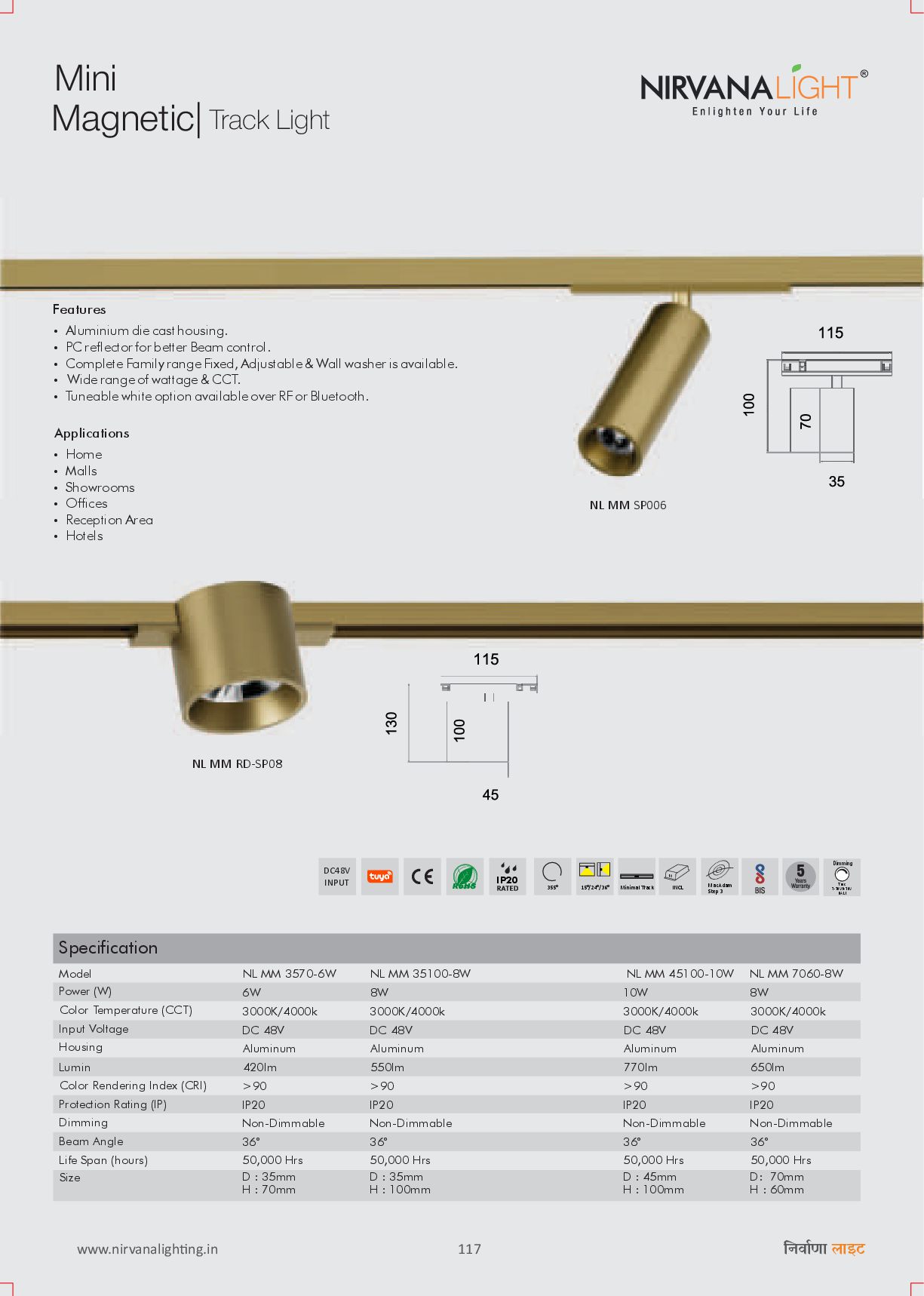

142. Magnetic| Track Light Mini NL MM SP006 Ÿ Home Ÿ Malls Ÿ Showrooms Ÿ Offices Ÿ Reception Area Ÿ Hotels Features Applications Ÿ Aluminium die cast housing. Ÿ PC reflector for better Beam control. Ÿ Complete Family range Fixed, Adjustable & Wall washer is available. Ÿ Wide range of wattage & CCT. Ÿ Tuneable white option available over RF or Bluetooth. DC48V INPUT IP20 355° 15°/24°/36° Minimal Track INCL MacAdam Step 3 Dimming Triac 1-10V/0-10V DALI NL MM RD-SP08 Model Power (W) Color Temperature (CCT) Input Voltage Housing Lumin Color Rendering Index (CRI) Protection Rating (IP) Dimming Beam Angle Life Span (hours) Size 6W DC 48V Aluminum 420lm >90 IP20 Non-Dimmable NL MM 3570-6W 50,000 Hrs D : 35mm H : 70mm 36° 3000K/4000k 8W DC 48V Aluminum 550lm >90 IP20 Non-Dimmable NL MM 35100-8W 50,000 Hrs D : 35mm H : 100mm 36° 3000K/4000k 10W DC 48V Aluminum 770lm >90 IP20 Non-Dimmable NL MM 45100-10W 50,000 Hrs D : 45mm H : 100mm 36° 3000K/4000k NL MM 7060-8W 8W DC 48V Aluminum >90 IP20 Non-Dimmable 3000K/4000k 50,000 Hrs 36° 650lm D: 70mm H : 60mm Specification 117 www.nirvanaligh ng.in नवाणा लाइट

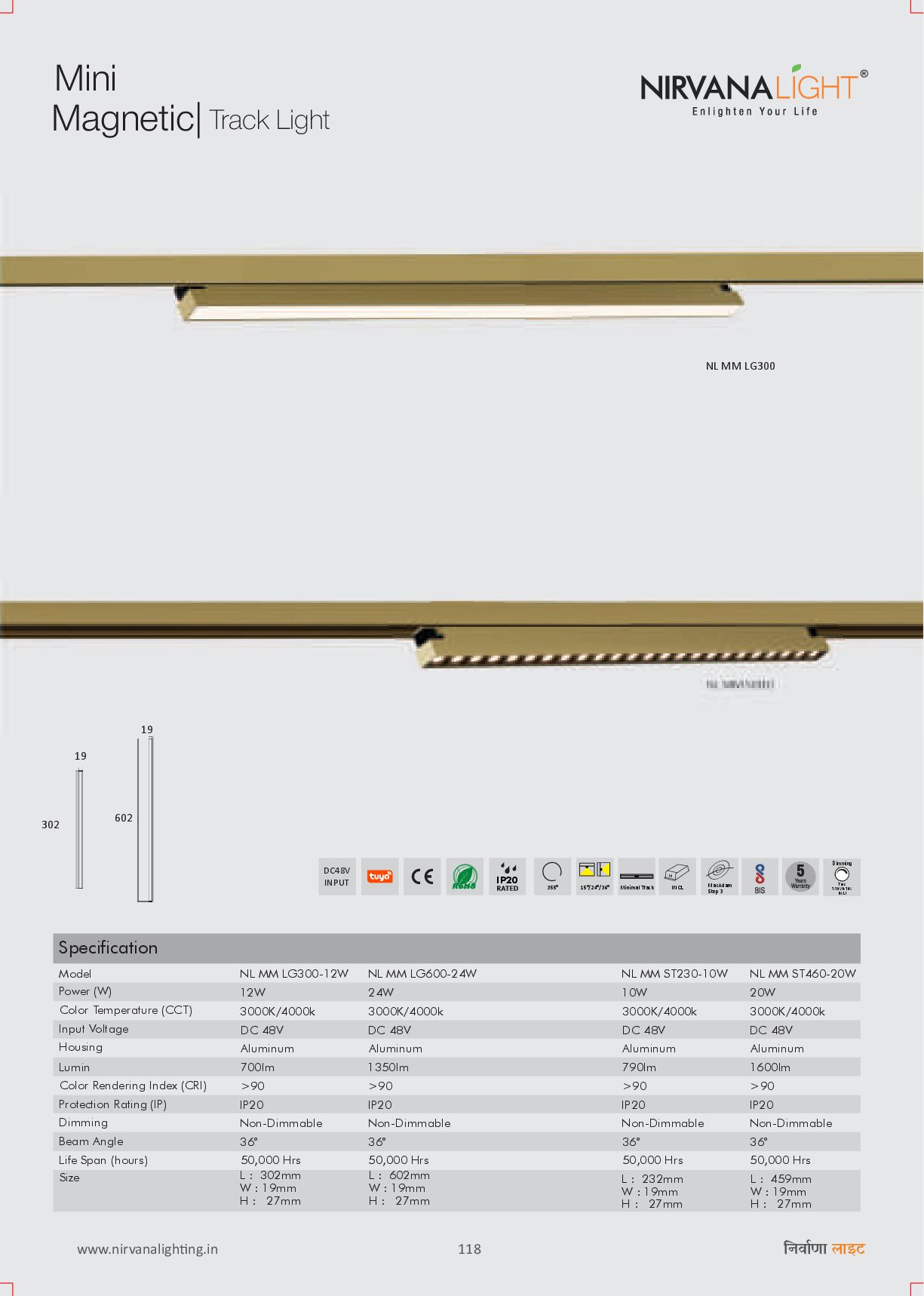

143. Magnetic| Track Light Mini NL MM LG300 19 302 602 19 NL MM St010 DC48V INPUT IP20 355° 15°/24°/36° Minimal Track INCL MacAdam Step 3 Dimming Triac 1-10V/0-10V DALI Model Power (W) Color Temperature (CCT) Input Voltage Housing Lumin Color Rendering Index (CRI) Protection Rating (IP) Dimming Beam Angle Life Span (hours) Size 12W DC 48V Aluminum >90 IP20 Non-Dimmable NL MM LG300-12W 50,000 Hrs L : 302mm W : 19mm H : 27mm 36° 700lm 3000K/4000k 24W DC 48V Aluminum >90 IP20 Non-Dimmable NL MM LG600-24W 50,000 Hrs L : 602mm W : 19mm H : 27mm 36° 1350lm 3000K/4000k NL MM ST230-10W 10W DC 48V Aluminum >90 IP20 Non-Dimmable 50,000 Hrs L : 232mm W : 19mm H : 27mm 36° 790lm 3000K/4000k NL MM ST460-20W 20W DC 48V Aluminum >90 IP20 Non-Dimmable 50,000 Hrs L : 459mm W : 19mm H : 27mm 36° 1600lm 3000K/4000k Specification 118 www.nirvanaligh ng.in नवाणा लाइट
144. Magnetic| Track Light Mini Model Dimension Accessories NL MM S-L90 NL MM S-I90 Corner 90°(On same plane)with 2pcs connect plate+8pcs set screws+ 1pcs hexagonal key Surface/Suspended Mounted Corner 90°(On perpendicular plane) with 2pcs connect plate+8pcs set screws+ 1pcs hexagonal key Surface/Suspended Mounted NL MM S Straight Support Connect plate with 4pcs set screws+ 1pcs hexagonal key Surface/Suspended Mounted NL MM S EC High side end cap(2pcs)-using with decorative cap Surface/Suspended Mounted NL MM S CORNER-FIX Power Jointing Connector (On same plane) NL MM S CORNER-FLEXI Power Jointing Connector (On perpendicular planes) NL MM S SJ Power Jointing Connector (Straight ) NL MM S PC2M Feeder DC48V DD MM S BC50 Decorative cap (50CM) 119 www.nirvanaligh ng.in नवाणा लाइट

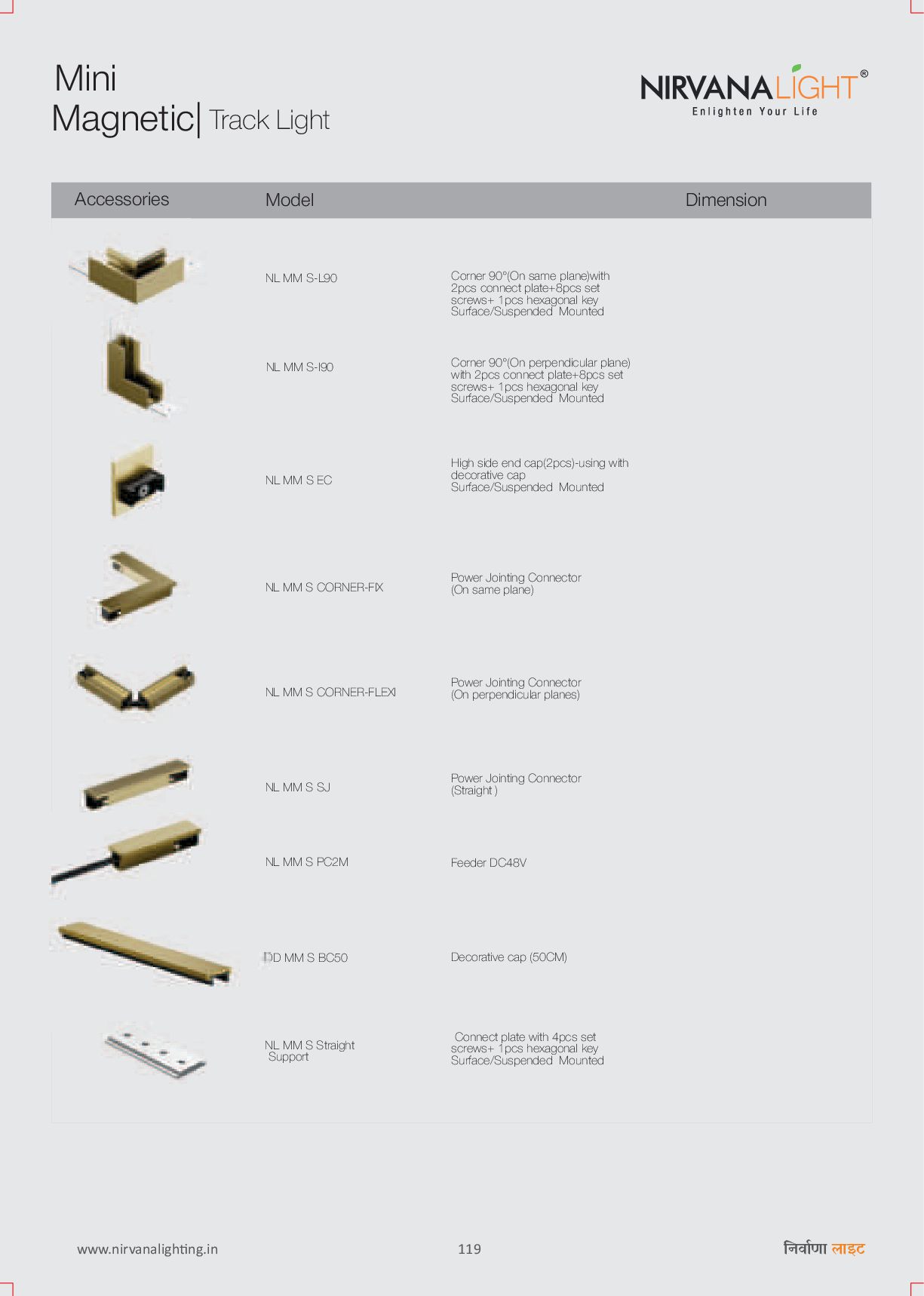

145. Magnetic| Track Light Mini Model Accessories NL MM SP+JB Power wire (2M 0.75mm²) with 1pcs Feeder +1pcs mounting base+1pcs connect plate+2pcs self-tappingscrews+4pcs set screws+ 1pcs hexagonal key Suspended Mounted NL MM SP Suspension cable(2M)with 1pcs mounting base++1pcs connect plate+1pcs self-tapping screw+2pcs set screws+ 1pcs hexagonal key Suspended Mounted Model Power Supplier DD MM PS48-150 DD MM PS48-200 Built in driver-150W- L320 x W19 x H37mm, cable length: 300mm Built in driver-200W- L324 x W22 x H43mm, cable length: 300mm Ceiling recessed trimless available in black NL MM R-L90 Corner 90°( On same plane) with 2pcs self-tapping screws Recessed Mounted NL MM R-I90 Corner 90°( On perpendicular planes) with 2pcs self-tapping screws Recessed Mounted NL MM S Straight Support Connect plate with 4pcs set screws+ 1pcs hexagonal key Surface/Suspended Mounted Model Dimension Accessories 120 www.nirvanaligh ng.in नवाणा लाइट
146. Matrix Profile Lighting System Surface Recessed Suspended Curved Customize Design Acoustic 121 www.nirvanaligh ng.in नवाणा लाइट

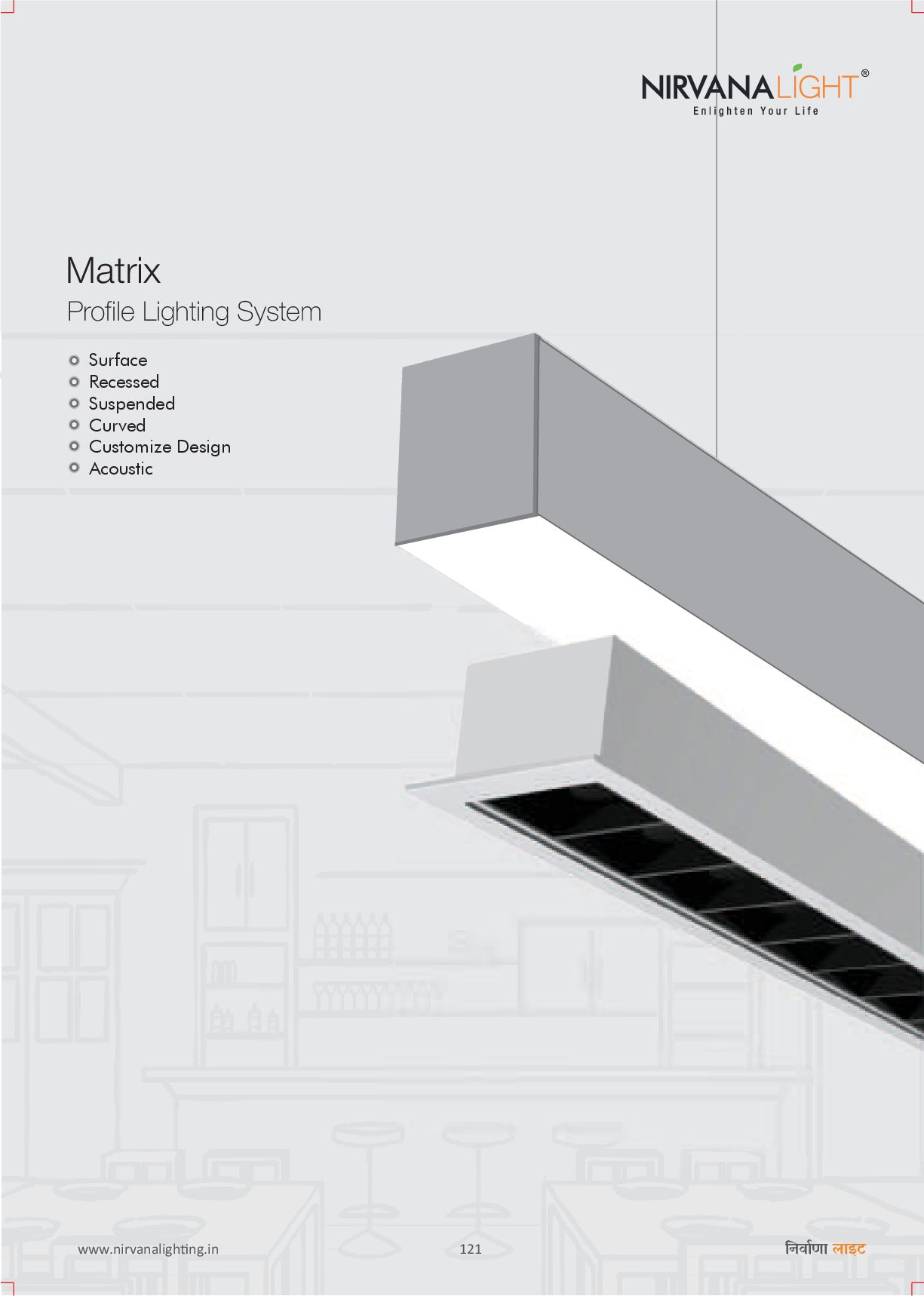

147. 122 www.nirvanaligh ng.in नवाणा लाइट
148. Surface Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE NL MS 5235 35mm 52mm NL MS 5235 35mm 44mm NL MS 4435 35mm 35mm NL MS 3535 30mm 35mm NL MS 3530 25mm 25mm NL MS 2525 Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 8W/Ft : Surface : Length: 4ft/8ft : Customize Length Surface STRIKE + DIFFUSE ONLY DIFFUSE Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. Designed for Mounting on ceiling / wall High CRI & CCT Available On Request. Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Features Applications 123 www.nirvanaligh ng.in नवाणा लाइट
149. Recessed NL MS 6535 NL MS 3125 25mm 25mm 31mm NL MS 4335 35mm 35mm 43mm NL MS 5135 35mm 51mm 44mm NL MS 4530 30mm 35mm 45mm NL MS 6535 35mm 52mm 65mm Mounting Accessories C-Clamp Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 8W/Ft : Recessed : Length: 4ft/8ft : Customize Length Recessed Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE ONLY DIFFUSE ONLY DIFFUSE ONLY DIFFUSE STRIKE + DIFFUSE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 124 www.nirvanaligh ng.in नवाणा लाइट
150. www.nirvanalighting.in 69 Deep Recessed NL MS 5050 50mm 50mm 58mm Mounting Accessories C-Clamp Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 8W/Ft : Recessed : Length: 4ft/8ft : Customize Length Recessed Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 125 www.nirvanaligh ng.in नवाणा लाइट
151. Suspended/Surface NL MS 3570 Suspended Surface Suspended - Up/down Hanging Accessories 70mm 25mm NL MS 2570 35mm 70mm NL MS 3570 35mm 100mm NL MS 35100 Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 8W/Ft : Surface / Suspended : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 126 www.nirvanaligh ng.in नवाणा लाइट
152. Suspended NL MS 4475 Suspended Accessories Hanging 75mm 44mm Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 9W/Ft : Suspended : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE NL MS 4475 Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 127 www.nirvanaligh ng.in नवाणा लाइट
153. Suspended NL MS 5275 Suspended Accessories Hanging Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 36W/4Ft : Suspended : Length: 4ft/8ft : Customize Length 52mm 75mm NL MS 5275 Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 128 www.nirvanaligh ng.in नवाणा लाइट
154. Suspended/Surface NL MS 5577 Suspended Surface Accessories Hanging 55mm 77mm 56mm 56mm 86mm 86mm Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 9W/Feet : Suspended/Surface : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE ONLY DIFFUSE STRIKE+DIFFUSE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 129 www.nirvanaligh ng.in नवाणा लाइट
155. Curve Suspended NL CUR-45 Suspended Accessories Hanging UGR <9 45mm Housing Diffuser LED CCT Beam Angle Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Polycarbonate : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : 45° / 75° : Fulham / Osram : 9W/Feet : Suspended : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. 130 www.nirvanaligh ng.in नवाणा लाइट
156. Suspended NL CUR 4078 Accessories Hanging UGR <9 40mm 78mm Suspended Housing Diffuser LED CCT Beam Angle Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : PC : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : 45° / 75° : Fulham / Osram : 9W/Feet : Suspended : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 131 www.nirvanaligh ng.in नवाणा लाइट
157. With Different Texture Profile Option Bronze Brushed Silver Brushed Gold Solid Wood Grain Paradise Rosewood Royal Teak Hermes Orange Ma e Black Ma e White 132 www.nirvanaligh ng.in नवाणा लाइट

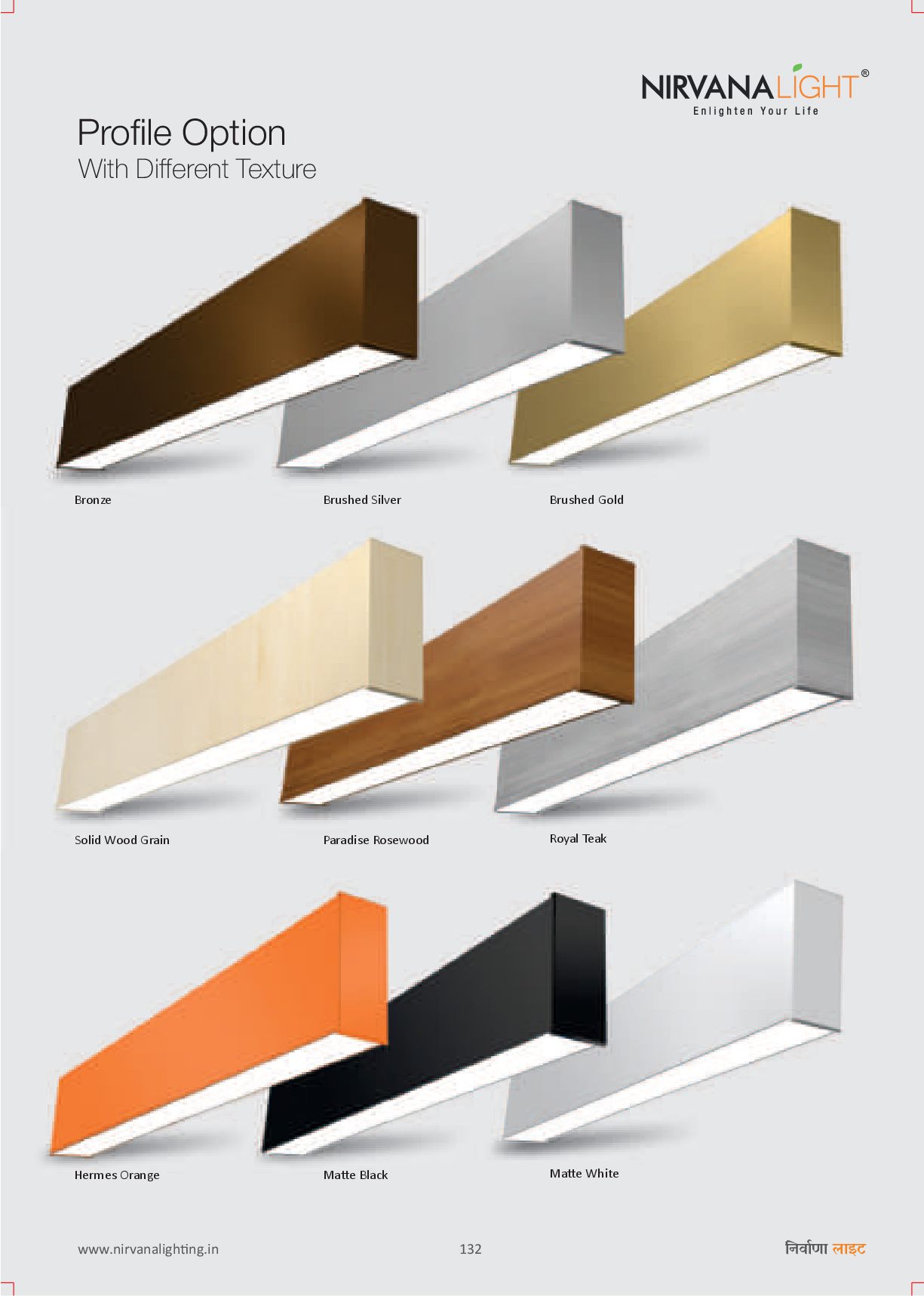

158. Matrix Matrix Matrix Profile Light Profile Light (Recessed) (Recessed) Profile Light (Recessed) 133 www.nirvanaligh ng.in नवाणा लाइट
159. 134 www.nirvanaligh ng.in नवाणा लाइट
160. 135 www.nirvanaligh ng.in नवाणा लाइट
161. Suspended/Surface NL CUR 5275 Suspended Surface Accessories Hanging Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 9W/Feet : Suspended / Surface : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 136 www.nirvanaligh ng.in नवाणा लाइट
162. Recessed Curve Profile Recessed Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K / TW : Fulham / Osram : 9W/Feet : Recessed : Length: 4ft/8ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE 50mm 52mm NL CU 6550 65mm Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. 137 www.nirvanaligh ng.in नवाणा लाइट
163. Curve Profile 138 www.nirvanaligh ng.in नवाणा लाइट

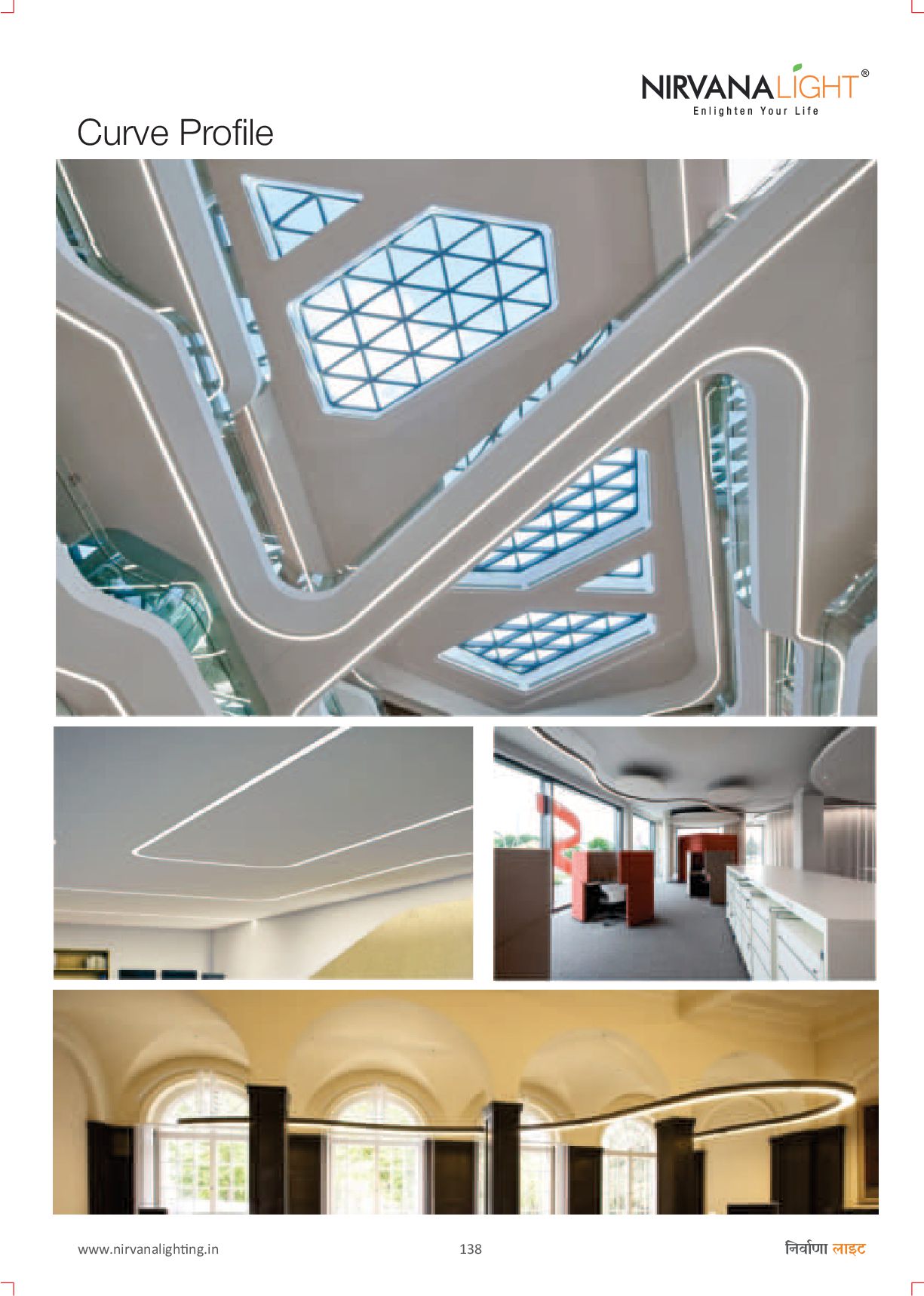

164. 139 www.nirvanaligh ng.in नवाणा लाइट
165. Suspended Surface Recessed Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing Suspended Version Available. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Quick & Simple Installation. Provides Even, Glare Free LED illuminations. NL 5086-B (Surface) NL 5086-C (Recessed) NL 5086-A Accessories Hanging Venus Drum Profile Recessed/Surface/Suspended Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K : Fulham / Osram : 30W / 40W / 60W / 72W / 100W : Suspended / Surface / Recessed : Dia: 300mm | 450mm | 600mm 900mm | 1200mm : Height: 70mm : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED 140 www.nirvanaligh ng.in नवाणा लाइट

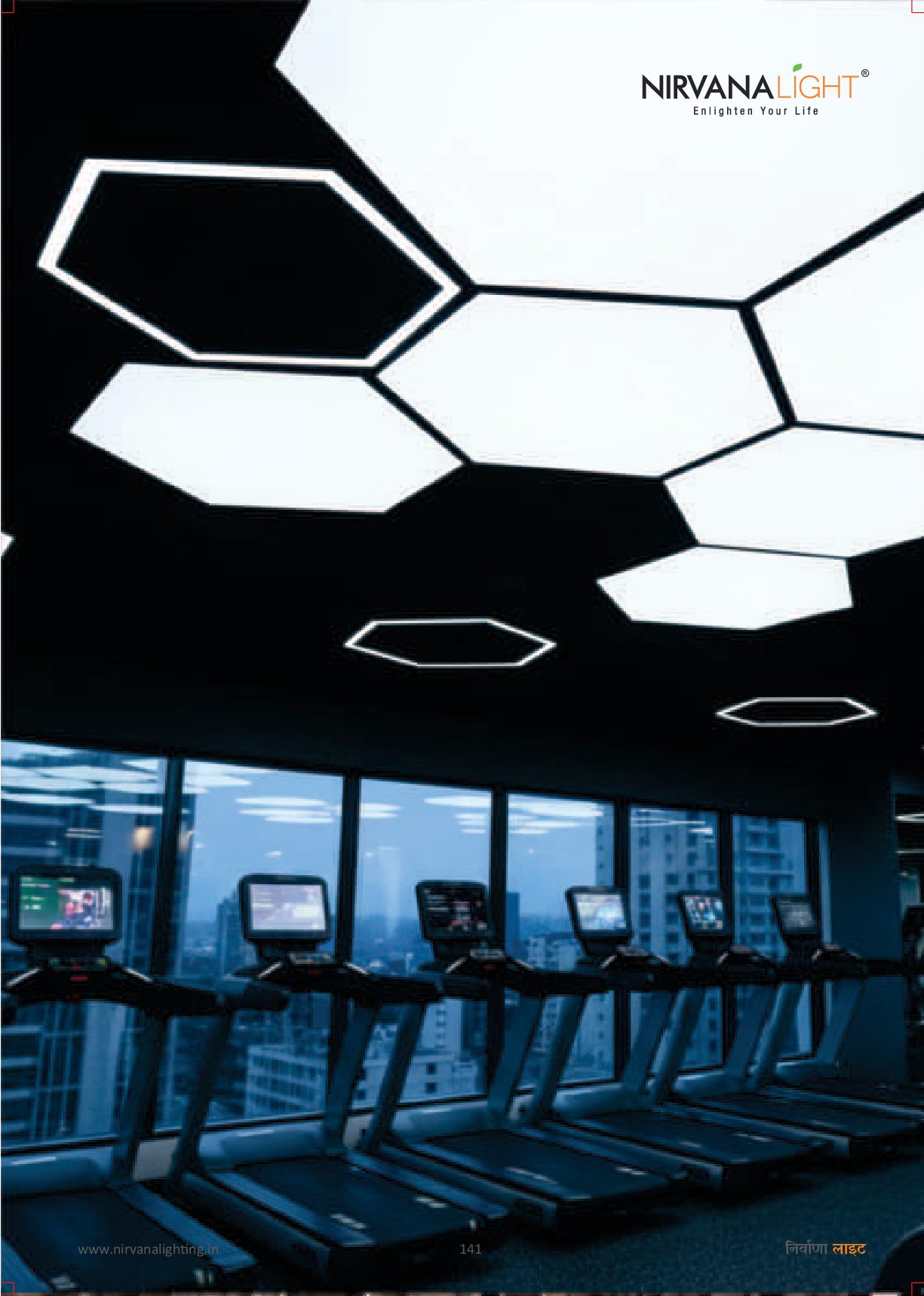

166. 141 www.nirvanaligh ng.in नवाणा लाइट
167. Venus Hexa-Drum Profile Recessed/Surface/Suspended Suspended Surface Accessories Hanging SURFACE Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K : Fulham / Osram : 30W / 40W / 60W / 72W / 100W : Suspended / Surface / Recessed : Dia: 300mm | 450mm | 600mm 900mm | 1200mm : Height: 70mm : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED SUSPENDED Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing Suspended Version Available. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Quick & Simple Installation. Provides Even, Glare Free LED illuminations. 142 www.nirvanaligh ng.in नवाणा लाइट

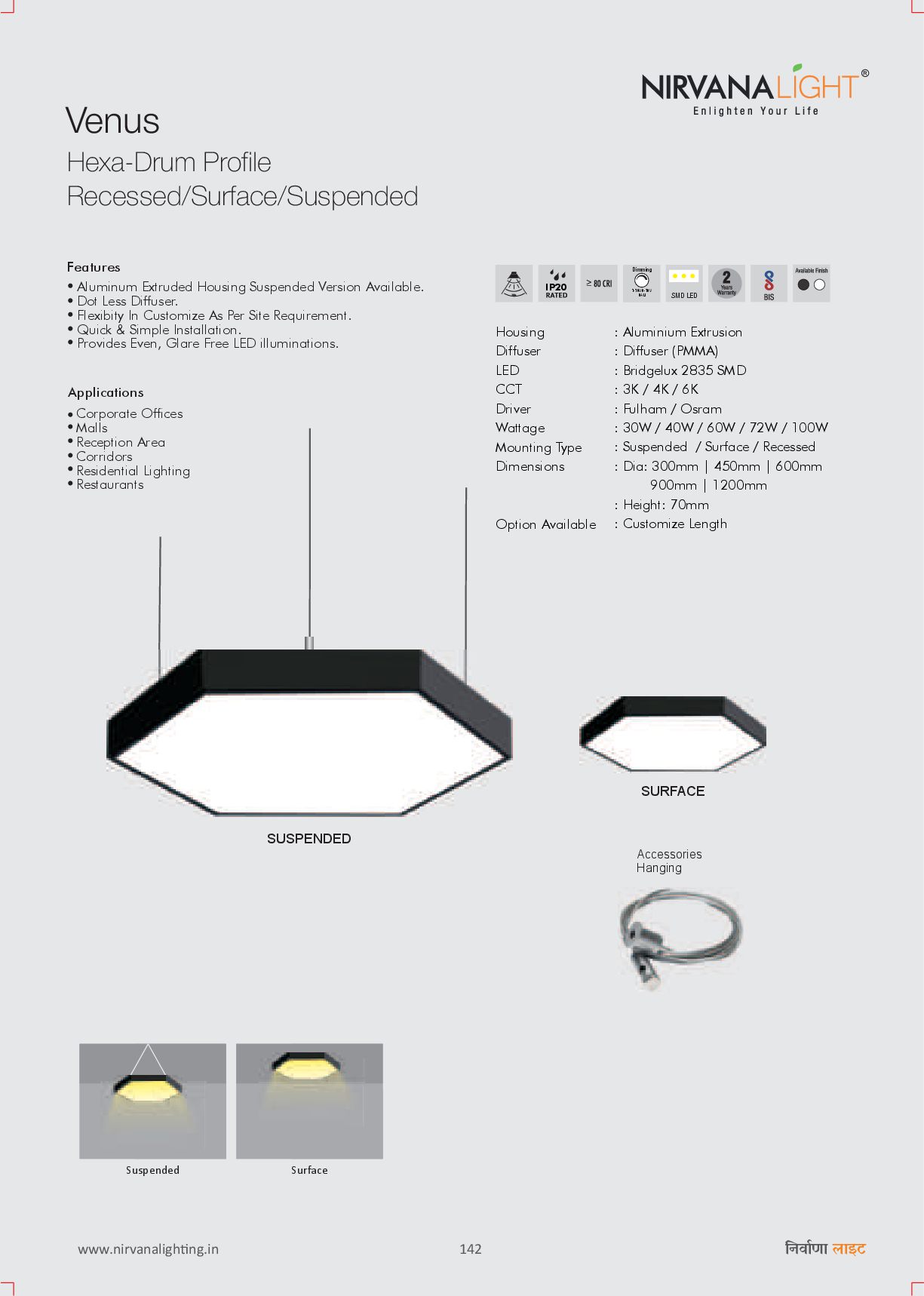

168. 143 www.nirvanaligh ng.in नवाणा लाइट
169. Nebula Donut Profile (Surface/Suspended) Suspended Surface Accessories Hanging Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K : Fulham / Osram : 30W / 40W / 55W / 72W / 96W : Suspended / Surface : Dia: 300mm | 450mm | 600mm 900mm | 1200mm : Height: 70mm : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED NL 5085-A NL 5085-B (Surface) NL 5085-C Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing Suspended Version Available. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Quick & Simple Installation. Provides Even, Glare Free LED illuminations. 144 www.nirvanaligh ng.in नवाणा लाइट
170. 145 www.nirvanaligh ng.in नवाणा लाइट
171. Suspended Surface Suspended/Surface Curved End Housing Diffuser LED CCT Driver Wattage Mounting Type Dimensions Option Available : Aluminium Extrusion : Diffuser (PMMA) : Bridgelux 2835 SMD : 3K / 4K / 6K : Fulham / Osram : 9W/Ft : Suspended / Surface : 4Ft / 8Ft : Customize Length Dimming 1-10V/0-10V DALI IP20 SMD LED 35mm 70mm Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 146 www.nirvanaligh ng.in नवाणा लाइट
172. 147 www.nirvanaligh ng.in नवाणा लाइट
173. 148 www.nirvanaligh ng.in नवाणा लाइट
174. What is Acous cs? *Acous c products are made from 100% polyethylene terephthalate(PET), with 50% post consumer recycled material. *PET is a green product manufactured free of added chemicals,binders, adhesives and dyes. *The product is very adaptable, it can be cut, notched or trimmed for installa on purpose. *Nearly every environment interacts with sound, PET can achieve a triple purpose func onally acous c in nature, enhanced design of any space and environmental consciousness. Perfect Sound Aborption Acoustic Profile Light 149 www.nirvanaligh ng.in नवाणा लाइट

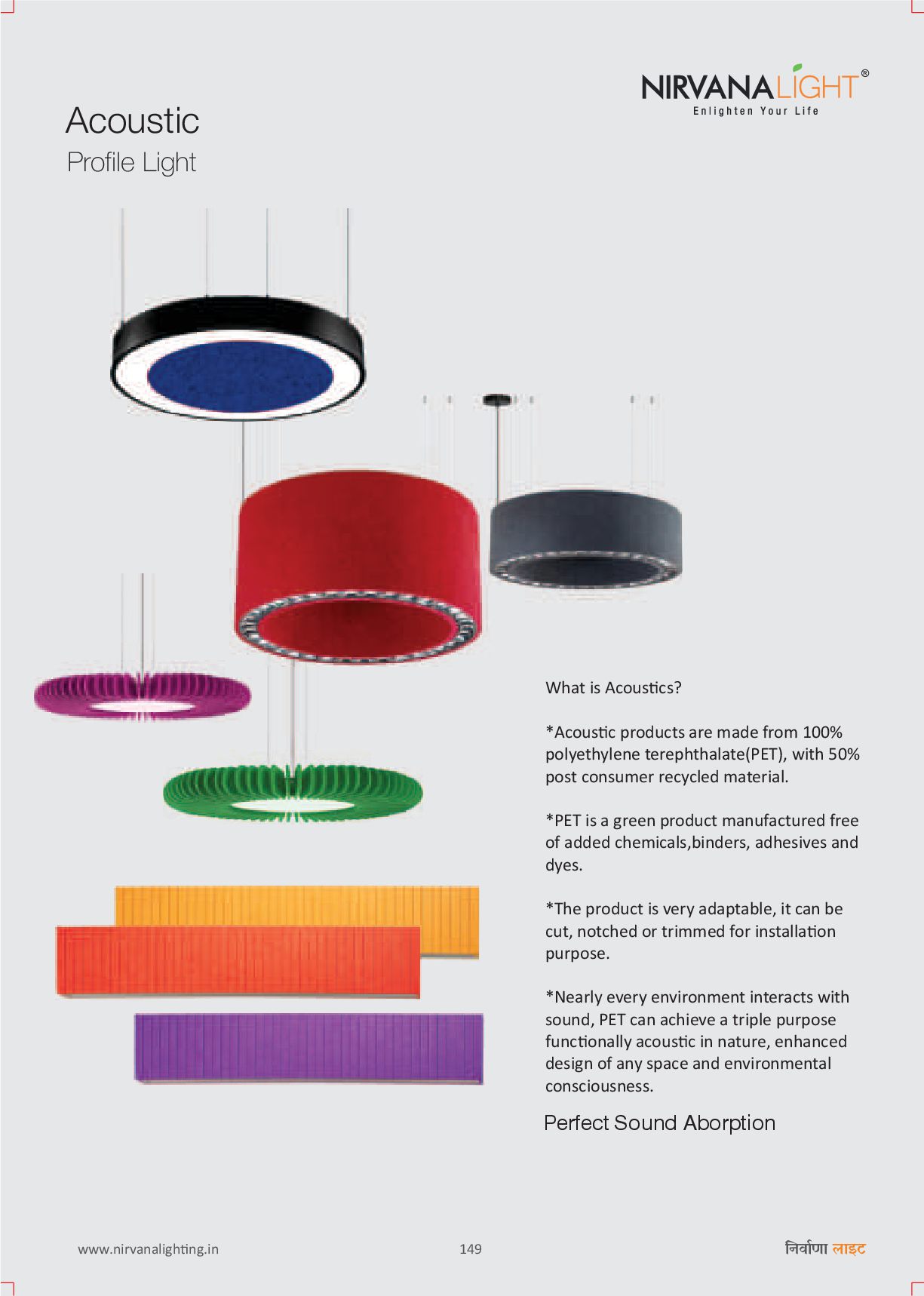

175. www.nirvanalighting.in 69 150 www.nirvanaligh ng.in नवाणा लाइट
176. 151 www.nirvanaligh ng.in नवाणा लाइट
177. Dimming Triac 1-10V/0-10V DALI IP20 SMD LED TUNABLE WHITE AVAILABLE NL 3570 ML (Diffuser- Milky) NL 3570 PR (Diffuser- Prisma c) Abstract Profile Light Features Applications Corporate Offices Malls Reception Area Corridors Residential Lighting Restaurants Aluminum Extruded Housing. Dot Less Diffuser. Flexibity In Customize As Per Site Requirement. Tunable White Versions Available Over RF Or Bluetooth. High CRI & CCT Available On Request. Integrated Power Supply. 152 www.nirvanaligh ng.in नवाणा लाइट
178. 153 www.nirvanaligh ng.in नवाणा लाइट
179. 154 www.nirvanaligh ng.in नवाणा लाइट
180. OUTDOOR OUTDOOR OUTDOOR 155 www.nirvanaligh ng.in नवाणा लाइट
181. Common Lighting Distribution Types for Commercial and Industrial Use At Nirvana Light, we provide lighting solutions tailored to your needs. Below is a simple overview of the five most common lighting distribution types, including Type I and Type II, alongside the widely used Type III, Type IV, and Type V. These patterns are designed to light up everything from walkways to large parking lots with efficiency and reliability. Type I: Narrow and Bidirectional What it does: Creates a narrow, two-way beam that spreads light evenly on both sides of the fixture. Best for: Walkways, sidewalks, or paths where the light is placed in the center of the area. Why choose it: Perfect for long, narrow spaces needing balanced lighting on both sides. Type II: Slightly Wider Reach What it does: Spreads light in a slightly wider, linear pattern compared to Type I. Best for: Narrow roadways, alleys, or side streets. Why choose it: Great for areas where you need a bit more coverage than Type I but still want a focused beam. Type III: Wide and Versatile What it does: Spreads light widely in a forward and side-to-side pattern. Best for: Parking lots, driveways, and roadways. Why choose it: The go-to choice for most projects because it covers large areas evenly and efficiently. Type IV: Focused and Forward What it does: Sends light in a narrow, forward beam with minimal light spilling backward. Best for: Building perimeters, facades, or areas needing targeted lighting. Why choose it: Ideal for specific spots where you want light to shine outward without wasting it behind the fixture. Type V: All-Around Coverage What it does:Spreads light evenly in a circular or rounded square shape around the fixture. Best for: Large open areas like big parking lots or intersections. Why choose it: Perfect when you need consistent light in all directions for maximum coverage. With Nirvana Light, our Type I, Type II, Type III, Type IV, and Type V fixtures deliver bright, efficient lighting tailored to your commercial or industrial space. 156 www.nirvanaligh ng.in नवाणा लाइट
182. 157 www.nirvanaligh ng.in नवाणा लाइट
183. Outdoor Architectural Lighting Gardo Spot Light Designed to illuminate for Landscape, Squares, Facade & high comfort, efficiency with lighting flexibility. 158 www.nirvanaligh ng.in नवाणा लाइट
184. Standard Finish Customise Finish Black Plant Green Rustic Brown White Dark Grey Customized Color available on Order Gardo Spot Light Silver Grey 159 www.nirvanaligh ng.in नवाणा लाइट
185. NL 4309 NL 4301 NL 4306 NL 4308 NL 4307 Gardo is a family of high performance protections available in round in four different sizes, and Square in three different sizes. Ideal for illumination of plants, bushes, trees, building facade, monuments, statues, sculptures & many other lighting applications. It expresses the synthesis of the essential characteristics of a professional spotlight: design, strength, precision, visual comfort, high efficiency & luminous flexibility. NL 4305 NL 4310 Gardo Spot Light NL 4302 External Accessories Tree Strap For Surface IP67 Cable Gland -PG7 Earth Spike Hood Internal Accessories Honeycomb Reflector 300mm 500mm 225mm IP67 Cable Connector 160 www.nirvanaligh ng.in नवाणा लाइट
186. H D Ÿ Landscape Ÿ Column Ÿ Pillars Ÿ Hardscape Ÿ Uplighter Ÿ Aluminum Die cast body. Ÿ Electrostatic Pure polyester powder coated. Ÿ Non-Corrosive SS fasteners and toughened glass. Ÿ PMMA optic - Lenses and PC reflector for better beaming control. Ÿ Available in three different beam angles to meet the desired directional spot and flood light illumination affect. Ÿ High Power LED used having narrow, medium, wide beam options. Ÿ Additional accessories like Anti glare hood, Extra-long earth spike, tree strap, Honey comb louver, IP68 cable gland. Ÿ Product supplied pre-wired cable gland compliance to IP67 rating. Features Applications Gardo Spot Light NL 4305 Specication Model Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Lens NL 4305 3W/5W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 35mm/ H : 105mm Aluminum Die Cast 25° NL 4306 10W 3000K AC 220V-240V Lens Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/ 75mm NL 4301 11W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 62mm/ H : 145mm NL 4302 15W/20W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82mm/ H : 175mm NL 4309 8W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/ H : 105mm 25° 15°/ 25°/ 38°/ 60° 60° 55°/ 60° Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast 161 www.nirvanaligh ng.in नवाणा लाइट
187. Outdoor Architectural Lighting Designed to illuminate for Landscape, Squares, Facade & high comfort, efficiency with lighting flexibility. Gardo Landscape Lighting 162 www.nirvanaligh ng.in नवाणा लाइट
188. D H NL 4310 Features Applications Ÿ Landscape Ÿ Column Ÿ Pillars Ÿ Hardscape Ÿ Uplighter Ÿ Aluminum Die cast body. Ÿ Electrostatic Pure polyester powder coated. Ÿ Non-Corrosive SS fasteners and toughened glass. Ÿ PMMA optic - Lenses and PC reflector for better beaming control. Ÿ Available in three different beam angles to meet the desired directional spot and flood light illumination affect. Ÿ COB LED used having narrow, medium, wide beam options. Ÿ Additional accessories like Anti glare hood, Extra-long earth spike, tree strap, Honey comb louver, IP68 cable gland. Ÿ Product supplied pre-wired cable gland compliance to IP67 rating. Gardo Landscape Lighting Specication Model Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) NL 4308 3000K AC 220V-240V 15W/20W Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82x82mm/ H : 175mm Reector 55°/ 60° NL 4307 3000K AC 220V-240V 8W/11W Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 62x62mm/ H : 145mm Reector 60° NL 4310 3000K AC 220V-240V 10W Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60x60mm/ H : 105mm Aluminum Die Cast Lens 25° Aluminum Die Cast Aluminum Die Cast 163 www.nirvanaligh ng.in नवाणा लाइट
189. 164 www.nirvanaligh ng.in नवाणा लाइट
190. The Aluminum Die-Cast Body Ensures a durable and robust construction. Hi- Power SMD LED: Provides an extra- wide illumination angle for broad and effective lighting coverage. Non- Corrosive SS Fasteners: Guarantees long-term reliability and resistance to rust and corrosion. Toughened Glass: Adds durability and impact resistance to the light fixture. Pre-Wired Cable Gland: Compliant with IP67 rating for excellent protection against dust and water ingress. Silicon Gasket: Enhances weather resistance and ensures a secure seal, preventing moisture from entering the fixture. Outdoor Architectural Lighting Kubo-Wall One Way Light 165 www.nirvanaligh ng.in नवाणा लाइट
191. Aluminum Die-Cast Body: Ensures a durable and robust construction. Hi-Power SMD LED: Provides an extra-wide illumination angle for broad and effective lighting coverage. Non-Corrosive SS Fasteners: Guarantees long-term reliability and resistance to rust. Toughened Glass: Adds durability and impact resistance to the light fixture. Pre-Wired Cable Gland: Compliant with IP67 rating for excellent protection against dust and water ingress. Silicon Gasket: Enhances weather resistance and ensures a secure seal, preventing moisture from entering the fixture. These features collectively ensure that the Cubic Wall Up/Down Light is both functional and resilient, ideal for various outdoor lighting applications. The KUBO Wall One Way Light is a sleek, wall- mounted luminary designed specifically for facade lighting. Key features include Up/Down Lighting Effects: Provide versatile illumination with options for both upward and downward light distribution. Aesthetically Designed: Offers a modern and elegant look, enhancing the visual appeal of any facade. Fully Shielded Light Source: Ensures directed lighting while minimizing glare and light spill. High Luminous Efficiency: Delivers bright, effective illumination with minimal energy consumption. Longer Product Life: Designed for durability and extended use, reducing the need for frequent replacements. The KUBO is ideal for highlighting building exteriors and creating stylish lighting effects on walls. Kubo-Wall One Way Light NL 4121 NL 4032 NL 4042 NL 4035 NL 4045 NL 4124 NL 4132 NL 4135 NL 4138 166 www.nirvanaligh ng.in नवाणा लाइट
192. D H COB LED NL 4042 Kubo-Wall One Way Light ŸAluminium Die Cast body Ÿ PC Reflector & Len’s for better beam control Ÿ COB LED used having narrow, medium, wide beam options. Ÿ Non-corrosive SS fasteners and toughened glass. Ÿ Pre-Wired Cable Gland ŸResidential ŸBuilding facade ŸCommercial centres ŸPassages ŸHigh light the columns Features Applications Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) NL 4121 NL 4032 NL 4042 Model 6W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/ H : 100mm Aluminum Die Cast Lens 25° 8W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm H : 120mm Aluminum Die Cast Reector 25° 15W 3000K AC 220V-240V Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82mm/ H : 160mm Reector 55°/ 60° 167 www.nirvanaligh ng.in नवाणा लाइट
193. COB LED D H NL 4035 Kubo-Wall One Way Light NL 4124 NL 4035 NL 4045 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 6W 3000K AC 220V-240V Lens Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60x60mm/ H : 100mm 25° 8W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 62x62mm/ H : 140mm Aluminum Die Cast 60° 15W 3000K AC 220V-240V Reector Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82x82mm/ H : 175mm 55°/ 60° ŸAluminium Die Cast body Ÿ PC Reflector & Len’s for better beam control Ÿ COB LED used having narrow, medium, wide beam options. Ÿ Non-corrosive SS fasteners and toughened glass. Ÿ Pre-Wired Cable Gland ŸResidential ŸBuilding facade ŸCommercial centres ŸPassages ŸHigh light the columns Features Applications 168 www.nirvanaligh ng.in नवाणा लाइट
194. COB LED NL 4135 Kubo-Wall One Way Light D H Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) NL 4132 NL 4135 NL 4138 Model 18W 3000K AC 220V-240V Reector 24W 3000K AC 220V-240V Reector 32W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 200mm Aluminum Die Cast Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 250mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 300mm 55°/ 60° 55°/ 60° 55°/ 60° ŸAluminium Die Cast body Ÿ PC Reflector & Len’s for better beam control Ÿ COB LED used having narrow, medium, wide beam options. Ÿ Non-corrosive SS fasteners and toughened glass. Ÿ Pre-Wired Cable Gland ŸResidential ŸBuilding facade ŸCommercial centres ŸPassages ŸHigh light the columns Features Applications 169 www.nirvanaligh ng.in नवाणा लाइट
195. 170 www.nirvanaligh ng.in नवाणा लाइट
196. Outdoor Architectural Lighting The Aluminum Die-Cast Body Ensures a durable and robust construction. Hi-Power SMD LED: Provides an extra-wide illumination angle for broad and effective lighting coverage. Non-Corrosive SS Fasteners: Guarantees long-term reliability and resistance to rust and corrosion. Toughened Glass: Adds durability and impact resistance to the light fixture. Pre-Wired Cable Gland: Compliant with IP67 rating for excellent protection against dust and water ingress. Silicon Gasket: Enhances weather resistance and ensures a secure seal, preventing moisture from entering the fixture. Kubic-Wall Up-Down Light 171 www.nirvanaligh ng.in नवाणा लाइट
197. The Kubic Wall Up/Down Light includes the following features: Aluminum Die-Cast Body: Ensures a durable and robust construction. Hi- Power SMD LED: Provides an extra-wide illumination angle for broad and effective lighting coverage. Non-Corrosive SS Fasteners: Guarantees long-term reliability and resistance to rust and corrosion. Toughened Glass: Adds durability and impact resistance to the light fixture. Pre- Wired Cable Gland: Compliant with IP67 rating for excellent protection against dust and water ingress. Silicon Gasket: Enhances weather resistance and ensures a secure seal, preventing moisture from entering the fixture. The Kubic Wall Up/Down Light Ideal for enhancing the lighting in residential gardens & yards, providing both functional illumination & aesthetic appeal. Driveways and Entrances: Ensures safe and attractive lighting for driveways and home entrances, enhancing visibility & security. Kubic-Wall Up-Down Light NL 4133 NL 4136 NL 4139 NL 4122 NL 4033 NL 4043 NL 4125 NL 4036 NL 4046 172 www.nirvanaligh ng.in नवाणा लाइट
198. COB LED D H NL 4033 Kubic-Wall Up-Down Light ŸAluminium Die Cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners and toughened glass. ŸToughened Glass ŸSilicon gasket ŸResidential: Garden and Yard Lighting ŸBuilding Facade: Architectural Highlighting ŸPassages: Walkways and Corridors ŸPublic Spaces ŸPathways Garden and Landscape Paths ŸSculptures and Structures: Artistic Lighting Features Applications Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) NL 4122 NL 4033 NL 4043 Model 2x6W 3000K Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/ H : 125mm Aluminum Die Cast AC 220V-240V Lens 25° 2x6W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/ H : 180mm Aluminum Die Cast Reector 38° 2x13W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82mm/ H : 215mm Aluminum Die Cast Reector 55°/ 60° 173 www.nirvanaligh ng.in नवाणा लाइट
199. Kubic-Wall Up-Down Light COB LED D H NL 4036 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4046 2x13W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82x82mm H : 215mm NL 4036 2x6W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 62x62mm H : 175mm Aluminum Die Cast Aluminum Die Cast NL 4125 2x6W 3000K AC 220V-240V Lens Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60x60mm H : 125mm Aluminum Die Cast 25° 60° 55°/ 60° ŸAluminium Die Cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners and toughened glass. ŸToughened Glass ŸSilicon gasket ŸResidential: Garden and Yard Lighting ŸBuilding Facade: Architectural Highlighting ŸPassages: Walkways and Corridors ŸPublic Spaces ŸPathways Garden and Landscape Paths ŸSculptures and Structures: Artistic Lighting Features Applications 174 www.nirvanaligh ng.in नवाणा लाइट
200. COB LED Kubic-Wall Up-Down Light NL 4136 D H Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4133 2x18W 3000K AC 220V-240V Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm/ H : 350mm Aluminum Die Cast Lens NL 4139 2x32W 3000K AC 220V-240V Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165m/ H : 500mm Reector NL 4136 2x24W 3000K AC 220V-240V Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm/ H : 400mm Reector 55°/ 60° 55°/ 60° 55°/ 60° ŸAluminium Die Cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners and toughened glass. ŸToughened Glass ŸSilicon gasket ŸResidential: Garden and Yard Lighting ŸBuilding Facade: Architectural Highlighting ŸPassages: Walkways and Corridors ŸPublic Spaces ŸPathways Garden and Landscape Paths ŸSculptures and Structures: Artistic Lighting Features Applications 175 www.nirvanaligh ng.in नवाणा लाइट
201. 176 www.nirvanaligh ng.in नवाणा लाइट
202. Outdoor Architectural Lighting Okio The OKIO Ceiling Surface Light boasts several high- quality features designed to enhance its performance, durability, and versatility Ceiling Surface Light 177 www.nirvanaligh ng.in नवाणा लाइट
203. The OKIO Ceiling Surface Light is a type of modern lighting fixture designed to be mounted directly onto the ceiling. It typically features a sleek, minimalist design, making it suitable for contemporary interiors. Surface lights like the OKIO are often used in areas where recessed lighting isn't possible or desirable. They provide ample illumination without taking up much space, making them ideal for rooms with low ceilings or where a clean, unobtrusive look is preferred. The body of the light is made from aluminium die-cast, ensuring a strong, lightweight, and durable structure. This material also provides excellent heat dissipation, which helps to extend the life of the LED components. NL 4041 NL 4031 Okio Ceiling Surface Light 178 www.nirvanaligh ng.in नवाणा लाइट
204. ŸAluminium Die Cast body Ÿ PMMA Len’s for the better beam control Ÿ High-Power LED with Multiple Beam Options Ÿ Non-Corrosive SS Fasteners and Toughened Glass Ÿ IP67 Rating with Pre-Wired Cable Gland. ŸResidential Spaces ŸLobbies & Foyers: Public and Private Buildings ŸRetail Sector: Stores and Showrooms ŸCorporate: Office Buildings ŸCommercial & Business Centers: Multi-purpose Spaces ŸPassages & Corridors: Indoor and Outdoor Pathways Features Applications COB LED H D NL 4031 Okio Ceiling Surface Light NL 4031 NL 4041 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 6W 3000K AC 220V-240V White >80 IP65 Non-Dimmable 50,000 Hrs D : 50mm/H : 65mm 8W 3000K AC 220V-240V White >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/H : 75mm Aluminum Die Cast Aluminum Die Cast Lens Lens 25° 24° 179 www.nirvanaligh ng.in नवाणा लाइट
205. Outdoor Architectural Lighting Guide Ceiling Surface Light The ceiling-mounted surface light, particularly for entrance, parapet, and facade lighting applications, comes with the following robust features designed to enhance its performance, durability, and visual appeal. 180 www.nirvanaligh ng.in नवाणा लाइट
206. The OKIO Ceiling Surface Light is a type of modern lighting fixture designed to be mounted directly onto the ceiling. It typically features a sleek, minimalist design, making it suitable for contemporary interiors. Surface lights like the OKIO are often used in areas where recessed lighting isn't possible or desirable. They provide ample illumination without taking up much space, making them ideal for rooms with low ceilings or where a clean, unobtrusive look is preferred. The body of the light is made from aluminium die-cast, ensuring a strong, lightweight, and durable structure. This material also provides excellent heat dissipation, which helps to extend the life of the LED components. NL 4123 NL 4126 NL 4034 NL 4044 NL 4037 NL 4047 NL 4134 NL 4137 NL 4140 GUIDE Ceiling Surface Light 181 www.nirvanaligh ng.in नवाणा लाइट
207. COB LED ŸAluminum Die-Cast Body: Durability and Strength Ÿ Corrosion Resistance ŸPC Reflector ŸHigh-Power LED with Narrow, Medium, and Wide Beam Options: Versatility in Lighting Ÿ Energy Efficiency Ÿ Non-Corrosive SS Fasteners and Toughened Glass: Stainless Steel (SS) Fasteners ŸResidential Spaces ŸEducational Institutions ŸPublic and Private Buildings ŸOffice Buildings ŸMulti-purpose Commercial Spaces ŸIndoor and Outdoor Pathways Features Applications Guide Ceiling Surface Light NL 4123 D H Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4034 8W / 11W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/H : 120mm Aluminum Die Cast NL 4044 15W / 20W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 82mm/H : 160mm Aluminum Die Cast NL 4123 8W 3000K AC 220V-240V Lens Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 60mm/H : 100mm Aluminum Die Cast 25° 60° 55°/ 60° 182 www.nirvanaligh ng.in नवाणा लाइट
208. Outdoor Architectural Lighting Guide Ceiling-mounted surface lights are designed for entrances, parapets, and facade lighting. Ceiling Surface Light 183 www.nirvanaligh ng.in नवाणा लाइट
209. H D H D NL 4047 Guide Ceiling Surface Light COB LED ŸAluminum Die-Cast Body: Durability and Strength Ÿ Corrosion Resistance ŸPC Reflector ŸHigh-Power LED with Narrow, Medium, and Wide Beam Options: Versatility in Lighting Ÿ Energy Efficiency Ÿ Non-Corrosive SS Fasteners and Toughened Glass: Stainless Steel (SS) Fasteners ŸResidential Spaces ŸEducational Institutions ŸPublic and Private Buildings ŸOffice Buildings ŸMulti-purpose Commercial Spaces ŸIndoor and Outdoor Pathways Features Applications Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4037 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast Aluminum Die Cast 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs NL 4047 D : 62x62mm/ H : 140mm D : 82x82mm/ H : 175mm 60° 55°/ 60° 8W / 11W 15W / 20W NL 4126 3000K AC 220V-240V Lens Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast D : 60x60mm/ H : 100mm 25° 8W 184 www.nirvanaligh ng.in नवाणा लाइट
210. COB LED NL 4137 Guide Ceiling Surface Light D H Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4134 NL 4140 NL 4137 18W 3000K AC 220V-240V Reector 32W/36W/45W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm/ H : 200mm 24W/32W/36W 3000K AC 220V-240V Reector Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm/ H : 250mm Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 160mm/ H : 300mm 40° 40° 40° ŸAluminum Die-Cast Body: Durability and Strength Ÿ Corrosion Resistance ŸPC Reflector ŸHigh-Power LED with Narrow, Medium, and Wide Beam Options: Versatility in Lighting Ÿ Energy Efficiency Ÿ Non-Corrosive SS Fasteners and Toughened Glass: Stainless Steel (SS) Fasteners ŸResidential Spaces ŸEducational Institutions ŸPublic and Private Buildings ŸOffice Buildings ŸMulti-purpose Commercial Spaces ŸIndoor and Outdoor Pathways Features Applications 185 www.nirvanaligh ng.in नवाणा लाइट
211. 186 www.nirvanaligh ng.in नवाणा लाइट
212. Outdoor Architectural Lighting The Gleam Series of in-ground lights is engineered to provide both f u n c t i o n a l a n d a e s t h e t i c illumination for various outdoor environments. These lights are perfect for illuminating walkways, driveways, gardens, and other outdoor areas, adding safety, security, and beauty to any space. Gleam Series In-Ground Lighting 187 www.nirvanaligh ng.in नवाणा लाइट
213. Ideal for lining walkways in gardens, parks, and residential areas, providing safe and attractive illumination for pedestrians. Driveways: Enhances the safety and visibility off driveways, helping to guide vehicles and prevent accidents. Garden Landscaping: Used to highlight specific features in gardens, such as trees, shrubs, or water features, creating a dramatic and inviting ambiance The Gleam Series of in-ground lights is engineered to provide both functional and aesthetic illumination for various outdoor environments. These lights are perfect for illuminating walkways, driveways, gardens, and other outdoor areas, adding safety, security, and beauty to any space. GLEAM SERIES NL 4505 NL 4509 NL 4510 NL 4511 Gleam Series In-Ground Lighting 188 www.nirvanaligh ng.in नवाणा लाइट
214. HIGH POWER LED D H Gleam Series In-Ground Lighting Ÿ Walkways and Pathways Ÿ Driveways ŸGarden Landscaping Ÿ Outdoor Patios and Decks Ÿ Commercial and Public Spaces Ÿ Walkways and Pathways Ÿ Driveways ŸGarden Landscaping Ÿ Outdoor Patios and Decks Ÿ Commercial and Public Spaces Features Applications NL 4509 NL 4505 Accessories Outer Housing Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model SS Top Ring & Aluminum Die Cast Body NL 4505 5W 3000K AC 220V-240V LED SS >80 IP65 Non-Dimmable 50,000 Hrs D : 55mm/H : 86mm/ HJ : 110mm NL 4509 10W 3000K AC 220V-240V LED SS >80 IP65 Non-Dimmable 50,000 Hrs D : 85mm/H : 90mm/ HJ : 115mm 25° 25° 189 www.nirvanaligh ng.in नवाणा लाइट
215. HIGH POWER LED Gleam Series In-Ground Lighting D H NL 4511 NL 4510 Accessories Outer Housing Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4510 5W 3000K AC 220V-240V LED SS >80 IP65 Non-Dimmable 50,000 Hrs D : 75mm / H: 86mm / HJ : 100mm Aluminum Die Cast 1 Way NL 4511 8W 3000K AC 220V-240V LED SS >80 IP65 Non-Dimmable 50,000 Hrs D : 75mm / H : 86mm / HJ : 100mm Aluminum Die Cast 2 Way Ÿ Walkways and Pathways Ÿ Driveways ŸGarden Landscaping Ÿ Outdoor Patios and Decks Ÿ Commercial and Public Spaces Ÿ Walkways and Pathways Ÿ Driveways ŸGarden Landscaping Ÿ Outdoor Patios and Decks Ÿ Commercial and Public Spaces Features Applications 190 www.nirvanaligh ng.in नवाणा लाइट
216. 191 www.nirvanaligh ng.in नवाणा लाइट
217. Outdoor Architectural Lighting The Lucia Series outdoor LED floor washer and flood light is designed for a wide range of exterior applications, offering robust construction and high performance in various outdoor environments. These lights are ideal for creating safe, well-lit pathways and landscapes, enhancing the aesthetics and functionality of outdoor spaces. Lucia Floor Washer / Flood Light 192 www.nirvanaligh ng.in नवाणा लाइट
218. Lucia - Outdoor LED Floor Washer suitable for exterior landscape, pathway, corridor, external building periphery, ramp, and parking lot area. Aluminium die-cast housing with high resistance against c o r r o s i o n p r e - t r e a t e d w i t h POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather . The Lorenza outdoor LED floor washer and foot light is designed to provide robust and efficient lighting for various exterior applications. Its durable construction and high-performance features make it suitable for a range of outdoor settings. LUCIA LORENZA WALL SURFACE WALL RECESSED NL 4208 NL 4209 NL 4210 NL 4211 NL 4203 NL 4204 NL 4205 NL 4206 Lucia Floor Washer / Flood/ Foot Light NL 4501B NL 4502 NL 4029 NL 4501 NL 4501A NL 4501D NL 4501C 193 www.nirvanaligh ng.in नवाणा लाइट
219. HIGH POWER LED D H NL 4501 A NL 4502 Features Applications Ÿ Pathway and Corridor Lighting: Safety and Visibility Ÿ External Building Periphery: Security Lighting Ÿ Ramps and Parking Lot Areas: Functional Illumination. Ÿ Aluminum Die-Cast Body: Durability Ÿ High-Power LED for Better Output Luminous: Enhanced Brightness Ÿ Energy Efficiency. Ÿ Non-Corrosive Stainless Steel Fasteners and Toughened Glass: Stainless Steel Fasteners. Ÿ Pre-Wired Cable Gland Compliance to IP67 Rating: Weatherproof Design. ŸMounting Jacket/Sleeve Included: Installation Flexibility Lucia Floor Washer / Flood Light Accessories Outer Housing NL 4501 NL 4501 NL 4501 A NL 4502 Specication Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 3W 3W 6W Power (W) 3000K AC 220V-240V High power LED 3000K AC 220V-240V High power LED 3000K AC 220V-240V High power LED White >80 IP65 Non-Dimmable 50,000 Hrs D : 50mm/H : 70mm/ HJ :95mm Aluminum Die Cast D : 50mm/H : 70mm/ HJ :95mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast Aluminum Die Cast D : 65mm/H : 70mm/ HJ :95mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Diffused Diffused Diffused 194 www.nirvanaligh ng.in नवाणा लाइट
220. Lucia Floor Washer / Flood Light HIGH POWER LED NL 4501B NL 4029 NL 4501D NL 4501C Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model Aluminum Die Cast D : 50mm H : 70mm HJ :95mm NL 4501 C 3W 3000K AC 220V-240V High power LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast D : 50mm H : 70mm HJ :95mm NL 4501 D 3W 3000K AC 220V-240V High power LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast D : 65mm H : 65mm HJ :90mm NL 4029 3W 3000K AC 220V-240V High power LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast D : 50mm H : 70mm HJ :95mm NL 4501 B 3W 3000K AC 220V-240V High power LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Forward Throw Diffused Diffused Asymmetric Features Applications Ÿ Pathway and Corridor Lighting: Safety and Visibility Ÿ External Building Periphery: Security Lighting Ÿ Ramps and Parking Lot Areas: Functional Illumination. Ÿ Aluminum Die-Cast Body: Durability Ÿ High-Power LED for Better Output Luminous: Enhanced Brightness Ÿ Energy Efficiency. Ÿ Non-Corrosive Stainless Steel Fasteners and Toughened Glass: Stainless Steel Fasteners. Ÿ Pre-Wired Cable Gland Compliance to IP67 Rating: Weatherproof Design. ŸMounting Jacket/Sleeve Included: Installation Flexibility 195 www.nirvanaligh ng.in नवाणा लाइट
221. 196 www.nirvanaligh ng.in नवाणा लाइट
222. Outdoor Architectural Lighting The Lorenzo outdoor LED floor washer and foot light is designed to provide robust and efficient lighting for various exterior applications. Its durable construction & high-performance features make it suitable for a range of outdoor settings. Lorenza Floor Washer / Foot Light 197 www.nirvanaligh ng.in नवाणा लाइट
223. HIGH POWER LED NL 4205 NL 4203 NL 4204 NL 4206 D H Lorenza Floor Washer / Floot Light Surface Mounted Features Applications ŸExterior Landscape: Garden and Yard Lighting ŸPathways and Corridors: Walkway Lighting ŸRamps and Parking Lots: Safety Lighting Ÿ Aluminium die cast body ŸCorrosion Resistance ŸPolymerization Pre-Treatment: Enhanced Protection ŸWeatherproof Design Ÿ Hi-power LED used for better output luminous. ŸEnergy Efficiency ŸPathways and Corridors ŸApplications: Exterior Landscape Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4203 8W 3000K AC 220V-240V LED Aluminum Die Cast Asymmetrical Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 32mm NL 4204 8W 3000K AC 220V-240V LED Aluminum Die Cast Asymmetrical Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100x100mm H : 32mm NL 4205 8W 3000K AC 220V-240V LED Aluminum Die Cast Asymmetrical Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 105x75mm H : 32mm NL 4206 8W 3000K AC 220V-240V LED Aluminum Die Cast Asymmetrical Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 75x105mm H : 32mm 198 www.nirvanaligh ng.in नवाणा लाइट
224. HIGH POWER LED NL 4210 NL 4208 NL 4209 NL 4211 Lorenza Floor Washer / Floot Light D H Recessed Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4208 8W 3000K AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 115mm H : 50mm Asymmetrical NL 4209 8W 3000K AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 115x115mm H : 50mm Asymmetrical NL 4210 8W 3000K AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 120x90mm H : 50mm Asymmetrical NL 4211 8W 3000K AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D :90x120mm H : 50mm Asymmetrical Features Applications ŸExterior Landscape: Garden and Yard Lighting ŸPathways and Corridors: Walkway Lighting ŸRamps and Parking Lots: Safety Lighting Ÿ Aluminium die cast body ŸCorrosion Resistance ŸPolymerization Pre-Treatment: Enhanced Protection ŸWeatherproof Design Ÿ Hi-power LED used for better output luminous. ŸEnergy Efficiency ŸPathways and Corridors ŸApplications: Exterior Landscape 199 www.nirvanaligh ng.in नवाणा लाइट
225. 200 www.nirvanaligh ng.in नवाणा लाइट
226. Outdoor Architectural Lighting The Nuvo bollard LED garden and pathway luminaries are designed to provide effective, glare-free illumination for various outdoor spaces. With a robust construction and specialized features, these luminaries enhance safety and aesthetics in gardens, pathways, and public area lighting. Nuvo-NL 100 Bollard Light 201 www.nirvanaligh ng.in नवाणा लाइट
227. Aluminium Housing: High Corrosion Resistance: The bollard is constructed from high-quality aluminium, which provides excellent resistance to corrosion. This makes it suitable for use in diverse environmental conditions, ensuring longevity and durability. Nuvo bollards ensure a comfortable lighting experience. This feature helps in reducing visual discomfort and creating a pleasant environment. Effective Ground Lighting: The luminaries are engineered to evenly distribute light across the ground surface, enhancing visibility and safety without causing harsh glare. The Nuvo bollard LED luminaries offer a blend of durability, aesthetics, and functionality, making them an excellent choice for enhancing lighting in various outdoor settings. Nuvo-NL 100 Bollard Light 202 www.nirvanaligh ng.in नवाणा लाइट
228. SMD LED D H OP D NL4321 NL4322 NL4323 NL4324 NL4325 ŸStone Wash Surface Treatment & Enhanced Durability Ÿ Glare-Free Illumination Comfortable Lighting Ÿ Versatile Applications Entrances Features ŸEntrances ŸFootpaths ŸCompound Periphery ŸGarden and Landscape Applications Nuvo-NL 100 Bollard Lights Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4321 10W/12W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 300/700/875mm OP: 35mm NL 4325 10W/12W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 365/765/940mm OP: 100mm 360° NL 4322 10W/12W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 365/765/940mm OP: 100mm 360° NL 4323 10W/12W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 330/730/905mm OP: 65mm 360° NL 4324 10W/12W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 330/730/905mm OP: 65mm 180° 360° 203 www.nirvanaligh ng.in नवाणा लाइट
229. SMD LED Nuvo-NL 140 Bollard Lights NL4331 NL4332 NL4333 NL4334 NL4335 D H OP D NL 4331 NL 4332 NL 4333 NL 4334 NL 4335 Specication Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 15W/20W 15W/20W 15W/20W 15W/20W 15W/20W Power (W) 3K/4K/TW AC 220V-240V LED 3K/4K/TW AC 220V-240V LED 3K/4K/TW AC 220V-240V LED 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 300/700/900mm OP: 48mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 350/750/950mm OP: 98mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 315/715/915mm OP: 62mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 315/715/915mm OP: 62mm 360° 360° 360° 180° 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 350/750/950mm OP: 98mm 360° ŸStone Wash Surface Treatment & Enhanced Durability Ÿ Glare-Free Illumination Comfortable Lighting Ÿ Versatile Applications Entrances Features ŸEntrances ŸFootpaths ŸCompound Periphery ŸGarden and Landscape Applications 204 www.nirvanaligh ng.in नवाणा लाइट
230. Nuvo-NL 165 Bollard Lights SMD LED NL4341 NL4342 NL4343 NL4344 NL4345 D H OP D Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4341 20W/24W 3K/4K/TW AC 220V-240V LED NL 4342 20W/24W 3K/4K/TW AC 220V-240V LED NL 4343 20W/24W 3K/4K/TW AC 220V-240V LED NL 4344 20W/24W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 310/710/910mm OP: 60mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 370/770/970mm OP: 120mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 370/770/970mm OP: 120mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 370/770/970mm OP: 120mm NL 4345 20W/24W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 350/750/950mm OP: 100mm 360° 360° 360° 180° 360° ŸStone Wash Surface Treatment & Enhanced Durability Ÿ Glare-Free Illumination Comfortable Lighting Ÿ Versatile Applications Entrances Features ŸEntrances ŸFootpaths ŸCompound Periphery ŸGarden and Landscape Applications 205 www.nirvanaligh ng.in नवाणा लाइट
231. SMD LED NL 4346 NL 4347 Nuvo-NL 165 Bollard Lights D H OP D Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4346 25W 3K/4K/TW AC 220V-240V LED NL 4347 25W 3K/4K/TW AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 375mm/775mm/975mm OP: 75mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm OP: 75mm H : 375mm/775mm/975mm 180° 360° ŸStone Wash Surface Treatment & Enhanced Durability Ÿ Glare-Free Illumination Comfortable Lighting Ÿ Versatile Applications Entrances Features ŸEntrances ŸFootpaths ŸCompound Periphery ŸGarden and Landscape Applications 206 www.nirvanaligh ng.in नवाणा लाइट
232. 207 www.nirvanaligh ng.in नवाणा लाइट
233. Outdoor Architectural Lighting The Trend bollard LED luminaires are designed to offer effective, glare-free illumination for a variety of outdoor e n v i r o n m e n t s . W i t h r o b u s t construction and specialized features, these luminaires enhance both functionality and aesthetics in garden, pathway, and public area lighting. Trend Bollard Light 208 www.nirvanaligh ng.in नवाणा लाइट
234. Trend - LED garden and pathway luminaries, Aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. Glare free illumination of ground surface and are perfect for illuminating entrances, footpaths, public area, compound periphery as well as garden and landscape architecture. High Corrosion Resistance Constructed from durable aluminium, the bollard luminaries are engineered to resist corrosion, ensuring long-term performance even in challenging weather conditions. The aluminium material provides a combination of strength and lightweight properties, making it suitable for outdoor use. Trend Bollard Light 750mm NL 4401 NL 4402 NL 4403 209 www.nirvanaligh ng.in नवाणा लाइट
235. SMD LED NL 4403 ŸAluminium Housing Ÿ Lightweight and Durable Ÿ Stone Wash Surface Treatment Ÿ Aesthetic Finish Features ŸDriveways - Function ŸPathways - Function ŸFlowerbeds - Function ŸEntrances - Function ŸSquares & Gardens -Function Applications Trend Bollard Lights NL 4401 NL 4402 NL 4403 AL AL H H H NL 4401 NL 4402 NL 4403 AL Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 10W/15W 3K/4K/6K AC 220V-240V LED 10W/15W 3K/4K/6K AC 220V-240V LED 2x10W/15W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 225mm H : 750mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 225mm H : 750mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL :400mm H : 750mm Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Asymmetrical Asymmetrical Asymmetrical 210 www.nirvanaligh ng.in नवाणा लाइट
236. Outdoor Architectural Lighting The Trend bollard LED luminaires are designed to offer effective, glare-free illumination for a variety of outdoor e n v i r o n m e n t s . W i t h r o b u s t construction and specialized features, these luminaires enhance both functionality and aesthetics in garden, pathway, and public area lighting. Slim Trend Bollard Light 211 www.nirvanaligh ng.in नवाणा लाइट
237. Trend - LED garden and pathway luminaries, Aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. Glare free illumination of ground surface and are perfect for illuminating entrances, footpaths, public area, compound periphery as well as garden and landscape architecture. High Corrosion Resistance Constructed from durable aluminium, the bollard luminaries are engineered to resist corrosion, ensuring long-term performance even in challenging weather conditions. The aluminium material provides a combination of strength and lightweight properties, making it suitable for outdoor use. Slim Trend Bollard Light NL 4355 NL 4356 NL 4357 750mm 900mm 200mm Arial View NL 4357 212 www.nirvanaligh ng.in नवाणा लाइट
238. SMD LED NL 4357 Slim Trend Bollard Lights NL 4355 NL 4356 NL 4357 NL 4357 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 10W/15W 3K/4K/6K AC 220V-240V LED 2x10W/15W 3K/4K/6K AC 220V-240V LED 10W/15W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 115mm H : 750mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 190mm H : 750mm Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL :140mm H : 750mm Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Asymmetrical Asymmetrical Asymmetrical Spoon Lens AL H NL 4356 H NL 4355 AL H AL ŸAluminium Housing Ÿ Lightweight and Durable Ÿ Stone Wash Surface Treatment Ÿ Aesthetic Finish Features ŸDriveways - Function ŸPathways - Function ŸFlowerbeds - Function ŸEntrances - Function ŸSquares & Gardens -Function Applications 213 www.nirvanaligh ng.in नवाणा लाइट
239. Outdoor Architectural Lighting The "Adjustable" bollard from Nirvana Lighting is a versatile lighting solution designed for various outdoor settings. Here's an overview of its features & applications. Adjustable Bollard Light 214 www.nirvanaligh ng.in नवाणा लाइट
240. NL 4408 NL 4407 NL 4406 NL 4405 Allows for customizable light direction, enhancing flexibility in illumination. Energy-efficient & long- lasting, providing effective lighting while conserving energy. Durable with high corrosion resistance, ensuring longevity even in harsh outdoor environments. Adjustable Bollards LED garden and pathway luminaries, Aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. Glare free illumination of ground surface and are perfect for illuminating entrances, footpaths, public area, compound periphery as well as garden & landscape architecture. Adjustable Bollard Light Adjustable LED 10° 20° 30° 215 www.nirvanaligh ng.in नवाणा लाइट
241. SMD LED NL 4408 ŸAdjustable Design ŸLED Technology ŸAluminum Housing ŸStone Wash Surface Treatment ŸGlare-Free Illumination Features ŸEntrances ŸFootpaths ŸPublic Areas ŸCompound Periphery ŸGarden and Landscape Architecture Applications Adjustable Bollard Lights NL 4405 NL 4406 NL 4407 NL 4408 AL AL AL H H H Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model Dark Grey >80 I 65 P Non-Dimmable 50,000 Hrs GI AL : 225mm/ H : 750mm AC 220V-240V LED Type II Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs GI AL : mm/ H : 750mm 400 AC 220V-240V LED Type II Dark Grey >80 I 65 P Non-Dimmable 50,000 Hrs GI D : 100x100mm/ H : 750mm AC 220V-240V LED Type II Dark Grey >80 Ip65 Non-Dimmable 50,000 Hrs GI AL : 225mm/ H : 750mm AC 220V-240V LED Type II NL 4406 10W/15W 3K/4K/6K NL 4407 2x10W/15W 3K/4K/6K NL 4408 10 1 W/ 5W 3K/4K/6K NL 4405 3K/4K/6K 10W/15W 216 www.nirvanaligh ng.in नवाणा लाइट
242. Adjustable Led ,20°,30° 10° 3mtrs 2mtrs 8mtrs 4mtrs 6mtrs 4mtrs Adjustable Led ,20°,30° 10° Adjustable Led ,20°,30° 10° 217 www.nirvanaligh ng.in नवाणा लाइट
243. 60 Adjustable Led 30° 10°,20°, ADJUSTABLE - BOLLARD 8mtrs Adjustable Led 20° 10° 30° , , 8mtrs 8mtrs Longitudinal Asymmetric Optic (AL) 2mtrs 2mtrs Adjustable Led 10°,20°,30° 2mtrs 2mtrs 218 www.nirvanaligh ng.in नवाणा लाइट
244. 219 www.nirvanaligh ng.in नवाणा लाइट
245. The NUVO Bollard LED garden & pathway luminaries are designed to provide effective, glare-free illumination for various outdoor spaces. With a robust construction & specialized features, these luminaries enhance safety & aesthetics in garden, pathway, & public area lighting. Two way NL 4409 One way NL 4410 NL 4409 NL 4410 Outdoor Architectural Lighting It sounds like you're describing a specific type of outdoor lighting product designed for garden and pathway illumination. These luminaries are characterized by Single/Dual-LED Configurations: Providing flexible lighting options depending on the desired brightness or design. Single/Dual Bollard Light 220 www.nirvanaligh ng.in नवाणा लाइट
246. SMD LED D H ŸAluminum Extruded Die Cast Body ŸHi-Power SMD LED ŸNon-Corrosive Stainless Steel (SS) Fasteners ŸPre-Wired with Cable Gland ŸSilicon Gasket Features ŸDriveways ŸPathways ŸFlowerbeds ŸEntrances ŸSquares & Gardens Applications Single/Dual Bollard Lights NL 4409 NL 4410 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model Dark Grey >80 IP65 Non-Dimmable 40,000 Hrs D : 100x100mm/ H : 750mm Aluminum Die Cast NL 4409 12W/15W 3K/4K/6K AC 100V-240V LED Asymmetrical Dark Grey >80 IP65 Non-Dimmable 40,000 Hrs D : 100x100mm/ H : 750mm Aluminum Die Cast NL 4410 3K/4K/6K AC 100V-240V LED 2x12W/15W Asymmetrical 221 www.nirvanaligh ng.in नवाणा लाइट
247. 222 www.nirvanaligh ng.in नवाणा लाइट
248. Outdoor Architectural Lighting Nuvo Bollard Motion Sensor Series Introducing Nirvana Light's Motion Sensor Bollard System. Designed to enhance safety and security in residential, commercial, and public settings, our motion sensor bollards provide a seamless blend of functionality and style. With cutting-edge technology, these smart lights automatically activate when motion is detected, ensuring well-lit pathways while conserving energy when not in use. 223 www.nirvanaligh ng.in नवाणा लाइट
249. Nuvo Bollard Motion Sensor Series NL4321 NL4322 NL4323 NL4324 NL4325 NL 4346 NL 4347 NUVO - BOLLARD NL 100/140/165 NL 4408 NL 4407 NL 4406 NL 4405 TREND/ADJUSTABLE - BOLLARD NL 4409 NL 4410 SINGLE/DUAL BOLLARD One way Two way The intelligent Motion sensor system can be integrated with Nirvana light other range of bollards. 224 www.nirvanaligh ng.in नवाणा लाइट
250. 225 www.nirvanaligh ng.in नवाणा लाइट
251. Outdoor Architectural Lighting Introducing delicate Garden Led Lights, represents a perfect blend of aesthetic appeal and advanced technology. Designed specifically for enhancing outdoor spaces, these lights not only illuminate gardens but also contribute to their beauty during nighttime, creating enchanting atmospheres for events, gatherings, or serene evenings. Elegant Design Durable Construction Easy Installation Architectural garden Lights 226 www.nirvanaligh ng.in नवाणा लाइट
252. Architectural Garden Lights H D Earth Spike Mounted External Accessories IP67 Cable Connector Earth Spike Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4721-450 3K/4K/6K 24V DC SMD LED Rustic Brown/White/Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminium Die Cast D : 100x15mm H : 450mm 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 100x15mm H : 600mm 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 100x15mm H : 800mm NL 4721-600 NL 4721-800 5W 5W 5W - - - 227 www.nirvanaligh ng.in नवाणा लाइट
253. Architectural Garden Lights H D Earth Spike Mounted External Accessories IP67 Cable Connector Earth Spike Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL-4722-450 3K/4K/6K 24V DC SMD LED Rustic Brown/White/Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminium Die Cast D : 90x40mm H : 450mm 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 90x40mm H : 600mm 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 90x40mm H : 800mm NL-4722-600 NL-4722-800 5W 5W 5W - - - 228 www.nirvanaligh ng.in नवाणा लाइट
254. Architectural Garden Lights H D Earth Spike Mounted External Accessories IP67 Cable Connector Earth Spike Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4723-450 5W 3K/4K/6K 24V DC SMD LED Rustic Brown/White/Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminium Die Cast D : 90x50mm H : 450mm 5W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 90x50mm H : 600mm 5W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 90x50mm H : 800mm NL 4723-600 NL 4723-800 - - - 229 www.nirvanaligh ng.in नवाणा लाइट
255. Architectural Garden Lights H D Earth Spike Mounted External Accessories IP67 Cable Connector Earth Spike Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4724-450 2W 3K/4K/6K 24V DC SMD LED Rustic Brown/White/Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminium Die Cast D : 45x65mm H : 450mm 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 45x65mm H : 1150mm NL 4724-1150 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 45x65mm H : 900mm NL 4724-900 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 45x65mm H : 750mm NL 4724-750 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 45x65mm H : 600mm NL 4724-600 - - - - - 230 www.nirvanaligh ng.in नवाणा लाइट
256. Architectural Garden Lights H D Earth Spike Mounted External Accessories IP67 Cable Connector Earth Spike Mounted Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4725-400 2W 3K/4K/6K 24V DC SMD LED Rustic Brown/White/Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminium Die Cast D : 24mm H : 400mm 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 24mm H : 700mm 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 24mm H : 1000mm 2W 3K/4K/6K 24V DC SMD LED >80 IP65 Non-Dimmable 50,000 Hrs D : 24mm H : 1300mm NL 4725-700 NL 4725-1000 NL 4725-1300 - - - - 231 www.nirvanaligh ng.in नवाणा लाइट
257. 232 www.nirvanaligh ng.in नवाणा लाइट
258. Outdoor Architectural Lighting SLIMO Pole Light The pole light is equipped with high-power LEDs from OSRAM (Germany), known for their reliability and efficiency. These LEDs provide an extra-wide beam angle, ensuring broad and uniform illumination. Slimo Pole Light 233 www.nirvanaligh ng.in नवाणा लाइट
259. 100x 2630 140x3630 165x3930 165x 4230 165x2630 SMD LED Ÿ Aluminium Housing with Integrated MS Hot-Dip Galvanized Pipe. Ÿ Hi-Power OSRAM LED Ÿ Non-Corrosive SS Fasteners Ÿ UV-Stabilized Polycarbonate Diffuser Ÿ Silicon Gasket Ÿ GI Mounting Plate with 360° Alignment ŸPre-Wired and Ready for Operation ŸIP65 Rated with Pre-Wired Cable Gland Features ŸSLIMO Pole Lights ŸDriveways ŸPathways ŸBuilding Surrounds ŸEntrances ŸSquares ŸGardens Applications Slimo Pole Lights 234 www.nirvanaligh ng.in नवाणा लाइट
260. Slimo Pole Lights SLIMO - D100 NL 4325-CS H 2630 NL 4325-CS H 3630 NL 4325-CS H 2930 NL 4325-CS H 3930 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 3K/4K/6K AC 220V-240V LED AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 2630mm/ 3630mm OP: 600mm Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 100mm H : 2930mm / 3930mm OP: 900mm 36W 50W 3K/4K/6K Symmetrical Symmetrical SLIMO - D140 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 3K/4K/6K AC 220V-240V LED AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 2630mm/ 3630mm OP: 600mm D : 140mm H : 2930mm/ 3930mm OP: 900mm 36W 36W/50W 3K/4K/6K Symmetrical Symmetrical NL 4335-CS H 2630 NL 4335-CS H 3630 NL 4335-CS H 2930 NL 4335-CS H 3930 H D OP SLIMO - D100 SLIMO - D140 235 www.nirvanaligh ng.in नवाणा लाइट
261. SLIMO - D140 Slimo Pole Lights Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 3K/4K/6K AC 220V-240V LED AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 140mm H : 3230mm OP: 1200mm D : 140mm H : 4230mm OP: 1200mm 60W 60W 3K/4K/6K NL 4335-CS H 3230 NL 4335-CS H 4230 Symmetrical Symmetrical Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model 3K/4K/6K 50W 70W 3K/4K/6K NL 4345-CS H 2630 NL 4345-CS H 3630 NL 4345-CS H 2930 NL 4345-CS H 3930 AC 220V-240V LED AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 2630mm / 3630mm OP: 600mm D : 165mm H : 2930mm/ 3930mm OP: 900mm Symmetrical Symmetrical SLIMO - D165 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs 90W 3K/4K/6K NL 4345-CS H 4230 3K/4K/6K AC 220V-240V LED Aluminum Die Cast Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D : 165mm H : 4230mm OP: 1200mm D : 165mm H : 3230mm OP: 1200mm 90W NL 4345-CS H 3230 Symmetrical Symmetrical SLIMO - D165 SLIMO - D140 SLIMO - D165 SLIMO - D165 236 www.nirvanaligh ng.in नवाणा लाइट
262. 237 www.nirvanaligh ng.in नवाणा लाइट
263. Outdoor Architectural Lighting The GLOWSPIRE STICK - Lighting S y s t e m i s A l u m i n i u m & G I Construction: Combines aluminium and galvanized iron (GI) for a robust and corrosion-resistant housing, ensuring long-lasting performance in outdoor environments. Pre-Wired Cable Gland with IP67 Rating: Supplied pre-wired with a cable gland that meets IP67 standards, providing protection against dust and water ingress, suitable for harsh weather conditions. Glowspire Stick Lighting System 238 www.nirvanaligh ng.in नवाणा लाइट
264. SMD LED NL 4350 NL 4351 171.00mm 722.00mm 165.00mm 3000.00mm 171.00mm 818.00mm 76.00mm Glowspire Stick Lighting System Ÿ Aluminum extruded Die cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Product supplied pre-wired cable gland compliance to IP67 rating Ÿ Silicon gasket. Ÿ Street Lighting Ÿ Roadways Ÿ Expressways Ÿ Malls Ÿ Residential Area Lighting Ÿ Courtyards Features Applications 3000.00mm Color Rendering Index (CRI) Specication Power (W) Color Temperature (CCT) Optics Beam Angle Housing Finish Model LED 30W/45W/60W ≥80 220-240V AC >0.9 IP65 Non-Dimmable Ø171x818MM ≥80 Aluminium & GI Pole Clear Diffuser 220-240V AC >0.9 IP65 Non-Dimmable Ø171x722MM 2M/3M/4M Clear Diffuser Osram/Bridgelux/ Equivalent Osram/Bridgelux/ Equivalent 3000K/4000K/6000K 3000K/4000K/6000K Aluminium & GI Pole 30W/45W/60W 2M/3M/4M Symmetrical Symmetrical Dark Grey Dark Grey NL 4350 NL 4351 Input Voltage Power Factor (PF) Protection Rating (IP) Dimming Head Dimension Total Height 239 www.nirvanaligh ng.in नवाणा लाइट
265. 240 www.nirvanaligh ng.in नवाणा लाइट
266. Outdoor Architectural Lighting Marvello - the slim square pole Street Light having LED driver as an integral part of the design, totally weather proof aesthetically contoured, one arm or two arm, Easy revamping by bottom opening for maintenance High Brightness, LED Light source do not pose any environment risks. Energy efficient range of luminaries for road and residential streets that combine a clean look with powerful performance & robustness. Marvello Modern Street Light NL 4412 241 www.nirvanaligh ng.in नवाणा लाइट
267. 100x100 Pole NL 4412 ŸAluminium extruded Die cast body Ÿ Hi-Power SMD LED Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. ŸWall Thickness: Available in 2mm and 3mm Features ŸModern Street Light ŸSmaller Roadways ŸPrivate Driveways ŸResidential Area Lighting ŸCourtyards Applications Marvello Modern Street Light NL 4411 AL-750mm NL 4412 H-3/4/ 5/6-Mtrs AL-750mm NL 4413 H-3/4/ 5/6-Mtrs AL-750mm H-3/4/ 5/6-Mtrs SMD LED Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4411 30W/48W/60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI Type II NL 4412 30W/48W/60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI Type II NL 4413 30W/48W/60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI Type II 242 www.nirvanaligh ng.in नवाणा लाइट
268. ŸAluminium extruded Die cast body Ÿ Hi-Power SMD LED Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. ŸWall Thickness: Available in 2mm and 3mm Features ŸModern Street Light ŸSmaller Roadways ŸPrivate Driveways ŸResidential Area Lighting ŸCourtyards Applications Marvello Modern Street Light NL 4414 H-3/4/ 5/6-Mtrs AL-1500mm NL 4415 H-3/4/ 5/6-Mtrs AL-150mm NL 4416 H-3/4/ 5/6-Mtrs AL-1500mm SMD LED 100x100 Pole NL 4415 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4414 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED NL 4415 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED NL 4416 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 1500mm/ H : 3/4/5/6Mtrs Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 1500mm/ H : 3/4/5/6Mtrs Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 1500mm/ H : 3/4/5/6Mtrs GI GI GI Type II Type II Type II 243 www.nirvanaligh ng.in नवाणा लाइट
269. NL 4418 NL 4419 NL 4417 ŸAluminium extruded Die cast body Ÿ Hi-Power SMD LED Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. ŸWall Thickness: Available in 2mm and 3mm Features ŸModern Street Light ŸSmaller Roadways ŸPrivate Driveways ŸResidential Area Lighting ŸCourtyards Applications Marvello Modern Street Light H-3/4/ 5/6-Mtrs AL-1500mm AL-750mm AL-750mm H-3/4/ 5/6-Mtrs H-3/4/ 5/6-Mtrs SMD LED 100x100 Pole NL 4419 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4417 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED NL 4418 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 1500mm/ H : 3/4/5/6Mtrs Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI GI Type II Type II NL 4419 2x30W/2x48W/2x60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI Type II 244 www.nirvanaligh ng.in नवाणा लाइट
270. ŸAluminium extruded Die cast body Ÿ Hi-Power SMD LED Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. ŸWall Thickness: 3mm Features ŸModern Street Light ŸSmaller Roadways ŸPrivate Driveways ŸResidential Area Lighting ŸCourtyards ŸPublic area lighting like parks & Squares. Applications Marvello Modern Street Light NL 4420 NL 4440 H-3/4/ 5/6-Mtrs AL-750mm H-3/4/ 5/6-Mtrs AL-750mm SMD LED 100x100 Pole NL 4420 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4420 3x30W/3x48W/3x60W 3K/4K/6K AC 220V-240V LED NL 4440 4x30W/4x48W/4x60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI GI Type II Type II 245 www.nirvanaligh ng.in नवाणा लाइट
271. H NL 4423 NL 4424 H ŸAluminium extruded Die cast body Ÿ Hi-Power SMD LED Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. ŸWall Thickness: Available in 2mm and 3mm Features ŸModern Street Light ŸSmaller Roadways ŸPrivate Driveways ŸResidential Area Lighting ŸCourtyards Applications Marvello Modern Street Light H-3/4/ 5/6-Mtrs AL-750mm H-3/4/ 5/6-Mtrs AL-1658mm SMD LED NL 4424 NL 4423 Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4423 3K/4K/6K AC 220V-240V LED NL 4424 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 750mm/ H : 3/4/5/6Mtrs GI Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs AL : 1658mm/ H : 3/4/5/6Mtrs GI 2x30W/2x48W/2x60W 30W/48W/60W Type II Type II 246 www.nirvanaligh ng.in नवाणा लाइट
272. 247 www.nirvanaligh ng.in नवाणा लाइट
273. Outdoor Architectural Lighting Bollard & Pole Light Atria Aluminium Housing High Corrosion Resistance The bollard is constructed from high-quality aluminium, which provides excellent resistance to corrosion. This makes it suitable for use in diverse environmental conditions, ensuring longevity & durability. 248 www.nirvanaligh ng.in नवाणा लाइट
274. Atria - Decorative light column designed to provide soft, uniform light. An elegant and efficient column with translucent diffuser enclosure to prevent glare and provide a unique, comfortable light choice. A sleek minimalist shape provides distinctive lighting effects by night and decorative urban effect during the day. Equipped with high-power LEDs from OSRAM, known for their reliability and efficiency. These LEDs provide an extra-wide beam angle for broad and uniform. Aluminium Housing with MS Hot-Dip Galvanized Pipe: The housing is made from aluminum, and the integrated mild steel (MS) pipe is hot-dip galvanized for enhanced corrosion resistance. The entire assembly is treated with UV-stabilized polyurethane liquid paint, making it suitable for outdoor use. Bollard & Pole Light Atria 249 www.nirvanaligh ng.in नवाणा लाइट
275. Features Applications D H Ÿ Aluminium Housing with MS Hot-Dip Galvanized Pipe ŸHi-Power OSRAM (Germany) LED ŸNon-Corrosive SS Fasteners ŸTranslucent Glass ŸSilicon Gasket ŸGI Mounting Plate ŸPre-Wired with Accessories ŸIP65 Rated Cable Gland ŸStreet Lighting ŸSmaller Roadways ŸExpressways ŸPrivate driveways ŸResidential Area Lighting ŸCourtyards ŸPublic area lighting like parks & Squares. Bollard Light Atria SMD LED Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4382 20W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D :165mm/H :600/800mm Aluminum Die Cast Symmetrical 250 www.nirvanaligh ng.in नवाणा लाइट
276. Pole Light Atria D H SMD LED Specication Power (W) Color Temperature (CCT) Input Voltage Optics Beam Angle Housing Finish Protection Rating (IP) Dimming Size Color Rendering Index (CRI) Life Span (hours) Model NL 4386 30W/45W/60W 3K/4K/6K AC 220V-240V LED Dark Grey >80 IP65 Non-Dimmable 50,000 Hrs D :300mm H :3M/4M/5M/6M Aluminum Die Cast Symmetrical Features Applications Ÿ Aluminium Housing with MS Hot-Dip Galvanized Pipe ŸHi-Power OSRAM (Germany) LED ŸNon-Corrosive SS Fasteners ŸTranslucent Glass ŸSilicon Gasket ŸGI Mounting Plate ŸPre-Wired with Accessories ŸIP65 Rated Cable Gland ŸStreet Lighting ŸSmaller Roadways ŸExpressways ŸPrivate driveways ŸResidential Area Lighting ŸCourtyards ŸPublic area lighting like parks & Squares. 251 www.nirvanaligh ng.in नवाणा लाइट
277. 252 www.nirvanaligh ng.in नवाणा लाइट
278. Outdoor Architectural Lighting Pole Light Squaro The SQUARO - Pole Lights are designed for a range of o u t d o o r a p p l i c a t i o n s , offering both functionality & durability. These pole lights are equipped with LED t e c h n o l o g y, p ro v i d i n g e f f i c i e n t a n d b r i g h t illumination suitable for streets & pathways. 253 www.nirvanaligh ng.in नवाणा लाइट
279. Ÿ GI made Housing. Ÿ Hi-power SMD LED Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. Ÿ Street Lighting Ÿ Roadways Ÿ Expressways Ÿ Private driveways Ÿ Residential Area Lighting Ÿ Courtyards Ÿ Public area lighting like parks & Squares. SMD LED 4421 - A (Square Pole) 4421 - B (Round Pole) 800mm 600mm 100mm 100mm 145mm Pole Light Squaro Features Applications Specication LED POWER CCT(K) CRI MODEL NL 4421 - A OSRAM 30W/45W/60W 3000K/4000K/6000K ≥80 T1/T2/T3/T4 NL 4421 - B OSRAM 30W/45W/60W 3000K/4000K/6000K ≥80 T1/T2/T3/T4 BEAM ANGLE LUMINAIRE BODY OPTICS HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION GI PMMA CLEAR OPTIC LENSES GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY BLACK/DARK GREY 220-240V AC 220-240V AC >0.9 IP65 >0.9 IP65 ON-OFF 800X145 ON-OFF 800X145 POLE HEIGHT 3M/4M/5M/6M 3M/4M/5M/6M WORKING TEMP -20°C ~ 50°C -20°C ~ 50°C 254 www.nirvanaligh ng.in नवाणा लाइट
280. 4422 - A (Square Pole) 4422 - B (Round Pole) Pole Light Squaro 1000mm 800mm 90mm 110mm 145mm SMD LED Specication LED POWER CCT(K) CRI MODEL BEAM ANGLE LUMINAIRE BODY OPTICS HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT WORKING TEMP 3M/4M/5M/6M 3M/4M/5M/6M NL 4422 - A OSRAM 2x30W/2x45W/2x60W 3000K/4000K/6000K ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 ON-OFF 1000X145 -20°C ~ 50°C NL 4422 - B OSRAM 2x30W/2x45W/2x60W 3000K/4000K/6000K ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 ON-OFF 1000X145 -20°C ~ 50°C Ÿ GI made Housing. Ÿ Hi-power SMD LED Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. Ÿ Street Lighting Ÿ Roadways Ÿ Expressways Ÿ Private driveways Ÿ Residential Area Lighting Ÿ Courtyards Ÿ Public area lighting like parks & Squares. Features Applications 255 www.nirvanaligh ng.in नवाणा लाइट
281. 256 www.nirvanaligh ng.in नवाणा लाइट
282. Outdoor Architectural Lighting Pole Dia B. : 76MM/114MM Pole Size Pole Height: 3-6 Metres Galaxy Post Top Pole Light Galaxy-Pole light for street and pathway luminaries, MS housing with high corrosion resistance. Stone wash surface treatment prior to painting process. glare free illumination of ground surface and are perfect for illuminating entrances, footpaths, public area, compound periphery as well as garden and landscape. Glare-Free Illumination: Designed to provide glare-free lighting, the GALAXY Post Top Poles ensure comfortable and efficient illumination of the ground surface. NL 4392 MOON ORBIT NL 4391 NEPTUNE NL 4390 257 www.nirvanaligh ng.in नवाणा लाइट
283. ORBIT NL 4392 MOON NEPTUNE NL 4391 NL 4390 Dia:Ø350 mm 42 mm 272 mm Dia:Ø350 mm 42 mm 270 mm 120 mm Dia:Ø350 mm 293 mm 335 mm 42 mm ŸGI & Aluminum housing. Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating ŸSilicon gasket. ŸStreet Lighting ŸRoadways ŸExpressways ŸPrivate driveways ŸResidential Area Lighting ŸCourtyards ŸPublic area lighting like parks & Squares. Post Top Pole Light Galaxy Features Applications SMD LED Specication LED POWER CCT(K) CRI MODEL BEAM ANGLE LUMINAIRE BODY OPTICS HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT WORKING TEMP 30W/45W/60W ≥80 Wide->120° ALUMINUM BODY MILKY DIFFUSER GLASS/PRISMATIC BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 350x42MM 3M/4M/5M/6M -20°C ~ 50°C 30W/45W/60W ≥80 Wide->120° BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 350x42MM 3M/4M/5M/6M -20°C ~ 50°C ALUMINUM BODY NL 4390 30W/45W/60W ≥80 Wide->120° BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 350x42MM 3M/4M/5M/6M -20°C ~ 50°C ALUMINUM BODY NL 4391 NL 4392 Osram Osram Osram 3000K/4000K/6000K 3000K/4000K/6000K 3000K/4000K/6000K 258 www.nirvanaligh ng.in नवाणा लाइट
284. Outdoor Architectural Lighting Pole Dia B. : 76MM/114MM Pole Size Pole Height: 3-6 Meters Galaxy Post Top Pole Light Galaxy-Pole light for street and pathway luminaries, MS housing with high corrosion resistance. Stone wash surface treatment prior to painting process. glare free illumination of ground surface and are perfect for illuminating entrances, footpaths, public area, compound periphery as well as garden and landscape. Glare-Free Illumination: Designed to provide glare-free lighting, the GALAXY Post Top Poles ensure comfortable and efficient illumination of the ground surface. 259 www.nirvanaligh ng.in नवाणा लाइट
285. SATURN NL 4393 MERCURY NL 4394 Dia:Ø600 mm 56.5 mm 553 mm Dia:Ø450 mm 670 mm 70 mm ŸGI & Aluminum housing. Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating ŸSilicon gasket. Features Post Top Pole Light Galaxy ŸStreet Lighting ŸRoadways ŸExpressways ŸPrivate driveways ŸResidential Area Lighting ŸCourtyards ŸPublic area lighting like parks & Squares. Applications SMD LED Specication LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY OPTICS HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT WORKING TEMP NL 4393 NL 4394 MODEL 40W/60W/90W ≥80 Wide->120° Aluminum & GI Pole MILKY DIFFUSER GLASS BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 600x553MM 3M/4M/5M/6M -20°C ~ 50°C Osram/Bridgelux/Equivalent 3000K/4000K/6000K 30W/45W/60W ≥80 Wide->120° BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 450x670MM 3M/4M/5M/6M -20°C ~ 50°C Aluminum & GI Pole MILKY DIFFUSER GLASS Osram/Bridgelux/Equivalent 3000K/4000K/6000K 260 www.nirvanaligh ng.in नवाणा लाइट
286. 261 www.nirvanaligh ng.in नवाणा लाइट
287. Introducing the Nirvana Pharo: Illumina ng the Future of Outdoor Ligh ng At Nirvana Light, we are proud to unveil our latest innova on in outdoor ligh ng— the Pharo. Designed to redefine the way we light up our streets, pathways, and open spaces, the Pharo Series combines cu ng-edge LED technology with sleek, modern design to deliver unmatched performance and durability. The Pharo is available in three versa le power op ons—50W, 75W, and 90W—making it the perfect solu on for a wide range of outdoor applica ons. Whether it’s illumina ng busy streets, enhancing safety on footpaths, or providing reliable ligh ng for open grounds, the Pharo is engineered to excel in every environment. Key Features of the Pharo Series: High-Efficiency LED Technology: Delivers superior brightness while consuming less energy, ensuring cost-effec ve opera on. Robust & Durable Build: Designed to withstand harsh weather condi ons, making it ideal for outdoor use. Versa le Moun ng Op ons: Easily a aches to poles fixtures, offering flexible installa on for any se ng. Eco-Friendly Design: Reduces carbon footprint with energy-saving performance and long-las ng durability. IP 65 Branded LED Driver - Fulham/BAG/Osram/Inventonics/Meanwell Aluminum body 10/20 KVA Surge protec on High Power LED Driver Dual light engine High efficacy outdoor grade Branded European origin Op cs LED of reputed brand LED Osram /Bridgelux /Cree 262 www.nirvanaligh ng.in नवाणा लाइट
288. 229 www.nirvanaligh ng.in Pole Op ons Pole Light Pharo 263 www.nirvanaligh ng.in नवाणा लाइट
289. Pole Op ons Pole Light Pharo 264 www.nirvanaligh ng.in नवाणा लाइट
290. Pharo Street Light RAL9006 RAL9005 Finish Available Features Ÿ Aluminum body10/20 KVA Surge protection. ŸHigh efficacy outdoor grade Branded European origin Optics. ŸLED of reputed brand LED Osram/Bridgelux/Cree Ÿ German brand Pure polyester powder coating tested for 1500 hrs ATSM. ŸIP 65 Branded LED Driver - Eco LED or equivalent. ŸHigh-temperature resistance Silicon gasket Ÿ High-temperature resistance Silicon gasket ŸExtruded aluminum heat sink ŸSS fasteners Ÿ Street Ÿ Footpath Ÿ Garden Ÿ Public Park Ÿ Business Park Applications IP 65 5 Year Warranty 80 CRI H D 1m 2m 3m 4m 5m 6m 75W 50W Suggested Installa on Height 90W 7m Specication Luminous Flux Dimension Model Color Temperature (CCT) Power (W) LED Type Finish Life Span (hours) Dimming Protection Rating (IP) Color Rendering Index (CRI) Beam Angle Non Dimmable NL 4397 3K/4K/6K SMD >80 IP65 50,000 Hrs Dark Grey 50W (Single light engine) D : 425mm H : 177mm 5250 Lm T2/T3 50,000 Hrs 75W (Single light engine) NL 4398 IP65 Non Dimmable 3K/4K/6K SMD >80 Dark Grey D : 425mm H : 177mm 7350 Lm T2/T3 90W (Dual light engine) NL 4399 50,000 Hrs IP65 Non Dimmable 3K/4K/6K SMD >80 Dark Grey D : 425mm H : 177mm 9450 Lm T2/T3 265 www.nirvanaligh ng.in नवाणा लाइट
291. Pole Light BeaconGlow 266 www.nirvanaligh ng.in नवाणा लाइट
292. RAL9006 RAL9005 Finish Available IP 65 5 Year Warranty 80 CRI Ÿ Aluminum body10/20 KVA Surge protection. ŸHigh efficacy outdoor grade Branded European origin Optics. ŸLED of reputed brand LED Osram/Bridgelux/Cree Ÿ German brand Pure polyester powder coating tested for 1500 hrs ATSM. ŸIP 65 Branded LED Driver - Eco LED or equivalent. ŸHigh-temperature resistance Silicon gasket Ÿ High-temperature resistance Silicon gasket ŸExtruded aluminum heat sink ŸSS fasteners Ÿ Street Ÿ Footpath Ÿ Garden Ÿ Public Park Ÿ Business Park Features Applications Pole Light BeaconGlow Specication LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY OPTICS HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT WORKING TEMP NL 4395 NL 4396 MODEL 30W/50W ≥80 Wide->120° Spun Aluminum Clear Acrylic Dark Grey 220-240V AC >0.9 IP65 On-Off 503x553MM 3M/4M/5M/6M -20°C ~ 50°C Osram/Bridgelux/Equivalent 3000K/4000K/6000K ≥80 Wide->120° Dark Grey 220-240V AC >0.9 IP65 On-Off 503x852MM 3M/4M/5M/6M -20°C ~ 50°C Spun Aluminum Clear Acrylic Osram/Bridgelux/Equivalent 3000K/4000K/6000K 30W/50W 267 www.nirvanaligh ng.in नवाणा लाइट
293. 268 www.nirvanaligh ng.in नवाणा लाइट
294. Outdoor Architectural Lighting Modern Street Light The housing is made from galvanized iron (GI), offering robust construction and high resistance to corrosion for durability in outdoor environments. The housing is made from galvanized iron (GI), offering robust construction and high resistance to corrosion for durability in outdoor environments. The product is supplied pre-wired with a cable gland that meets IP67 standards, providing protection against dust and water ingress, making it suitable for harsh weather conditions. Includes a silicon gasket to enhance the weatherproof sealing of the luminaries, contributing to its IP67 rating and ensuring reliable performance in various environmental conditions. 269 www.nirvanaligh ng.in नवाणा लाइट
295. 600mm 275mm 100mm Modern Type-A Street Light ŸGI made housing. ŸNon-corrosive SS fasteners. ŸPre-Wired Cable Gland with IP67 Rating ŸSilicon gasket. ŸPublic area lighting like parks & squares ŸCourtyards ŸMini street lighting ŸResidential area lighting ŸSmaller roadways ŸPrivate driveways Features Applications Specication SMD LED LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL 30W/45W ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 250x275MM 3M/4M/5M/6M -20°C ~ 50°C NL 4425 Osram 3000K/4000K/6000K 30W/45W ≥80 T1/T2/T3/T4 GI BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 350x275MM 3M/4M/5M/6M -20°C ~ 50°C NL 4426 - S/R Osram 3000K/4000K/6000K 2x30W/2x45W ≥80 T1/T2/T3/T4 GI BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 600x275MM 3M/4M/5M/6M -20°C ~ 50°C NL 4427 - S/R Osram 3000K/4000K/6000K NL 4426 S NL 4425 NL 4427 S NL 4426 R NL 4427 R 270 www.nirvanaligh ng.in नवाणा लाइट
296. 900mm 150mm 100mm Modern Type-B Street Light ŸGI made housing. ŸNon-corrosive SS fasteners. ŸPre-Wired Cable Gland with IP67 Rating ŸSilicon gasket. ŸPublic area lighting like parks & squares ŸCourtyards ŸMini street lighting ŸResidential area lighting ŸSmaller roadways ŸPrivate driveways Features Applications NL 4429 S NL 4428 NL 4430 S NL 4429 R NL 4430 R Specication SMD LED LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL 30W/45W ≥80 T1/T2/T3/T4 GI BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 600x150MM 3M/4M/5M/6M NL 4429- S/R 30W/45W ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 400x150MM 3M/4M/5M/6M NL 4428 2x30W/2x45W ≥80 T1/T2/T3/T4 GI BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 900x150MM 3M/4M/5M/6M NL 4430 - S/R Osram Osram Osram 3000K/4000K/6000K 3000K/4000K/6000K 3000K/4000K/6000K -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C 271 www.nirvanaligh ng.in नवाणा लाइट
297. 272 www.nirvanaligh ng.in नवाणा लाइट
298. 600mm 275mm 100mm NL 4432 S NL 4431 NL 4433 S NL 4432 R NL 4433 R Modern Type-C Street Light ŸGI made housing. ŸNon-corrosive SS fasteners. ŸPre-Wired Cable Gland with IP67 Rating ŸSilicon gasket. ŸPublic area lighting like parks & squares ŸCourtyards ŸMini street lighting ŸResidential area lighting ŸSmaller roadways ŸPrivate driveways Features Applications Specication SMD LED LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL 30W/45W ≥80 T1/T2/T3/T4 GI Pole PMMA CLEAR OPTIC LENSES BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 3M/4M/5M/6M 2x30W/45W ≥80 T1/T2/T3/T4 GI Pole BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 3M/4M/5M/6M 265x275MM 630x275MM 30W/45W ≥80 T1/T2/T3/T4 GI Pole BLACK / DARK GREY 220-240V AC >0.9 IP65 On-Off 3M/4M/5M/6M 365x275MM NL 4432 NL 4431 NL 4433 Osram 3000K/4000K/6000K Osram 3000K/4000K/6000K Osram 3000K/4000K/6000K -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C 273 www.nirvanaligh ng.in नवाणा लाइट
299. 274 www.nirvanaligh ng.in नवाणा लाइट
300. Outdoor Architectural Lighting Modern Street Light MODERN – STREET LIGHT Specifically designed for wall- mounted and pathway lighting, making it versatile for different installation needs. MS Housing with High Corrosion Resistance: Features a mild steel (MS) housing that is treated for high resistance to corrosion, ensuring durability and long-lasting performance in outdoor environments. Stone Wash Surface Treatment: The surface undergoes a stone wash treatment before the painting process, which enhances the finish and increases the fixture’s durability. Glare-Free Illumination: Provides glare-free lighting to ensure a comfortable and effective illumination of the ground surface. 275 www.nirvanaligh ng.in नवाणा लाइट
301. ŸPublic area lighting like parks & squares ŸCourtyards ŸMini street lighting ŸResidential area lighting ŸSmaller roadways ŸPrivate driveways Features Applications Drums-R Street Light Modern Type 660mm 120mm Ø100mm 220mm ŸGI made housing. ŸNon-corrosive SS fasteners. ŸProduct supplied pre-wired cable gland compliance to IP67 rating ŸSilicon gasket. Specication SMD LED LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL 30W/45W ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 On-Off 380x120MM 3M/4M/5M/6M -20°C ~ 50°C Osram 3000K/4000K/6000K 2x30W/45W ≥80 T1/T2/T3/T4 GI BLACK/DARK GREY 220-240V AC >0.9 IP65 On-Off 600x120MM 3M/4M/5M/6M -20°C ~ 50°C Osram 3000K/4000K/6000K NL 4435 NL 4436 NL 4435 NL 4436 276 www.nirvanaligh ng.in नवाणा लाइट
302. Drums-S Street Light Modern Type NL 4437 NL 4438 ŸPublic area lighting like parks & squares ŸCourtyards ŸMini street lighting ŸResidential area lighting ŸSmaller roadways ŸPrivate driveways Features Applications ŸGI made housing. ŸNon-corrosive SS fasteners. ŸProduct supplied pre-wired cable gland compliance to IP67 rating ŸSilicon gasket. SMD LED Specication LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL 30W/45W ≥80 T1/T2/T3/T4 GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 On-Off 380x120MM 3M/4M/5M/6M -20°C ~ 50°C Osram 3000K/4000K/6000K 2x30W/45W ≥80 T1/T2/T3/T4 GI BLACK/DARK GREY 220-240V AC >0.9 IP65 On-Off 600x120MM 3M/4M/5M/6M -20°C ~ 50°C Osram 3000K/4000K/6000K NL 4437 NL 4438 660mm 120mm Ø100mm 220mm 277 www.nirvanaligh ng.in नवाणा लाइट
303. 278 www.nirvanaligh ng.in नवाणा लाइट
304. Outdoor Architectural Lighting Vertilux Bollards & Poles Lighting The VERTILUX - Bollards & Poles are an excellent choice for various outdoor lighting needs, combining durability, performance, and aesthetic appeal. Designed to provide glare-free lighting, ensuring comfortable and efficient illumination of the ground surface. 279 www.nirvanaligh ng.in नवाणा लाइट
305. Bollards- 150x150 NL 4461-ST height 1 mtr NL 4461-LD1 height 1 mtr NL 4461-LD2 height 1 mtr NL 4461-LD3 height 1 mtr NL 4461-LD4 height 1 mtr NL 4461-LD5 height 1 mtr 1000mm 150x150mm 150x150mm 150x150mm 150x150mm 150x150mm 150x150mm 550mm 150mm 300mm Bollards & Poles Lights Vertiux 280 www.nirvanaligh ng.in नवाणा लाइट
306. 150x150mm 150x150mm 150x150mm 150x150mm 150x150mm 3000mm 150x150mm 300mm 2000mm 700mm Design - Laser Cut -150x150 NL 4462-150-ST height 3 mtr NL 4462-150-LD1 height 3 mtr NL 4462-150-LD2 height 3 mtr NL 4462-150-LD3 height 3 mtr NL 4462-150-LD4 height 3 mtr NL 4462-150-LD5 height 3 mtr 370mm 740mm 1110mm 1Projector P1 P2 P3 2Projector 3Projector 250mm Bollards & Poles Lights Vertiux 281 www.nirvanaligh ng.in नवाणा लाइट
307. 200x200mm 200x200mm 200x200mm 200x200mm 200x200mm 200x200mm 3000mm 300mm 300mm 2000mm 700mm Design - Laser Cut -200x200 NL 4462-200-ST height 3 mtr NL 4462-200-LD1 height 3 mtr NL 4462-200-LD2 height 3 mtr NL 4462-200-LD3 height 3 mtr NL 4462-200-LD4 height 3 mtr NL 4462-200-LD5 height 3 mtr 370mm 740mm 1110mm 1Projector P1 P2 P3 2Projector 3Projector 282 www.nirvanaligh ng.in नवाणा लाइट
308. 300mm 2000mm 700mm 3000mm 150x150mm 550mm 150mm 300mm 1000mm 3200mm 3400mm 3600mm 370mm 250mm 250mm 45° 30° DIMENSION 370mm 740mm 1110mm 1Projector P1 P2 P3 2Projector 3Projector 283 www.nirvanaligh ng.in नवाणा लाइट
309. TECHNICAL DETAILS Customized Design Available ST LD1 LD2 LD3 LD4 LD5 Specification (bollard) Specification (pole) LED OSRAM LED OSRAM OSRAM POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING DIMENSION BOLLARD HEIGHT WORKING TEMP OPTICS 15 2 W/ 5W 3000K/4000K/6000K ≥80 DIFFUSED GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 ON-OFF 150X150 1Mtr -20°C ~ 50°C POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING DIMENSION POLE HEIGHT WORKING TEMP OPTICS 25W/35W/50W 3000K/4000K/6000K ≥80 DIFFUSED GI BLACK/DARK GREY 220-240V AC >0.9 IP65 ON-OFF 200X200 3Mtr -20°C ~ 50°C 25W/35W/50W 3000K/4000K/6000K ≥80 DIFFUSED GI PMMA CLEAR OPTIC LENSES BLACK/DARK GREY 220-240V AC >0.9 IP65 ON-OFF 150X150 3Mtr -20°C ~ 50°C SMD LED 284 www.nirvanaligh ng.in नवाणा लाइट
310. Projector 65MM - 3/6W 510 lm 3K/4K/6K NEO-N 65 95mm - 8/20W 2000 lm 3K/4K/6K NEO-N 95 140mm - 20/60W 4000 lm 3K/4K/6K NEO-N 140 Ø105mm 165mm Ø65mm 246mm Ø105mm Ø95mm Ø105mm 301mm Ø140mm 285 www.nirvanaligh ng.in नवाणा लाइट
311. HOW TO ORDER USING PRODUCT CODE 150 Size 150 200 150/200 150/200 150/200 ST Design LD1 LD2/LD3/ LD4/LD5 ST LD1 LD2/LD3/ LD4/LD5 ST LD1 LD2/LD3/ LD4/LD5 ST LD1 LD2/LD3/ LD4/LD5 ST LD1 LD2/LD3/ LD4/LD5 ST LD1 LD2/LD3/ LD4/LD5 Code 4461-150-ST 4461-150-LD1 LD2/LD3/ LD4/LD5 4462-150-ST 4462-150-LD1 LD2/LD3/ LD4/LD5 4463-200-ST 4463-200-LD1 LD2/LD3/ LD4/LD5 4462-150/200-ST-P1 4462-150/200- -P1 LD1 LD2/LD3/ LD4/LD5 4462-150/200-ST-P2 4462-150/200- -P2 LD1 LD2/LD3/ LD4/LD5 4462-150/200-ST-P3 4462-150/200- -P3 LD1 LD2/LD3/ LD4/LD5 Bollard (1Mtr) Product Pole (3Mtr) Pole (3Mtr) Pole (3Mtr) Pole (3Mtr) Pole (3Mtr) Single projector Dual projector Triple projector NL 4461= Bollard Series NL 4462= Pole 150x150 Series NL 4463= Pole 200x200 Series 150x150 = Pole Size 200x200 = Pole Size ST= Stud LD= Laser Design P1= Pole with 1 Projector P2= Pole with 2 Projector P3= Pole with 3 Projector * ST LD1 LD2 LD3 LD4 LD5 286 www.nirvanaligh ng.in नवाणा लाइट
312. 287 www.nirvanaligh ng.in नवाणा लाइट
313. 288 www.nirvanaligh ng.in नवाणा लाइट
314. Outdoor Architectural Lighting ACADE - Lighting SystemAluminium Housing with High Corrosion Resistance: Constructed from aluminium, the housing offers excellent resistance to corrosion, ensuring durability and performance in outdoor environments.Stone Wash Surface Treatment: The surface undergoes a stone wash treatment before painting, enhancing the finish and durability of the fixture.Glare-Free Illumination: Provides glare-free lighting to ensure comfortable and effective illumination of the ground surface. Facade Lighting System 289 www.nirvanaligh ng.in नवाणा लाइट
315. FLD - S1 FLD - S2 110 193 55 141 Ÿ Aluminum extruded Die cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. Ÿ Entrances Ÿ Malls Ÿ Theaters Ÿ Malls Ÿ Public Areas Ÿ Sculptures and Monuments Ÿ Compound Periphery Features Applications FACADE Lighting System Specication LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL SMD LED NL-FLD-S1 OSRAM 20W/30W 3000K/4000K/6000K ≥80/90 ALUMINUM BODY+ TOUGHENED CLEAR GLASS BLACK/GREY 220-240V AC >0.9 IP65 NON DIMMING 141X110X193MM 3M/4M/5M/6M -40°C ~ 55°C NL-FLD-S2 OSRAM 45W/60W 3000K/4000K/6000K ≥80/90 5°/30°/40°/60°/90°/120° ALUMINUM BODY+ TOUGHENED CLEAR GLASS BLACK/GREY 220-240V AC >0.9 IP65 NON DIMMING 240X157X307MM 3M/4M/5M/6M -40°C ~ 55°C 5°/30°/40°/60°/90°/120° 290 www.nirvanaligh ng.in नवाणा लाइट
316. FLD - R1 FLD - R2 D H Ÿ Aluminum extruded Die cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Pre-Wired Cable Gland with IP67 Rating Ÿ Silicon gasket. Ÿ Entrances Ÿ Malls Ÿ Theaters Ÿ Malls Ÿ Public Areas Ÿ Sculptures and Monuments Ÿ Compound Periphery Features Applications FACADE Lighting System Specication LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT OPTICS WORKING TEMP MODEL SMD LED NL-FLD-R1 OSRAM 24W/36W 3000K/4000K/6000K ≥90 5°/30°/40°/60°/90°/120° ALUMINUM BODY+ TOUGHENED CLEAR GLASS BLACK/GREY 220-240V AC >0.9 IP65 NON DIMMING 235x260MM 3M/4M/5M/6M -40°C ~ 55°C NL-FLD-R2 OSRAM 54W/72W 3000K/4000K/6000K ≥90 5°/30°/40°/60°/90°/120° ALUMINUM BODY+ TOUGHENED CLEAR GLASS BLACK/GREY 220-240V AC >0.9 IP65 NON DIMMING 265x290MM 3M/4M/5M/6M -40°C ~ 55°C 291 www.nirvanaligh ng.in नवाणा लाइट
317. FLOOD/STREET - LIGHTING SYSTEM STREET - LIGHTING SYSTEM 292 www.nirvanaligh ng.in नवाणा लाइट
318. Outdoor Architectural Lighting Various Sizes and Power Options: Available in different sizes and power levels to accommodate a wide range of lighting requirements. Optical Elements: Equipped with advanced optical elements to meet diverse lighting needs, including area lighting, facade lighting, and other specific applications. Adjustable Power and Color Temperature: Capable of providing sufficient power and adjustable color temperatures to suit different environments and lighting requirements.Aluminium Body: Features a robust aluminium housing that offers excellent durability and resistance to corrosion, ensuring long- term performance.Steel Mounting: Includes a steel mounting system for secure and stable installation. Street Lighting System Bubble Level for Alignment 293 www.nirvanaligh ng.in नवाणा लाइट
319. NL - 4477 NL - 4478 NL - 4479 NL - 4480 L B H Street Lighting System Ÿ Aluminum extruded Die cast body Ÿ Hi-power SMD LED for extra wide angle. Ÿ Non-corrosive SS fasteners. Ÿ Product supplied pre-wired cable gland compliance to IP67 rating Ÿ Silicon gasket. ŸStreet Lighting ŸRoadways ŸExpressways ŸMalls ŸStadium ŸCourtyards ŸPublic area lighting like parks & Squares. Features Applications SMD LED Specication Model NL 4477 NL 4478 NL 4479ram NL 4480 LED POWER CCT(K) CRI BEAM ANGLE LUMINAIRE BODY HOUSING COLOR INPUT POWER FACTOR IP RATING CONTROL & DIMMING HEAD DIMENSION POLE HEIGHT WORKING TEMP LUMEN 50W ≥70 70X140° ALUMINUM BODY 130lm/W GREY 220-240V AC >0.9 IP65 On-Off 470X180X110MM 3M/4M/5M/6M -20 C ~ 50 C ° ° 27K/3K/4K/5K/6K/65K Osram 100W ≥70 70X140° ALUMINUM BODY 130lm/W GREY 220-240V AC >0.9 IP65 On-Off 560X240X115MM 3M/4M/5M/6M -20 C ~ 50 C ° ° 27K/3K/4K/5K/6K/65K Osram 150W ≥70 70X140° ALUMINUM BODY 130lm/W GREY 220-240V AC >0.9 IP65 On-Off 690X280X130MM 3M/4M/5M/6M -20 C ~ 50 C ° ° 27K/3K/4K/5K/6K/65K Osram 200W ≥70 70X140° ALUMINUM BODY 130lm/W GREY 220-240V AC >0.9 IP65 On-Off 740X280X130MM 3M/4M/5M/6M -20 C ~ 50 C ° ° 27K/3K/4K/5K/6K/65K Osram 294 www.nirvanaligh ng.in नवाणा लाइट
320. Poles Lighting System D:60MM 3000mm / 4000mm D:76MM 3000mm / 4000mm D:89MM 3000mm / 4000mm / 5000mm D:100MM 3000mm / 4000mm / 5000mm / 6000mm D:114MM 3000mm / 4000mm / 5000mm / 6000mm 295 www.nirvanaligh ng.in नवाणा लाइट
321. Poles Lighting System D:60x114MM D:76x114MM D:60x76x114MM D:89x114MM 3000mm / 4000mm / 5000mm / 6000mm / 7000mm 3000mm / 4000mm / 5000mm / 6000mm / 7000mm 3000mm / 4000mm / 5000mm / 6000mm / 7000mm 3000mm / 4000mm / 5000mm / 6000mm 296 www.nirvanaligh ng.in नवाणा लाइट
322. 297 www.nirvanaligh ng.in नवाणा लाइट
323. “In the midst of darkness, light persists.” — Mahatma Gandhi “Don’t fight darkness—bring the light, and darkness will disappear.” — Maharishi Mahesh Yogi “Darkness cannot drive out darkness; only light can do that. Hate cannot drive out hate; only love can do that.” — Martin Luther King, Jr. “It is better to light a candle than curse the darkness.” — Eleanor Roosevelt (inspired by ancient Indian proverb, often attributed to Swami Vivekananda) “Give light, and the darkness will disappear of itself.” — Desiderius Erasmus “You have to find what sparks a light in you so that you in your own way can illuminate the world.” — Oprah Winfrey “There are two kinds of light—the glow that illuminates, and the glare that obscures.” — James Thurber
324. Regd. Office : 1301, Synergy Business Park, Sahakar Wadi, Near Synthofine Industrial Estate, Goregaon (E), Mumbai-400063. Factory : A/52-61, Royal Ind. Hub, Bhiwandi-Kaman Road, Vasai (East)-401208, Dist. Palghar, Maharashtra. Tel.: +91 22 49696903 +91 93723 79819 Email : sales5@nirvanalighting.in Web.: www.nirvanalighting.in Architectural Lighting Solutions
