03 LL4IR Architecture

Transcript

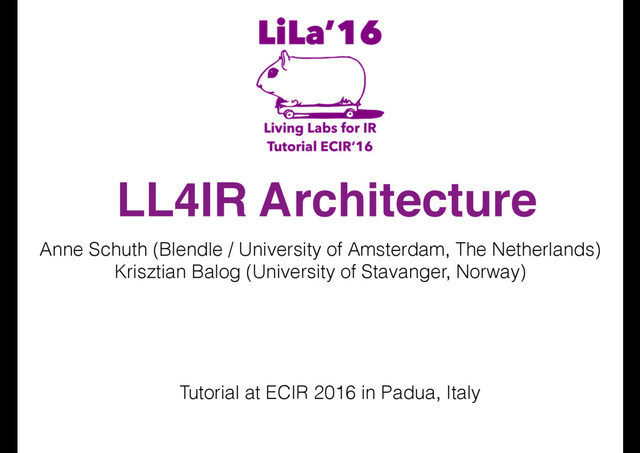

1. Anne Schuth (Blendle / University of Amsterdam, The Netherlands) Krisztian Balog (University of Stavanger, Norway) Tutorial at ECIR 2016 in Padua, Italy LL4IR Architecture
2. Overview • Overall goal: make information retrieval evaluation more realistic • Evaluate retrieval methods in a live setting with real users in their natural task environments • Focus: medium to large sized organizations with fair amount of search volume • Typically lack their own R&D department, but would gain much from improved approaches • Or, would like to collaborate with academic researchers
3. Key idea • Focus on frequent (head) queries • Enough traffic on them (both real-time and historical) • Ranked result lists can be generated offline • An API orchestrates all data exchange between
 live sites and experimental systems • Head First: Living Labs for Ad-hoc Search Evaluation. Balog et al. CIKM’14.
4. Methodology • Queries, candidate documents, historical search and click data made available • Rankings are generated for each query and uploaded through an API • When any of the test queries is fired, the live site request rankings from the API and interleaves them with that of the production system • Participants get detailed feedback on user interactions (clicks) • Ultimate measure is the number of “wins” against the production system
5. Methodology Participant Participant Site Site Living Labs API Researcher query ranking query ranking ranking Queries Documents click click click Queries Documents
6. Limitations • Head queries only: Considerable portion of traffic, but only popular info needs • Lack of context: No knowledge of the searcher’s location, previous searches, etc. • No real-time feedback: API provides detailed feedback, but it’s not immediate • Limited control: Experimentation is limited to single searches, where results are interleaved with those of the production system; no control over the entire result list • Ultimate measure of success: Search is only a means to an end, it is not the ultimate goal
7. Further details in the paper
8. Evaluation • Train queries • ‘Immediate’ feedback • Raw and aggregated feedback • Test queries • No updates during test period • Feedback after test period • Only Aggregated feedback • Metric: Team Draft Interleaving • Fraction of wins against production
9. Documents Documents Sets of frequent Queries and candidates Documents Period Train Test Query Type Train Test - Feedback Available - Individual Feedback - Update possible - Feedback Available - No Individual Feedback - Update possible - No Feedback Available - No Individual Feedback - Update not possible ch Test/Train Queries/Periods
10. Resources • API source code • https://bitbucket.org/living-labs/ll-api • Documentation • http://doc.living-labs.net/en/latest/ • Dashboard • CLEF: http://dashboard.living-labs.net/ • TREC: http://dashboard.trec-open-search.org/
11. please report issues here! Open Source https://bitbucket.org/living-labs/ll-api
12. Documentation
13. Guide for CLEF
14. Guide for TREC
