T3CL25: Cloud-Native TYPO3

This talk will show you how to run TYPO3 in cloud environments using containers and Kubernetes. We’ll cover how to properly run TYPO3 in a container, set up persistent storage, handle configuration, and deploy using tools like Helm. The goal is to make TYPO3 work reliably in scalable, cloud-native setups without unnecessary complexity. Whether you’re moving an existing site or starting fresh, you’ll learn practical steps to get TYPO3 running smoothly on Kubernetes.

Transcript

1. CLOUD NATIVE MARTIN HELMICH @mittwald
2. MARTIN HELMICH mittwald Head of Architecture & Developer Relations TYPO3 Association Board Member PHWT Lecturer, Software Engineering & Cloud Computing
3. QUITE A BIT THIS WAY
4. CLOUD NATIVE WHAT DOES MEAN, ANYWAY?
5. Built with the ‘cloud’ in mind “ ” — some bloke on Reddit
6. Built with the ‘cloud’ in mind
7. Built with the ‘cloud’ in mind
8. Cloud native applications are specifically designed to take advantage of innovations in cloud computing. “ ” — Cloud Native Computing Foundation Built with the ‘cloud’ in mind “ ” — some bloke on Reddit

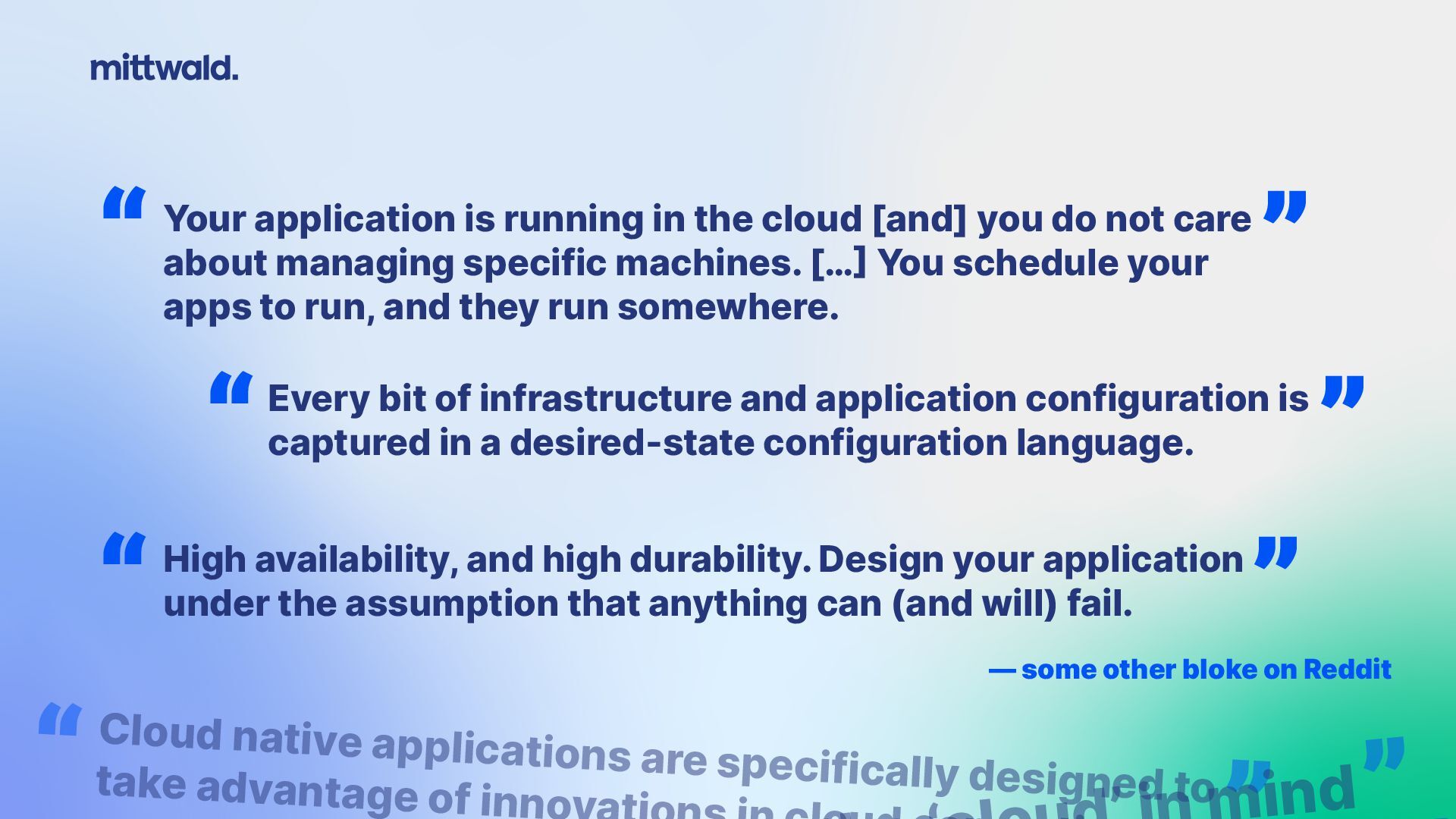

10. Your application is running in the cloud [and] you do not care about managing specific machines. [… ] You schedule your apps to run, and they run somewhere. “ ” — some other bloke on Reddit Every bit of infrastructure and application configuration is captured in a desired-state configuration language. High availability, and high durability. Design your application under the assumption that anything can (and will) fail. “ “ ” ” Cloud native applications are specifically designed to take advantage of inno “ ind

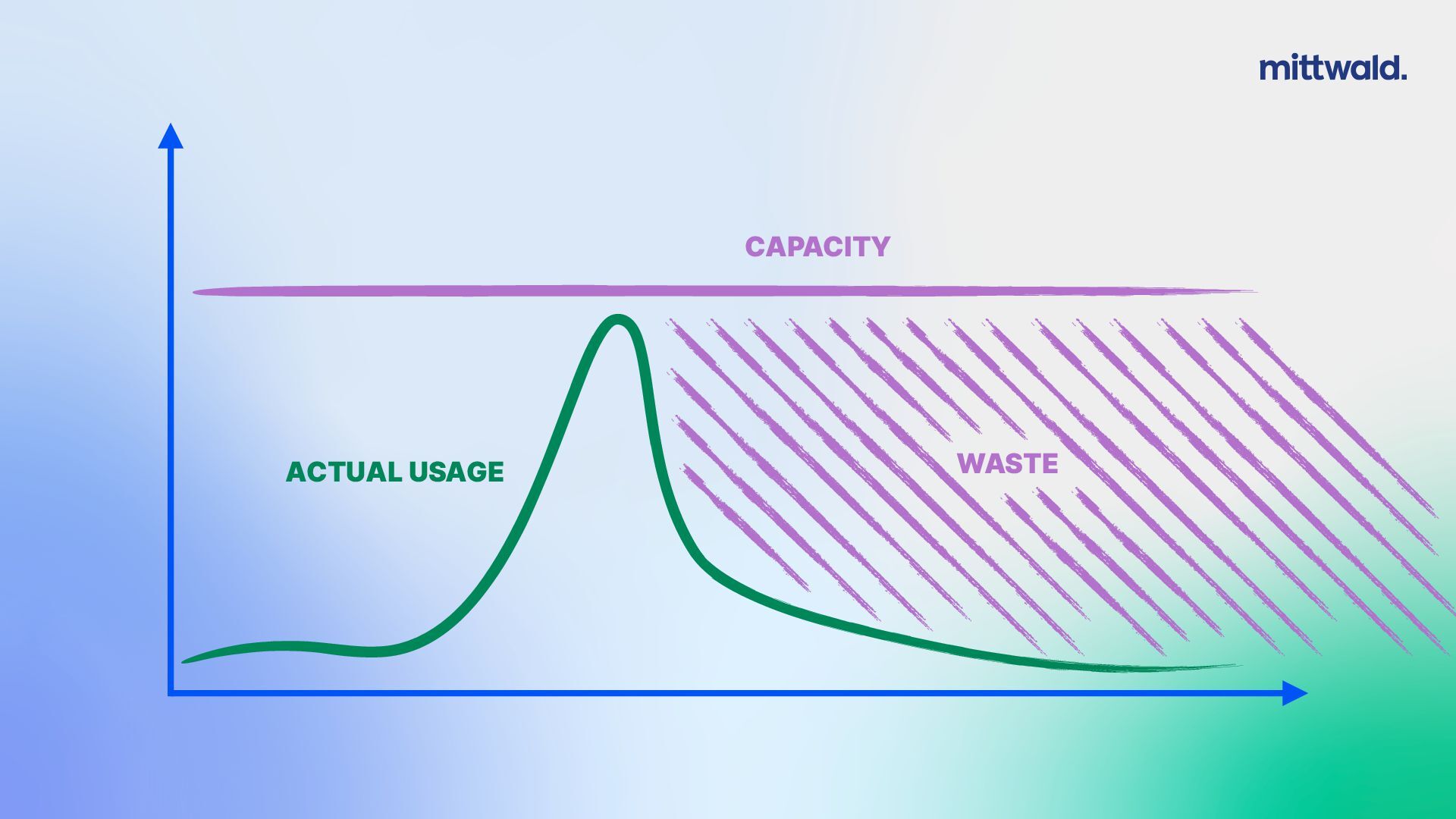

13. ACTUAL USAGE CAPACITY WASTE

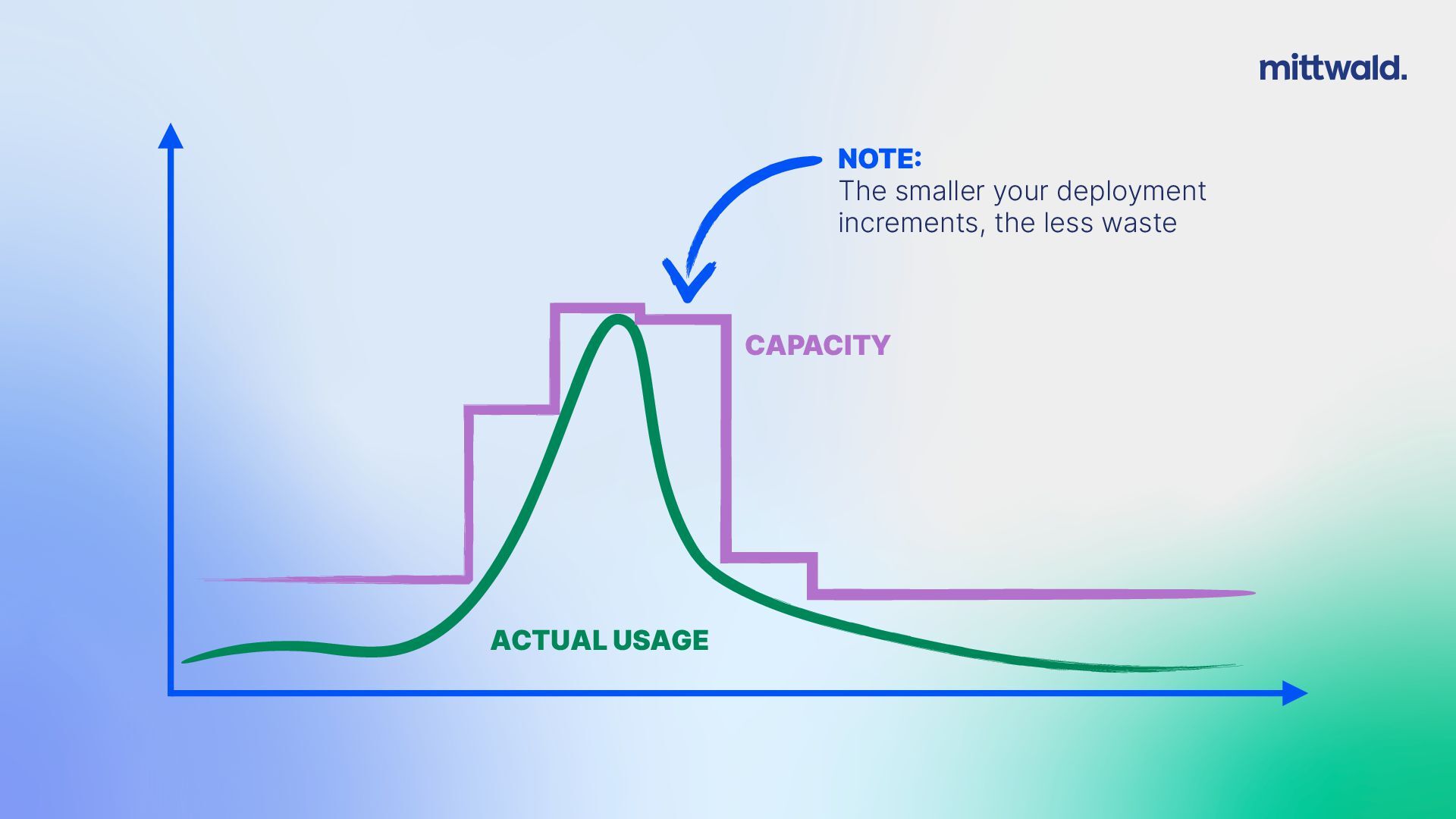

14. ACTUAL USAGE CAPACITY NOTE : The smaller your deployment increments, the less waste
15. The smaller your deployment increments, the less waste IN CONSEQUENCE : Cloud-native applications require SMALL DEPLOYMENT UNITS and FAST STARTUP TIMES to leverage the elasticity of cloud environments

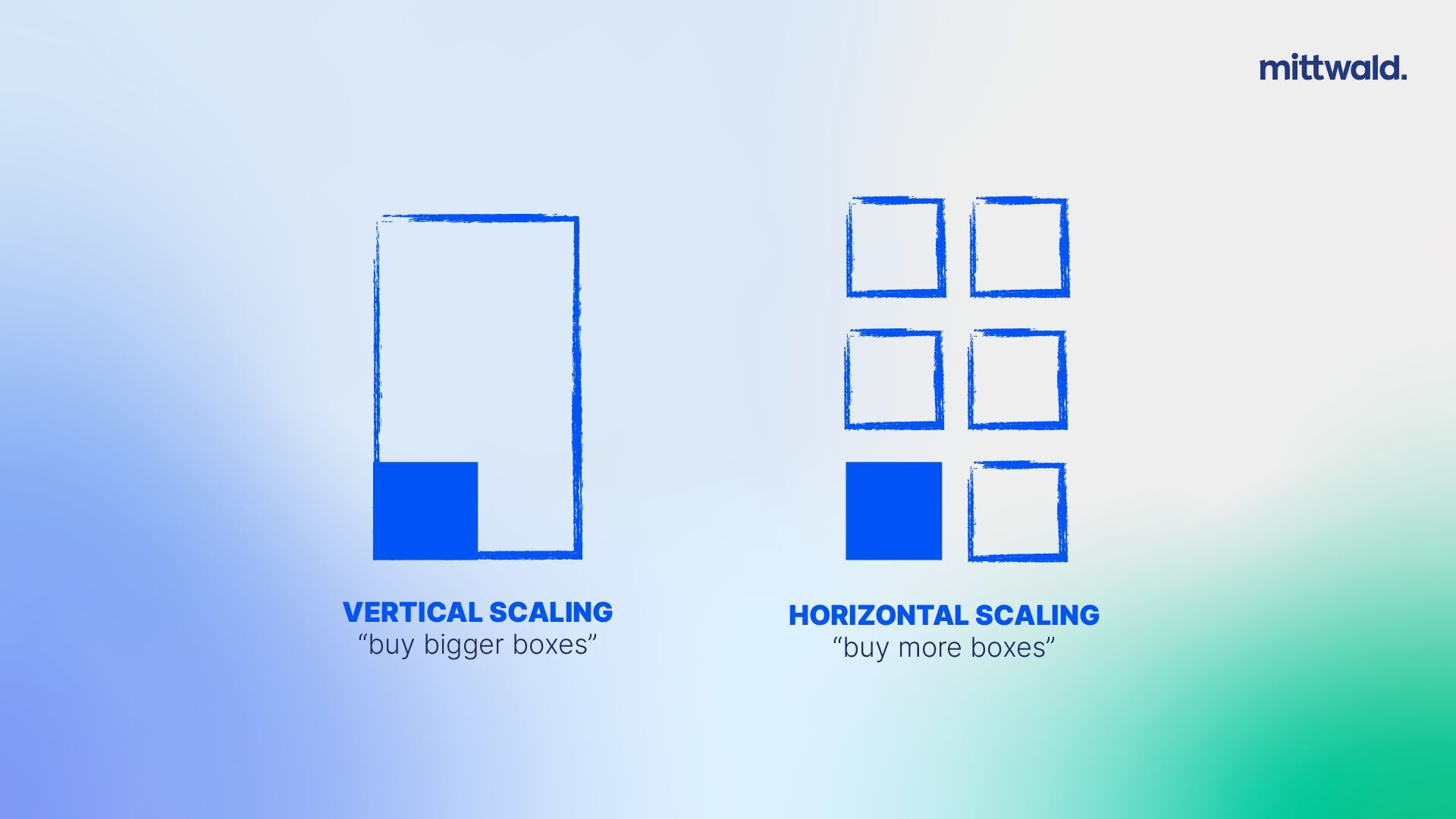

17. VERTICAL SCALING “buy bigger boxes” HORIZONTAL SCALING “buy more boxes”

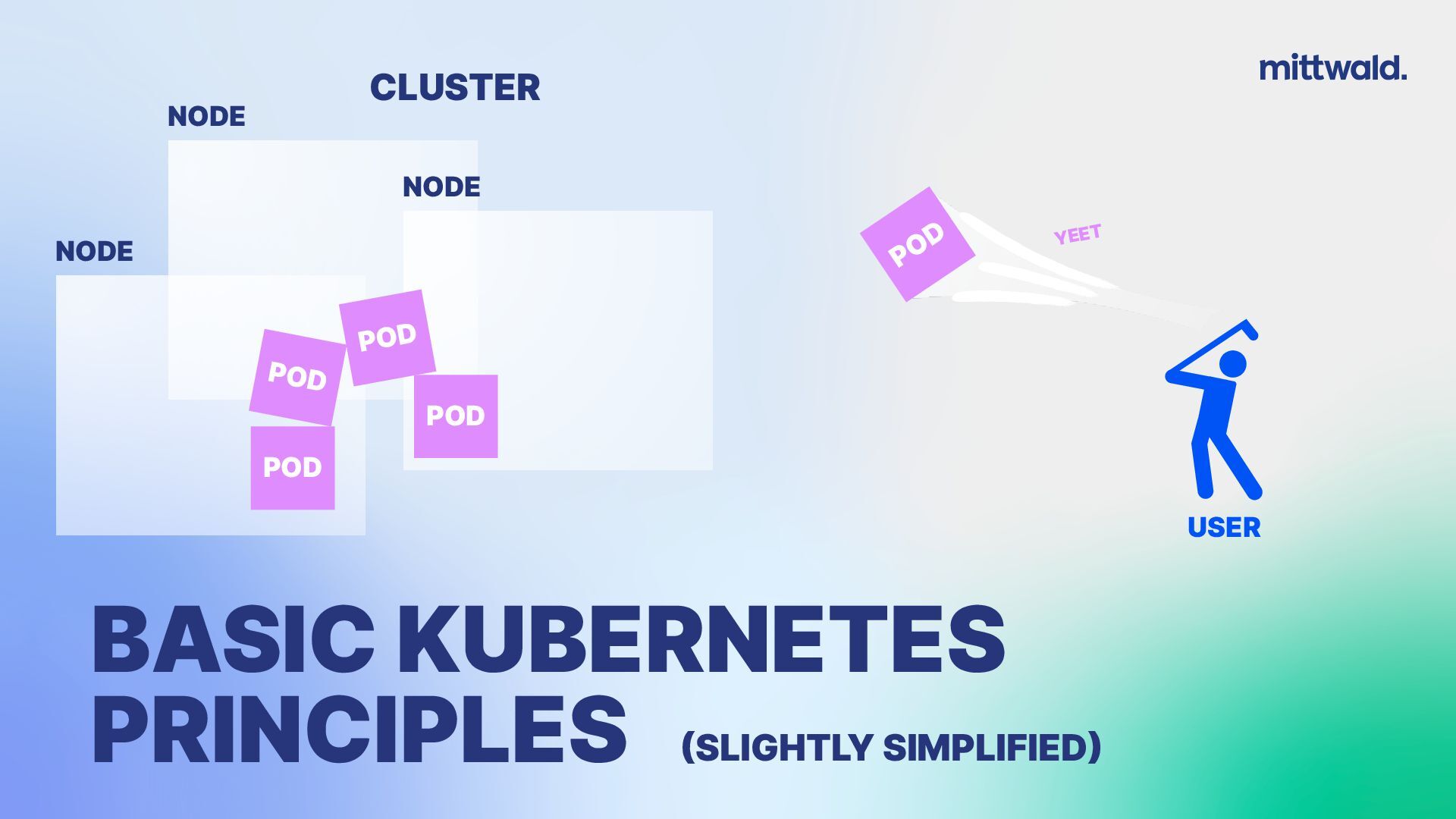

19. NODE BASIC KUBERNETES PRINCIPLES NODE NODE CLUSTER YEET USER POD POD POD POD ( SLIGHTLY SIMPLIFIED ) POD

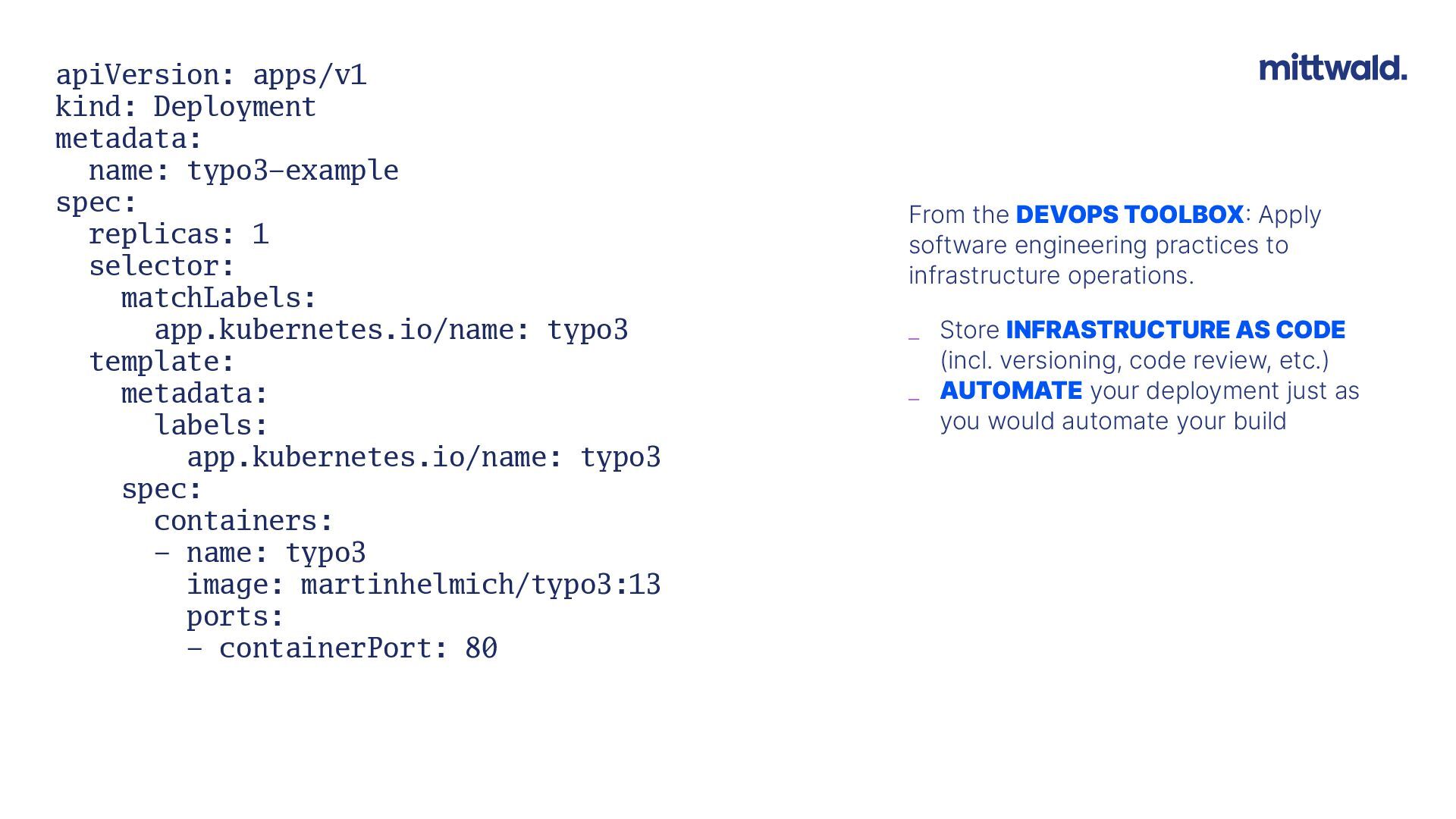

20. apiVersion: apps/v1 kind: Deployment metadata: name: typo3-example spec: replicas: 1 selector: matchLabels: app.kubernetes.io/name: typo3 template: metadata: labels: app.kubernetes.io/name: typo3 spec: containers: - name: typo3 image: martinhelmich/typo3:13 ports: - containerPort: 80 From the DEVOPS TOOLBOX : Apply software engineering practices to infrastructure operations. _ Store INFRASTRUCTURE AS CODE (incl. versioning, code review, etc.) _ AUTOMATE your deployment just as you would automate your build

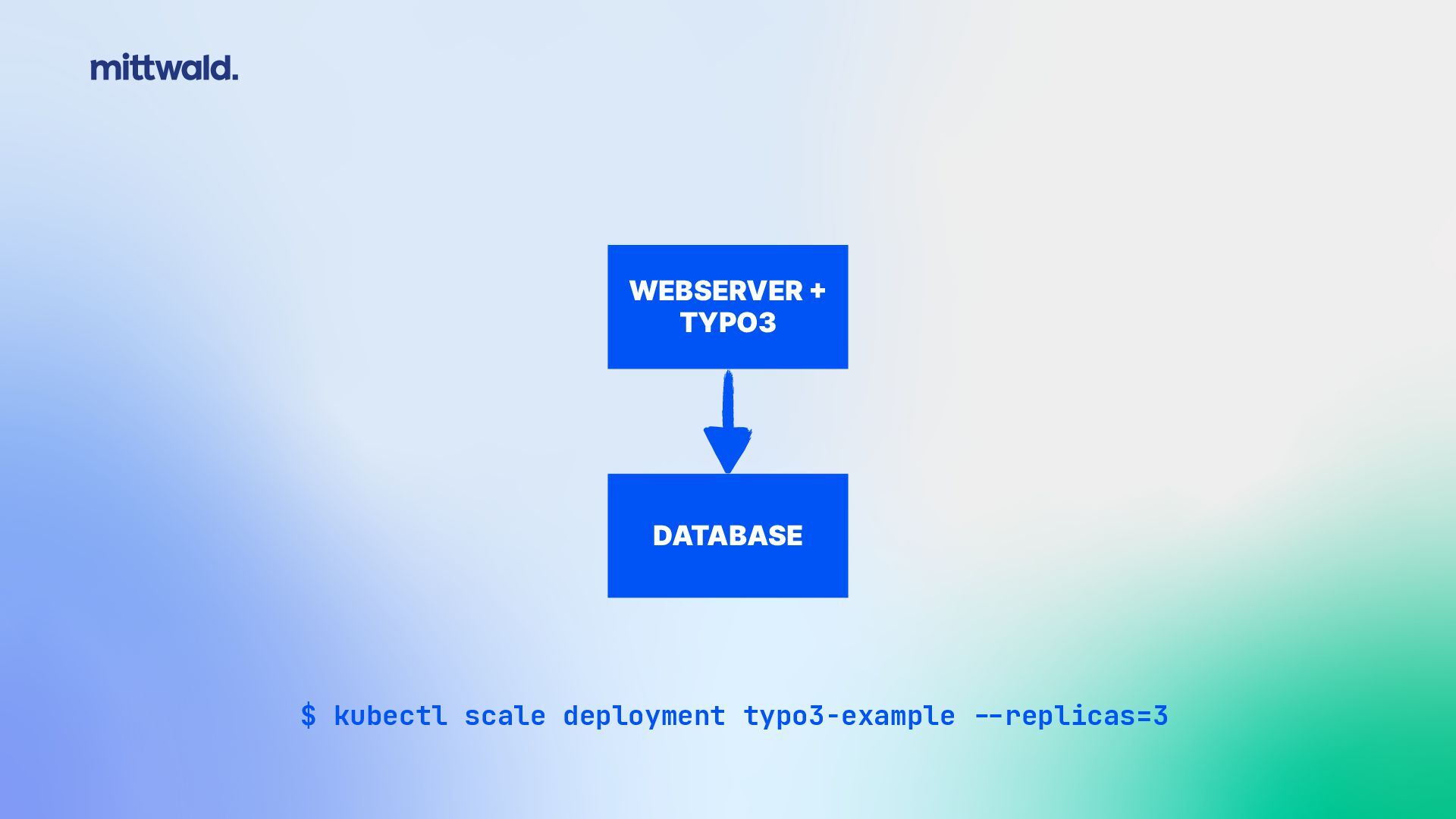

21. WEBSERVER + TYPO3 DATABASE $ kubectl scale deployment typo3-example -- replicas=3

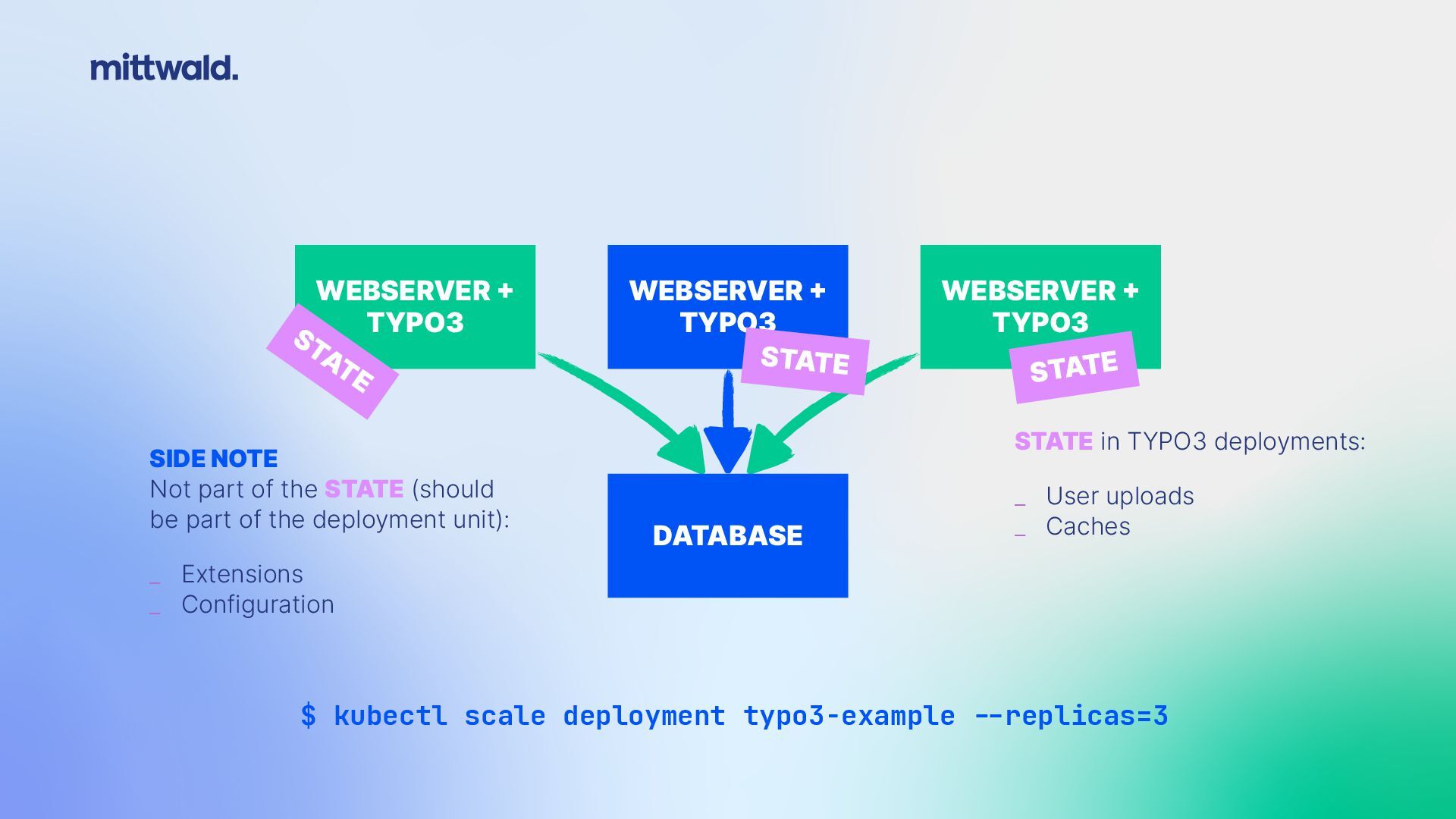

22. WEBSERVER + TYPO3 DATABASE WEBSERVER + TYPO3 WEBSERVER + TYPO3 STATE STATE STATE $ kubectl scale deployment typo3-example -- replicas=3 STATE in TYPO3 deployments: _ User uploads _ Caches SIDE NOTE Not part of the STATE (should be part of the deployment unit): _ Extensions _ Configuration
23. In a production site, you (or anybody) should have no excuse whatsoever to use the install tool or the extension manager

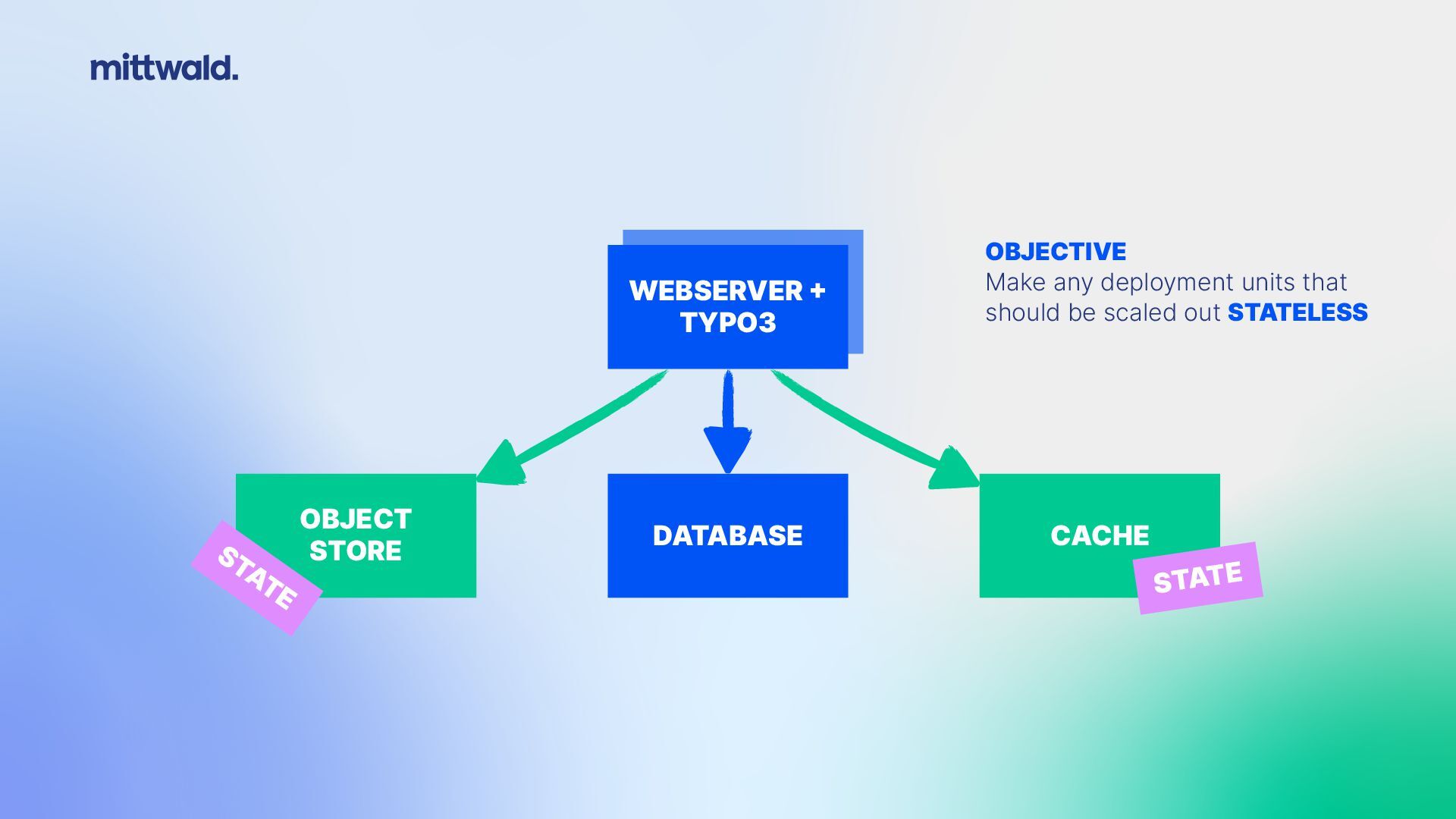

24. DATABASE OBJECT STORE CACHE STATE STATE WEBSERVER + WEBSERVER + TYPO3 OBJECTIVE Make any deployment units that should be scaled out STATELESS

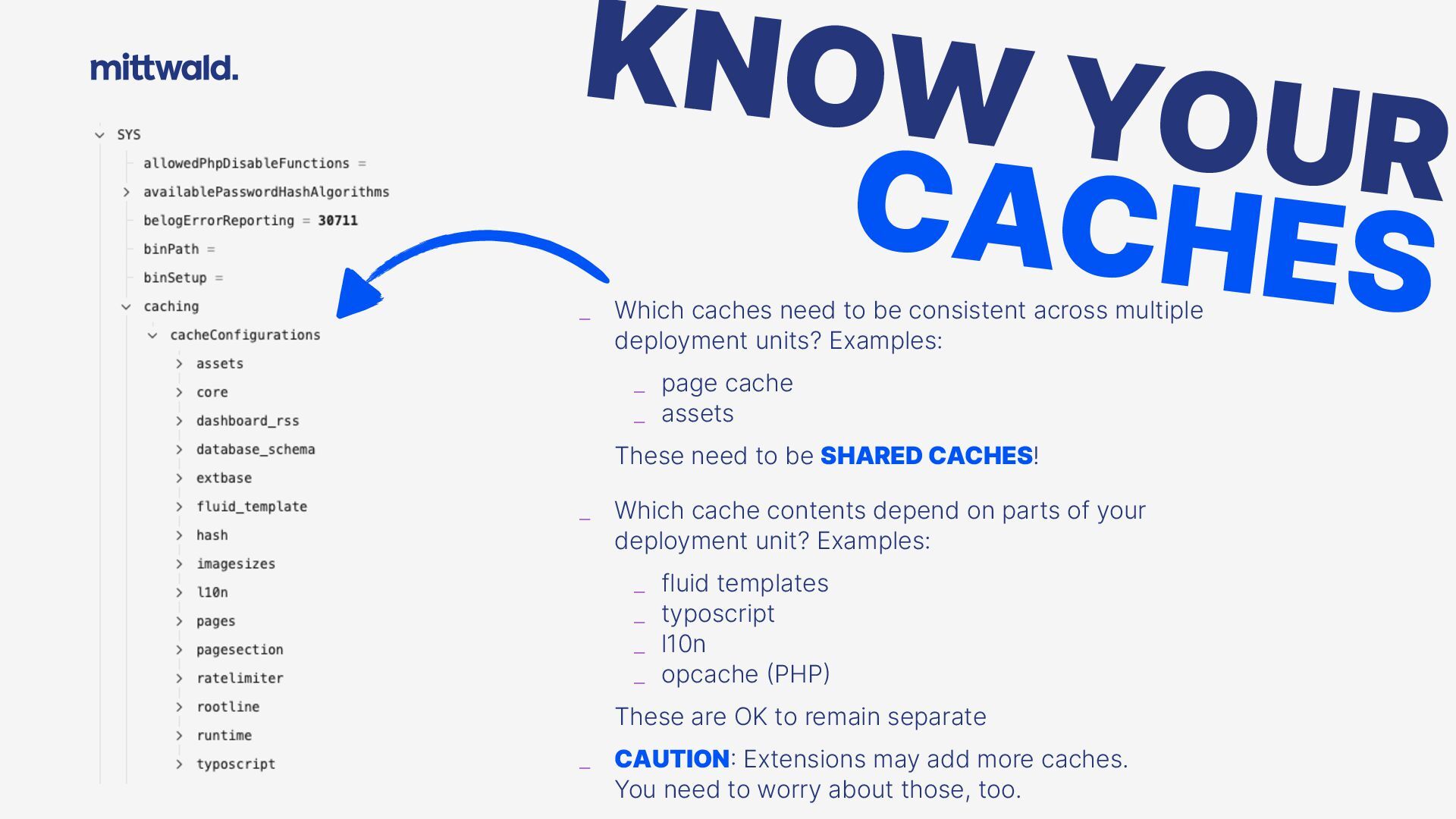

25. KNOW YOUR CACHES _ Which caches need to be consistent across multiple deployment units? Examples: _ page cache _ assets These need to be SHARED CACHES! _ Which cache contents depend on parts of your deployment unit? Examples: _ fluid templates _ typoscript _ l10n _ opcache ( PHP ) These are OK to remain separate _ CAUTION : Extensions may add more caches. You need to worry about those, too.

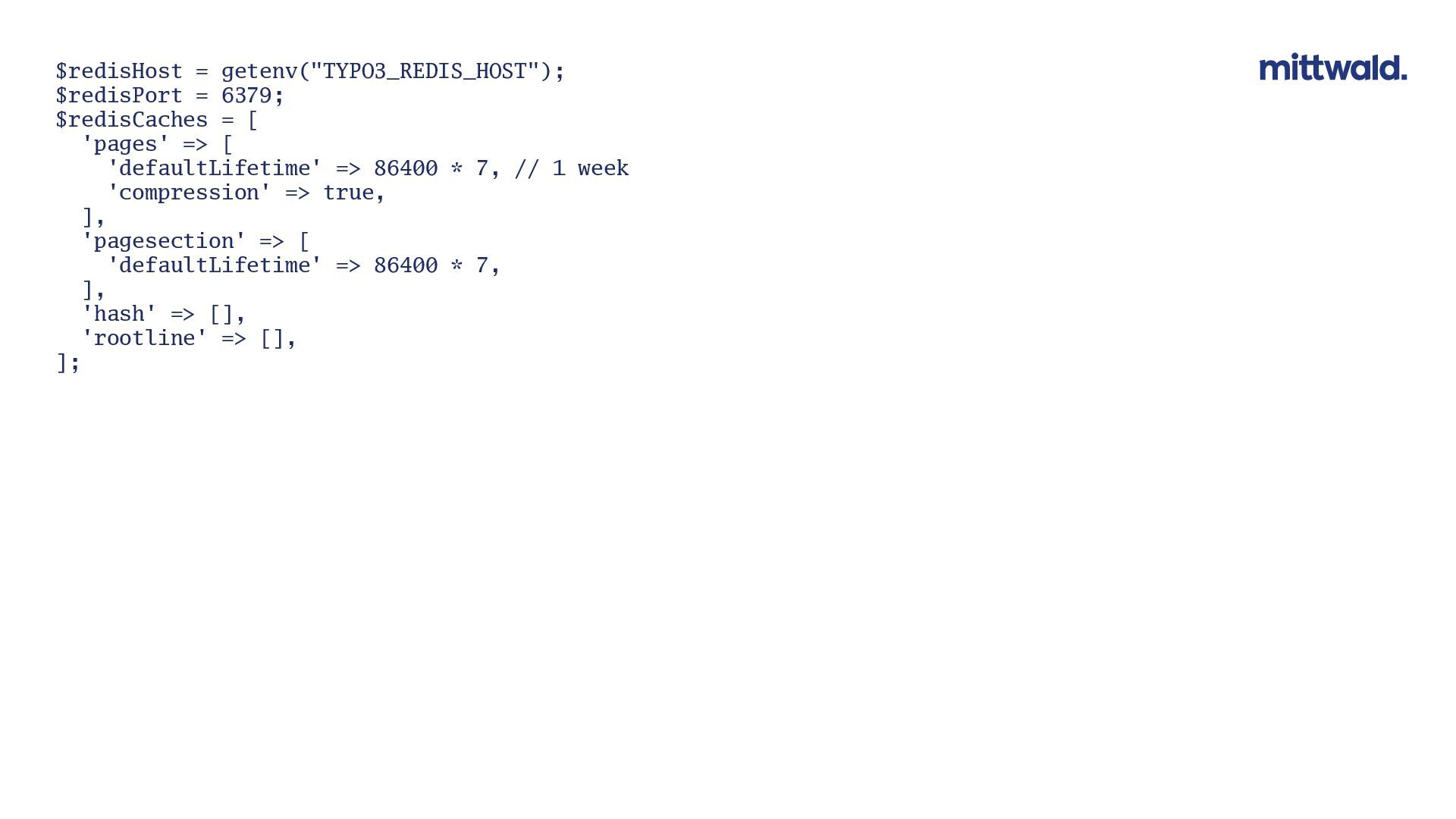

26. $redisHost = getenv("TYPO3_REDIS_HOST"); $redisPort = 6379; $redisCaches = [ 'pages' => [ 'defaultLifetime' => 86400 * 7, // 1 week 'compression' => true, ], 'pagesection' => [ 'defaultLifetime' => 86400 * 7, ], 'hash' => [], 'rootline' => [], ];

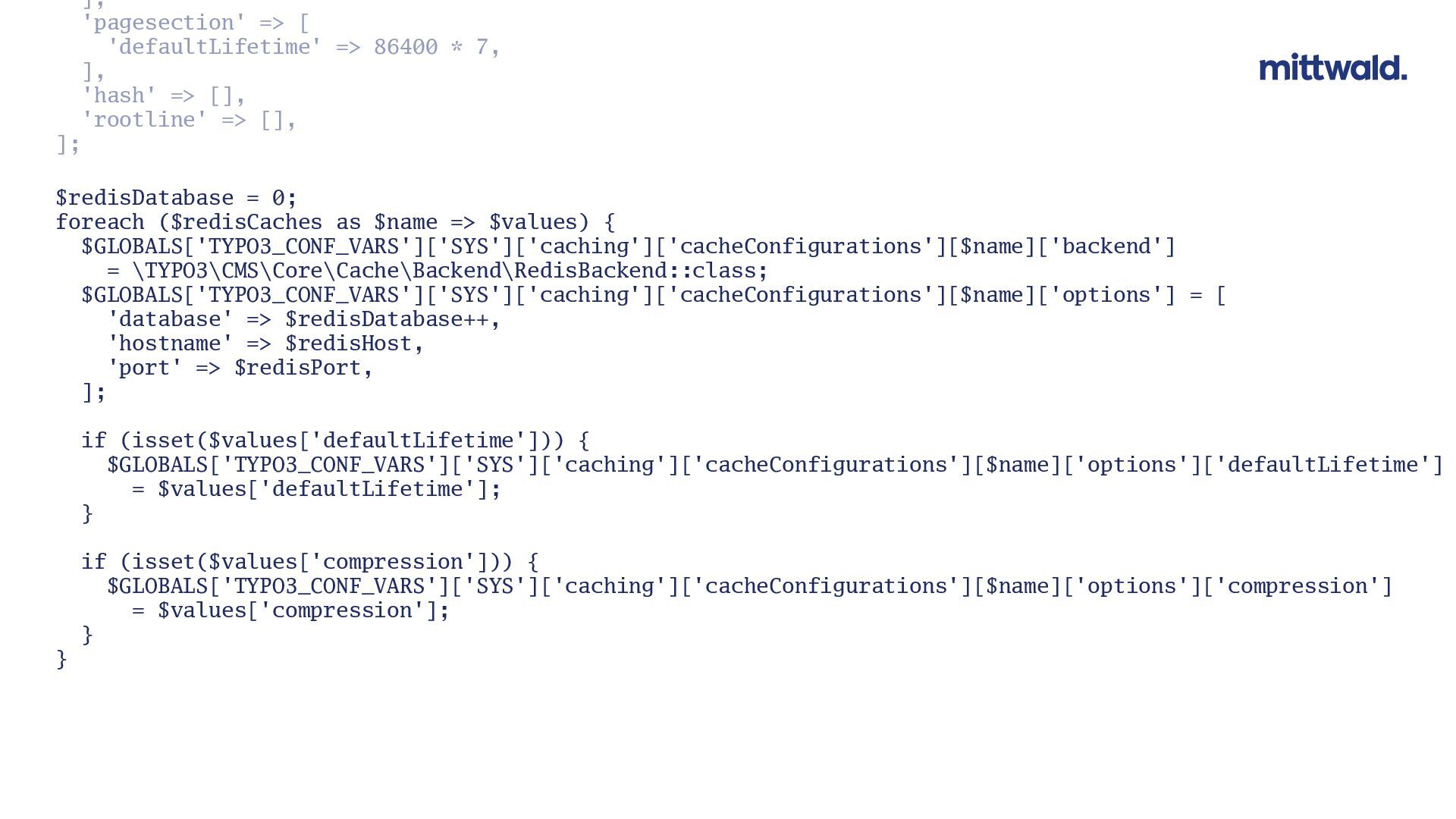

27. $redisDatabase = 0; foreach ($redisCaches as $name => $values) { $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['backend'] = \TYPO3\CMS\Core\Cache\Backend\RedisBackend::class; $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['options'] = [ 'database' => $redisDatabase++, 'hostname' => $redisHost, 'port' => $redisPort, ]; if (isset($values['defaultLifetime'])) { $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['options']['defaultLifetime'] = $values['defaultLifetime']; } if (isset($values['compression'])) { $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['options']['compression'] = $values['compression']; } } ], 'pagesection' => [ 'defaultLifetime' => 86400 * 7, ], 'hash' => [], 'rootline' => [], ];

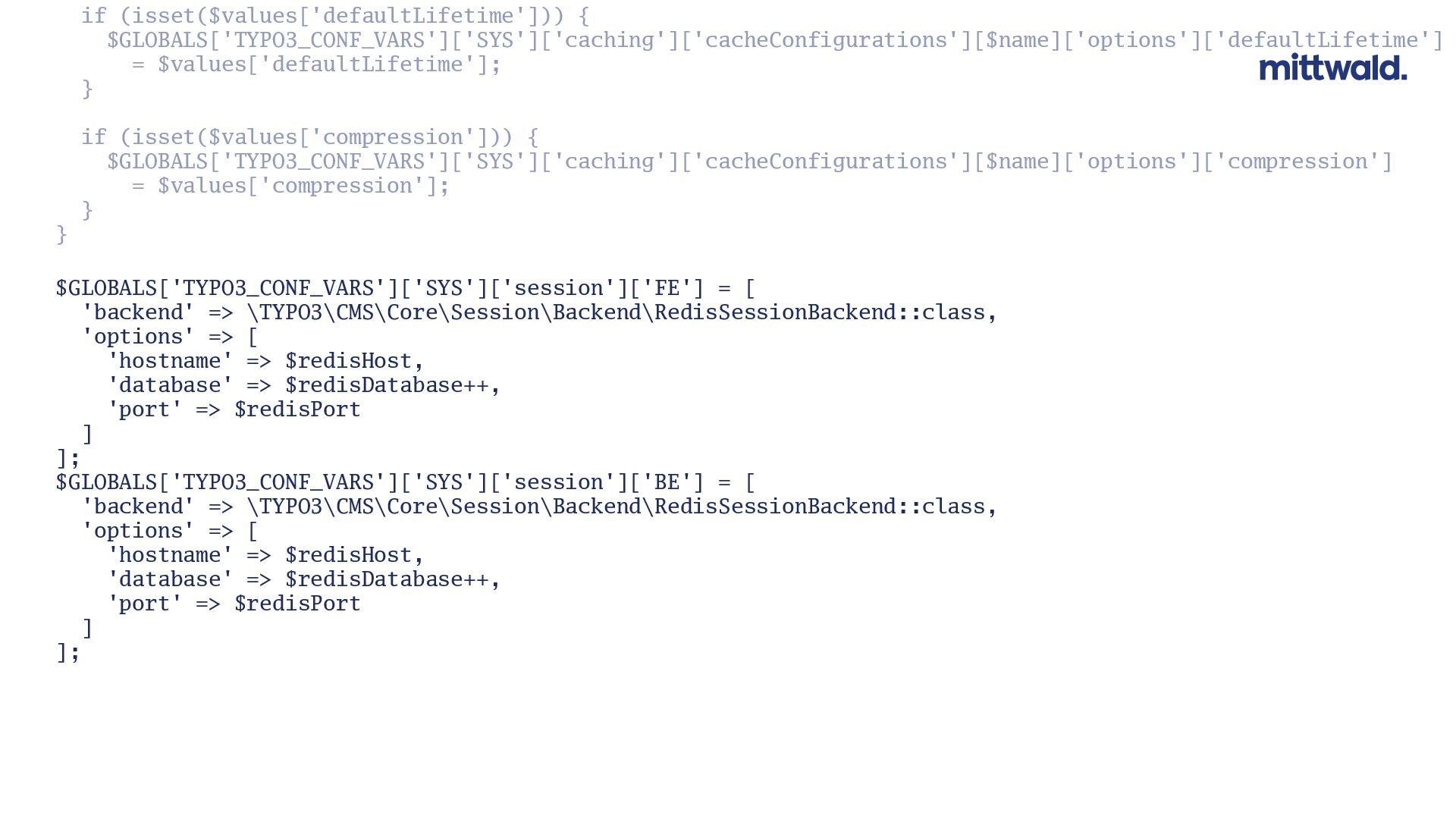

28. if (isset($values['defaultLifetime'])) { $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['options']['defaultLifetime'] = $values['defaultLifetime']; } if (isset($values['compression'])) { $GLOBALS['TYPO3_CONF_VARS']['SYS']['caching']['cacheConfigurations'][$name]['options']['compression'] = $values['compression']; } } $GLOBALS['TYPO3_CONF_VARS']['SYS']['session']['FE'] = [ 'backend' => \TYPO3\CMS\Core\Session\Backend\RedisSessionBackend::class, 'options' => [ 'hostname' => $redisHost, 'database' => $redisDatabase++, 'port' => $redisPort ] ]; $GLOBALS['TYPO3_CONF_VARS']['SYS']['session']['BE'] = [ 'backend' => \TYPO3\CMS\Core\Session\Backend\RedisSessionBackend::class, 'options' => [ 'hostname' => $redisHost, 'database' => $redisDatabase++, 'port' => $redisPort ] ];

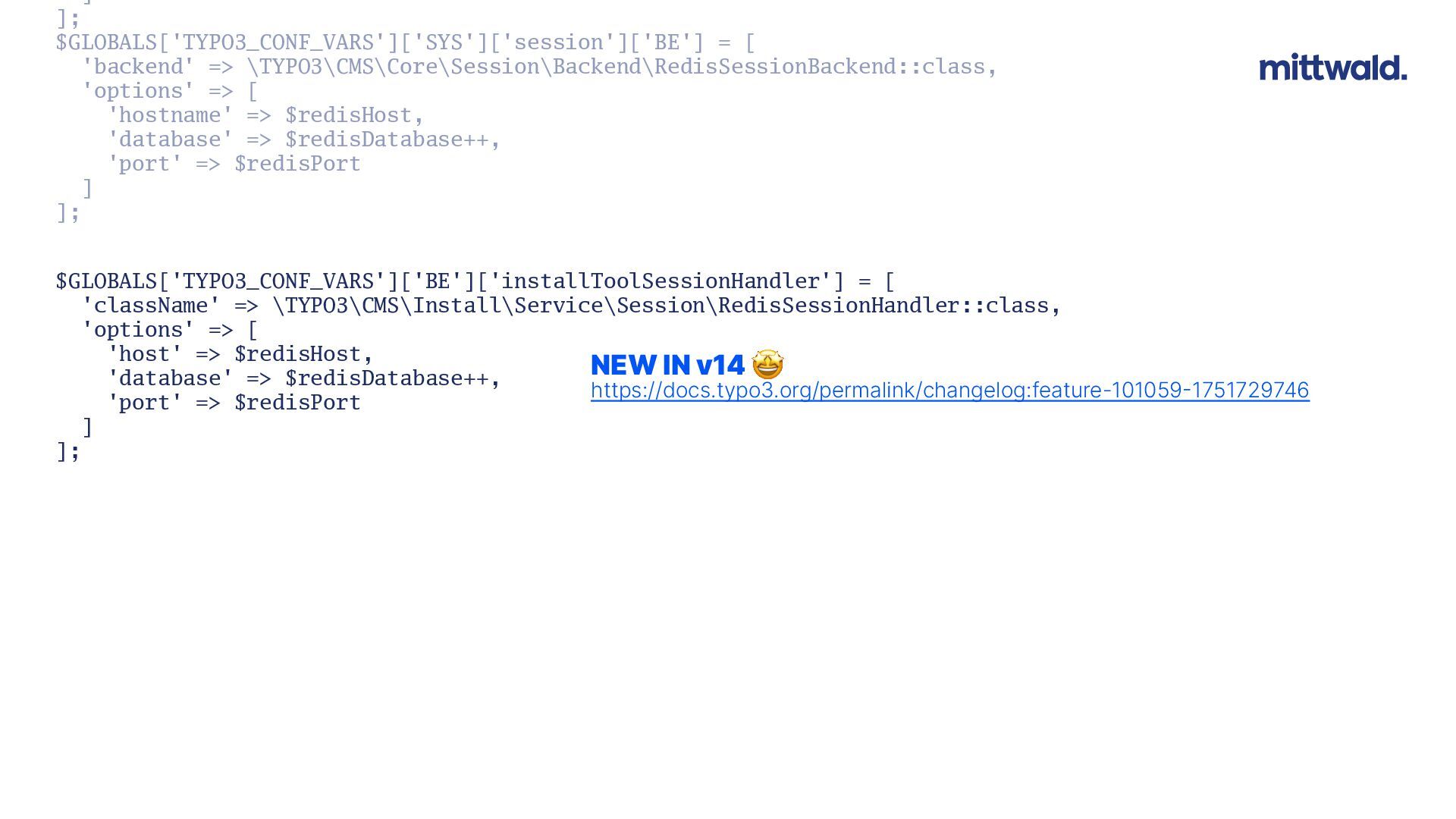

29. ] ]; $GLOBALS['TYPO3_CONF_VARS']['SYS']['session']['BE'] = [ 'backend' => \TYPO3\CMS\Core\Session\Backend\RedisSessionBackend::class, 'options' => [ 'hostname' => $redisHost, 'database' => $redisDatabase++, 'port' => $redisPort ] ]; $GLOBALS['TYPO3_CONF_VARS']['BE']['installToolSessionHandler'] = [ 'className' => \TYPO3\CMS\Install\Service\Session\RedisSessionHandler::class, 'options' => [ 'host' => $redisHost, 'database' => $redisDatabase++, 'port' => $redisPort ] ]; NEW IN v14 🤩 https://docs.typo3.org/permalink/changelog:feature-101059 - 1751729746

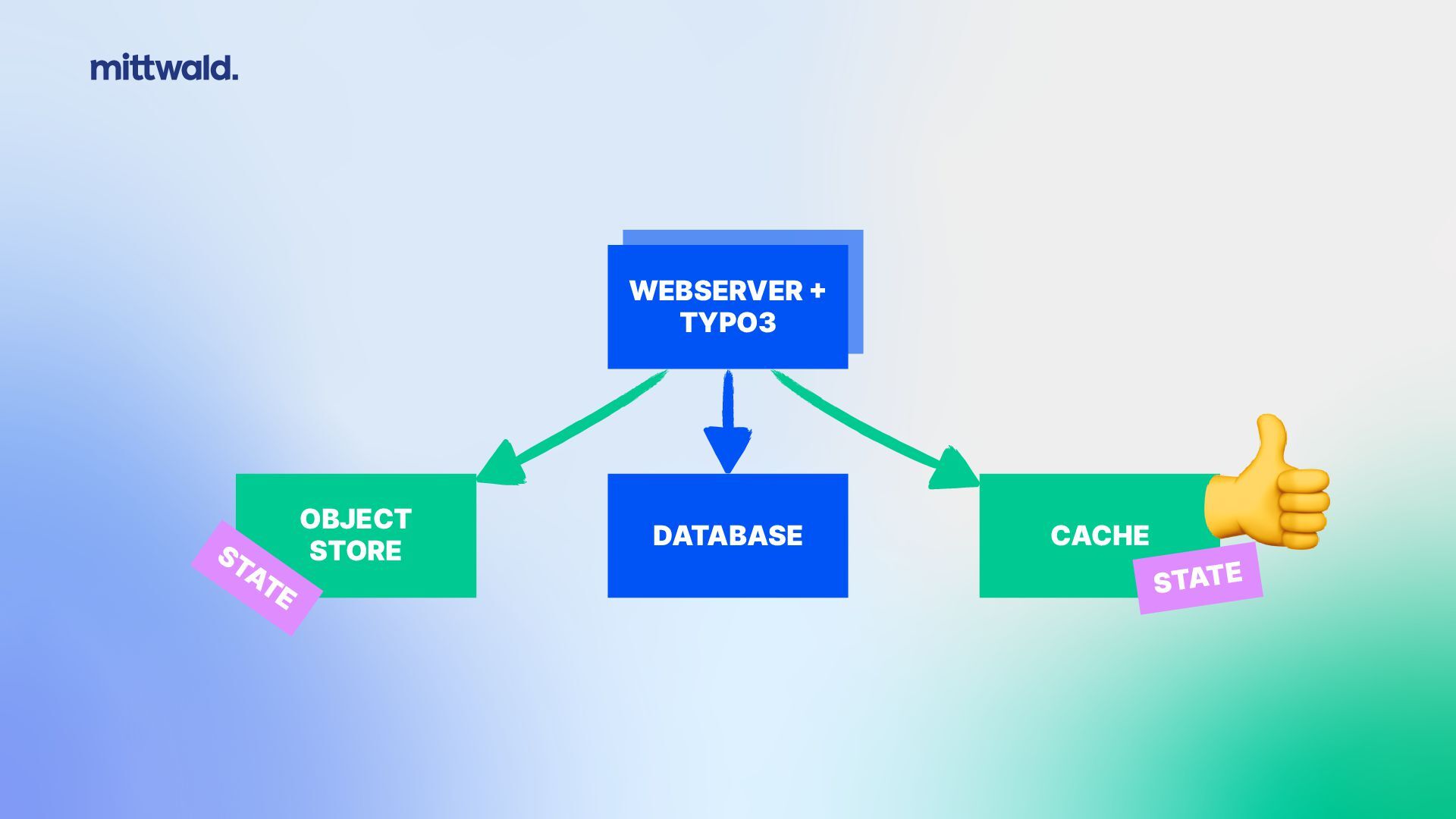

30. DATABASE OBJECT STORE CACHE STATE STATE WEBSERVER + WEBSERVER + TYPO3 👍

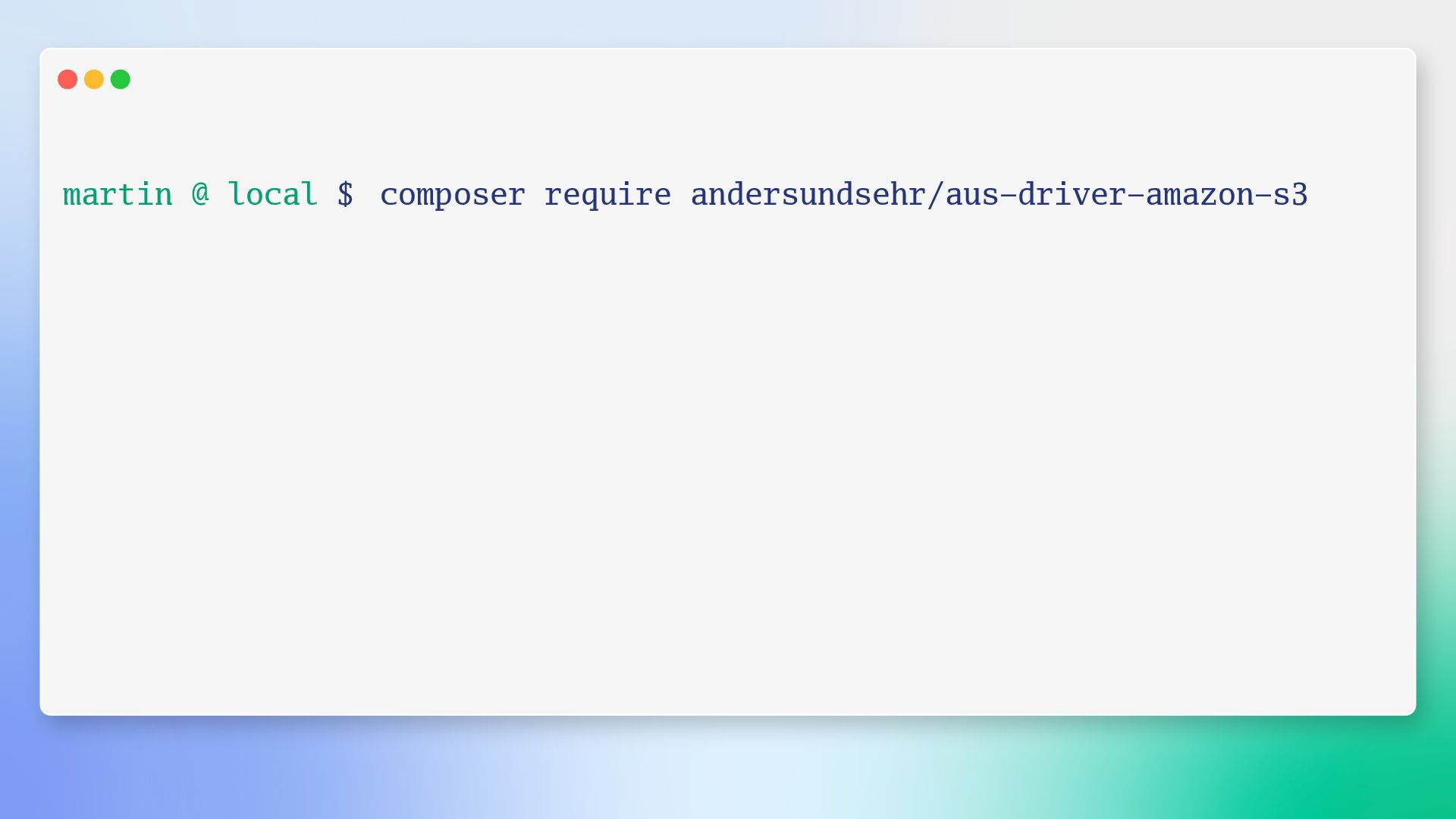

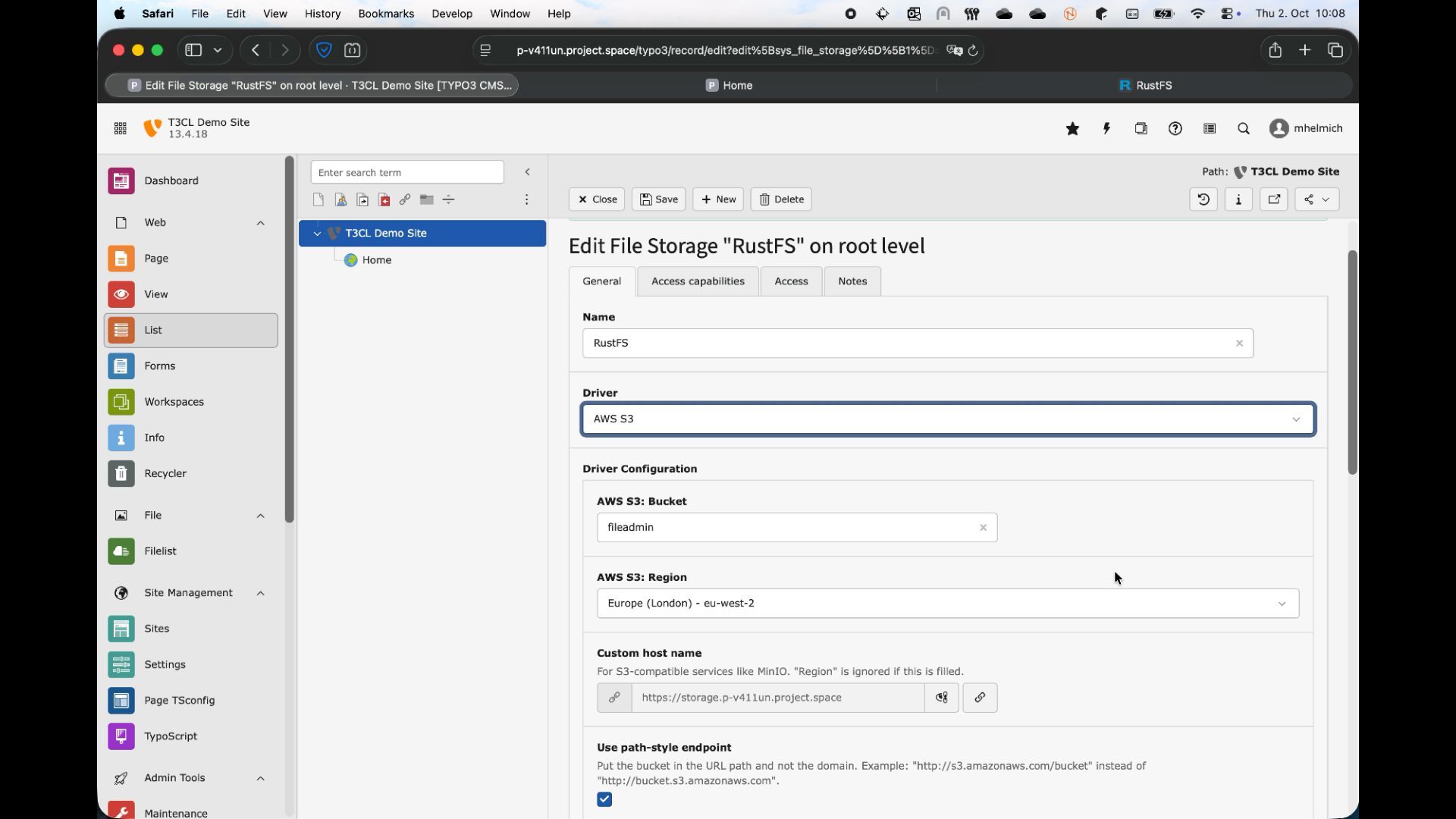

31. martin @ local $ composer require andersundsehr/aus-driver-amazon-s3

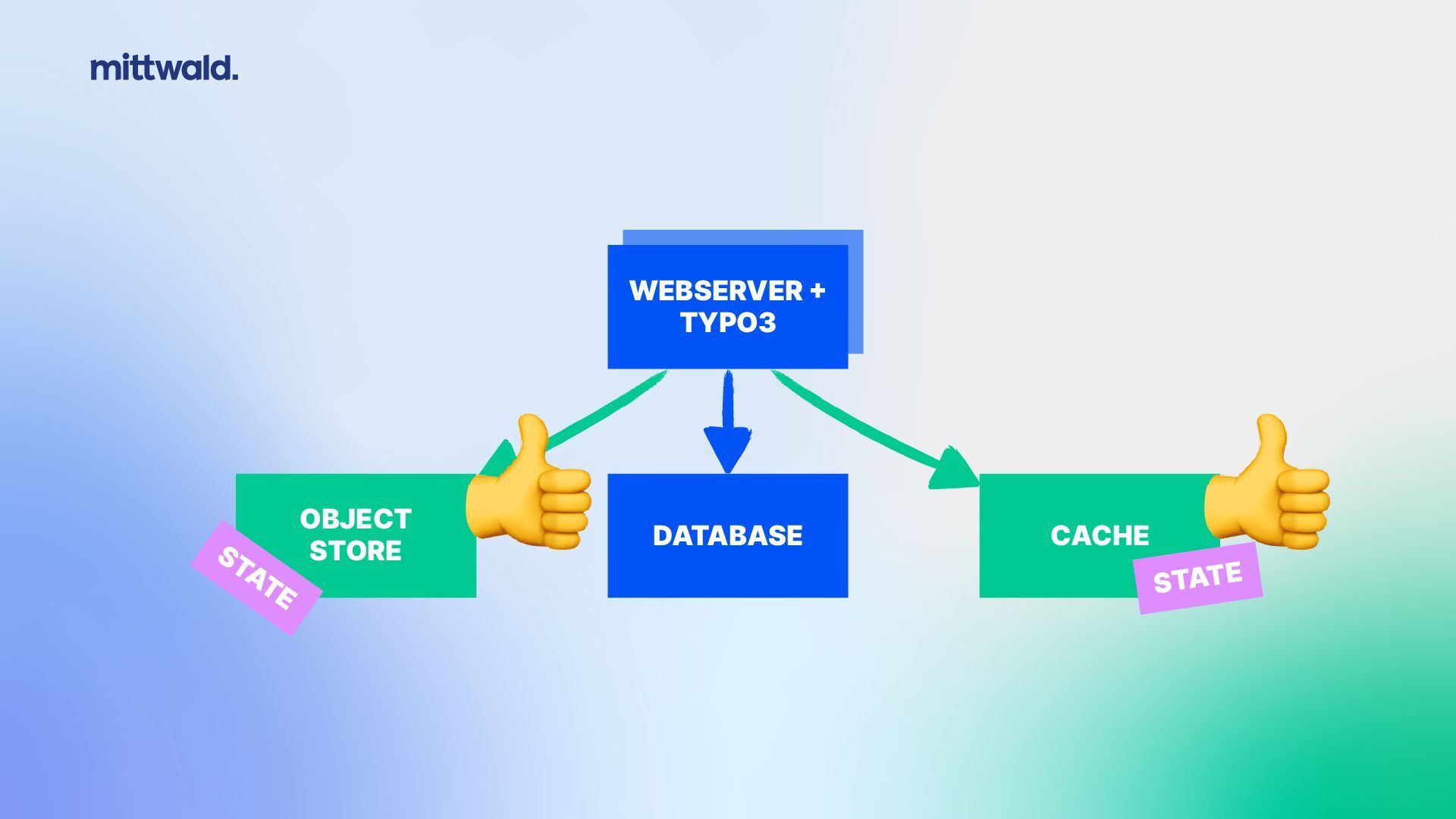

33. DATABASE OBJECT STORE CACHE STATE STATE WEBSERVER + WEBSERVER + TYPO3 👍 👍

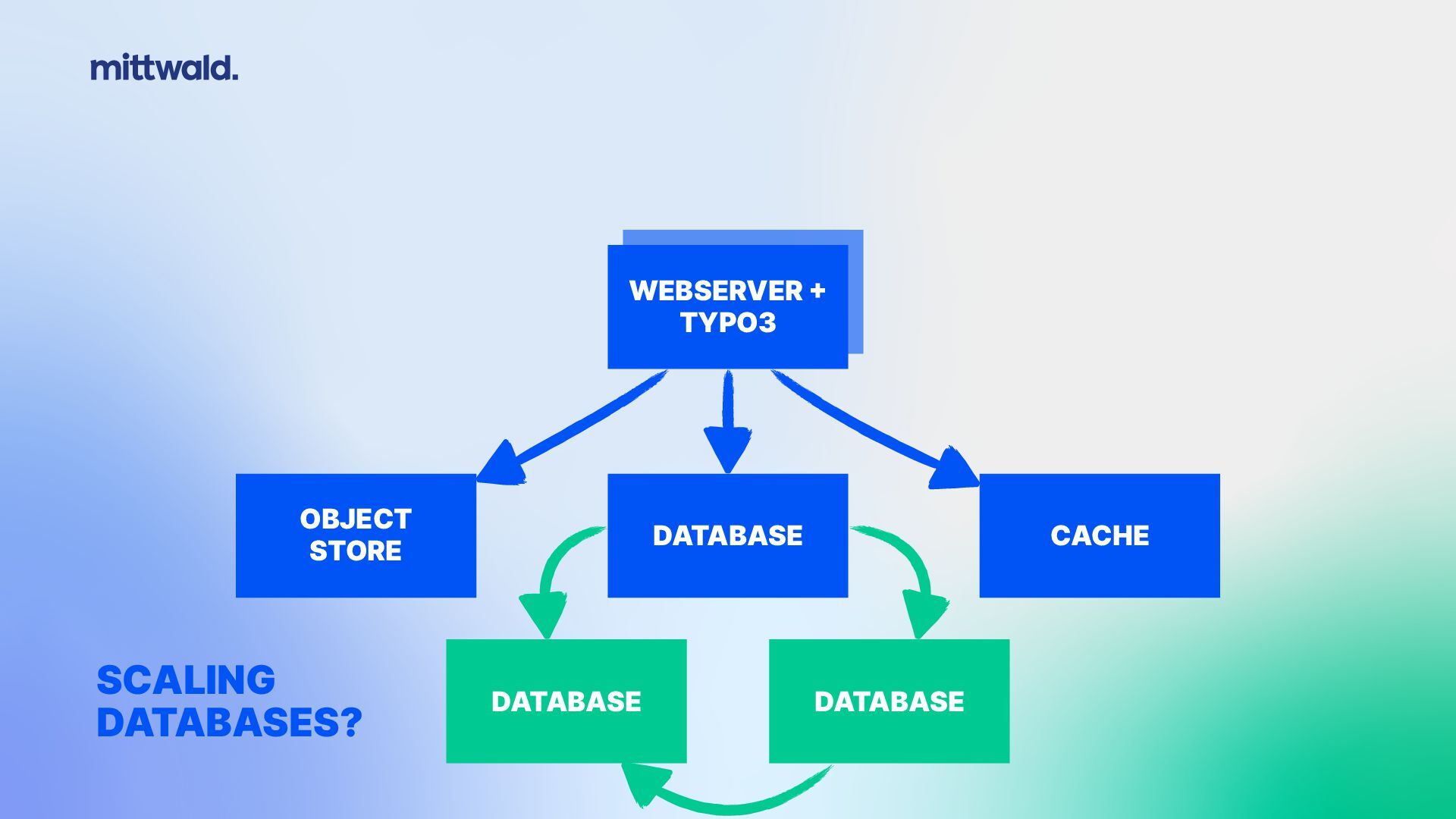

34. WEBSERVER + WEBSERVER + TYPO3 DATABASE DATABASE DATABASE OBJECT STORE CACHE SCALING DATABASES?

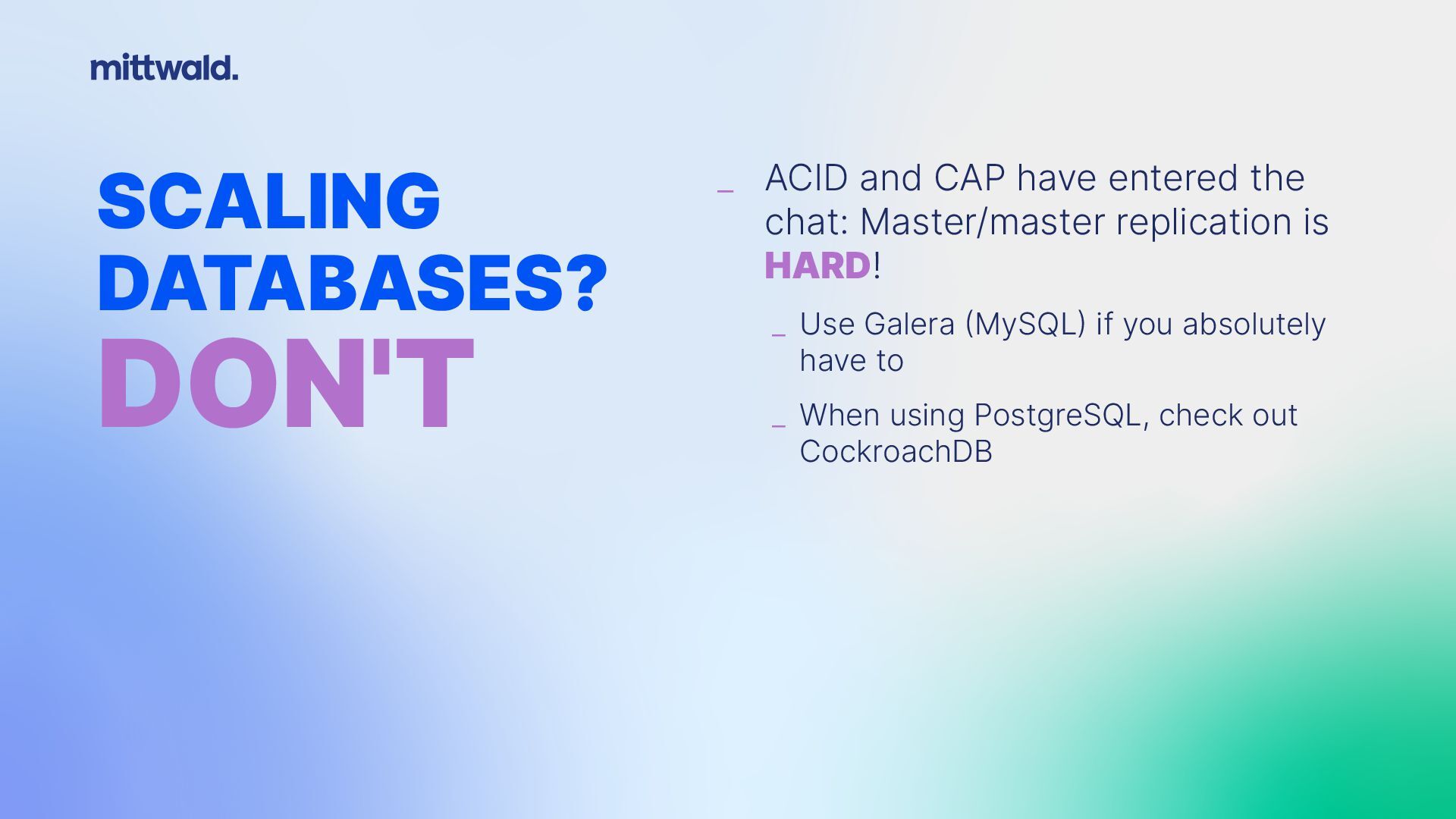

35. SCALING DATABASES? DON'T _ ACID and CAP have entered the chat: Master/master replication is HARD! _ Use Galera ( MySQL ) if you absolutely have to _ When using PostgreSQL, check out CockroachDB

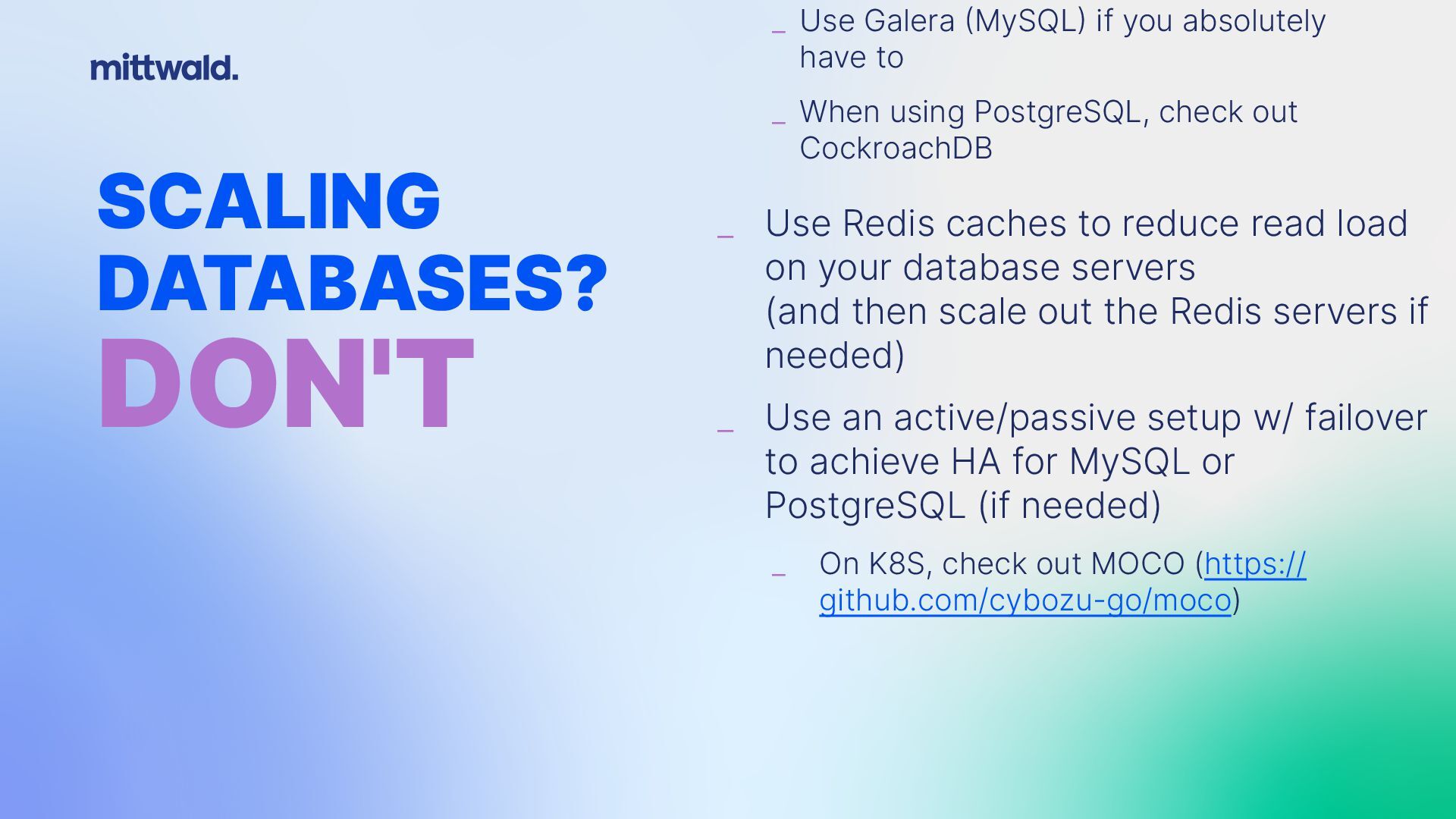

36. SCALING DATABASES? DON'T _ Use Galera ( MySQL ) if you absolutely have to _ When using PostgreSQL, check out CockroachDB _ Use Redis caches to reduce read load on your database servers (and then scale out the Redis servers if needed) _ Use an active/passive setup w/ failover to achieve HA for MySQL or PostgreSQL (if needed) _ On K8S, check out MOCO (https:// github.com/cybozu-go/moco)
37. https://unsplash.com/photos/red-and-blue-cargo-ship-on-body-of-water-during-daytime-NndKt2kF1L4 TYPO3 AND DOCKER!? RELATIONSHIP STATUS : It’s complicated STARTING POINTS _ https://github.com/martin-helmich/docker-typo3 For demo purposes; “classic” setup, no focus on scalability and/or statelessness whatsoever _ https://github.com/martin-helmich/docker-typo3-cloud Opinionated image with cloud-native best practices WORK IN PROGRESS _ Possible TYPO3 CLOUD NATIVE INITIATIVE? Visit Anja Scharfenbergs talk at T3CON25.
38. https://www.mittwald.de/karriere WE’RE HIRING Developer Relations Engineer Infrastructure Engineer CMS Support Engineer Product Owner CMS Hosting CMS Product Marketing Manager (all genders, on-site) MARTIN HELMICH m.helmich@mittwald.de martin.helmich@typo3.org
