Building Snake using Streams

This talk is an introduction to streams. You will learn how stream-based programming can be used to implement web frontend of the classic game: Snake.

Building dynamic applications using imperative approach tends to create lots of unmaintainable code. Stream-based programming tries to solve this problem by introducing fully declarative way of defining application logic. While using streams, you will focus on WHAT needs to be done, not HOW and WHEN. I will go through every piece of code that was used to build the game. That is about 100 lines of ES 2015 code contained within two React components.

Transcript

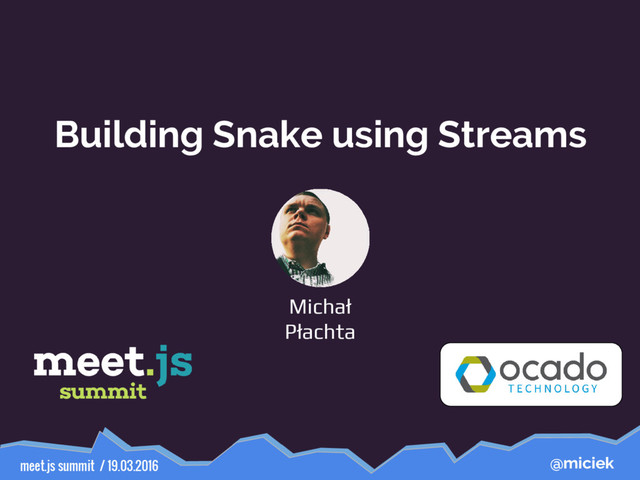

1. meet.js summit / 19.03.2016 @miciek
   Building Snake using Streams
   Michał
   Płachta


   View Slide

2. meet.js summit / 19.03.2016 @miciek
   Streams?
   ● application logic
   ● data transformations
   ● unbounded collections
   ● no time
   ● declarative


   View Slide

3. meet.js summit / 19.03.2016 @miciek
   What you will learn?
   how frontend web app written in
   streams looks like


   View Slide

4. meet.js summit / 19.03.2016 @miciek
   Meet Snake & Fruit
   Snake
   Fruit


   View Slide

5. meet.js summit / 19.03.2016 @miciek
   Our First Stream: “Ticks” stream


   View Slide

6. meet.js summit / 19.03.2016 @miciek
   “Directions” stream


   View Slide

7. meet.js summit / 19.03.2016 @miciek
   “Snake’s Head Positions” stream


   View Slide

8. meet.js summit / 19.03.2016 @miciek
   Stream operators: map & scan
   stream.map(f)
   ● transforms values from
   stream using function f
   ● returns a new stream
   with transformed values
   stream.scan(init, f)
   ● accumulates values
   from stream using
   function f
   ○ f(acc,val) =>
   new_acc
   ● returns a new stream
   that outputs
   accumulator on each
   new value


   View Slide

9. meet.js summit / 19.03.2016 @miciek
   Once again: the code


   View Slide

10. meet.js summit / 19.03.2016 @miciek
    Displaying values from the stream


    View Slide

11. meet.js summit / 19.03.2016 @miciek
    Streams are reusable


    View Slide

12. meet.js summit / 19.03.2016 @miciek
    Streams & Operators are lazy
    No elements
    =
    I don’t do
    anything


    View Slide

13. meet.js summit / 19.03.2016 @miciek
    “Key presses” stream


    View Slide

14. meet.js summit / 19.03.2016 @miciek
    “Left Key Presses” stream


    View Slide

15. meet.js summit / 19.03.2016 @miciek
    “Right Key Presses” stream


    View Slide

16. meet.js summit / 19.03.2016 @miciek
    Stream operators: filter
    stream.filter(p)
    ● checks each value from
    stream against the
    predicate passed as p
    ● returns a new stream
    that outputs only values
    that satisfy condition p
    Already used:
    ● map(f)
    ● scan(init, f(acc, val))


    View Slide

17. meet.js summit / 19.03.2016 @miciek
    “Left Rotations” stream


    View Slide

18. meet.js summit / 19.03.2016 @miciek
    “Right Rotations” stream


    View Slide

19. meet.js summit / 19.03.2016 @miciek
    “Actions” stream


    View Slide

20. meet.js summit / 19.03.2016 @miciek
    Stream operators: merge
    stream.merge(stream2)
    ● stream is merged with
    stream2
    ● returns a new stream that
    outputs values from both
    stream and stream2 as
    they appear
    Already used:
    ● map(f)
    ● scan(init, f(acc, val))
    ● filter(p)


    View Slide

21. meet.js summit / 19.03.2016 @miciek
    Recap: Current “Directions” stream


    View Slide

22. meet.js summit / 19.03.2016 @miciek
    “Directions” stream based on user input


    View Slide

23. meet.js summit / 19.03.2016 @miciek
    “Directions” stream: Better, but no timing!
    vs


    View Slide

24. meet.js summit / 19.03.2016 @miciek
    Stream operators: sampledBy
    stream.sampledBy(stream2)
    ● last value from stream is
    taken when any value
    appears in stream2
    ● returns a new stream that
    outputs values from
    stream sampled by values
    from stream2
    Already used:
    ● map(f)
    ● scan(init, f(acc, val))
    ● filter(p)
    ● merge(stream2)


    View Slide

25. meet.js summit / 19.03.2016 @miciek
    “Directions” stream: user input & timing


    View Slide

26. meet.js summit / 19.03.2016 @miciek
    “Snake Head Positions”: no change needed


    View Slide

27. meet.js summit / 19.03.2016 @miciek
    User moves the snake: the code


    View Slide

28. meet.js summit / 19.03.2016 @miciek
    Current implementation
    10 streams
    ● “ticks”
    ● “key presses”
    ● “left key presses”
    ● “right key presses”
    ● “left rotations”
    ● “right rotations”
    ● “actions”
    ● “direction changes”
    ● “directions”
    ● “snake head positions”
    + map, scan, filter, merge &
    sampledBy


    View Slide

29. meet.js summit / 19.03.2016 @miciek
    Stream operators: slidingWindow
    stream.slidingWindow(n)
    ● aggregate last n values
    ● returns a new stream that
    outputs arrays of last n
    values from the stream
    ● can be implemented using
    scan
    Already used:
    ● map(f)
    ● scan(init, f(acc, val))
    ● filter(p)
    ● merge(stream2)
    ● sampledBy(stream2)


    View Slide

30. meet.js summit / 19.03.2016 @miciek
    “Snakes” stream


    View Slide

31. meet.js summit / 19.03.2016 @miciek
    Quiz: Eating a fruit?
    6 operators
    ● map(f)
    ● scan(init, f(acc, val))
    ● filter(p)
    ● merge(stream2)
    ● sampledBy(stream2)
    ● slidingWindow(n)
    WHICH STREAMS AND OPERATORS
    SHOULD WE REUSE TO
    IMPLEMENT “EATING A FRUIT”
    FUNCTIONALITY?
    11 streams
    ● “ticks”
    ● “key presses”
    ● “left key presses”
    ● “right key presses”
    ● “left rotations”
    ● “right rotations”
    ● “actions”
    ● “direction changes”
    ● “directions”
    ● “snake head positions”
    ● “snakes”


    View Slide

32. meet.js summit / 19.03.2016 @miciek
    “Fruit eaten events” stream


    View Slide

33. meet.js summit / 19.03.2016 @miciek
    Demo Time!


    View Slide

34. KSUG / Kraków / 29.02.2016
    @miciek
    Architecture: 11 streams, 2 ins & 2 outs


    View Slide

35. meet.js summit / 19.03.2016 @miciek
    Links
    github.com/miciek/web-snake-react-bacon Client Side Code
    rxmarbles.com/ Play with streams and operators!
    baconjs.github.io/ BaconJS - streams in JavaScript
    krakow.meetjs.pl/160112/ - Snake Live Coding talk
    And for the brave ones:
    github.com/miciek/snake-multiplayer-akka-streams Server Side Code


    View Slide

36. meet.js summit / 19.03.2016 @miciek
    One more thing...
    Streams (Bacon.js, RxJS)
    +
    Virtual DOM (React.js)
    +
    Types (TypeScript, Flow)
    =
    Sane Frontend Programming


    View Slide

37. meet.js summit / 19.03.2016 @miciek
    One more thing...
    Streams
    +
    Virtual DOM
    +
    Types
    =
    Elm .


    View Slide

38. meet.js summit / 19.03.2016 @miciek
    Building Snake using Streams
    Michał Płachta
    www.michalplachta.com
    THANK YOU!


    View Slide
