From route hijacking to RPKI: How vulnerable is the Internet?

Presented at Virus Bulletin 2016 and BSides Denver 2016.

Trust is an important aspect of our daily actions on the Internet. Trust model discussions often focus on endpoints or even venture into TCP/IP and DNS, but rarely do they consider the important role BGP plays. BGP provides distributed control over core decisions, such as where packets go and how they get there. Despite this important piece of operating the Internet, many of the validation and security mechanisms have remained unchanged since the 1990s. This talk will cover the current state of BGP, some real-world examples of data, unique perspectives on it, and what is being done to improve the state of Internet routing. The data reviewed will include answers to questions such as: What percentage of the Internet is announcing routes that can't have ownership independently validated? How many routes shouldn't even exist in the global routing table? What parts of the world are the worst offenders? The talk will also introduce real-world assumptions that can be used to create models for hijack detection in any organization. After applying these assumptions, the same data points will be reviewed over an extended period of time. Finally, attendees will be provided with an overview of route validation methods, including industry best practices such as bogon filters, large-scale mechanisms including IRR, and cryptographic origin validation using a tool like RPKI. The discussion will also ensure coverage of future developments to solve not just origin validation but also full path validation.

Transcript

1. BGP From route hijacking to RPKI How vulnerable is the Internet? BSides Denver 2016
2. me: Mike Benjamin @mikebdotorg Security guy at Level 3 Former network architect Colorado resident This is my personal research

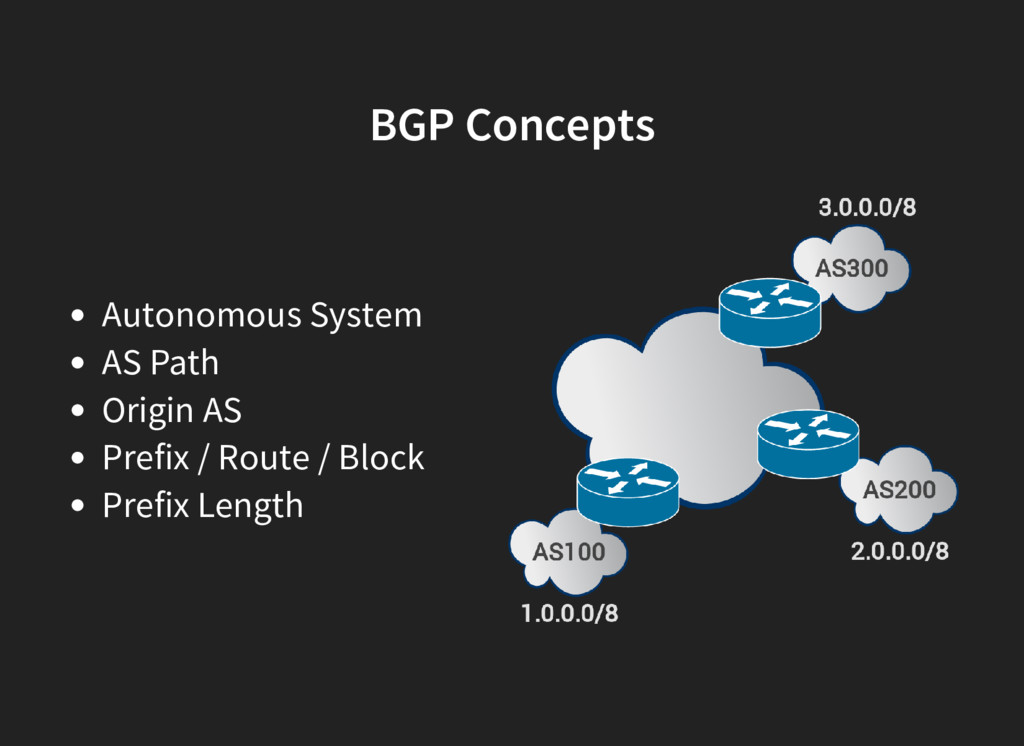

3. BGP Concepts Autonomous System AS Path Origin AS Prefix / Route / Block Prefix Length

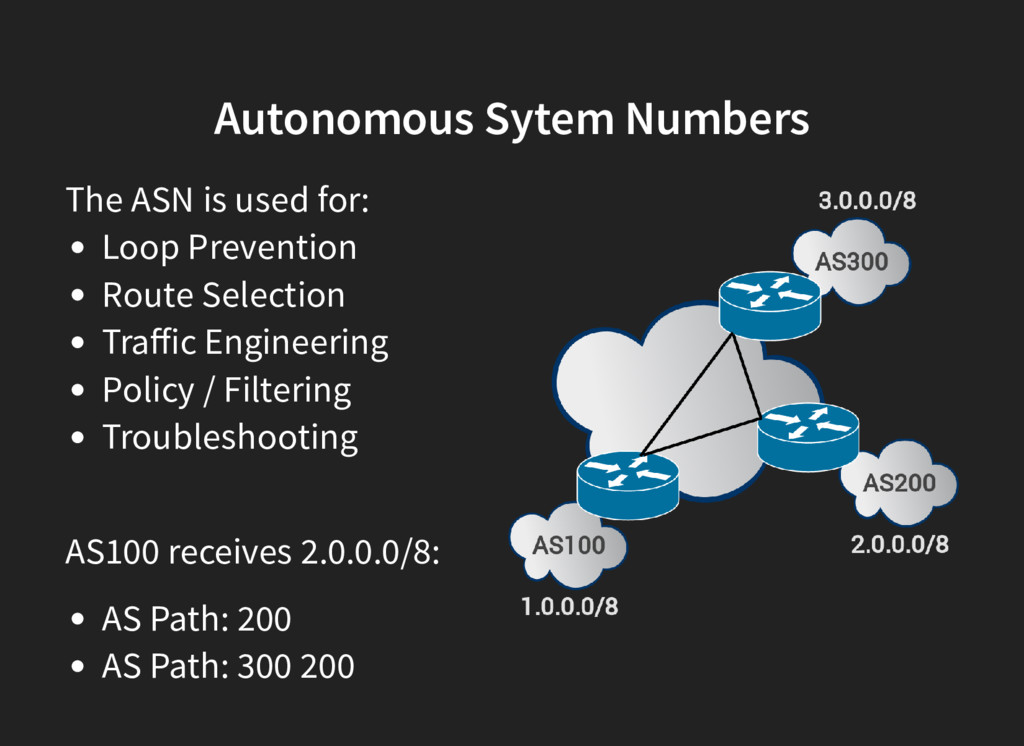

4. Autonomous Sytem Numbers The ASN is used for: Loop Prevention Route Selection Traffic Engineering Policy / Filtering Troubleshooting AS100 receives 2.0.0.0/8: AS Path: 200 AS Path: 300 200

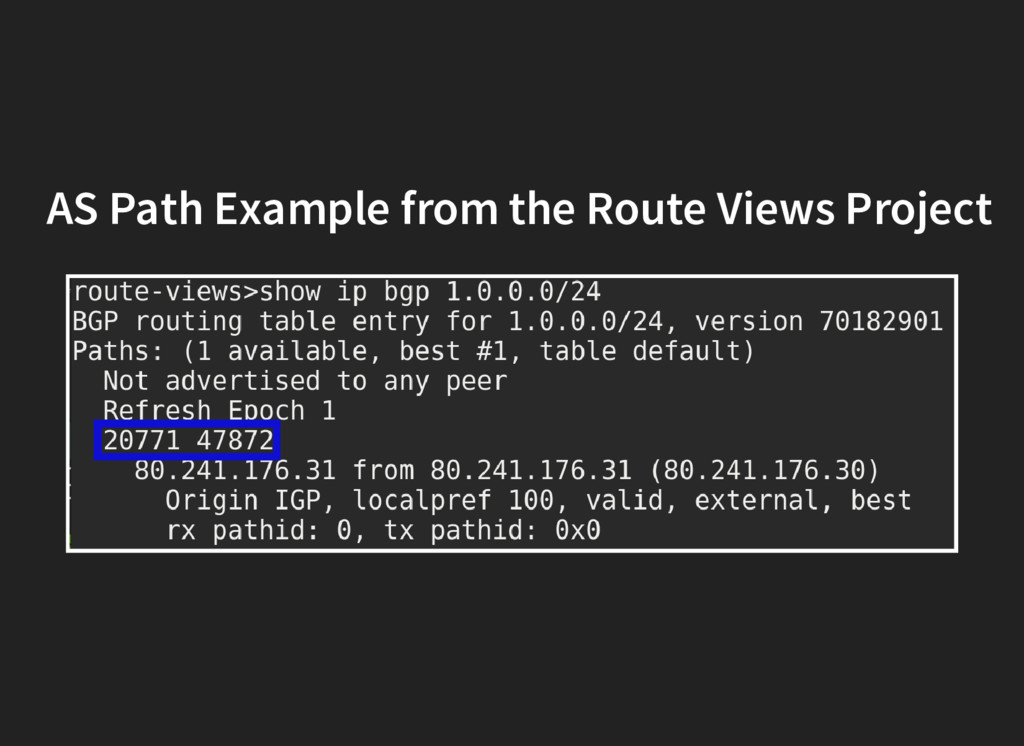

5. AS Path Example from the Route Views Project

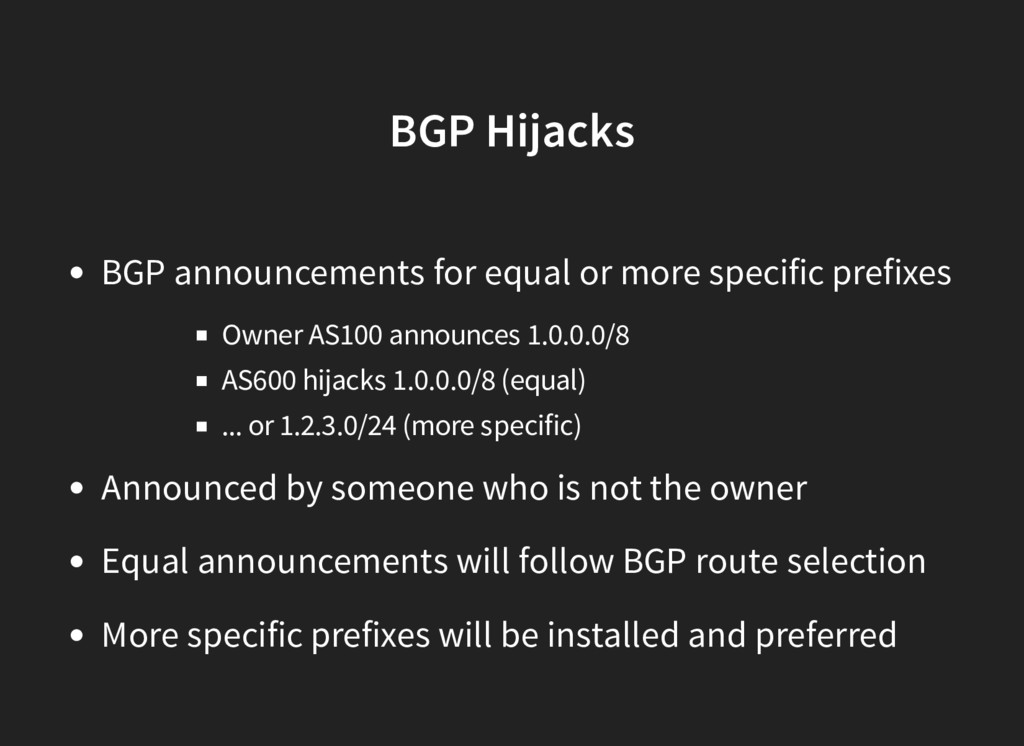

6. BGP Hijacks BGP announcements for equal or more specific prefixes Owner AS100 announces 1.0.0.0/8 AS600 hijacks 1.0.0.0/8 (equal) ... or 1.2.3.0/24 (more specific) Announced by someone who is not the owner Equal announcements will follow BGP route selection More specific prefixes will be installed and preferred

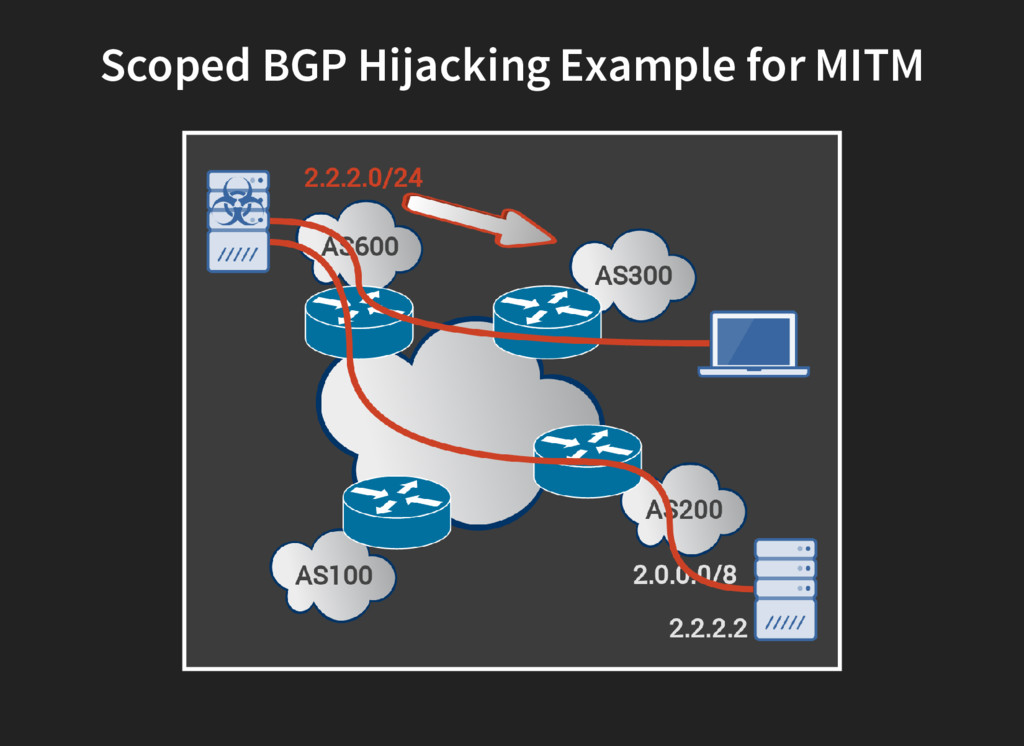

7. Scoped BGP Hijacking Example for MITM

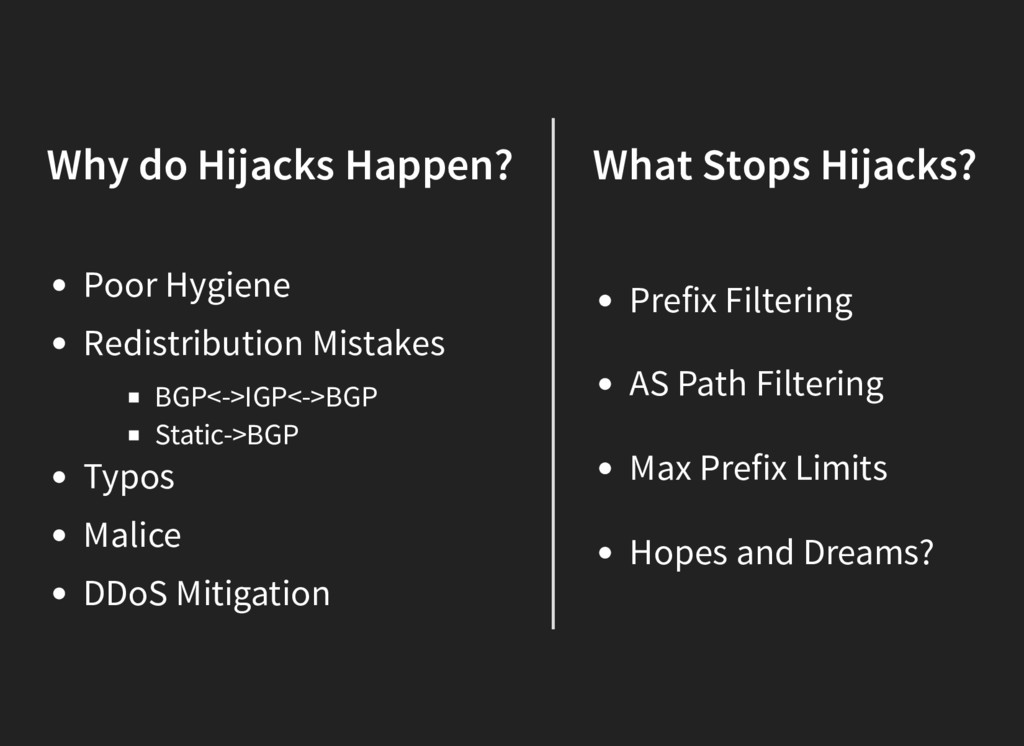

8. Why do Hijacks Happen? What Stops Hijacks? Poor Hygiene Redistribution Mistakes BGP<->IGP<->BGP Static->BGP Typos Malice DDoS Mitigation Prefix Filtering AS Path Filtering Max Prefix Limits Hopes and Dreams?
9. Origin Validation Options Method Coverage Adequate Trust RPKI 6.7% [1] Yes IRR 72.8% (62.3% correct) Not really Squatting 99.6% No [1] https://rpki-monitor.antd.nist.gov/

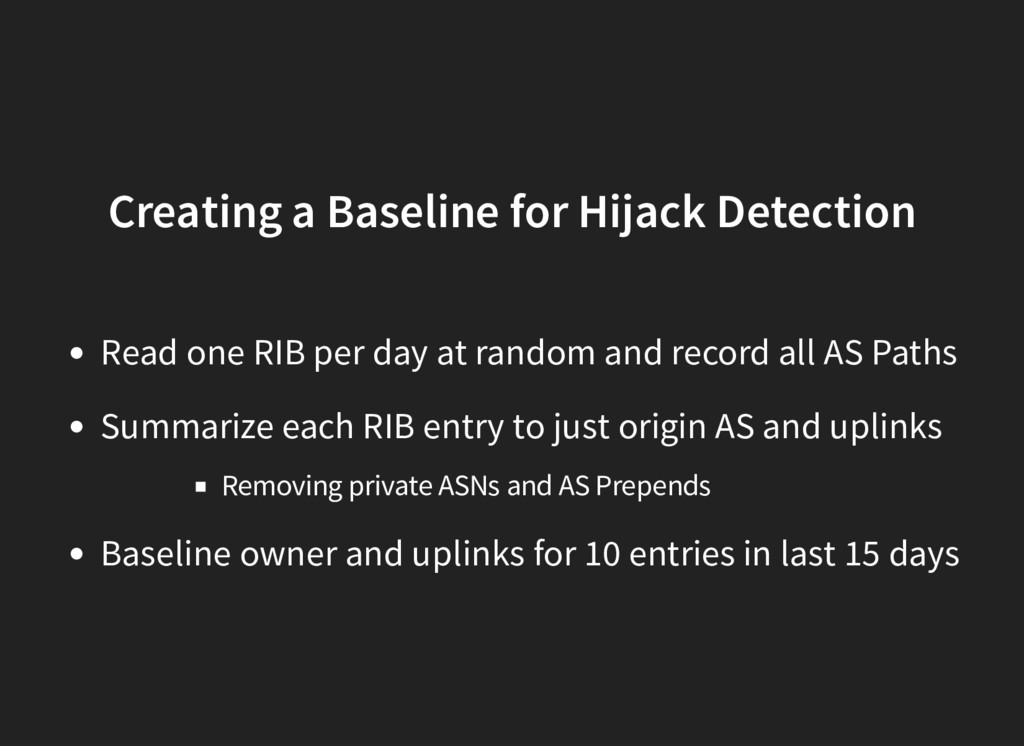

10. Creating a Baseline for Hijack Detection Read one RIB per day at random and record all AS Paths Summarize each RIB entry to just origin AS and uplinks Removing private ASNs and AS Prepends Baseline owner and uplinks for 10 entries in last 15 days
11. Detecting Hijacks Check for hijacks and record first match from: Route matched owner Route and new origin AS match IRR record New origin was an uplink in baseline data New origin is a downlink of baseline owner Remainder are assumed to be a real hijack
12. Results 2011-09-16 through 2016-09-15 Route From Owner 99.57% Possible Hijack 0.43% Detector Match % Match IRR 33% Uplink 11% Downlink 14% Unknown 42%
13. Final Numbers Future Baseline Comparison: Another 49% reduction in hijacks Final list is 0.09% of all route changes Year Unique Hijacks Per Day 2011 235 2012 261 2013 302 2014 404 2015 507 2016 418
14. Top Single Day Hijacks by Prefix Volume Prefix Volume Origin AS Date # AS Paths 58,123 AS31474 2011-10-21 35 31,674 AS7514 2015-07-17 3 25,610 AS9498 2015-11-06 [1] 1758 23,206 AS9498 2015-11-07 977 22,574 AS8359 2016-06-30 1 8,089 AS4761 2014-04-02 [2] 813 5,049 AS7018 2013-03-20 1 4,602 AS29649 2013-07-31 190 4,292 AS201701 2015-10-11 [3] 75 4,072 AS18403 2016-09-14 [4] 2222 [1] http://www.bgpmon.net/large-scale-bgp-hijack-out-of-india/ [2] http://www.bgpmon.net/hijack-event-today-by-indosat/ [3] http://research.dyn.com/2015/10/global-impacts-of-recent-leaks/ [4] https://bgpstream.com/event/56207
15. Top Repeat Offending ASes - Hijacking Yourself % Days Updated Hijacking AS Top Hijacked ASes Hijacker Country Hijacker Name 99% AS27064 721 27066 27065 United States DoD 95% AS27051 721 United States DoD 91% AS2905 16637 21491 37594 South Africa MTN 88% AS647 721 5976 27066 United States DoD 87% AS5976 721 647 27066 United States DoD 87% AS1452 721 1489 5800 United States DoD 85% AS3475 721 647 5237 United States DoD 84% AS27066 721 27064 5976 United States DoD 83% AS246 390 391 440 United States DoD 80% AS491 391 440 395 United States DoD
16. Searching the Data search for google.com (216.85.193.110) 216.58.192.0/20 was hijacked at 2016-04-22 17:09:48 UTC by AS200759 (FLOW Switzerland, CH) search for twitter.com (199.59.148.82 199.59.149.198 199.59.150.7 199.59.148.10) 199.59.148.10/32 was hijacked at 2013-04-23 06:04:32 UTC by AS5416 (Internet Service[...], BH) 199.59.148.0/23 was hijacked at 2016-04-22 17:09:48 UTC by AS200759 (FLOW Switzerland, CH) 199.59.148.82/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) 199.59.149.198/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) 199.59.150.7/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) 199.59.148.10/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) search for www.securitybsides.com (208.96.18.238 208.96.18.237) 208.96.18.238/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) 208.96.18.237/32 was hijacked at 2016-06-30 11:10:12 UTC by AS8359 (MTS , RU) search for 82.118.233.144 [vDOS] 82.118.232.0/22 was hijacked at 2014-08-06 10:57:28 UTC by AS5580 (HIBERNIA , NL) 82.118.233.0/24 was hijacked at 2016-04-01 10:54:36 UTC by AS50360 (TAMATIYA-AS , BG) 82.118.233.0/24 was hijacked at 2016-09-07 07:13:26 UTC by AS203959 (BACKCONNECT-AS , NL)
17. Some Good News search for github.com (192.30.253.112) No hijacks found for github.com search for reddit.com (151.101.1.140 151.101.65.140 151.101.129.140 151.101.193.140) No hijacks found for reddit.com search for dropbox.com (108.160.172.238 108.160.172.206) No hijacks found for dropbox.com search for protonmail.com (185.70.40.182) No hijacks found for protonmail.com search for stackoverflow.com (151.101.193.69 151.101.1.69 151.101.65.69 151.101.129.69) No hijacks found for stackoverflow.com
18. But... None of this Matters You can't trust any of it AS Paths can be fabricated A simple change to "aspath" based on prefix "p" in quagga/bgpd/bgp_packet.c - bgp_packet_attribute()
19. Fixing the Problem - Start with Origin Validation Resource Public Key Infrastructure (RPKI) - RFC6480 Provides cryptographic proof of ownership RIRs provide the root trust Uses X.509 certificates for sub-allocations Final owner signs a Route Origin Authorization (ROA) ROA contains the prefix length permitted and origin AS
20. Fixing the Problem - Moving to Path Validation BGPsec - dra -ietf-sidr-bgpsec-protocol-18 Provides cryptographic proof of announcement path Signs announcements AS-by-AS through the network Still in dra with IETF (sidr working group) May require replacement of some routers for success

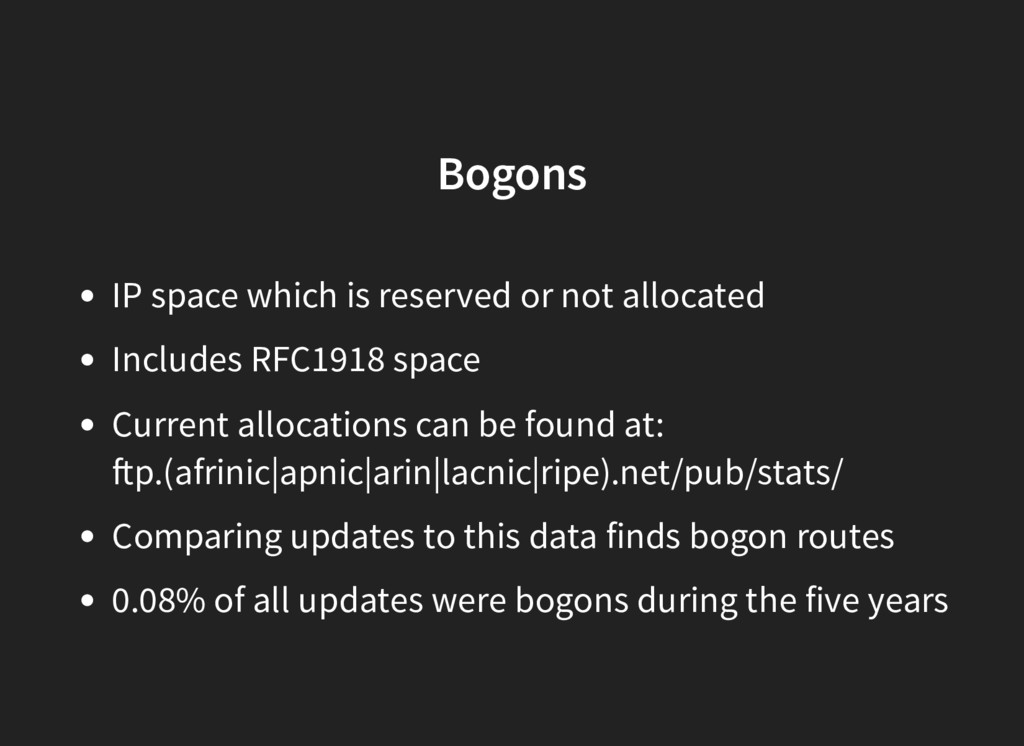

21. Bogons IP space which is reserved or not allocated Includes RFC1918 space Current allocations can be found at: p.(afrinic|apnic|arin|lacnic|ripe).net/pub/stats/ Comparing updates to this data finds bogon routes 0.08% of all updates were bogons during the five years
22. Top Repeated Bogons % Days Updated Prefix Type Origin AS Origin Name 88% 172.102.0.0/22 Unallocated Space AS4812 China Telecom 84% 202.94.1.0/24 Unallocated Space AS4808 China Unicom 84% 192.124.252.0/22 Unallocated Space AS680 German NREN 84% 198.163.214.0/24 Unallocated Space AS21804 (Canada) Access Communications 81% 192.188.208.0/20 Unallocated Space AS721 US Department of Defense 81% 192.154.64.0/19 Unallocated Space AS81 North Carolina REN

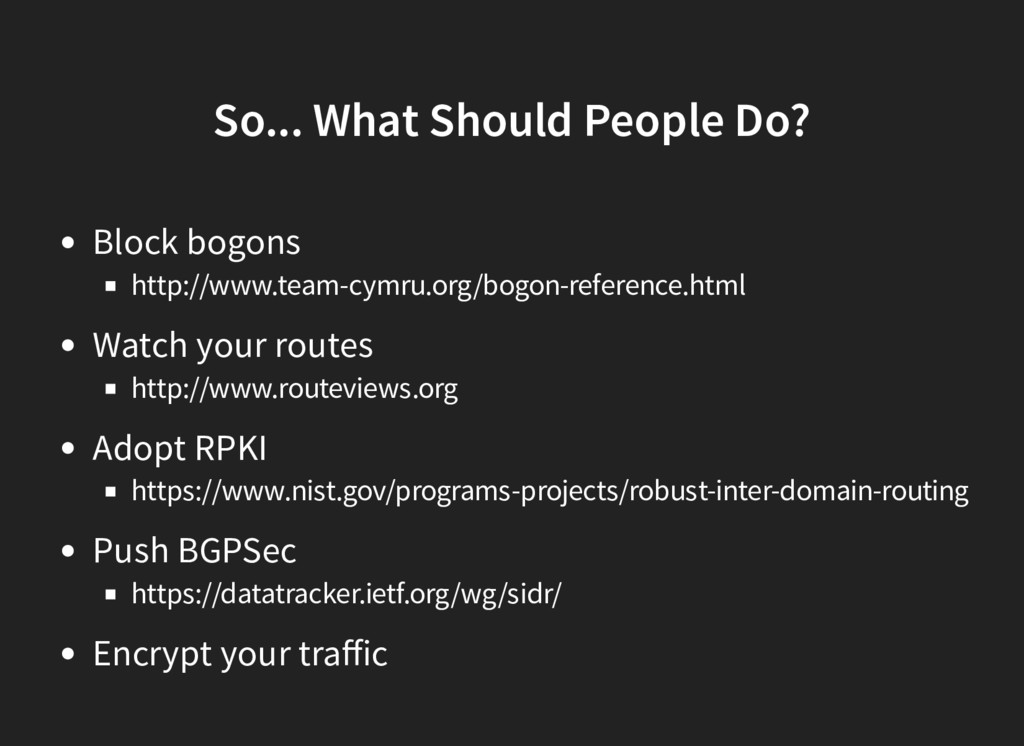

23. So... What Should People Do? Block bogons http://www.team-cymru.org/bogon-reference.html Watch your routes http://www.routeviews.org Adopt RPKI https://www.nist.gov/programs-projects/robust-inter-domain-routing Push BGPSec https://datatracker.ietf.org/wg/sidr/ Encrypt your traffic
24. Tools Used bgpdump - https://bitbucket.org/ripencc/bgpdump/wiki/ py-radix - https://github.com/mjschultz/py-radix/ ipaddr-py - https://github.com/google/ipaddr-py netaddr - https://pypi.python.org/pypi/netaddr mongoDB - https://www.mongodb.com/community PyMongo - https://api.mongodb.com/python/current/ reveal.js - http://lab.hakim.se/reveal-js/#/ Questions? Comments? @mikebdotorg
