Graphics Debugging using RenderDoc

Investigating and solving rendering issues using RenderDoc.
I show 3 examples: Two from Unity and one form my own 3D engine (Ming3D).

Transcript

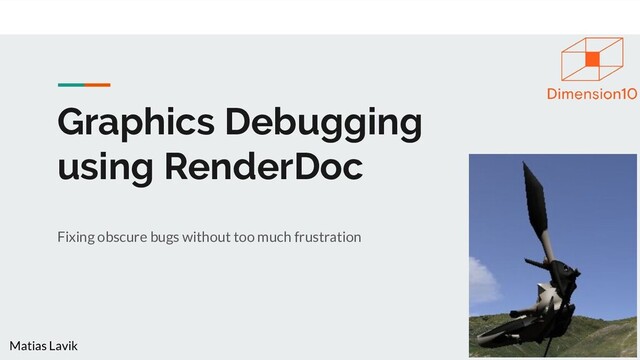

1. Graphics Debugging using RenderDoc Matias Lavik Fixing obscure bugs without too much frustration
2. Typical problems - Nothing is rendered - Part of a model looks wrong - The colour is wrong - A model looks distorted - Low FPS - Something just doesn’t look right (obscure graphics issues that don’t make sense) Sometimes the problem itself can give you some clues, and you will immediately know how to fix it. Sometimes not...
3. How do you fix this?
4. Graphics debugging tools When you encounter a bug that just doesn’t make sense, using some graphics debugging tools can help you! Using such tools allows you to: - See the input and output of each draw call - See the input meshes and compare them to the output of the vertex shader - See all the constant buffers / uniforms (Unity: shader properties) - See all the vertex data (positions, normals, UVs) - See exactly what goes on in the fragment/pixel shader for one selected pixel … and much more!
5. RenderDoc Link: https://renderdoc.org/ “RenderDoc is a free MIT licensed stand-alone graphics debugger that allows quick and easy single-frame capture and detailed introspection of any application using Vulkan, D3D11, OpenGL & OpenGL ES or D3D12 across Windows 7 - 10, Linux, Android, Stadia, or Nintendo Switch™.”
6. Using RenderDoc to debug a released software
8. Set “Executable Path” And press “Launch”
9. If everything works, you will see an overlay. Press PrintScreen to capture a frame.
10. Using RenderDoc with the Unity Editor Unity has integrated support for making captures with RenderDoc: https://docs.unity3d.com/Manual/RenderDocIntegration.html
11. (Picture from https://docs.unity3d.com/Manual/RenderDocIntegration.html )
12. Example This is a typical scene seen in most games
13. After taking the capture, RenderDoc will open. Here I double-click on the capture I want to use
14. Event browser The event browser shows all rendering events / draw calls. The names and hierarchies depend on the software you are debugging. In the case of Unity, it will be different when capturing a release build or editor game view or scene view. In the case of Unity, we are normally most interested in “Camera.Render”
15. Shadow map Main render loop Draw calls (we are using instanced rendering) Without instanced rendering, it looks like this:
16. If you select an event, the “API Inspector” will show all relevant rendering API calls, such as vertex buffer creation, constant buffer set calls, etc.
17. In the Texture Viewer you can see all input/output textures
18. The Mesh Viewer shows you the input and output vertices of the vertex shader If a model looks distorted or has other vertex-related issues, this is a good place to start. Things to check: - Are the input vertices correct? (if not, it might be a model-import related issue) - Are the output vertices correct? (If not, the issue occurs in the vertex shader) Input mesh data Output mesh data
19. The Pipeline State window shows you what happens in each stage of the pipeline Input Assembler stage (read primitive data / mesh data) Vertex shader Pixel/fragment shader Select one of them to see more info
20. Selecting VS(Vertex Shader) or PS (Pixel shader) will allow you to check the constant buffers (material properties) NOTE: to see the names of the material properties (in Unity) you need to add this to your shader: #pragma enable_d3d11_debug_symbols See: https://docs.unity3d.com/Man ual/SL-DebuggingD3D11Shad ersWithVS.html
21. Debugging checklist - The mesh looks wrong - Use the Mesh Viewer: - Input mesh looks wrong => the input data is bad (maybe caused by a problem in the model or import) - Input mesh looks right, but output looks bad => something wrong happens in the vertex shader - Are your input matrices right? (select “VS” in the “Pipeline State” window and check the constant buffers). Also check your vertex shader. - The colours are wrong - Use the “Texture viewer” and check that the input textures are right. - Check your UV coordinates and normals in the “Mesh Viewer” - Select “PS” in the “Pipeline State” window and check the constant buffers - Nothing is rendered - Use the “Event Browser” and “API Inspector” to check if anything is missing or done wrong. - Check the “Errors and Warnings” window - Poor performance - Use the “Event Browser” and check if you are wasting time on something unintended. - Did you accidentally add an extra camera? - Use the “Statistics” window and “Resources” window. Do you have too many constant buffers? (too many materials) - Use a profiling tool, like Nvidia Nsight: https://developer.nvidia.com/nsight-graphics
22. Case 1: Missing geometry
23. I was asked to look at an issue at work a while ago. A model had some geometry where a few faces were missing. Here is an illustration of the issue: Possible causes: - The model is wrong - The model is right, but something wrong happens in the vertex shader. This is supposed to be a tube. However, some faces are missing. The faces are marked in red, and the white area shows where it’s missing geometry.
24. Mesh Viewer As you can see, the faces are also missing here (I have selected “Solid colour” shading to show all faces). However, I can see some lines where the missing geometry should be. Certainly I am not doing line rendering, so what could this be? Since the input mesh is wrong, the issue is not rendering-related. I could check the model importer, but I don’t want to manually check 3 million vertices to look for issues.
25. So I tried selecting one of the vertices near the missing geometry (you can click to select a vertex), and found a set of vertices that did not make a proper triangle (12, 13, 14). These 3 vertices are supposed to be connected as one triangle. Looking at the index numbers (“IDX”) I see that the triangle consists of the vertices: 5,6,6. In other words, it’s a triangle where two of the vertices are the same! That’s not intended.
26. What we know so far: - We know the issue occurs before rendering - We know which mesh it happens to - We know which vertices (and their IDs) it happens to I start by looking in our model importer. Since I know the mesh and vertex IDs (and indices), I am able to find these vertices by adding a breakpoint, but the indices are different: 8,9,10 This happens after this function gets called: However, after a few functions are called, they change! Recognise these indices? (5,6,6)
27. Apparently there was a problem with how that function calculated the distance between two vertices. After fixing the issue, the model looks fine! What we can learn from this: Without RenderDoc or a similar software, this would have taken ma ages! Using RenderDoc I was able to find out when the problem occurs (before rendering). I was also able to find the IDs of the vertices/indices of the missing geometry. Using all this information made it possible for me to track down the issue using a Debugger (in Visual Studio).
28. Case 2: Ming3D (my own 3D engine)
29. Texture looks wrong on model The input texture is drawn to a quad covering the screen. The input texture looks right, but the ouput has a weird issue.
30. This is a job for the “Mesh View”! Here I have selected the screen space quad that the texture is rendered to. As you see the quad looks correct, but one of the tex coordinates has an invalid value “---”. So rather than the coordinate being wrong, it’s invalid! Probably there must be an issue with how the vertex buffers are created or used (in the Engine).
31. The “size” parameter of glVertexAttribPointer is hard-coded to “3”. Don’t ask me why. It should be “2” for 2D vectors (vec2)
32. FIXED
33. Case 3: How does Unity Editor render solid wireframe? Another good use case for RenderDoc is to gain insight into how a software/game renders a frame. This can be useful for educational purposes, but also if you want to do something another software does, but don’t know how to do it.
34. There are many ways of doing wireframe rendering. I wanted to know how the Unity Editor renders “solid wireframe”. So I made a capture from the scene view. There are two passes here: “Render.OpaqueGeometry” and “SceneCamera.RenderWire”. Render.OpaqueGeometry output: SceneCamera.RenderWire output:
35. So apparently Unity first renders the box, and then it renders a wireframe on top of the box. But how does it do the second wireframe-pass? Is it done through a shader? Or is it a rasterizer setting? (note: the “rasterizer” stage turns vertices/triangles into pixels, by filling. Eit can either do “solid” filling and fill all pixels inside a triangle, or it can use wireframe fill mode) So open the “Pipeline State” window and check the “Rasterizer” State. It says “Fill Mode: Wireframe”
36. If I want to see exactly how it does this, I can select the first draw call in the “RenderWire” pass, then find “RSSetState” and open up the rasterizer state. It’s using D3D11_FILL_WIREFRAME as fill mode. See: https://docs.microsoft.com/en-us/windows/win32/api/d3d11/ns-d3d11-d3d11_rasterizer_desc
37. If you want to create the same effect in your own Unity project, you can create a script which implements void OnRenderObject(), and do the following:
38. Other tools
39. Nvidia Nsight https://developer.nvidia.com/nsight-graphics Features: - GPU trace - Performance metrics - Helps you find out where the bottleneck is - C++ capture export - Create a self-contained C++ project that allows for frame analysis in a reduced CPU-load scenario, without requiring the original application - Pixel history
40. Nsight’s Range Profiler is a powerful tool that can give you detailed information on what the GPU is doing and where most of the time is spent (where your bottleneck is). To understand the metrics you need to know a little bit about what goes on inside the GPU. This article explains it very well: https://developer.nvidia.com/content/life-triangle-nvidias-logical-pipeline Next, you should read this article about how to use the Range Profiler and how to interpret the data: https://devblogs.nvidia.com/the-peak-performance-analysis-method-for-optimizing-any-gpu-workload/ If you are new to this, it might be tough reading, but believe me - it will definitely pay off! Brief explanation: SOL(“Speed of Light”) is a metric for how close each unit is to its maximum theoretical throughput. The “top SOLs” shows which hardware units are limiting your performance the most. If the top SOL is high (>80%) then the unit is performing well, and possibly has too much to do. In that case you need to remove some workload (exactly what depends on which unit it is). If the top SOL is low (<60%) it’s under-utilised, and you need to find out what is limiting it. Read more about this in the two articles above. The second article has step-by-step guides for profiling and some examples, so you might even be able to use Nsight without fully understanding all the metrics.
41. Further reading - Debugging rendering code with RenderDoc: https://matiaslavik.wordpress.com/2019/03/16/debugging-rendering-code-with-renderdoc/ - Life of a triangle - NVIDIA's logical pipeline: https://developer.nvidia.com/content/life-triangle-nvidias-logical-pipeline - The Peak-Performance-Percentage Analysis Method for Optimizing Any GPU Workload: https://devblogs.nvidia.com/the-peak-performance-analysis-method-for-optimizing-any-gpu-wor kload/
