Demystifying web cache by Kristian Lyngstøl

This talk will discuss caching from app server to web browser. Subjects like s-maxage vs. max-age, little known obscurities around the Vary header and more will be covered. The talk focuses on using simple, safe strategies that don't lead to information leakage even when things go wrong. There will be some Varnish-specific tips and tricks.

Kristian has been breaking things and fixing them again for most of his life. He's a C, Java, AWK, perl, python and misc programmer and spends his day working with Varnish Cache. He wrote most of the Varnish Book used for professional Varnish training because someone had to do it.

OWASP Montreal Hangout - February 28th

Full video of the presentation :http://www.youtube.com/watch?v=5Sy7n5J7b1U

https://www.owasp.org/index.php/Montr%C3%A9al

Transcript

1. View Slide

2. Demystifying cache
   Kristian Lyngstøl
   Product Specialist
   Varnish Software AS
   Montreal, March 2013


   View Slide

3. Agenda
   - The types of caches involved
   - The benefits of a cache
   - HTTP
   - Reverse proxy specifics


   View Slide

4. Not: L1/L2 cache. Disk cache, etc.


   View Slide

5. Browser cache
   Intermediary caches
   Reverse proxy


   View Slide

6. Browser
   Intermediary cache
   Reverse proxy
   Origin server
   Outside your direct
   control
   Within your
   direct control
   The Internet


   View Slide

7. Pro: Reduced server load
   Con: Increased complexity


   View Slide

8. Pro: Increased robustness
   Con: Increased complexity == harder problems


   View Slide

9. Pro: Easier scaling
   Con: Complex architecture


   View Slide

10. Pro: Reduced latency by geographic distribution
    Con: Increased latency on cache misses


    View Slide

11. HTTP: Written for cache.


    View Slide

12. HTTP
    The original REST interface
    Addresses browser cache, intermediary caches but
    NOT reverse proxies.


    View Slide

13. Vary:
    Browser: GET /foo, Accept-Encoding: gzip
    Server: Here's /foo. It's compressed. Vary:
    Accept-encoding.
    Vary is a way for a server to signal that there
    might be different variants of the content
    depending on a specific header.


    View Slide

14. Vary: examples
    - Vary: Accept-Encoding Compression.
    - Vary: User-Agent Mobile content?
    - Vary: Cookie
    - Vary: Accept-Language
    - All of the above
    Most common by far: Vary: Accept-Encoding


    View Slide

15. Vary-challenges
    Content is provided either in gzip or
    uncompressed form, yet “Accept-Encoding”
    can contain any number of potential
    algorithms.
    Content varies depending on a specific cookie,
    but no way to tell which by using just Vary.
    (all or nothing).


    View Slide

16. “Accept-Encoding: gzip, deflate”
    “Accept-Encoding: deflate, gzip”
    Two different things!


    View Slide

17. Without a cache, vary has almost no side effects.
    Thus often ignored.


    View Slide

18. What we should do:
    Vary: Cookie, User-Agent


    View Slide

19. Technique number 0: FAIL SAFE
    You will fail at some point. Make sure you fail in an
    acceptable manner.
    Is it better to disable a cache or artificially inflate the
    cache than to deliver user-specific content to the
    wrong user?


    View Slide

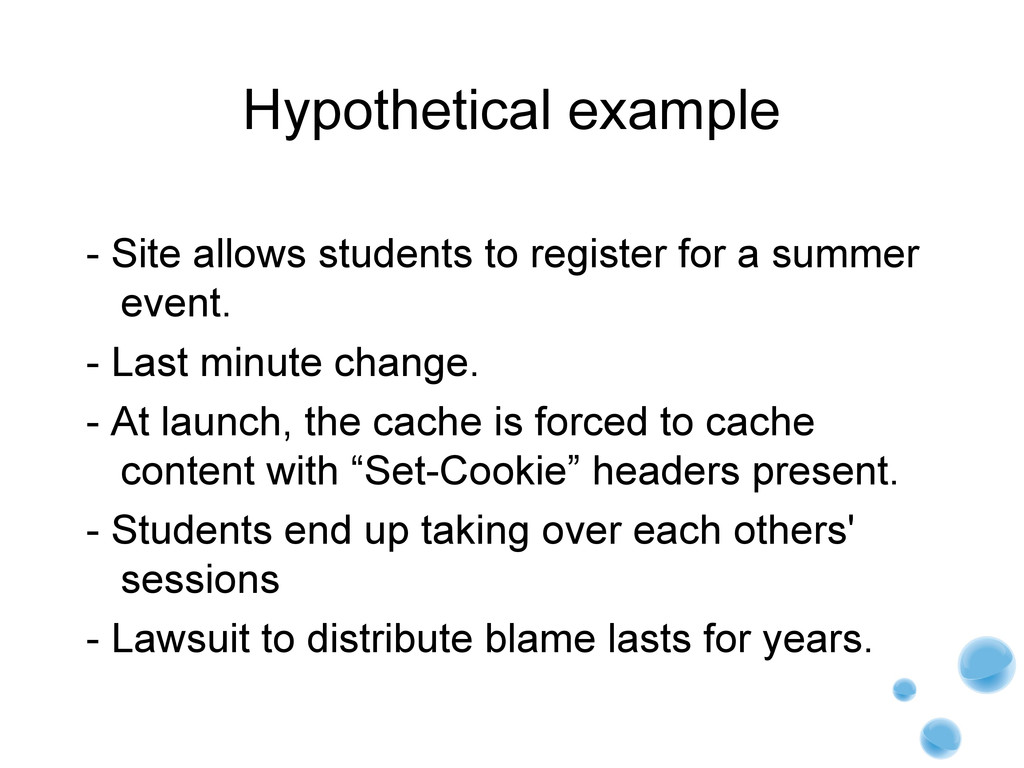

20. Hypothetical example
    - Site allows students to register for a summer
    event.
    - Last minute change.
    - At launch, the cache is forced to cache
    content with “Set-Cookie” headers present.
    - Students end up taking over each others'
    sessions
    - Lawsuit to distribute blame lasts for years.


    View Slide

21. The by far most common cache mistake is ignoring
    cookies.


    View Slide

22. “If content has cookies, clean out all but THESE
    cookies”
    “If content still has cookies, either DO NOT cache,
    or add the entire cookie string to the hash key,
    then cache.”


    View Slide

23. Never. Ever. Cache. Set-Cookie. (unless, of course,
    you have a good reason!)


    View Slide

24. Example: Kenneth (36)
    Kenneth (36) became famous when his tax returns
    were incorrectly cached and thousands of users got
    to see his tax returns instead of their own....


    View Slide

25. Some would argue that the site going down might
    have been better.


    View Slide

26. Cache-Control header


    View Slide

27. max-age: For browsers, also used by intermediary
    caches.


    View Slide

28. s-maxage: For caches, used by both intermediary
    caches AND reverse proxies.
    Tip: Use it for reverse proxies, then remove it before
    exposing it to intermediary caches.


    View Slide

29. must-revalidate: You can cache, but revalidate
    before using it.
    private: Only browser cache. No shared cache.
    public: Can be cached.
    no-cache: Similar to must-revalidate.


    View Slide

30. Emerging: Surrogate-Control, a “Cache-Control” for
    surrogate caches (aka: reverse proxies) only.


    View Slide

31. Conditional requests
    “Give me /pictures/cats, but only if it's newer than
    X”
    If-Modified-Since:


    View Slide

32. Conditional requests
    “Give me /pictures/cats, but only if it doesn't match
    Etag FOO.”
    If-None-Match: Foo


    View Slide

33. ETags
    Essentially a Unique ID for an
    asset/resource/url.
    Not only useful for caches.
    “UPDATE this resource, but only if the old
    version matches what I had.”


    View Slide

34. GET /foobar HTTP/1.1
    ETag: FOO-version1
    (time passes)
    DELETE /foobar HTTP/1.1
    If-Match: FOO-version1


    View Slide

35. Handling high loads == handling bugs, DoS attacks
    and more.


    View Slide

36. Example: Counting comments
    20-ish news sites, each with comment section. To
    display “X comments on this article” on the
    frontpage, a resource contained a list of all articles
    and the counters.
    “This updates constantly, impossible to cache!”


    View Slide

37. What about Expires and Pragma?
    Pragma: Not defined anywhere. Do not use.
    Expires: Troublesome at best. Usually set to
    some developer's birthday or that 1997-date
    that seems to have originated from an
    example on php.net.


    View Slide

38. Expires: Thu, 19 Nov 1981 08:52:00 GMT
    Expires: Sun, 19 Nov 1978 05:00:00 GMT
    Expires: Sat, 26 Jul 1997 05:00:00 GMT
    Expires: Mon, 26 Jul 1997 05:00:00 GMT
    (Mon, 26, Jul 1997 does not exist)
    Common Expires values


    View Slide

39. Contact information
    Kristian Lyngstøl
    kristian@bohemians.org
    @kristianlyng
    http://kly.no


    View Slide
