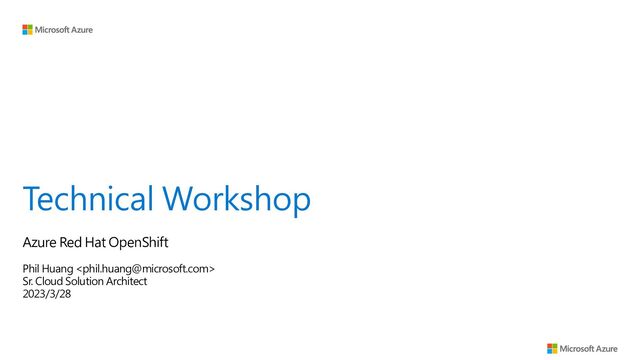

  1. Technical Workshop
    Phil Huang
    Sr. Cloud Solution Architect
    2023/3/28
    Azure Red Hat OpenShift

    View full-size slide

  2. Ref: https://microsoft.github.io/aroworkshop/

    View full-size slide

  3. Create
    Azure Red Hat OpenShift

    View full-size slide

  4. Create Azure Red Hat OpenShift Cluster (1/4)

    View full-size slide

  5. Create Azure Red Hat OpenShift Cluster (2/4)

    View full-size slide

  6. Create Azure Red Hat OpenShift Cluster (3/4)
    Azure Visual Subnet
    Calculator
    YouTube

    View full-size slide

  7. Azure Red Hat OpenShift 網路參數
    CIDR Design 預設子網段 子網段可改? 預設遮罩 (Netmask) 備註
    Master Node CIDR 跟隨初始設定 Yes 最小 /27
    Worker Node CIDR 跟隨初始設定 Yes 最小 /27
    Service CIDR 172.30.0.0/16 Yes 預設 /16,最小 /18
    Pod CIDR 10.128.0.0/14 Yes 預設 /14,最小 /18
    每一個 Node 預設分配 /23 網段,
    不可修改
    Ref: https://docs.microsoft.com/zh-tw/azure/openshift/concepts-networking
    Netmask
    Usable
    Hosts
    /27 30
    /24 254
    /23 510
    /18 16382
    /16 65534
    /14 262142

    View full-size slide

  8. API Server
    Visibility
    Ingress Visibility
    Public Public

    View full-size slide

  9. Create Azure Red Hat OpenShift Cluster (4/4)

    View full-size slide

  10. Azure Portal 視野

    View full-size slide

  11. 獲得登入帳號密碼

    View full-size slide

  12. 獲得帳號密碼及開啟 OpenShift Console

    View full-size slide

  13. 可以使用 oc command 登入

    View full-size slide

  14. 請愛用 az aro
    Ref: https://learn.microsoft.com/en-us/cli/azure/aro?view=azure-cli-latest#az-aro-create
    az aro create --master-subnet
    --name
    --resource-group
    --worker-subnet
    [--apiserver-visibility {Private, Public}]
    [--client-id]
    [--client-secret]
    [--cluster-resource-group]
    [--disk-encryption-set]
    [--domain]
    [--fips {false, true}]
    [--ingress-visibility {Private, Public}]
    [--location]
    [--master-enc-host {false, true}]
    [--master-vm-size]
    [--no-wait]
    [--pod-cidr]
    [--pull-secret]
    [--service-cidr]
    [--tags]
    [--version]
    [--vnet]
    [--vnet-resource-group]
    [--worker-count]
    [--worker-enc-host {false, true}]
    [--worker-vm-disk-size-gb]
    [--worker-vm-size]

    View full-size slide

  15. Extend
    Azure Red Hat OpenShift

    View full-size slide

  16. Azure Red Hat OpenShift Landing Zone Accelerator
    Azure Red Hat OpenShift Reference Architecture
    Ref: https://learn.microsoft.com/en-us/azure/cloud-adoption-framework/scenarios/app-platform/azure-red-hat-openshift/landing-zone-accelerator
    • 網路拓樸和連線能力
    • 身分識別
    • 安全性
    • 平台自動化
    • 維運管理

    View full-size slide

  17. 整合 Azure Services
    ARO Point of View
    Ref: https://learn.microsoft.com/zh-tw/azure/cloud-adoption-framework/scenarios/app-platform/azure-red-hat-openshift/landing-zone-accelerator

    View full-size slide

  18. 任何等級問題皆可問
    善用你的上班小助理 ChatGPT

    View full-size slide

  19. Azure Private DNS Resolver and DNS Forwarder VM
    Azure Private DNS Resolver
    DNS Forwarder VM

    View full-size slide

  20. Private DNS zone
    privatelink.database.windows.net
    Azure-provided DNS
    168.63.129.16
    azsql1.database.windows.net
    VPN /
    ExpressRoute
    snet-consumer
    Client
    VM
    10.0.0.10
    Private Link
    endpoint
    10.5.0.5
    DNS
    forwarder
    10.5.0.254
    Azure recursive
    resolvers
    3
    4
    5
    6
    Virtual
    network link
    VNet-hub-001
    10.5.0.0/24
    On-premises network
    10.0.0.0/24
    2 7
    DNS traffic
    Private
    connection
    Internal
    DNS
    10.0.0.254
    1
    8
    9
    Conditional
    forwarder
    IP address
    10.5.0.254
    DNS
    vmdns
    Forward Lookup Zones
    Reverse Lookup Zones
    Trust Points
    Conditional Forwarders
    database.windows.net
    Microsoft
    Azure
    Use DNS Forwarder VM

    View full-size slide

  21. On-premises
    server
    Windows
    desktops
    APP 2
    APP 3
    APP 1
    Outbound endpoint
    10.11.0.68
    Inbound endpoint
    10.11.0.84
    DNS Query
    Spoke 1
    Spoke 2
    Peering
    (optional)
    10.11.0.0/16
    10.11.0.80/28
    10.11.0.64/28
    10.12.0.0/24
    10.10.0.0/24
    abc.privatelink.blob.core.windows.net – 10.11.0.5
    abc.privatelink.azure-api.net - 10.11.0.6
    192.168.78.100/24
    Azure Private DNS
    Azure DNS
    VM 1
    VM 2
    Virtual
    network link
    App1.onprem.company.com - 192.168.78.1
    App2.onprem.company.com - 192.168.79.1
    blob.core.windows.net – 10.11.0.84 (via forwarder)
    azure-api.net – 10.11.0.84 (via forwarder)
    On-premises
    1
    3
    4
    5
    5
    Azure ExpressRoute
    2
    Site-to-site or
    Azure
    ExpressRoute
    gateway
    Azure
    Microsoft
    Azure
    Azure DNS
    Private Resolver
    Traffic flow for on-premise DNS Query
    https://learn.microsoft.com/en-us/azure/architecture/example-scenario/networking/azure-dns-private-resolver

    View full-size slide

  22. Azure Portal 與 Azure Red Hat OpenShift 內外視野比較
    VM and Node

    View full-size slide

  23. Machine API Operator for Azure
    基於 Kubernetes Cluster API 的 API Adopters

    View full-size slide

  24. Machine API Operator for Azure
    基於 Kubernetes Cluster API 的 API Adopters
    Ref: https://capz.sigs.k8s.io/
    https://github.com/openshift/machine-api-provider-azure
    CRD API Group Default? 目的
    Node v1 Yes 以 Kubernetes 角度描述,包含 CPU / Mem. / 可用 Pod 數量等
    Machines machine.openshift.io Yes 描述 VM Instances 角度描述,如 SKU / osDisk / Zone / Images 名稱等
    MachineSets machine.openshift.io Yes 負責維護 Machine 數量
    MachineHealthChecks machine.openshift.io Yes 確認 Machine 健康與否
    MachineAutoscalers autoscaling.openshift.io No 以單一叢集角度設定 資源限制 / ScaleDown 的條件等
    MachineConfigs
    machieconfiguration.ope
    nshift.io
    Yes
    定義每個機器的設定,包含 Kernel 參數 / OS 相關設定 / SSH Key 等

    View full-size slide

  25. Demo
    Azure Red Hat OpenShift

    View full-size slide

  26. pichuang/debug-container
    該 Container 包含常見的除錯工具
    Ref: https://github.com/pichuang/debug-container

    View full-size slide
