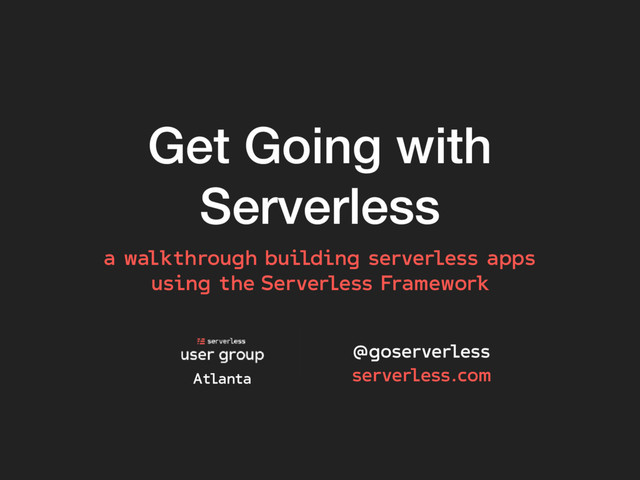

  1. Get Going with
    Serverless
    @goserverless
    serverless.com
    a walkthrough building serverless apps
    using the Serverless Framework
    Atlanta

    View Slide

  2. Rupak Ganguly
    enterprise solutions architect
    [email protected]
    @rupakg

    View Slide

  3. Serverless Inc.
    serverless.com

    View Slide

  4. the serverless team

    View Slide

  5. Get Going with Serverless
    a walkthrough building serverless apps
    using the Serverless Framework
    • Introduction to serverless computing
    • What is the Serverless Framework?
    • Setting up the Serverless Framework
    • Deploying your first app with Lambda & API Gateway
    • Anatomy of a Serverless App
    We will look at:

    View Slide

  6. Serverless Computing
    myths, benefits and qualities

    View Slide

  7. serverless definition
    serverless: though servers exists, the developer
    does not have to think about them

    View Slide

  8. faas providers
    AWS Lambda Azure Functions
    Google Cloud Functions IBM Cloud Functions

    View Slide

  9. microservices
    zero administration
    FaaS
    pay-per-execution ecosystem
    auto-scaling
    event-driven
    serverless computing
    FaaS qualities

    View Slide

  10. zero administration
    • no servers to maintain

    • no OS upgrades, no patches

    • renewed role of devops teams

    • paradigm shift, no ssh

    • no control over infrastructure

    View Slide

  11. pay-per-execution
    • no paying for idle

    • upfront cost savings

    • micro-billing, per 100 ms *

    • 1 million requests free tier *

    • $0.20 per million requests
    post free tier *
    * AWS Lambda pricing

    View Slide

  12. microservices
    • promotes single responsibility
    principle based services

    • no more death stars, monolithic
    apps

    • varied language support

    • small, autonomous, polygot teams

    • agility, quick & frequent
    deployments

    View Slide

  13. ecosystem
    • use provider services

    • use of third-party services

    • S3, Kinesis, SNS, SQS

    • DynamoDB, Firebase, GraphQL

    • Cognito, Auth0, Synk, PureSec

    • CloudWatch, X-Ray, IOPipe

    View Slide

  14. auto-scaling
    • auto scaling Lambda

    • auto scaling DynamoDB

    • based on load, throughput
    consumption

    • no need for auto-scaling
    group policies

    • enables high-availability

    View Slide

  15. event-driven
    • trigger & respond to events

    • http events (API Gateway)

    • webhook events

    • scheduled events

    • rich ecosystem of event
    sources

    View Slide

  16. serverless architecture

    View Slide

  17. security
    • Scrutinize and research before attaching new input/event sources

    • Keep the functions’ permissions least privileged and maintain a least privileged
    build system

    • Amount of code that can access sensitive data be reduced, exceptions are handled
    and input is validated

    • Avoid embedding secrets and access keys in code

    • Do not store access keys or credentials in source code repositories

    • Throttle and define quotas on the amount of requests that go through

    • Keep data encrypted that is stored at rest

    • Scrutinize and keep tab on third party API services for vulnerabilities

    • Scan third party libraries for potential vulnerabilities and try to keep them up-to-date

    • Carefully examine granting permissions that allow creation, modification or removal
    of the resources
    guidelines & recommendations

    View Slide

  18. serverless use cases
    • real-time/streaming, batch processing: kinesis -> lambda

    • REST APIs, Graph APIs: lambda -> API Gateway endpoint

    • event-driven workflows, scheduled tasks, data transforms
    • web, mobile & IoT
    backends

    • form processing

    • authentication

    • devops automation

    • chatbots

    • file manipulation

    • voice apps (Alexa)

    • ETL workloads

    • image resizing

    • video transcoding

    • security audits

    • dynamic websites

    • web hook listeners

    • CRON jobs

    • CI/CD pipelines

    • log analytics
    what are others building

    View Slide

  19. serverless challenges
    • cold start latency, more
    with VPC

    • price at high volumes

    • developer experience

    • limitations

    • fear of vendor lock-in

    • application lifecycle
    management

    • metrics and monitoring

    • service discovery

    • team collaboration

    • standardization
    it’s not all rosy

    View Slide

  20. What is Serverless
    Framework?
    an easy way of packaging, deploying and
    managing serverless applications

    View Slide

  21. the serverless framework
    • open-source cli, written in nodejs, used by many

    • provider agnostic, abstraction layer

    • serverless.yml: configuration file, maps handlers to
    functions to events

    • provider, functions, events, code and resource mgmt.

    • plugin system to extend and hook into life-cycle
    events
    the easiest way to serverless

    View Slide

  22. app creation
    using AWS web UI

    View Slide

  23. easy workflow
    using the serverless framework
    write functions code
    package & deploy
    cloud provider of choice
    via serverless framework (cli)

    View Slide

  24. Introducing
    The Serverless Framework

    View Slide

  25. pre-requisites
    • Node Package Manager (npm)
    • NodeJS 6.10 or later installed

    View Slide

  26. installing
    $ npm install -g serverless
    installs the serverless framework package globally
    the serverless framework
    * NodeJS 6.10 or later needs to be installed
    $ serverless version
    $ serverless (displays the help screen with list of commands)

    View Slide

  27. configuring
    $ serverless config credentials -p aws -k aws-key> -s
    where,
    -p, specifies ‘aws’ as the provider
    -k, specifies the AWS access key
    -s, specifies the AWS secret
    provider credentials

    View Slide

  28. Building a
    Serverless App
    creating & deploying
    your first hello world app from scratch

    View Slide

  29. creating
    $ serverless create --template hello-world --path
    atl-hello—sls
    Serverless: Generating boilerplate...
    Serverless: Generating boilerplate in "/Users/rupakg/projects/usergroups/atl-hello-sls"
    _______ __
    | _ .-----.----.--.--.-----.----| .-----.-----.-----.
    | |___| -__| _| | | -__| _| | -__|__ --|__ --|
    |____ |_____|__| \___/|_____|__| |__|_____|_____|_____|
    | | | The Serverless Application Framework
    | | serverless.com, v1.23.0
    -------'
    Serverless: Successfully generated boilerplate for template: "hello-world"
    the hello world project

    View Slide

  30. deploying
    the hello world app
    Serverless: Packaging service...
    Serverless: Excluding development dependencies...
    Serverless: Creating Stack...
    Serverless: Checking Stack create progress...
    .....
    Serverless: Stack create finished...
    Serverless: Uploading CloudFormation file to S3...
    Serverless: Uploading artifacts...
    Serverless: Uploading service .zip file to S3 (404 B)...
    Serverless: Validating template...
    Serverless: Updating Stack...
    Serverless: Checking Stack update progress...
    .................................
    Serverless: Stack update finished...
    Service Information
    service: atl-hello-sls
    stage: dev
    region: us-east-1
    stack: atl-hello-sls-dev
    api keys:
    None
    endpoints:
    GET - https://js19nmdaa0.execute-api.us-east-1.amazonaws.com/dev/hello-world
    functions:
    helloWorld: atl-hello-sls-dev-helloWorld
    Serverless: Publish service to Serverless Platform...
    Service successfully published! Your service details are available at:
    https://platform.serverless.com/services/rupakg/atl-hello-sls
    $ sls deploy

    View Slide

  31. Anatomy of a
    Serverless App
    deep dive into a serverless app

    View Slide

  32. listing
    the project files
    $ cd atl-hello-sls
    handler.js serverless.yml
    where,
    handler.js, contains the code for functions
    serverless.yml, contains the configuration

    View Slide

  33. analyzing
    serverless.yml config file

    View Slide

  34. analyzing
    handler.js code file

    View Slide

  35. automagic deployment
    behind the scenes
    • package code into a zip file

    • create CloudFormation template from configuration for
    deployment

    • upload zip file and CloudFormation to S3

    • validate CloudFormation template

    • create API Gateway endpoints and resources

    • finish deploying app and return app url

    View Slide

  36. Development
    Workflow
    steps to developing a serverless app

    View Slide

  37. features
    $ serverless --help
    create
    deploy | deploy function
    deploy list | deploy list functions
    info
    invoke | invoke local
    remove | rollback | rollback function
    logs | metrics
    common cli commands

    View Slide

  38. workflows
    $ sls create
    # write code
    $ sls deploy
    # update function code
    $ sls deploy function
    $ sls info
    $ sls deploy list functions
    $ sls logs
    $ sls metrics
    common scenarios
    # add new functions
    $ sls invoke local
    $ sls deploy function
    $ sls invoke
    $ sls deploy list
    $ sls rollback
    $ sls logs
    $ sls metrics
    $ sls remove
    * sls --help, to see all available commands

    View Slide

  39. resources
    • Serverless Framework: https://github.com/serverless/serverless

    • Blog: https://serverless.com/blog

    • Serverless Guide: https://github.com/serverless/guide

    • Plugins: https://github.com/serverless/plugins

    • Examples: https://github.com/serverless/examples

    • Companion Post: https://serverless.com/blog/anatomy-of-a-serverless-app/
    @goserverless serverless.com
    further reading

    View Slide

  40. Q & A

    View Slide

  41. Raffle
    https://raffle.serverless.com/a07e8f52
    sign up to win Amazon Gift Certificate(s)
    * Need to be present to win prizes

    View Slide

  42. it’s a wrap
    thank you for coming
    @goserverless serverless.com
