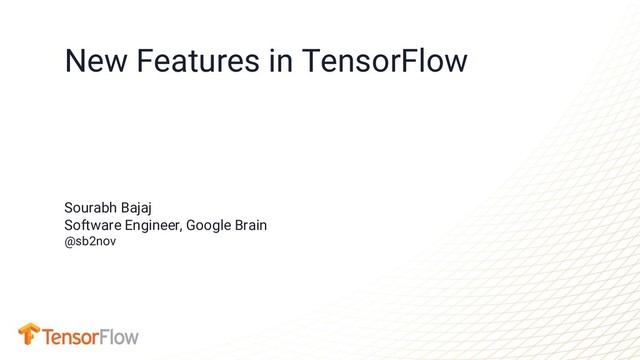

  1. New Features in TensorFlow
    Sourabh Bajaj
    Software Engineer, Google Brain
    @sb2nov

    View Slide

  2. Features in Active Development
    Everything Subject to Change
    Please do not tweet/blog/publicize
    these slides :)

    View Slide

  3. + TensorFlow Eager Mode
    + TensorFlow Datasets

    View Slide

  4. TensorFlow Eager Execution
    As simple as possible

    View Slide

  5. Graphs

    View Slide

  6. Delayed feedback
    ● Error reporting much after graph construction
    ● Not friendly to host-language debugger/tools
    Graphs can be annoying

    View Slide

  7. Metaprogramming
    ● Control flow concepts (tf.while_loop) are different
    than the host language
    ● Can’t use Python data structures easily
    Graphs can be annoying

    View Slide

  8. x = tf.placeholder(tf.float32, shape=[1, 1])
    m = tf.matmul(x, x)
    print(m)
    # Tensor("MatMul:0", shape=(1, 1), dtype=float32)
    with tf.Session() as sess:
    m_out = sess.run(m, feed_dict={x: [[2.]]})
    print(m_out)
    # [[4.]]
    Boilerplate
    Code like this...

    View Slide

  9. x = [[2.]]
    m = tf.matmul(x, x)
    print(m)
    # tf.Tensor([[4.]], dtype=float32, shape=(1,1))
    Boilerplate
    Becomes this

    View Slide

  10. x = tf.gather([0, 1, 2], 7)
    InvalidArgumentError: indices = 7 is not in [0, 3) [Op:Gather]
    Instant Errors

    View Slide

  11. x = tf.random_uniform([2, 2])
    with tf.Session() as sess:
    for i in range(x.shape[0]):
    for j in range(x.shape[1]):
    print(sess.run(x[i, j]))
    Metaprogramming
    Each iteration
    adds nodes to the graph

    View Slide

  12. x = tf.random_uniform([2, 2])
    for i in range(x.shape[0]):
    for j in range(x.shape[1]):
    print(x[i, j])
    Metaprogramming

    View Slide

  13. a = tf.constant(6)
    while a != 1:
    if a % 2 == 0:
    a = a / 2
    else:
    a = 3 * a + 1
    print(a)
    Python Control Flow
    # Outputs
    tf.Tensor(3, dtype=int32)
    tf.Tensor(10, dtype=int32)
    tf.Tensor(5, dtype=int32)
    tf.Tensor(16, dtype=int32)
    tf.Tensor(8, dtype=int32)
    tf.Tensor(4, dtype=int32)
    tf.Tensor(2, dtype=int32)
    tf.Tensor(1, dtype=int32)

    View Slide

  14. Gradients

    View Slide

  15. ● Operations executed are recorded on a tape
    ● Tape is played back to compute gradients
    Gradients

    View Slide

  16. def square(x):
    return tf.multiply(x, x) # Or x * x
    grad = tfe.gradients_function(square)
    print(square(3.)) # tf.Tensor(9., dtype=tf.float32
    print(grad(3.)) # [tf.Tensor(6., dtype=tf.float32))]
    Gradients

    View Slide

  17. def square(x):
    return tf.multiply(x, x) # Or x * x
    grad = tfe.gradients_function(square)
    gradgrad = tfe.gradients_function(lambda x: grad(x)[0])
    print(square(3.)) # tf.Tensor(9., dtype=tf.float32)
    print(grad(3.)) # [tf.Tensor(6., dtype=tf.float32)]
    print(gradgrad(3.)) # [tf.Tensor(2., dtype=tf.float32))]
    Gradients

    View Slide

  18. It’s not that different

    View Slide

  19. TensorFlow = Operation Kernels + Composition
    ● Session: One way to compose operations
    ● Eager execution: Compose using Python

    View Slide

  20. tf.device() for manual placement
    with tf.device(“/gpu:0”):
    x = tf.random_uniform([10, 10])
    y = tf.matmul(x, x)
    # x and y reside in GPU memory
    Using GPUs

    View Slide

  21. The same APIs as graph building (tf.layers, tf.train.Optimizer, tf.data etc.)
    model = tf.layers.Dense(units=1, use_bias=True)
    optimizer = tf.train.GradientDescentOptimizer(learning_rate=0.1)
    Building Models

    View Slide

  22. model = tf.layers.Dense(units=1, use_bias=True)
    optimizer = tf.train.GradientDescentOptimizer(learning_rate=0.1)
    # Define a loss function
    def loss(x, y):
    return tf.reduce_mean(tf.square(y - model(x))
    Building Models

    View Slide

  23. Compute and apply gradients
    for (x, y) in get_next_batch():
    optimizer.apply_gradients(grad_fn(x, y))
    Training Models

    View Slide

  24. Compute and apply gradients
    grad_fn = tfe.implicit_gradients(loss)
    for (x, y) in get_next_batch():
    optimizer.apply_gradients(grad_fn(x, y))
    Training Models

    View Slide

  25. No more graphs then?

    View Slide

  26. Optimizable
    ● Automatic buffer reuse
    ● Constant folding
    ● Inter-op parallelism
    ● Automatic trade-off between compute and memory
    Graphs are

    View Slide

  27. Deployable
    ● TensorFlow Serving
    ● Mobile
    ● Any other C++/Java/other program
    Without loss in translation between runtimes
    Graphs are

    View Slide

  28. Transformable
    ● Carve out subgraphs to offload to accelerators
    ● Train with quantization in mind
    Graphs are

    View Slide

  29. Graph Functions

    View Slide

  30. “Compile” Python functions into graphs
    ● Mix eager execution with calls to “compiled” graphs
    ● Differentiate through graphs
    Graph Functions

    View Slide

  31. def lstm_cell(x, w, h, c):
    xhw = tf.matmul(tf.concat([x, h], axis=1), w)
    y = tf.split(xhw, 4, axis=1)
    in_value = tf.tanh(y[0])
    in_gate, forget_gate, out_gate = [tf.sigmoid(x) for x in y[1:]]
    c = (forget_gate * c) + (in_gate * in_value)
    h = out_gate * tf.tanh(c)
    return h, c
    h, c = lstm_cell(x, w, h, c)
    print(h)
    LSTM Cell

    View Slide

  32. @tfe.graph_function
    def lstm_cell(x, w, h, c):
    xhw = tf.matmul(tf.concat([x, h], axis=1), w)
    y = tf.split(xhw, 4, axis=1)
    in_value = tf.tanh(y[0])
    in_gate, forget_gate, out_gate = [tf.sigmoid(x) for x in y[1:]]
    c = (forget_gate * c) + (in_gate * in_value)
    h = out_gate * tf.tanh(c)
    return h, c
    h, c = lstm_cell(x, w, h, c)
    print(h)
    LSTM Cell

    View Slide

  33. @tfe.graph_function
    def lstm_cell(x, w, h, c):
    xhw = tf.matmul(tf.concat([x, h], axis=1), w)
    y = tf.split(xhw, 4, axis=1)
    in_value = tf.tanh(y[0])
    in_gate, forget_gate, out_gate = [tf.sigmoid(x) for x in y[1:]]
    c = (forget_gate * c) + (in_gate * in_value)
    h = out_gate * tf.tanh(c)
    return h, c
    h, c = lstm_cell(x, w, h, c)
    print(h)
    LSTM Cell
    tanh executed in-place

    View Slide

  34. @tfe.graph_function
    def inception(image):
    logits = inception.inception_v3(image,
    num_classes=1001,
    is_training=False)[0]
    return tf.softmax(logits)
    inception.restore(“/path/to/checkpoint”)
    print(len(inception.variables))
    Use existing graph code

    View Slide

  35. View Slide

  36. TensorFlow Datasets
    Data Infeed Made Simple

    View Slide

  37. Input data is the lifeblood of machine learning
    Modern accelerators need faster input pipelines
    Getting your data into TensorFlow can be painful
    Why are we here?

    View Slide

  38. Half screen photo slide if
    text is necessary
    Feeding
    sess.run(…,
    feed_dict={x: features,
    y: labels})
    All the flexibility of Python…
    …and all the performance

    View Slide

  39. Queues
    files = string_input_producer(…)
    record = TFRecordReader().read(files)
    parsed = parse_example(record, …)
    batch = batch(parsed, 32)
    Uses TensorFlow ops to perform
    preprocessing, but driven by client
    threads.
    “Starting the queue runners”

    View Slide

  40. View Slide

  41. How do I switch
    between training and
    validation data?
    How do I detect the
    end of an epoch?
    How do I handle
    malformed data?

    View Slide

  42. Data elements have the same type
    Dataset might be too large to materialize all at once… or infinite
    Compose functions like map() and filter() to preprocess
    Input pipelines = lazy lists
    Functional programming to the rescue!

    View Slide

  43. A well-studied area, applied in existing languages.
    ● C# LINQ, Scala collections, Java Streams
    Huge literature on optimization (stream fusion etc.)
    Input pipelines = lazy lists
    Functional programming to the rescue!

    View Slide

  44. Introducing tf.data
    Functional input pipelines in TensorFlow

    View Slide

  45. Create a Dataset from one or more tf.Tensor objects:
    Dataset.from_tensors((features, labels))
    Dataset.from_tensor_slices((features, labels))
    TextLineDataset(filenames)
    The Dataset interface
    Data sources and functional transformations

    View Slide

  46. Or create a Dataset from another Dataset:
    dataset.map(lambda x: tf.decode_jpeg(x))
    dataset.repeat(NUM_EPOCHS)
    dataset.batch(BATCH_SIZE)
    ...and many more.
    The Dataset interface
    Data sources and functional transformations

    View Slide

  47. Or (in TensorFlow 1.4) create a Dataset from a Python generator:
    def generator():
    while True:
    yield ...
    Dataset.from_generator(generator, tf.int32)
    The Dataset interface
    Data sources and functional transformations

    View Slide

  48. # Read records from a list of files.
    dataset = TFRecordDataset(["file1.tfrecord", "file1.tfrecord", …])
    # Parse string values into tensors.
    dataset = dataset.map(lambda record: tf.parse_single_example(record, …))
    # Randomly shuffle using a buffer of 10000 examples.
    dataset = dataset.shuffle(10000)
    # Repeat for 100 epochs.
    dataset = dataset.repeat(100)
    # Combine 128 consecutive elements into a batch.
    dataset = dataset.batch(128)

    View Slide

  49. Create an Iterator from a Dataset:
    dataset.make_one_shot_iterator()
    dataset.make_initializable_iterator()
    The Iterator interface
    Sequential access to Dataset elements

    View Slide

  50. Get the next element from the Iterator:
    next_element = iterator.get_next()
    while …:
    sess.run(next_element)
    The Iterator interface
    Sequential access to Dataset elements

    View Slide

  51. dataset = …
    # A one-shot iterator automatically initializes itself on first use.
    iterator = dataset.make_one_shot_iterator()
    # The return value of get_next() matches the dataset element type.
    images, labels = iterator.get_next()
    train_op = model_and_optimizer(images, labels)
    # Loop until all elements have been consumed.
    try:
    while True:
    sess.run(train_op)
    except tf.errors.OutOfRangeError:
    pass

    View Slide

  52. def input_fn():
    dataset = …
    # A one-shot iterator automatically initializes itself on first use.
    iterator = dataset.make_one_shot_iterator()
    # The return value of get_next() matches the dataset element type.
    images, labels = iterator.get_next()
    return images, labels
    # The input_fn can be used as a regular Estimator input function.
    estimator = tf.estimator.Estimator(…)
    estimator.train(train_input_fn=input_fn, …)

    View Slide

  53. tf.data.Dataset
    Represents input pipeline using functional transformations
    tf.data.Iterator
    Provides sequential access to elements of a Dataset
    tf.data API

    View Slide

  54. Thank You
    Reach out at @sb2nov for questions
