1. PHYSICAL IDENTITY & ACCESS MANAGEMENT Modern Commercial Access Control for DFW A strategic engineering guide to resolving legacy badging vulnerabilities, physical compliance gaps, and climbing lock administration overhead for Texas enterprises. securityindfw.com/access-control
2. Core Vulnerabilities An in-depth breakdown of how outdated physical security infrastructure exposes DFW facilities to immediate, low-cost breaches.

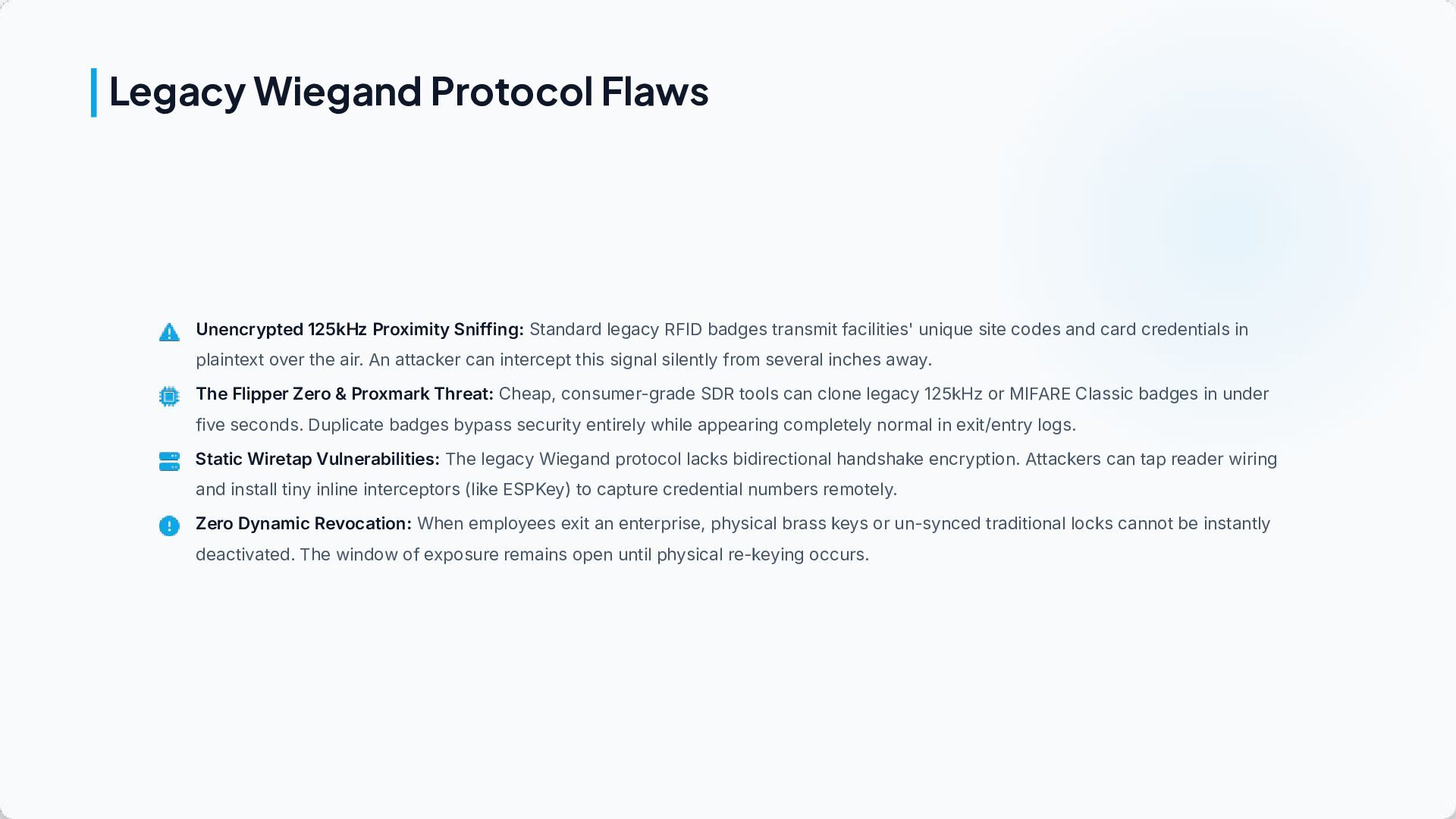

3. Unencrypted 125kHz Proximity Sniffing: Standard legacy RFID badges transmit facilities' unique site codes and card credentials in plaintext over the air. An attacker can intercept this signal silently from several inches away. The Flipper Zero & Proxmark Threat: Cheap, consumer-grade SDR tools can clone legacy 125kHz or MIFARE Classic badges in under five seconds. Duplicate badges bypass security entirely while appearing completely normal in exit/entry logs. Static Wiretap Vulnerabilities: The legacy Wiegand protocol lacks bidirectional handshake encryption. Attackers can tap reader wiring and install tiny inline interceptors (like ESPKey) to capture credential numbers remotely. Zero Dynamic Revocation: When employees exit an enterprise, physical brass keys or un-synced traditional locks cannot be instantly deactivated. The window of exposure remains open until physical re-keying occurs. Legacy Wiegand Protocol Flaws

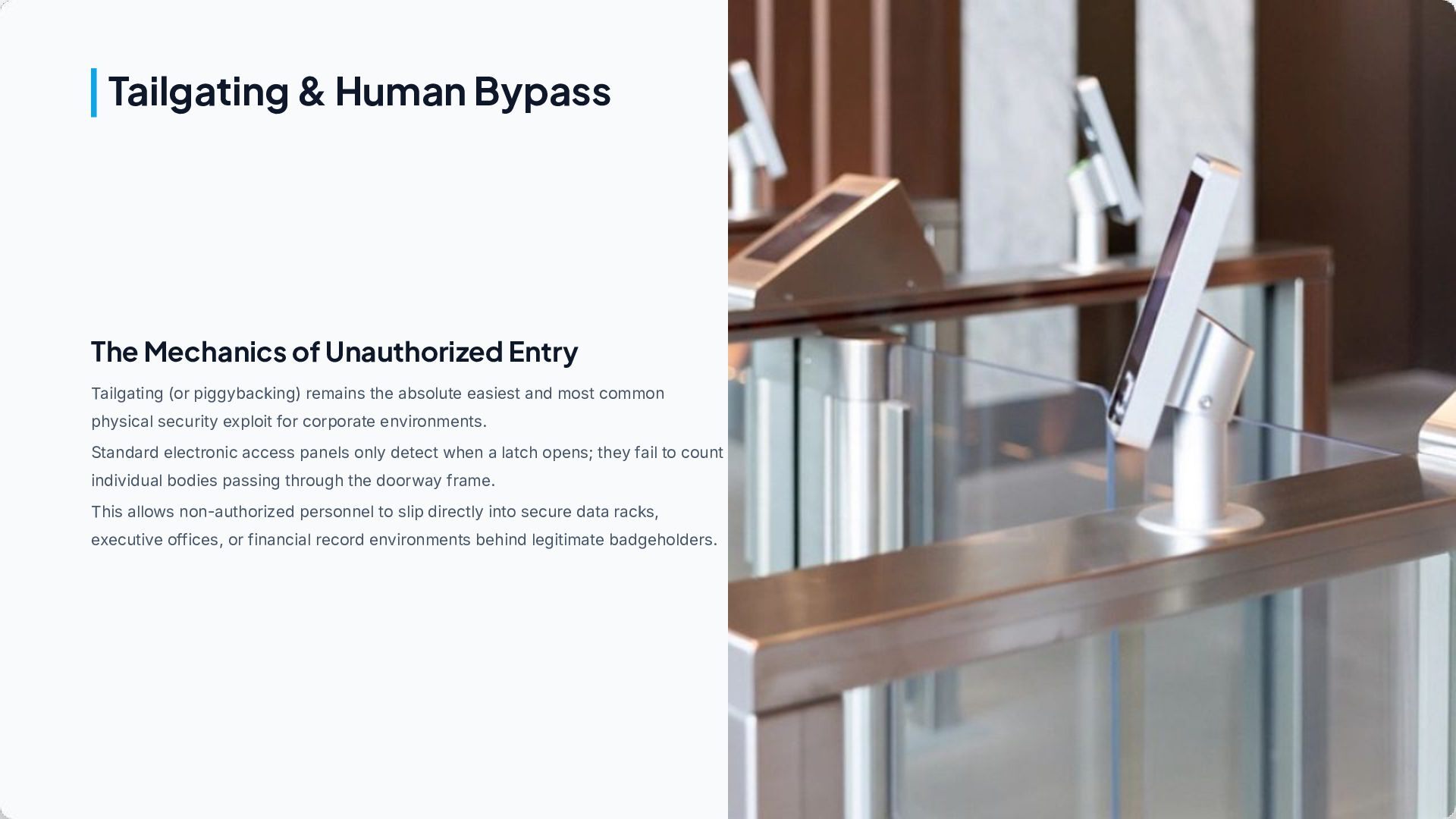

4. Tailgating & Human Bypass The Mechanics of Unauthorized Entry Tailgating (or piggybacking) remains the absolute easiest and most common physical security exploit for corporate environments. Standard electronic access panels only detect when a latch opens; they fail to count individual bodies passing through the doorway frame. This allows non-authorized personnel to slip directly into secure data racks, executive offices, or financial record environments behind legitimate badgeholders.

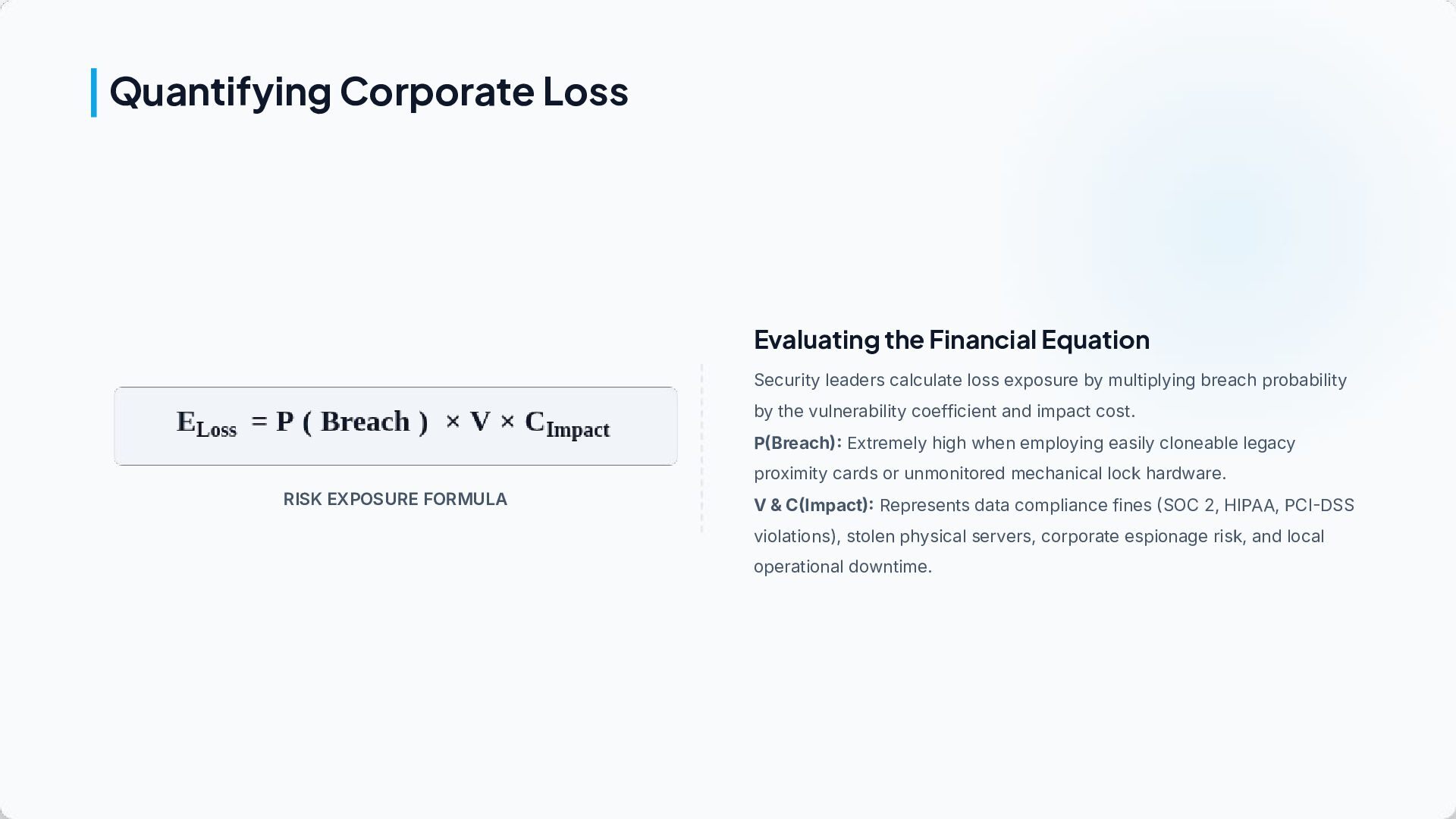

5. RISK EXPOSURE FORMULA Evaluating the Financial Equation Security leaders calculate loss exposure by multiplying breach probability by the vulnerability coefficient and impact cost. PBreach Extremely high when employing easily cloneable legacy proximity cards or unmonitored mechanical lock hardware. V & CImpact Represents data compliance fines SOC 2, HIPAA, PCIDSS violations), stolen physical servers, corporate espionage risk, and local operational downtime. Quantifying Corporate Loss
6. Modern Cloud Architectures How intelligent cloud-to-edge access systems restore perimeter integrity, audit certainty, and instantaneous remote management.

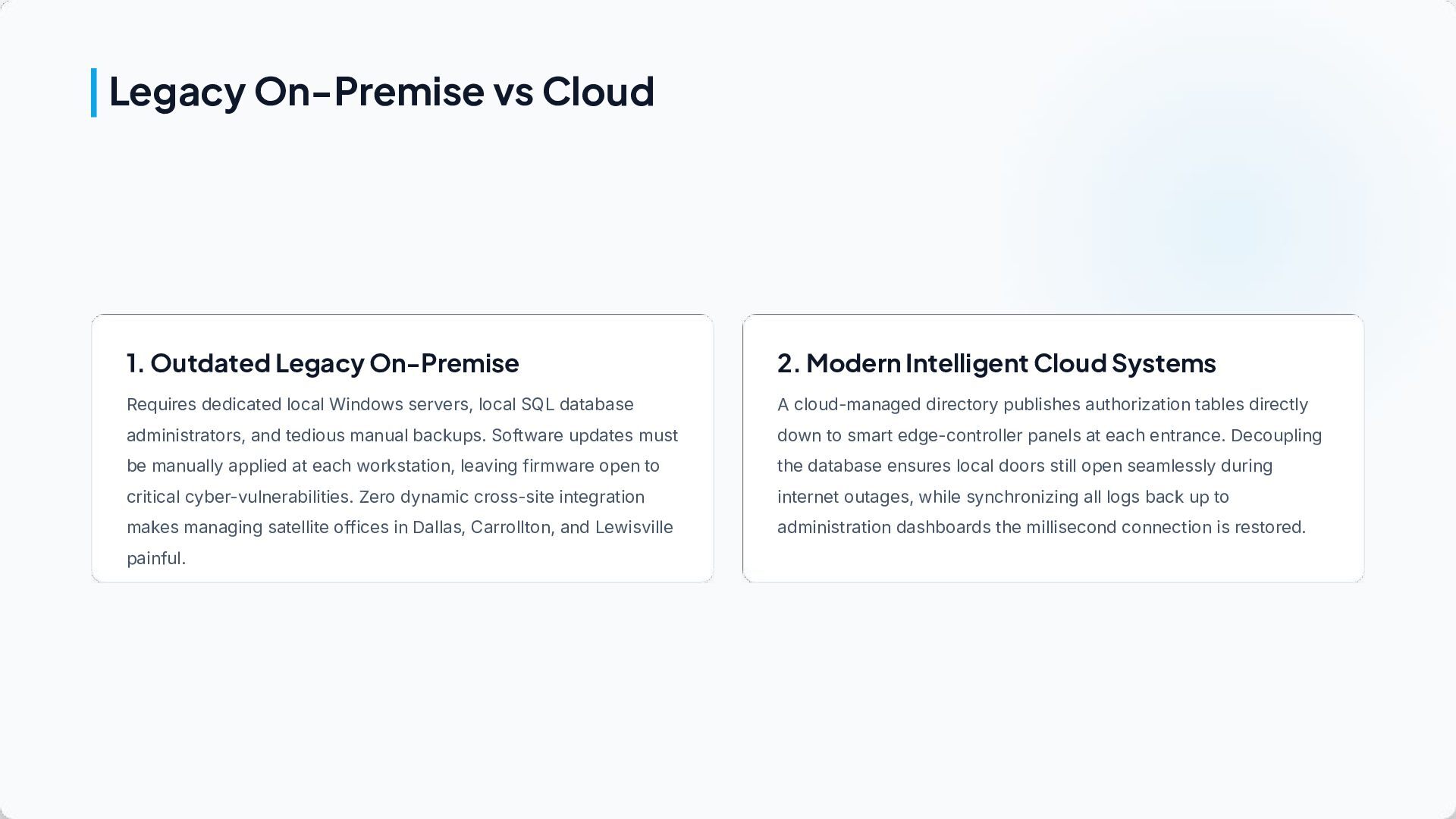

7. 1. Outdated Legacy On-Premise Requires dedicated local Windows servers, local SQL database administrators, and tedious manual backups. Software updates must be manually applied at each workstation, leaving firmware open to critical cyber-vulnerabilities. Zero dynamic cross-site integration makes managing satellite offices in Dallas, Carrollton, and Lewisville painful. 2. Modern Intelligent Cloud Systems A cloud-managed directory publishes authorization tables directly down to smart edge-controller panels at each entrance. Decoupling the database ensures local doors still open seamlessly during internet outages, while synchronizing all logs back up to administration dashboards the millisecond connection is restored. Legacy On-Premise vs Cloud

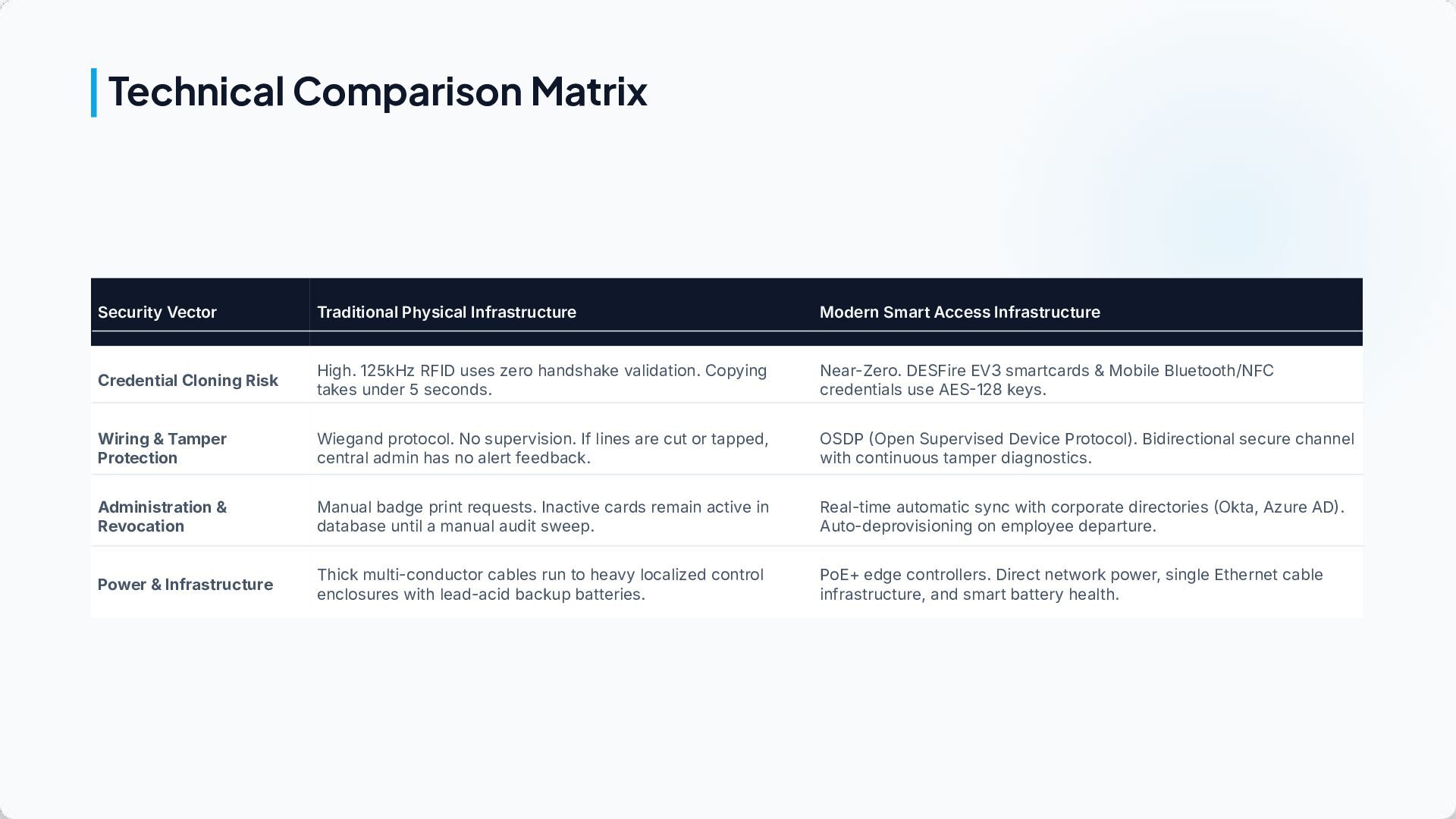

8. Security Vector Traditional Physical Infrastructure Modern Smart Access Infrastructure Credential Cloning Risk High. 125kHz RFID uses zero handshake validation. Copying takes under 5 seconds. Near-Zero. DESFire EV3 smartcards & Mobile Bluetooth/NFC credentials use AES128 keys. Wiring & Tamper Protection Wiegand protocol. No supervision. If lines are cut or tapped, central admin has no alert feedback. OSDP Open Supervised Device Protocol). Bidirectional secure channel with continuous tamper diagnostics. Administration & Revocation Manual badge print requests. Inactive cards remain active in database until a manual audit sweep. Real-time automatic sync with corporate directories Okta, Azure AD. Auto-deprovisioning on employee departure. Power & Infrastructure Thick multi-conductor cables run to heavy localized control enclosures with lead-acid backup batteries. PoE+ edge controllers. Direct network power, single Ethernet cable infrastructure, and smart battery health. Technical Comparison Matrix

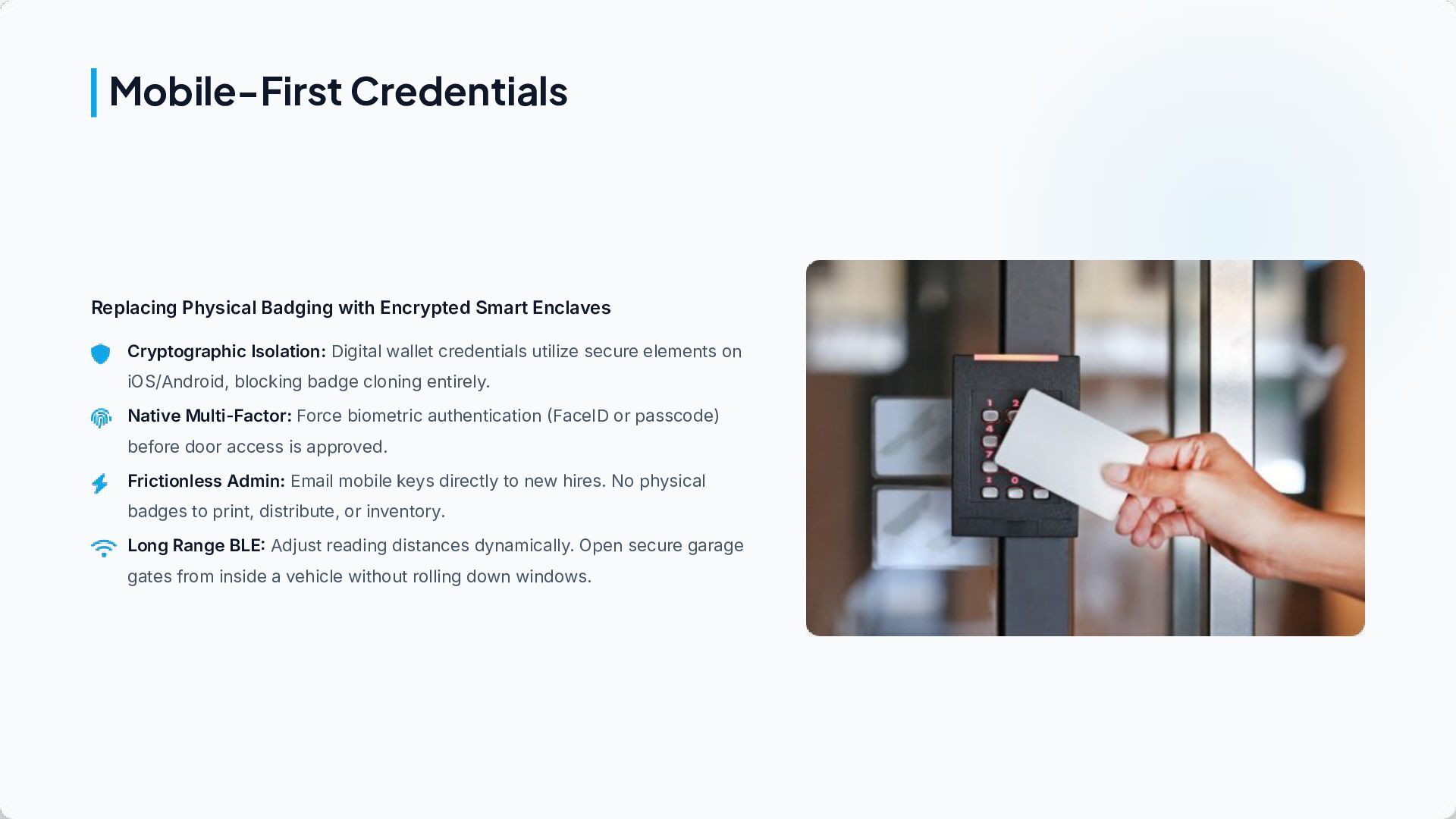

9. Replacing Physical Badging with Encrypted Smart Enclaves Cryptographic Isolation: Digital wallet credentials utilize secure elements on iOS/Android, blocking badge cloning entirely. Native Multi-Factor: Force biometric authentication FaceID or passcode) before door access is approved. Frictionless Admin: Email mobile keys directly to new hires. No physical badges to print, distribute, or inventory. Long Range BLE Adjust reading distances dynamically. Open secure garage gates from inside a vehicle without rolling down windows. Mobile-First Credentials

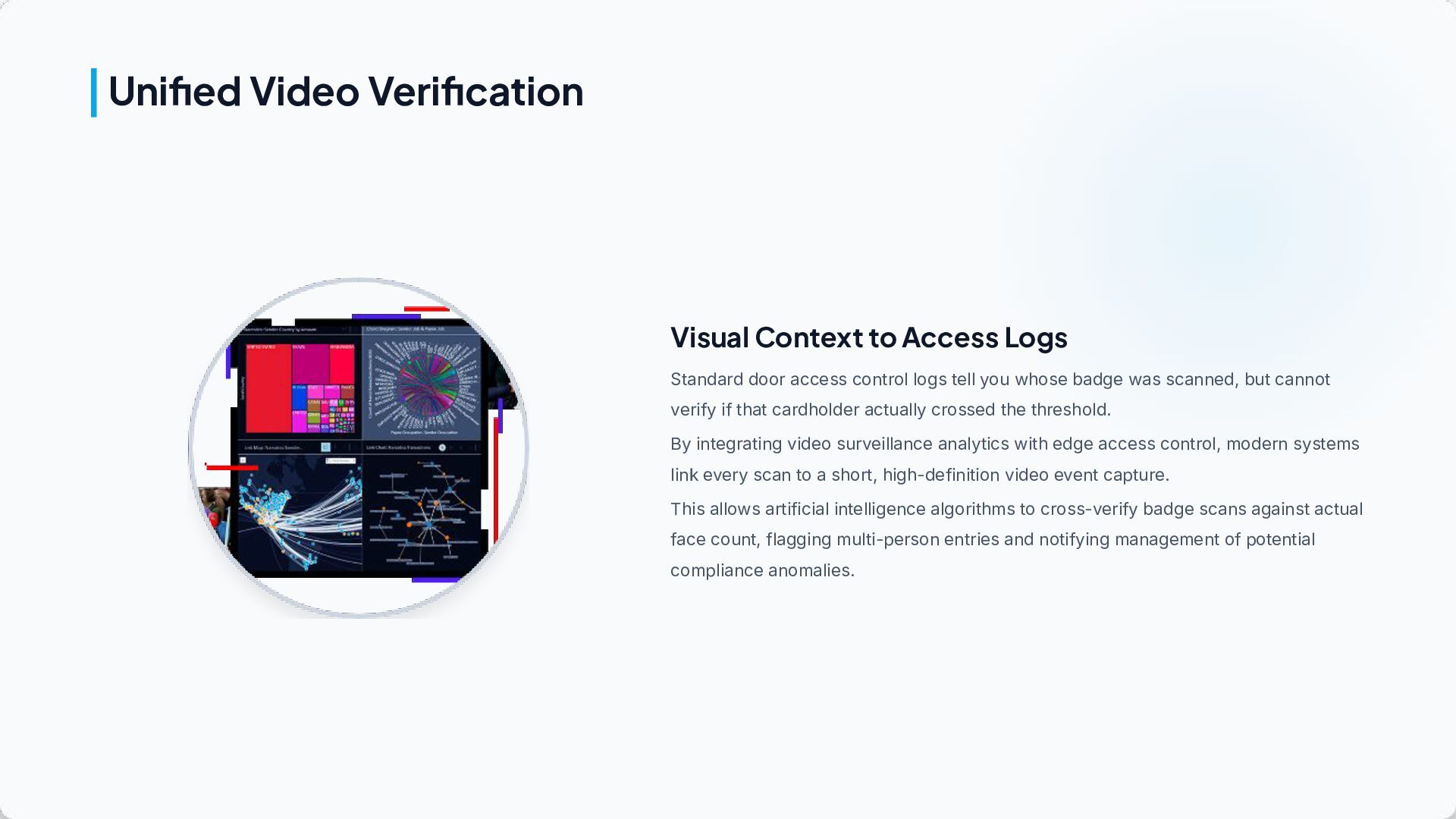

10. Visual Context to Access Logs Standard door access control logs tell you whose badge was scanned, but cannot verify if that cardholder actually crossed the threshold. By integrating video surveillance analytics with edge access control, modern systems link every scan to a short, high-definition video event capture. This allows artificial intelligence algorithms to cross-verify badge scans against actual face count, flagging multi-person entries and notifying management of potential compliance anomalies. Unified Video Verification

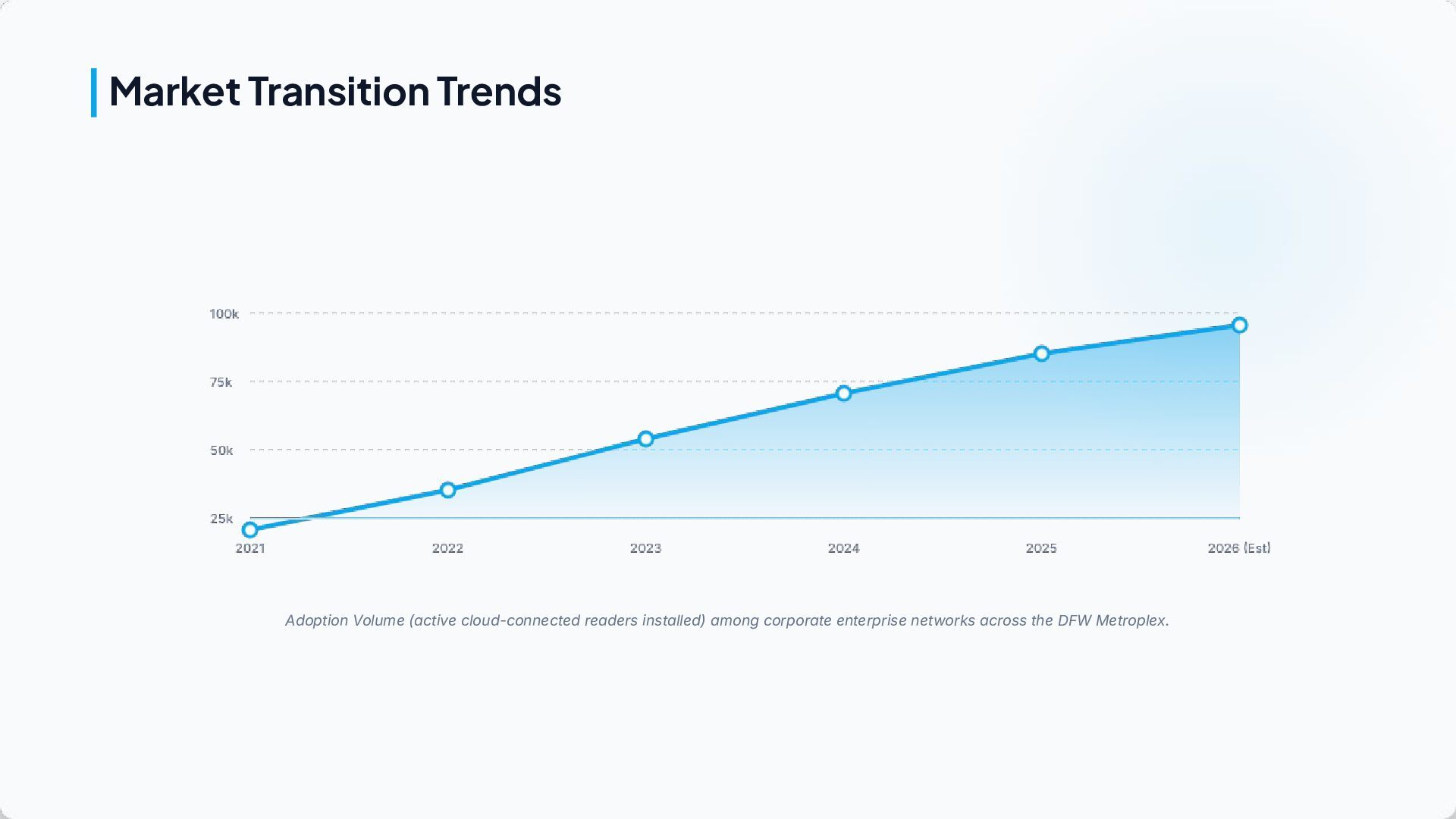

11. Adoption Volume (active cloud-connected readers installed) among corporate enterprise networks across the DFW Metroplex. Market Transition Trends

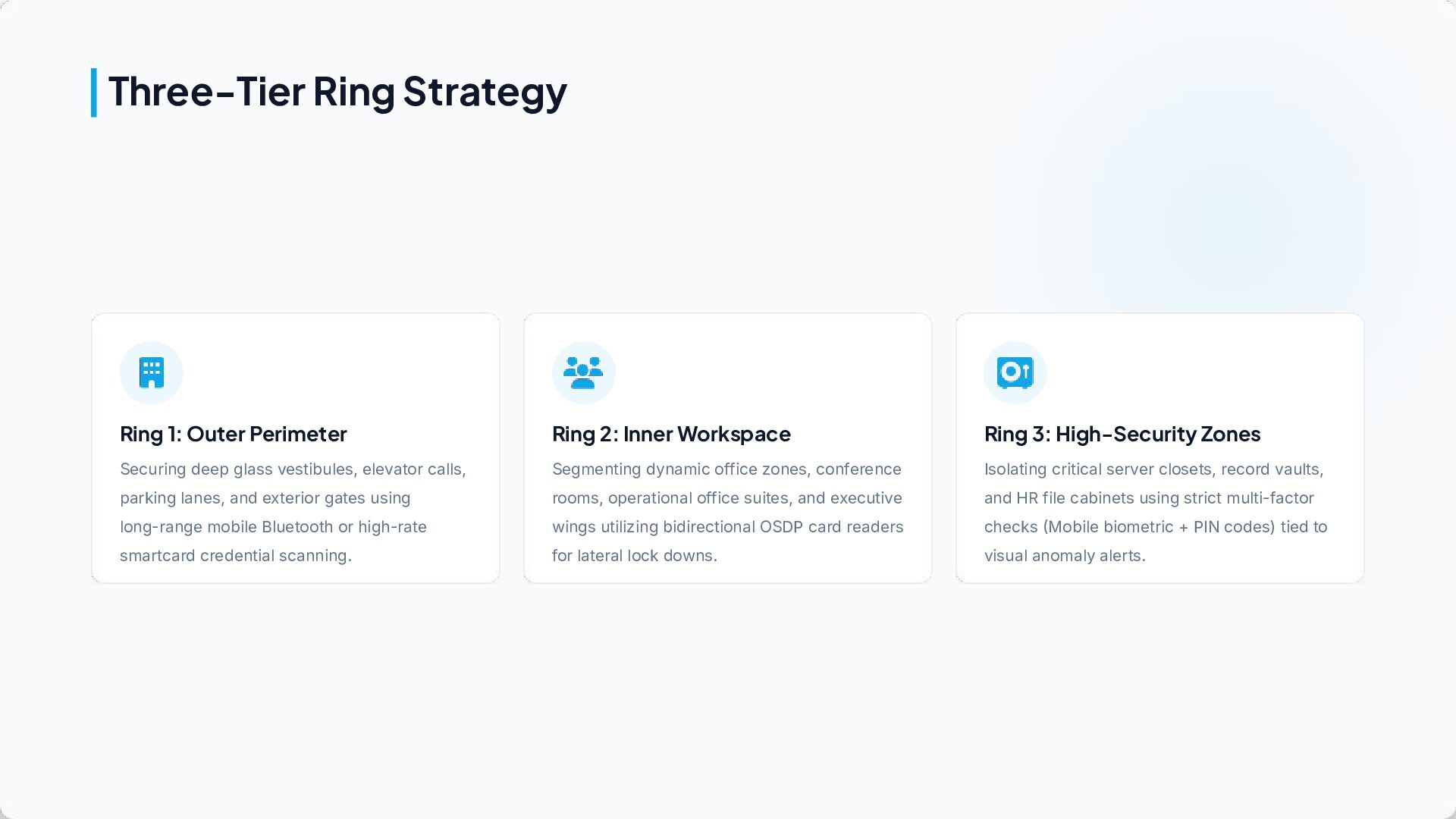

12. Ring 1: Outer Perimeter Securing deep glass vestibules, elevator calls, parking lanes, and exterior gates using long-range mobile Bluetooth or high-rate smartcard credential scanning. Ring 2: Inner Workspace Segmenting dynamic office zones, conference rooms, operational office suites, and executive wings utilizing bidirectional OSDP card readers for lateral lock downs. Ring 3: High-Security Zones Isolating critical server closets, record vaults, and HR file cabinets using strict multi-factor checks Mobile biometric + PIN codes) tied to visual anomaly alerts. Three-Tier Ring Strategy

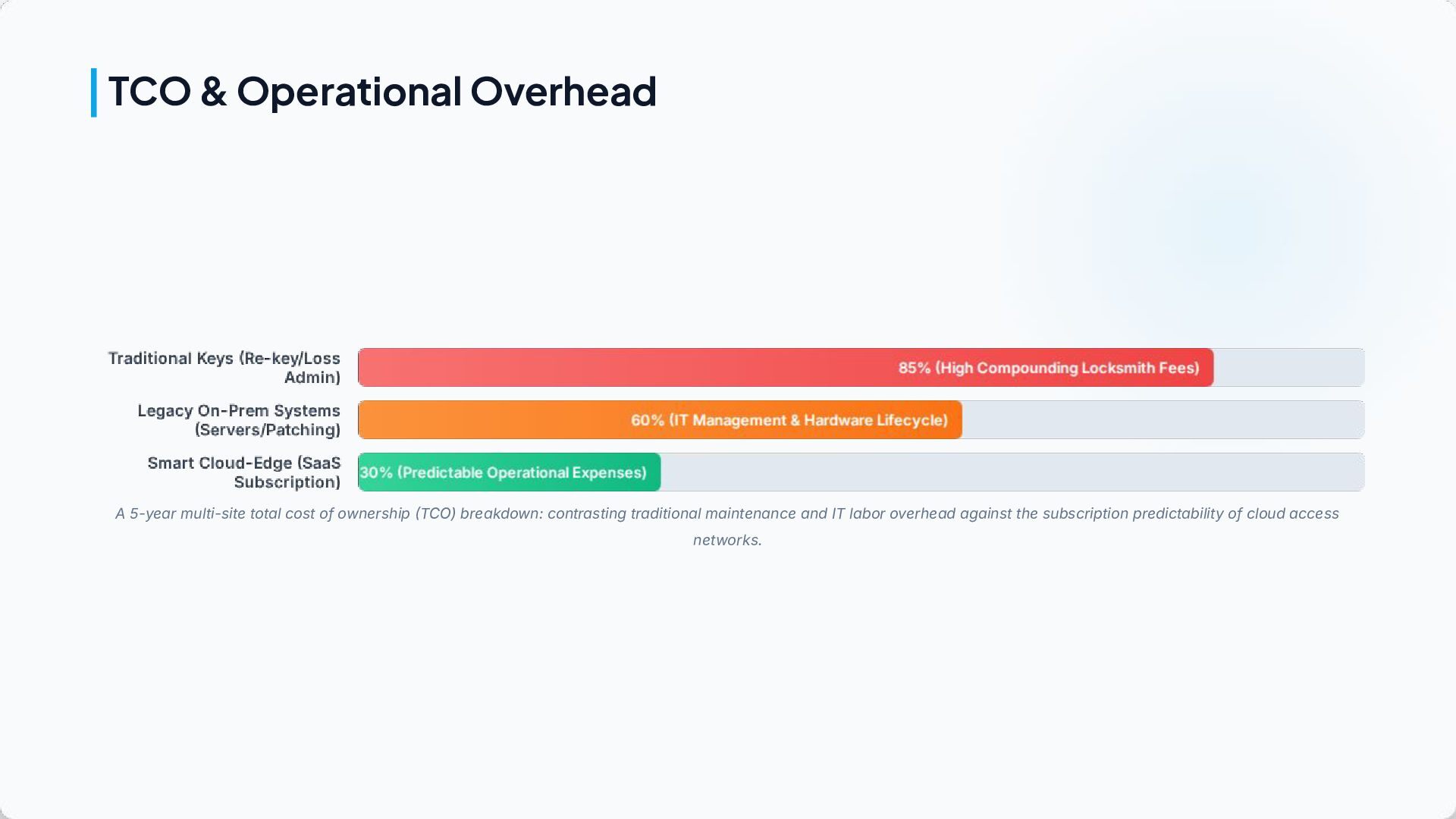

13. A 5-year multi-site total cost of ownership TCO) breakdown: contrasting traditional maintenance and IT labor overhead against the subscription predictability of cloud access networks. TCO & Operational Overhead
14. "Enterprise physical security is no longer merely a facility operations concern; it is step zero in modern threat surface management. If an adversary can gain physical entry via an unencrypted legacy credential swipe, your digital enclaves are fundamentally compromised." — Principal Security Architect, Texas Enterprise Infrastructure Association “ CISO Risk Validation
15. Security Engineering for DFW Ensure compliance, reduce liability, and streamline physical access control operations. Dallas-Fort Worth Local Physical Security Consultants • Carrollton, Lewisville, Sunnyvale, and Dallas Metro Contact Local Advisors https://securityindfw.com/access -control/
