Carrollton, TX Commercial Access Control Installation & Compliance Manual

A comprehensive technical presentation and engineering framework for low-voltage contractors, commercial integrators, and security installers deploying electronic access control systems in Carrollton, Texas.

This guide breaks down the physical hardware installation process alongside strict local municipal code alignment to ensure first-pass approval by Carrollton Fire Rescue and building inspectors.

Core Deployment Specifications Covered:

Local Code Compliance: Step-by-step adherence to Carrollton’s adopted 2024 International Building Code (IBC), 2024 International Fire Code (IFC), and 2023 National Electrical Code (NEC).

Life Safety System Integration: Engineering fail-safe magnetic locks, request-to-exit (REX) sensors, card readers, and push-to-exit configurations.

Carrollton Knox-Box Mandates: Hardware criteria for commercial properties, detailing Knox Box 3200 series for single tenants and Knox Vault 4400 series for multi-tenant spaces.

Vehicle Access Gates: Implementation of Knox Key Switches (KS-3502) for electrically operated fire lane gates.

City Permitting: Navigating Electronic Security (SE) permits and mandatory city alarm registration workflows.

Review these slides to eliminate wiring red tags, handle regional building code variances, and streamline commercial security system commissioning across Carrollton and Denton County.

Transcript

1. Access Control System Professional Installation Guide: Carrollton, TX TECHNICAL METHOD STATEMENT & PROCEDURES

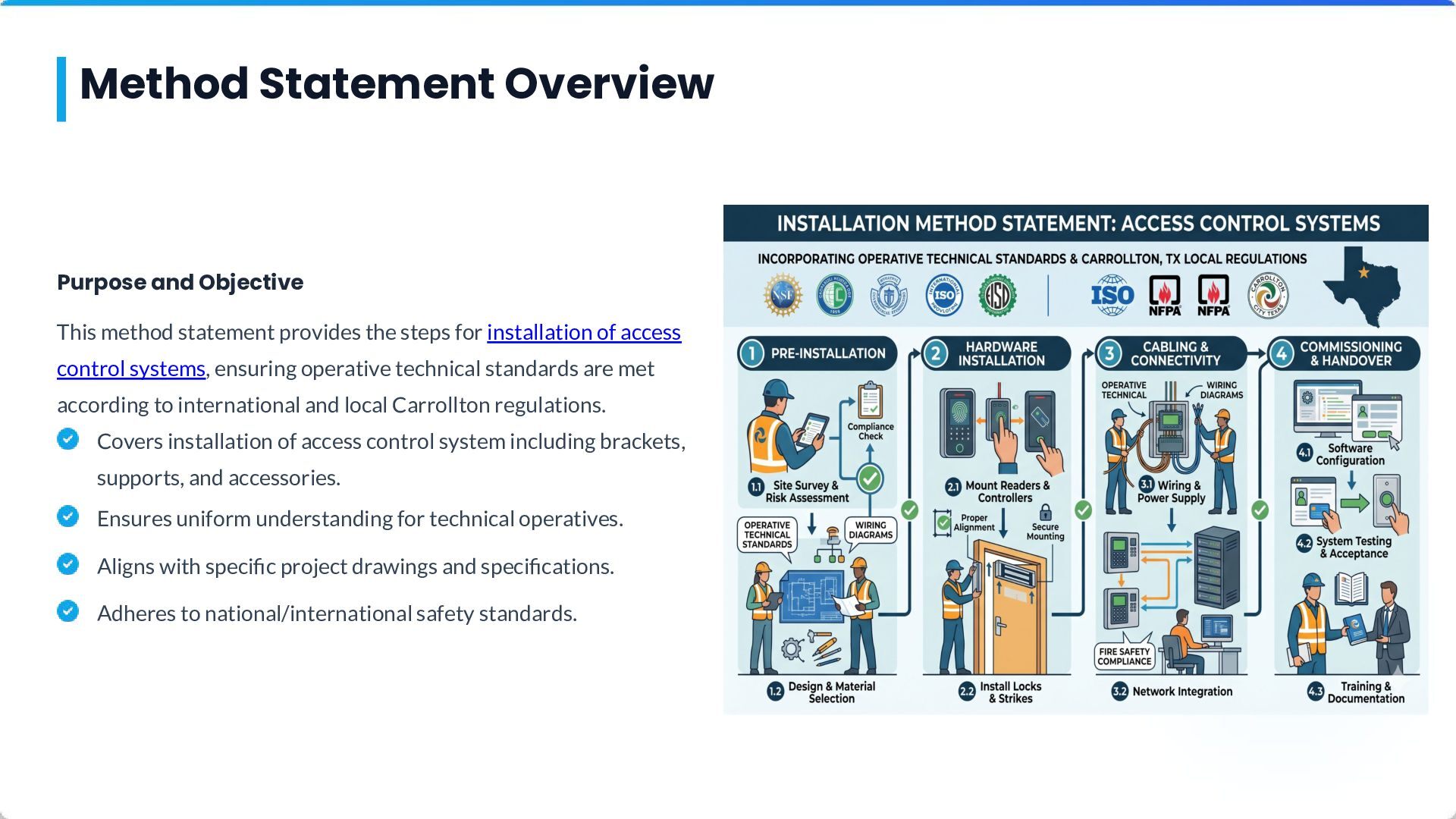

2. Method Statement Overview Purpose and Objective This method statement provides the steps for installation of access control systems, ensuring operative technical standards are met according to international and local Carrollton regulations. Covers installation of access control system including brackets, supports, and accessories. Ensures uniform understanding for technical operatives. Aligns with specific project drawings and specifications. Adheres to national/international safety standards.

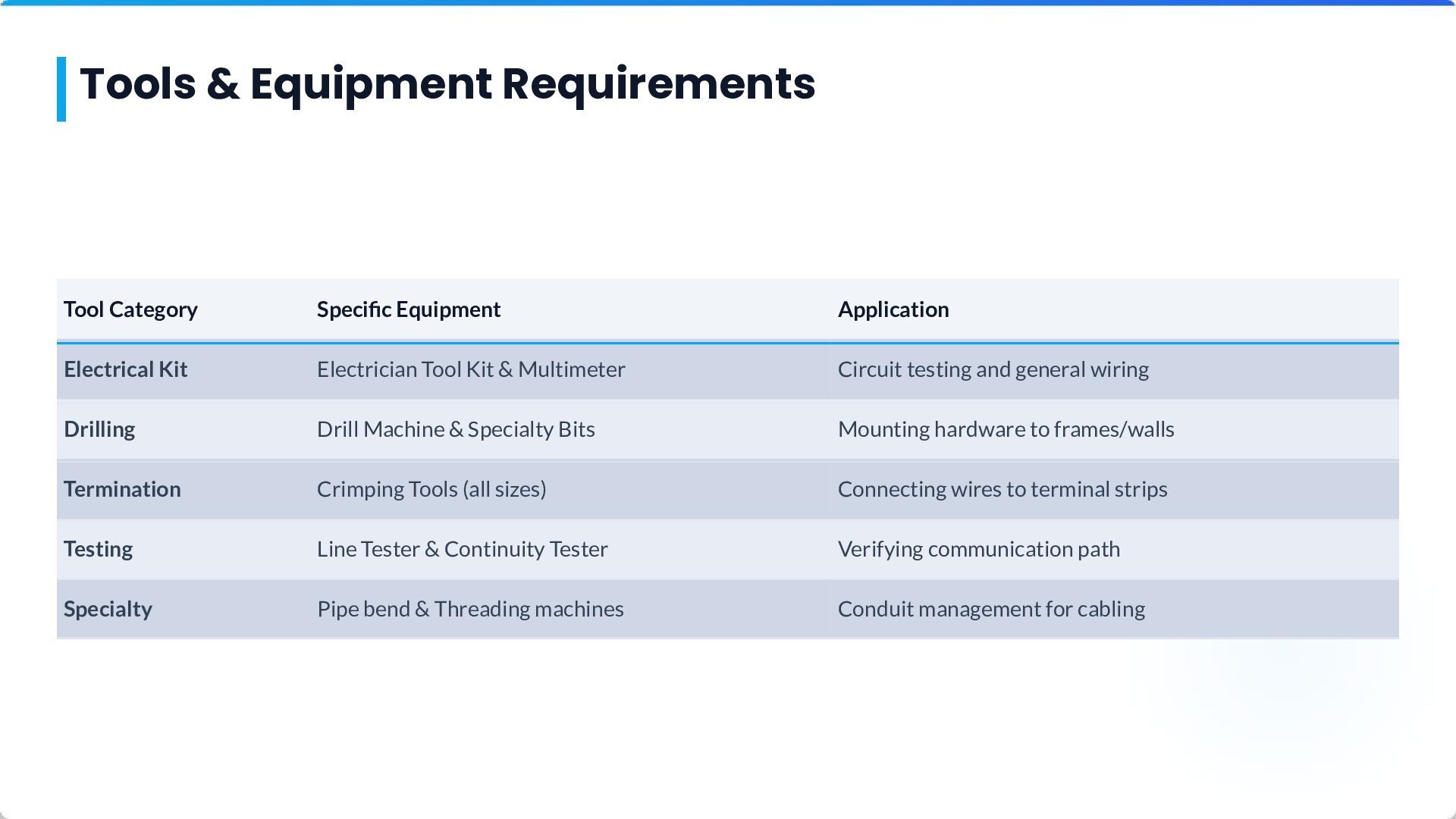

3. Tools & Equipment Requirements Tool Category Specific Equipment Application Electrical Kit Electrician Tool Kit & Multimeter Circuit testing and general wiring Drilling Drill Machine & Specialty Bits Mounting hardware to frames/walls Termination Crimping Tools (all sizes) Connecting wires to terminal strips Testing Line Tester & Continuity Tester Verifying communication path Specialty Pipe bend & Threading machines Conduit management for cabling

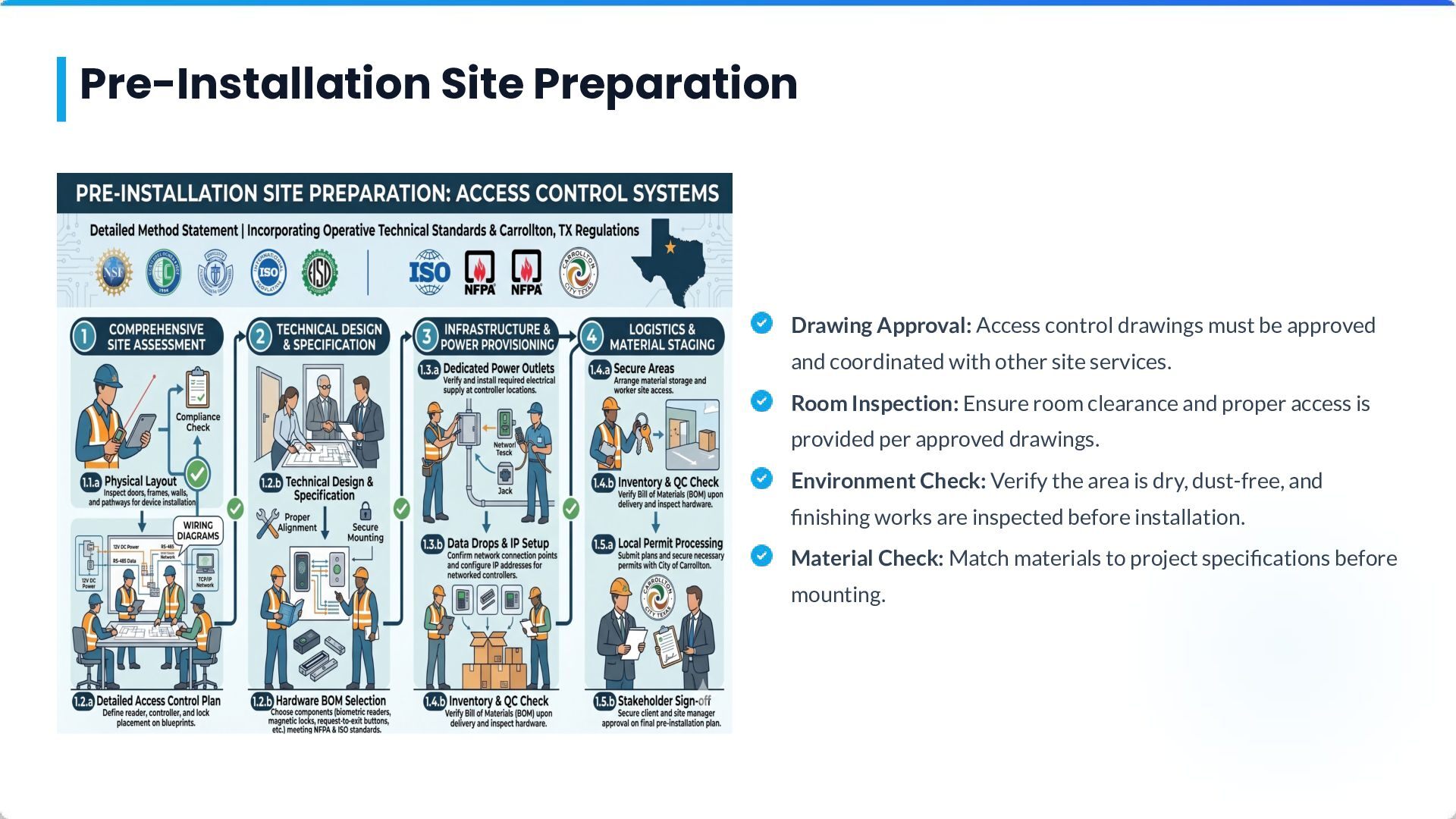

4. Pre-Installation Site Preparation Drawing Approval: Access control drawings must be approved and coordinated with other site services. Room Inspection: Ensure room clearance and proper access is provided per approved drawings. Environment Check: Verify the area is dry, dust-free, and finishing works are inspected before installation. Material Check: Match materials to project specifications before mounting.
5. Section 02 Field Component Installation
6. Card Reader Installation Standards The 1.2m Height Standard Correct mounting of card readers is critical for ADA compliance and user accessibility in Carrollton commercial spaces. Location must strictly follow the approved Access Control System Device Layout plan. Standard Height: Center line of the card reader must be exactly 1.2 meters from the finished floor level. Ensure proper wall or ceiling mounting instructions are followed per product specifications.

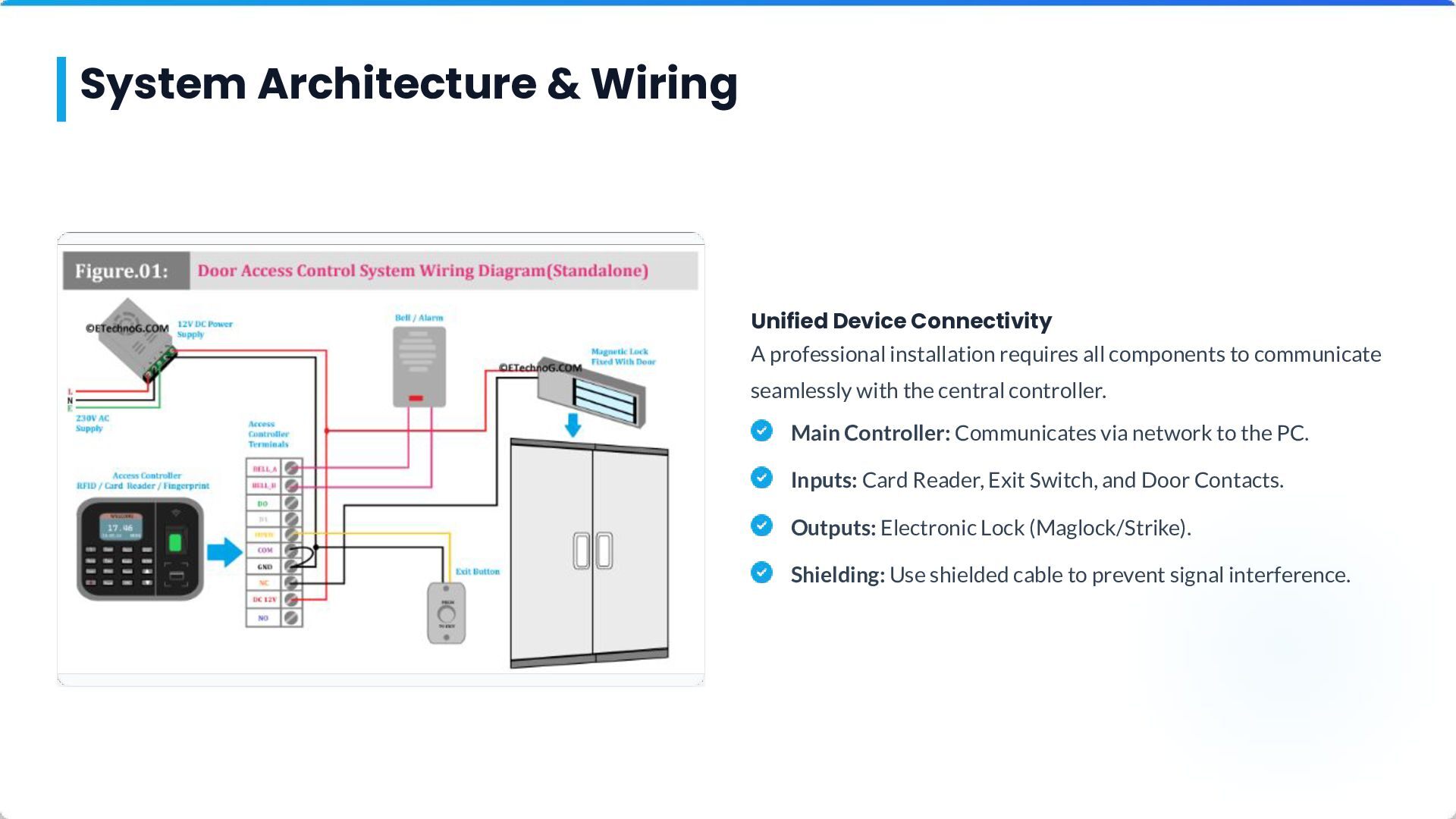

7. System Architecture & Wiring Unified Device Connectivity A professional installation requires all components to communicate seamlessly with the central controller. Main Controller: Communicates via network to the PC. Inputs: Card Reader, Exit Switch, and Door Contacts. Outputs: Electronic Lock (Maglock/Strike). Shielding: Use shielded cable to prevent signal interference.

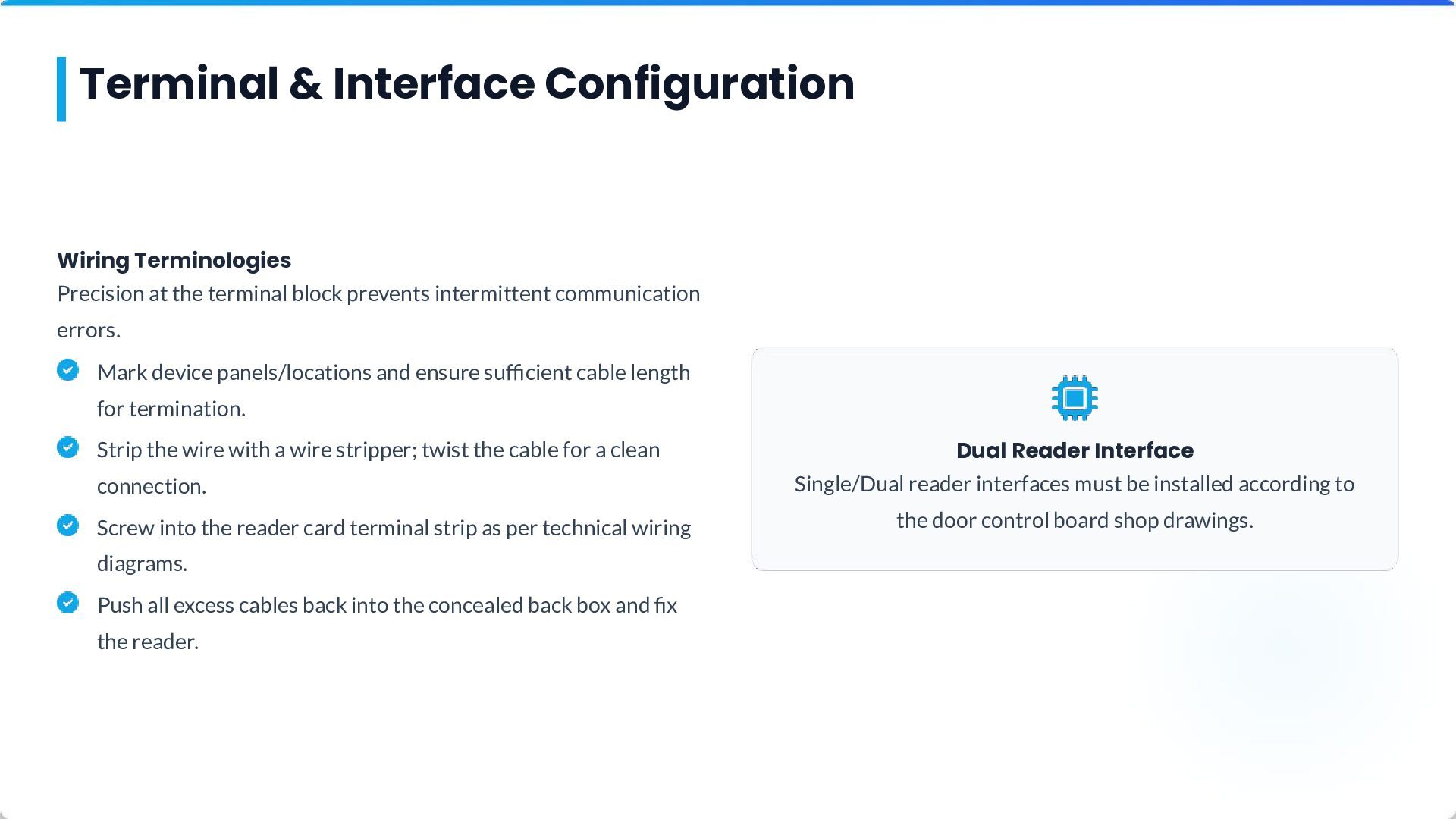

8. Terminal & Interface Configuration Wiring Terminologies Precision at the terminal block prevents intermittent communication errors. Mark device panels/locations and ensure sufficient cable length for termination. Strip the wire with a wire stripper; twist the cable for a clean connection. Screw into the reader card terminal strip as per technical wiring diagrams. Push all excess cables back into the concealed back box and fix the reader. Dual Reader Interface Single/Dual reader interfaces must be installed according to the door control board shop drawings.
9. Request to Exit (RTE) Procedures Placement: Install the RTE button or sensor on the secure side of the door. Final Location: Must be determined per the approved Access Control system layout drawing. Mounting: Pull the cable from the 3x3 back box embedded in the wall and mount the RTE unit securely. Labeling: Ensure all cables for the RTE are labeled in accordance with the layout.

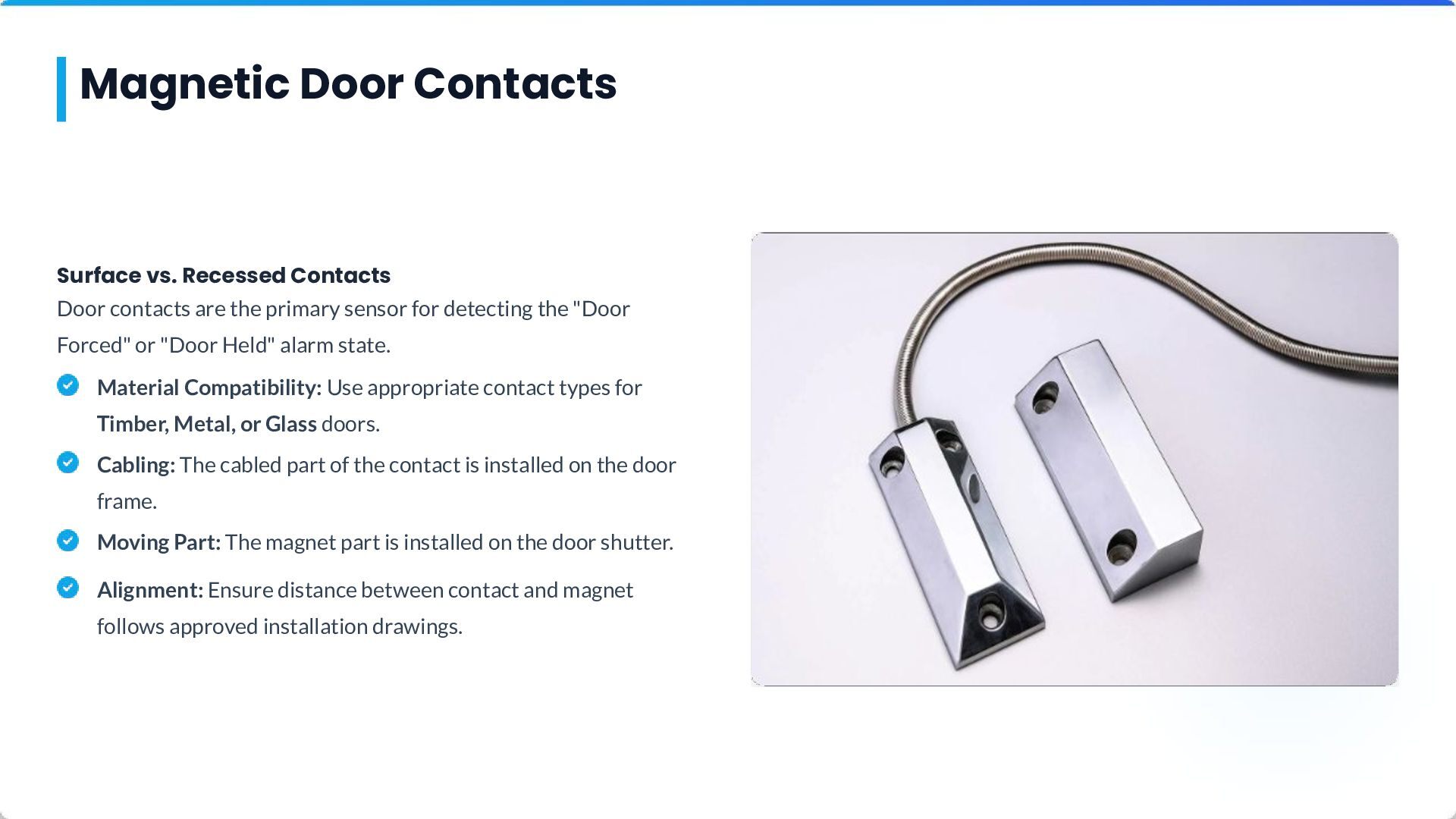

10. Magnetic Door Contacts Surface vs. Recessed Contacts Door contacts are the primary sensor for detecting the "Door Forced" or "Door Held" alarm state. Material Compatibility: Use appropriate contact types for Timber, Metal, or Glass doors. Cabling: The cabled part of the contact is installed on the door frame. Moving Part: The magnet part is installed on the door shutter. Alignment: Ensure distance between contact and magnet follows approved installation drawings.

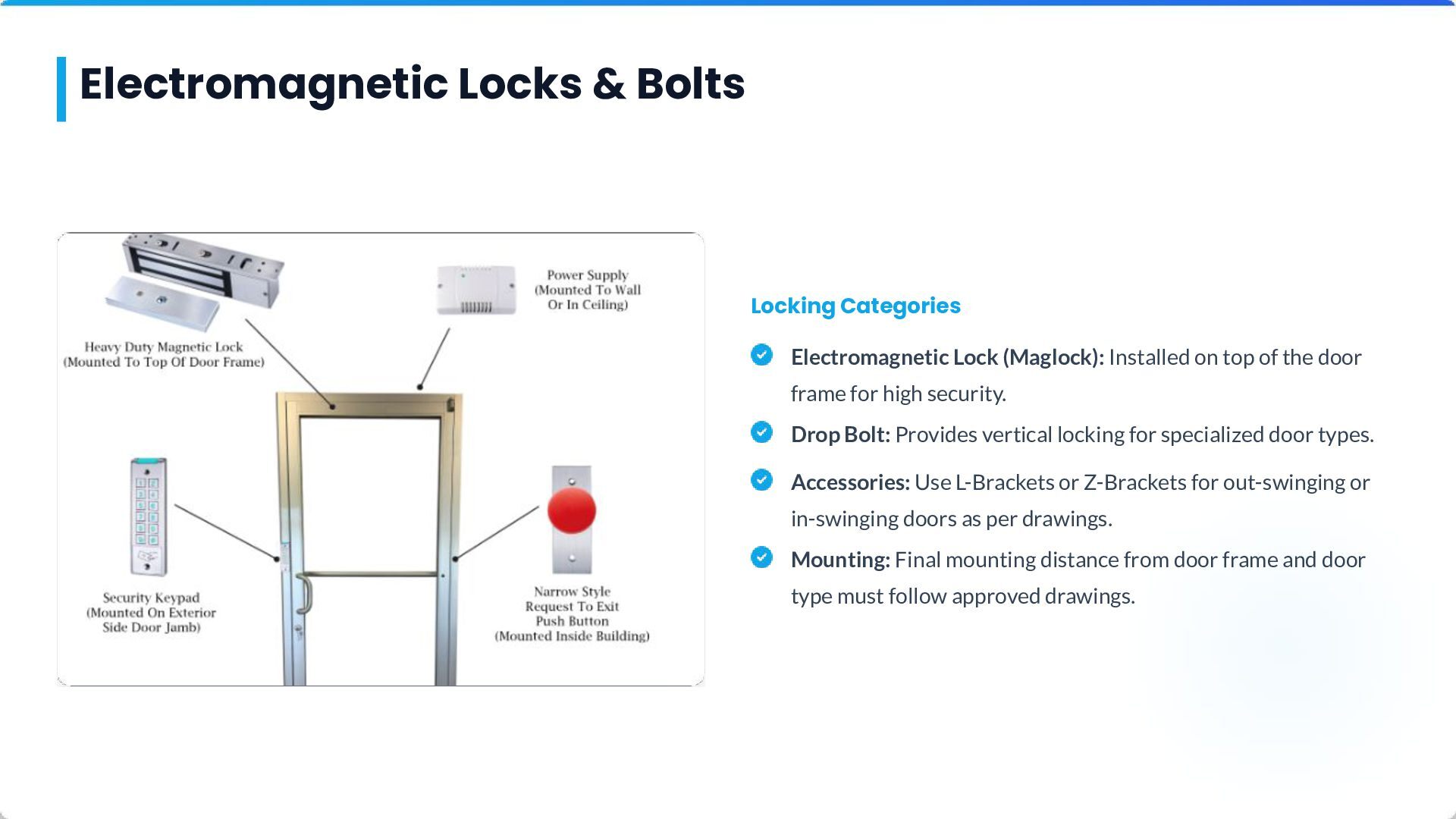

11. Electromagnetic Locks & Bolts Locking Categories Electromagnetic Lock (Maglock): Installed on top of the door frame for high security. Drop Bolt: Provides vertical locking for specialized door types. Accessories: Use L-Brackets or Z-Brackets for out-swinging or in-swinging doors as per drawings. Mounting: Final mounting distance from door frame and door type must follow approved drawings.

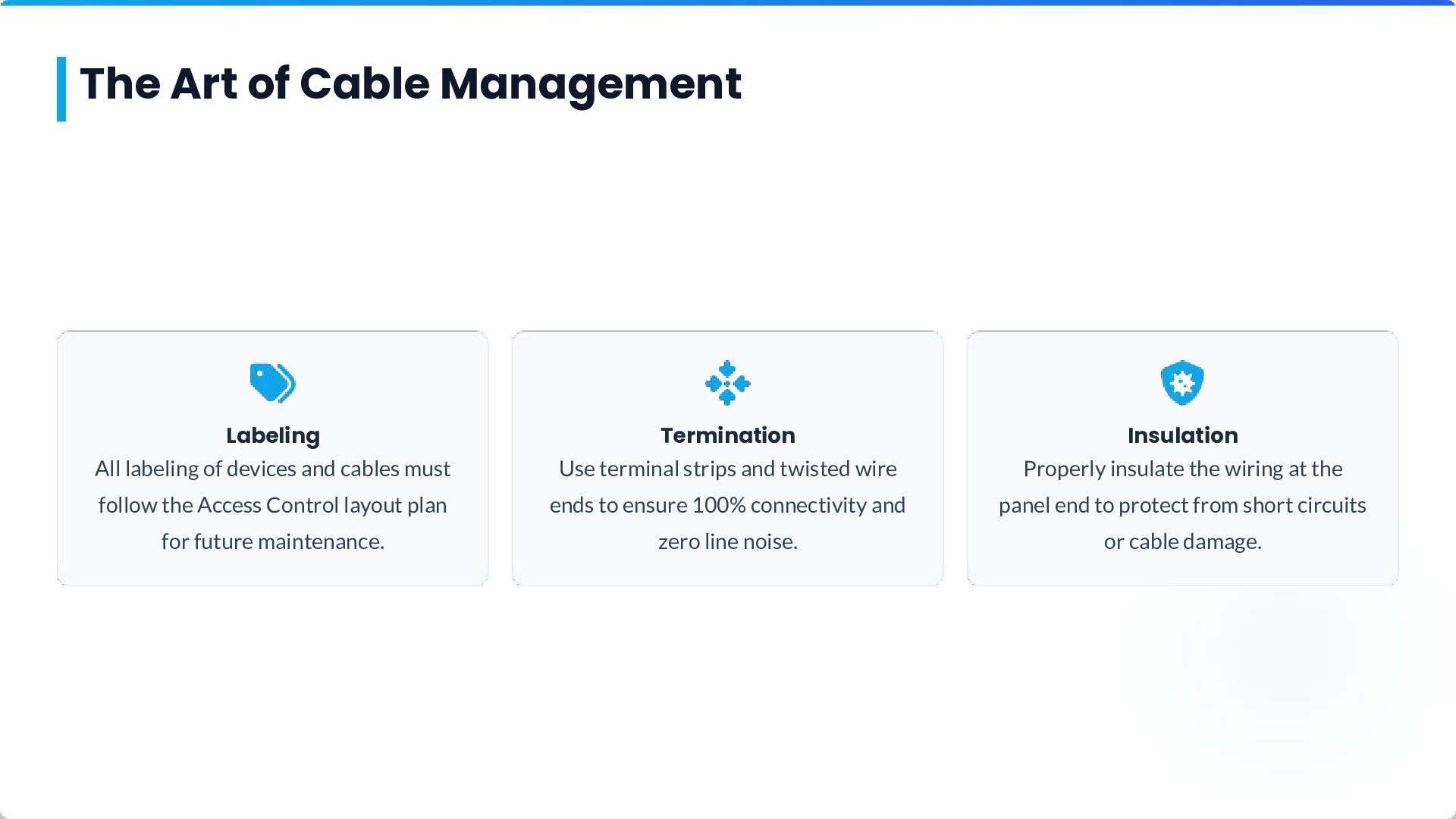

12. The Art of Cable Management Labeling All labeling of devices and cables must follow the Access Control layout plan for future maintenance. Termination Use terminal strips and twisted wire ends to ensure 100% connectivity and zero line noise. Insulation Properly insulate the wiring at the panel end to protect from short circuits or cable damage.

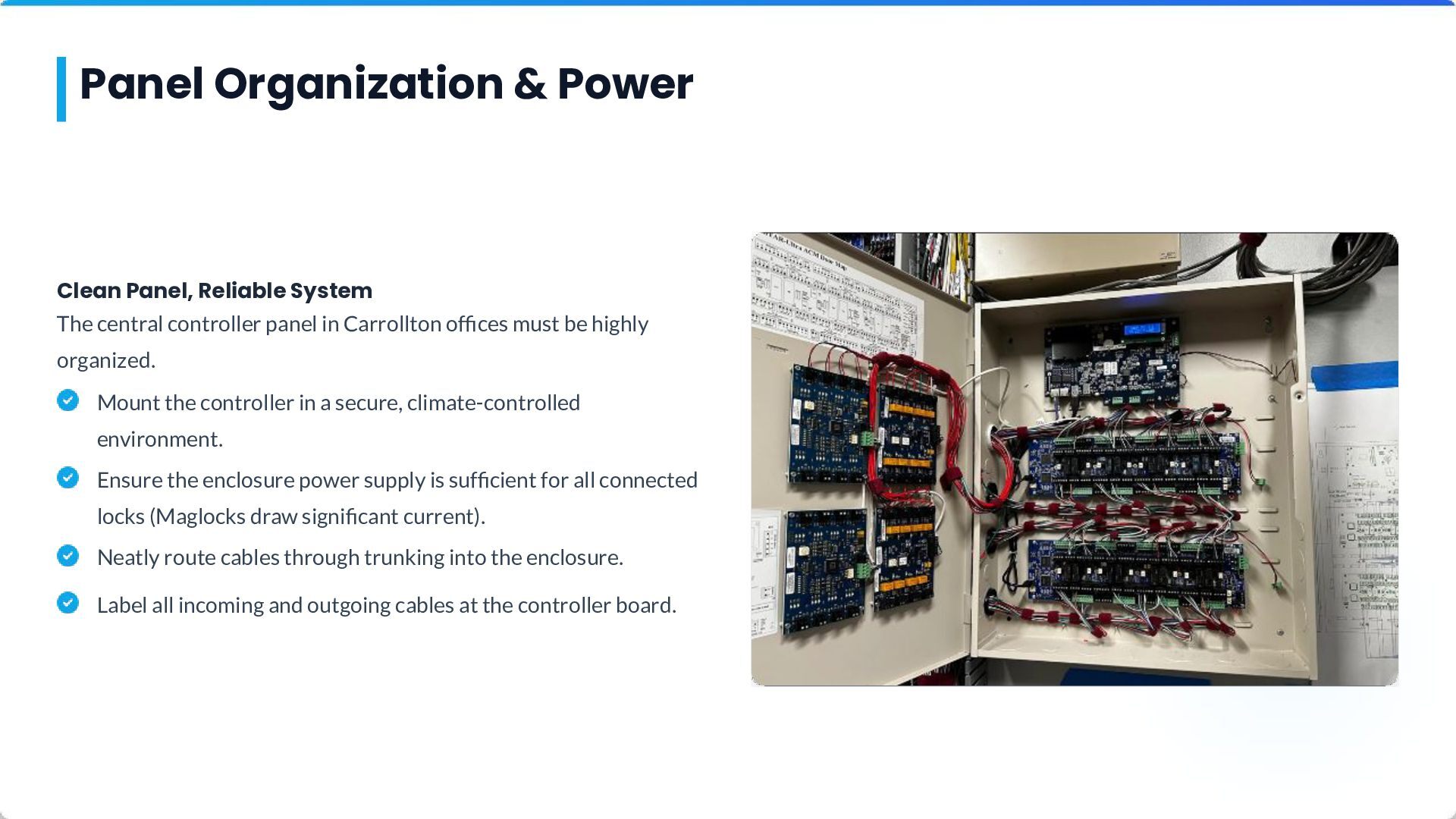

13. Panel Organization & Power Clean Panel, Reliable System The central controller panel in Carrollton offices must be highly organized. Mount the controller in a secure, climate-controlled environment. Ensure the enclosure power supply is sufficient for all connected locks (Maglocks draw significant current). Neatly route cables through trunking into the enclosure. Label all incoming and outgoing cables at the controller board.

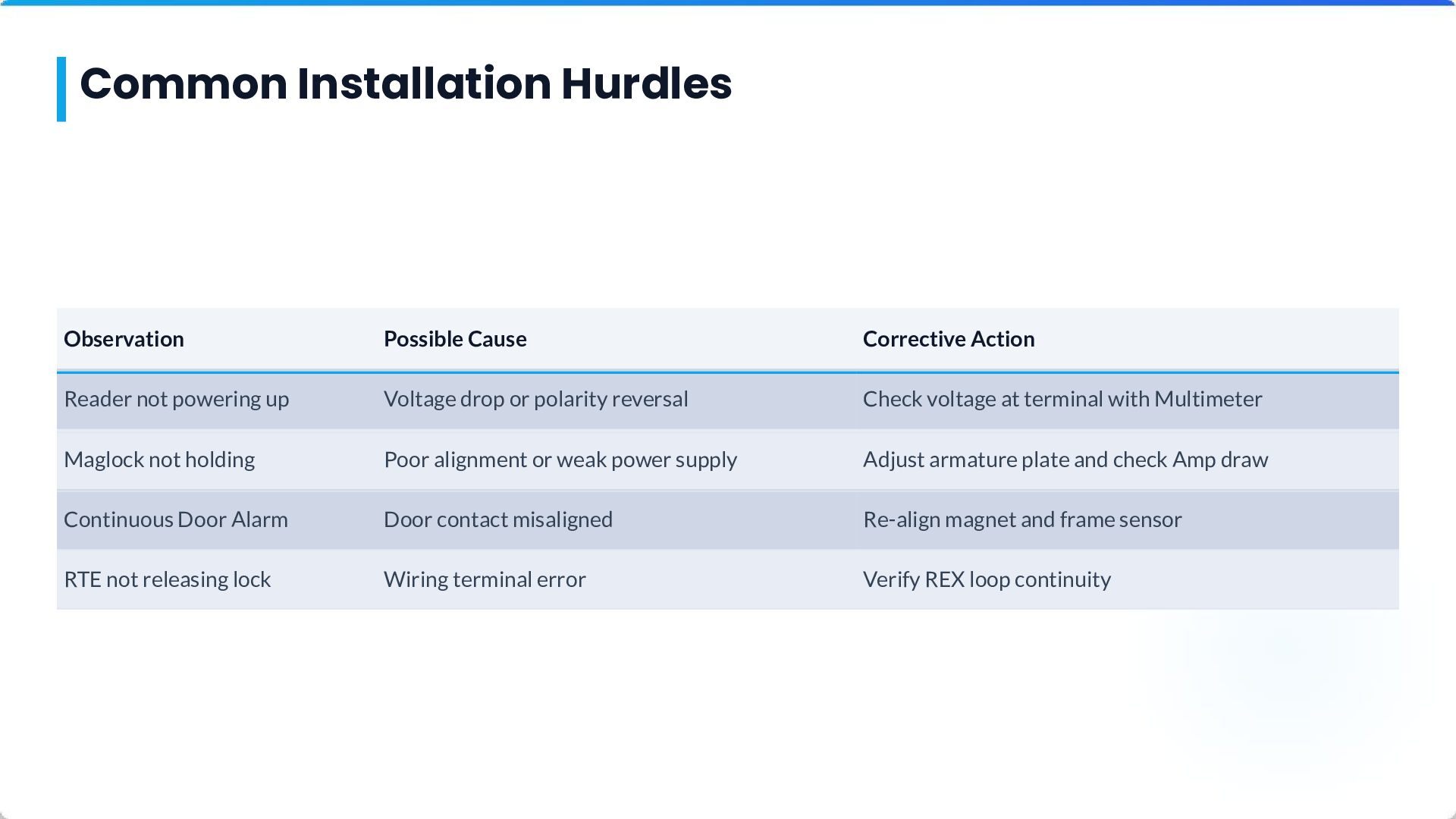

14. Common Installation Hurdles Observation Possible Cause Corrective Action Reader not powering up Voltage drop or polarity reversal Check voltage at terminal with Multimeter Maglock not holding Poor alignment or weak power supply Adjust armature plate and check Amp draw Continuous Door Alarm Door contact misaligned Re-align magnet and frame sensor RTE not releasing lock Wiring terminal error Verify REX loop continuity

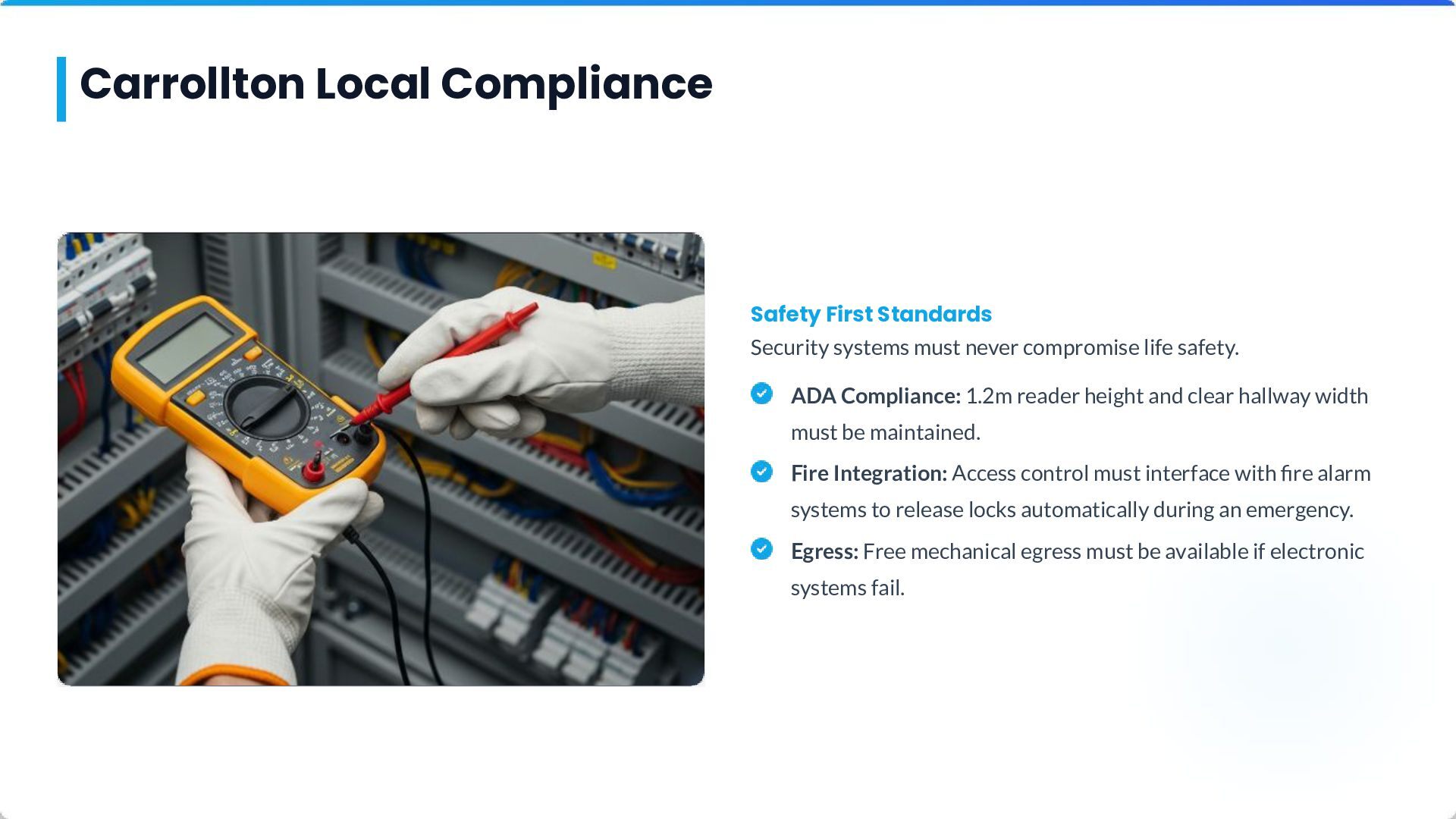

15. Carrollton Local Compliance Safety First Standards Security systems must never compromise life safety. ADA Compliance: 1.2m reader height and clear hallway width must be maintained. Fire Integration: Access control must interface with fire alarm systems to release locks automatically during an emergency. Egress: Free mechanical egress must be available if electronic systems fail.

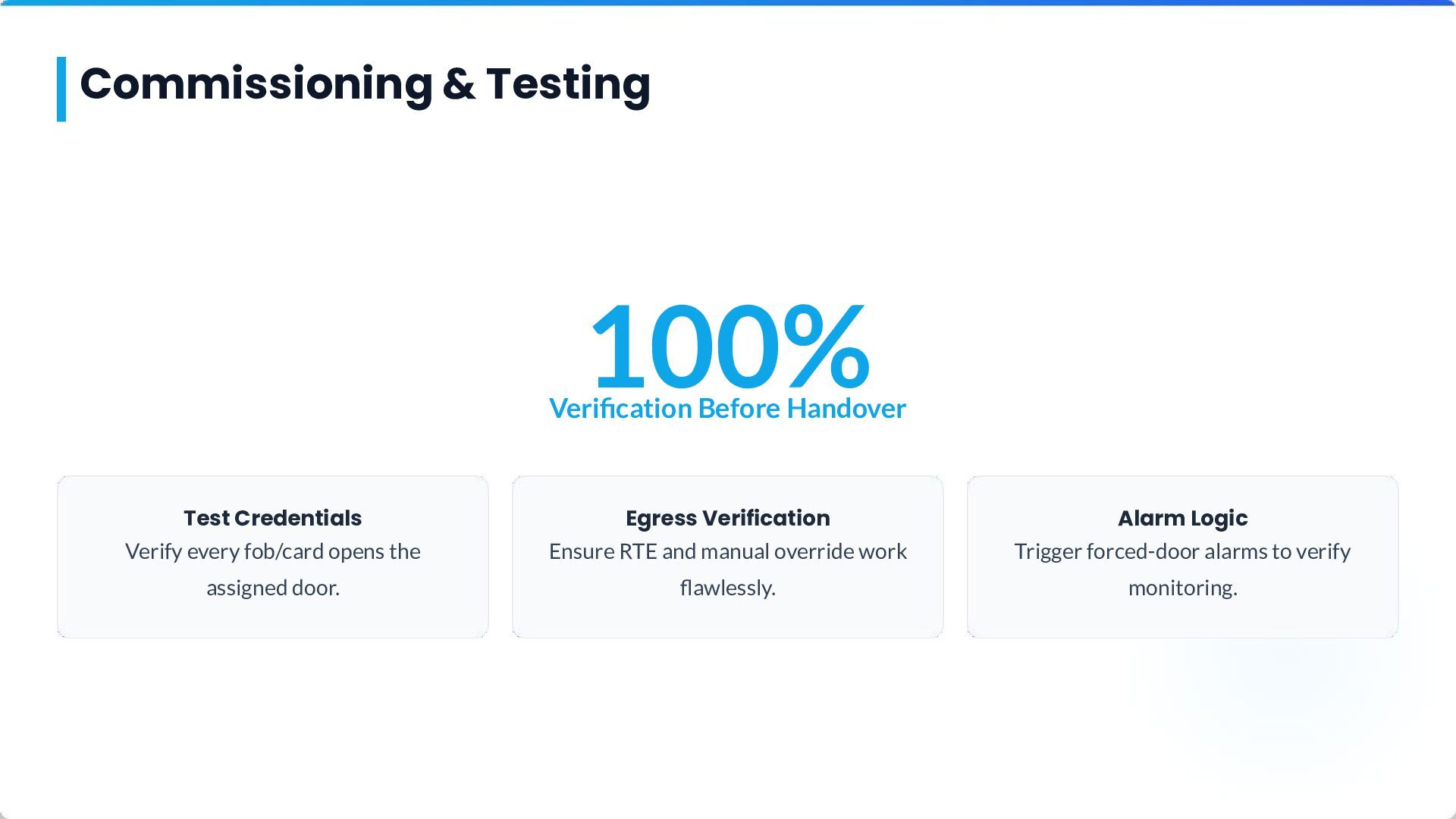

16. Commissioning & Testing 100% Verification Before Handover Test Credentials Verify every fob/card opens the assigned door. Egress Verification Ensure RTE and manual override work flawlessly. Alarm Logic Trigger forced-door alarms to verify monitoring.

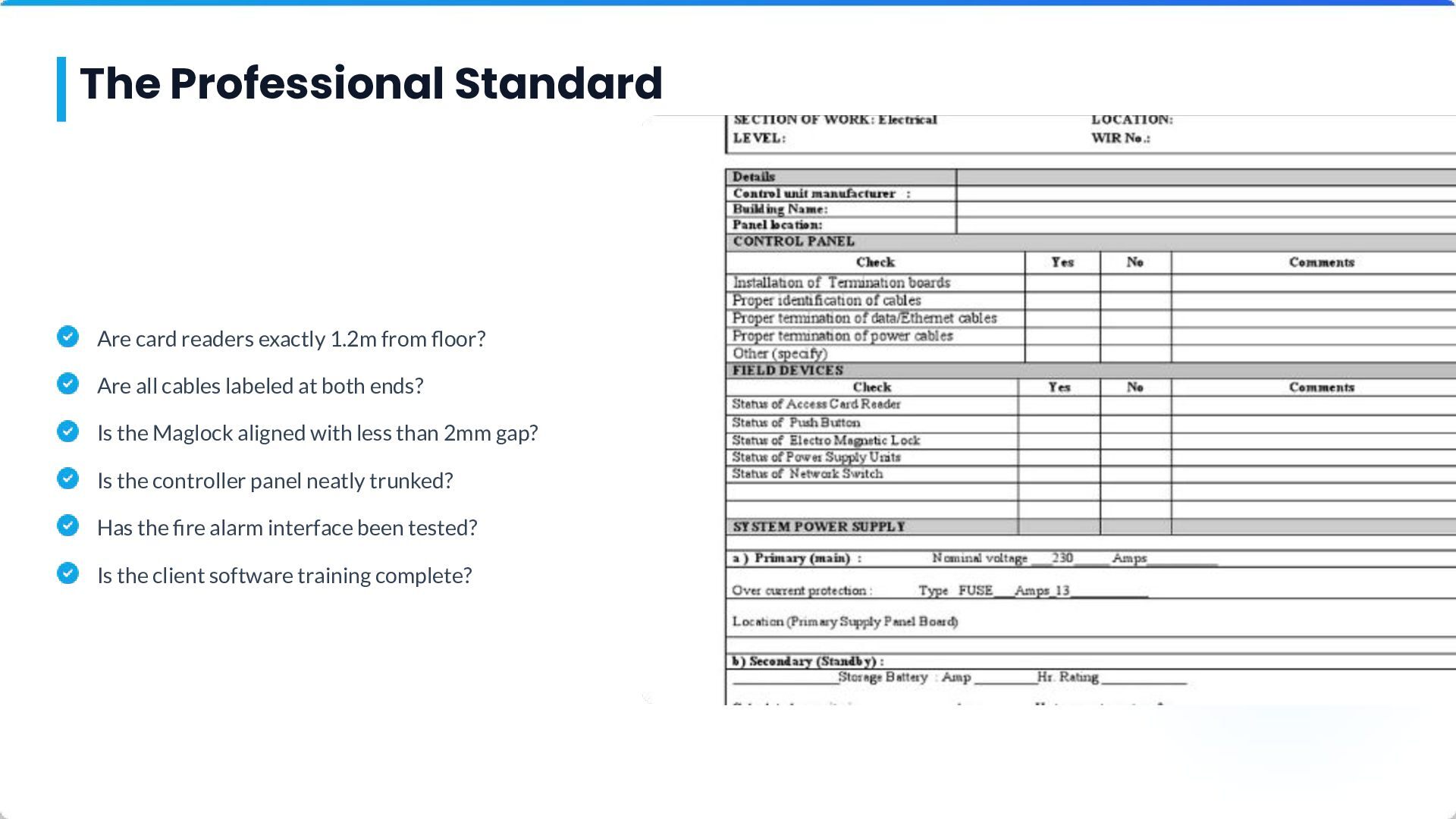

17. The Professional Standard Are card readers exactly 1.2m from floor? Are all cables labeled at both ends? Is the Maglock aligned with less than 2mm gap? Is the controller panel neatly trunked? Has the fire alarm interface been tested? Is the client software training complete?

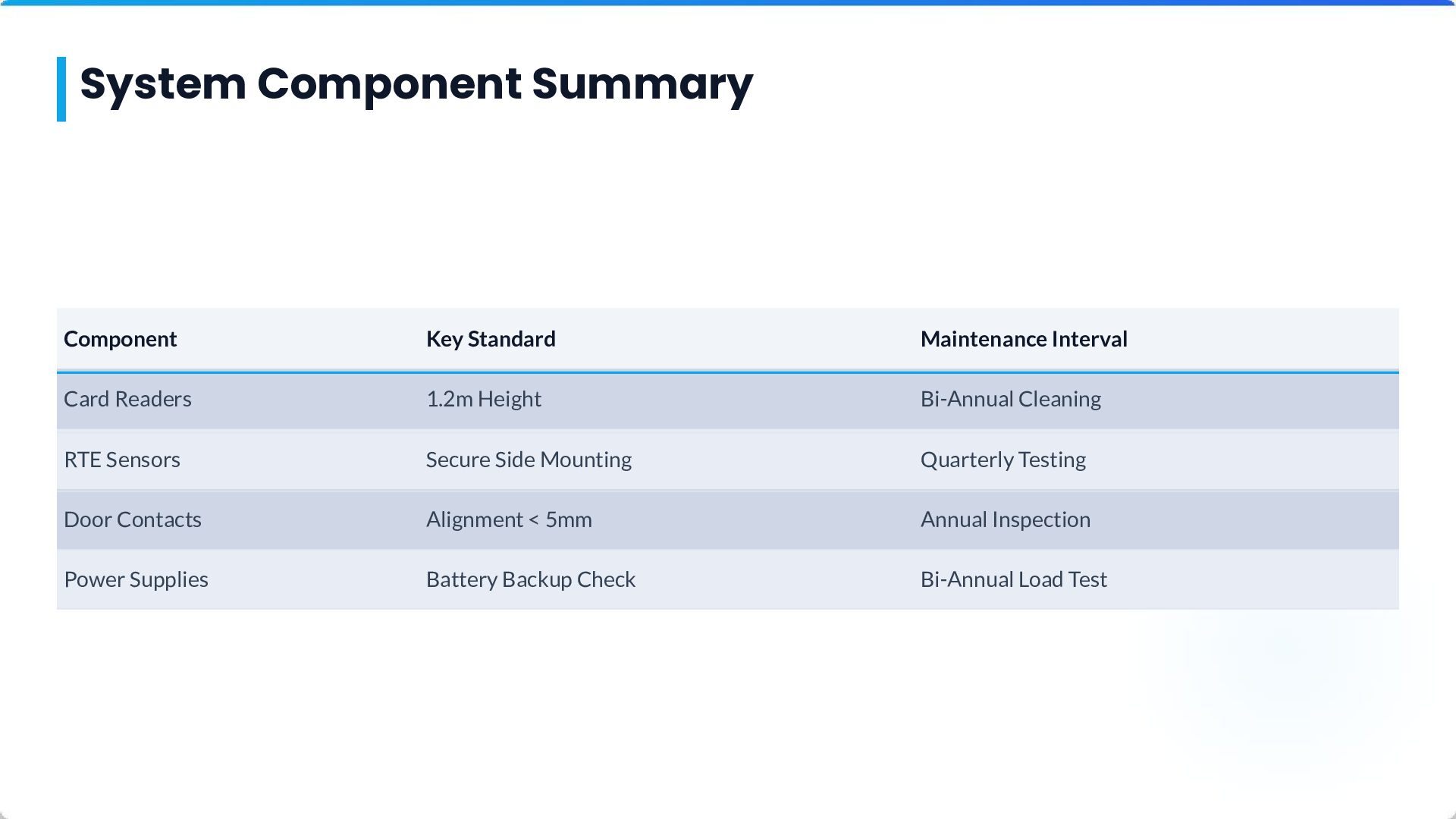

18. System Component Summary Component Key Standard Maintenance Interval Card Readers 1.2m Height Bi-Annual Cleaning RTE Sensors Secure Side Mounting Quarterly Testing Door Contacts Alignment < 5mm Annual Inspection Power Supplies Battery Backup Check Bi-Annual Load Test
19. Questions? Deep Dive into Technical Installation Standards
