An Introduction to Elasticsearch

This is a presentation, I've created while I was researching on Elasticsearch. We now completely switched to Elasticsearch and really enjoy it. This is pretty biased by Alex Brasetvik's presentations. He also has sent most of slides I've used.

Transcript

1. 1 Elasticsearch Amir Sedighi Twitter: @amirsedighi Blog: http://hexican.com Email: sedighi@gmail.com Oct 2014

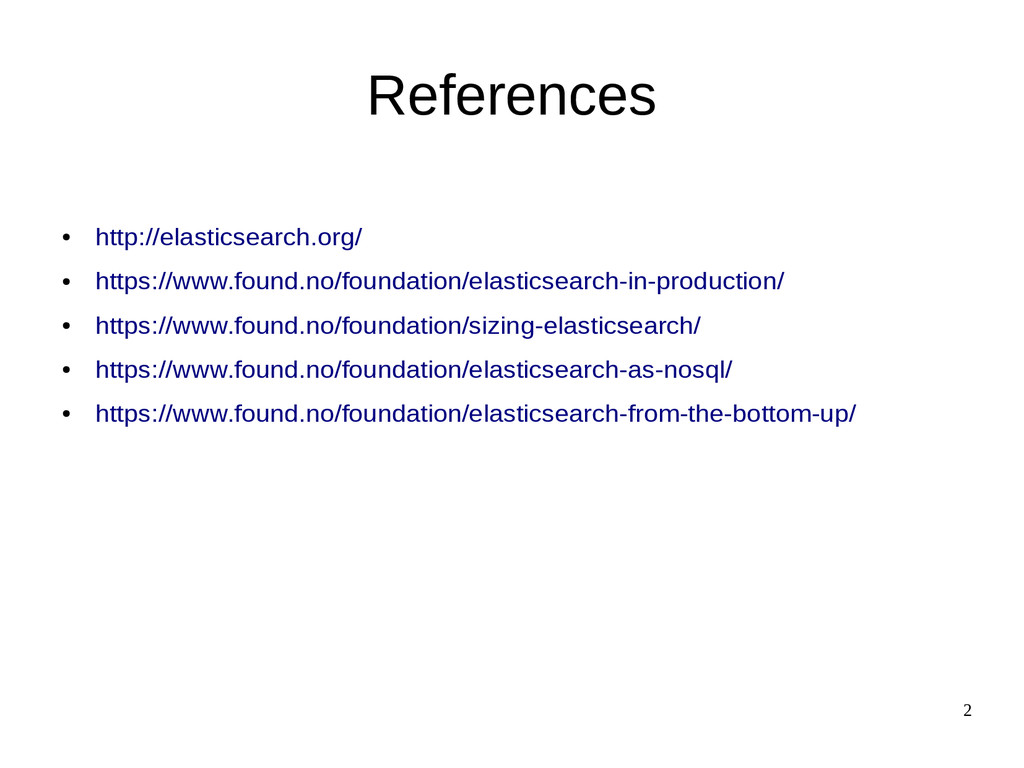

2. 2 References • http://elasticsearch.org/ • https://www.found.no/foundation/elasticsearch-in-production/ • https://www.found.no/foundation/sizing-elasticsearch/ • https://www.found.no/foundation/elasticsearch-as-nosql/ • https://www.found.no/foundation/elasticsearch-from-the-bottom-up/
3. 3 • Thanks to Alex Brasetvik (@alexbrasetvik) from @foundsays, for the slides. • Thanks to Leslie Hawthorn (@lhawthorn) from @elasticsearch, for the stickers.
4. Powered by Lucene, Search Stuffs • 1999 Doug Cutting • 2003 Doug Cutting • 2004 Yonik Seeley • 2010 Shay Banon

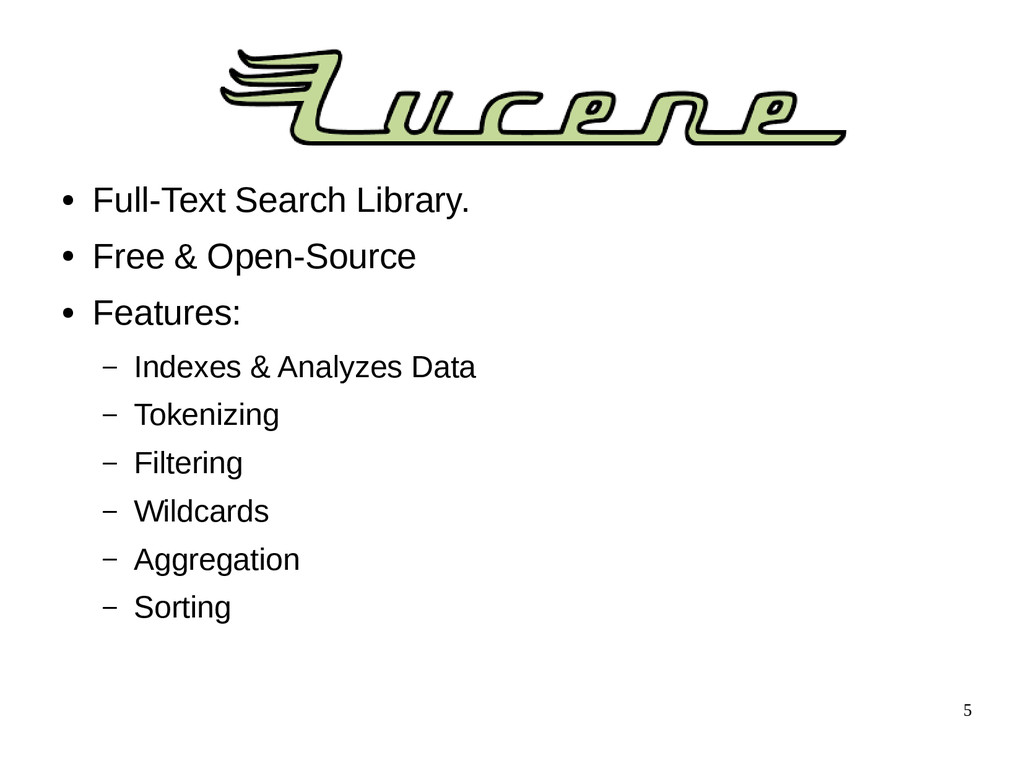

5. 5 • Full-Text Search Library. • Free & Open-Source • Features: – Indexes & Analyzes Data – Tokenizing – Filtering – Wildcards – Aggregation – Sorting

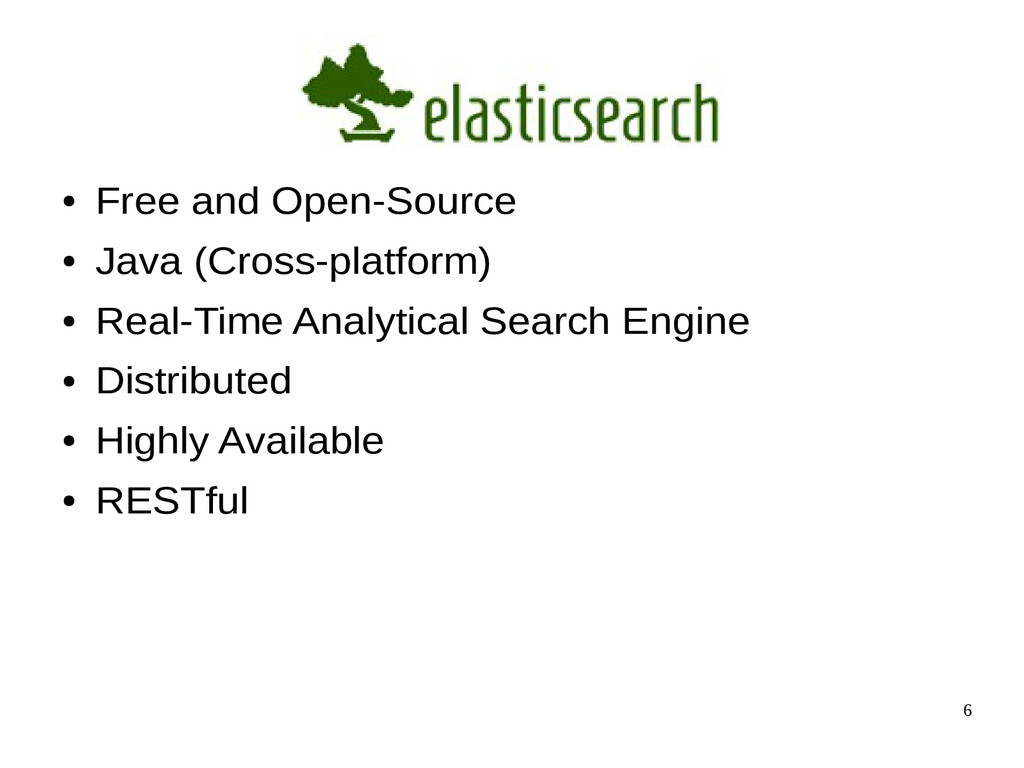

6. 6 • Free and Open-Source • Java (Cross-platform) • Real-Time Analytical Search Engine • Distributed • Highly Available • RESTful

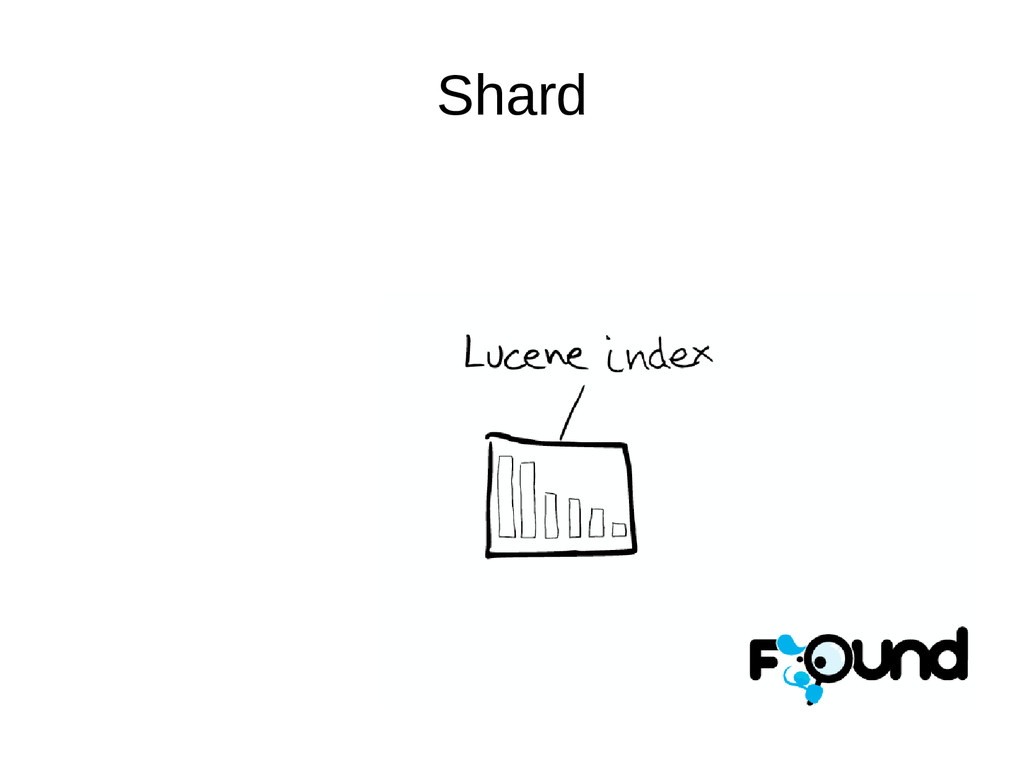

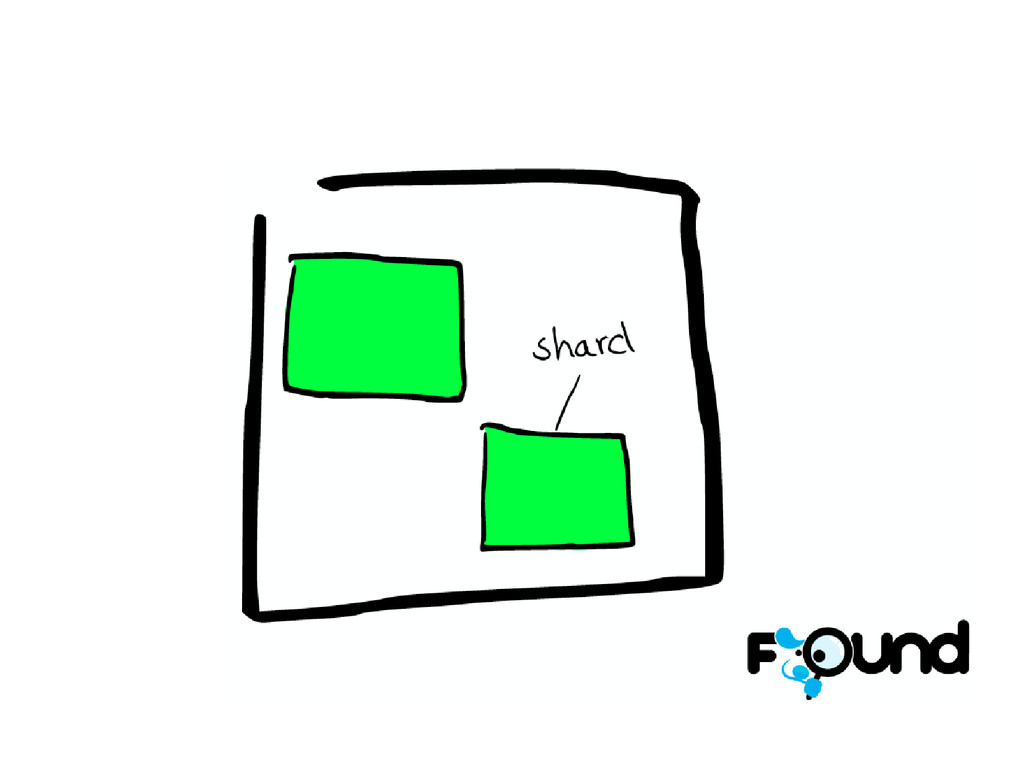

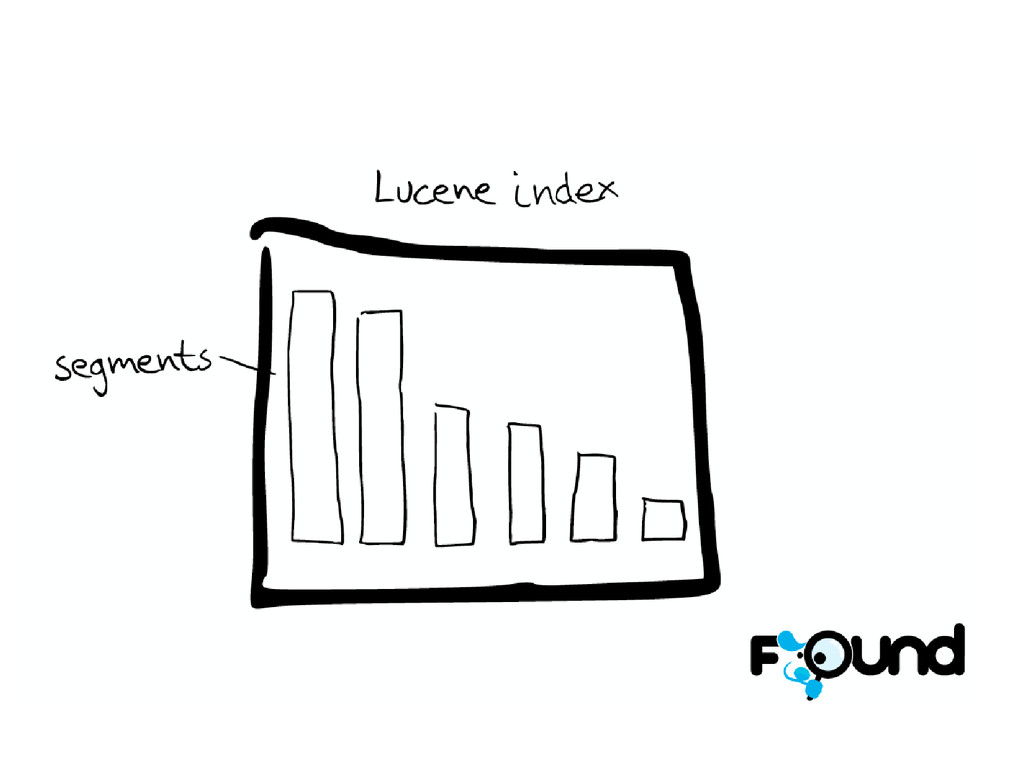

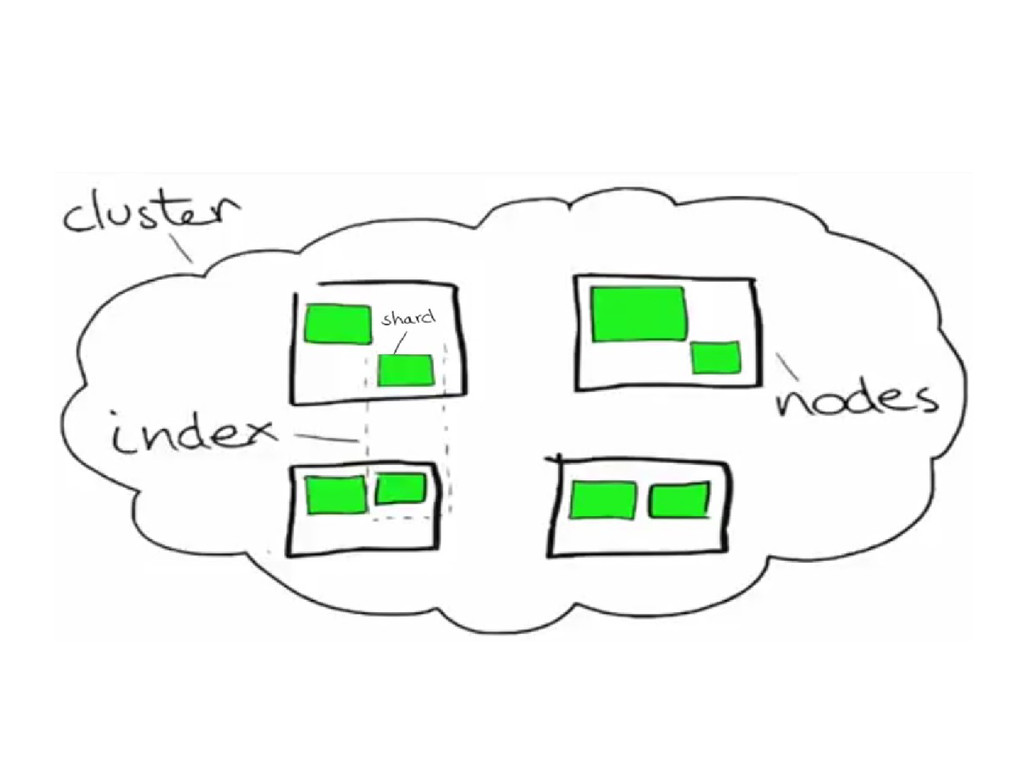

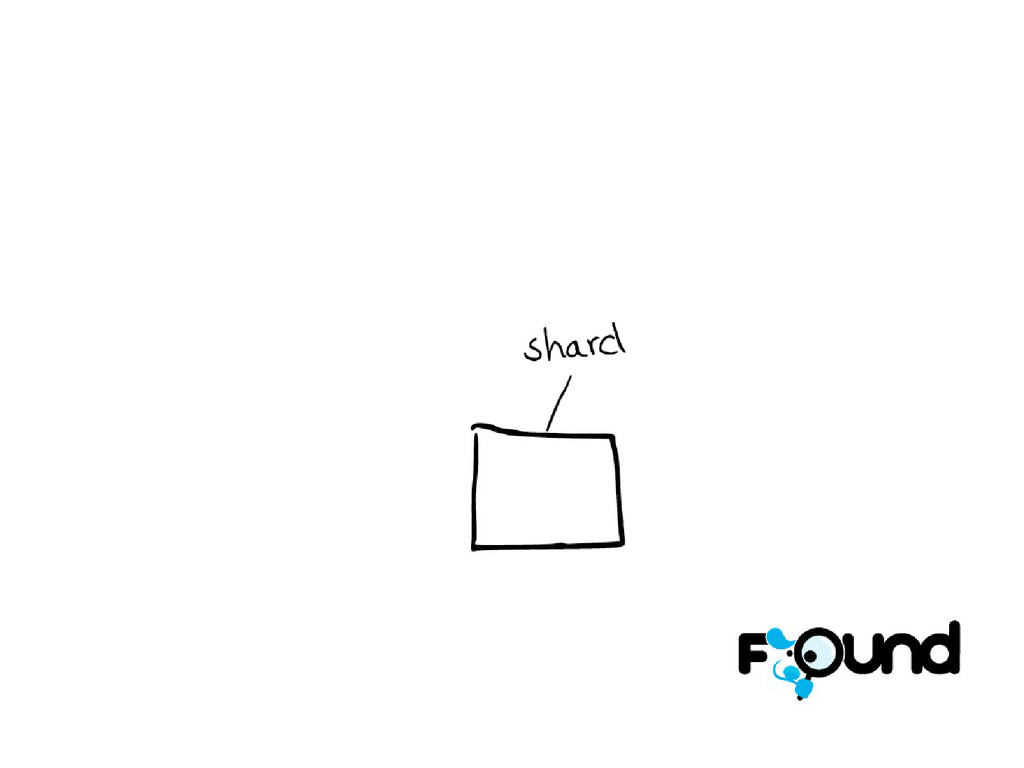

14. Shard

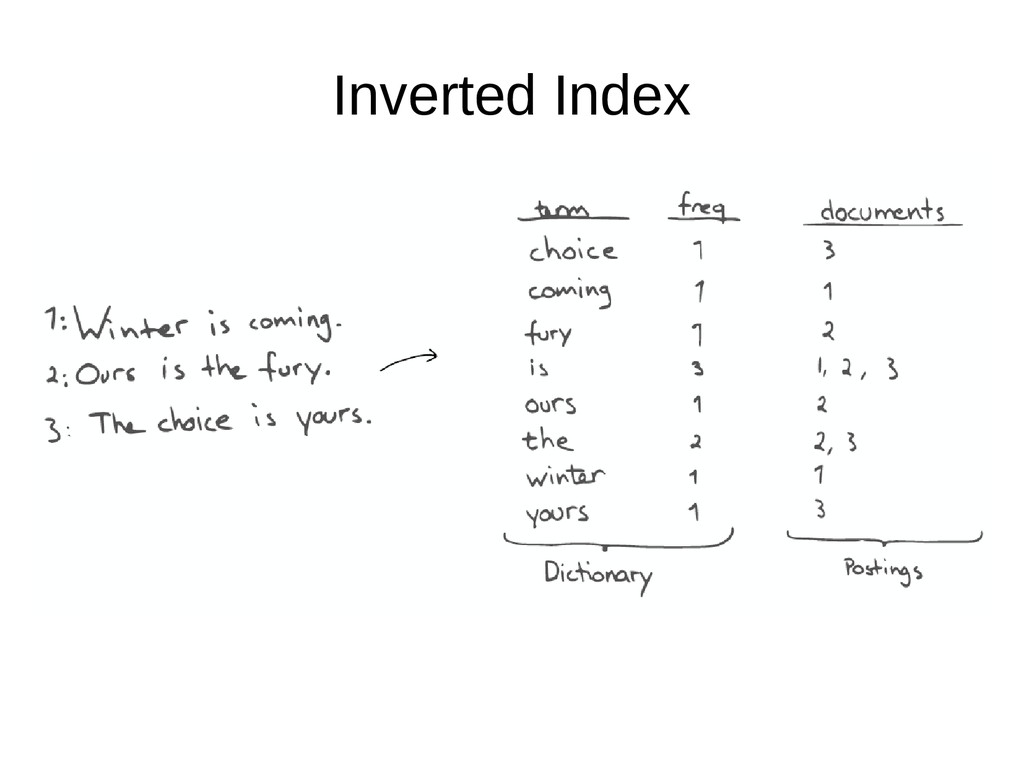

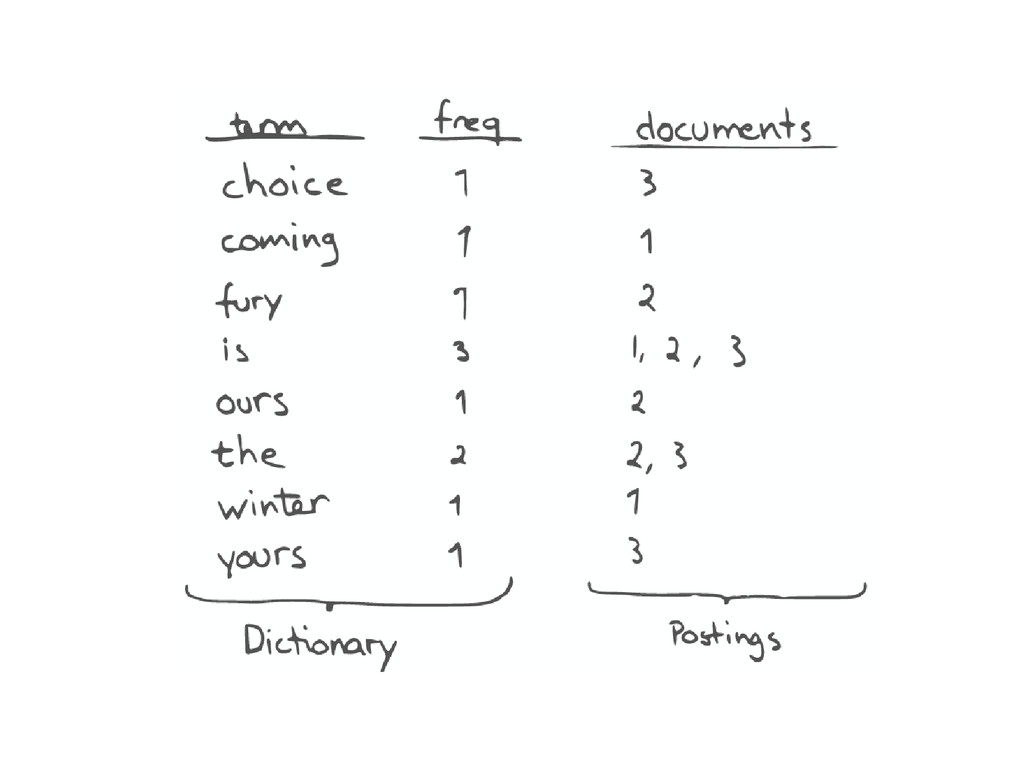

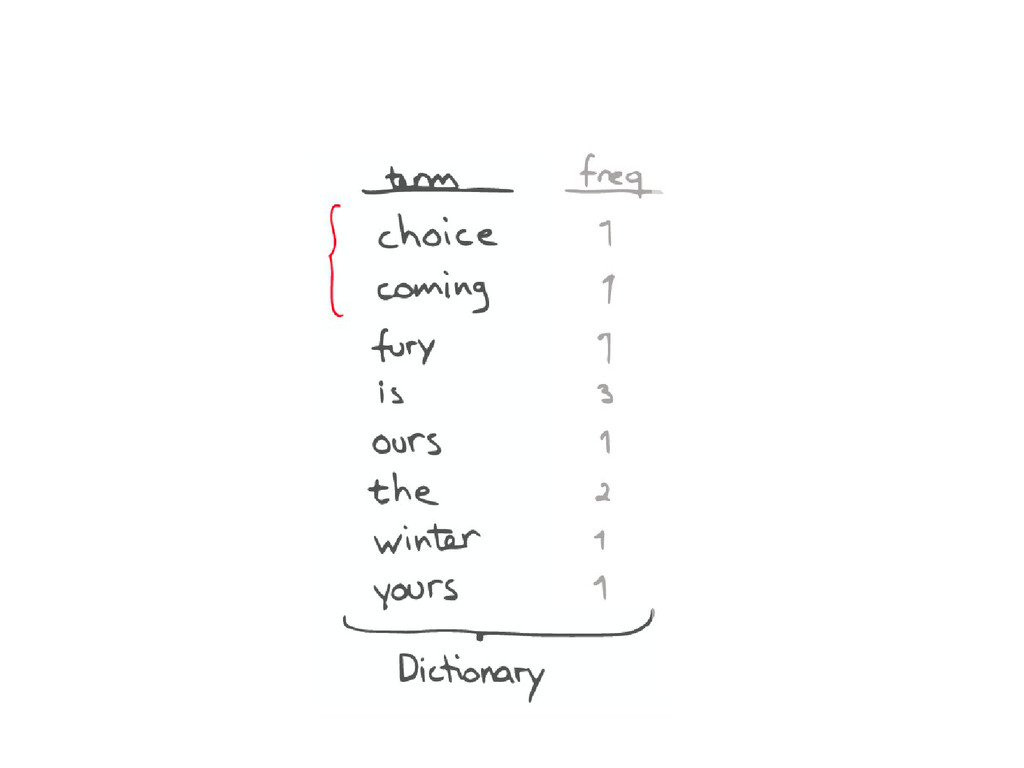

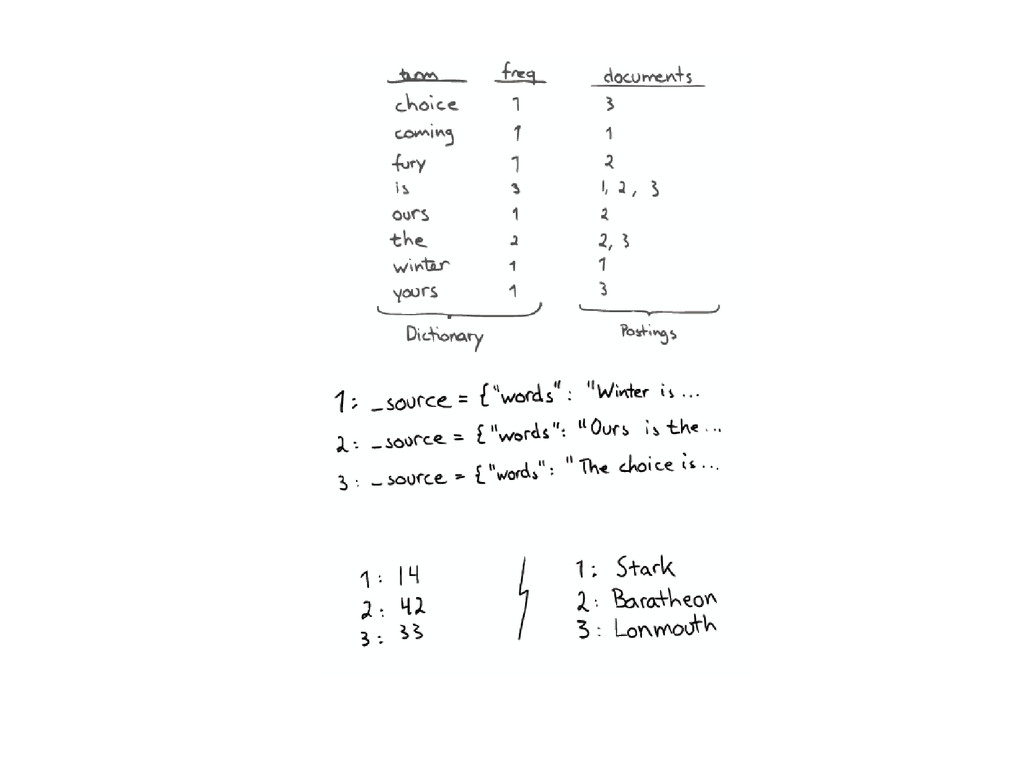

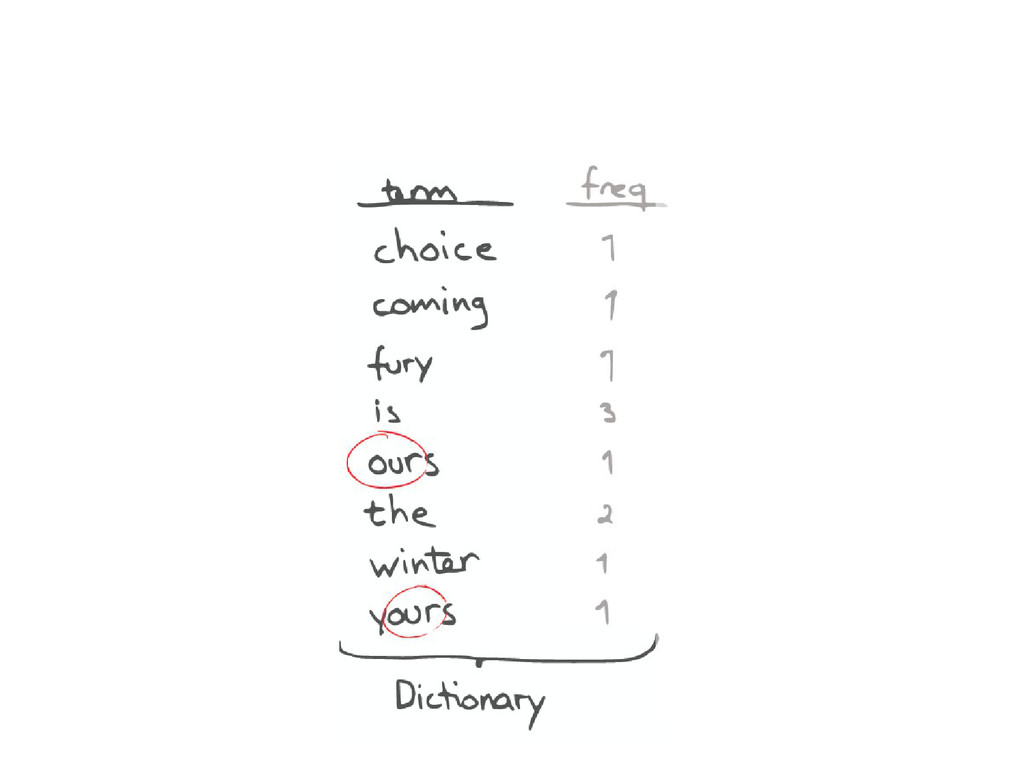

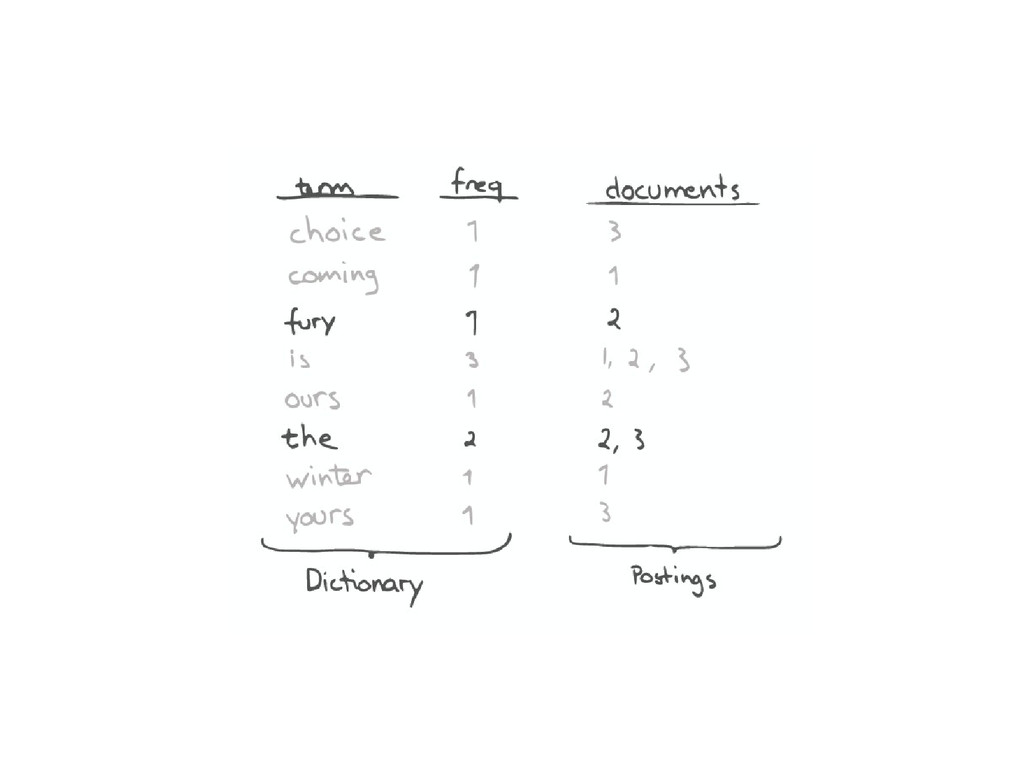

18. Inverted Index

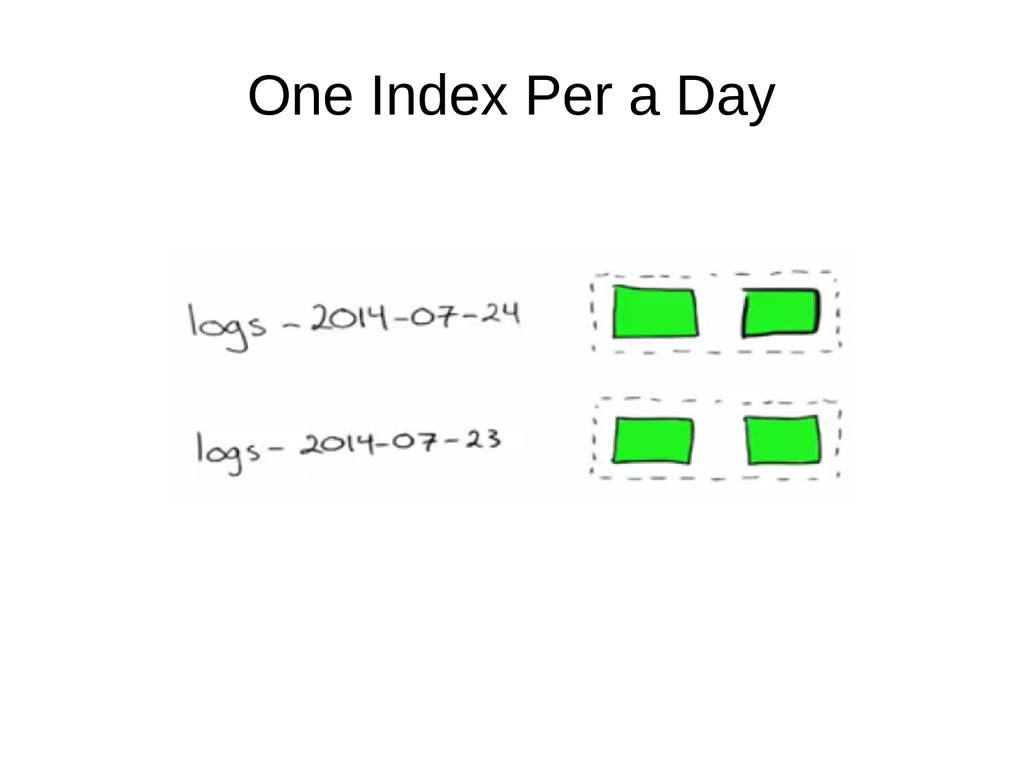

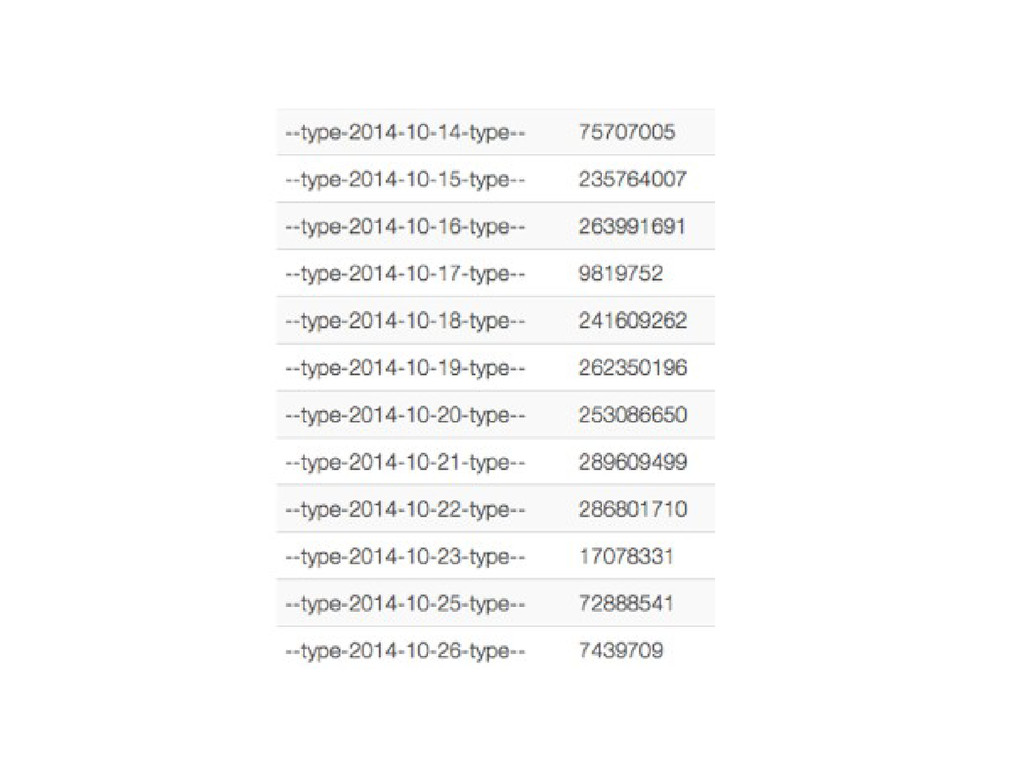

35. One Index Per a Day

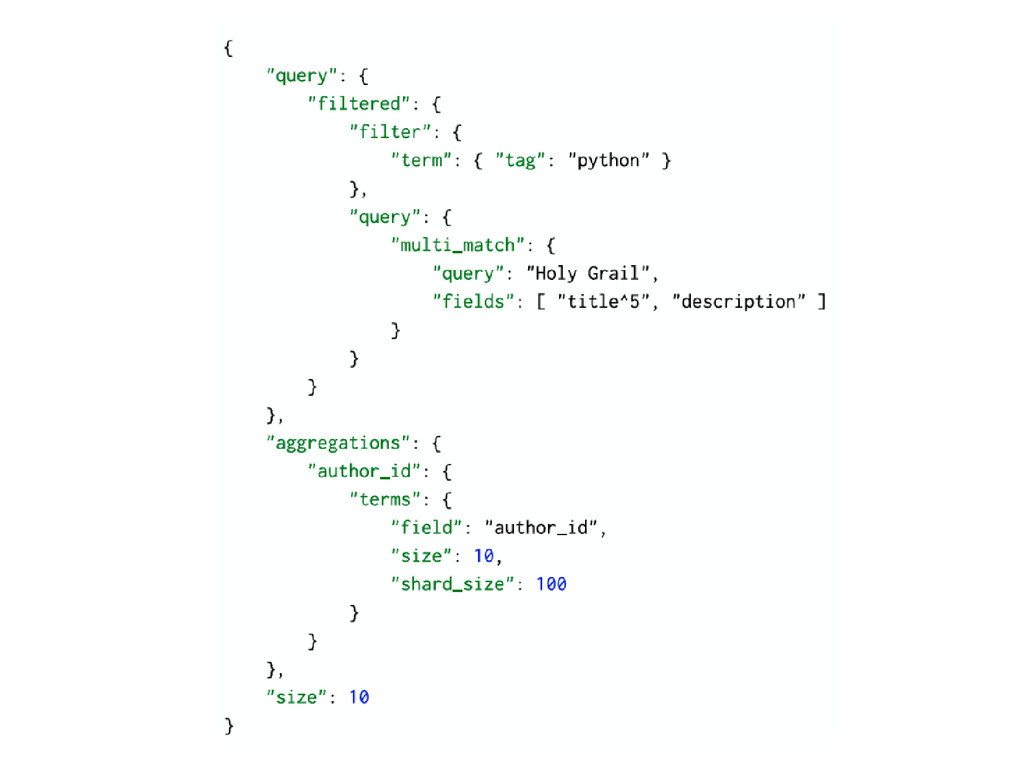

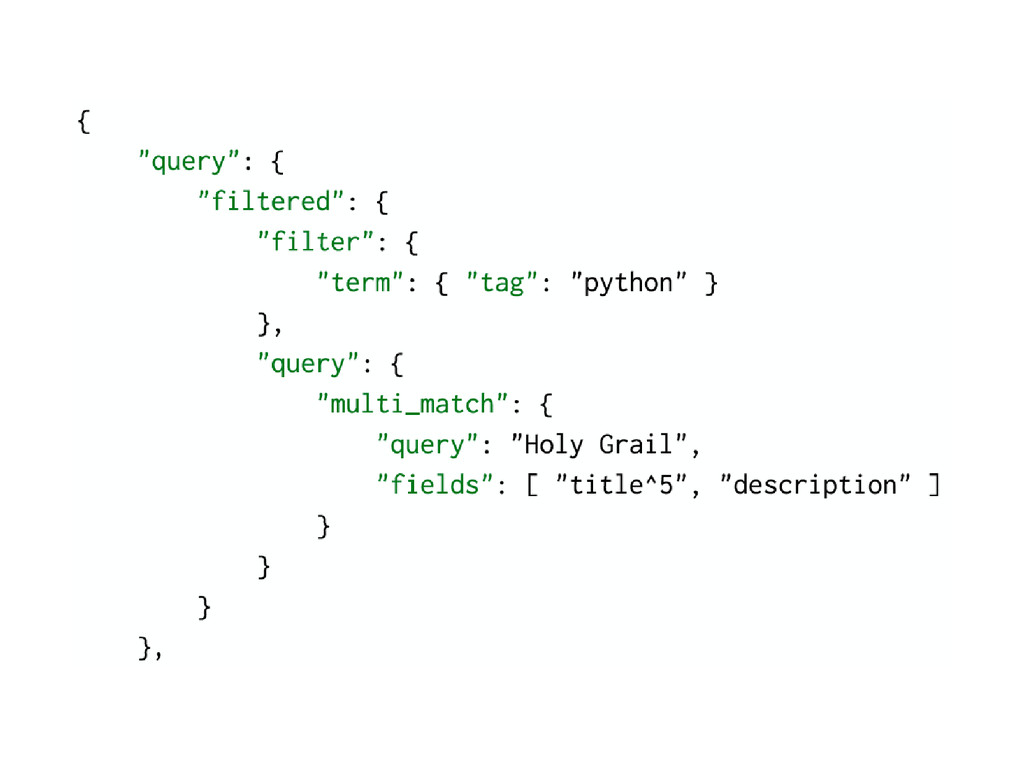

38. A Partial Query

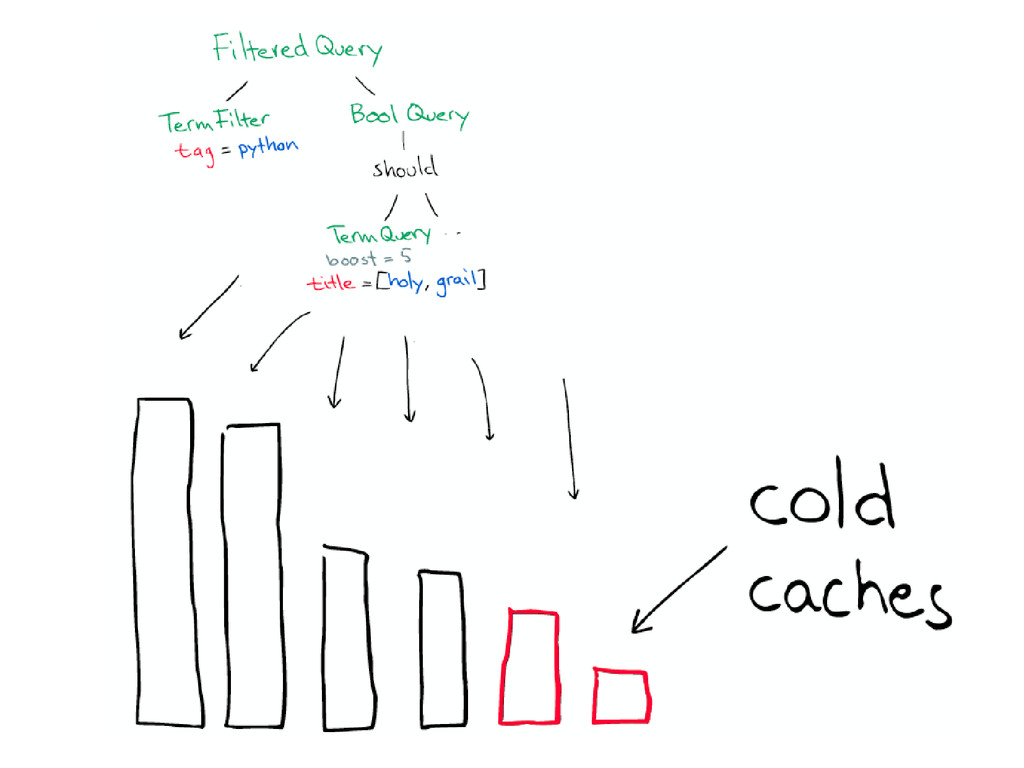

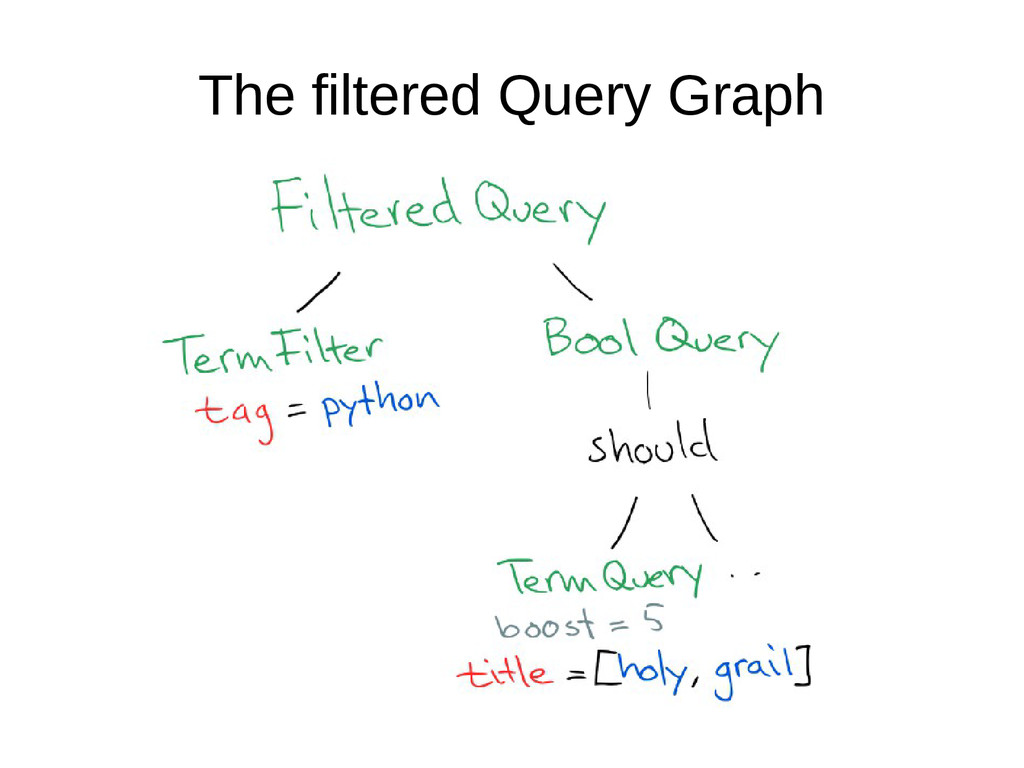

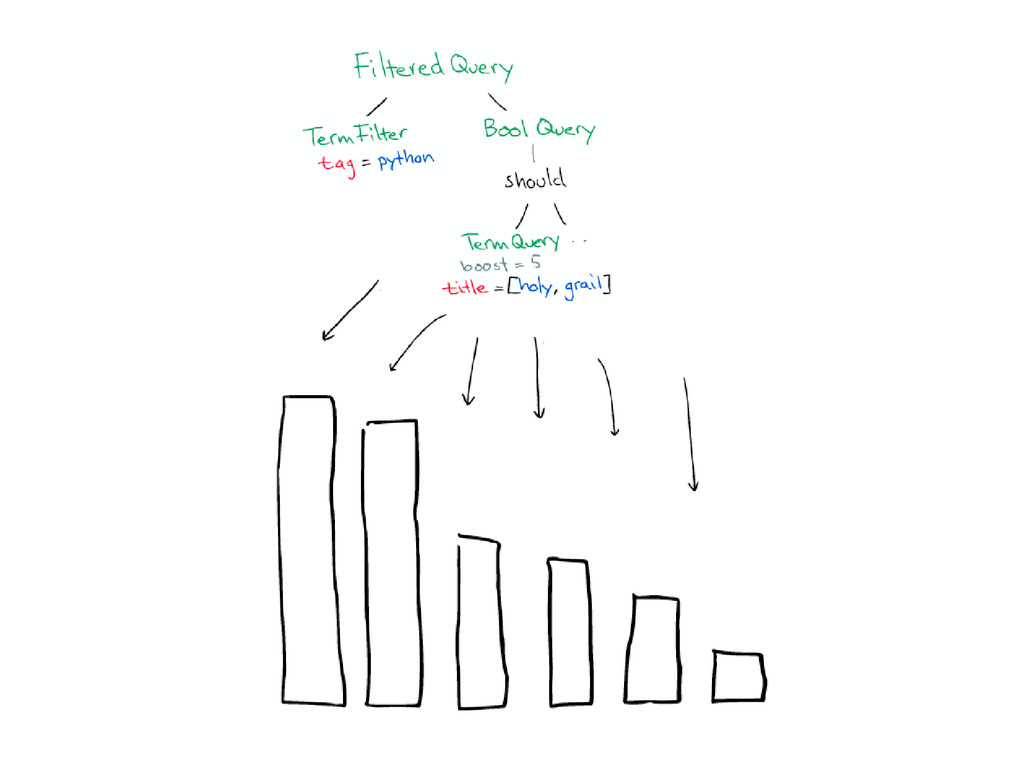

44. The filtered Query Graph

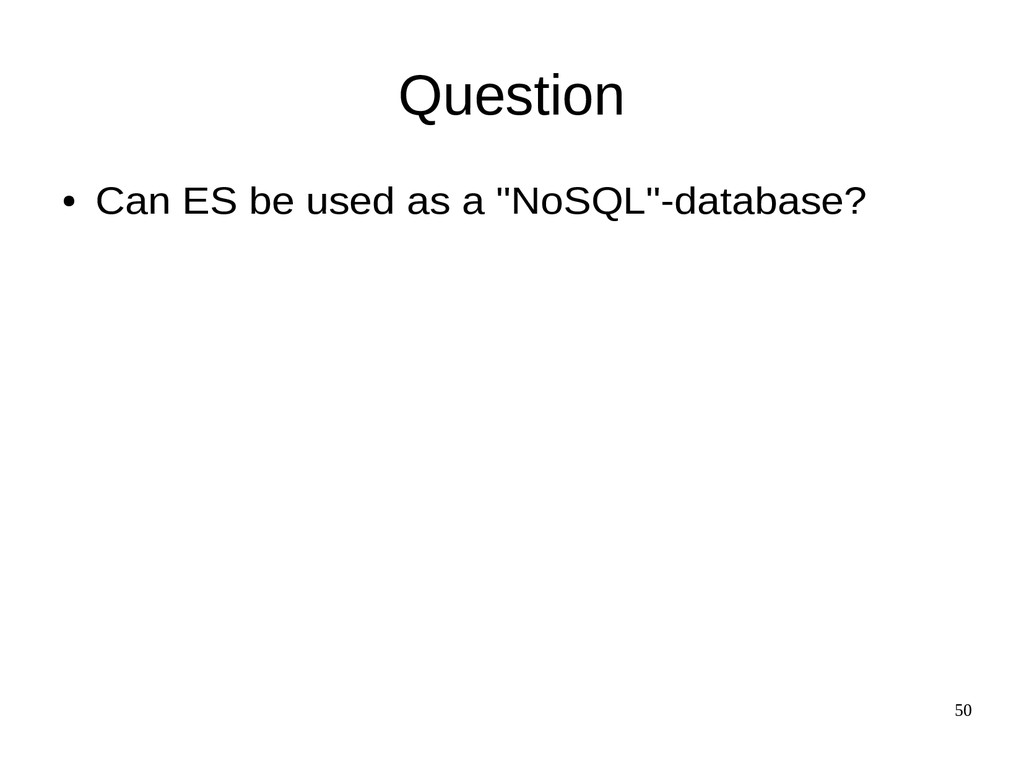

50. 50 Question • Can ES be used as a "NoSQL"-database?

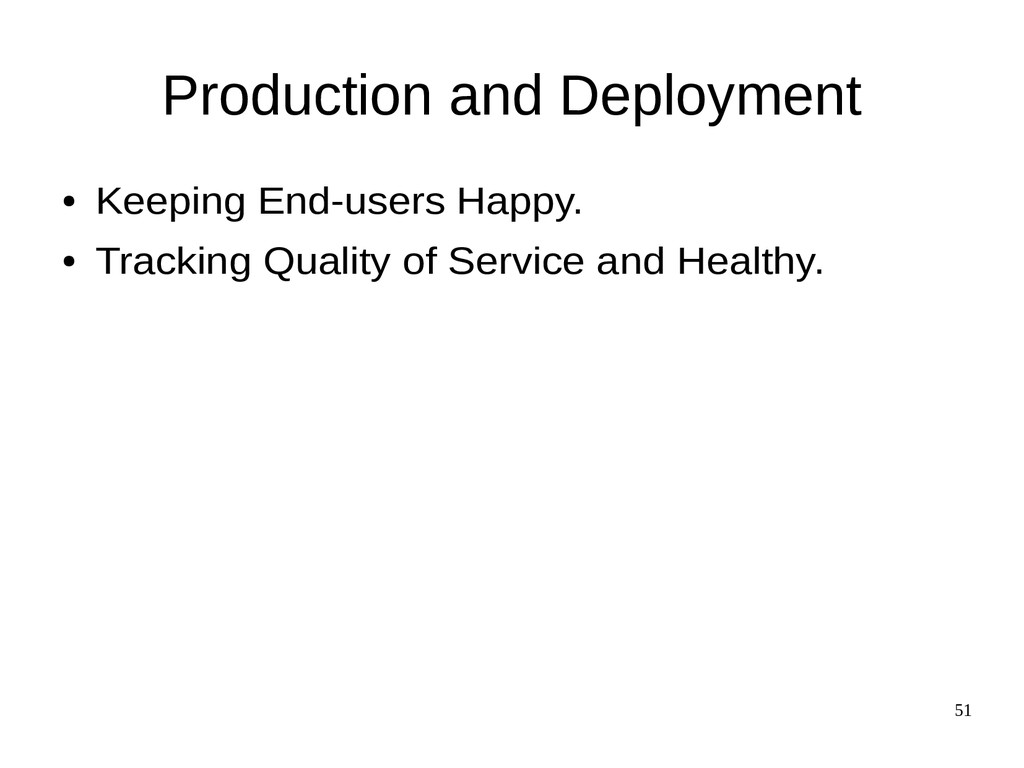

51. 51 Production and Deployment • Keeping End-users Happy. • Tracking Quality of Service and Healthy.

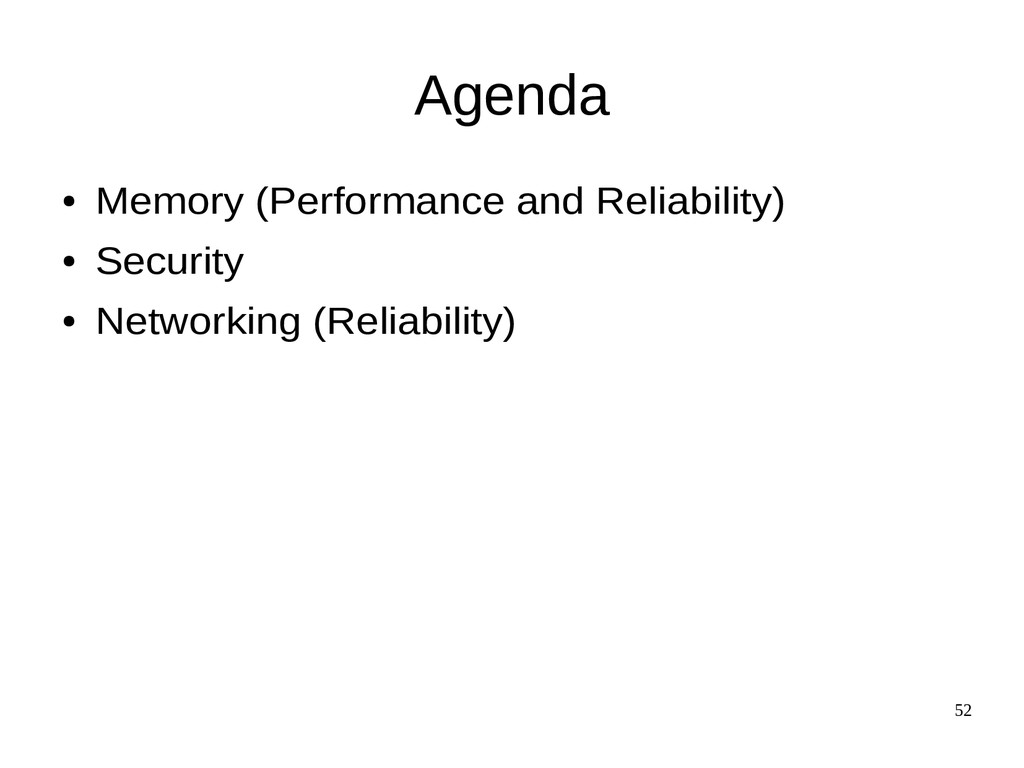

52. 52 Agenda • Memory (Performance and Reliability) • Security • Networking (Reliability)

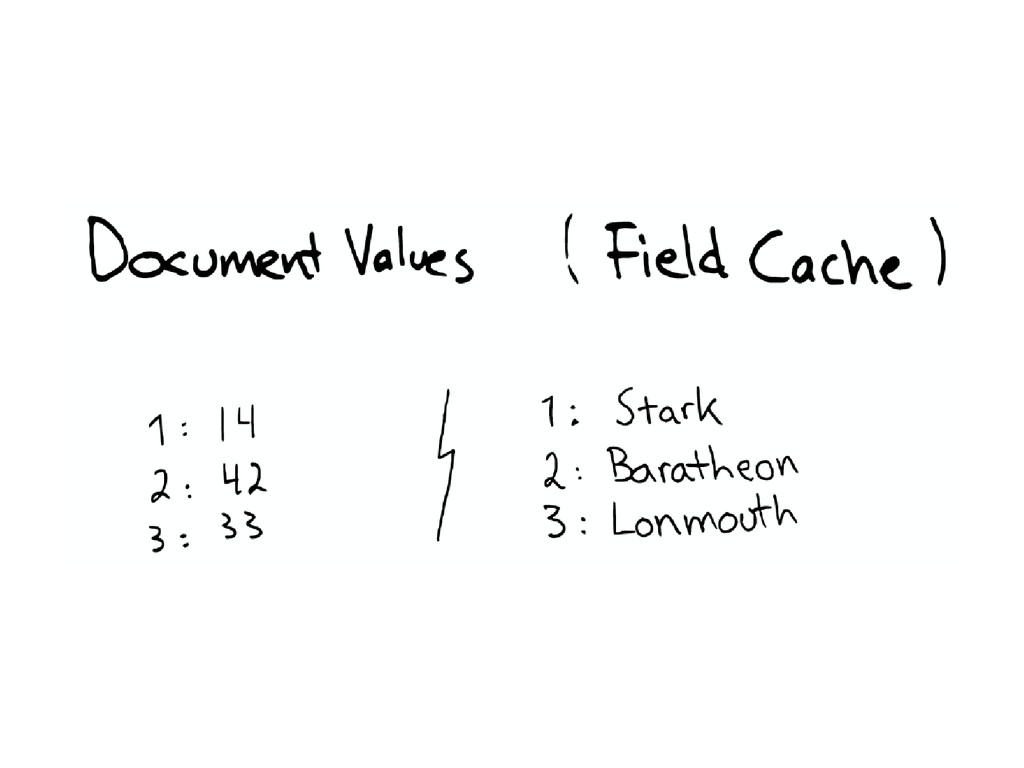

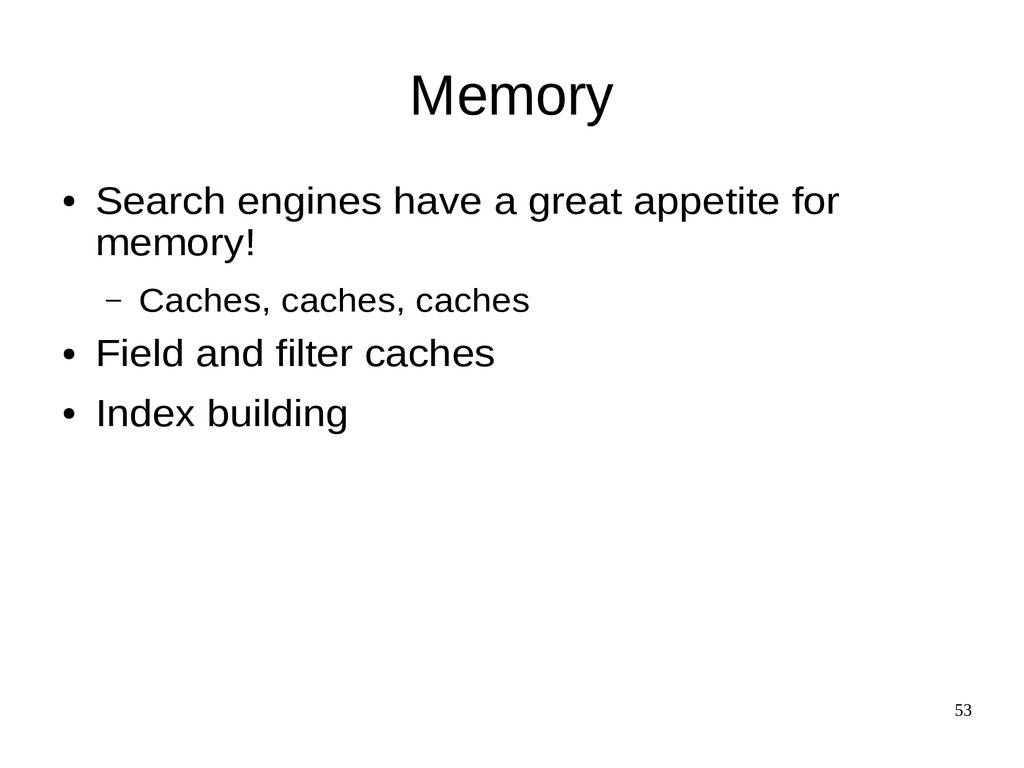

53. 53 Memory • Search engines have a great appetite for memory! – Caches, caches, caches • Field and filter caches • Index building

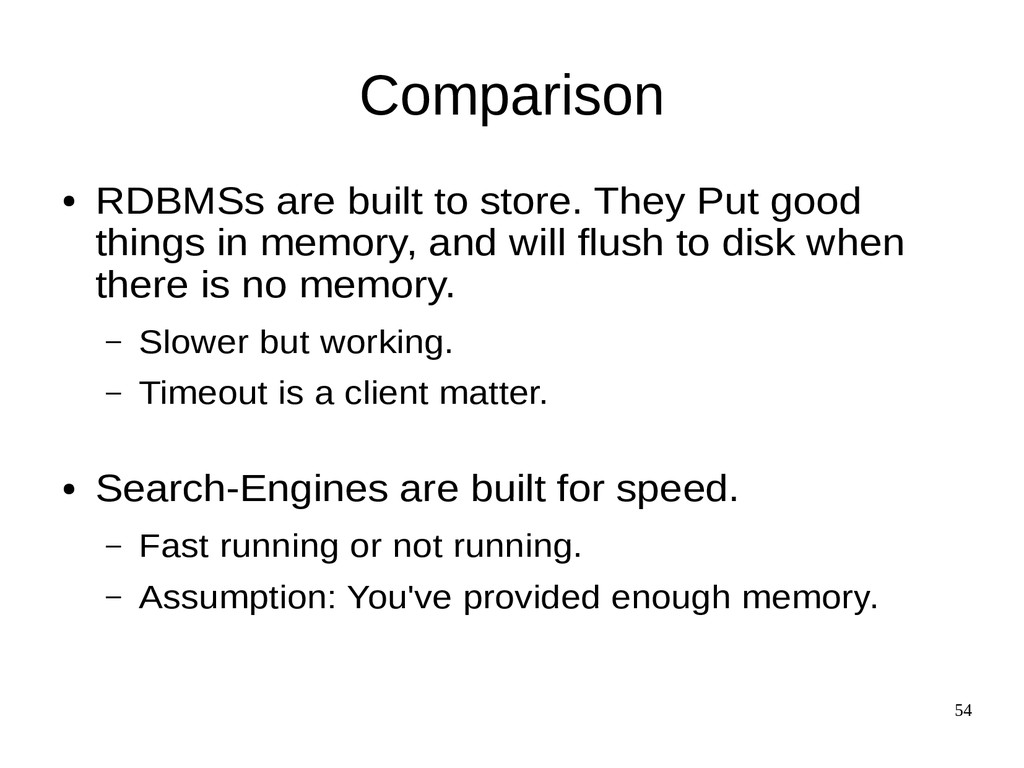

54. 54 Comparison • RDBMSs are built to store. They Put good things in memory, and will flush to disk when there is no memory. – Slower but working. – Timeout is a client matter. • Search-Engines are built for speed. – Fast running or not running. – Assumption: You've provided enough memory.

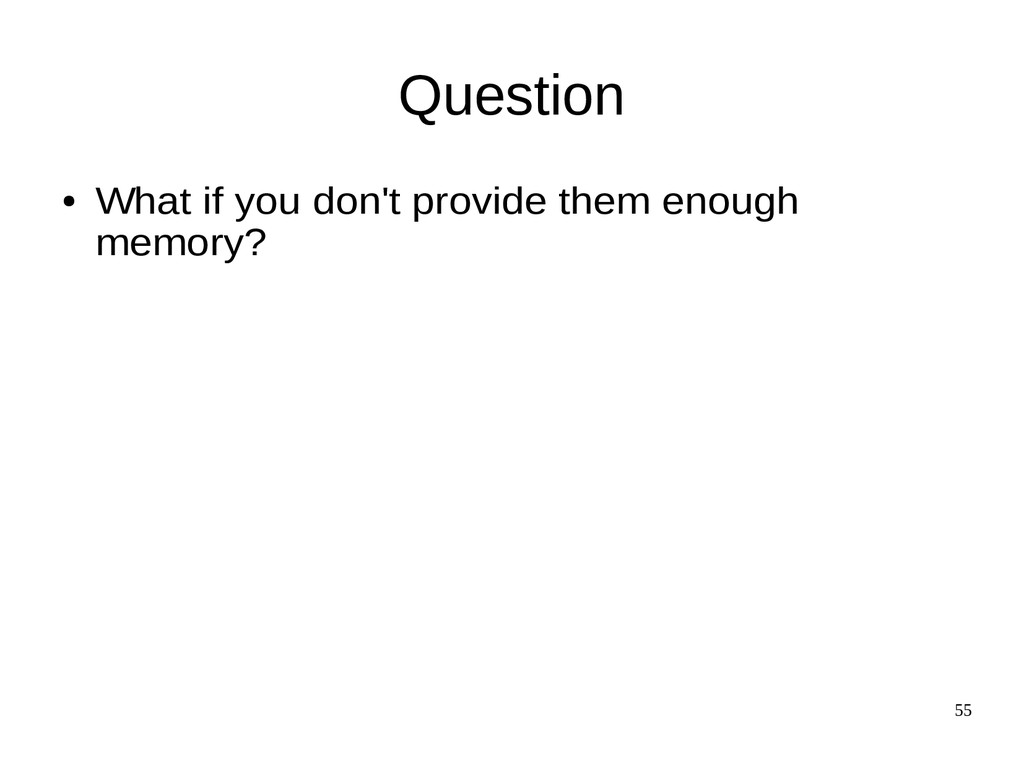

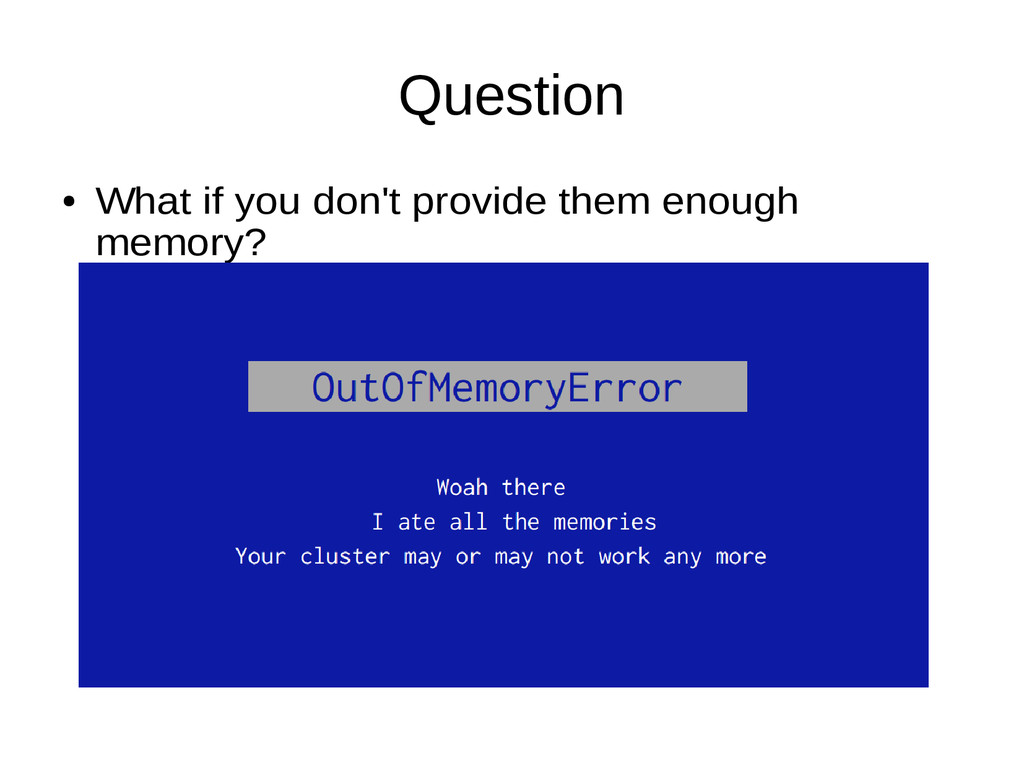

55. 55 Question • What if you don't provide them enough memory?
56. Question • What if you don't provide them enough memory?

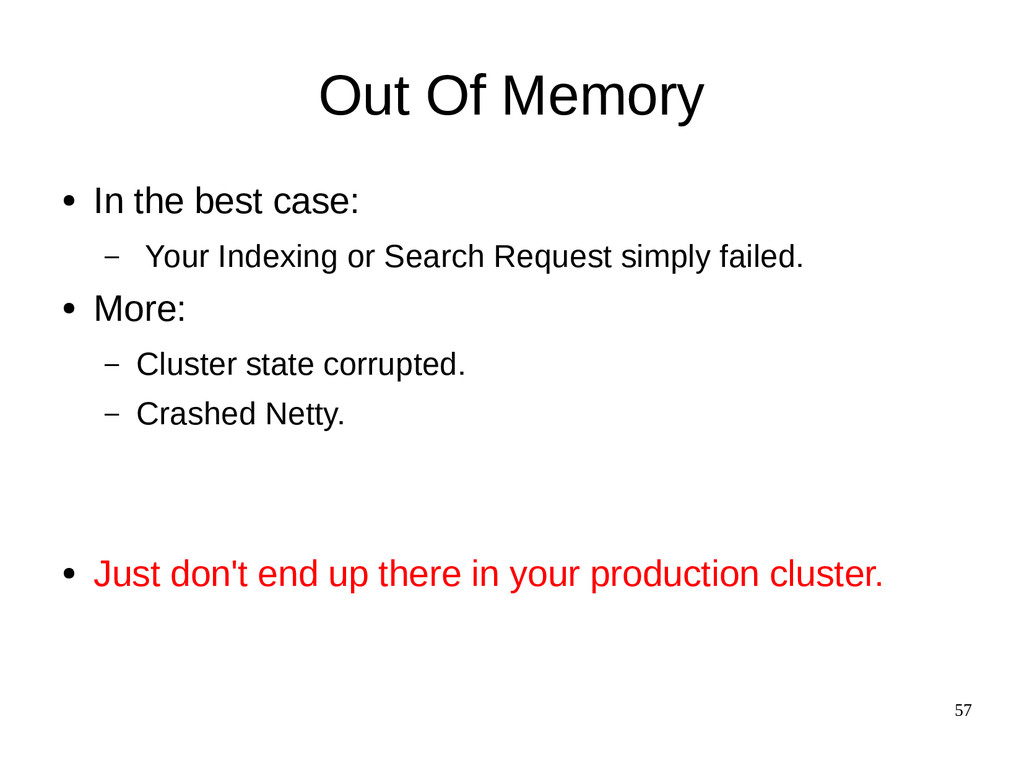

57. 57 Out Of Memory • In the best case: – Your Indexing or Search Request simply failed. • More: – Cluster state corrupted. – Crashed Netty. • Just don't end up there in your production cluster.

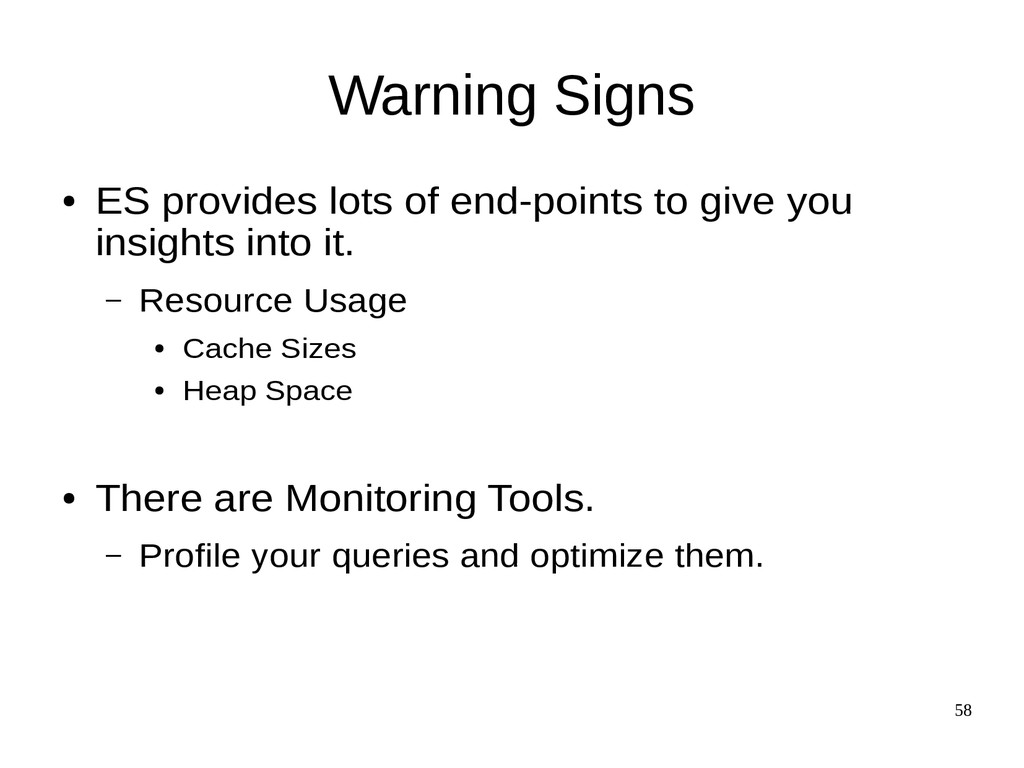

58. 58 Warning Signs • ES provides lots of end-points to give you insights into it. – Resource Usage • Cache Sizes • Heap Space • There are Monitoring Tools. – Profile your queries and optimize them.

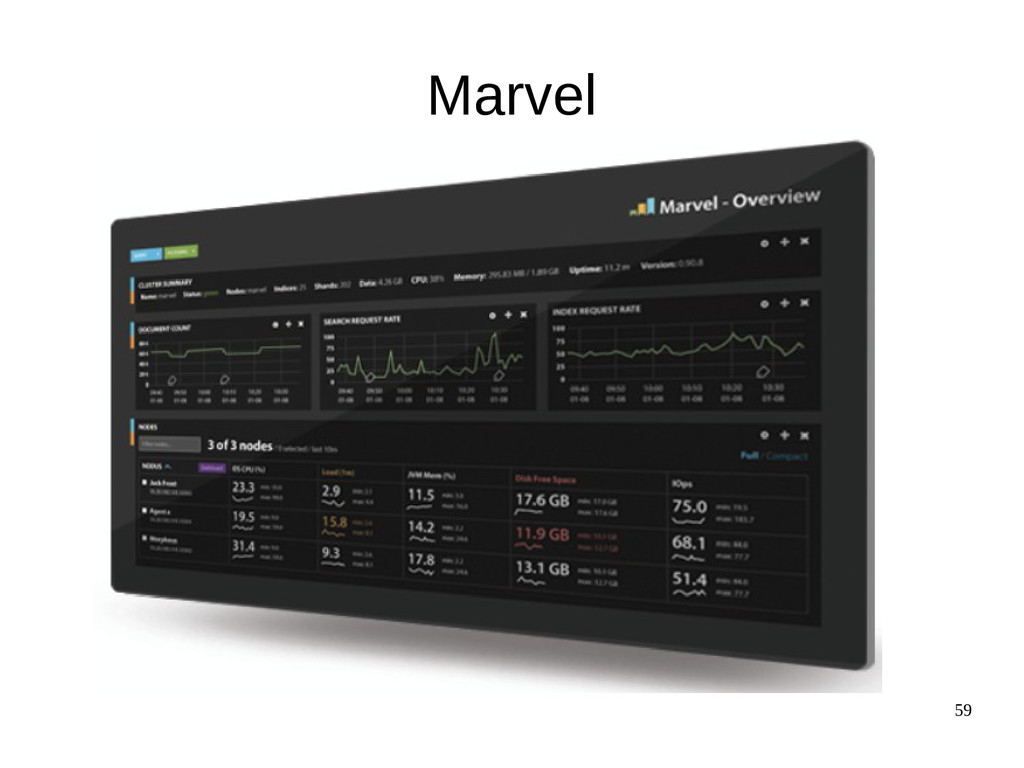

59. 59 Marvel

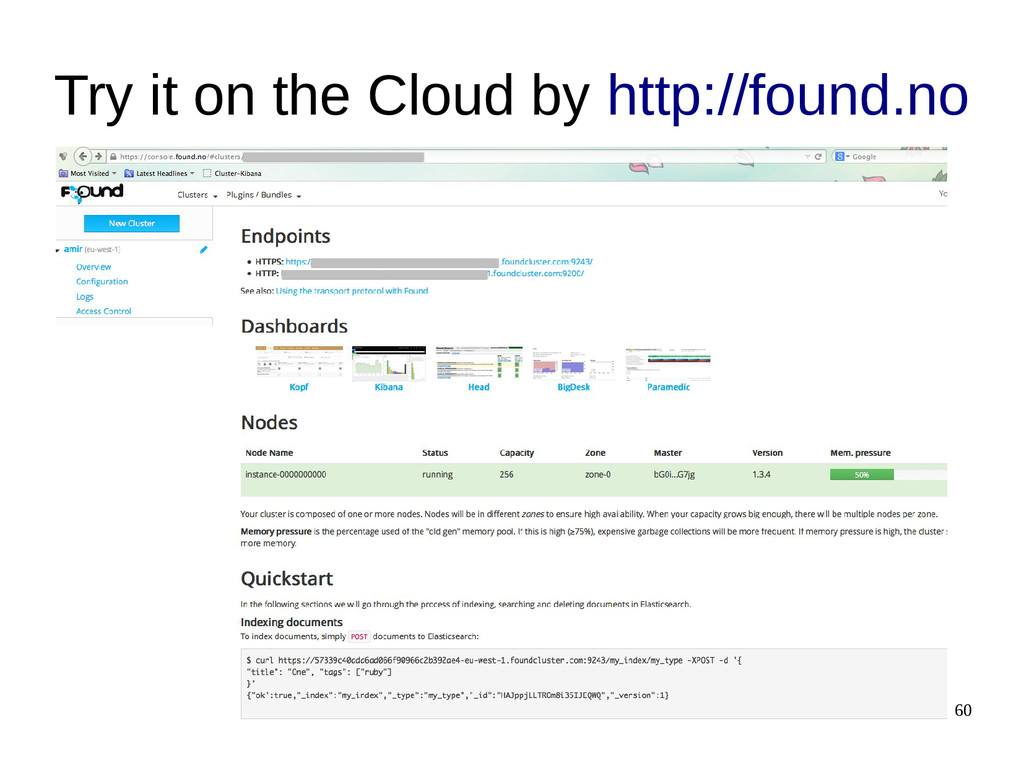

60. 60 Try it on the Cloud by http://found.no

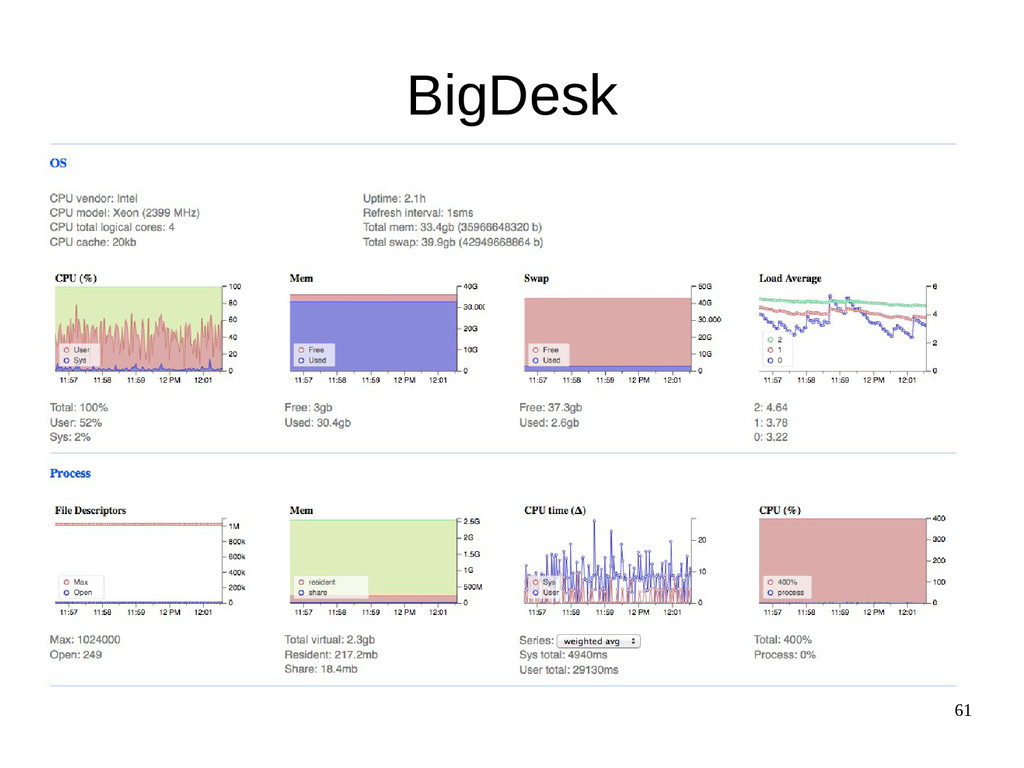

61. 61 BigDesk

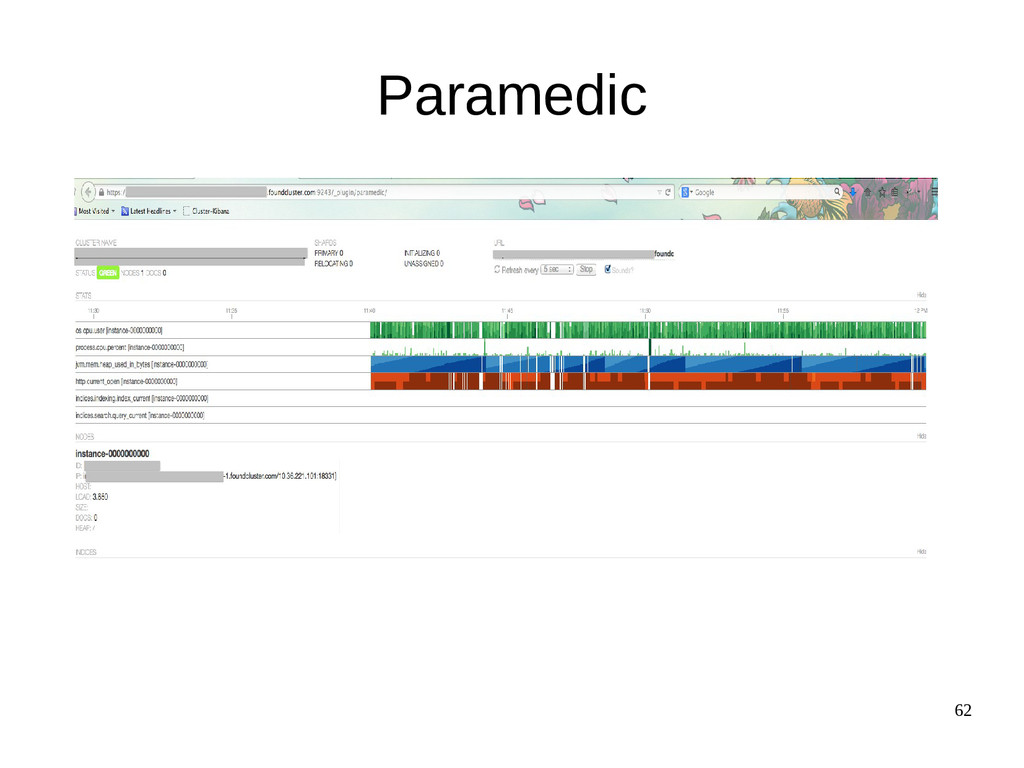

62. 62 Paramedic

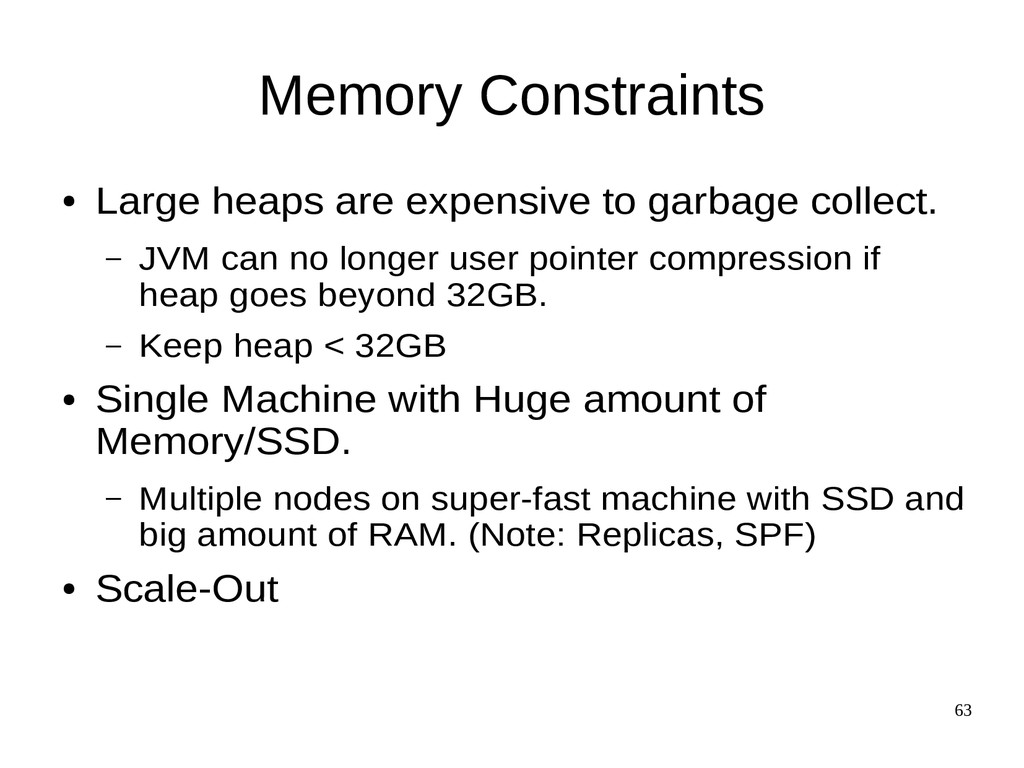

63. 63 Memory Constraints • Large heaps are expensive to garbage collect. – JVM can no longer user pointer compression if heap goes beyond 32GB. – Keep heap < 32GB • Single Machine with Huge amount of Memory/SSD. – Multiple nodes on super-fast machine with SSD and big amount of RAM. (Note: Replicas, SPF) • Scale-Out

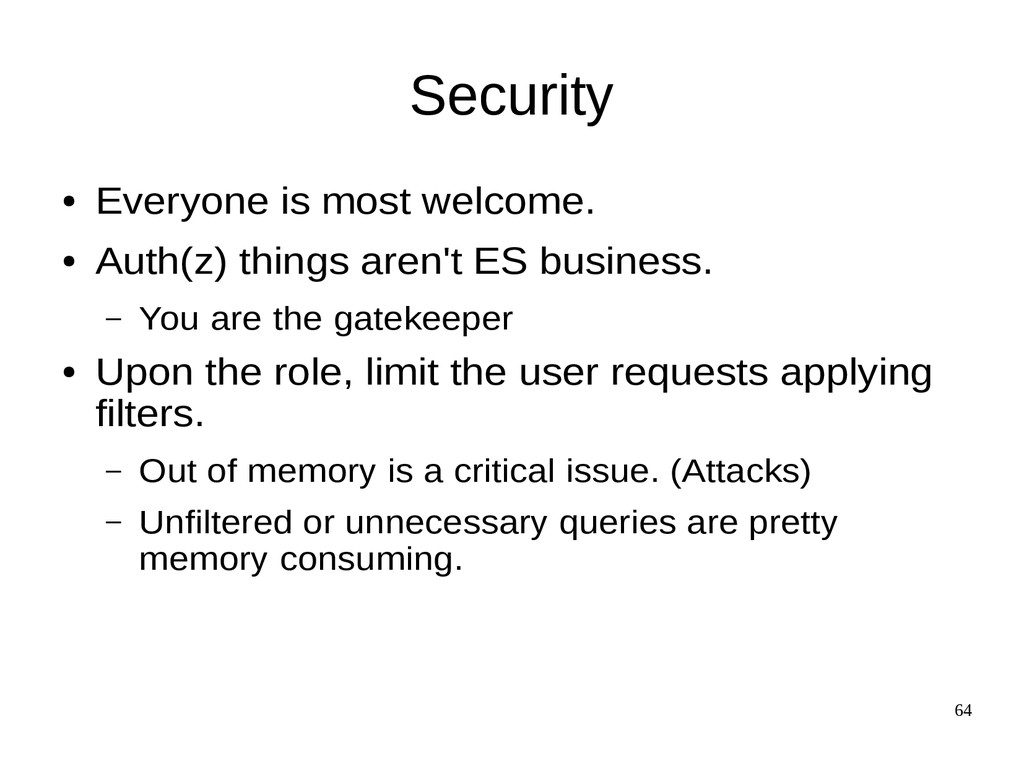

64. 64 Security • Everyone is most welcome. • Auth(z) things aren't ES business. – You are the gatekeeper • Upon the role, limit the user requests applying filters. – Out of memory is a critical issue. (Attacks) – Unfiltered or unnecessary queries are pretty memory consuming.

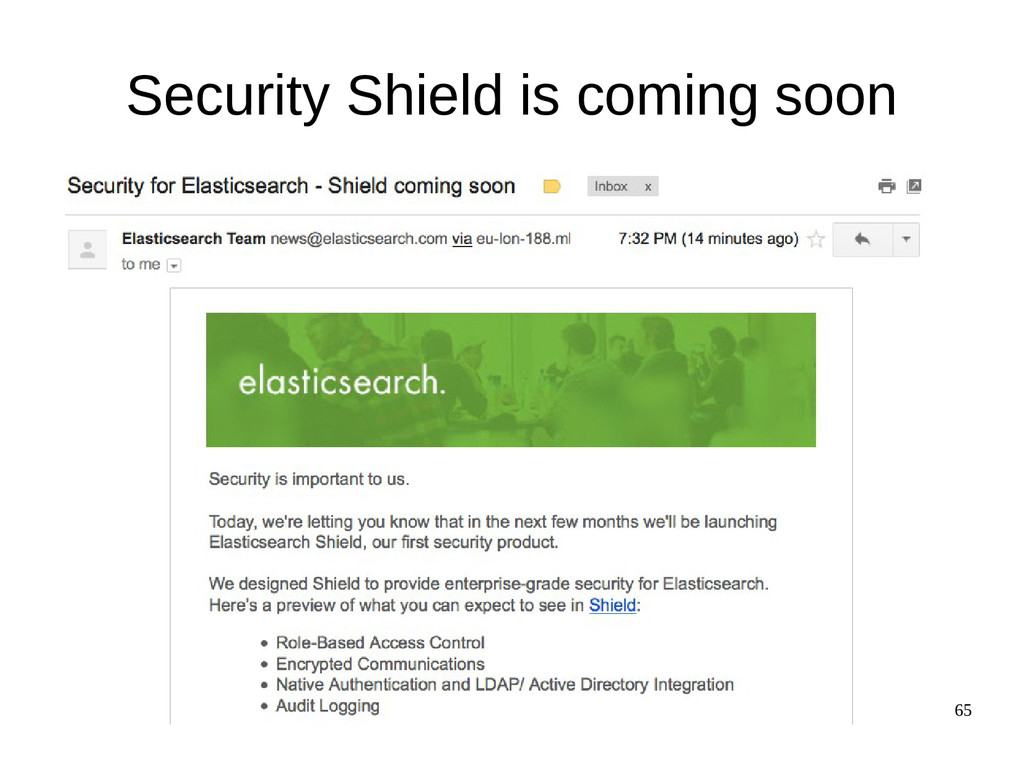

65. 65 Security Shield is coming soon

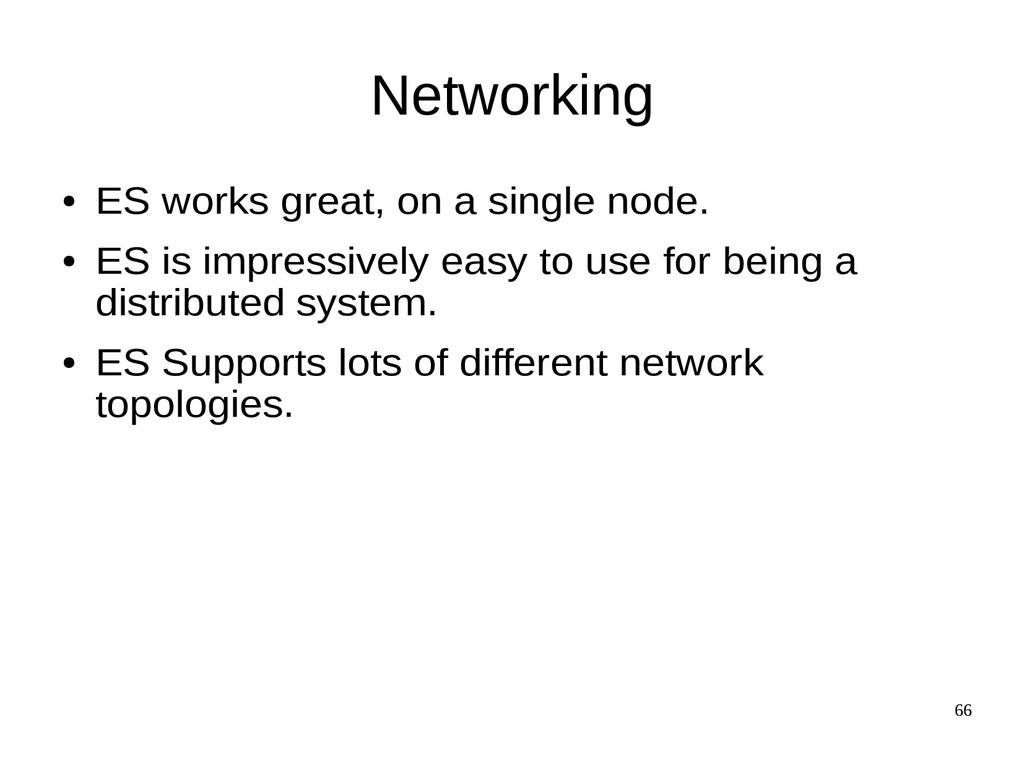

66. 66 Networking • ES works great, on a single node. • ES is impressively easy to use for being a distributed system. • ES Supports lots of different network topologies.

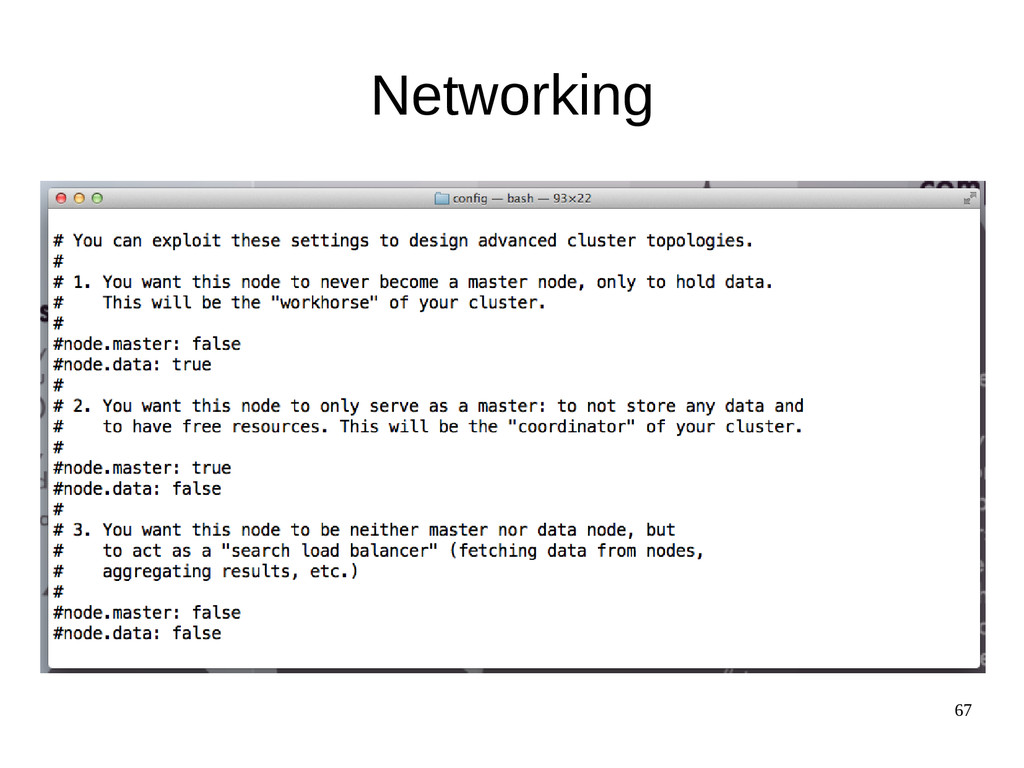

67. 67 Networking

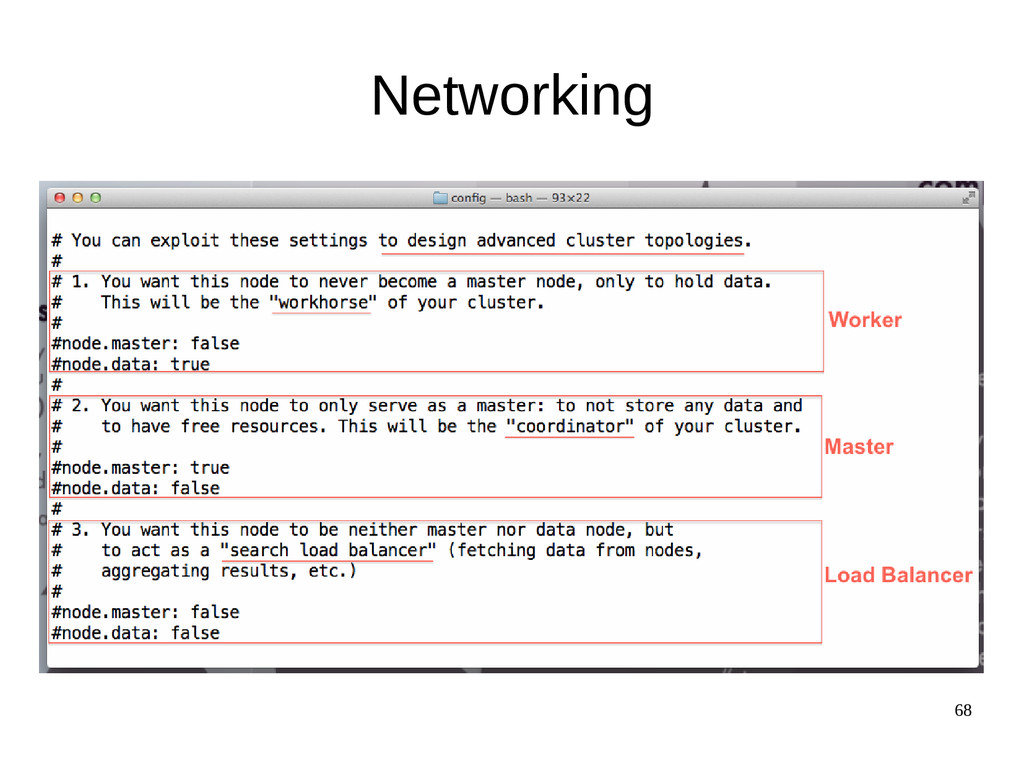

68. 68 Networking

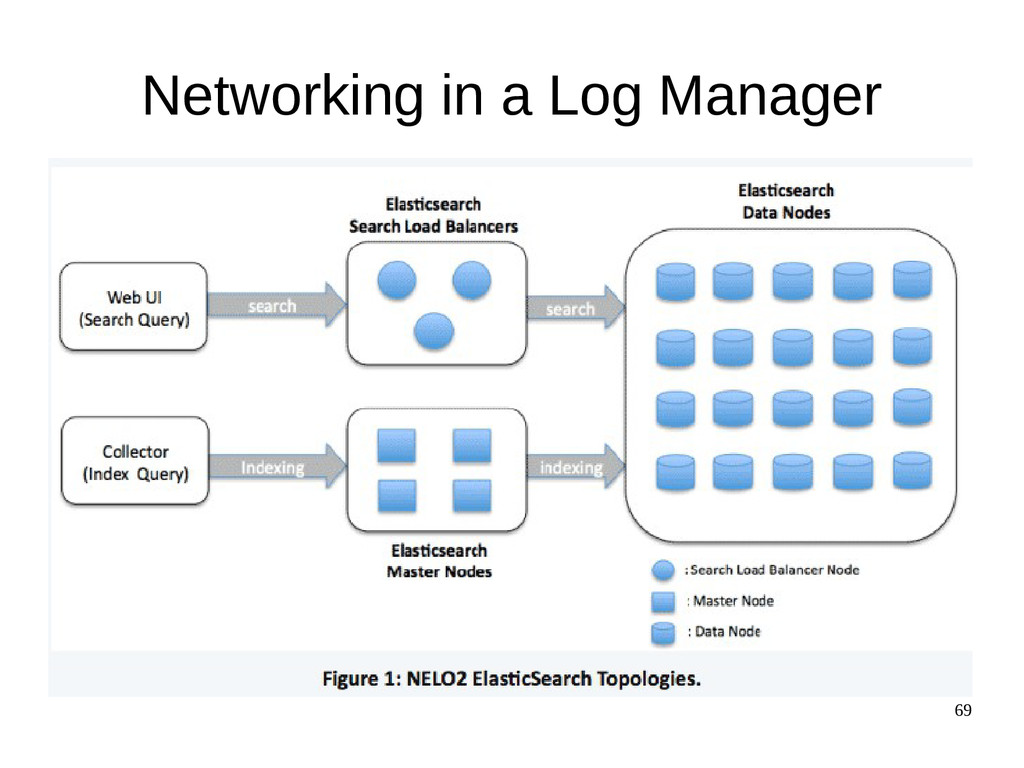

69. 69 Networking in a Log Manager

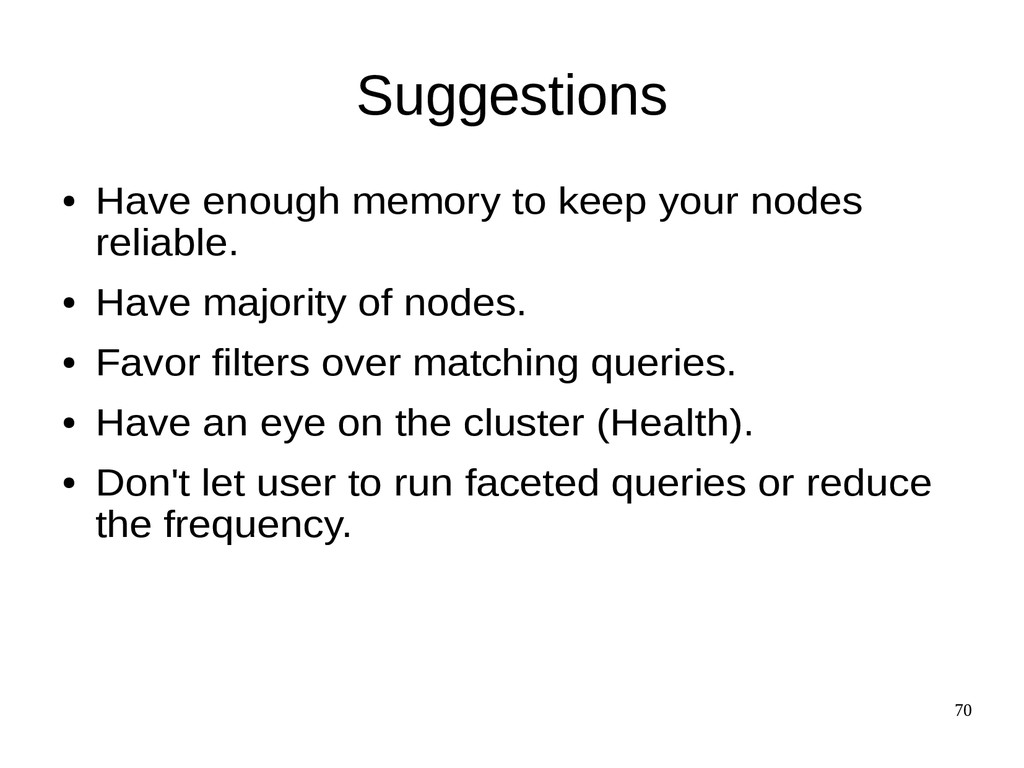

70. 70 Suggestions • Have enough memory to keep your nodes reliable. • Have majority of nodes. • Favor filters over matching queries. • Have an eye on the cluster (Health). • Don't let user to run faceted queries or reduce the frequency.
71. 71 Questions?
