1. To Build My Own Cloud with Blackjack… Sergey Dzyuban SBTech
2. LAMP Windows admin 2003 2007 2010 2014 2016 Web Developer Web Developer .NET Developer .NET Developer Technical Account Manager Technical Account Manager Team Lead Team Lead DevOps Tech Lead DevOps Tech Lead Sergey Dzyuban DevOps Tech Lead at SBTech
3. R&D offices Datacenters 1000+ 2500 700 200 (1K+ instances) 300 CPU/3Tb RAM 28 nodes 2 Tb 100K+ 3
4. Windows and On-Premise Data Centers
5. Platform as a Service Unit – place in SBTech geography
6. Infrastructure Team efforts Platform as a Service Team

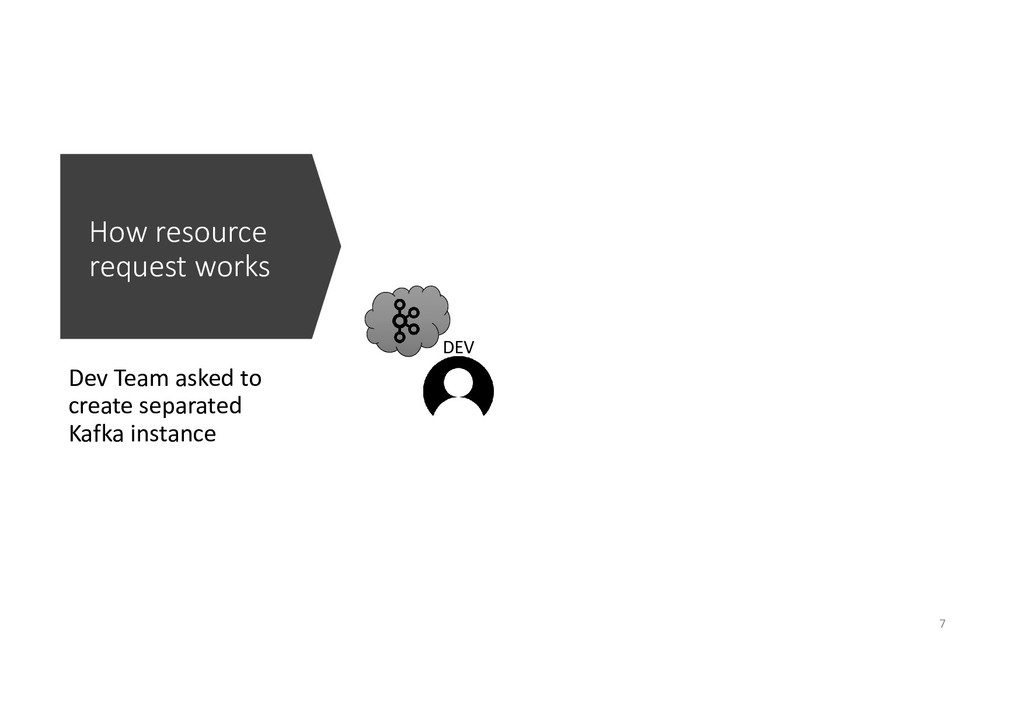

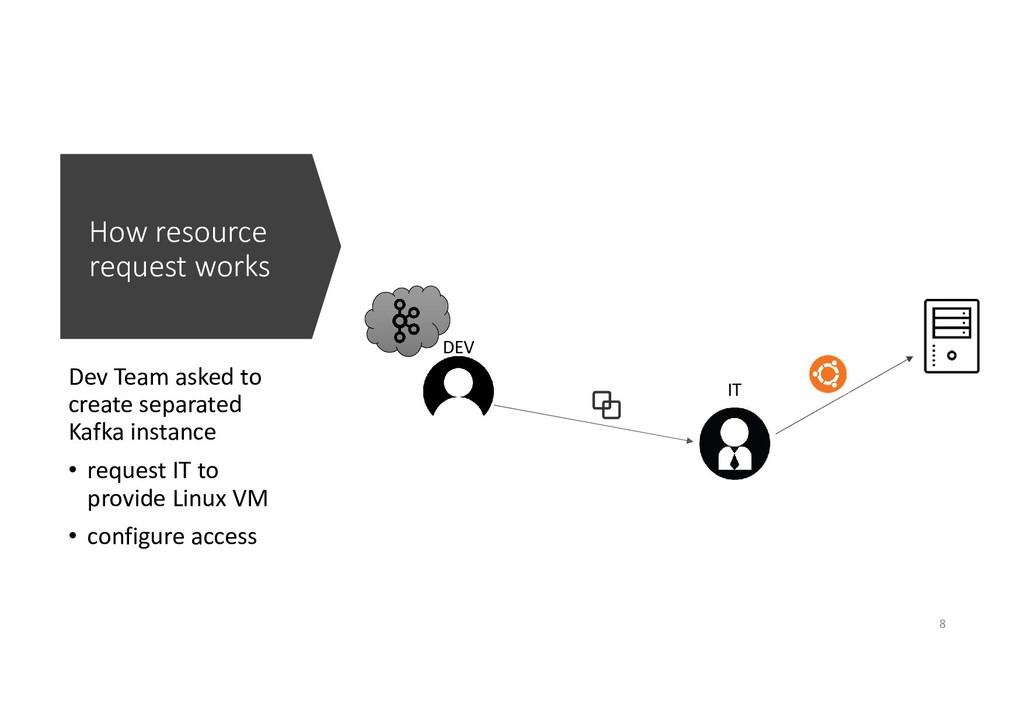

7. How resource request works DEV Dev Team asked to create separated Kafka instance 7
8. How resource request works DEV IT Dev Team asked to create separated Kafka instance • request IT to provide Linux VM • configure access 8

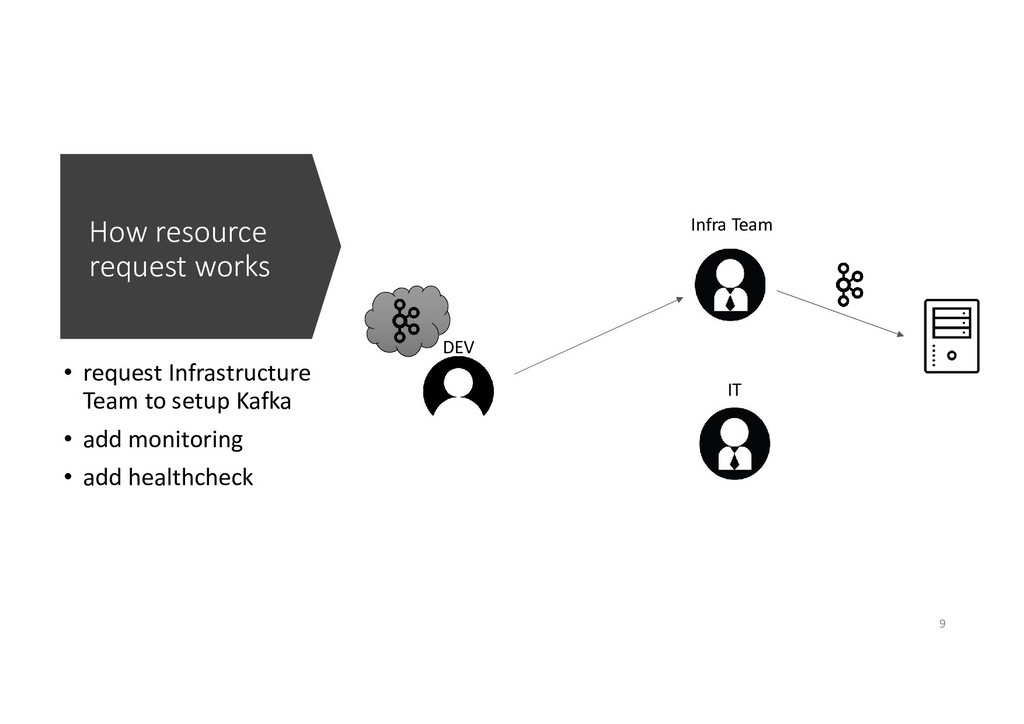

9. How resource request works DEV IT Infra Team • request Infrastructure Team to setup Kafka • add monitoring • add healthcheck 9

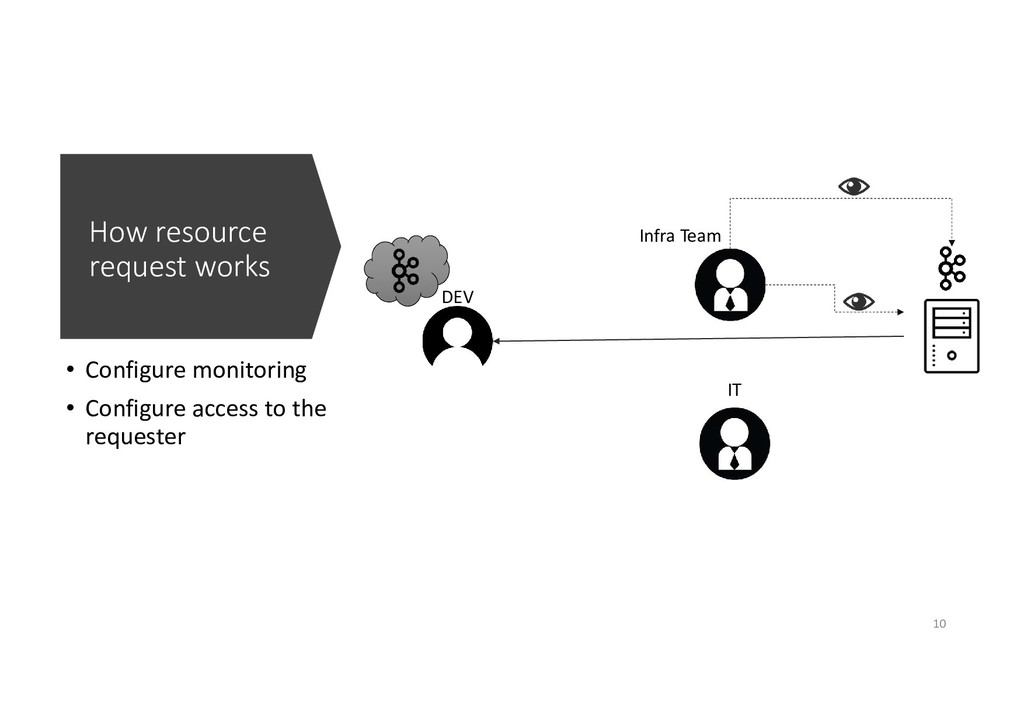

10. How resource request works DEV IT Infra Team • Configure monitoring • Configure access to the requester 10

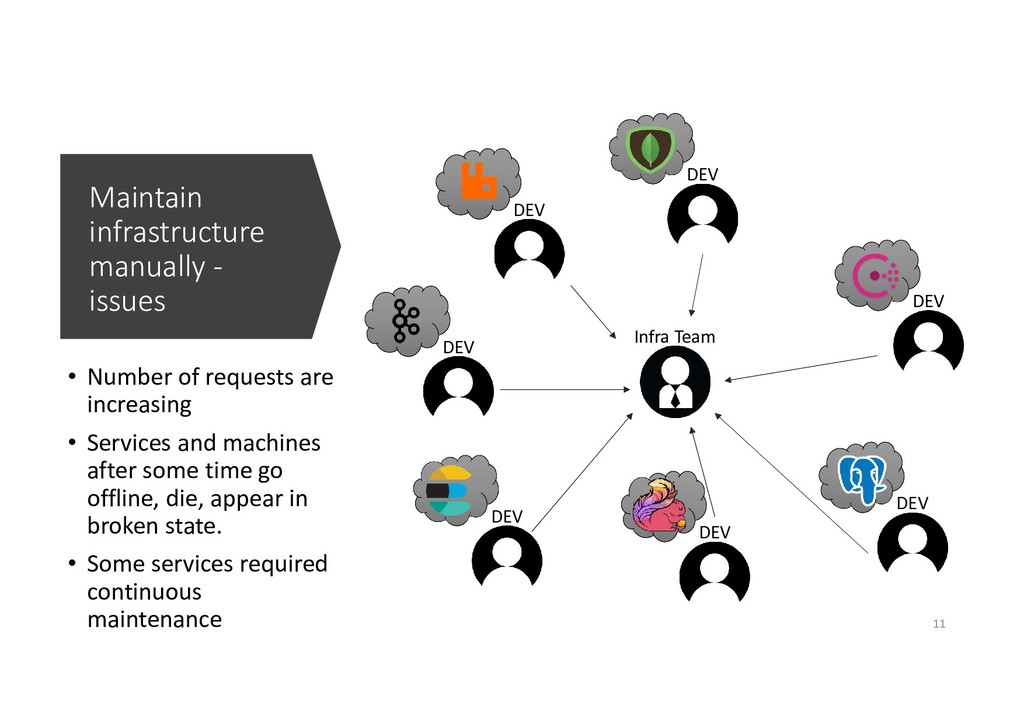

11. Maintain infrastructure manually - issues • Number of requests are increasing • Services and machines after some time go offline, die, appear in broken state. • Some services required continuous maintenance DEV Infra Team DEV DEV DEV DEV DEV DEV 11
12. PaaS for Microservices Building hosting platform for microservices orchestration

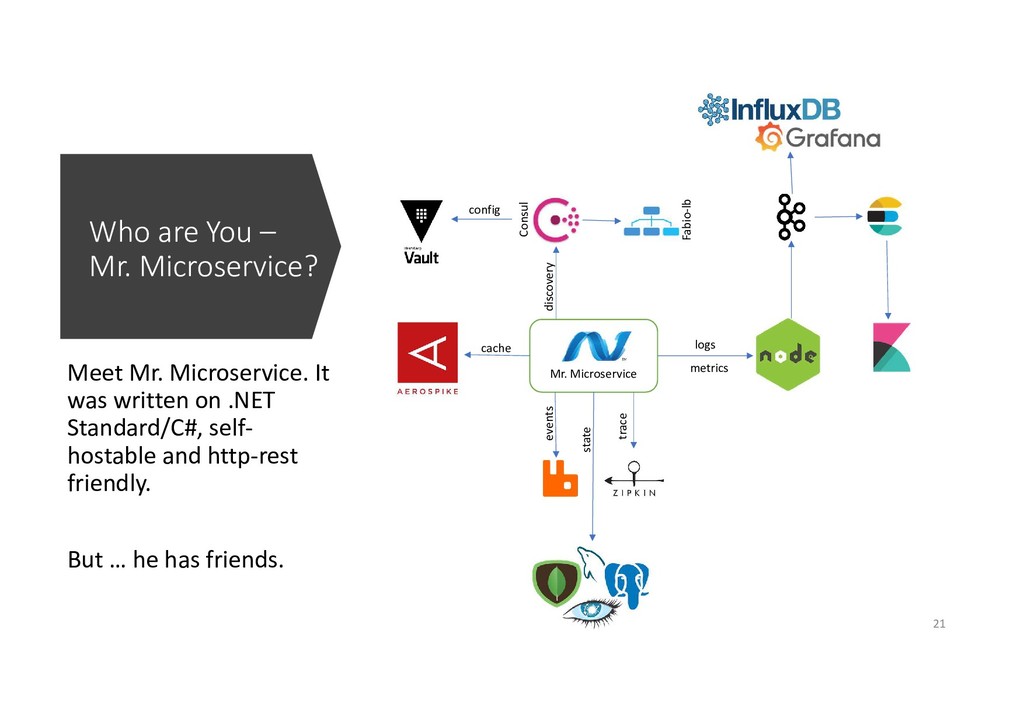

13. Who are You – Mr. Microservice? Meet Mr. Microservice. It was written on .NET Standard/C#, self- hostable and http-rest friendly. Mr. Microservice 13

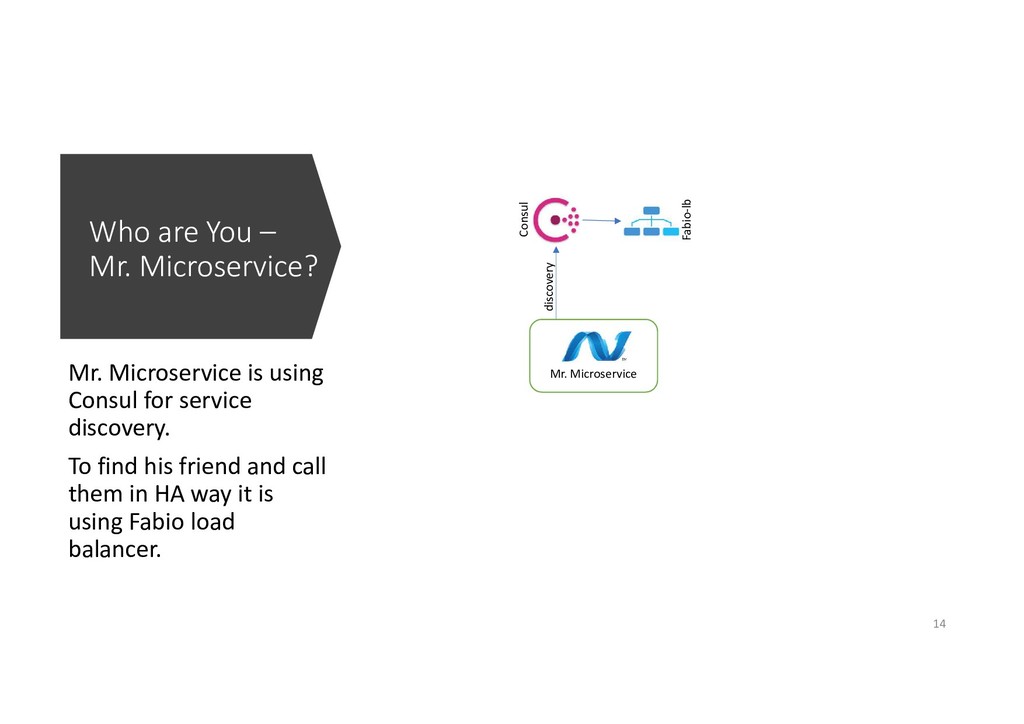

14. Who are You – Mr. Microservice? Mr. Microservice is using Consul for service discovery. To find his friend and call them in HA way it is using Fabio load balancer. Mr. Microservice Consul Fabio-lb discovery 14

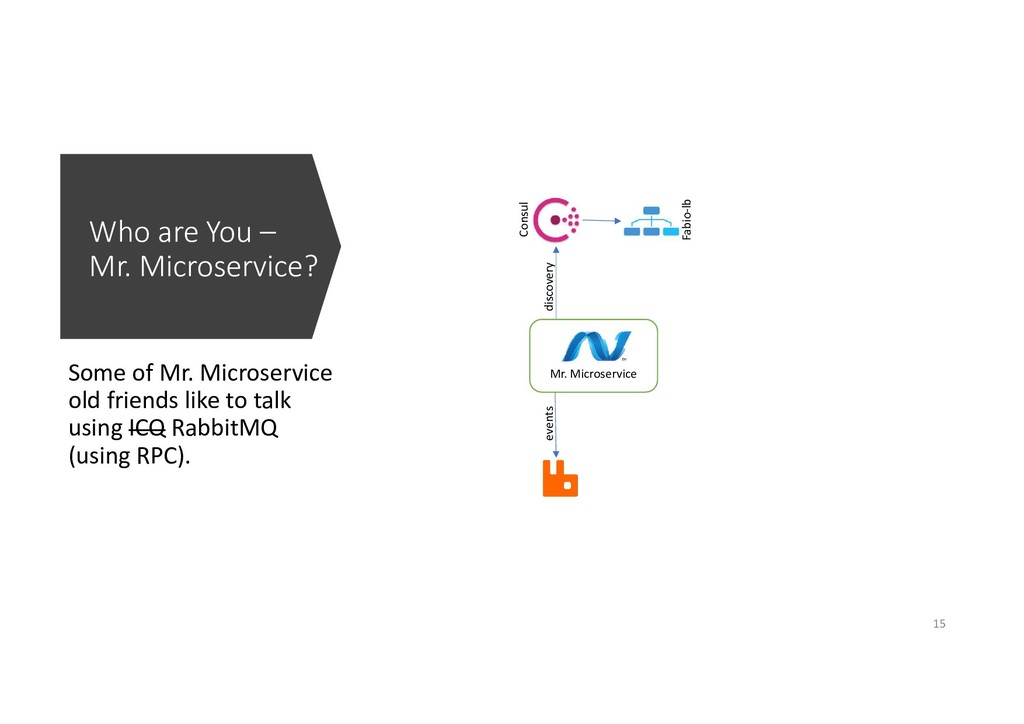

15. Who are You – Mr. Microservice? Some of Mr. Microservice old friends like to talk using ICQ RabbitMQ (using RPC). Mr. Microservice Consul Fabio-lb events discovery 15

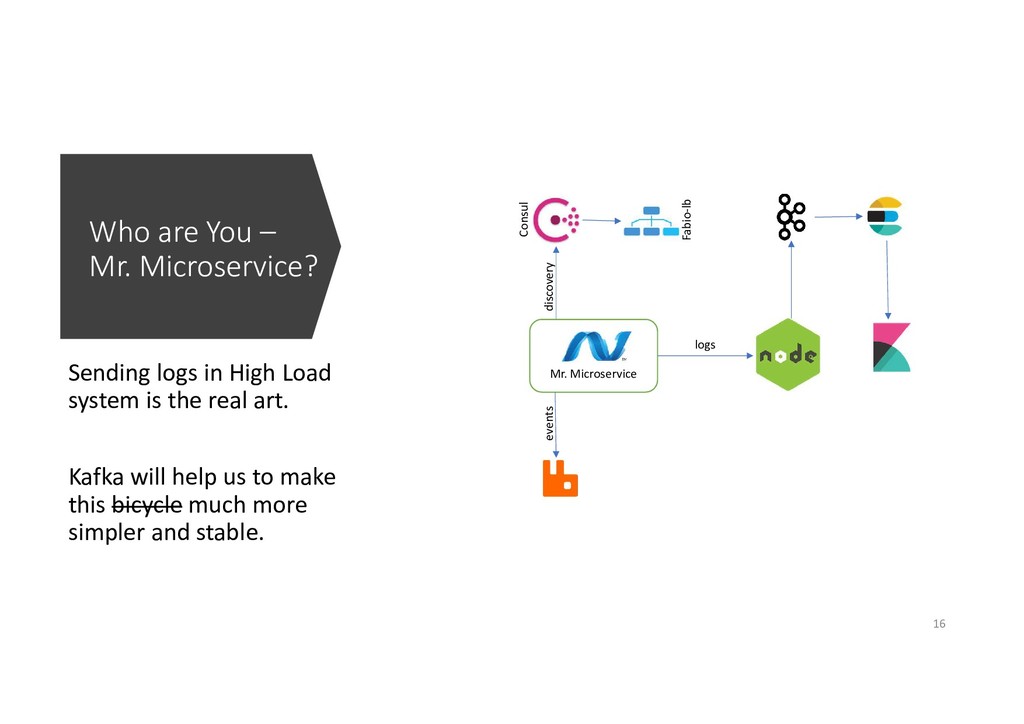

16. Who are You – Mr. Microservice? Sending logs in High Load system is the real art. Kafka will help us to make this bicycle much more simpler and stable. Mr. Microservice Consul Fabio-lb logs events discovery 16
17. Who are You – Mr. Microservice? In large distributed system it will be hard to make proper scale decisions without knowing some system internals. Collecting and analyzing metrics will be the best approach to collect runtime data continuously. Mr. Microservice Consul Fabio-lb logs metrics events discovery 17
18. Who are You – Mr. Microservice? Zipkin is a great tool to send traces in runtime. Mr. Microservice Consul Fabio-lb logs metrics trace events discovery 18

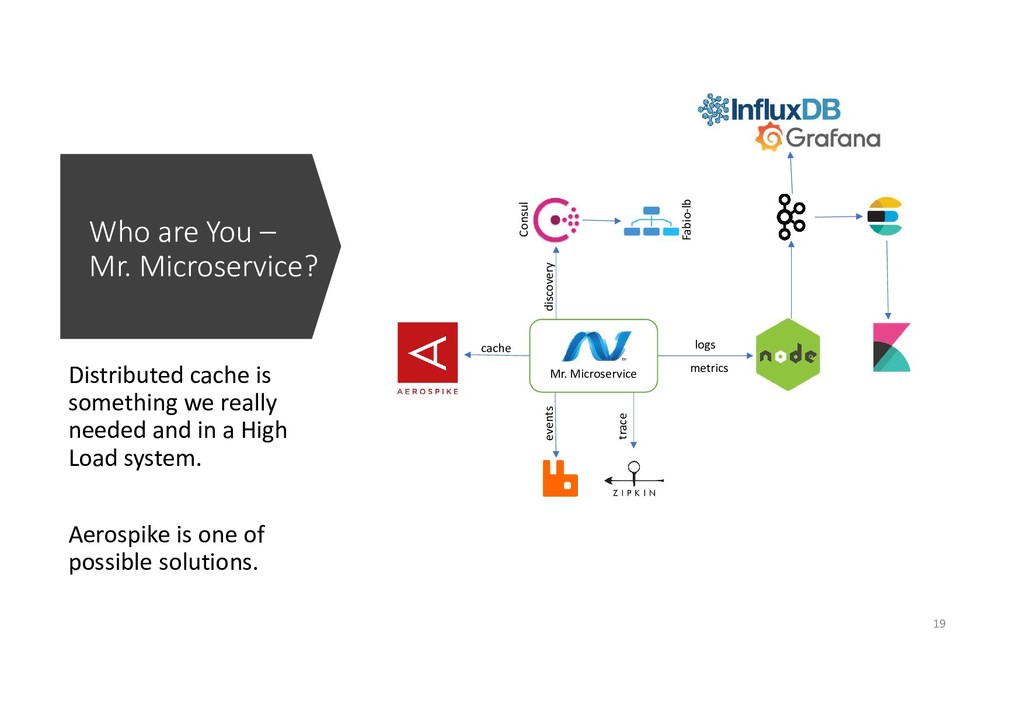

19. Who are You – Mr. Microservice? Distributed cache is something we really needed and in a High Load system. Aerospike is one of possible solutions. Mr. Microservice Consul Fabio-lb logs metrics trace cache events discovery 19

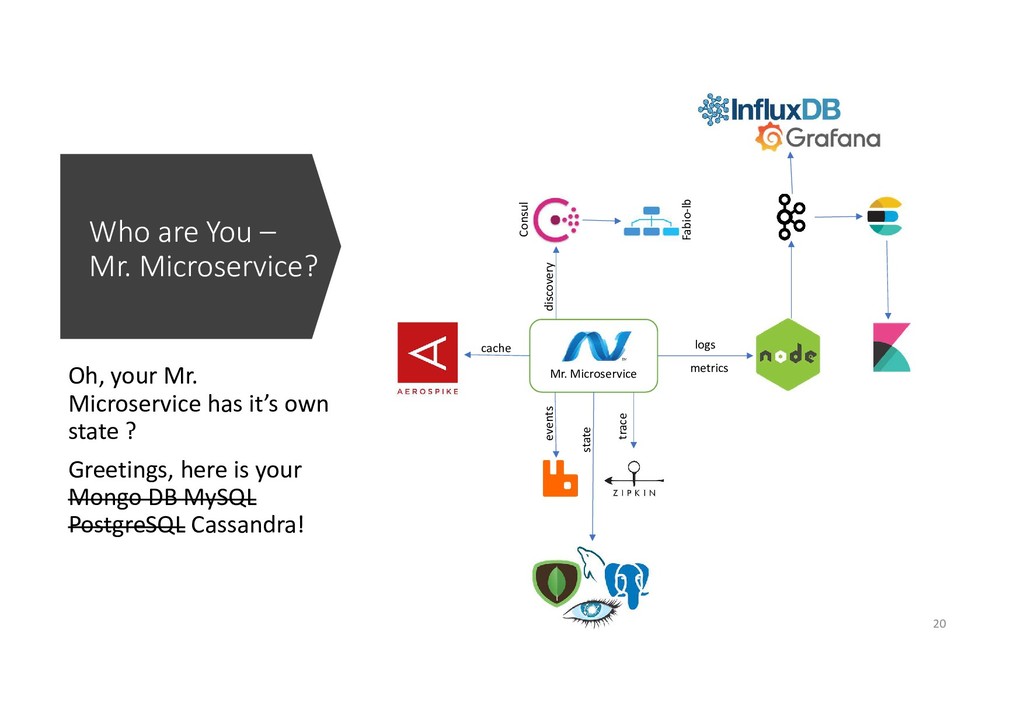

20. Who are You – Mr. Microservice? Oh, your Mr. Microservice has it’s own state ? Greetings, here is your Mongo DB MySQL PostgreSQL Cassandra! Mr. Microservice Consul Fabio-lb logs metrics trace cache state events discovery 20
21. Who are You – Mr. Microservice? Meet Mr. Microservice. It was written on .NET Standard/C#, self- hostable and http-rest friendly. But … he has friends. Mr. Microservice Consul Fabio-lb logs metrics trace cache state events discovery config 21

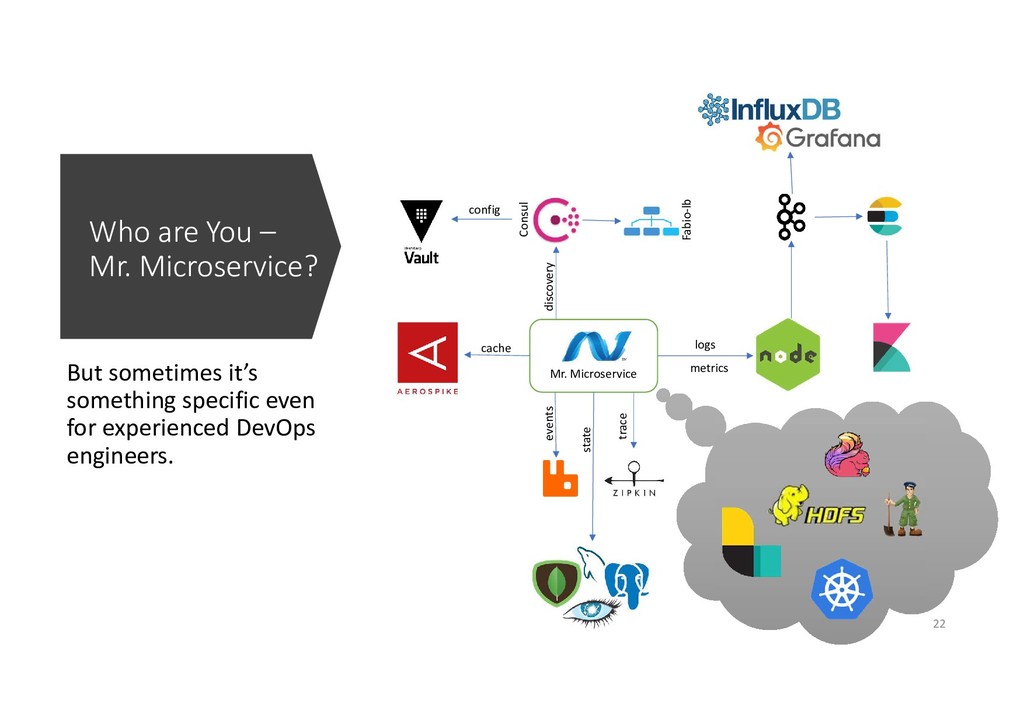

22. Who are You – Mr. Microservice? But sometimes it’s something specific even for experienced DevOps engineers. Mr. Microservice Consul Fabio-lb logs metrics trace cache state events discovery config 22
23. Who are You – Mr. Microservice? But sometimes it’s something specific even for experienced DevOps engineers. Mr. Microservice Consul Fabio-lb logs metrics trace cache state events discovery config 23
24. So what is Dev ENV ? EXPECTATION REALITY

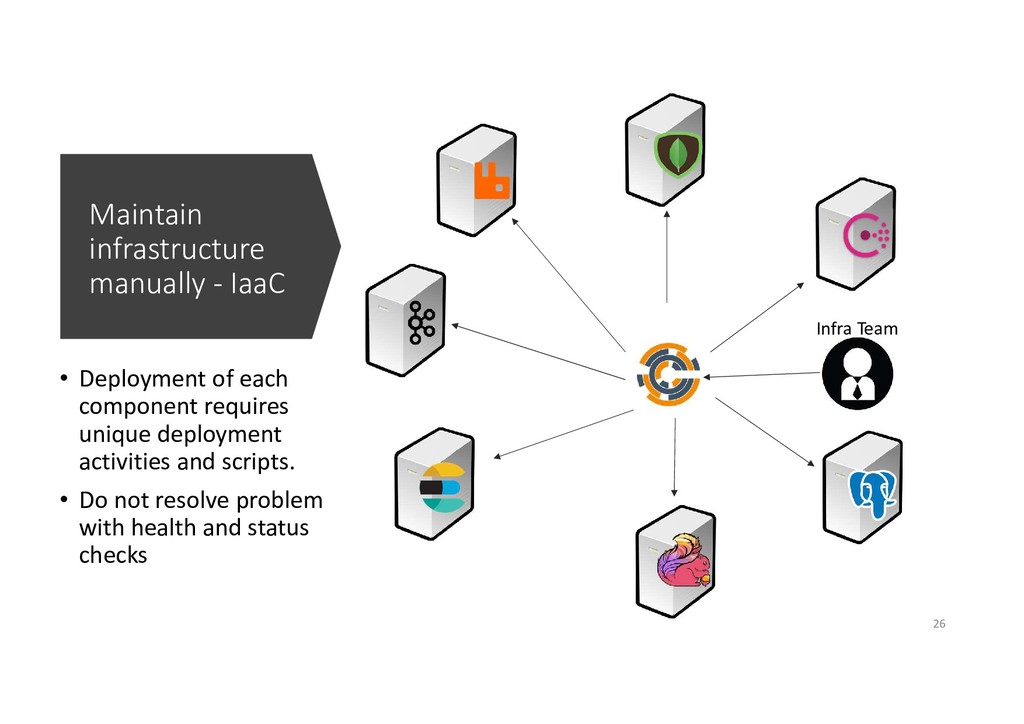

25. Maintain infrastructure manually - IaaC • Deployment of each component requires unique deployment activities and scripts. • Do not resolve problem with health and status checks Infra Team 25
26. Maintain infrastructure manually - IaaC • Deployment of each component requires unique deployment activities and scripts. • Do not resolve problem with health and status checks Infra Team 26

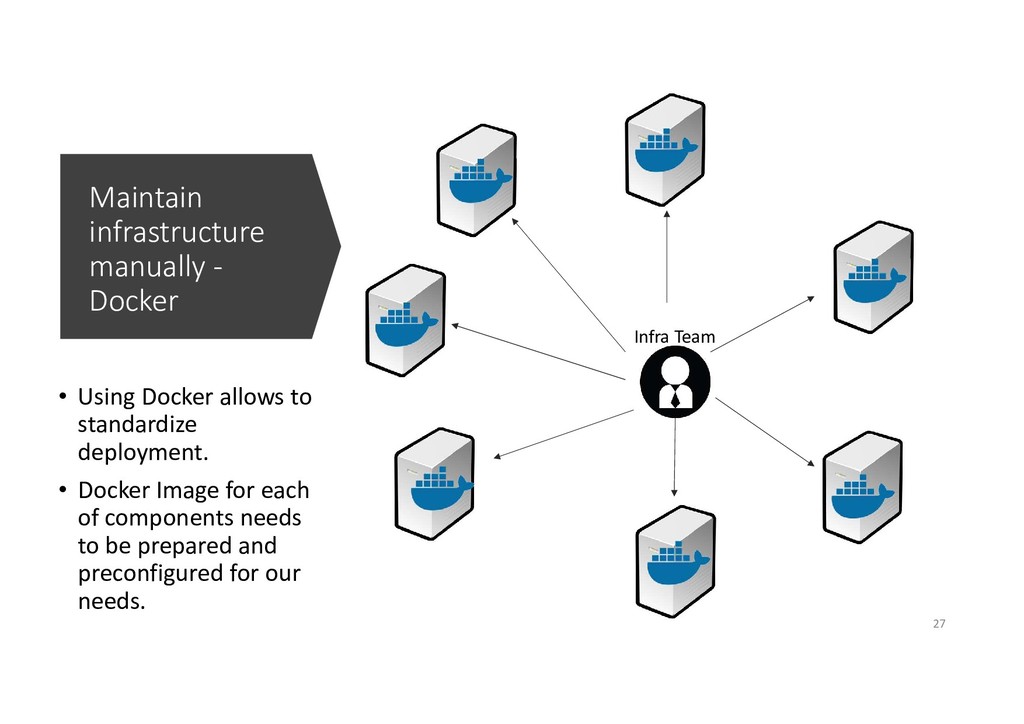

27. Maintain infrastructure manually - Docker • Using Docker allows to standardize deployment. • Docker Image for each of components needs to be prepared and preconfigured for our needs. Infra Team 27

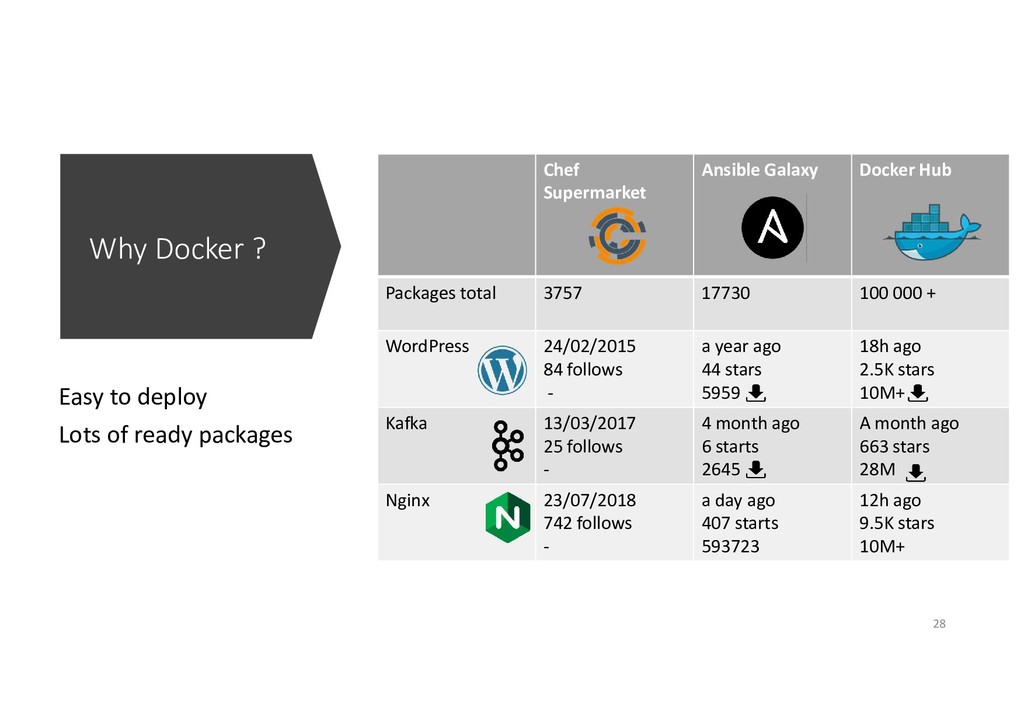

28. Why Docker ? Easy to deploy Lots of ready packages Chef Supermarket Ansible Galaxy Docker Hub Packages total 3757 17730 100 000 + WordPress 24/02/2015 84 follows - a year ago 44 stars 5959 18h ago 2.5K stars 10M+ Kafka 13/03/2017 25 follows - 4 month ago 6 starts 2645 A month ago 663 stars 28M Nginx 23/07/2018 742 follows - a day ago 407 starts 593723 12h ago 9.5K stars 10M+ 28

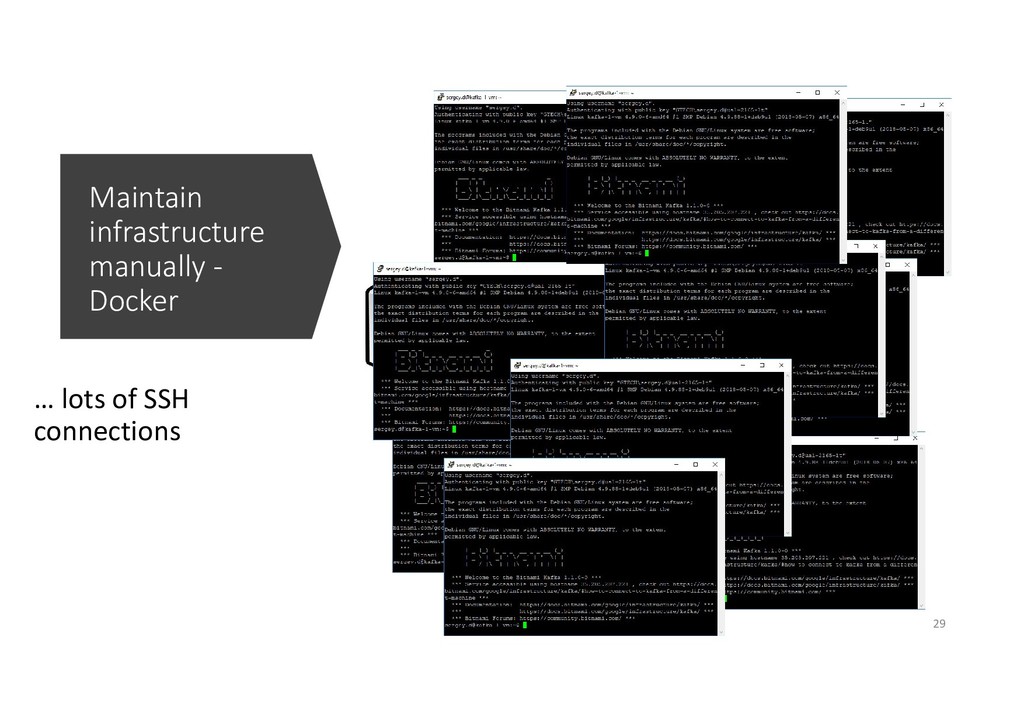

29. Maintain infrastructure manually - Docker … lots of SSH connections Infra Team 29
30. Maintain infrastructure manually Manual resource assignment has a lot of complexity and require some operation flow to be proceeded. 30
31. Maintain infrastructure manually - Cloud • Cloud Engineers have a lot of good examples how component deployment automation should looks like. • Next step was to provide simple user experience to maintain this process just simply stupid. 31
32. Cloud Management Experience • Browser based • Clear configuration and deployment • Simple scaling • Build-in monitoring • Services catalog • Self documented 32

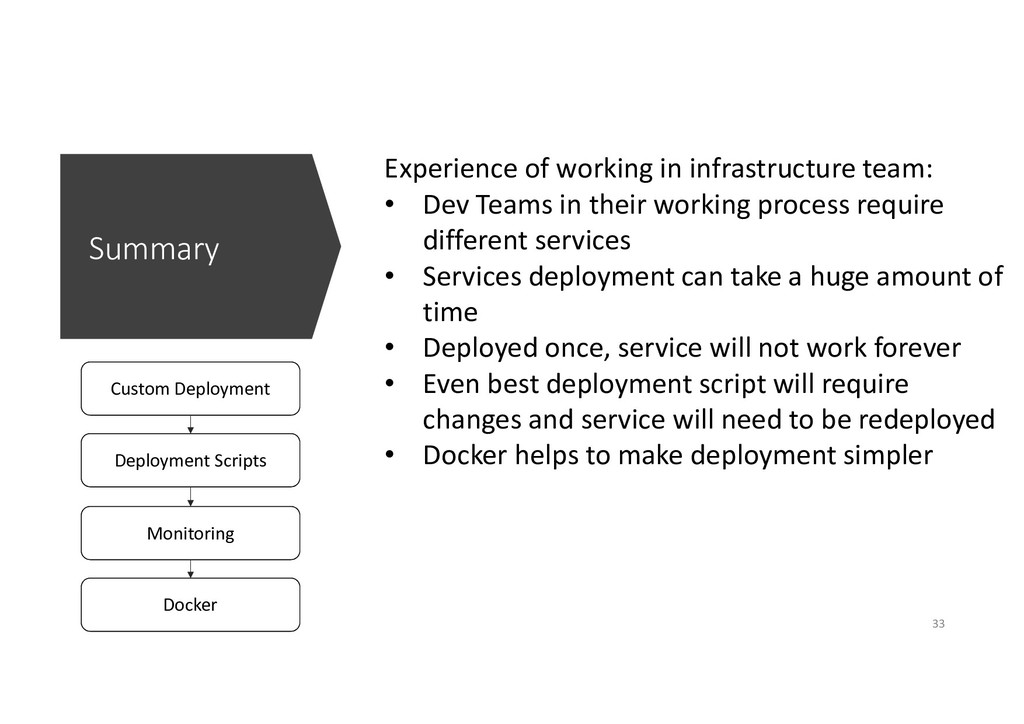

33. Summary Custom Deployment Deployment Scripts Monitoring Docker Experience of working in infrastructure team: • Dev Teams in their working process require different services • Services deployment can take a huge amount of time • Deployed once, service will not work forever • Even best deployment script will require changes and service will need to be redeployed • Docker helps to make deployment simpler 33
34. It’s all about Jenkins The short story how we started to use DC/OS

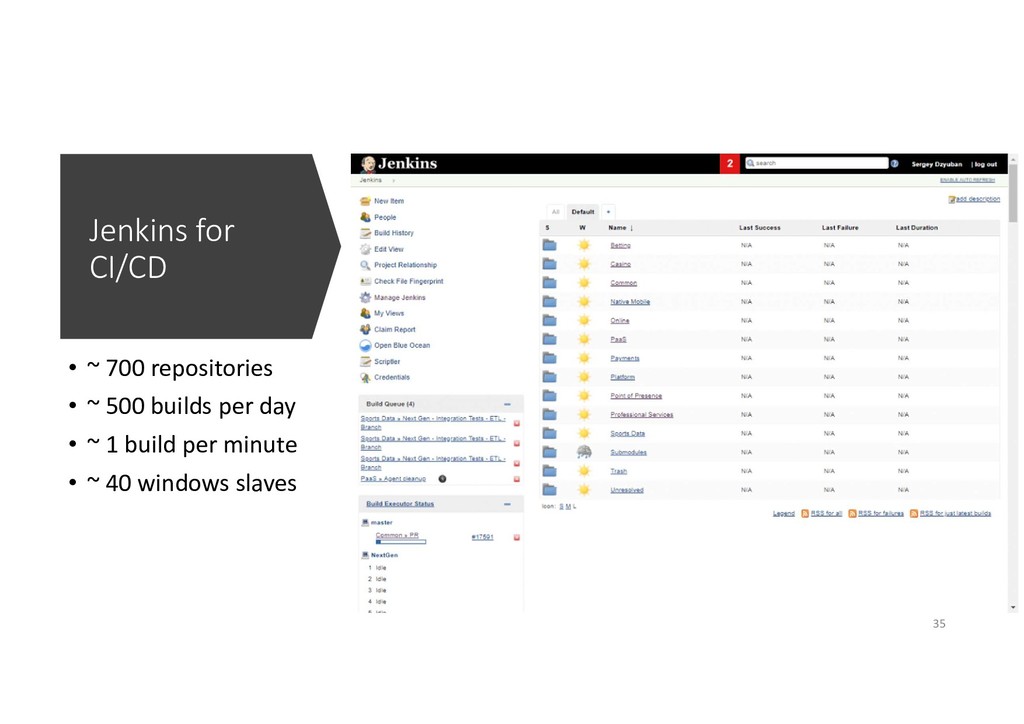

35. Jenkins for CI/CD • ~ 700 repositories • ~ 500 builds per day • ~ 1 build per minute • ~ 40 windows slaves 35
36. Jenkins for CI/CD It requires some additional interfaces to provide and process information for developers and build engineers. 36
37. Jenkins for CI/CD • Elastic + Kibana • Go APIs • Angular SPAs • MySQL and Redis • Zabbix for Jenkins slaves monitoring • Sonar 37

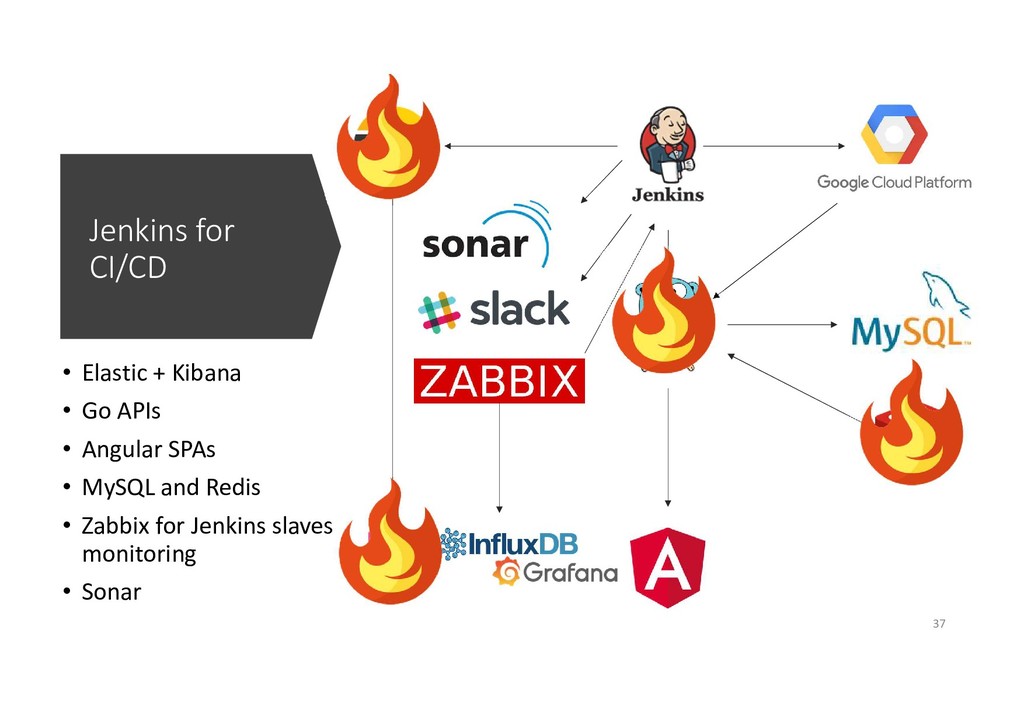

38. Jenkins for CI/CD And here is a moment, You realize that having many pets in your datacenter may be not a good idea. 38
39. Jenkins for CI/CD The good news – Simpsons already did it. 39

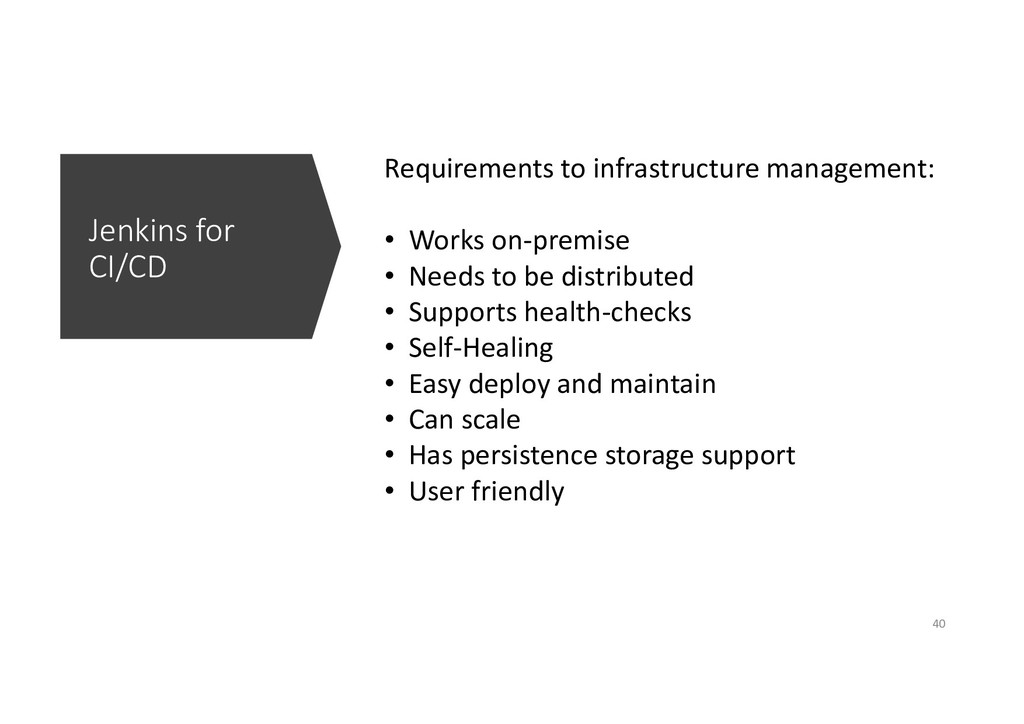

40. Jenkins for CI/CD Requirements to infrastructure management: • Works on-premise • Needs to be distributed • Supports health-checks • Self-Healing • Easy deploy and maintain • Can scale • Has persistence storage support • User friendly 40
41. DC/OS overview Short story about evolution from Mesos to DC/OS
42. DC/OS Overview • Physical master nodes cluster • Any number of worker nodes Masters Private Node Private Node Public Node Private Zone DMZ 42

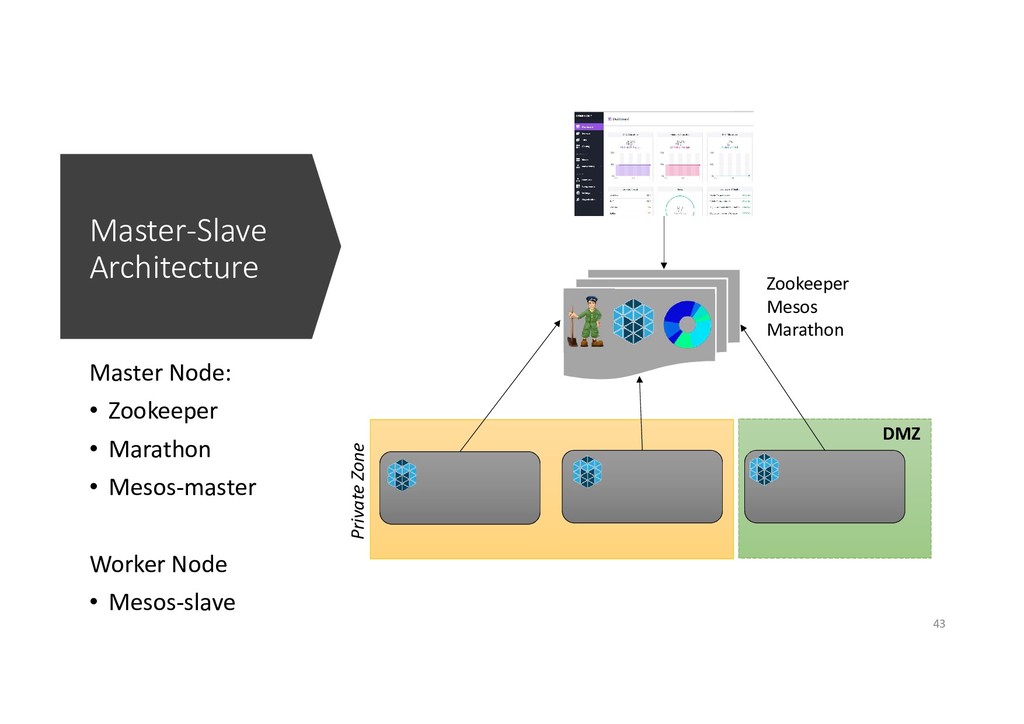

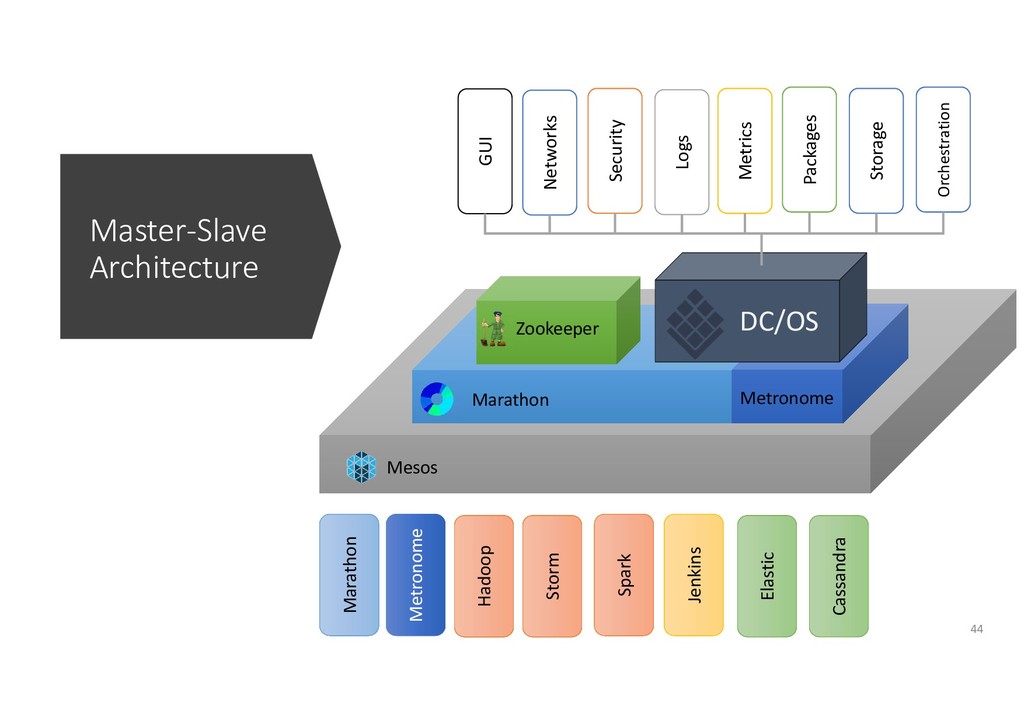

43. Private Zone DMZ Master-Slave Architecture Master Node: • Zookeeper • Marathon • Mesos-master Worker Node • Mesos-slave Zookeeper Mesos Marathon 43
44. Master-Slave Architecture Mesos Marathon Zookeeper Cassandra Elastic Jenkins Spark Storm Hadoop Marathon Aurora GUI Networks Security Logs Metrics Packages Storage Orchestration Jenkins Spark Storm Hadoop Elastic Jenkins Spark Storm Hadoop Cassandra Elastic Jenkins Spark Storm Hadoop Marathon Aurora Hadoop Marathon Aurora Storm Hadoop Marathon Metronome Metronome DC/OS Metronome 44
45. Components 45

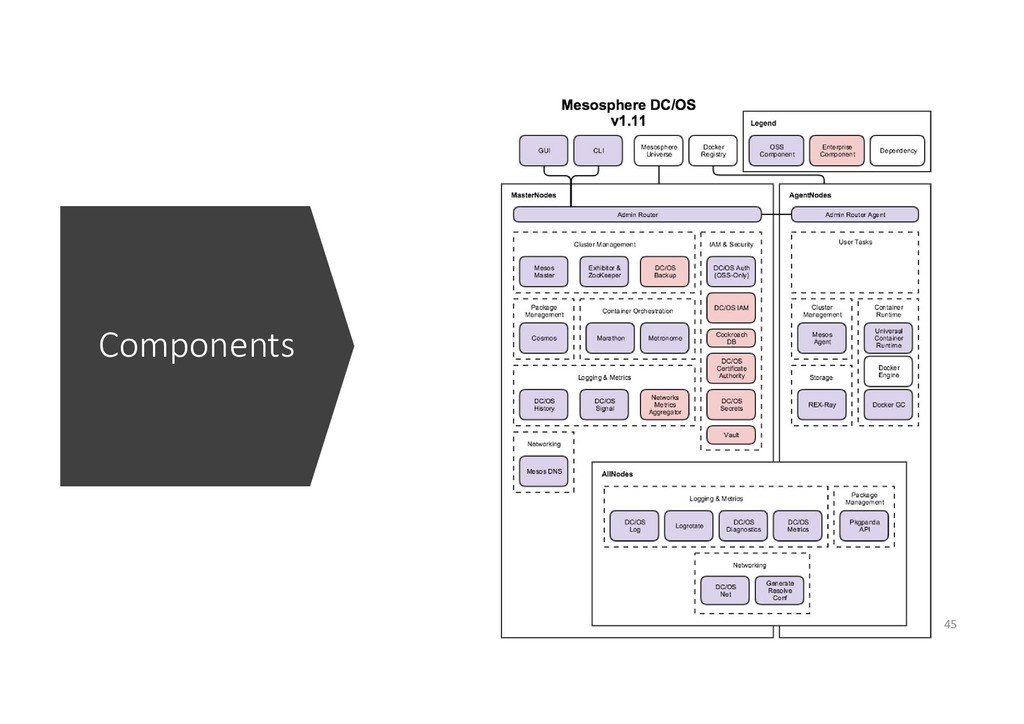

46. DCOS Components
47. DMZ Master-Slave Architecture To provide Software as a Service, better way to share full access to the services. Zookeeper Mesos Marathon 47
48. Master-Slave Architecture Mesos resource management allows to share resources across different components automatically. Zookeeper Mesos Marathon DMZ 48
49. Resource Management in Mesos When new deployment starts, task will be started on a random Agent Node with free resource available. In case of lack of resources, deployment will be put on Pending state. worker A 8 Gb 4 10 Gb worker B CPU MEM 4 Gb HDD 2 10 Gb 2 CPU 6 GB RAM 5 Gb HDD 49

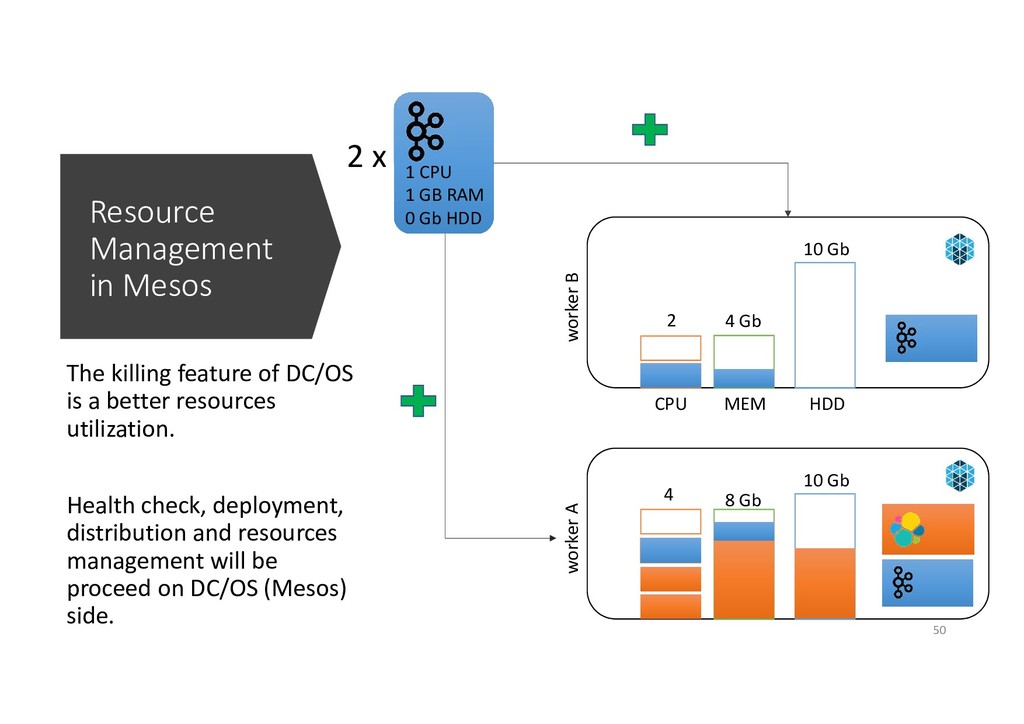

50. Resource Management in Mesos The killing feature of DC/OS is a better resources utilization. Health check, deployment, distribution and resources management will be proceed on DC/OS (Mesos) side. worker A 8 Gb 4 10 Gb worker B CPU MEM 4 Gb HDD 2 10 Gb 1 CPU 1 GB RAM 0 Gb HDD 2 x 50

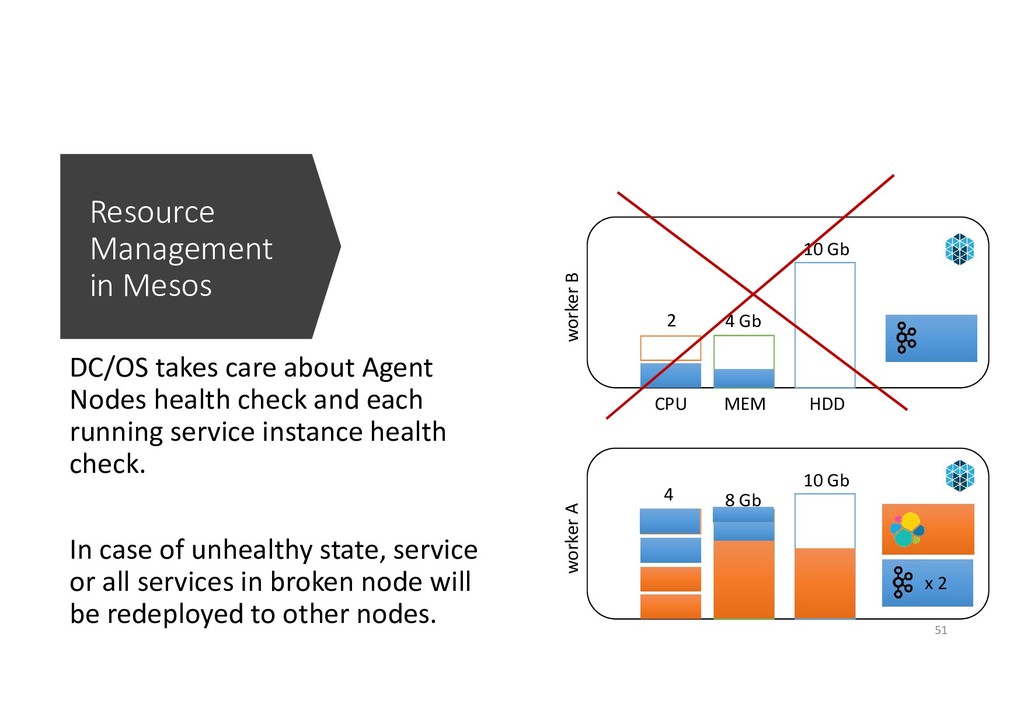

51. Resource Management in Mesos DC/OS takes care about Agent Nodes health check and each running service instance health check. In case of unhealthy state, service or all services in broken node will be redeployed to other nodes. worker A 8 Gb 4 10 Gb worker B CPU MEM 4 Gb HDD 2 10 Gb x 2 51

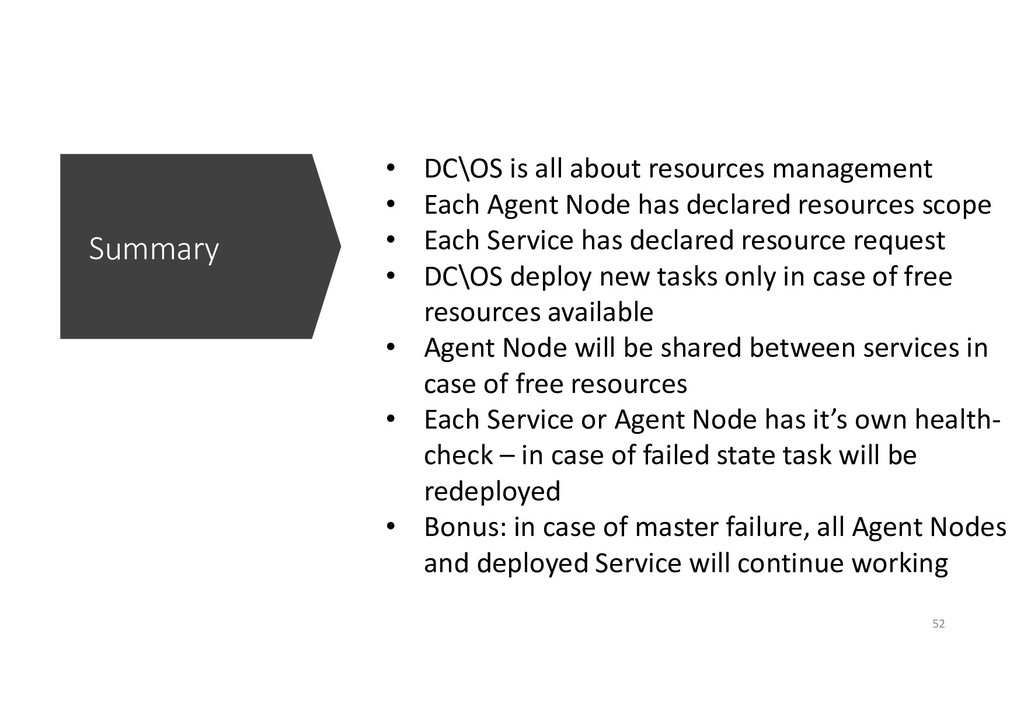

52. Summary • DC\OS is all about resources management • Each Agent Node has declared resources scope • Each Service has declared resource request • DC\OS deploy new tasks only in case of free resources available • Agent Node will be shared between services in case of free resources • Each Service or Agent Node has it’s own health- check – in case of failed state task will be redeployed • Bonus: in case of master failure, all Agent Nodes and deployed Service will continue working 52
53. DEMO – DC/OS cluster in AWS
54. Hiding Pets behind the Cattles Managing hardware for Docker orchestration private cloud

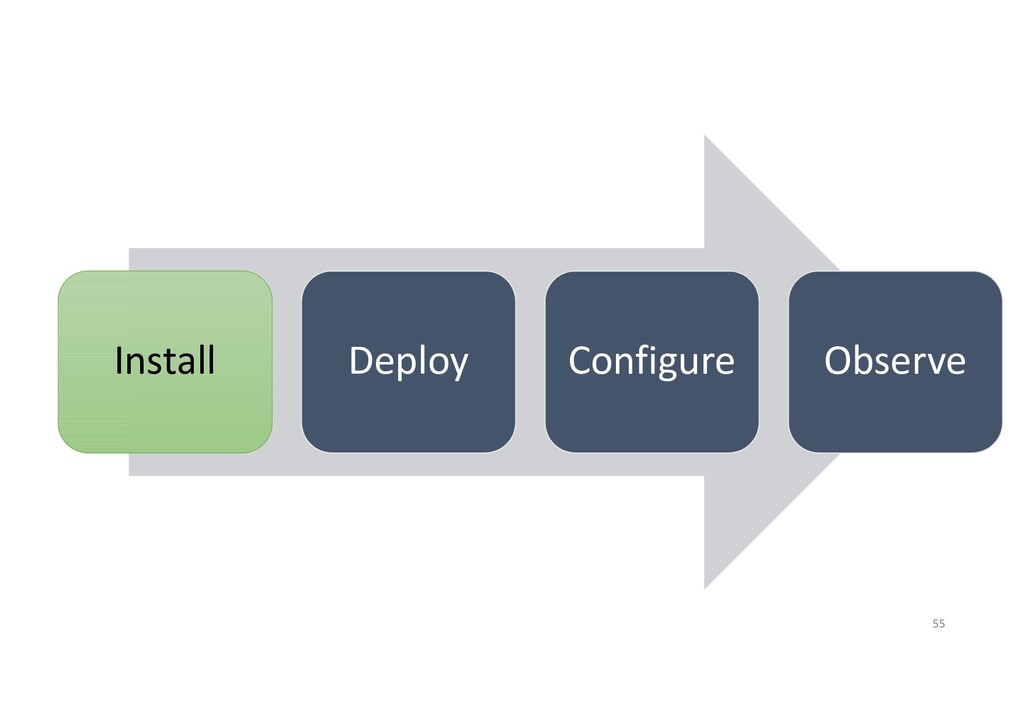

55. Install Deploy Configure Observe 55
56. DC/OS Deployment- Bootstrap Node The bootstrap node is only used during the installation and upgrade process, so there are no specific recommendations for high performance storage or separated mount points. Bootstrap Node Master 56

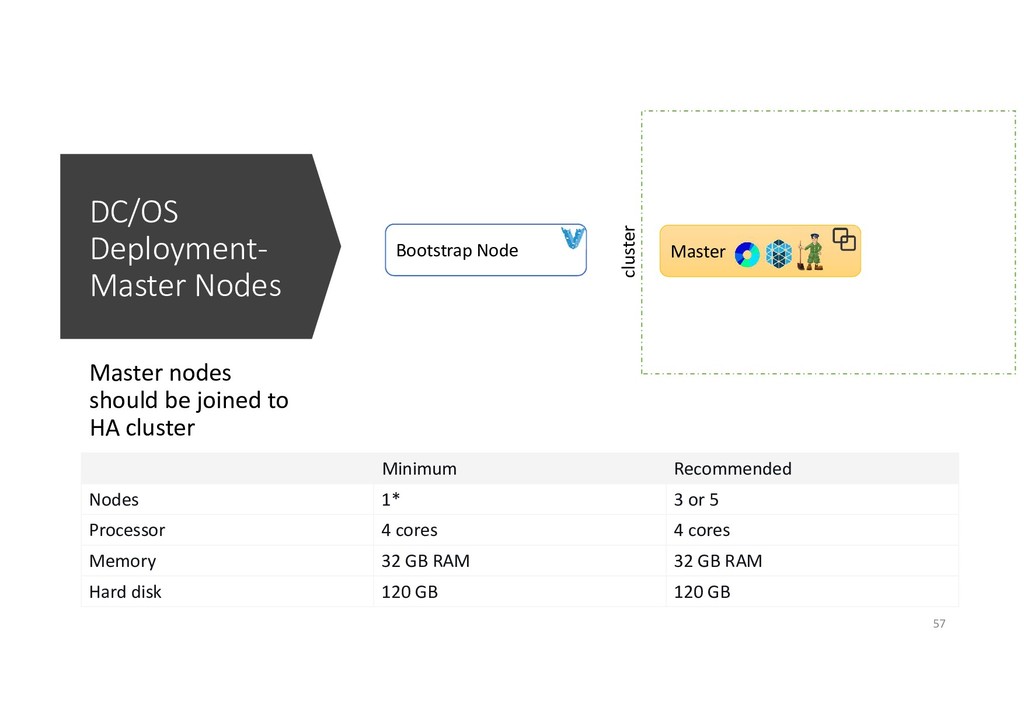

57. DC/OS Deployment- Master Nodes Master nodes should be joined to HA cluster Bootstrap Node Master cluster Minimum Recommended Nodes 1* 3 or 5 Processor 4 cores 4 cores Memory 32 GB RAM 32 GB RAM Hard disk 120 GB 120 GB 57

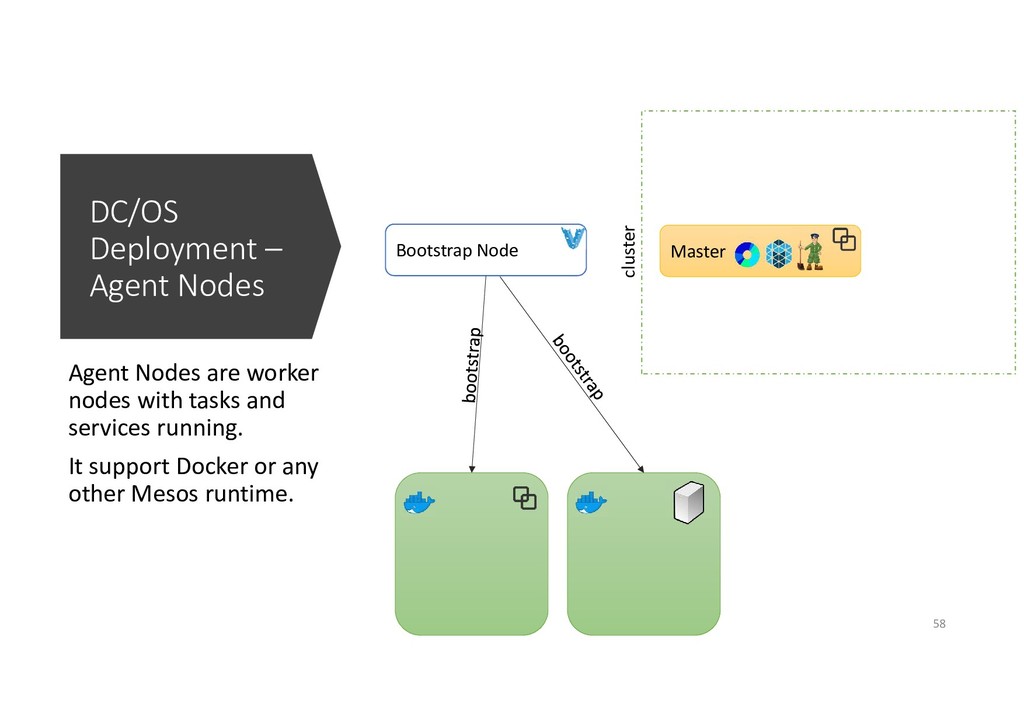

58. DC/OS Deployment – Agent Nodes Agent Nodes are worker nodes with tasks and services running. It support Docker or any other Mesos runtime. Bootstrap Node Master cluster 58

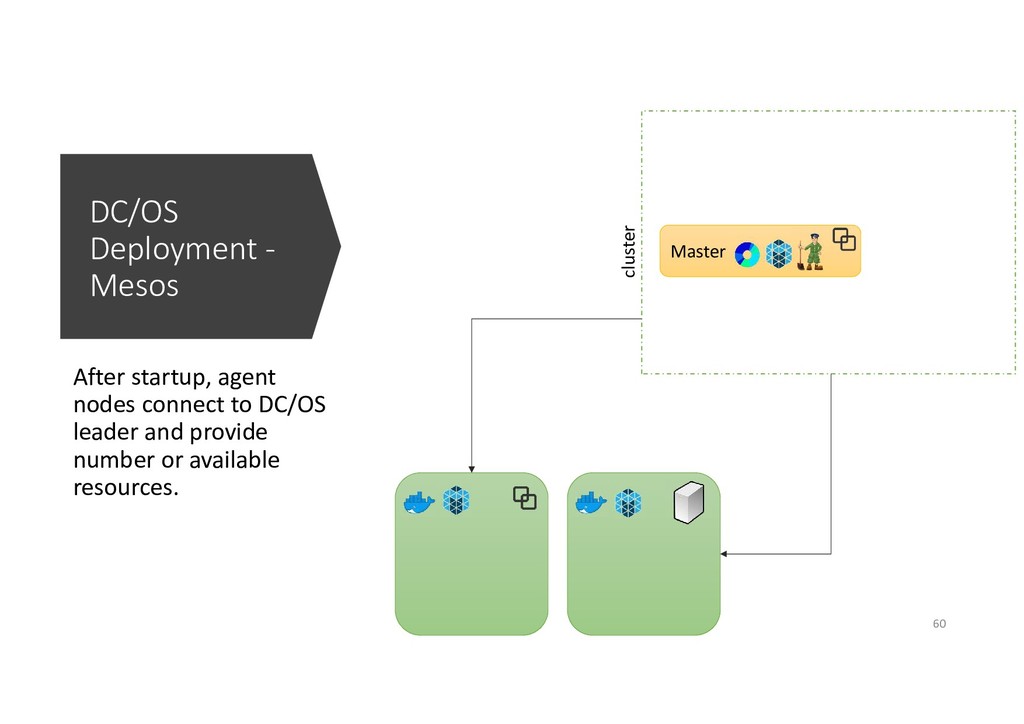

59. DC/OS Deployment - Mesos After startup, agent nodes connect to DC/OS leader and provide number or available resources. Master cluster Bootstrap Node 59
60. DC/OS Deployment - Mesos After startup, agent nodes connect to DC/OS leader and provide number or available resources. Master cluster 60

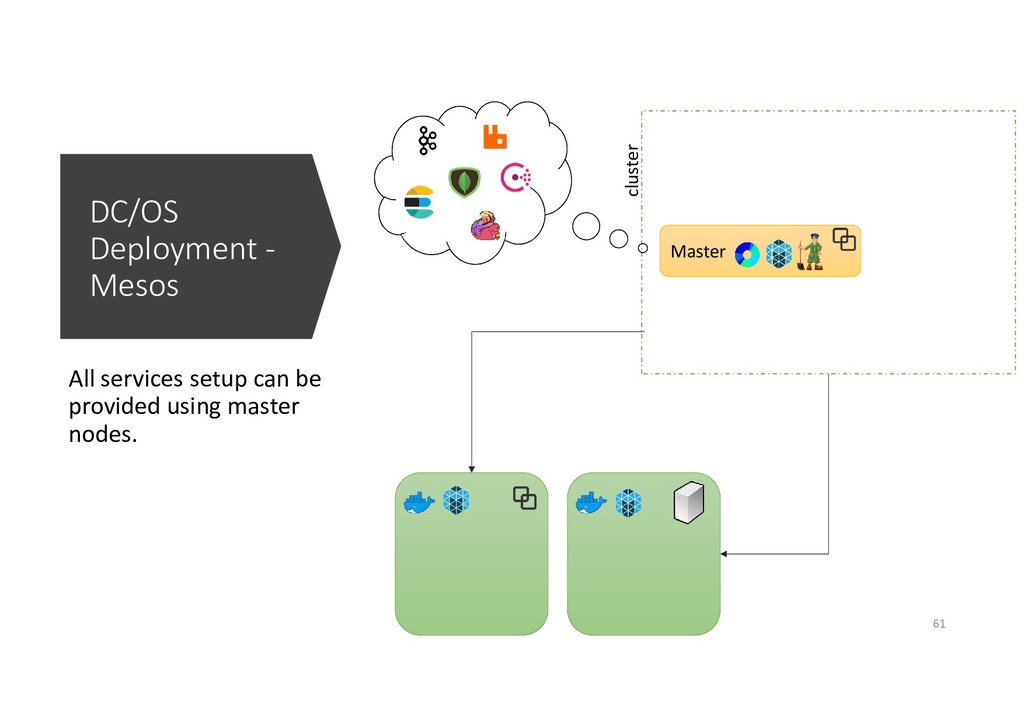

61. DC/OS Deployment - Mesos All services setup can be provided using master nodes. Master cluster 61

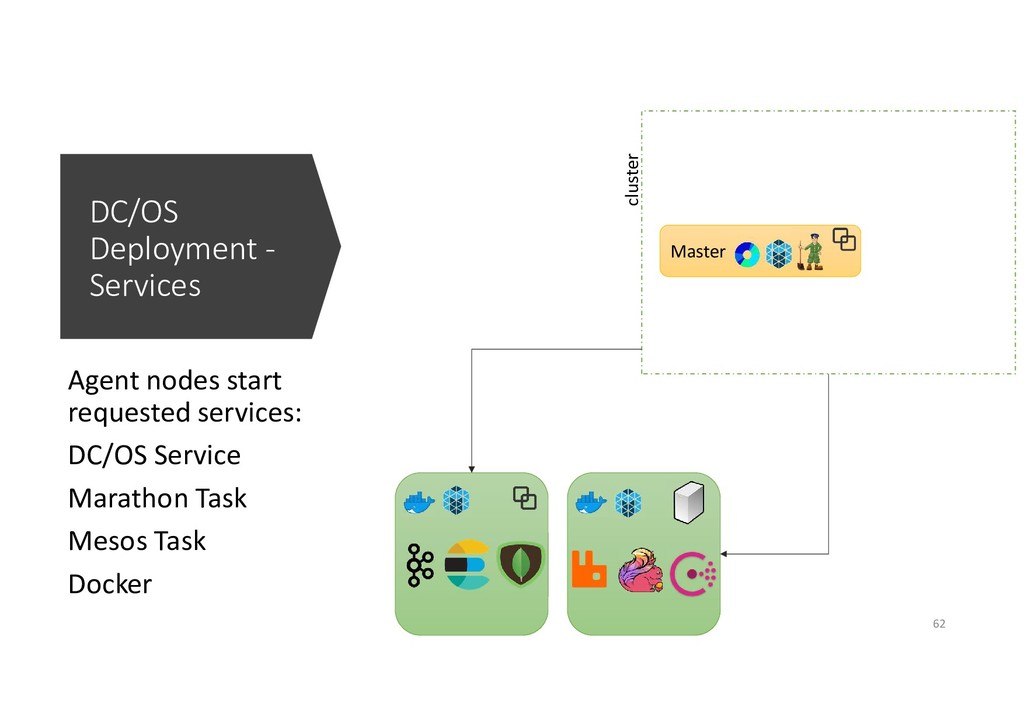

62. DC/OS Deployment - Services Agent nodes start requested services: DC/OS Service Marathon Task Mesos Task Docker Master cluster 62
63. How we started • Vagrant + Virtual Box • Mini PC • 8 TVs with Mini PC • Ubuntu 16.04 • Daily usage – for Scrum and Monitoring Dashboards • 8 * 2 CPU = 16 CPU • 8 * 4 Gb RAM = 32 GB RAM • PC • VMWare • Google Cloud 63

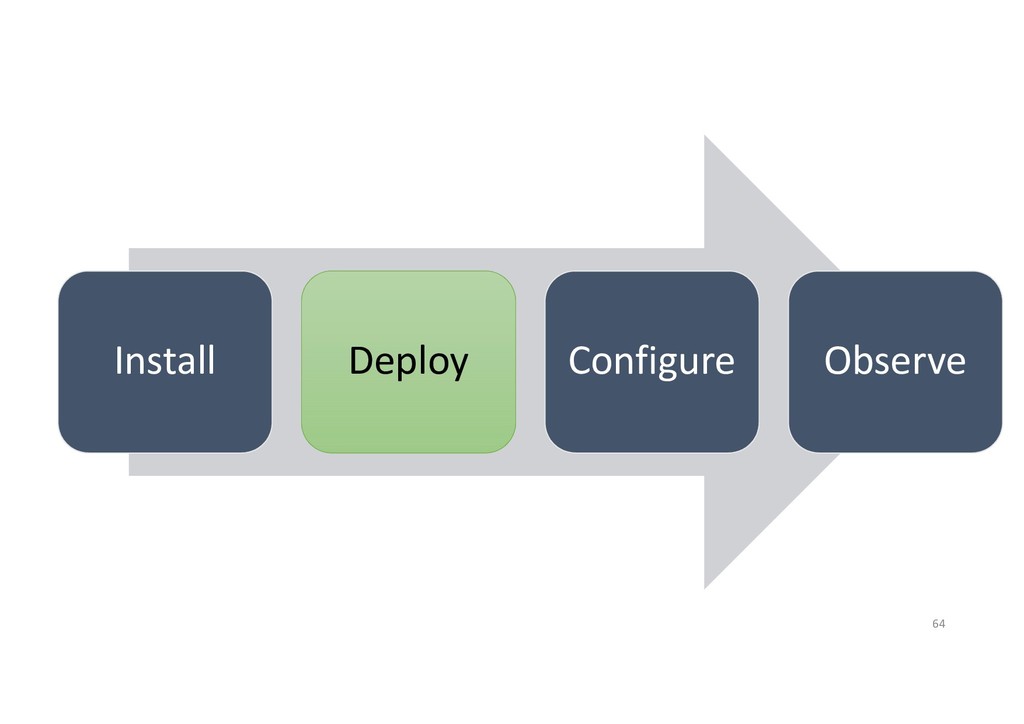

64. Install Deploy Configure Observe 64

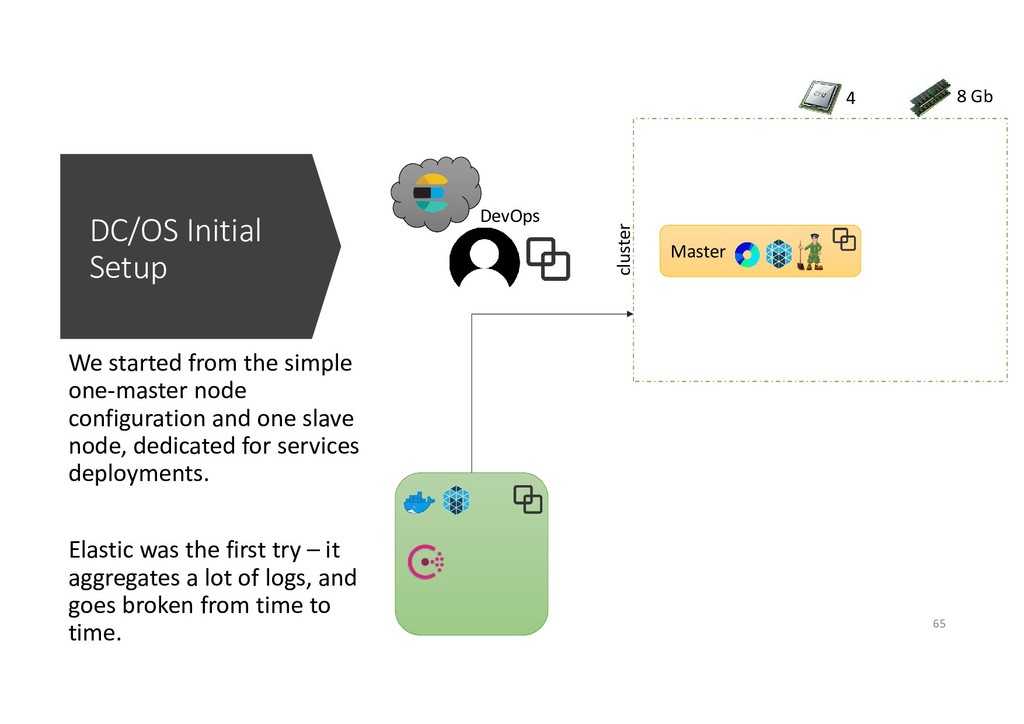

65. DC/OS Initial Setup We started from the simple one-master node configuration and one slave node, dedicated for services deployments. Elastic was the first try – it aggregates a lot of logs, and goes broken from time to time. Master cluster DevOps 4 8 Gb 65

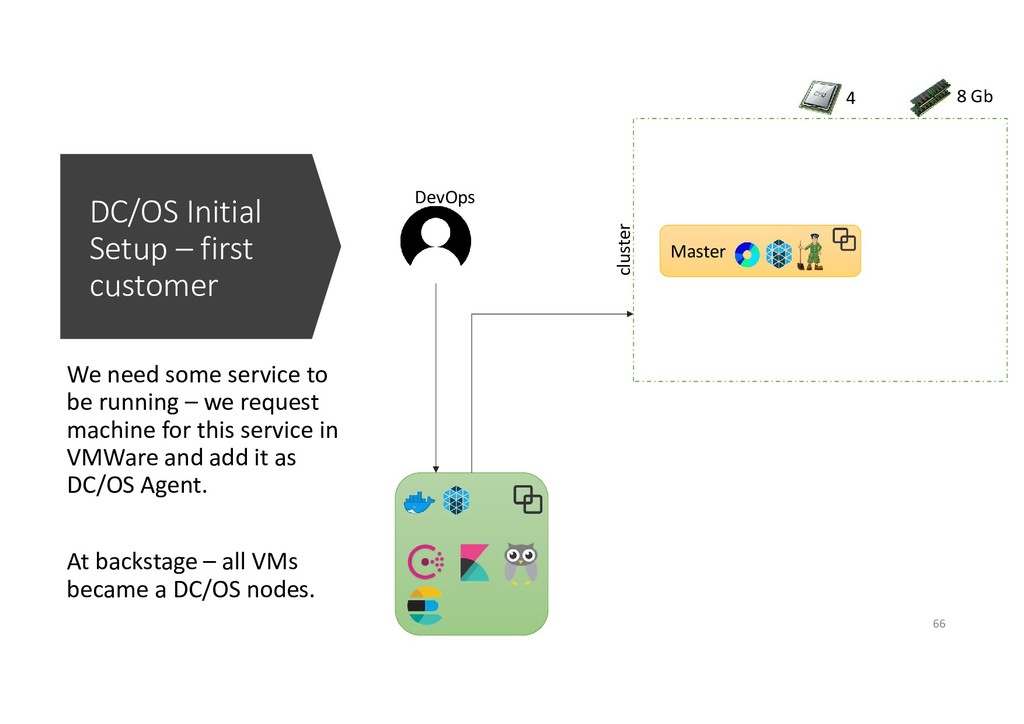

66. DC/OS Initial Setup – first customer We need some service to be running – we request machine for this service in VMWare and add it as DC/OS Agent. At backstage – all VMs became a DC/OS nodes. Master cluster DevOps 4 8 Gb 66

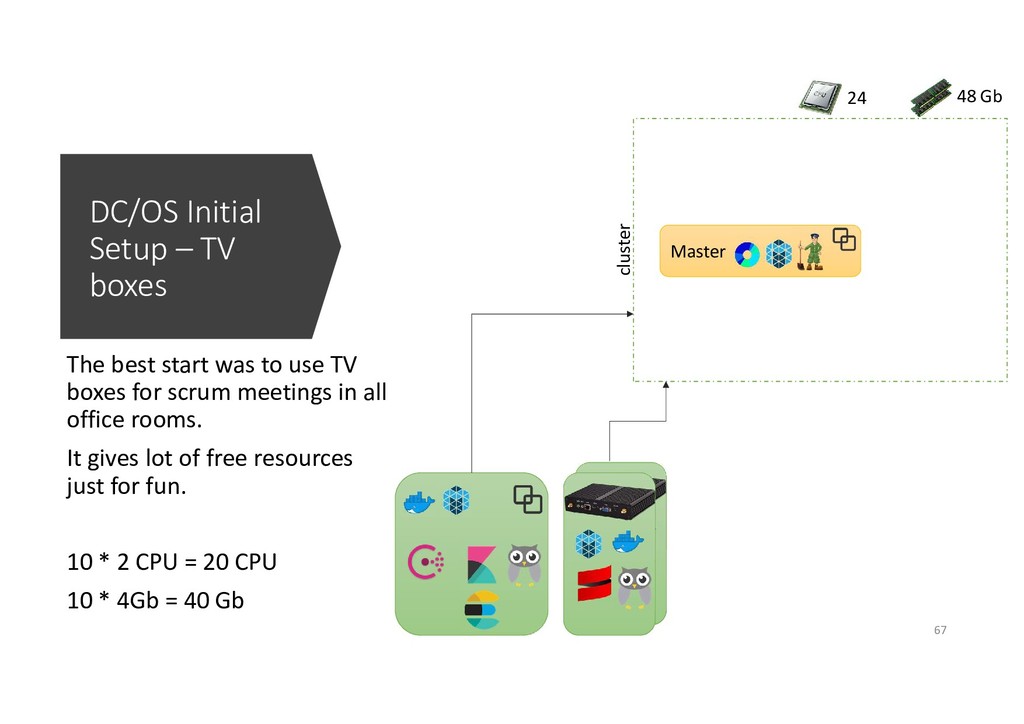

67. DC/OS Initial Setup – TV boxes The best start was to use TV boxes for scrum meetings in all office rooms. It gives lot of free resources just for fun. 10 * 2 CPU = 20 CPU 10 * 4Gb = 40 Gb Master cluster 24 48 Gb 67

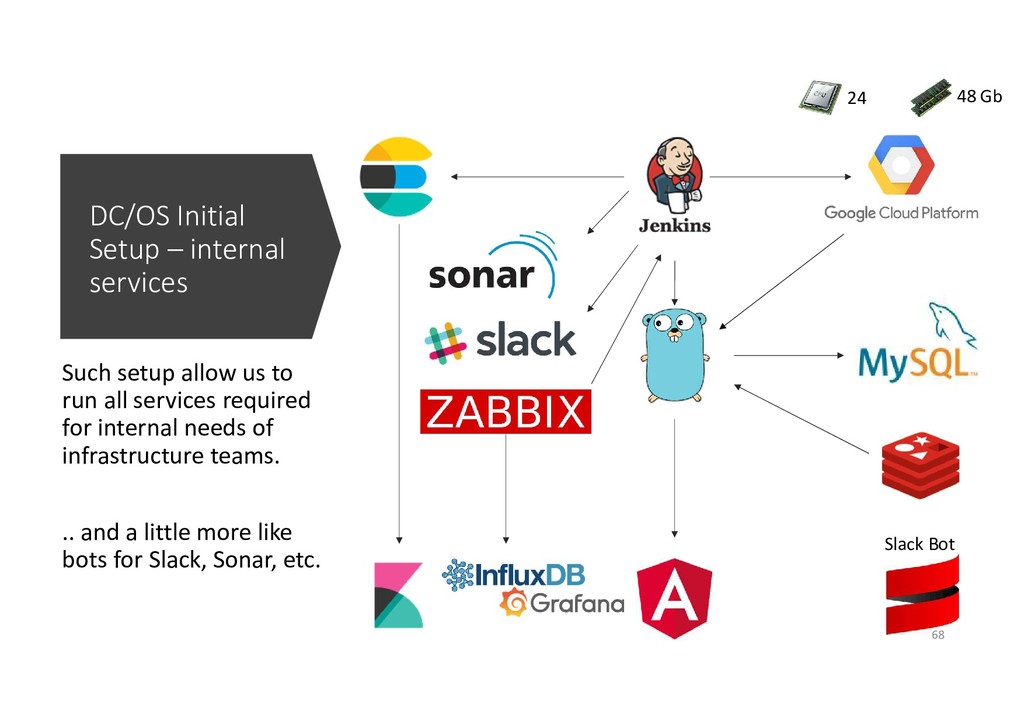

68. DC/OS Initial Setup – internal services Such setup allow us to run all services required for internal needs of infrastructure teams. .. and a little more like bots for Slack, Sonar, etc. 24 48 Gb Slack Bot 68

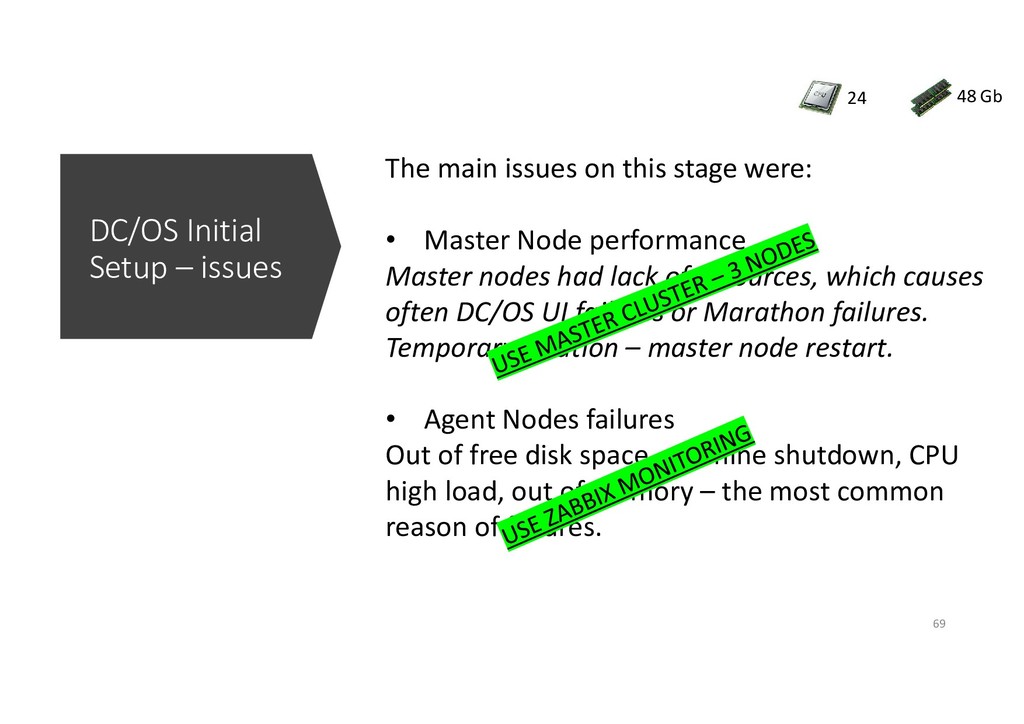

69. DC/OS Initial Setup – issues 24 48 Gb The main issues on this stage were: • Master Node performance Master nodes had lack of resources, which causes often DC/OS UI failures or Marathon failures. Temporary solution – master node restart. • Agent Nodes failures Out of free disk space, machine shutdown, CPU high load, out of memory – the most common reason of failures. 69

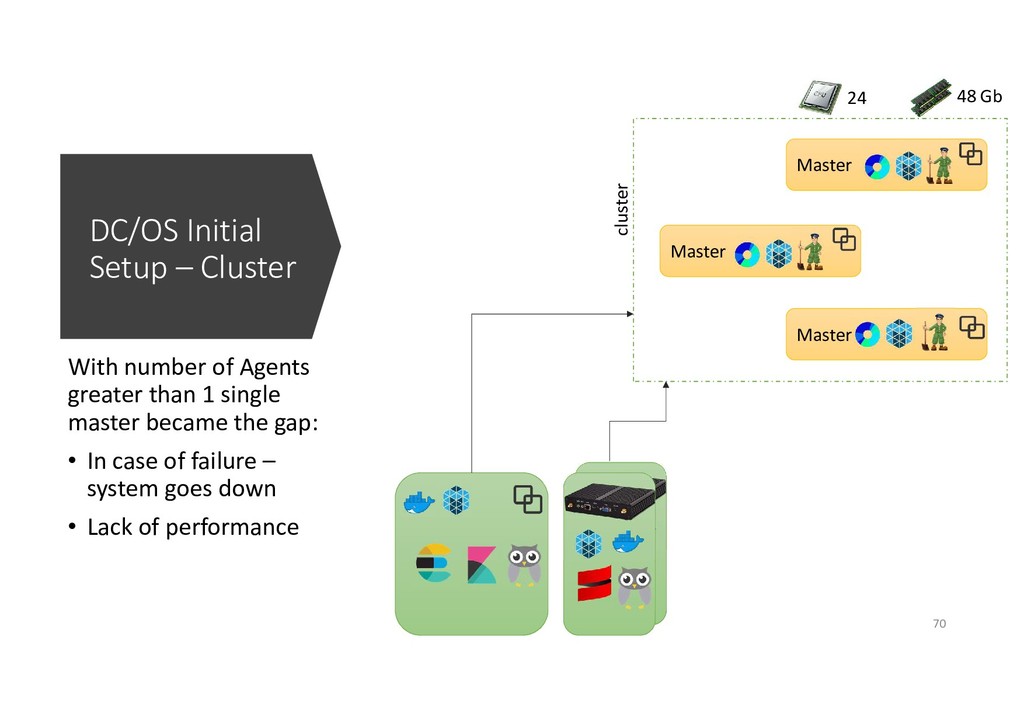

70. DC/OS Initial Setup – Cluster With number of Agents greater than 1 single master became the gap: • In case of failure – system goes down • Lack of performance Master cluster Master Master 24 48 Gb 70

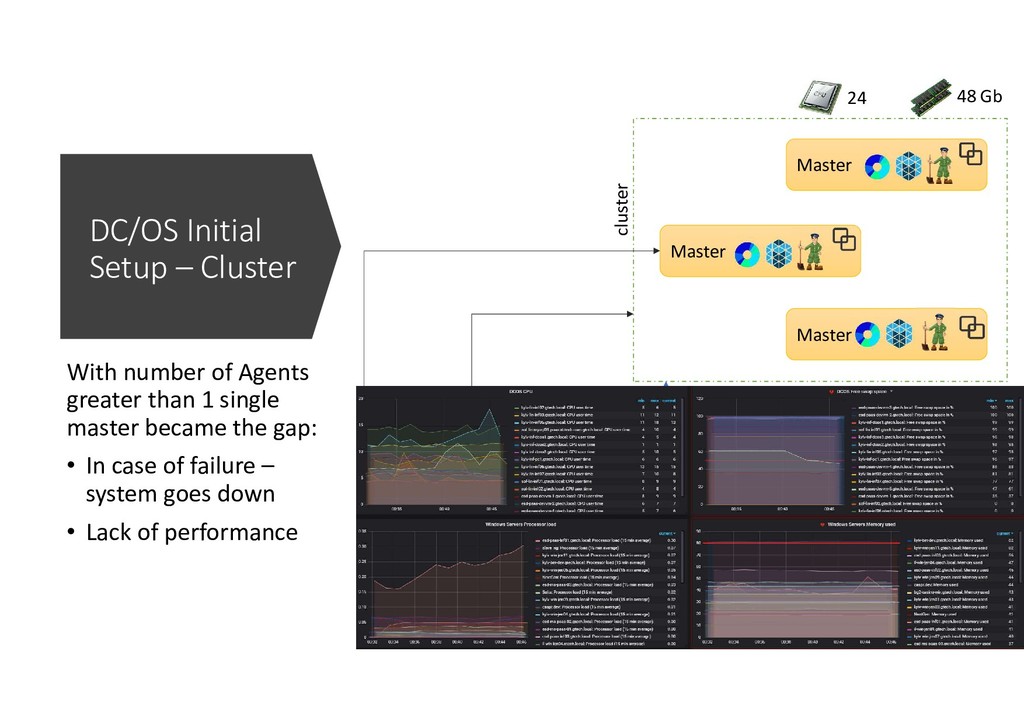

71. DC/OS Initial Setup – Cluster With number of Agents greater than 1 single master became the gap: • In case of failure – system goes down • Lack of performance Master cluster Master Master 24 48 Gb 71
72. DC/OS Initial Setup – Cluster Master cluster Master Master 24 48 Gb With number of Agents greater than 1 single master became the gap: • In case of failure – system goes down • Lack of performance
73. DC/OS Initial Setup – more VMs With current setup, DC/OS became ready for consuming external requests. Master cluster Master Master Dev 40 60 Gb 73
74. DC/OS Initial Setup – Hardware PCs Few dedicated PCs became a cluster member in worker Agent role. Master cluster Master Master DevTeam 60 90 Gb 74

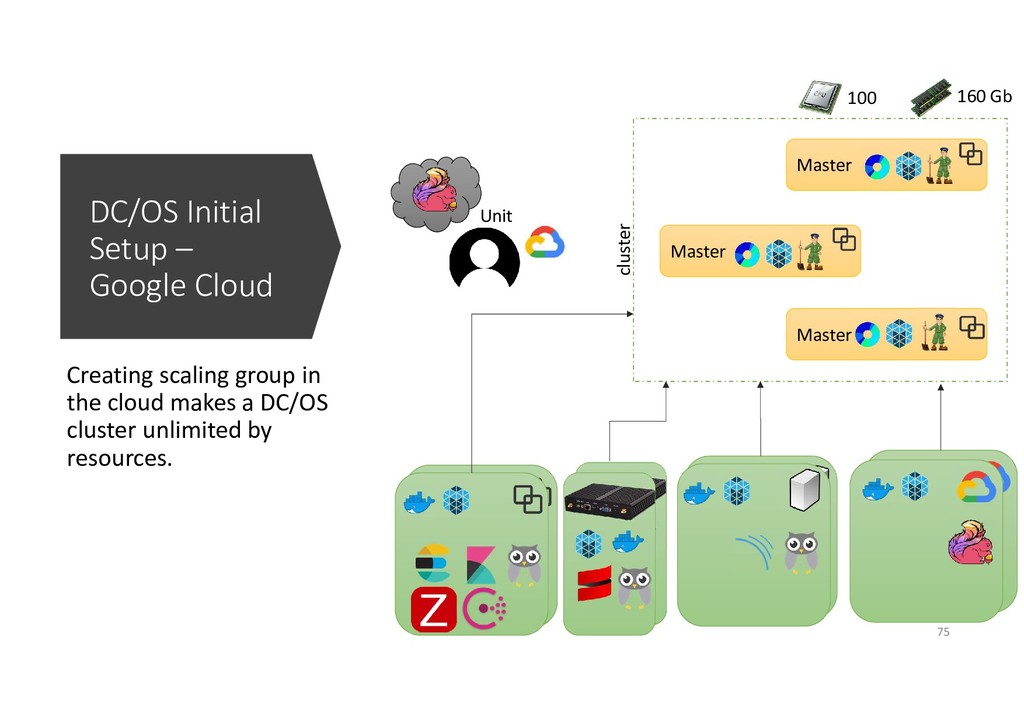

75. DC/OS Initial Setup – Google Cloud Creating scaling group in the cloud makes a DC/OS cluster unlimited by resources. Master cluster Master Master Unit 100 160 Gb 75

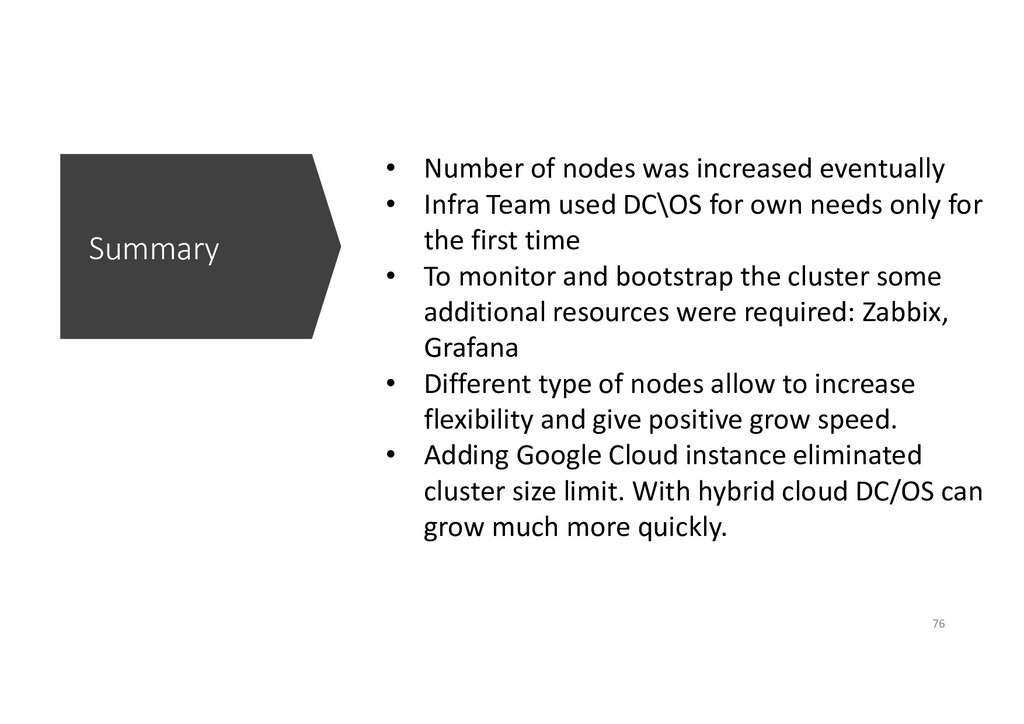

76. Summary • Number of nodes was increased eventually • Infra Team used DC\OS for own needs only for the first time • To monitor and bootstrap the cluster some additional resources were required: Zabbix, Grafana • Different type of nodes allow to increase flexibility and give positive grow speed. • Adding Google Cloud instance eliminated cluster size limit. With hybrid cloud DC/OS can grow much more quickly. 76

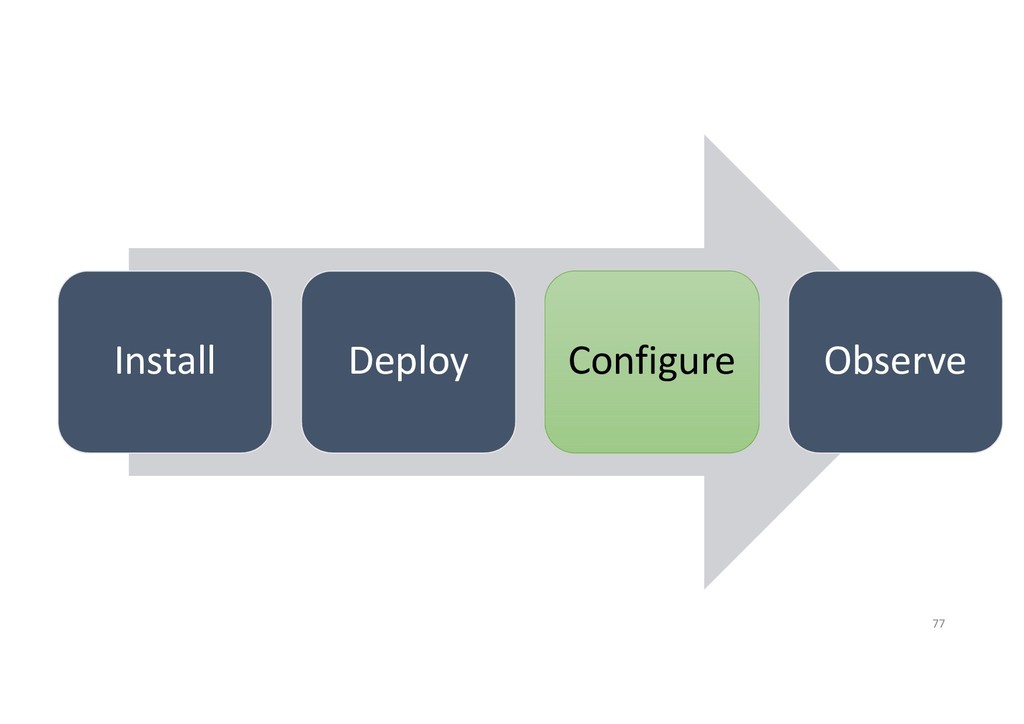

77. Install Deploy Configure Observe 77

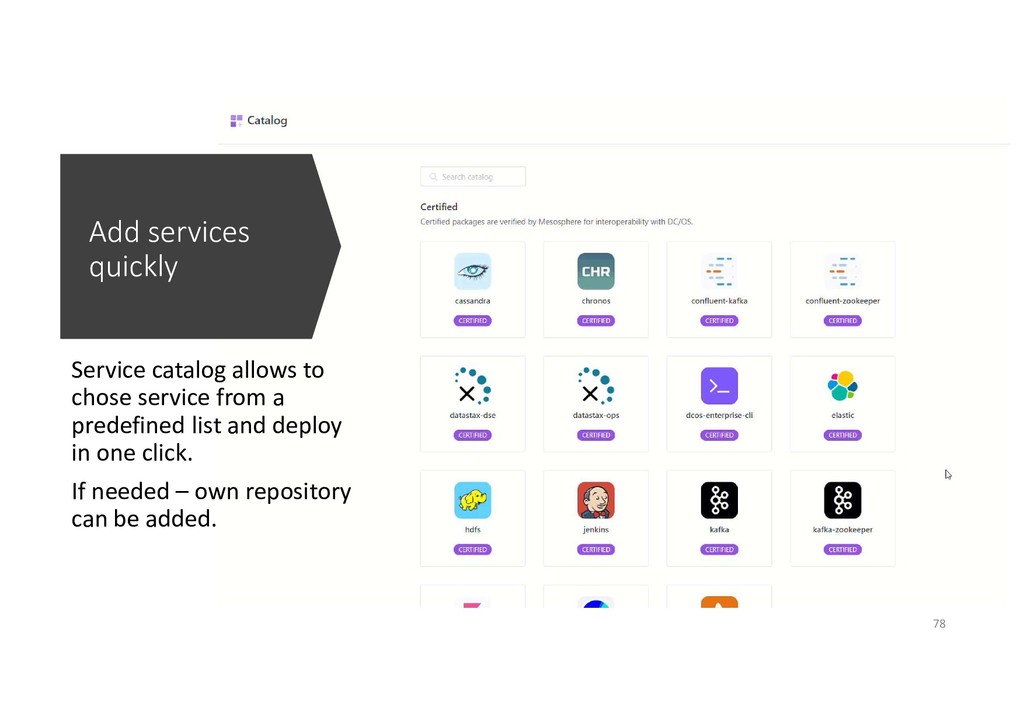

78. Add services quickly Service catalog allows to chose service from a predefined list and deploy in one click. If needed – own repository can be added. 78
79. Add services flexible For all the other cases – Service manual deployment are available 1. Single Container (Docker) 2. Bash runtime 3. Multi-container 79

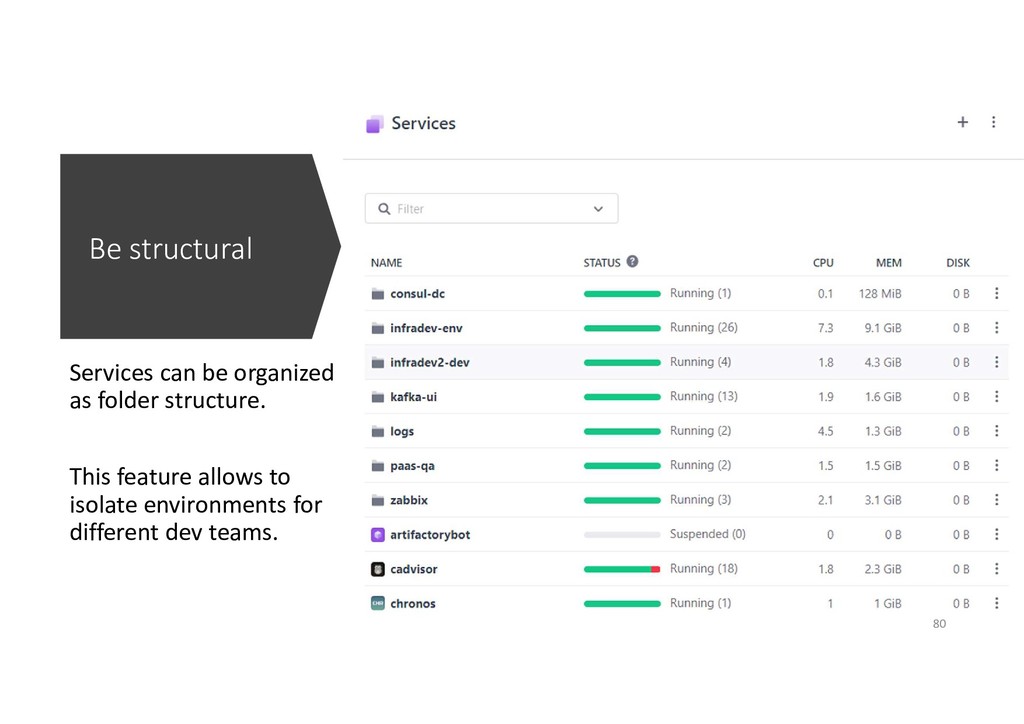

80. Be structural Services can be organized as folder structure. This feature allows to isolate environments for different dev teams. 80

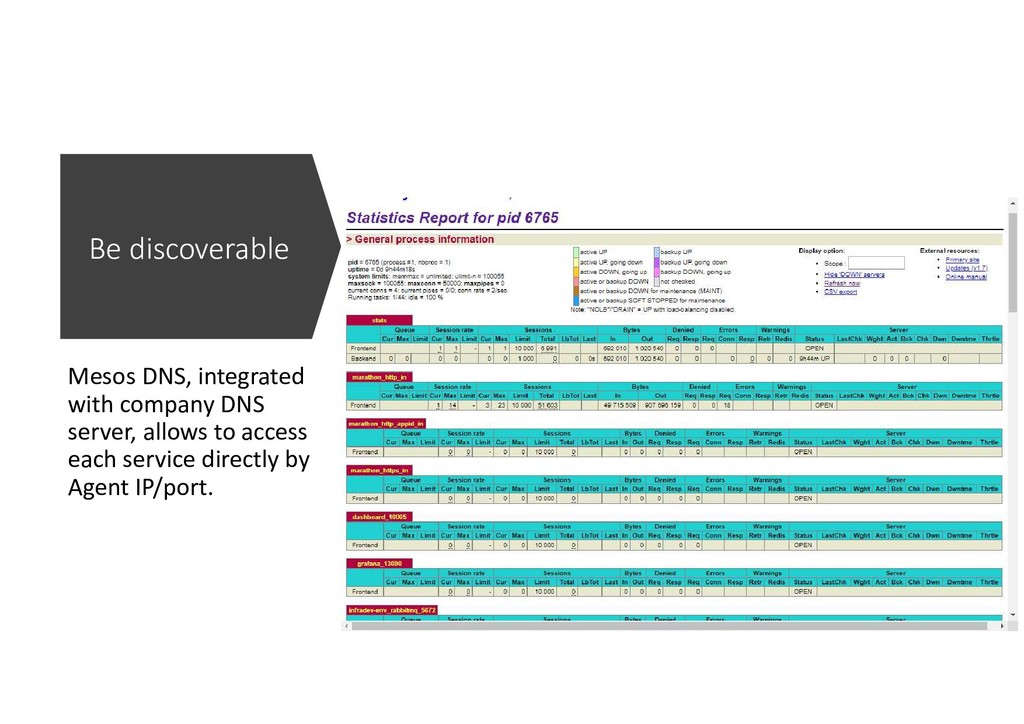

81. Be discoverable Mesos DNS, integrated with company DNS server, allows to access each service directly by Agent IP/port.

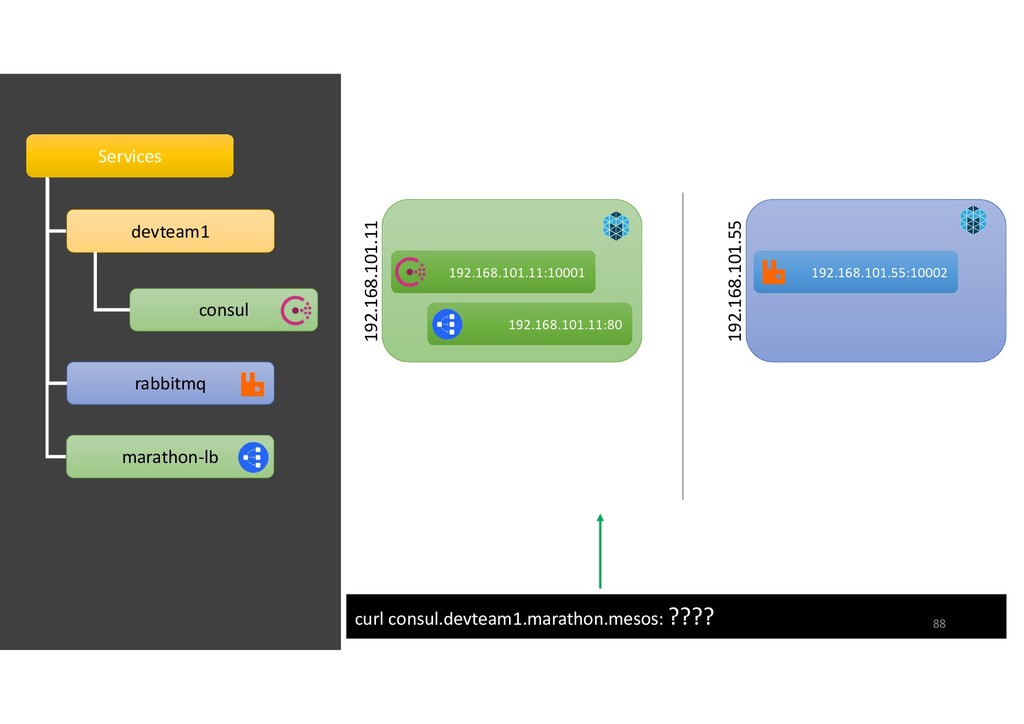

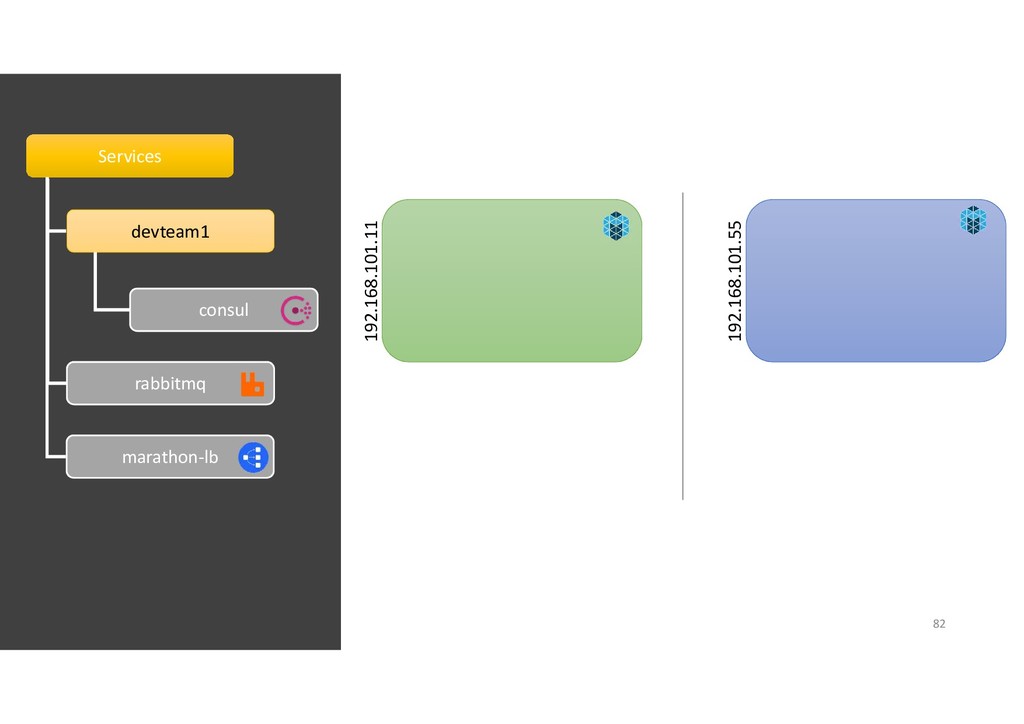

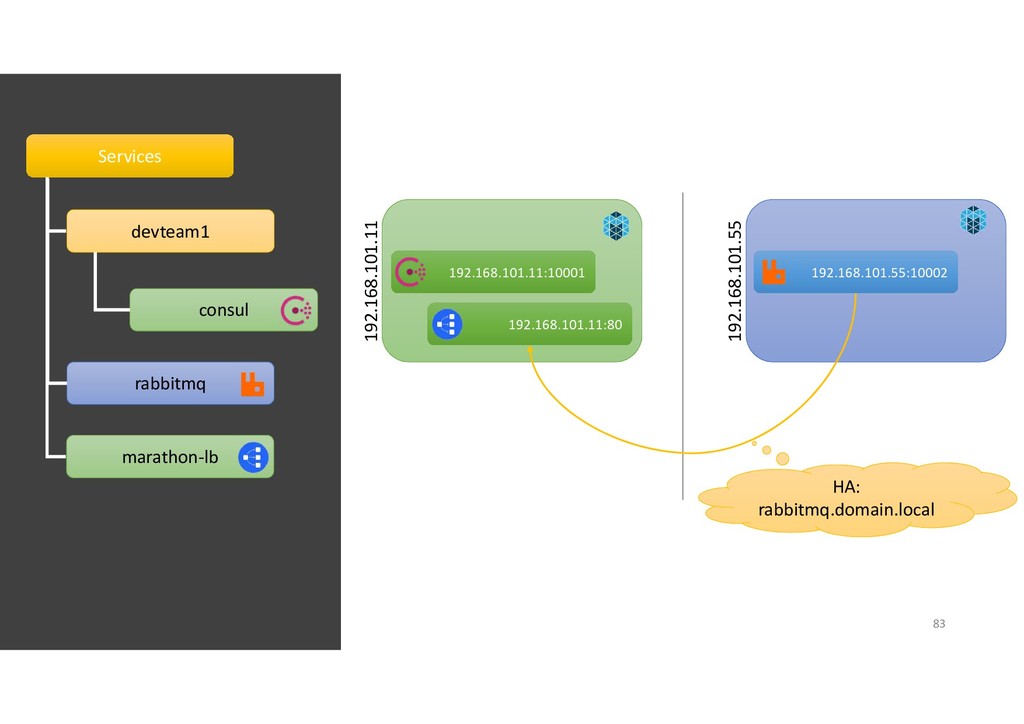

82. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 82
83. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.11:80 192.168.101.11:80 192.168.101.55:10002 192.168.101.55:10002 HA: rabbitmq.domain.local 83
84. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.11:80 192.168.101.11:80 192.168.101.55:10002 192.168.101.55:10002 dig consul.marathon.mesos ???? 84
85. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.11:80 192.168.101.11:80 192.168.101.55:10002 192.168.101.55:10002 dig consul.devteam1.marathon.mesos 85
86. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 dig rabbitmq.marathon.mesos 192.168.101.11:80 192.168.101.11:80 86
87. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 dig rabbitmq.domain.local 192.168.101.11:80 192.168.101.11:80 87
88. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 curl consul.devteam1.marathon.mesos: ???? 192.168.101.11:80 192.168.101.11:80 88
89. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 curl consul.devteam1.marathon.mesos:10001 192.168.101.11:80 192.168.101.11:80 89
90. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 curl rabbitmq.marathon.mesos:10002 192.168.101.11:80 192.168.101.11:80 90
91. Services Services devteam1 consul rabbitmq marathon-lb 192.168.101.11 192.168.101.55 192.168.101.11:10001 192.168.101.11:10001 192.168.101.55:10002 192.168.101.55:10002 curl rabbitmq.domain.local 192.168.101.11:80 192.168.101.11:80 91
92. Summary • DC/OS allows to build complex DEV/UAT environments bases on Docker infrastructure • The simplest way of deployment – Universe Catalog with well known services deployed in one click. • Each service can be placed to a separated folder. • Mesos DNS includes full folder structure in service DNS name. • Marathon-LB allows to proxy any external call thought HA Proxy to target service instance (transforming IP and Port) 92
93. Is there life after delivery? Sure, service life only begins here …

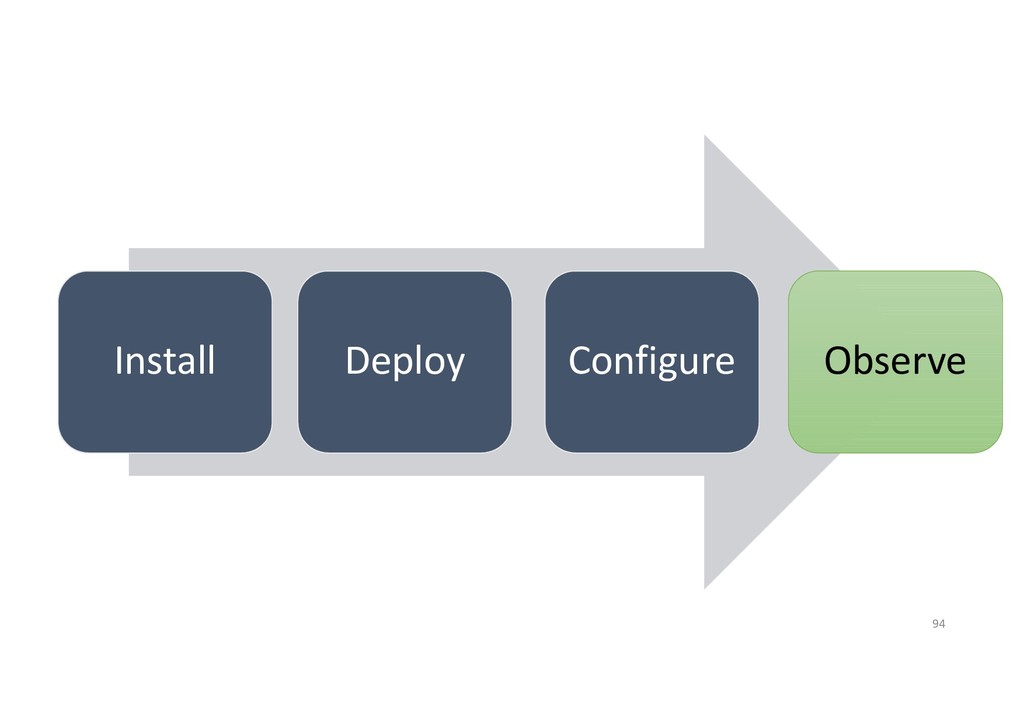

94. Install Deploy Configure Observe 94
95. Master Nodes Migration 95
96. Cluster breath Nodes health uncertainty Service mobility 96
97. Mesos lost tasks 97
98. DC/OS often releases 98
99. Be careful with Zookeeper 99
100. Scale your services 100
101. Afterword Short summary

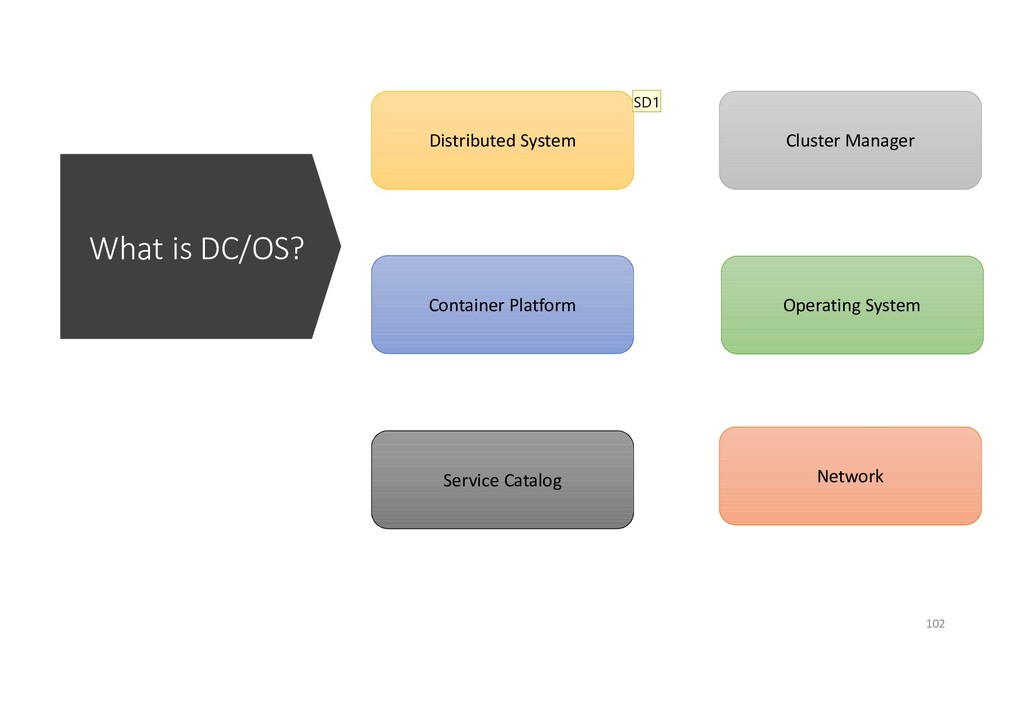

102. What is DC/OS? Distributed System Cluster Manager Container Platform Operating System Service Catalog Network 102 SD1

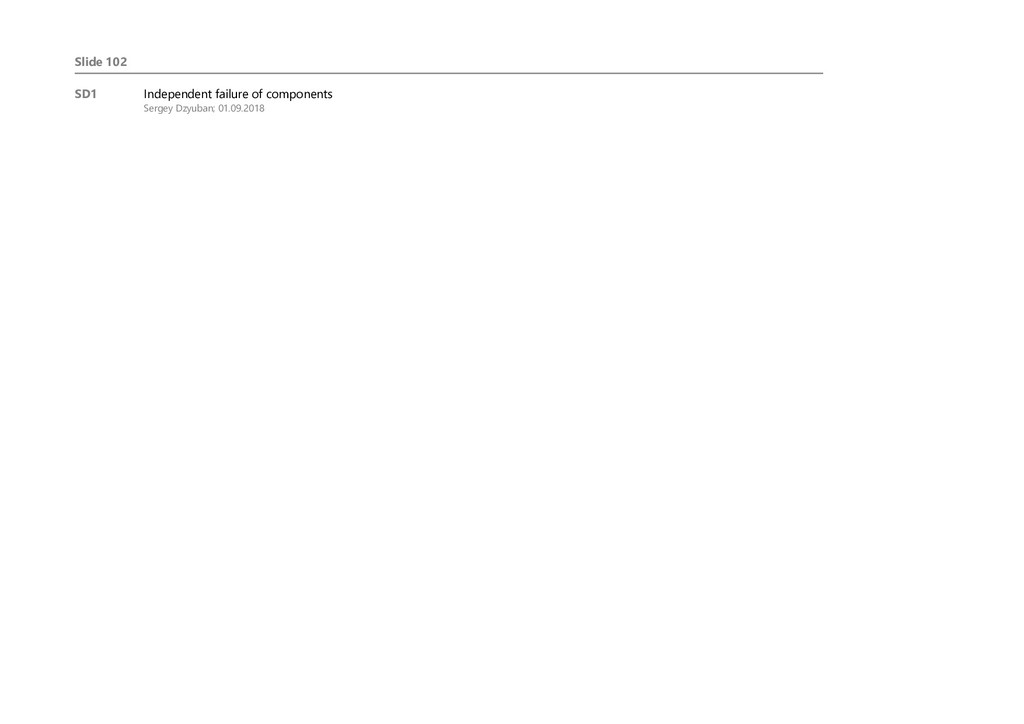

103. Slide 102 SD1 Independent failure of components Sergey Dzyuban; 01.09.2018

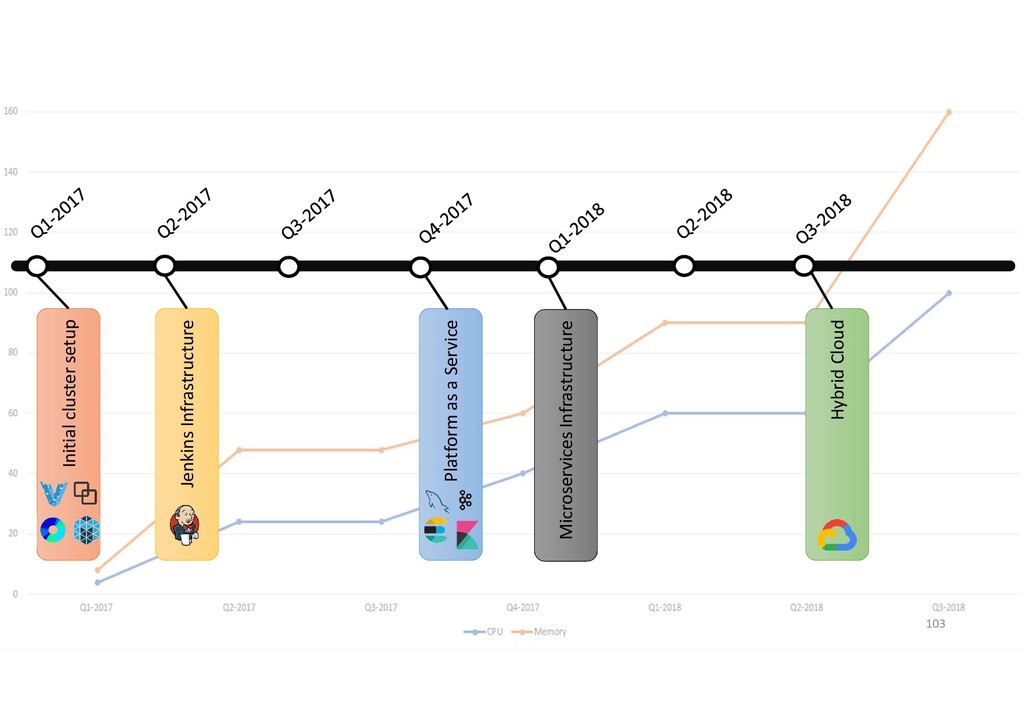

104. Initial cluster setup Jenkins Infrastructure Platform as a Service Microservices Infrastructure Hybrid Cloud 103

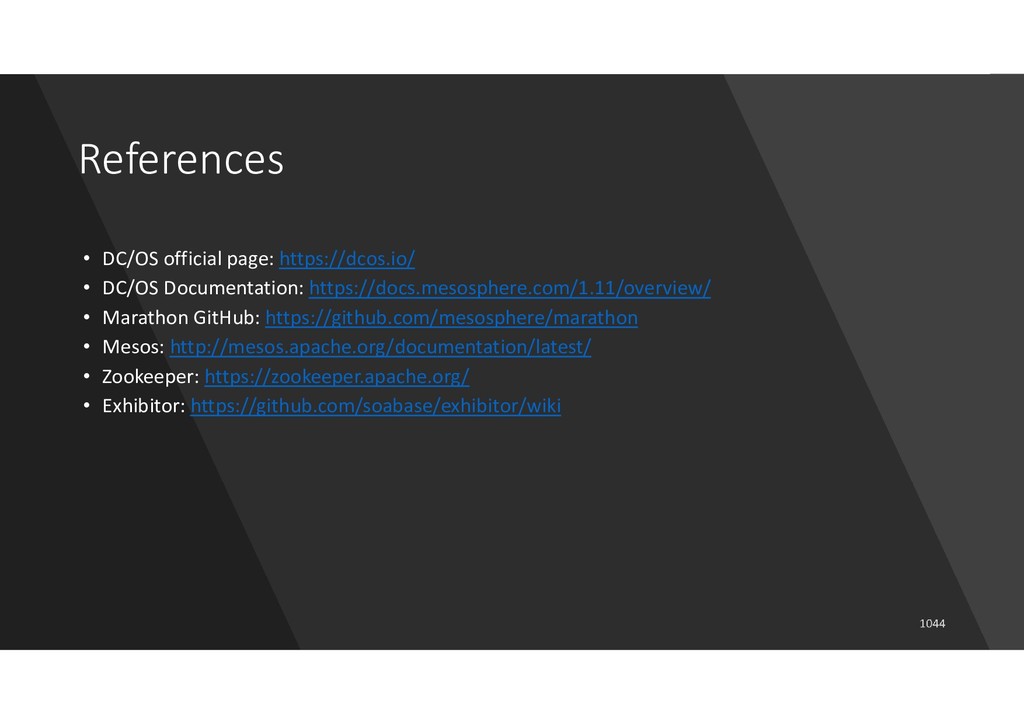

105. References • DC/OS official page: https://dcos.io/ • DC/OS Documentation: https://docs.mesosphere.com/1.11/overview/ • Marathon GitHub: https://github.com/mesosphere/marathon • Mesos: http://mesos.apache.org/documentation/latest/ • Zookeeper: https://zookeeper.apache.org/ • Exhibitor: https://github.com/soabase/exhibitor/wiki
