Continuous delivery with open source tools

Presented at Fossasia 2014 in Phnom Penh Cambodia

Transcript

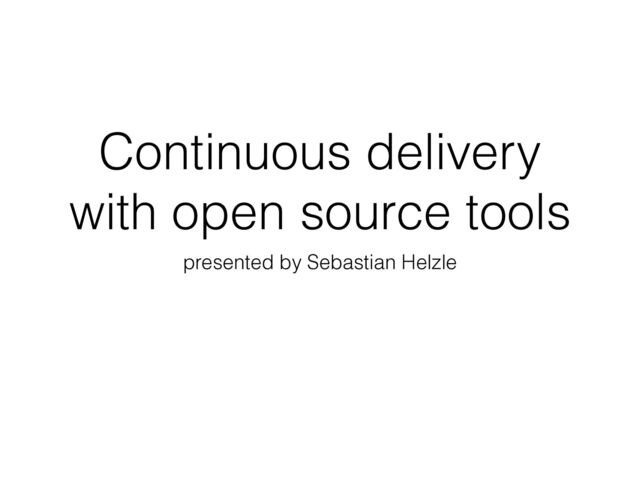

1. Continuous delivery with open source tools presented by Sebastian Helzle

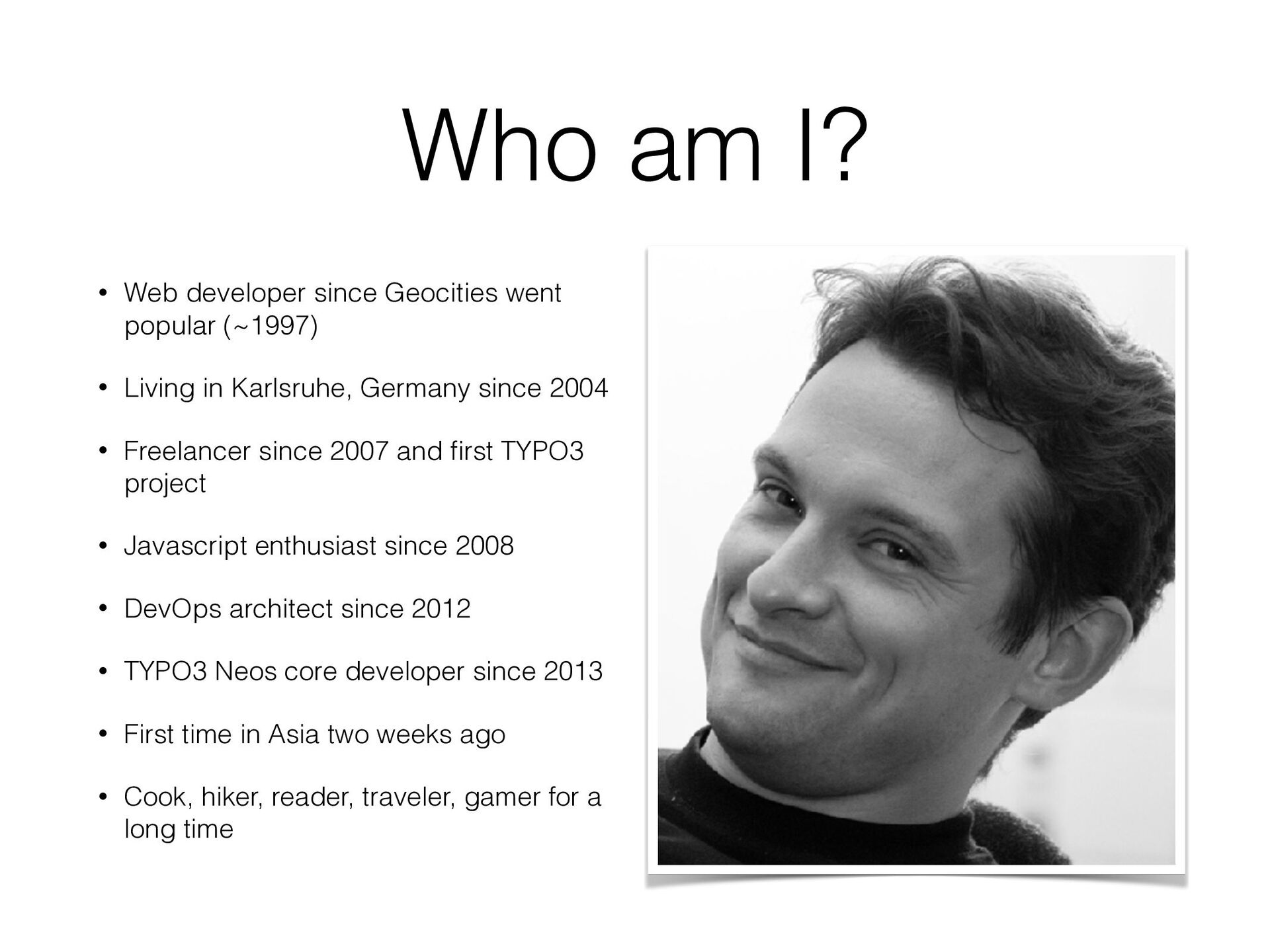

2. Who am I? • Web developer since Geocities went popular (~1997) • Living in Karlsruhe, Germany since 2004 • Freelancer since 2007 and fi rst TYPO3 project • Javascript enthusiast since 2008 • DevOps architect since 2012 • TYPO3 Neos core developer since 2013 • First time in Asia two weeks ago • Cook, hiker, reader, traveler, gamer for a long time

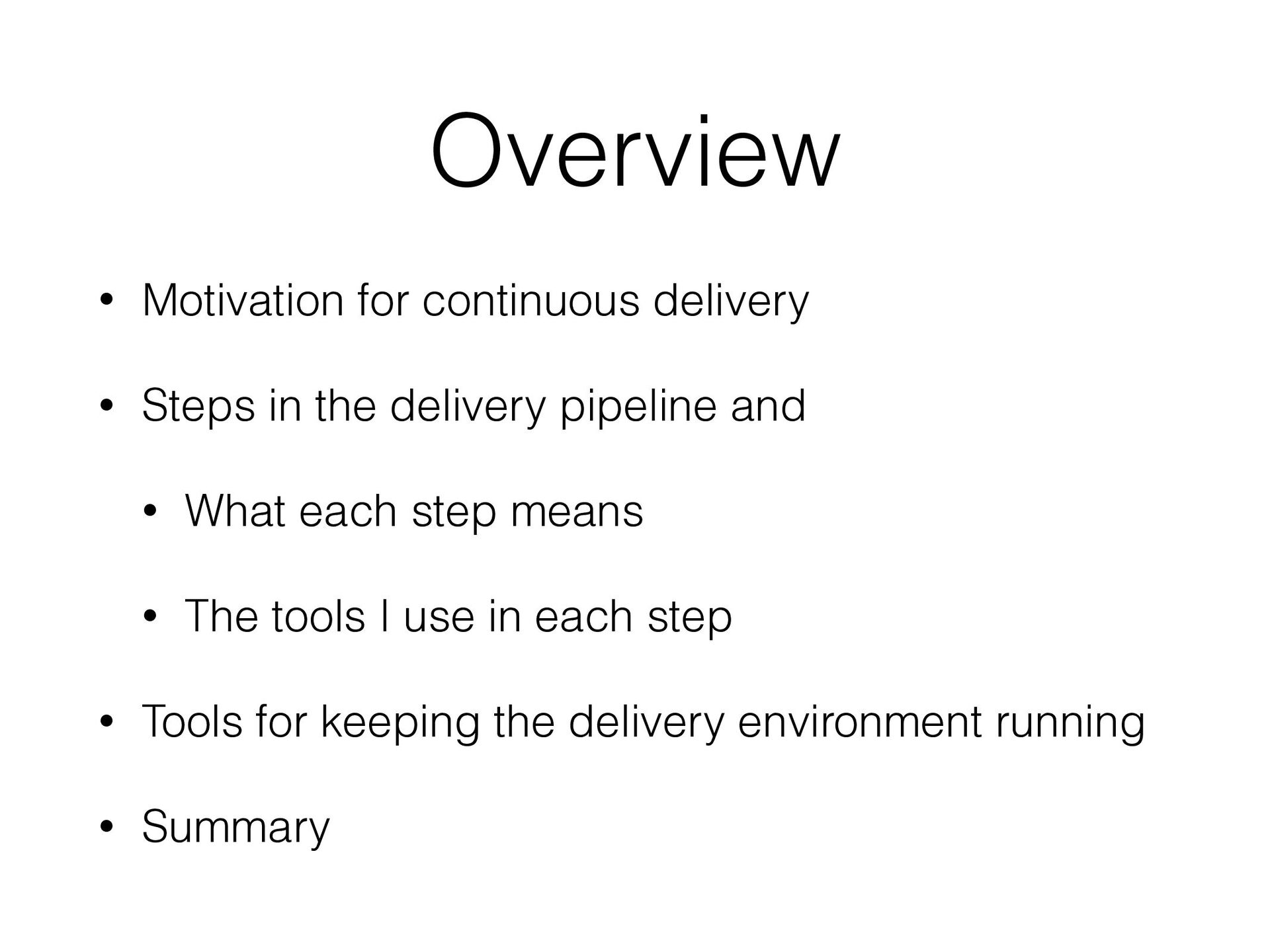

3. Overview • Motivation for continuous delivery • Steps in the delivery pipeline and • What each step means • The tools I use in each step • Tools for keeping the delivery environment running • Summary

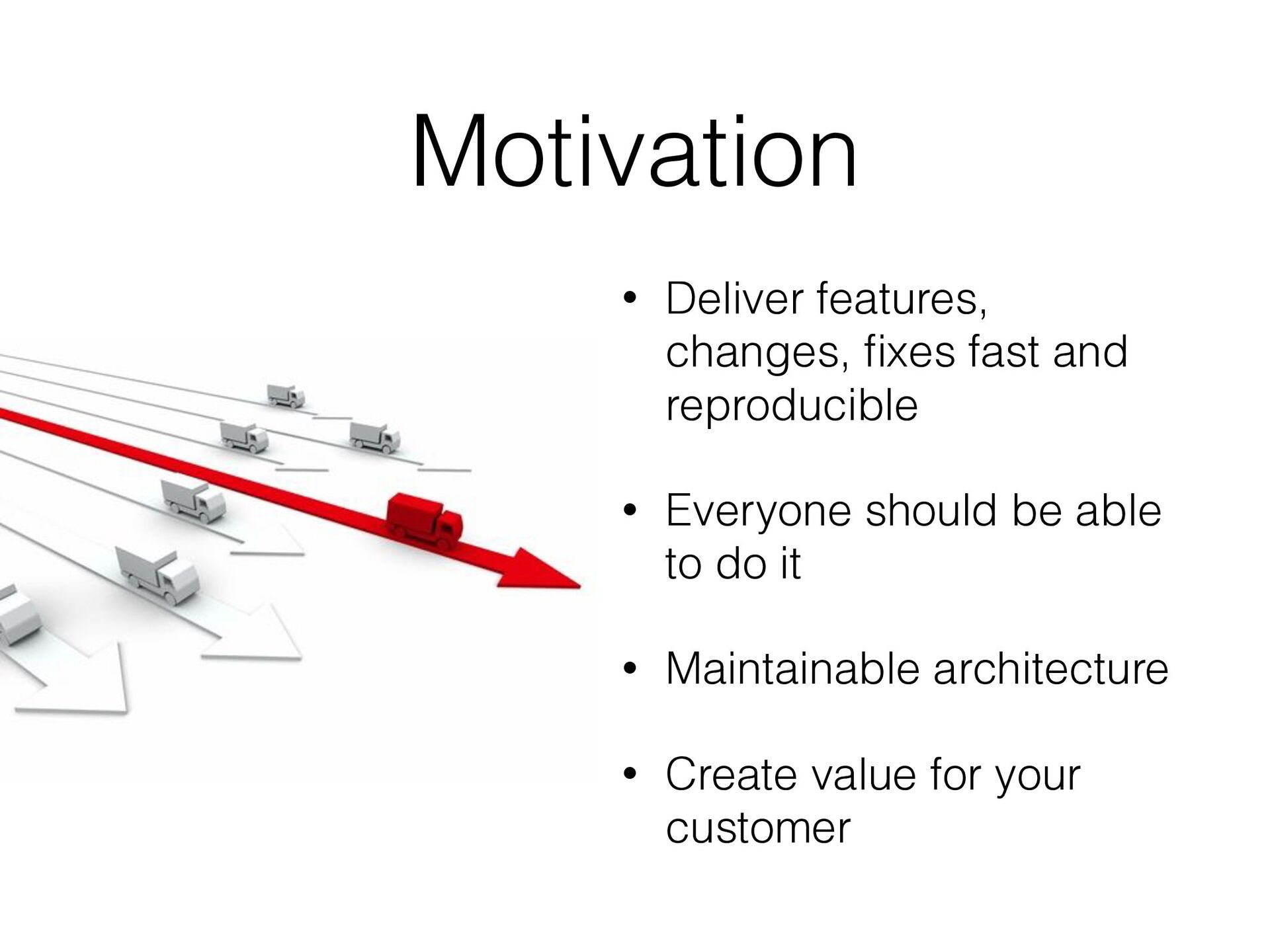

4. Motivation • Deliver features, changes, fi xes fast and reproducible • Everyone should be able to do it • Maintainable architecture • Create value for your customer

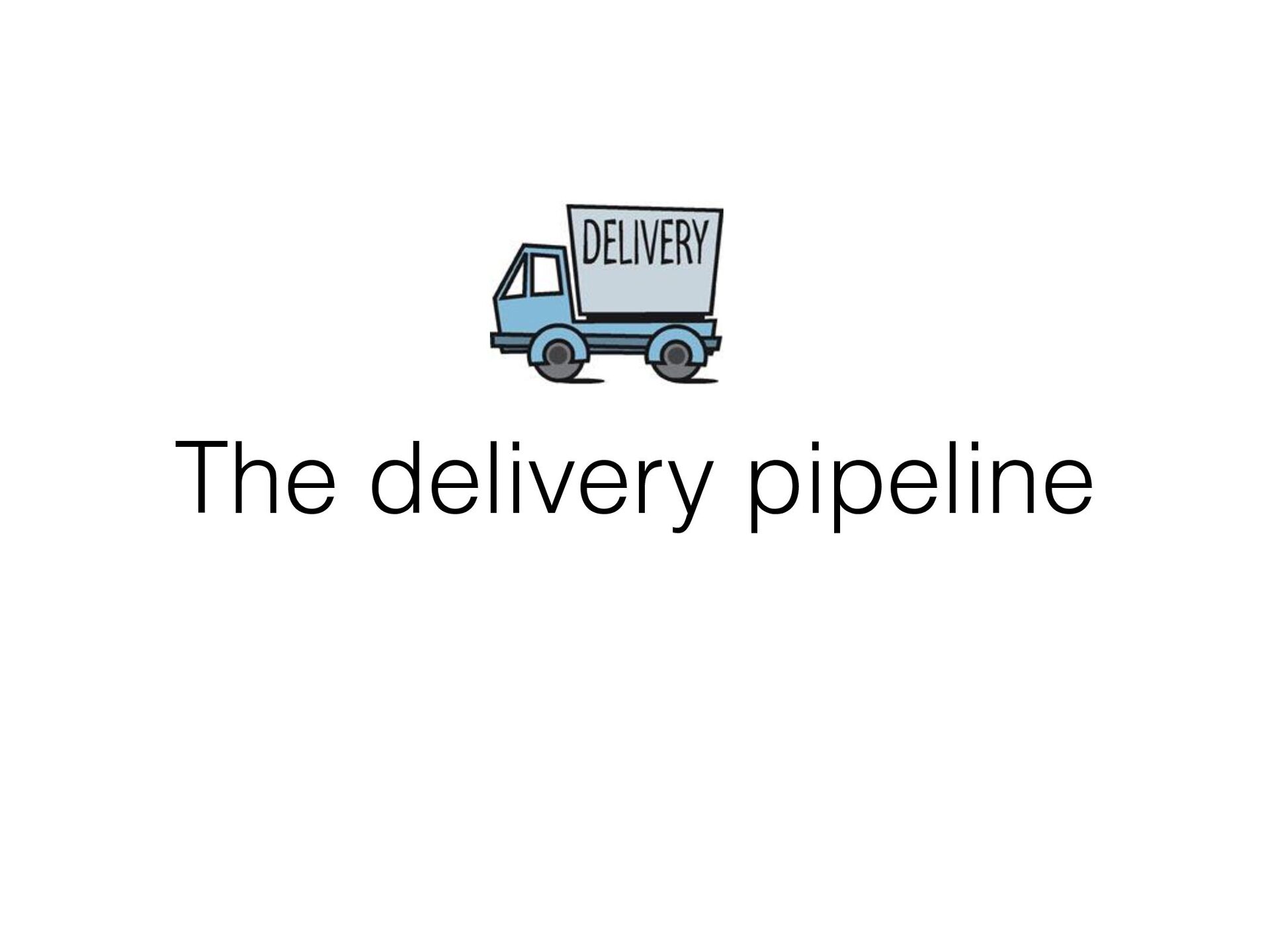

5. The delivery pipeline
6. Code repository Automated builds Automatic tests Deployment Production Agile teams Reporting Approval Feedback & Monitoring
7. Agile teams

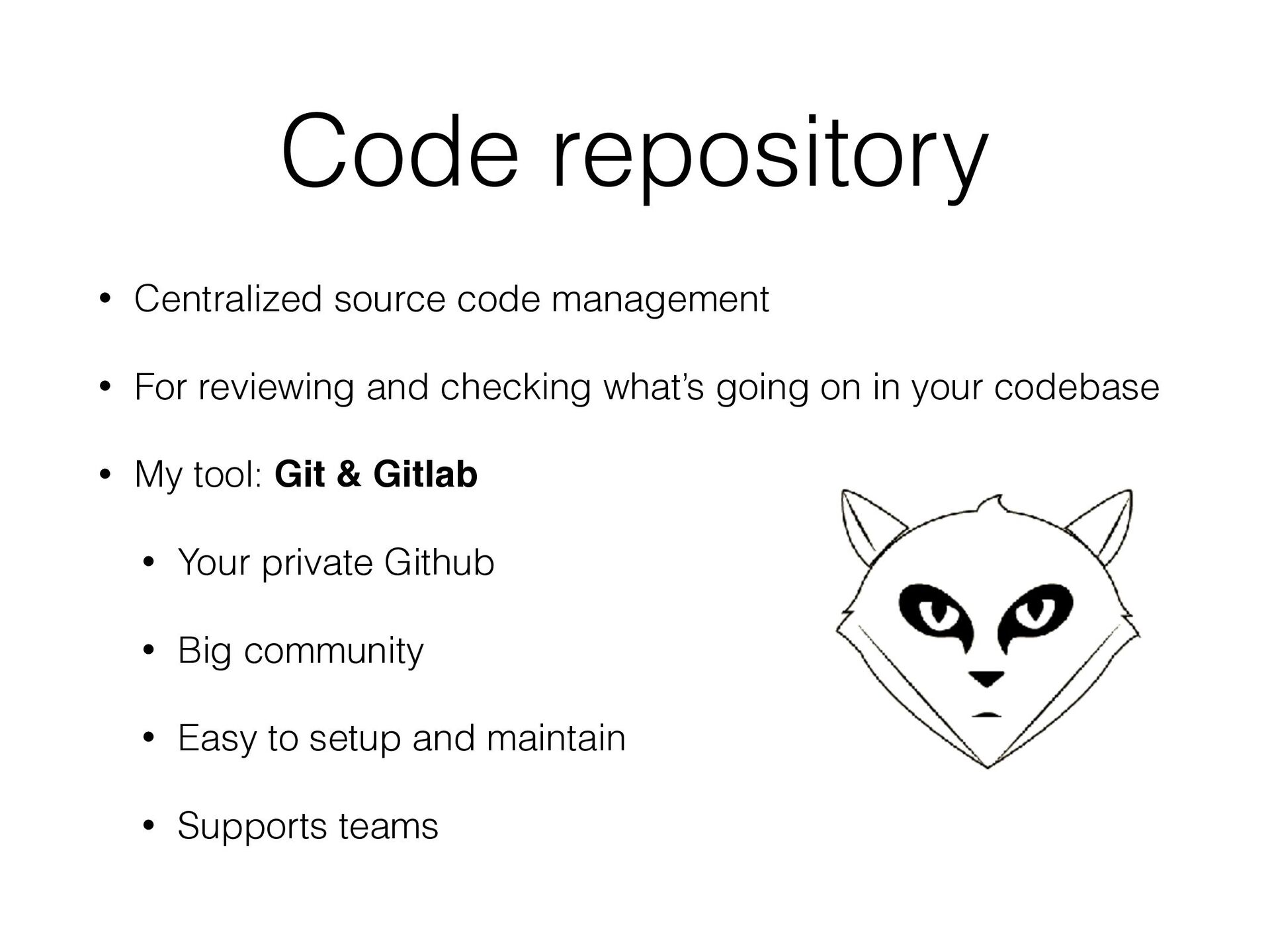

8. Code repository • Centralized source code management • For reviewing and checking what’s going on in your codebase • My tool: Git & Gitlab • Your private Github • Big community • Easy to setup and maintain • Supports teams

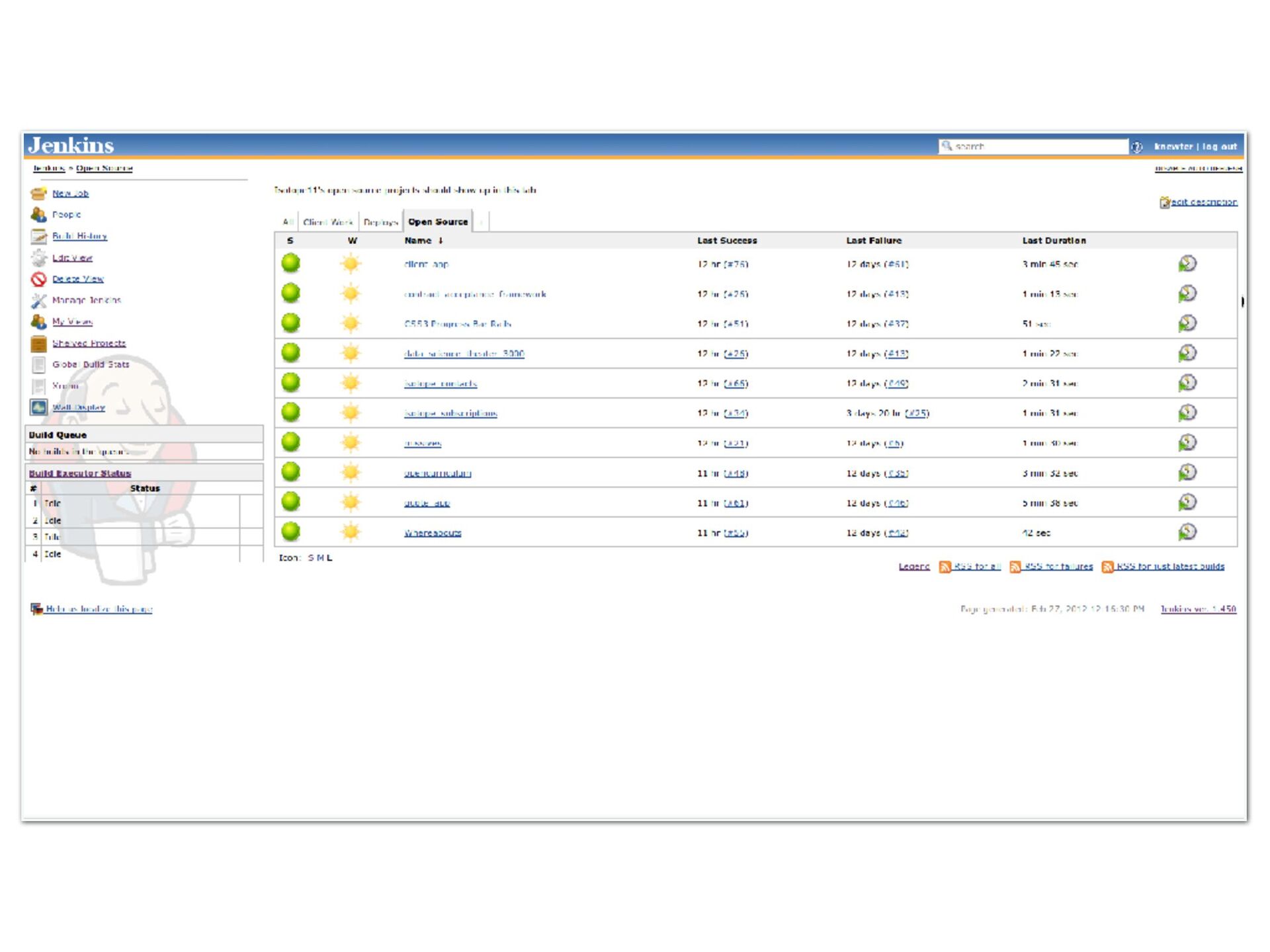

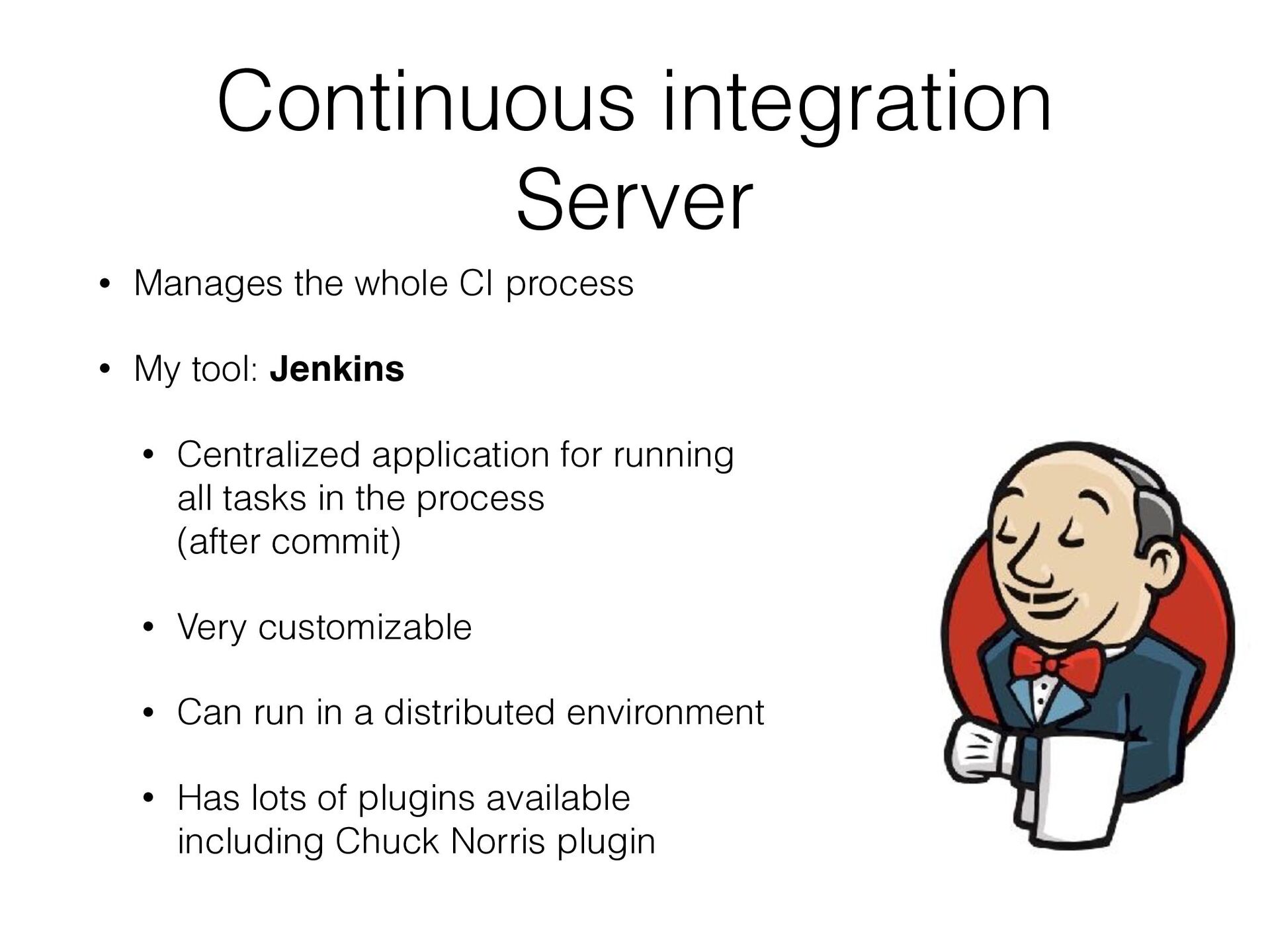

9. Continuous integration Server • Manages the whole CI process • My tool: Jenkins • Centralized application for running all tasks in the process (after commit) • Very customizable • Can run in a distributed environment • Has lots of plugins available including Chuck Norris plugin

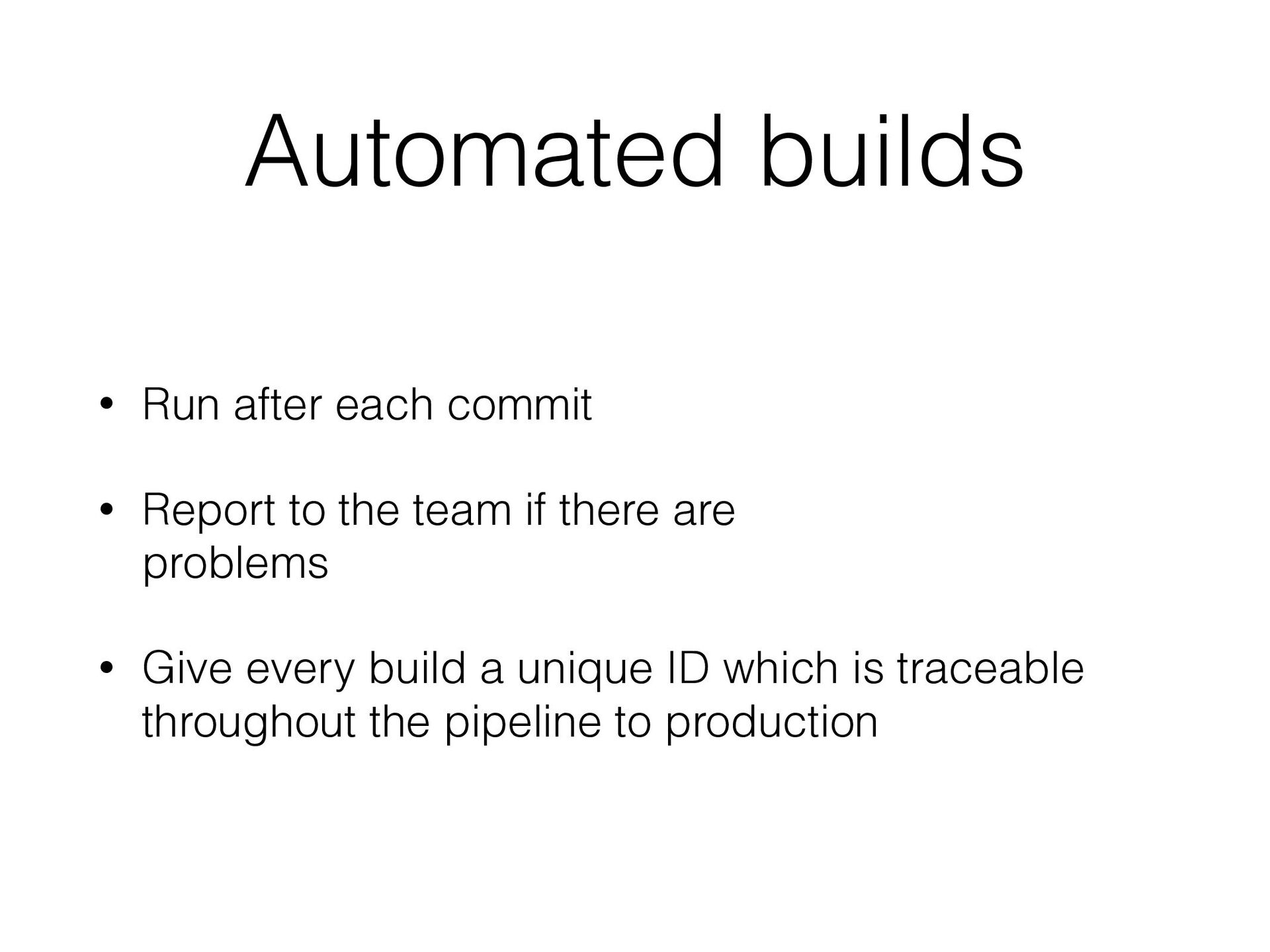

10. Automated builds • Run after each commit • Report to the team if there are problems • Give every build a unique ID which is traceable throughout the pipeline to production

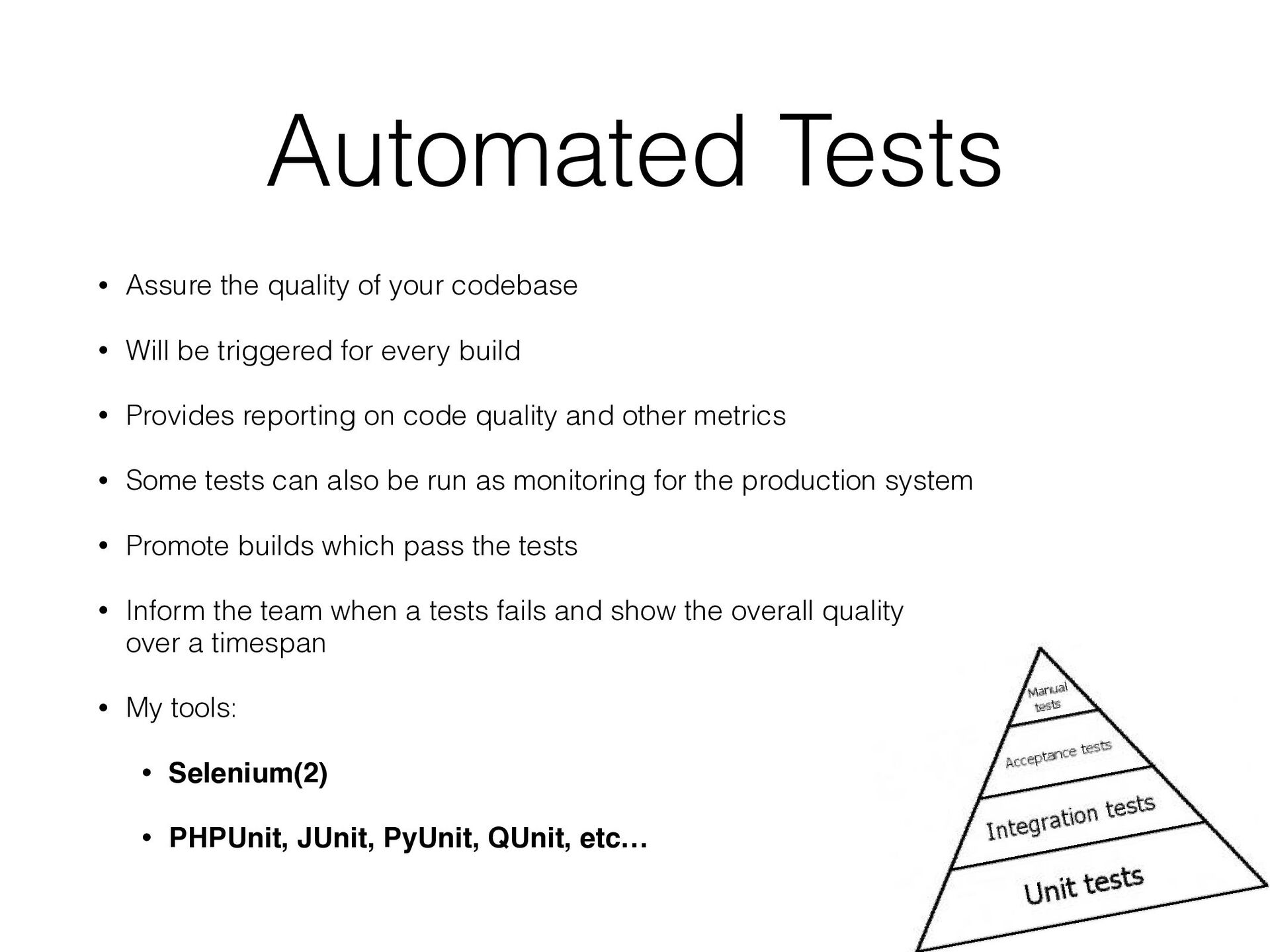

12. Automated Tests • Assure the quality of your codebase • Will be triggered for every build • Provides reporting on code quality and other metrics • Some tests can also be run as monitoring for the production system • Promote builds which pass the tests • Inform the team when a tests fails and show the overall quality over a timespan • My tools: • Selenium(2) • PHPUnit, JUnit, PyUnit, QUnit, etc…

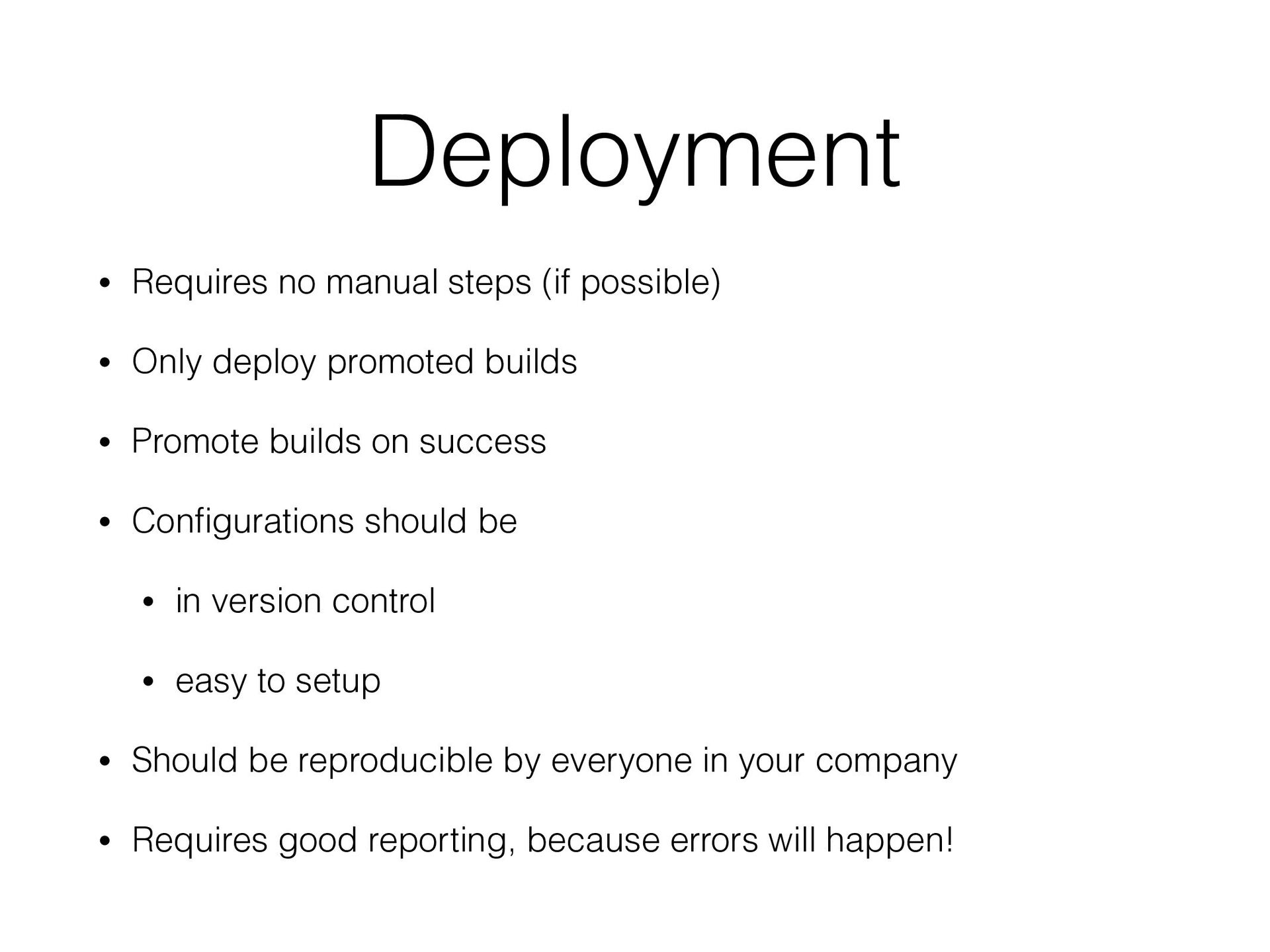

14. Deployment • Requires no manual steps (if possible) • Only deploy promoted builds • Promote builds on success • Con fi gurations should be • in version control • easy to setup • Should be reproducible by everyone in your company • Requires good reporting, because errors will happen!

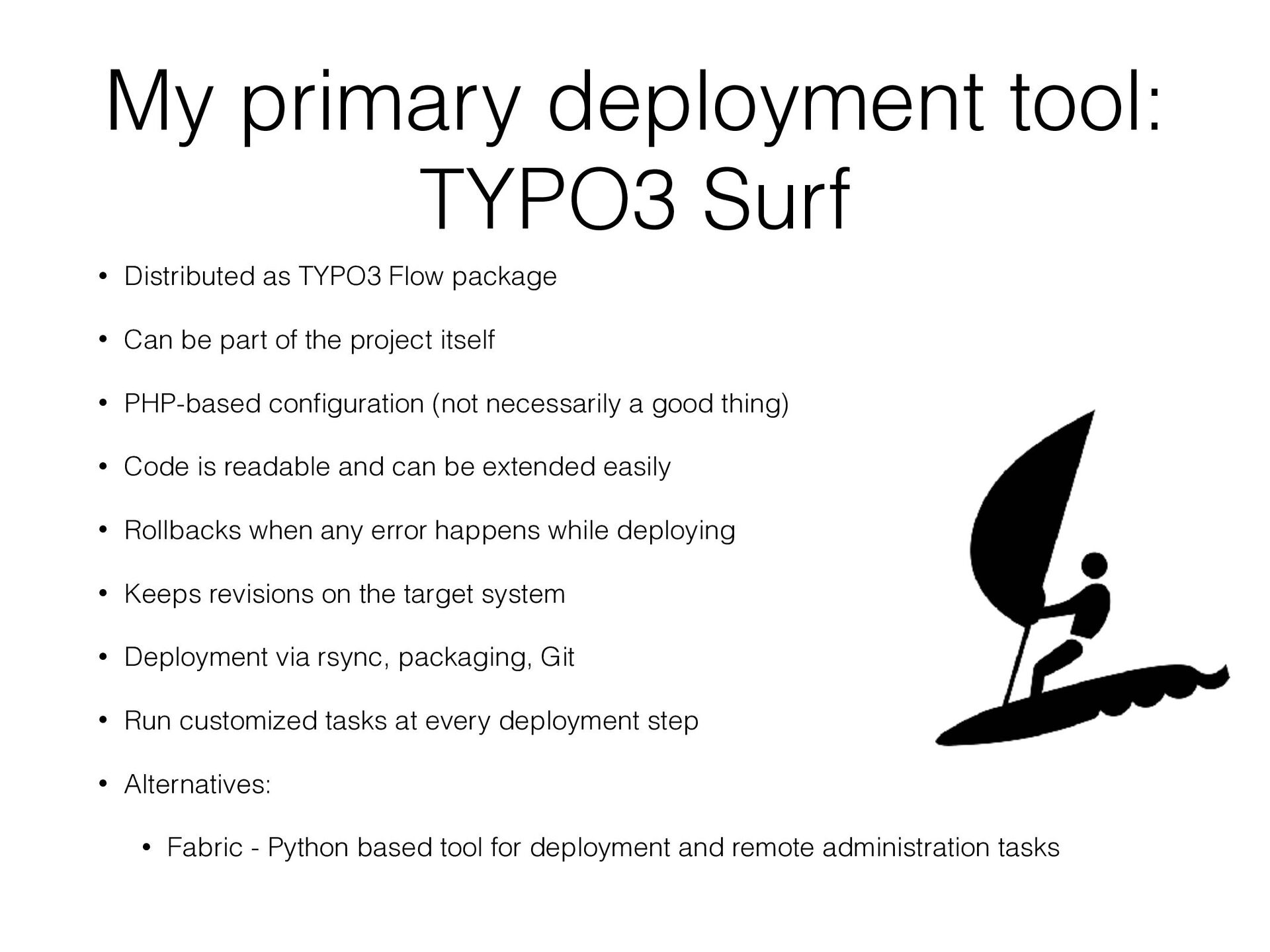

15. My primary deployment tool: TYPO3 Surf • Distributed as TYPO3 Flow package • Can be part of the project itself • PHP-based con fi guration (not necessarily a good thing) • Code is readable and can be extended easily • Rollbacks when any error happens while deploying • Keeps revisions on the target system • Deployment via rsync, packaging, Git • Run customized tasks at every deployment step • Alternatives: • Fabric - Python based tool for deployment and remote administration tasks

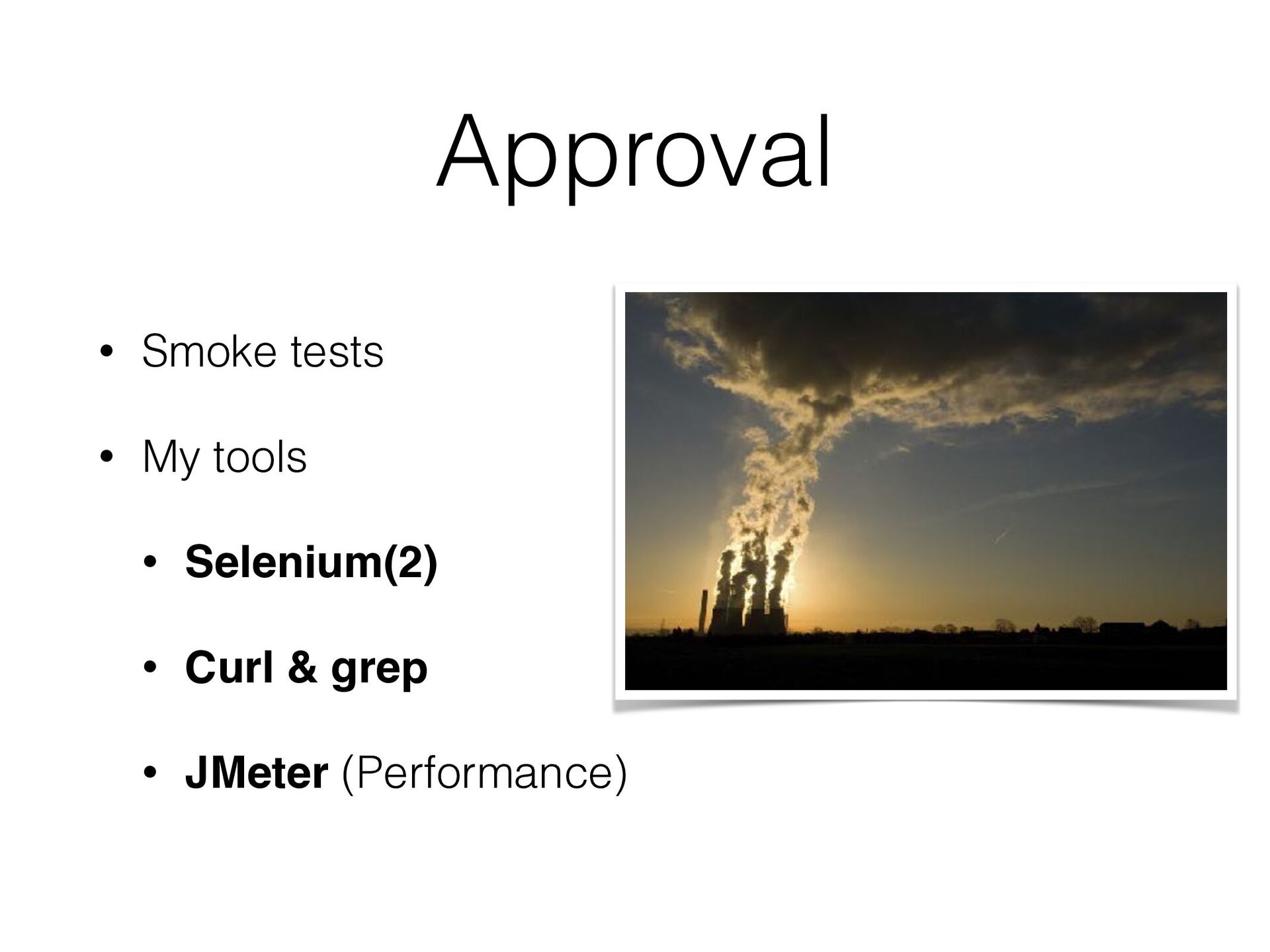

16. Approval • Smoke tests • My tools • Selenium(2) • Curl & grep • JMeter (Performance)

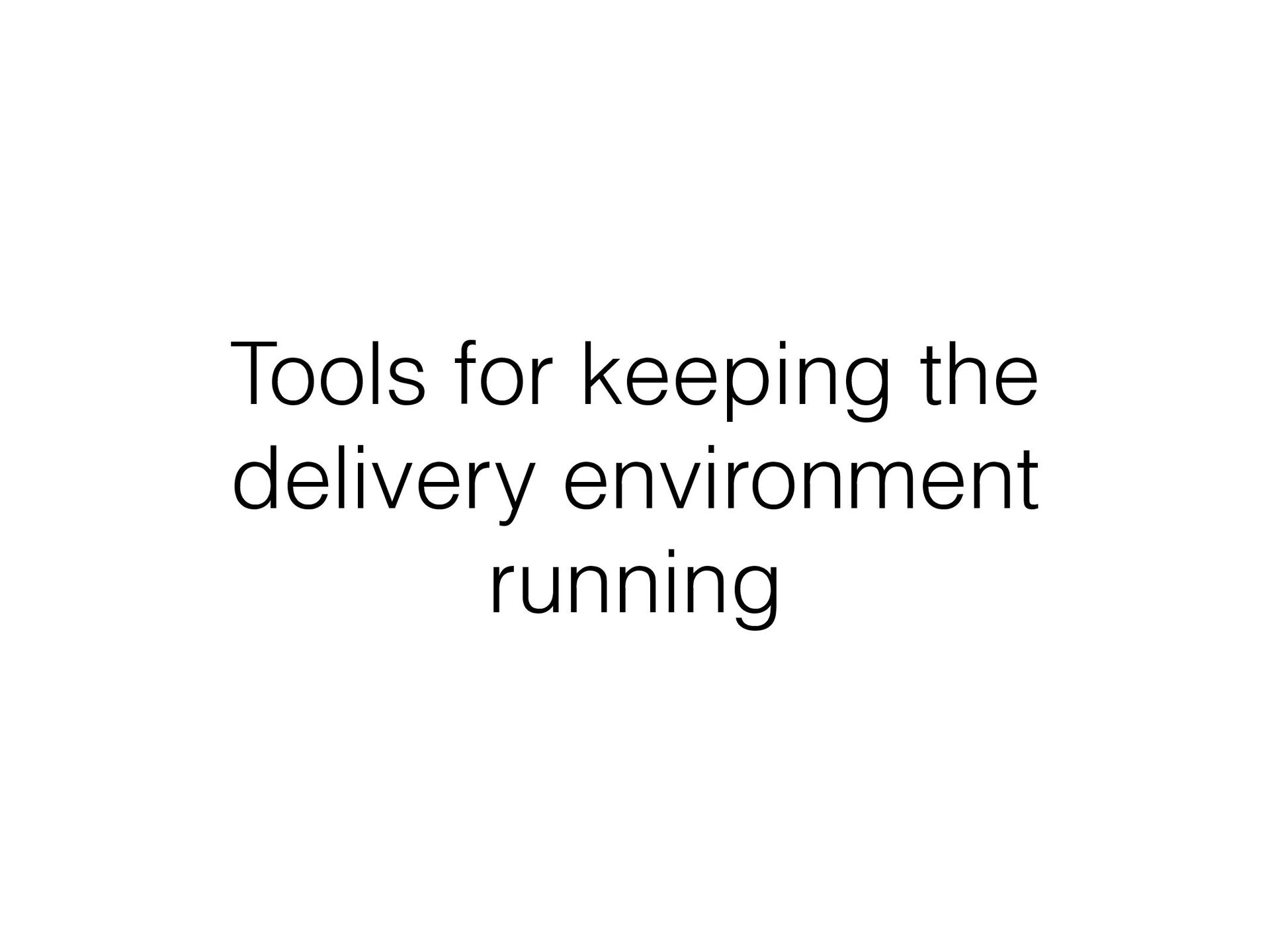

17. Tools for keeping the delivery environment running

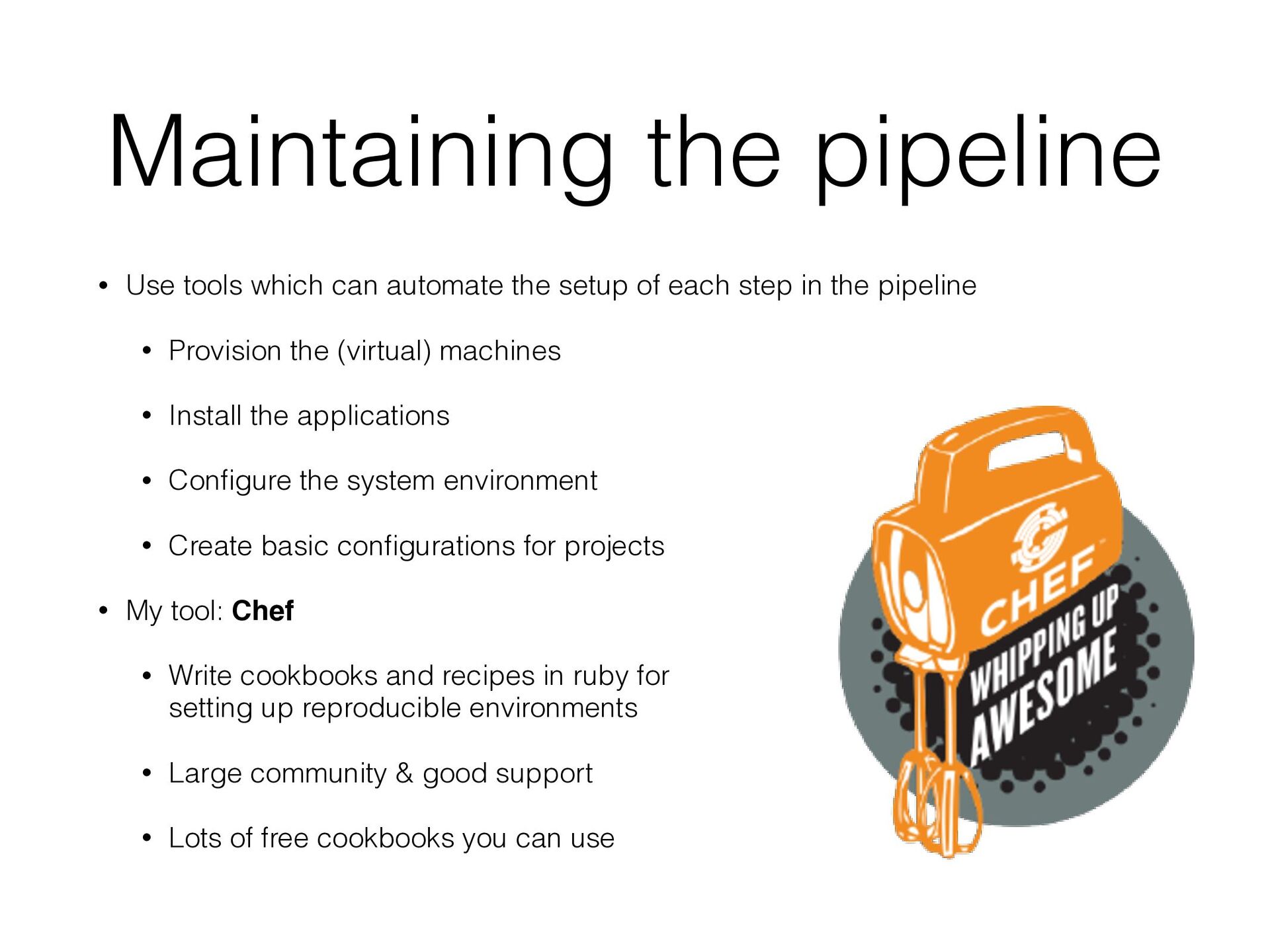

18. Maintaining the pipeline • Use tools which can automate the setup of each step in the pipeline • Provision the (virtual) machines • Install the applications • Con fi gure the system environment • Create basic con fi gurations for projects • My tool: Chef • Write cookbooks and recipes in ruby for setting up reproducible environments • Large community & good support • Lots of free cookbooks you can use

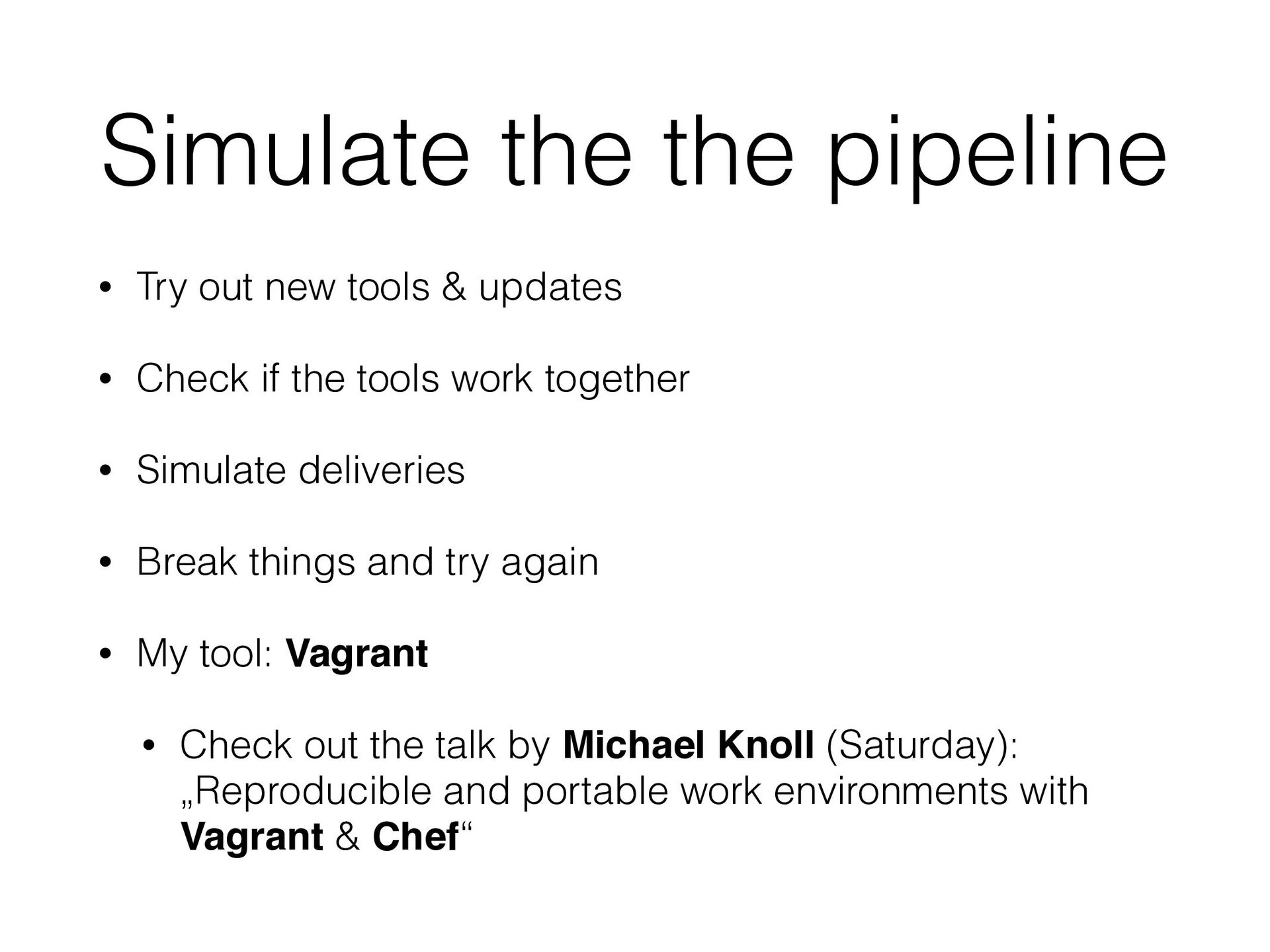

19. Simulate the the pipeline • Try out new tools & updates • Check if the tools work together • Simulate deliveries • Break things and try again • My tool: Vagrant • Check out the talk by Michael Knoll (Saturday): „Reproducible and portable work environments with Vagrant & Chef“

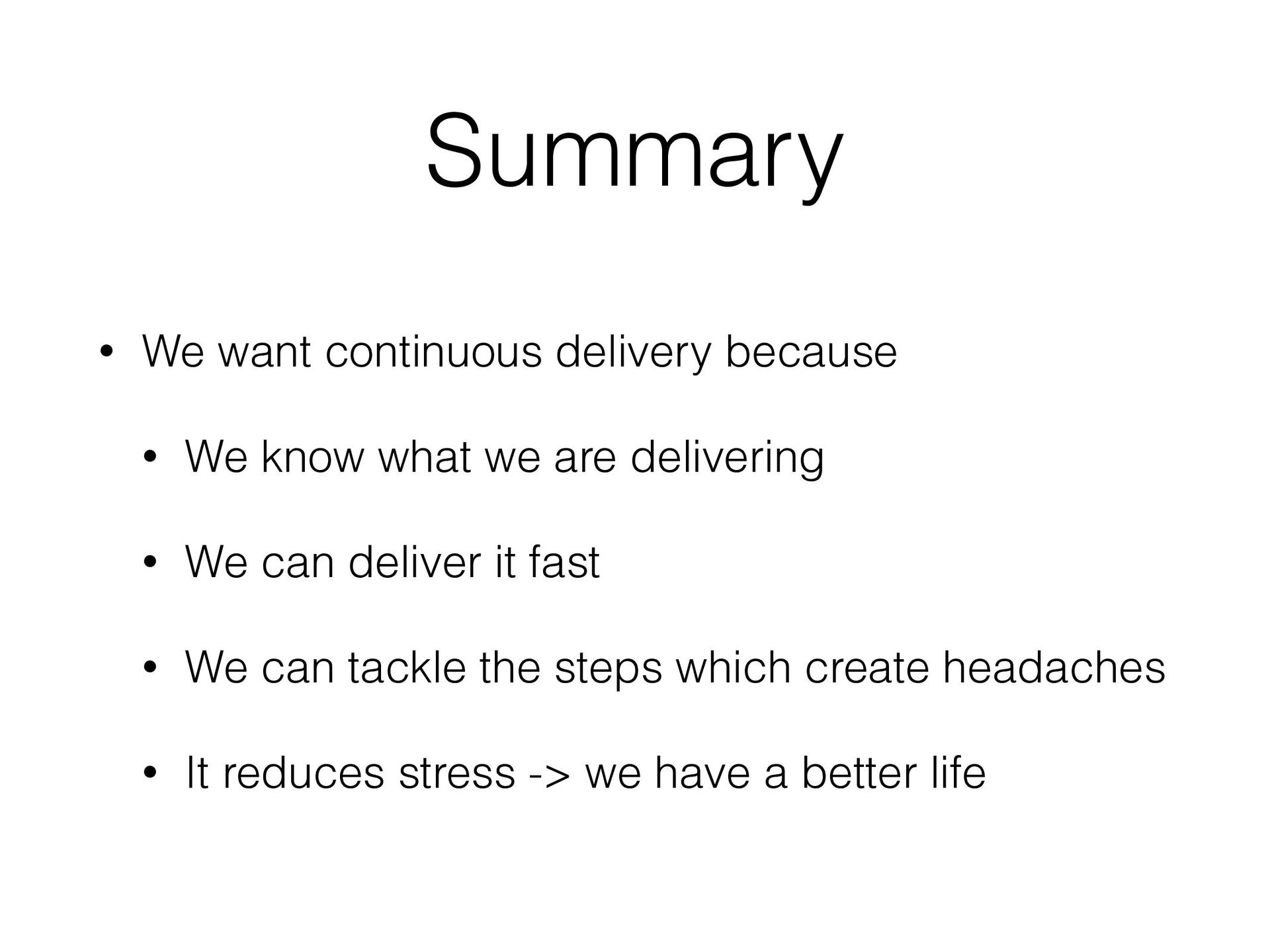

20. Summary • We want continuous delivery because • We know what we are delivering • We can deliver it fast • We can tackle the steps which create headaches • It reduces stress -> we have a better life

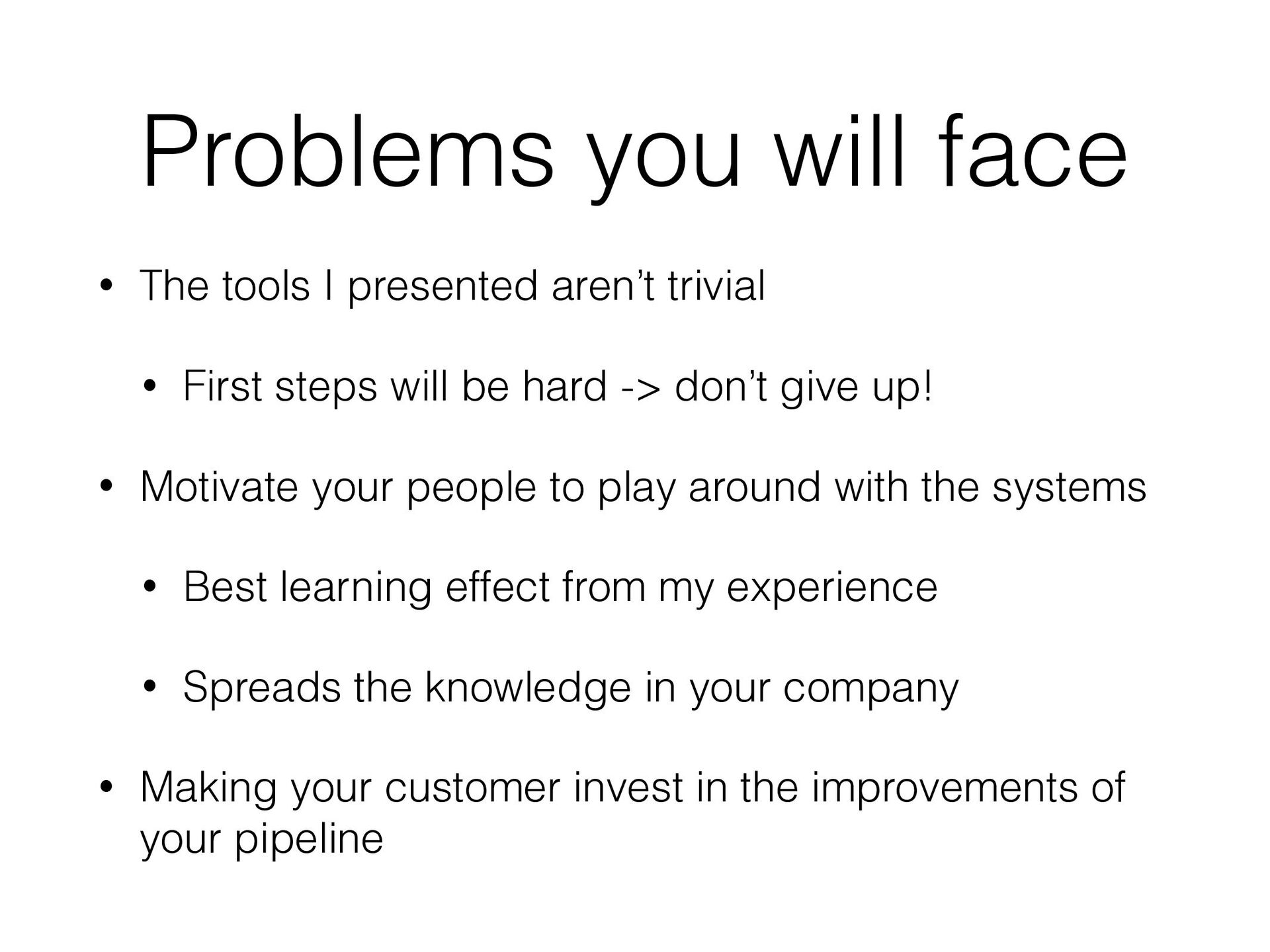

21. Problems you will face • The tools I presented aren’t trivial • First steps will be hard -> don’t give up! • Motivate your people to play around with the systems • Best learning effect from my experience • Spreads the knowledge in your company • Making your customer invest in the improvements of your pipeline

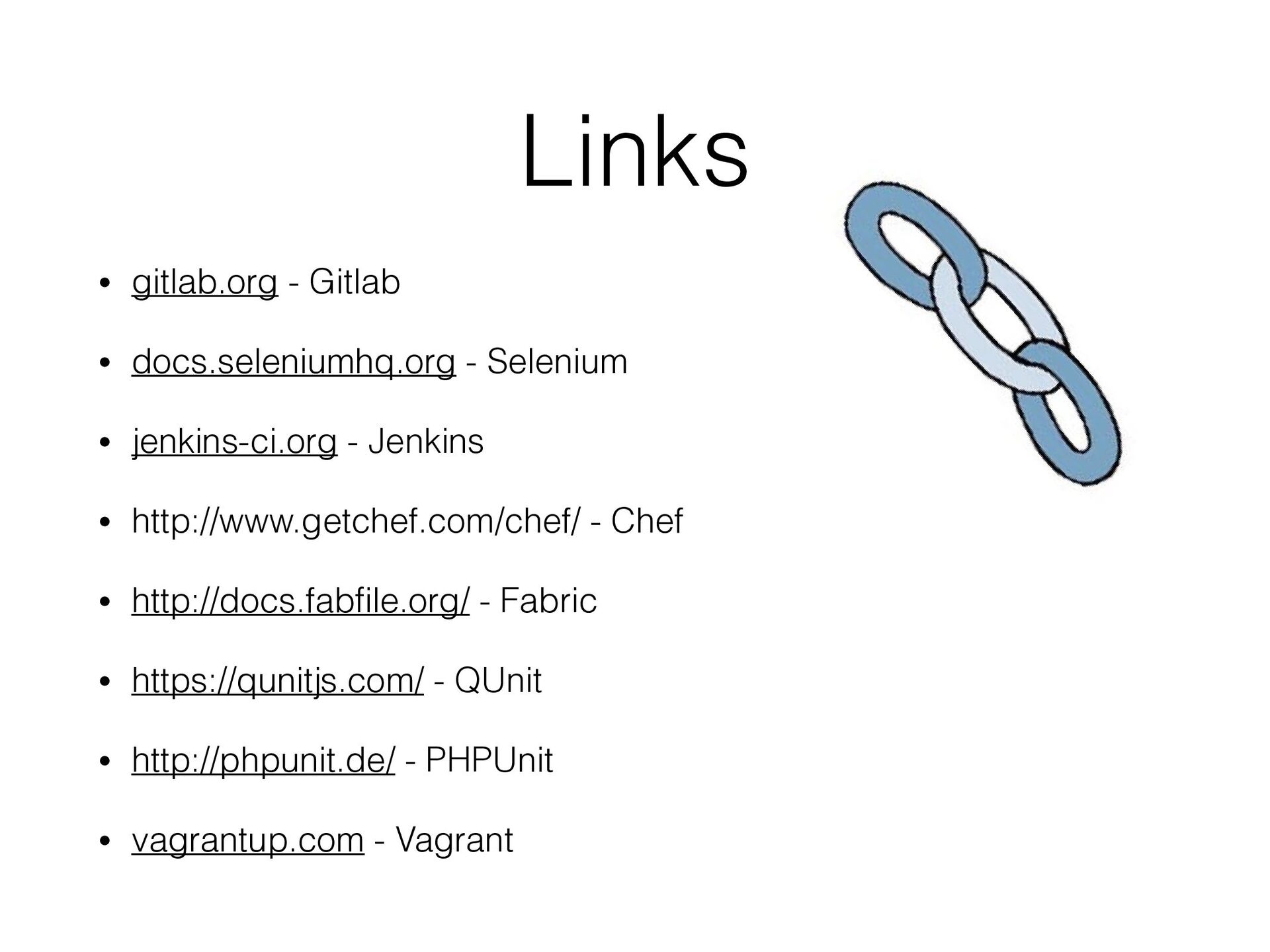

22. Links • gitlab.org - Gitlab • docs.seleniumhq.org - Selenium • jenkins-ci.org - Jenkins • http://www.getchef.com/chef/ - Chef • http://docs.fab fi le.org/ - Fabric • https://qunitjs.com/ - QUnit • http://phpunit.de/ - PHPUnit • vagrantup.com - Vagrant

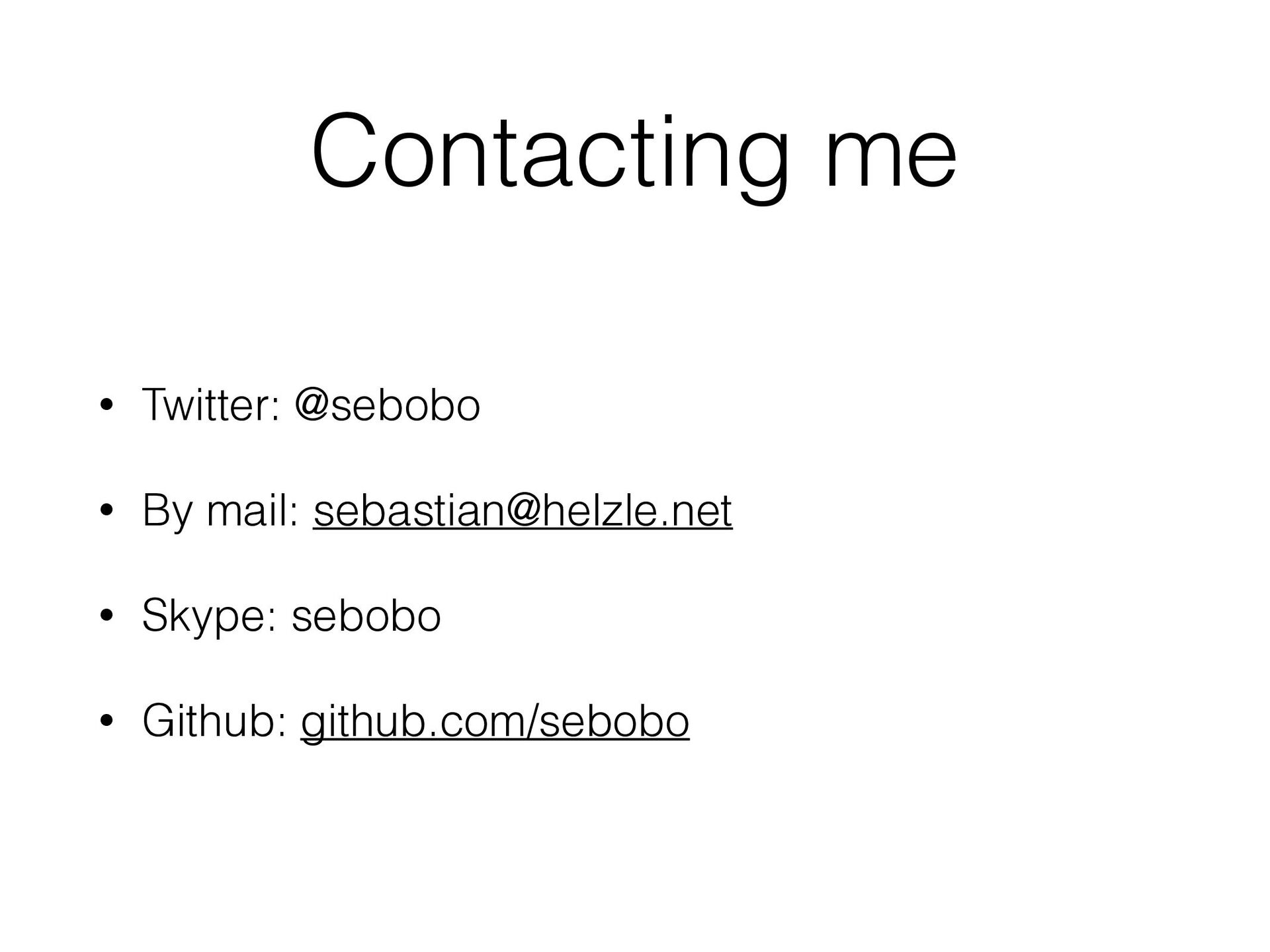

23. Contacting me • Twitter: @sebobo • By mail: sebastian@helzle.net • Skype: sebobo • Github: github.com/sebobo
24. Thank you! Any questions left?
