A Multi-layered Context Modelling Approach for End Users, Expert Users and Programmers

Presentation given at SERVE 2016, International Workshop on Smart Ecosystems cReation by Visual dEsign, Bari, Italy.

ABSTRACT: Context awareness plays an important role in smart environments and embedded interactions. In order to increase user satisfaction and acceptance, context-aware solutions should be controllable by end users. Over the last few years we have therefore witnessed an emerging trend of visual programming tools for context-aware applications based on simple "if this then that" rules. Unfortunately, existing solutions do not support the easy reuse of the "this" part in other rules. Further, the desired level of control varies among individuals. In order to let users choose the right level of automation and control, we propose a multi-layered context modelling approach distinguishing between end users, expert users and programmers. We report on our ongoing development of the Context Modelling Toolkit (CMT) consisting of the necessary context modelling concepts as well as a rule-based context processing engine. We further discuss an initial design of the graphical user interface for the presented multi-layered context modelling approach.

Research paper: https://beatsigner.com/publications/a-multi-layered-context-modelling-approach-for-end-users-expert-users-and-programmers.pdf

Transcript

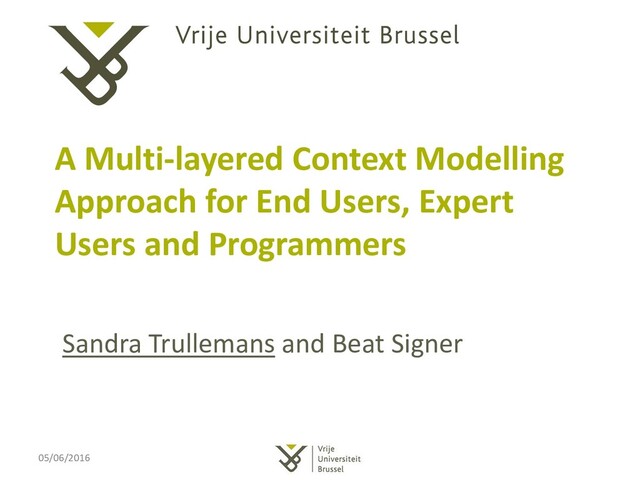

1. A Multi-layered Context Modelling
   Approach for End Users, Expert
   Users and Programmers
   Sandra Trullemans and Beat Signer
   05/06/2016


   View Slide

2. IF situation THEN action
   Smart Homes
   Digital Homes
   IF THEN
   I Sleep
   IF THEN
   Message in meeting
   Situation
   Situation


   View Slide

3. Where We Can do Better
   • Sensor-level knowledge required
   • Hard for complex situations


   View Slide

4. Rules in Practise
   End User
   Programmer


   View Slide

5. Multi-layered Modelling Approach
   End User Expert User Programmer


   View Slide

6. Collaboration
   +
   Reusing Situations Templates


   View Slide

7. Reuse of Situations
   IF THEN
   I Sleep
   IF THEN
   I Sleep
   Situation
   Situation


   View Slide

8. Situation Rules
   IF THEN
   I Sleep
   IF THEN
   Situation
   Situation
   I Sleep


   View Slide

9. Collaboration
   +
   Reusing Situations Templates


   View Slide

10. Templates
    IF THEN
    Someone is Sleeping
    A Time A Bed A Room A State
    Situation


    View Slide

11. Filling In a Template
    IF THEN
    Someone is Sleeping
    A Time A Bed A Room A State
    20:00 Her Bed Her Bedroom ON


    View Slide

12. Multi-Layered Context Modelling
    Facts Actions
    Situations
    Rules
    Tool Rule
    Templates
    Functions
    Filled in
    Template
    Situations
    End User
    Expert User
    Programmer


    View Slide

13. Creation of a Template


    View Slide

14. Adding IF Statements


    View Slide

15. To Fill In by End User


    View Slide

16. Situations on the IF side


    View Slide

17. New Situation on THEN side


    View Slide

18. Filling In a Template


    View Slide

19. Selecting the Bed


    View Slide

20. Entering the Hour


    View Slide

21. Labelling the New Situation


    View Slide

22. Reuse the Template


    View Slide

23. Making Context Rules


    View Slide

24. Adding an Action


    View Slide

25. Lessons Learned
    • Level of abstraction is too high
    • Importance of intelligibility


    View Slide

26. Takeaway Message
    Reusing Situations
    Templates
    End User
    Expert User
    Programmer


    View Slide

27. Open Questions
    • Level of abstraction and intelligibility
    • Managing situations
    • Guiding end users


    View Slide
