  1. 2 December 2005
    Information Visualisation
    Analysis and Validation
    Prof. Beat Signer
    Department of Computer Science
    Vrije Universiteit Brussel
    beatsigner.com

    View Slide

  2. Beat Signer - Department of Computer Science - [email protected] 2
    March 9, 2023
    Four Nested Levels of Vis Design

    View Slide

  3. Beat Signer - Department of Computer Science - [email protected] 3
    March 9, 2023
    Validation
    ▪ Huge vis design space and most designs are ineffective
    ▪ Validate choices right from the beginning of the design
    process
    ▪ top-down design (problem-driven work)
    - start at top situation domain level
    - major challenge at data/task abstraction; mainly use existing idioms
    ▪ bottom up design (technique-driven work)
    - invention of new idioms or algorithms
    ▪ Independently validate all four levels of the design
    ▪ domain validation
    ▪ abstraction validation (what and why)
    ▪ idiom validation (how)
    ▪ algorithm validation

    View Slide

  4. Beat Signer - Department of Computer Science - [email protected] 4
    March 9, 2023
    Four Nested Levels of Vis Design
    ▪ Output from upstream level is input to downstream level
    ▪ errors at upstream levels propagate to downstream levels
    ▪ highly iterative design process

    View Slide

  5. Beat Signer - Department of Computer Science - [email protected] 5
    March 9, 2023
    Domain Situation
    ▪ A domain situation is defined by
    ▪ target users
    ▪ domain of interest of target users
    - each domain might have its own vocabulary
    ▪ data of target users
    ▪ questions (tasks) of target users
    ▪ Outcome of design process
    ▪ understanding of user needs (user-centred design)
    - e.g. via observations or interviews
    ▪ Challenges and risks
    ▪ users can often not clearly specify their analysis needs
    ▪ designers make assumptions (rather than engaging with users)

    View Slide

  6. Beat Signer - Department of Computer Science - [email protected] 6
    March 9, 2023
    Data & Task Abstraction
    ▪ Abstract from answers to domain-specific questions
    at upstream to a generic representation
    ▪ questions from different domain situations can map to same
    abstract vis tasks
    - e.g. browsing, comparing or summarising
    ▪ Design abstract data
    ▪ data from upstream is often transformed to something different
    ▪ determine which data type supports a visual representation that
    addresses a user's problem

    View Slide

  7. Beat Signer - Department of Computer Science - [email protected] 7
    March 9, 2023
    Visual Encoding & Interaction Idiom
    ▪ Specific way (idiom) to create and manipulate
    the visual representation of abstract data
    ▪ visual encoding idiom
    - create a "picture" out of the data (what do users see?)
    ▪ interaction idiom
    - how do users change what they see?
    ▪ Design space of the combination of visual encoding and
    interaction idioms is very large
    ▪ data and task abstractions help to reduce the number of potential
    visual encoding and interaction idioms
    ▪ decision about good or bad matches based on human abilities
    (visual perception and memory)

    View Slide

  8. Beat Signer - Department of Computer Science - [email protected] 8
    March 9, 2023
    Word Tree Example

    View Slide

  9. Beat Signer - Department of Computer Science - [email protected] 9
    March 9, 2023
    Algorithm
    ▪ Implementation of visual encoding and interaction idioms
    ▪ can design different algorithms to realise the same idiom
    ▪ Various factors might impact the choice of a specific
    algorithm
    ▪ computational complexity (performance)
    ▪ memory usage
    ▪ level of match with visual encoding idiom
    ▪ Separate algorithm design (computational issues) from
    idiom design (human perception issues)

    View Slide

  10. Beat Signer - Department of Computer Science - [email protected] 10
    March 9, 2023
    Threats to Validity
    ▪ Each design level has their own threats to validity
    ▪ wrong problem, wrong abstraction, wrong idiom or wrong algorithm

    View Slide

  11. Beat Signer - Department of Computer Science - [email protected] 11
    March 9, 2023
    Validation Approaches

    View Slide

  12. Beat Signer - Department of Computer Science - [email protected] 12
    March 9, 2023
    Validation Approaches …
    ▪ Can perform an immediate or downstream validation
    ▪ downstream dependencies add to the difficulty of validation
    - e.g. poor algorithm design may have a negative effect when validating
    an interaction technique
    ▪ use of mock-ups for early downstream evaluation
    ▪ Mismatches
    ▪ mismatch between the level at which the benefit is claimed and
    the chosen validation methodology
    - e.g. benefit of new visual encoding idiom cannot be validated by measuring the
    performance of the algorithm used downstream
    ▪ carefully select the subset of validation methods matching
    the levels of design where contributions are claimed

    View Slide

  13. Beat Signer - Department of Computer Science - [email protected] 13
    March 9, 2023
    Domain Validation
    ▪ A field study can help to validate that we are going
    to address real user needs
    ▪ observe people in real-world settings
    ▪ semi-structured interviews (e.g. contextual inquiry)
    ▪ Downstream validation can for example investigate a
    solution's adoption rate by the target audience
    ▪ see what target users do (without bringing them into a lab)

    View Slide

  14. Beat Signer - Department of Computer Science - [email protected] 14
    March 9, 2023
    Abstraction Validation
    ▪ Identified task abstraction and data abstraction might
    not solve the target audience's problems
    ▪ Downstream validation includes testing the solution with
    members of the target audience
    ▪ anecdotal (qualitative) feedback whether the tool is useful
    ▪ field study to observe and document how the target audience
    uses the tool in their real-world workflow
    - observe changes in behaviour rather than documenting existing work practices

    View Slide

  15. Beat Signer - Department of Computer Science - [email protected] 15
    March 9, 2023
    Idiom Validation
    ▪ Justify the design of the idiom with respect to known
    perceptual and cognitive principles
    ▪ Heuristic evaluation or expert reviews may be used to
    ensure that no known guidelines are violated
    ▪ Downstream validation
    ▪ controlled experiments in a lab setting (lab study)
    - controlled experiments for testing the performance of specific idioms
    - measure time and errors for given tasks
    ▪ presentation and qualitative discussion of results
    - show images or videos of the solution to the target audience
    ▪ quantitative measurement of resulting visualisations (quality metrics)
    such as the number of edge crossings for node-link graph
    ▪ usability studies

    View Slide

  16. Beat Signer - Department of Computer Science - [email protected] 16
    March 9, 2023
    Algorithm Validation
    ▪ Analyse computational complexity of algorithms
    ▪ number of items in the dataset, number of pixels, …
    ▪ Downstream validation
    ▪ execution time
    ▪ memory consumption
    ▪ scalability
    ▪ Correctness of algorithm
    ▪ does implementation meet the idiom specification
    ▪ Standard benchmarks might help to compare algorithms

    View Slide

  17. Beat Signer - Department of Computer Science - [email protected] 17
    March 9, 2023
    MatrixExplorer

    View Slide

  18. Beat Signer - Department of Computer Science - [email protected] 18
    March 9, 2023
    MatrixExplorer Validation Methods

    View Slide

  19. Beat Signer - Department of Computer Science - [email protected] 19
    March 9, 2023
    Genealogical Graphs

    View Slide

  20. Beat Signer - Department of Computer Science - [email protected] 20
    March 9, 2023
    Genealogical Graphs Validation Methods

    View Slide

  21. Beat Signer - Department of Computer Science - [email protected] 21
    March 9, 2023
    Flow Maps
    Migration from California Top ten states that sent migrants to California (green)
    and to New York (blue)

    View Slide

  22. Beat Signer - Department of Computer Science - [email protected] 22
    March 9, 2023
    Flow Maps Validation Methods

    View Slide

  23. Beat Signer - Department of Computer Science - [email protected] 23
    March 9, 2023
    LiveRAC

    View Slide

  24. Beat Signer - Department of Computer Science - [email protected] 24
    March 9, 2023
    LiveRAC Validation Methods

    View Slide

  25. Beat Signer - Department of Computer Science - [email protected] 26
    March 9, 2023
    Sizing the Horizon Validation Methods

    View Slide

  26. Beat Signer - Department of Computer Science - [email protected] 27
    March 9, 2023
    Exercise 4
    ▪ Analysis and Validation

    View Slide

  27. Beat Signer - Department of Computer Science - [email protected] 28
    March 9, 2023
    Further Reading
    ▪ This lecture is mainly based on the
    book Visualization Analysis & Design
    ▪ chapter 4
    - Analysis: Four Levels for Validation

    View Slide

  28. Beat Signer - Department of Computer Science - [email protected] 29
    March 9, 2023

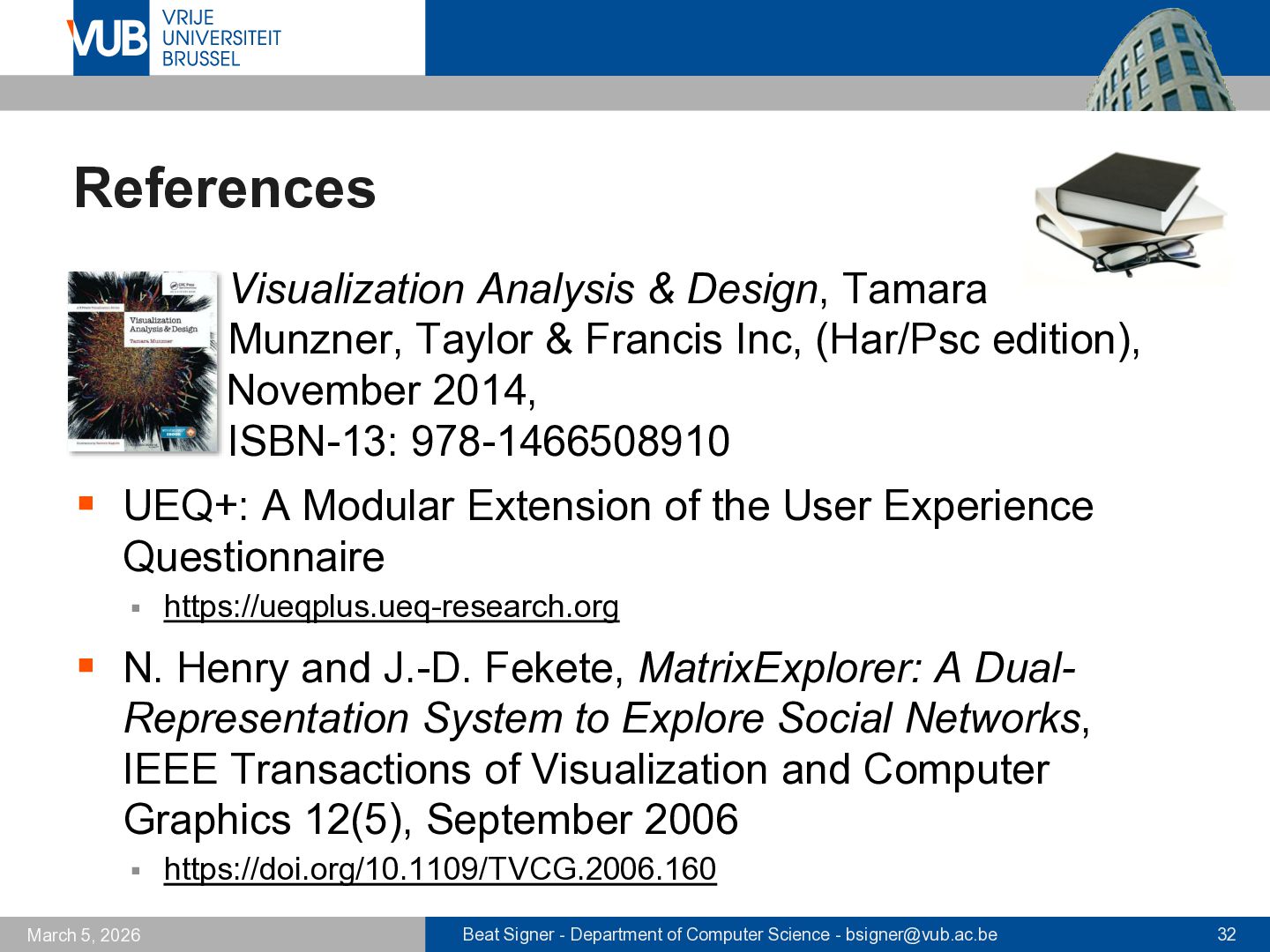

    References
    ▪ Visualization Analysis & Design, Tamara
    Munzner, Taylor & Francis Inc, (Har/Psc edition),
    May, November 2014,
    ISBN-13: 978-1466508910
    ▪ N. Henry and J.-D. Fekete, MatrixExplorer: A Dual-
    Representation System to Explore Social Networks,
    IEEE Transactions of Visualization and Computer
    Graphics 12(5), September 2006
    ▪ https://doi.org/10.1109/TVCG.2006.160

    View Slide

  29. Beat Signer - Department of Computer Science - [email protected] 30
    March 9, 2023

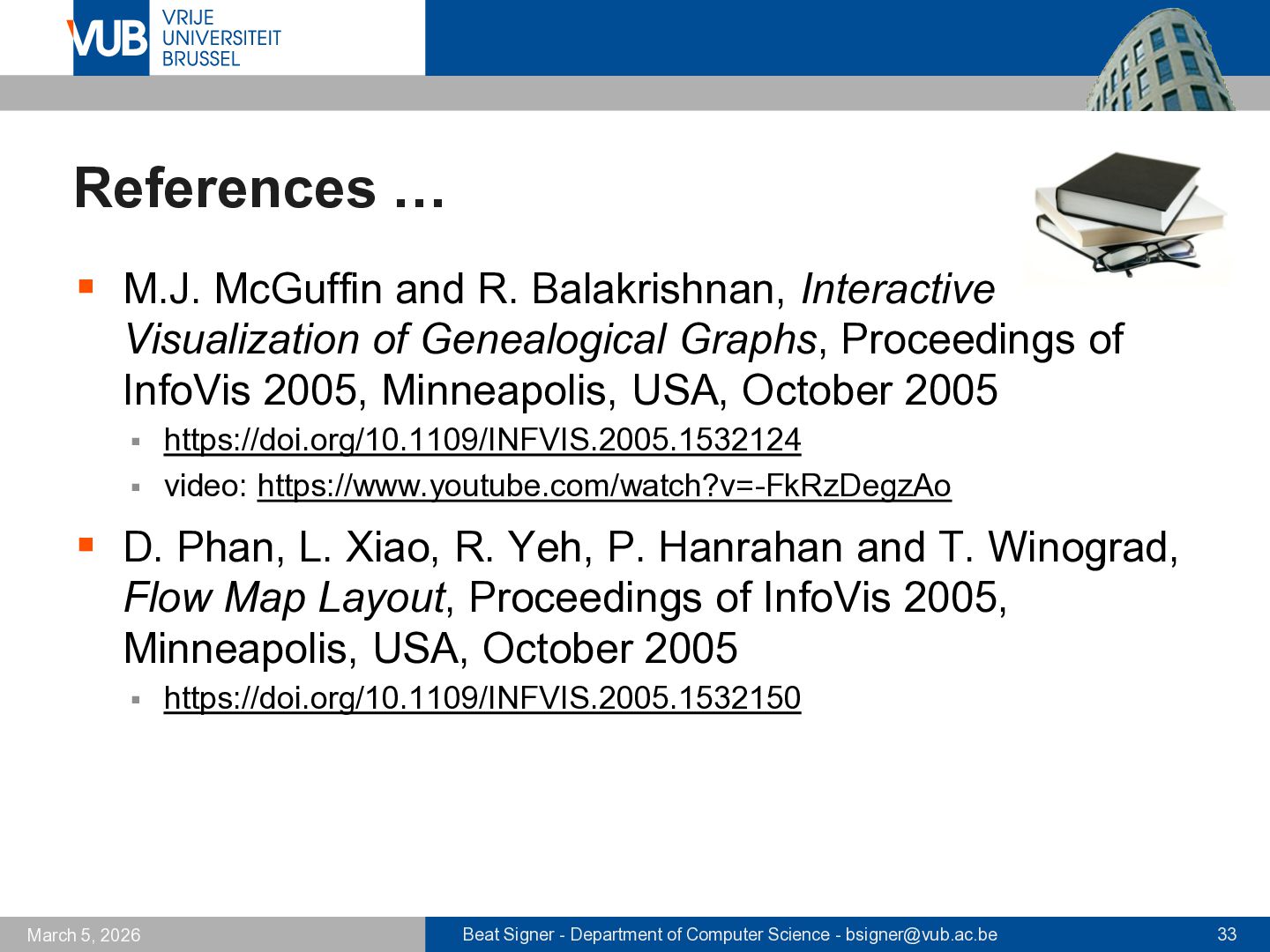

    References …
    ▪ M.J. McGuffin and R. Balakrishnan, Interactive
    Visualization of Genealogical Graphs, Proceedings of
    InfoVis 2005, Minneapolis, USA, October 2005
    ▪ https://doi.org/10.1109/INFVIS.2005.1532124
    ▪ video: https://www.youtube.com/watch?v=-FkRzDegzAo
    ▪ D. Phan, L. Xiao, R. Yeh, P. Hanrahan and T. Winograd,
    Flow Map Layout, Proceedings of InfoVis 2005,
    Minneapolis, USA, October 2005
    ▪ https://doi.org/10.1109/INFVIS.2005.1532150

    View Slide

  30. Beat Signer - Department of Computer Science - [email protected] 31
    March 9, 2023

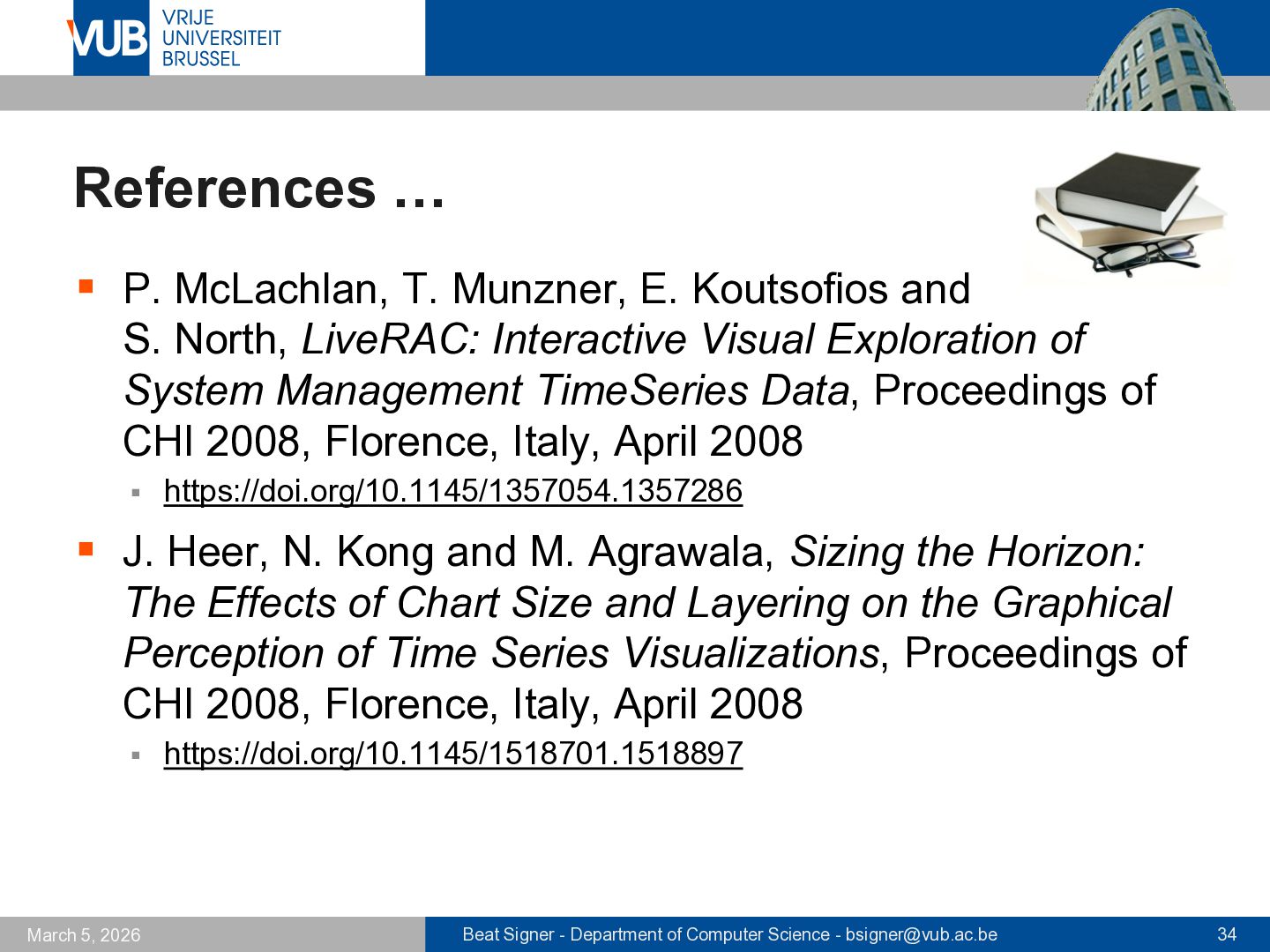

    References …
    ▪ P. McLachlan, T. Munzner, E. Koutsofios and
    S. North, LiveRAC: Interactive Visual Exploration of
    System Management TimeSeries Data, Proceedings of
    CHI 2008, Florence, Italy, April 2008
    ▪ https://doi.org/10.1145/1357054.1357286
    ▪ J. Heer, N. Kong and M. Agrawala, Sizing the Horizon:
    The Effects of Chart Size and Layering on the Graphical
    Perception of Time Series Visualizations, Proceedings of
    CHI 2008, Florence, Italy, April 2008
    ▪ https://doi.org/10.1145/1518701.1518897

    View Slide

  31. 2 December 2005

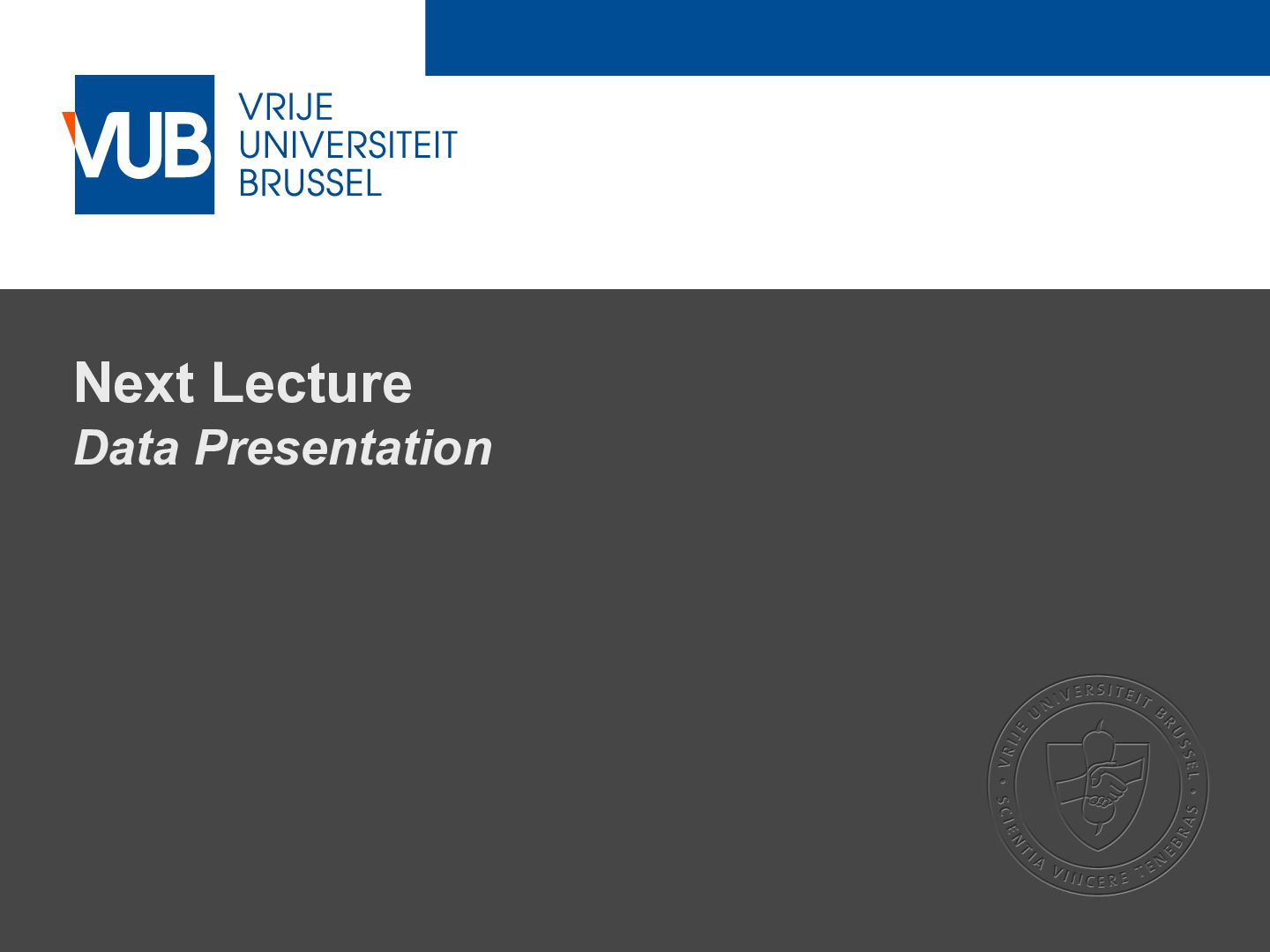

    Next Lecture
    Data Presentation

    View Slide
