Overlaying Paper Maps with Digital Information Services for Tourists

Overlaying Paper Maps with Digital Information Services for Tourists

Presentation given at ENTER 2005, 12th International Conference on Information Technology and Travel & Tourism. Innsbruck, Austria.

ABSTRACT: Despite the increasing availability of various forms of digital maps and guides, paper still prevails as the main information medium used by tourists during city visits. The authors describe how recent technologies for digitally augmented paper maps can be used to develop interactive paper maps that provide value-added services for tourists through digital overlays. An initial investigation into the use of these maps to support visitors to the Edinburgh festivals is also presented.

Research paper: https://beatsigner.com/publications/norrie_ENTER2005.pdf

Beat Signer
PRO

January 26, 2005
Tweet

More Decks by Beat Signer

Other Decks in Science

Transcript

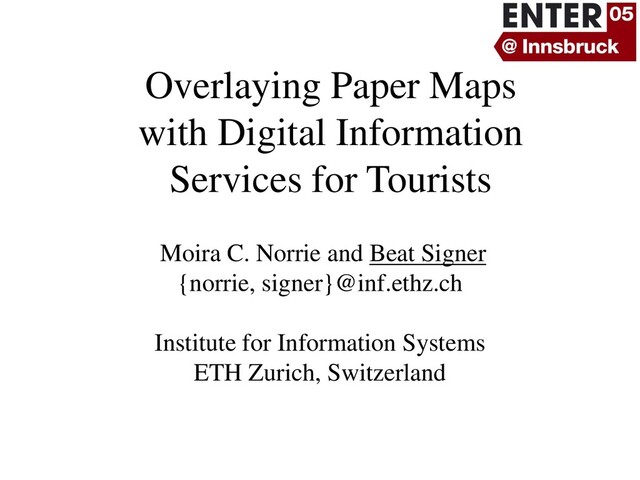

  1. Overlaying Paper Maps
    with Digital Information
    Services for Tourists
    Moira C. Norrie and Beat Signer
    {norrie, signer}@inf.ethz.ch
    Institute for Information Systems
    ETH Zurich, Switzerland

    View Slide

  2. 26.1.2005 / 12:30 ENTER 2005 Research Track 2
    Outline
    • Motivation
    • Tourists and Maps
    • Augmented Paper, Paper++
    • EdFest Prototype
    • User Trials

    View Slide

  3. 26.1.2005 / 12:30 ENTER 2005 Research Track 3
    Motivation
    • Tourists at the
    Edinburgh Festivals
    • Digitally augmented
    paper brochures
    • Digital pen, voice and
    GPS as input device
    • Paper and voice as
    output device

    View Slide

  4. 26.1.2005 / 12:30 ENTER 2005 Research Track 4
    Tourists and Maps
    • Previsit
    – activity planning
    – layout and social zones of city
    • Visit
    – locator, proximity, navigation and event tasks
    • Postvisit
    – share experience with family and friends

    View Slide

  5. 26.1.2005 / 12:30 ENTER 2005 Research Track 5
    Augmented Paper, Paper++
    Transformation of positions to shapes

    View Slide

  6. 26.1.2005 / 12:30 ENTER 2005 Research Track 6
    Anoto Digital Pen

    View Slide

  7. 26.1.2005 / 12:30 ENTER 2005 Research Track 7
    Zurich City Guide
    (x,y)
    active areas layers
    user
    preferences
    context
    - location (GPS)
    - time
    - ...
    request
    P(x,y)
    city layer
    art and culture layer
    entertainment layer
    P(x,y)

    View Slide

  8. 26.1.2005 / 12:30 ENTER 2005 Research Track 8
    EdFest Components

    View Slide

  9. 26.1.2005 / 12:30 ENTER 2005 Research Track 9
    EdFest Event List
    information about event
    enter rating
     rating
    other events
    %
    find location
    other events
    link note

    View Slide

  10. 26.1.2005 / 12:30 ENTER 2005 Research Track 10
    EdFest Map

    View Slide

  11. 26.1.2005 / 12:30 ENTER 2005 Research Track 11
    User Trials

    View Slide

  12. 26.1.2005 / 12:30 ENTER 2005 Research Track 12
    User Trials ...
    • Map locator functionality
    • Event rating and reminder
    • Pointing mode of pen
    • Printed event lists
    • Voice interaction
    • Pen and earpiece using
    Bluetooth

    View Slide

  13. 26.1.2005 / 12:30 ENTER 2005 Research Track 13
    EdFest Architecture
    Nokia Digital
    Pen SU-1B
    Client
    Controller
    iServer
    (OMS Java)
    EdFestDB
    (OMSwe)
    Paper++
    Client
    Voice
    Engine
    x,y coordinates
    docID, page, (x,y) + context
    HTML
    Browser
    HTML
    HTTP request
    user interaction
    URL + context
    deliver information in
    the appropriate format
    augment with context
    Active Content Context Engine
    OMSwe
    Application DB
    Web Elements
    docID, page, (x,y)
    Link DB
    Paper Plug-in
    VoiceXML, HTML, ...
    VoiceXML, HTML, ...
    VoiceXML
    HTTP request
    user interaction
    GPS (NMEA)
    Headset
    EdFest Mobile Client
    PAN WiFi LAN/WAN
    LAN

    View Slide

  14. 26.1.2005 / 12:30 ENTER 2005 Research Track 14
    Future Work
    • Improve design of augmented documents
    • Extend EdFest architecture
    • Investigate alternative output channels
    • Further user studies in Zurich as well
    as at the Festivals in Edinburgh

    View Slide
